MAERSK ATHABASCA
9398424 | 9V6814 | MSL by ************************** Last update: Fri Sep 15 2023

General Info

Ship Name:MAERSK ATHABASCA
IMO Code:9398424
Call Sign:9V6814
Line Operator:MSL
Class Name for Sister Ships:ATHA
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,474

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

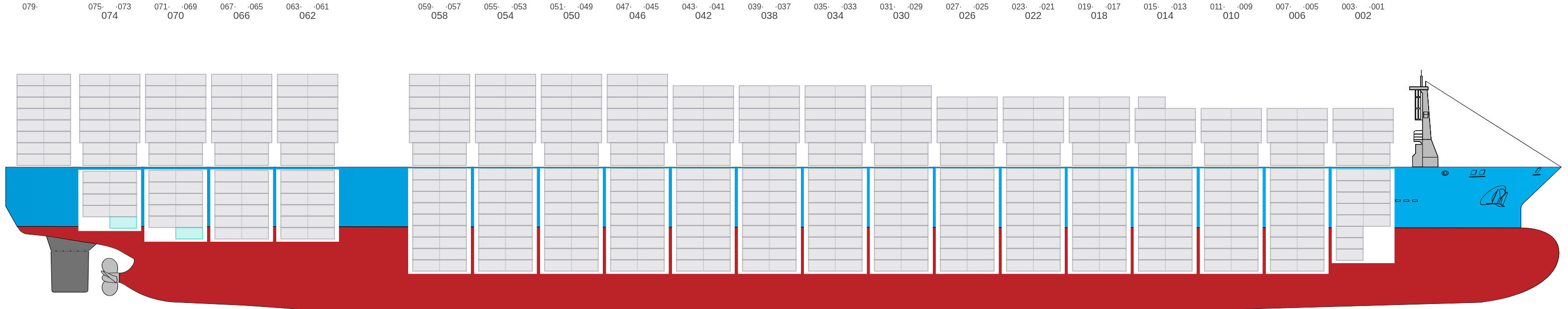

Side View

Side view of MAERSK ATHABASCA

Hatch-Covers View

Deck view of MAERSK ATHABASCA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

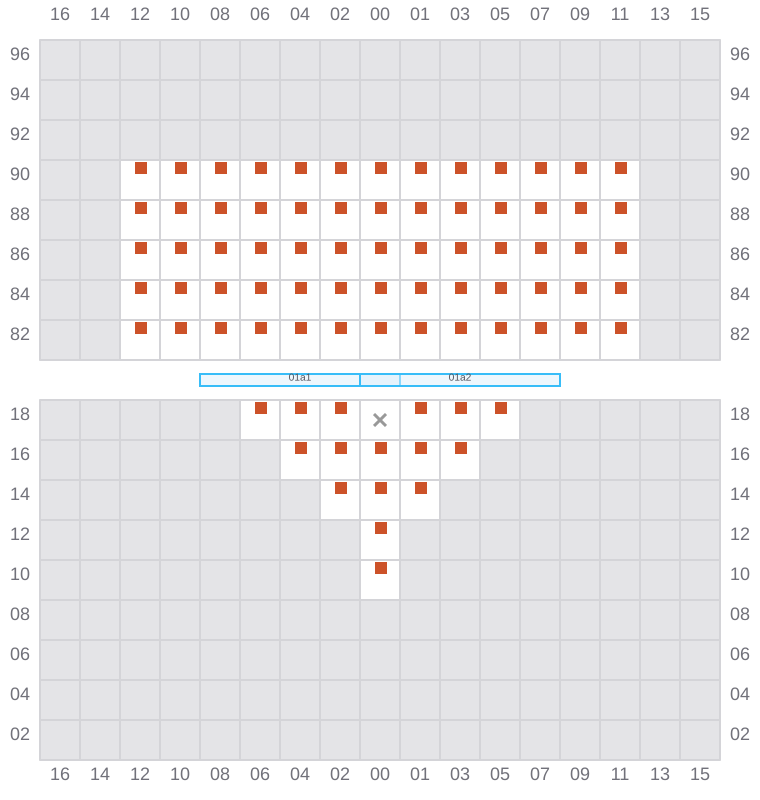

Bay 001 view and slots of MAERSK ATHABASCA

003 (002)

  • ←

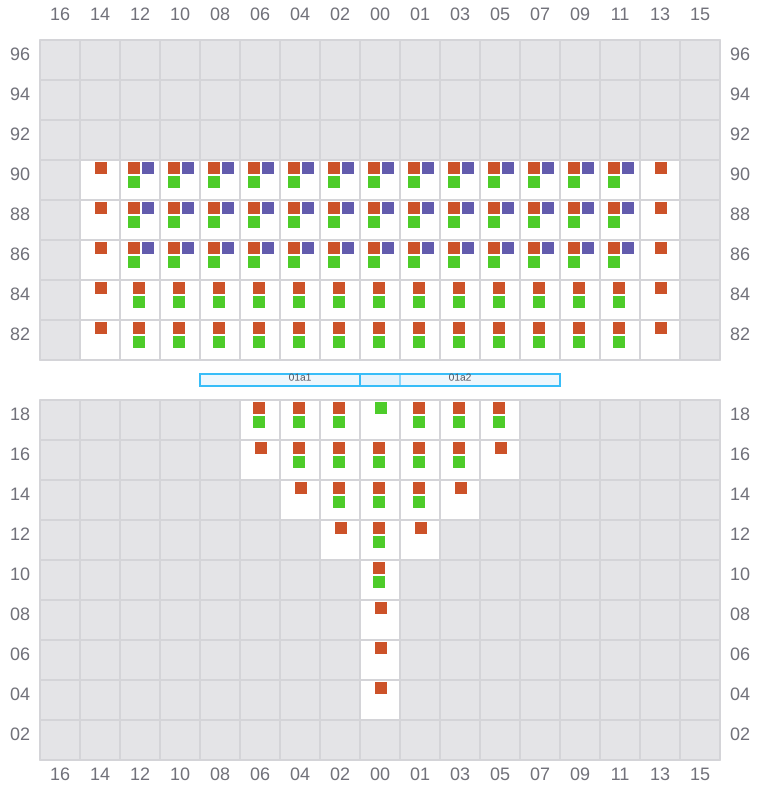

Bay 003 view and slots of MAERSK ATHABASCA

005

  • →

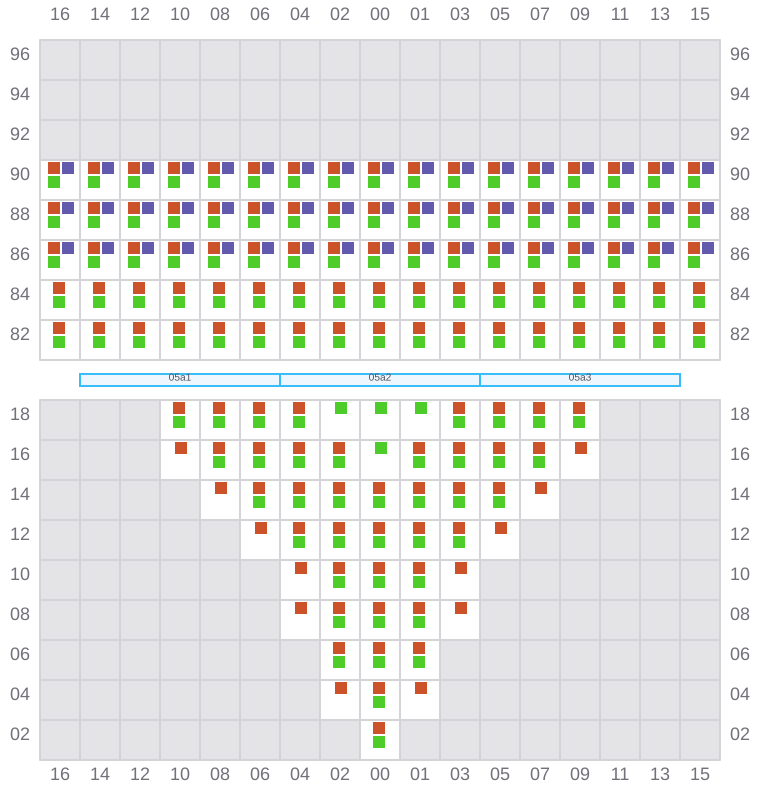

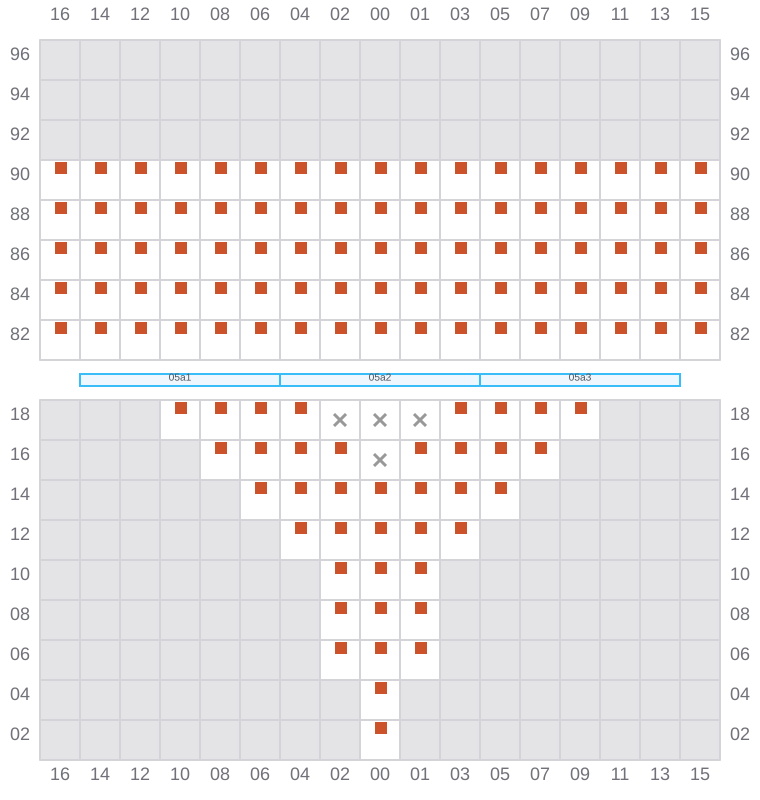

Bay 005 view and slots of MAERSK ATHABASCA

007 (006)

  • ←
Bay 007 view and slots of MAERSK ATHABASCA

009

  • →

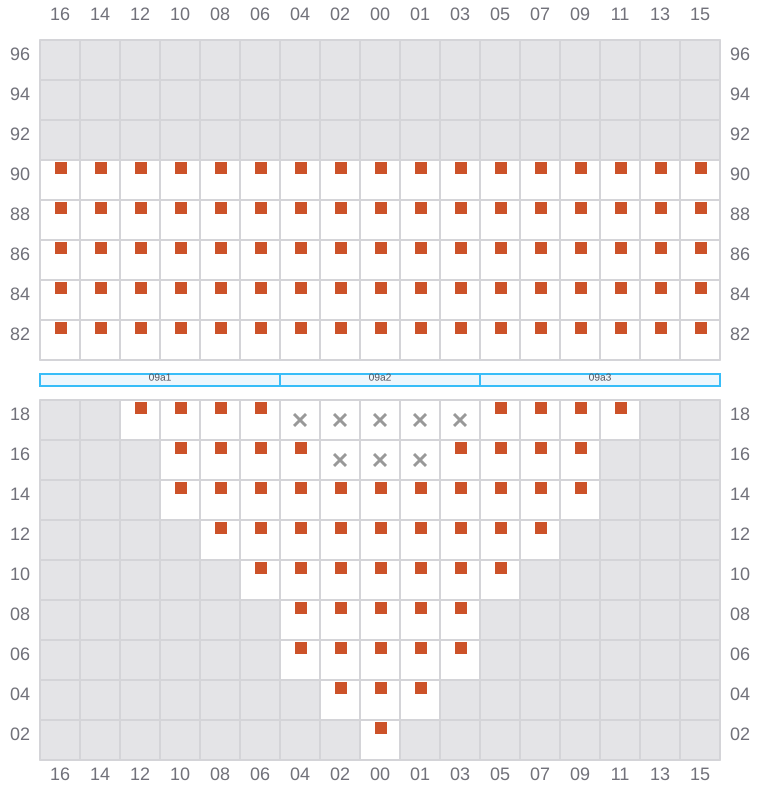

Bay 009 view and slots of MAERSK ATHABASCA

011 (010)

  • ←

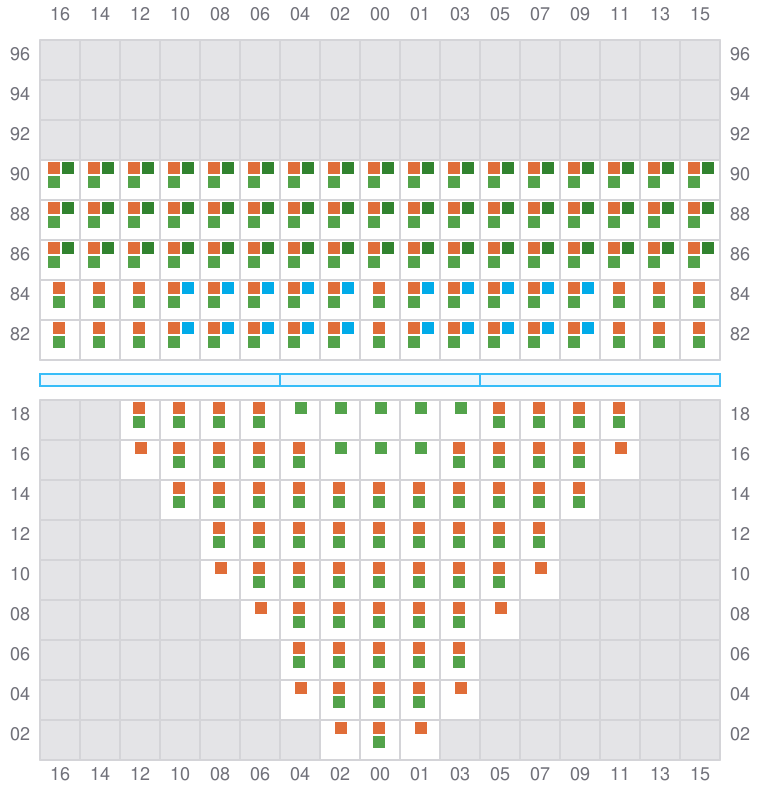

Bay 011 view and slots of MAERSK ATHABASCA

013

  • →

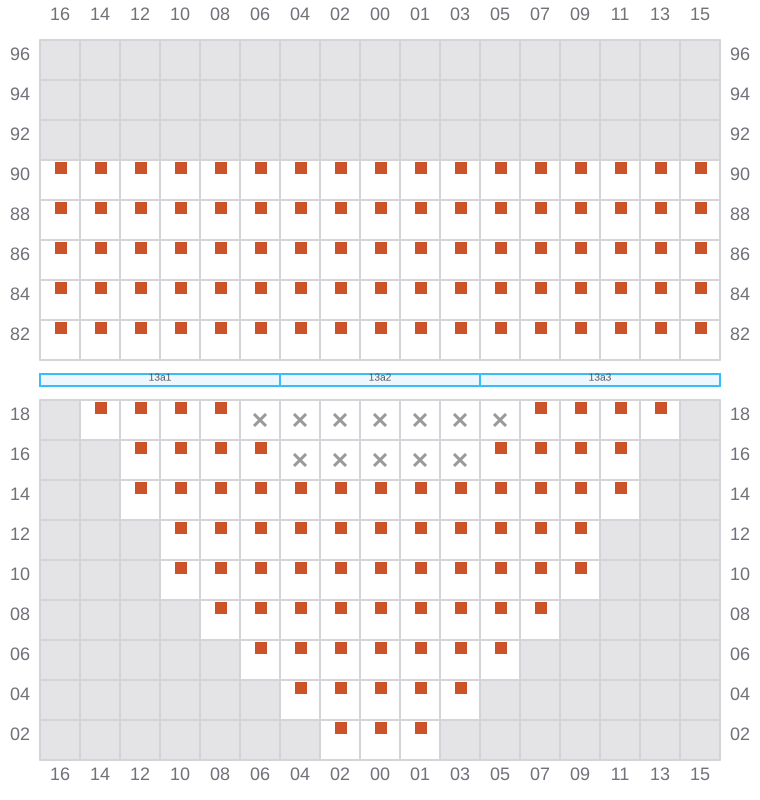

Bay 013 view and slots of MAERSK ATHABASCA

015 (014)

  • ←

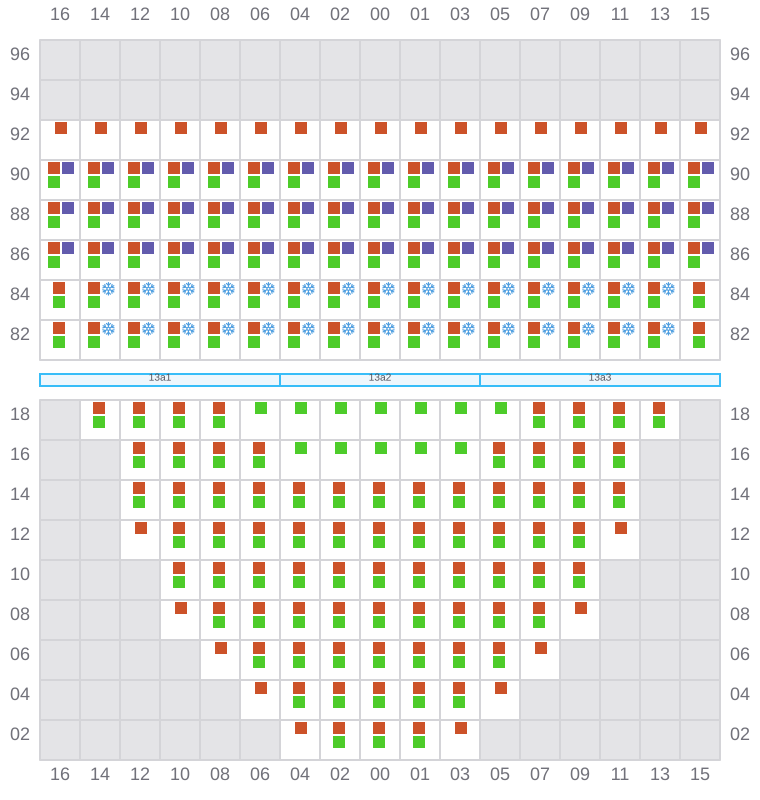

Bay 015 view and slots of MAERSK ATHABASCA

017

  • →

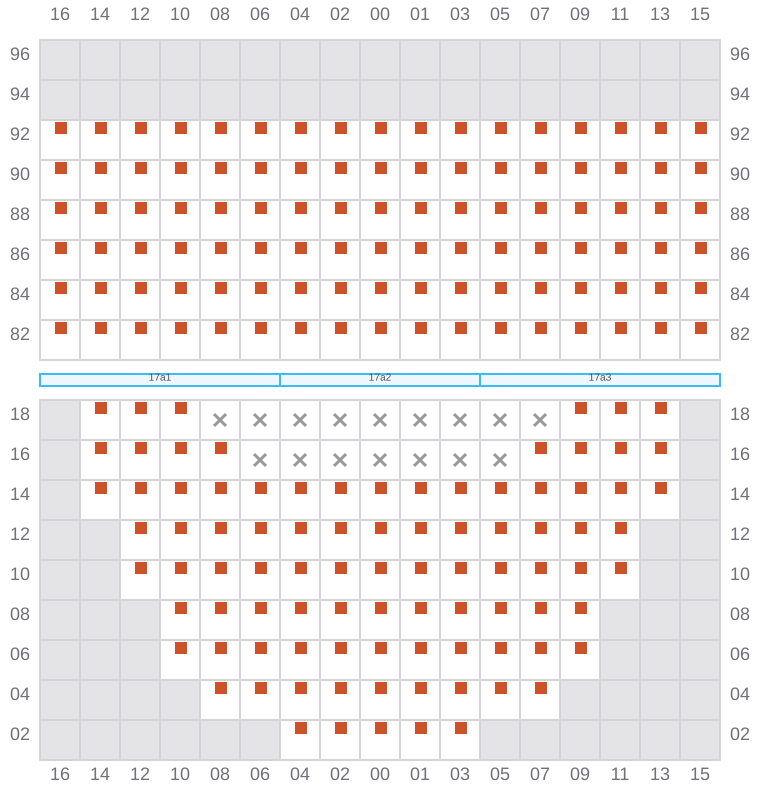

Bay 017 view and slots of MAERSK ATHABASCA

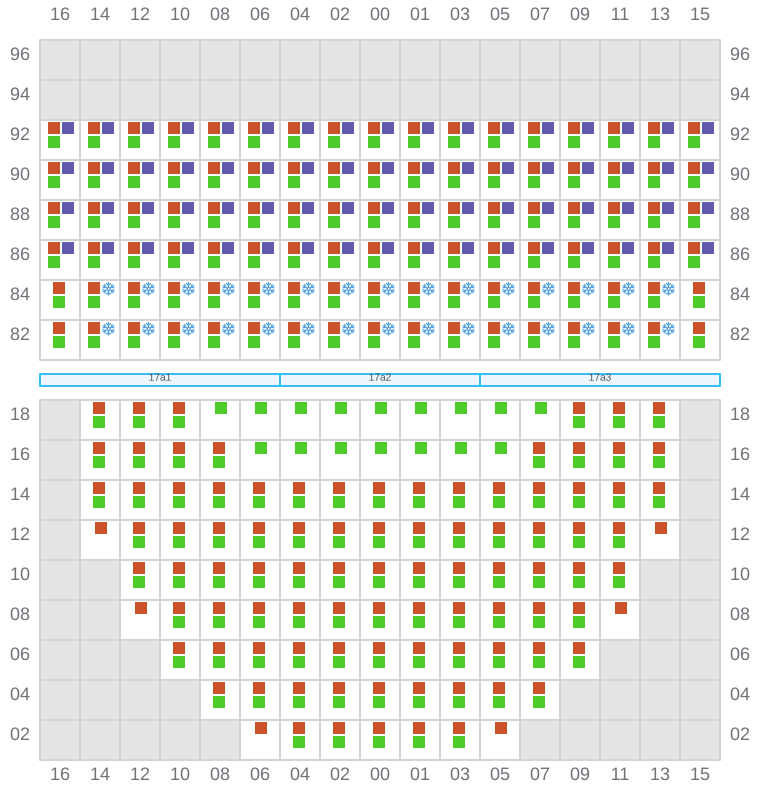

019 (018)

  • ←
Bay 019 view and slots of MAERSK ATHABASCA

021

  • →

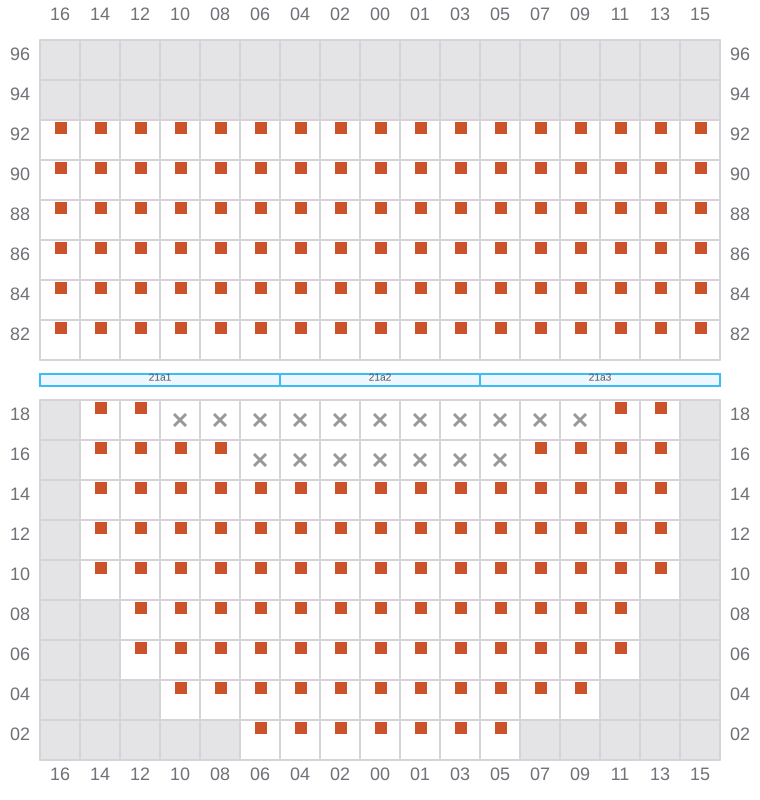

Bay 021 view and slots of MAERSK ATHABASCA

023 (022)

  • ←
Bay 023 view and slots of MAERSK ATHABASCA

025

  • →

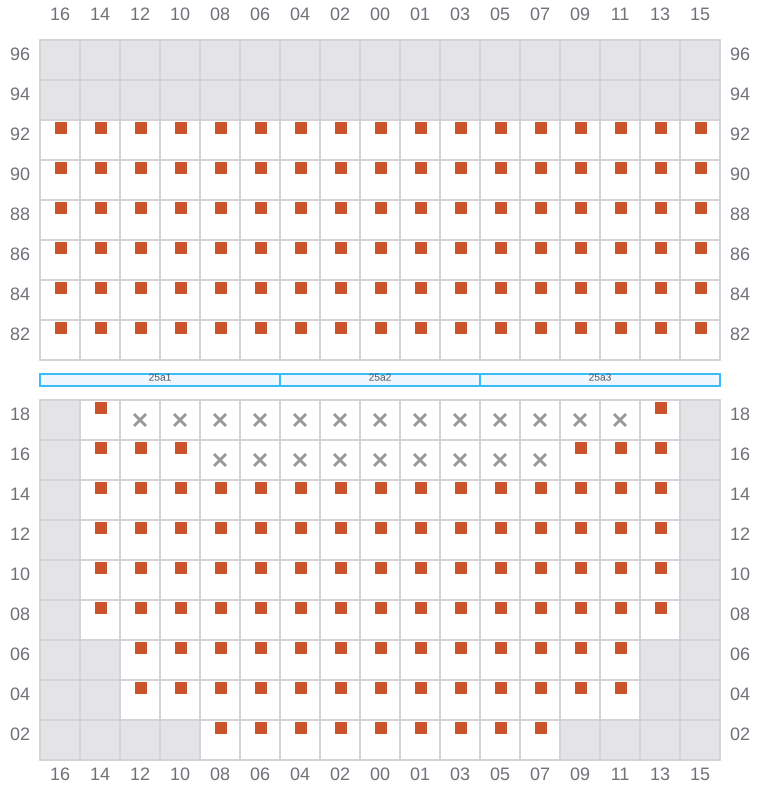

Bay 025 view and slots of MAERSK ATHABASCA

027 (026)

  • ←
Bay 027 view and slots of MAERSK ATHABASCA

029

  • →

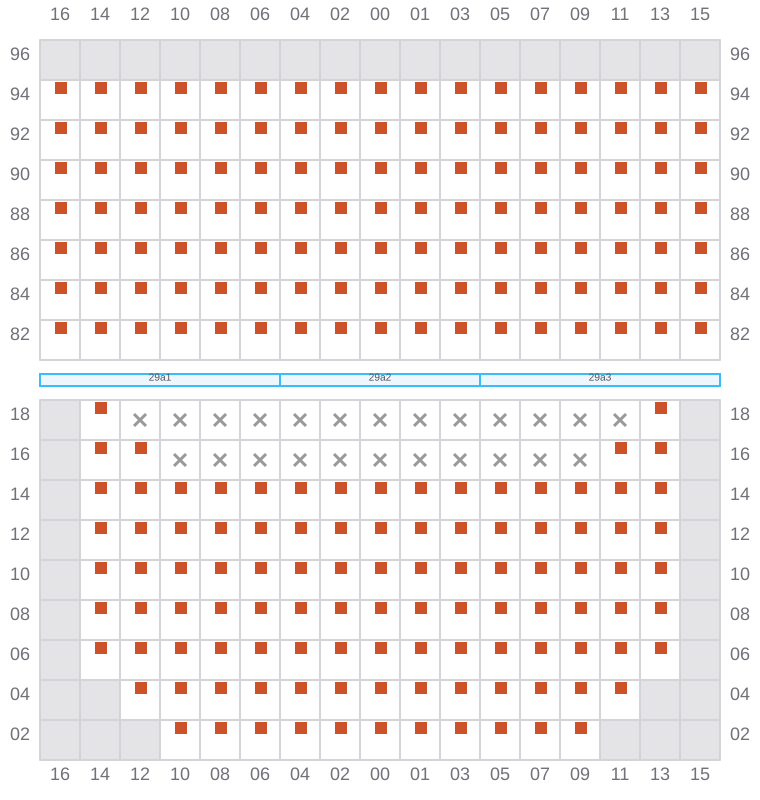

Bay 029 view and slots of MAERSK ATHABASCA

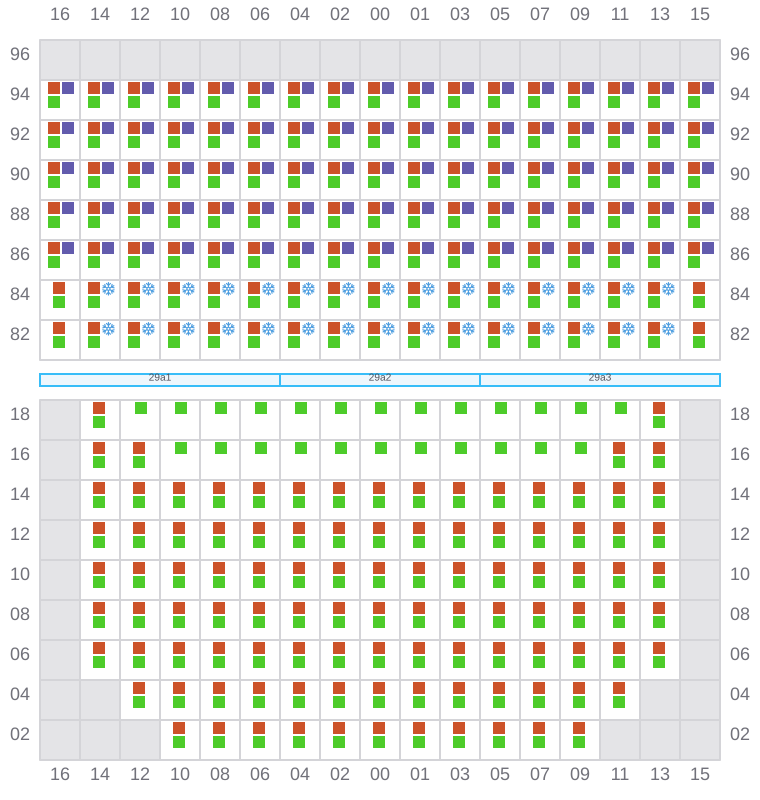

031 (030)

  • ←
Bay 031 view and slots of MAERSK ATHABASCA

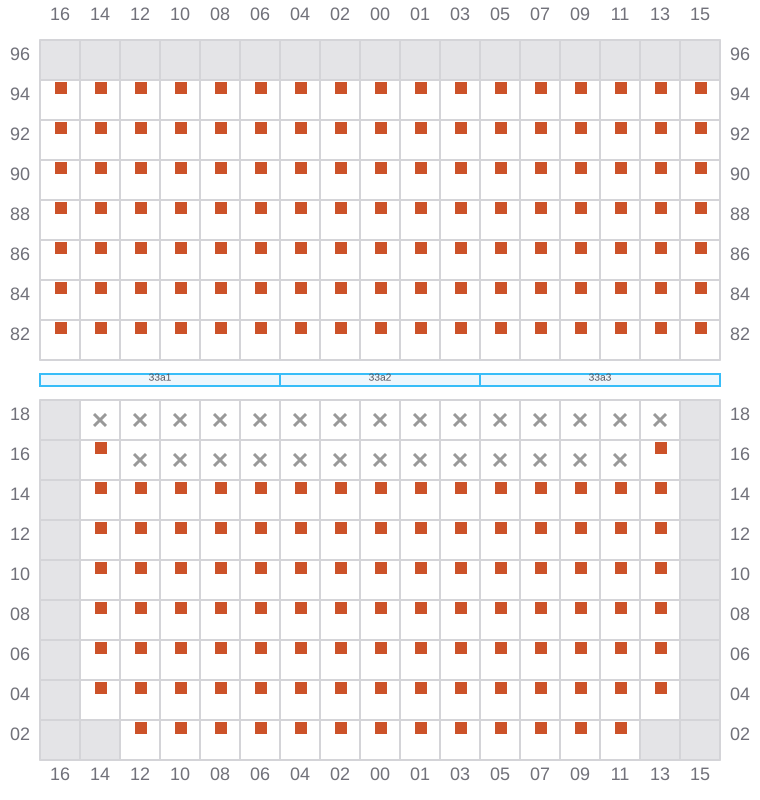

033

  • →
Bay 033 view and slots of MAERSK ATHABASCA

035 (034)

  • ←
Bay 035 view and slots of MAERSK ATHABASCA

037

  • →

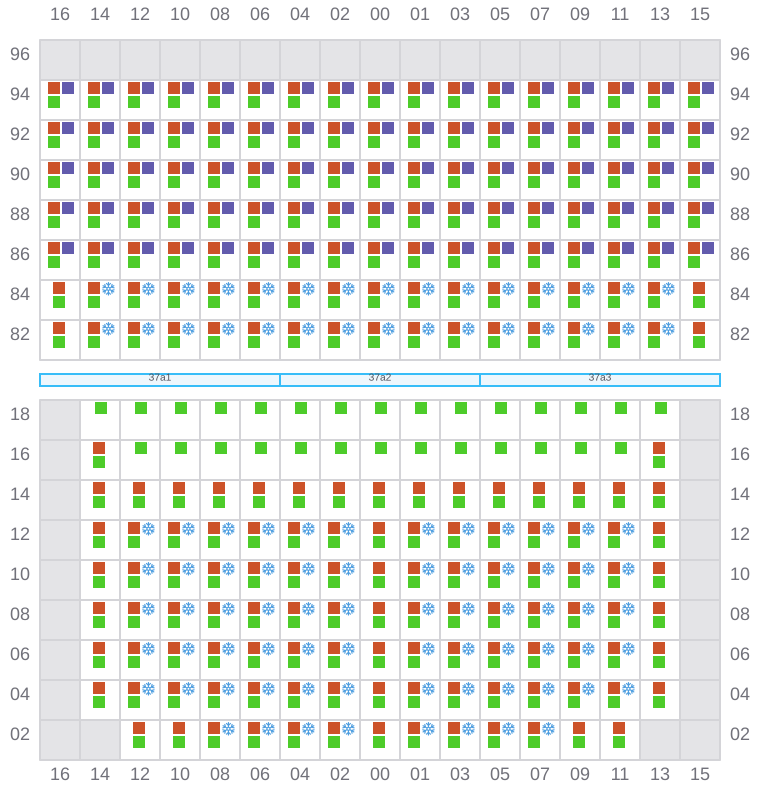

Bay 037 view and slots of MAERSK ATHABASCA

039 (038)

  • ←
Bay 039 view and slots of MAERSK ATHABASCA

041

  • →

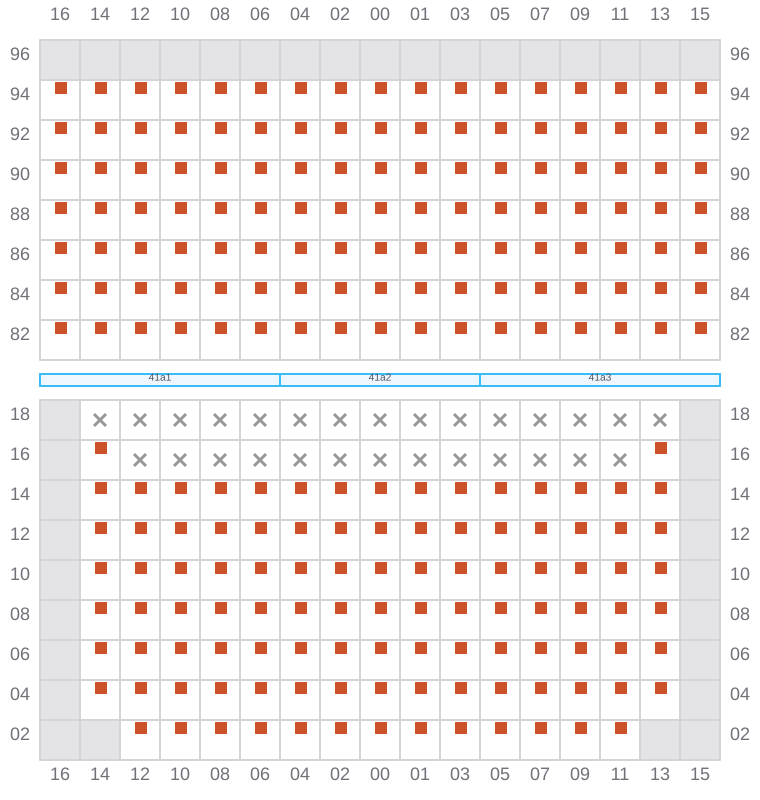

Bay 041 view and slots of MAERSK ATHABASCA

043 (042)

  • ←
Bay 043 view and slots of MAERSK ATHABASCA

045

  • →

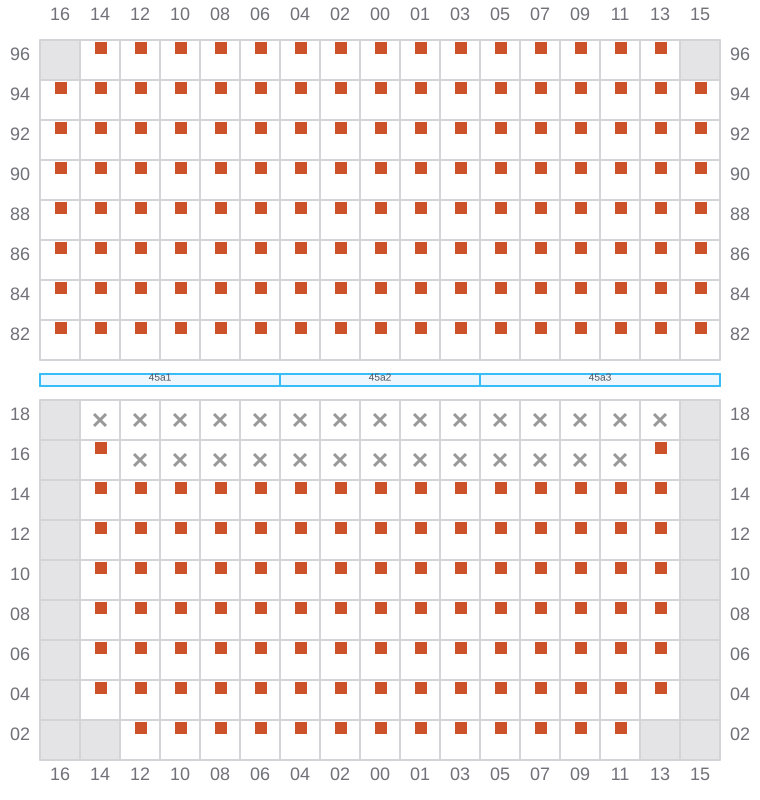

Bay 045 view and slots of MAERSK ATHABASCA

047 (046)

  • ←
Bay 047 view and slots of MAERSK ATHABASCA

049

  • →

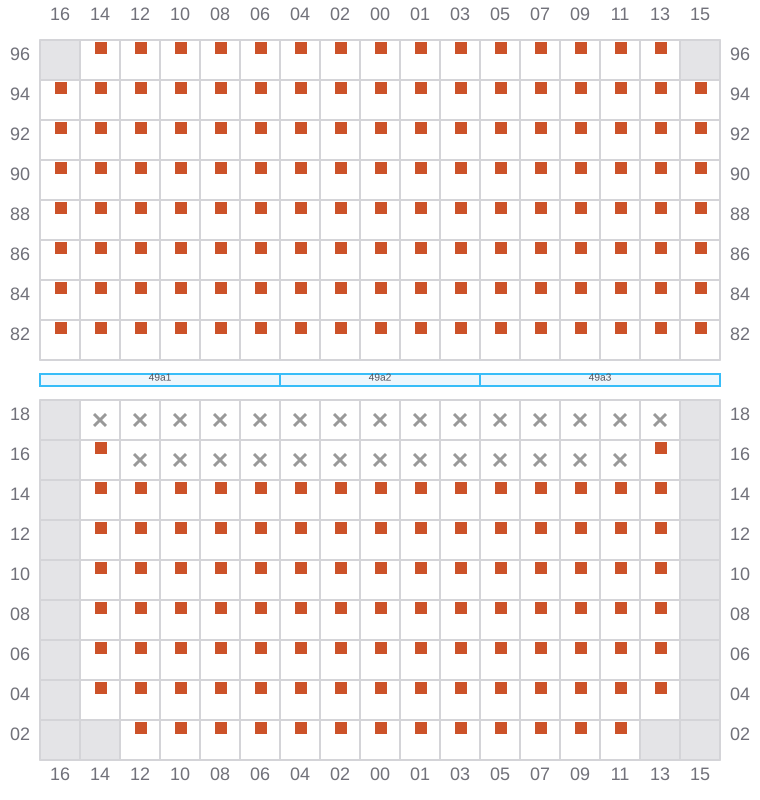

Bay 049 view and slots of MAERSK ATHABASCA

051 (050)

  • ←
Bay 051 view and slots of MAERSK ATHABASCA

053

  • →

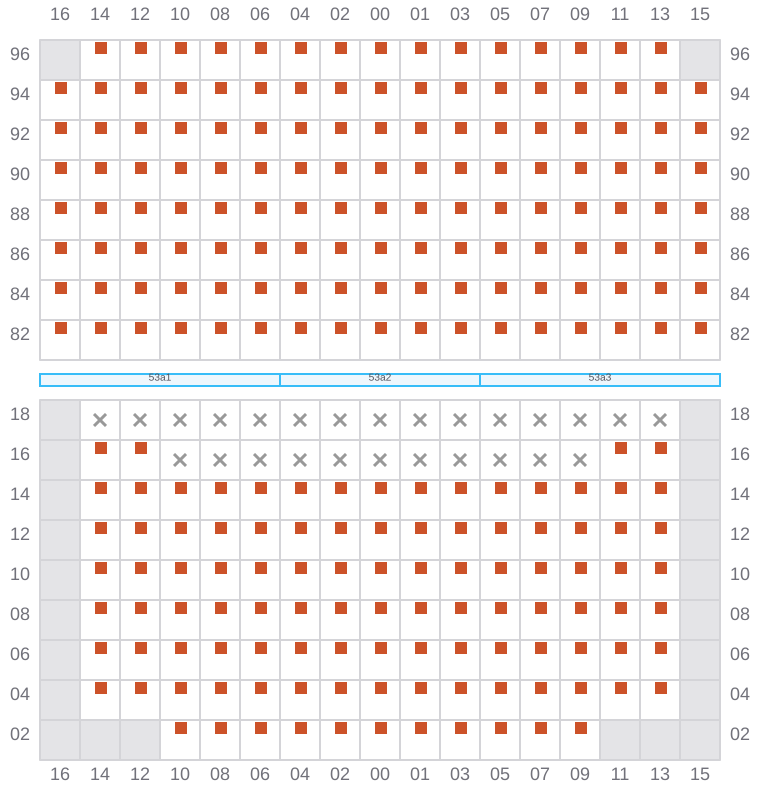

Bay 053 view and slots of MAERSK ATHABASCA

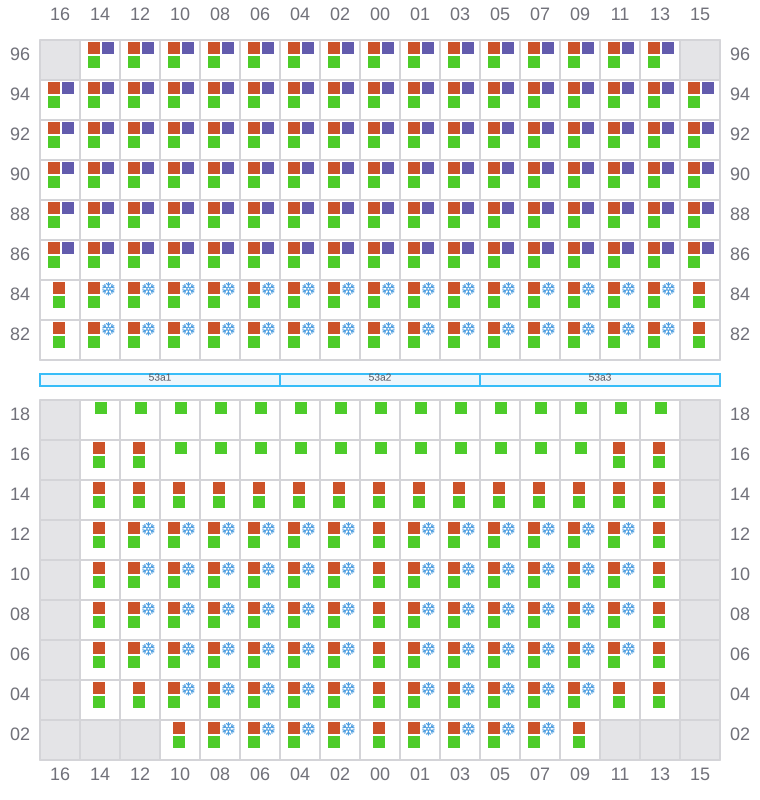

055 (054)

  • ←
Bay 055 view and slots of MAERSK ATHABASCA

057

  • →

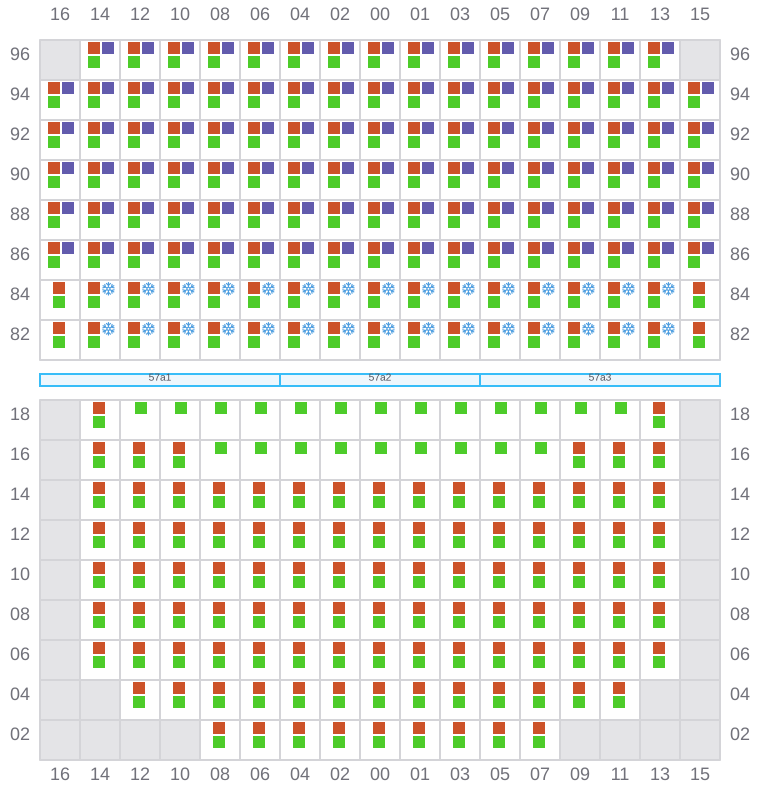

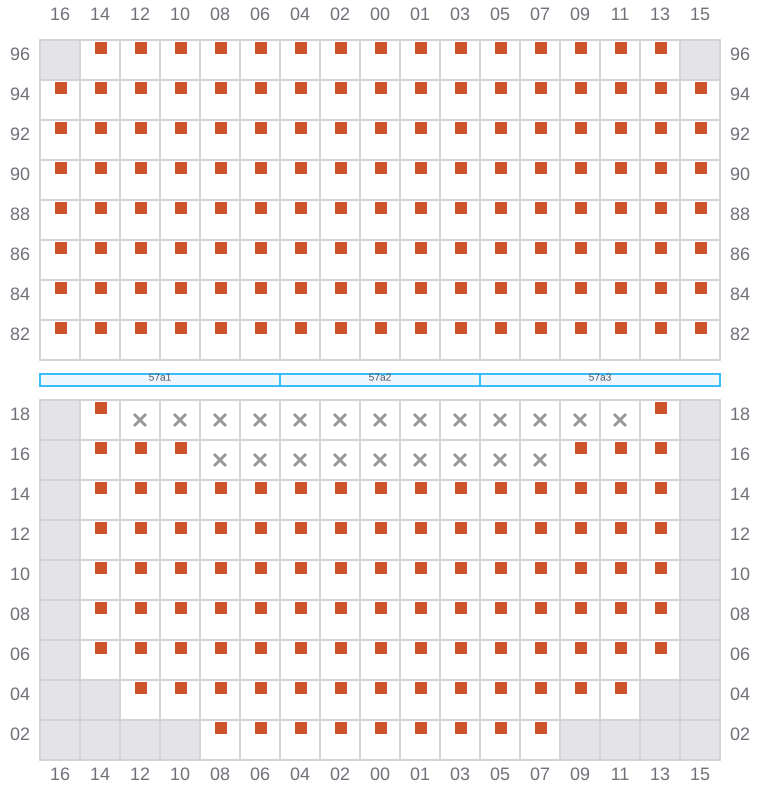

Bay 057 view and slots of MAERSK ATHABASCA

059 (058)

  • ←
Bay 059 view and slots of MAERSK ATHABASCA

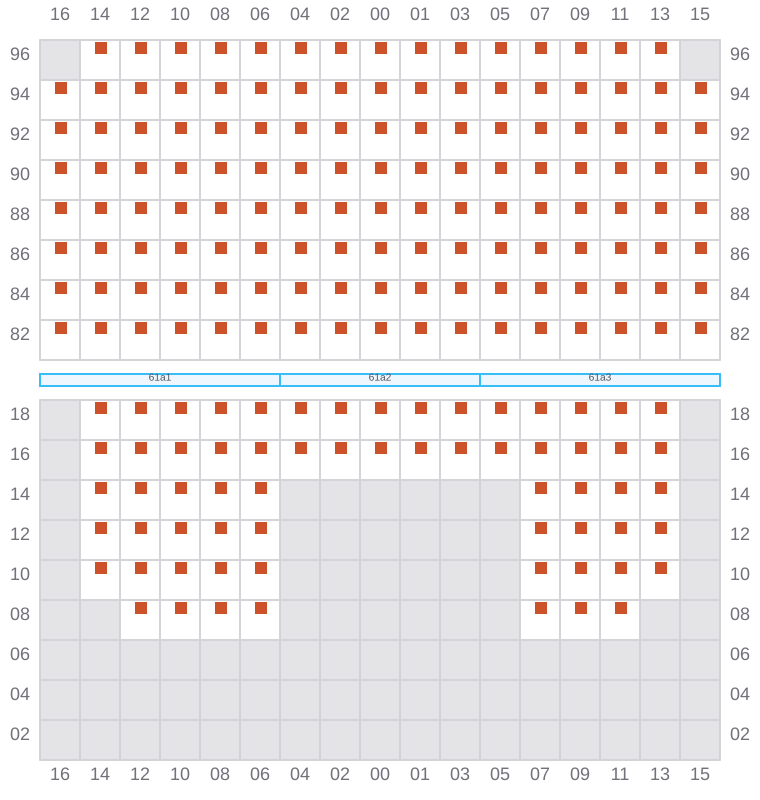

061

  • →
Bay 061 view and slots of MAERSK ATHABASCA

063 (062)

  • ←
Bay 063 view and slots of MAERSK ATHABASCA

065

  • →

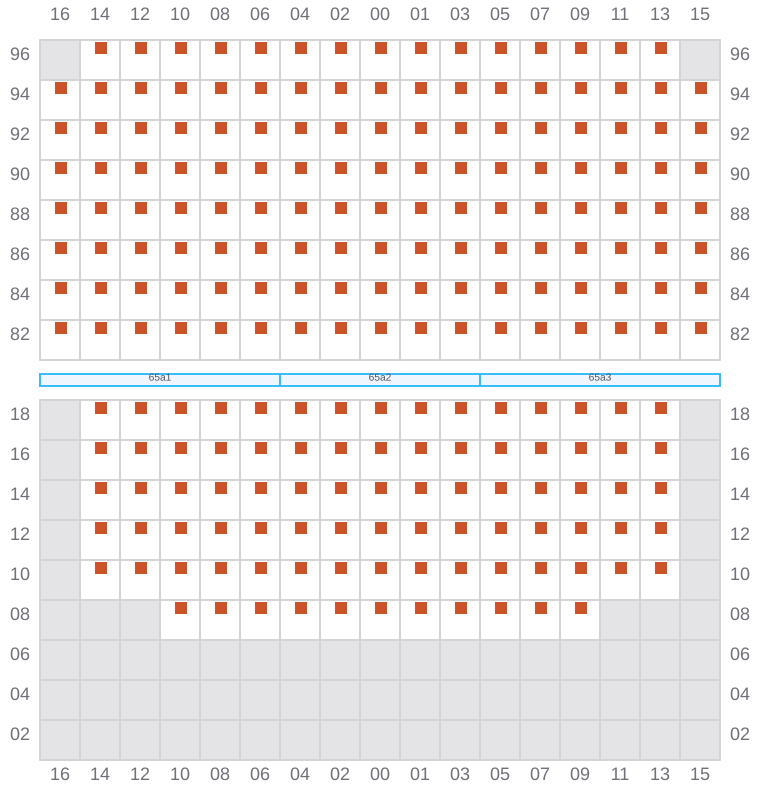

Bay 065 view and slots of MAERSK ATHABASCA

067 (066)

  • ←

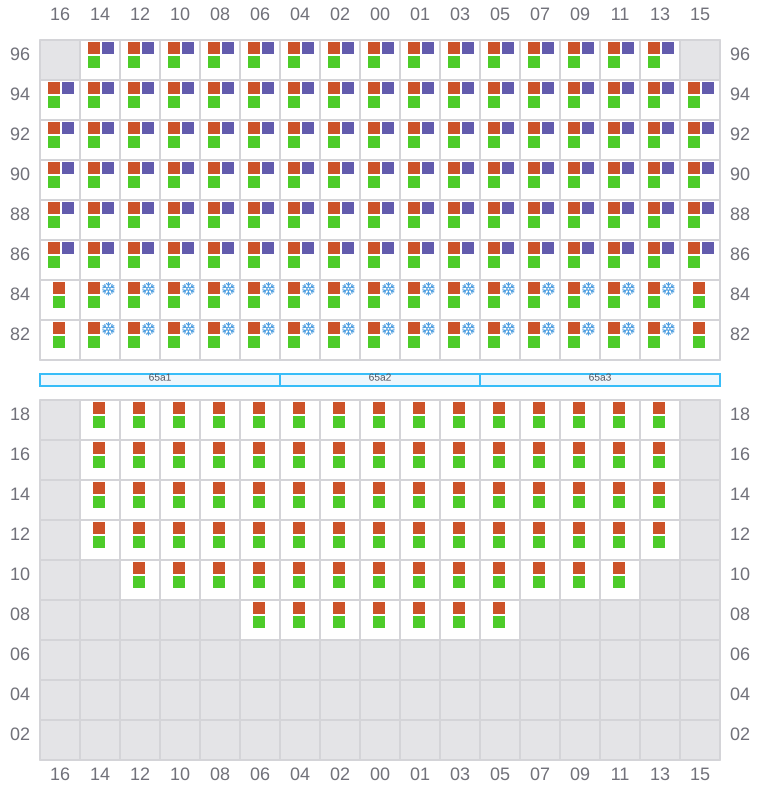

Bay 067 view and slots of MAERSK ATHABASCA

069

  • →

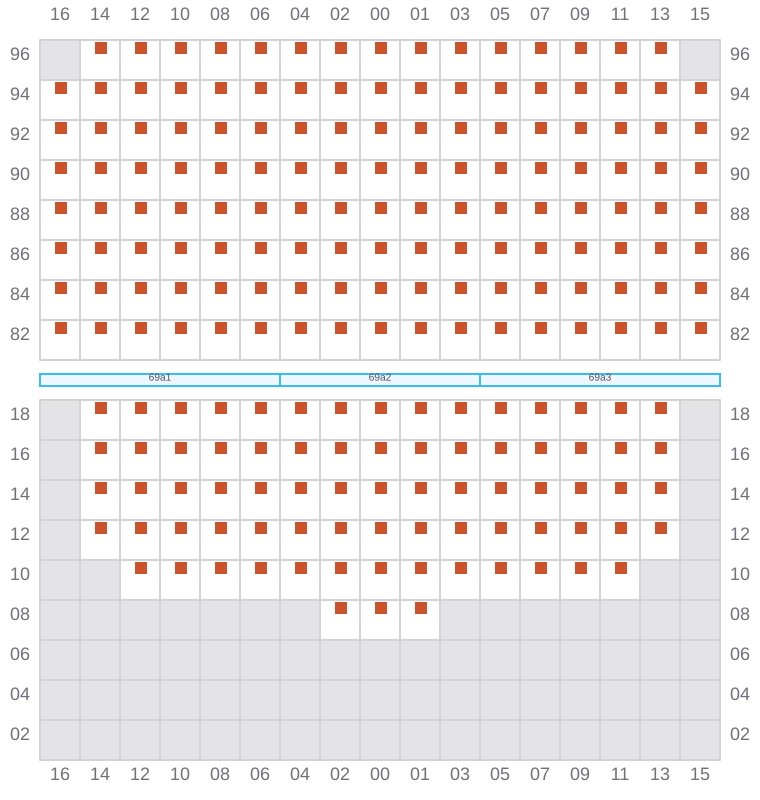

Bay 069 view and slots of MAERSK ATHABASCA

071 (070)

  • ←

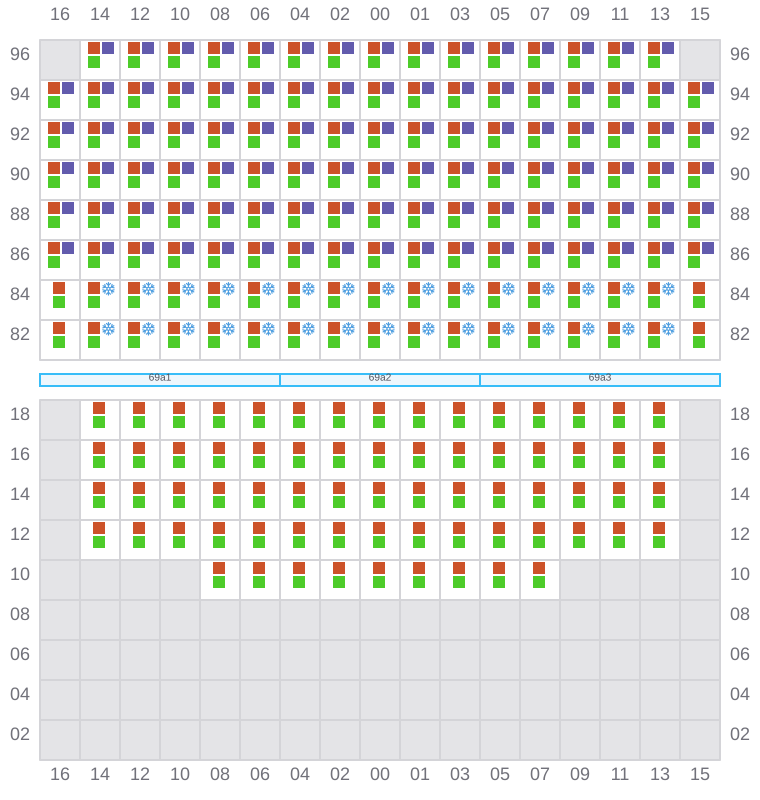

Bay 071 view and slots of MAERSK ATHABASCA

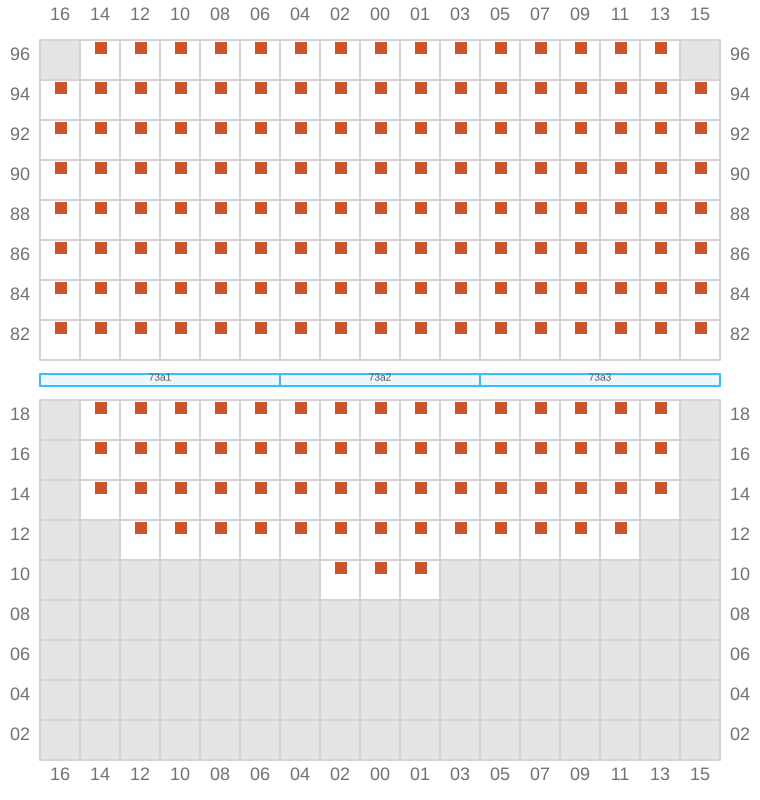

073

  • →
Bay 073 view and slots of MAERSK ATHABASCA

075 (074)

  • ←
Bay 075 view and slots of MAERSK ATHABASCA

077

  • → / ?
Bay 077 view and slots of MAERSK ATHABASCA

079 (078)

  • ← / ?

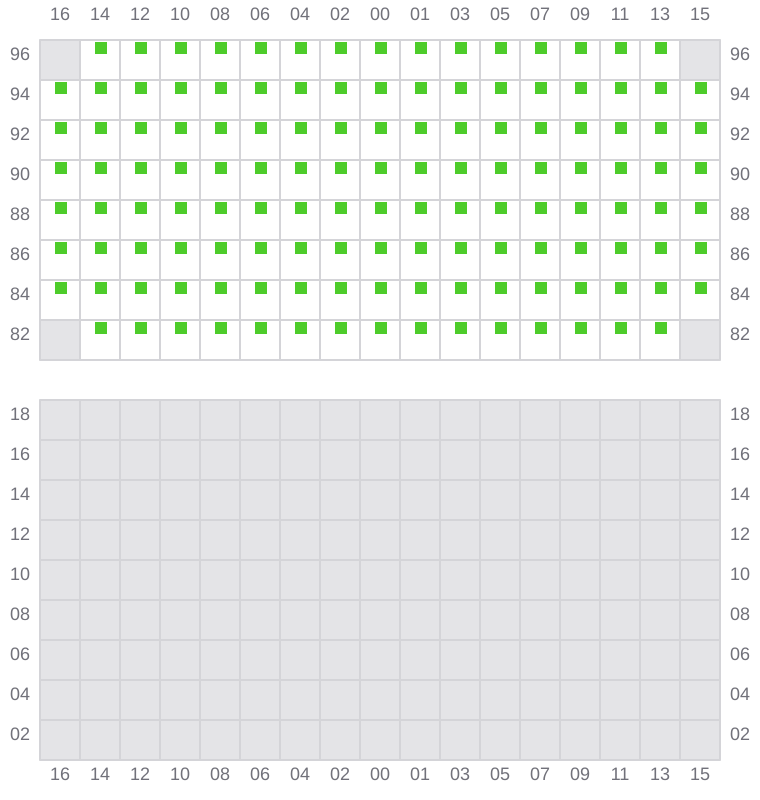

Bay 079 view and slots of MAERSK ATHABASCA
