MAERSK AVON
9164275 | VRDG7 | 9164275 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:MAERSK AVON
IMO Code:9164275
Call Sign:VRDG7
Line Operator:9164275
Class Name for Sister Ships:4QS
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):145.77
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,144
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

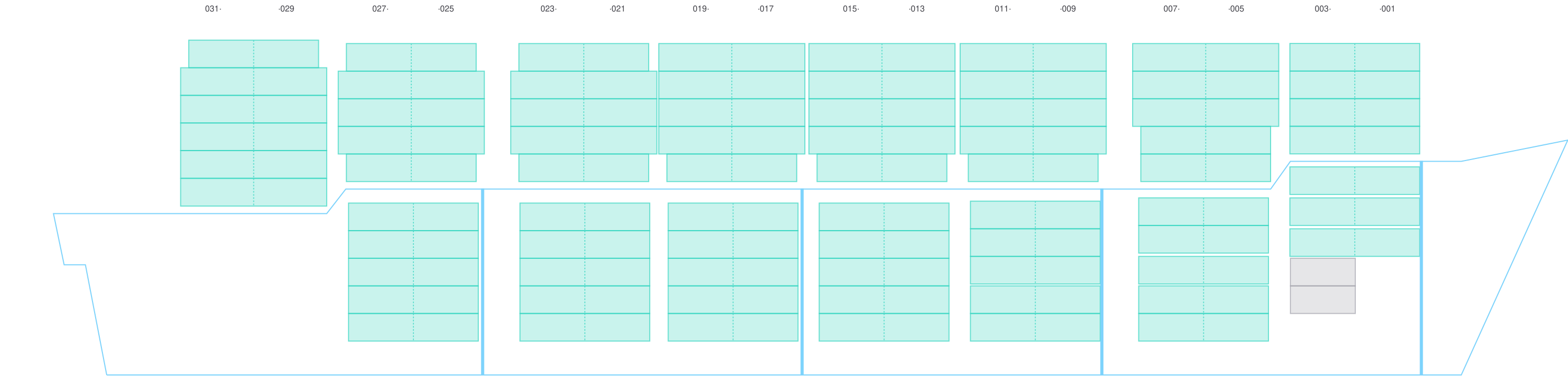

Side View

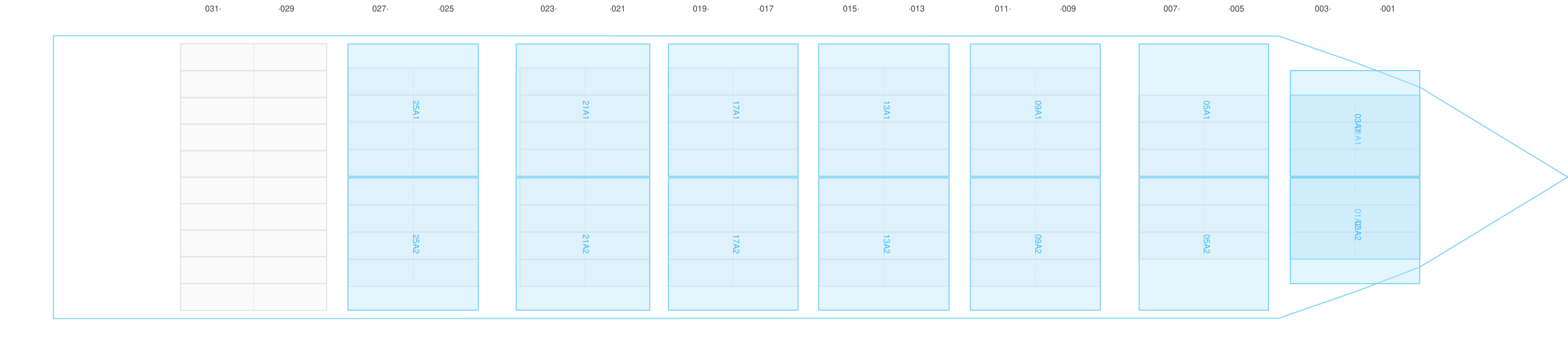

Hatch-Covers View

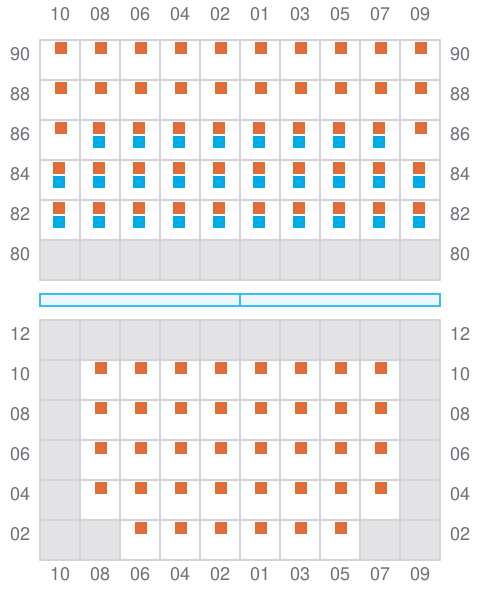

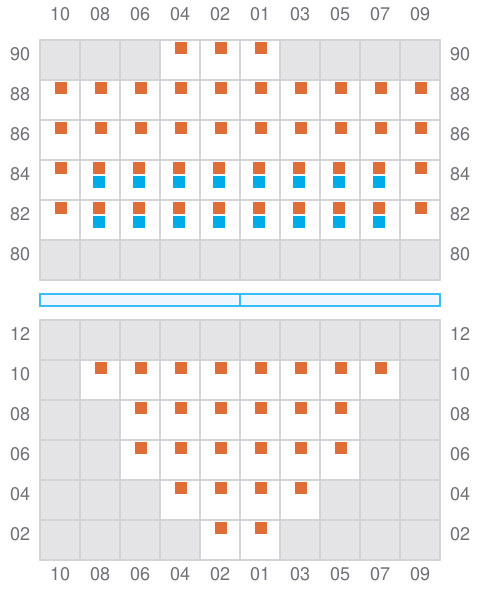

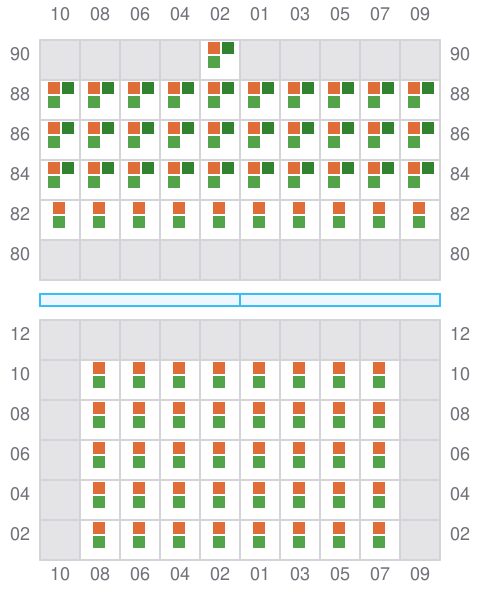

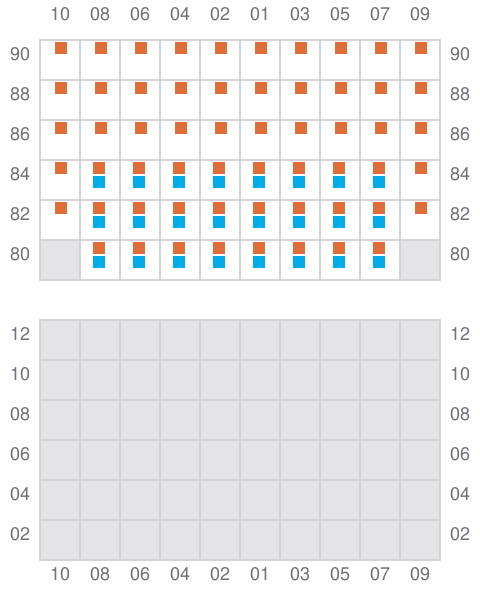

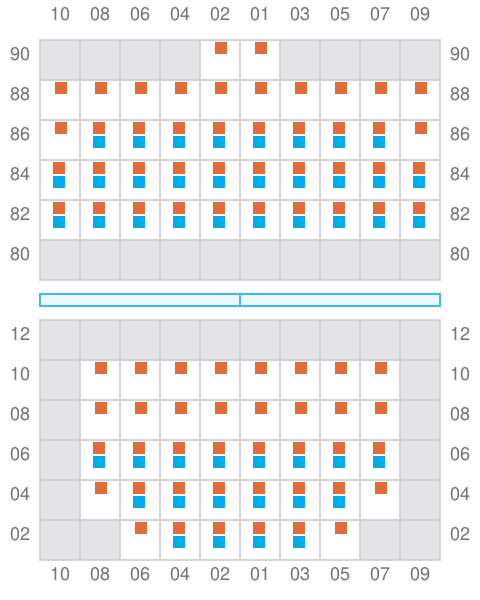

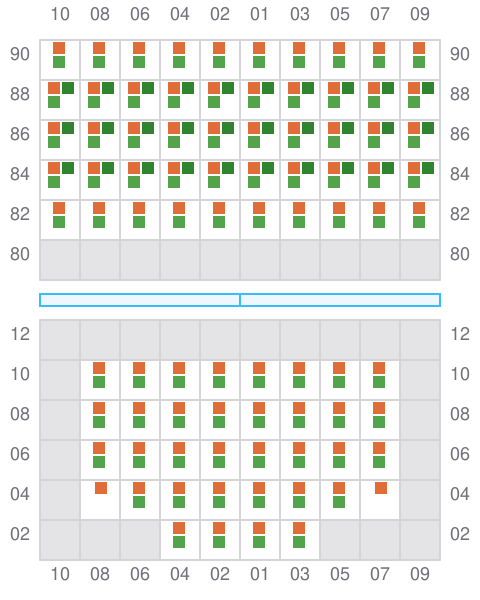

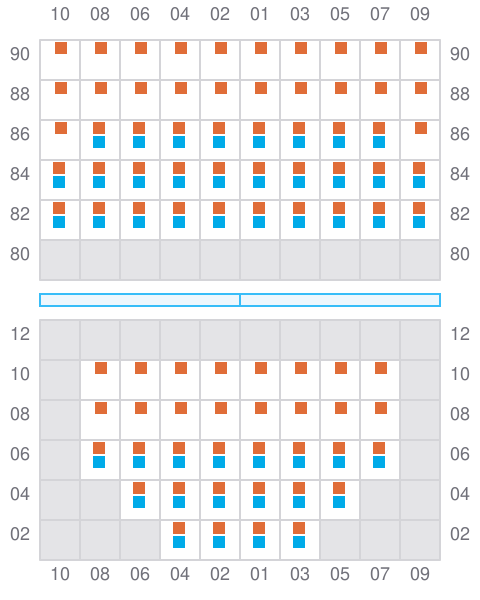

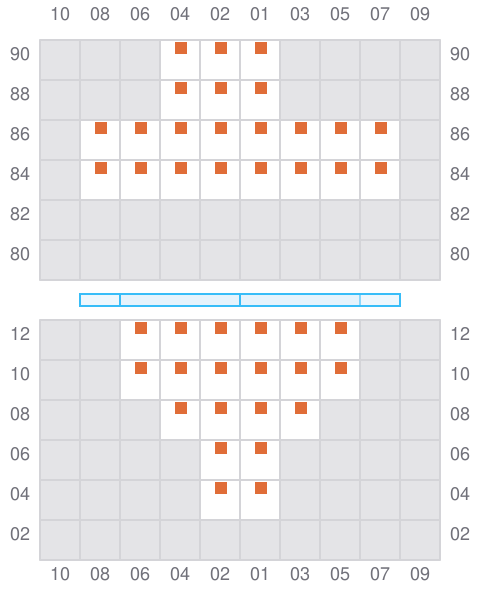

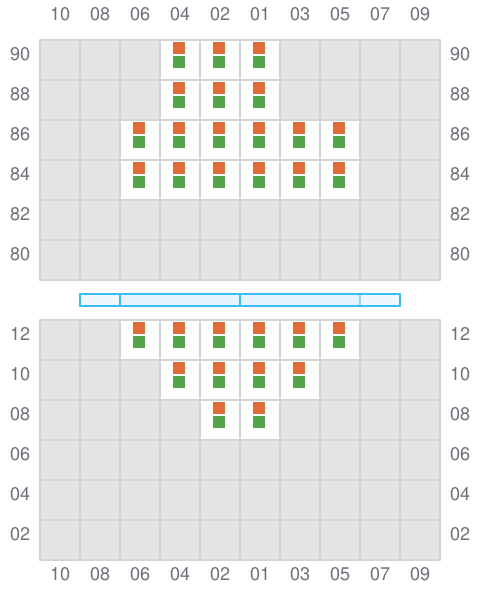

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
- → / ?

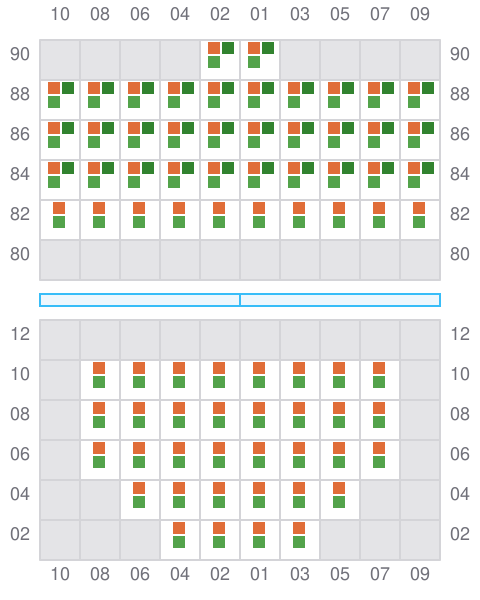

009 (010)
- →
011
- ←
- →

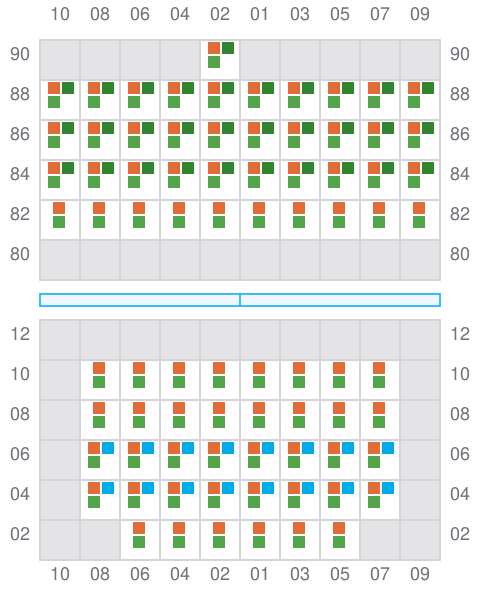

013 (014)
- →
- ? / ←

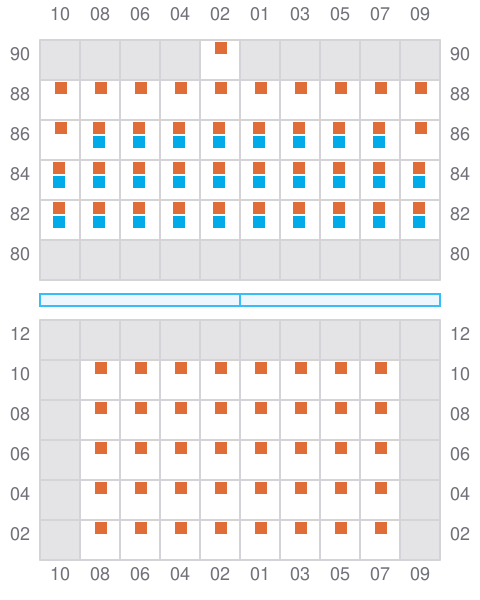

015
- ←
- → / ?
017 (018)
- →

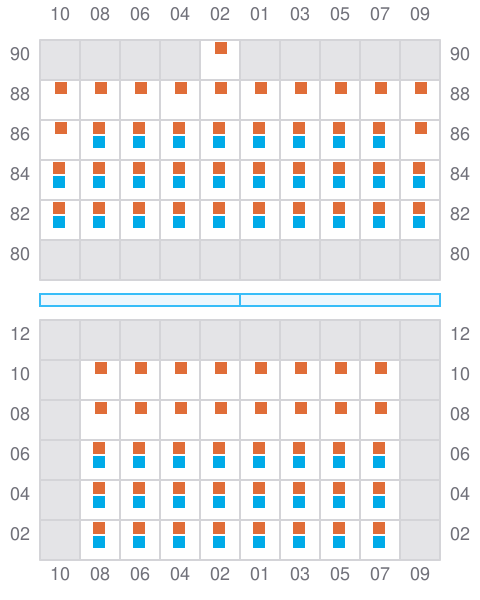

019
- ←
- →

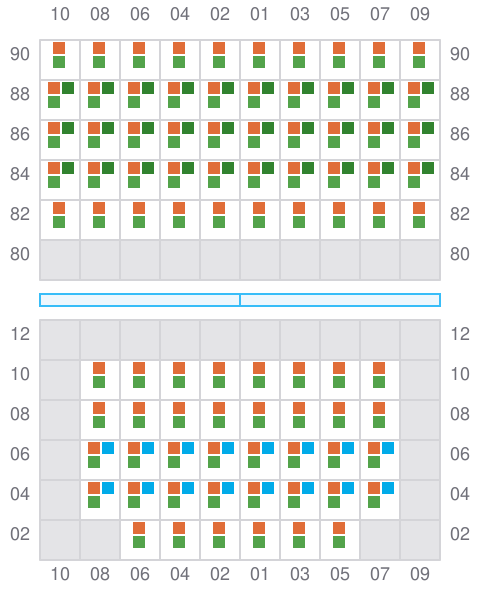

021 (022)
- →
- ? / ←
023
- ←
- → / ?
025 (026)
- →
027
- ←
- →
029 (030)
- → / ?

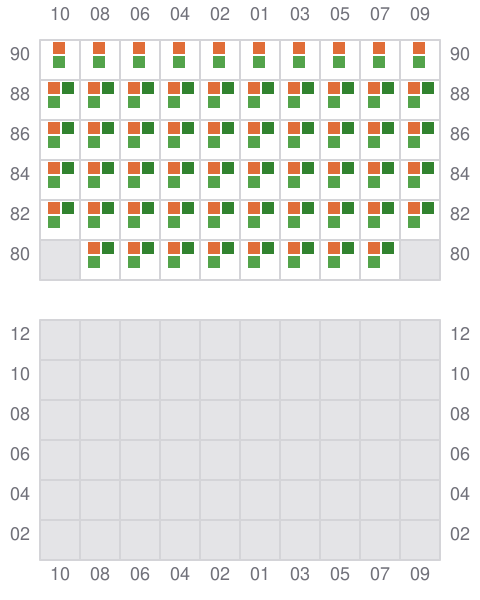

031
- ← / ?
- → / ?
