MAERSK BALI
9394870 | 9V7499 | A.P. MÖLLER MAERSK by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:MAERSK BALI
IMO Code:9394870
Call Sign:9V7499
Line Operator:A.P. MÖLLER MAERSK
Class Name for Sister Ships:HANJIN 3000
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):211.00
LOA (Length Overall):223.30
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,435
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

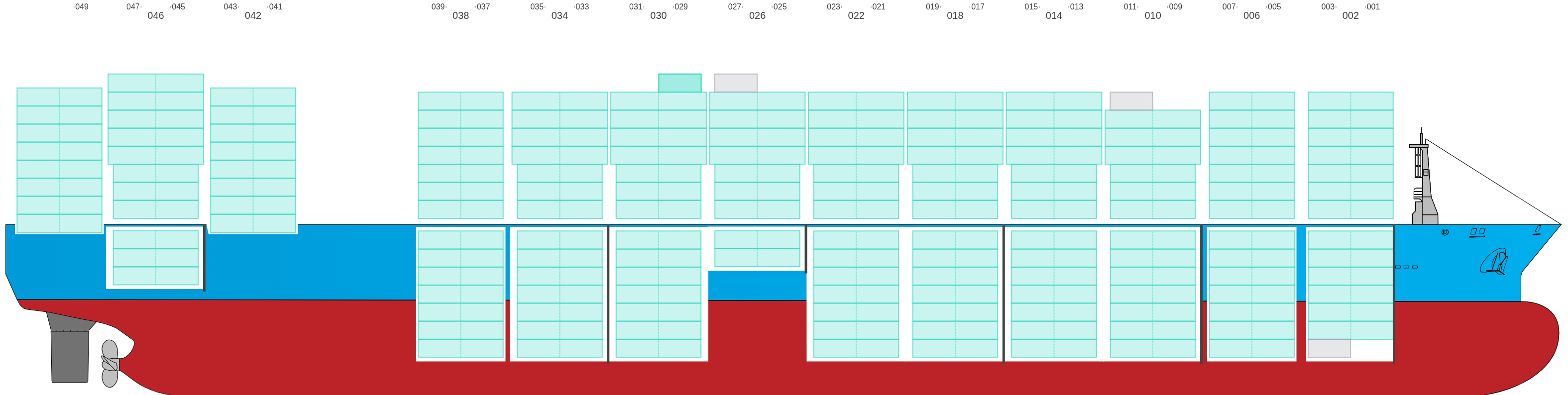

Side View
![Side view of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-sideView.png?v=1711308966869)
Hatch-Covers View
![Deck view of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-deckView.png?v=1711308966869)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

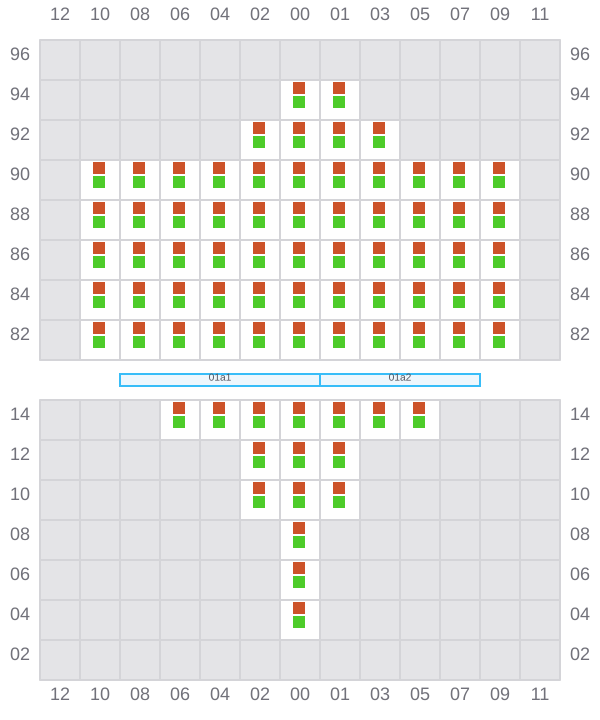

001 (002)
- →
![Bay 001 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b001.png?v=1711308966869)

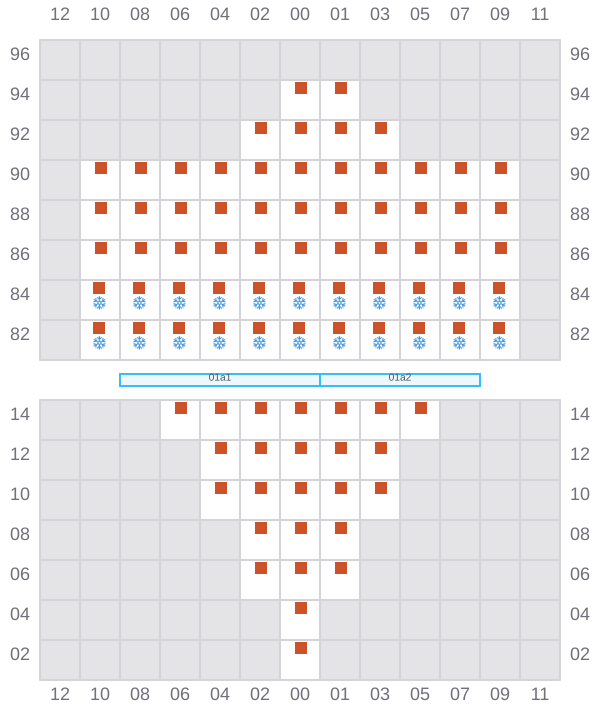

003
- ←
- → / ?
![Bay 003 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b003.png?v=1711308966869)

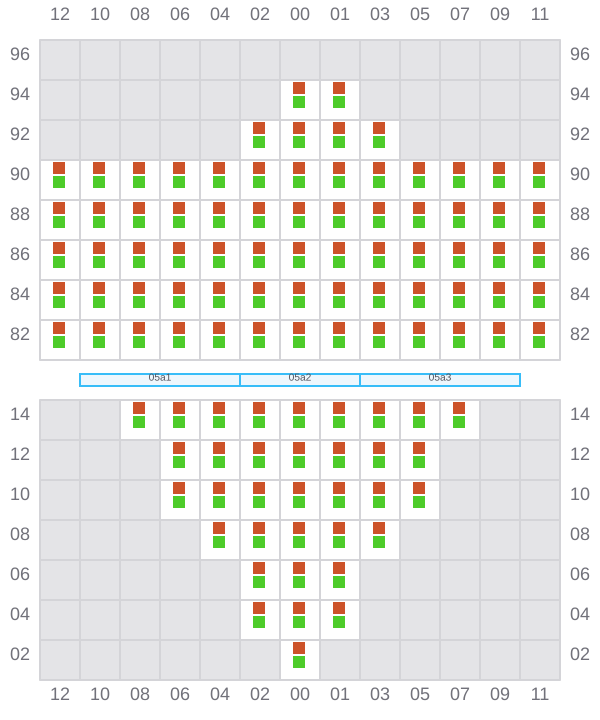

005 (006)
- →
![Bay 005 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b005.png?v=1711308966869)

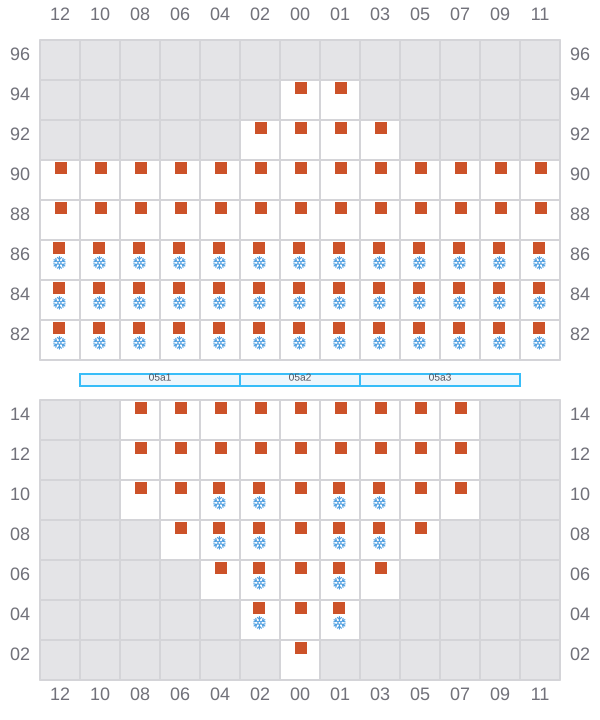

007
- ←
- →
![Bay 007 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b007.png?v=1711308966869)

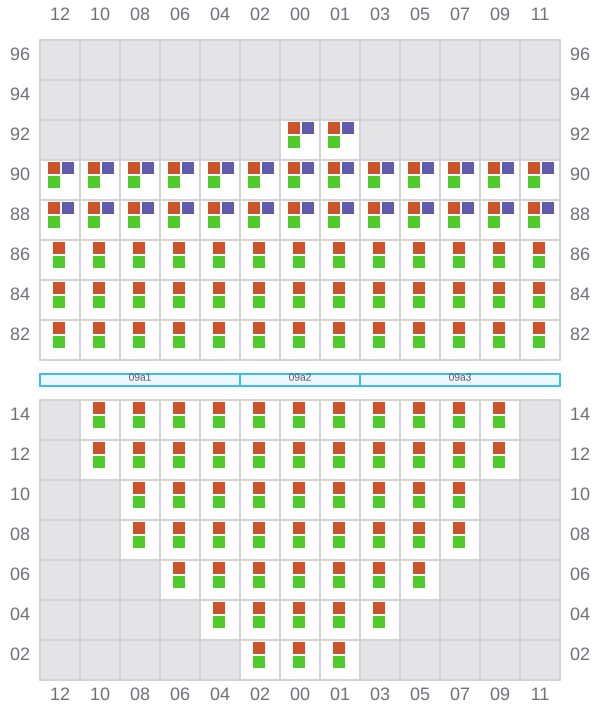

009 (010)
- →
![Bay 009 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b009.png?v=1711308966869)

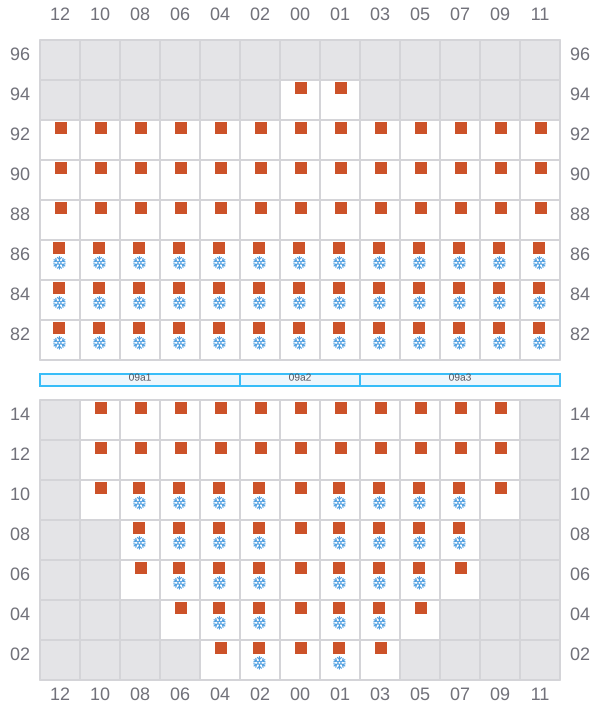

011
- ←
- →
![Bay 011 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b011.png?v=1711308966869)

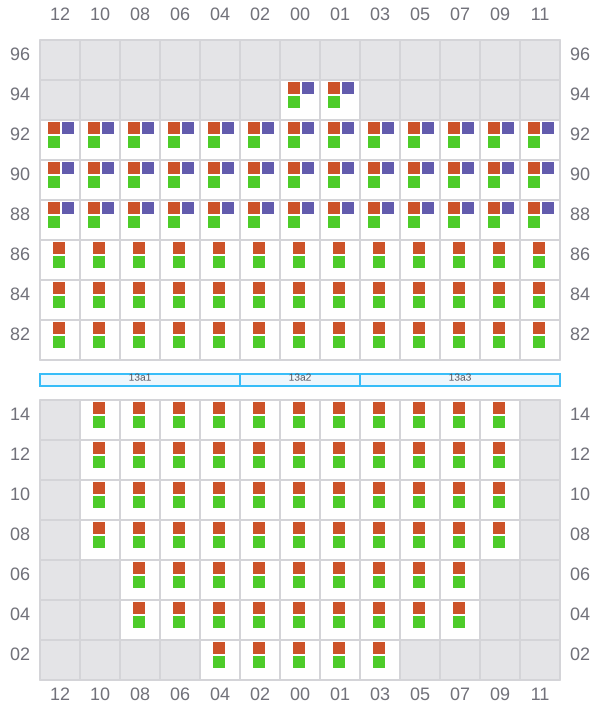

013 (014)
- →
![Bay 013 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b013.png?v=1711308966869)
015
- ←
- →
![Bay 015 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b015.png?v=1711308966869)

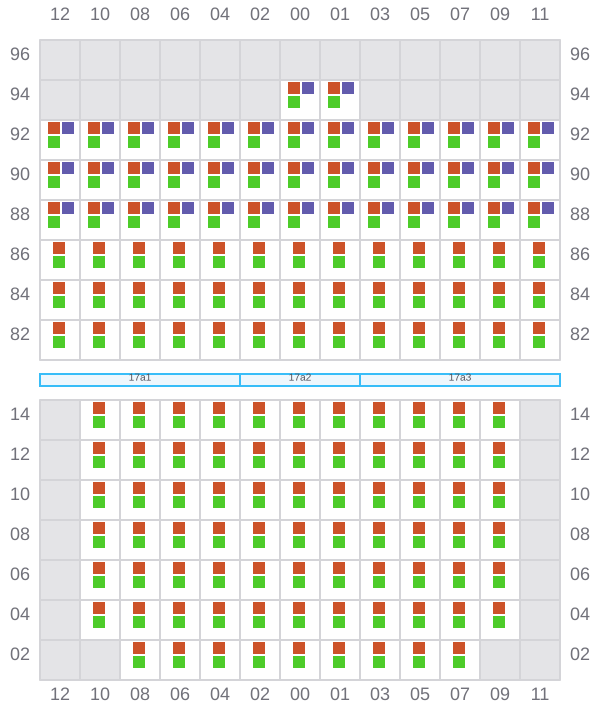

017 (018)
- →
![Bay 017 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b017.png?v=1711308966869)

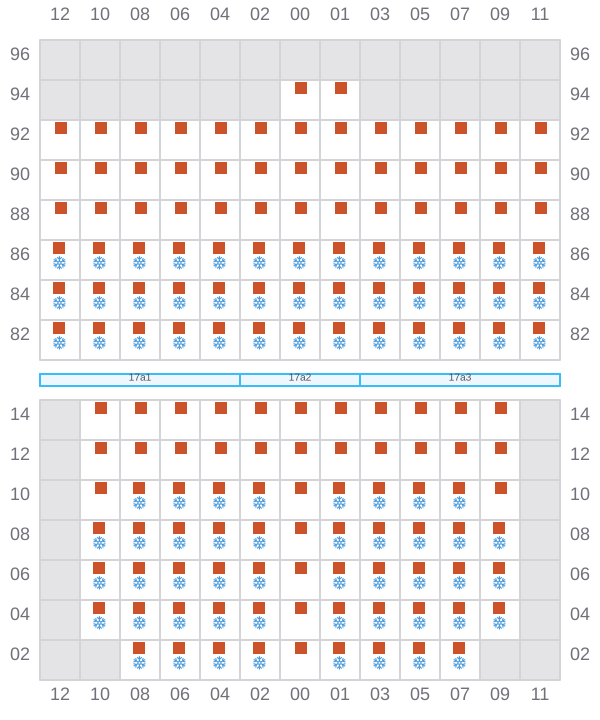

019
- ←
- →
![Bay 019 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b019.png?v=1711308966869)

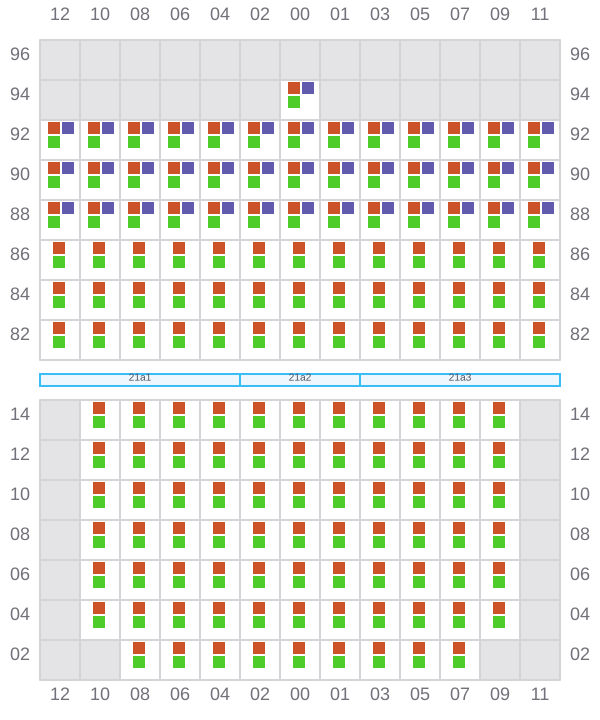

021 (022)
- →
![Bay 021 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b021.png?v=1711308966869)

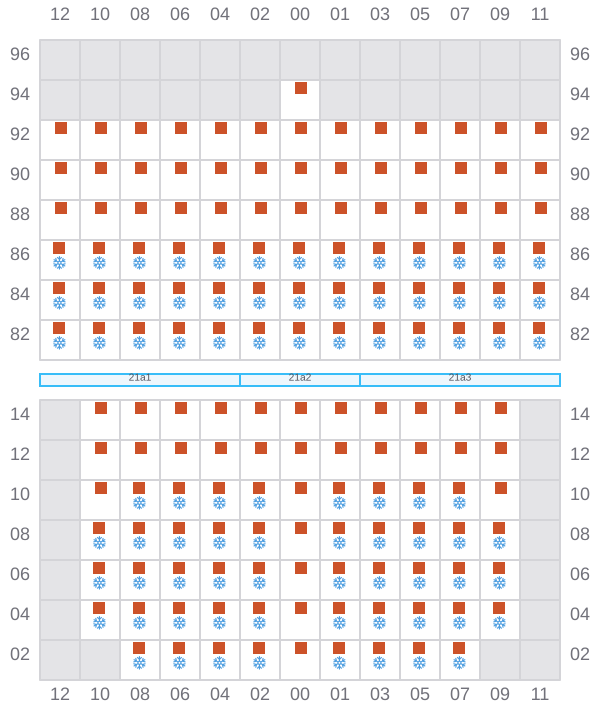

023
- ←
- →
![Bay 023 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b023.png?v=1711308966869)

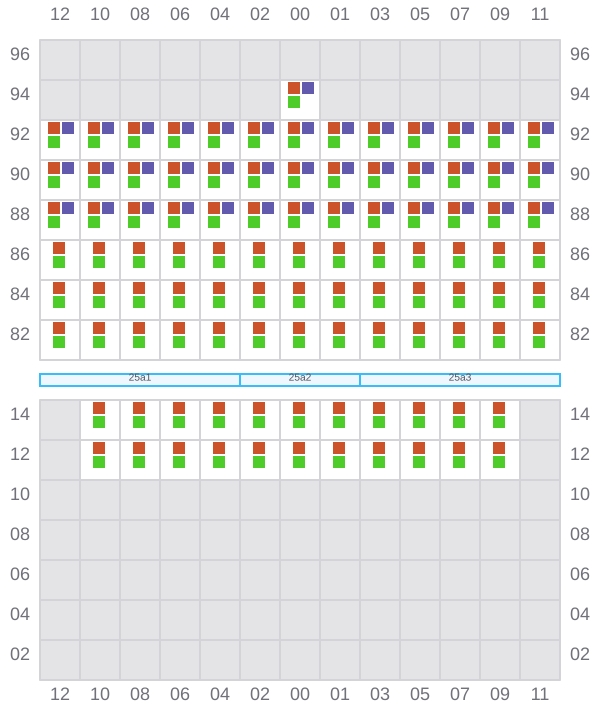

025 (026)
- →
![Bay 025 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b025.png?v=1711308966869)

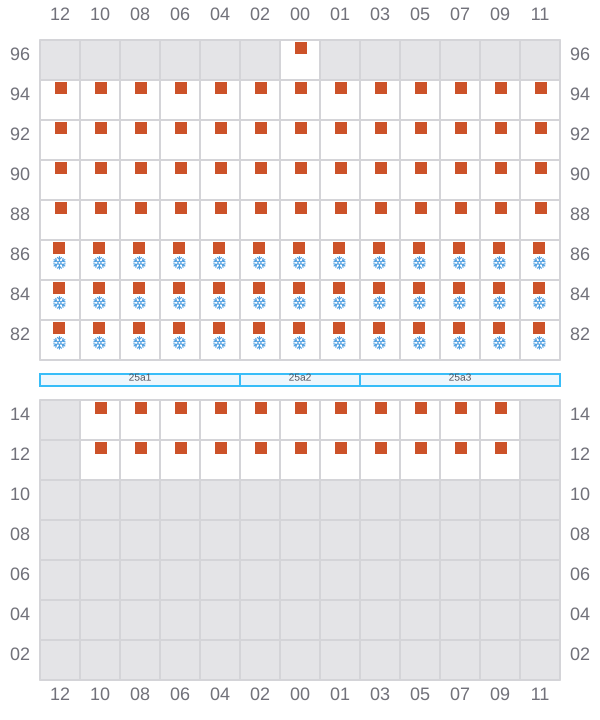

027
- ←
- → / ?
![Bay 027 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b027.png?v=1711308966869)

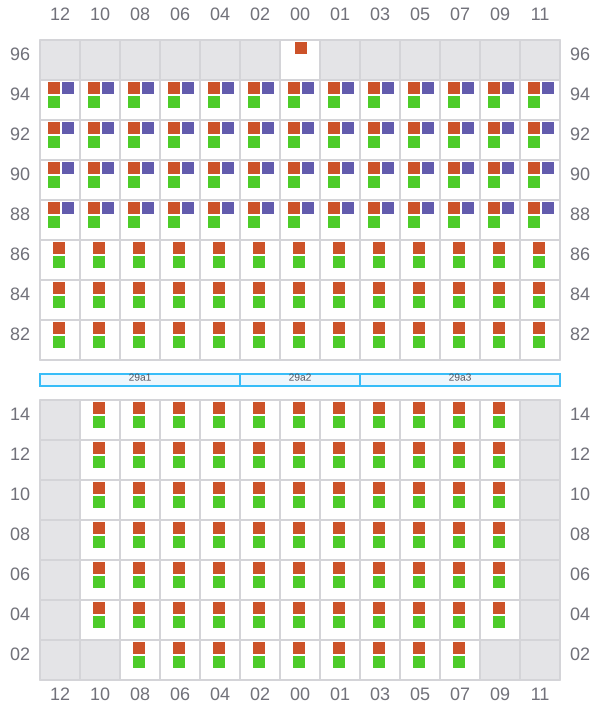

029 (030)
- →
![Bay 029 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b029.png?v=1711308966869)

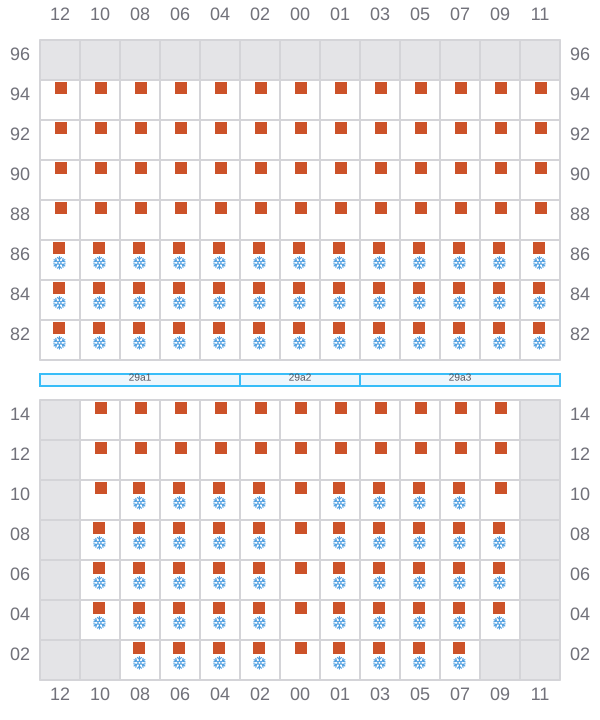

031
- ←
- →
![Bay 031 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b031.png?v=1711308966869)

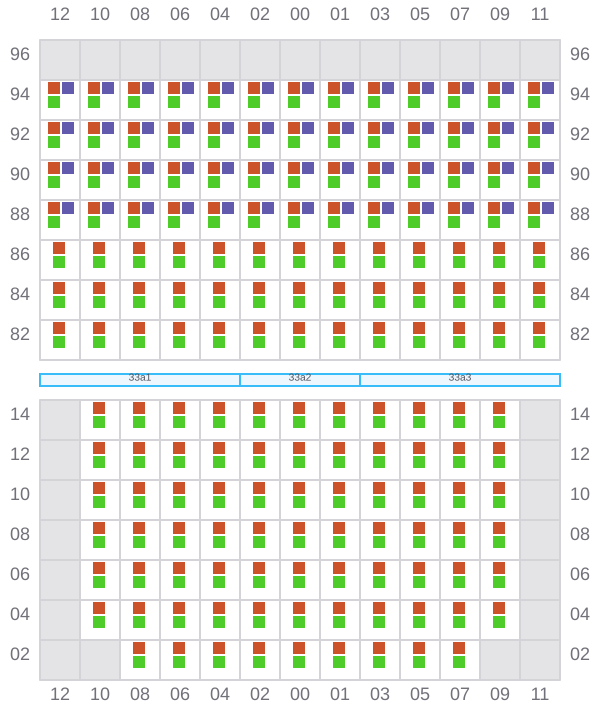

033 (034)
- →
![Bay 033 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b033.png?v=1711308966869)

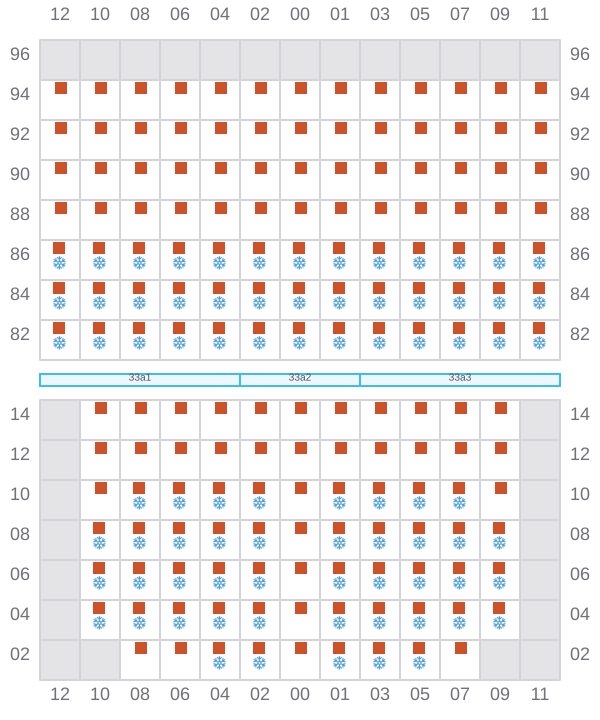

035
- ←
- →
![Bay 035 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b035.png?v=1711308966869)

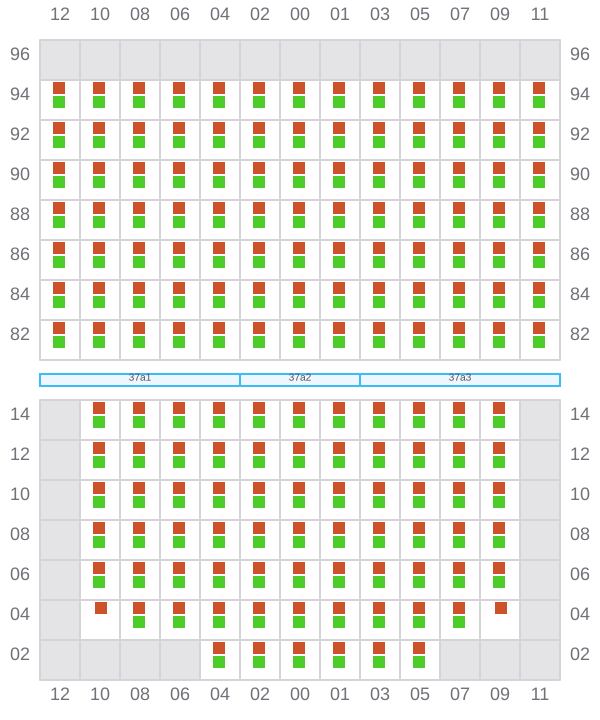

037 (038)
- →
![Bay 037 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b037.png?v=1711308966869)

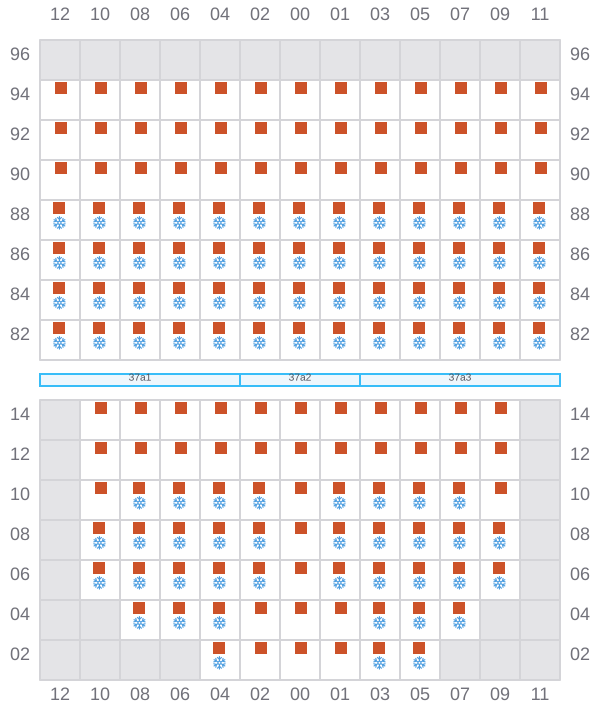

039
- ←
- →
![Bay 039 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b039.png?v=1711308966869)

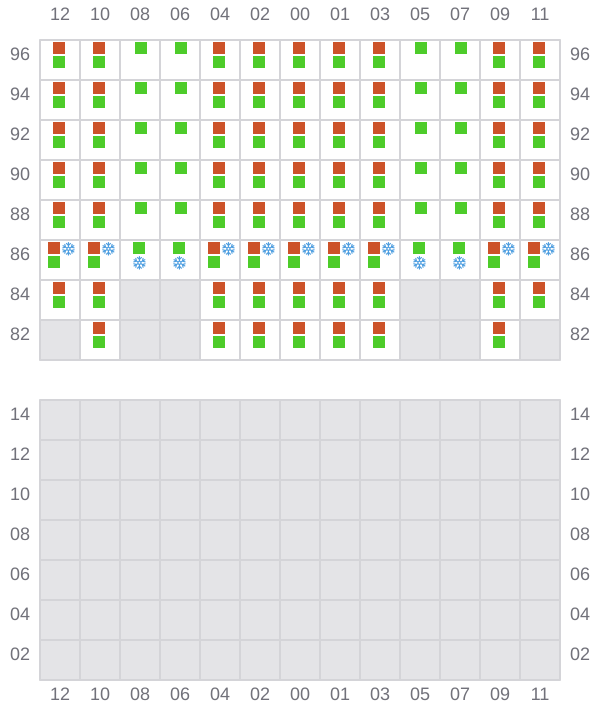

041 (042)
- → / ?
- → / ?
![Bay 041 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b041.png?v=1711308966869)

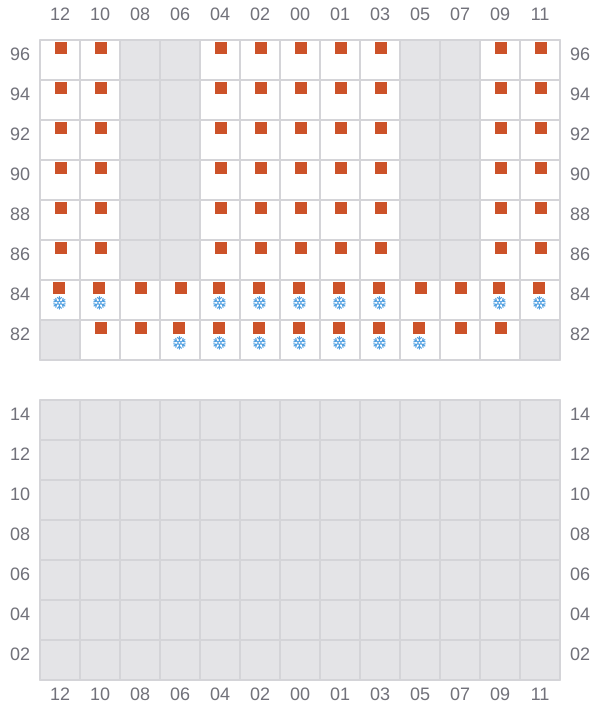

043
- ← / ?
- → / ?
![Bay 043 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b043.png?v=1711308966869)

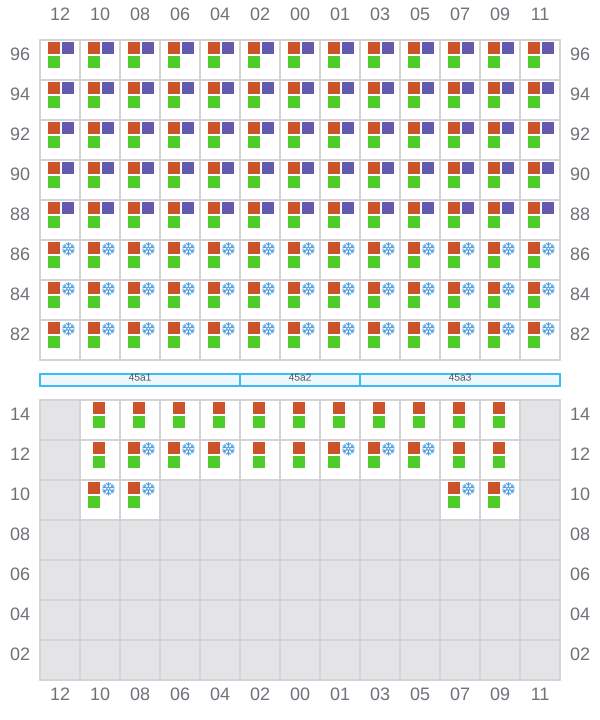

045 (046)
- →
- ←
![Bay 045 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b045.png?v=1711308966869)

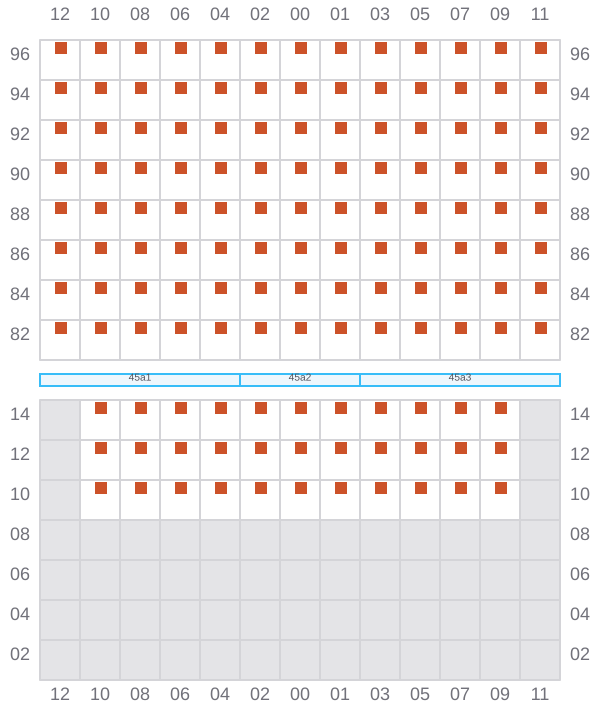

047
- ←
![Bay 047 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b047.png?v=1711308966869)

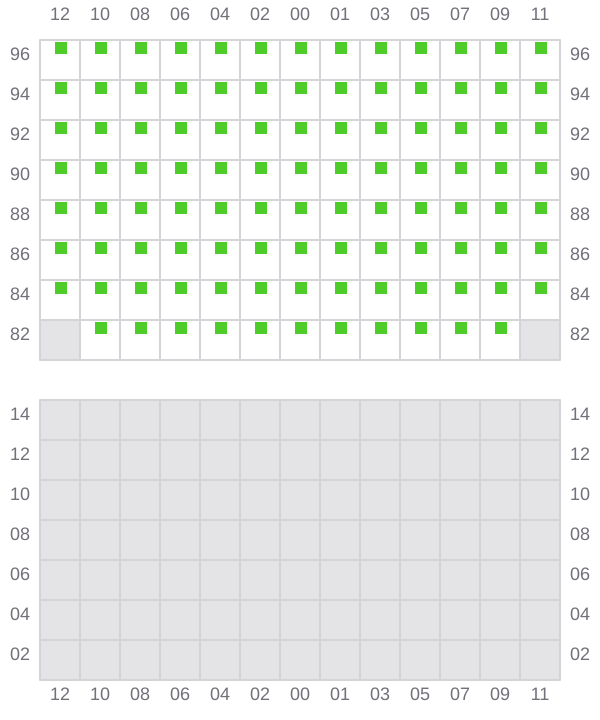

049 (050)
- → / ?
![Bay 049 view and slots of MAERSK BALI](/vessel-images/ce1efac0-e075-4444-bcbf-30458eea0331-b049.png?v=1711308966869)
