MAERSK BALTIMORE
9313917 | OZCX2 | MSK by ************************** Last update: Thu Jun 29 2023

General Info

Ship Name:MAERSK BALTIMORE
IMO Code:9313917
Call Sign:OZCX2
Line Operator:MSK
Class Name for Sister Ships:SGF
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:049
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,947

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of MAERSK BALTIMORE

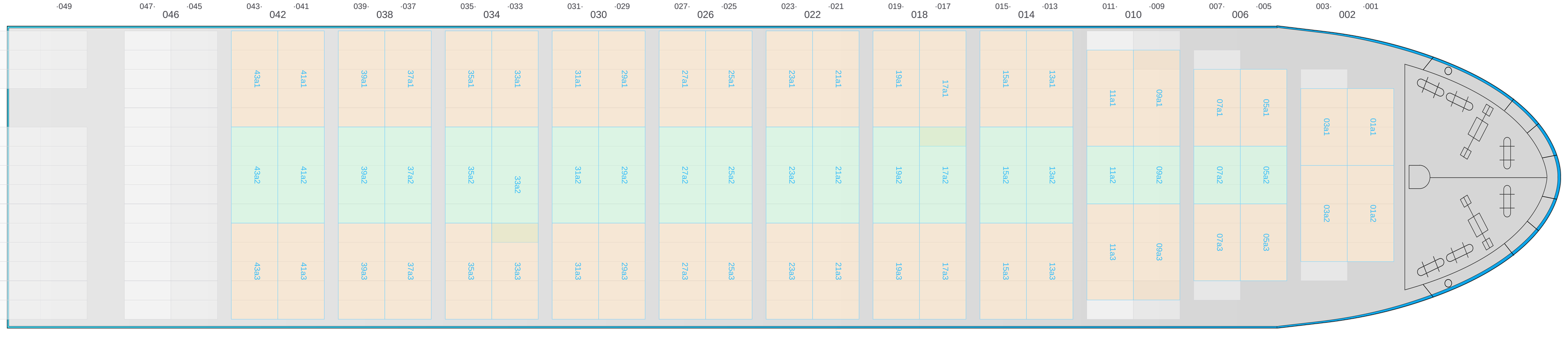

Hatch-Covers View

Deck view of MAERSK BALTIMORE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

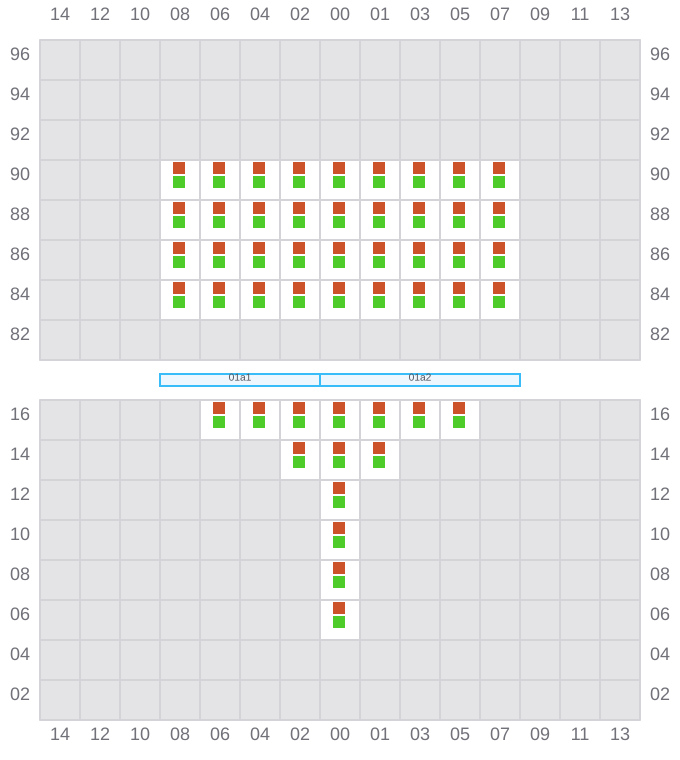

001 (002)

  • →
Bay 001 view and slots of MAERSK BALTIMORE

003

  • ←

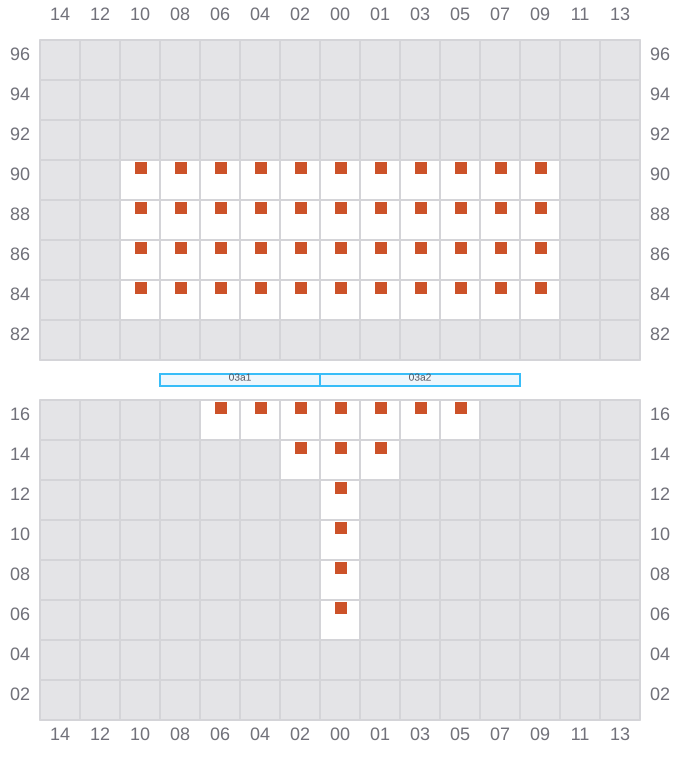

Bay 003 view and slots of MAERSK BALTIMORE

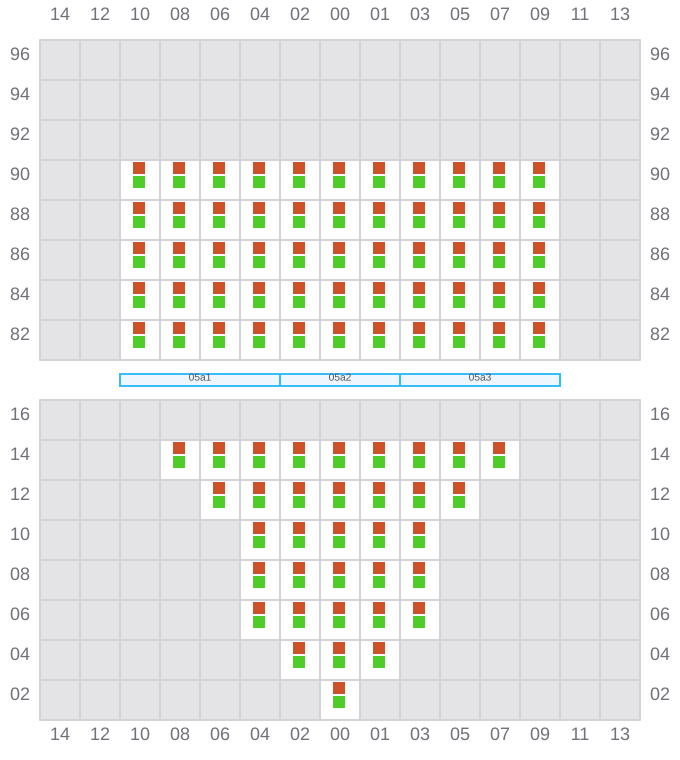

005 (006)

  • →
Bay 005 view and slots of MAERSK BALTIMORE

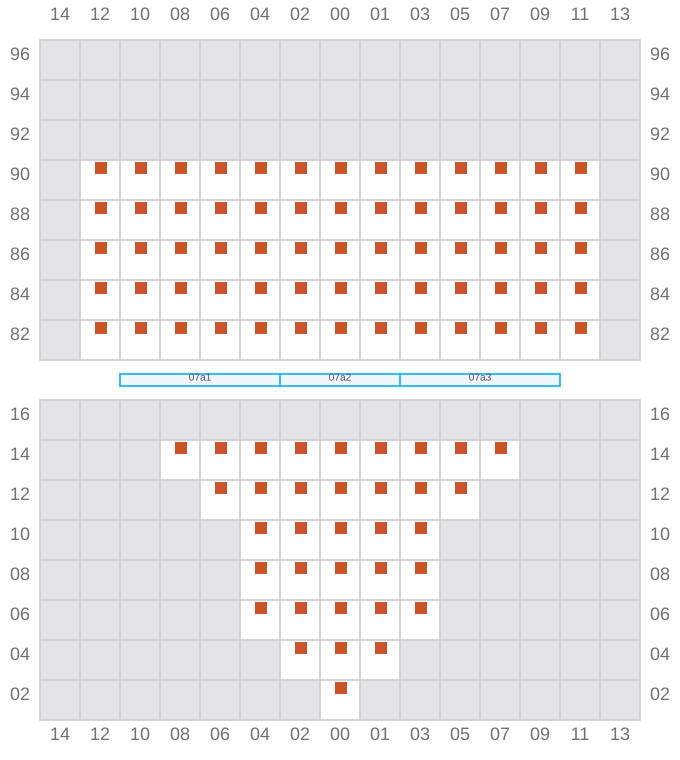

007

  • ←
Bay 007 view and slots of MAERSK BALTIMORE

009 (010)

  • →

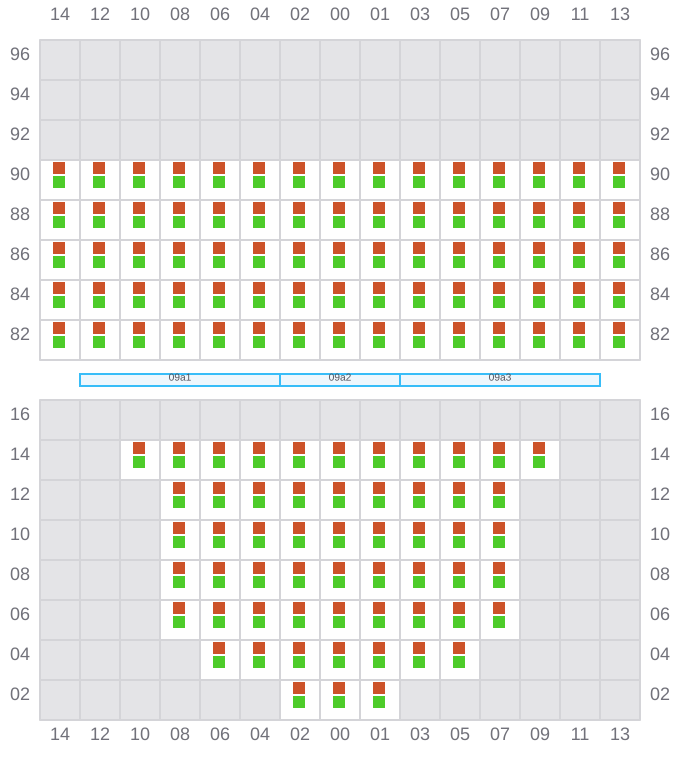

Bay 009 view and slots of MAERSK BALTIMORE

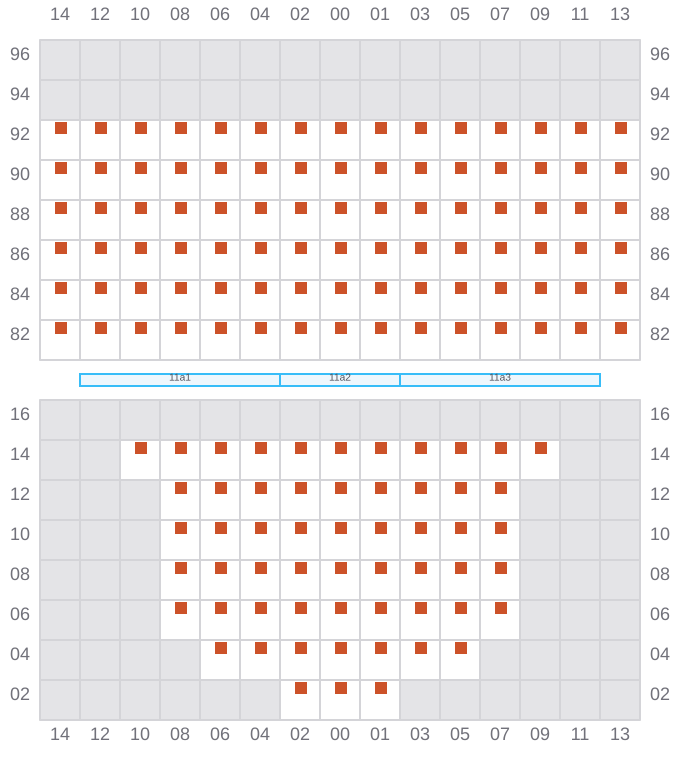

011

  • ←
Bay 011 view and slots of MAERSK BALTIMORE

013 (014)

  • →

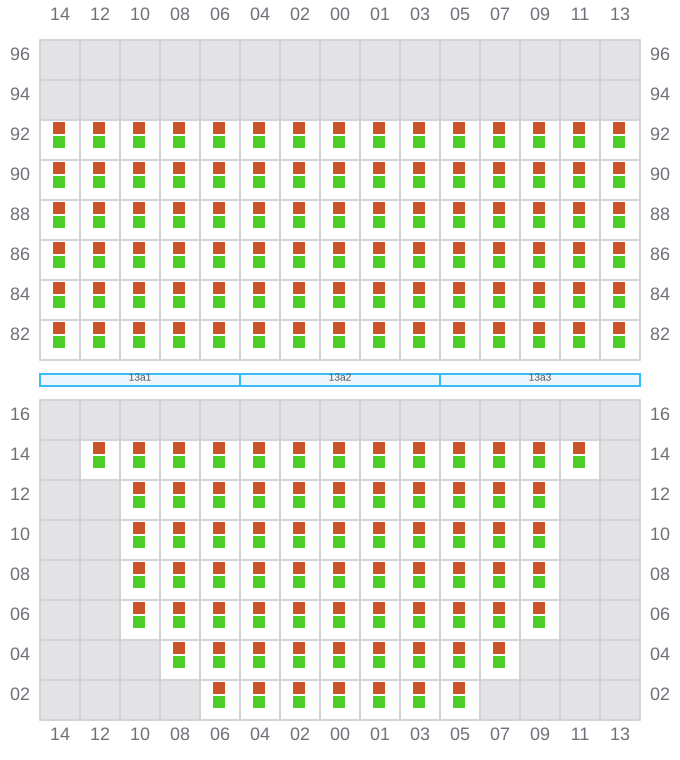

Bay 013 view and slots of MAERSK BALTIMORE

015

  • ←

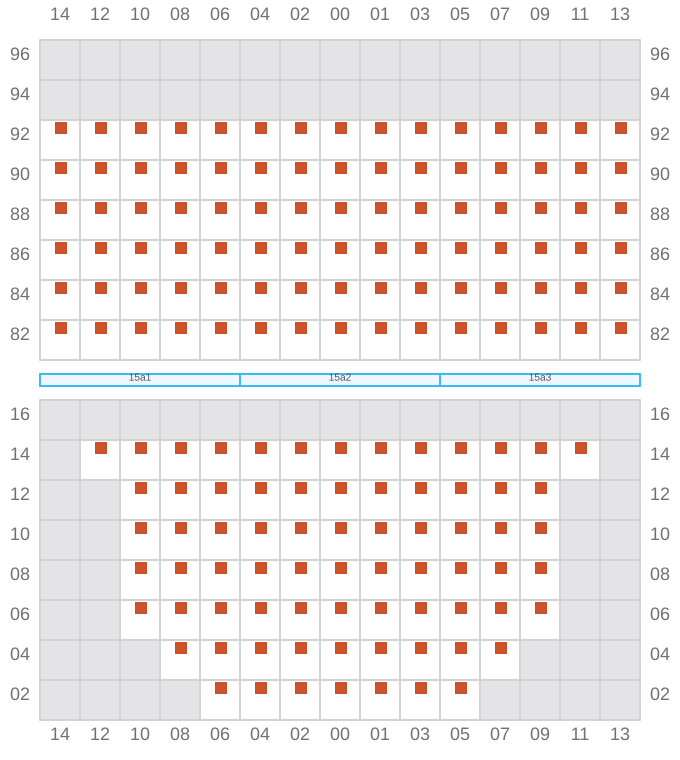

Bay 015 view and slots of MAERSK BALTIMORE

017 (018)

  • →

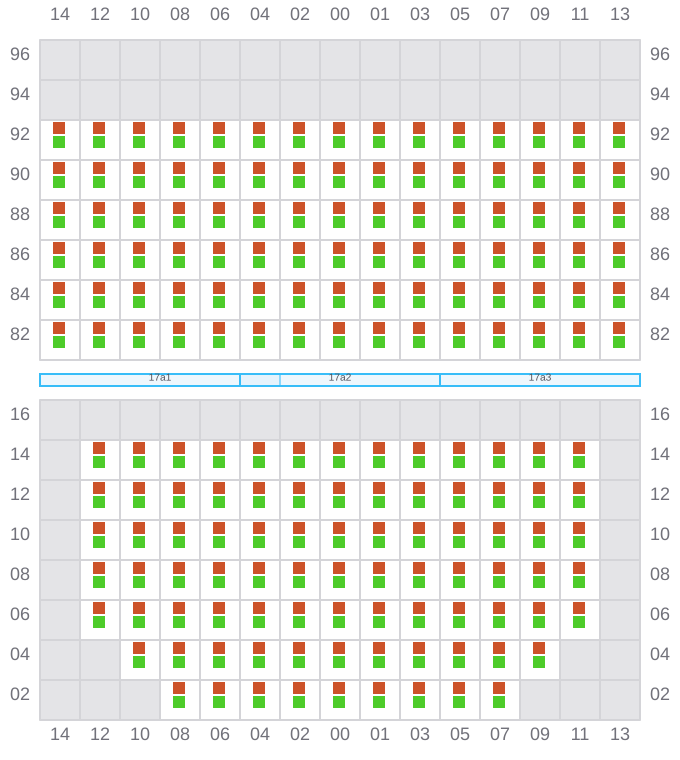

Bay 017 view and slots of MAERSK BALTIMORE

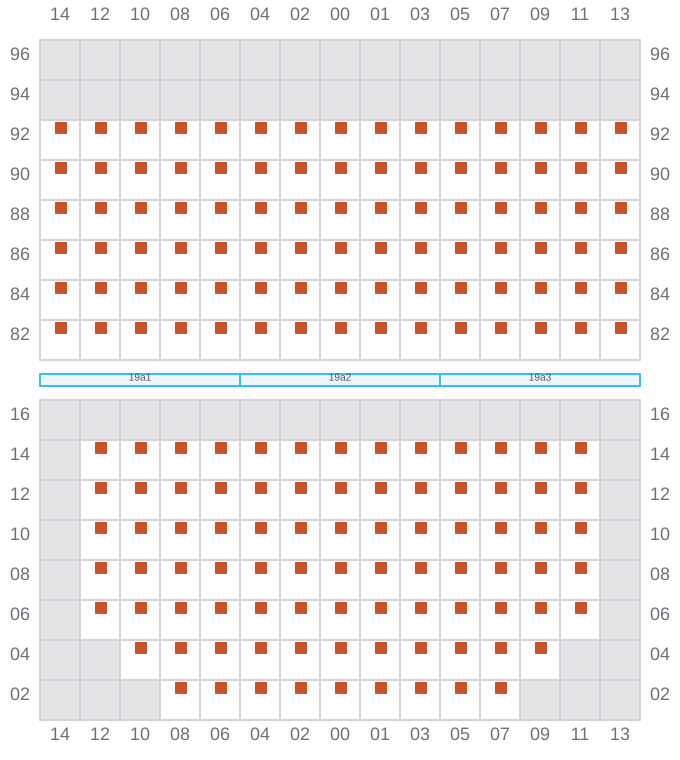

019

  • ←
Bay 019 view and slots of MAERSK BALTIMORE

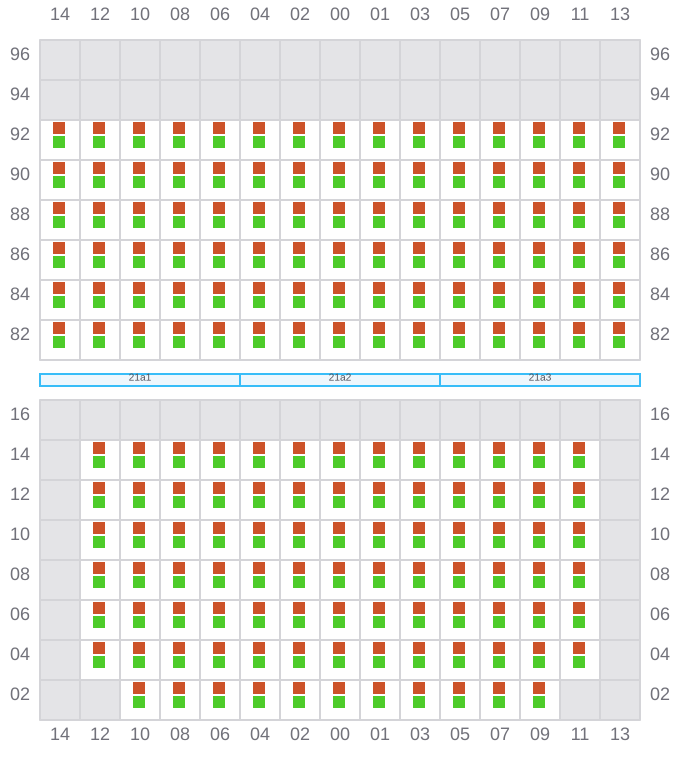

021 (022)

  • →
Bay 021 view and slots of MAERSK BALTIMORE

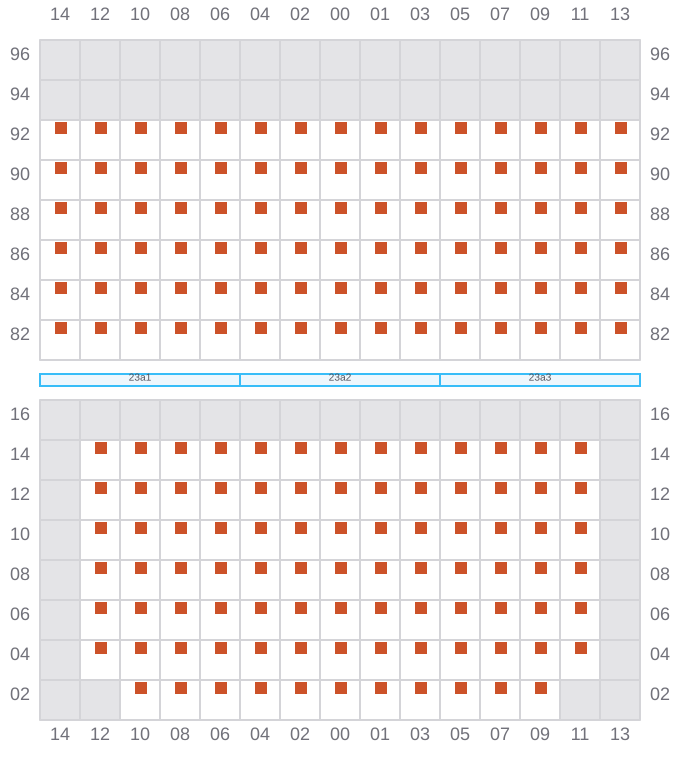

023

  • ←
Bay 023 view and slots of MAERSK BALTIMORE

025 (026)

  • →
Bay 025 view and slots of MAERSK BALTIMORE

027

  • ←

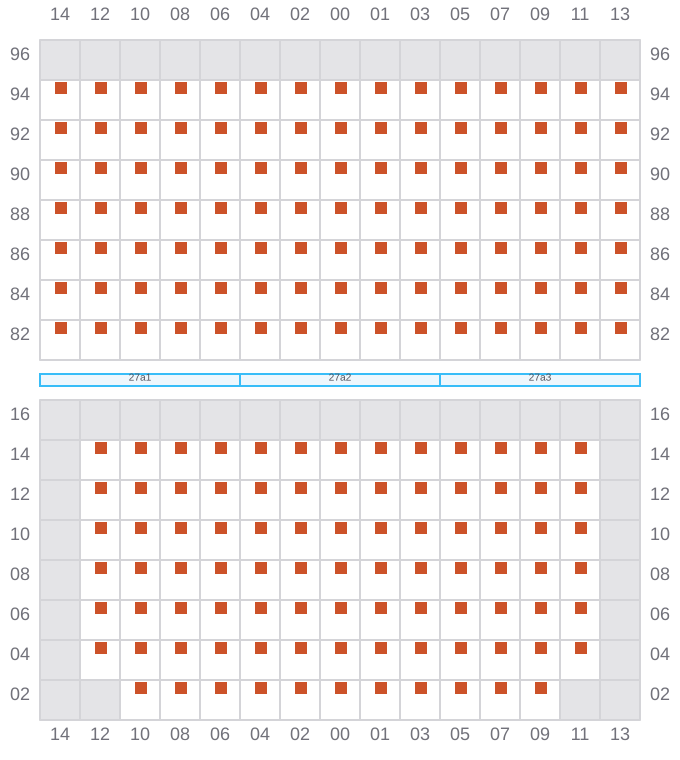

Bay 027 view and slots of MAERSK BALTIMORE

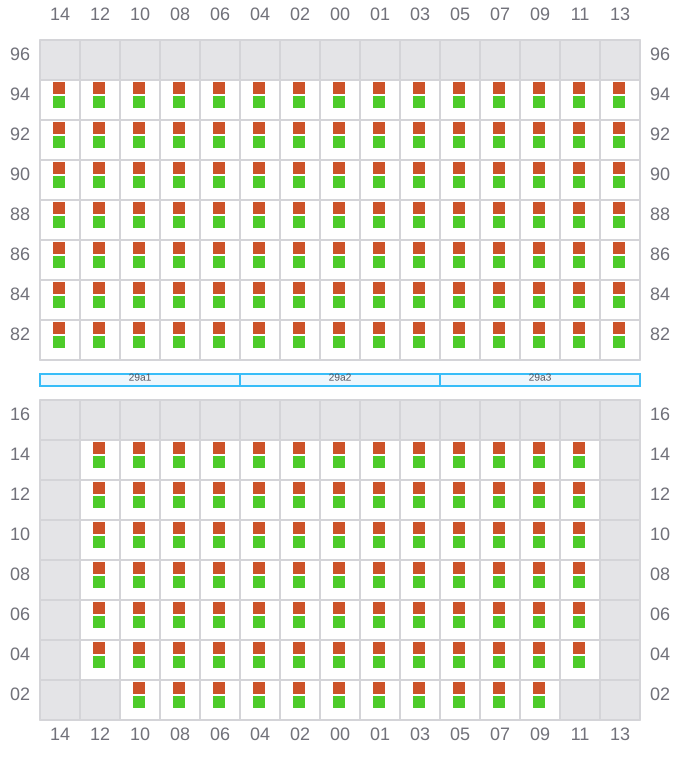

029 (030)

  • →
Bay 029 view and slots of MAERSK BALTIMORE

031

  • ←

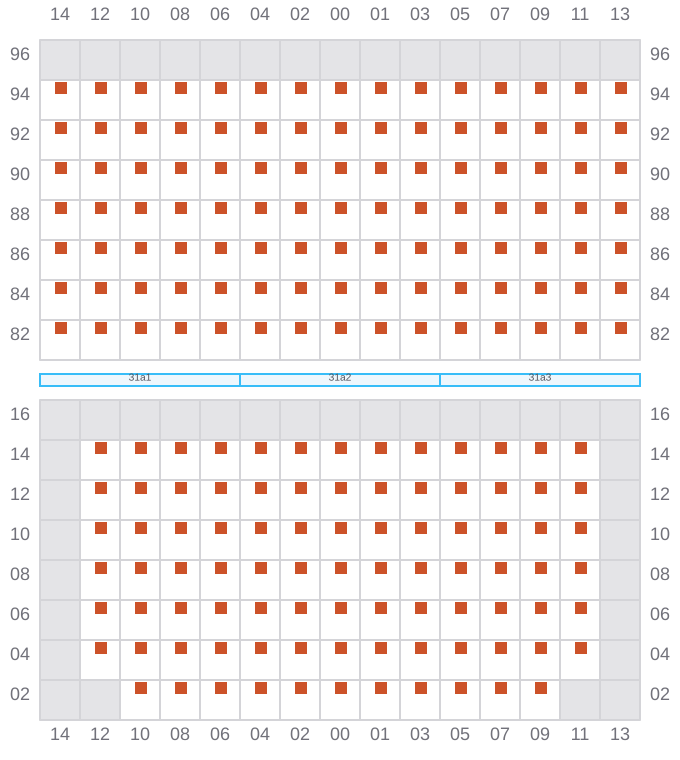

Bay 031 view and slots of MAERSK BALTIMORE

033 (034)

  • →
Bay 033 view and slots of MAERSK BALTIMORE

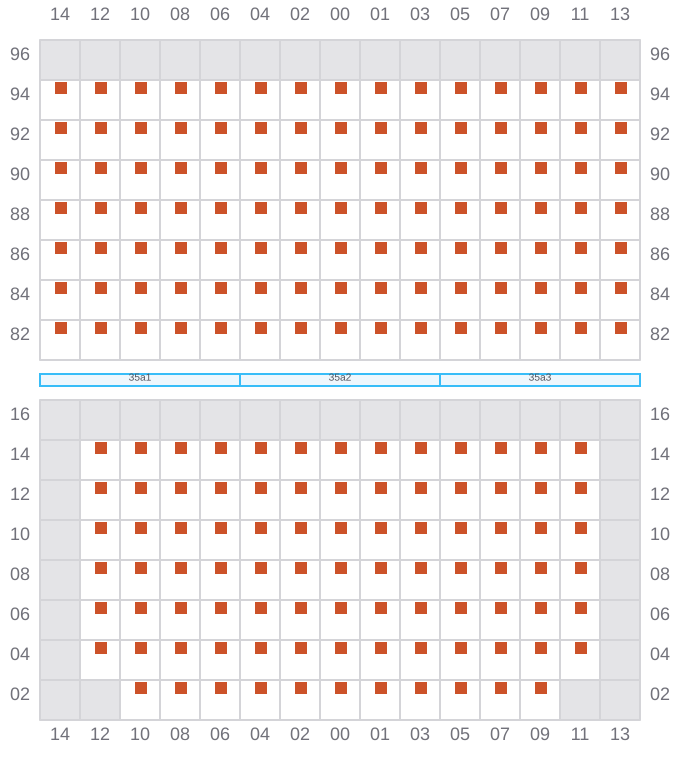

035

  • ←
Bay 035 view and slots of MAERSK BALTIMORE

037 (038)

  • →

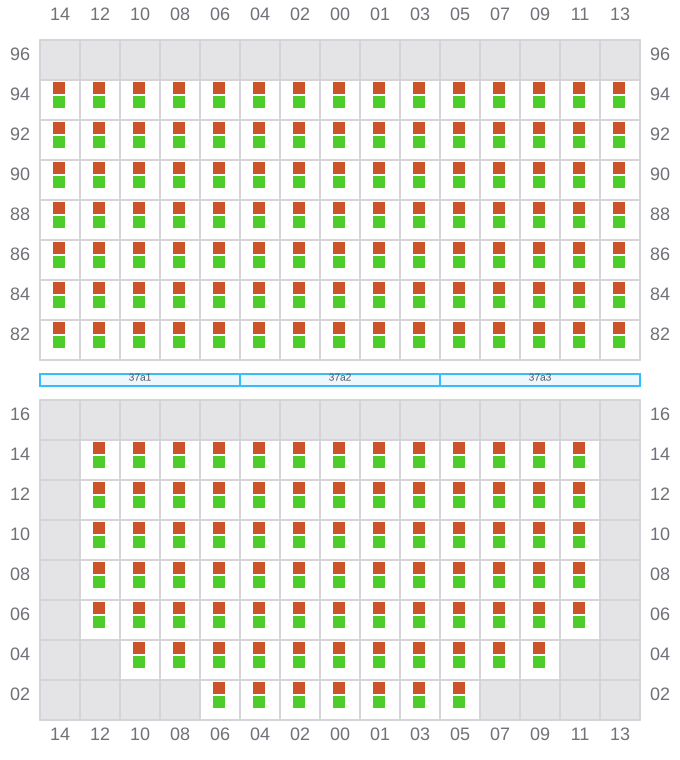

Bay 037 view and slots of MAERSK BALTIMORE

039

  • ←

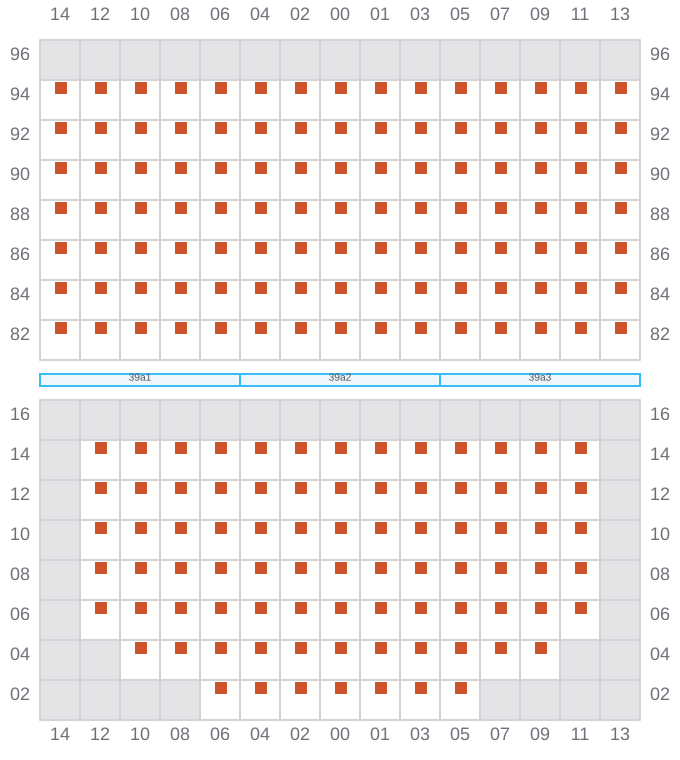

Bay 039 view and slots of MAERSK BALTIMORE

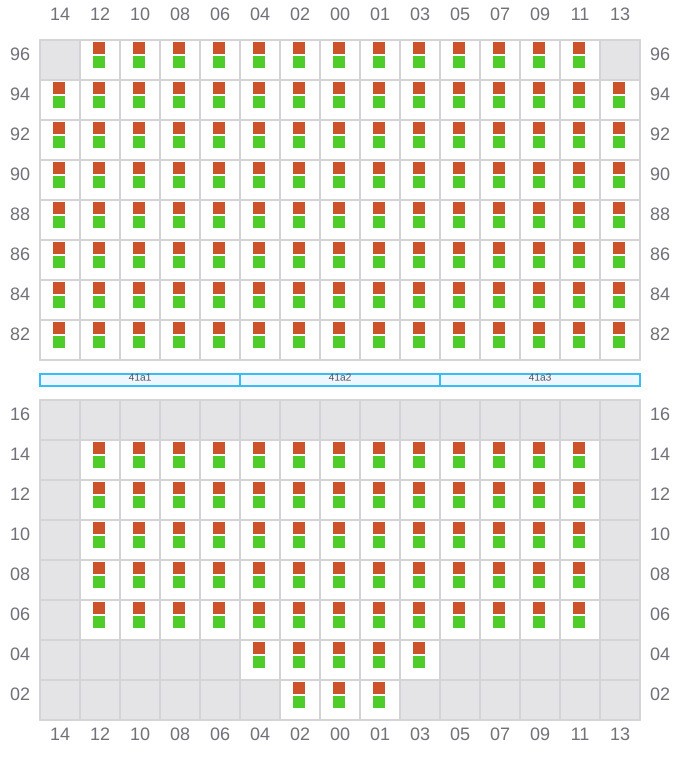

041 (042)

  • →
Bay 041 view and slots of MAERSK BALTIMORE

043

  • ←

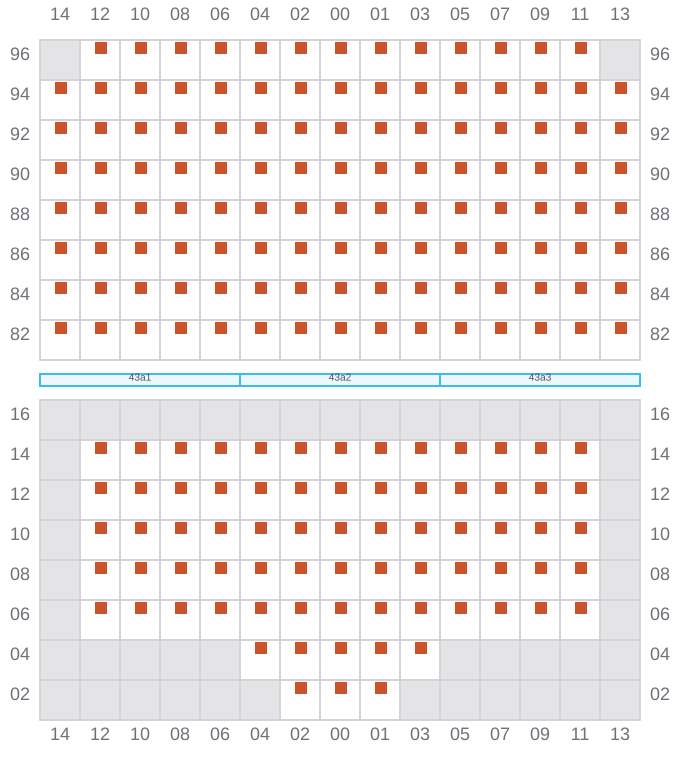

Bay 043 view and slots of MAERSK BALTIMORE

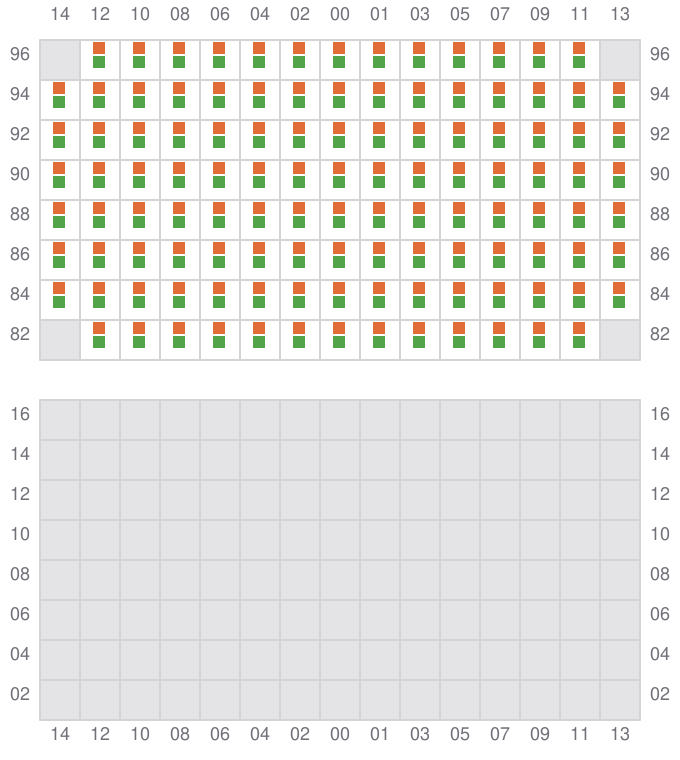

045 (046)

  • → / ?
Bay 045 view and slots of MAERSK BALTIMORE

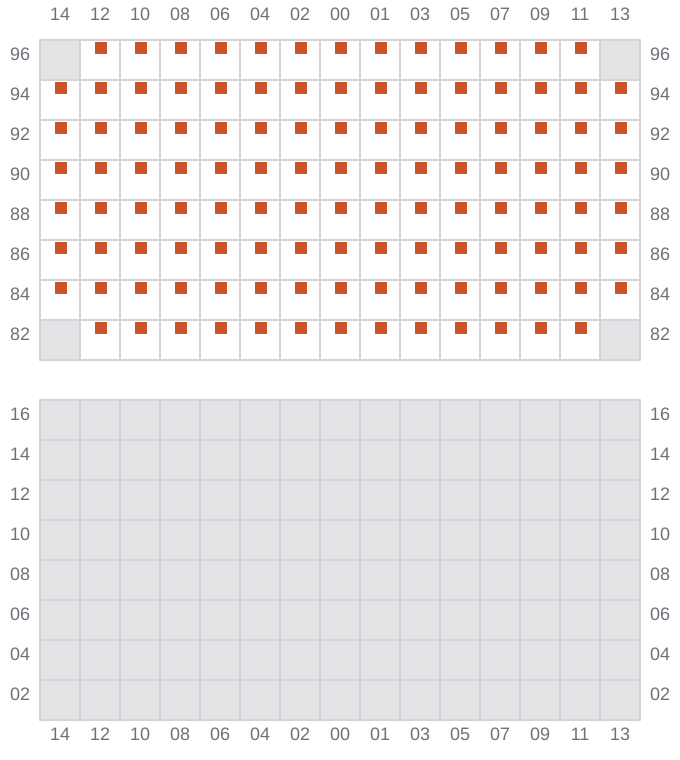

047

  • ← / ?
Bay 047 view and slots of MAERSK BALTIMORE

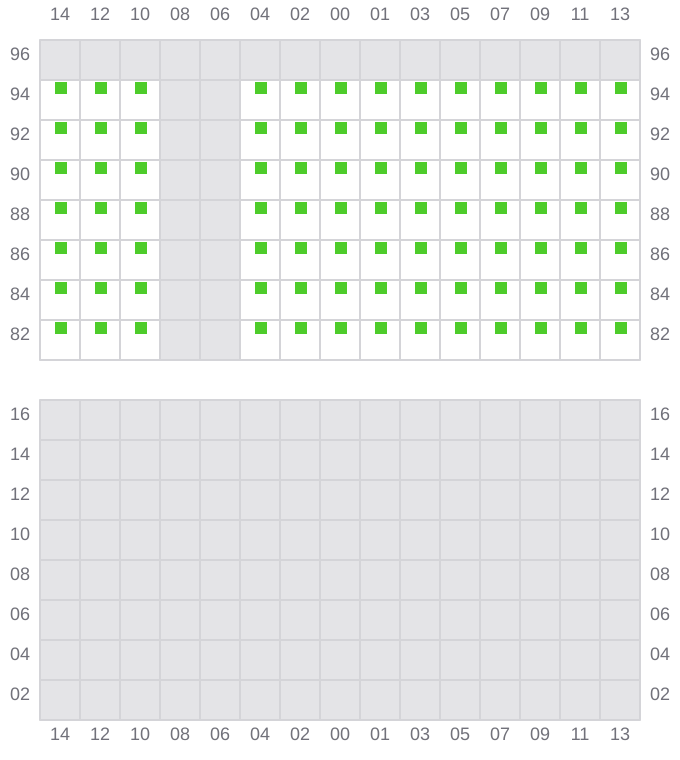

049 (050)

  • → / ?
Bay 049 view and slots of MAERSK BALTIMORE
