MAERSK BALTIMORE
9313917 | OZCX2 | 9313917 by ********* Last update: Thu Mar 21 2024
General Info
Ship Name:MAERSK BALTIMORE
IMO Code:9313917
Call Sign:OZCX2
Line Operator:9313917
Class Name for Sister Ships:814
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:065
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,456
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

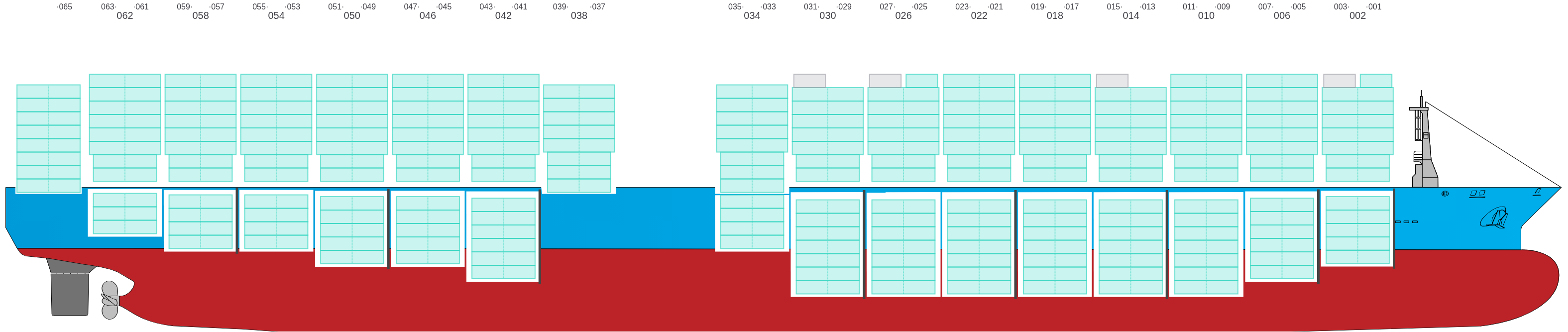

Side View
![Side view of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-sideView.png?v=1711041165701)

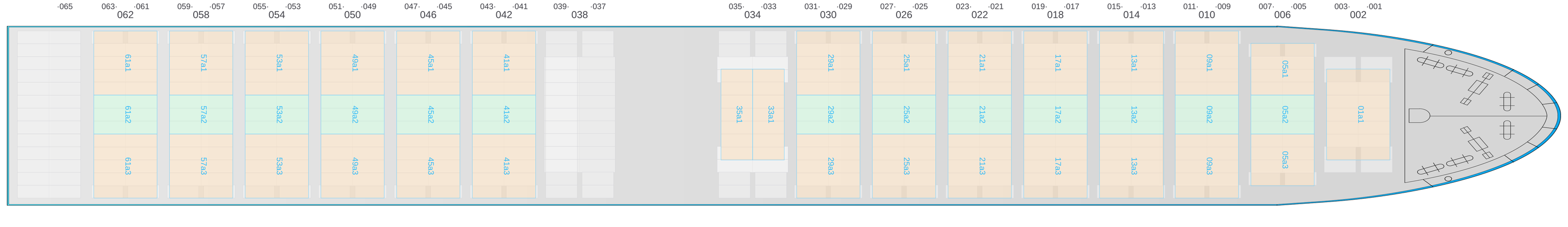

Hatch-Covers View
![Deck view of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-deckView.png?v=1711041165701)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

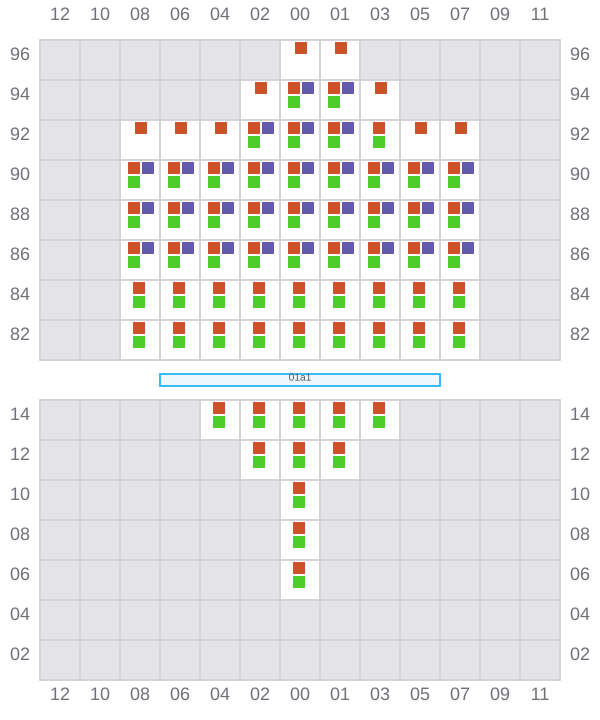

001 (002)
- →
![Bay 001 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b001.png?v=1711041165701)

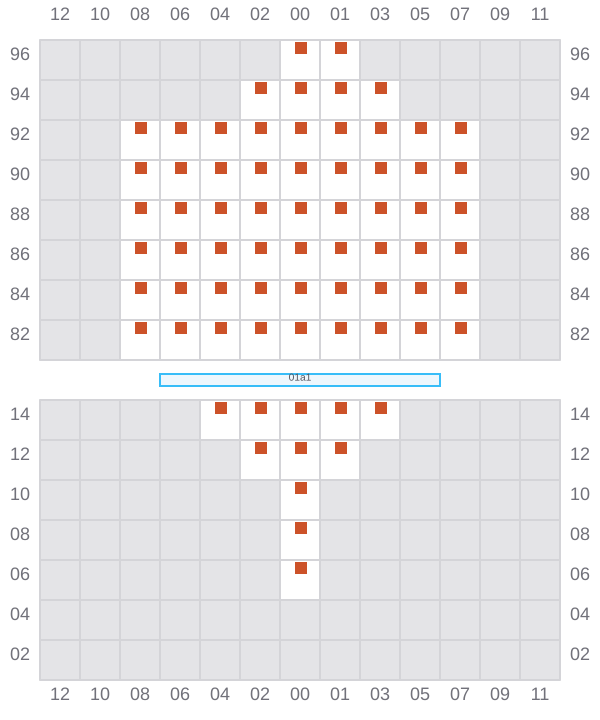

003
- ←
![Bay 003 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b003.png?v=1711041165701)

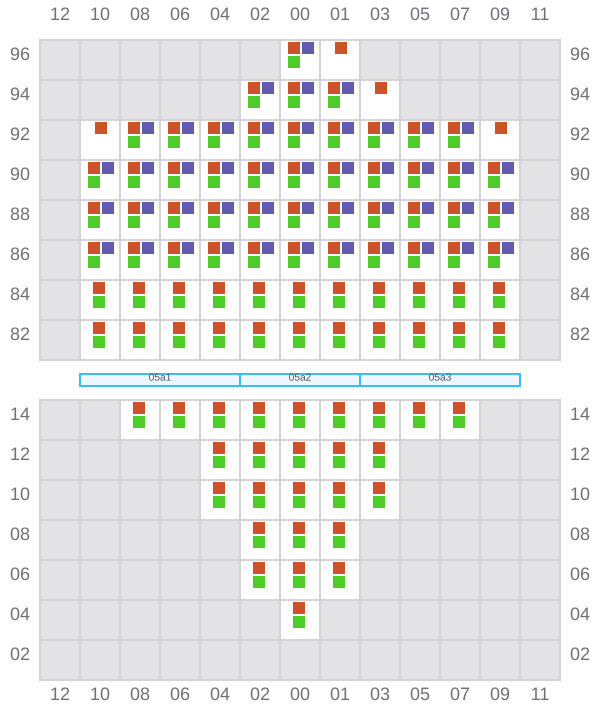

005 (006)
- →
![Bay 005 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b005.png?v=1711041165701)

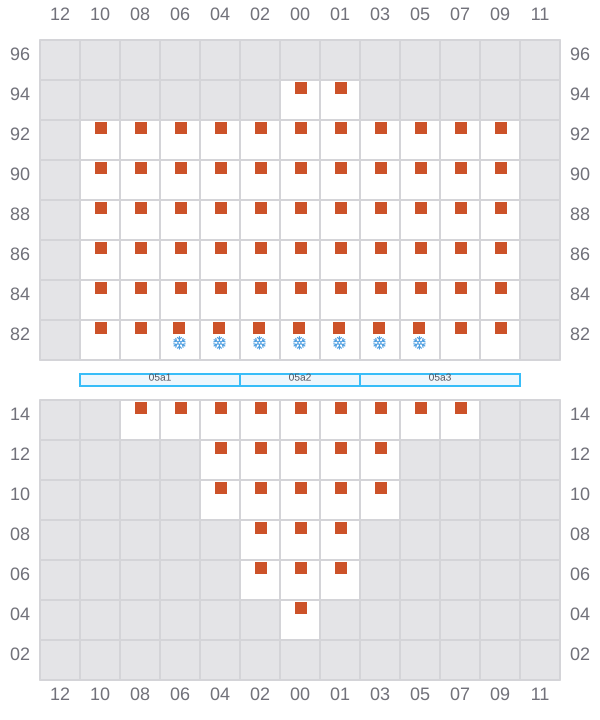

007
- ←
- → / ?
![Bay 007 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b007.png?v=1711041165701)

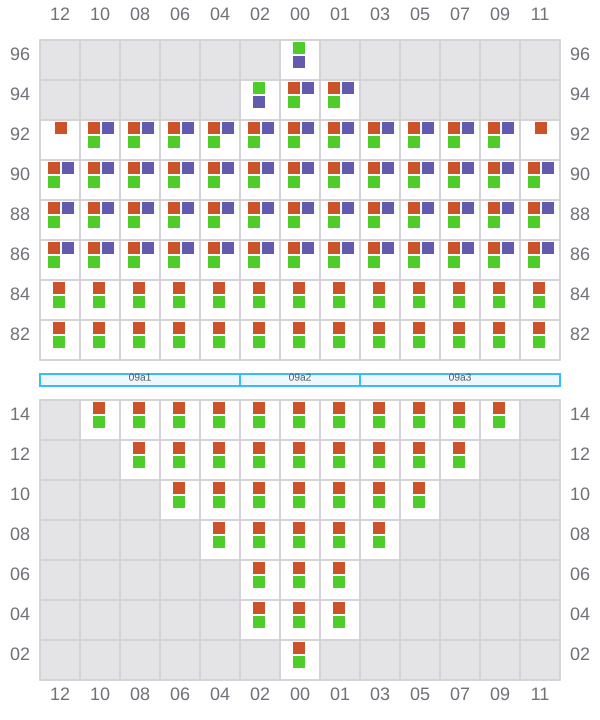

009 (010)
- →
![Bay 009 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b009.png?v=1711041165701)

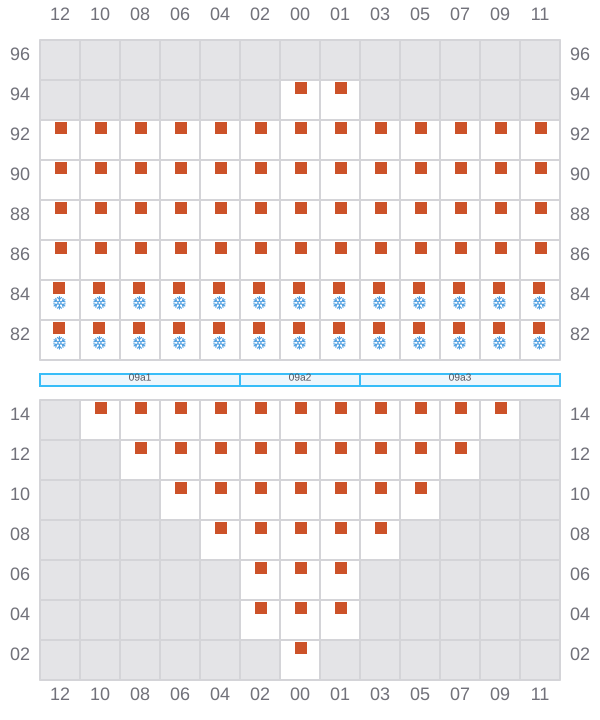

011
- ←
- → / ?
![Bay 011 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b011.png?v=1711041165701)

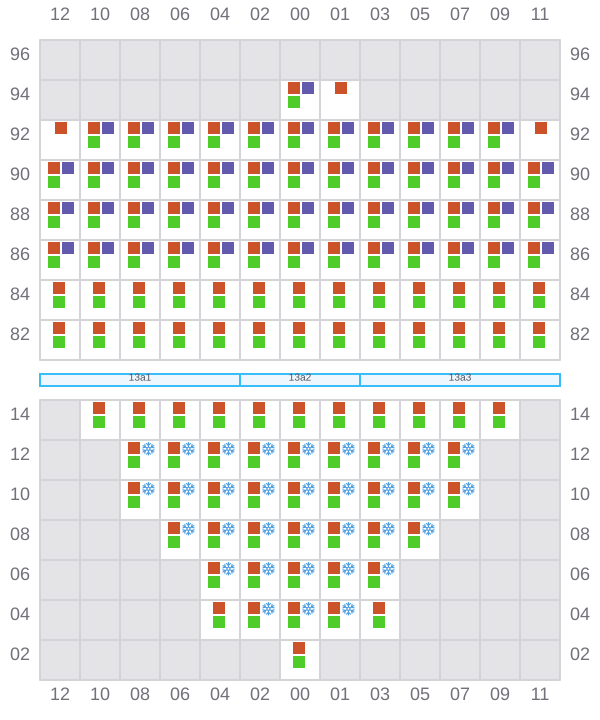

013 (014)
- →
- ? / ←
![Bay 013 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b013.png?v=1711041165701)

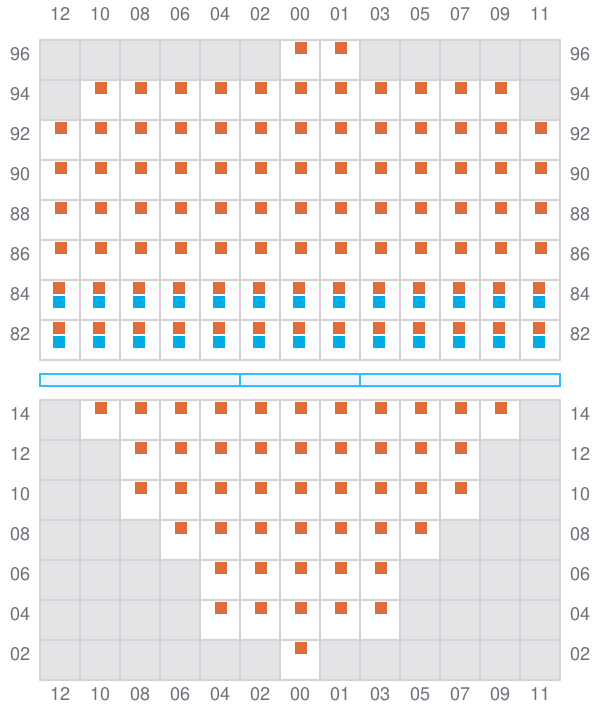

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b015.png?v=1711041165701)

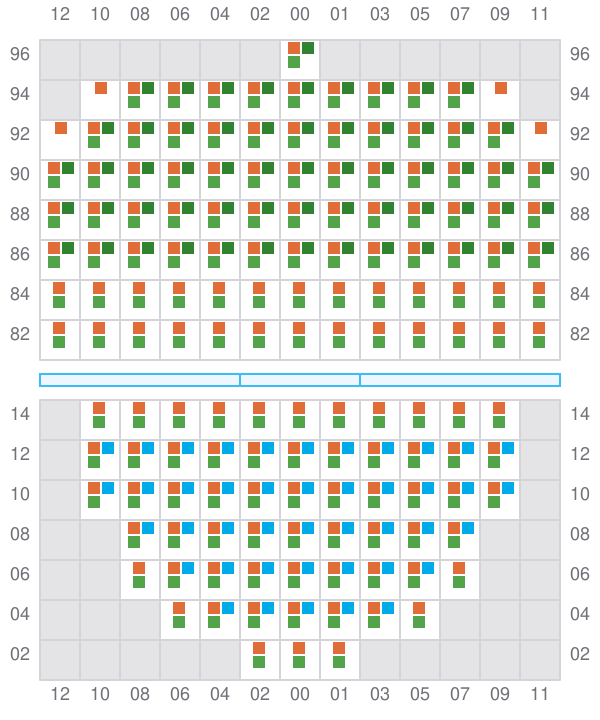

017 (018)
- →
- ? / ←
![Bay 017 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b017.png?v=1711041165701)

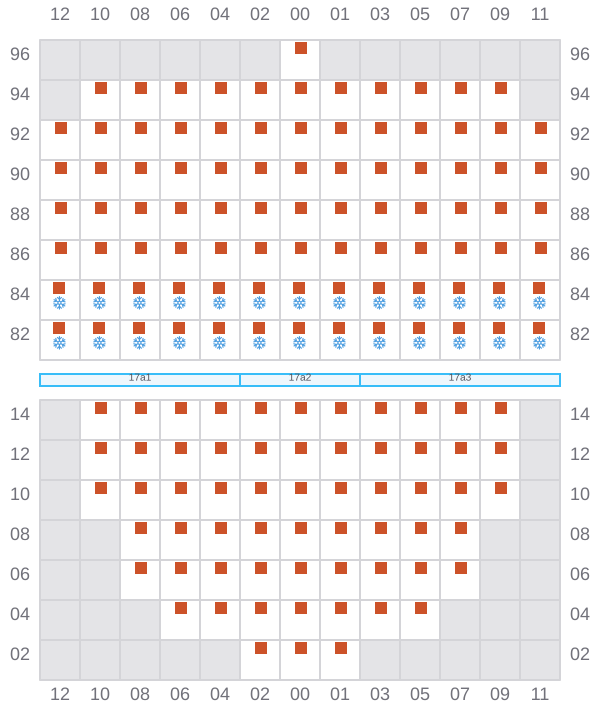

019
- ←
- → / ?
![Bay 019 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b019.png?v=1711041165701)

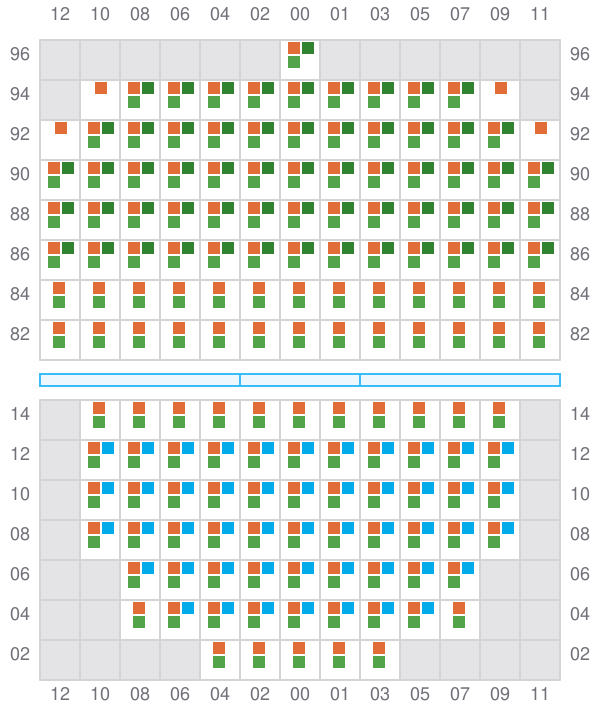

021 (022)
- →
- ? / ←
![Bay 021 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b021.png?v=1711041165701)

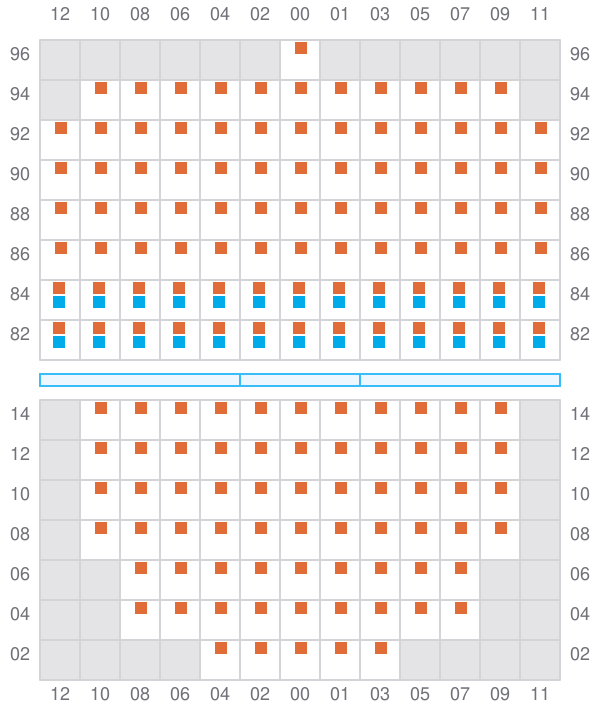

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b023.png?v=1711041165701)

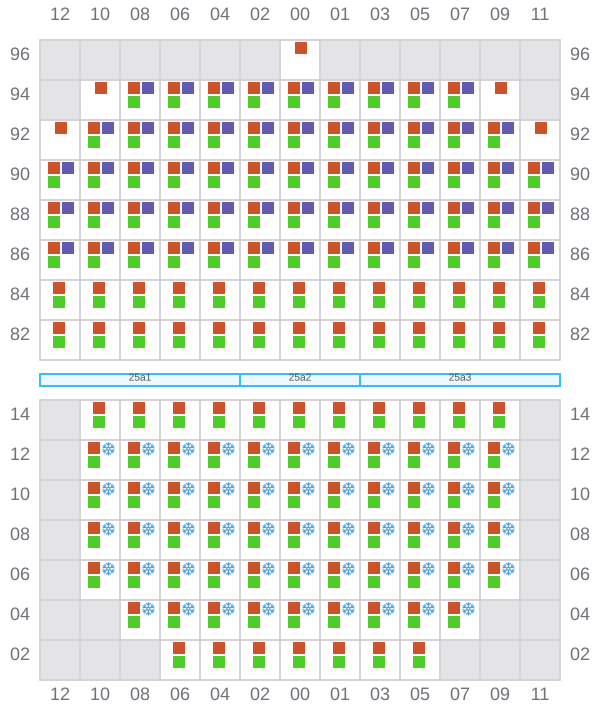

025 (026)
- →
- ? / ←
![Bay 025 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b025.png?v=1711041165701)

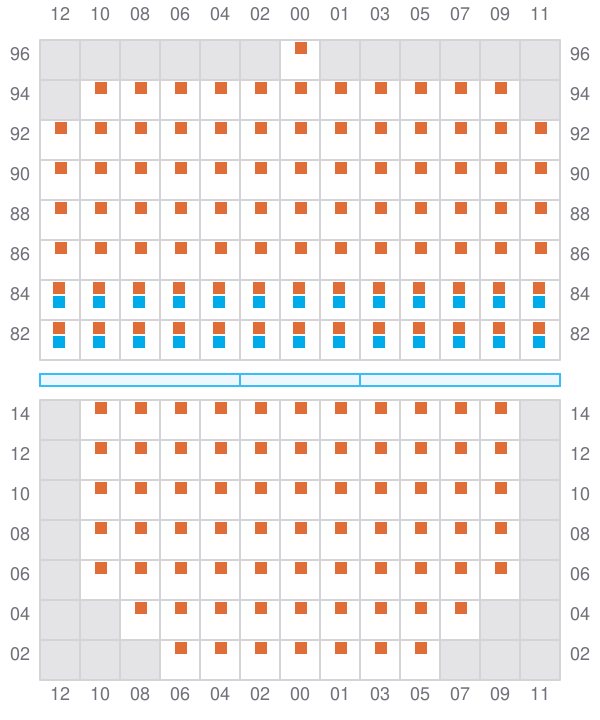

027
- ←
- → / ?
![Bay 027 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b027.png?v=1711041165701)

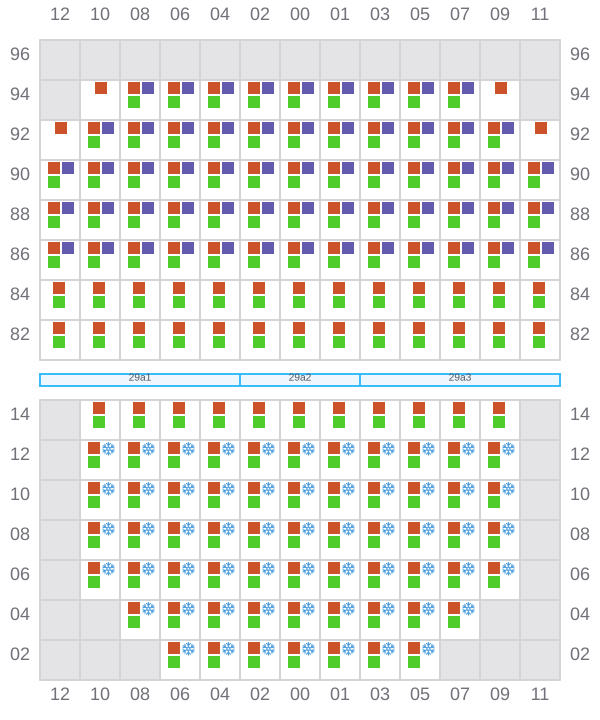

029 (030)
- →
- ? / ←
![Bay 029 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b029.png?v=1711041165701)

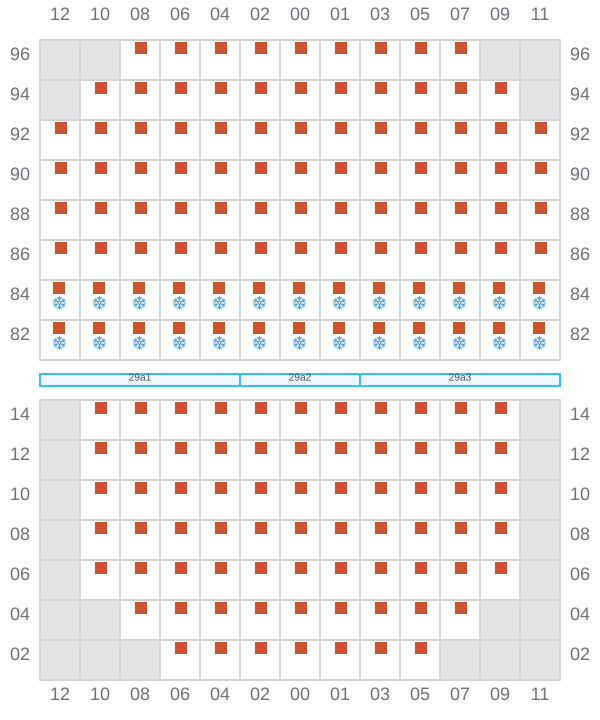

031
- ←
- → / ?
![Bay 031 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b031.png?v=1711041165701)

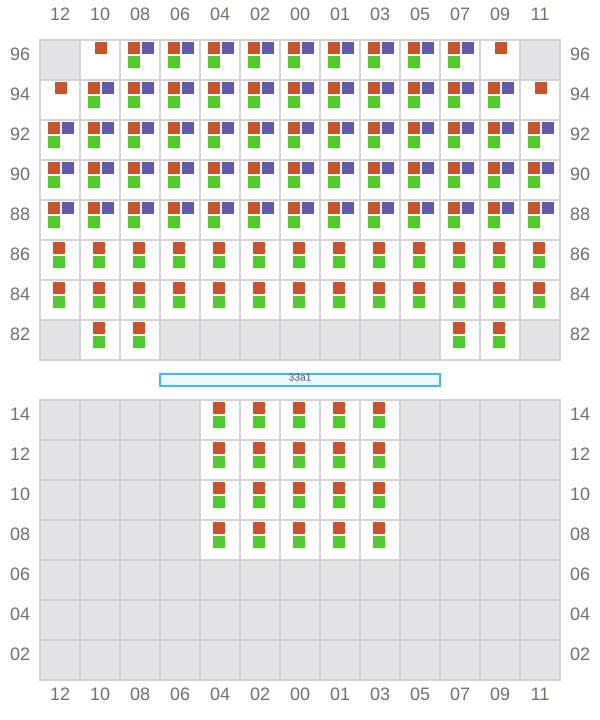

033 (034)
- →
![Bay 033 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b033.png?v=1711041165701)

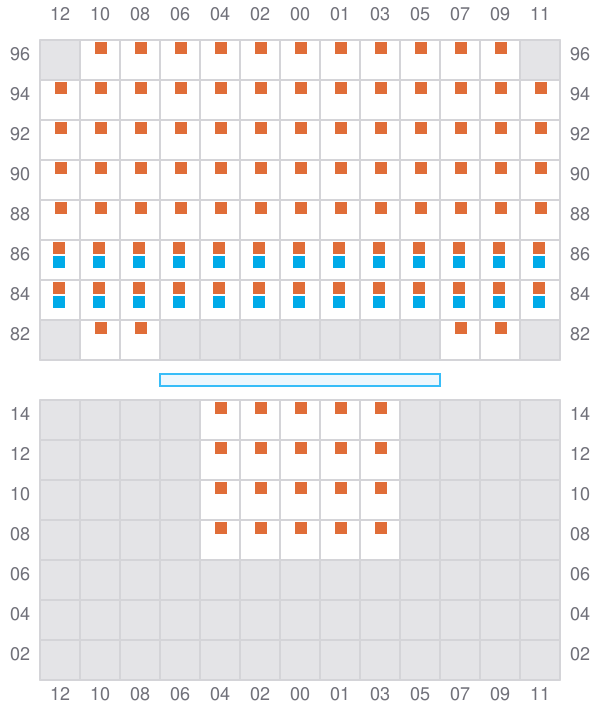

035
- ←
- → / ?
![Bay 035 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b035.png?v=1711041165701)

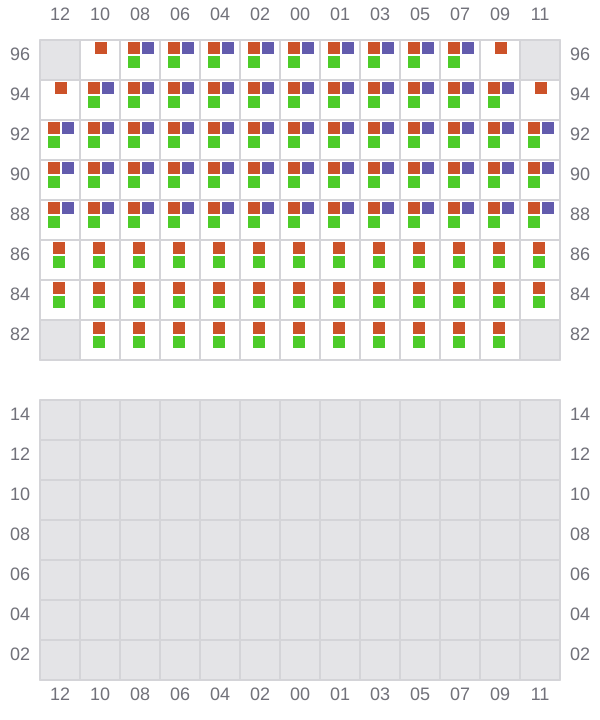

037 (038)
- → / ?
![Bay 037 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b037.png?v=1711041165701)

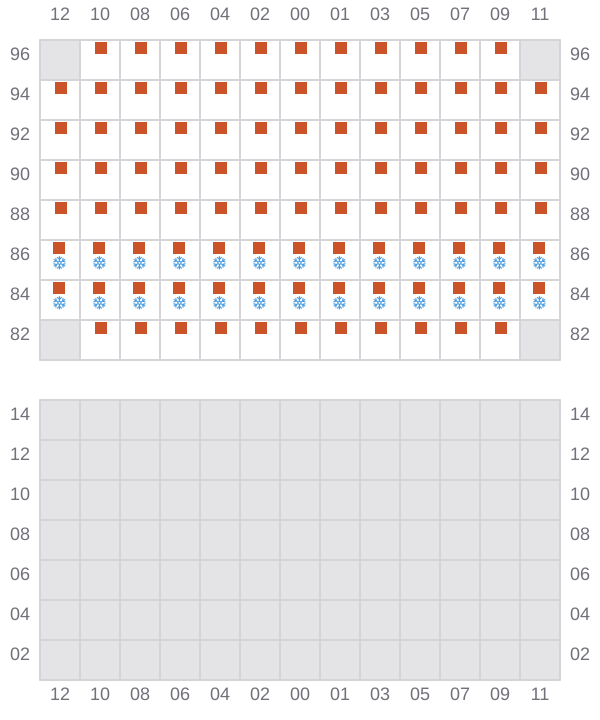

039
- ← / ?
- → / ?
![Bay 039 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b039.png?v=1711041165701)

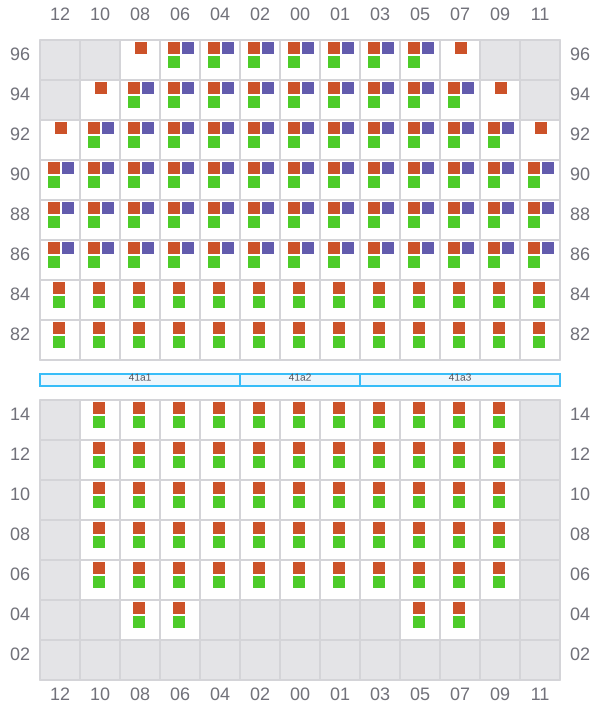

041 (042)
- →
![Bay 041 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b041.png?v=1711041165701)

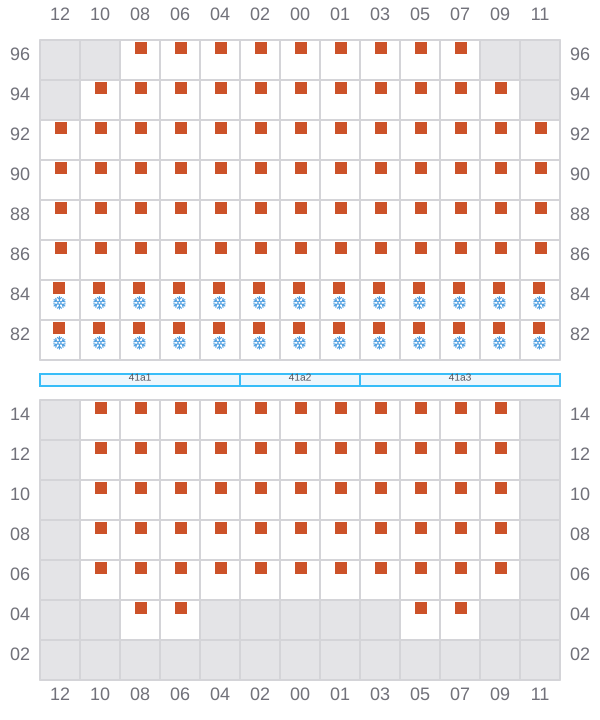

043
- ←
- → / ?
![Bay 043 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b043.png?v=1711041165701)

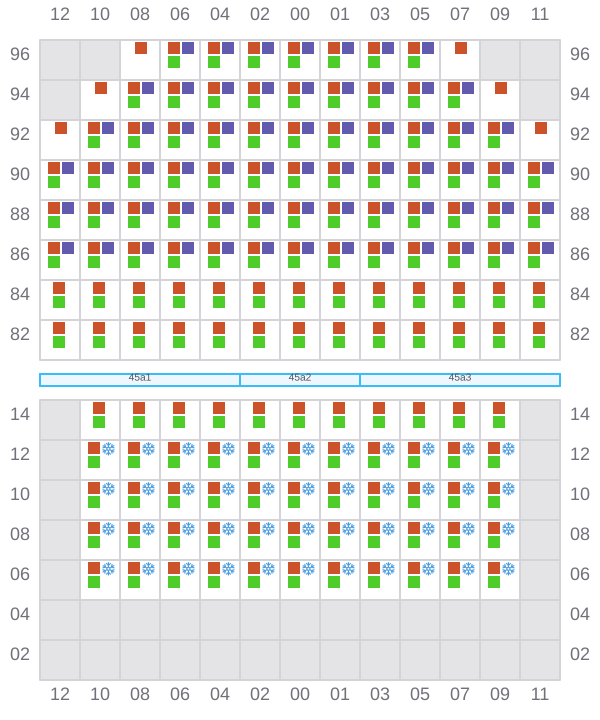

045 (046)
- →
- ? / ←
![Bay 045 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b045.png?v=1711041165701)

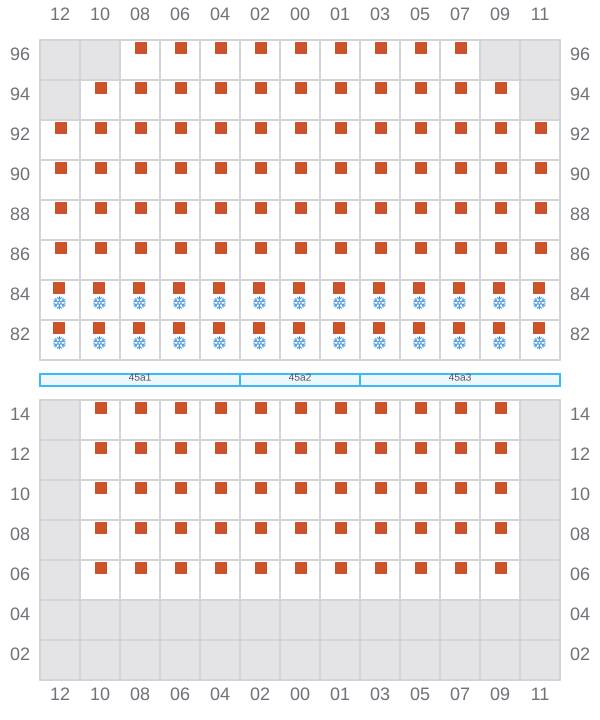

047
- ←
- → / ?
![Bay 047 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b047.png?v=1711041165701)

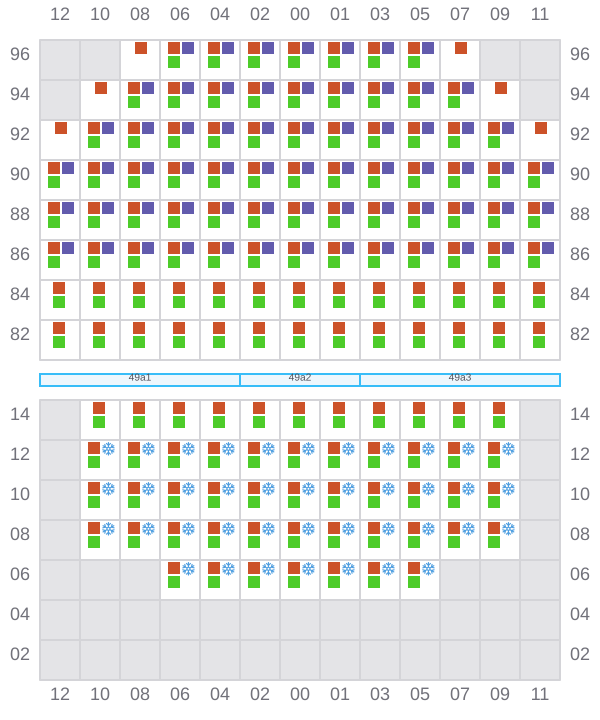

049 (050)
- →
- ? / ←
![Bay 049 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b049.png?v=1711041165701)
051
- ←
- → / ?
![Bay 051 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b051.png?v=1711041165701)

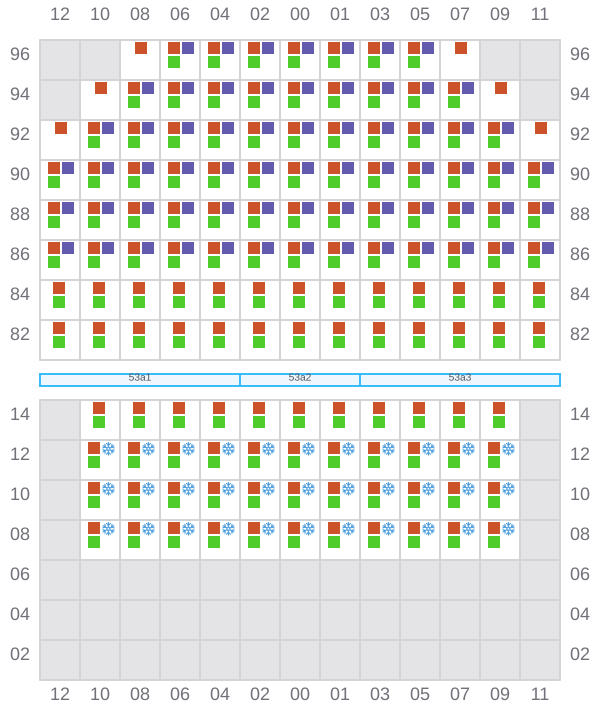

053 (054)
- →
- ? / ←
![Bay 053 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b053.png?v=1711041165701)

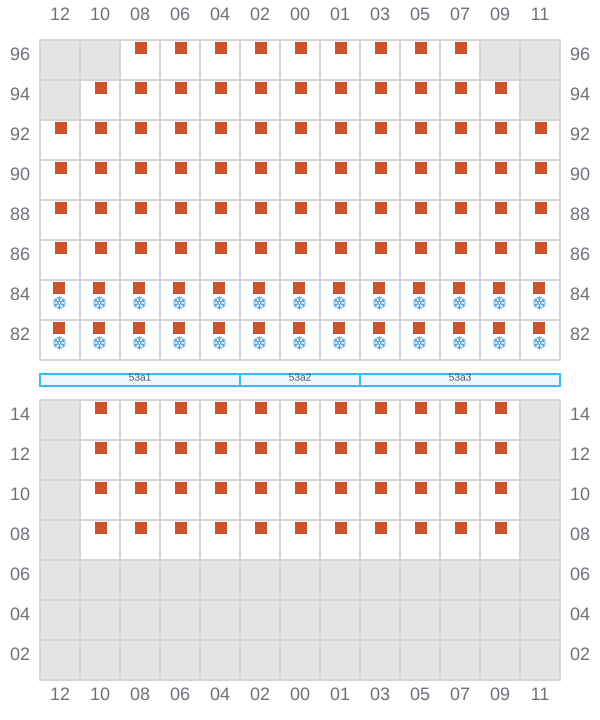

055
- ←
- → / ?
![Bay 055 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b055.png?v=1711041165701)

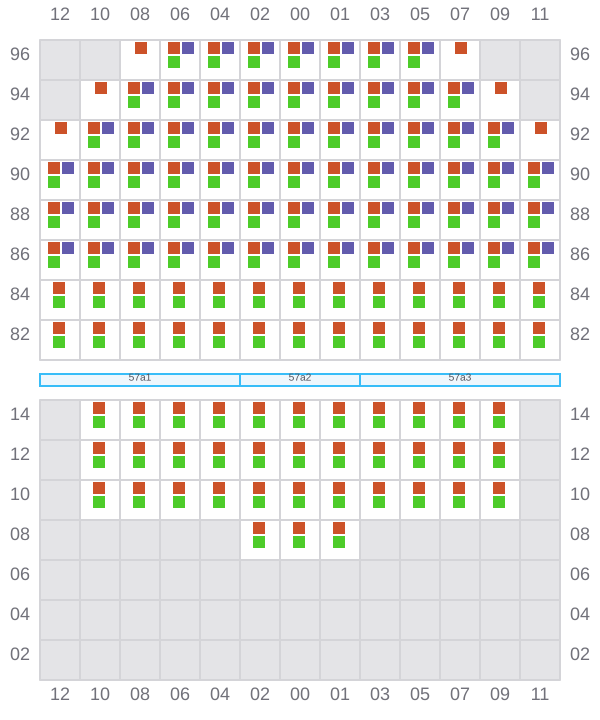

057 (058)
- →
![Bay 057 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b057.png?v=1711041165701)

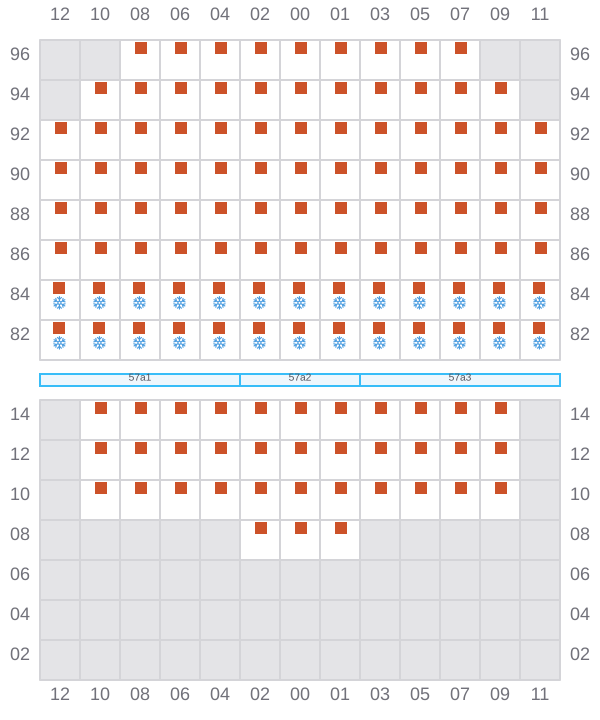

059
- ←
- → / ?
![Bay 059 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b059.png?v=1711041165701)

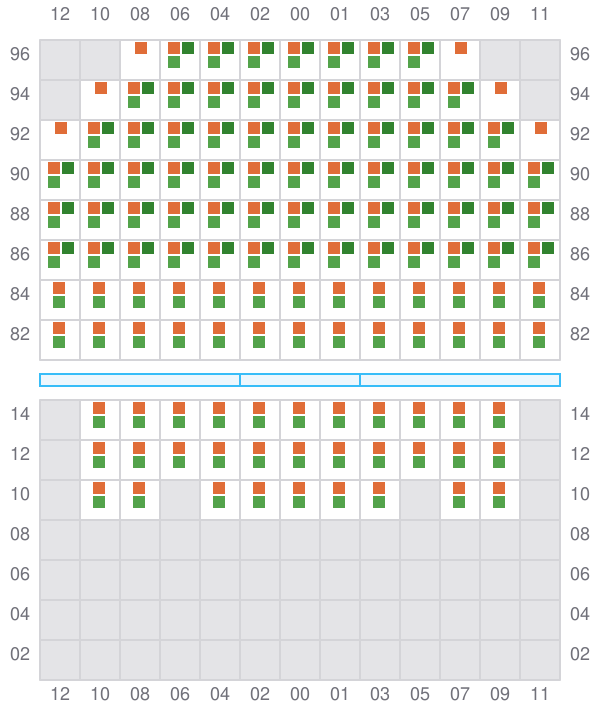

061 (062)
- →
![Bay 061 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b061.png?v=1711041165701)

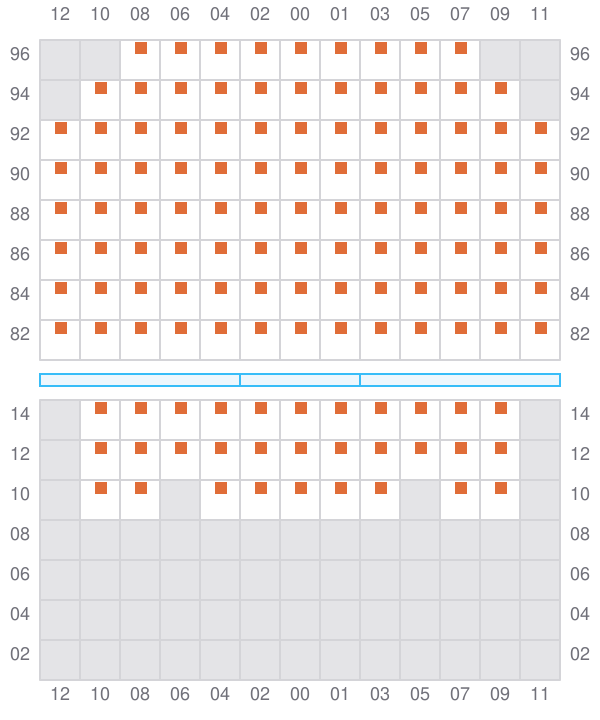

063
- ←
![Bay 063 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b063.png?v=1711041165701)

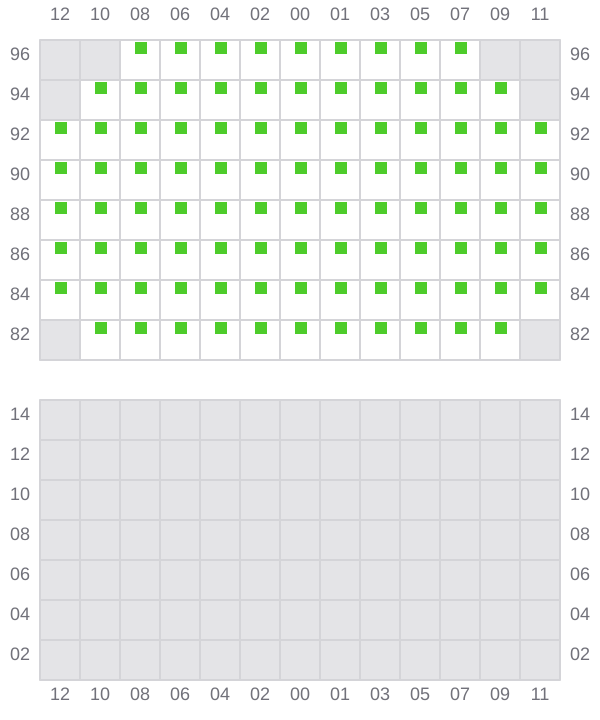

065 (066)
- → / ?
![Bay 065 view and slots of MAERSK BALTIMORE](/vessel-images/3690725f-175d-4086-97b6-65f341801bfc-b065.png?v=1711041165701)
