MAERSK BENGUELA
9355367 | VRLA3 | 93553 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK BENGUELA
IMO Code:9355367
Call Sign:VRLA3
Line Operator:93553
Class Name for Sister Ships:762
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):212.00
LOA (Length Overall):223.30
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,435

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

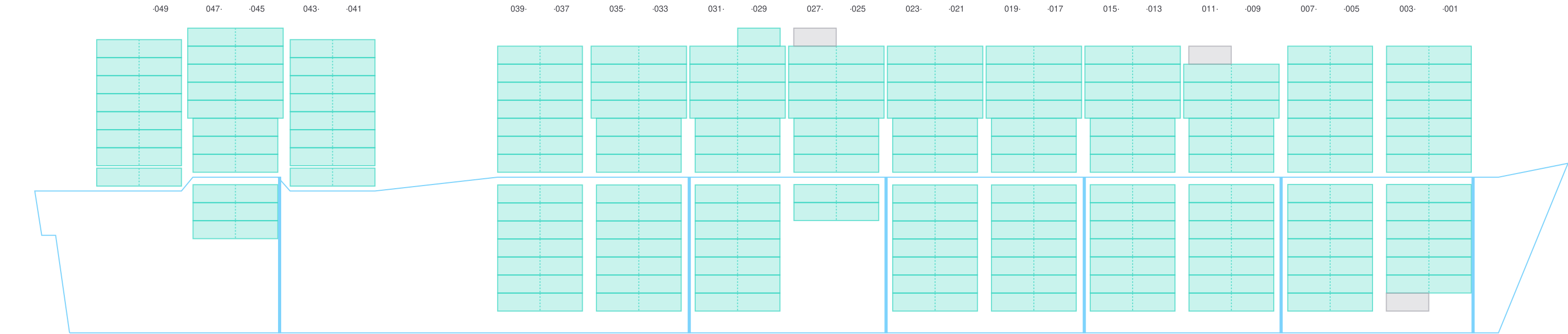

Side View

Side view of MAERSK BENGUELA

Hatch-Covers View

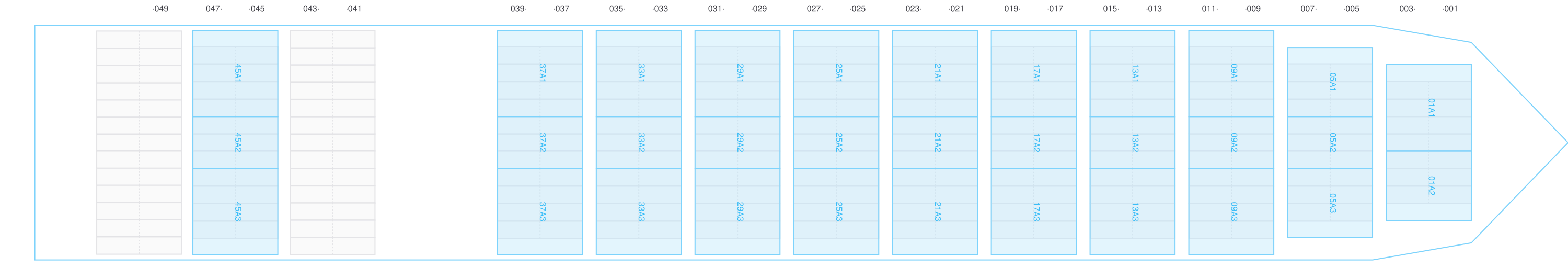

Deck view of MAERSK BENGUELA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

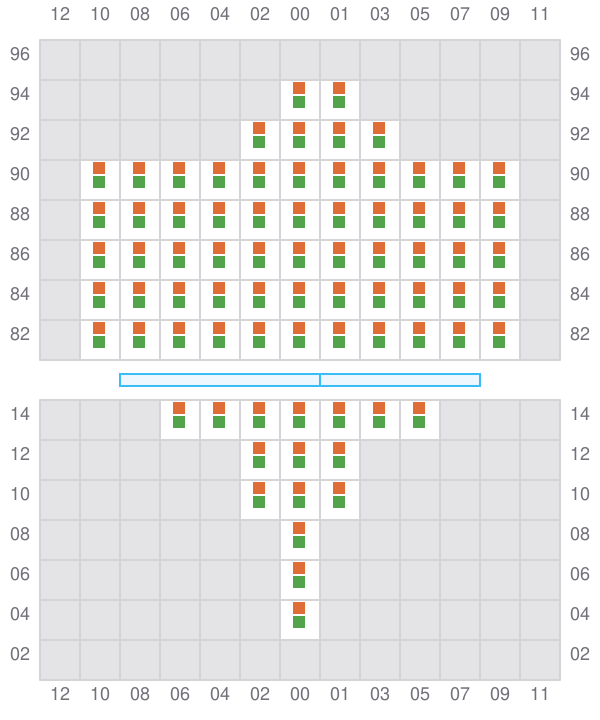

Bay 001 view and slots of MAERSK BENGUELA

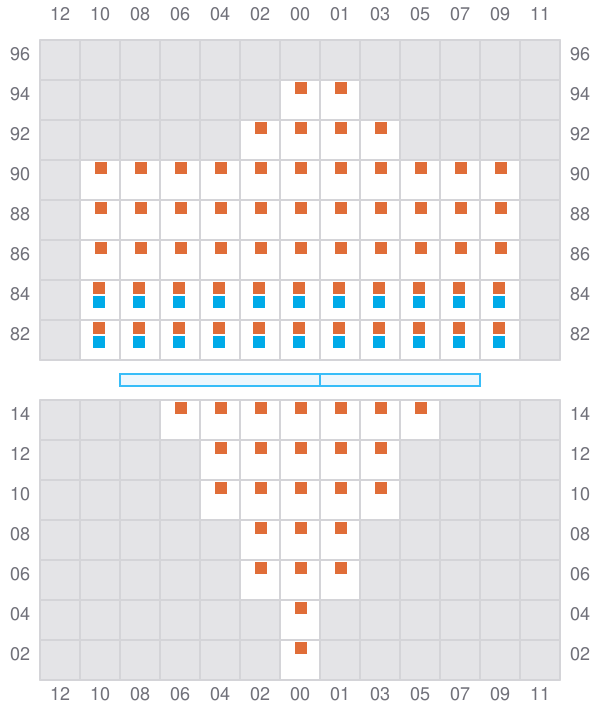

003

  • ←
  • → / ?
Bay 003 view and slots of MAERSK BENGUELA

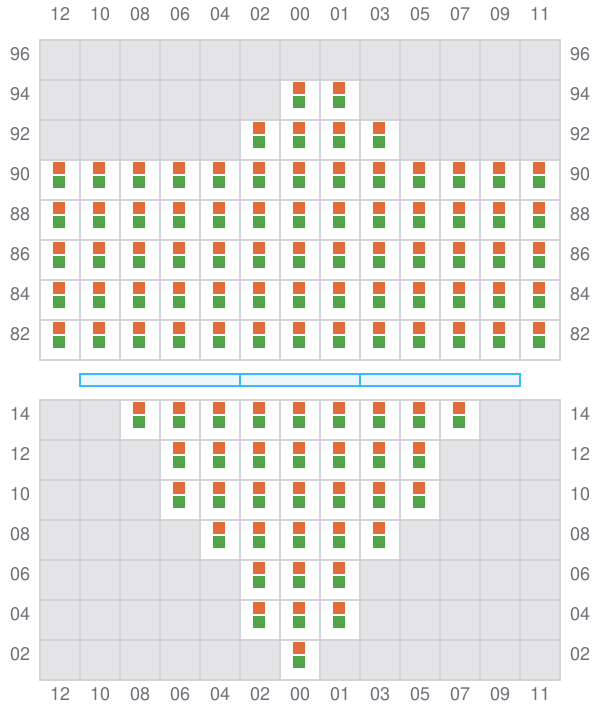

005 (006)

  • →
Bay 005 view and slots of MAERSK BENGUELA

007

  • ←
  • →

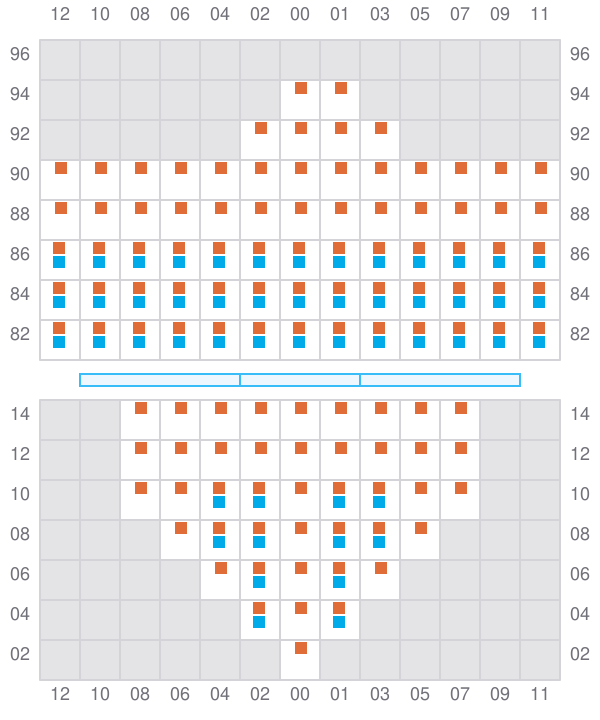

Bay 007 view and slots of MAERSK BENGUELA

009 (010)

  • →

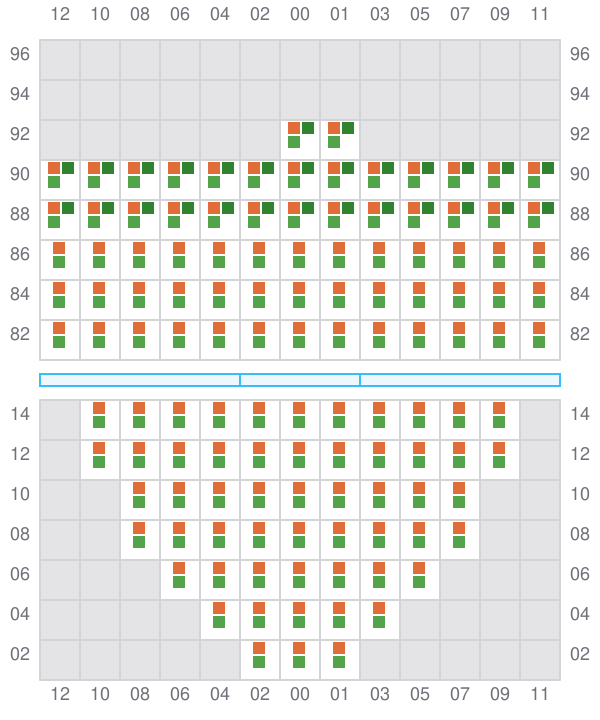

Bay 009 view and slots of MAERSK BENGUELA

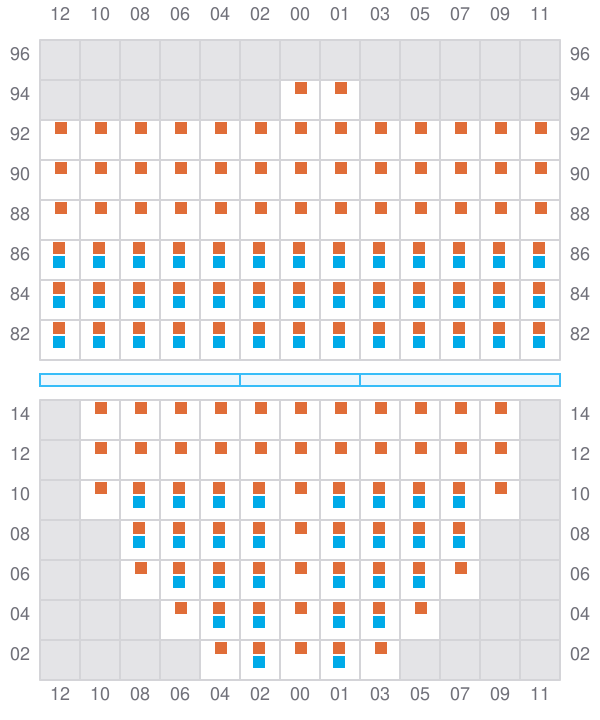

011

  • ←
  • →
Bay 011 view and slots of MAERSK BENGUELA

013 (014)

  • →

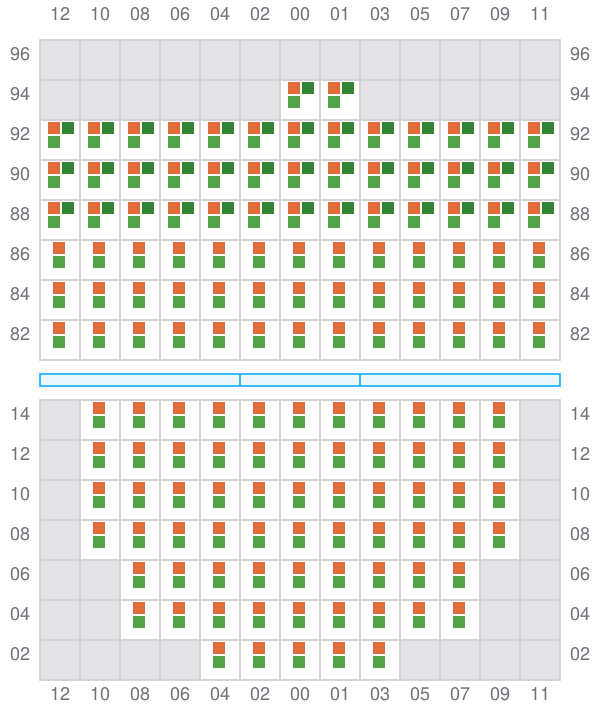

Bay 013 view and slots of MAERSK BENGUELA

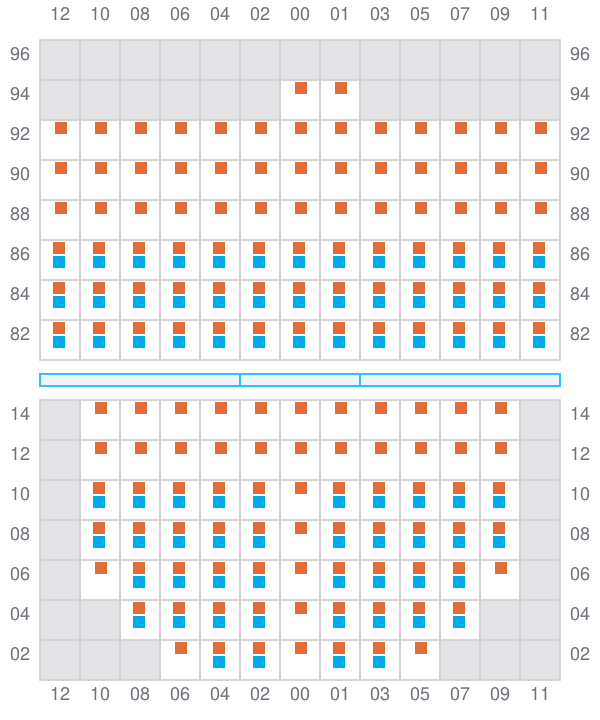

015

  • ←
  • →
Bay 015 view and slots of MAERSK BENGUELA

017 (018)

  • →

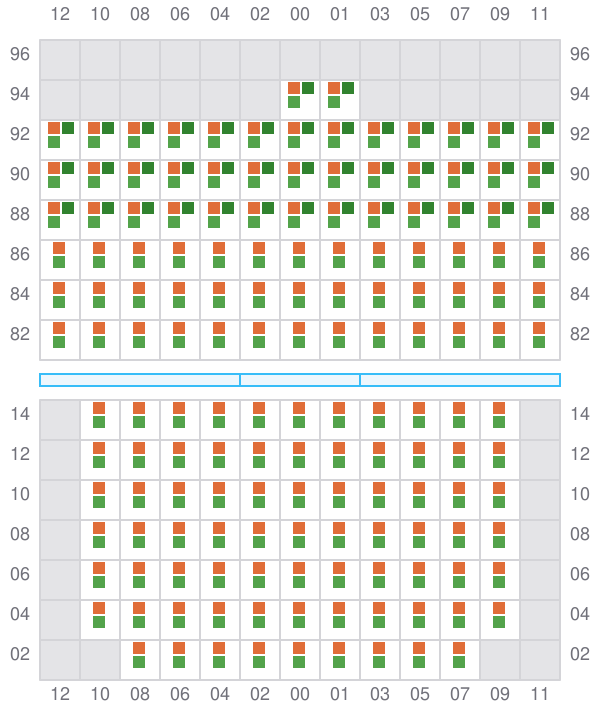

Bay 017 view and slots of MAERSK BENGUELA

019

  • ←
  • →

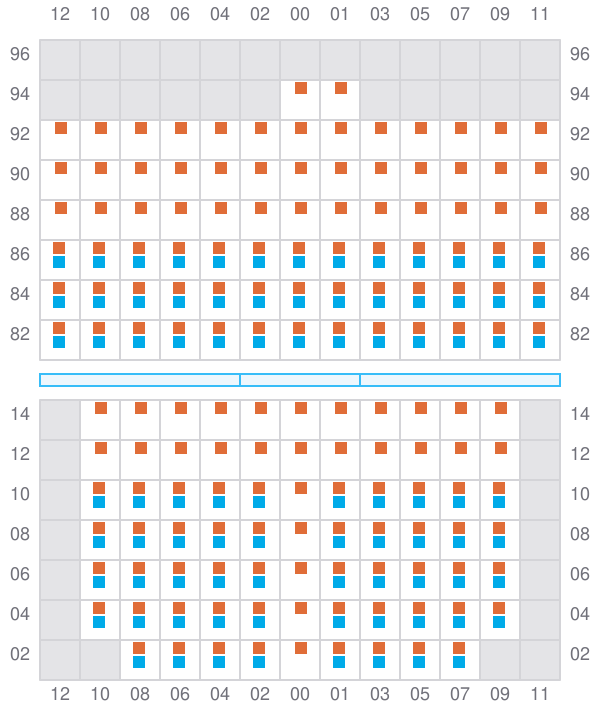

Bay 019 view and slots of MAERSK BENGUELA

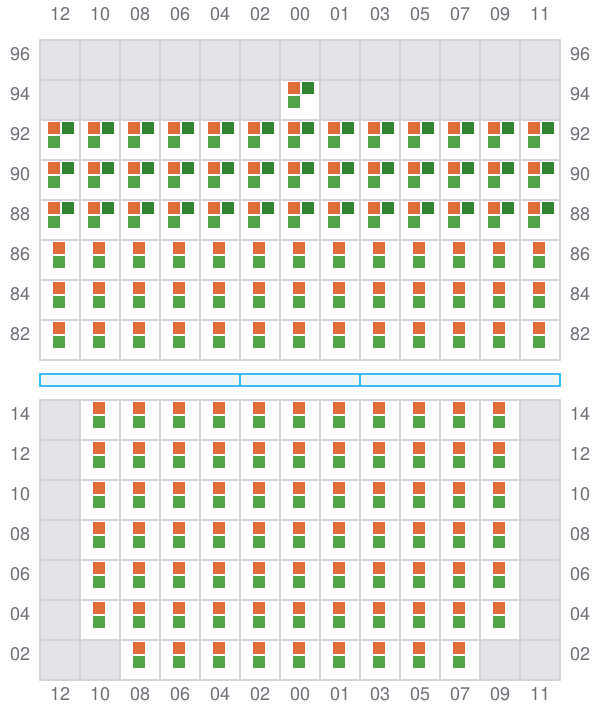

021 (022)

  • →
Bay 021 view and slots of MAERSK BENGUELA

023

  • ←
  • →

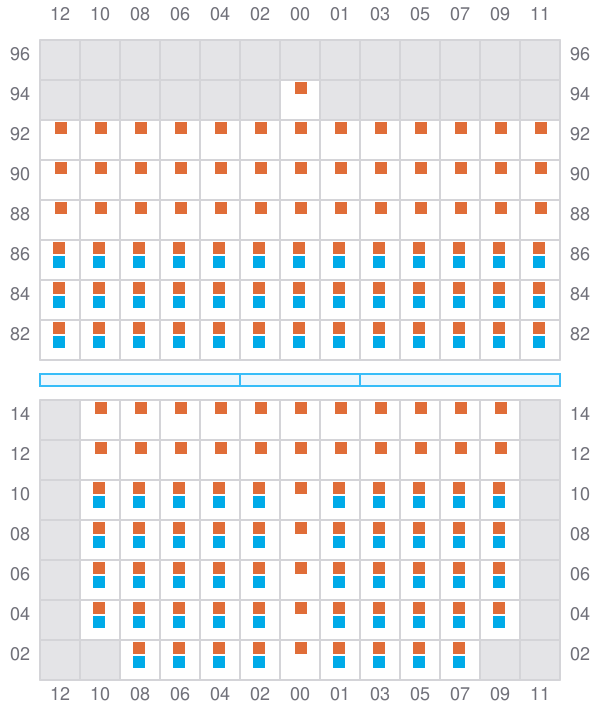

Bay 023 view and slots of MAERSK BENGUELA

025 (026)

  • →

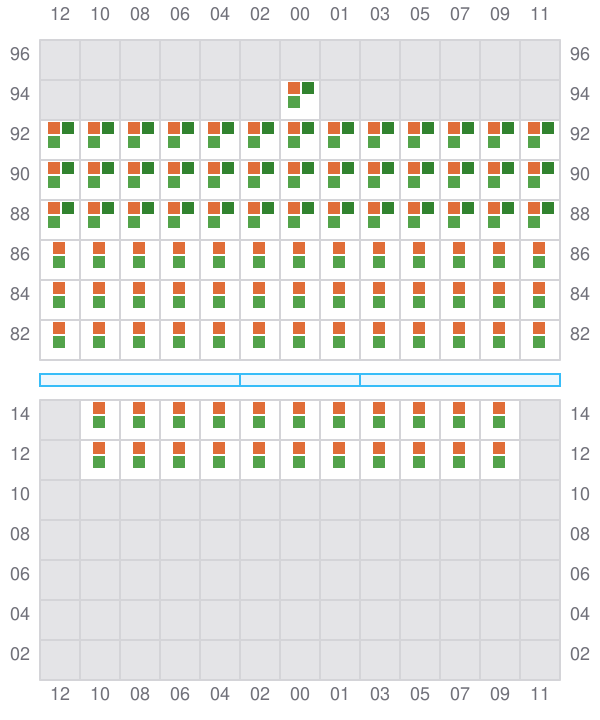

Bay 025 view and slots of MAERSK BENGUELA

027

  • ←
  • → / ?

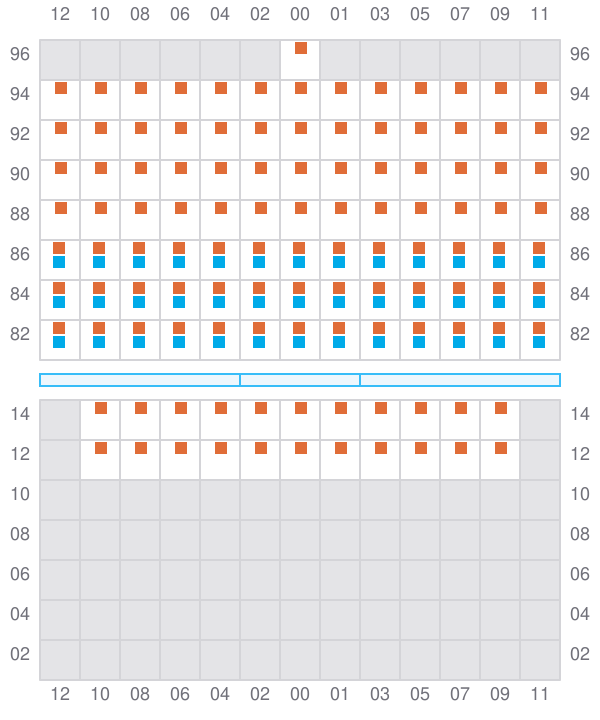

Bay 027 view and slots of MAERSK BENGUELA

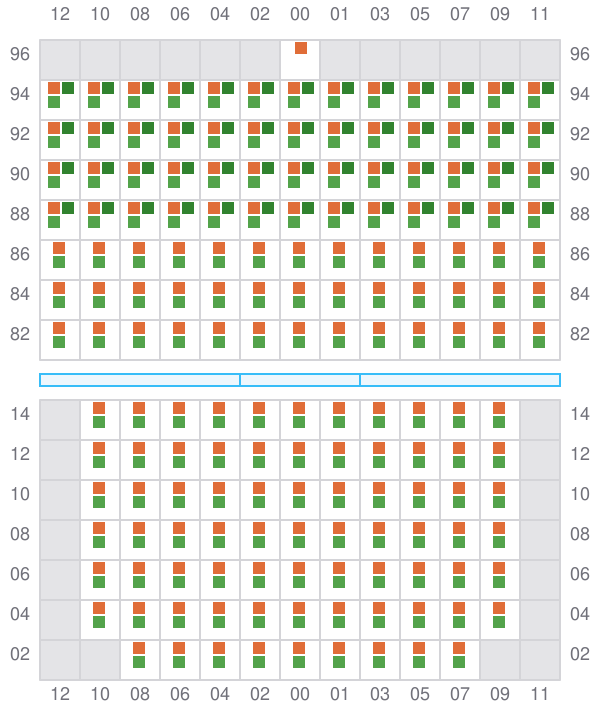

029 (030)

  • →
Bay 029 view and slots of MAERSK BENGUELA

031

  • ←
  • →

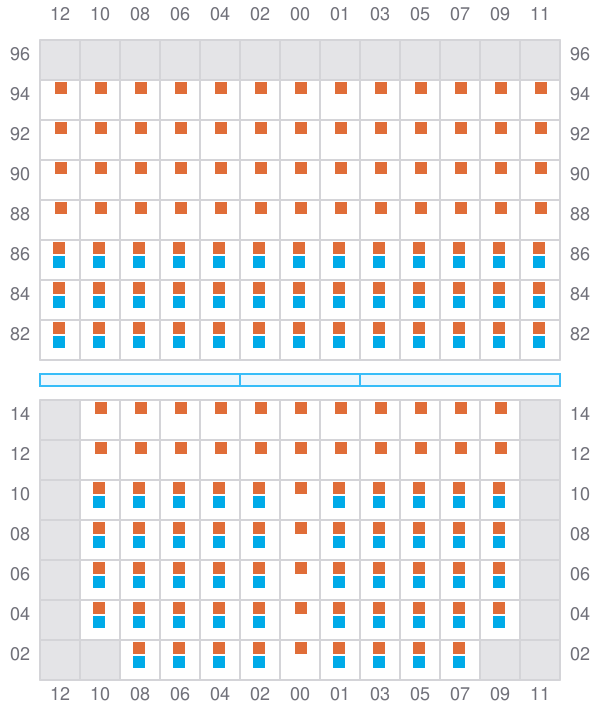

Bay 031 view and slots of MAERSK BENGUELA

033 (034)

  • →
Bay 033 view and slots of MAERSK BENGUELA

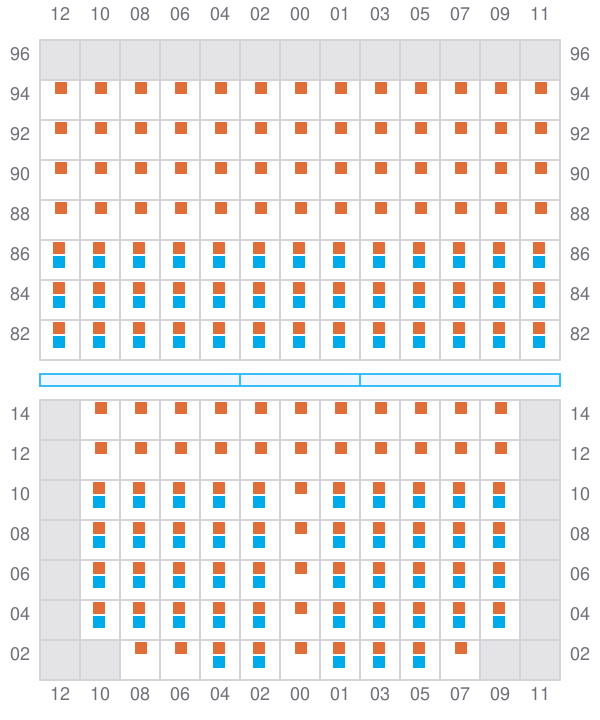

035

  • ←
  • →
Bay 035 view and slots of MAERSK BENGUELA

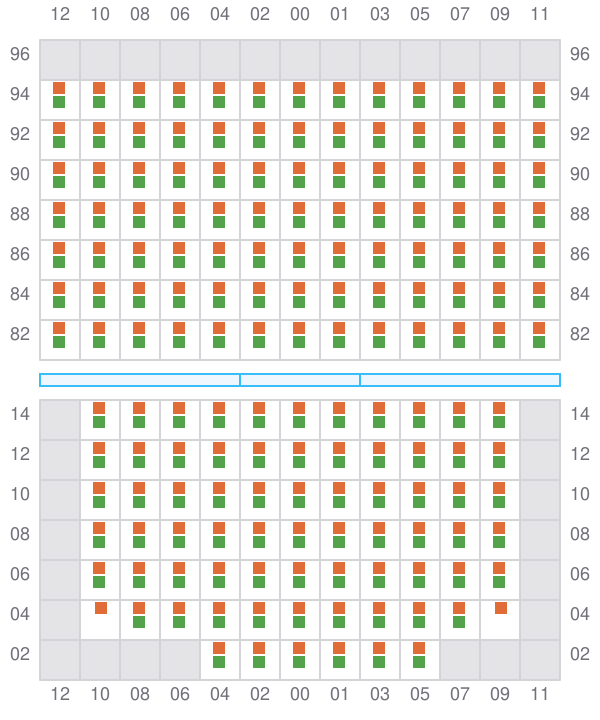

037 (038)

  • →
Bay 037 view and slots of MAERSK BENGUELA

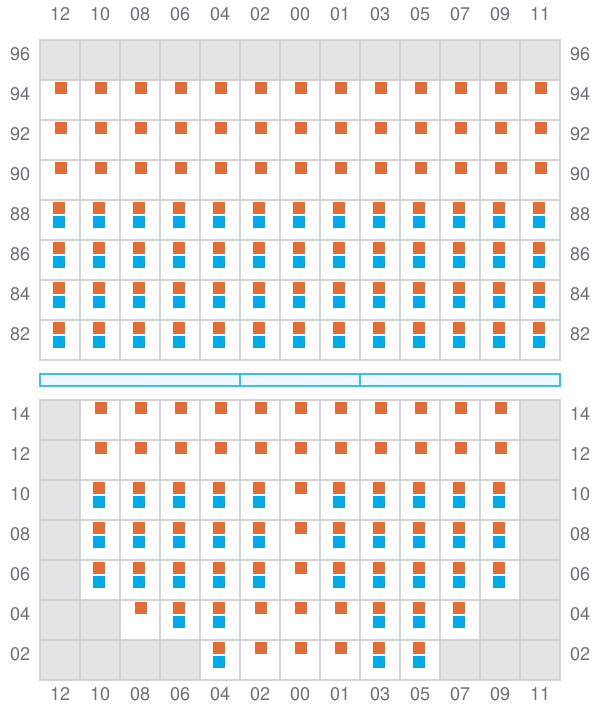

039

  • ←
  • →
Bay 039 view and slots of MAERSK BENGUELA

041 (042)

  • → / ?
  • → / ?

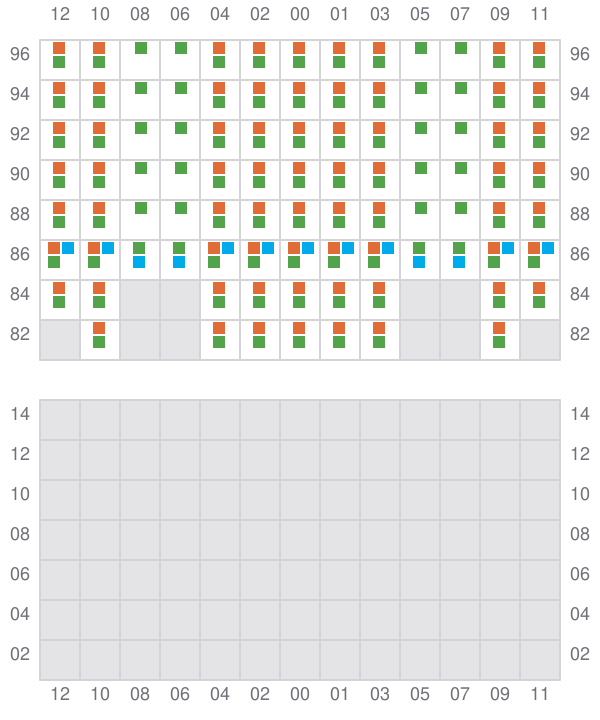

Bay 041 view and slots of MAERSK BENGUELA

043

  • ← / ?
  • → / ?

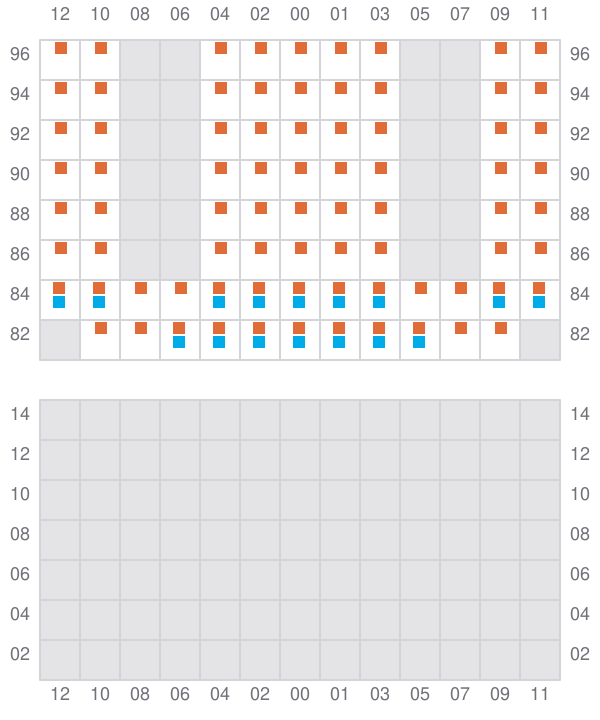

Bay 043 view and slots of MAERSK BENGUELA

045 (046)

  • →
  • ←

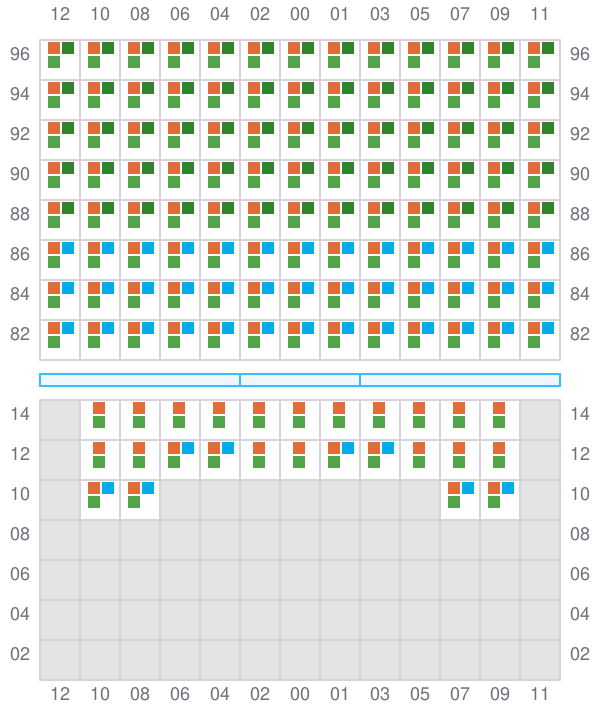

Bay 045 view and slots of MAERSK BENGUELA

047

  • ←

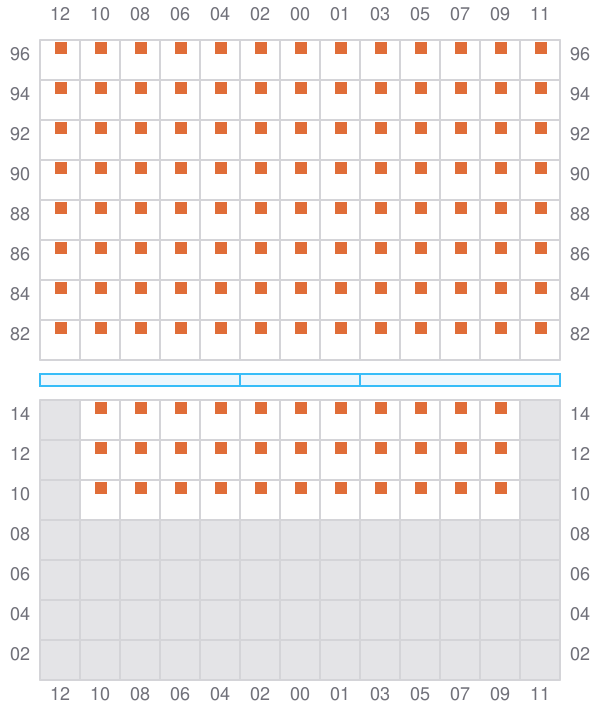

Bay 047 view and slots of MAERSK BENGUELA

049 (050)

  • → / ?
  • → / ?

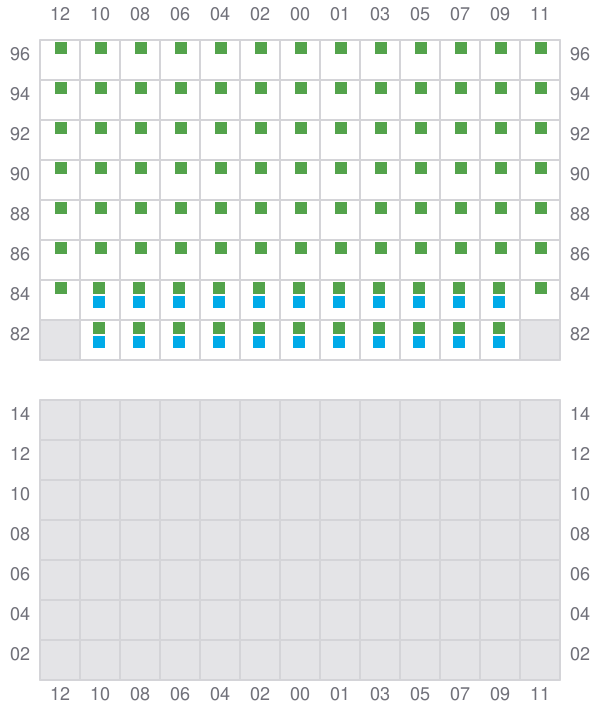

Bay 049 view and slots of MAERSK BENGUELA
