MAERSK BENTONVILLE
9313929 | OZCZ2 | 93139 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MAERSK BENTONVILLE
IMO Code:9313929
Call Sign:OZCZ2
Line Operator:93139
Class Name for Sister Ships:815
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:065
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,456

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK BENTONVILLE

Hatch-Covers View

Deck view of MAERSK BENTONVILLE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

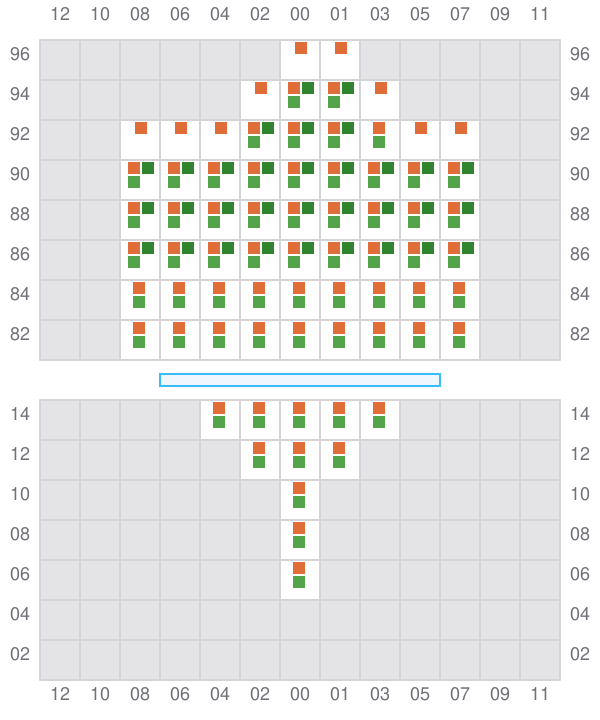

Bay 001 view and slots of MAERSK BENTONVILLE

003

  • ←

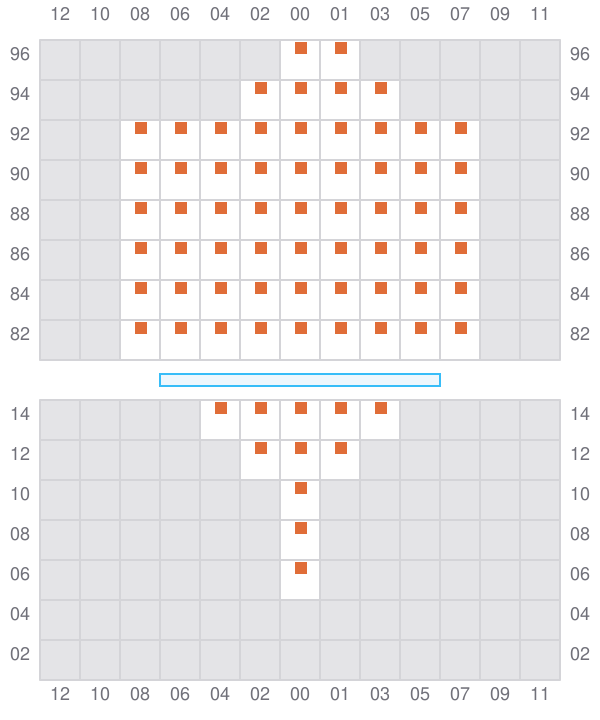

Bay 003 view and slots of MAERSK BENTONVILLE

005 (006)

  • →

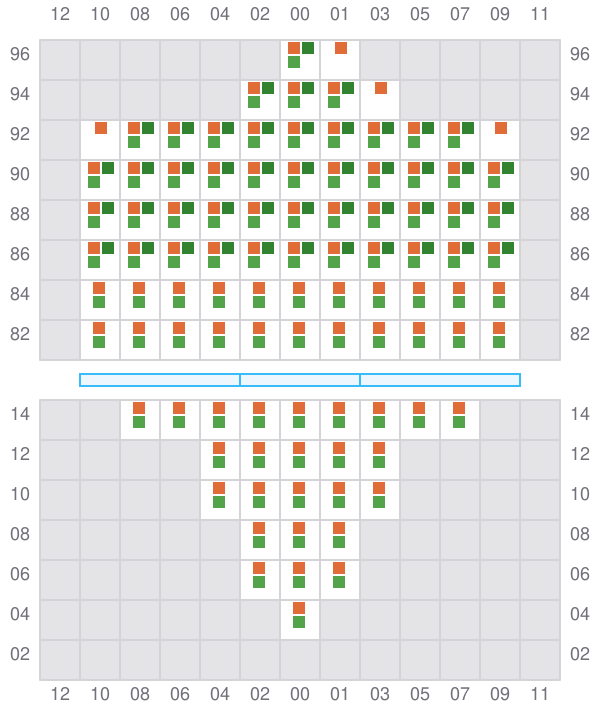

Bay 005 view and slots of MAERSK BENTONVILLE

007

  • ←
  • → / ?

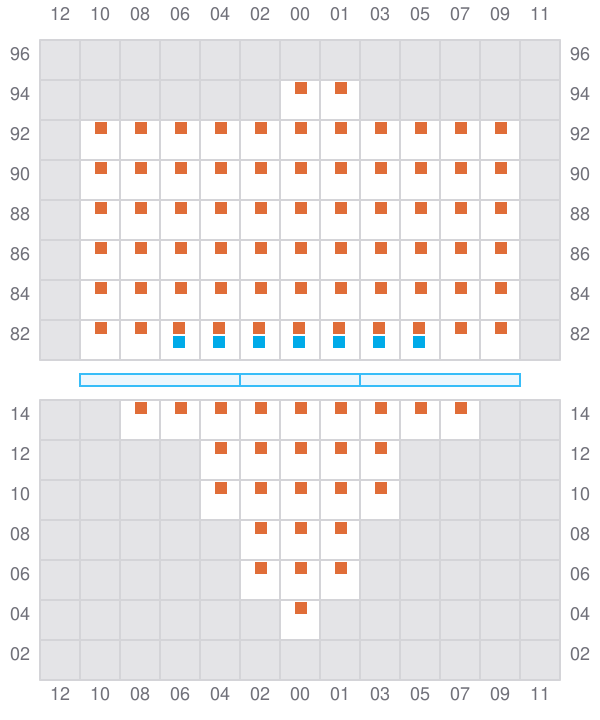

Bay 007 view and slots of MAERSK BENTONVILLE

009 (010)

  • →

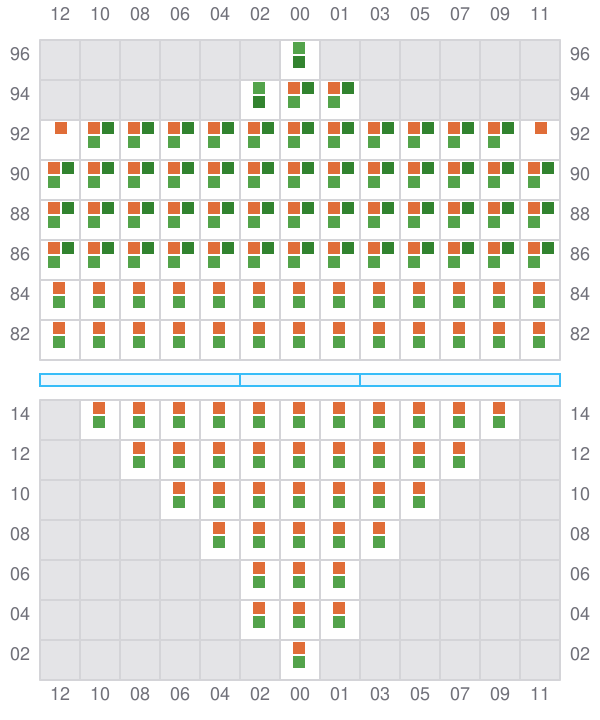

Bay 009 view and slots of MAERSK BENTONVILLE

011

  • ←
  • → / ?

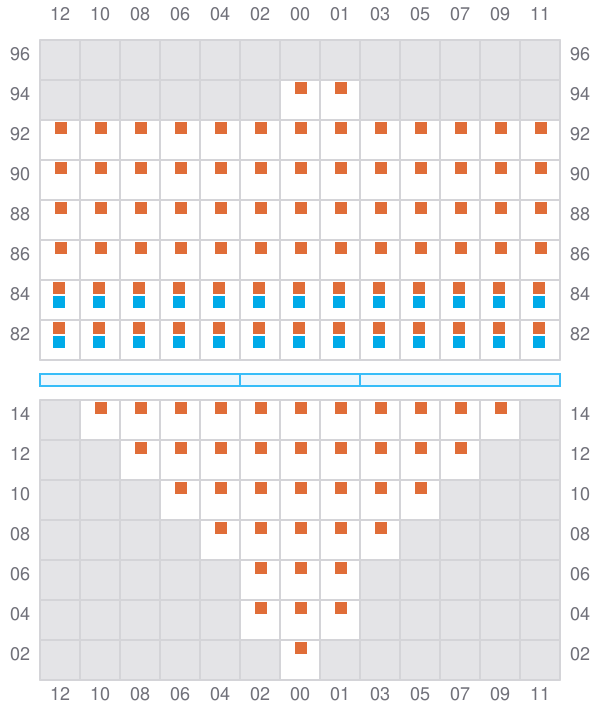

Bay 011 view and slots of MAERSK BENTONVILLE

013 (014)

  • →
  • ? / ←

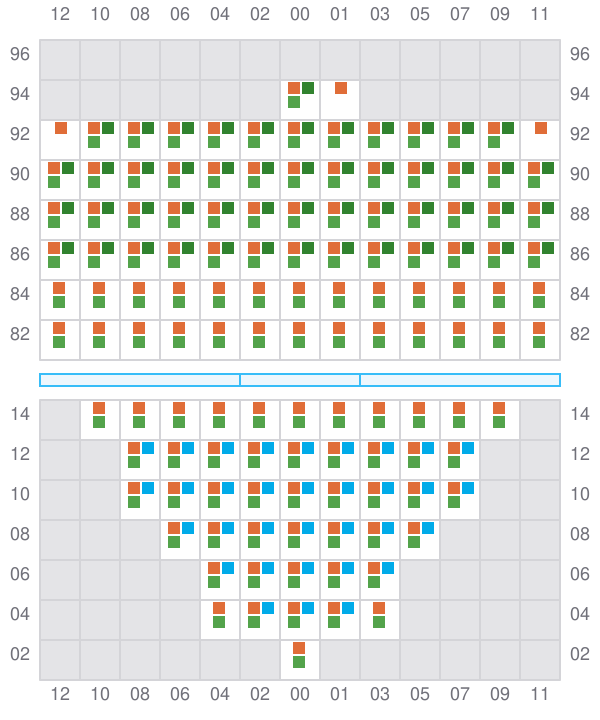

Bay 013 view and slots of MAERSK BENTONVILLE

015

  • ←
  • → / ?

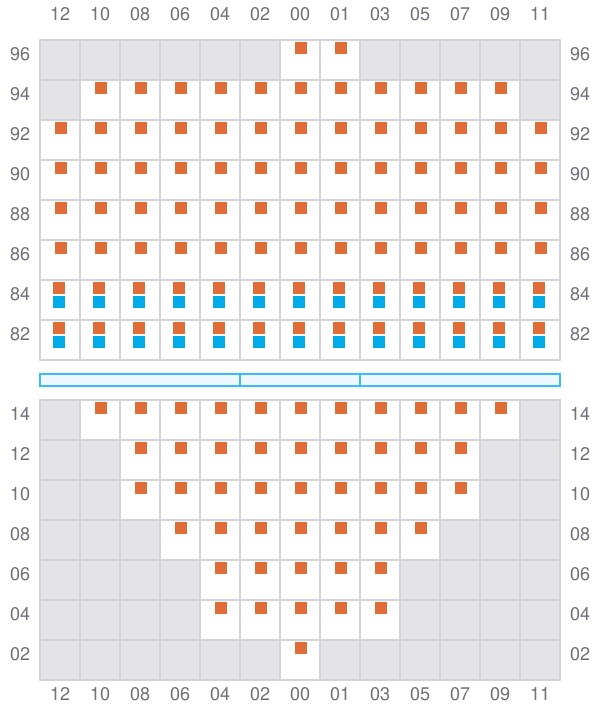

Bay 015 view and slots of MAERSK BENTONVILLE

017 (018)

  • →
  • ? / ←

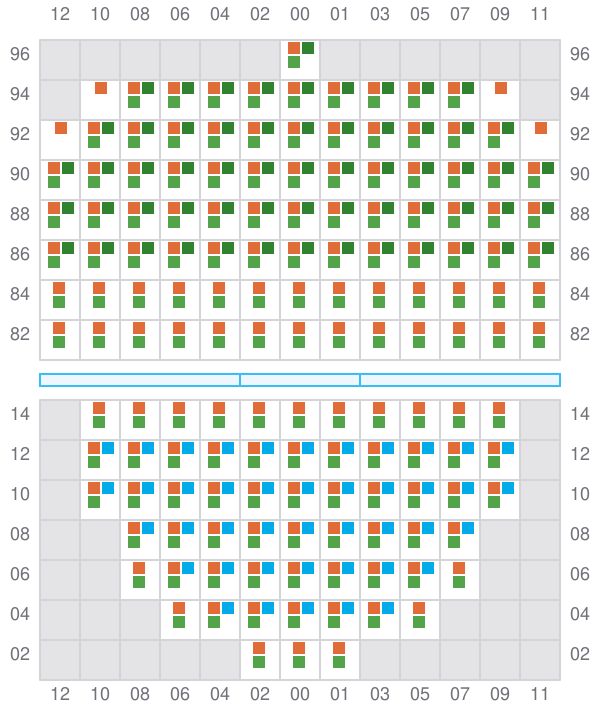

Bay 017 view and slots of MAERSK BENTONVILLE

019

  • ←
  • → / ?

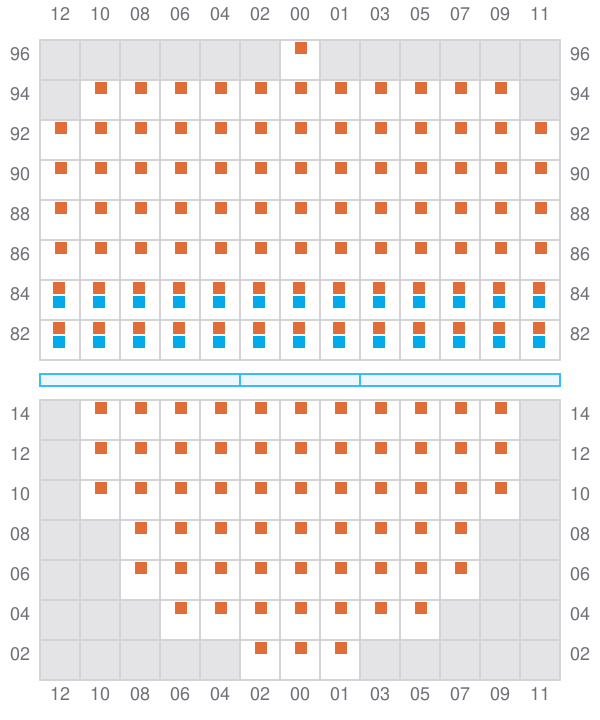

Bay 019 view and slots of MAERSK BENTONVILLE

021 (022)

  • →
  • ? / ←

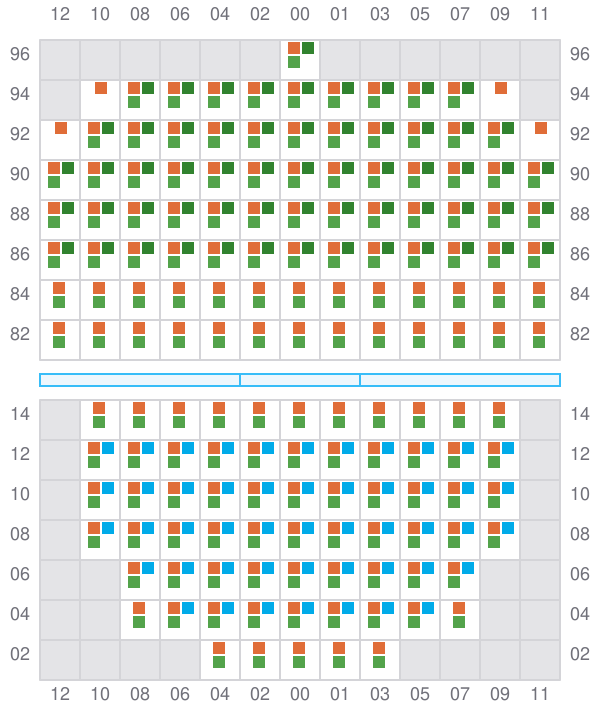

Bay 021 view and slots of MAERSK BENTONVILLE

023

  • ←
  • → / ?

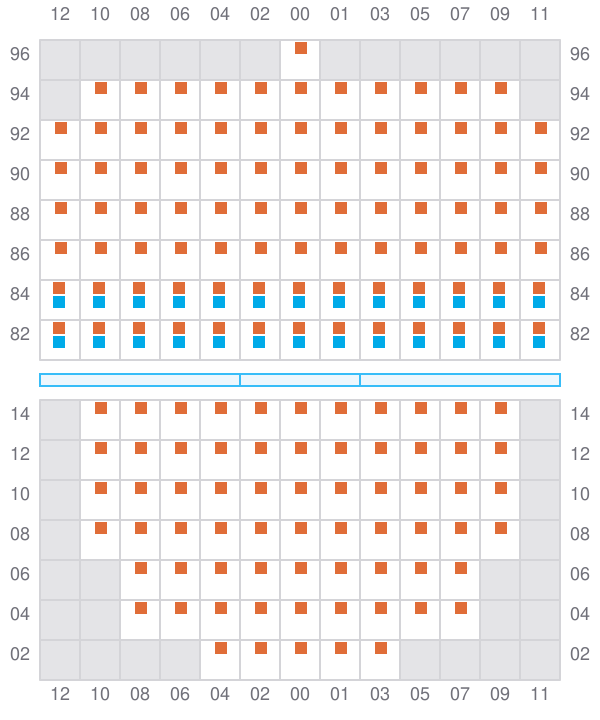

Bay 023 view and slots of MAERSK BENTONVILLE

025 (026)

  • →
  • ? / ←
Bay 025 view and slots of MAERSK BENTONVILLE

027

  • ←
  • → / ?

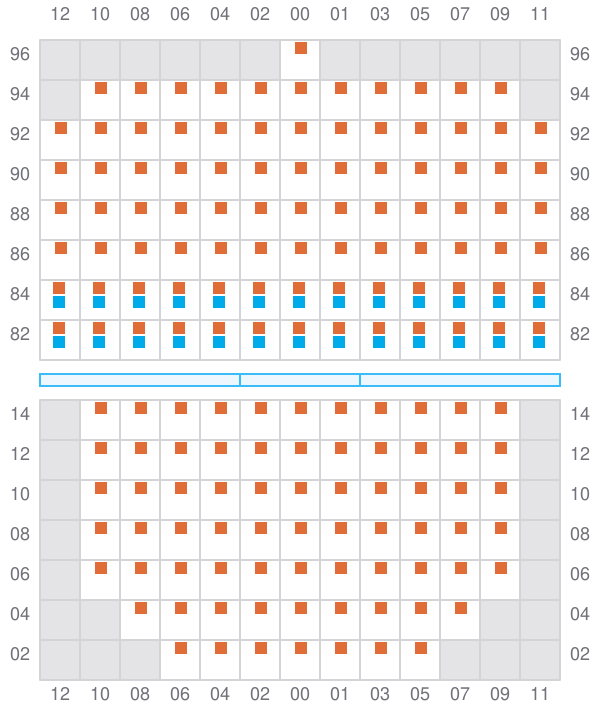

Bay 027 view and slots of MAERSK BENTONVILLE

029 (030)

  • →
  • ? / ←
Bay 029 view and slots of MAERSK BENTONVILLE

031

  • ←
  • → / ?

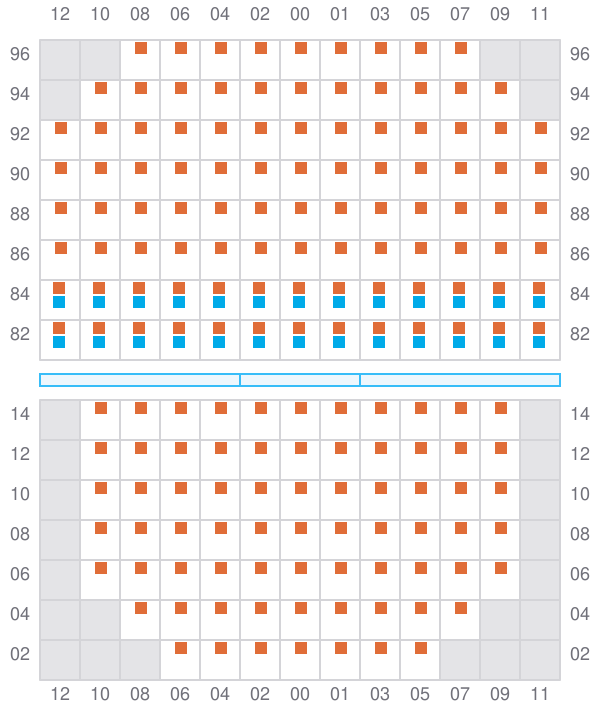

Bay 031 view and slots of MAERSK BENTONVILLE

033 (034)

  • →

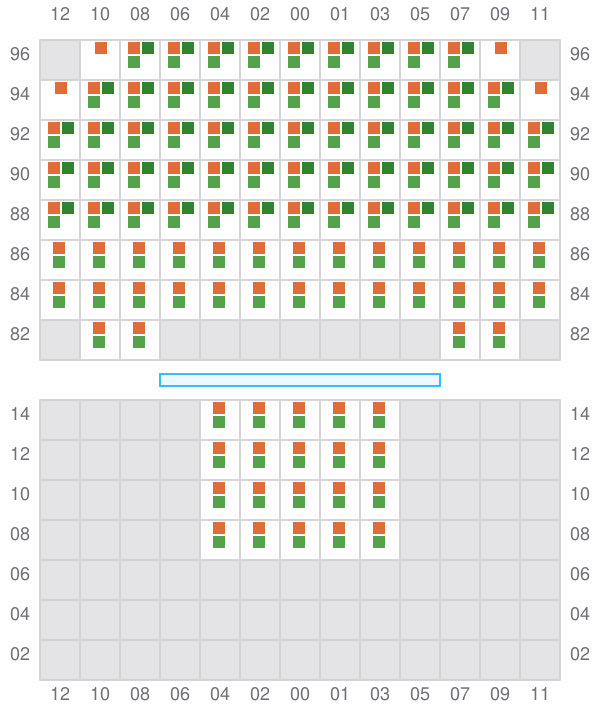

Bay 033 view and slots of MAERSK BENTONVILLE

035

  • ←
  • → / ?

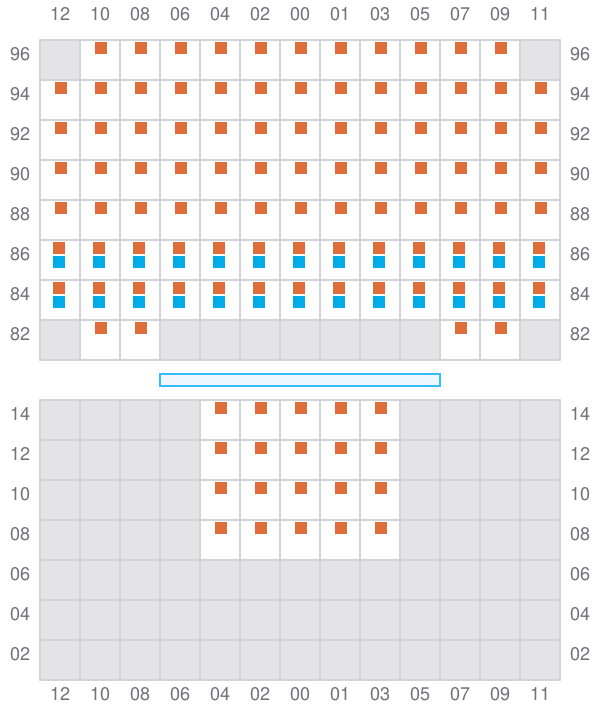

Bay 035 view and slots of MAERSK BENTONVILLE

037 (038)

  • → / ?

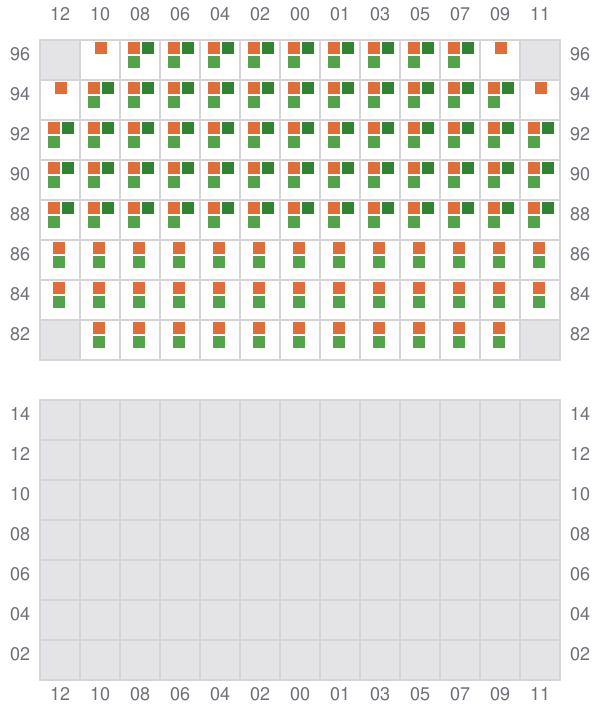

Bay 037 view and slots of MAERSK BENTONVILLE

039

  • ← / ?
  • → / ?

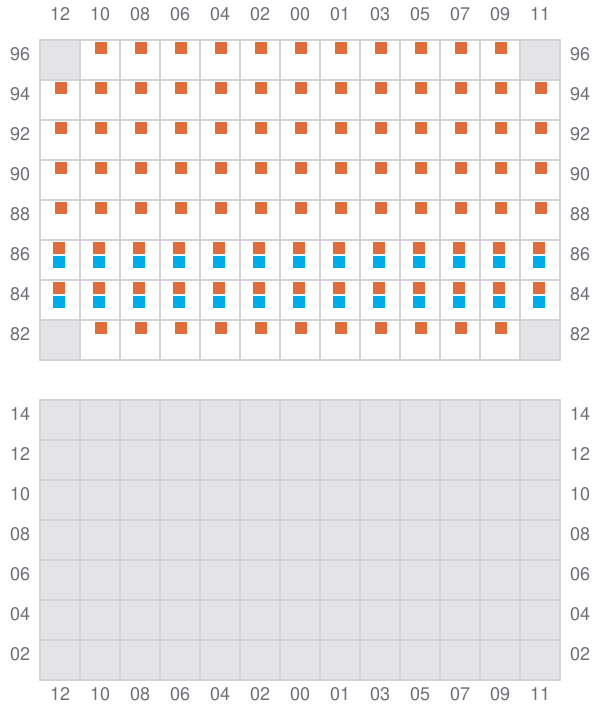

Bay 039 view and slots of MAERSK BENTONVILLE

041 (042)

  • →

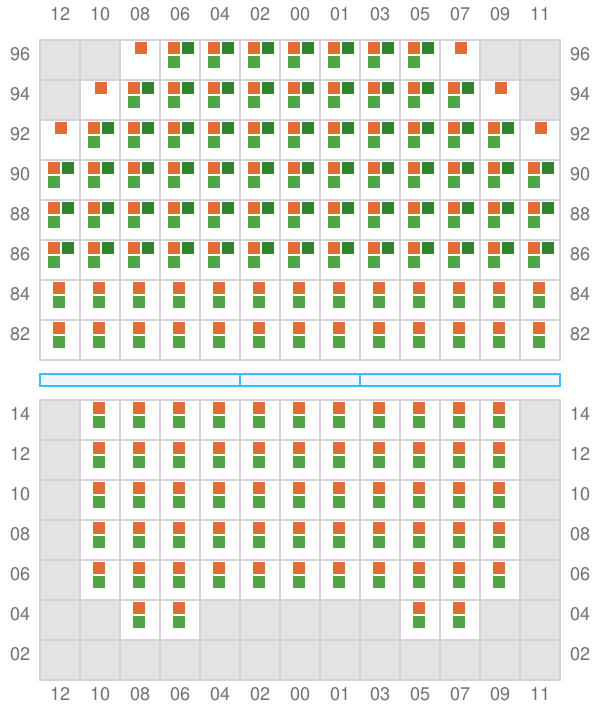

Bay 041 view and slots of MAERSK BENTONVILLE

043

  • ←
  • → / ?

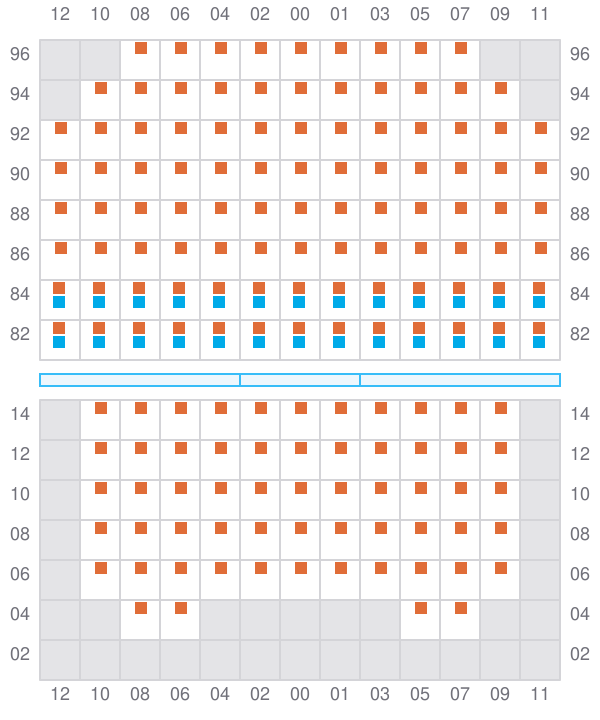

Bay 043 view and slots of MAERSK BENTONVILLE

045 (046)

  • →
  • ? / ←

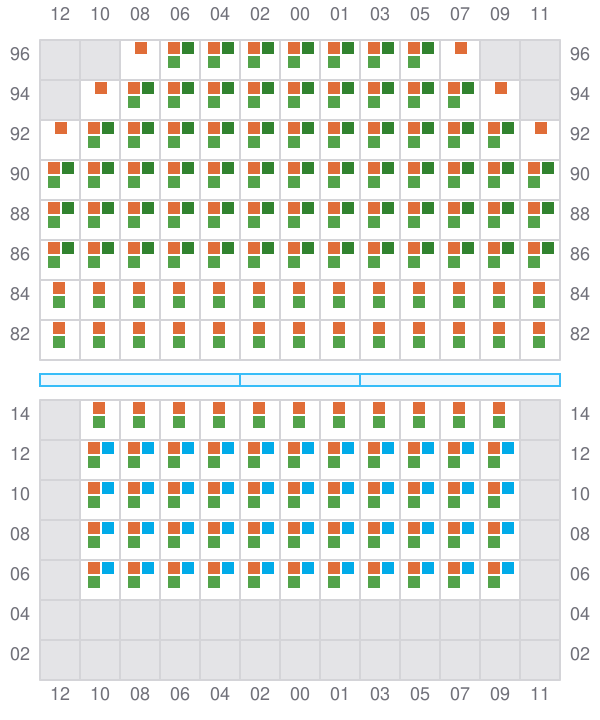

Bay 045 view and slots of MAERSK BENTONVILLE

047

  • ←
  • → / ?

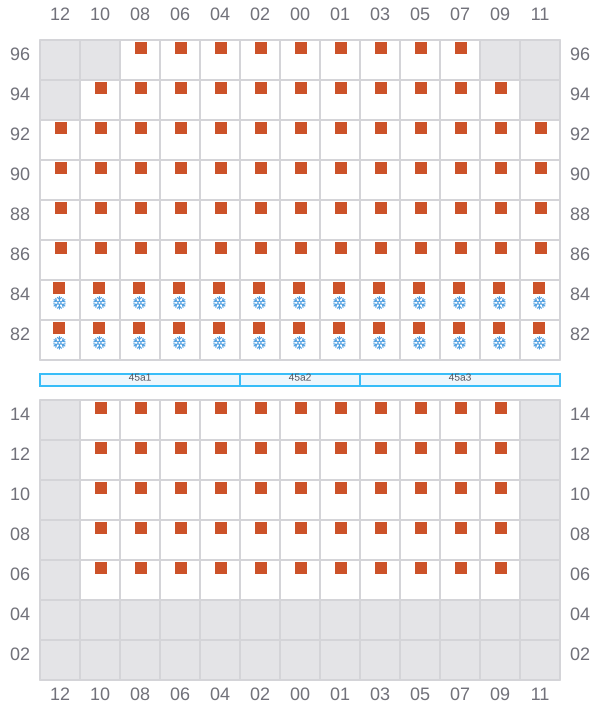

Bay 047 view and slots of MAERSK BENTONVILLE

049 (050)

  • →
  • ? / ←

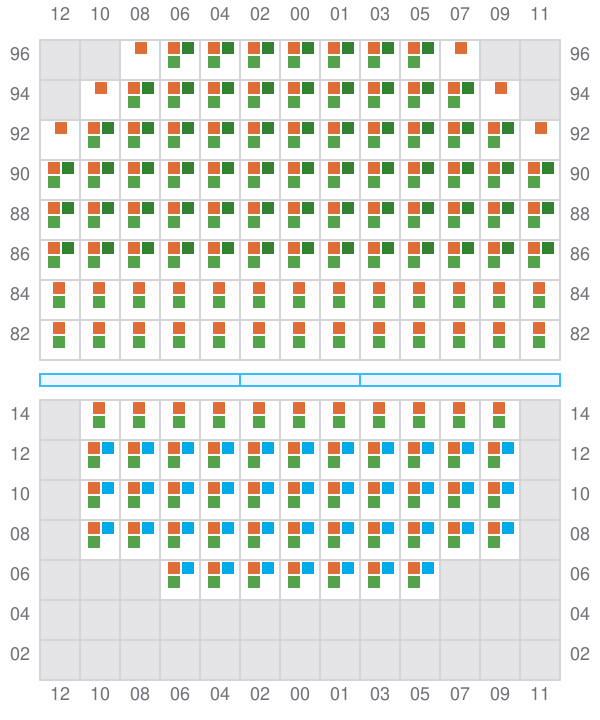

Bay 049 view and slots of MAERSK BENTONVILLE

051

  • ←
  • → / ?

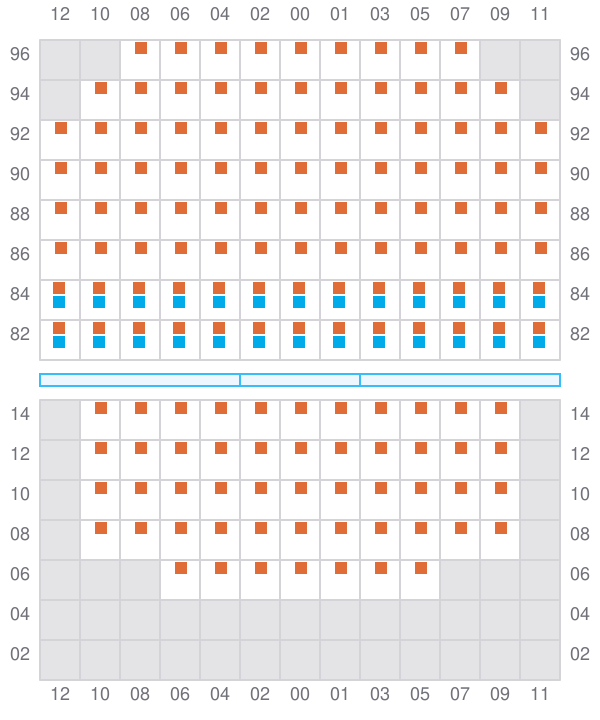

Bay 051 view and slots of MAERSK BENTONVILLE

053 (054)

  • →
  • ? / ←
Bay 053 view and slots of MAERSK BENTONVILLE

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK BENTONVILLE

057 (058)

  • →

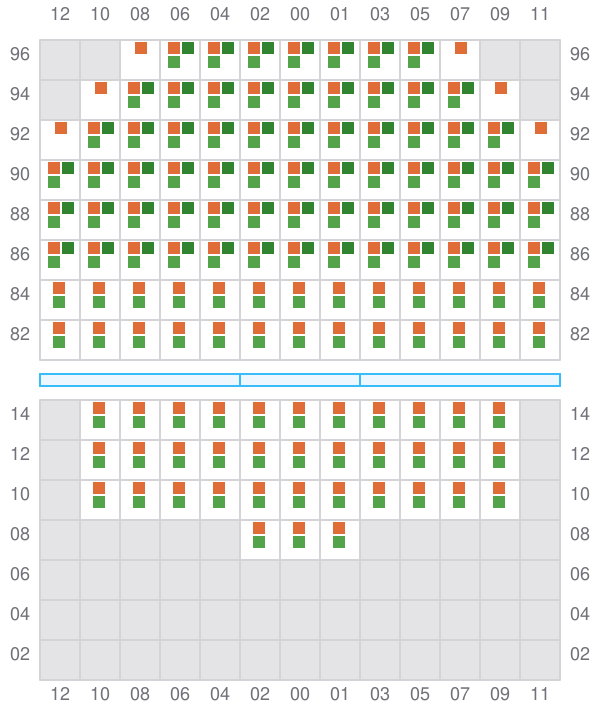

Bay 057 view and slots of MAERSK BENTONVILLE

059

  • ←
  • → / ?

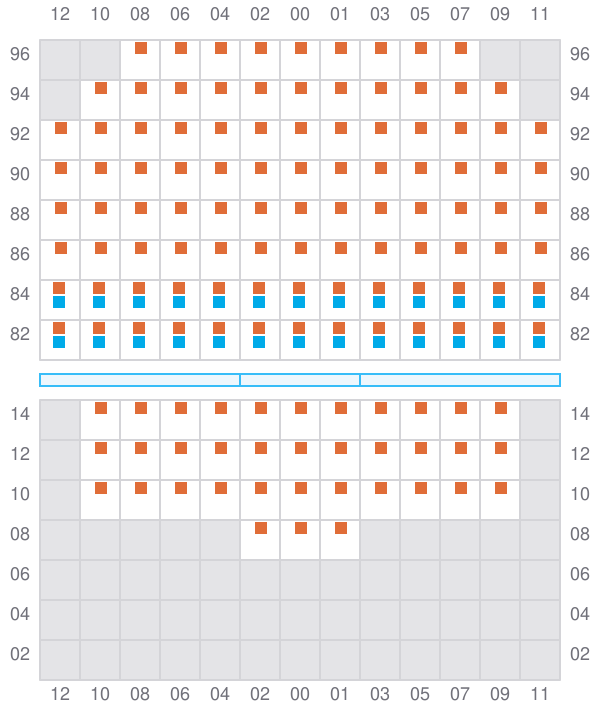

Bay 059 view and slots of MAERSK BENTONVILLE

061 (062)

  • →

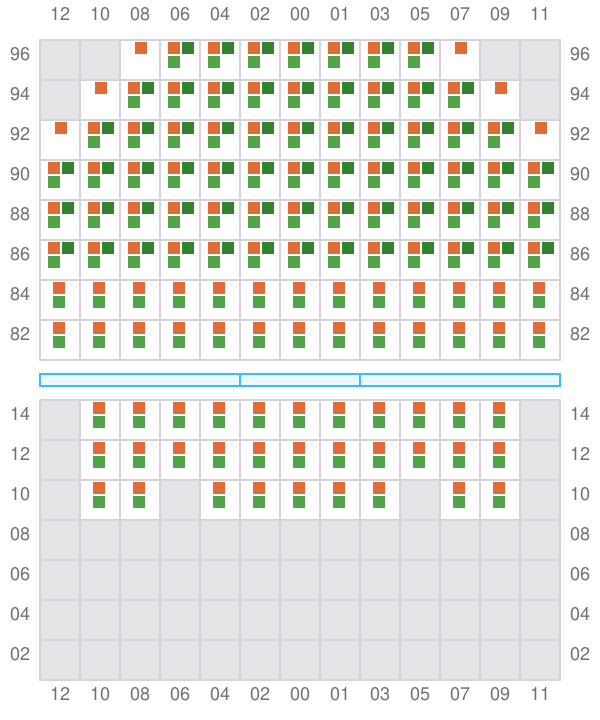

Bay 061 view and slots of MAERSK BENTONVILLE

063

  • ←

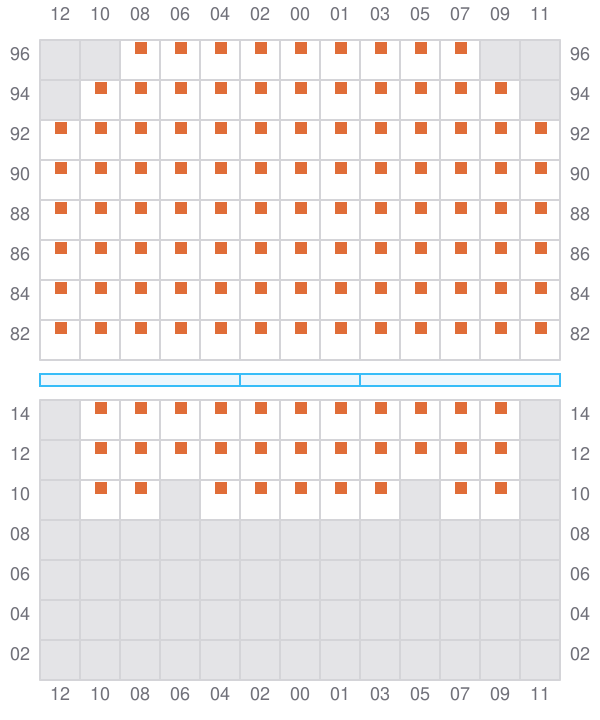

Bay 063 view and slots of MAERSK BENTONVILLE

065 (066)

  • → / ?

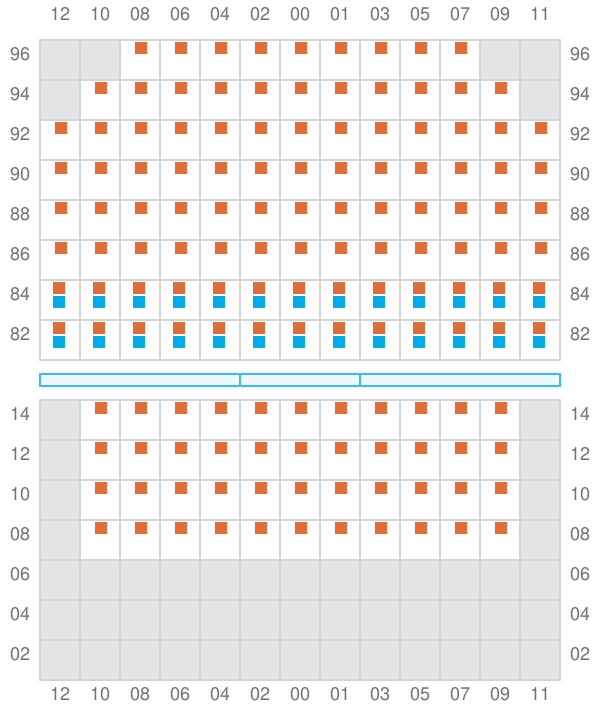

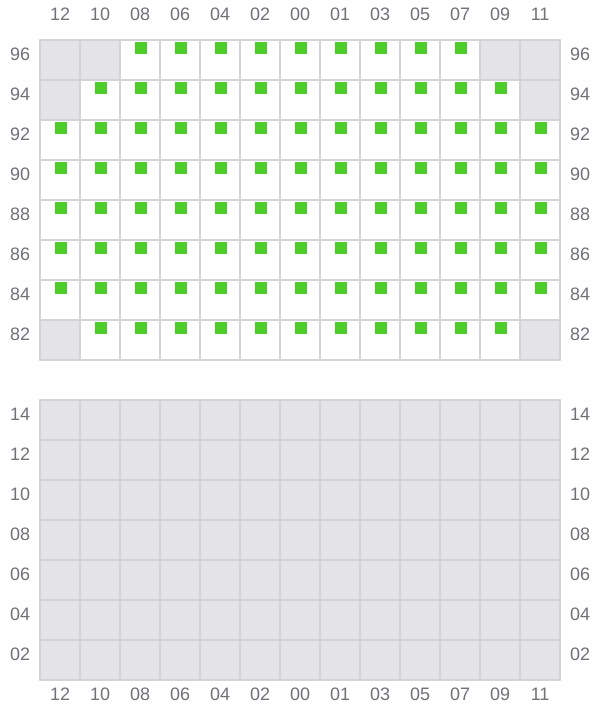

Bay 065 view and slots of MAERSK BENTONVILLE
