MAERSK BENTONVILLE
9313929 | OZCZ2 | MSC by ************************** Last update: Fri Nov 10 2023
General Info
Ship Name:MAERSK BENTONVILLE
IMO Code:9313929
Call Sign:OZCZ2
Line Operator:MSC
Class Name for Sister Ships:BTN
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:067
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,196
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

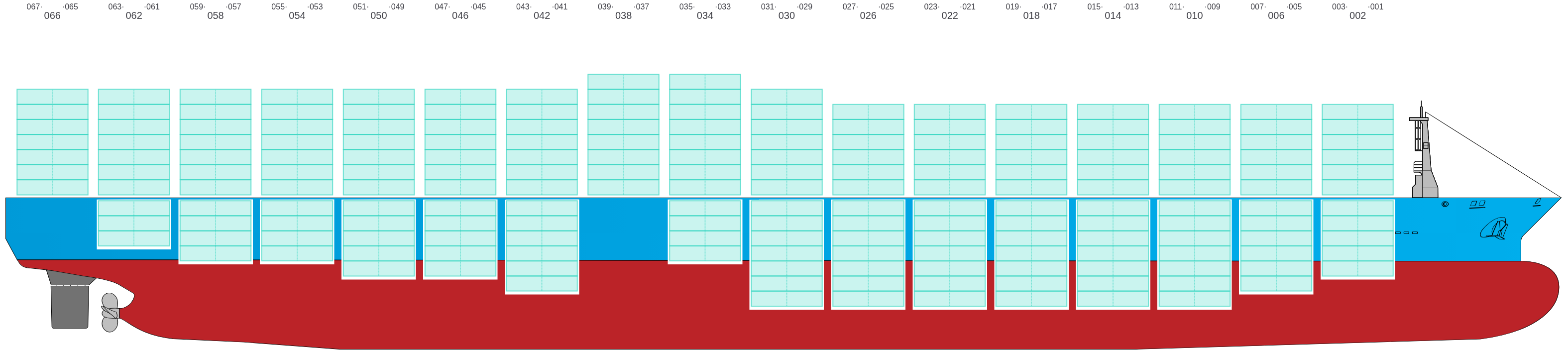

Side View
![Side view of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-sideView.png?v=1699643169851)
Hatch-Covers View
![Deck view of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-deckView.png?v=1699643169851)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

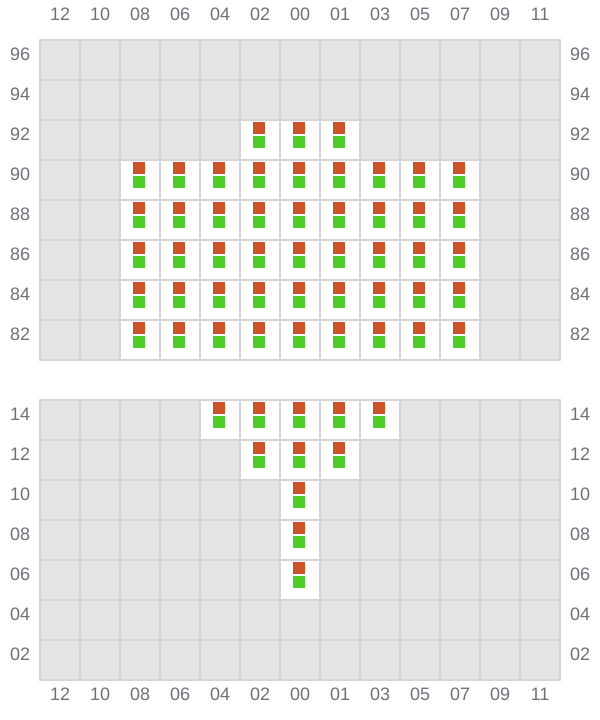

001 (002)
- →
![Bay 001 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b001.png?v=1699643169851)

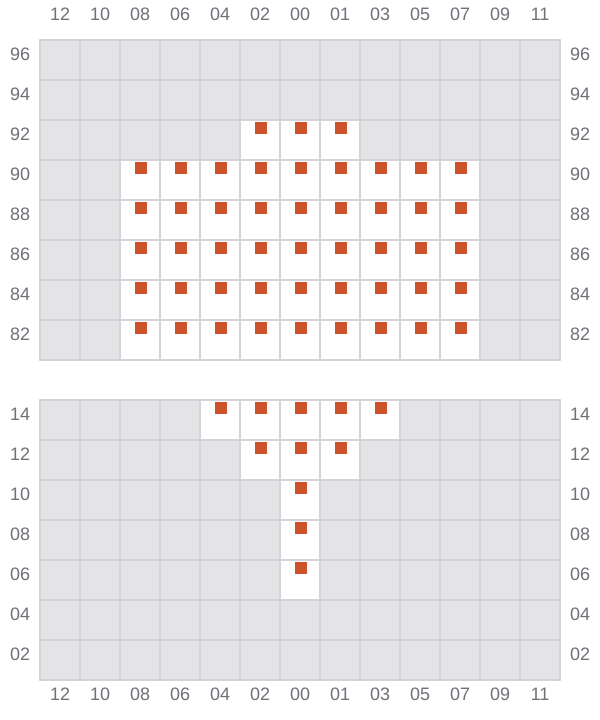

003
- ←
![Bay 003 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b003.png?v=1699643169851)

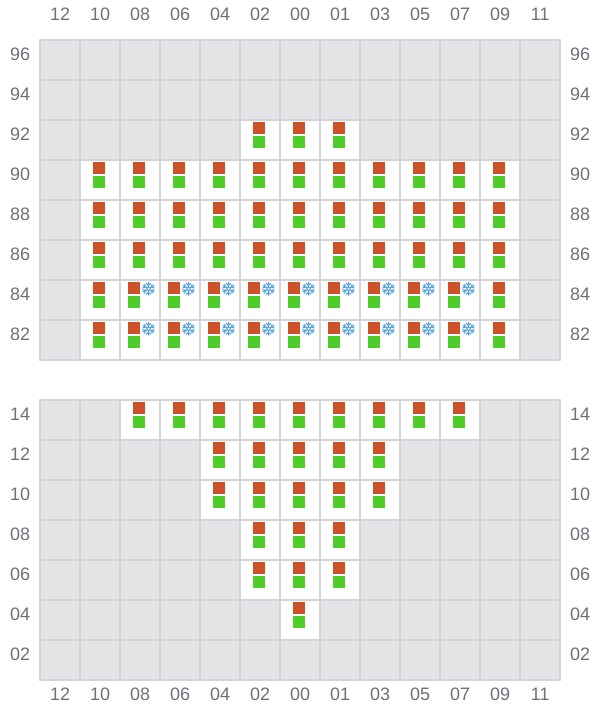

005 (006)
- →
![Bay 005 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b005.png?v=1699643169851)

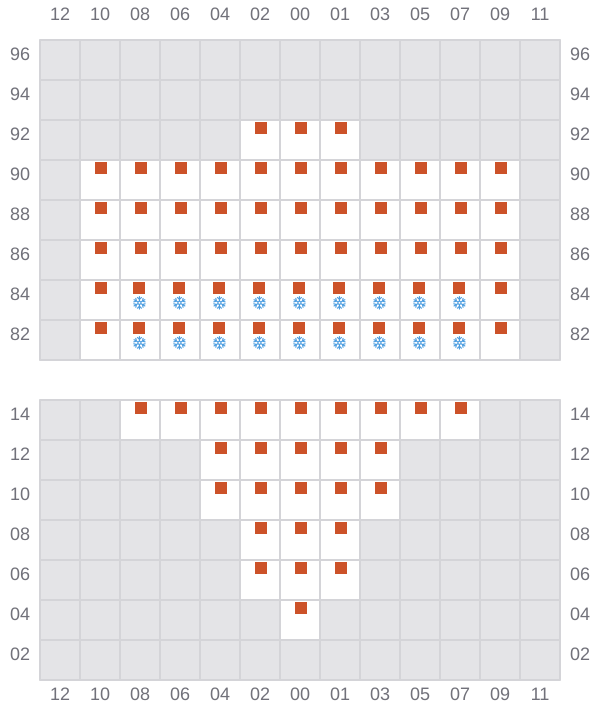

007
- ←
![Bay 007 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b007.png?v=1699643169851)

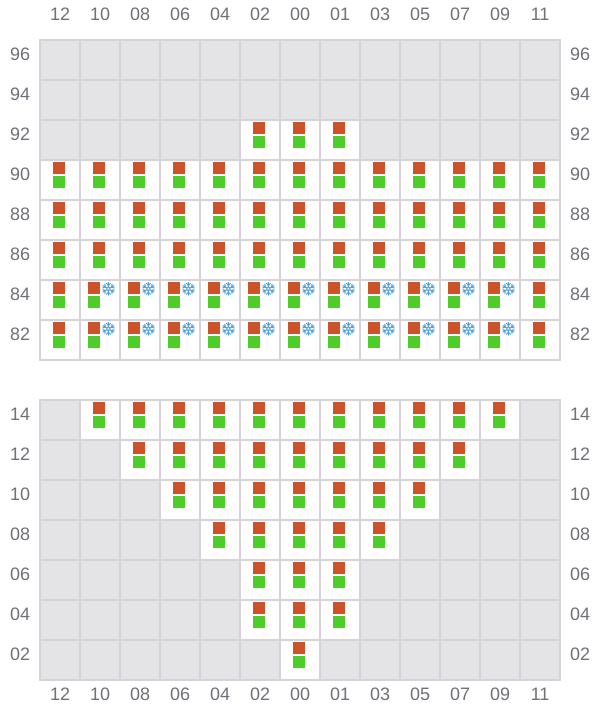

009 (010)
- →
![Bay 009 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b009.png?v=1699643169851)

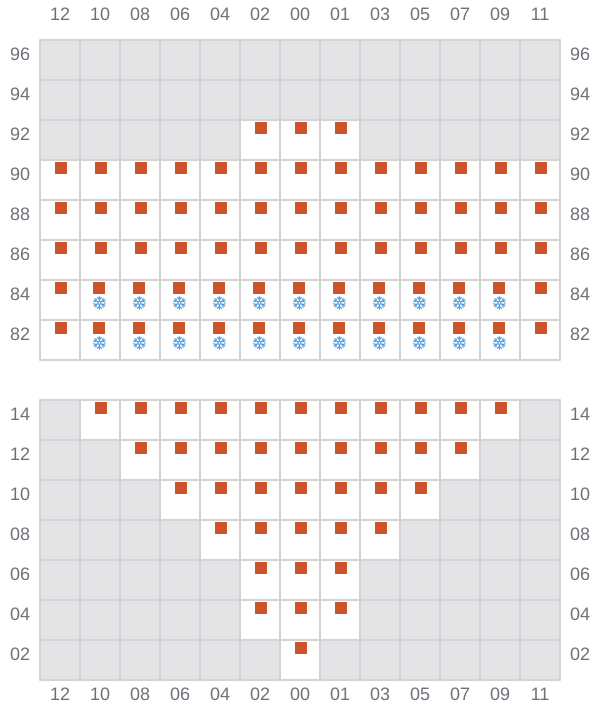

011
- ←
![Bay 011 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b011.png?v=1699643169851)

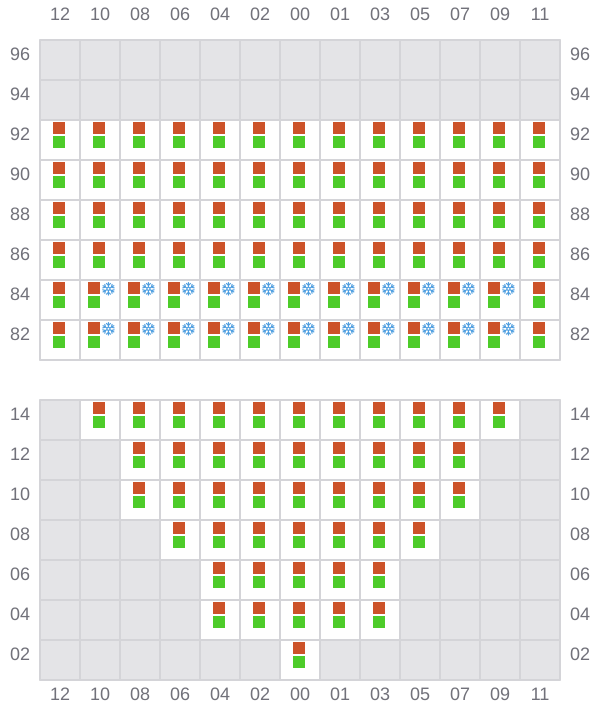

013 (014)
- →
![Bay 013 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b013.png?v=1699643169851)

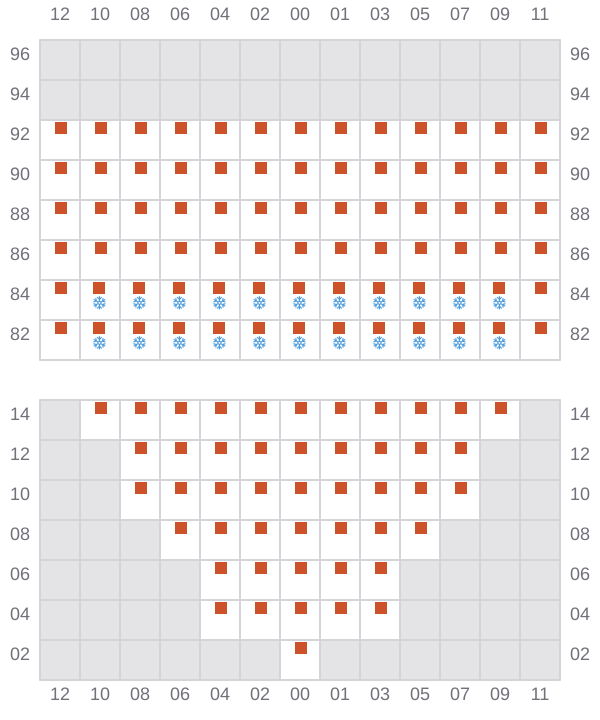

015
- ←
![Bay 015 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b015.png?v=1699643169851)
017 (018)
- →
![Bay 017 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b017.png?v=1699643169851)

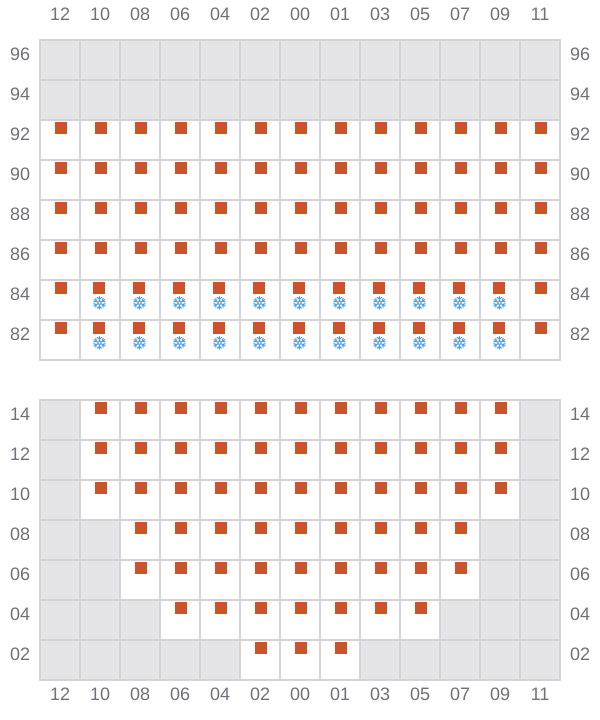

019
- ←
![Bay 019 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b019.png?v=1699643169851)

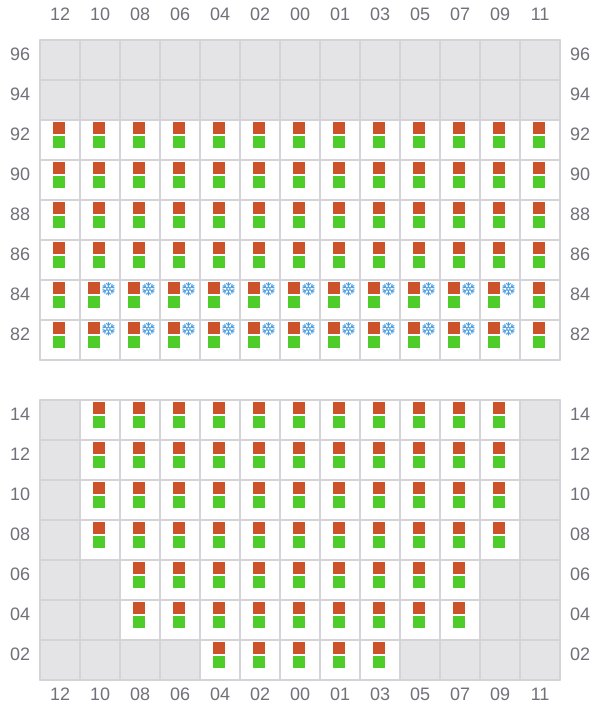

021 (022)
- →
![Bay 021 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b021.png?v=1699643169851)

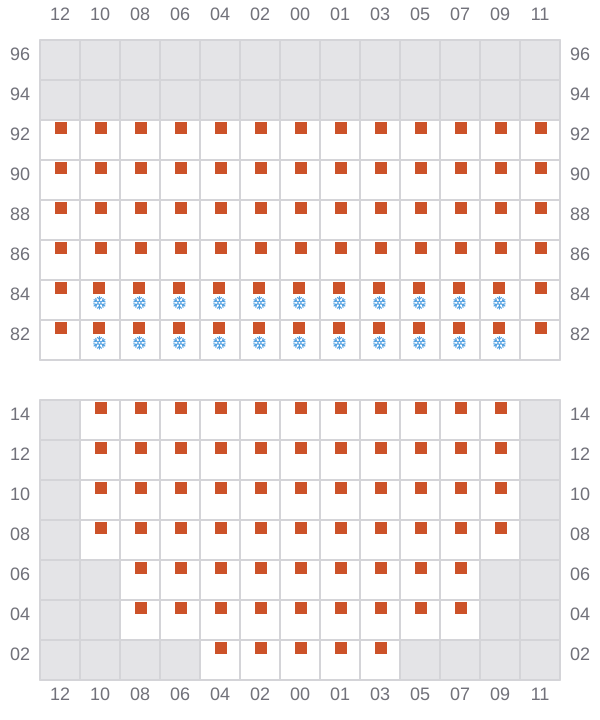

023
- ←
![Bay 023 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b023.png?v=1699643169851)
025 (026)
- →
![Bay 025 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b025.png?v=1699643169851)

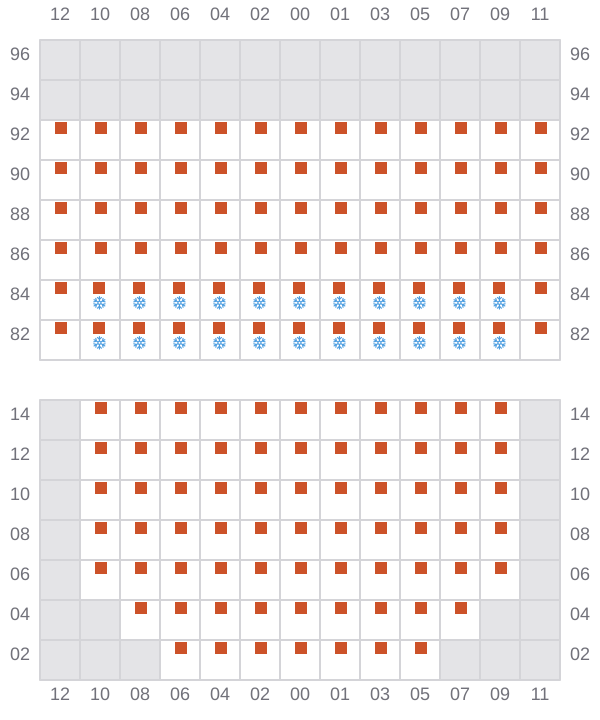

027
- ←
![Bay 027 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b027.png?v=1699643169851)

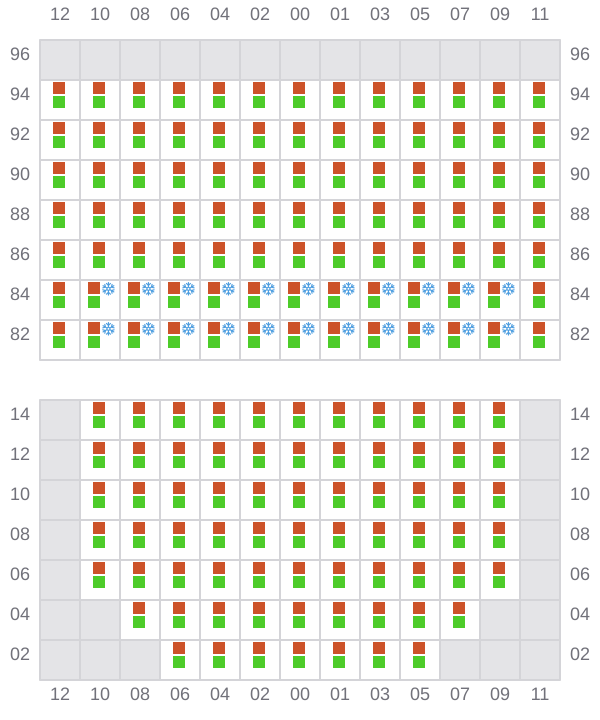

029 (030)
- →
![Bay 029 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b029.png?v=1699643169851)
031
- ←
![Bay 031 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b031.png?v=1699643169851)

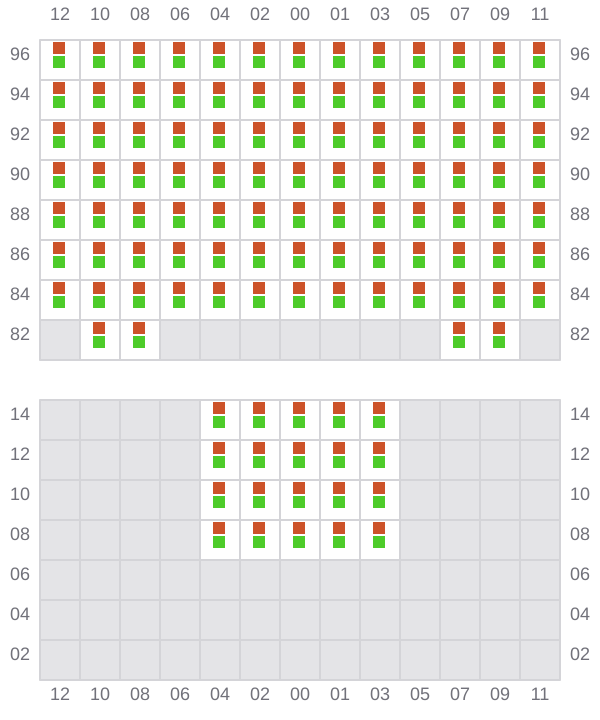

033 (034)
- →
![Bay 033 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b033.png?v=1699643169851)

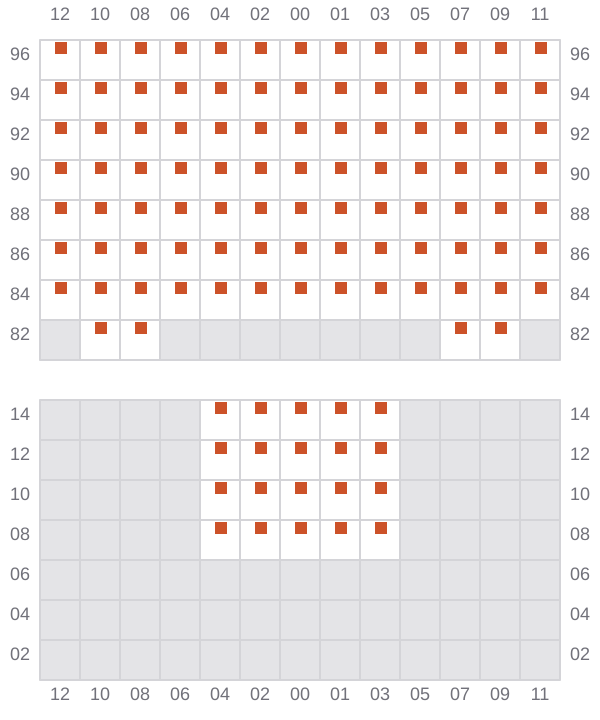

035
- ←
![Bay 035 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b035.png?v=1699643169851)

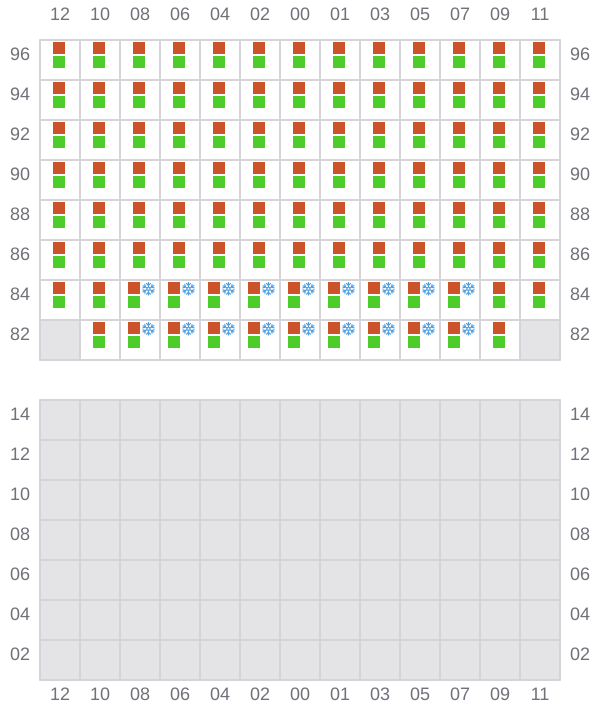

037 (038)
- → / ?
![Bay 037 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b037.png?v=1699643169851)

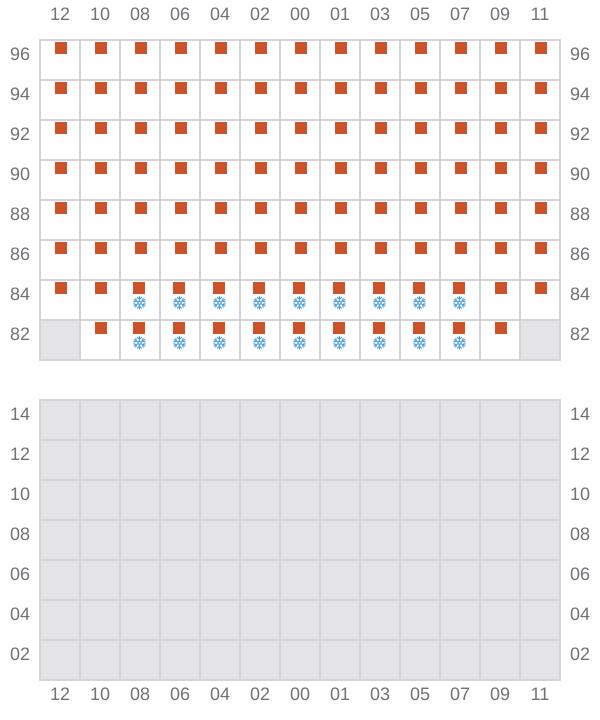

039
- ← / ?
![Bay 039 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b039.png?v=1699643169851)

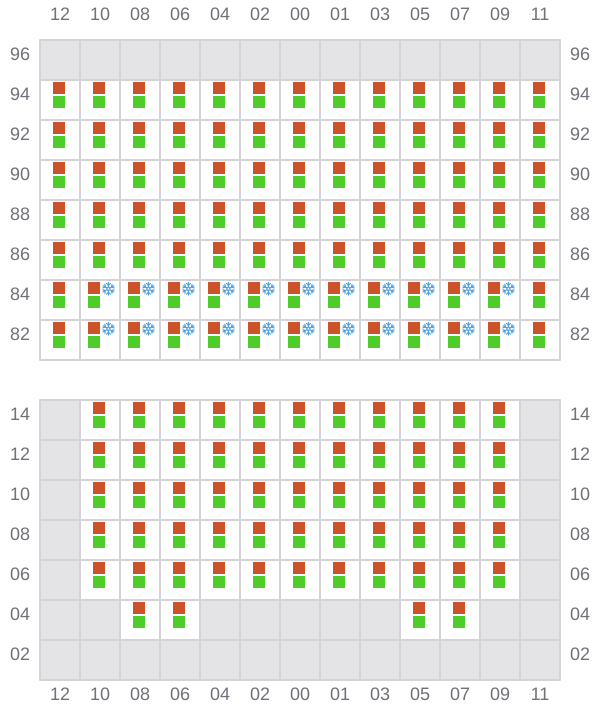

041 (042)
- →
![Bay 041 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b041.png?v=1699643169851)

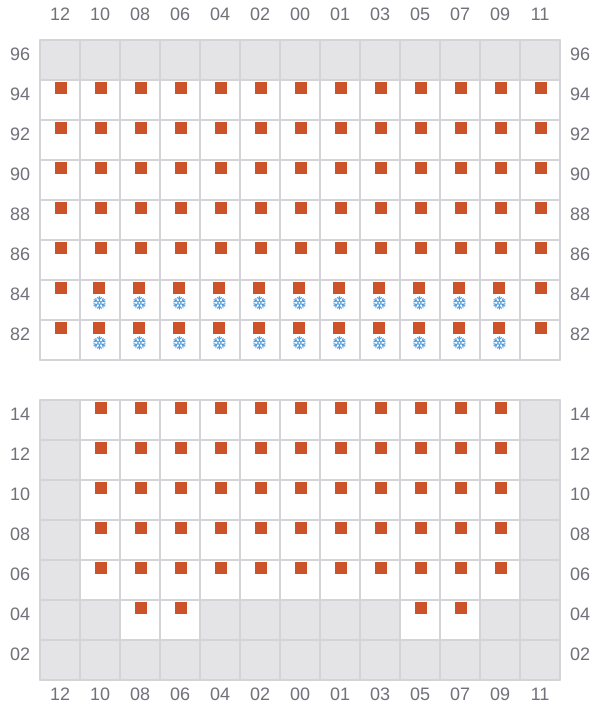

043
- ←
![Bay 043 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b043.png?v=1699643169851)
045 (046)
- →
![Bay 045 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b045.png?v=1699643169851)

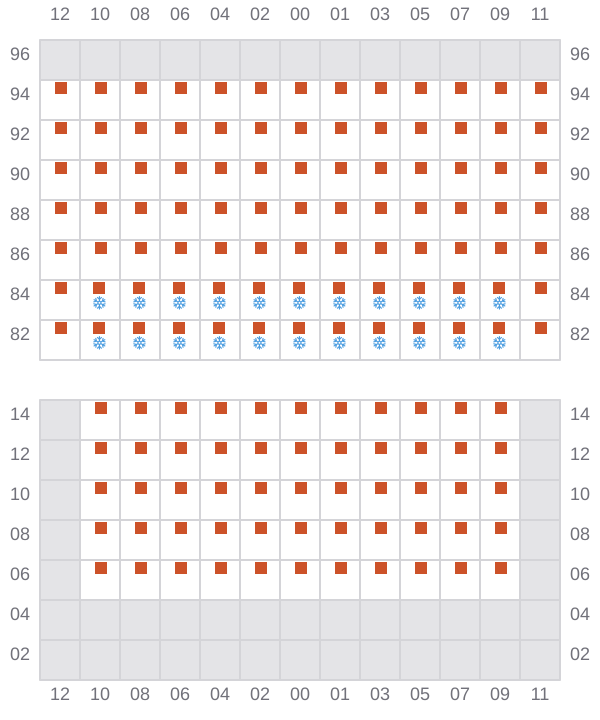

047
- ←
![Bay 047 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b047.png?v=1699643169851)
049 (050)
- →
![Bay 049 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b049.png?v=1699643169851)

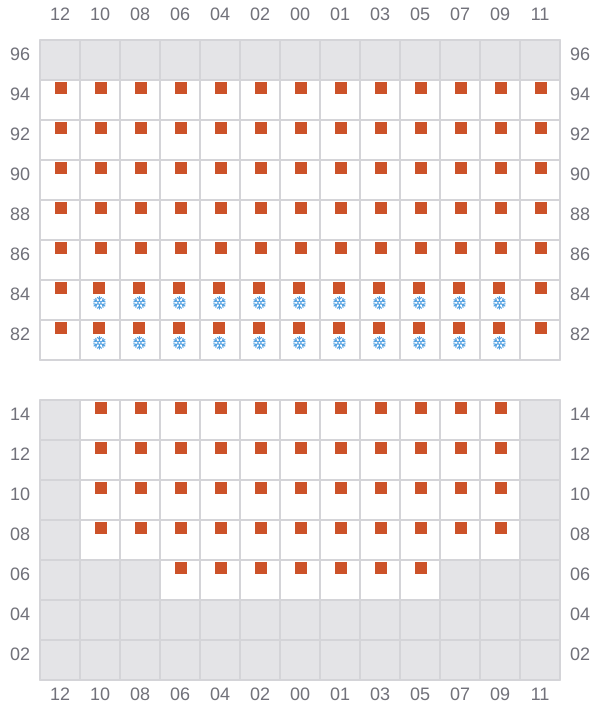

051
- ←
![Bay 051 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b051.png?v=1699643169851)

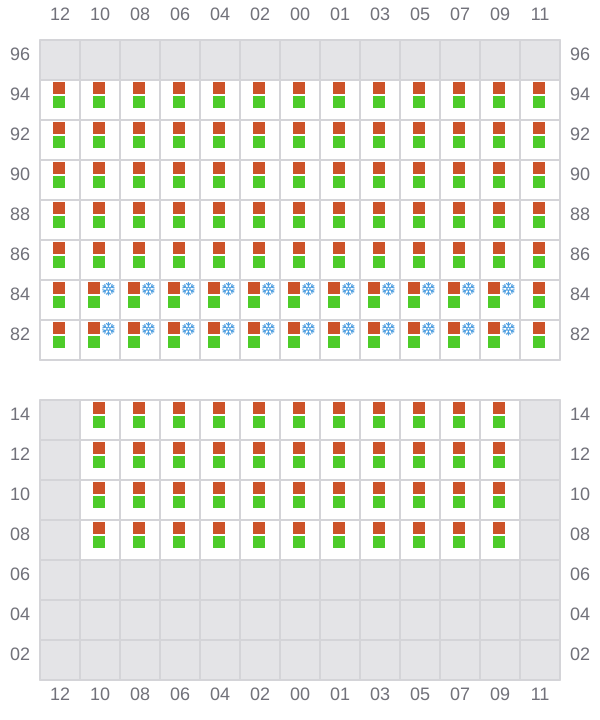

053 (054)
- →
![Bay 053 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b053.png?v=1699643169851)

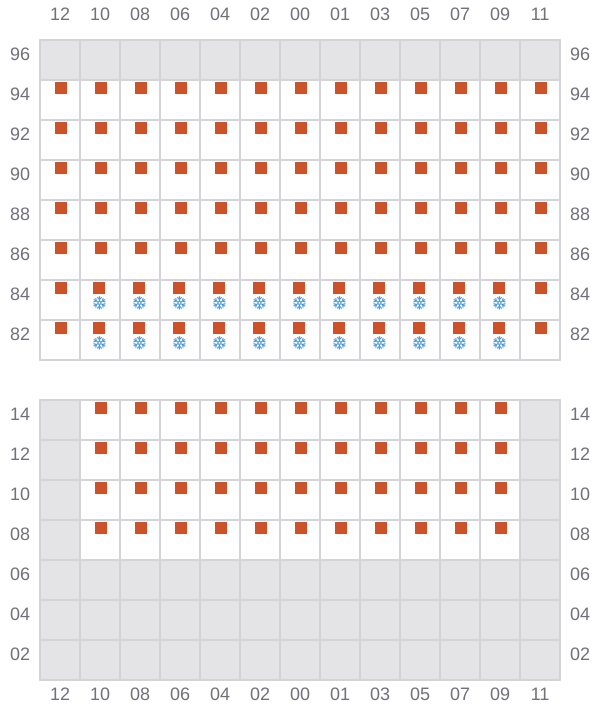

055
- ←
![Bay 055 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b055.png?v=1699643169851)

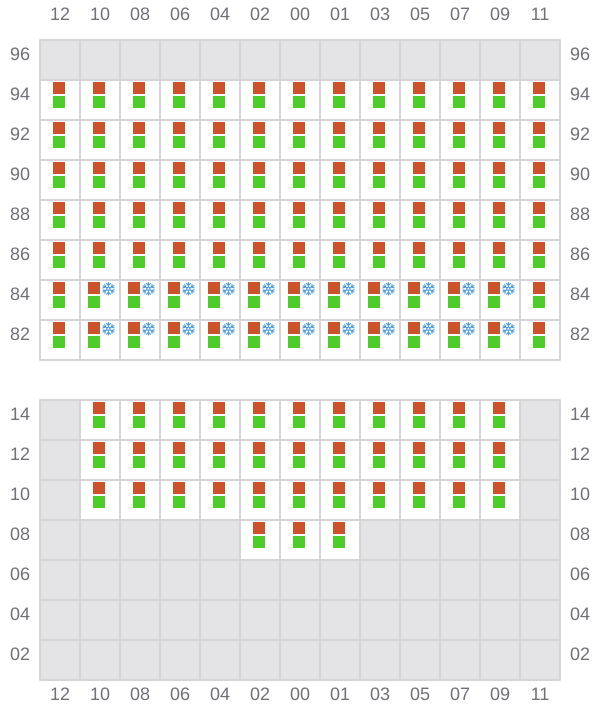

057 (058)
- →
![Bay 057 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b057.png?v=1699643169851)
059
- ←
![Bay 059 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b059.png?v=1699643169851)

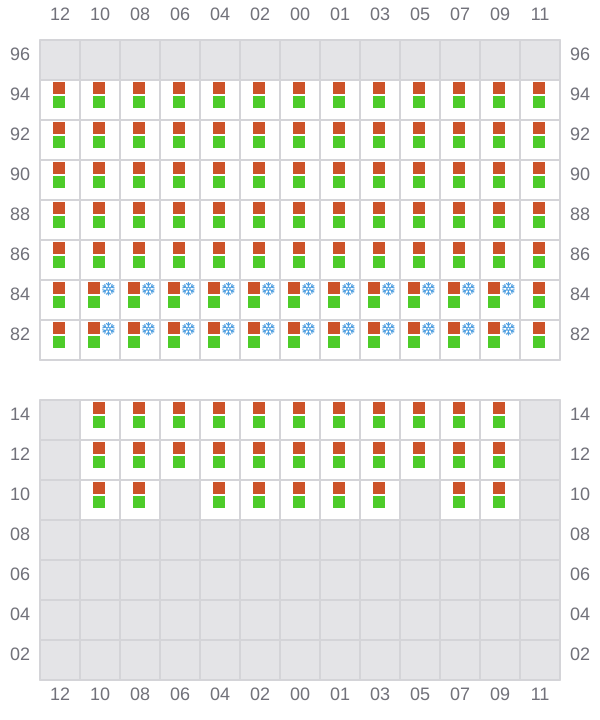

061 (062)
- →
![Bay 061 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b061.png?v=1699643169851)

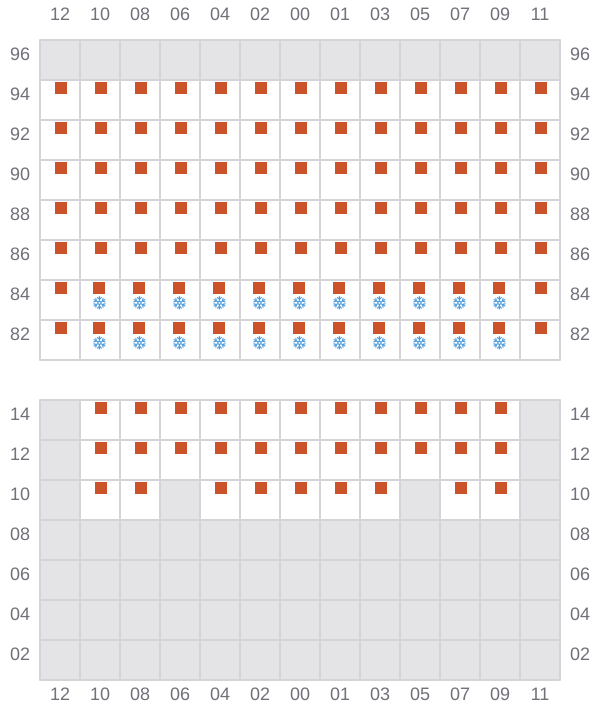

063
- ←
![Bay 063 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b063.png?v=1699643169851)

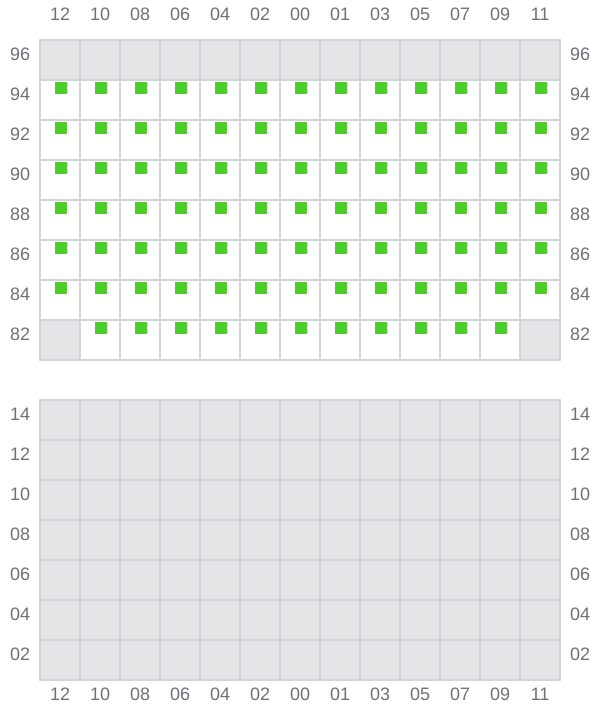

065 (066)
- → / ?
![Bay 065 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b065.png?v=1699643169851)

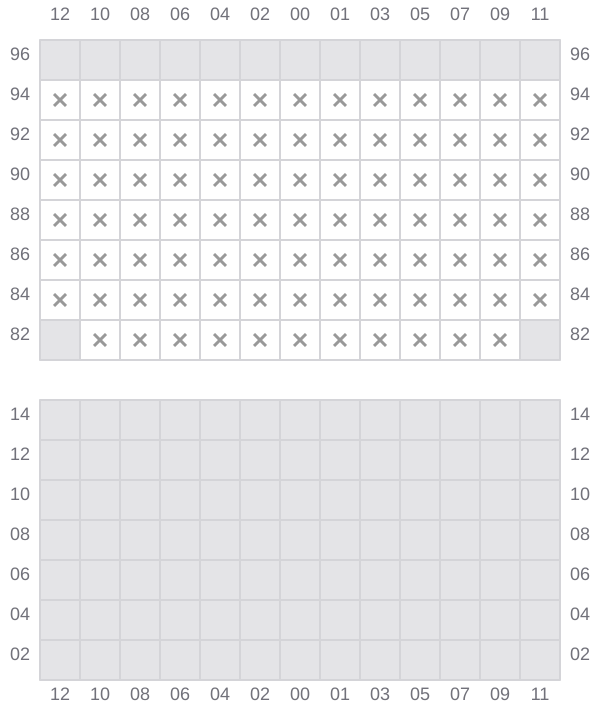

067
- ← / ?
![Bay 067 view and slots of MAERSK BENTONVILLE](/vessel-images/2df958b9-9bca-4c72-ac8f-cfee379d6165-b067.png?v=1699643169851)
