MAERSK BRATAN
9394894 | 9V8044 | A.P. MÖLLER MAERSK by ********* Last update: Sun Mar 24 2024

General Info

Ship Name:MAERSK BRATAN
IMO Code:9394894
Call Sign:9V8044
Line Operator:A.P. MÖLLER MAERSK
Class Name for Sister Ships:HANJIN 3000
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):212.00
LOA (Length Overall):223.30
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,435

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK BRATAN

Hatch-Covers View

Deck view of MAERSK BRATAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

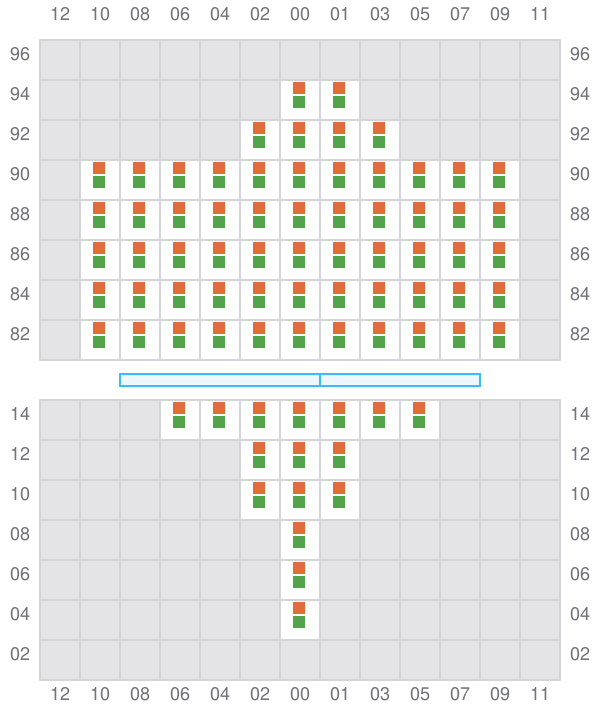

Bay 001 view and slots of MAERSK BRATAN

003

  • ←
  • → / ?

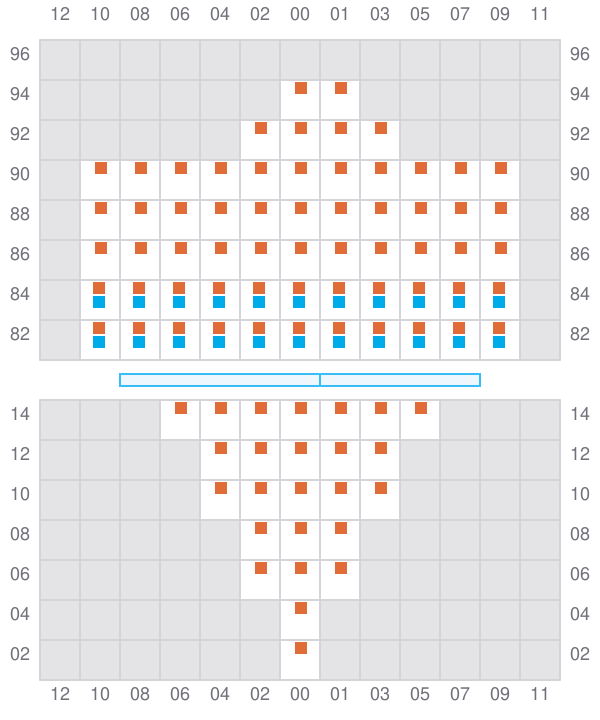

Bay 003 view and slots of MAERSK BRATAN

005 (006)

  • →

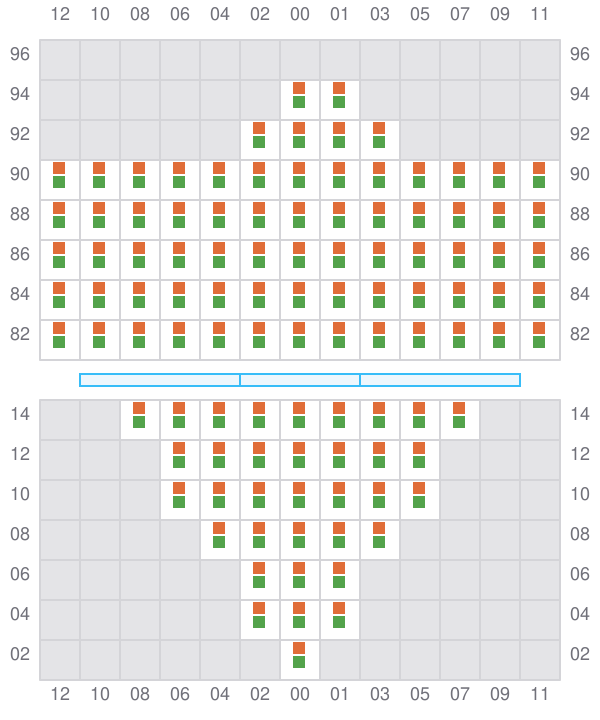

Bay 005 view and slots of MAERSK BRATAN

007

  • ←
  • →

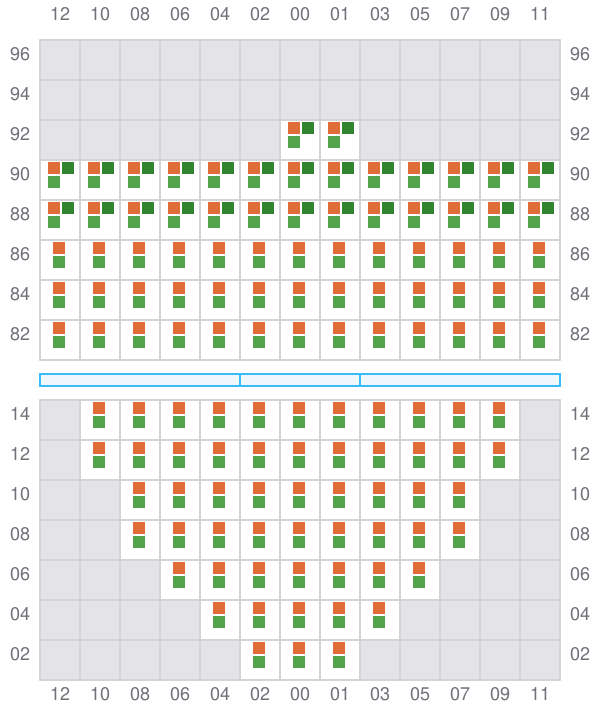

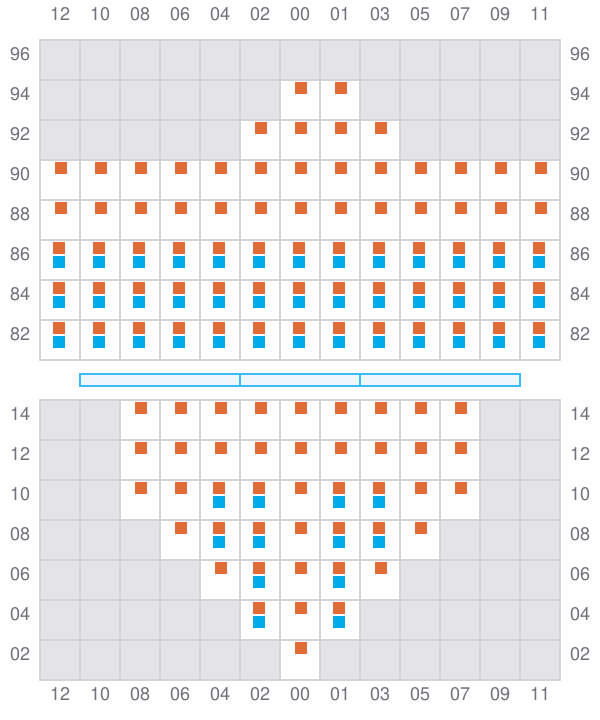

Bay 007 view and slots of MAERSK BRATAN

009 (010)

  • →

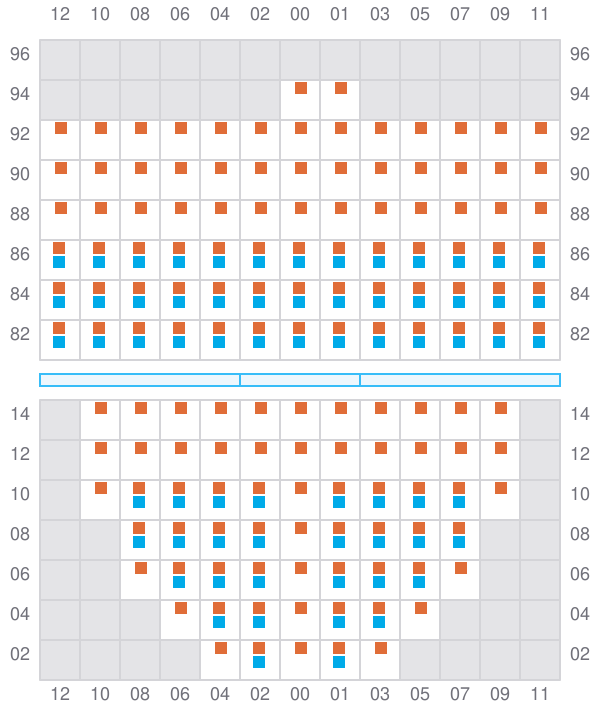

Bay 009 view and slots of MAERSK BRATAN

011

  • ←
  • →
Bay 011 view and slots of MAERSK BRATAN

013 (014)

  • →

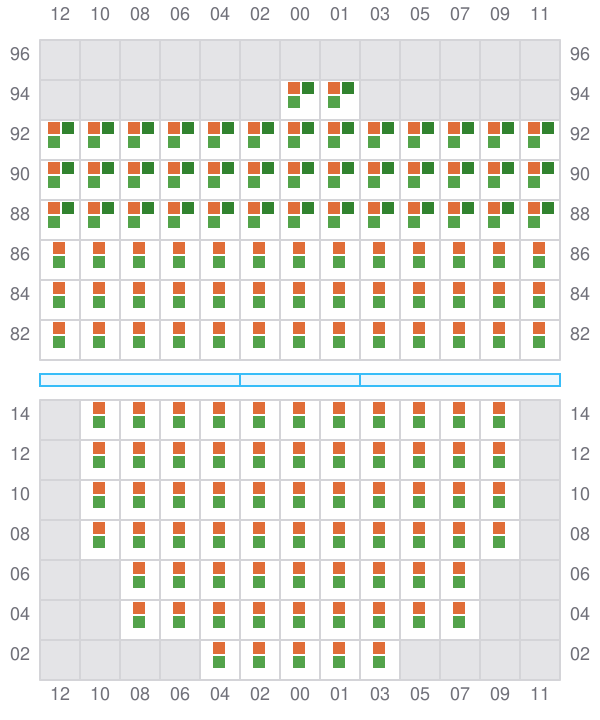

Bay 013 view and slots of MAERSK BRATAN

015

  • ←
  • →

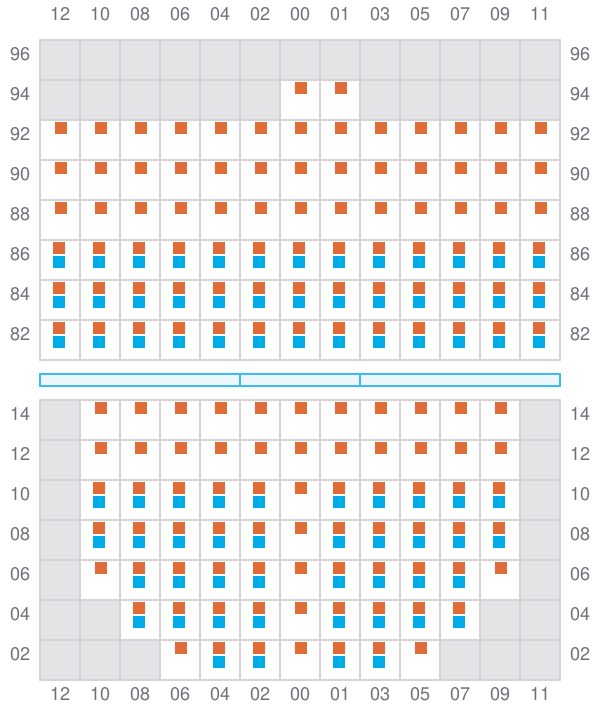

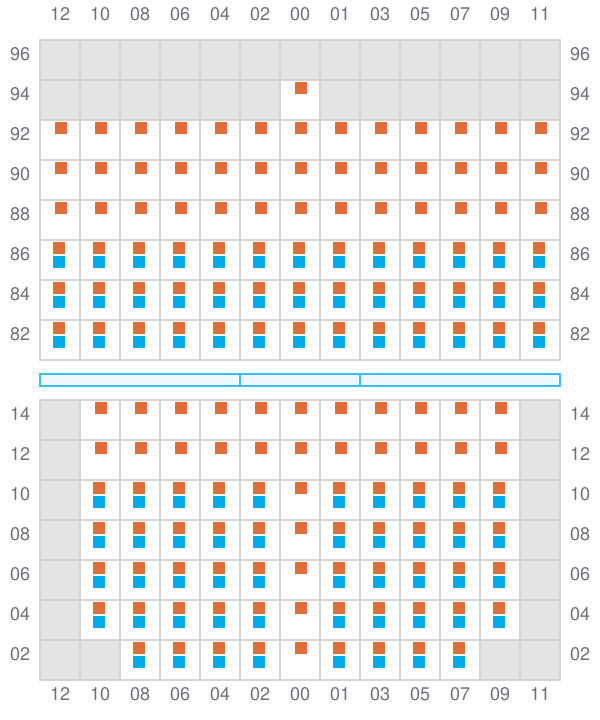

Bay 015 view and slots of MAERSK BRATAN

017 (018)

  • →

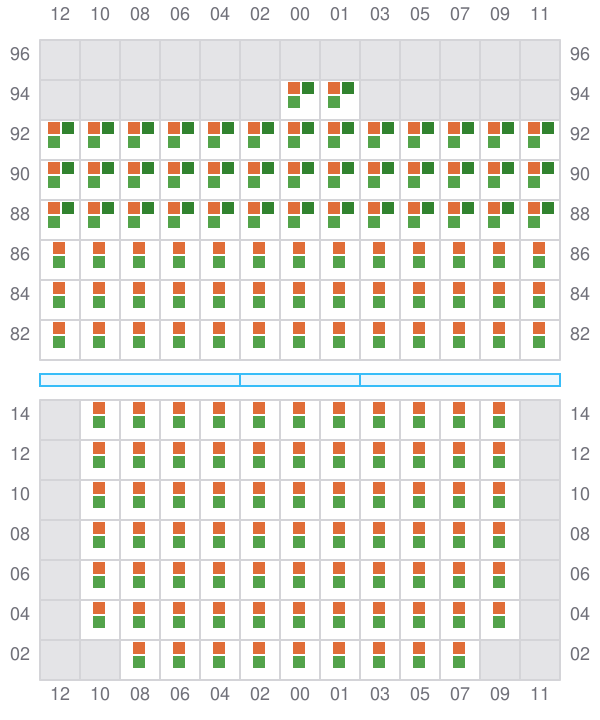

Bay 017 view and slots of MAERSK BRATAN

019

  • ←
  • →

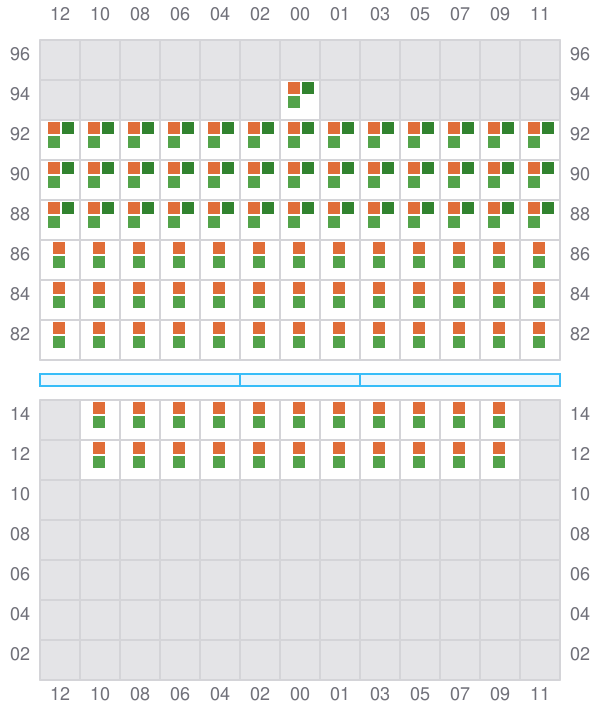

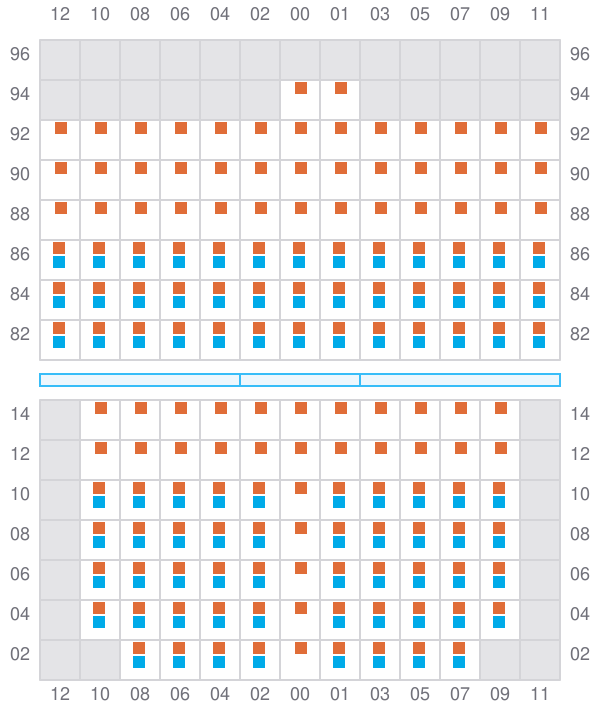

Bay 019 view and slots of MAERSK BRATAN

021 (022)

  • →

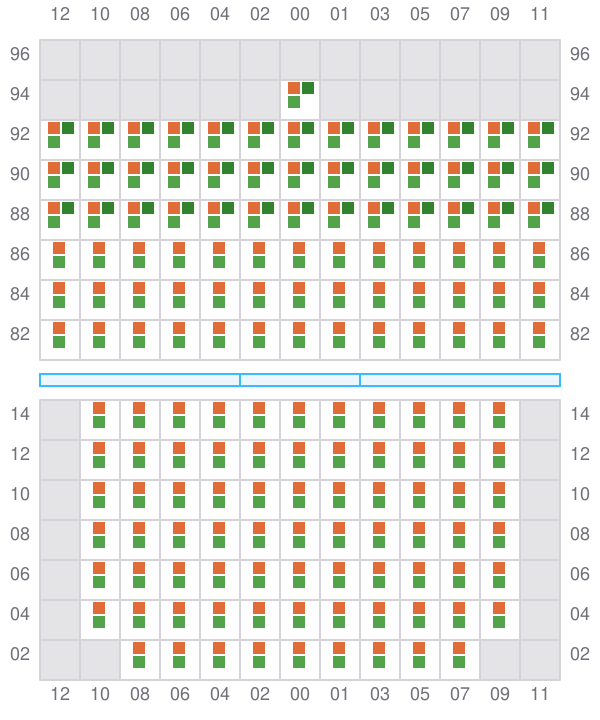

Bay 021 view and slots of MAERSK BRATAN

023

  • ←
  • →
Bay 023 view and slots of MAERSK BRATAN

025 (026)

  • →
Bay 025 view and slots of MAERSK BRATAN

027

  • ←
  • → / ?

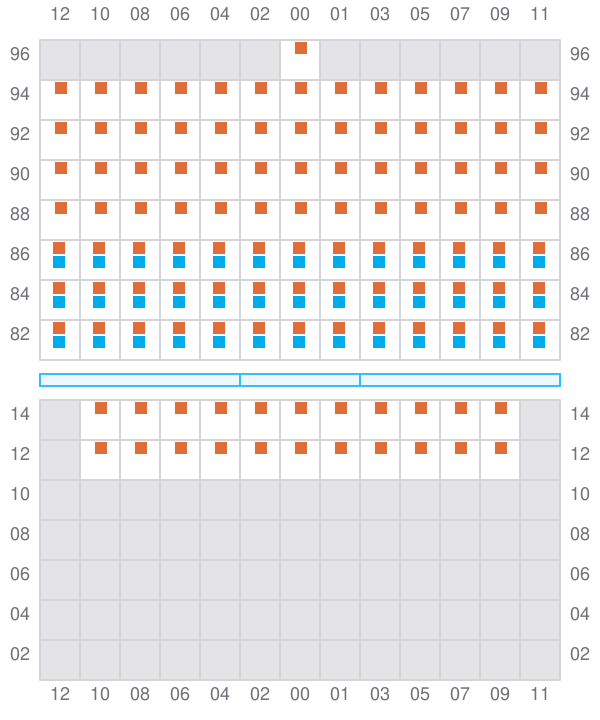

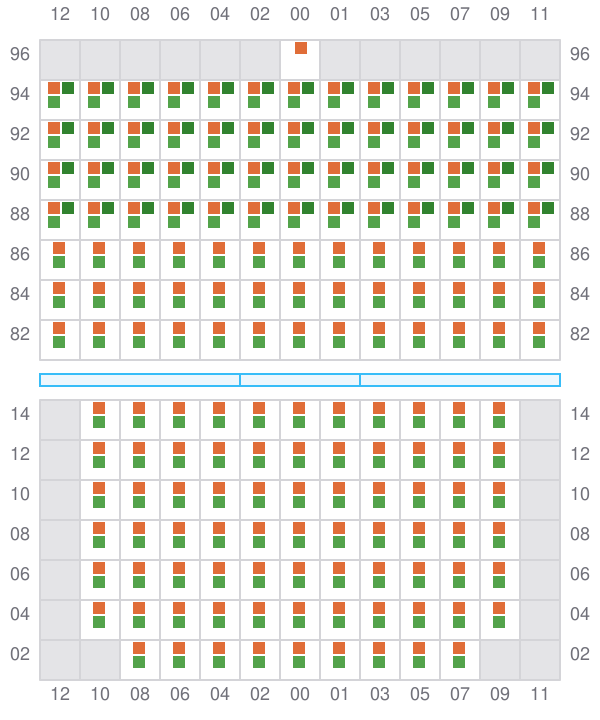

Bay 027 view and slots of MAERSK BRATAN

029 (030)

  • →
Bay 029 view and slots of MAERSK BRATAN

031

  • ←
  • →

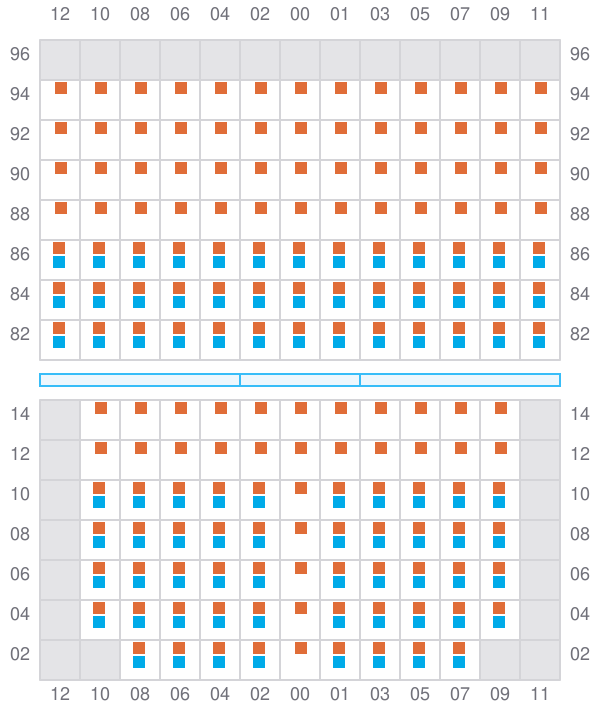

Bay 031 view and slots of MAERSK BRATAN

033 (034)

  • →
Bay 033 view and slots of MAERSK BRATAN

035

  • ←
  • →
Bay 035 view and slots of MAERSK BRATAN

037 (038)

  • →

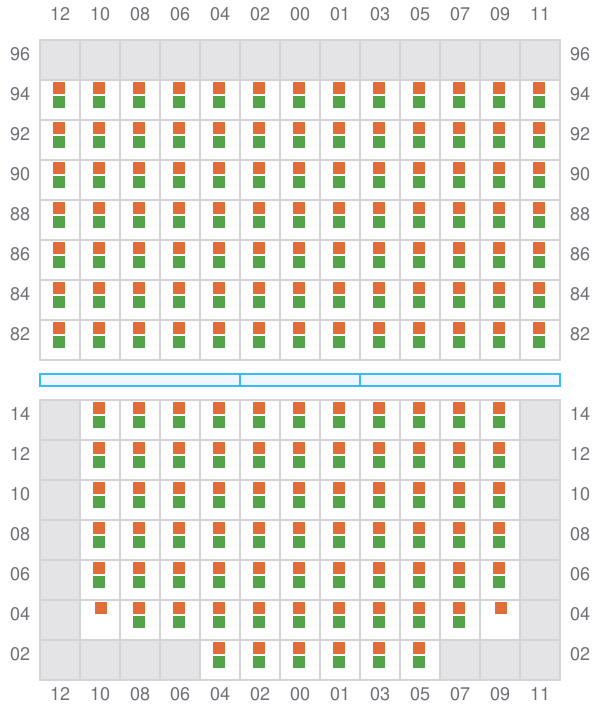

Bay 037 view and slots of MAERSK BRATAN

039

  • ←
  • →

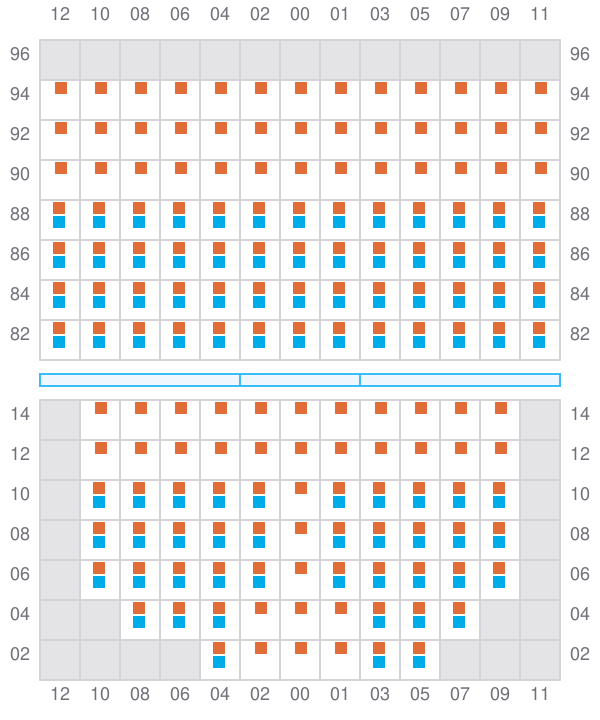

Bay 039 view and slots of MAERSK BRATAN

041 (042)

  • → / ?
  • → / ?

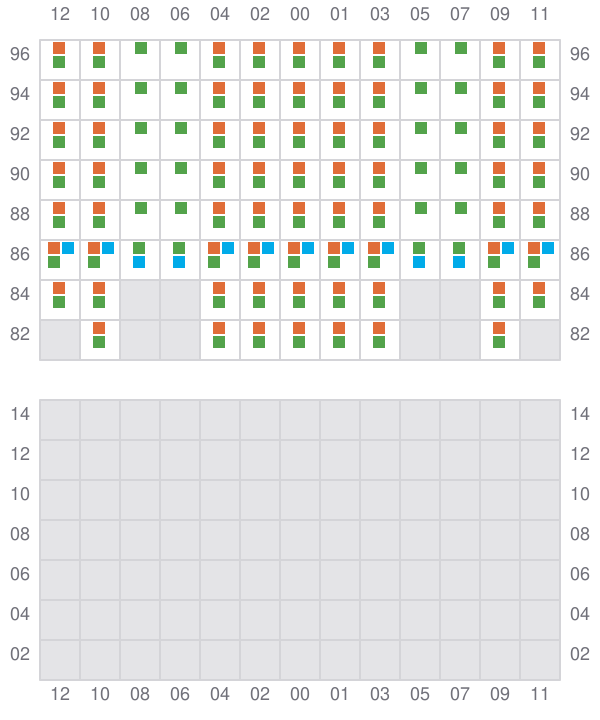

Bay 041 view and slots of MAERSK BRATAN

043

  • ← / ?
  • → / ?
Bay 043 view and slots of MAERSK BRATAN

045 (046)

  • →
  • ←

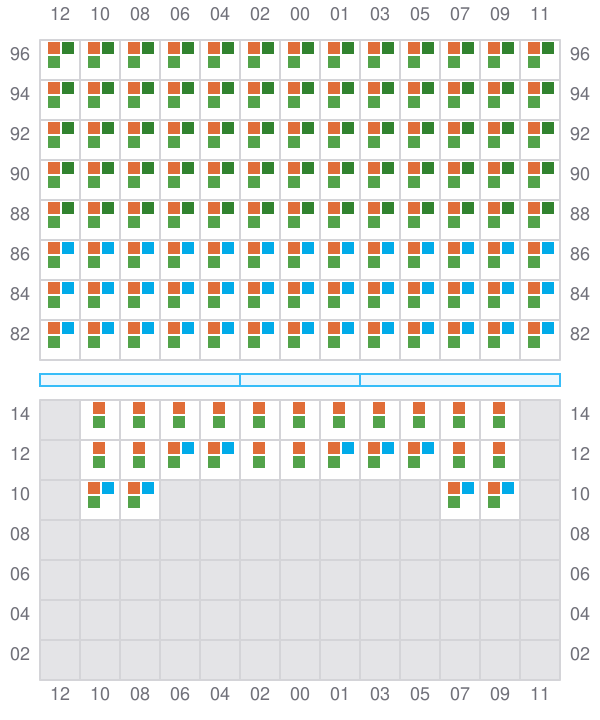

Bay 045 view and slots of MAERSK BRATAN

047

  • ←
Bay 047 view and slots of MAERSK BRATAN

049 (050)

  • → / ?
  • ← / ?

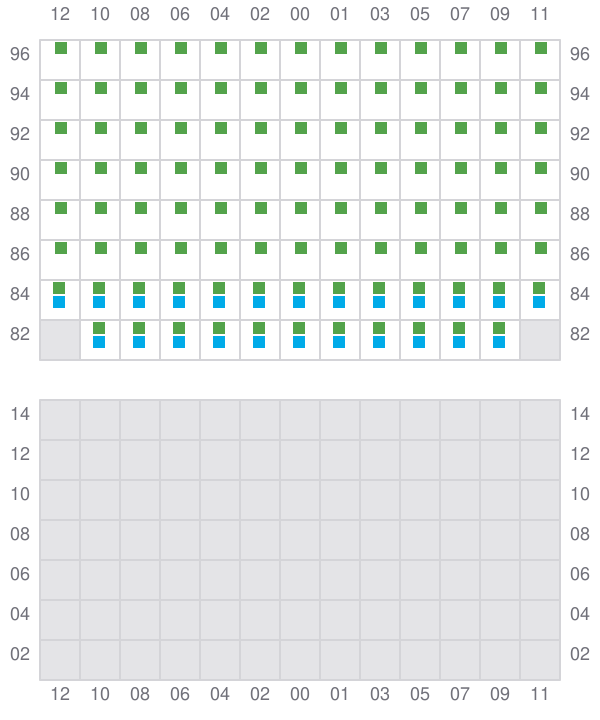

Bay 049 view and slots of MAERSK BRATAN
