MAERSK CADIZ
9526459 | 9V7639 | 9526459 by ********* Last update: Tue May 14 2024
General Info
Ship Name:MAERSK CADIZ
IMO Code:9526459
Call Sign:9V7639
Line Operator:9526459
Class Name for Sister Ships:MAERSK CADIZ
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):235.00
LOA (Length Overall):249.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,610
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←

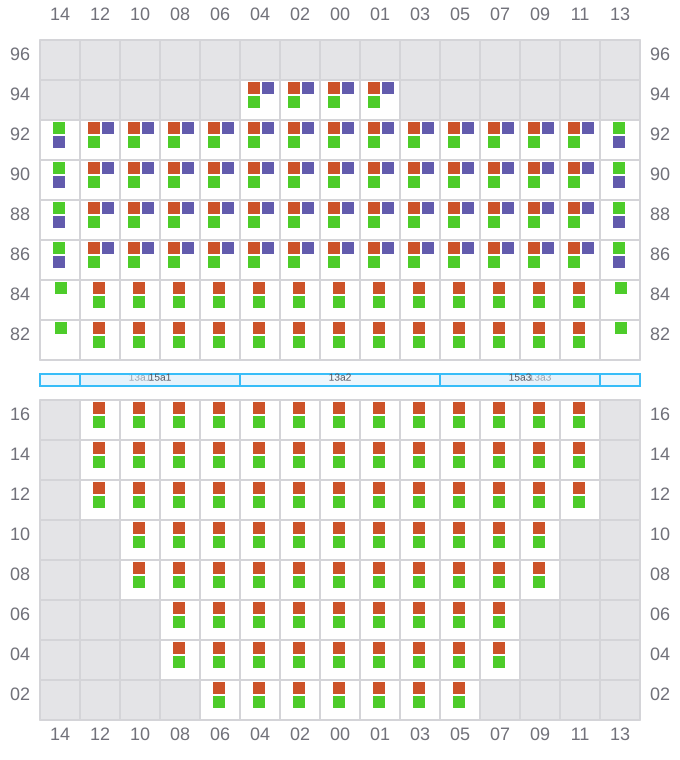

013 (014)
- →
- ? / ←
015
- ←
017 (018)
- →
019
- ←
- →
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
027
- ←
- →
029 (030)
- →
031
- ←
- → / ?

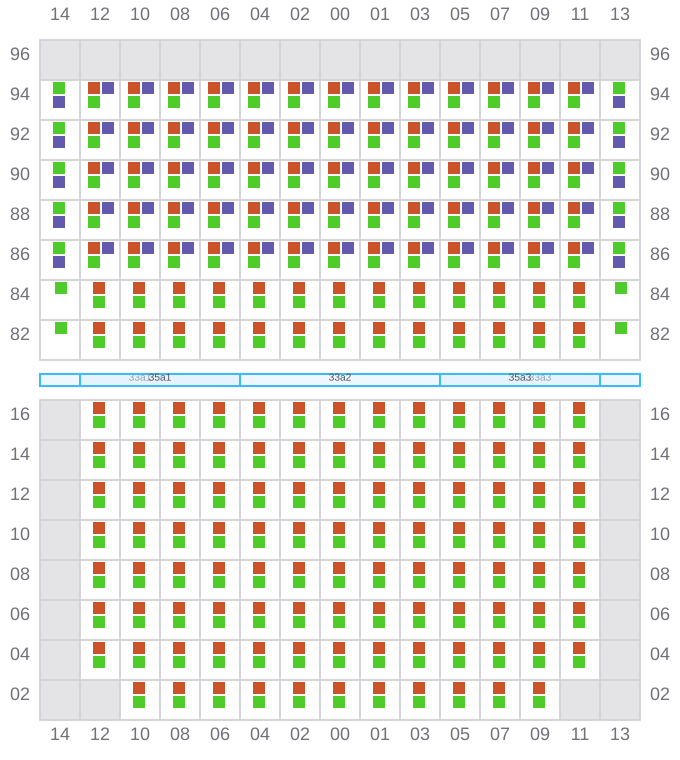

033 (034)
- →
035
- ←
- → / ?

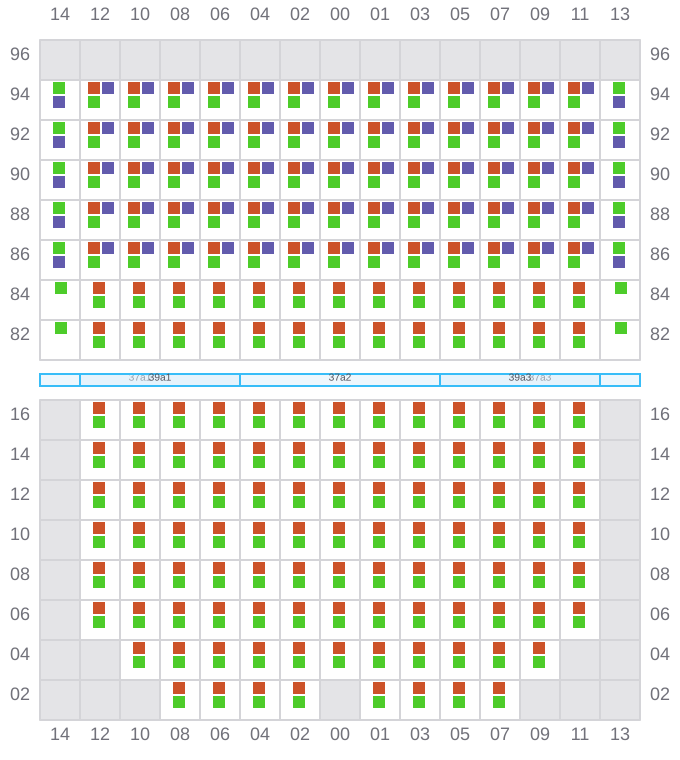

037 (038)
- →
039
- ←
- →
041 (042)
- →
043
- ←
- → / ?
045 (046)
- → / ?
- → / ?
047
049 (050)
- →
051
- ←
- → / ?
053 (054)
- → / ?
