MAERSK CAP CARMEL
9273923 | 9V2191 | 92739 by ********* Last update: Tue Jun 11 2024

General Info

Ship Name:MAERSK CAP CARMEL
IMO Code:9273923
Call Sign:9V2191
Line Operator:92739
Class Name for Sister Ships:MAE
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,532

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

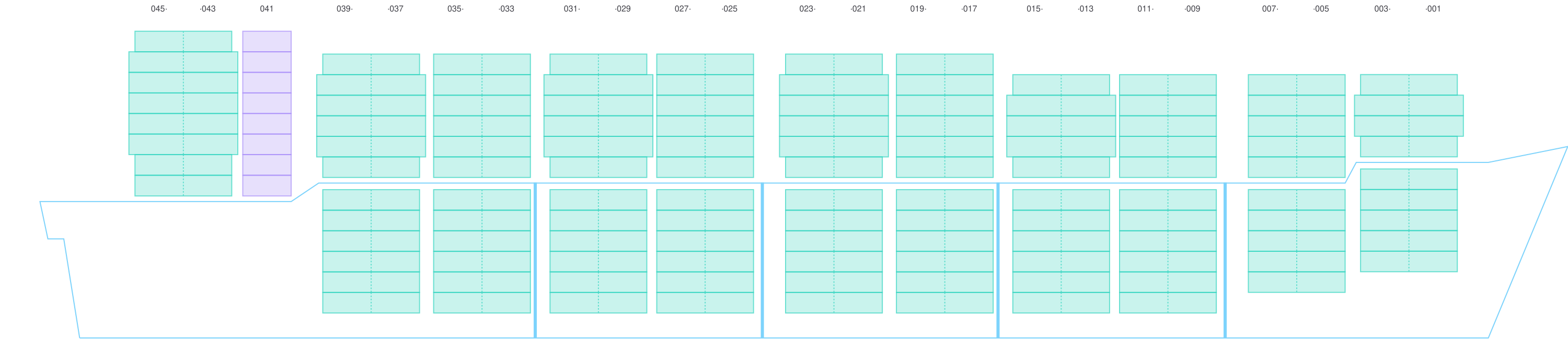

Side view of MAERSK CAP CARMEL

Hatch-Covers View

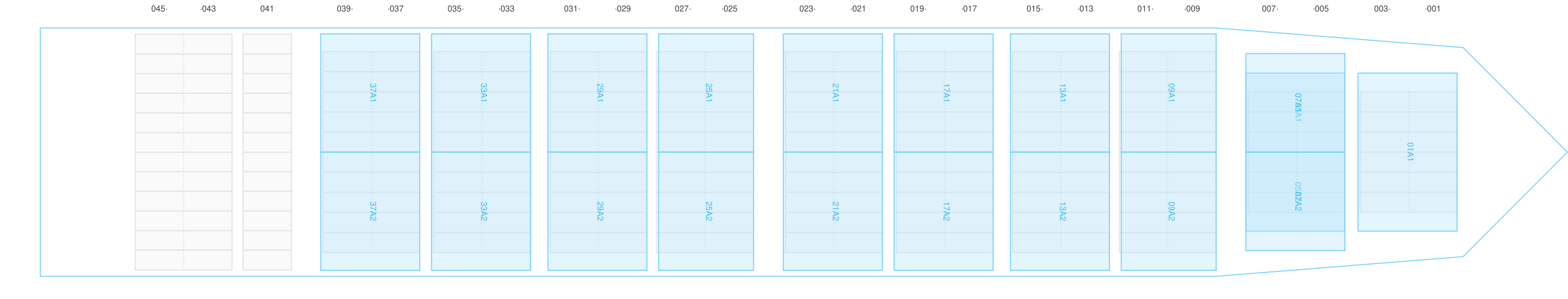

Deck view of MAERSK CAP CARMEL

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

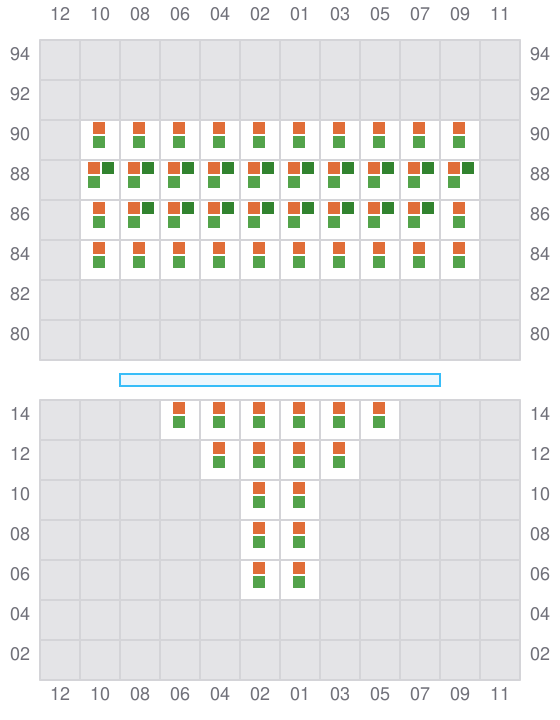

Bay 001 view and slots of MAERSK CAP CARMEL

003

  • ←
  • → / ?

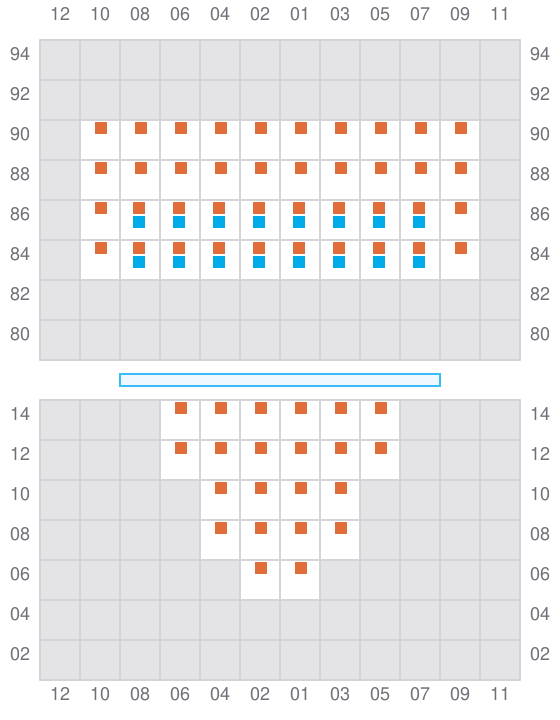

Bay 003 view and slots of MAERSK CAP CARMEL

005 (006)

  • →

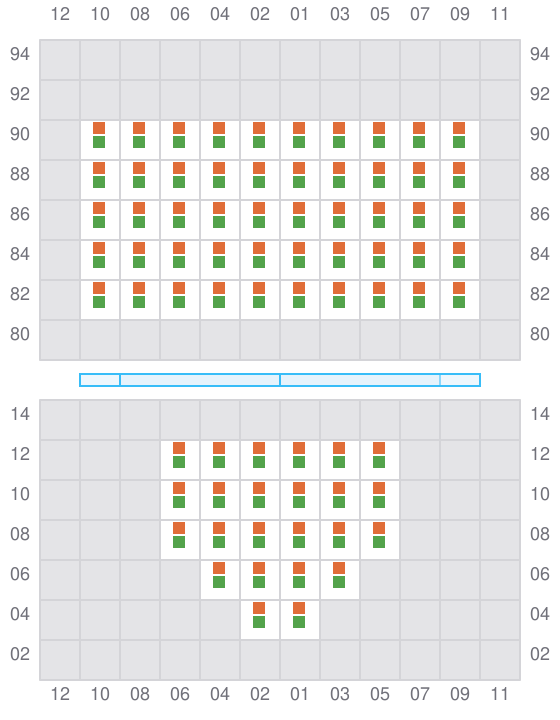

Bay 005 view and slots of MAERSK CAP CARMEL

007

  • ←
  • → / ?

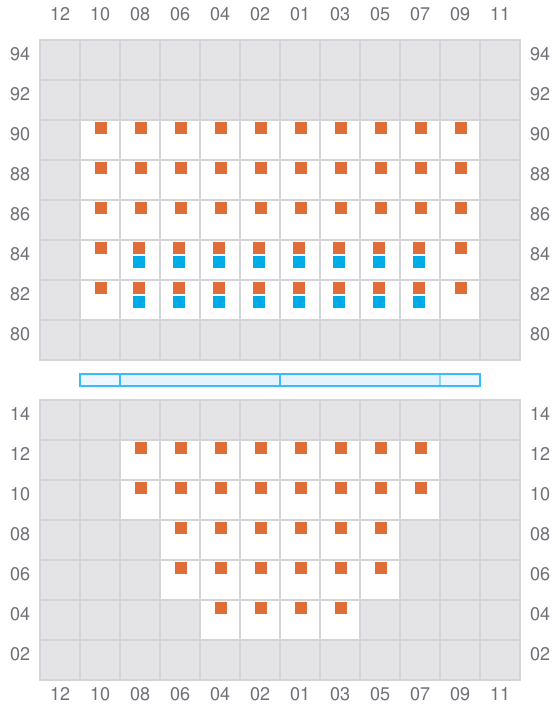

Bay 007 view and slots of MAERSK CAP CARMEL

009 (010)

  • →
  • ← / ?

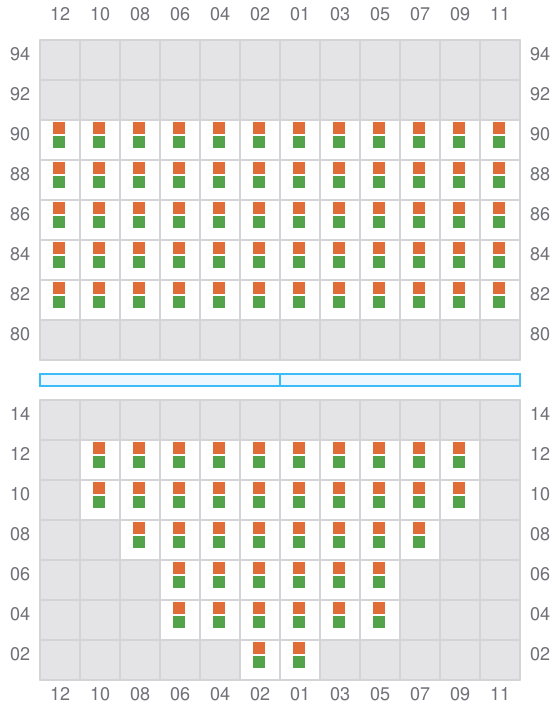

Bay 009 view and slots of MAERSK CAP CARMEL

011

  • ←
  • →

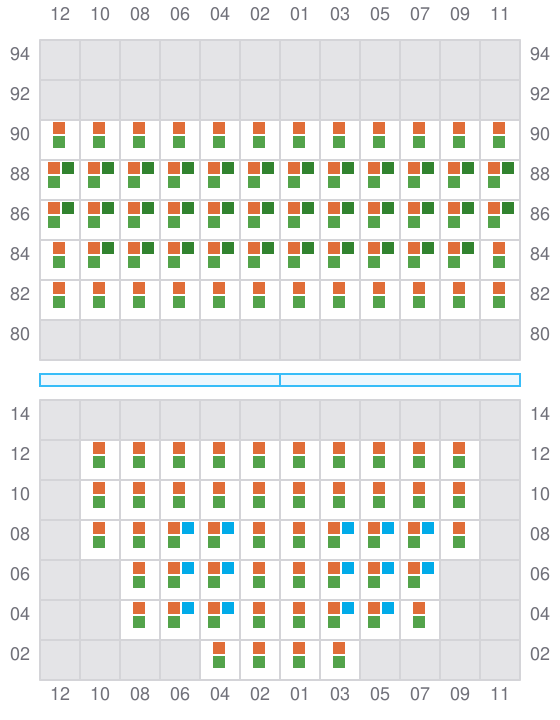

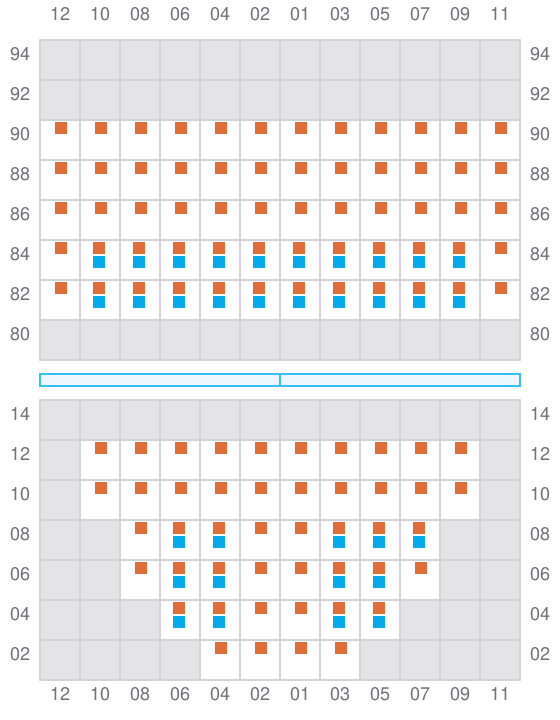

Bay 011 view and slots of MAERSK CAP CARMEL

013 (014)

  • →
  • ←
Bay 013 view and slots of MAERSK CAP CARMEL

015

  • ←
  • → / ?

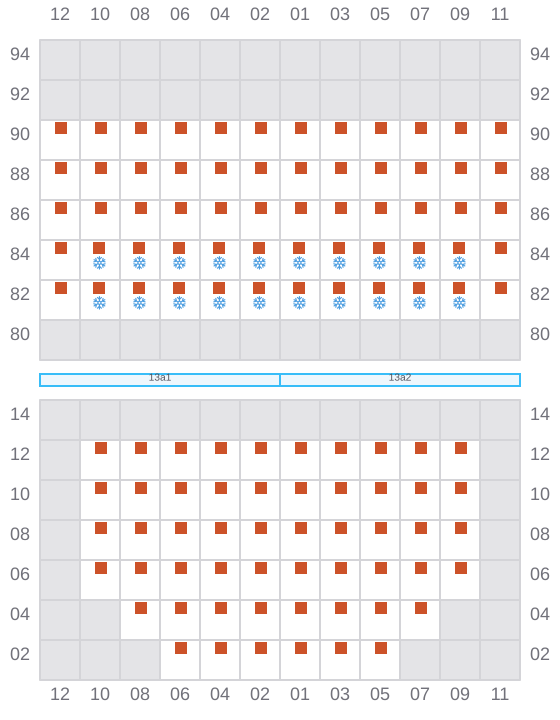

Bay 015 view and slots of MAERSK CAP CARMEL

017 (018)

  • →
  • ← / ?

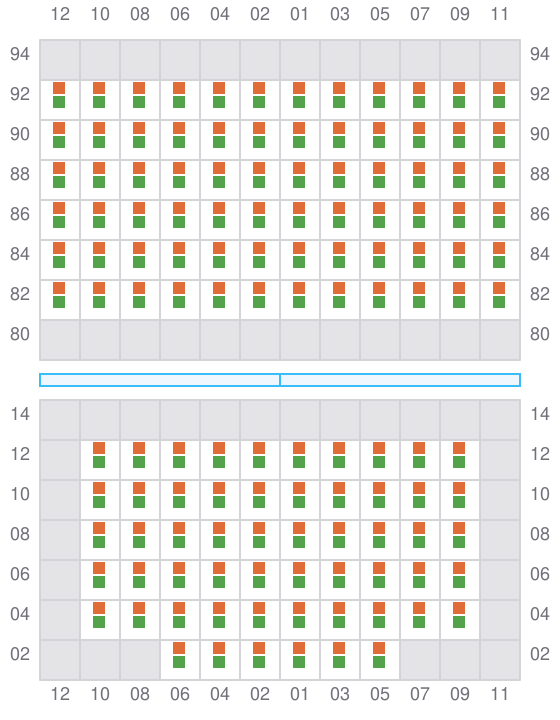

Bay 017 view and slots of MAERSK CAP CARMEL

019

  • ←
  • →
Bay 019 view and slots of MAERSK CAP CARMEL

021 (022)

  • →
  • ←
Bay 021 view and slots of MAERSK CAP CARMEL

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK CAP CARMEL

025 (026)

  • →
  • ← / ?

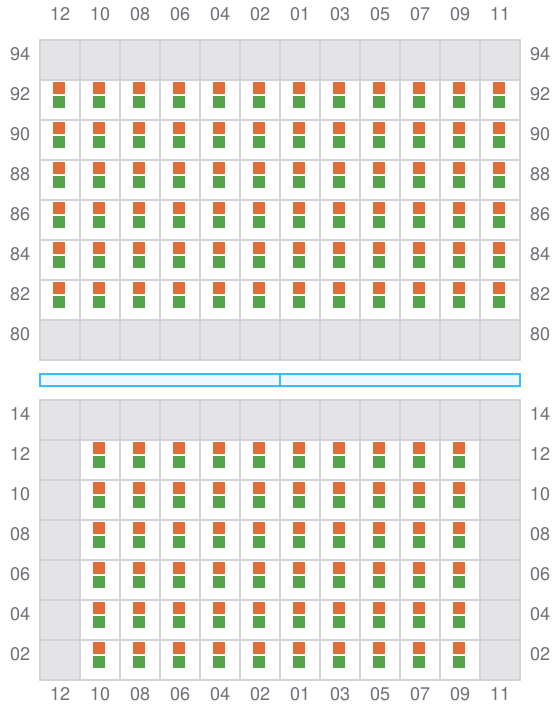

Bay 025 view and slots of MAERSK CAP CARMEL

027

  • ←
  • →

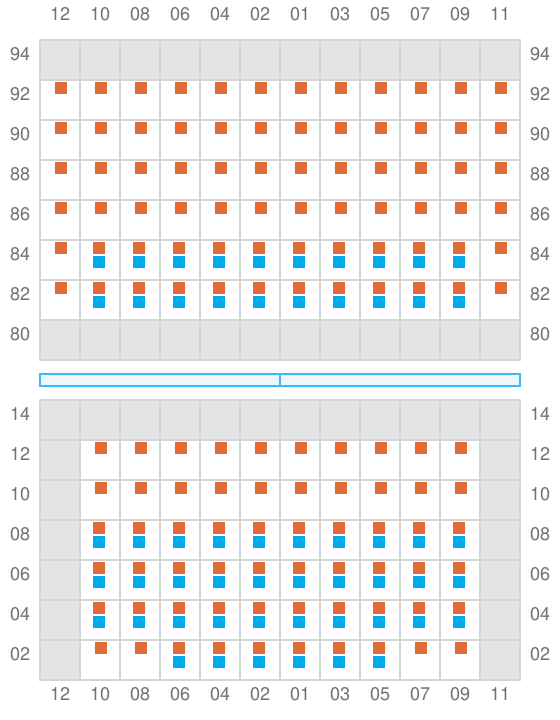

Bay 027 view and slots of MAERSK CAP CARMEL

029 (030)

  • →
  • ←

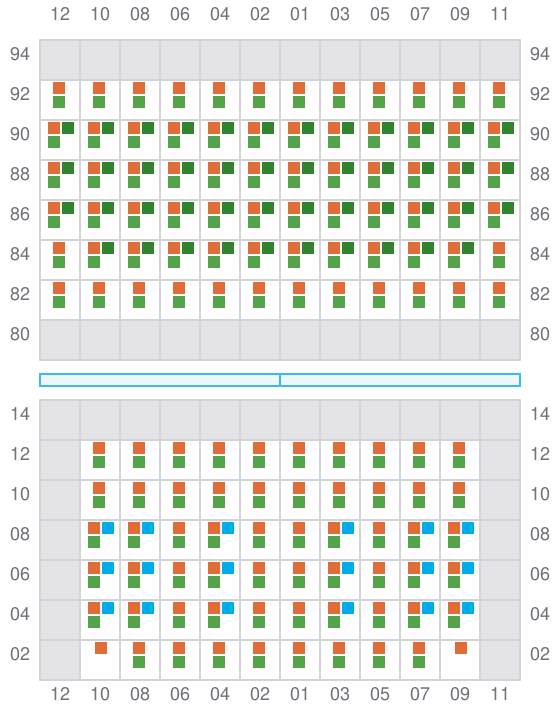

Bay 029 view and slots of MAERSK CAP CARMEL

031

  • ←
  • → / ?

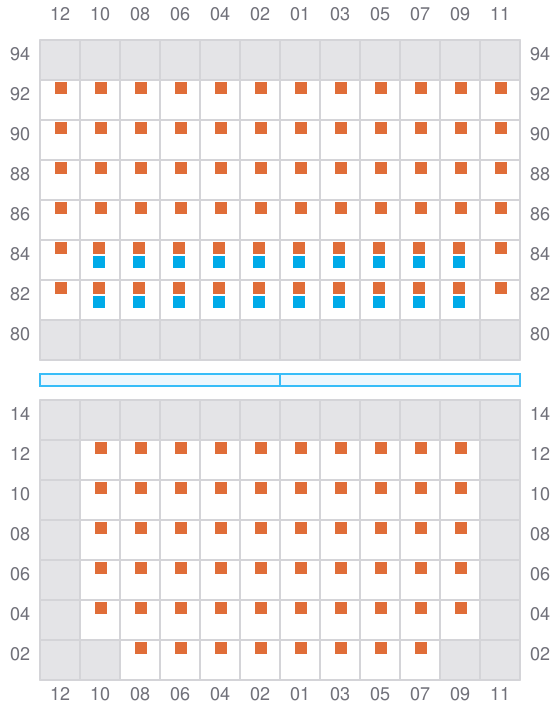

Bay 031 view and slots of MAERSK CAP CARMEL

033 (034)

  • →
  • ← / ?

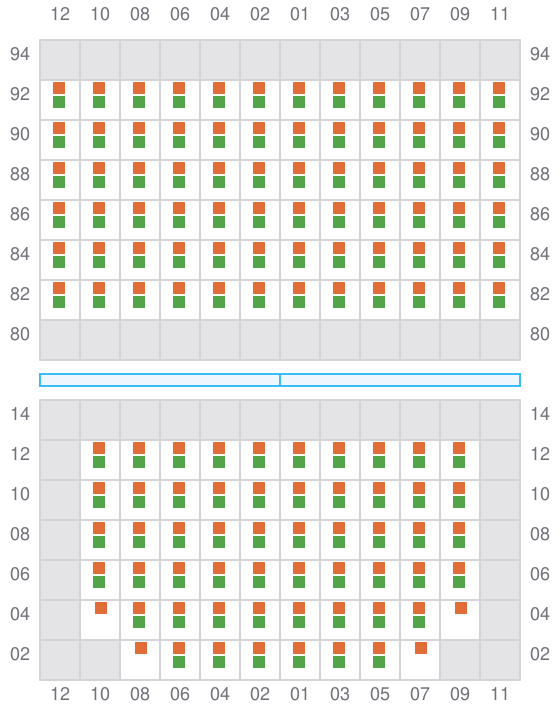

Bay 033 view and slots of MAERSK CAP CARMEL

035

  • ←
  • →

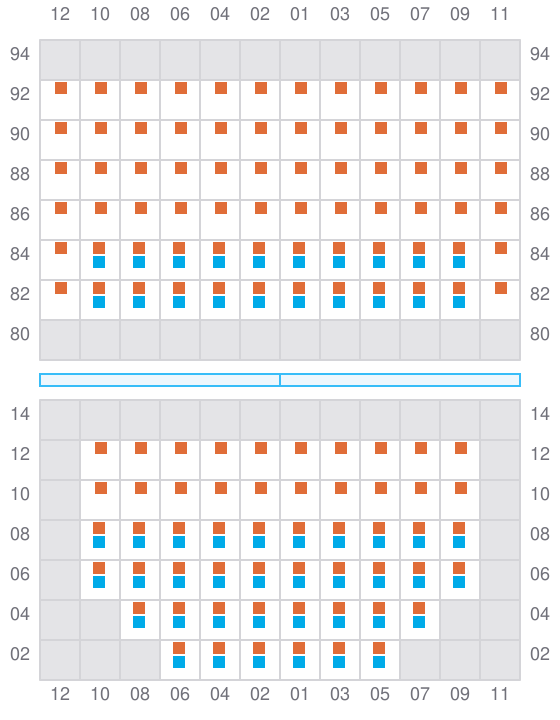

Bay 035 view and slots of MAERSK CAP CARMEL

037 (038)

  • →
  • ←

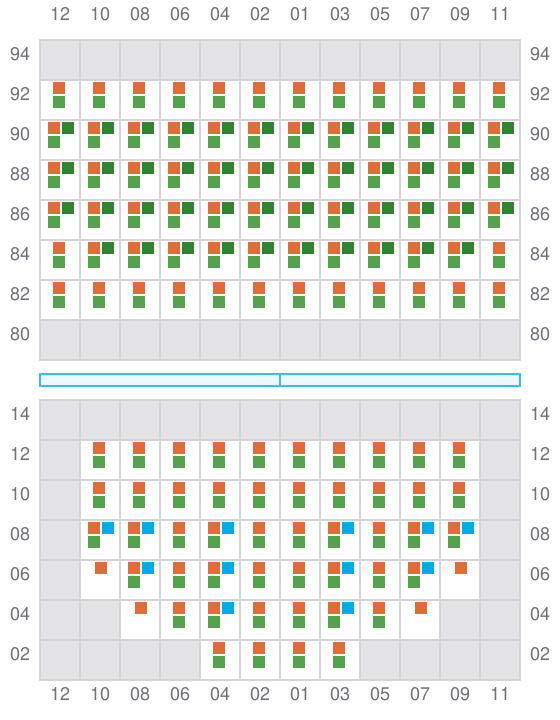

Bay 037 view and slots of MAERSK CAP CARMEL

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK CAP CARMEL

041

  • → / ?
Bay 041 view and slots of MAERSK CAP CARMEL

043 (044)

  • → / ?
  • ← / ?

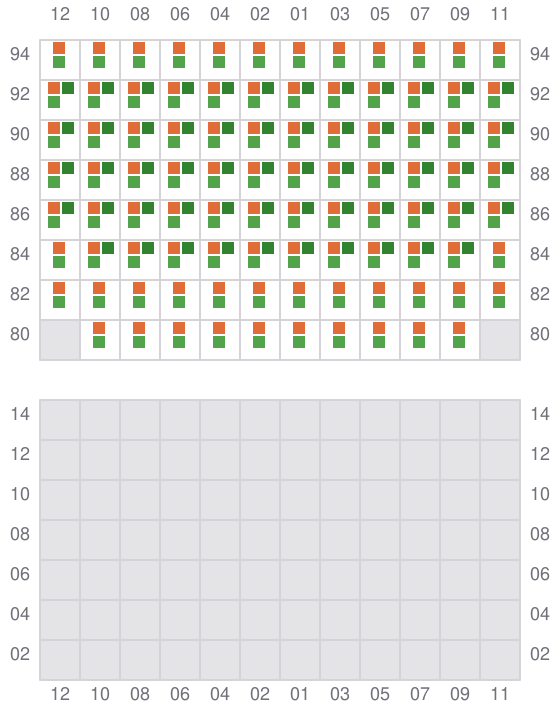

Bay 043 view and slots of MAERSK CAP CARMEL

045

  • ← / ?
  • → / ?

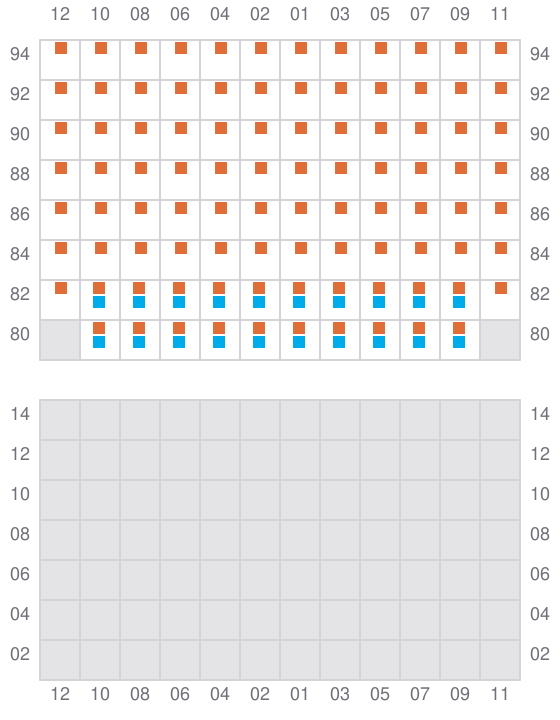

Bay 045 view and slots of MAERSK CAP CARMEL
