MAERSK CHENNAI
9525338 | 9V9409 | 9525338 by ********* Last update: Fri Jun 28 2024
General Info
Ship Name:MAERSK CHENNAI
IMO Code:9525338
Call Sign:9V9409
Line Operator:9525338
Class Name for Sister Ships:MSL
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,574
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

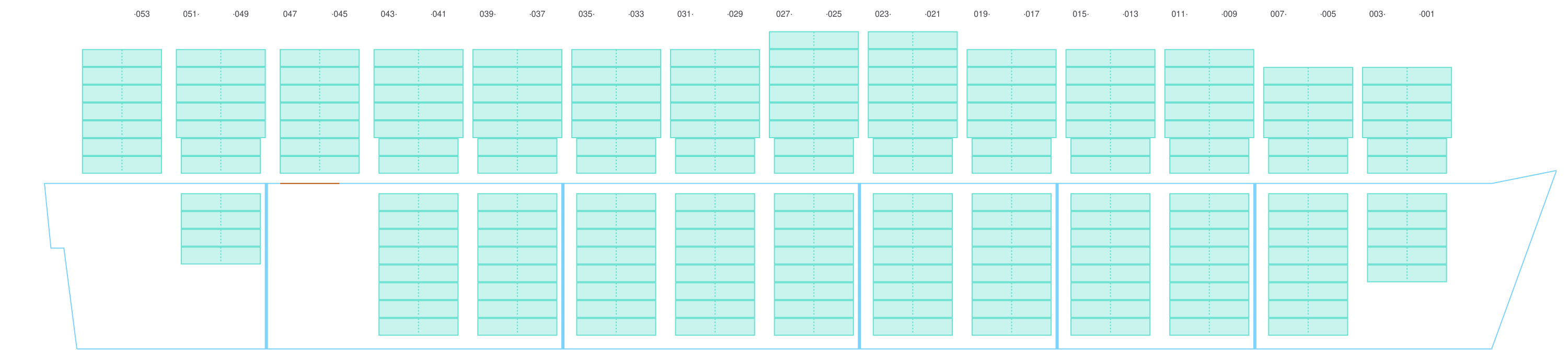

Side View

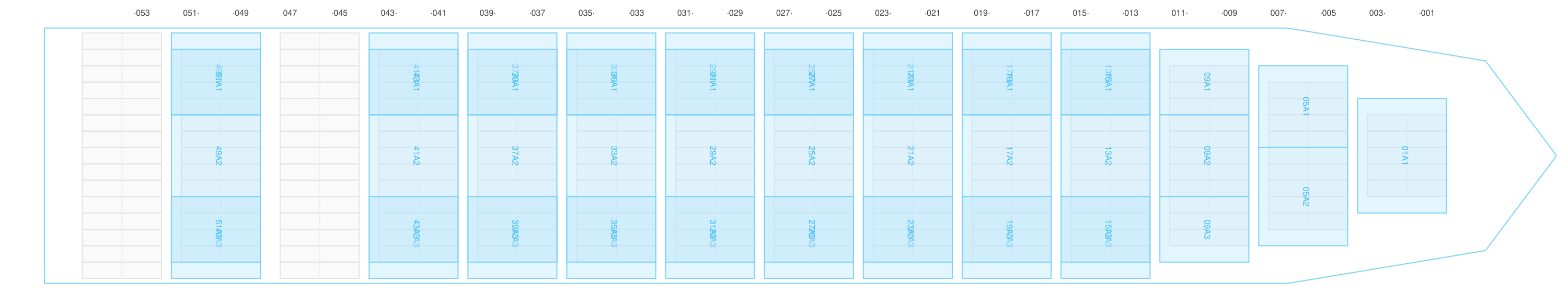

Hatch-Covers View

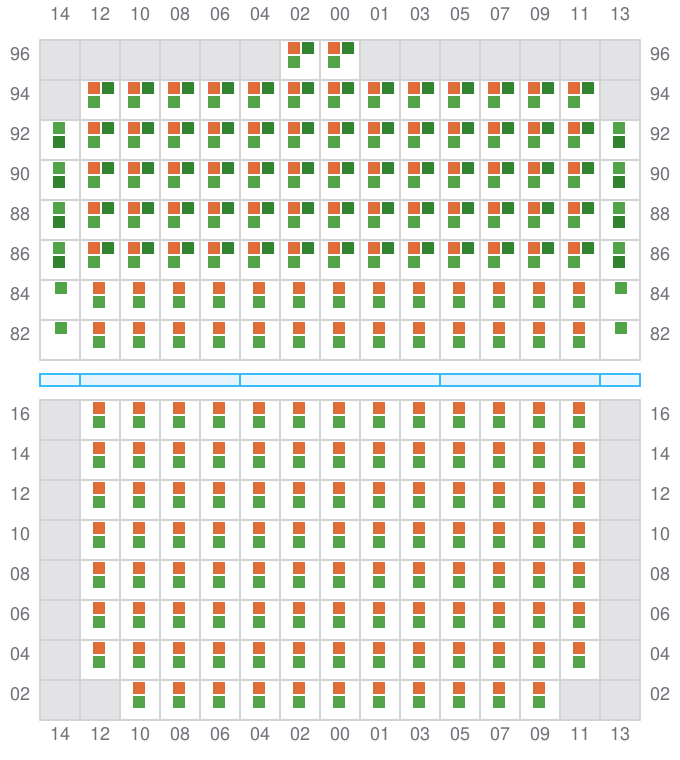

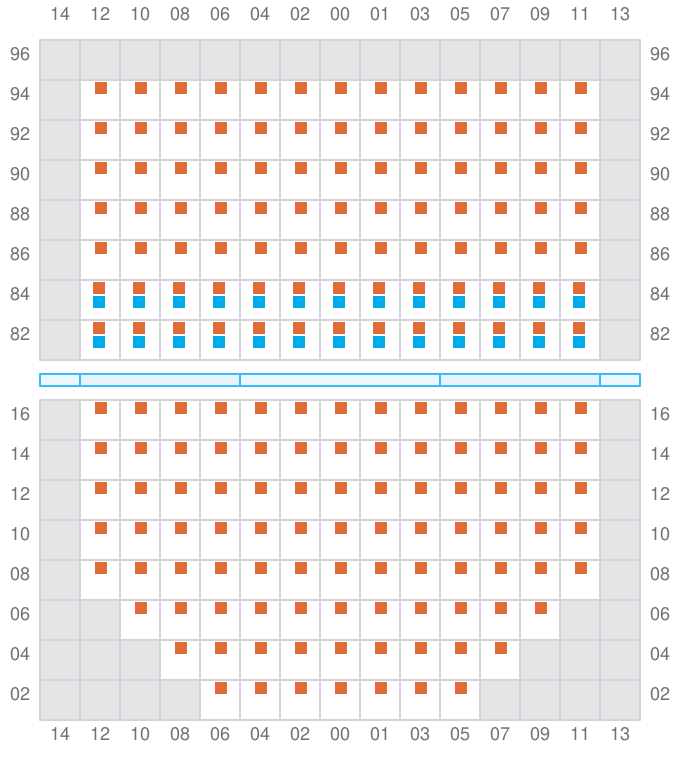

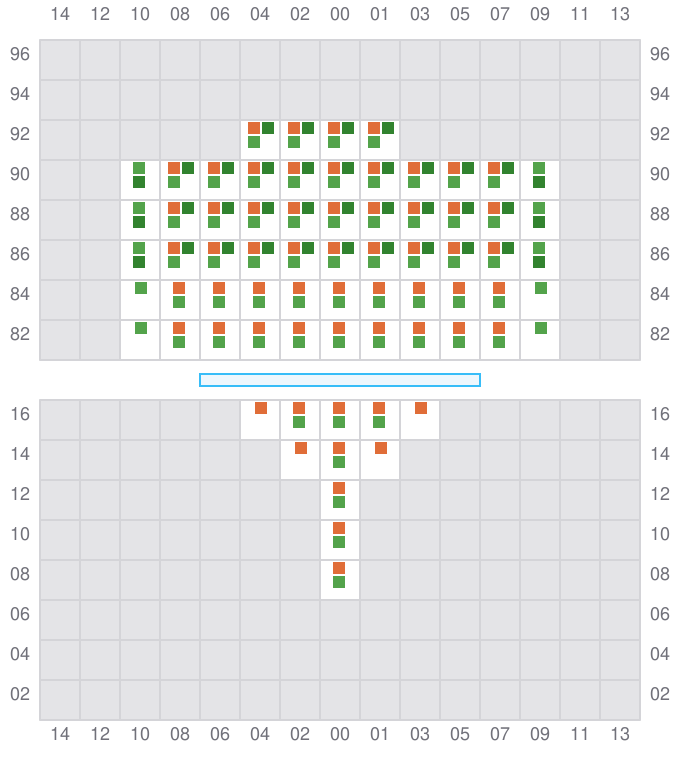

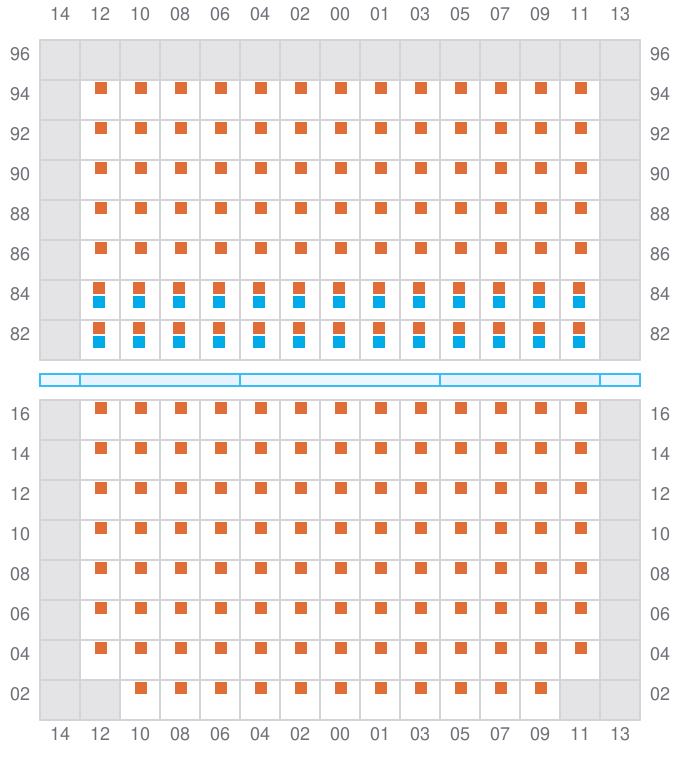

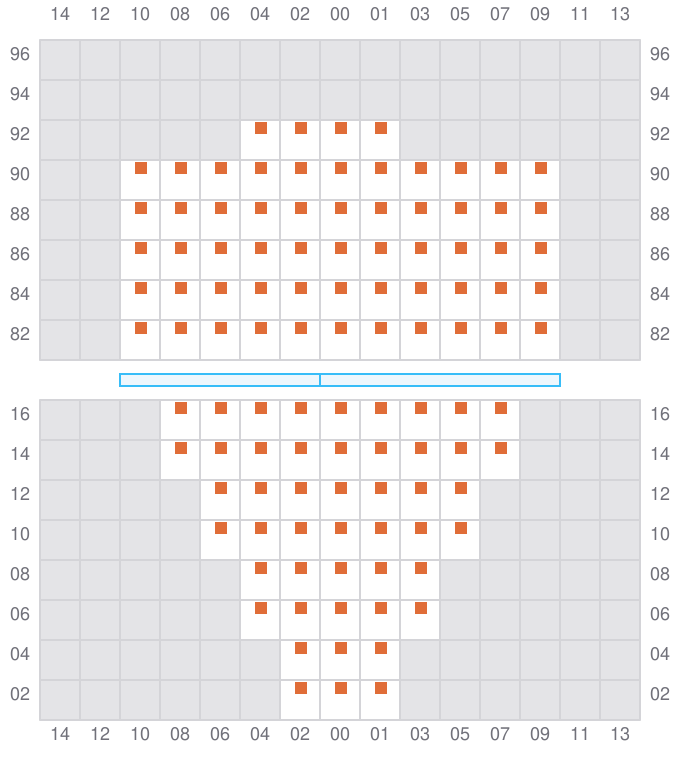

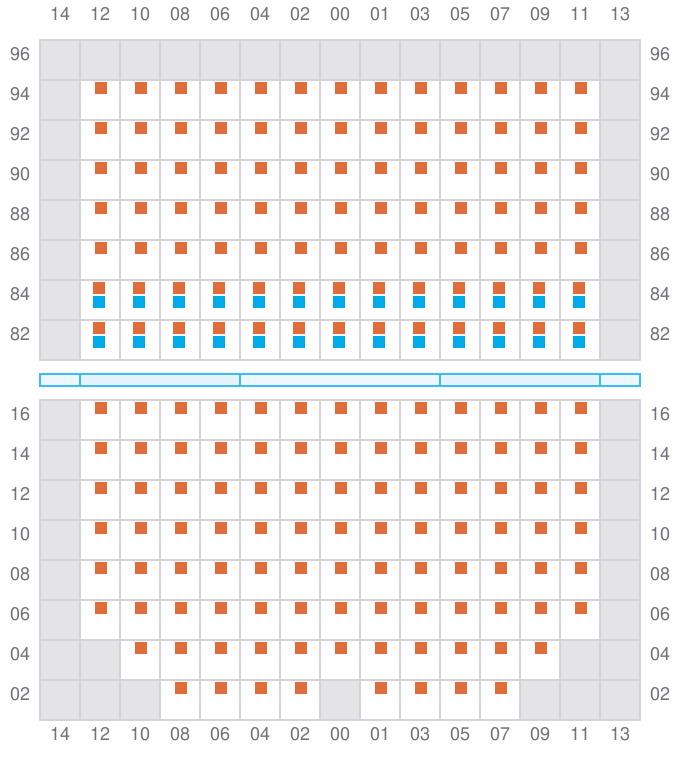

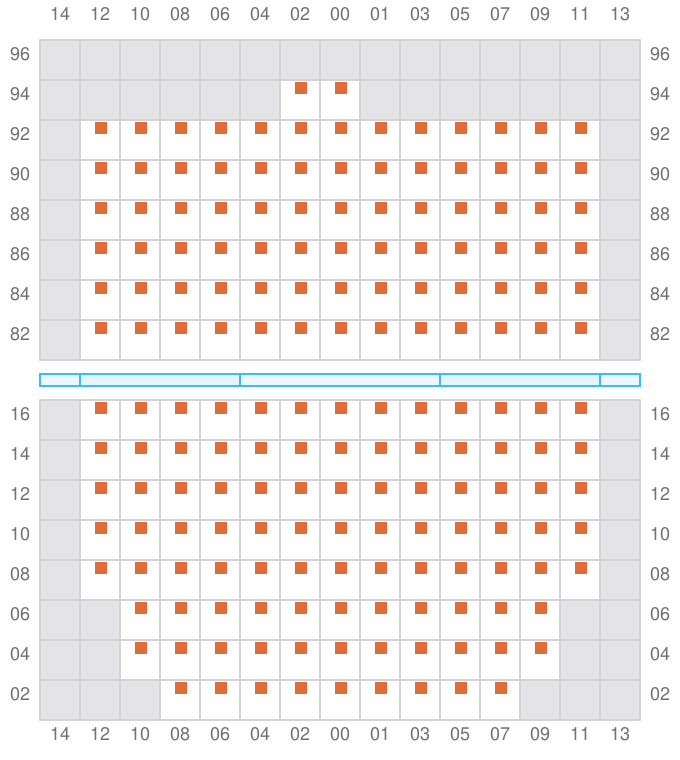

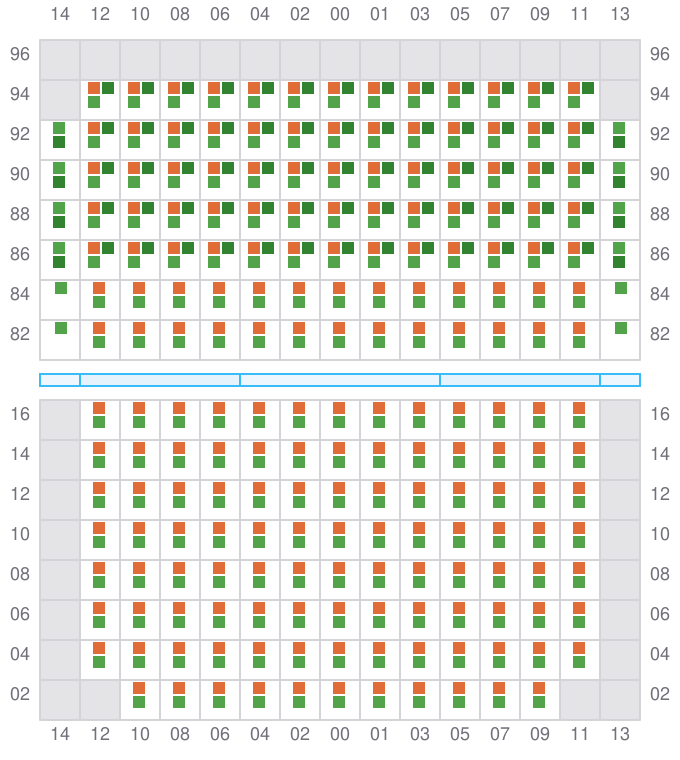

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

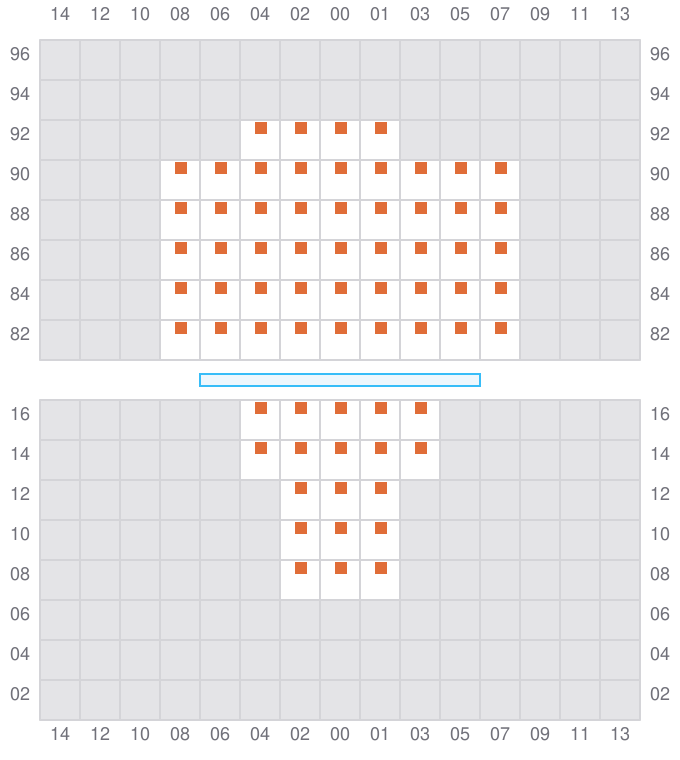

003
- ←
005 (006)
- →
007
- ←

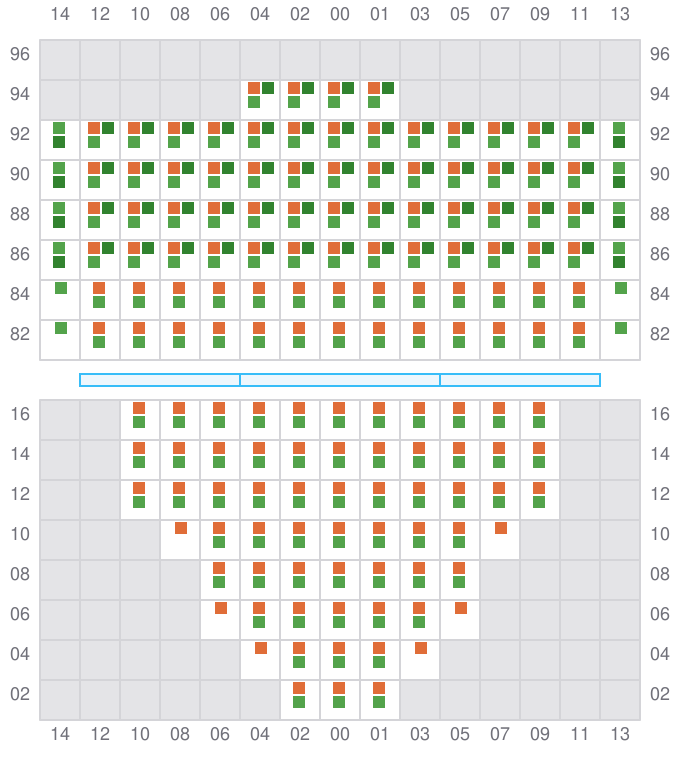

009 (010)
- →

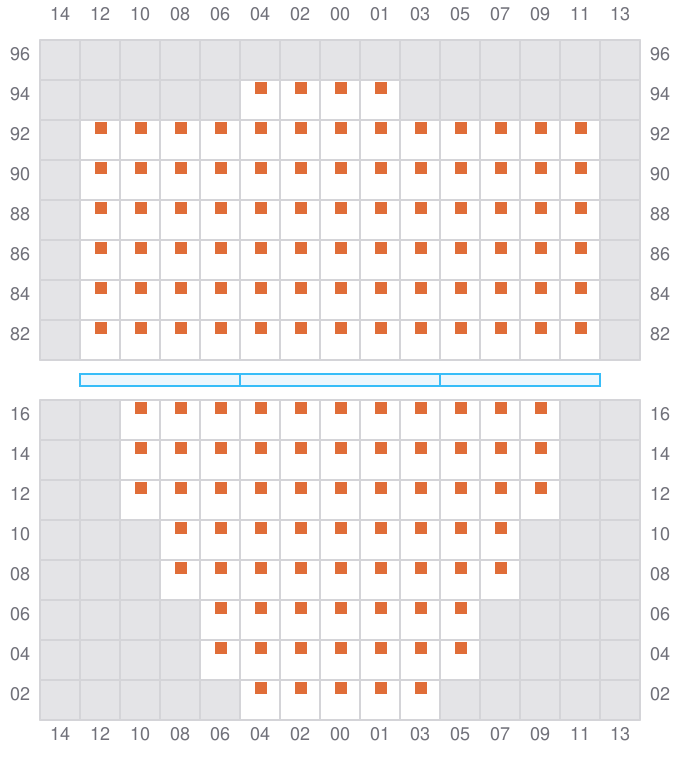

011
- ←

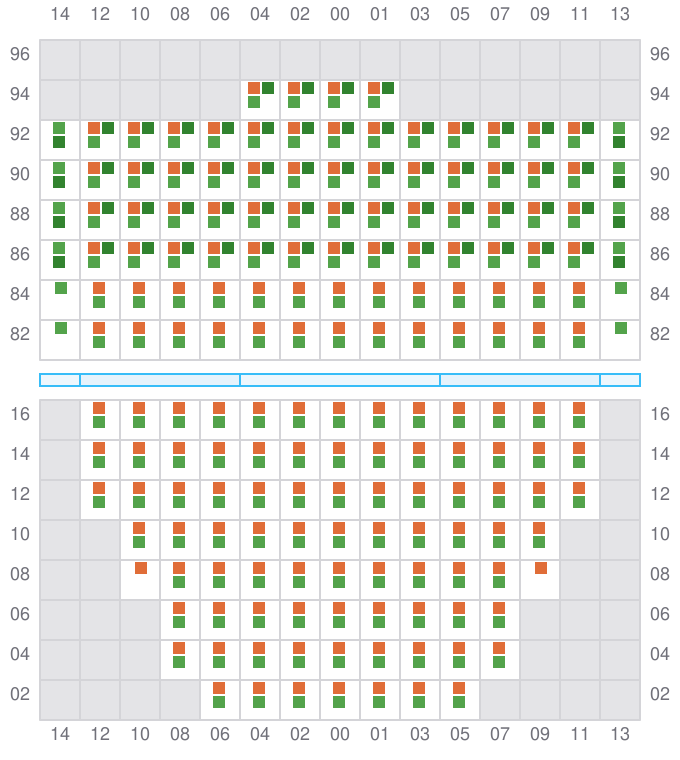

013 (014)
- →
- ? / ←

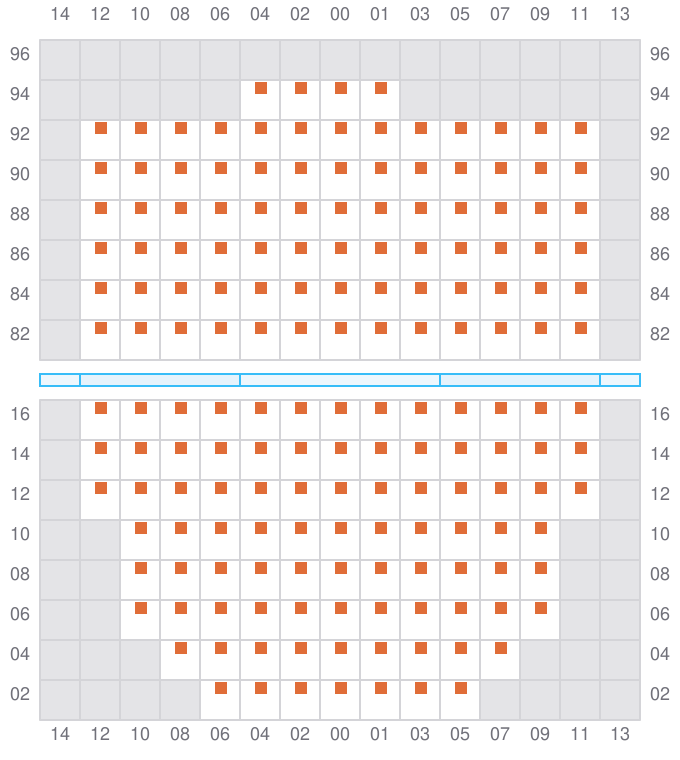

015
- ←
017 (018)
- →
019
- ←
- →
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →

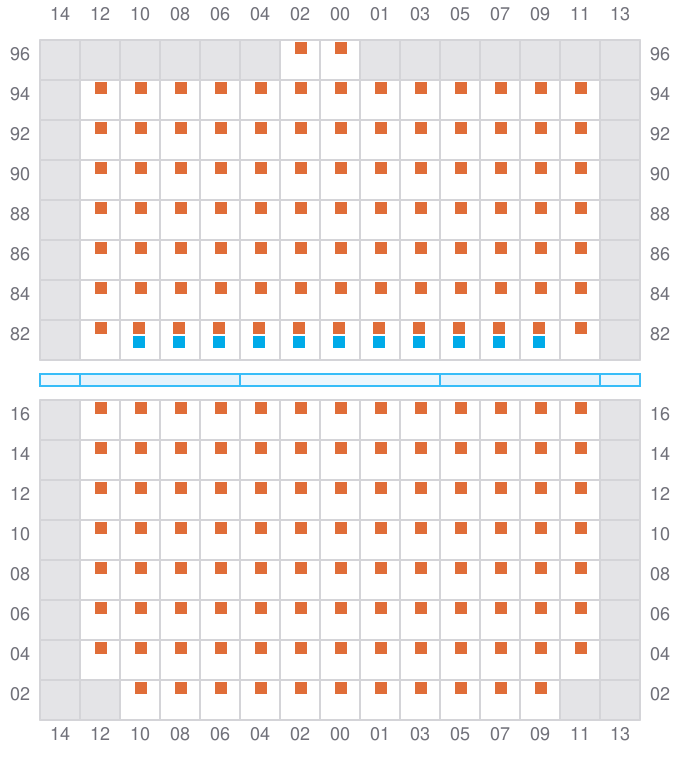

027
- ←
- →
029 (030)
- →
031
- ←
- → / ?
033 (034)
- →

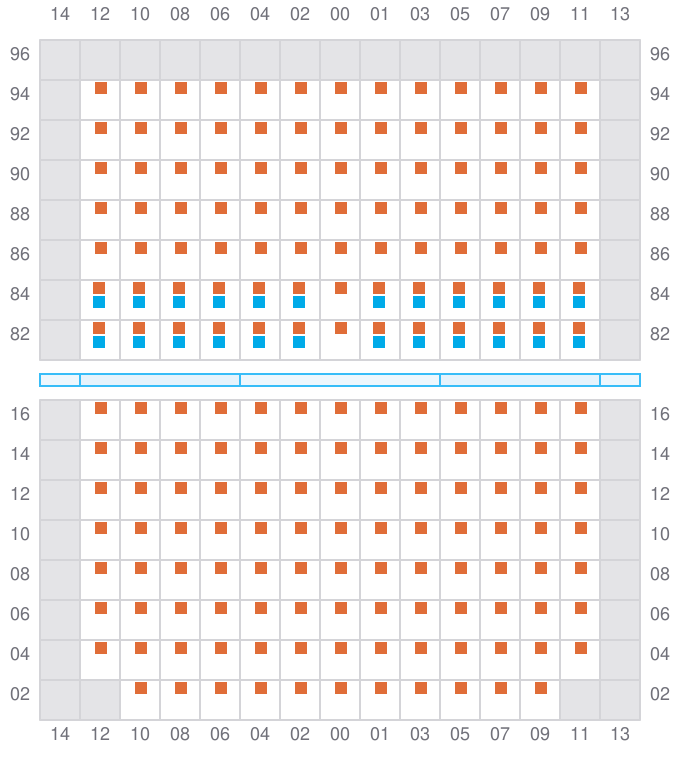

035
- ←
- → / ?

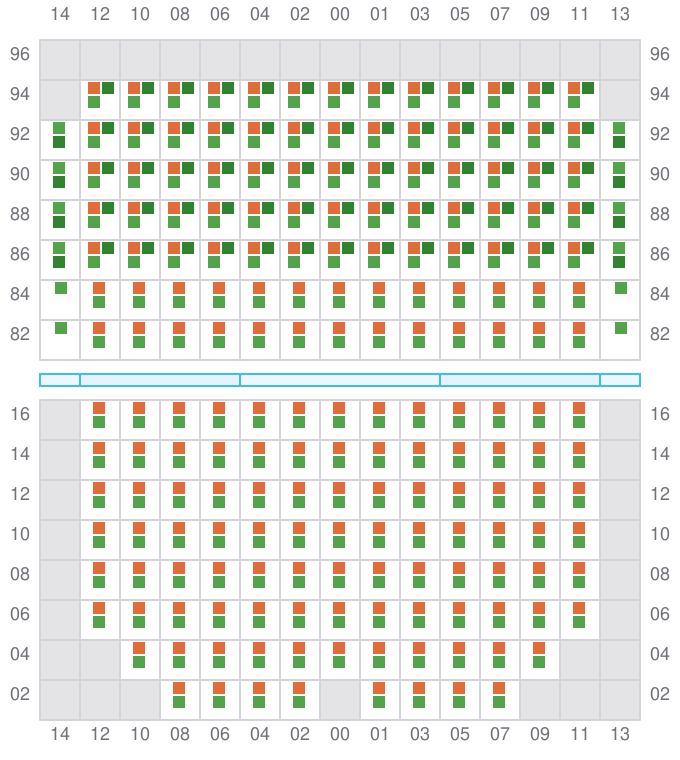

037 (038)
- →
039
- ←
- →

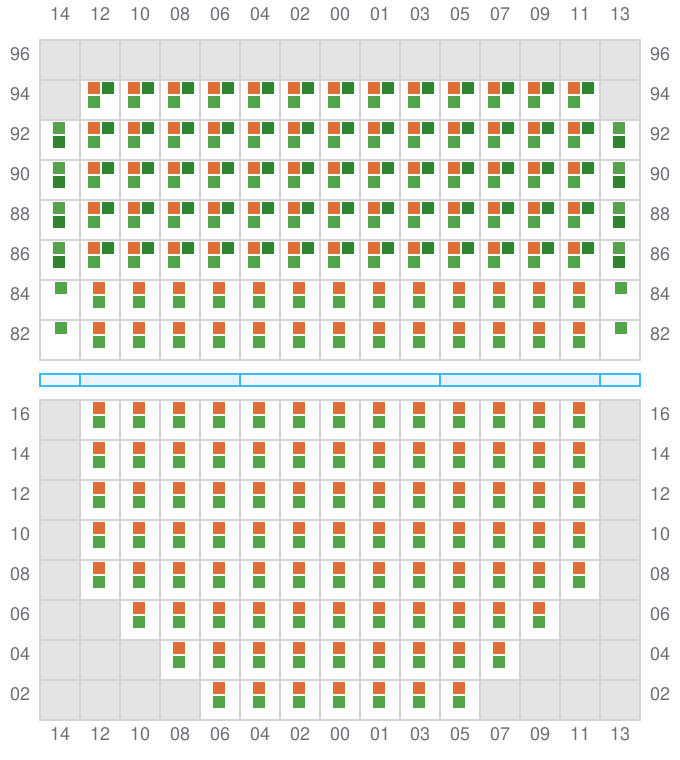

041 (042)
- →
043
- ←
- → / ?

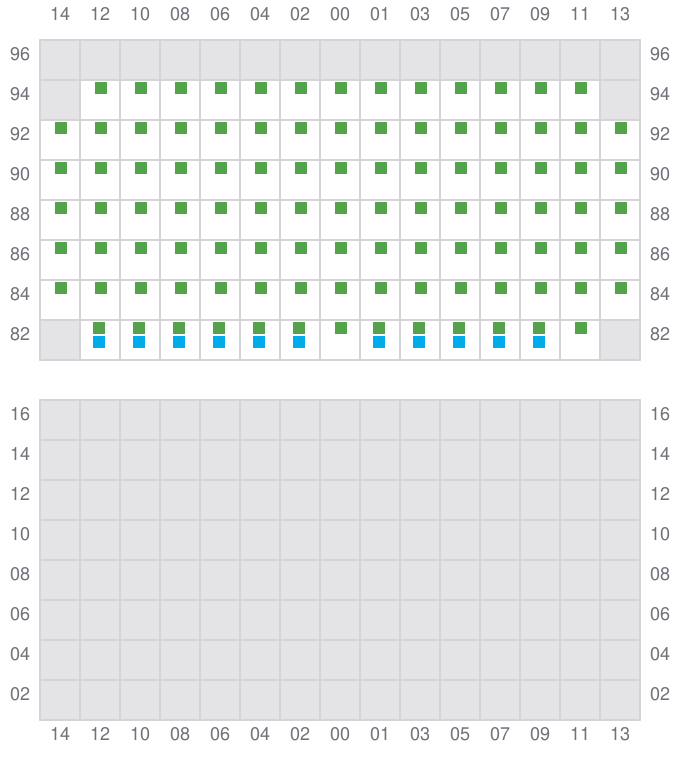

045 (046)
- → / ?
- → / ?

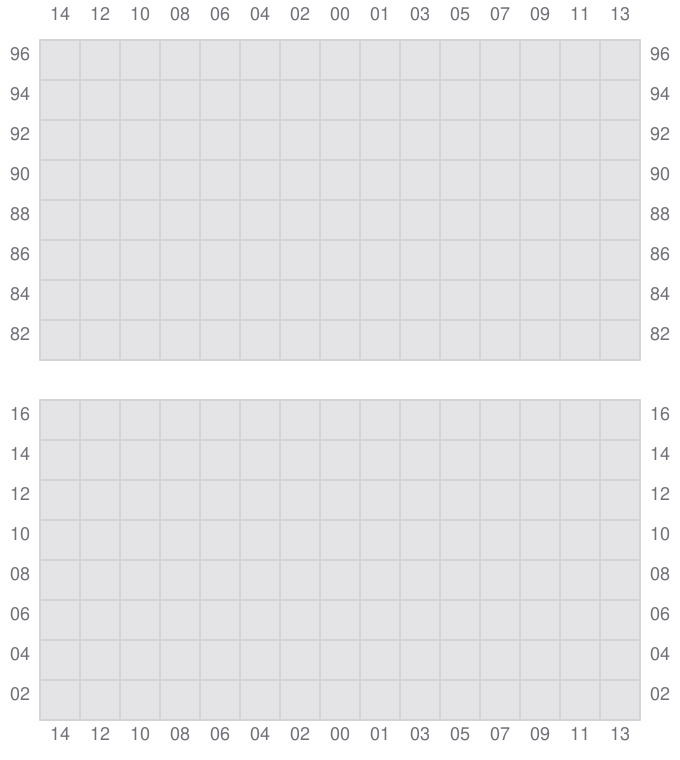

047

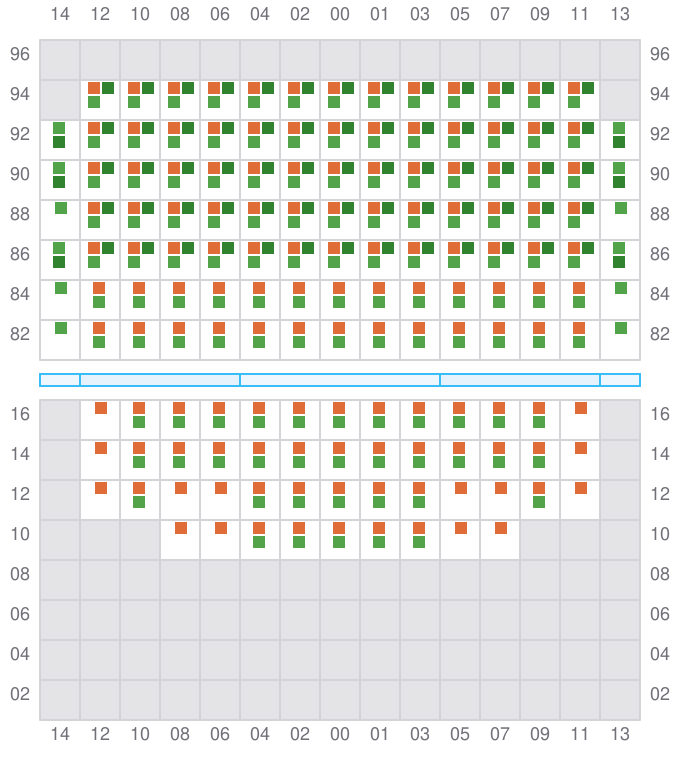

049 (050)
- →

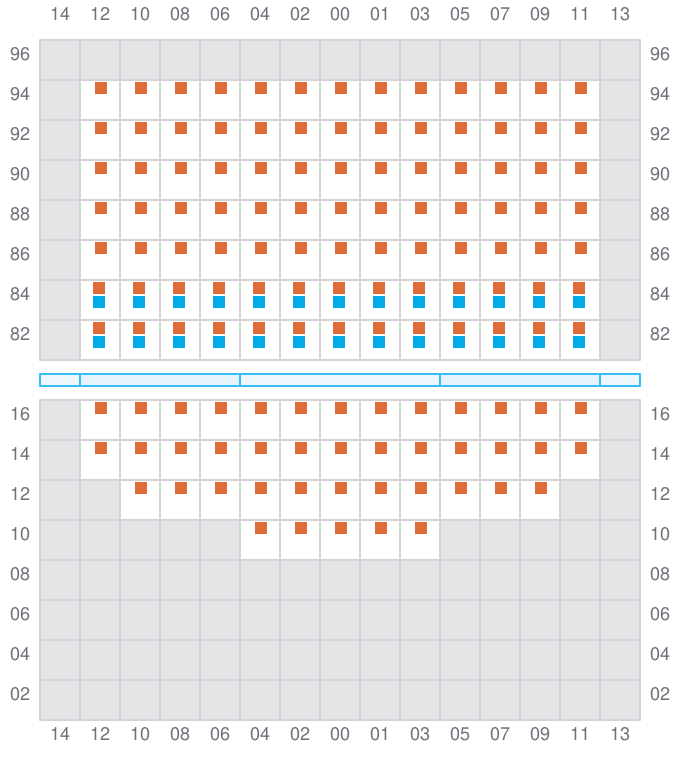

051
- ←
- → / ?

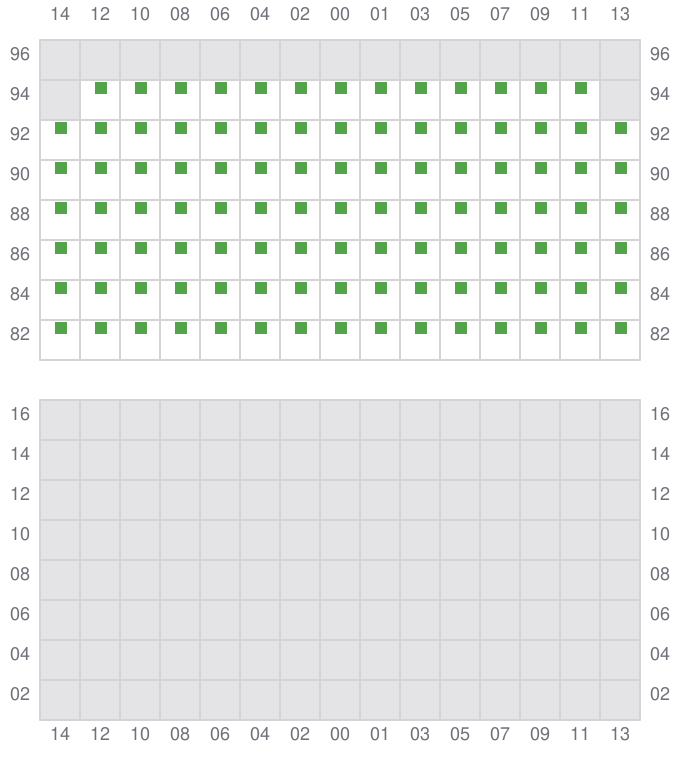

053 (054)
- → / ?
