MAERSK COLUMBUS
9332987 | WMCU | 9332987 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK COLUMBUS
IMO Code:9332987
Call Sign:WMCU
Line Operator:9332987
Class Name for Sister Ships:400
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,711

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

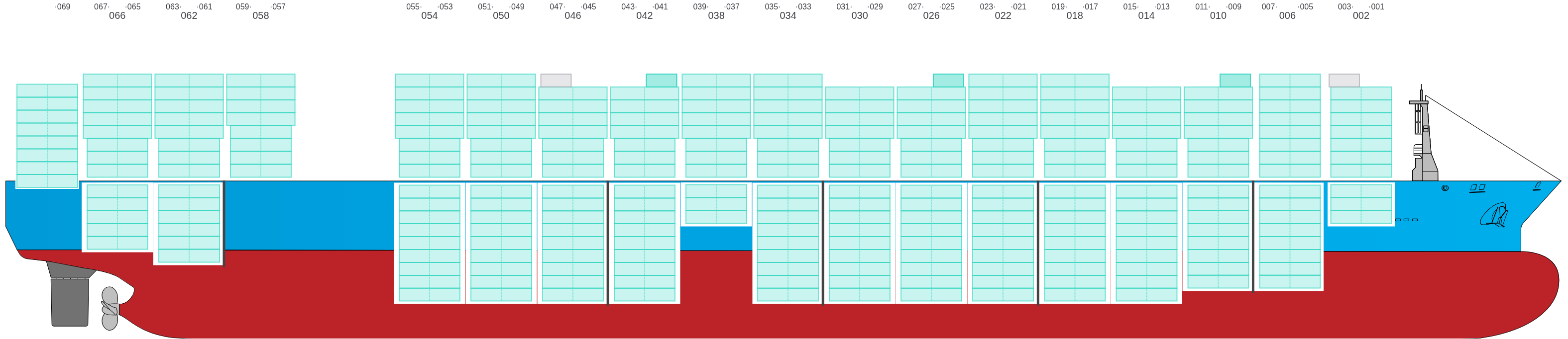

Side view of MAERSK COLUMBUS

Hatch-Covers View

Deck view of MAERSK COLUMBUS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

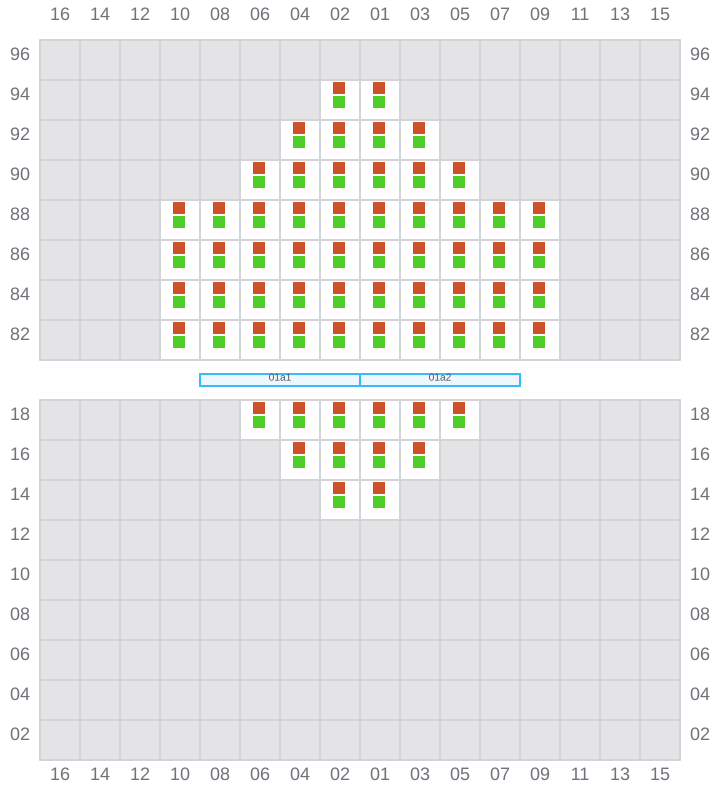

001 (002)

  • →
Bay 001 view and slots of MAERSK COLUMBUS

003

  • ←

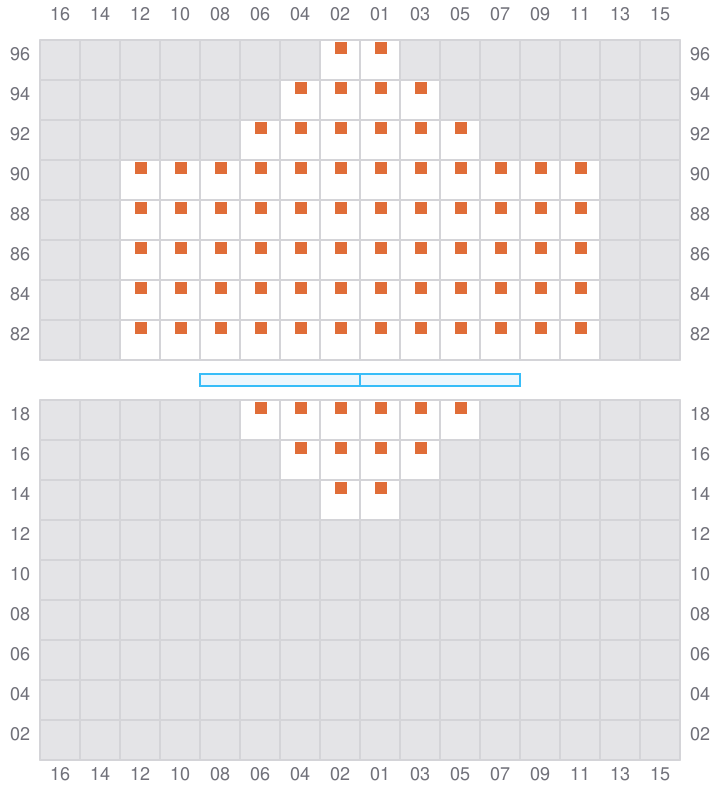

Bay 003 view and slots of MAERSK COLUMBUS

005 (006)

  • →

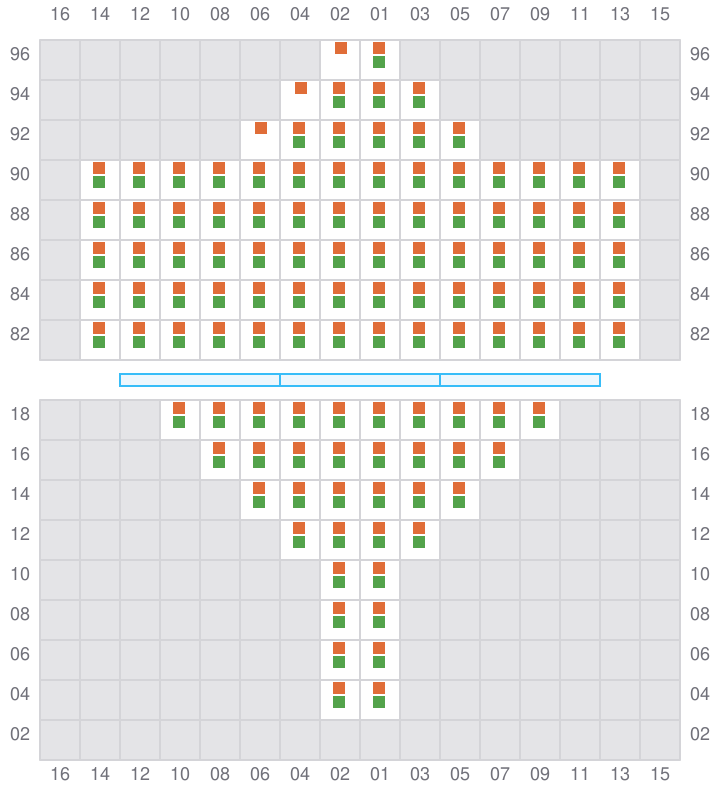

Bay 005 view and slots of MAERSK COLUMBUS

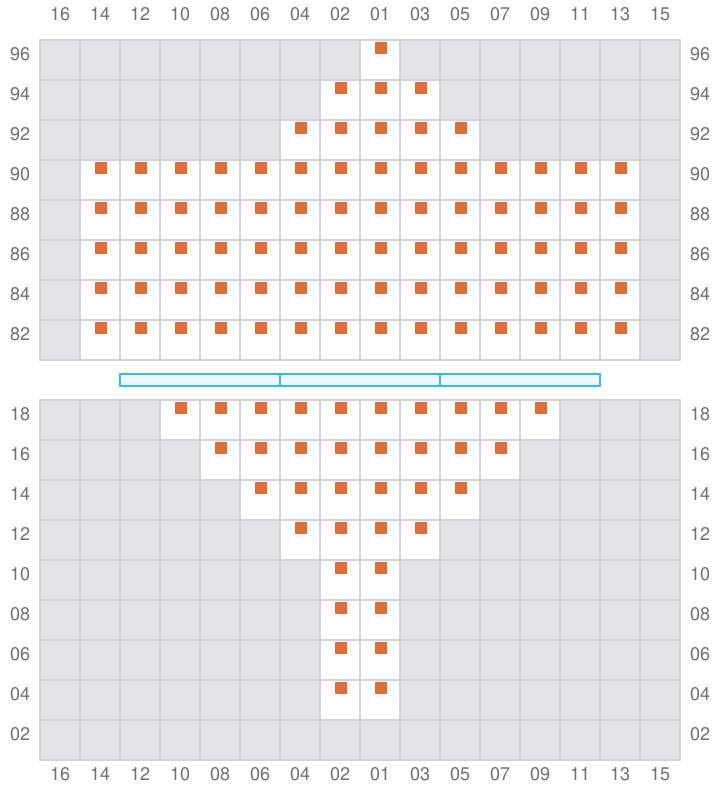

007

  • ←
Bay 007 view and slots of MAERSK COLUMBUS

009 (010)

  • →

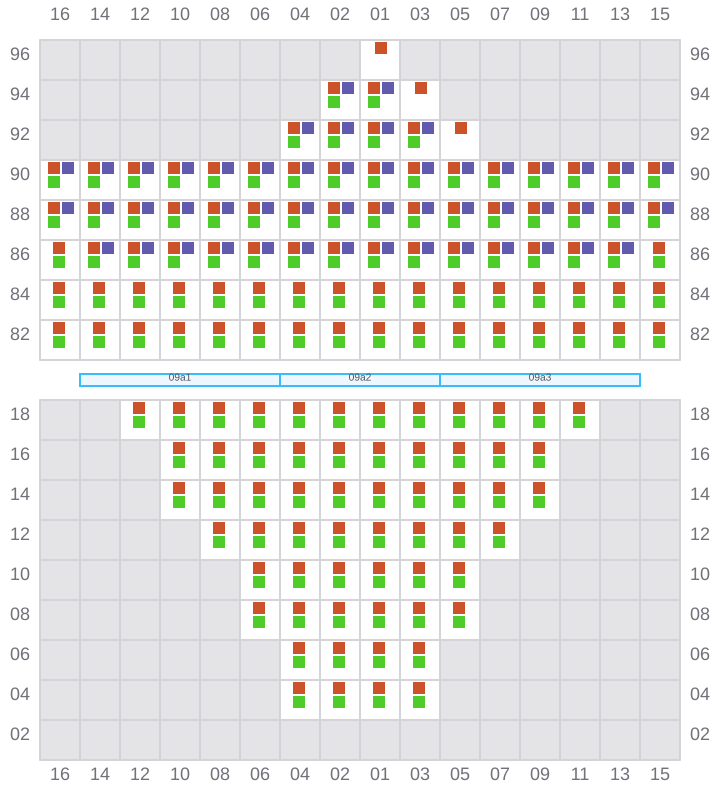

Bay 009 view and slots of MAERSK COLUMBUS

011

  • ←

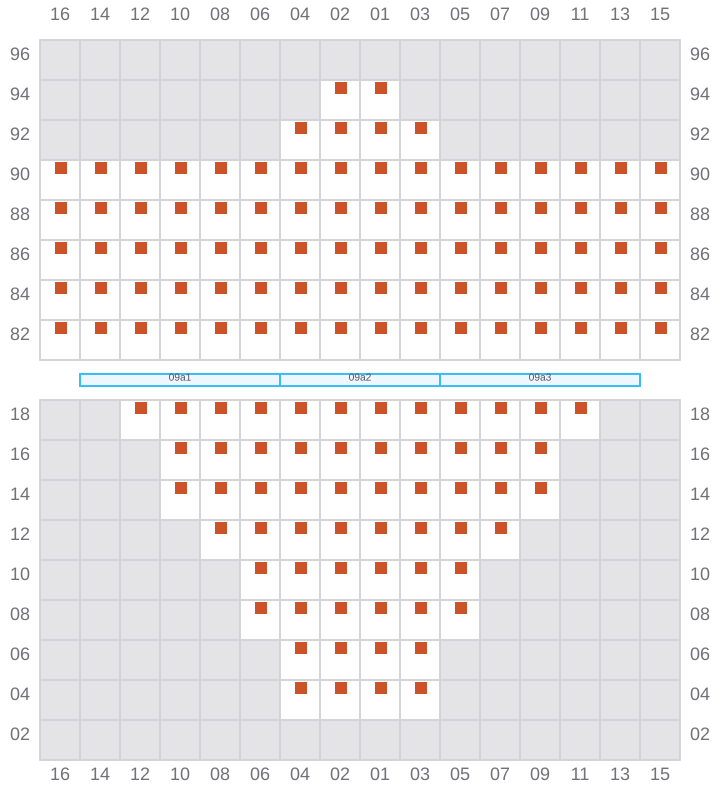

Bay 011 view and slots of MAERSK COLUMBUS

013 (014)

  • →

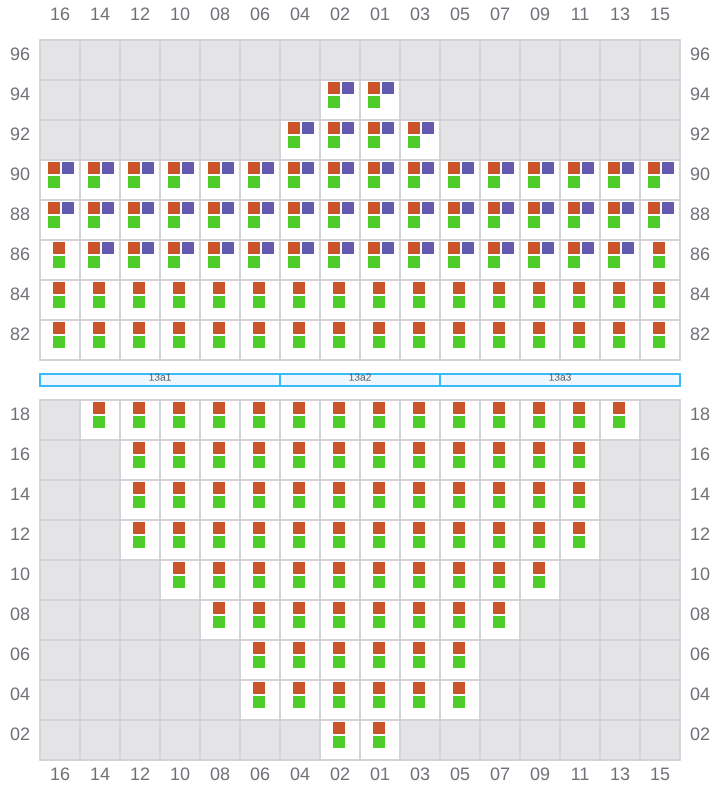

Bay 013 view and slots of MAERSK COLUMBUS

015

  • ←

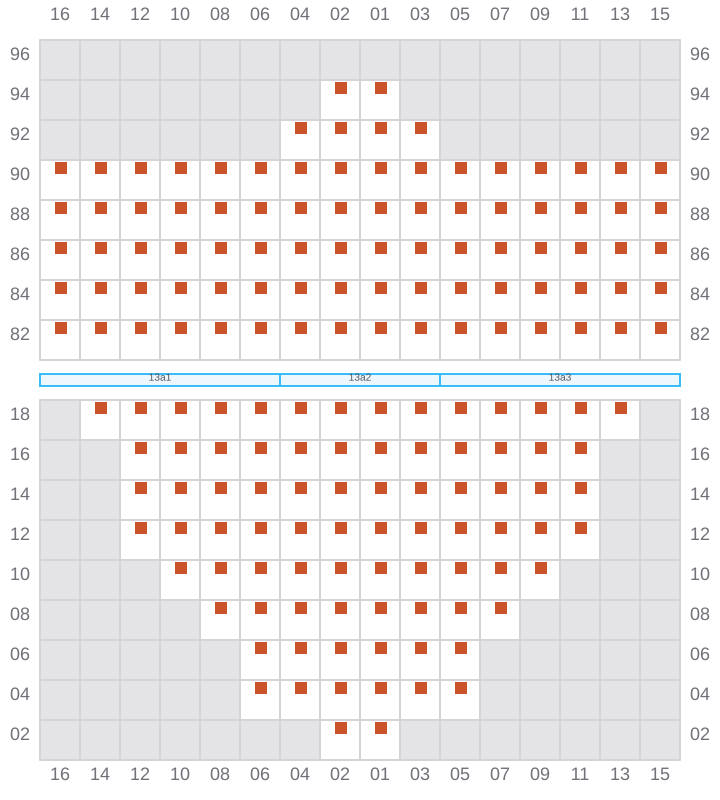

Bay 015 view and slots of MAERSK COLUMBUS

017 (018)

  • →

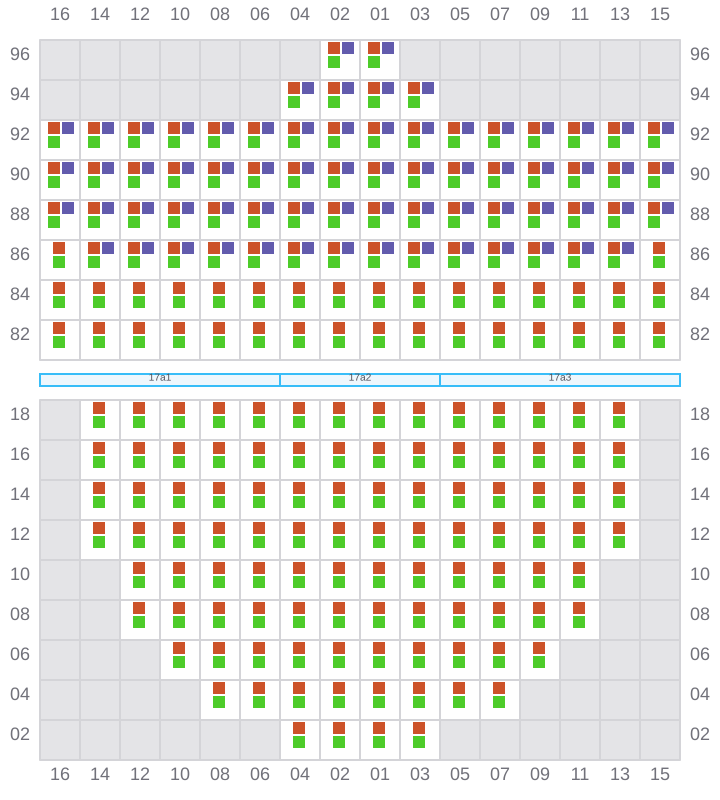

Bay 017 view and slots of MAERSK COLUMBUS

019

  • ←

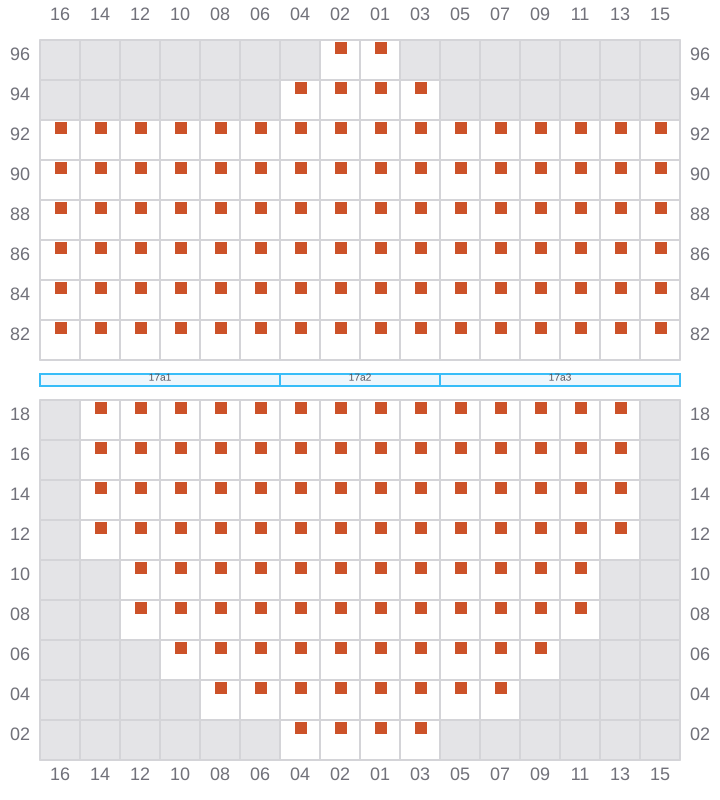

Bay 019 view and slots of MAERSK COLUMBUS

021 (022)

  • →

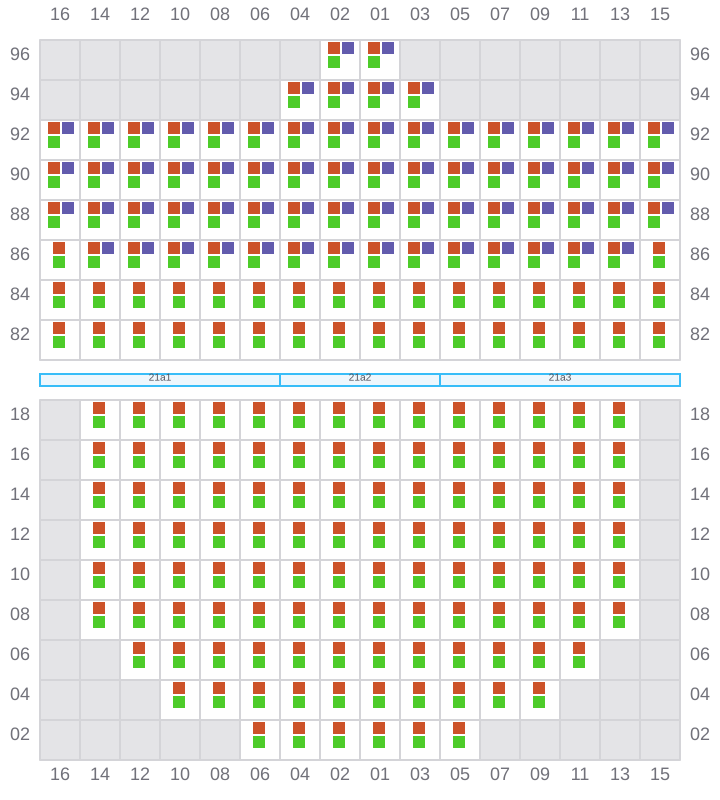

Bay 021 view and slots of MAERSK COLUMBUS

023

  • ←
  • → / ?

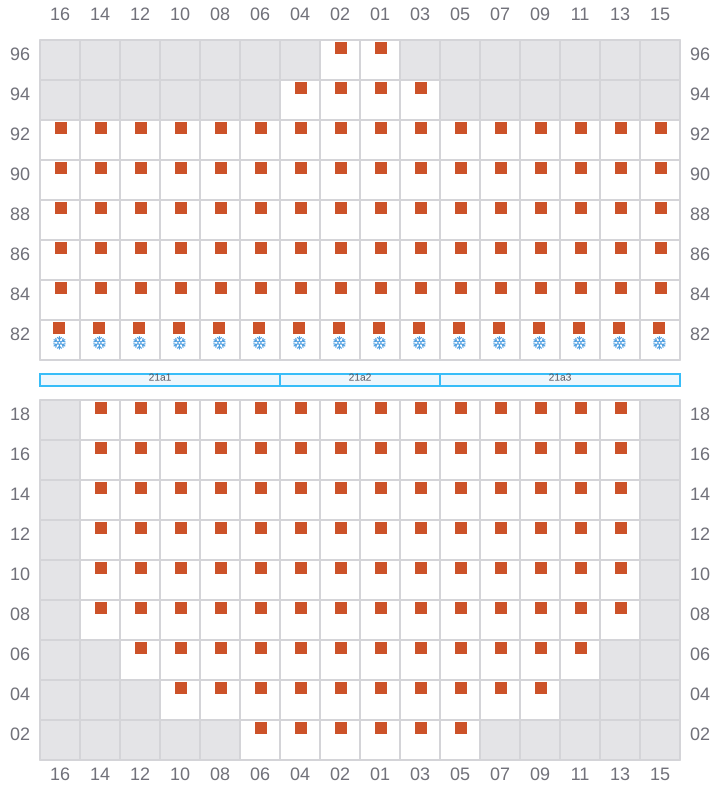

Bay 023 view and slots of MAERSK COLUMBUS

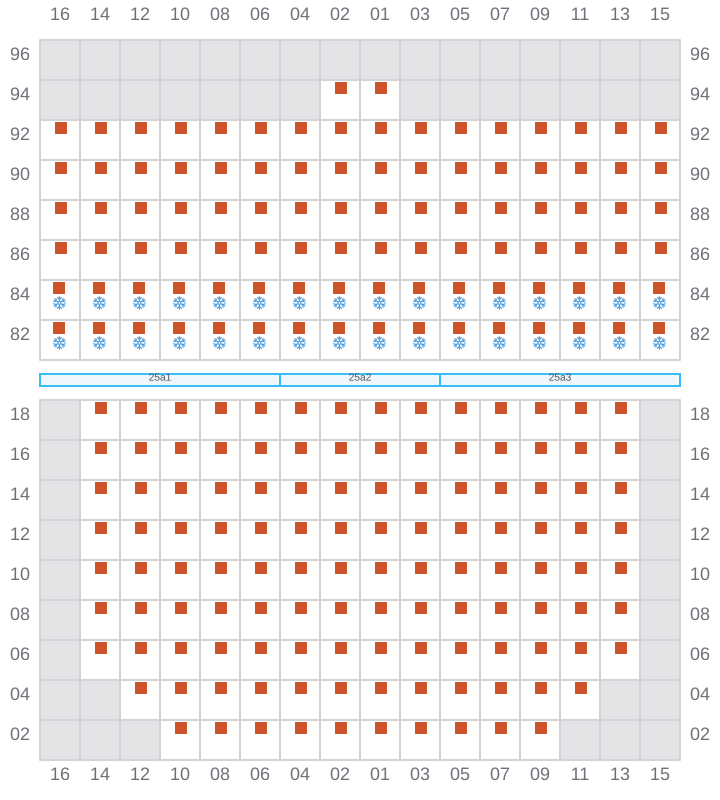

025 (026)

  • →
  • ? / ←

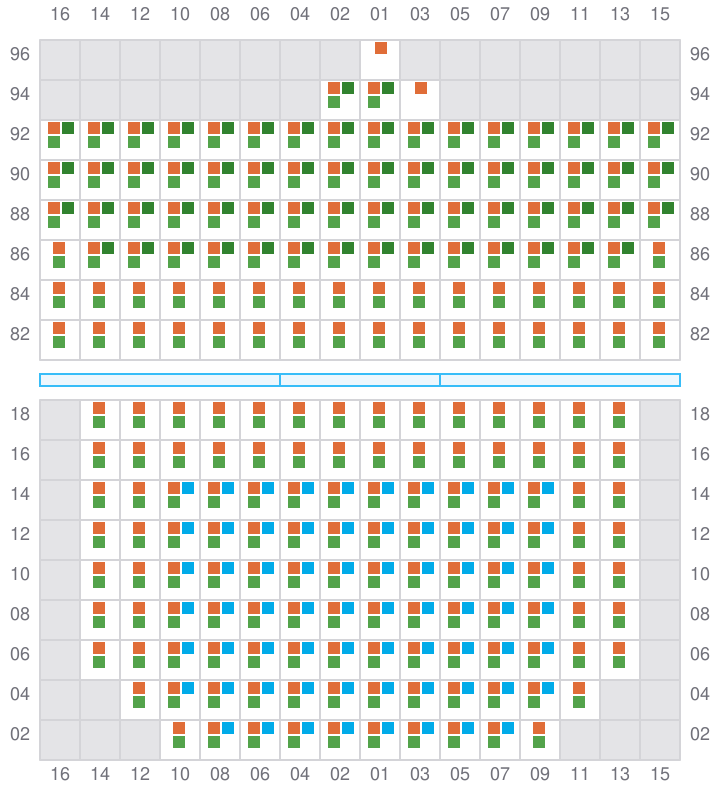

Bay 025 view and slots of MAERSK COLUMBUS

027

  • ←
  • → / ←
Bay 027 view and slots of MAERSK COLUMBUS

029 (030)

  • →

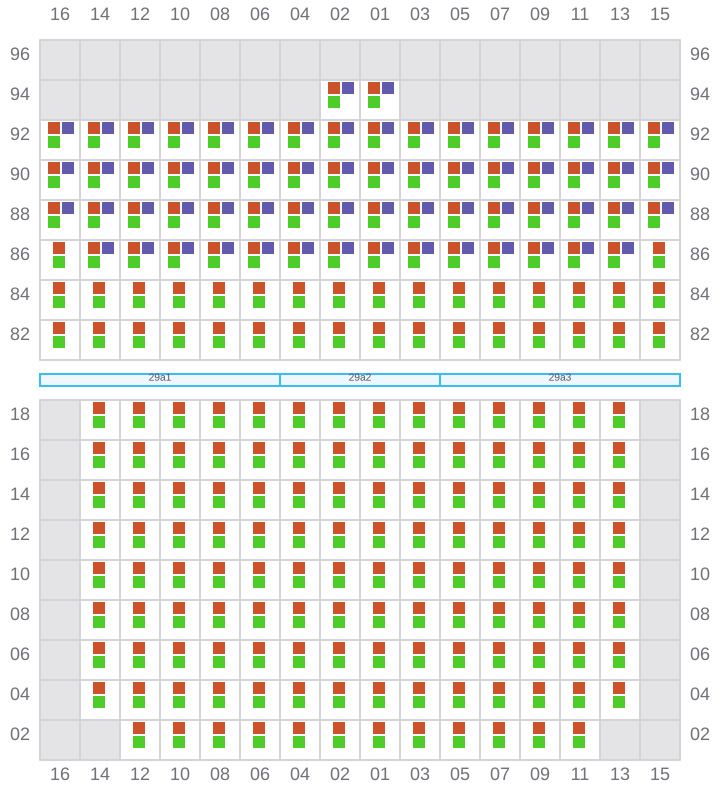

Bay 029 view and slots of MAERSK COLUMBUS

031

  • ←
  • → / ?

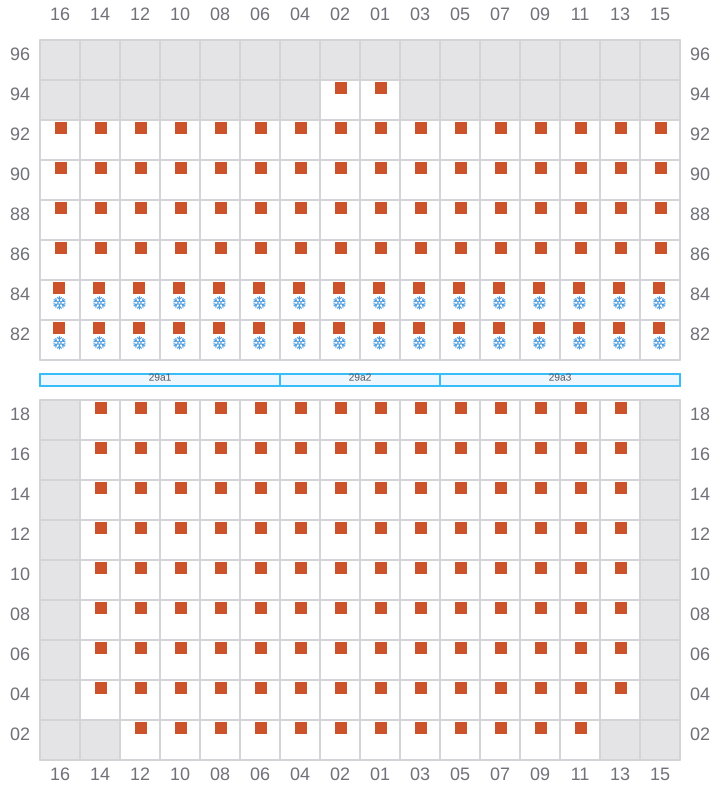

Bay 031 view and slots of MAERSK COLUMBUS

033 (034)

  • →
  • ? / ←

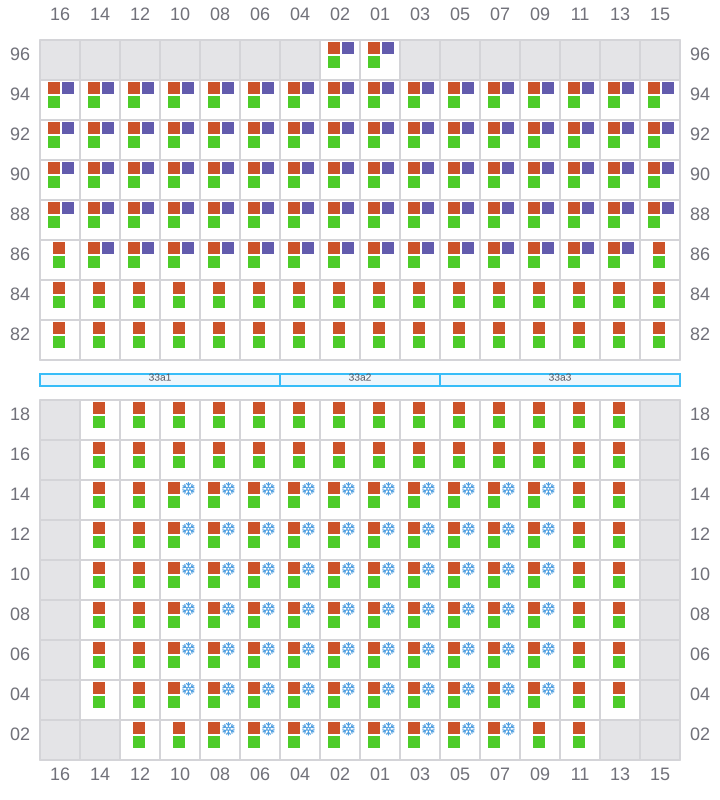

Bay 033 view and slots of MAERSK COLUMBUS

035

  • ←
  • → / ←

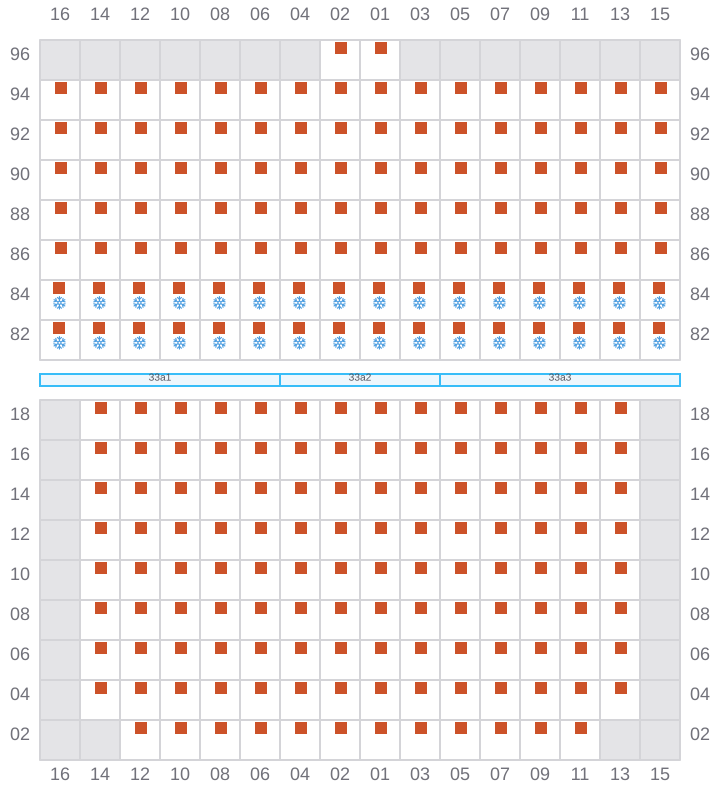

Bay 035 view and slots of MAERSK COLUMBUS

037 (038)

  • →
  • ? / ←

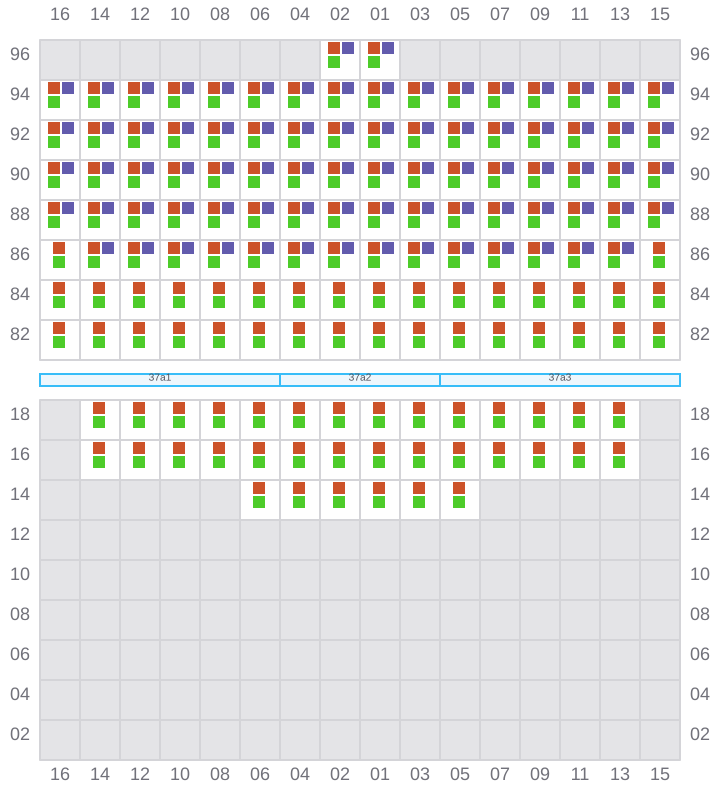

Bay 037 view and slots of MAERSK COLUMBUS

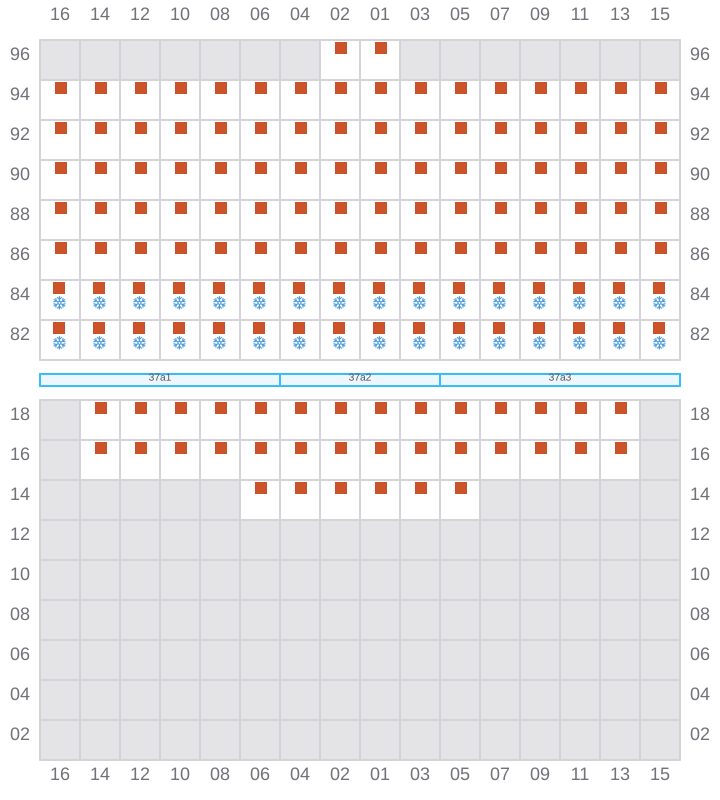

039

  • ←
  • → / ←
Bay 039 view and slots of MAERSK COLUMBUS

041 (042)

  • →
  • ? / ←

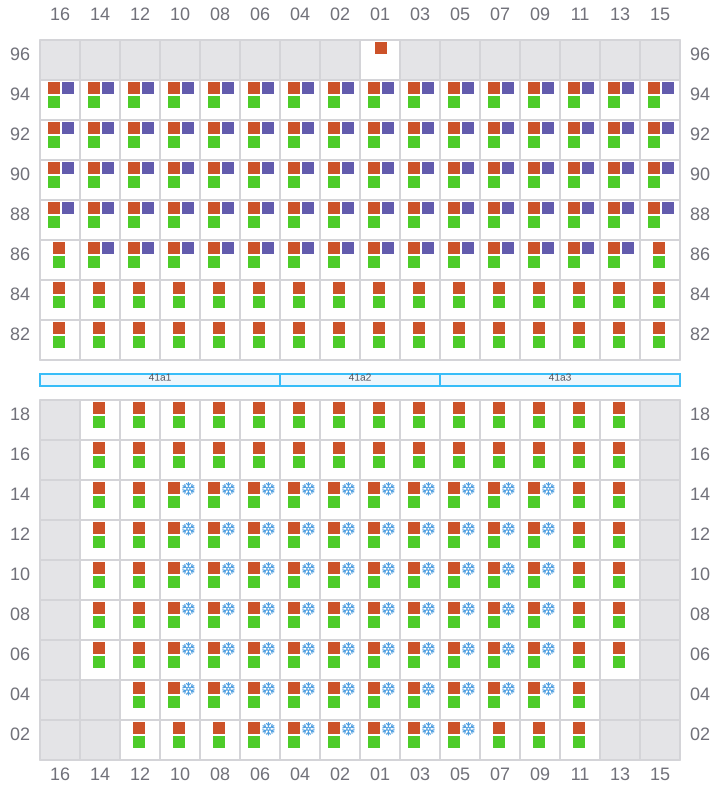

Bay 041 view and slots of MAERSK COLUMBUS

043

  • ←
  • → / ←

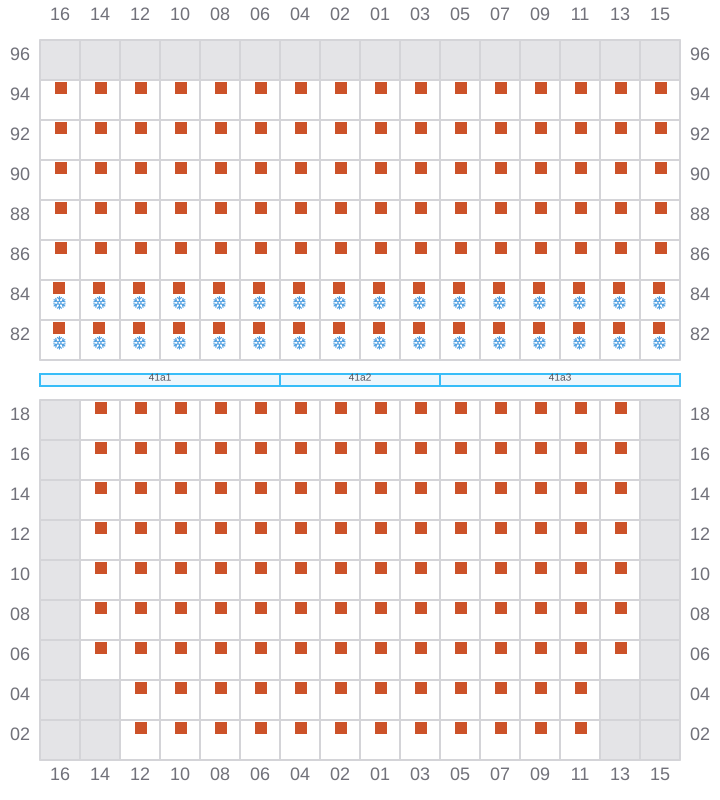

Bay 043 view and slots of MAERSK COLUMBUS

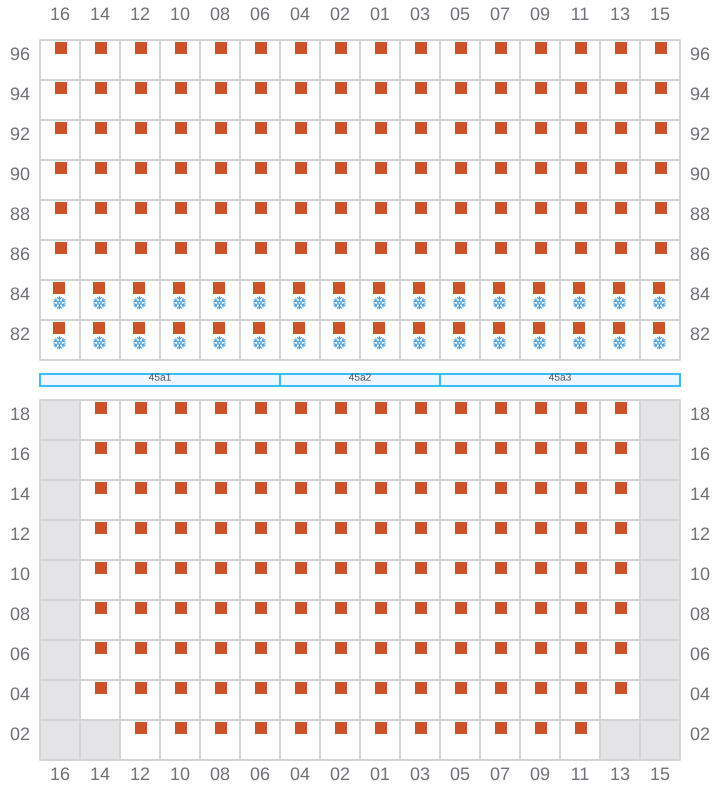

045 (046)

  • →
  • ? / ←

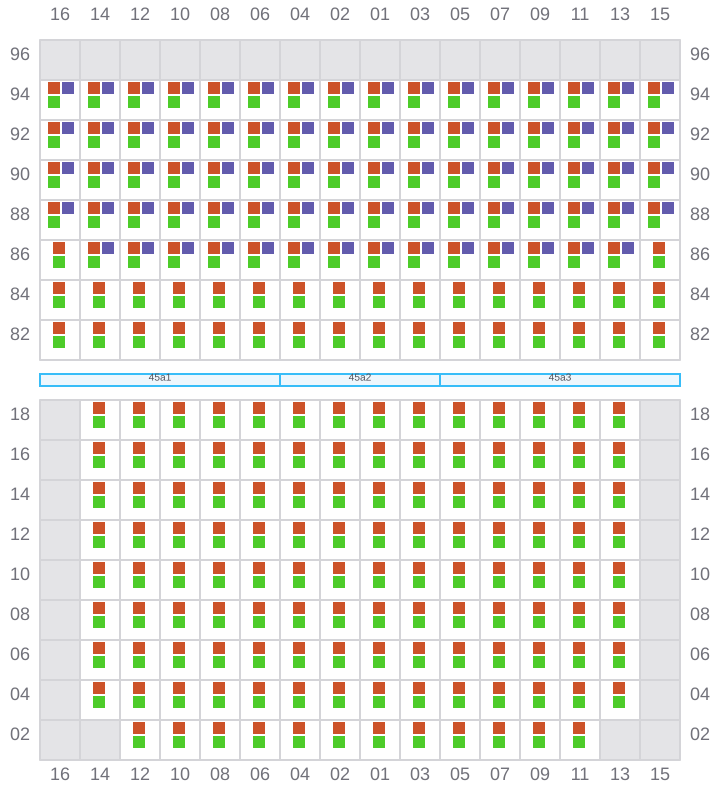

Bay 045 view and slots of MAERSK COLUMBUS

047

  • ←
  • → / ←
Bay 047 view and slots of MAERSK COLUMBUS

049 (050)

  • →
  • ? / ←

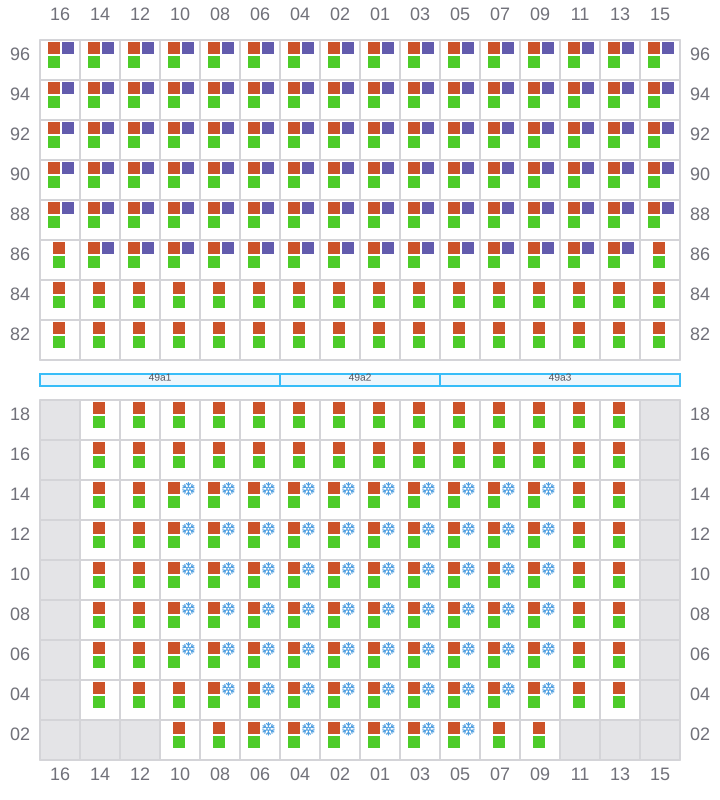

Bay 049 view and slots of MAERSK COLUMBUS

051

  • ←
  • → / ←

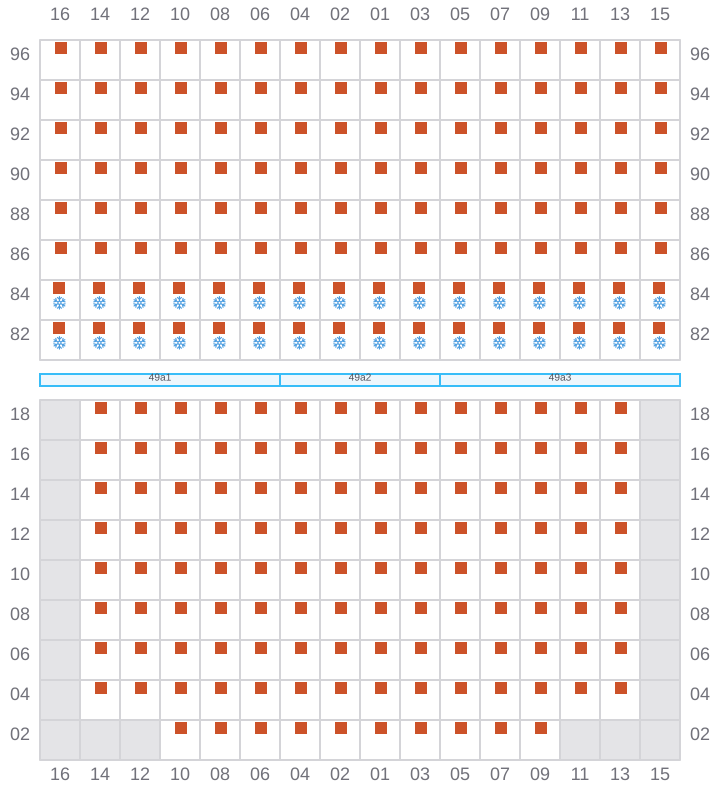

Bay 051 view and slots of MAERSK COLUMBUS

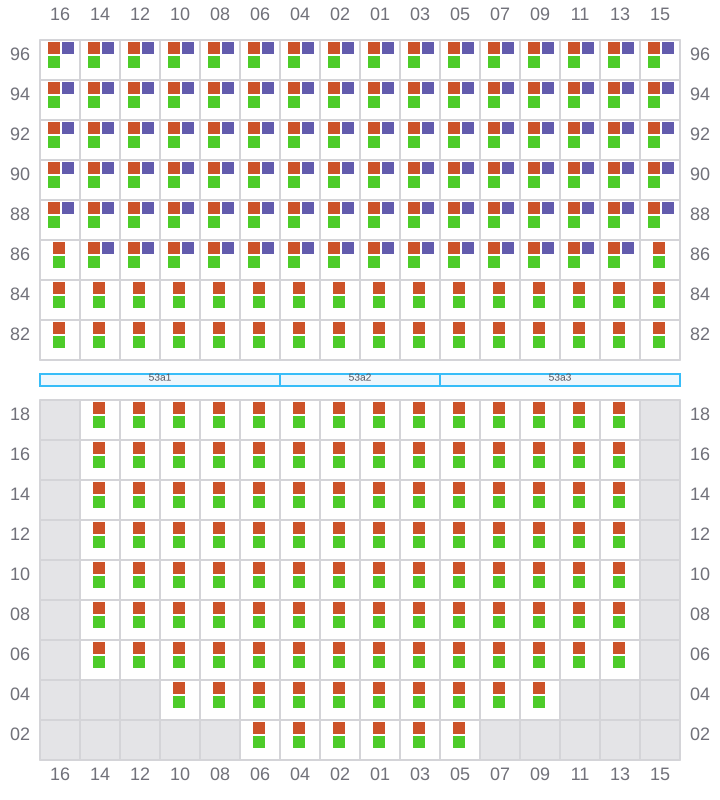

053 (054)

  • →
  • ? / ←
Bay 053 view and slots of MAERSK COLUMBUS

055

  • ←
  • ? / ←

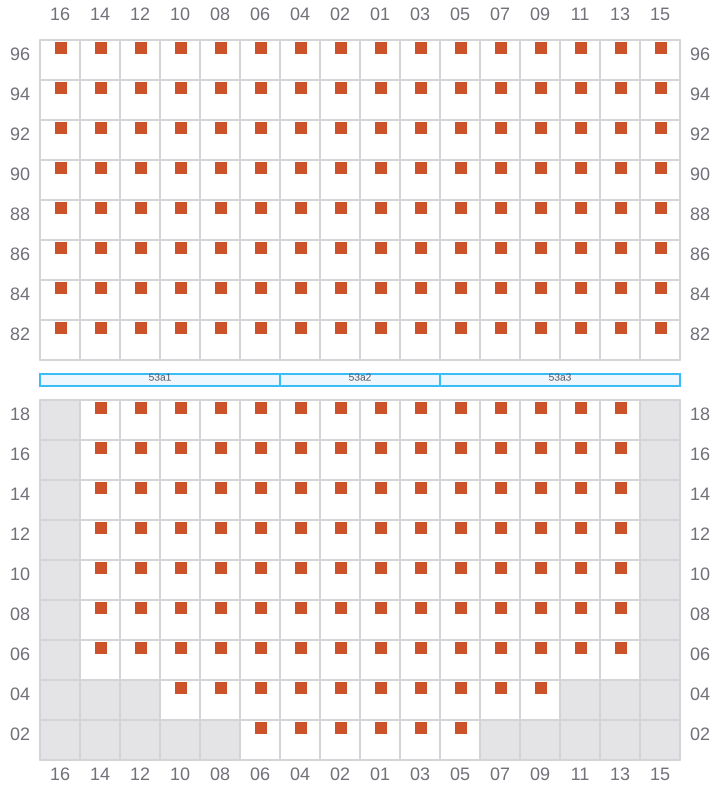

Bay 055 view and slots of MAERSK COLUMBUS

057 (058)

  • → / ?

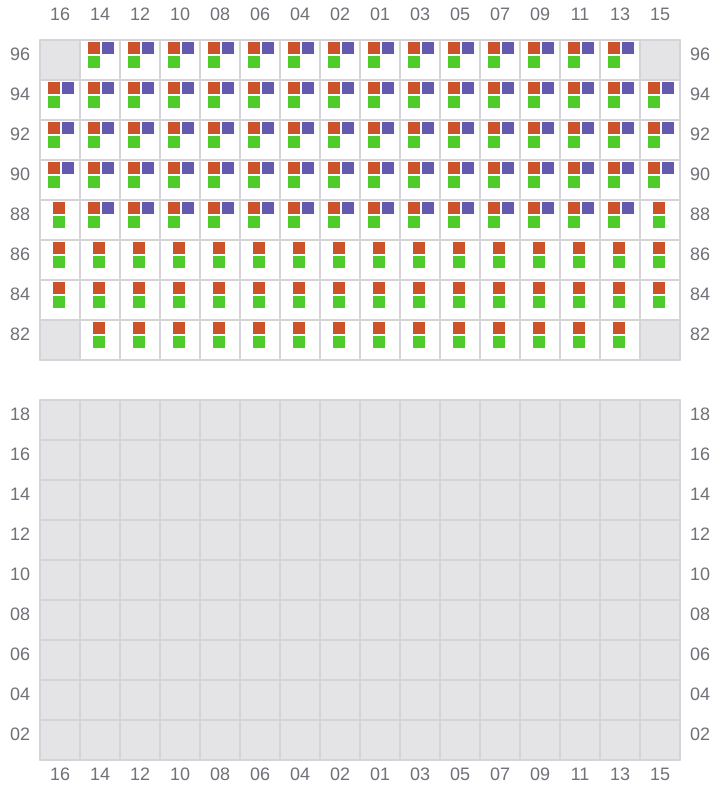

Bay 057 view and slots of MAERSK COLUMBUS

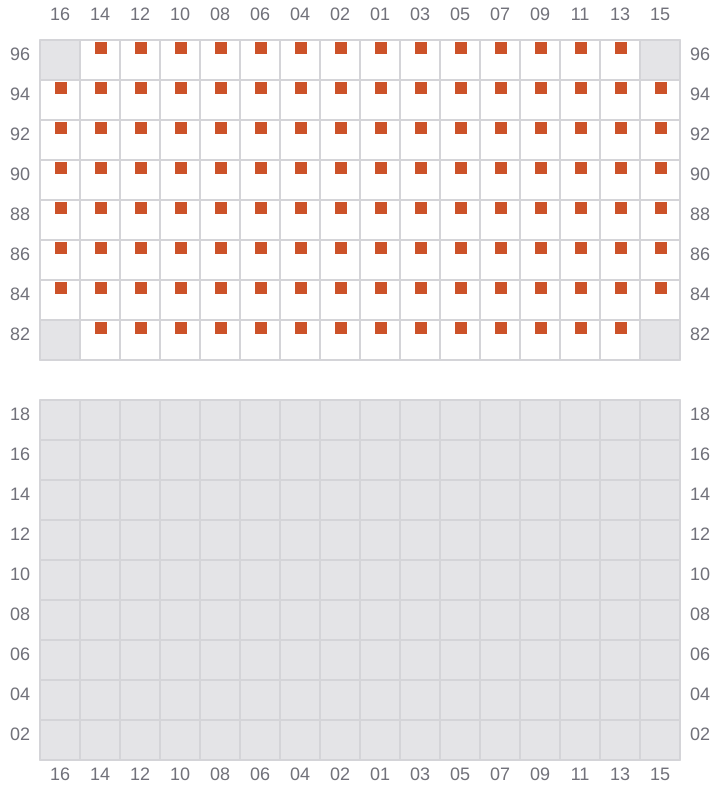

059

  • ← / ?
Bay 059 view and slots of MAERSK COLUMBUS

061 (062)

  • →
  • ? / ←

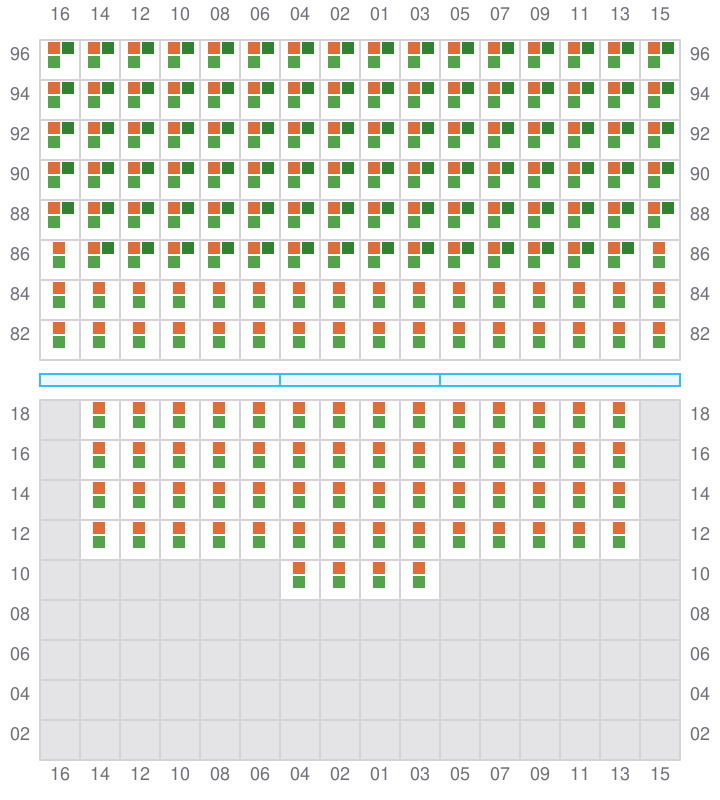

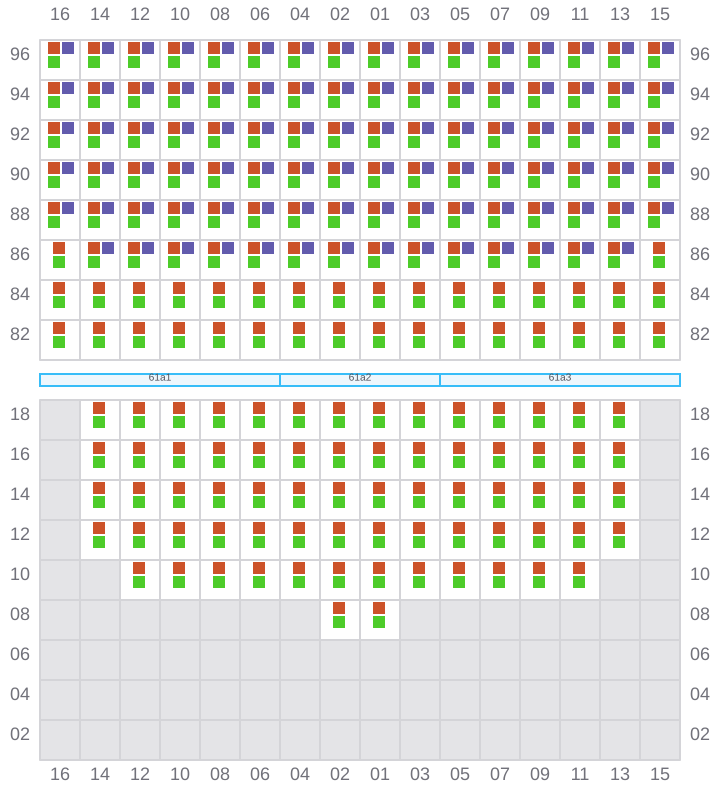

Bay 061 view and slots of MAERSK COLUMBUS

063

  • ←
  • ? / ←

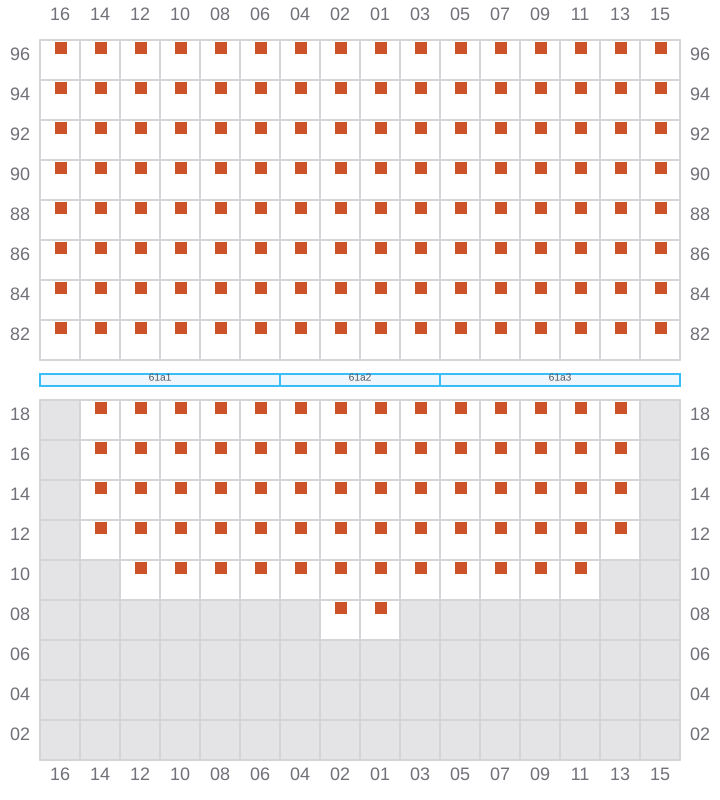

Bay 063 view and slots of MAERSK COLUMBUS

065 (066)

  • →
  • ? / ←
Bay 065 view and slots of MAERSK COLUMBUS

067

  • ←
  • ? / ←

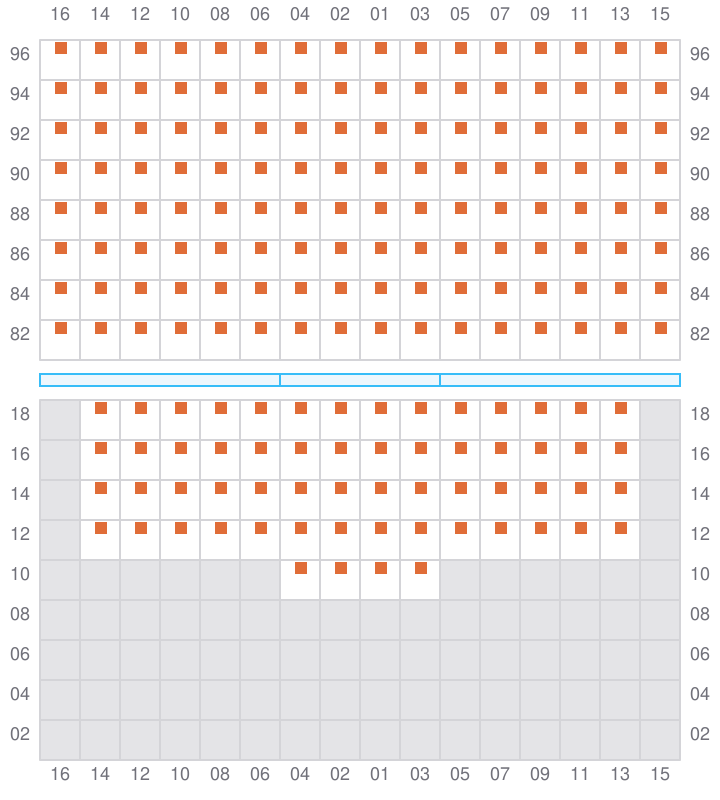

Bay 067 view and slots of MAERSK COLUMBUS

069 (070)

  • → / ?

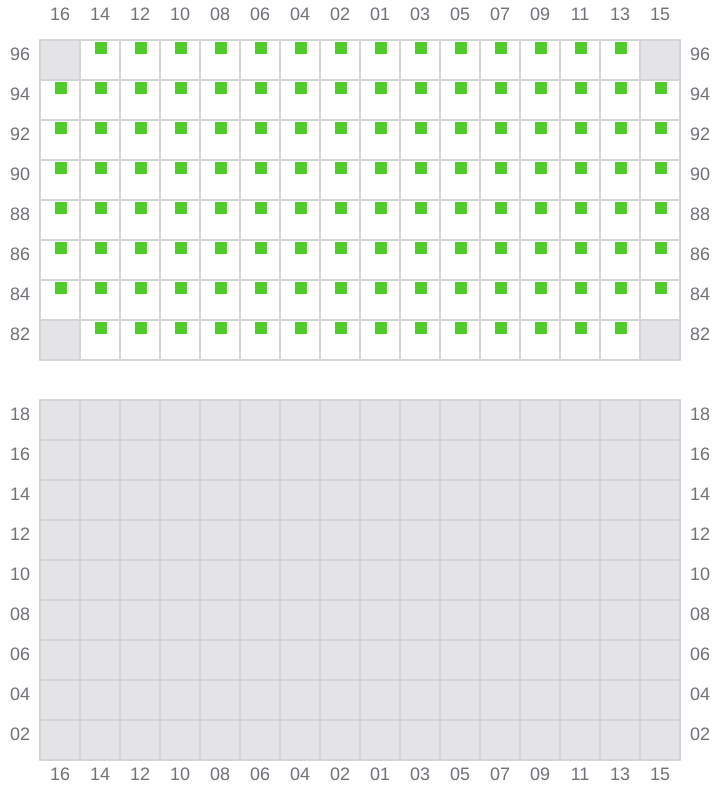

Bay 069 view and slots of MAERSK COLUMBUS
