MAERSK CONGO
9525340 | 9V9498 | 9525340 by ********* Last update: Fri Jun 28 2024
General Info
Ship Name:MAERSK CONGO
IMO Code:9525340
Call Sign:9V9498
Line Operator:9525340
Class Name for Sister Ships:MSL
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):235.00
LOA (Length Overall):249.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,574
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

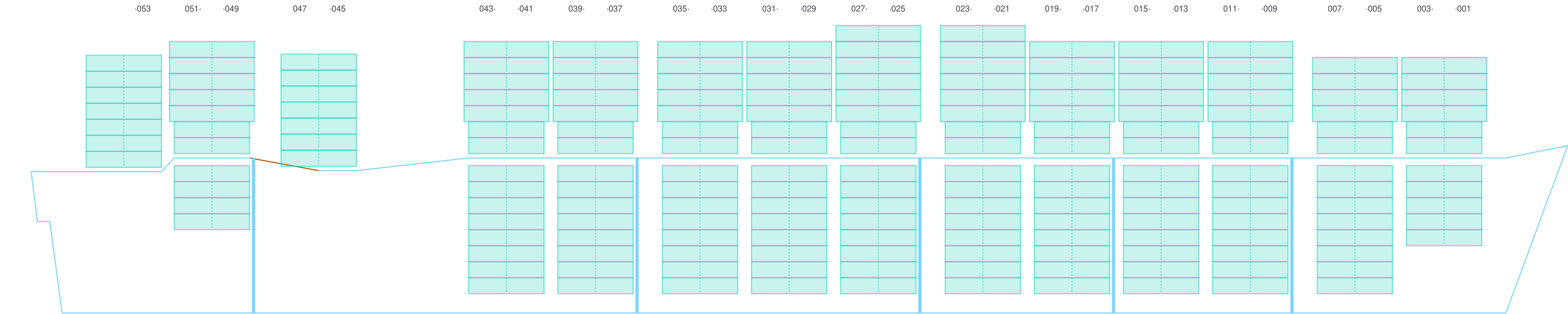

Side View
Hatch-Covers View

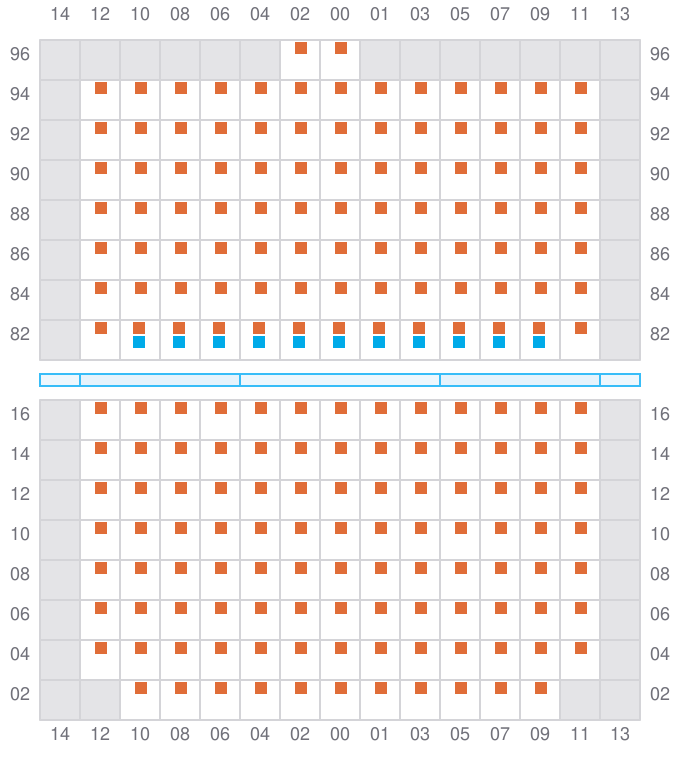

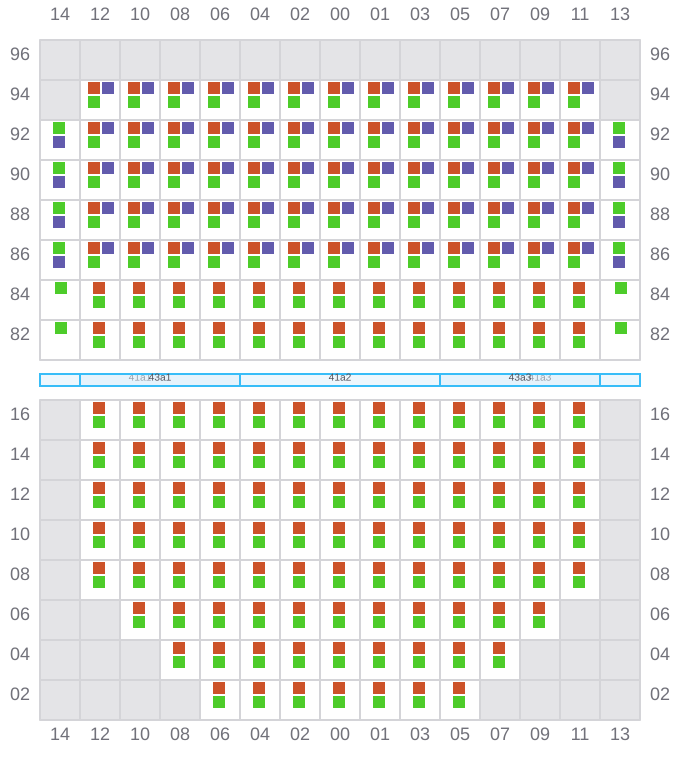

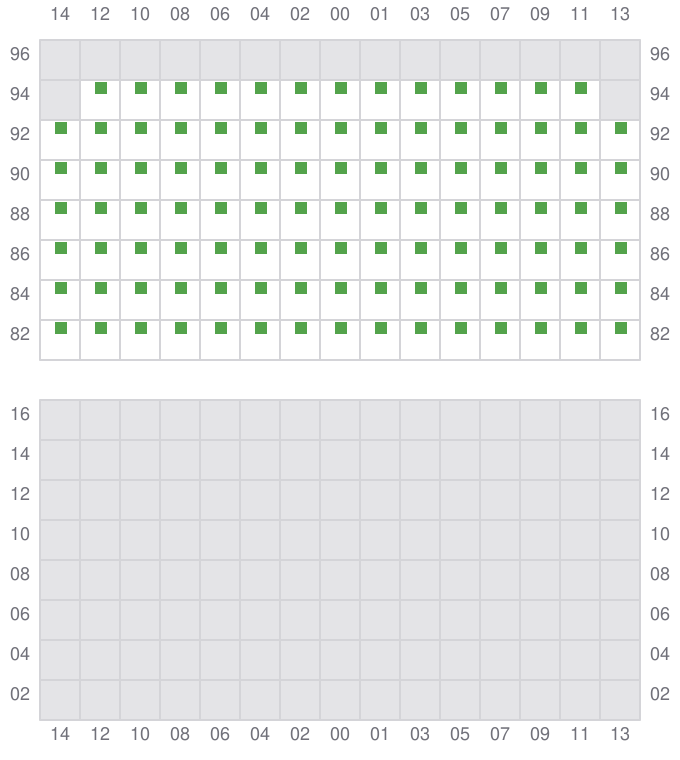

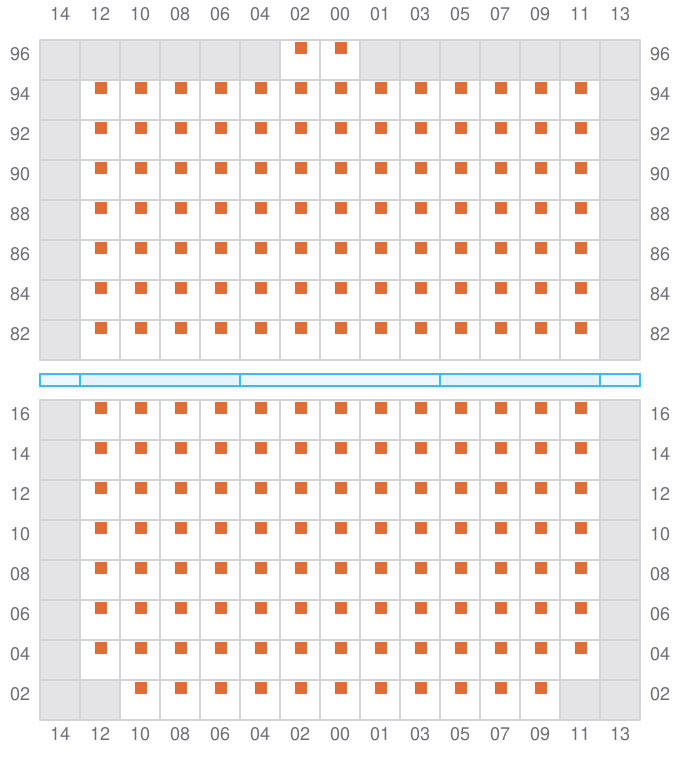

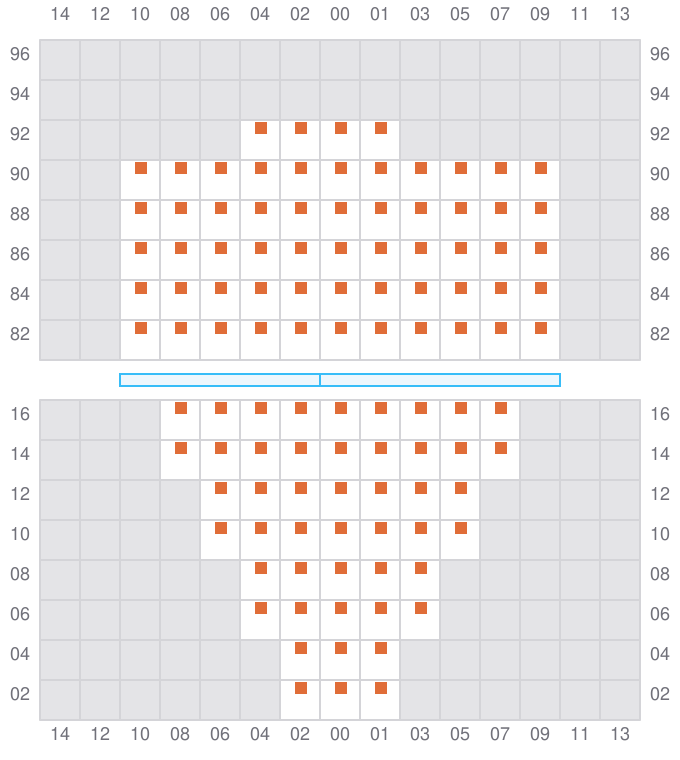

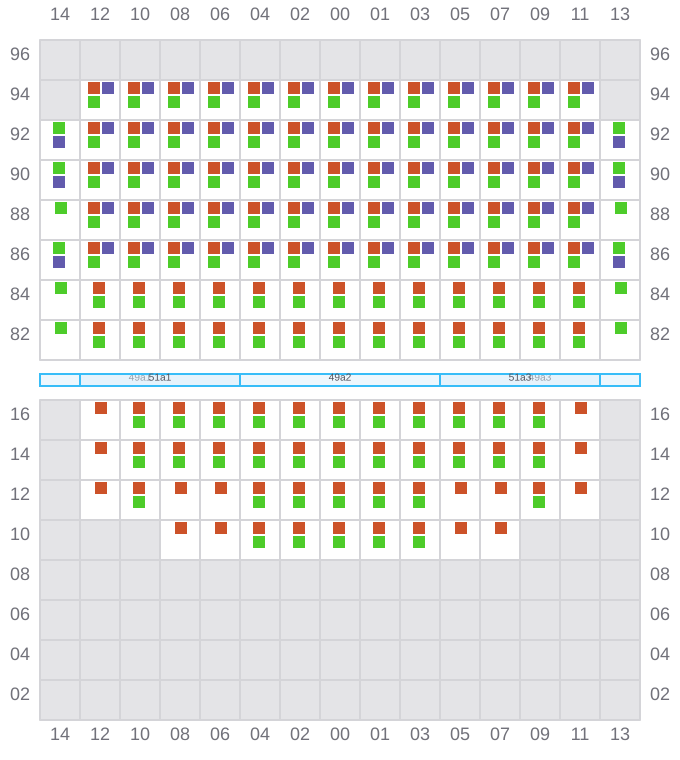

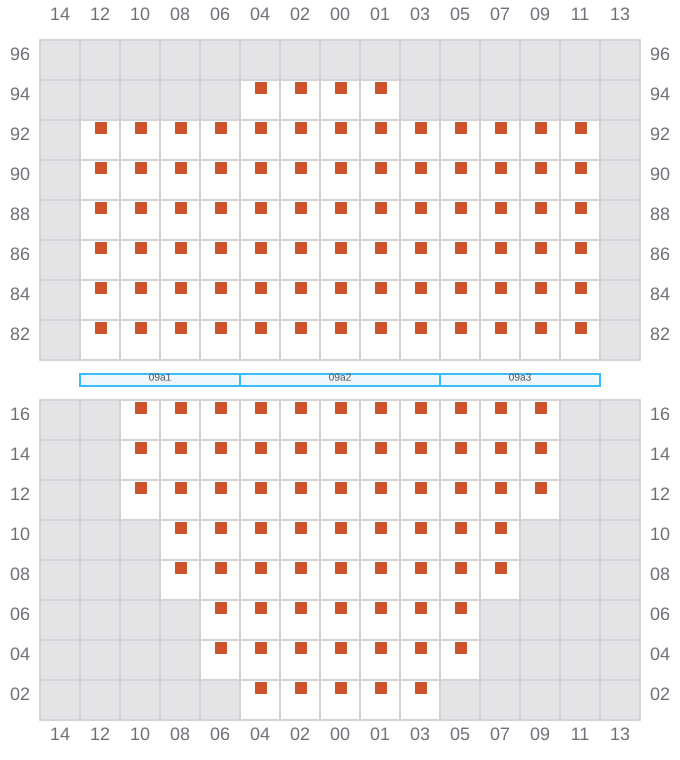

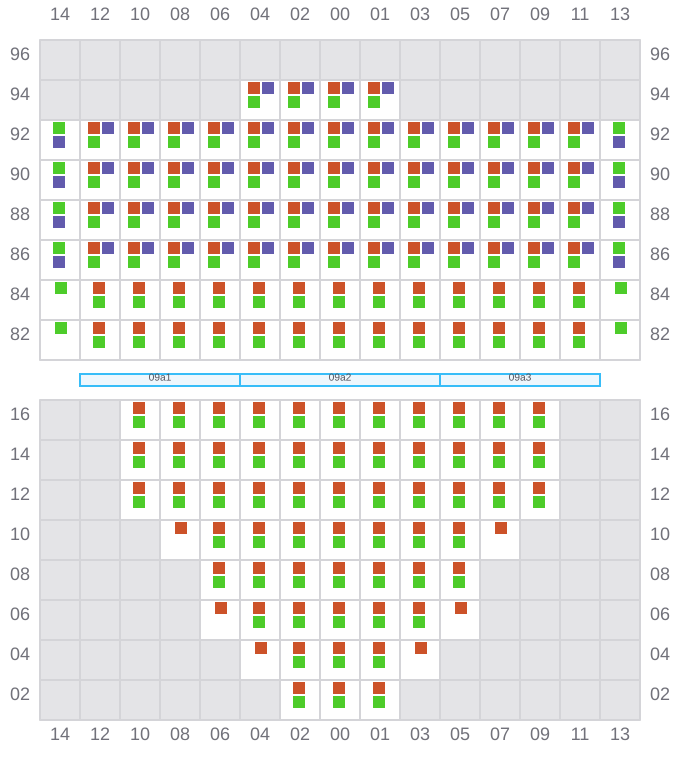

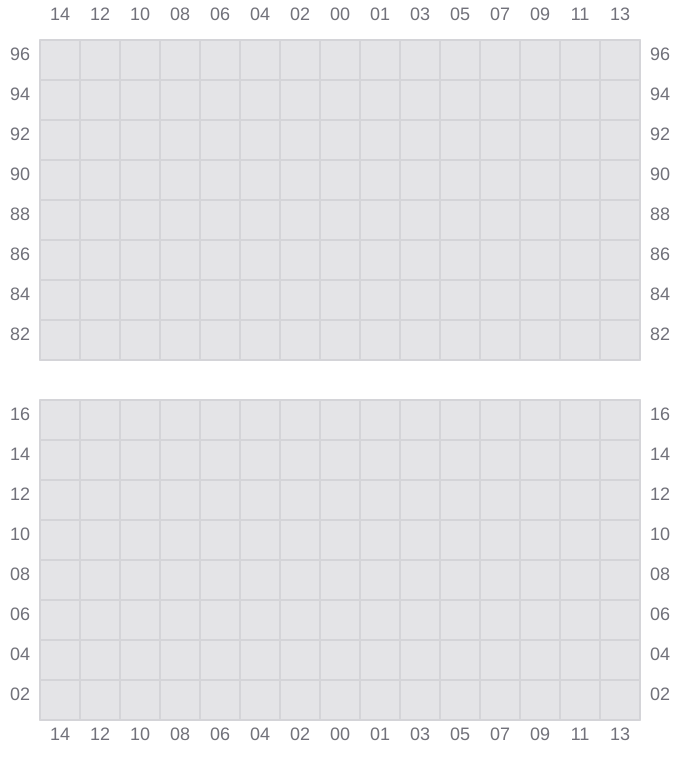

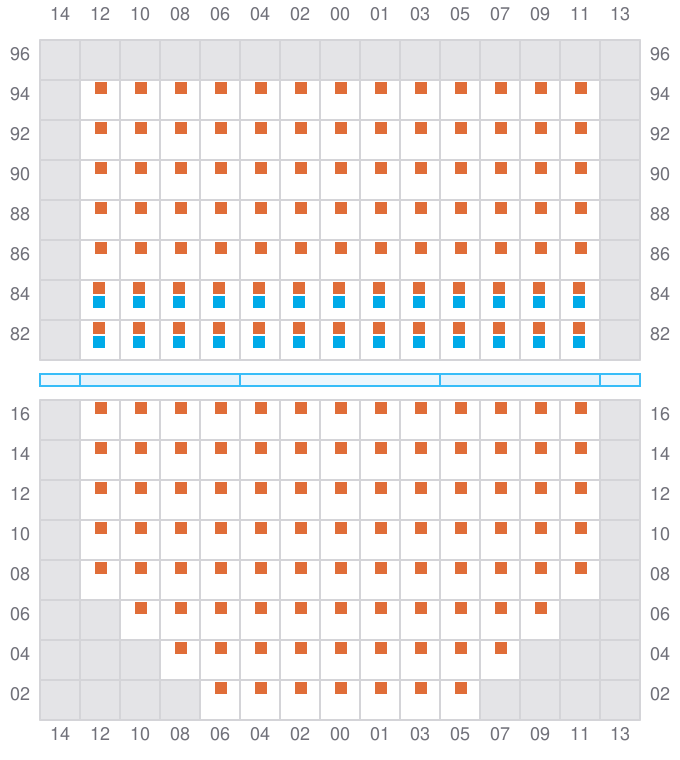

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

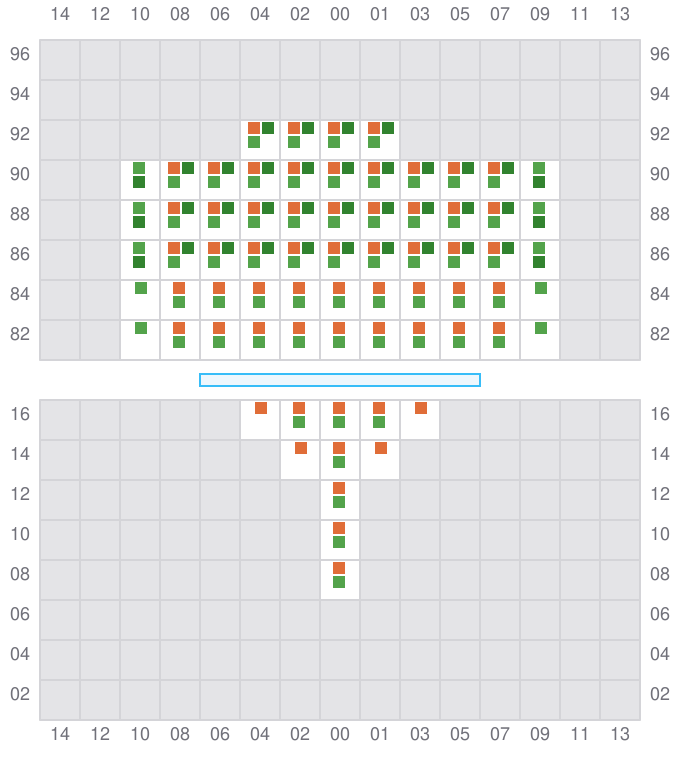

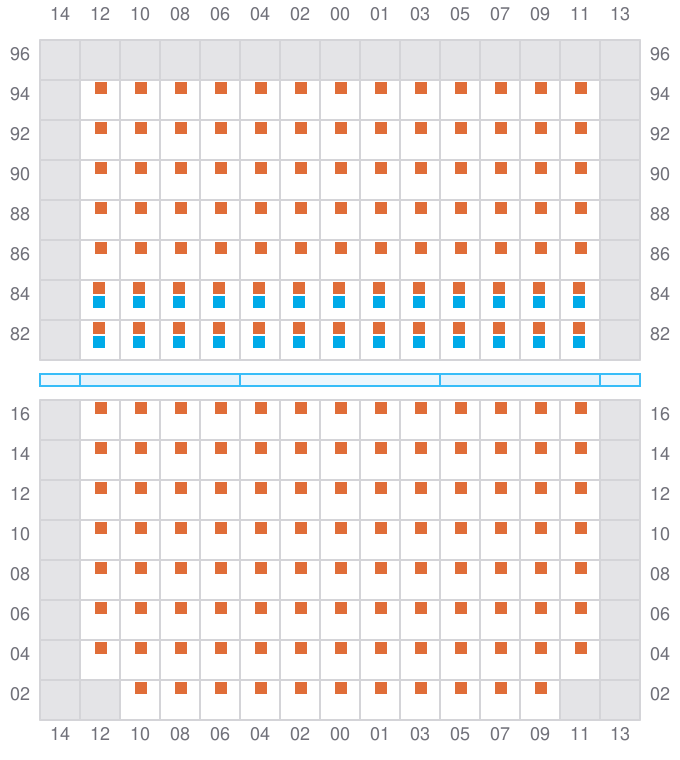

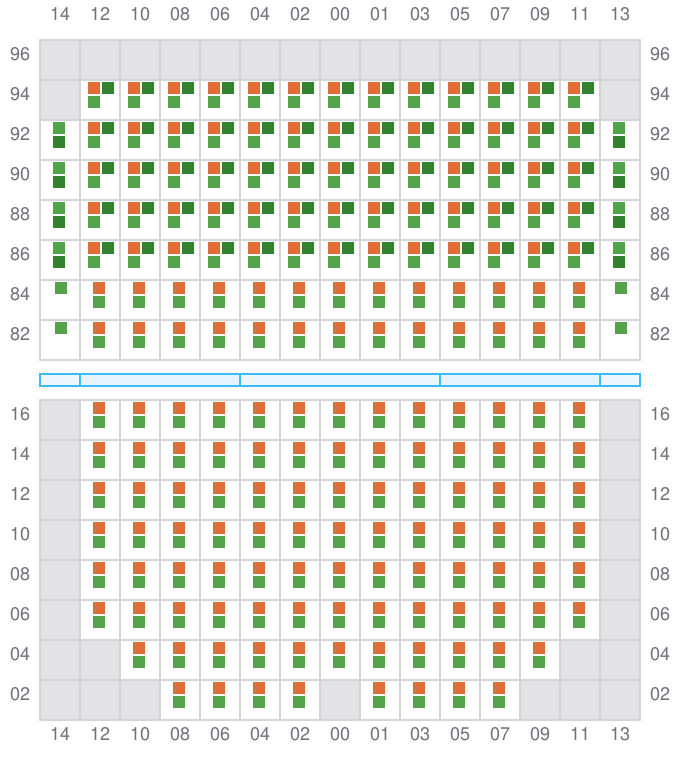

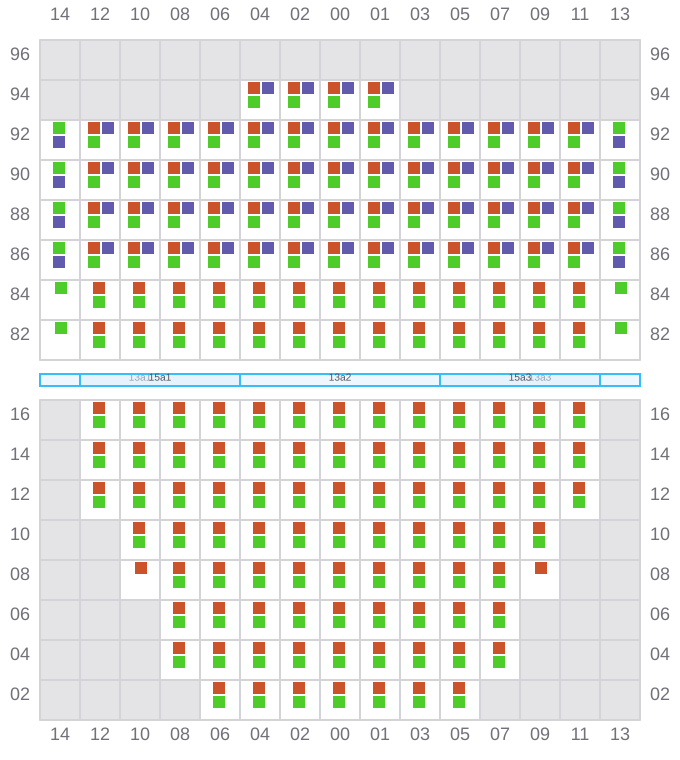

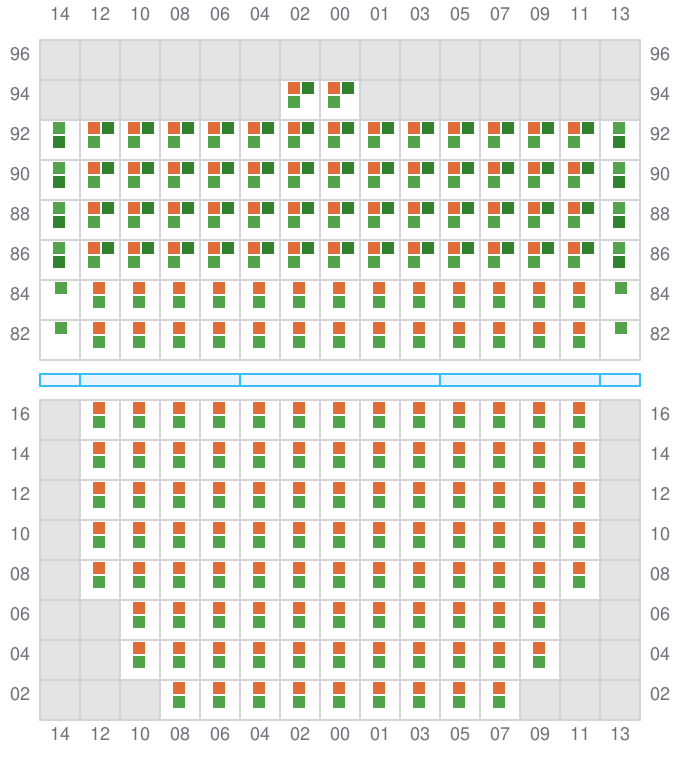

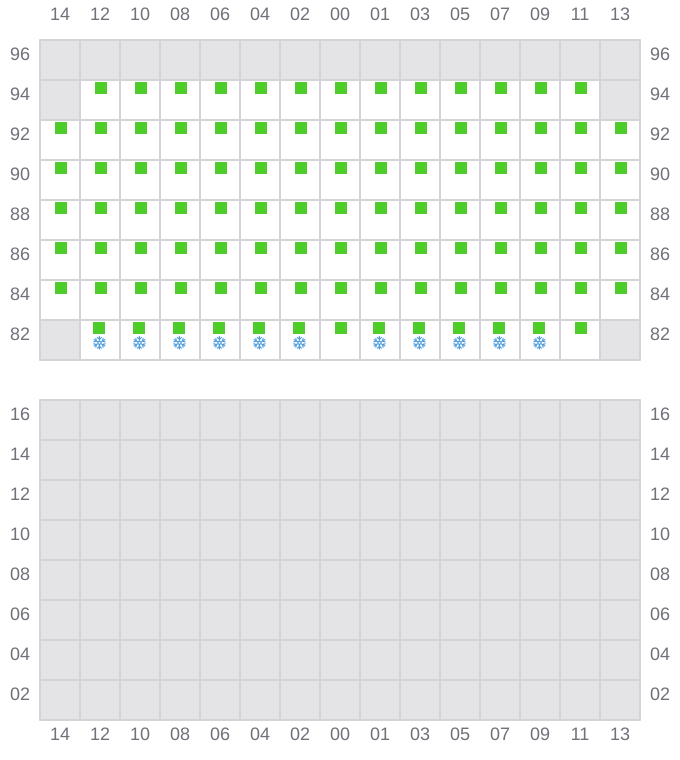

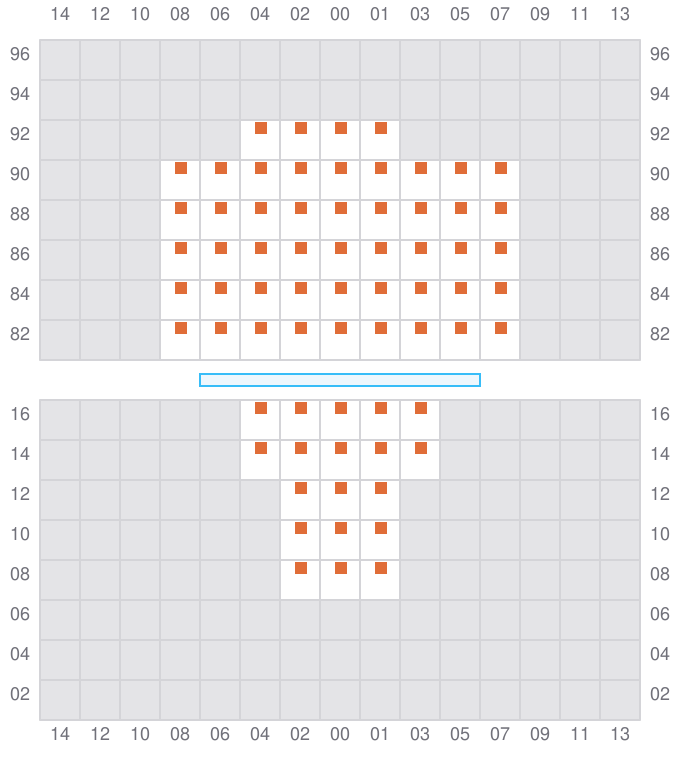

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →
- ? / ←
015
- ←
017 (018)
- →
019
- ←
- →
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
027
- ←
- →
029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
039
- ←
- →
041 (042)
- →
043
- ←
- → / ?
045 (046)
- → / ?
- → / ?
047
049 (050)
- →
051
- ←
- → / ?
053 (054)
- → / ?
