MAERSK COPENHAGEN
9525405 | S6NY3 | 95254 by ********* Last update: Fri Jun 28 2024

General Info

Ship Name:MAERSK COPENHAGEN
IMO Code:9525405
Call Sign:S6NY3
Line Operator:95254
Class Name for Sister Ships:MSL
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):235.00
LOA (Length Overall):249.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,610

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

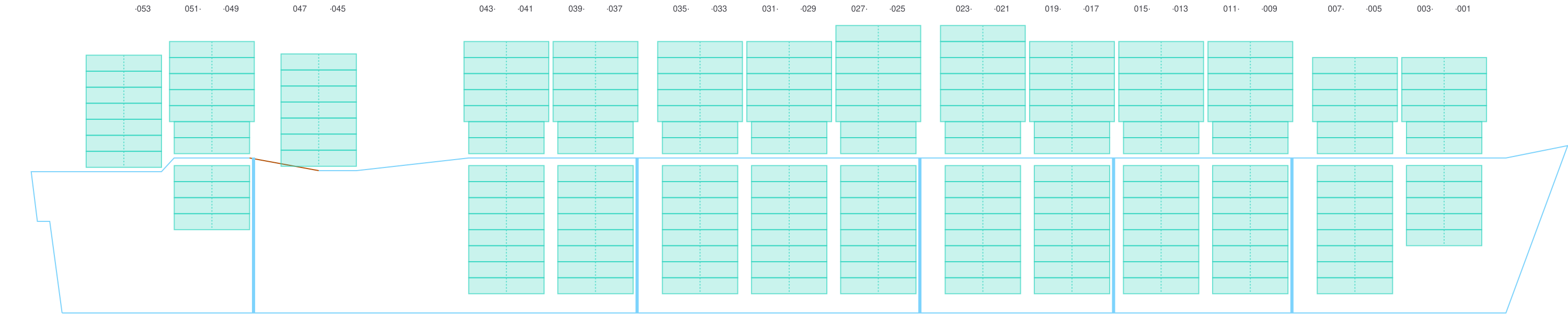

Side View

Side view of MAERSK COPENHAGEN

Hatch-Covers View

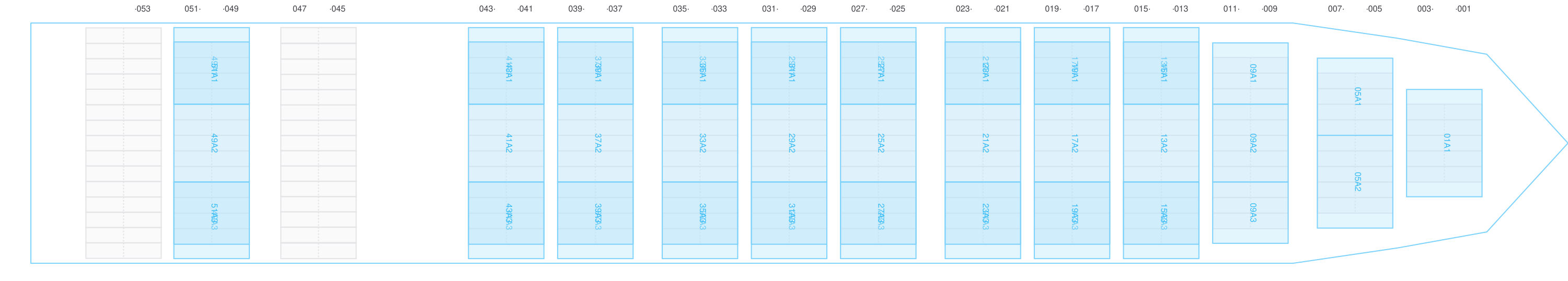

Deck view of MAERSK COPENHAGEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

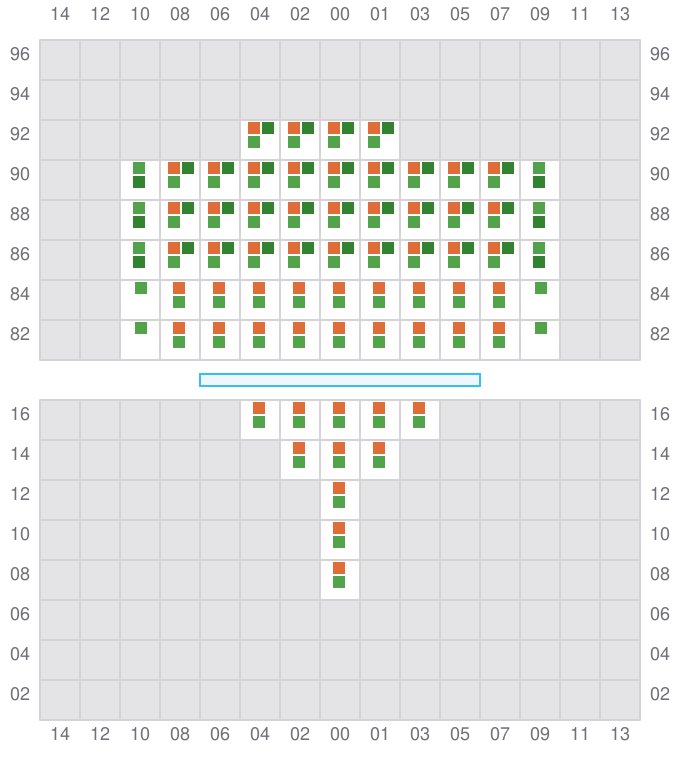

Bay 001 view and slots of MAERSK COPENHAGEN

003

  • ←

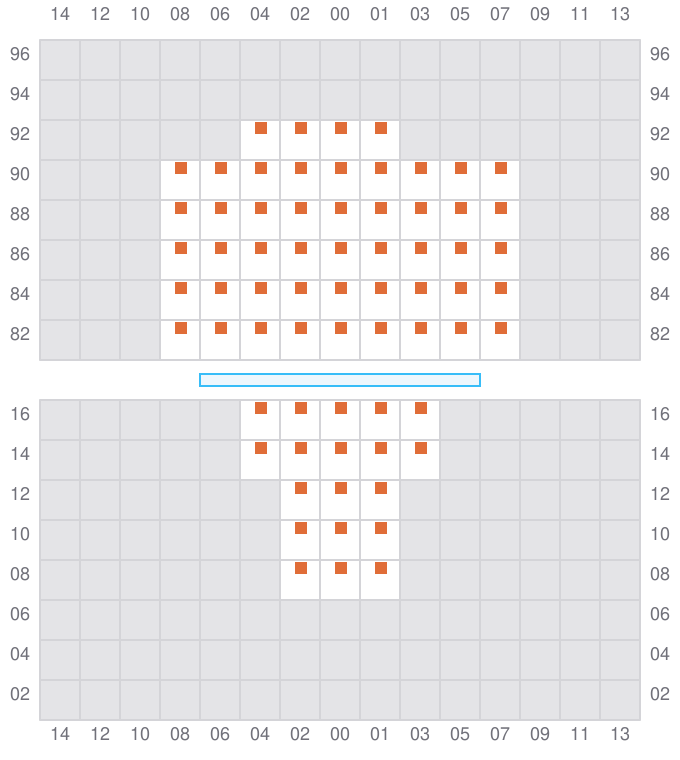

Bay 003 view and slots of MAERSK COPENHAGEN

005 (006)

  • →

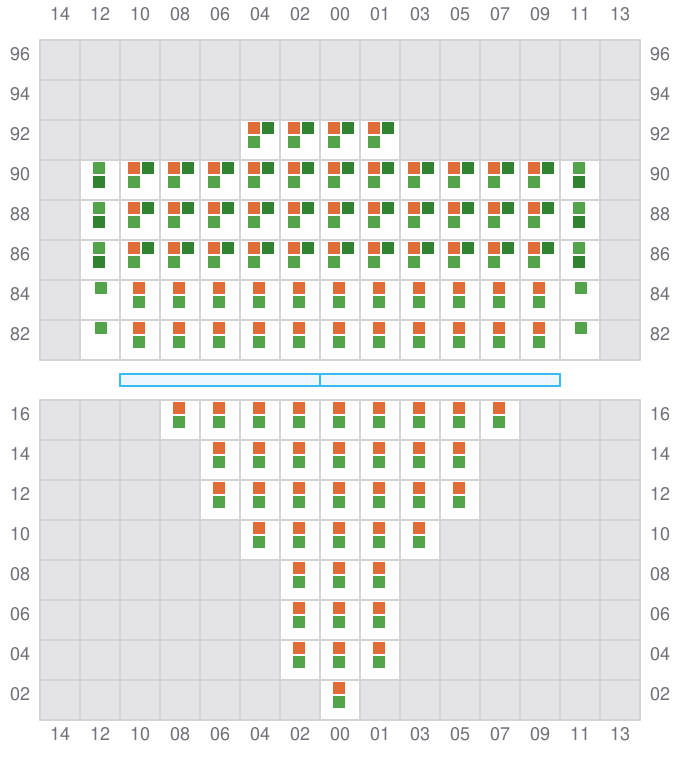

Bay 005 view and slots of MAERSK COPENHAGEN

007

  • ←
Bay 007 view and slots of MAERSK COPENHAGEN

009 (010)

  • →

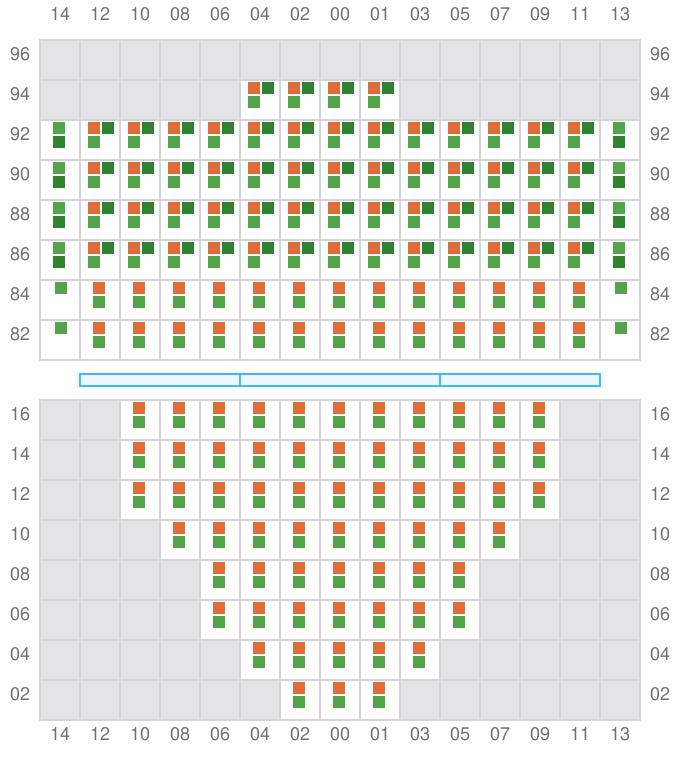

Bay 009 view and slots of MAERSK COPENHAGEN

011

  • ←

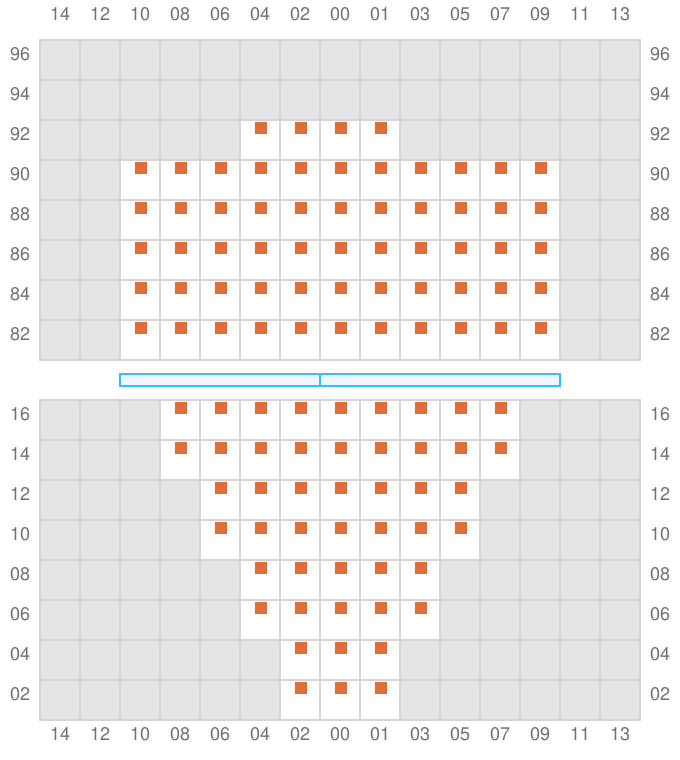

Bay 011 view and slots of MAERSK COPENHAGEN

013 (014)

  • →
  • ? / ←

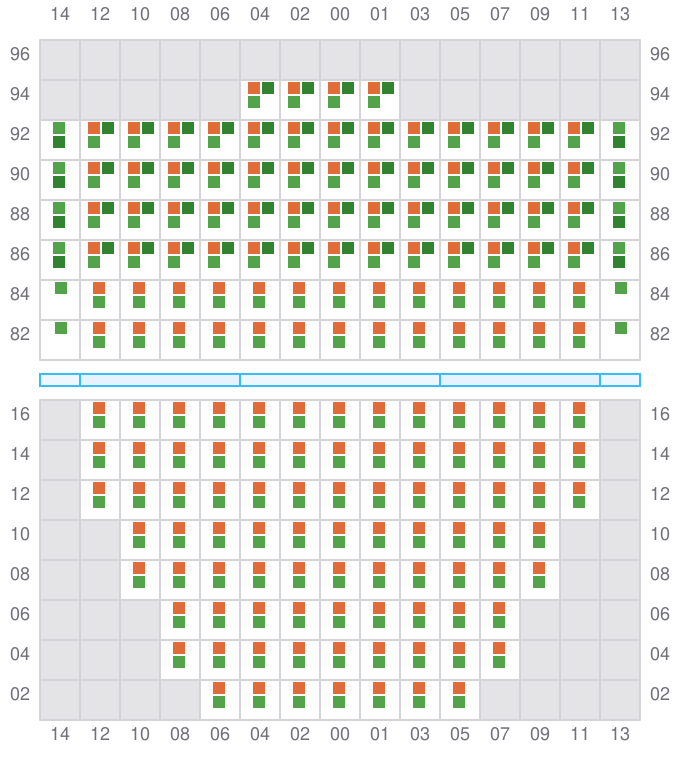

Bay 013 view and slots of MAERSK COPENHAGEN

015

  • ←

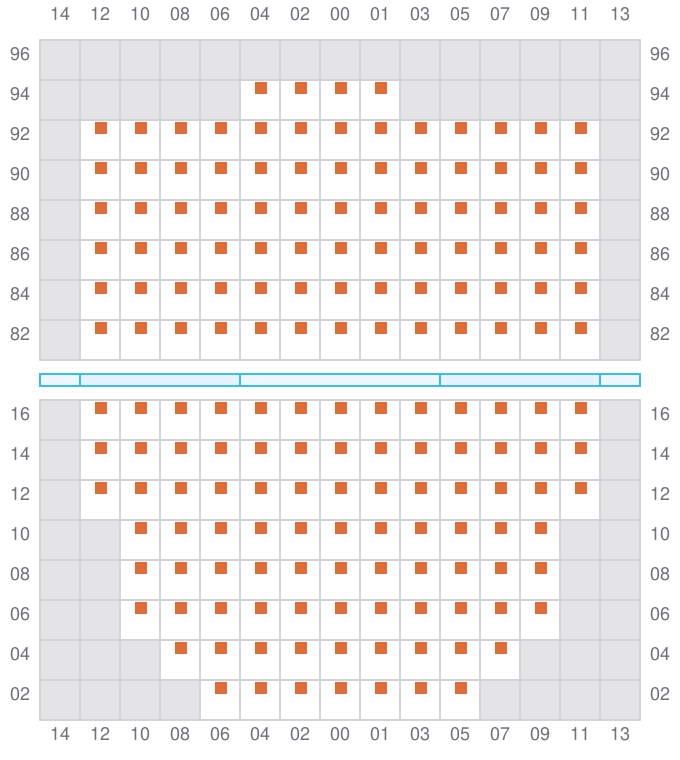

Bay 015 view and slots of MAERSK COPENHAGEN

017 (018)

  • →

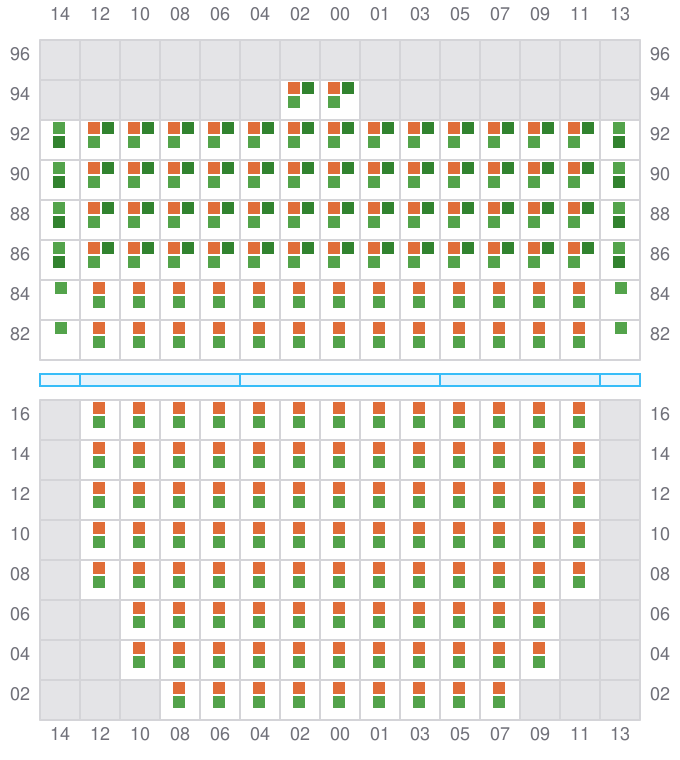

Bay 017 view and slots of MAERSK COPENHAGEN

019

  • ←
  • →

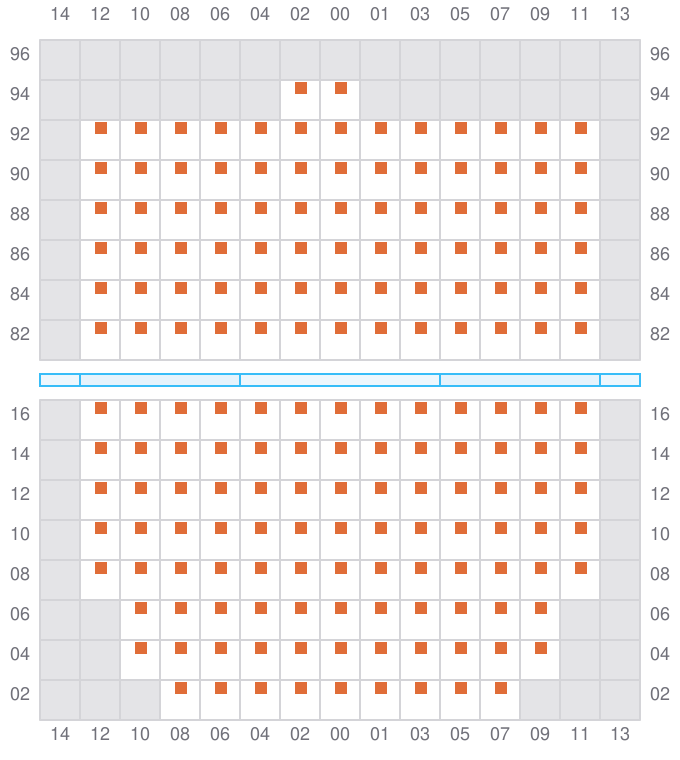

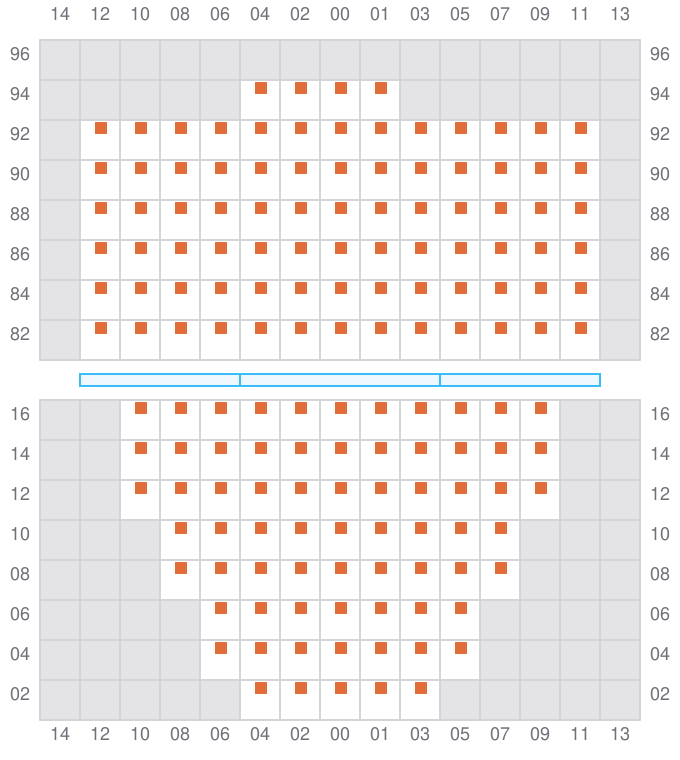

Bay 019 view and slots of MAERSK COPENHAGEN

021 (022)

  • →

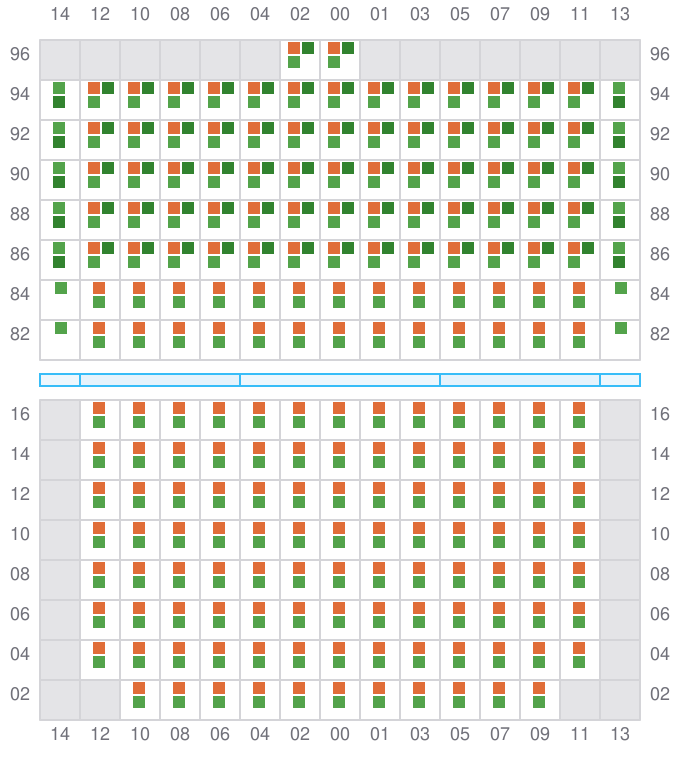

Bay 021 view and slots of MAERSK COPENHAGEN

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK COPENHAGEN

025 (026)

  • →
Bay 025 view and slots of MAERSK COPENHAGEN

027

  • ←
  • →

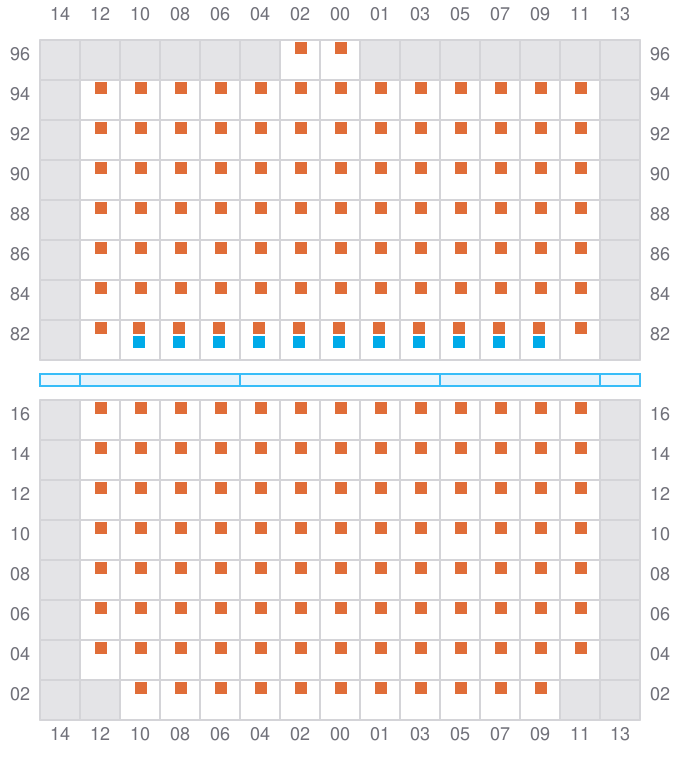

Bay 027 view and slots of MAERSK COPENHAGEN

029 (030)

  • →
Bay 029 view and slots of MAERSK COPENHAGEN

031

  • ←
  • → / ?

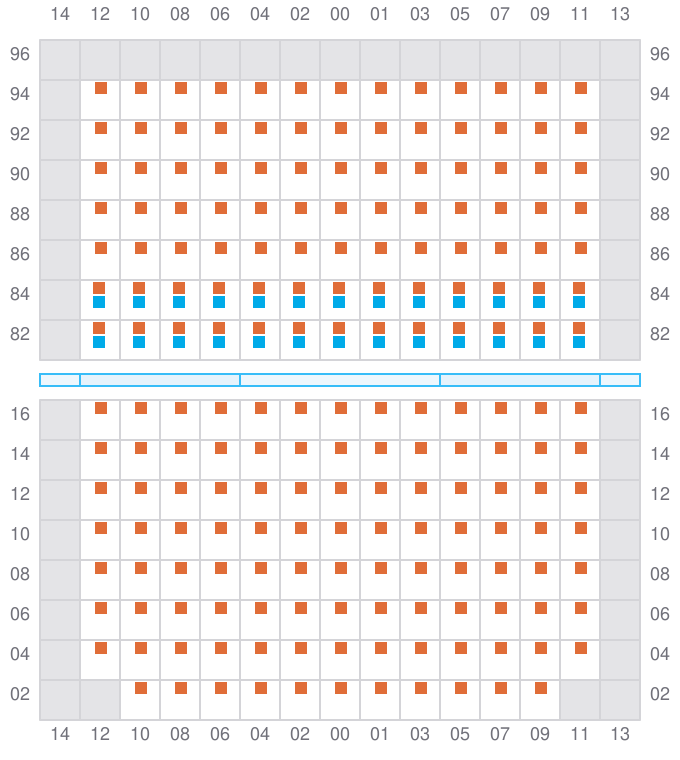

Bay 031 view and slots of MAERSK COPENHAGEN

033 (034)

  • →

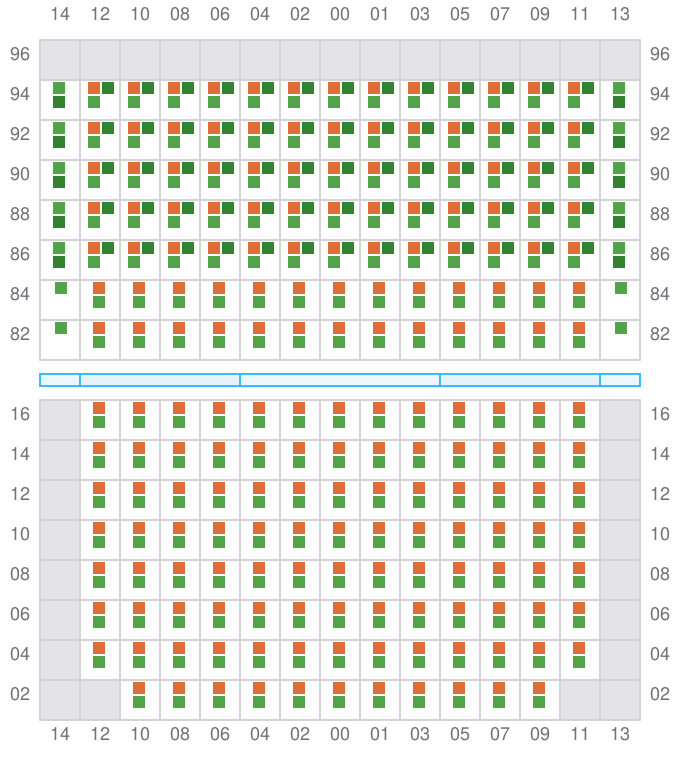

Bay 033 view and slots of MAERSK COPENHAGEN

035

  • ←
  • → / ?

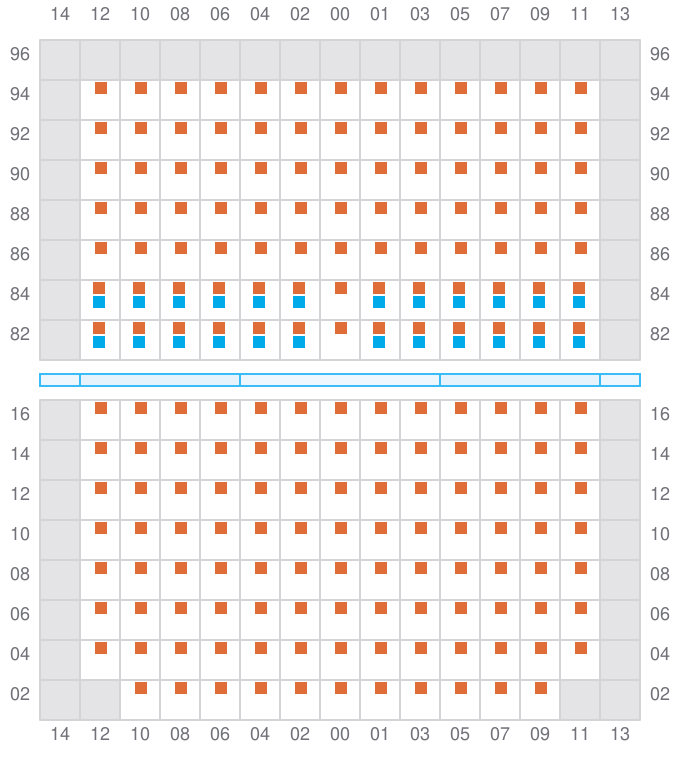

Bay 035 view and slots of MAERSK COPENHAGEN

037 (038)

  • →

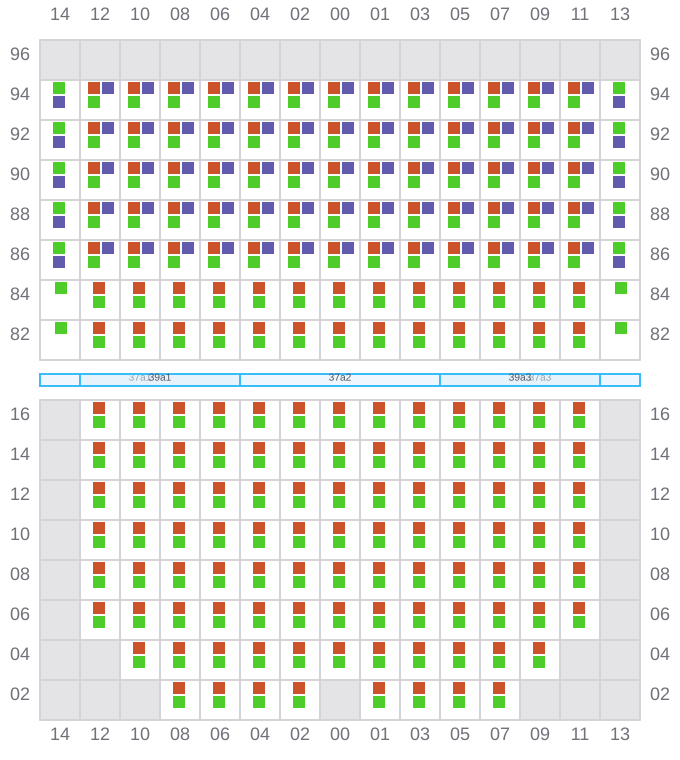

Bay 037 view and slots of MAERSK COPENHAGEN

039

  • ←
  • →
Bay 039 view and slots of MAERSK COPENHAGEN

041 (042)

  • →

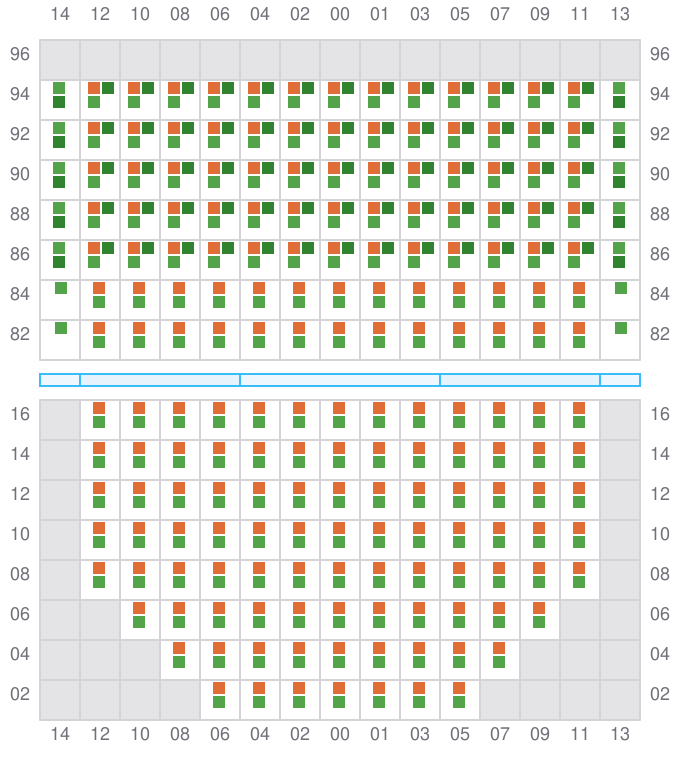

Bay 041 view and slots of MAERSK COPENHAGEN

043

  • ←
  • → / ?

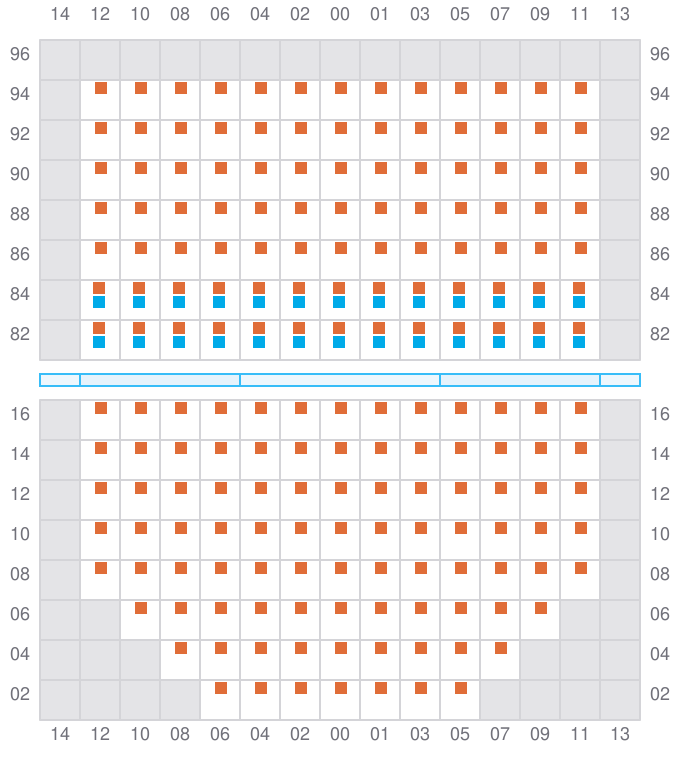

Bay 043 view and slots of MAERSK COPENHAGEN

045 (046)

  • → / ?
  • → / ?

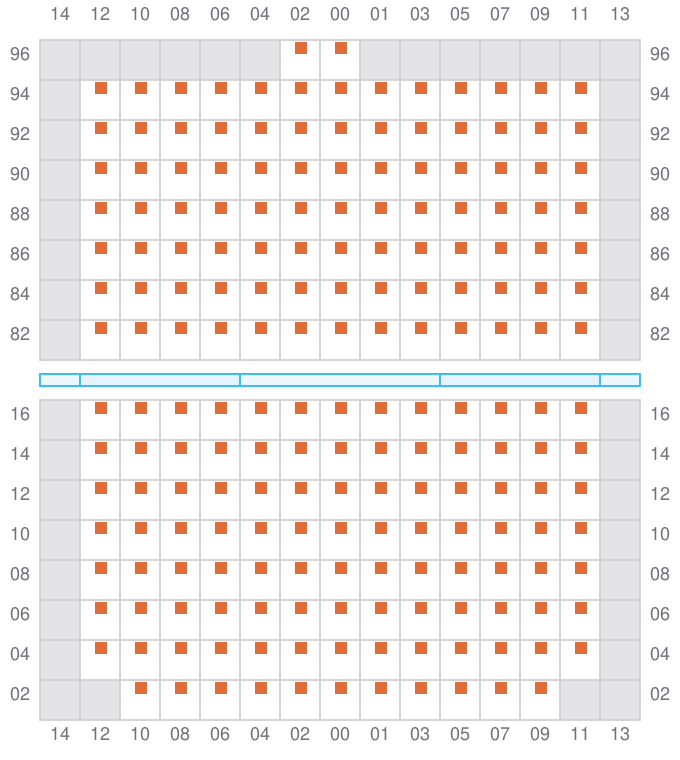

Bay 045 view and slots of MAERSK COPENHAGEN

047

Bay 047 view and slots of MAERSK COPENHAGEN

049 (050)

  • →

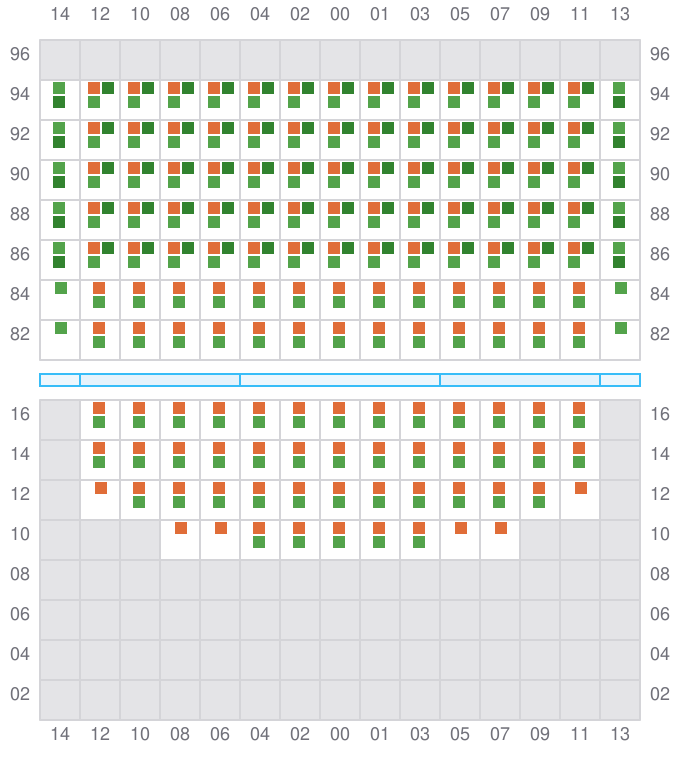

Bay 049 view and slots of MAERSK COPENHAGEN

051

  • ←
  • → / ?

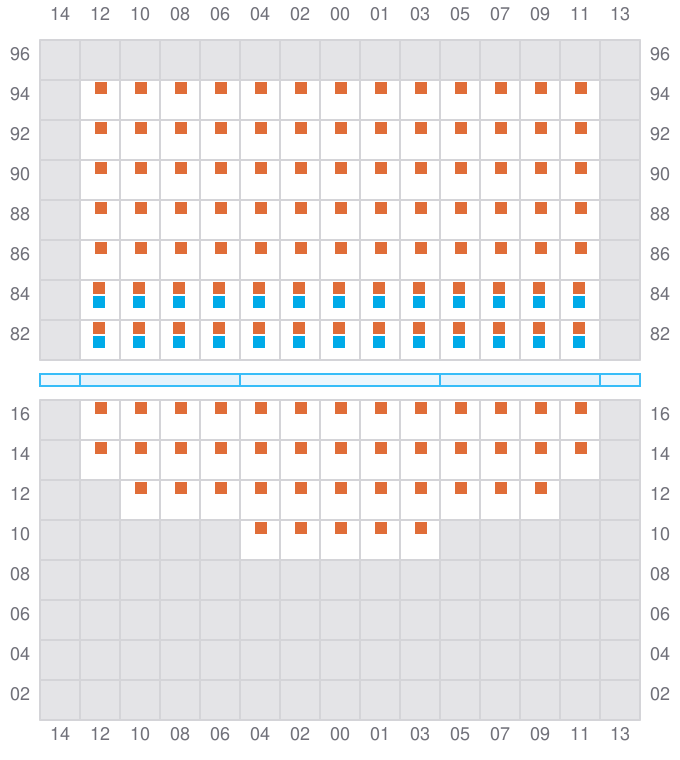

Bay 051 view and slots of MAERSK COPENHAGEN

053 (054)

  • → / ?

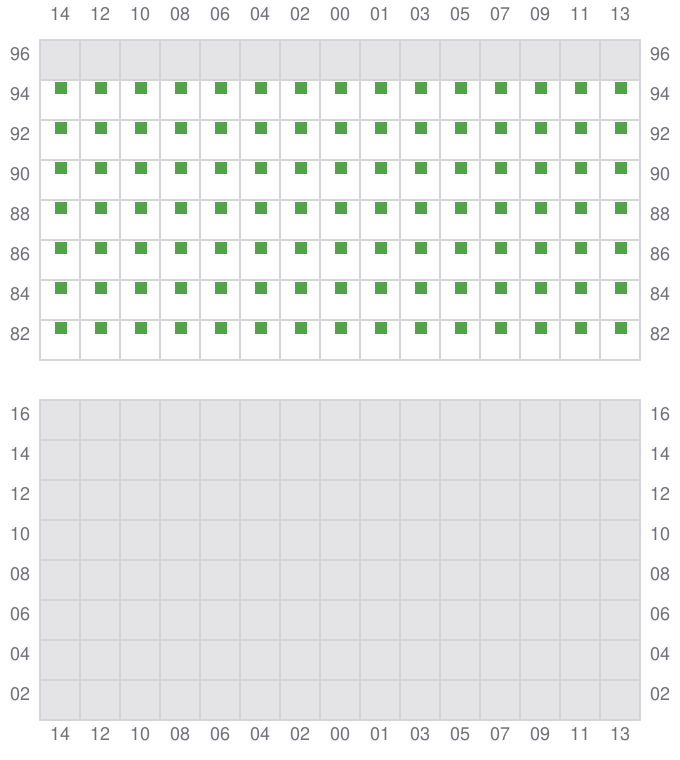

Bay 053 view and slots of MAERSK COPENHAGEN
