MAERSK CUBANGO
9525481 | VRJV3 | 9525481 MSL by ********* Last update: Thu Jun 13 2024
General Info
Ship Name:MAERSK CUBANGO
IMO Code:9525481
Call Sign:VRJV3
Line Operator:9525481 MSL
Class Name for Sister Ships:MAERSKCUBANGO
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):235.00
LOA (Length Overall):249.12
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:053
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,610
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

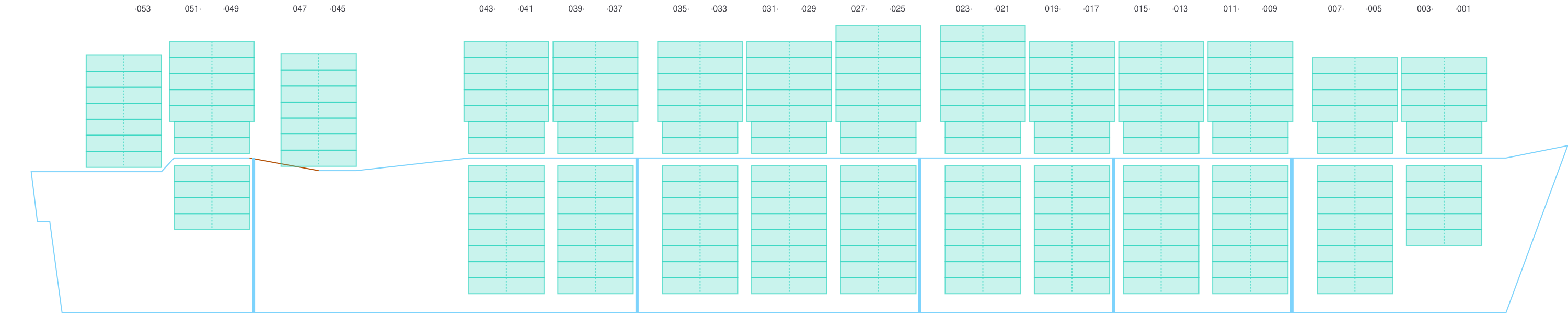

Side View

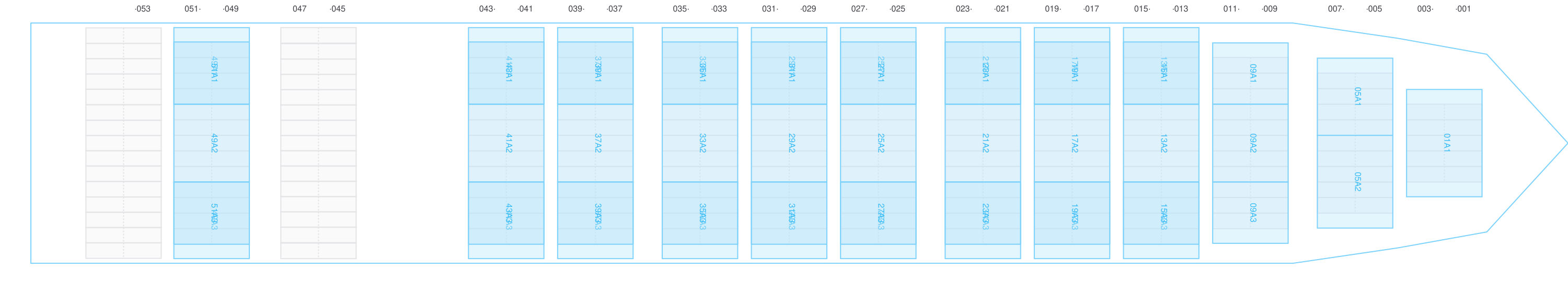

Hatch-Covers View

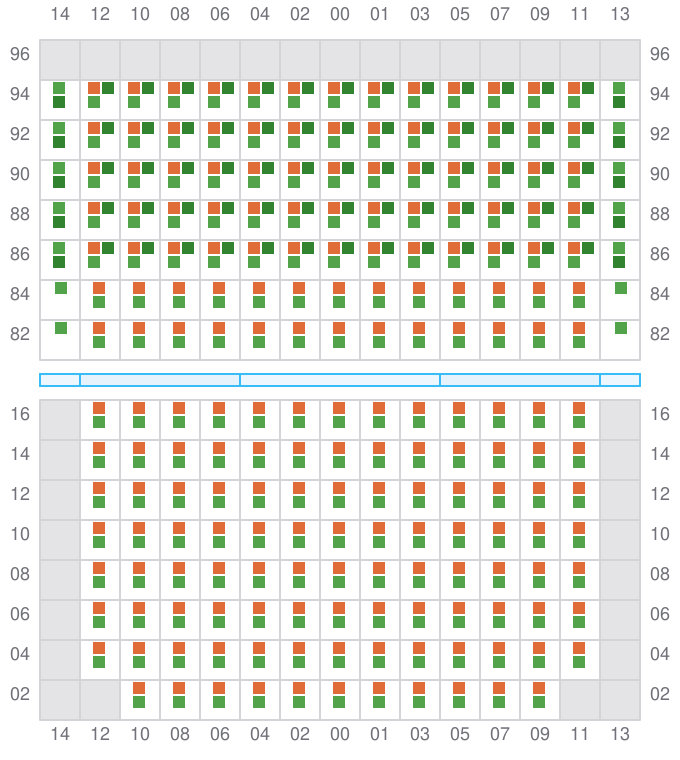

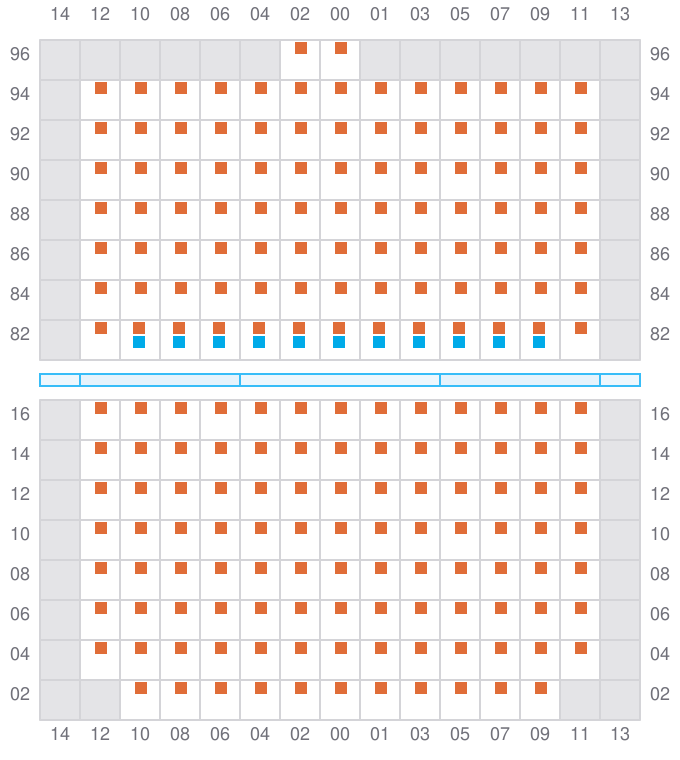

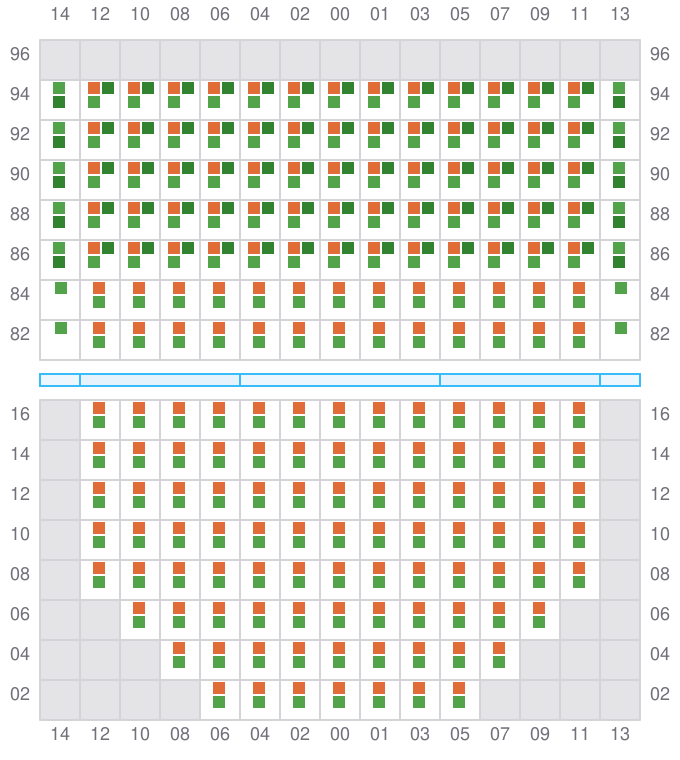

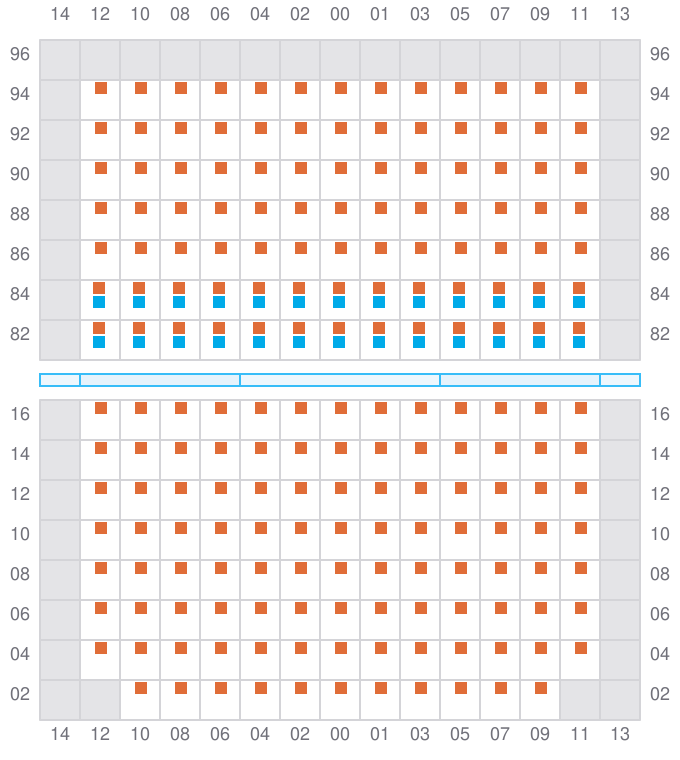

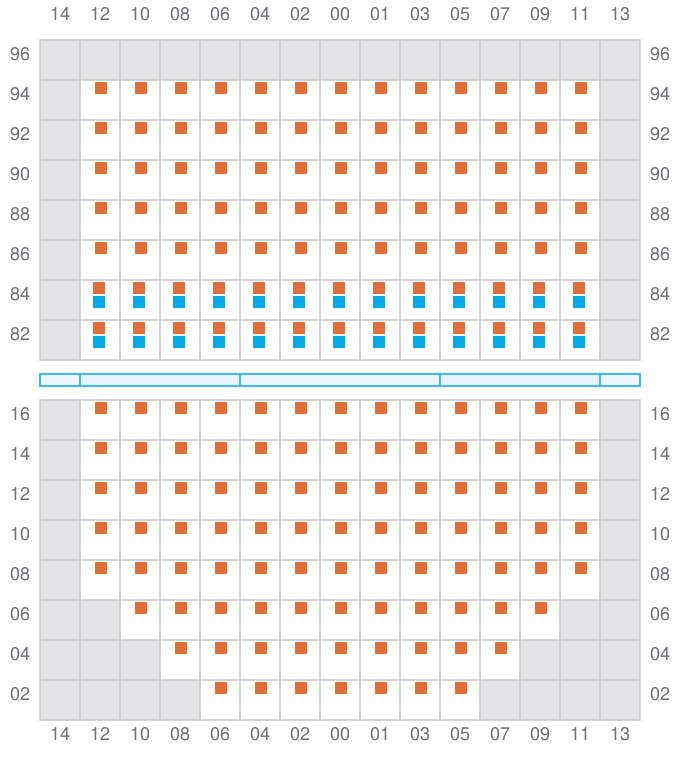

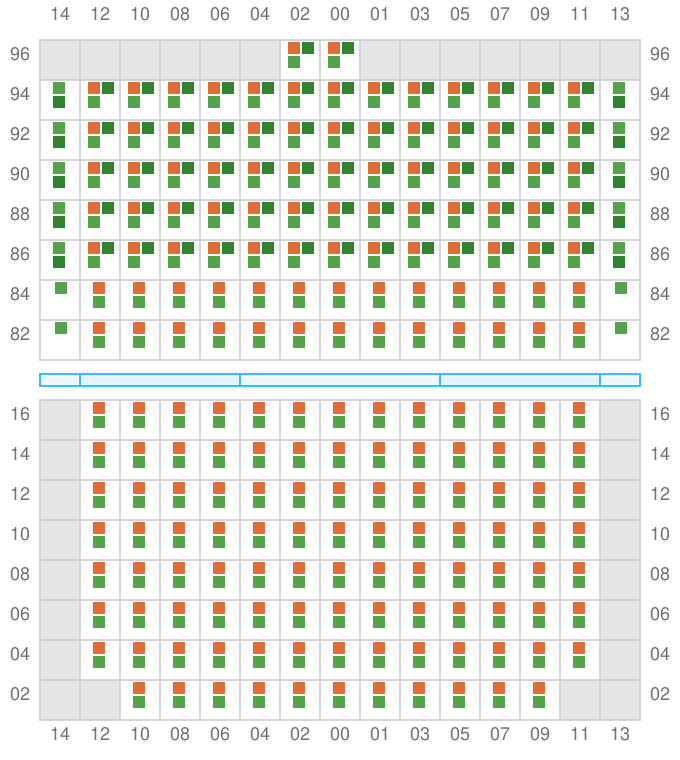

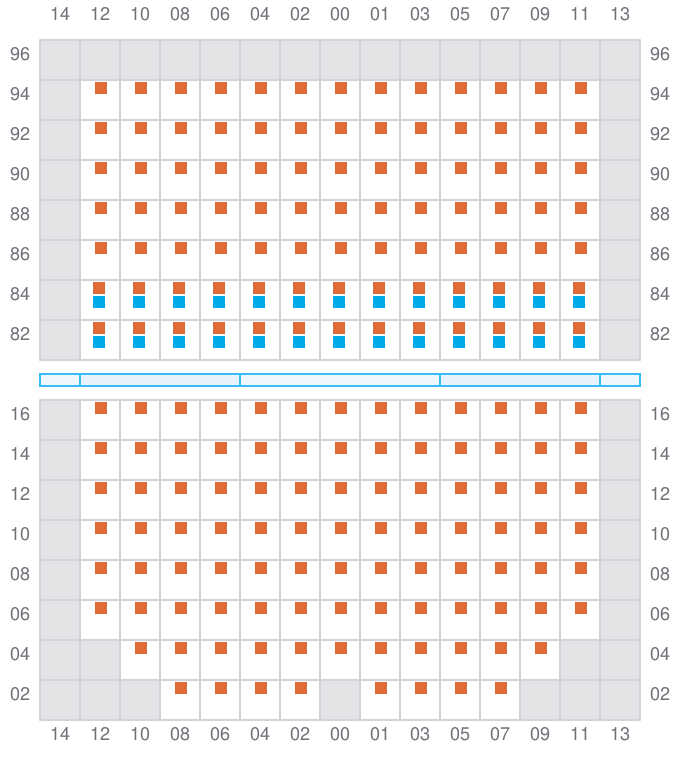

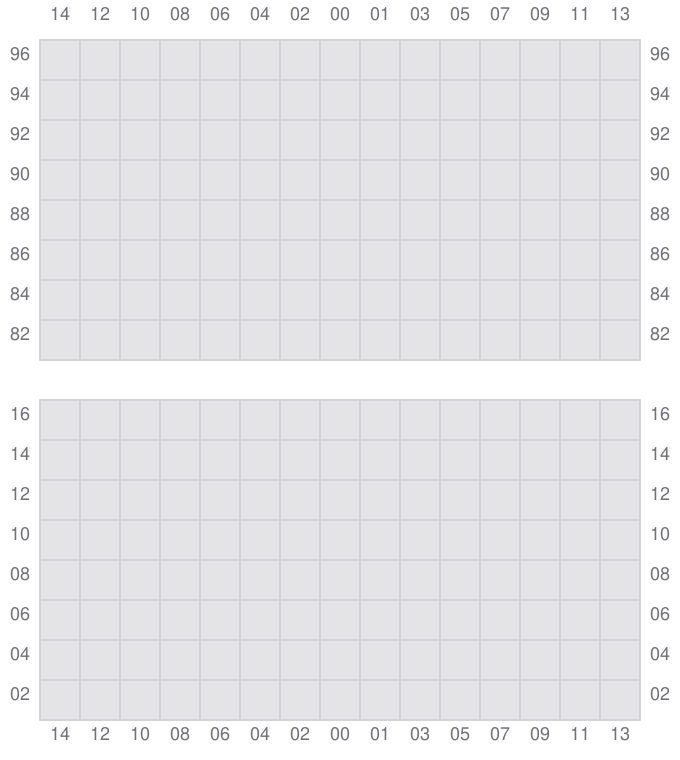

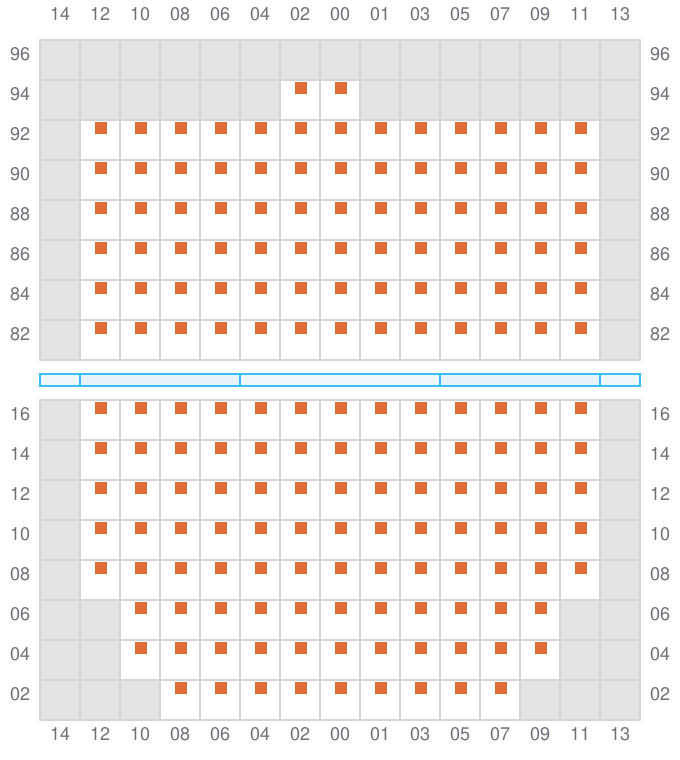

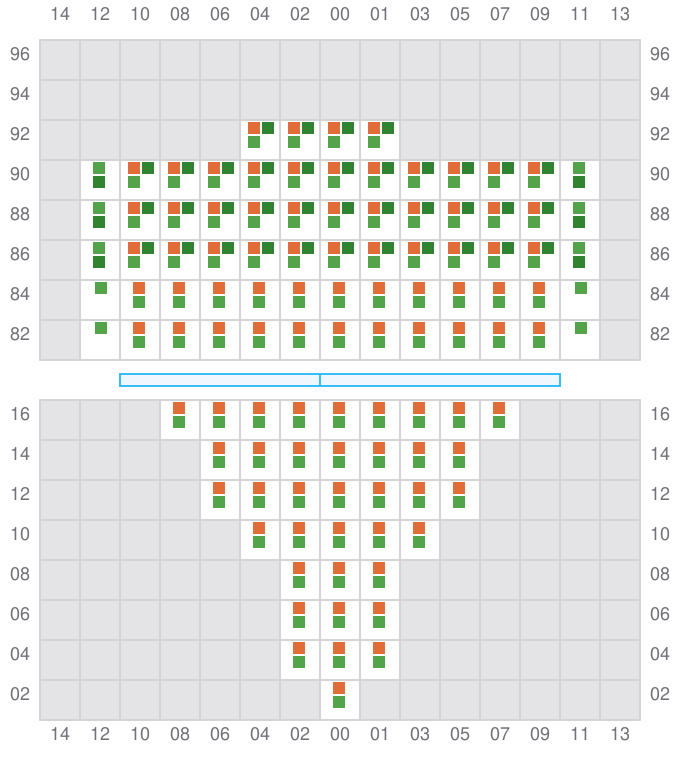

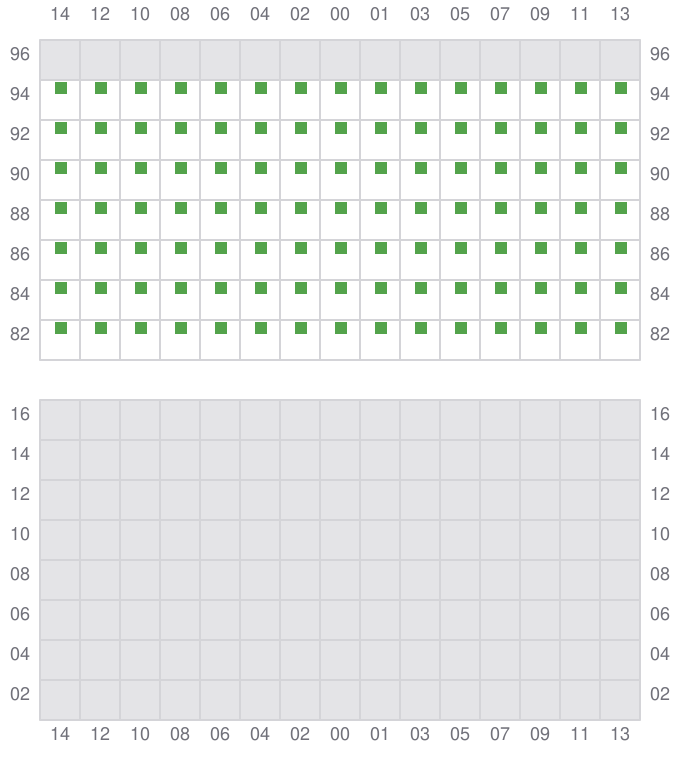

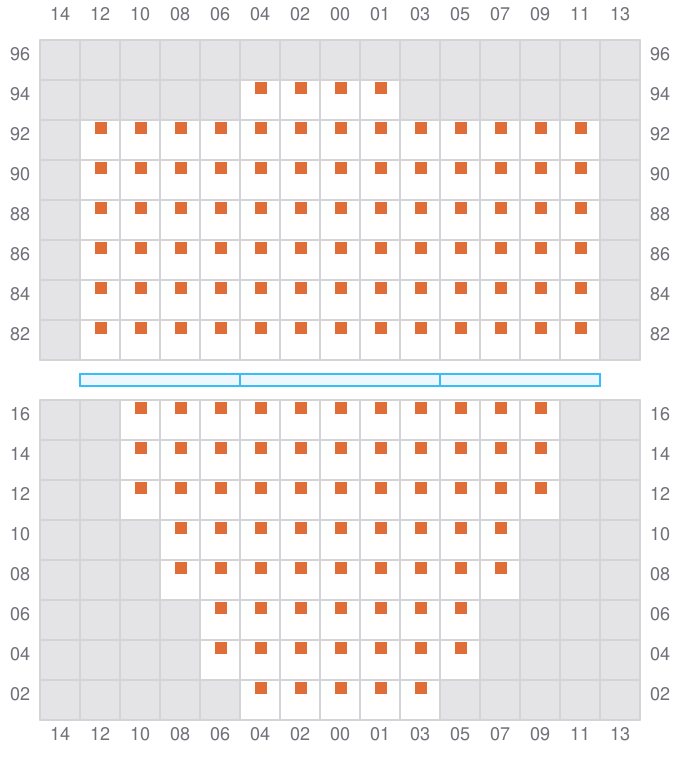

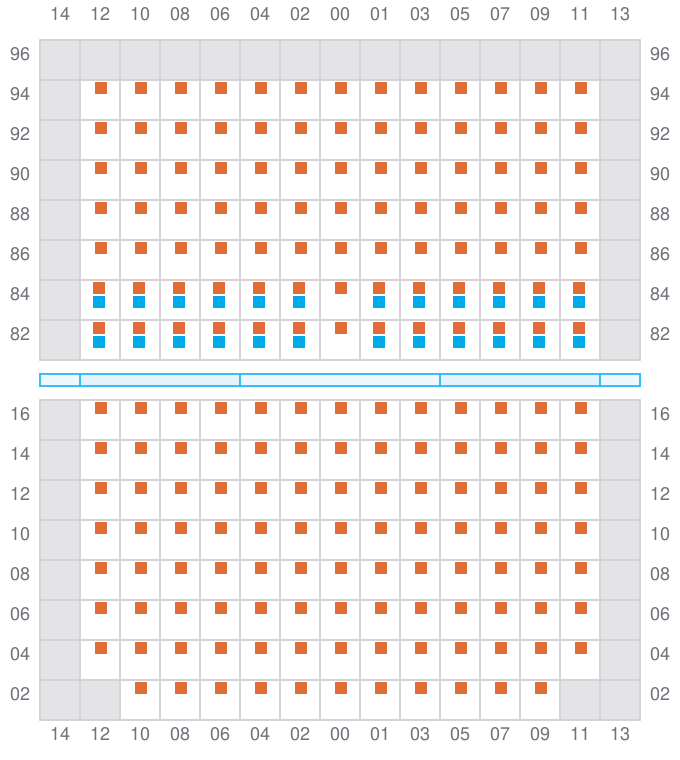

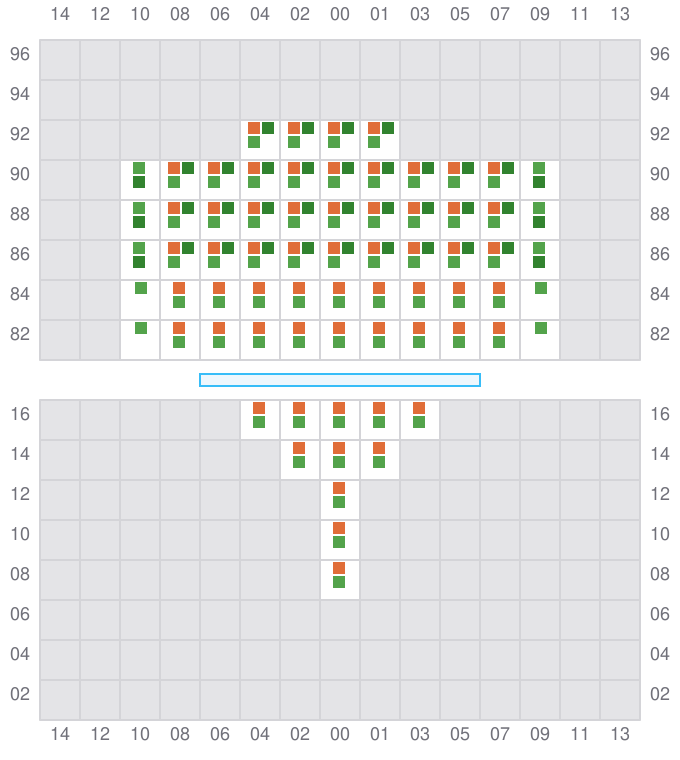

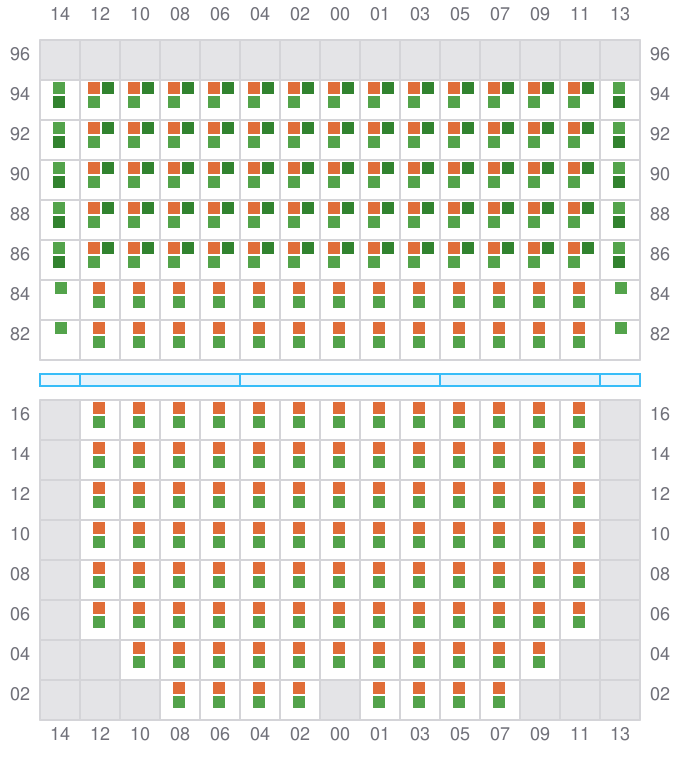

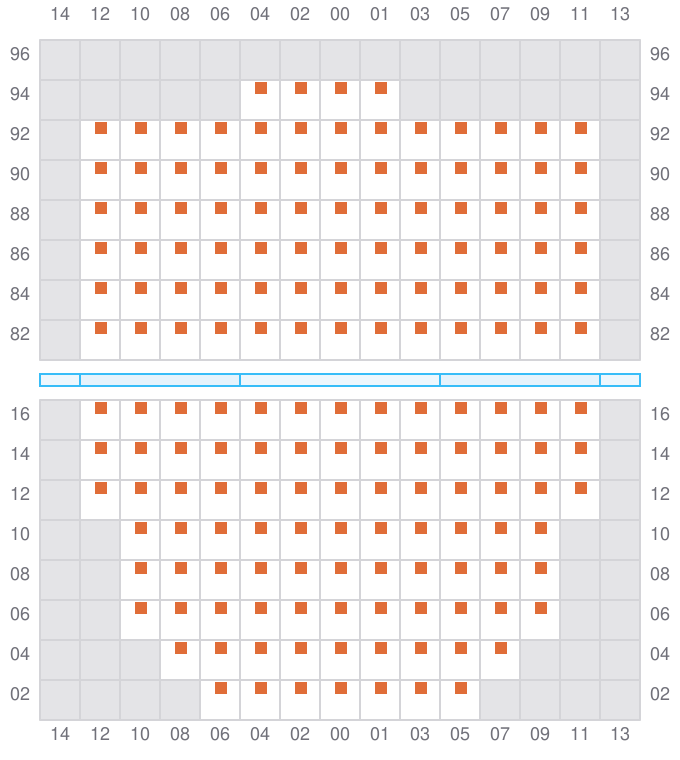

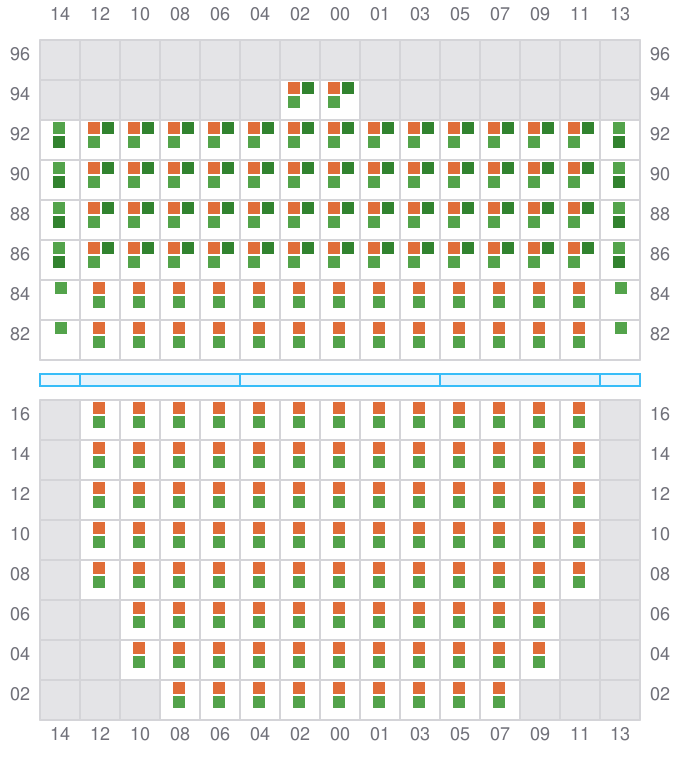

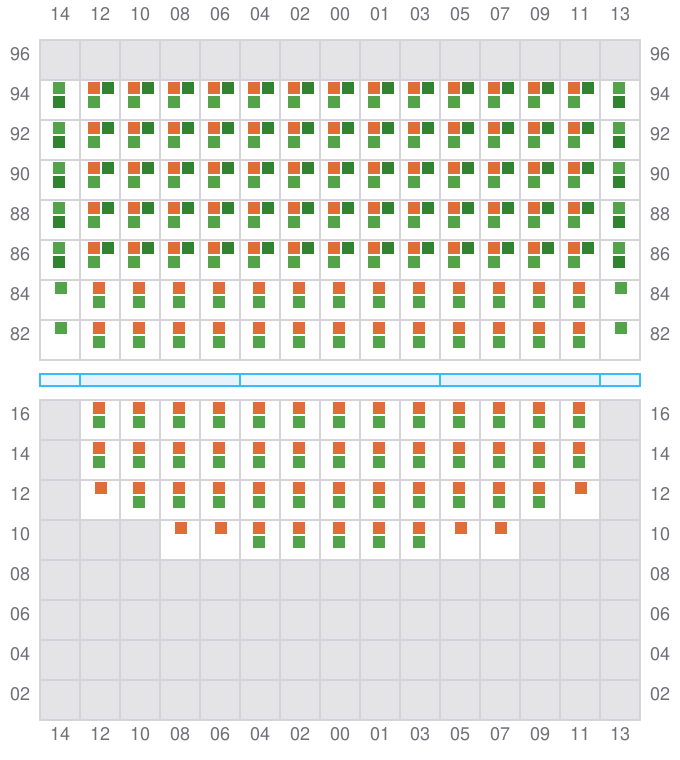

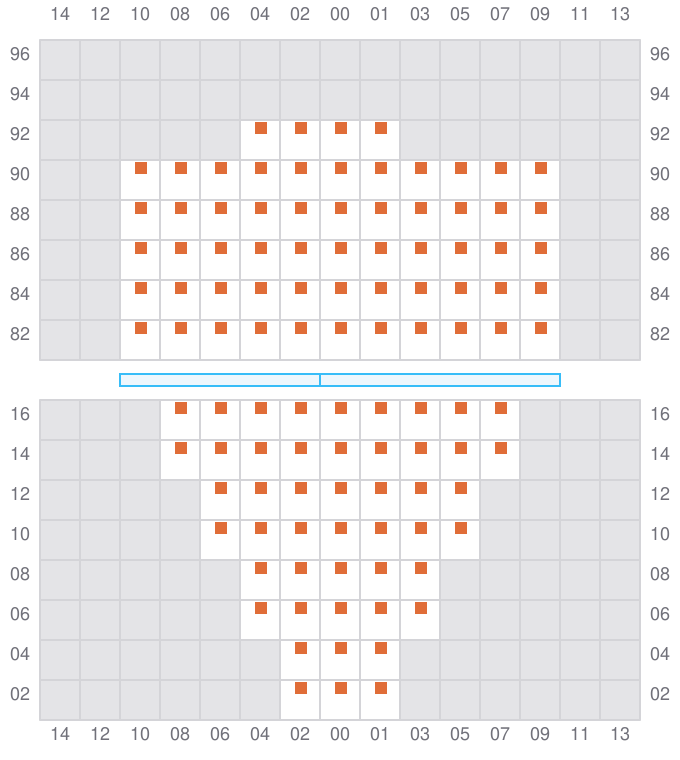

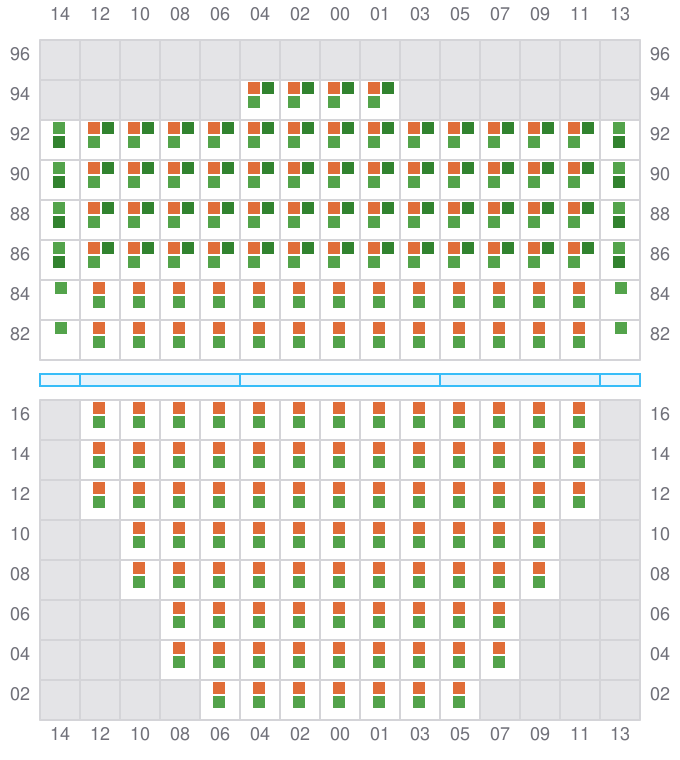

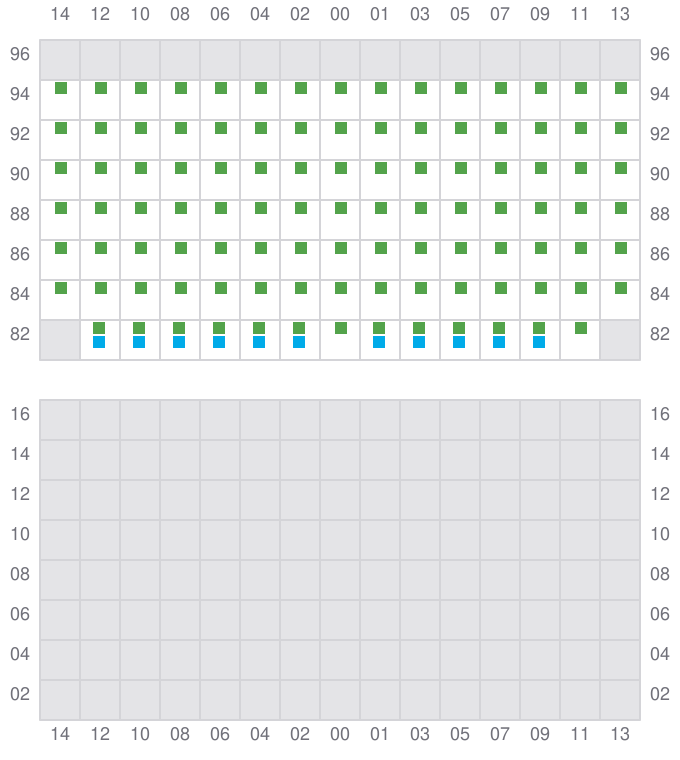

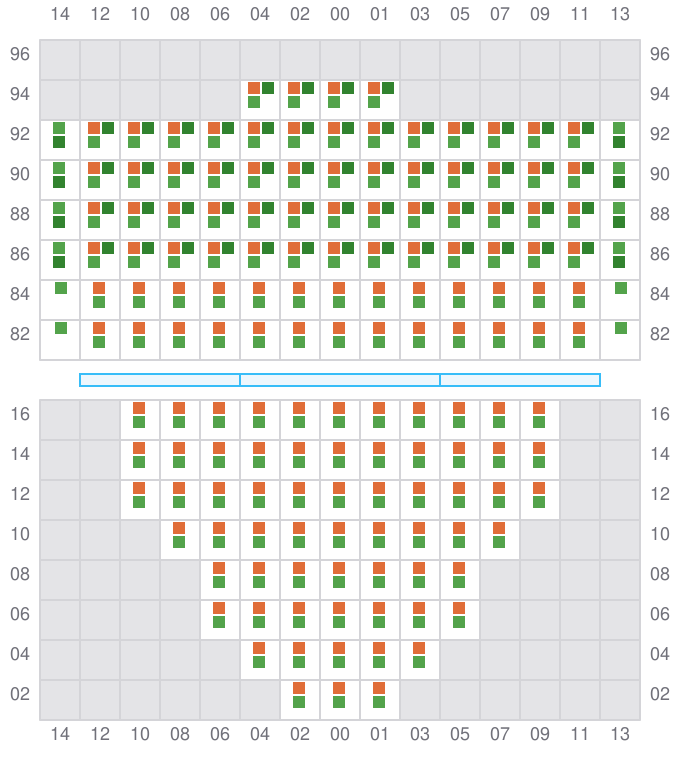

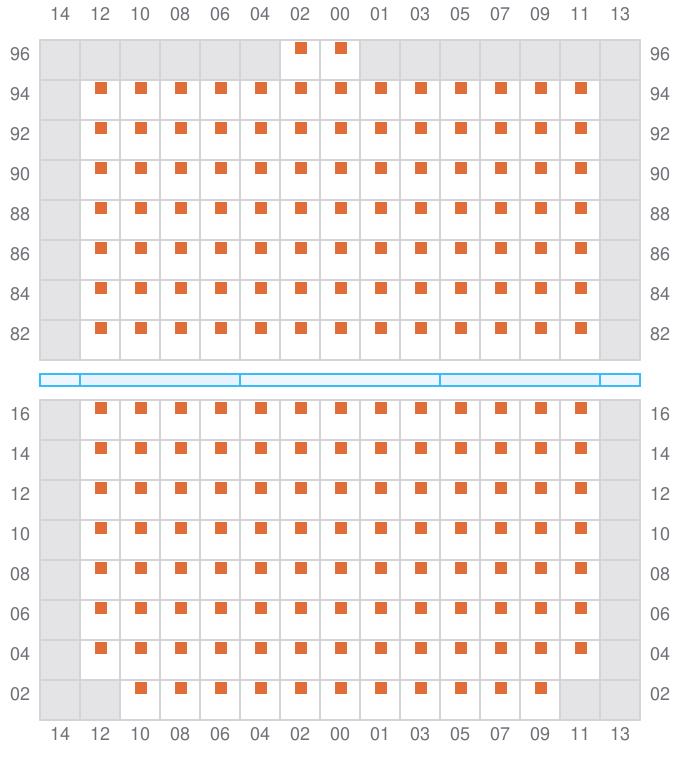

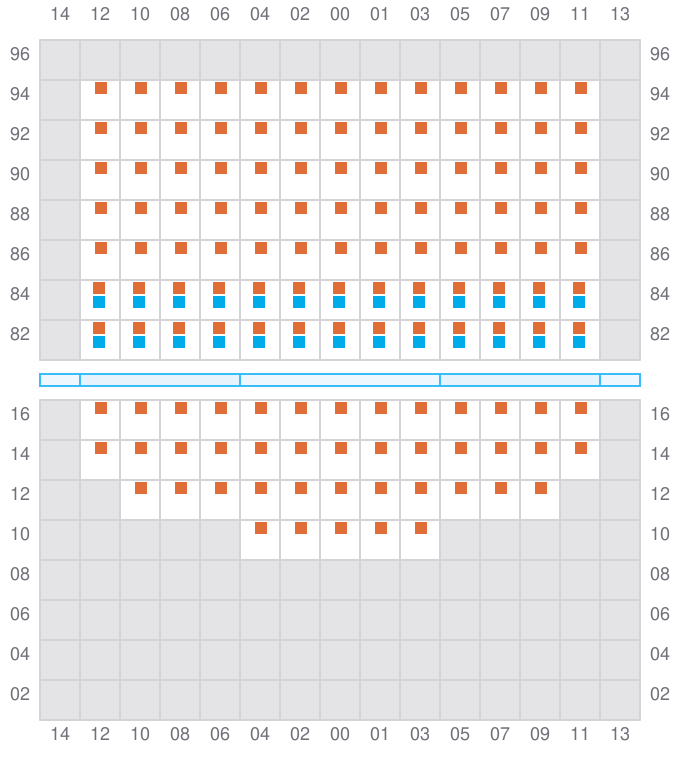

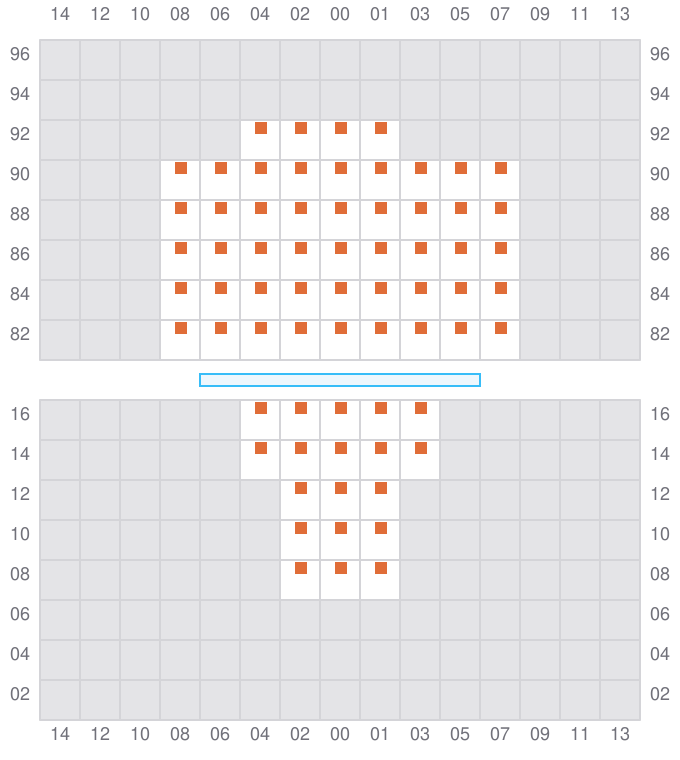

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →
- ? / ←
015
- ←
017 (018)
- →
019
- ←
- →
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
027
- ←
- →
029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
039
- ←
- →
041 (042)
- →
043
- ←
- → / ?
045 (046)
- → / ?
- → / ?
047
049 (050)
- →
051
- ←
- → / ?
053 (054)
- → / ?
