MAERSK DENVER
9332999 | WMDQ | 9332999 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK DENVER

IMO Code:9332999

Call Sign:WMDQ

Line Operator:9332999

Class Name for Sister Ships:7KC

Year Built:2007

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As (old names):-

Size Summary

ISO Bays:069

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:6,711

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of MAERSK DENVER

Hatch-Covers View

Deck view of MAERSK DENVER

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

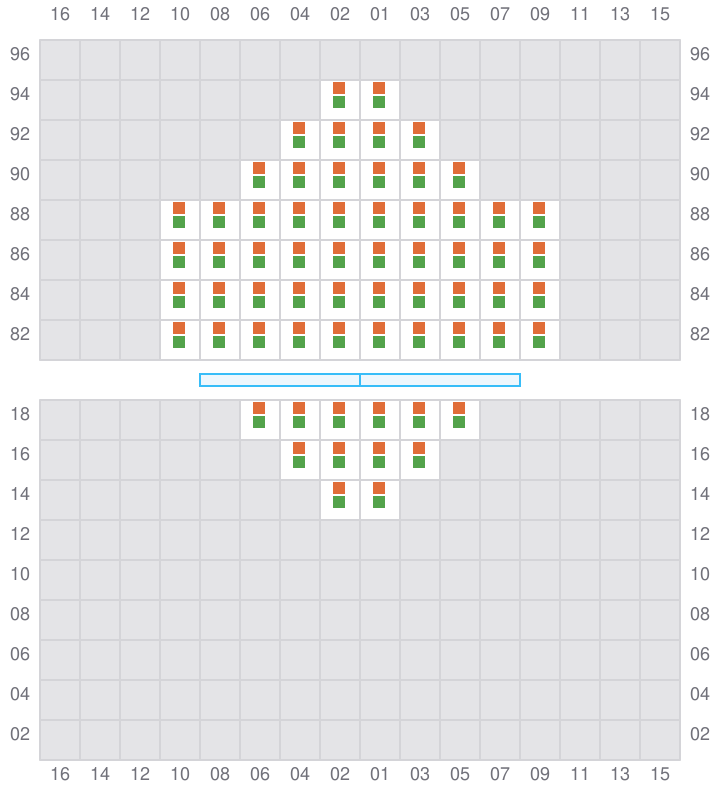

Bay 001 view and slots of MAERSK DENVER

003

←

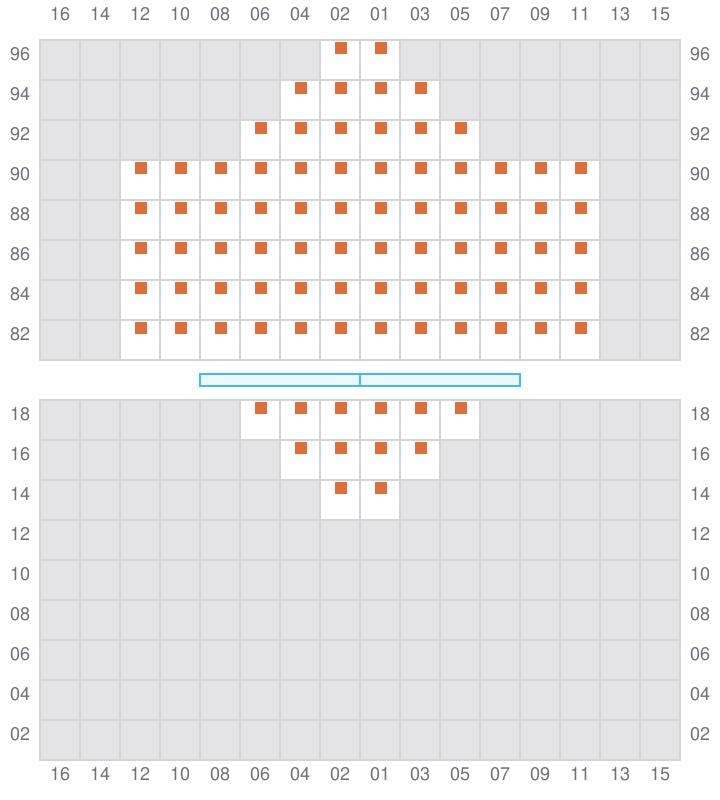

Bay 003 view and slots of MAERSK DENVER

005 (006)

→

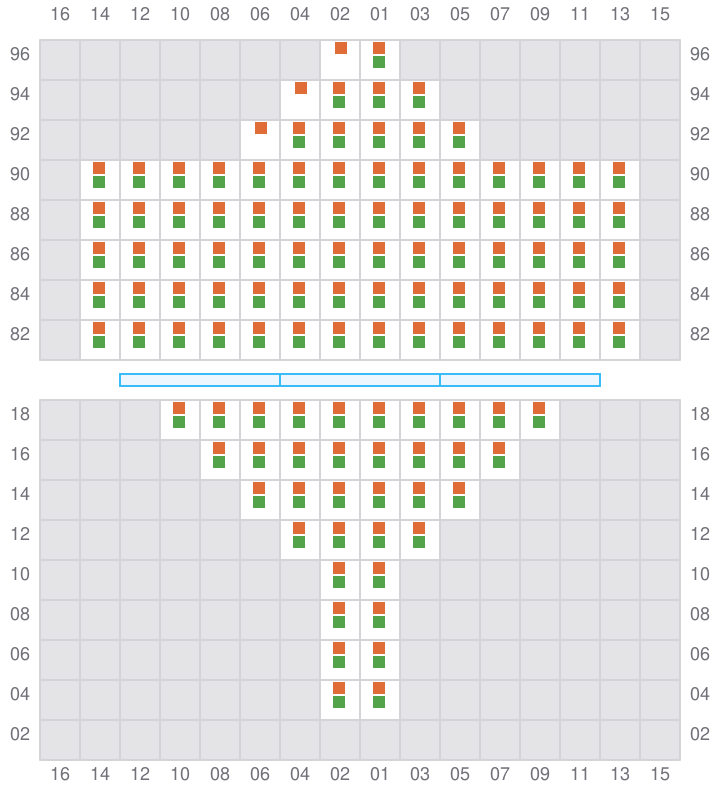

Bay 005 view and slots of MAERSK DENVER

007

←

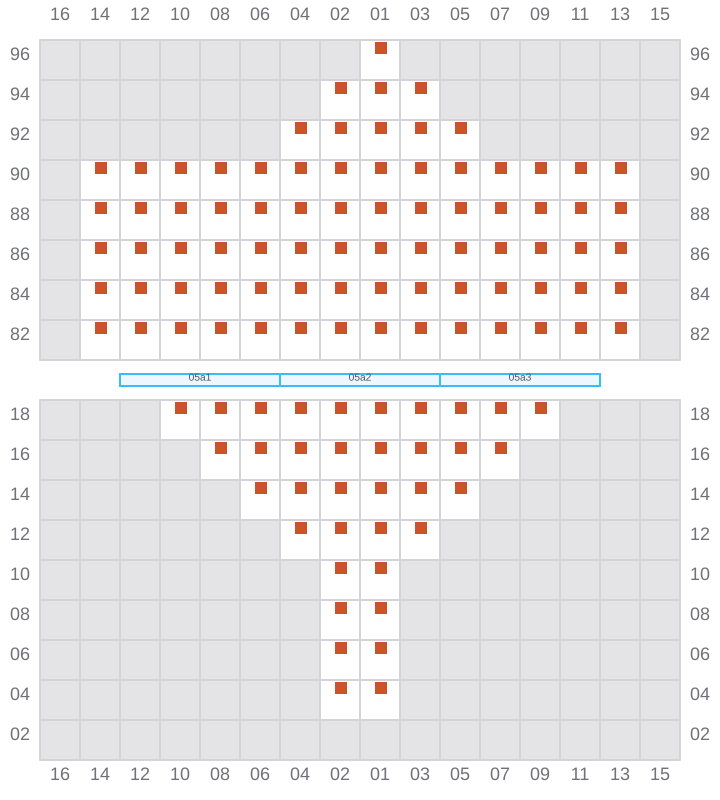

Bay 007 view and slots of MAERSK DENVER

009 (010)

→

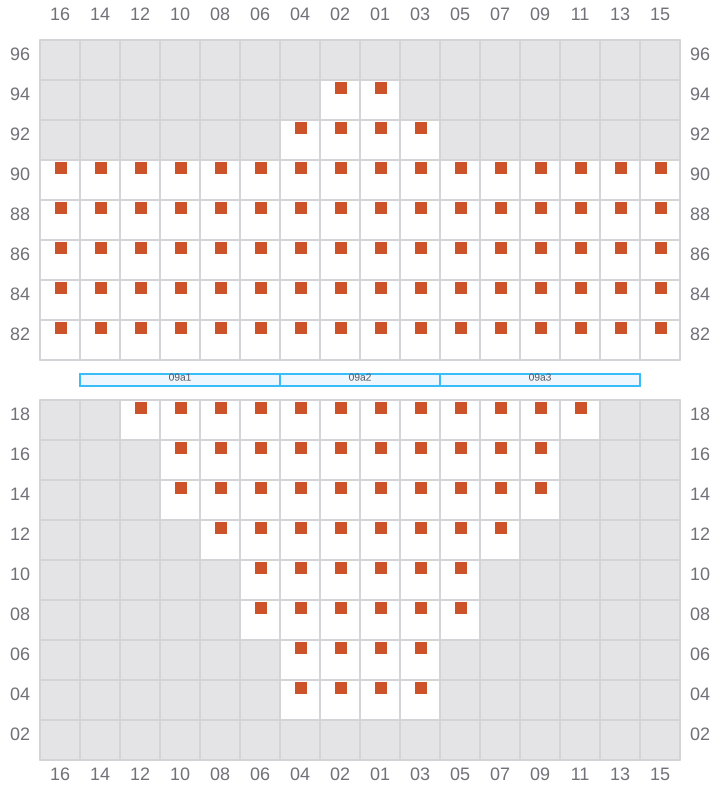

Bay 009 view and slots of MAERSK DENVER

011

←

Bay 011 view and slots of MAERSK DENVER

013 (014)

→

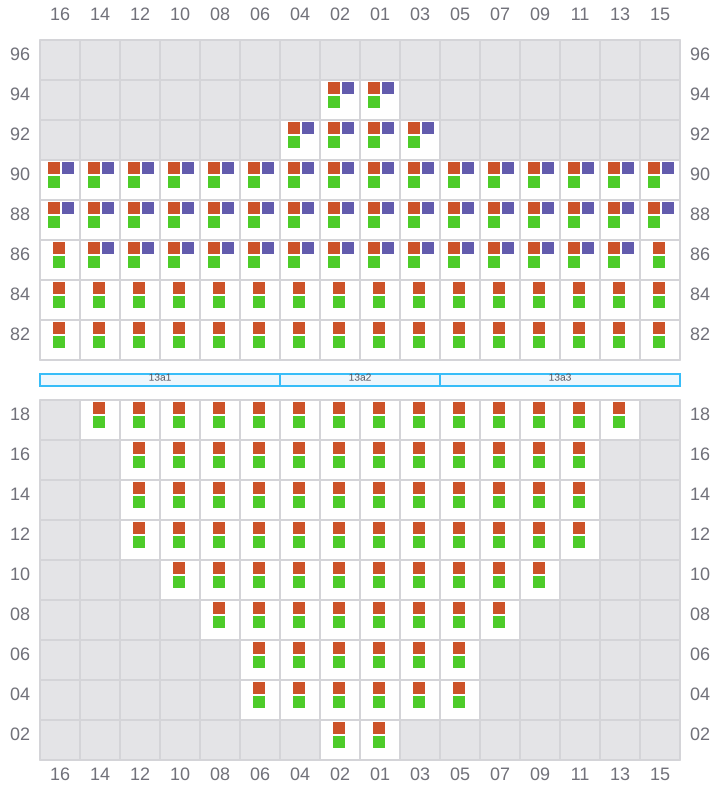

Bay 013 view and slots of MAERSK DENVER

015

←

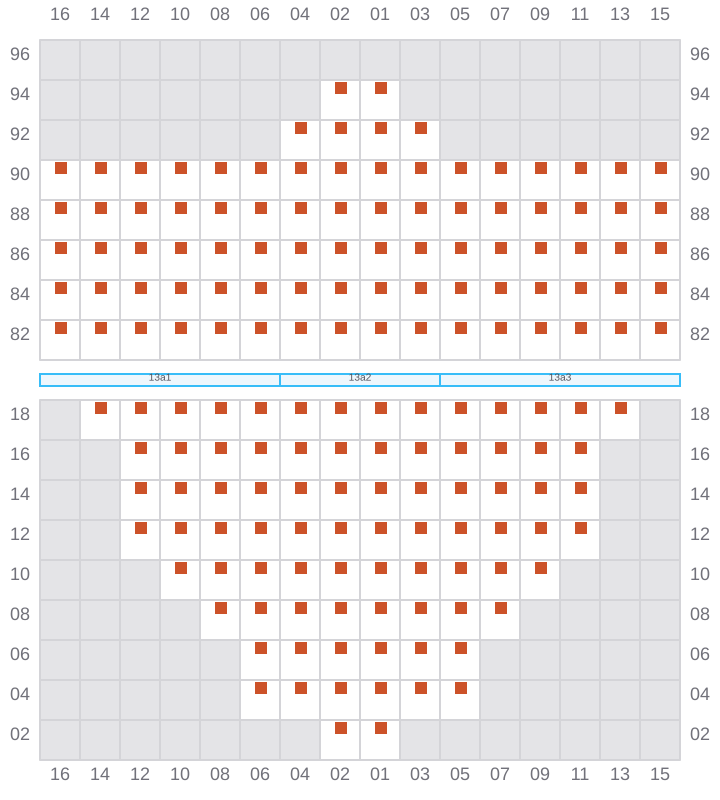

Bay 015 view and slots of MAERSK DENVER

017 (018)

→

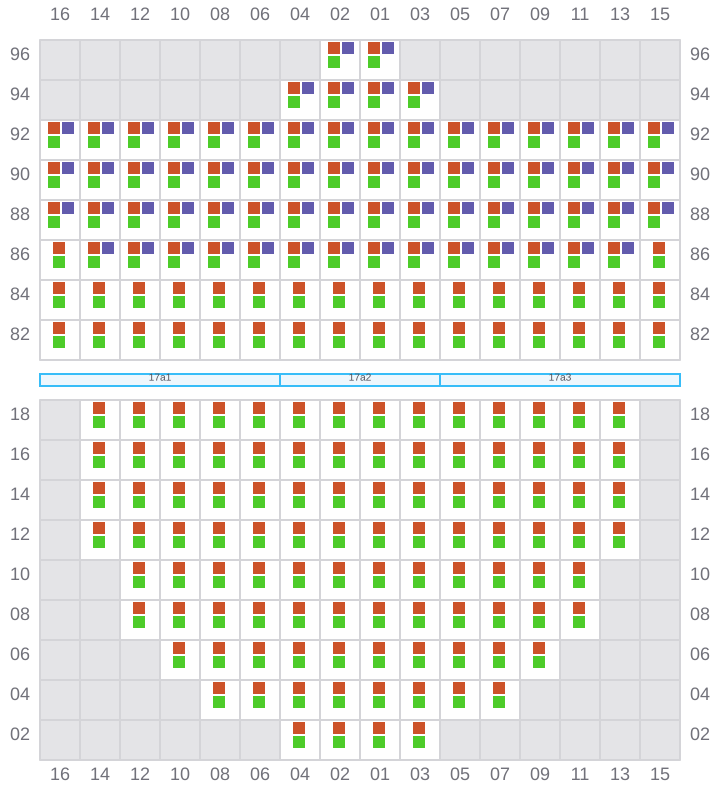

Bay 017 view and slots of MAERSK DENVER

019

←
^→ / _?

Bay 019 view and slots of MAERSK DENVER

021 (022)

→

Bay 021 view and slots of MAERSK DENVER

023

←
^→ / _?

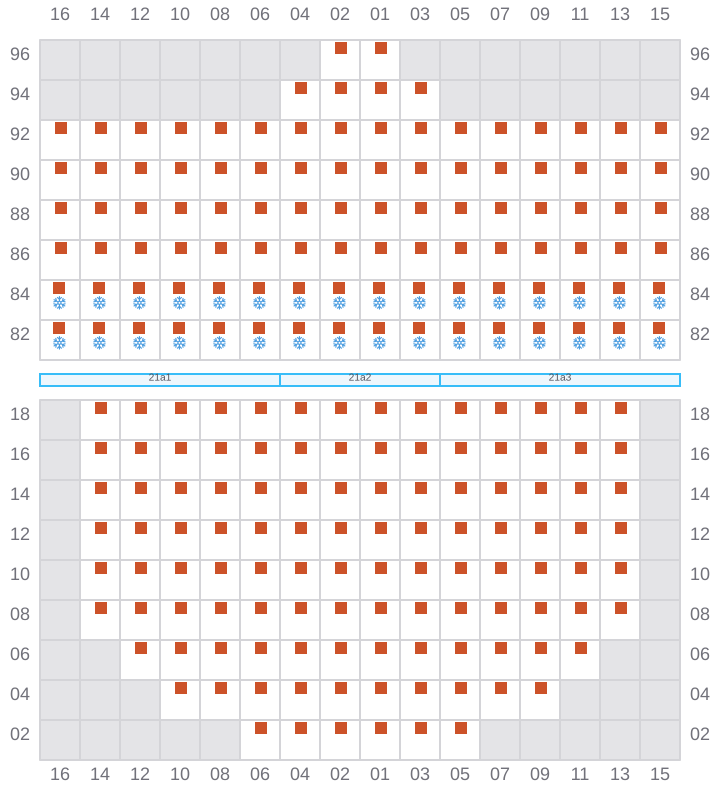

Bay 023 view and slots of MAERSK DENVER

025 (026)

→
^? / _←

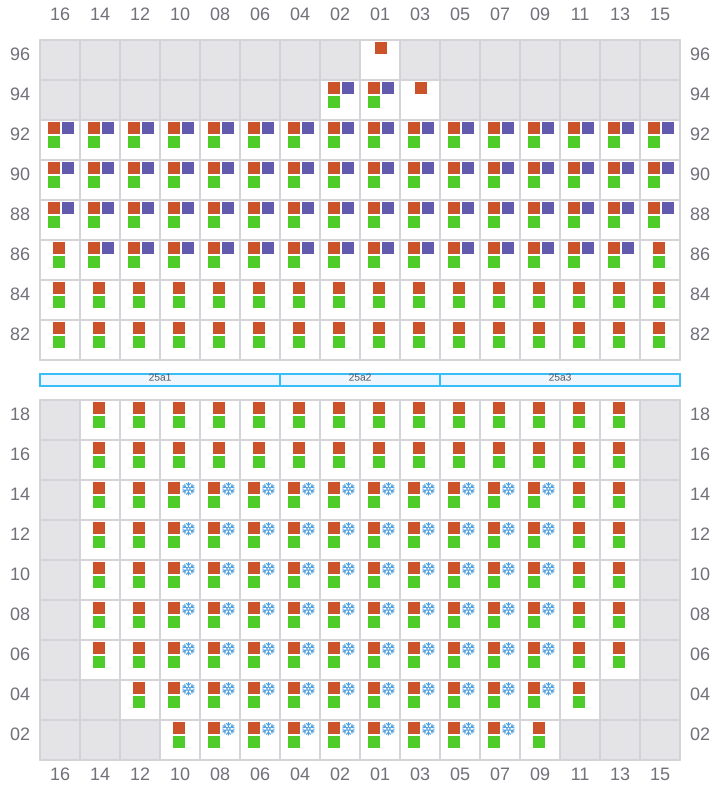

Bay 025 view and slots of MAERSK DENVER

027

←
^→ / _←

Bay 027 view and slots of MAERSK DENVER

029 (030)

→

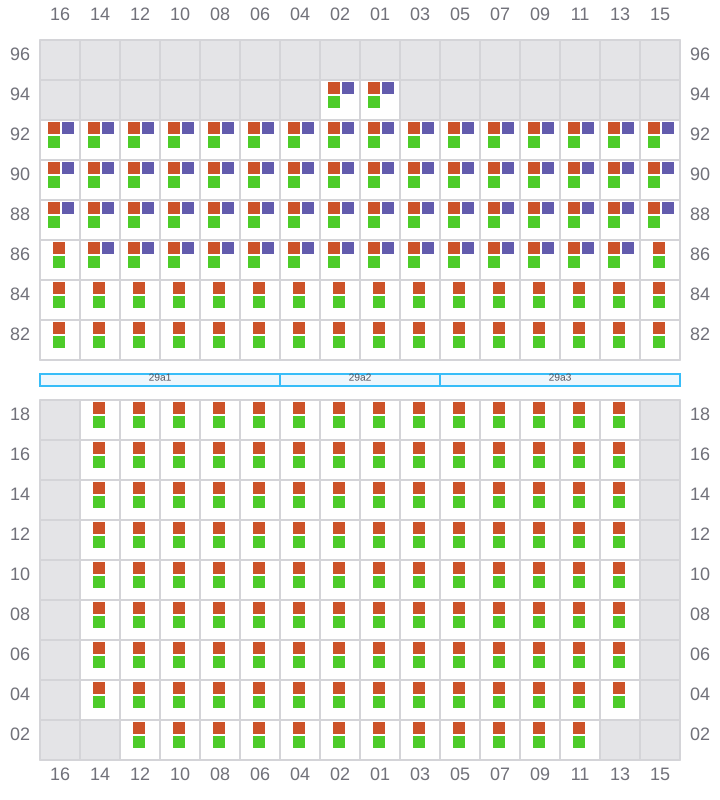

Bay 029 view and slots of MAERSK DENVER

031

←
^→ / _?

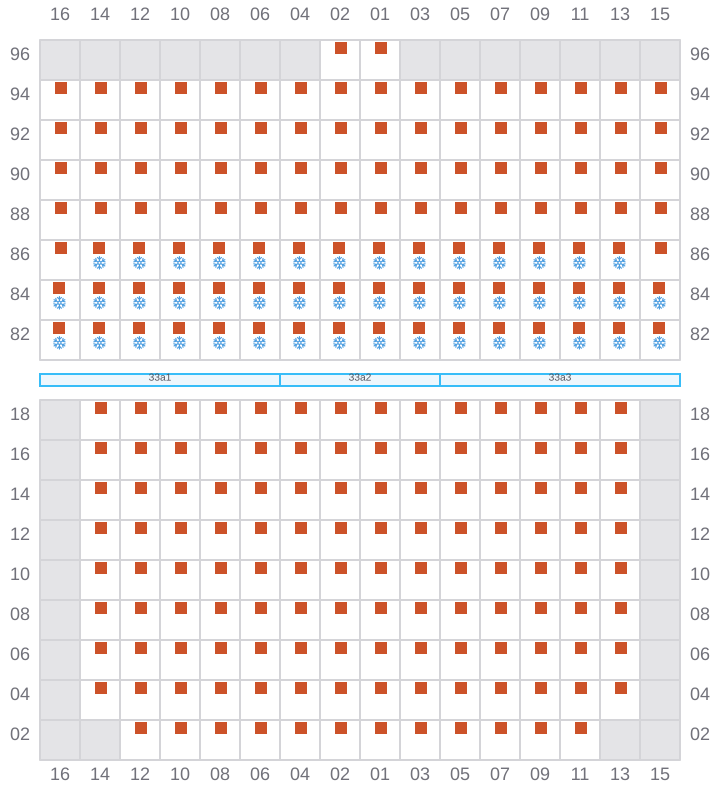

Bay 031 view and slots of MAERSK DENVER

033 (034)

→
^? / _←

Bay 033 view and slots of MAERSK DENVER

035

←
^→ / _←

Bay 035 view and slots of MAERSK DENVER

037 (038)

→
^? / _←

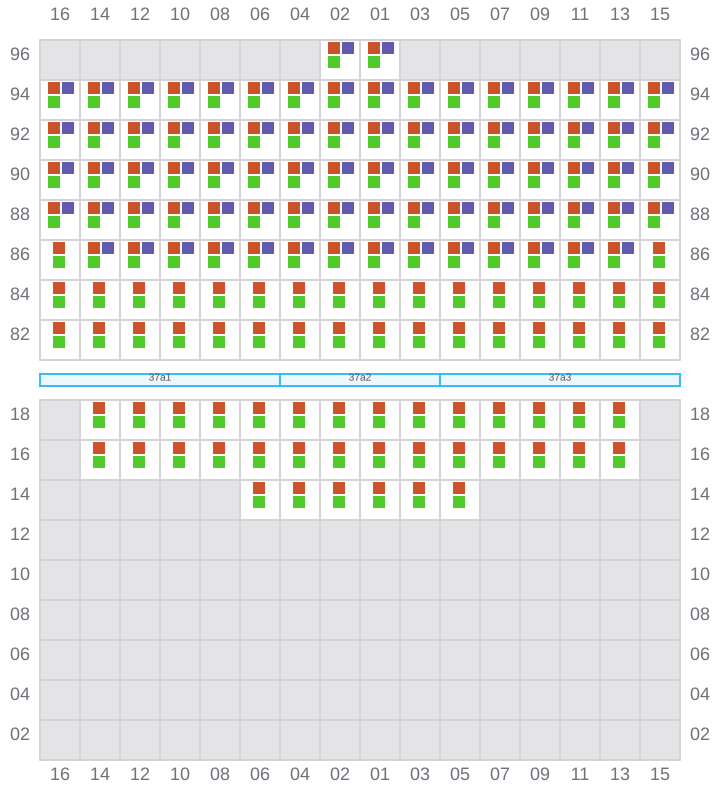

Bay 037 view and slots of MAERSK DENVER

039

←
^→ / _←

Bay 039 view and slots of MAERSK DENVER

041 (042)

→
^? / _←

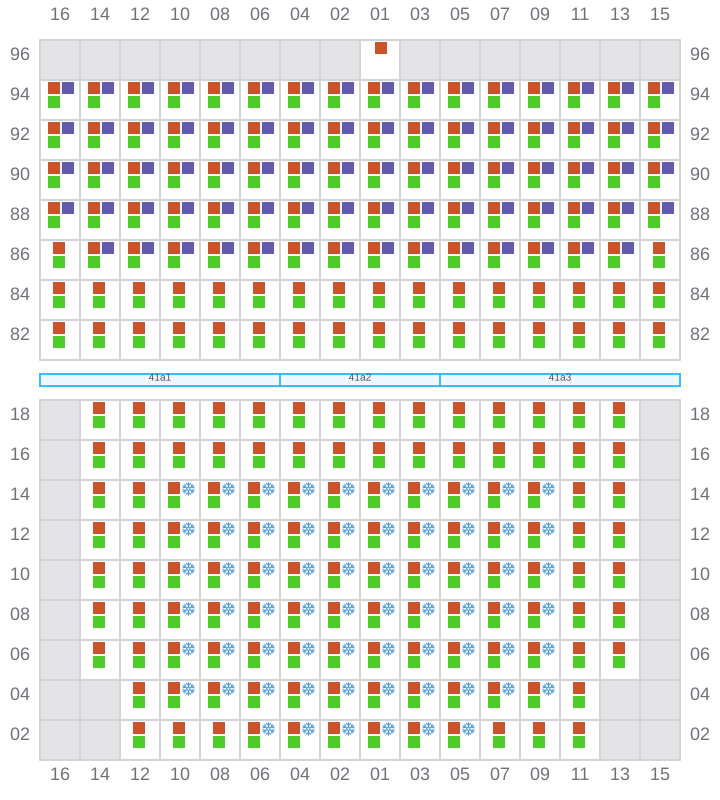

Bay 041 view and slots of MAERSK DENVER

043

←
^→ / _←

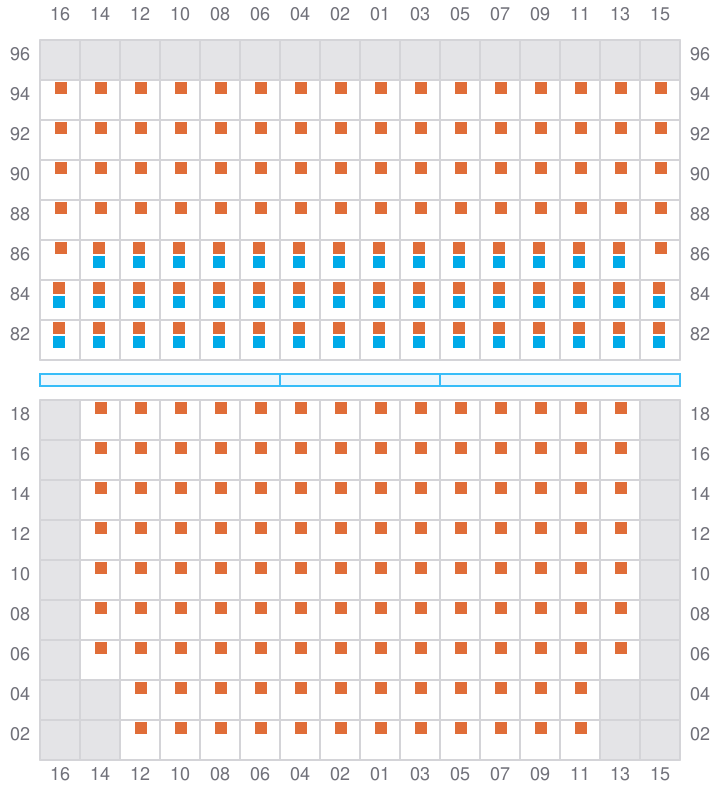

Bay 043 view and slots of MAERSK DENVER

045 (046)

→
^? / _←

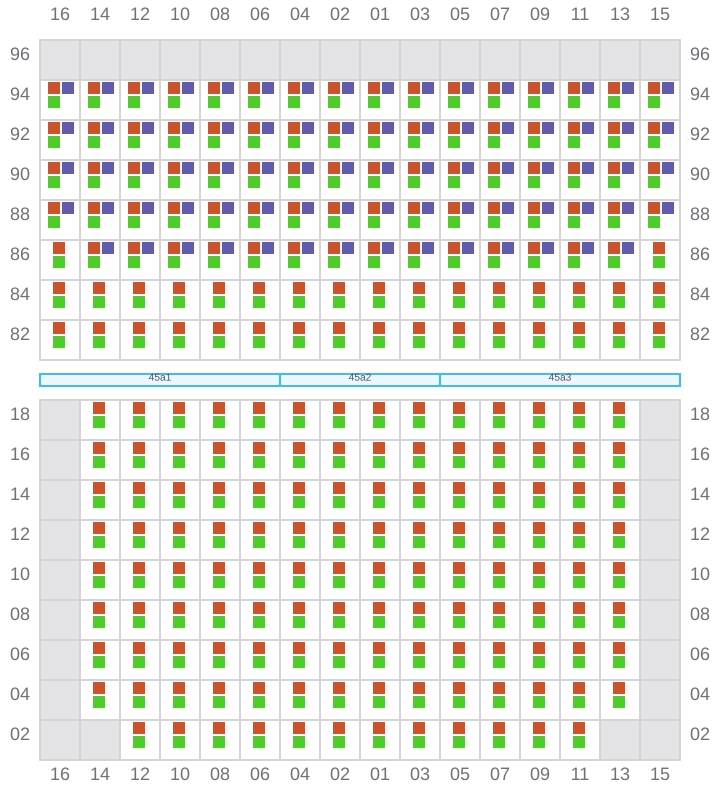

Bay 045 view and slots of MAERSK DENVER

047

←
^→ / _←

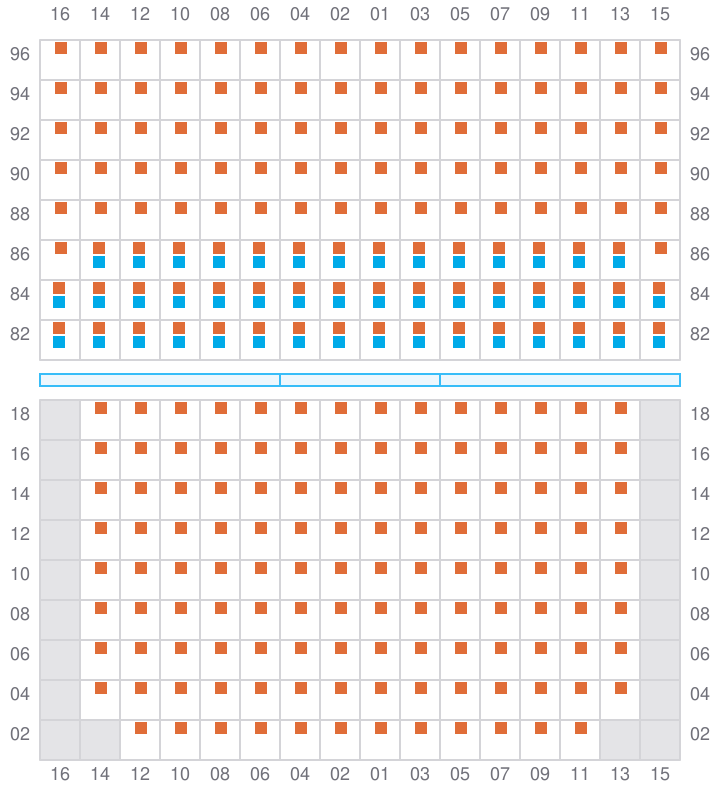

Bay 047 view and slots of MAERSK DENVER

049 (050)

→
^? / _←

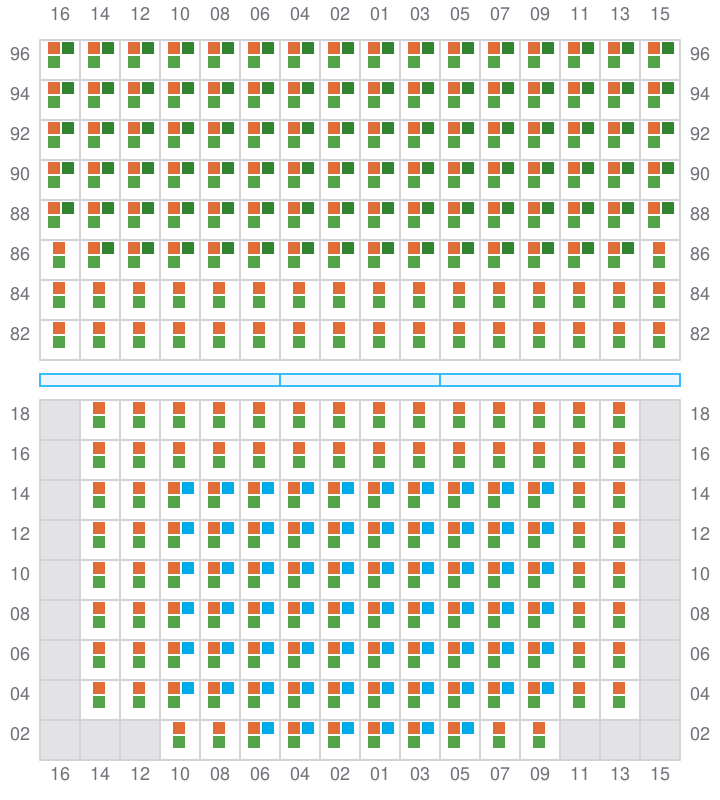

Bay 049 view and slots of MAERSK DENVER

051

←
^→ / _←

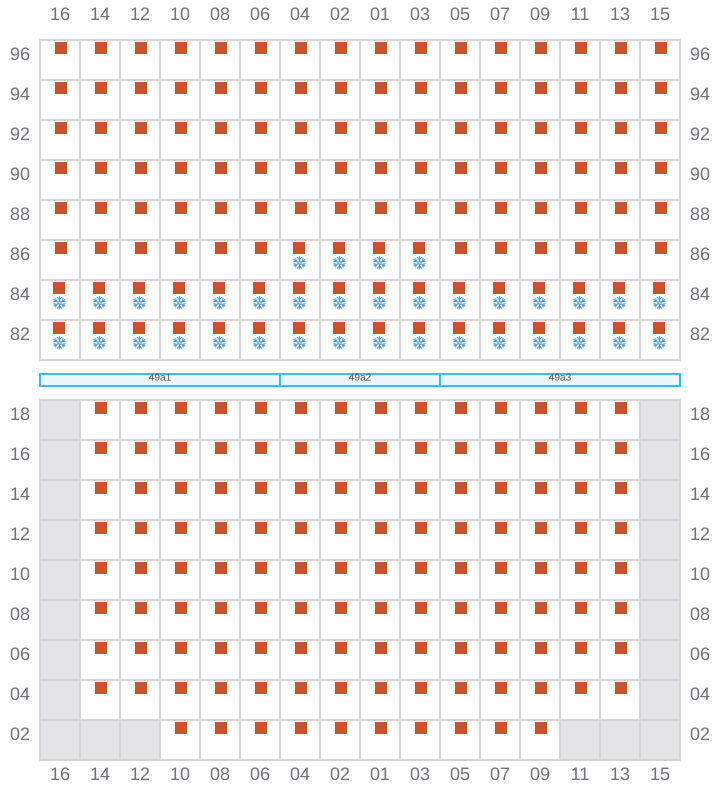

Bay 051 view and slots of MAERSK DENVER

053 (054)

→
←

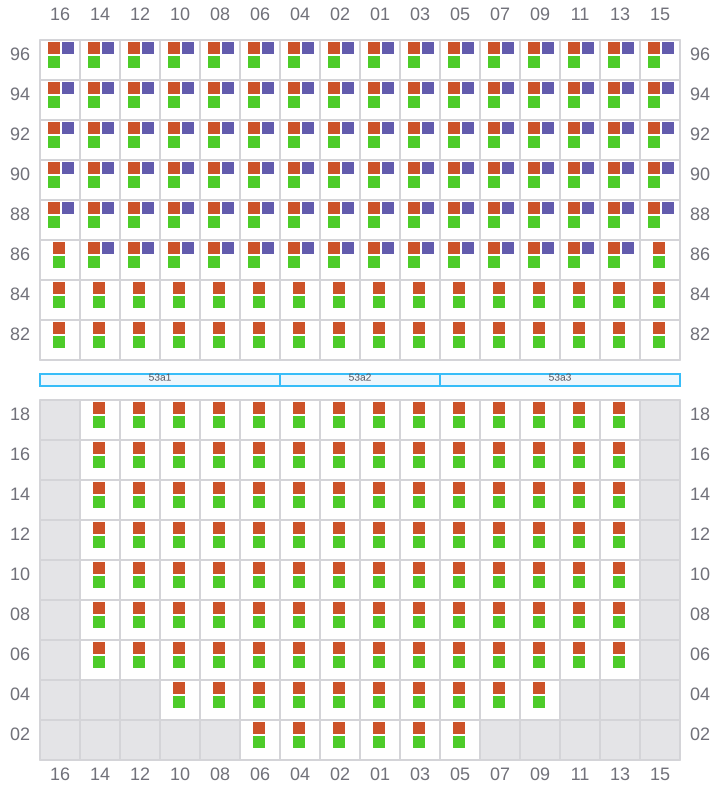

Bay 053 view and slots of MAERSK DENVER

055

←
←

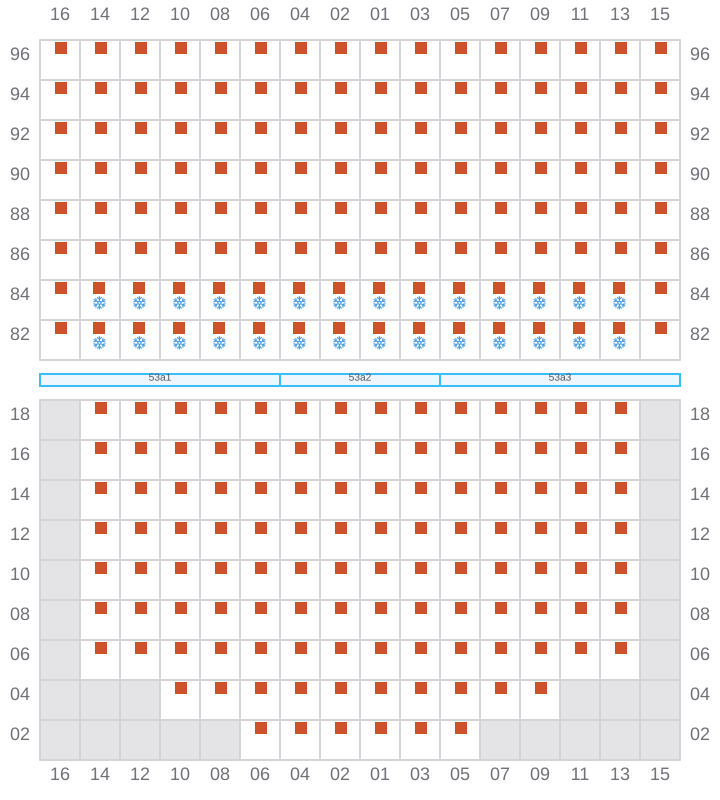

Bay 055 view and slots of MAERSK DENVER

057 (058)

^→ / _?

Bay 057 view and slots of MAERSK DENVER

059

^← / _?

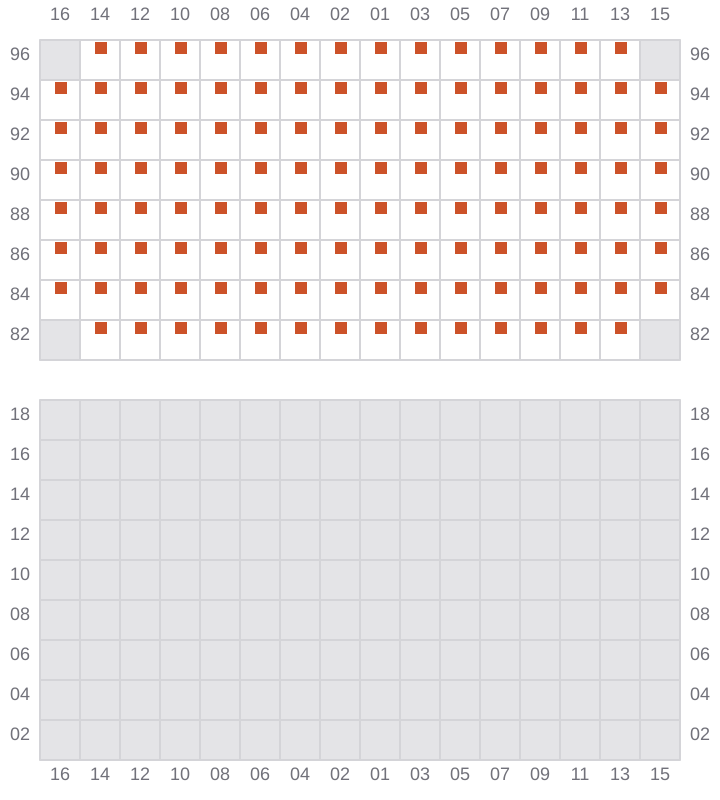

Bay 059 view and slots of MAERSK DENVER

061 (062)

→
^? / _←

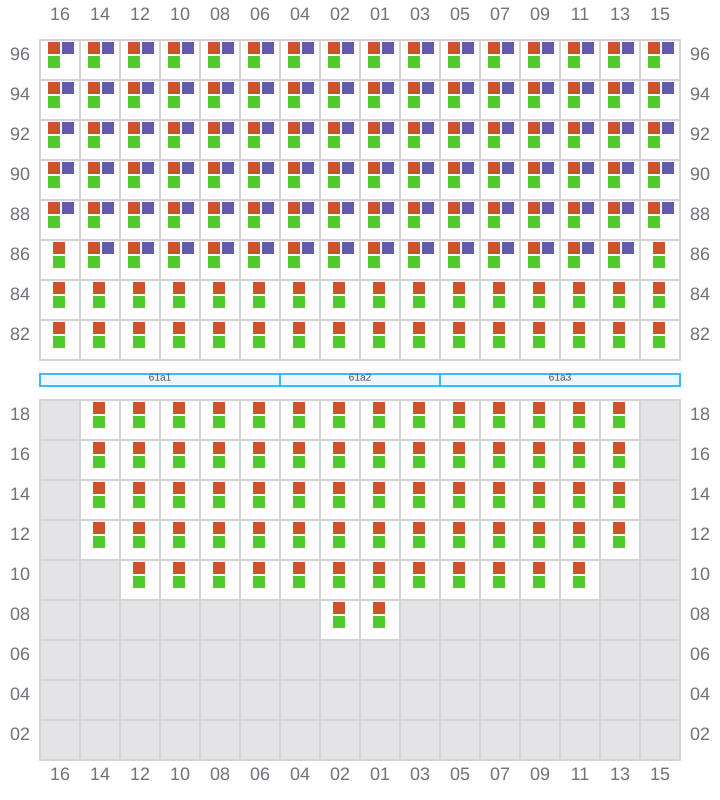

Bay 061 view and slots of MAERSK DENVER

063

←
^? / _←

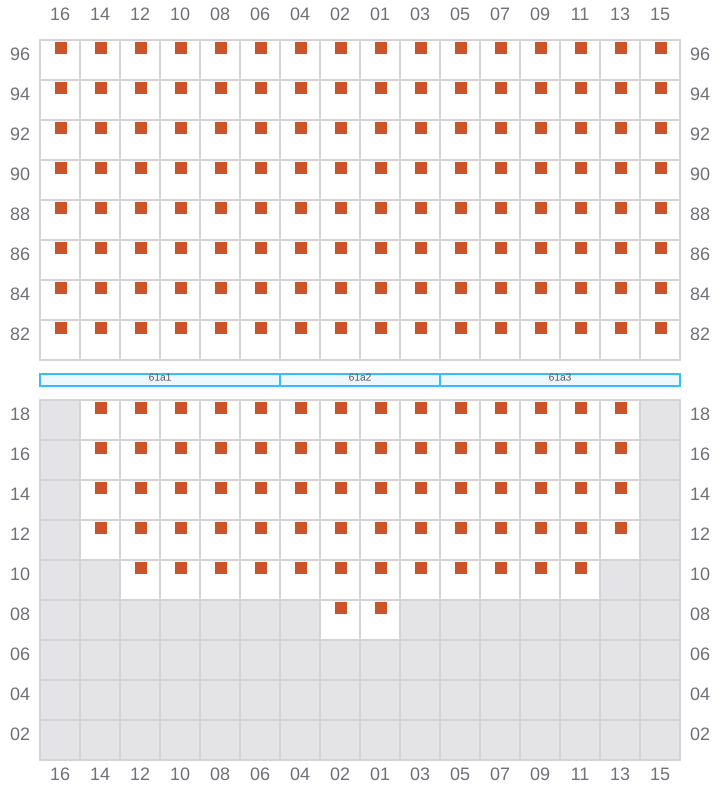

Bay 063 view and slots of MAERSK DENVER

065 (066)

→
^? / _←

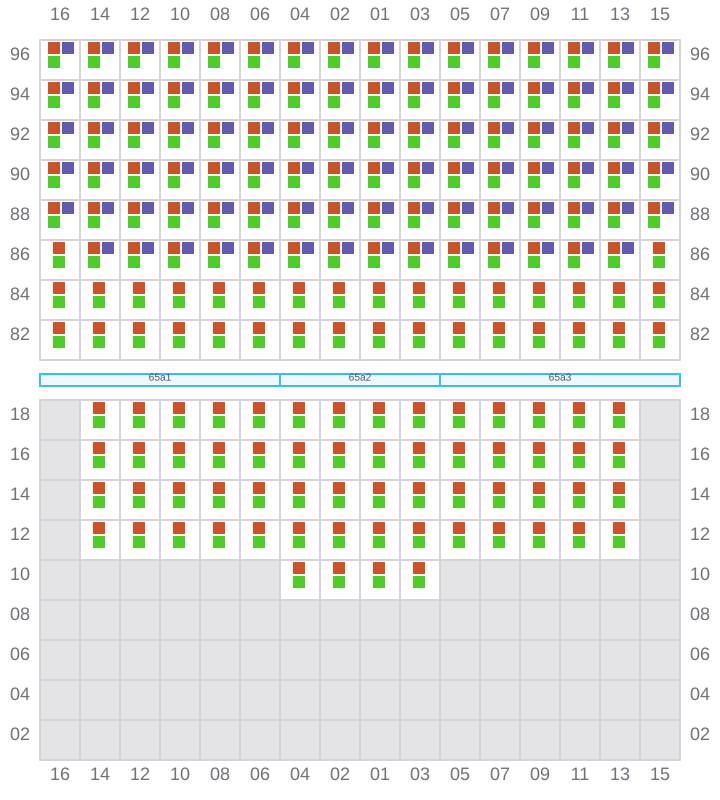

Bay 065 view and slots of MAERSK DENVER

067

←
^? / _←

Bay 067 view and slots of MAERSK DENVER

069 (070)

^→ / _?

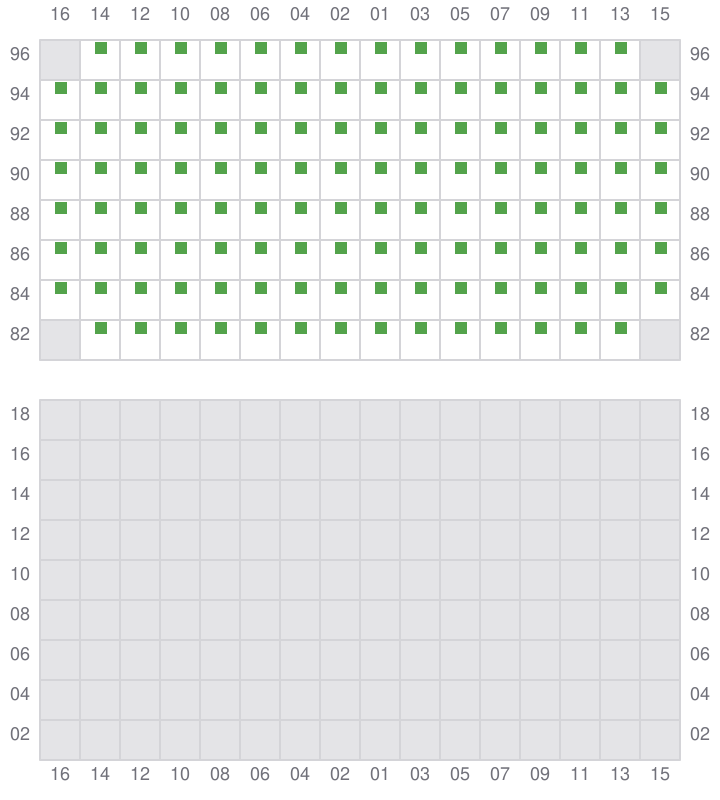

Bay 069 view and slots of MAERSK DENVER
