MAERSK DURBAN
9299044 | KSKM | 9299044 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:MAERSK DURBAN
IMO Code:9299044
Call Sign:KSKM
Line Operator:9299044
Class Name for Sister Ships:09E
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,484
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

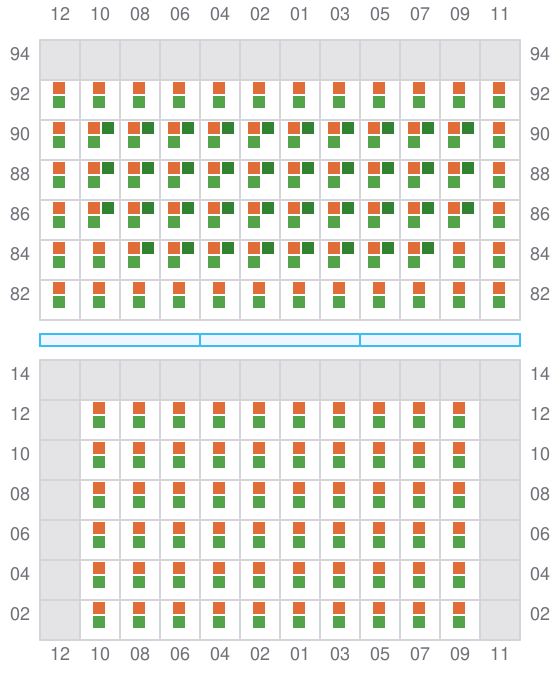

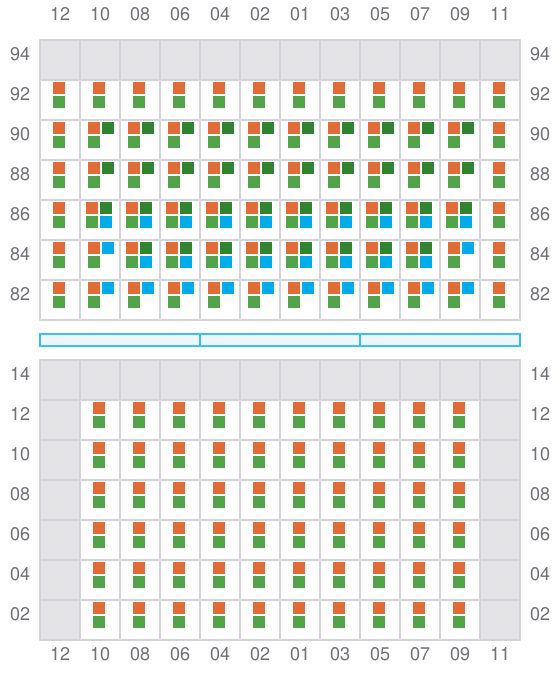

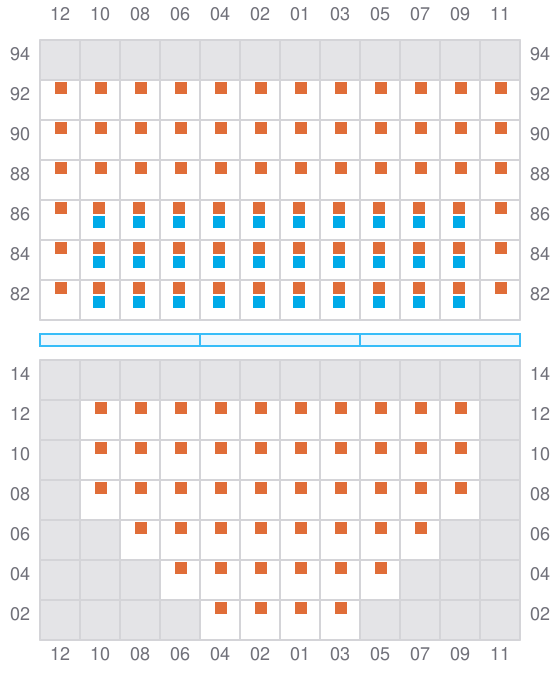

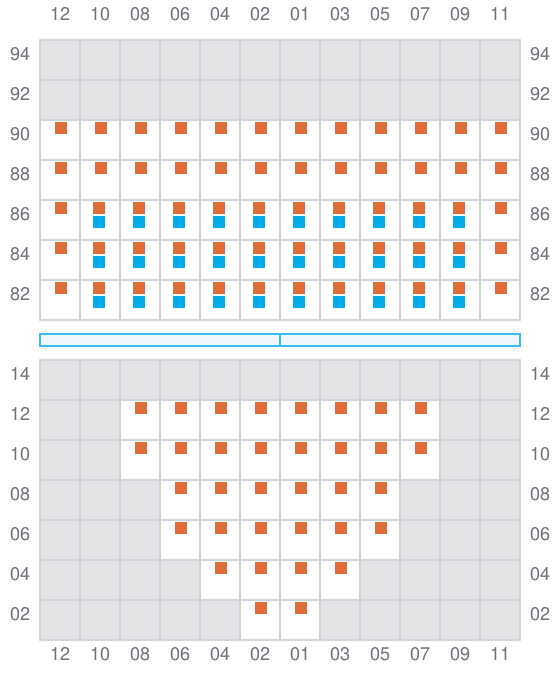

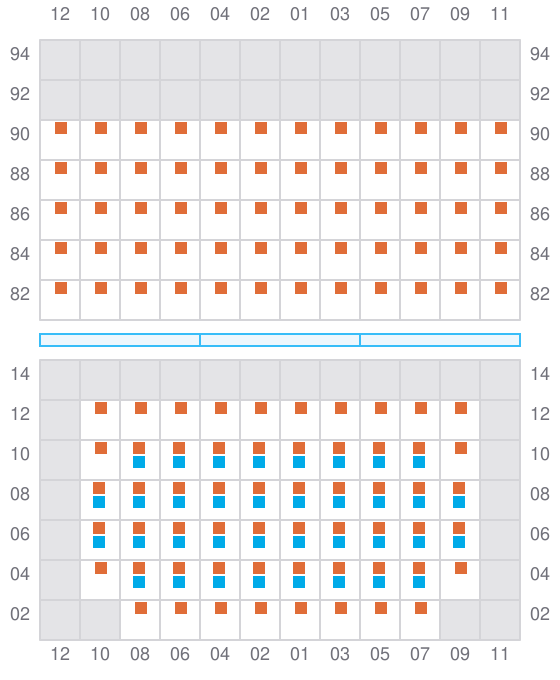

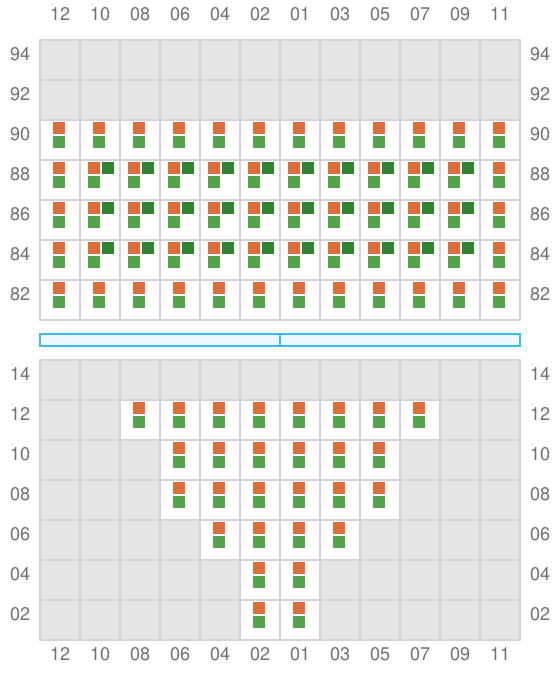

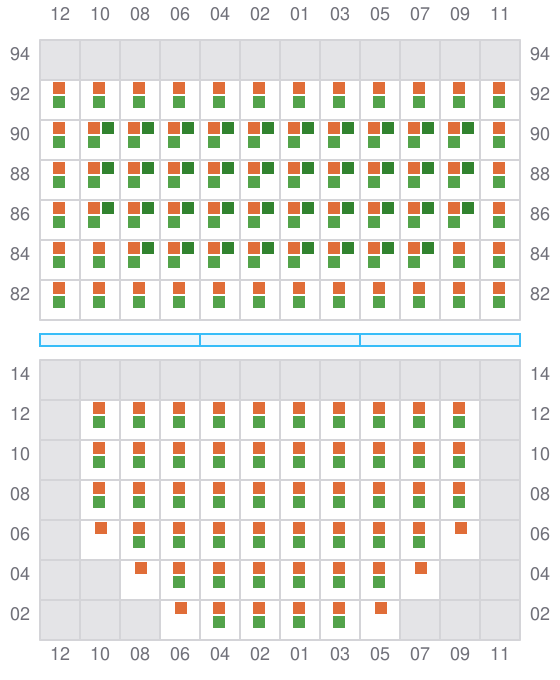

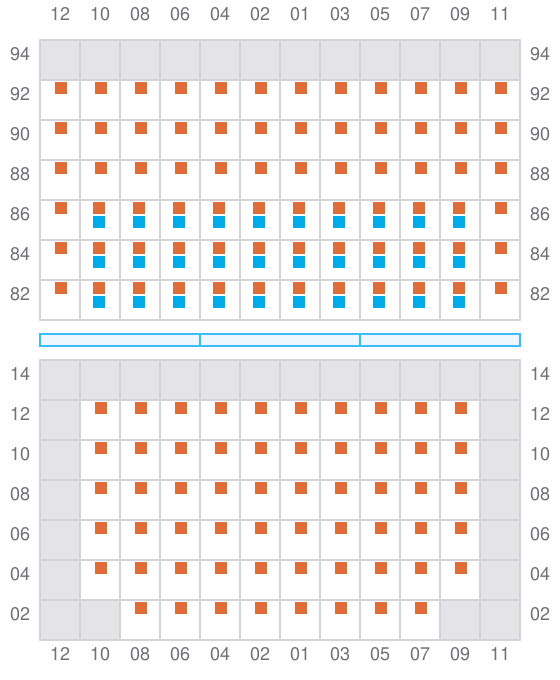

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

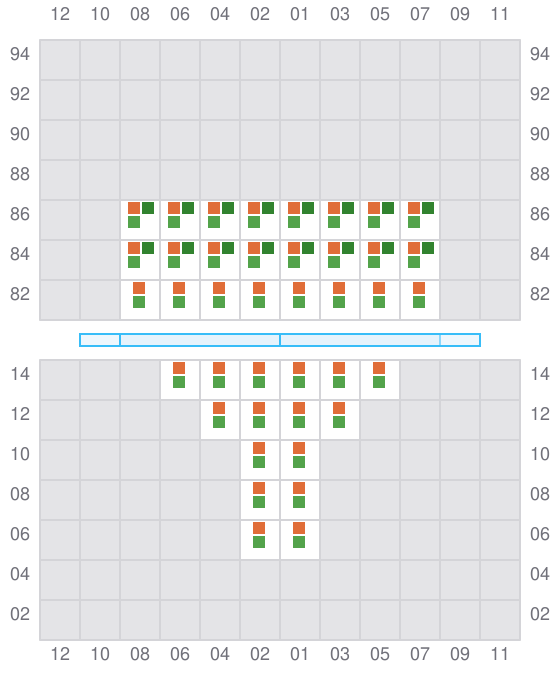

001 (002)
- →

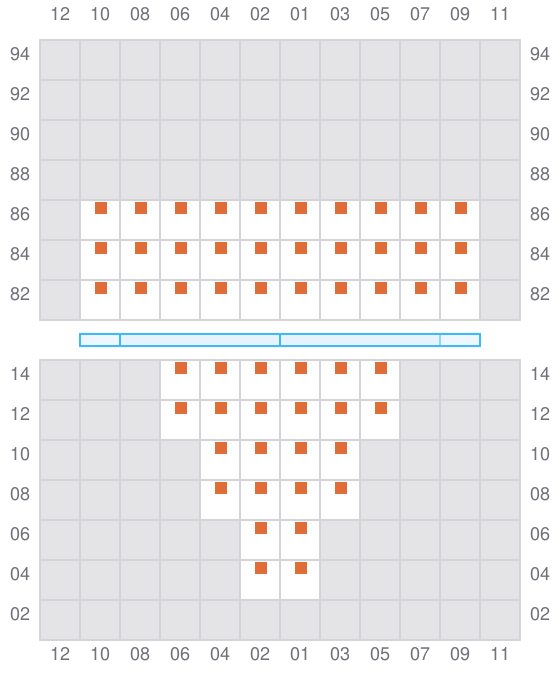

003
- ←
005 (006)
- →
007
- ←
- → / ?

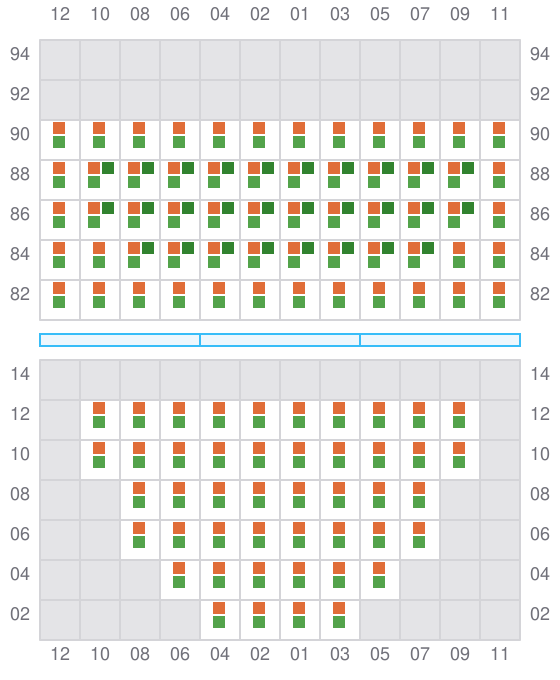

009 (010)
- →

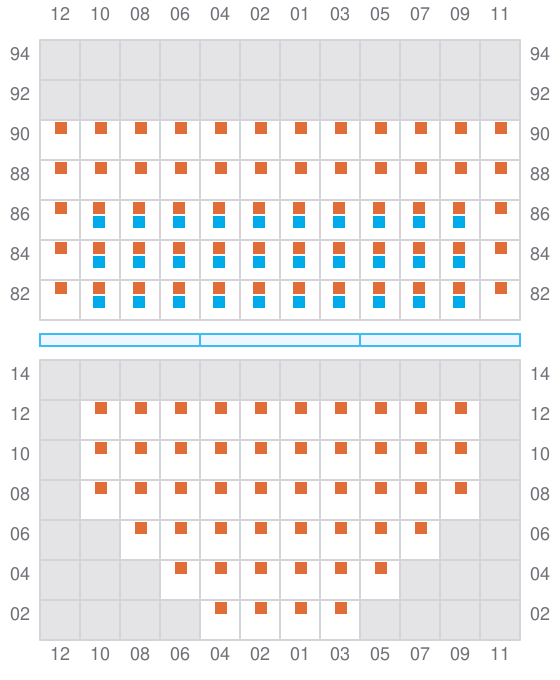

011
- ←
- → / ?

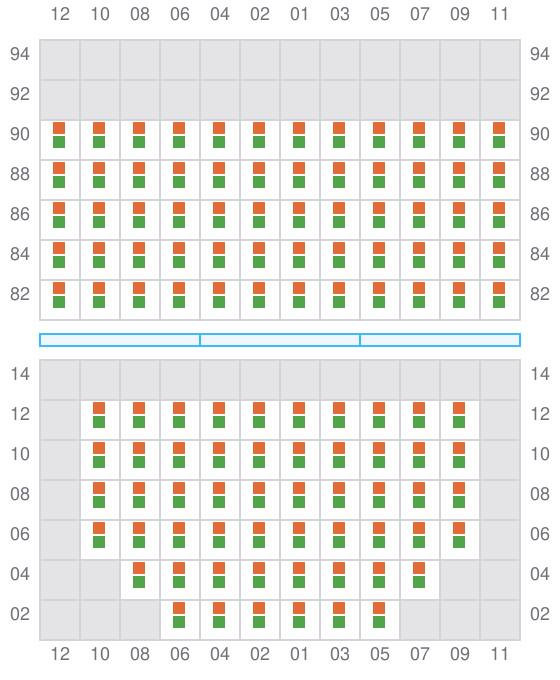

013 (014)
- →
015
- ←
- → / ?

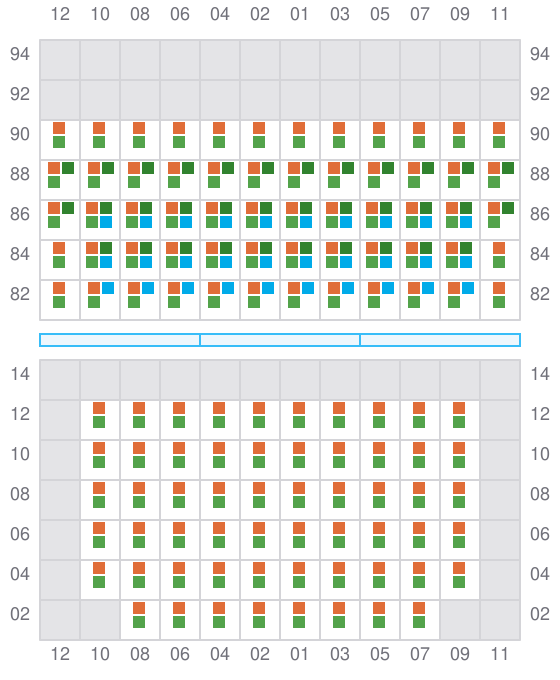

017 (018)
- →
- ← / ?
019
- ←
- ? / →
021 (022)
- →

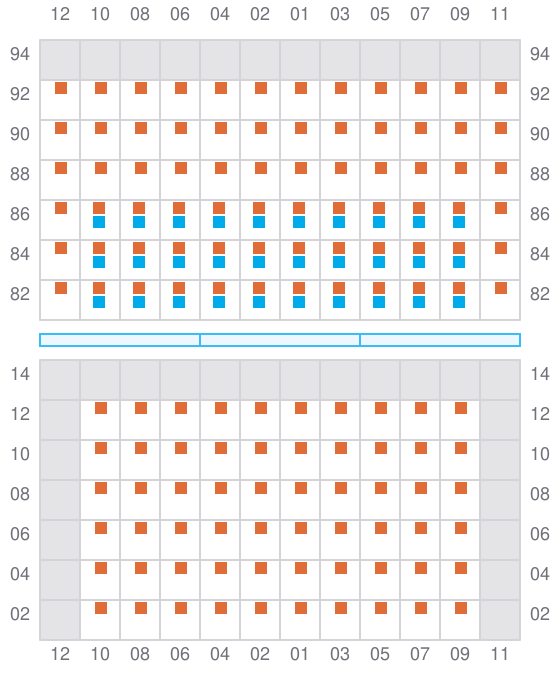

023
- ←
- → / ?
025 (026)
- →
- ← / ?

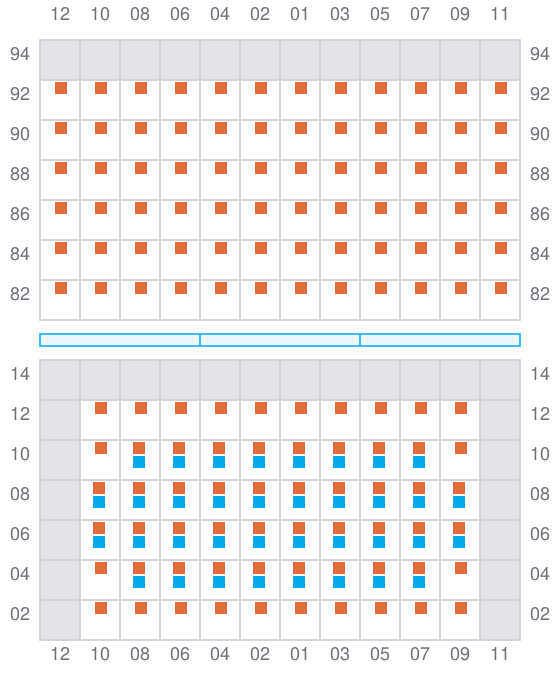

027
- ←
- ? / →

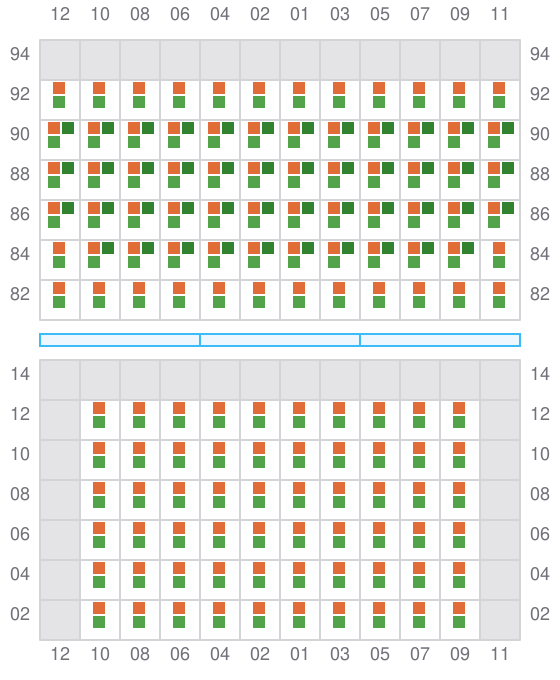

029 (030)
- →

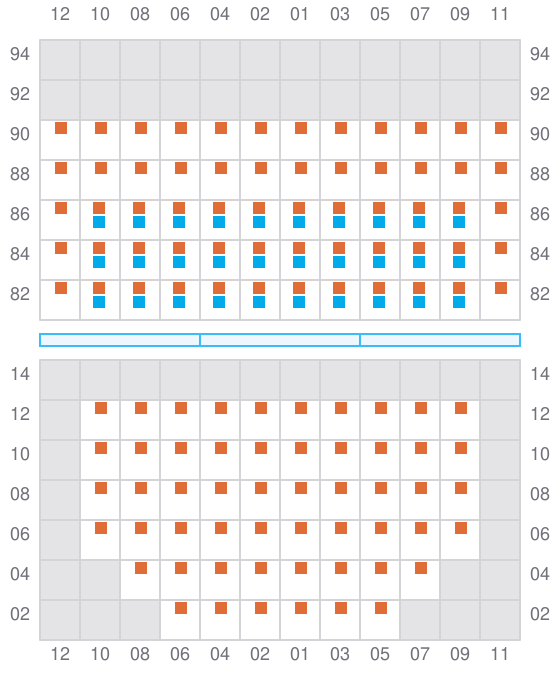

031
- ←
- → / ?

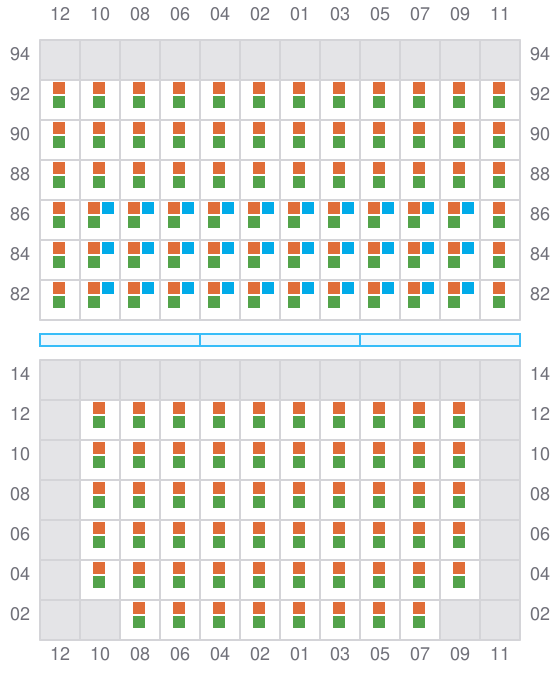

033 (034)
- →
- ← / ?

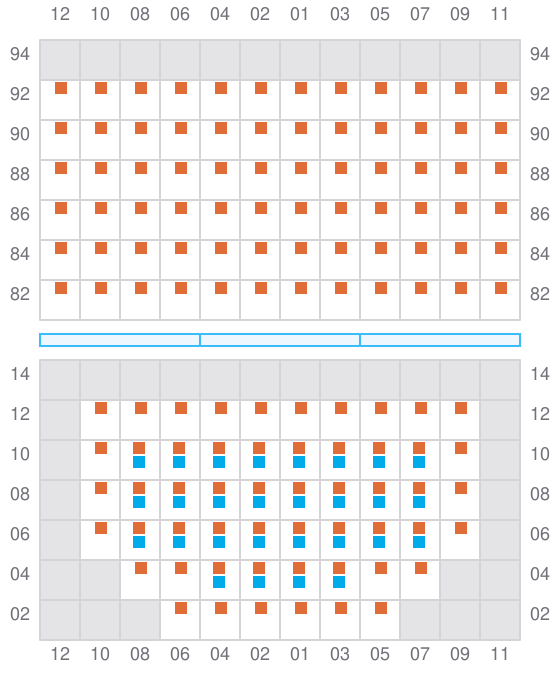

035
- ←
- ? / →
037 (038)
- →
039
- ←
- → / ?

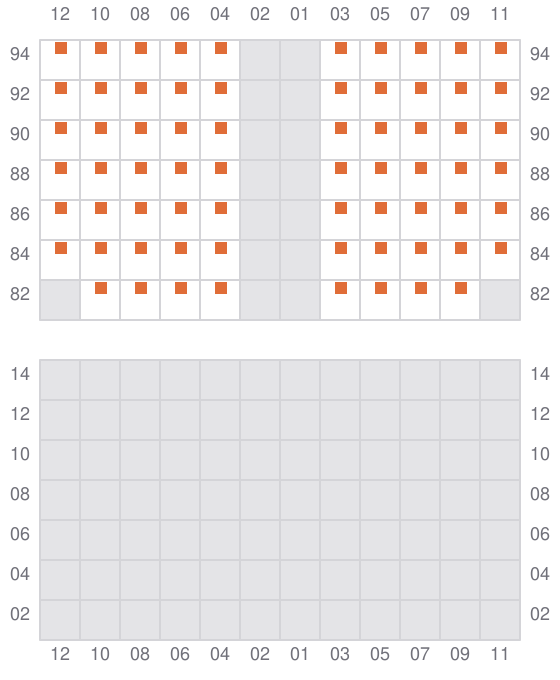

041
043 (044)
- → / ?

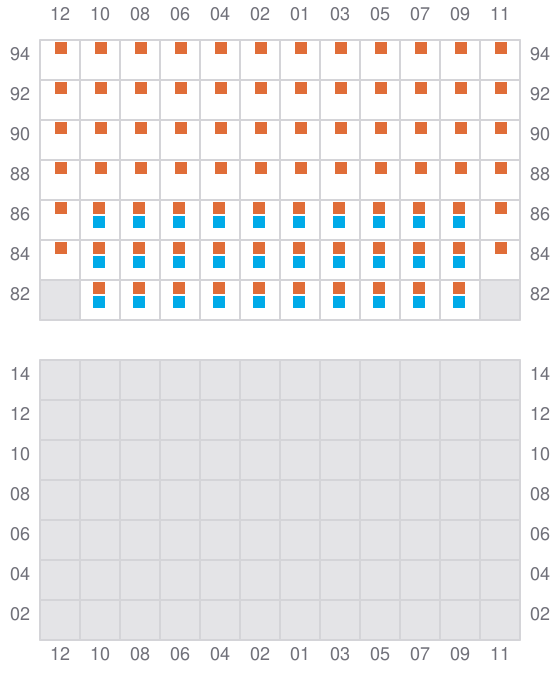

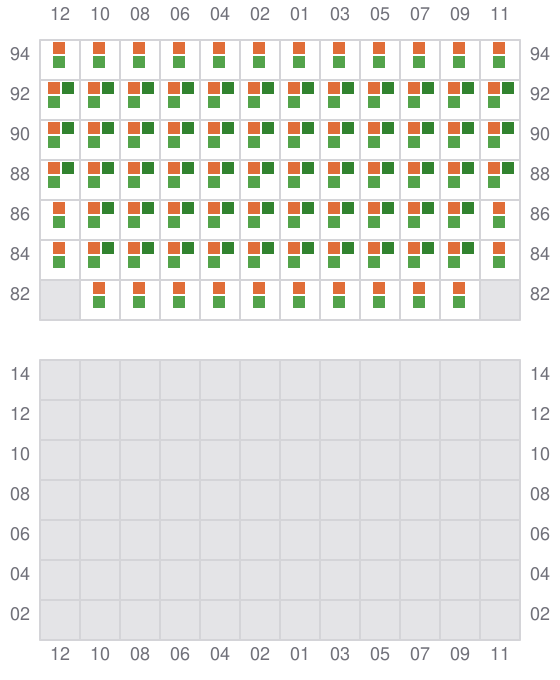

045
- ← / ?
- → / ?
