MAERSK EDINBURGH
9456757 | OXLT2 | MSK by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MAERSK EDINBURGH
IMO Code:9456757
Call Sign:OXLT2
Line Operator:MSK
Class Name for Sister Ships:EDB
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):366.46
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,554

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

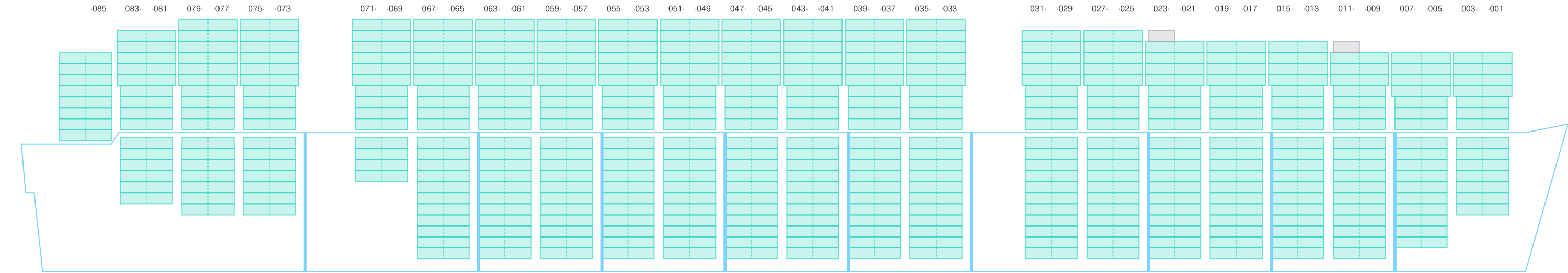

Side View

Side view of MAERSK EDINBURGH

Hatch-Covers View

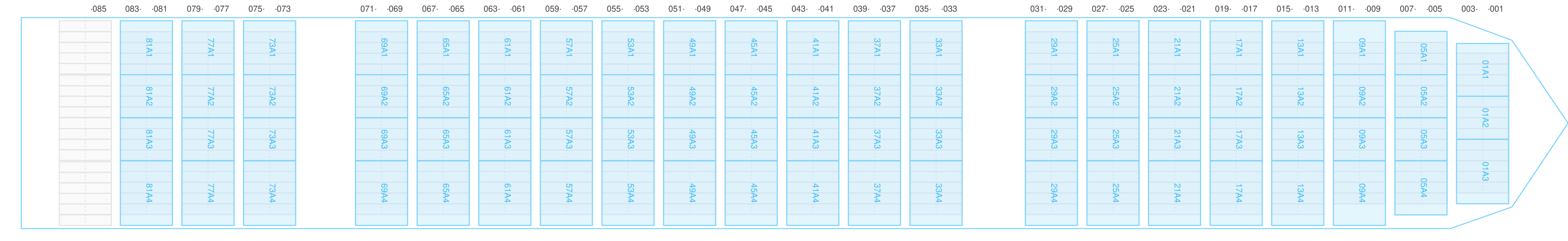

Deck view of MAERSK EDINBURGH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

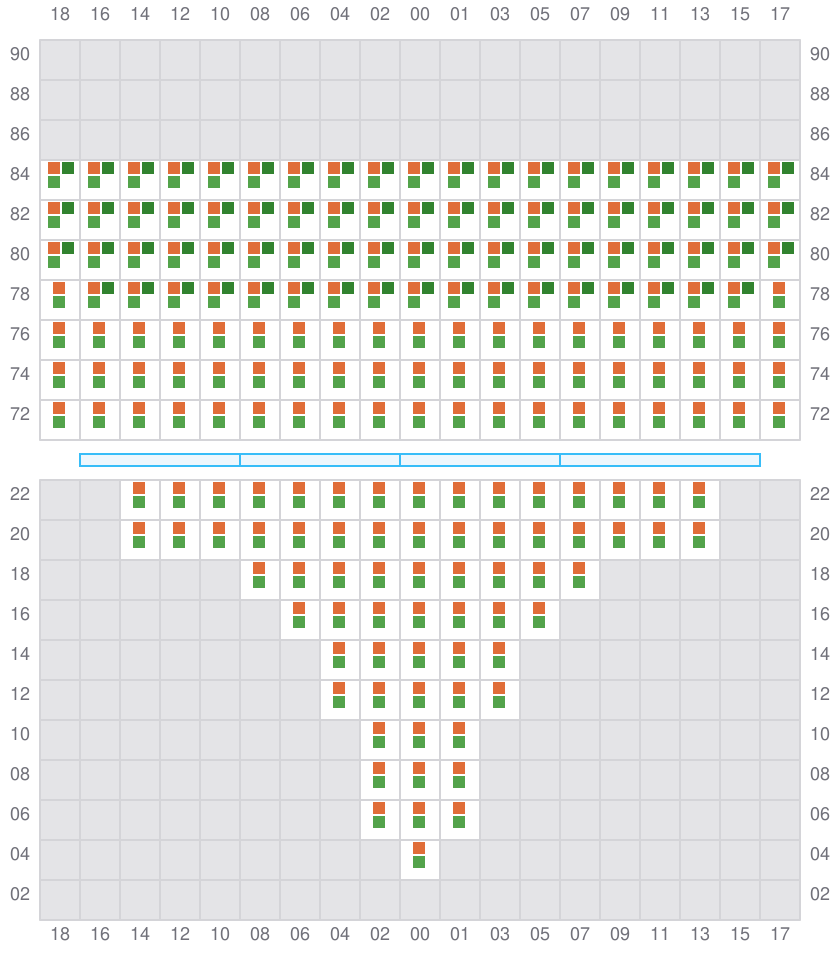

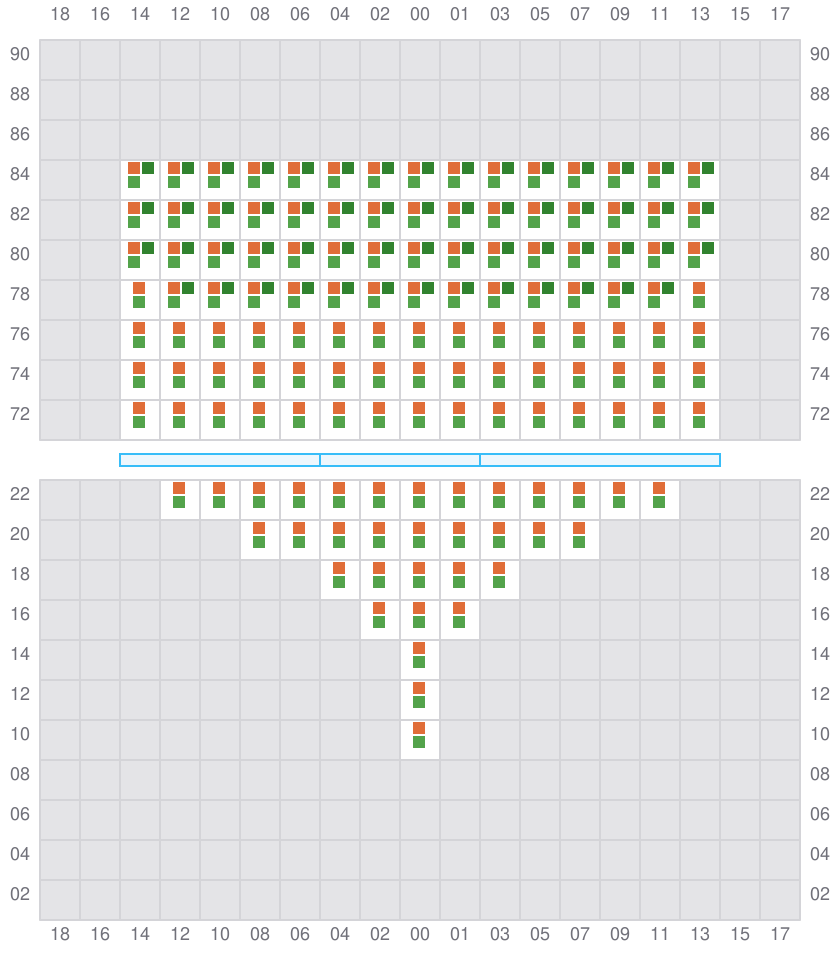

Bay 001 view and slots of MAERSK EDINBURGH

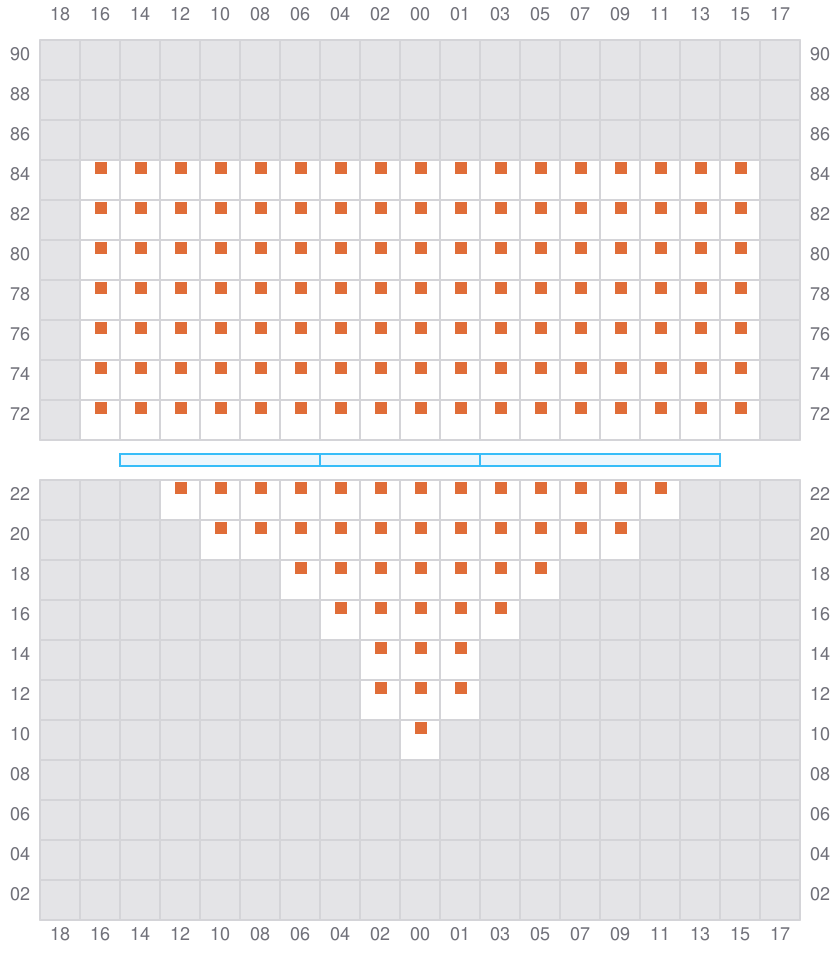

003

  • ←
Bay 003 view and slots of MAERSK EDINBURGH

005 (006)

  • →

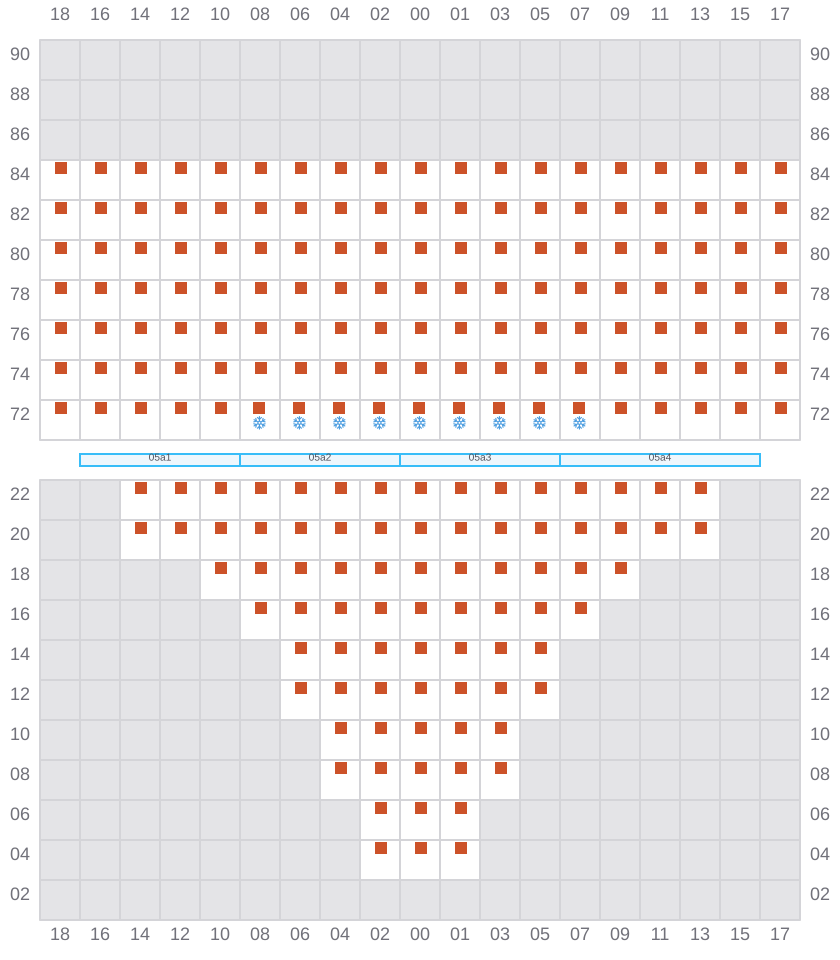

Bay 005 view and slots of MAERSK EDINBURGH

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK EDINBURGH

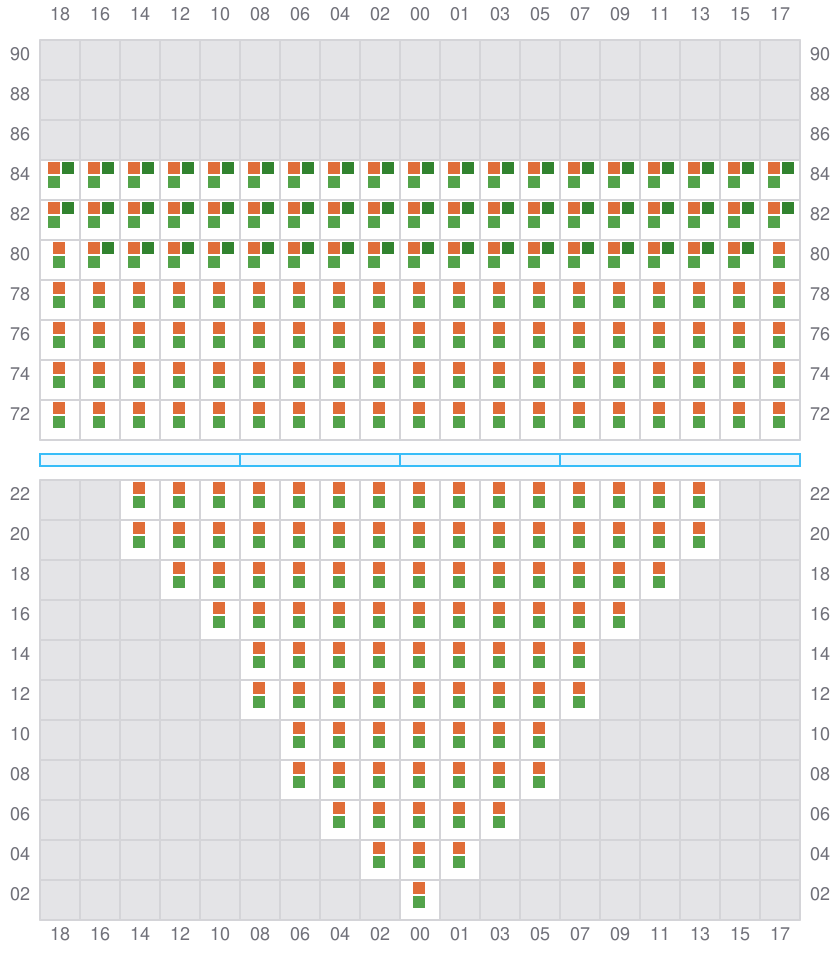

009 (010)

  • →
Bay 009 view and slots of MAERSK EDINBURGH

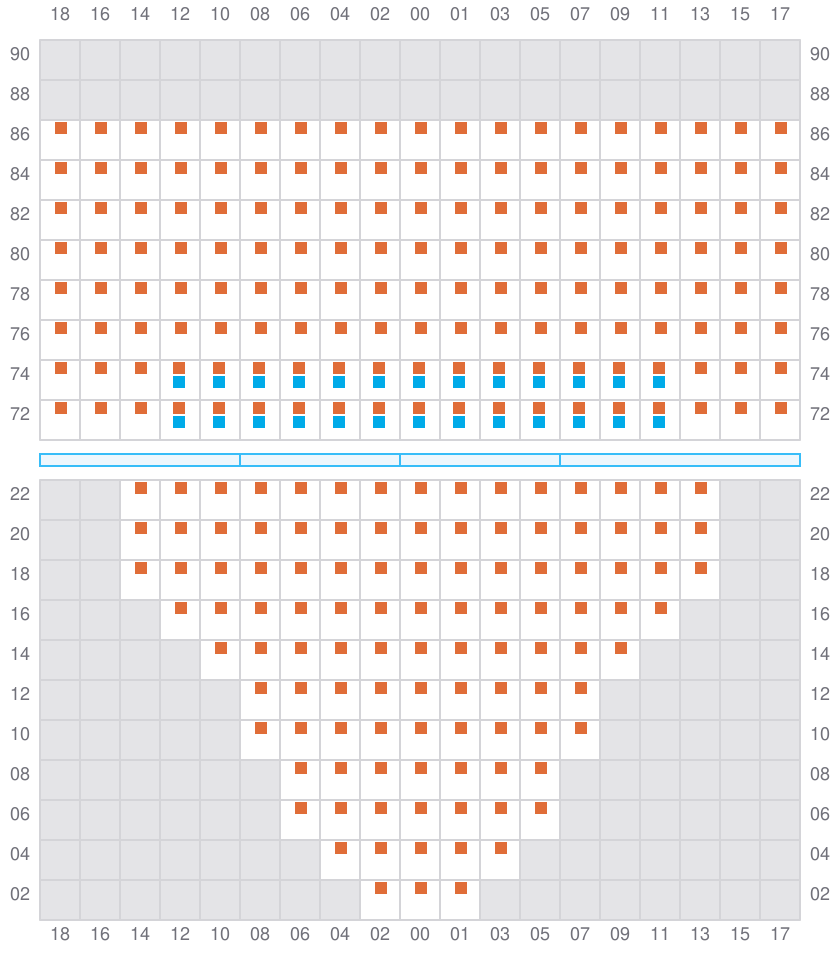

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK EDINBURGH

013 (014)

  • →

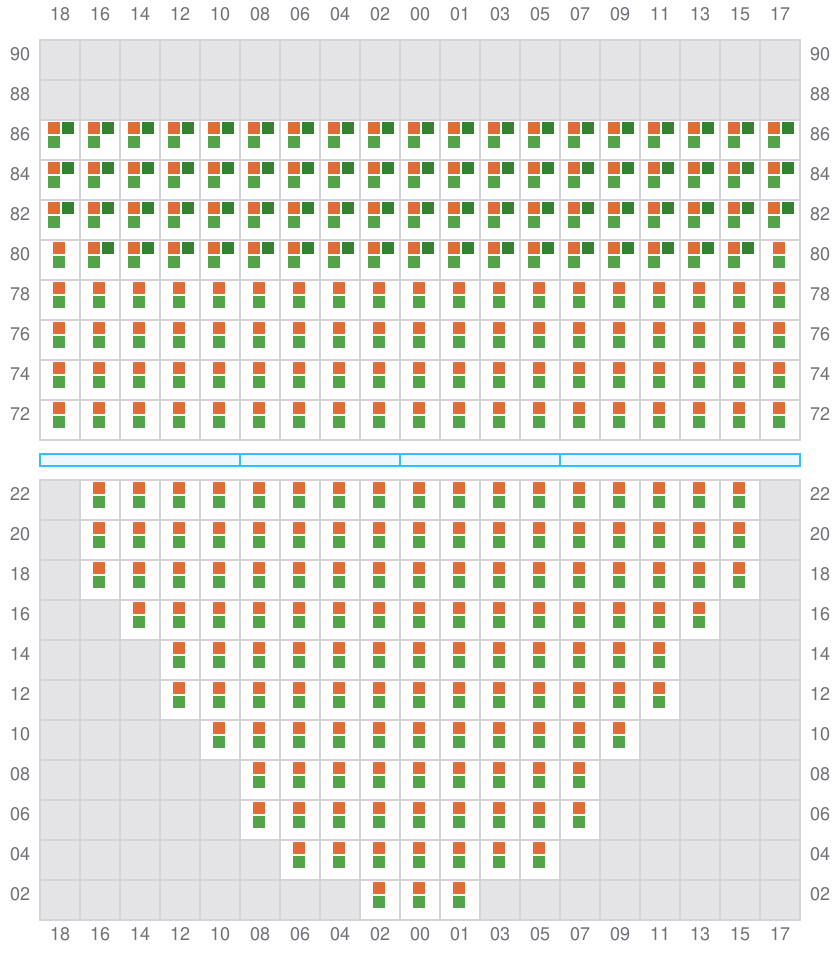

Bay 013 view and slots of MAERSK EDINBURGH

015

  • ←
  • → / ?

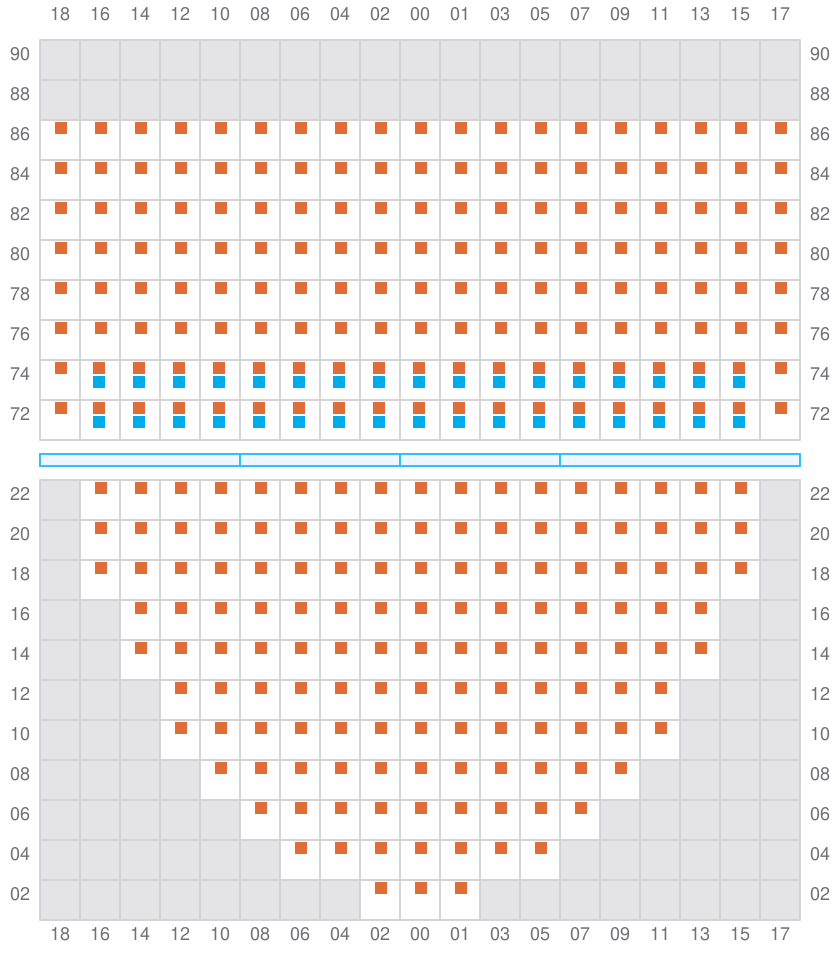

Bay 015 view and slots of MAERSK EDINBURGH

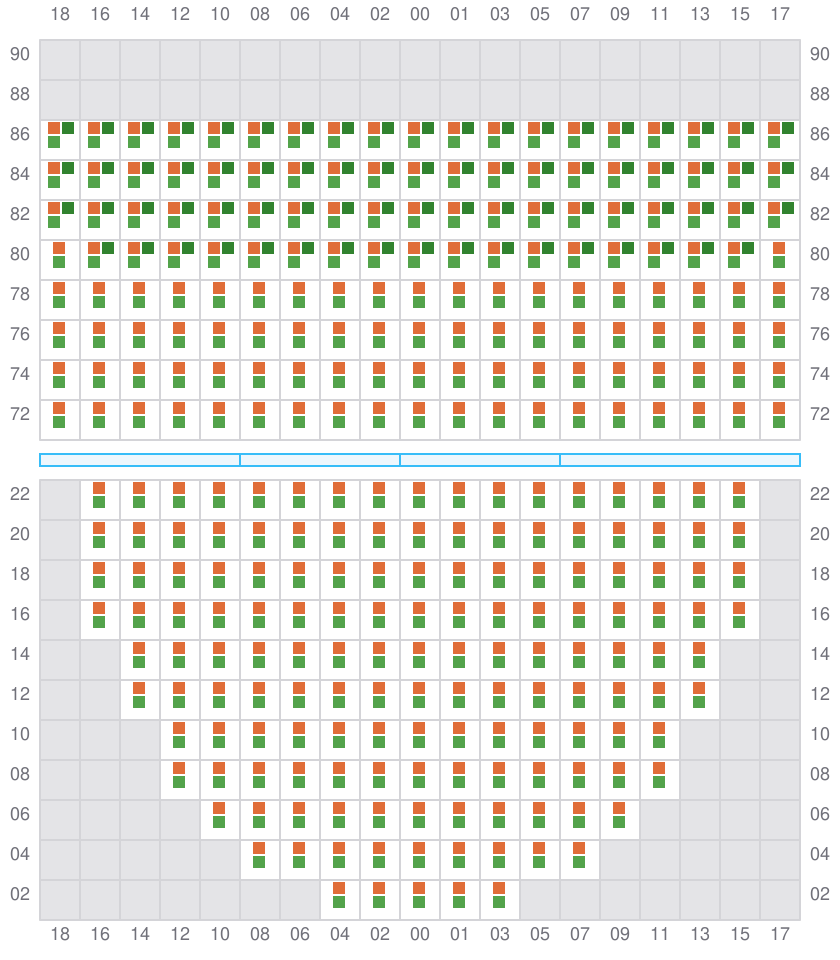

017 (018)

  • →
Bay 017 view and slots of MAERSK EDINBURGH

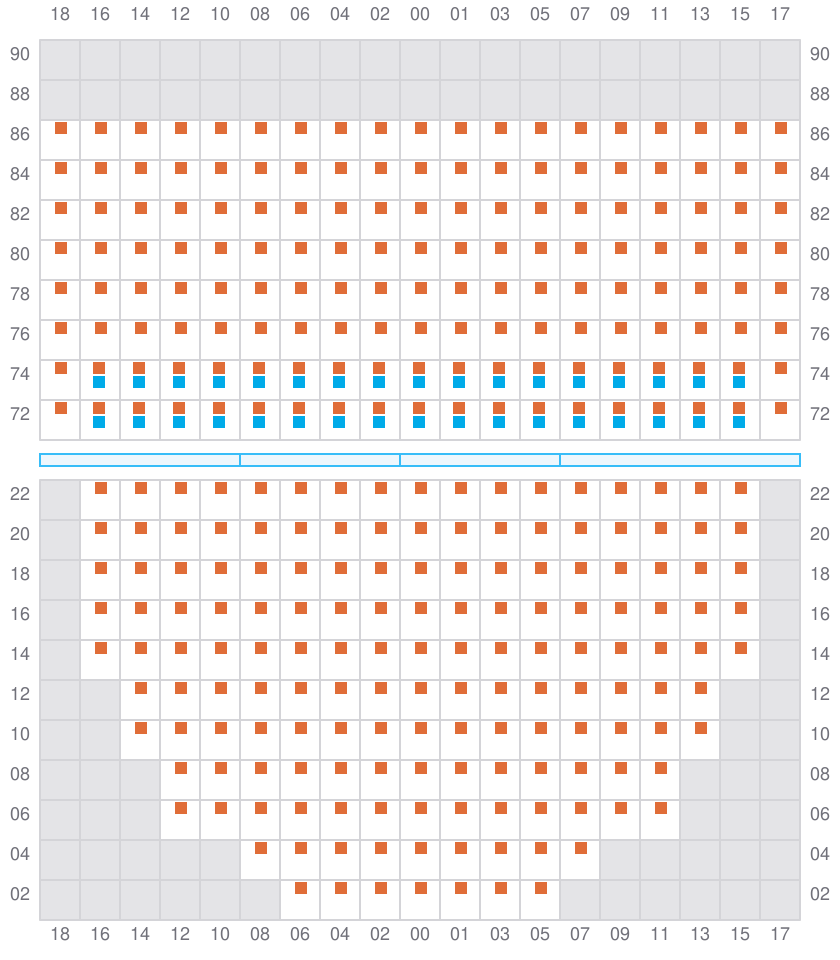

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK EDINBURGH

021 (022)

  • →

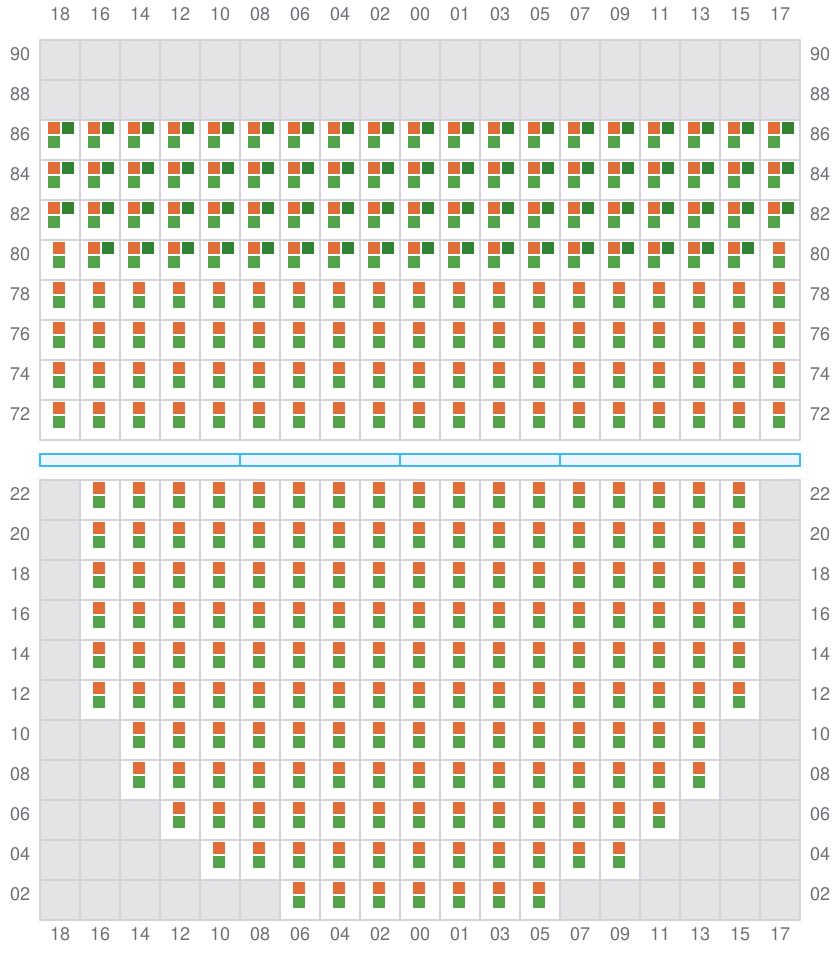

Bay 021 view and slots of MAERSK EDINBURGH

023

  • ←
  • → / ?

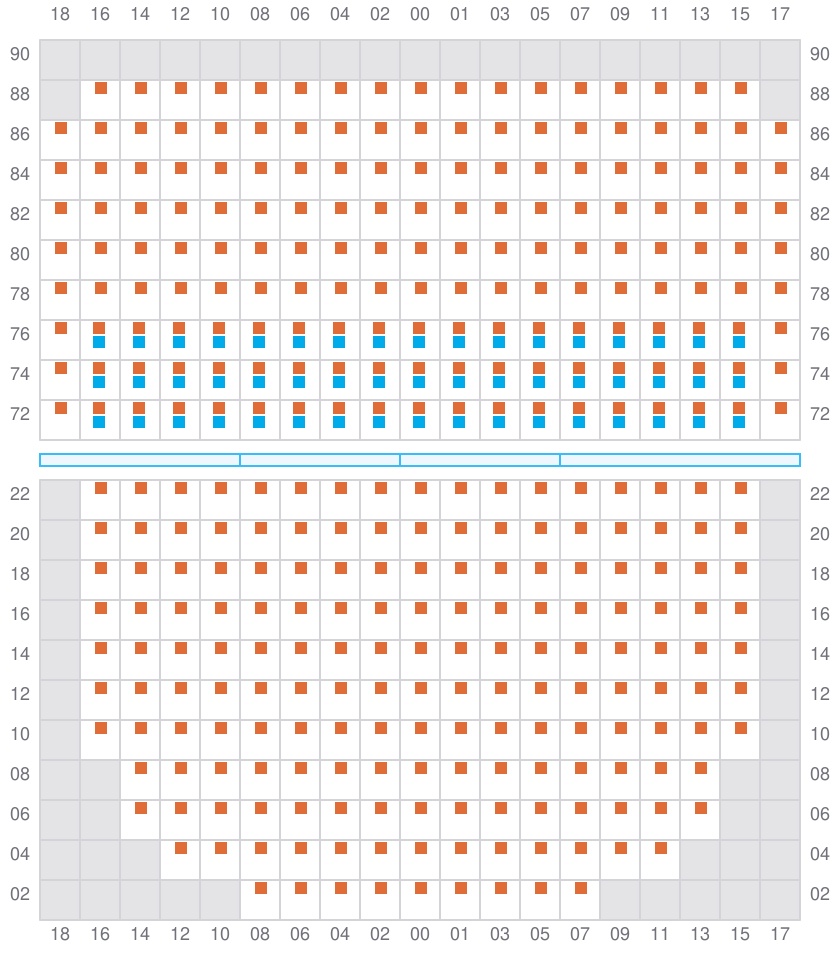

Bay 023 view and slots of MAERSK EDINBURGH

025 (026)

  • →

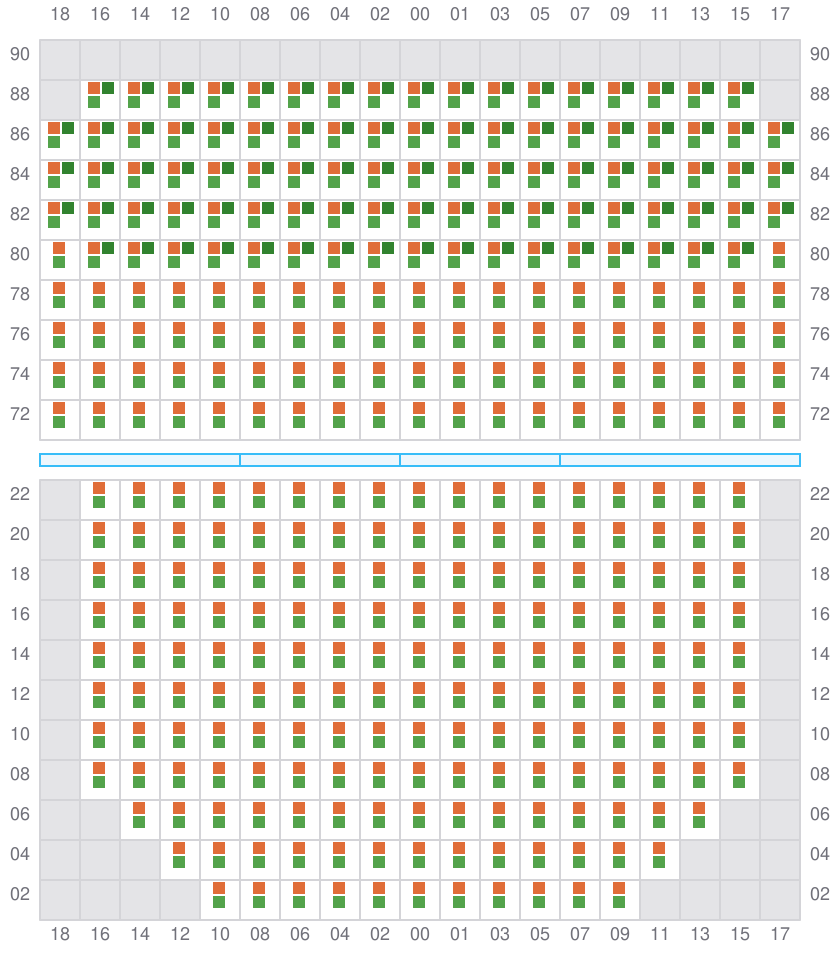

Bay 025 view and slots of MAERSK EDINBURGH

027

  • ←
  • →

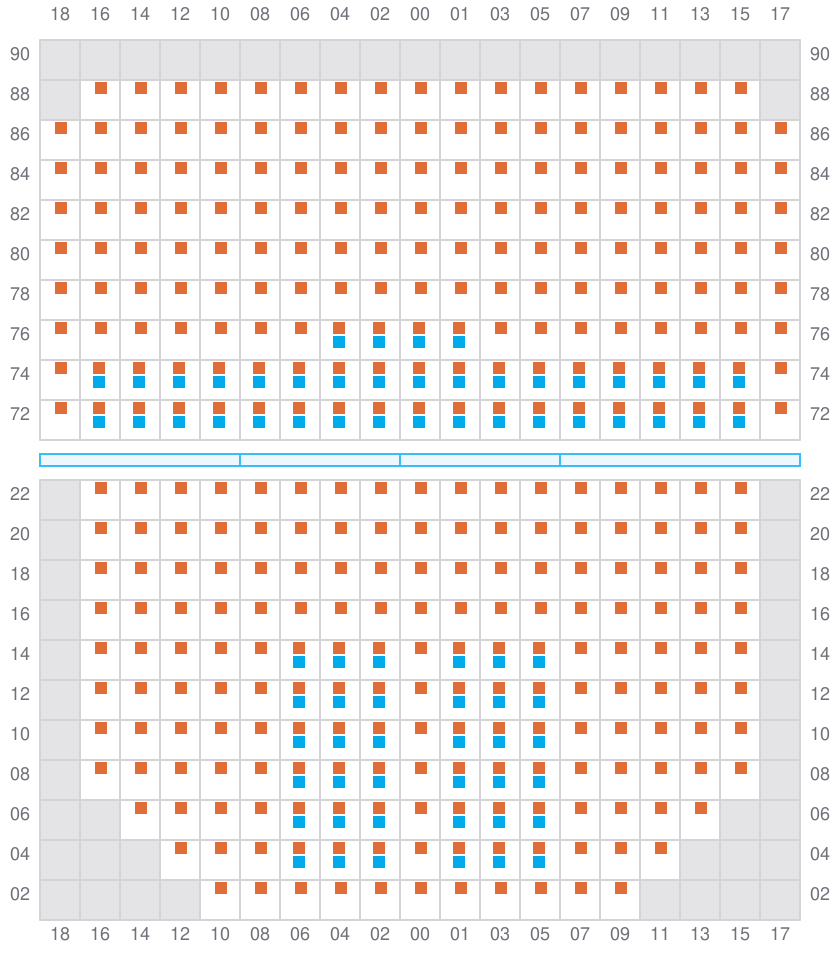

Bay 027 view and slots of MAERSK EDINBURGH

029 (030)

  • →

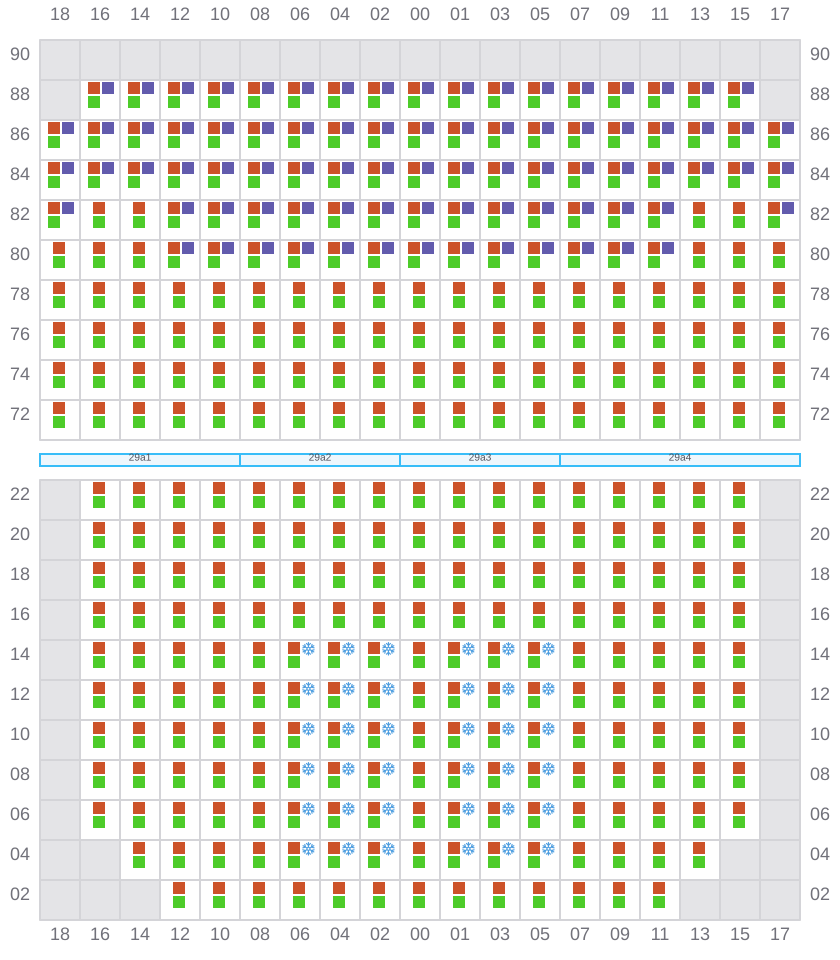

Bay 029 view and slots of MAERSK EDINBURGH

031

  • ←
  • → / ?

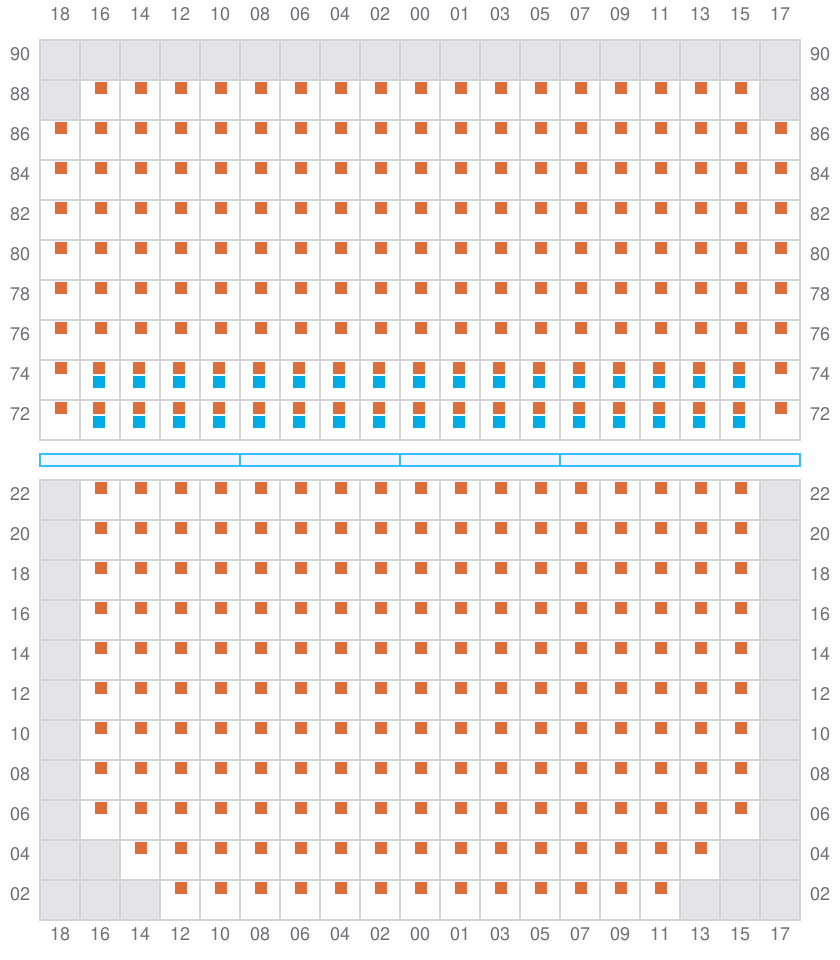

Bay 031 view and slots of MAERSK EDINBURGH

033 (034)

  • →
Bay 033 view and slots of MAERSK EDINBURGH

035

  • ←
  • → / ?

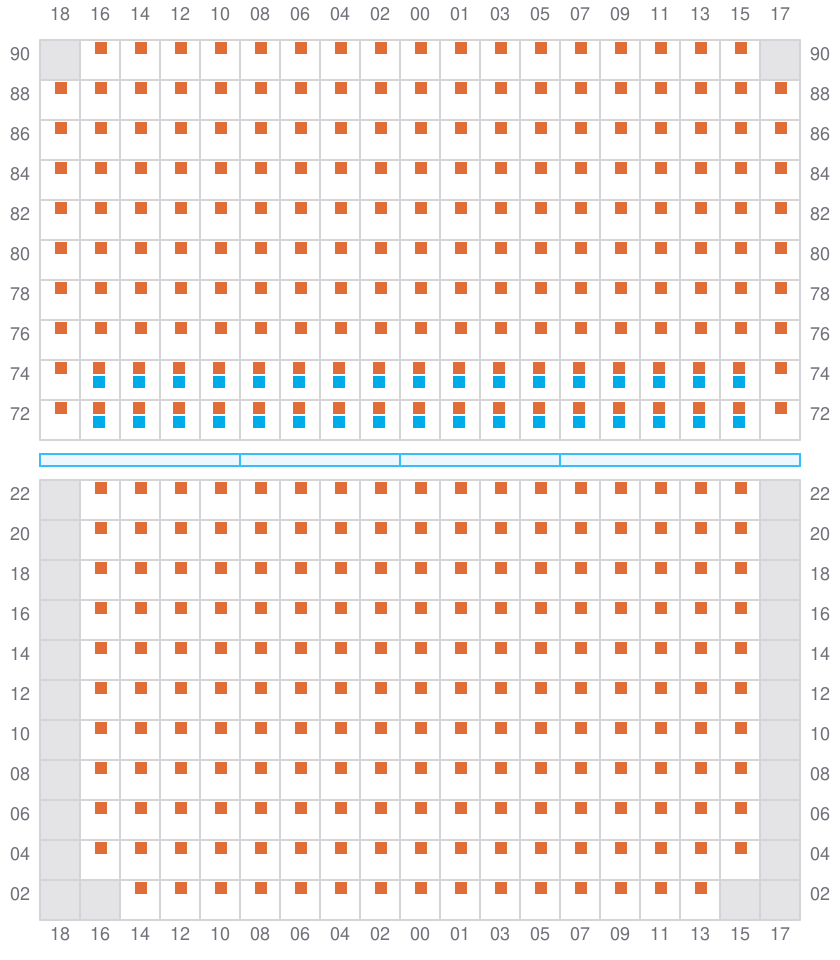

Bay 035 view and slots of MAERSK EDINBURGH

037 (038)

  • →
Bay 037 view and slots of MAERSK EDINBURGH

039

  • ←
  • → / ?

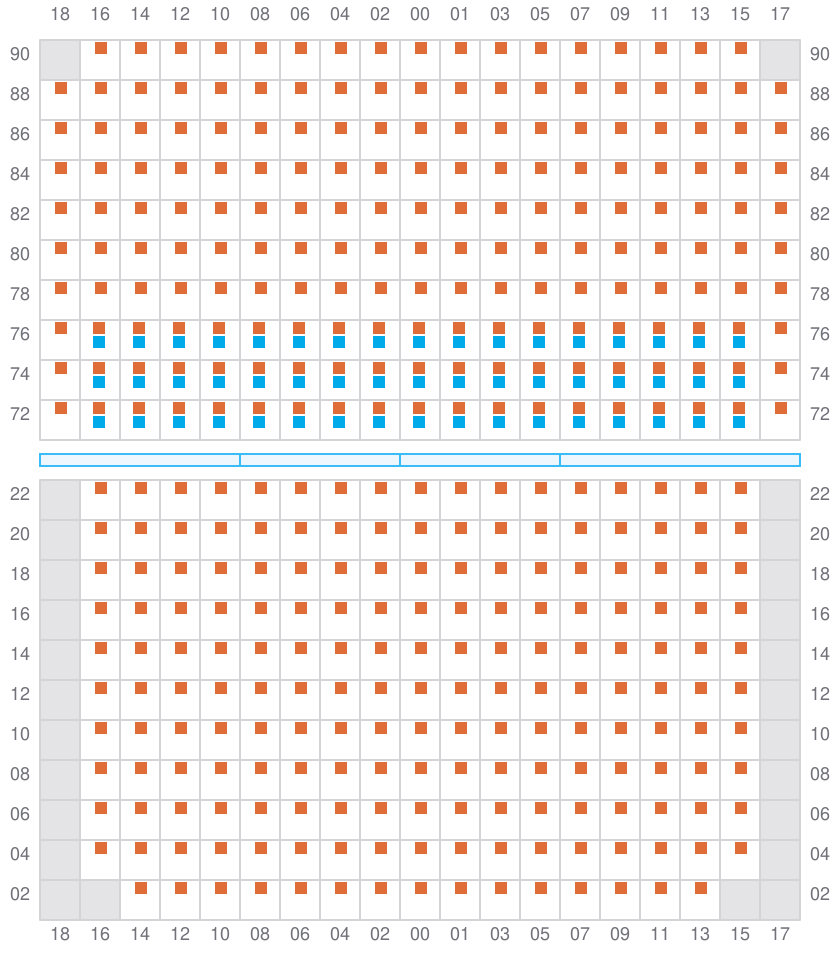

Bay 039 view and slots of MAERSK EDINBURGH

041 (042)

  • →
Bay 041 view and slots of MAERSK EDINBURGH

043

  • ←
  • →
Bay 043 view and slots of MAERSK EDINBURGH

045 (046)

  • →

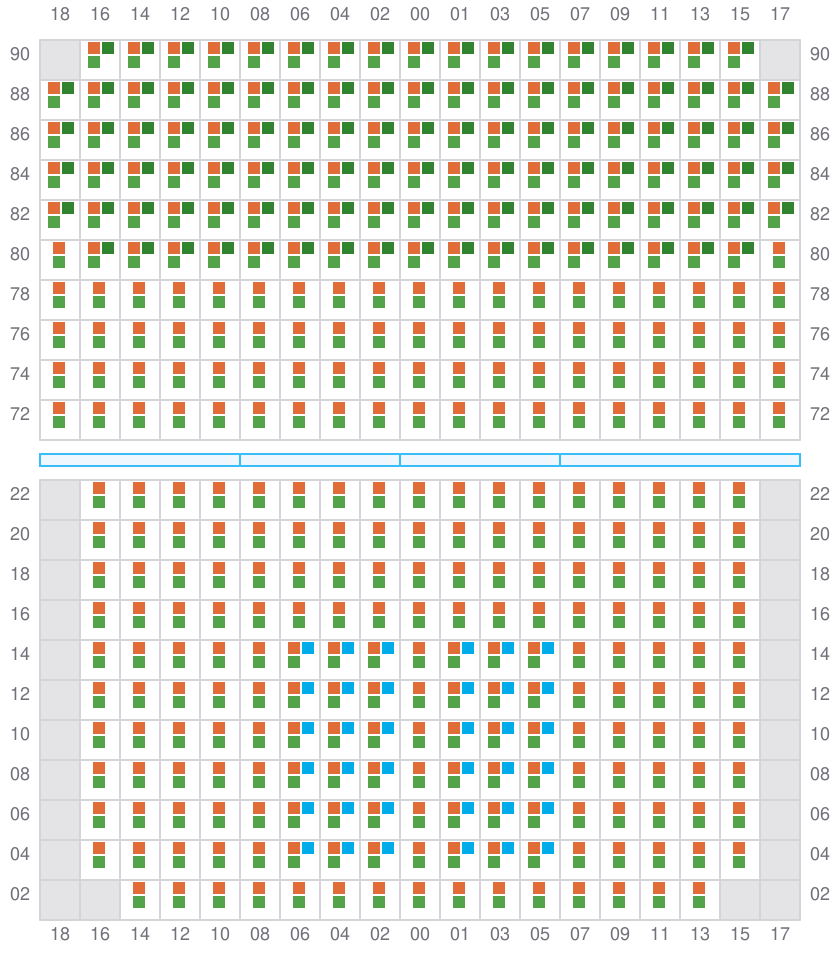

Bay 045 view and slots of MAERSK EDINBURGH

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK EDINBURGH

049 (050)

  • →
Bay 049 view and slots of MAERSK EDINBURGH

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK EDINBURGH

053 (054)

  • →

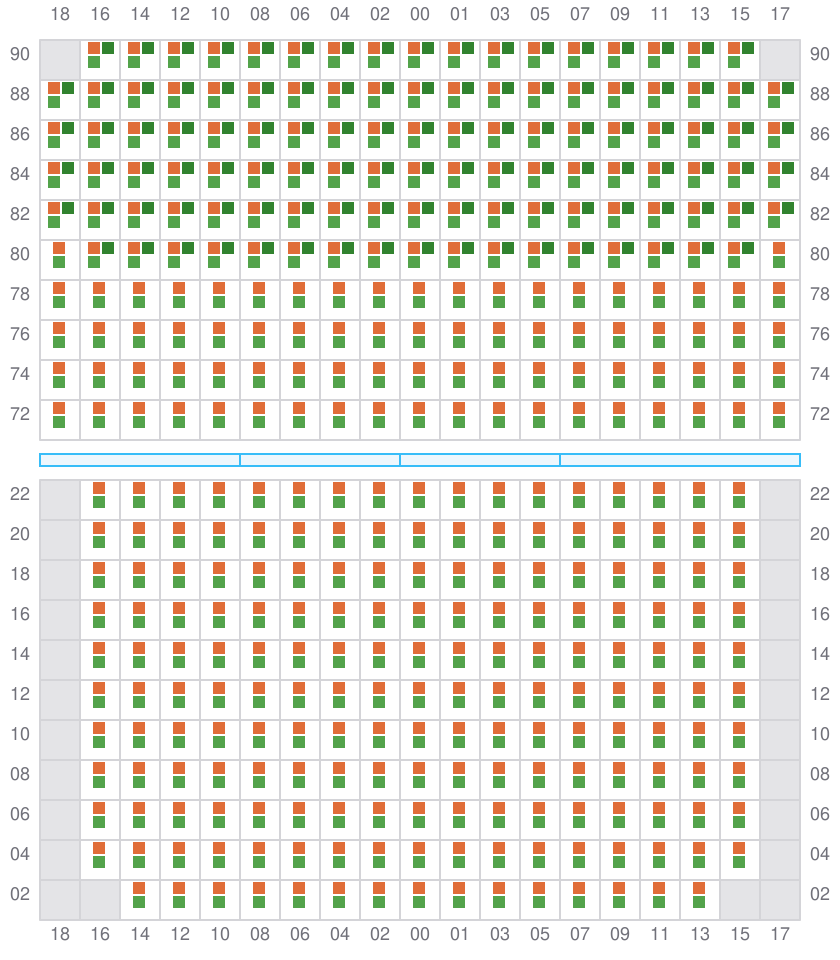

Bay 053 view and slots of MAERSK EDINBURGH

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK EDINBURGH

057 (058)

  • →

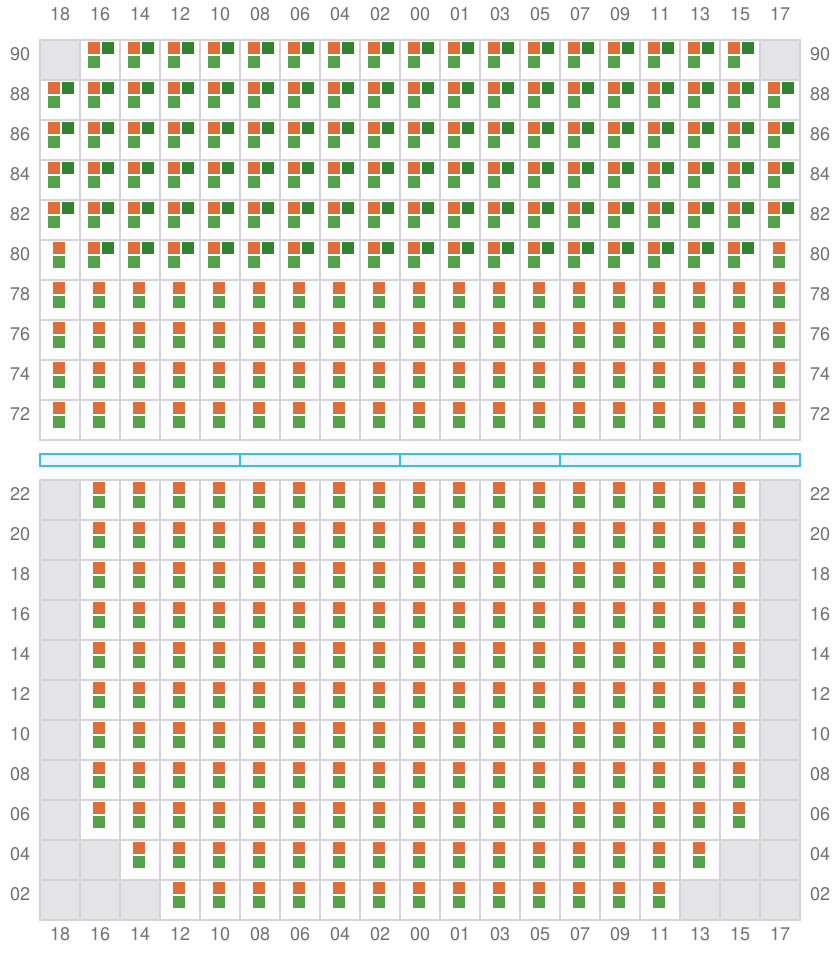

Bay 057 view and slots of MAERSK EDINBURGH

059

  • ←
  • →

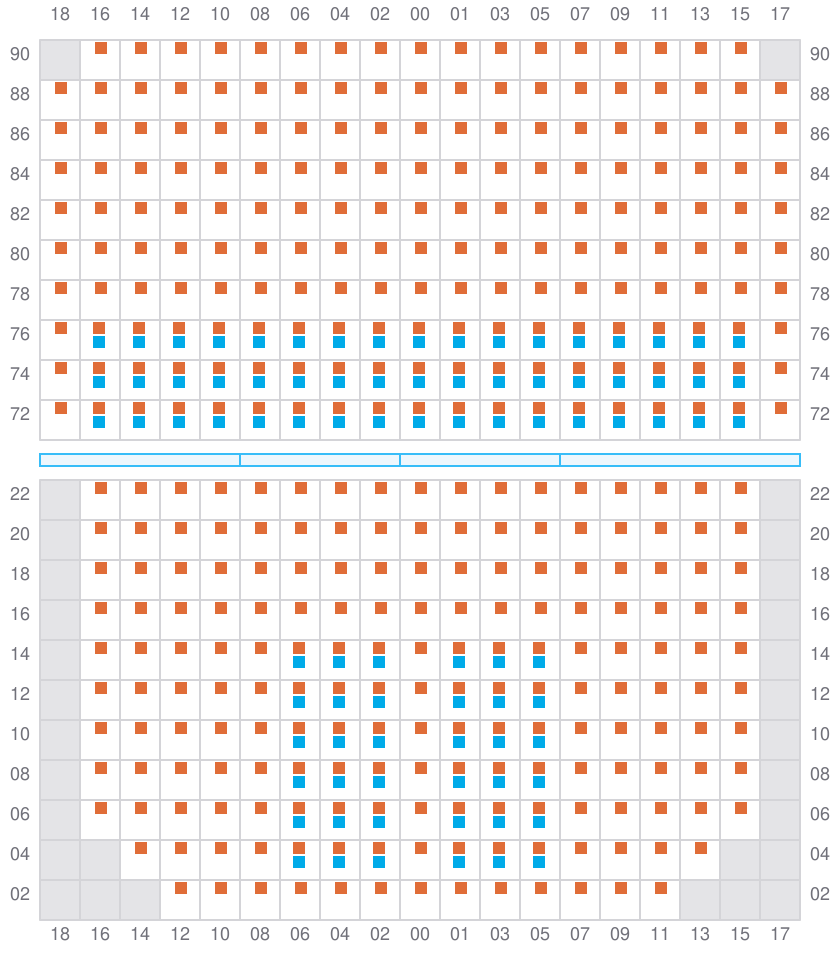

Bay 059 view and slots of MAERSK EDINBURGH

061 (062)

  • →
Bay 061 view and slots of MAERSK EDINBURGH

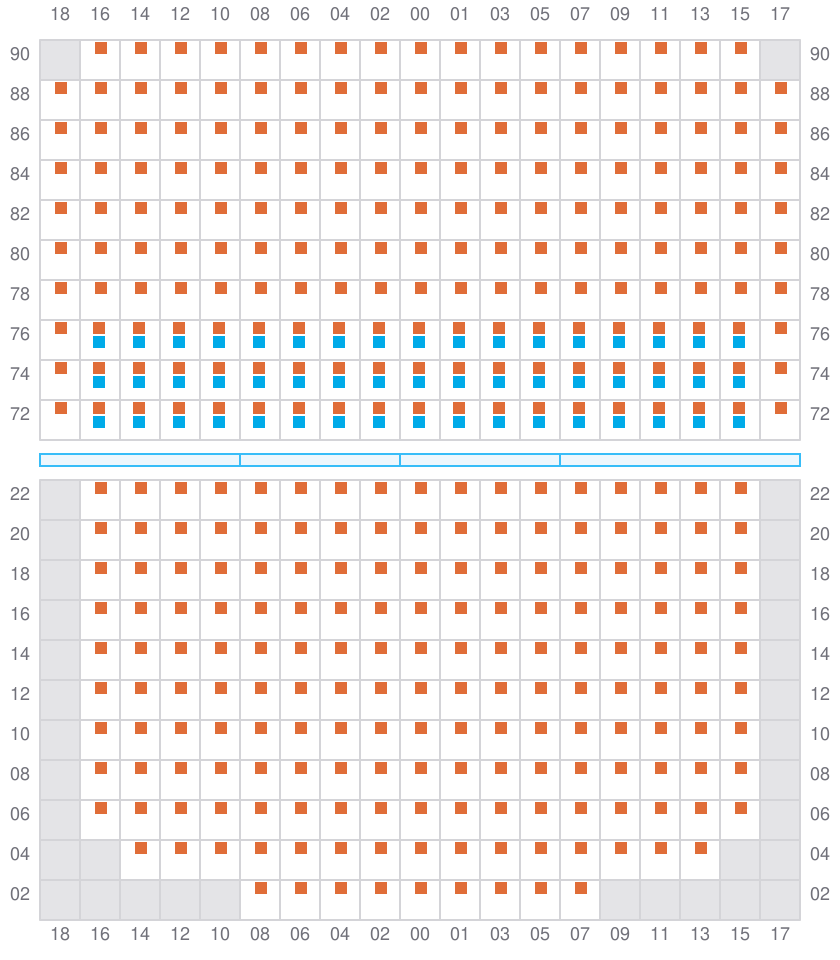

063

  • ←
  • → / ?
Bay 063 view and slots of MAERSK EDINBURGH

065 (066)

  • →
Bay 065 view and slots of MAERSK EDINBURGH

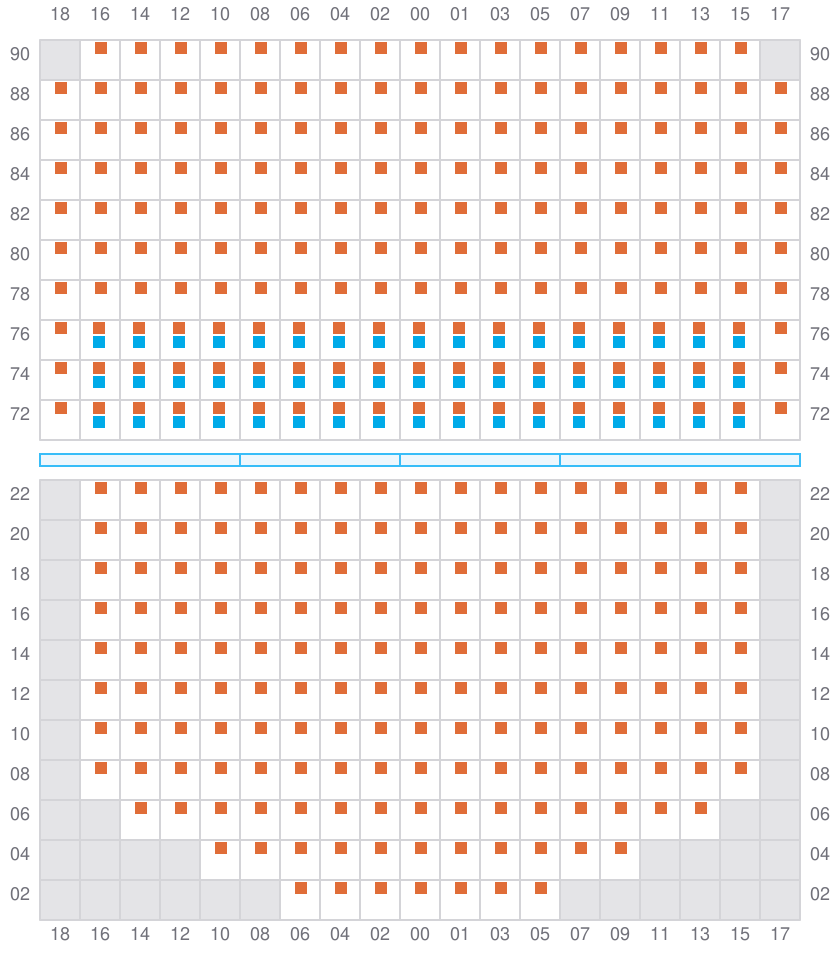

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK EDINBURGH

069 (070)

  • →

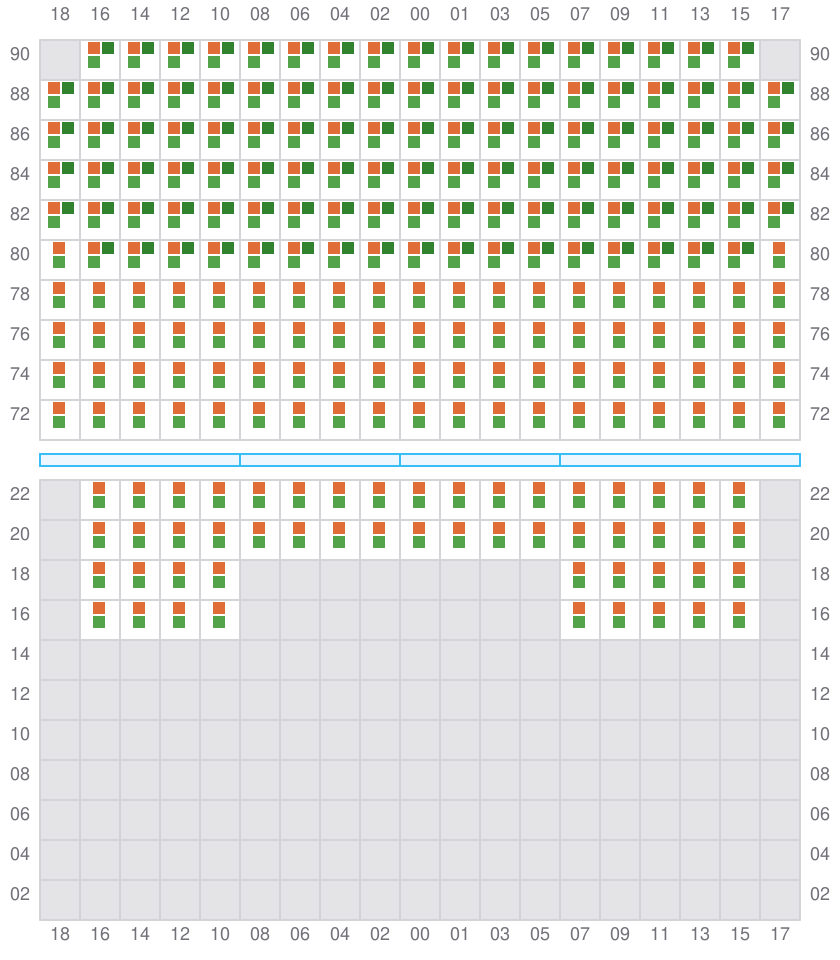

Bay 069 view and slots of MAERSK EDINBURGH

071

  • ←
  • → / ?

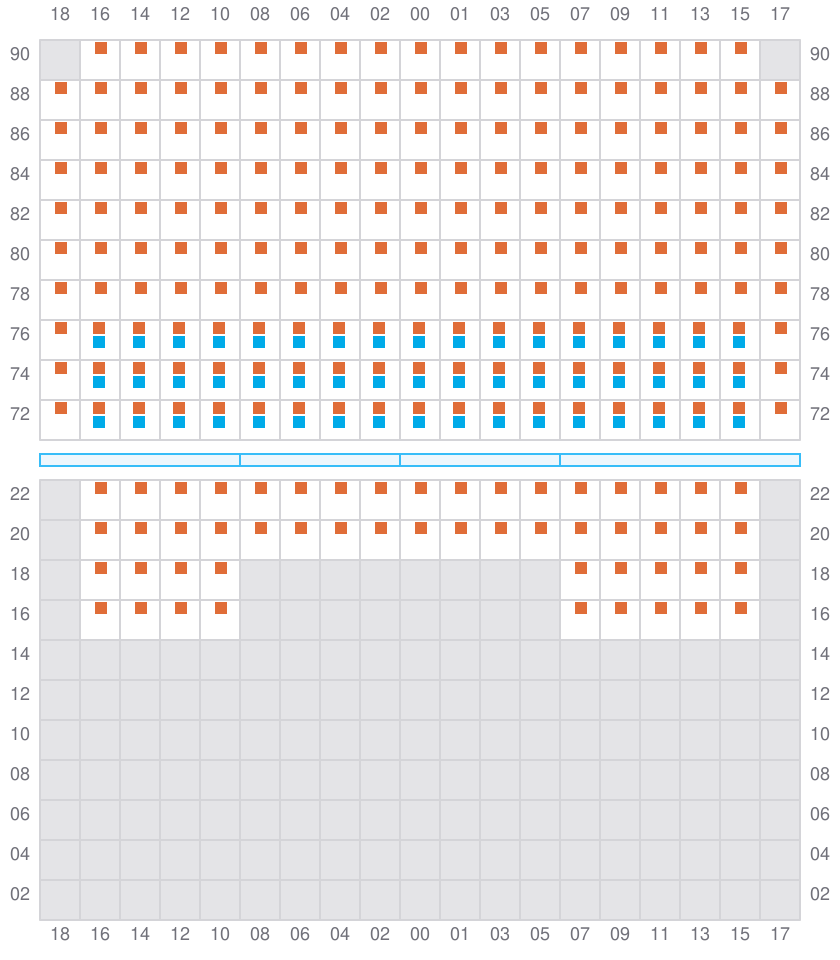

Bay 071 view and slots of MAERSK EDINBURGH

073 (074)

  • →

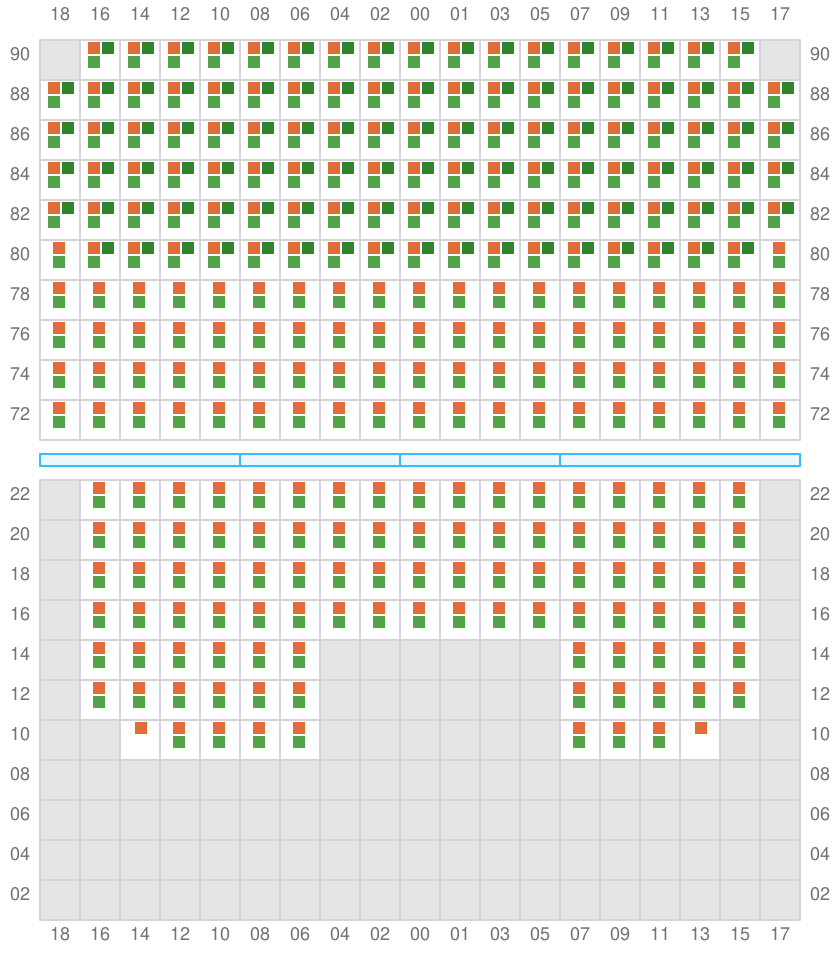

Bay 073 view and slots of MAERSK EDINBURGH

075

  • ←
  • → / ?

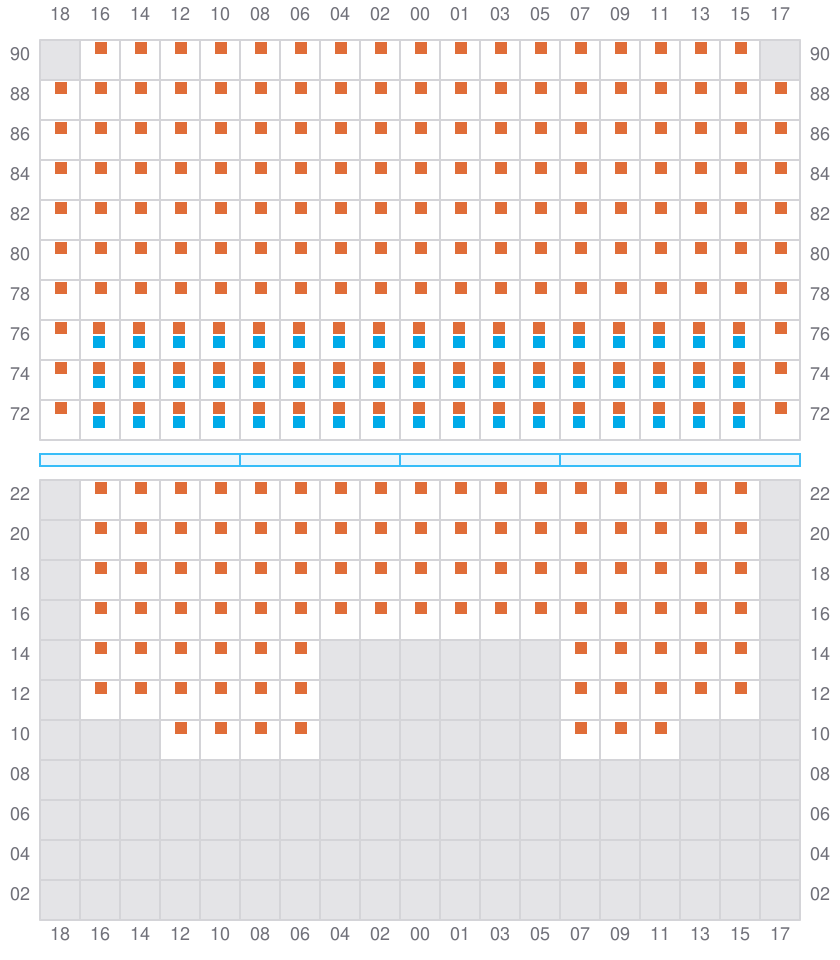

Bay 075 view and slots of MAERSK EDINBURGH

077 (078)

  • →

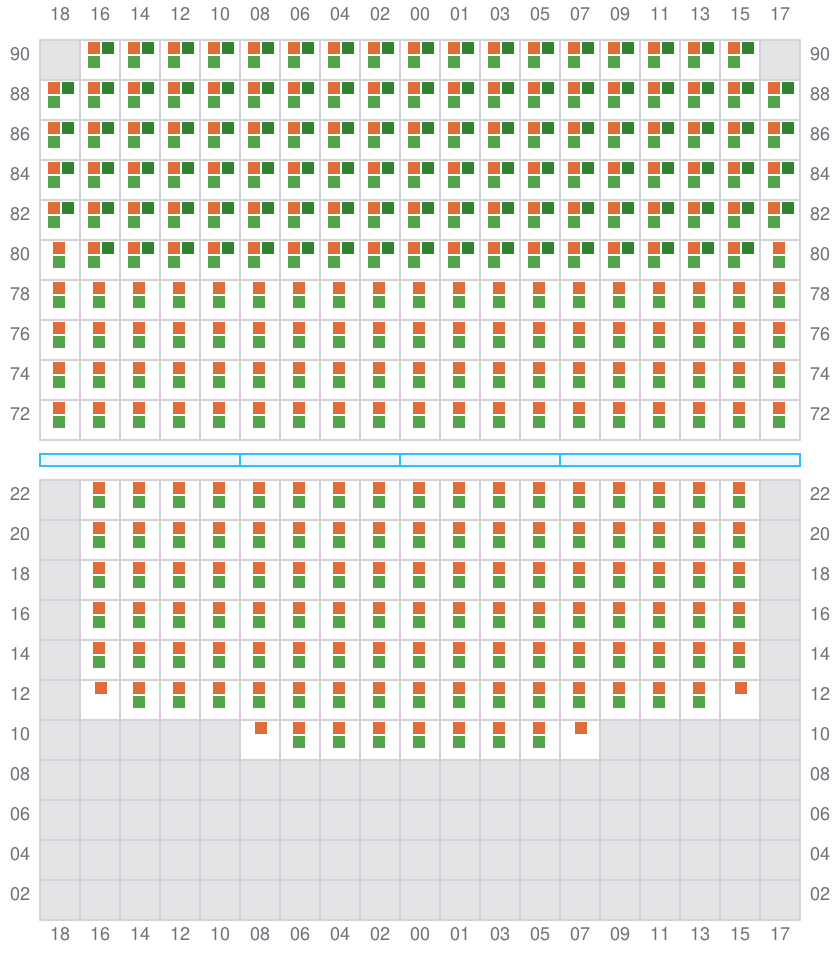

Bay 077 view and slots of MAERSK EDINBURGH

079

  • ←
  • → / ?

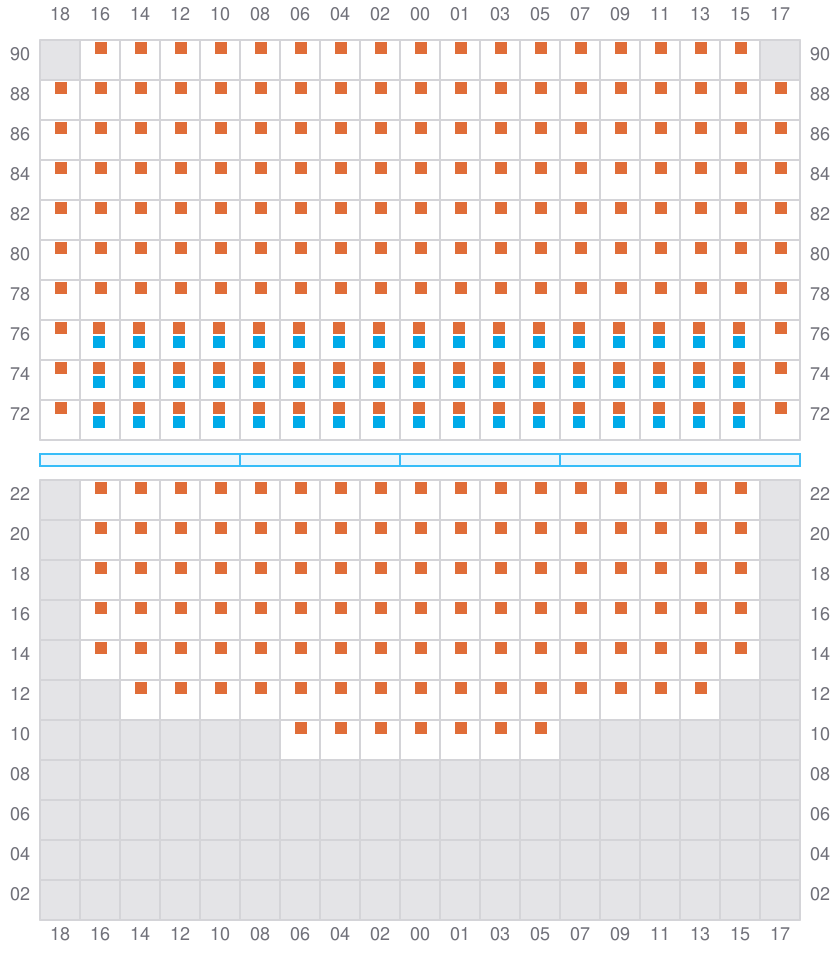

Bay 079 view and slots of MAERSK EDINBURGH

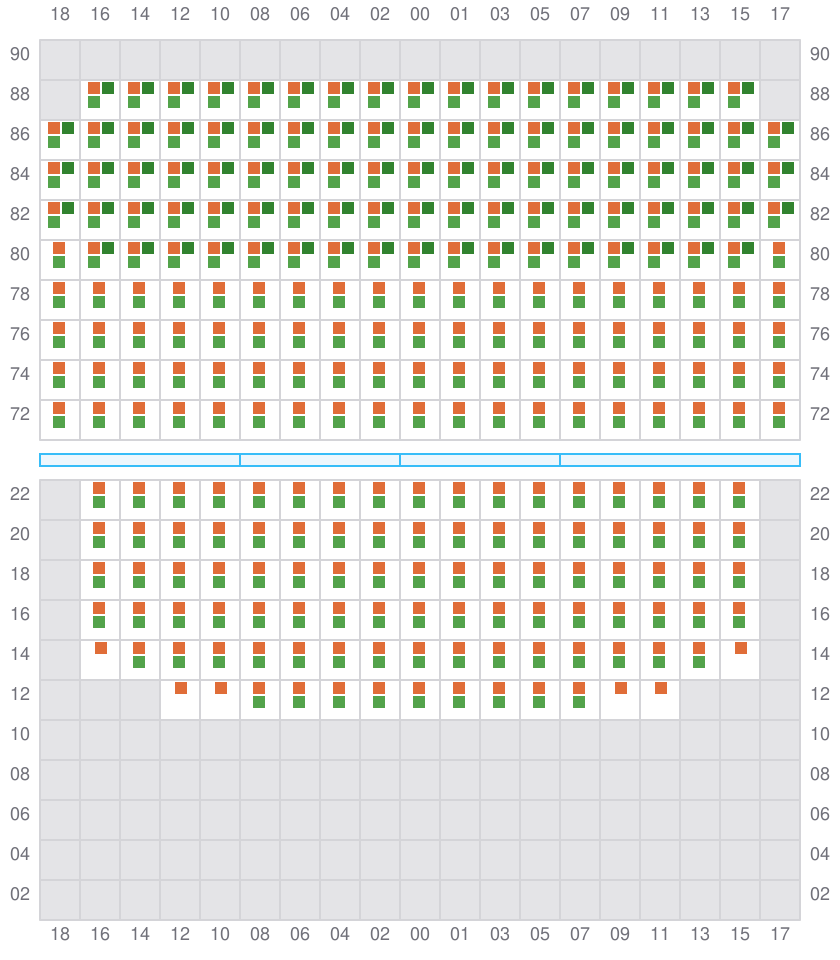

081 (082)

  • →
Bay 081 view and slots of MAERSK EDINBURGH

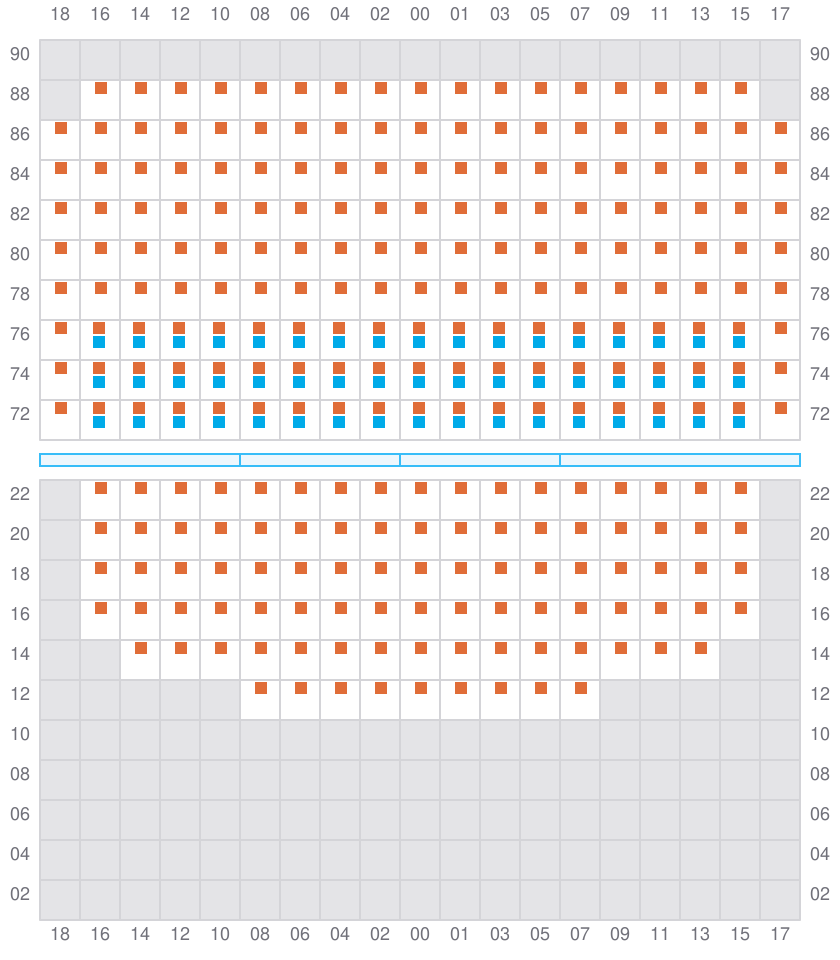

083

  • ←
  • → / ?
Bay 083 view and slots of MAERSK EDINBURGH

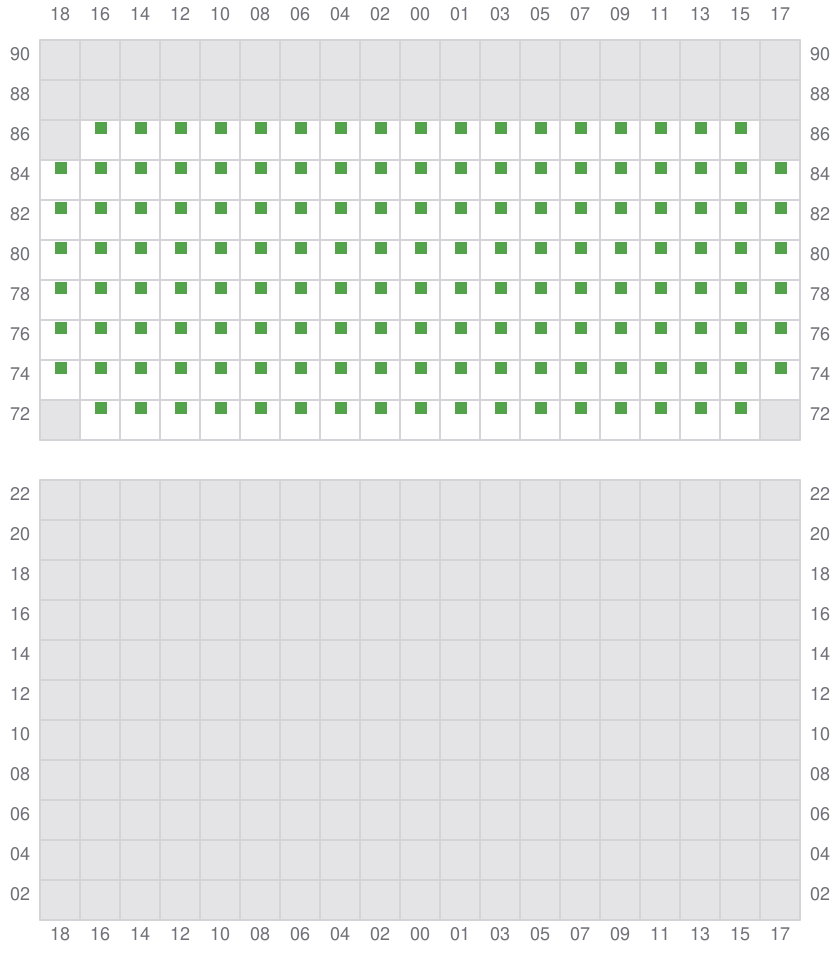

085 (086)

  • → / ?
Bay 085 view and slots of MAERSK EDINBURGH
