MAERSK EDIRNE
9502867 | 9V6463 | 950286 by ************* Last update: Fri Mar 01 2024

General Info

Ship Name:MAERSK EDIRNE
IMO Code:9502867
Call Sign:9V6463
Line Operator:950286
Class Name for Sister Ships:E2L
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):99.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,017

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK EDIRNE

Hatch-Covers View

Deck view of MAERSK EDIRNE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

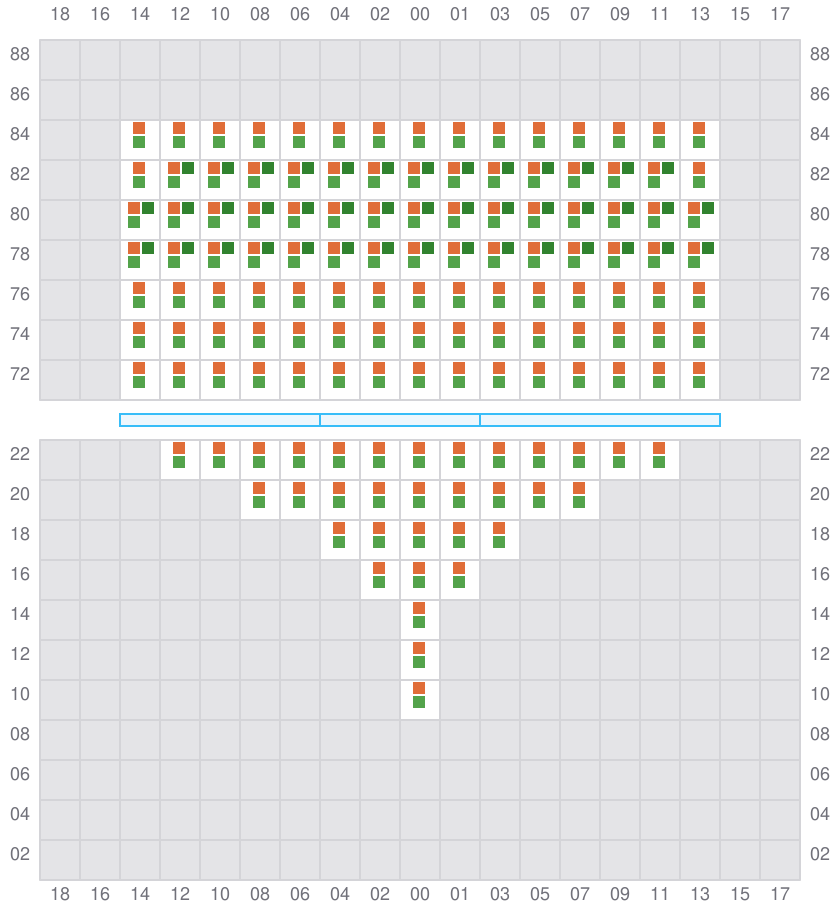

001 (002)

  • →
Bay 001 view and slots of MAERSK EDIRNE

003

  • ←
  • → / ?

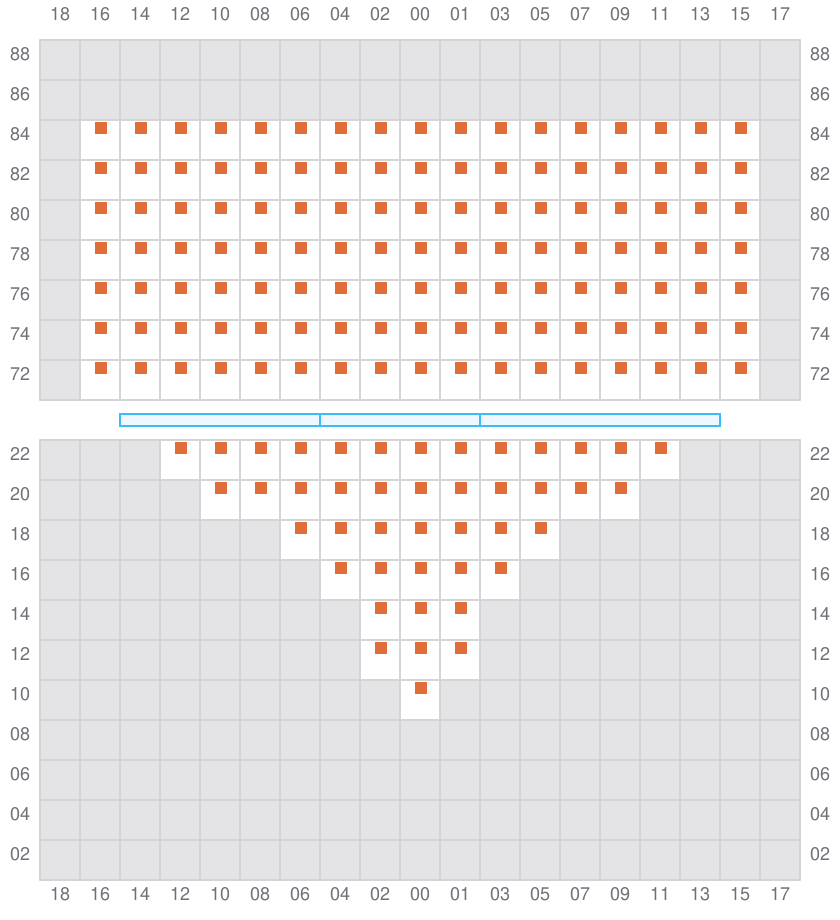

Bay 003 view and slots of MAERSK EDIRNE

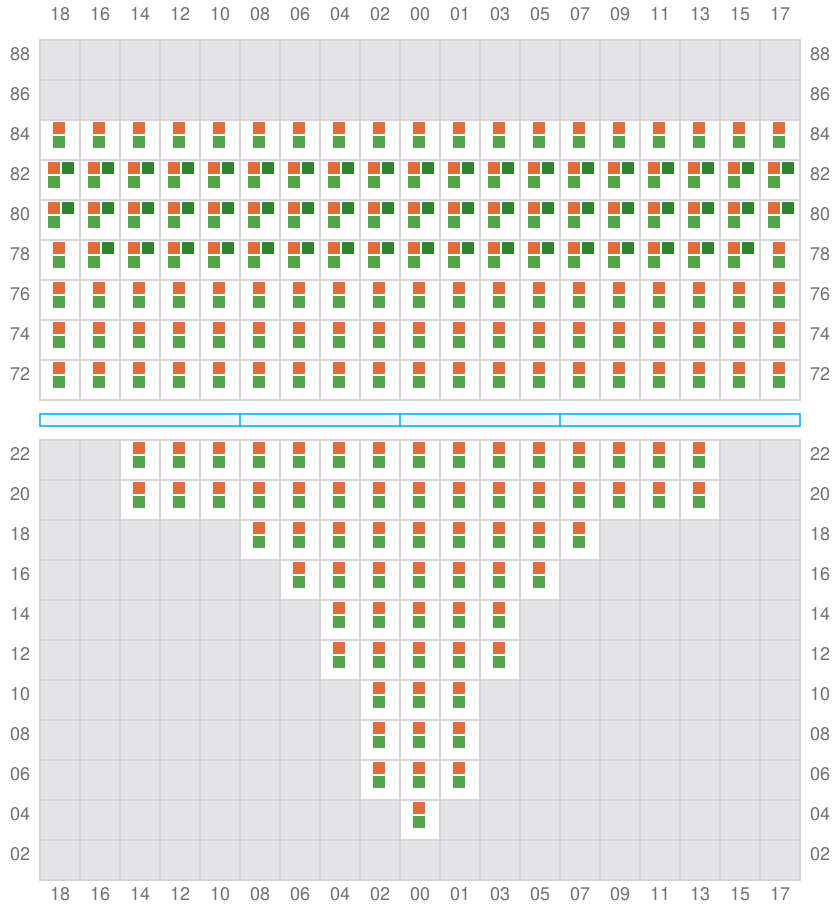

005 (006)

  • →
Bay 005 view and slots of MAERSK EDIRNE

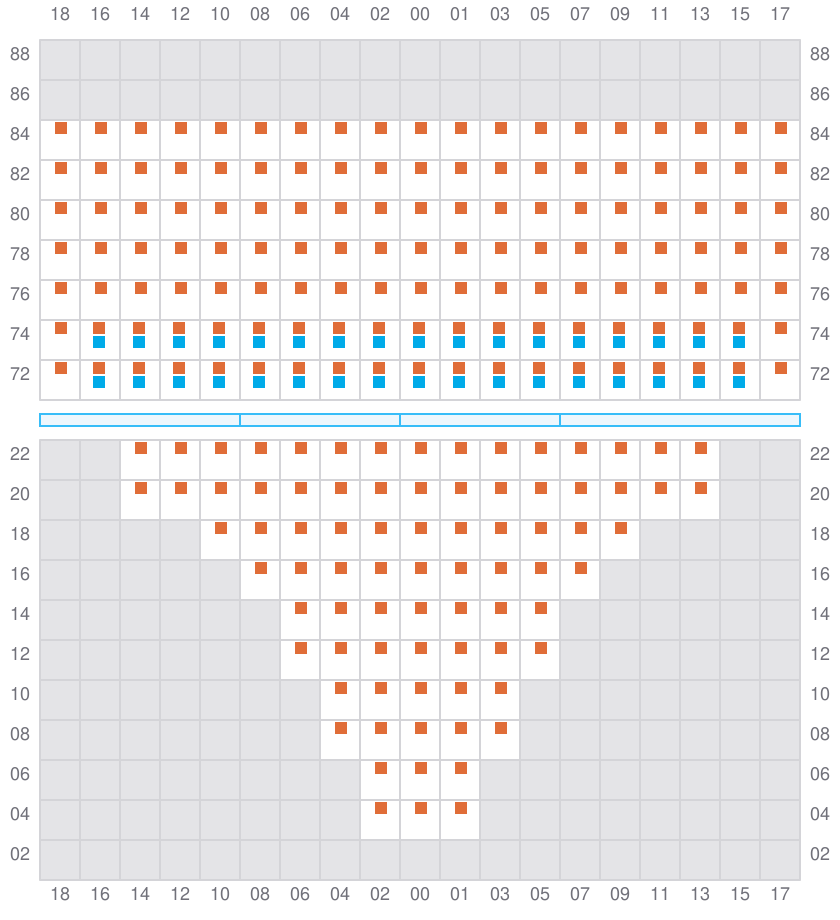

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK EDIRNE

009 (010)

  • →

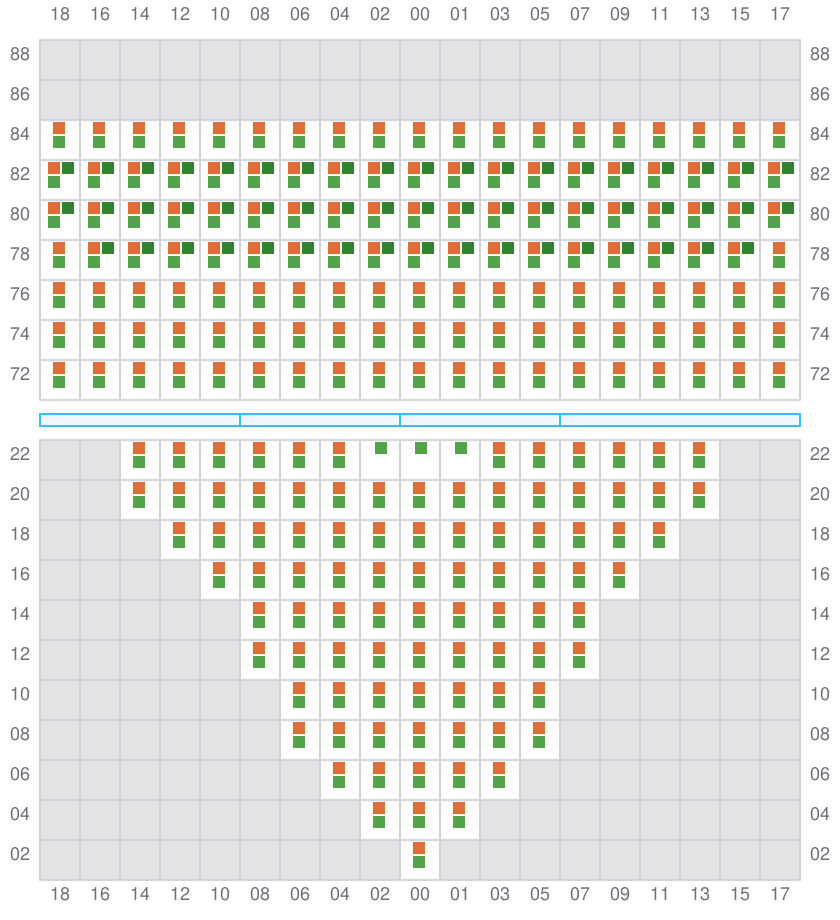

Bay 009 view and slots of MAERSK EDIRNE

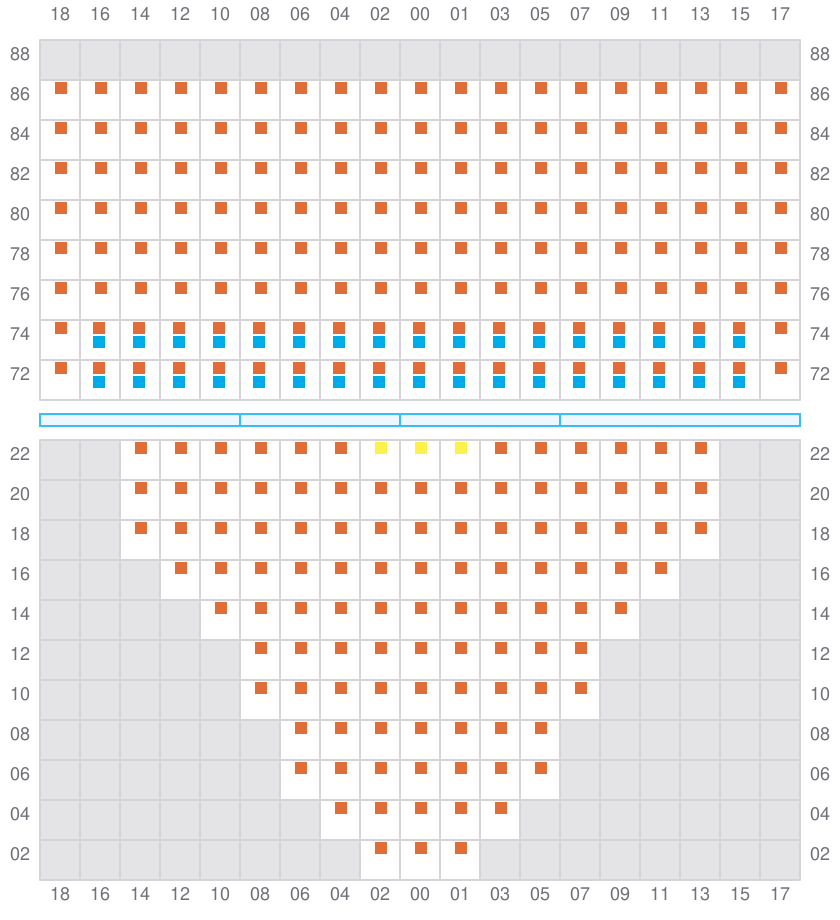

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK EDIRNE

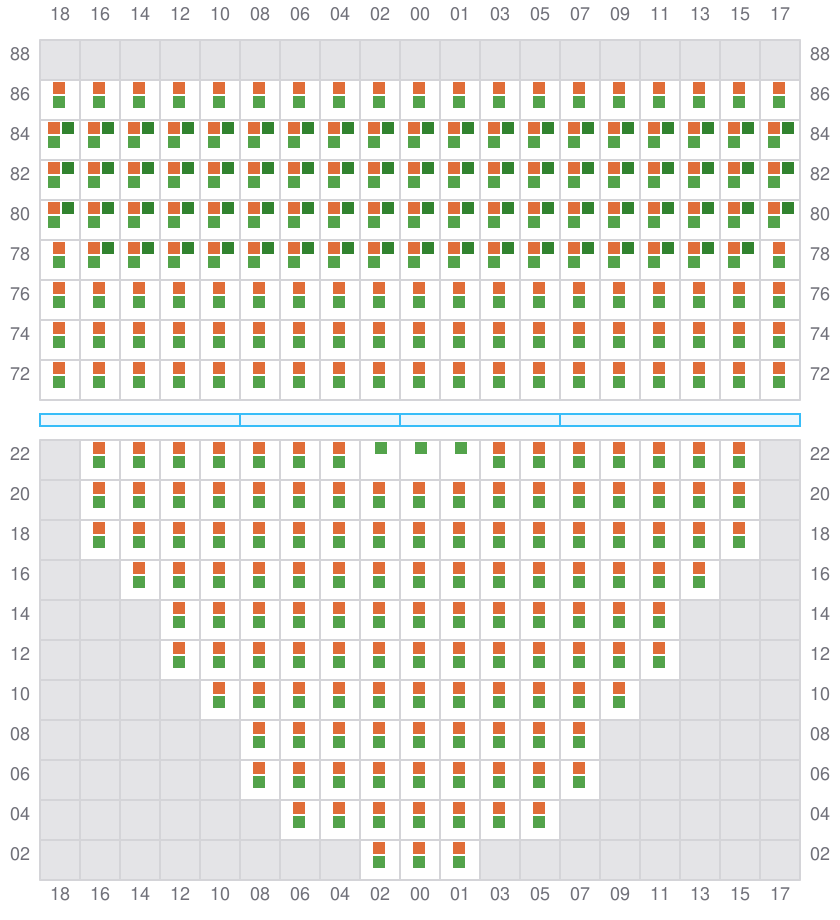

013 (014)

  • →
Bay 013 view and slots of MAERSK EDIRNE

015

  • ←
  • → / ?

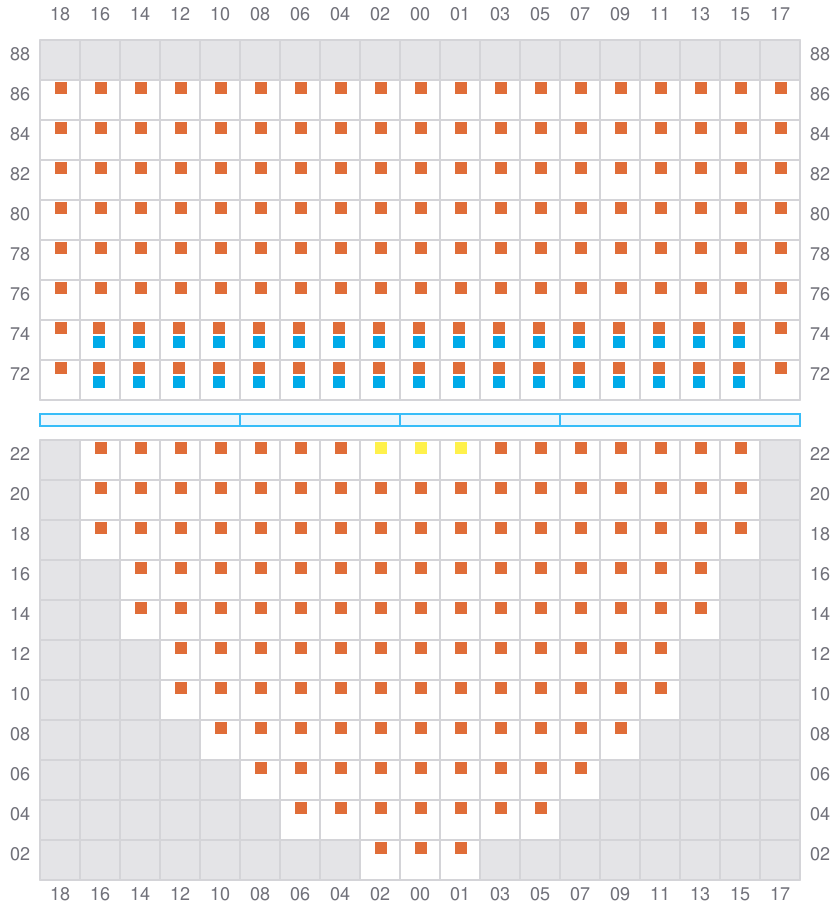

Bay 015 view and slots of MAERSK EDIRNE

017 (018)

  • →

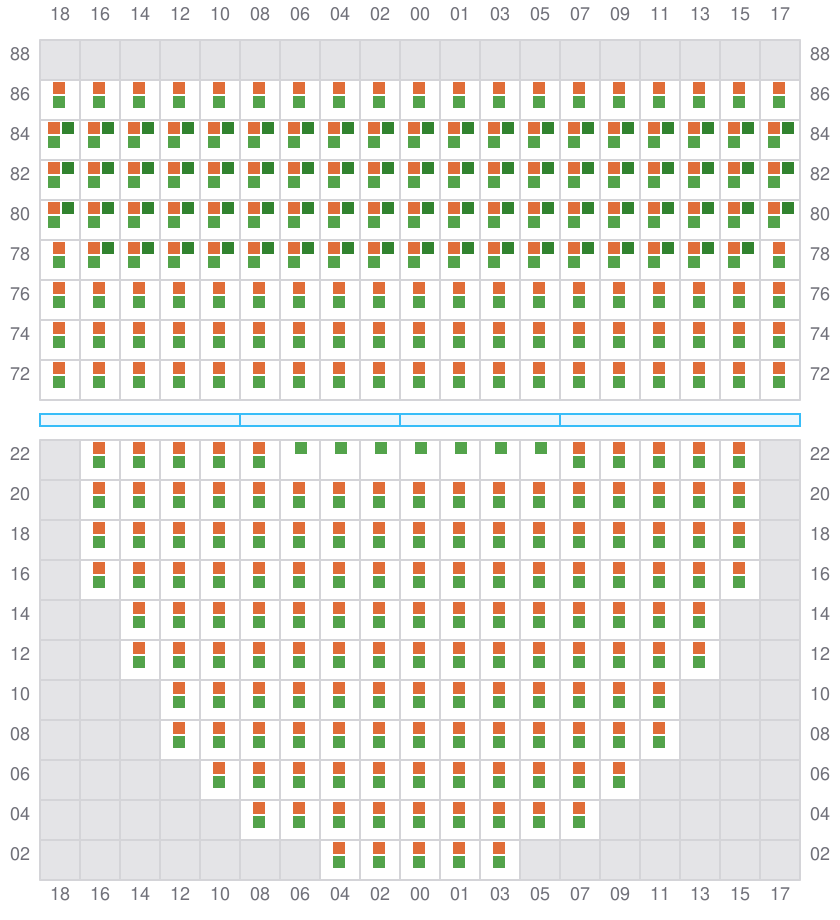

Bay 017 view and slots of MAERSK EDIRNE

019

  • ←
  • → / ?

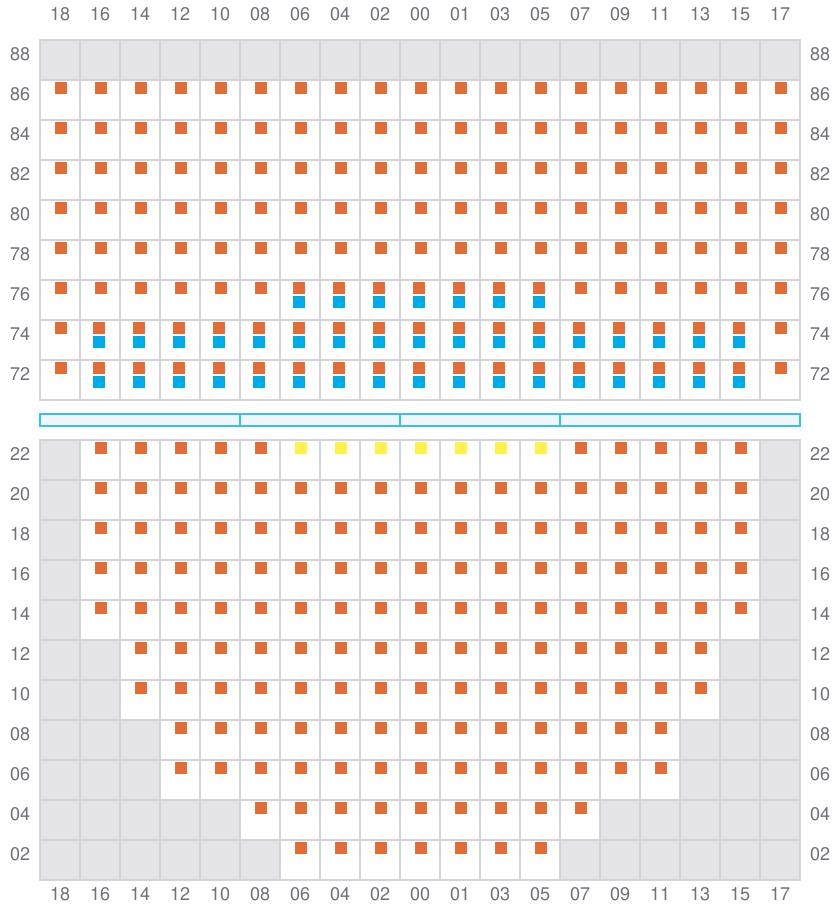

Bay 019 view and slots of MAERSK EDIRNE

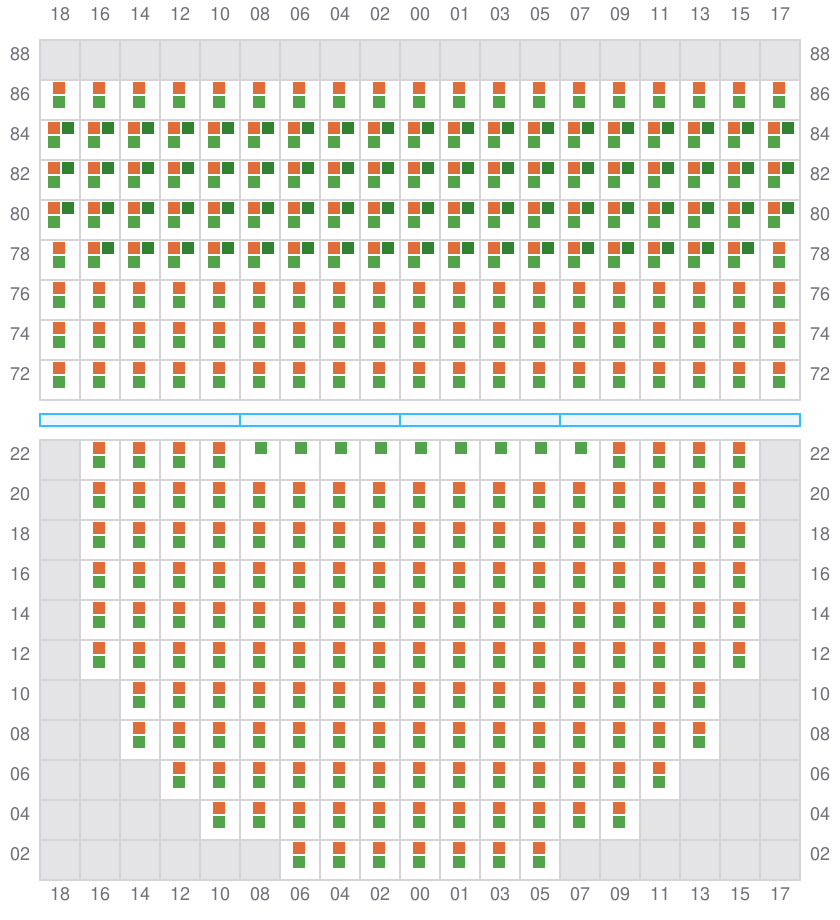

021 (022)

  • →
Bay 021 view and slots of MAERSK EDIRNE

023

  • ←
  • → / ?

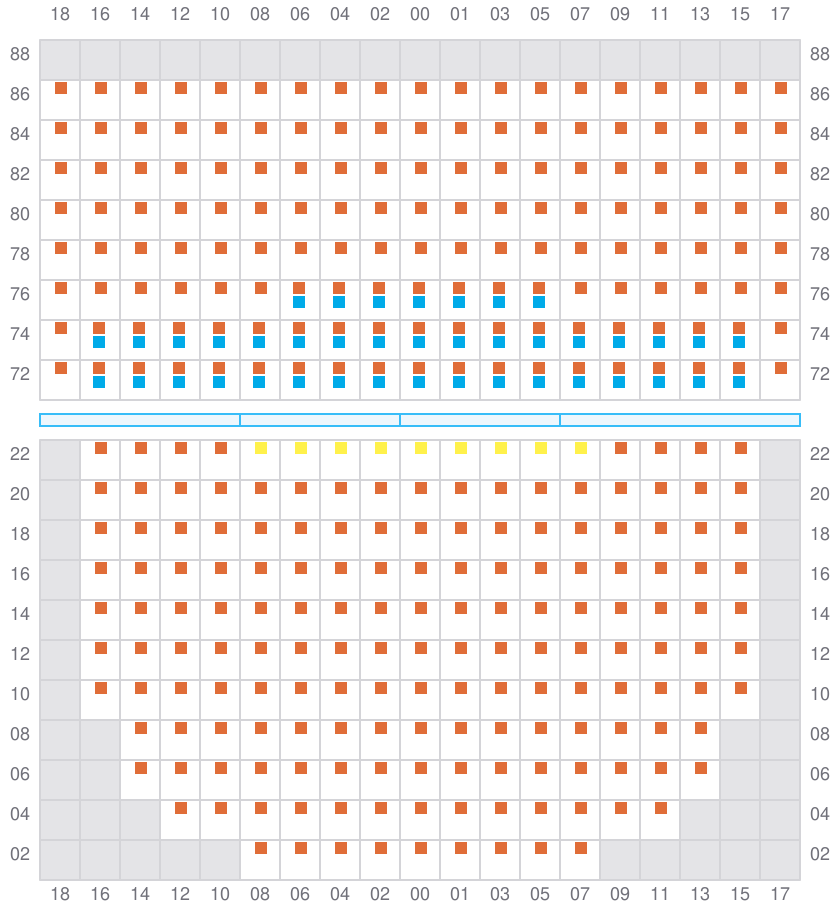

Bay 023 view and slots of MAERSK EDIRNE

025 (026)

  • →
Bay 025 view and slots of MAERSK EDIRNE

027

  • ←
  • → / ?

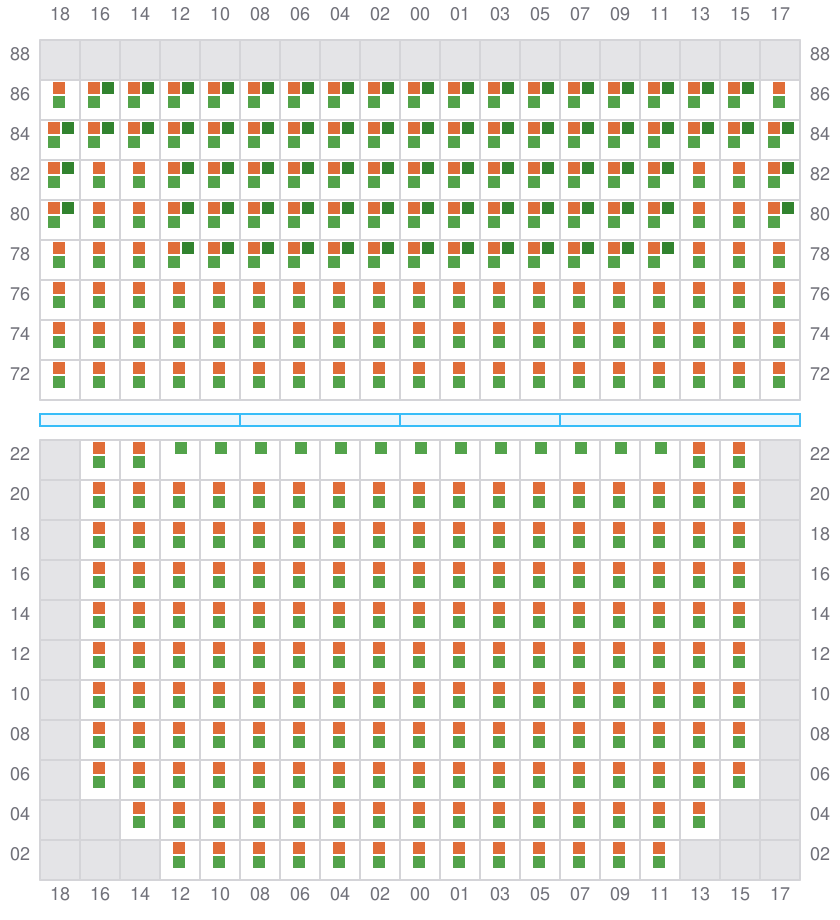

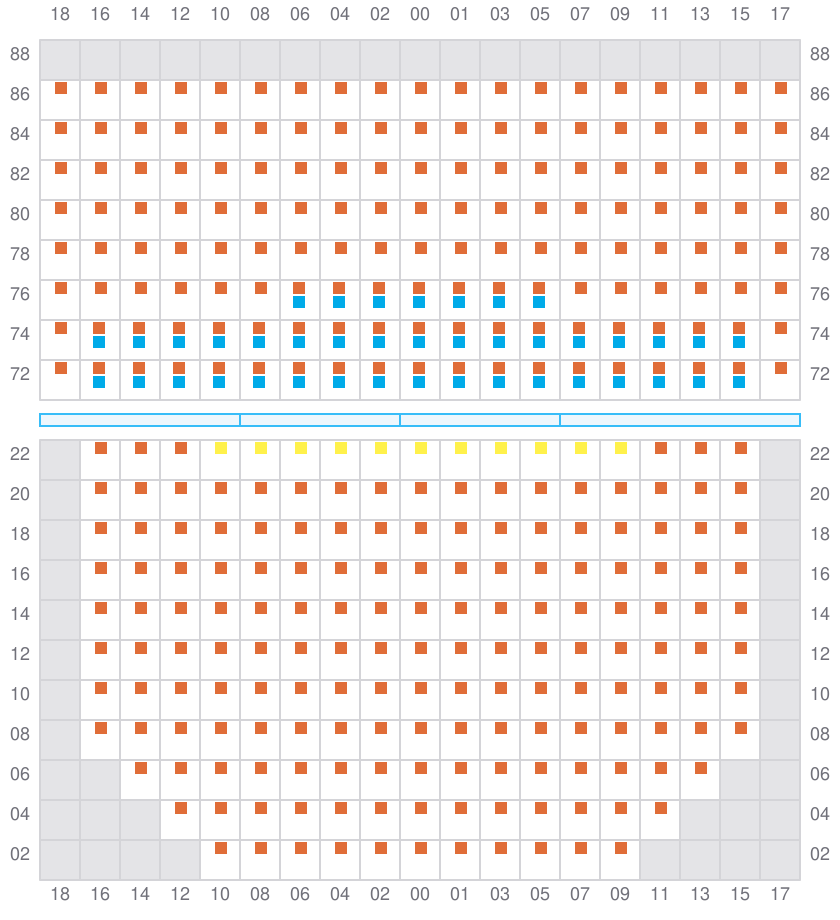

Bay 027 view and slots of MAERSK EDIRNE

029 (030)

  • →
Bay 029 view and slots of MAERSK EDIRNE

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK EDIRNE

033 (034)

  • →
Bay 033 view and slots of MAERSK EDIRNE

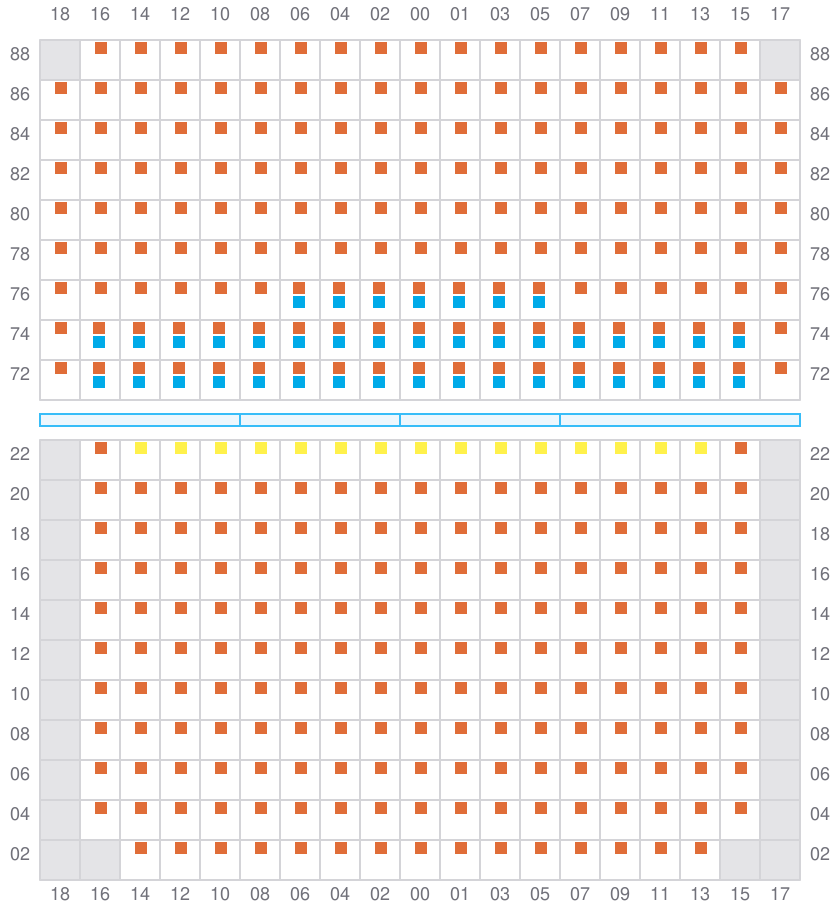

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK EDIRNE

037 (038)

  • →
Bay 037 view and slots of MAERSK EDIRNE

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK EDIRNE

041 (042)

  • →

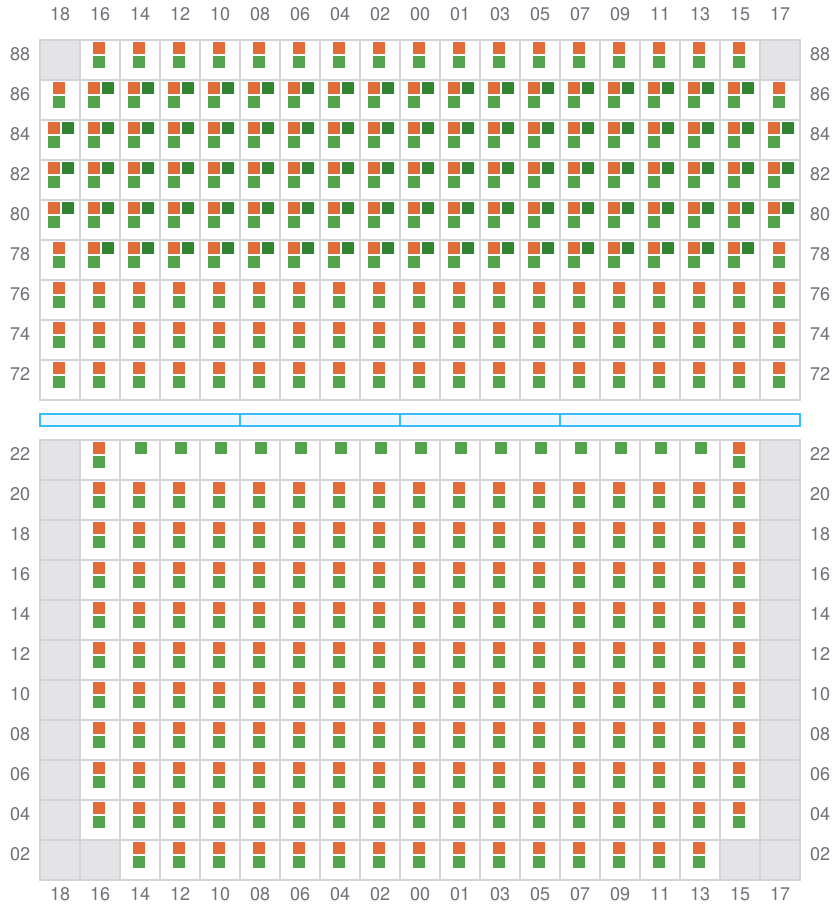

Bay 041 view and slots of MAERSK EDIRNE

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK EDIRNE

045 (046)

  • →
Bay 045 view and slots of MAERSK EDIRNE

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK EDIRNE

049 (050)

  • →
Bay 049 view and slots of MAERSK EDIRNE

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK EDIRNE

053 (054)

  • →
Bay 053 view and slots of MAERSK EDIRNE

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK EDIRNE

057 (058)

  • →

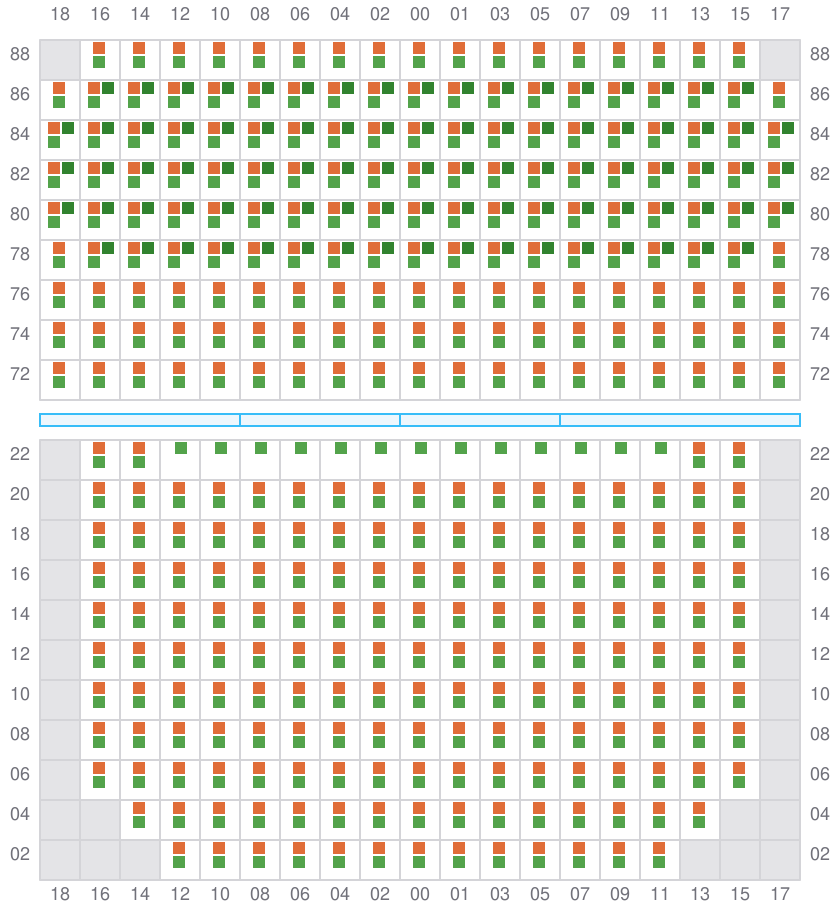

Bay 057 view and slots of MAERSK EDIRNE

059

  • ←
  • → / ?
Bay 059 view and slots of MAERSK EDIRNE

061 (062)

  • →
Bay 061 view and slots of MAERSK EDIRNE

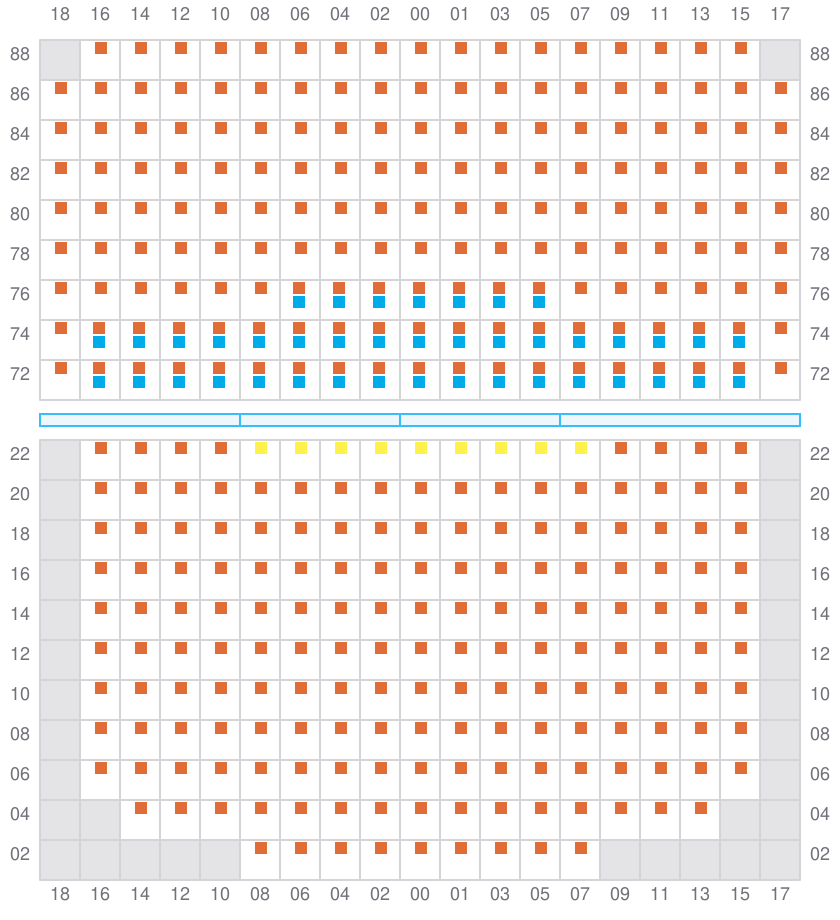

063

  • ←
  • → / ?
Bay 063 view and slots of MAERSK EDIRNE

065 (066)

  • →

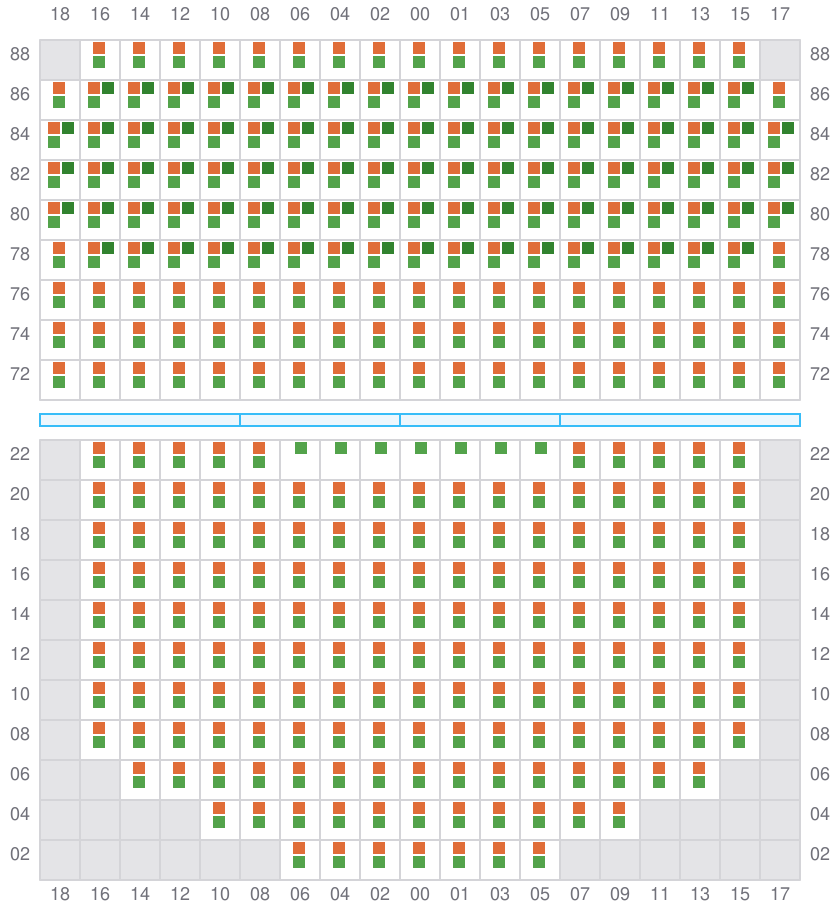

Bay 065 view and slots of MAERSK EDIRNE

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK EDIRNE

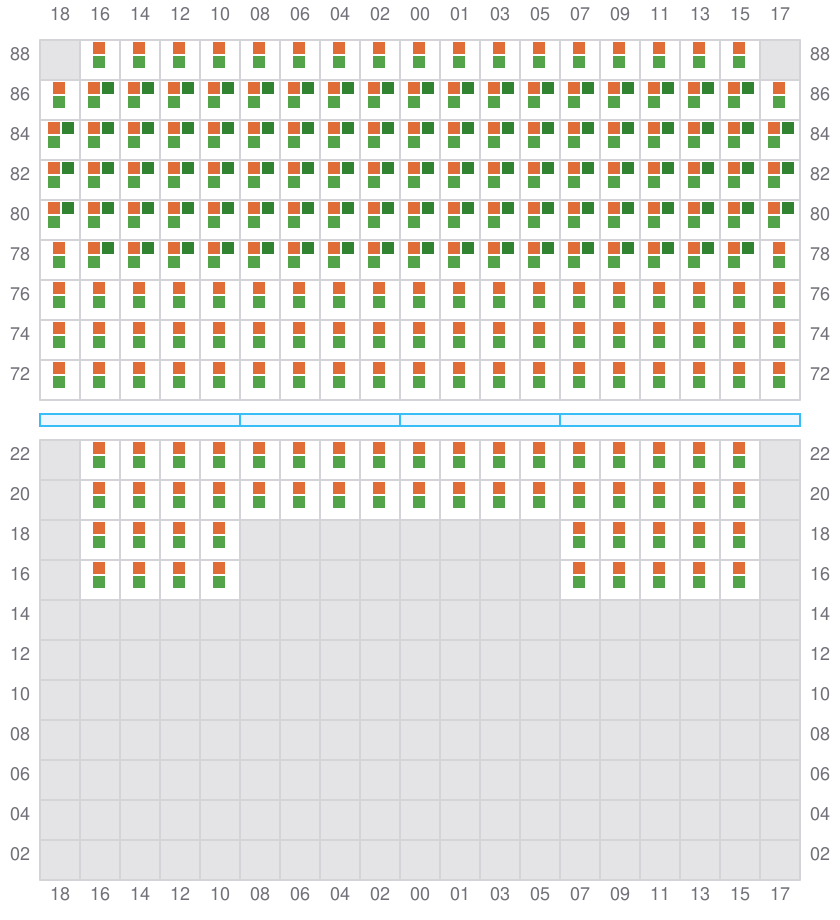

069 (070)

  • →
Bay 069 view and slots of MAERSK EDIRNE

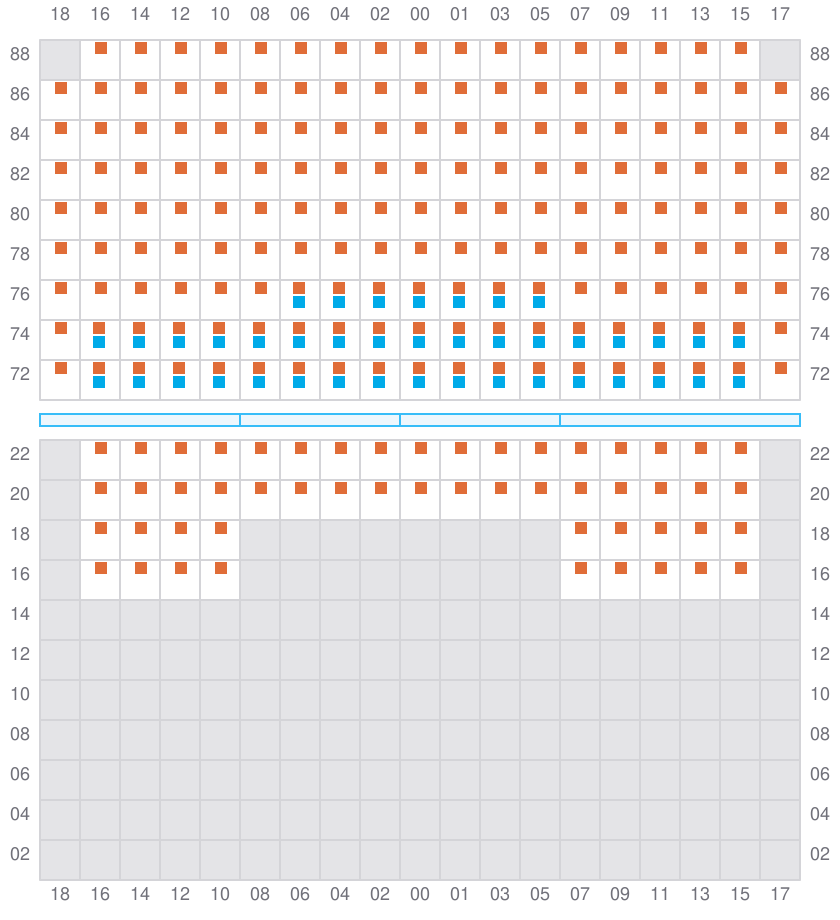

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK EDIRNE

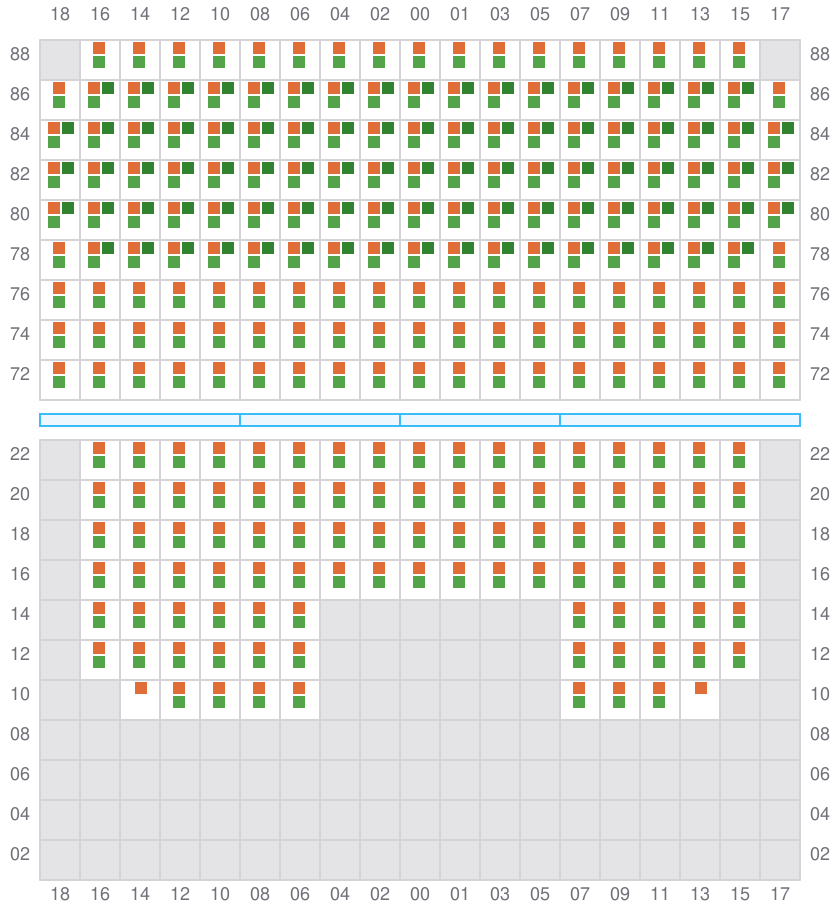

073 (074)

  • →
  • ← / ?
Bay 073 view and slots of MAERSK EDIRNE

075

  • ←
  • → / ?

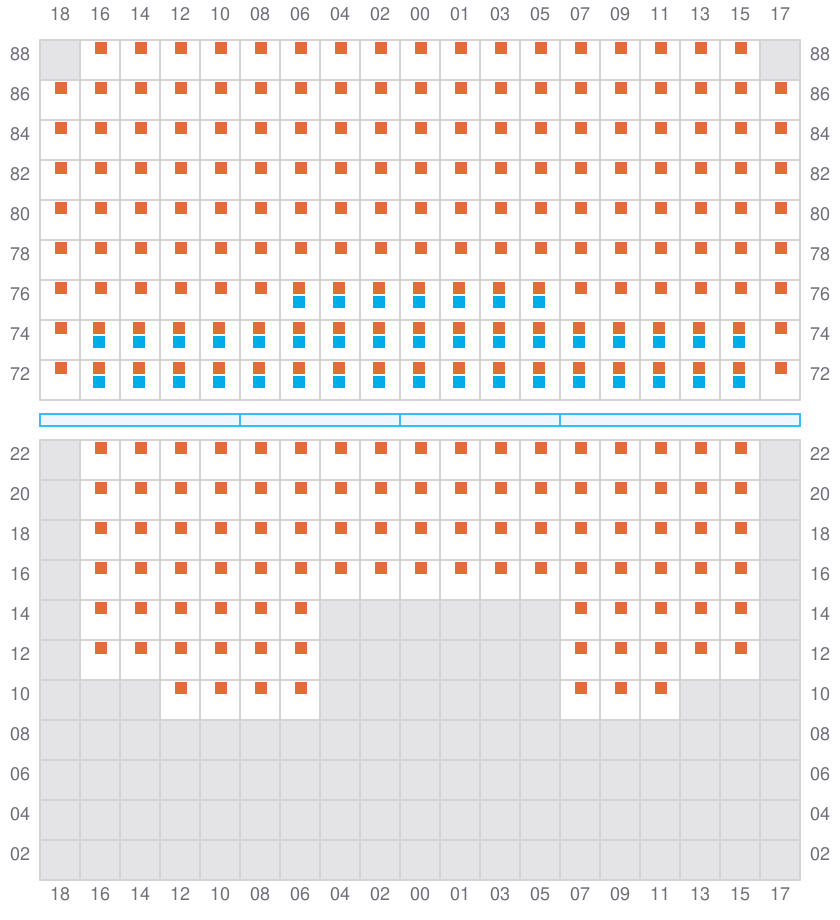

Bay 075 view and slots of MAERSK EDIRNE

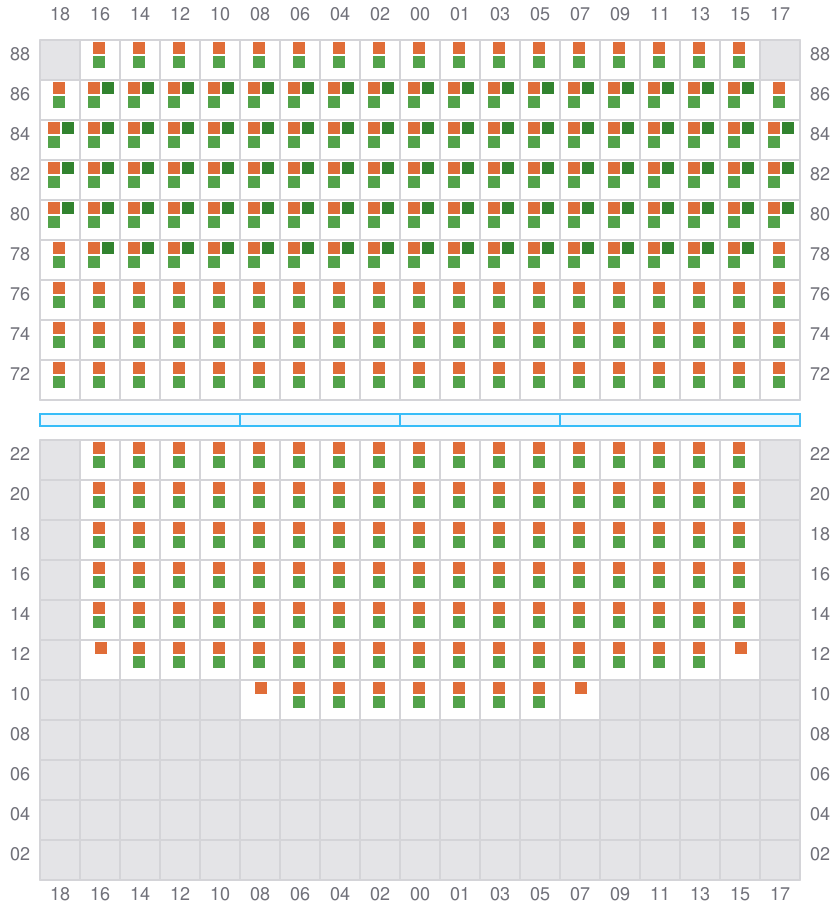

077 (078)

  • →
Bay 077 view and slots of MAERSK EDIRNE

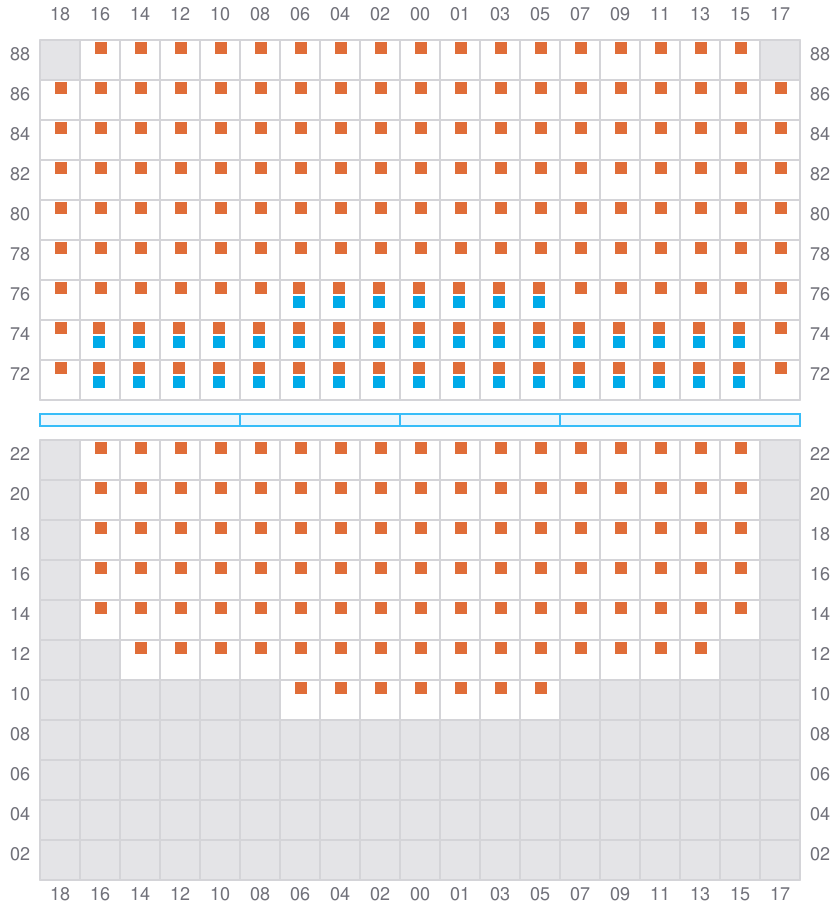

079

  • ←
  • → / ?
Bay 079 view and slots of MAERSK EDIRNE

081 (082)

  • →

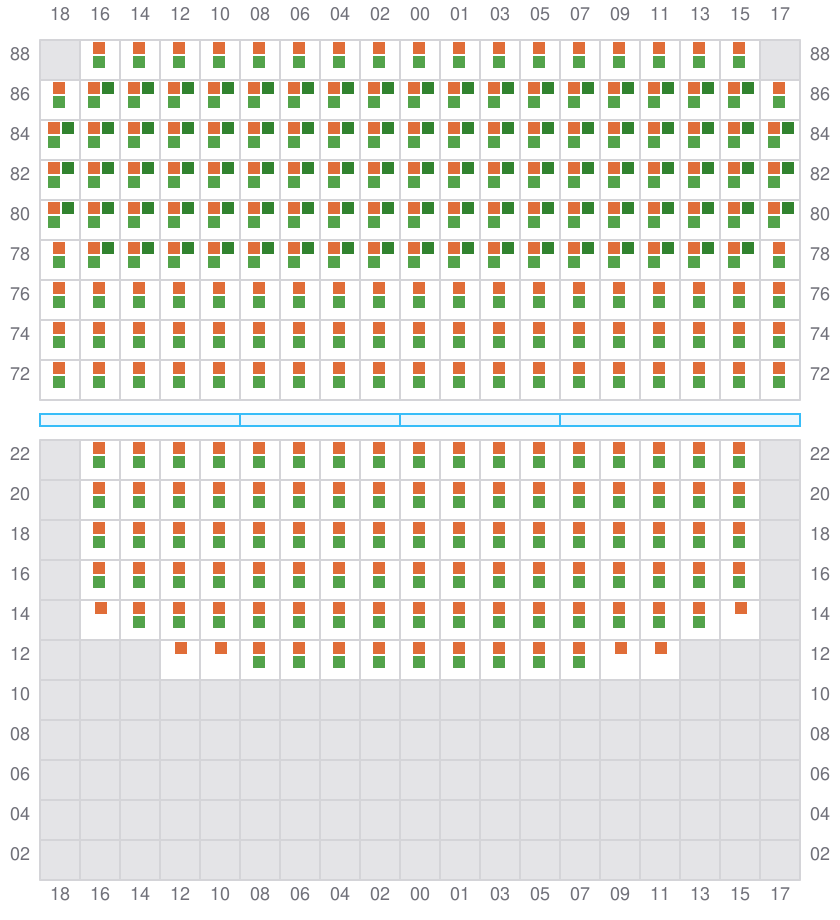

Bay 081 view and slots of MAERSK EDIRNE

083

  • ←
  • → / ?
Bay 083 view and slots of MAERSK EDIRNE

085 (086)

  • → / ?

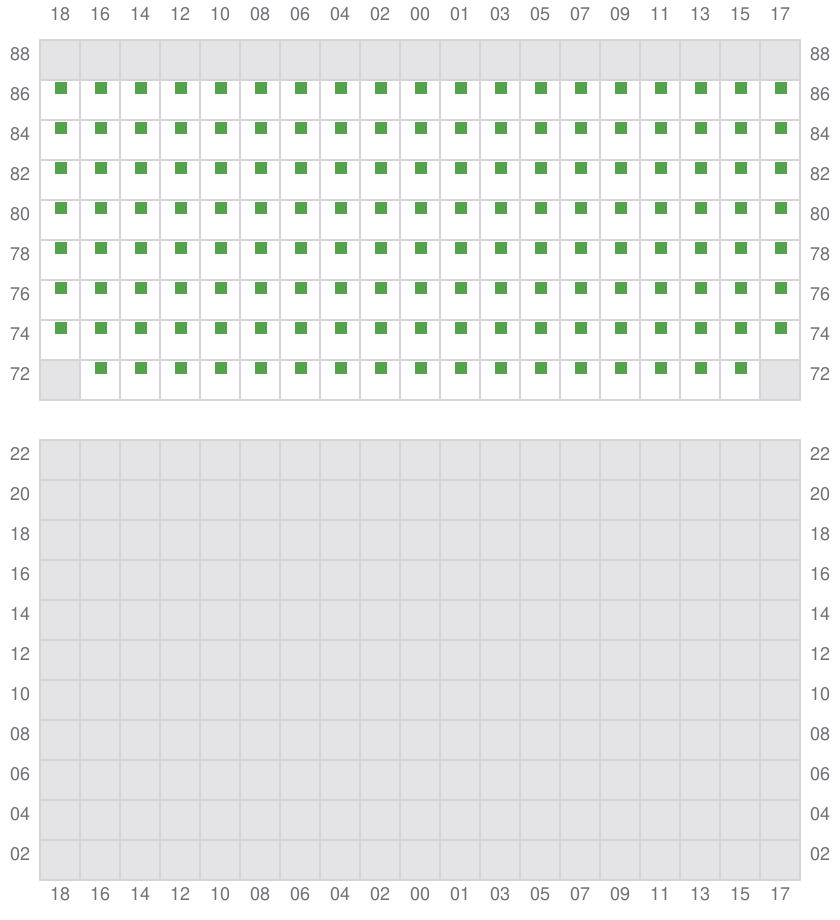

Bay 085 view and slots of MAERSK EDIRNE
