MAERSK EINDHOVEN
9456771 | OXFG2 | MSK by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MAERSK EINDHOVEN
IMO Code:9456771
Call Sign:OXFG2
Line Operator:MSK
Class Name for Sister Ships:EIND
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,492

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK EINDHOVEN

Hatch-Covers View

Deck view of MAERSK EINDHOVEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

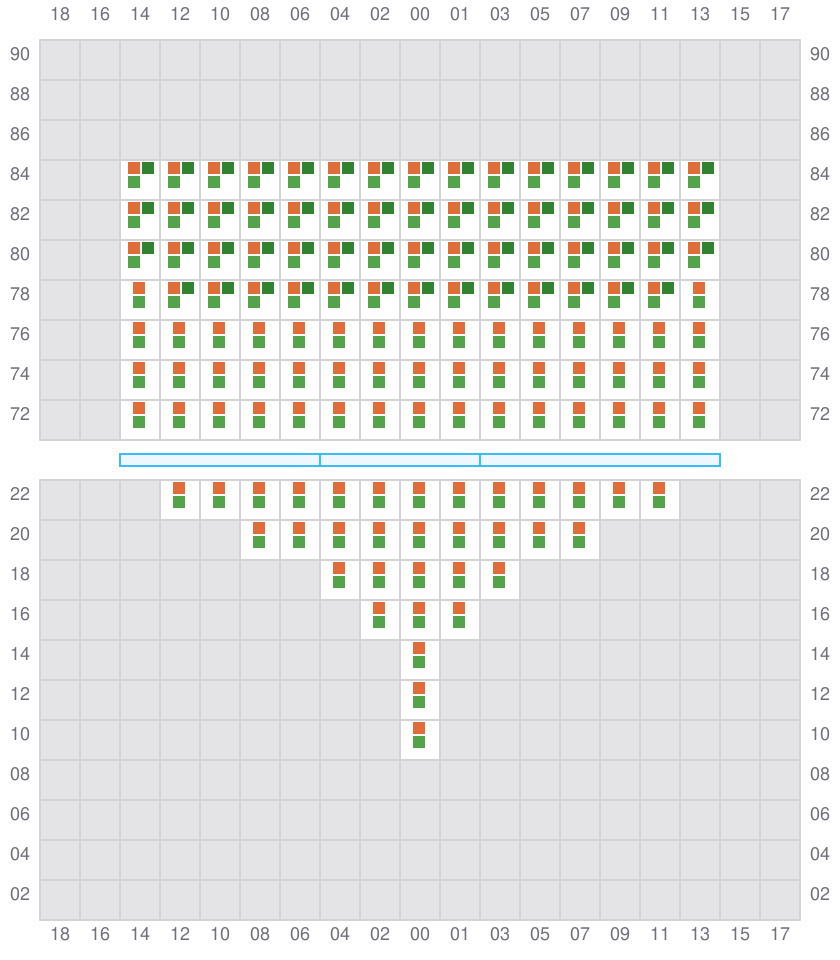

Bay 001 view and slots of MAERSK EINDHOVEN

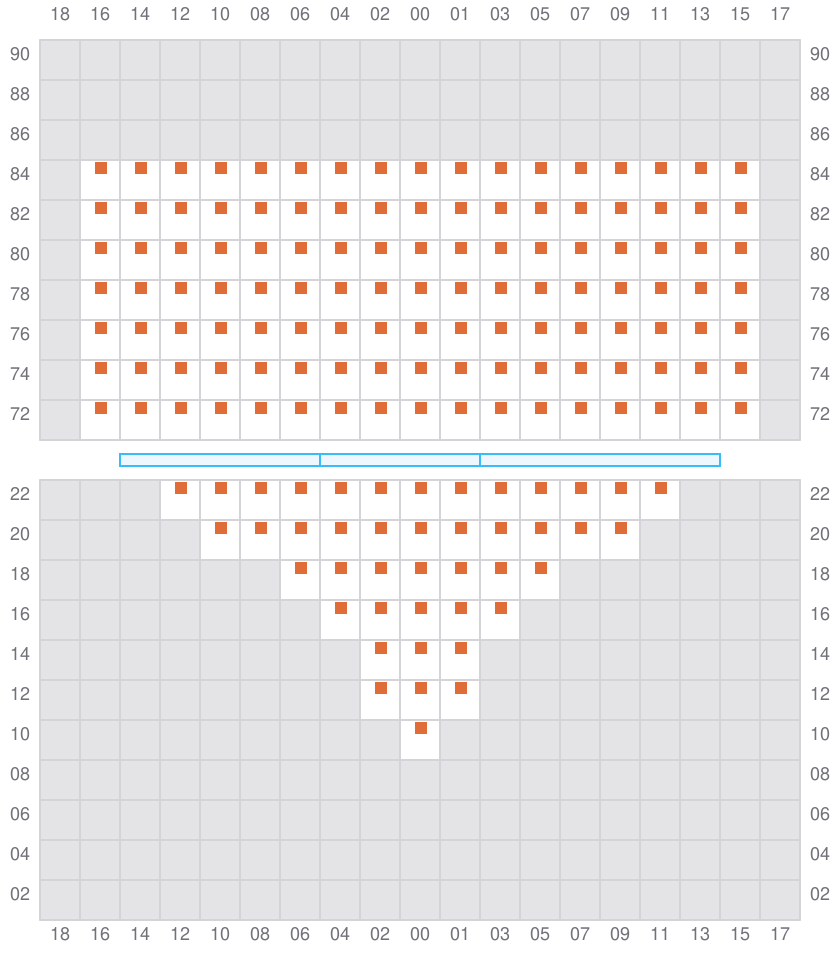

003

  • ←
Bay 003 view and slots of MAERSK EINDHOVEN

005 (006)

  • →

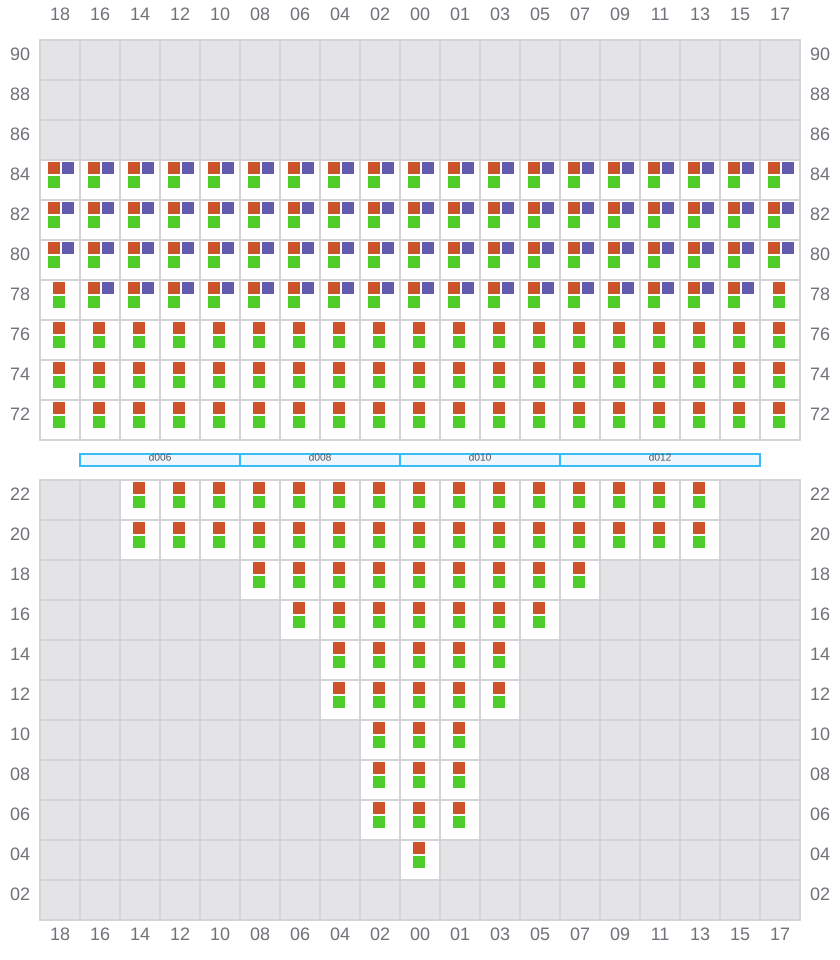

Bay 005 view and slots of MAERSK EINDHOVEN

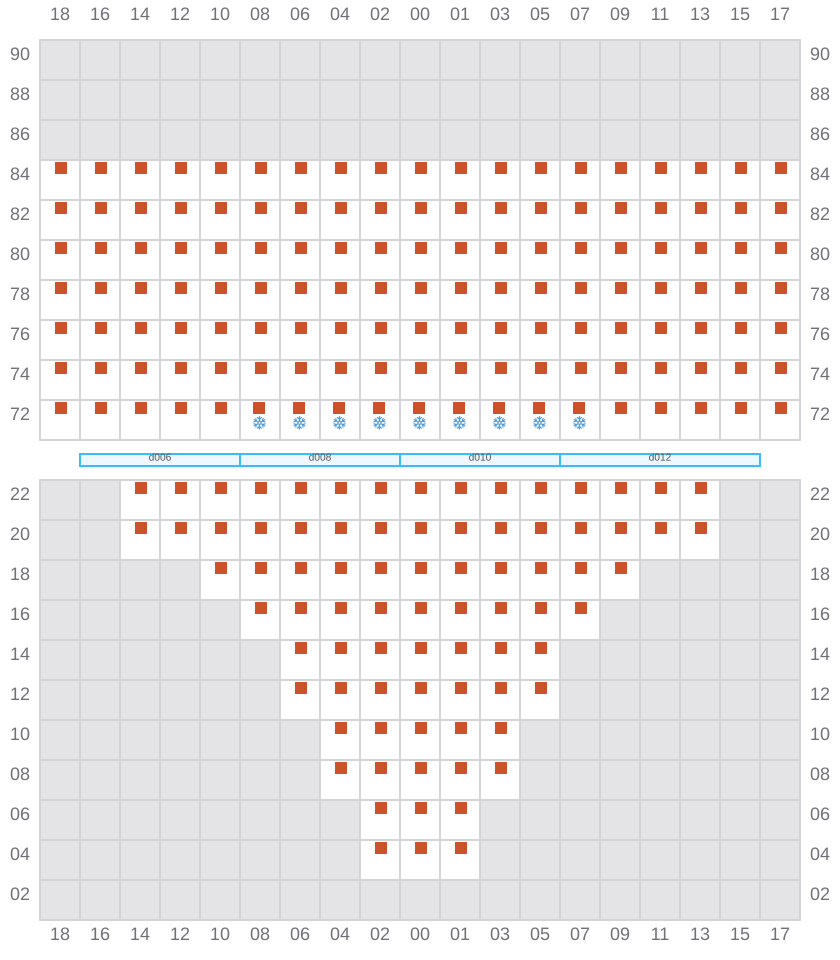

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK EINDHOVEN

009 (010)

  • →

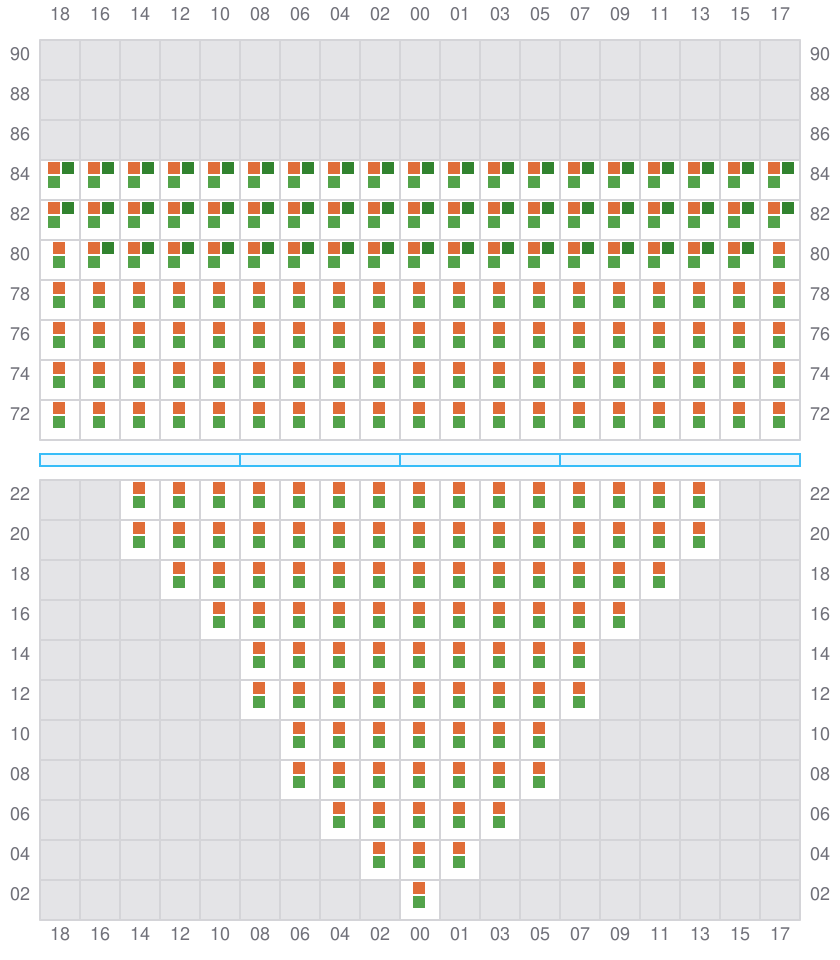

Bay 009 view and slots of MAERSK EINDHOVEN

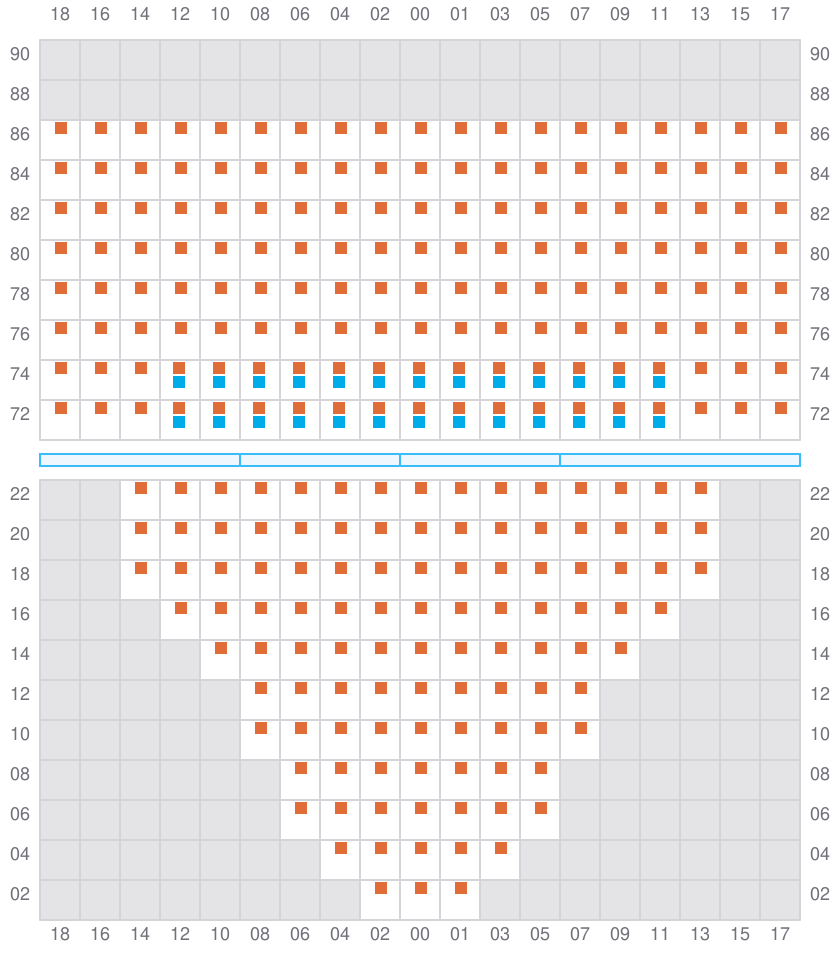

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK EINDHOVEN

013 (014)

  • →

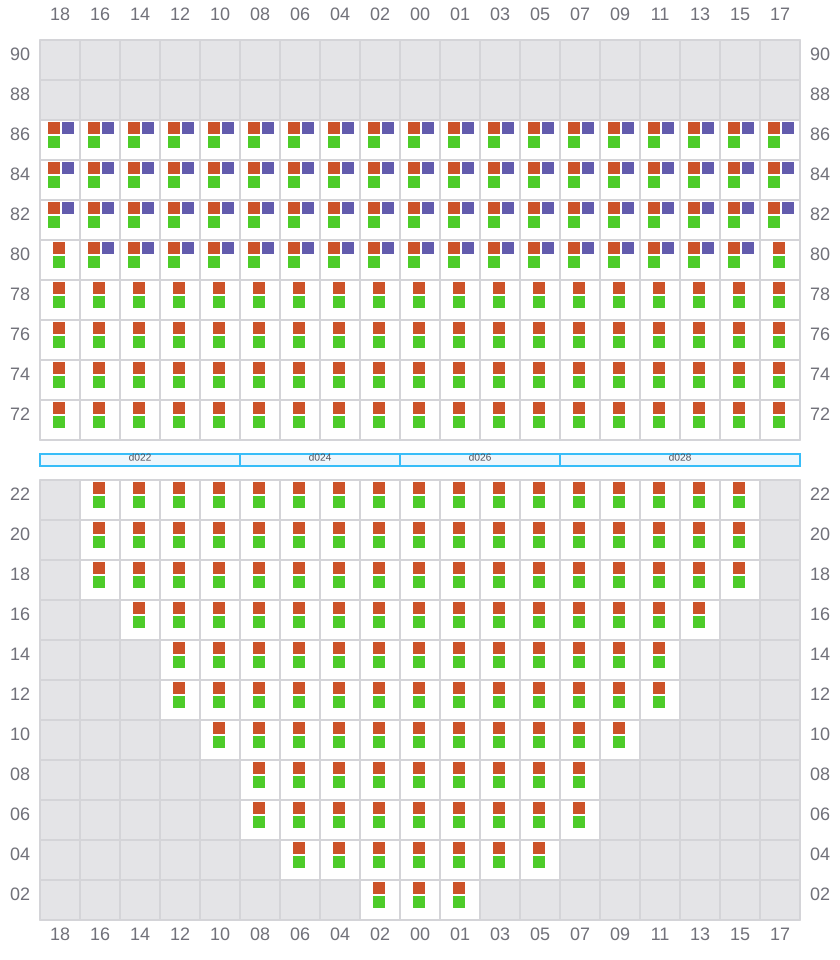

Bay 013 view and slots of MAERSK EINDHOVEN

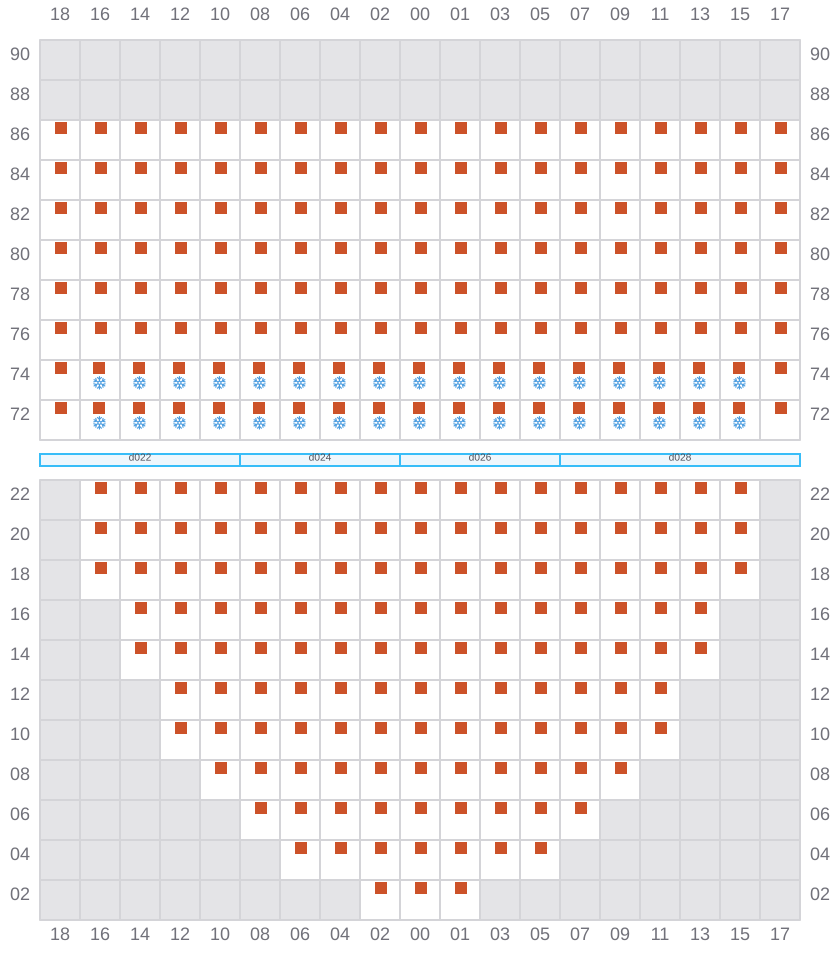

015

  • ←
  • → / ?
Bay 015 view and slots of MAERSK EINDHOVEN

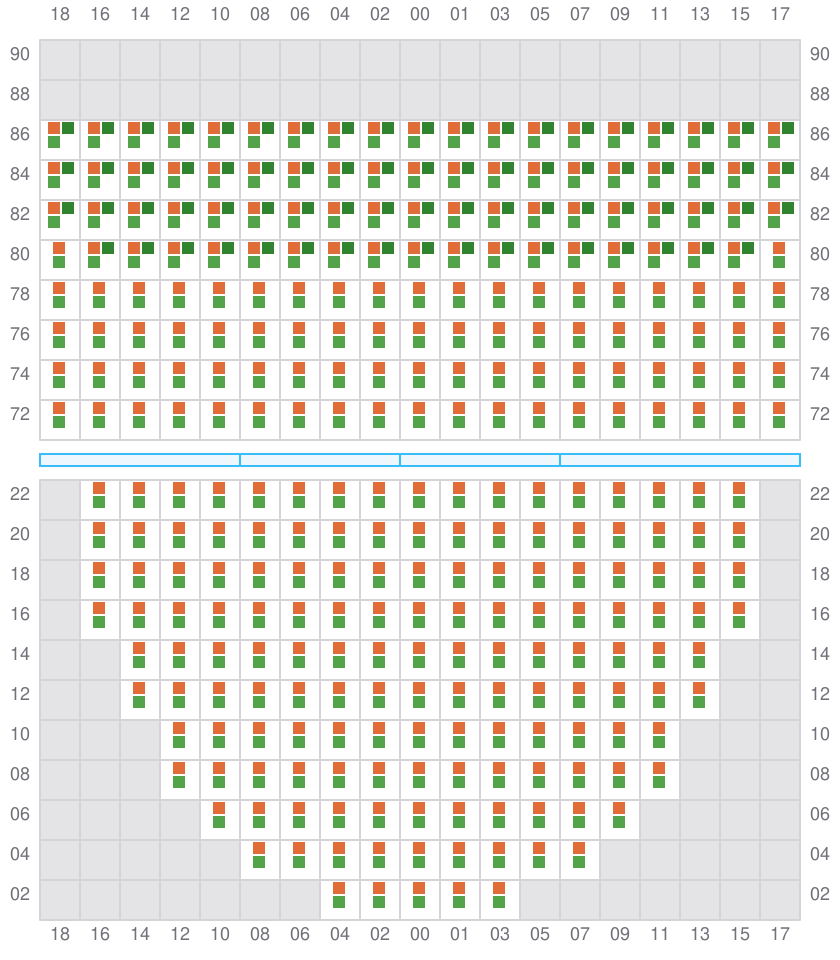

017 (018)

  • →
Bay 017 view and slots of MAERSK EINDHOVEN

019

  • ←
  • → / ?

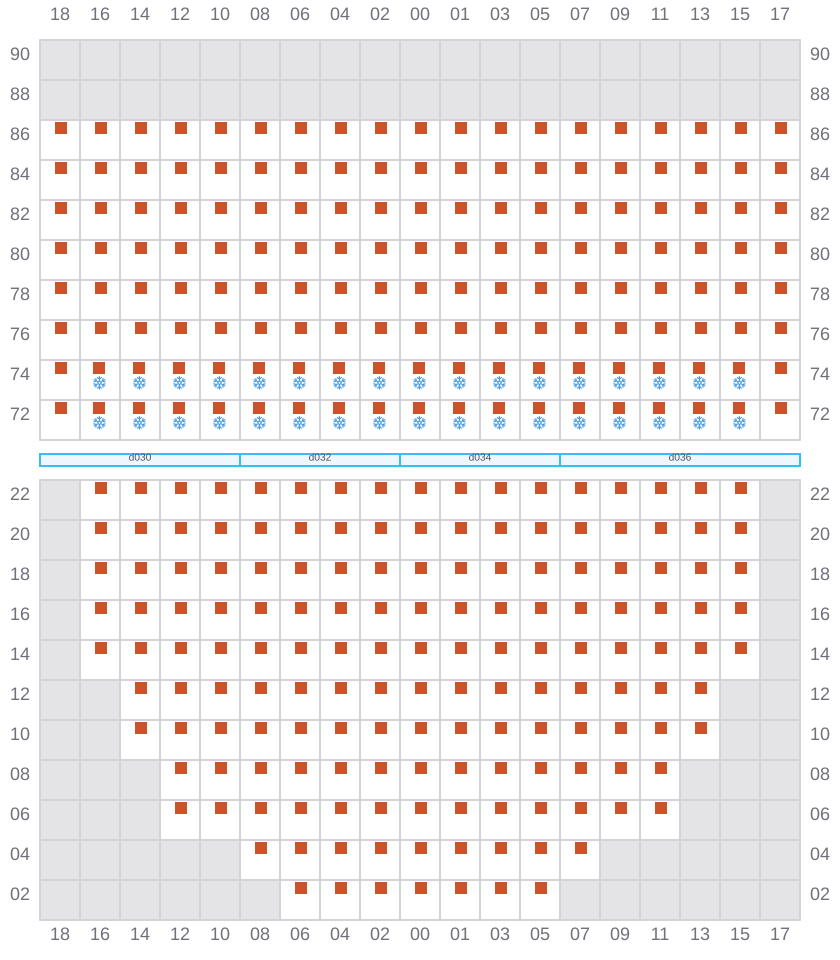

Bay 019 view and slots of MAERSK EINDHOVEN

021 (022)

  • →

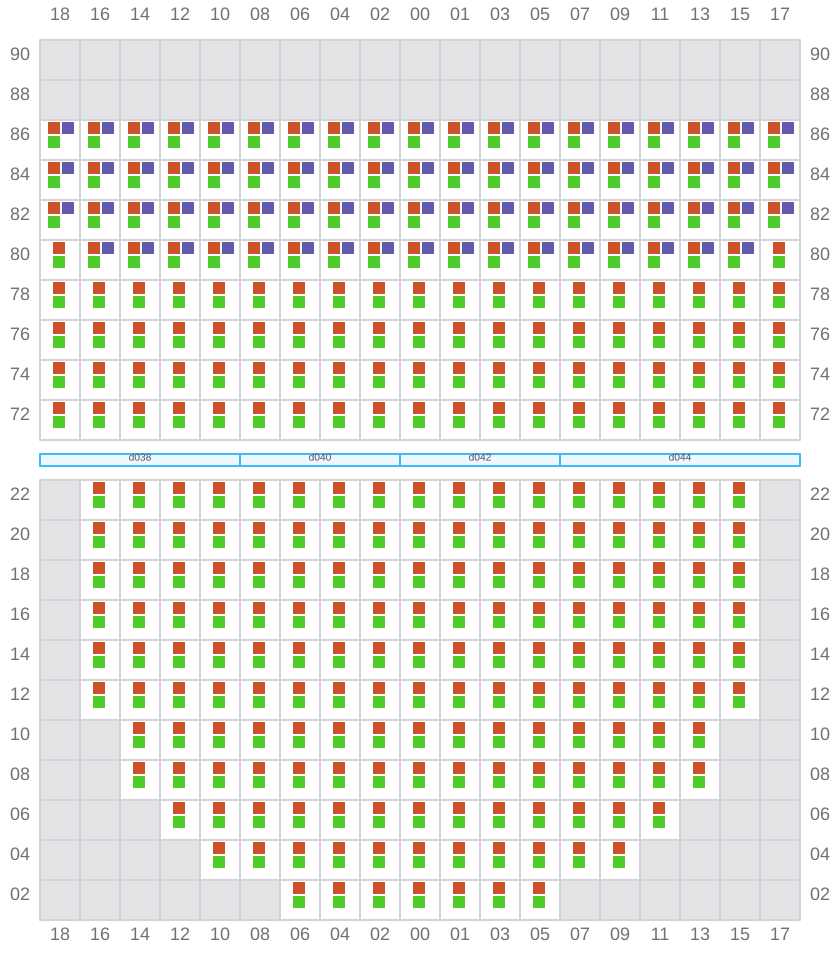

Bay 021 view and slots of MAERSK EINDHOVEN

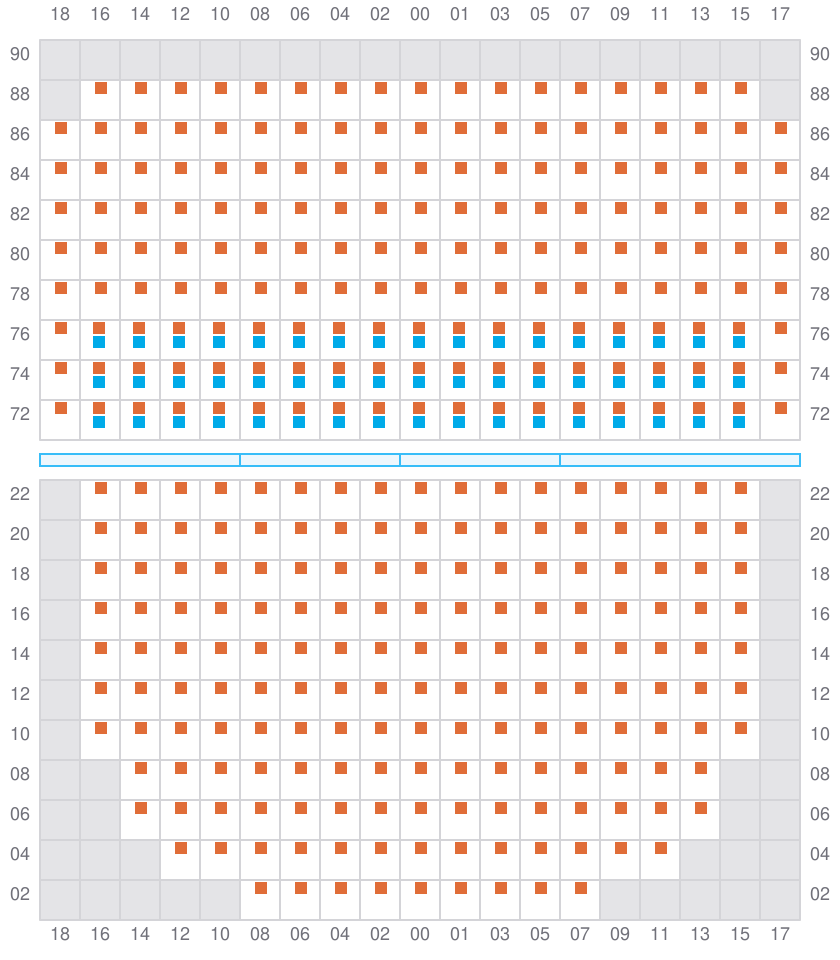

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK EINDHOVEN

025 (026)

  • →

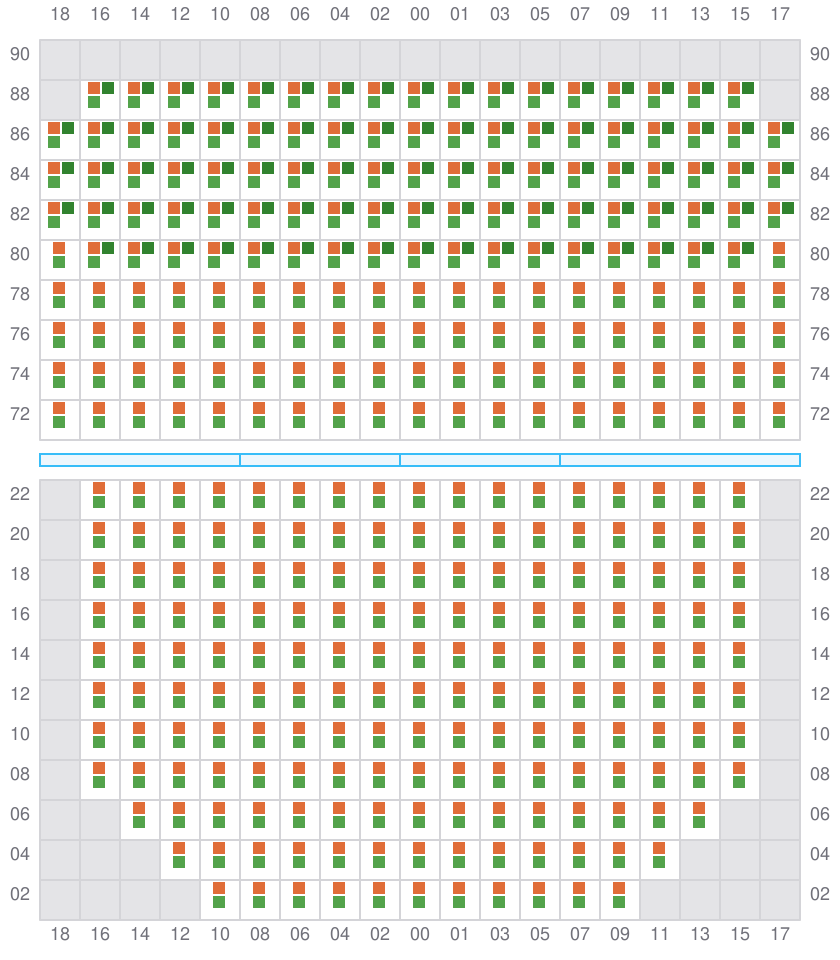

Bay 025 view and slots of MAERSK EINDHOVEN

027

  • ←
  • →

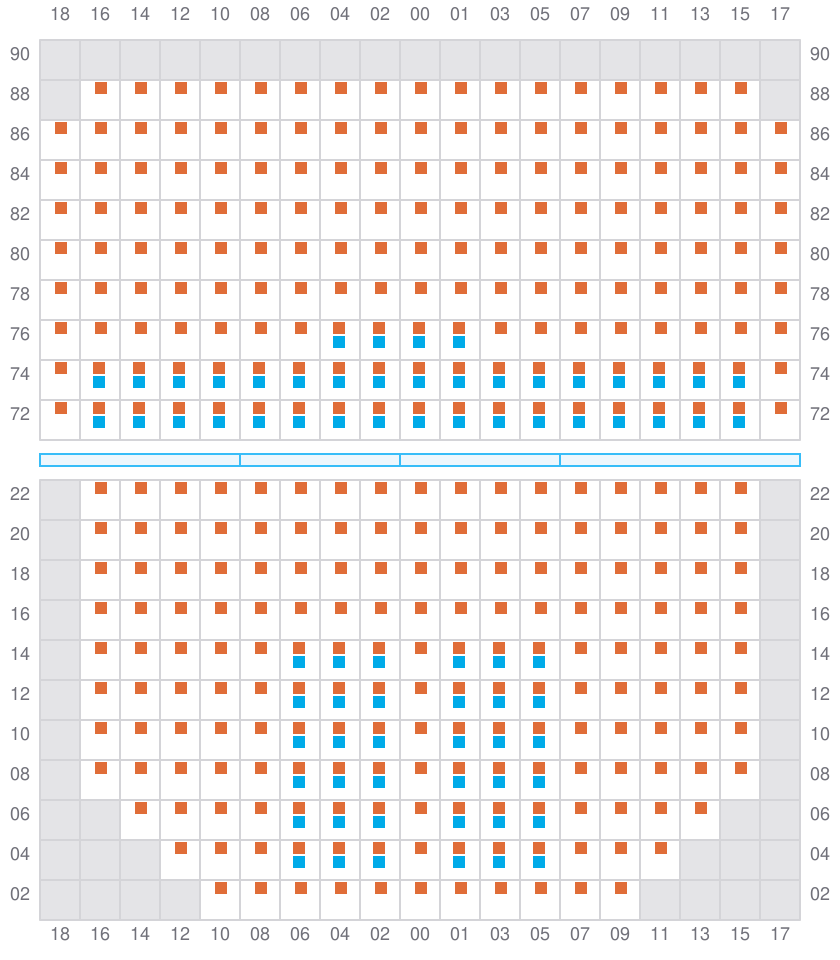

Bay 027 view and slots of MAERSK EINDHOVEN

029 (030)

  • →

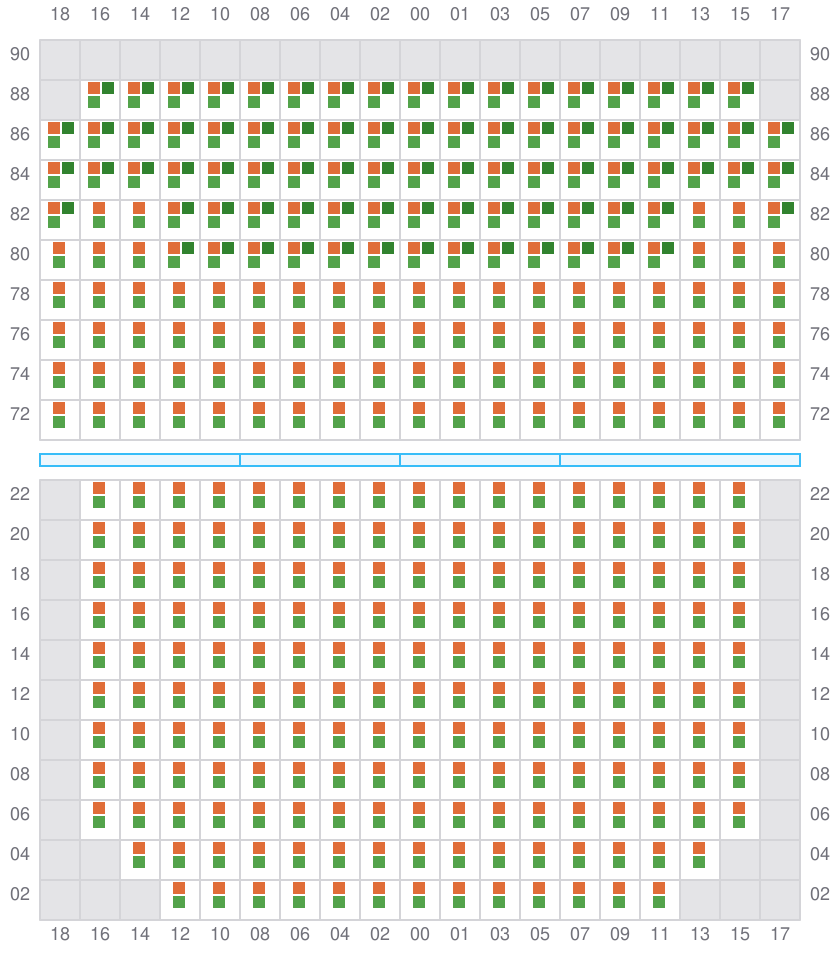

Bay 029 view and slots of MAERSK EINDHOVEN

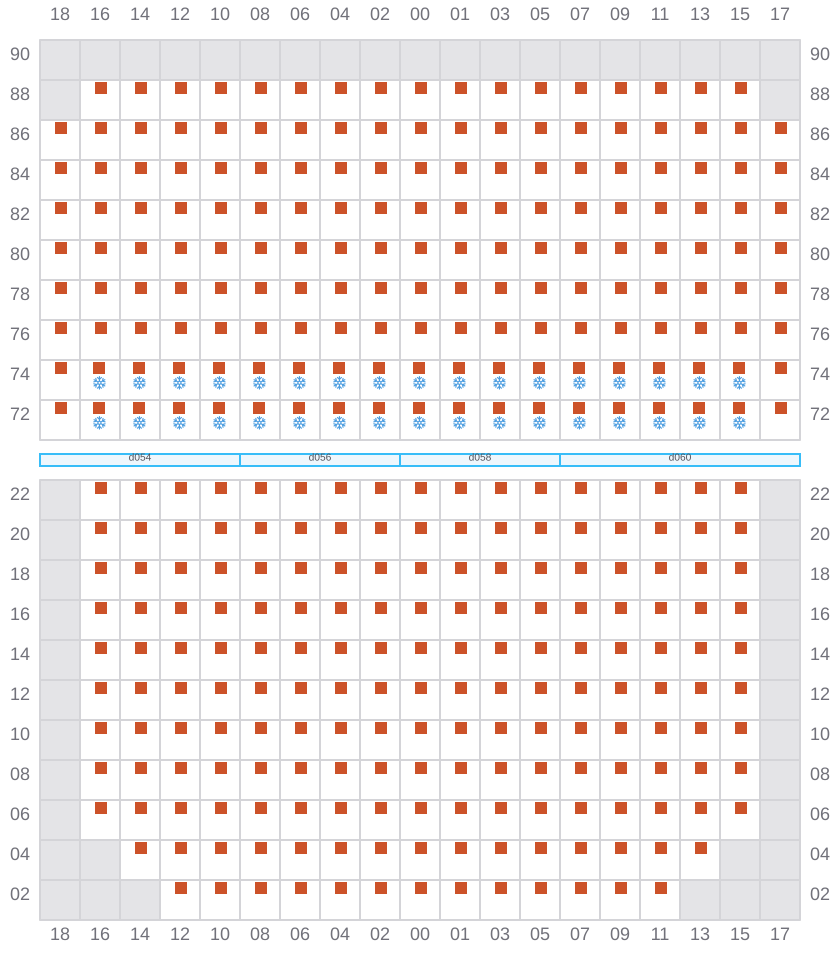

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK EINDHOVEN

033 (034)

  • →

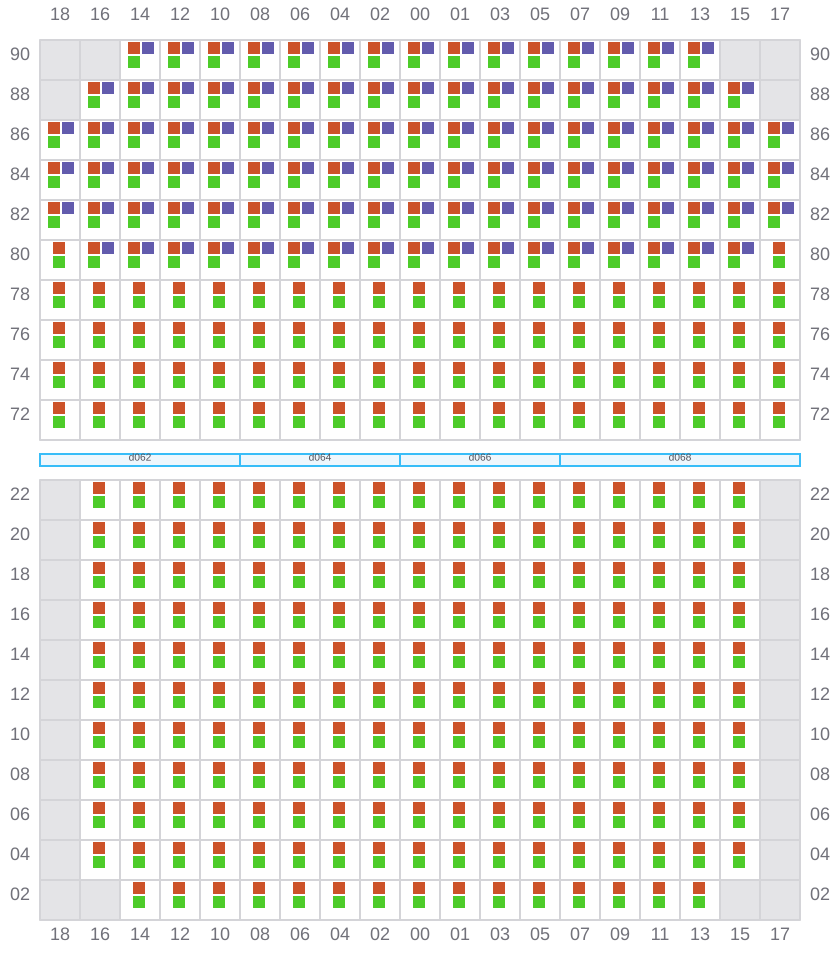

Bay 033 view and slots of MAERSK EINDHOVEN

035

  • ←
  • → / ?

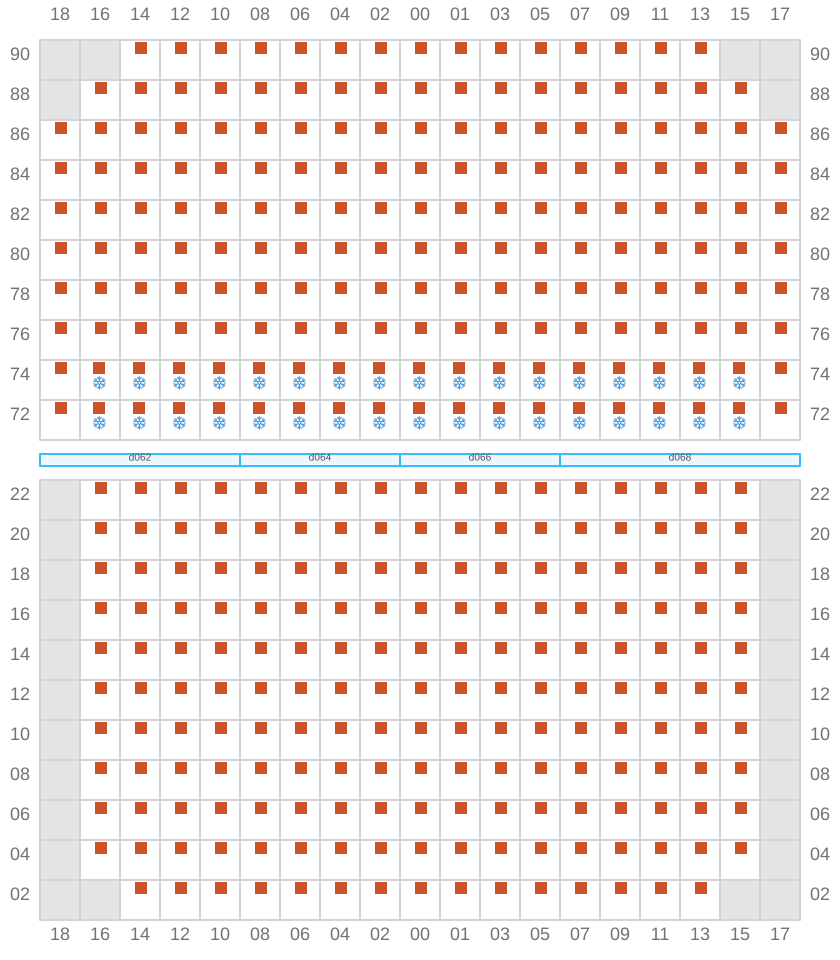

Bay 035 view and slots of MAERSK EINDHOVEN

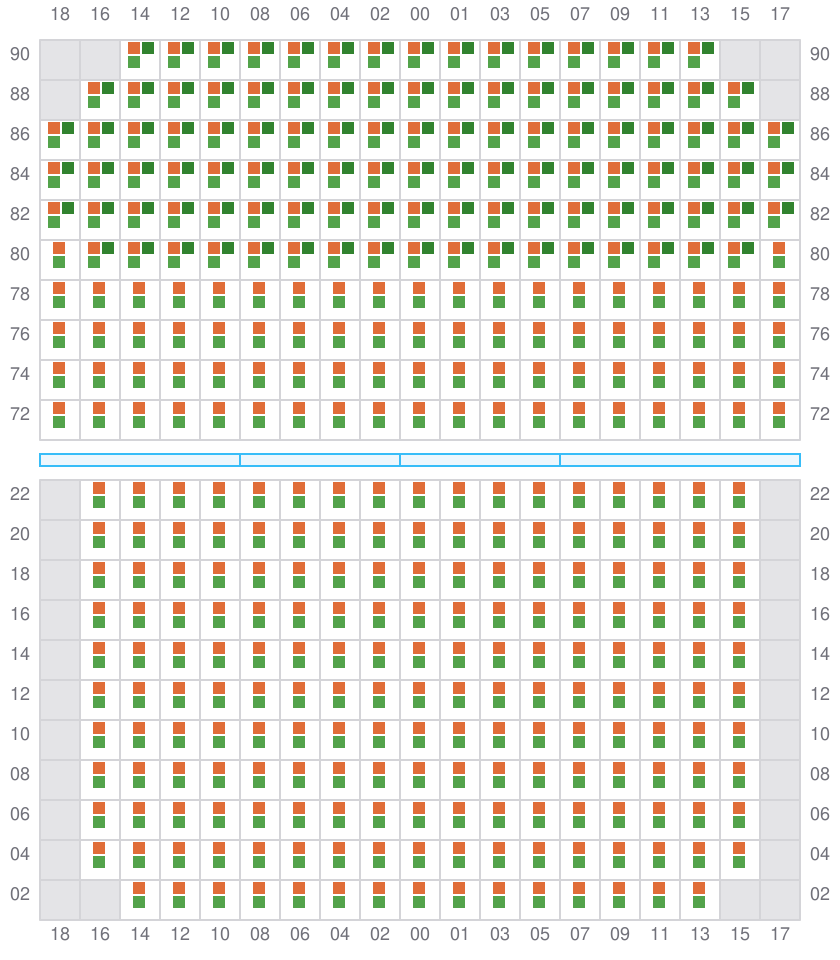

037 (038)

  • →
Bay 037 view and slots of MAERSK EINDHOVEN

039

  • ←
  • → / ?

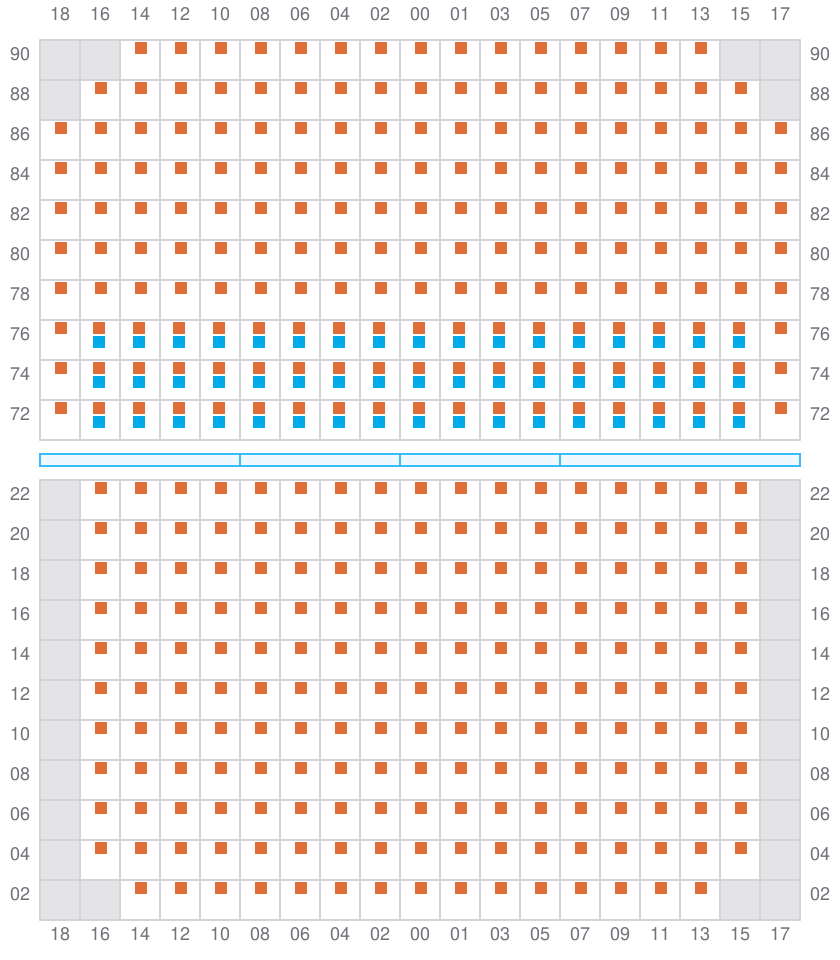

Bay 039 view and slots of MAERSK EINDHOVEN

041 (042)

  • →
Bay 041 view and slots of MAERSK EINDHOVEN

043

  • ←
  • →

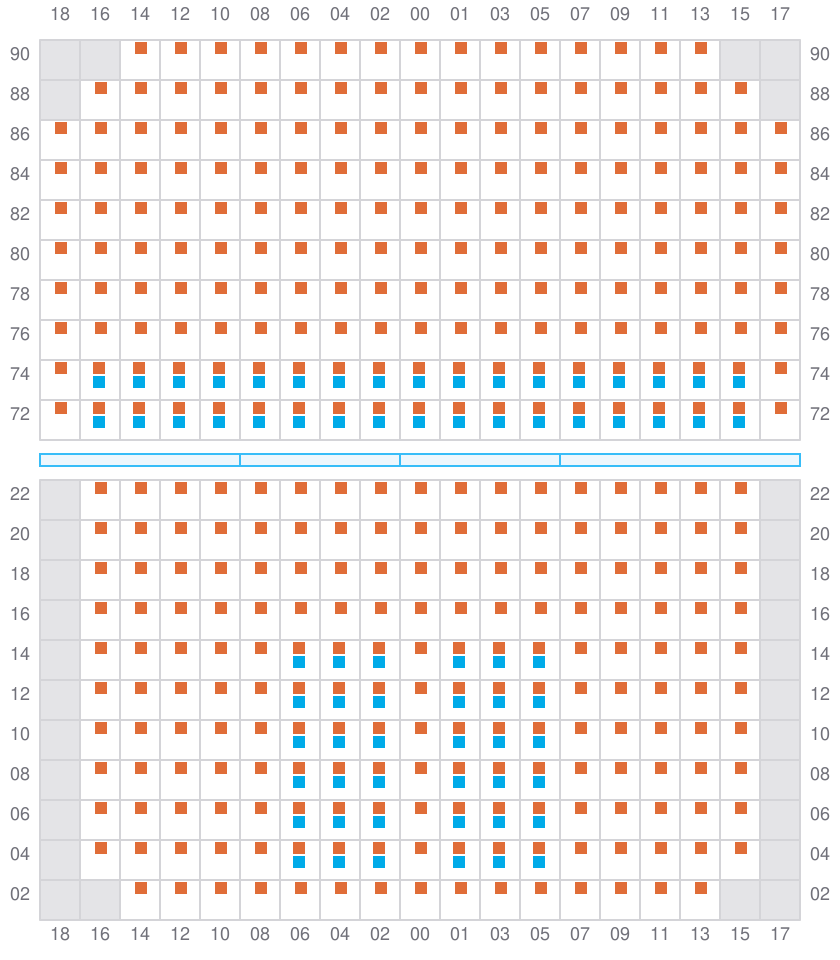

Bay 043 view and slots of MAERSK EINDHOVEN

045 (046)

  • →
Bay 045 view and slots of MAERSK EINDHOVEN

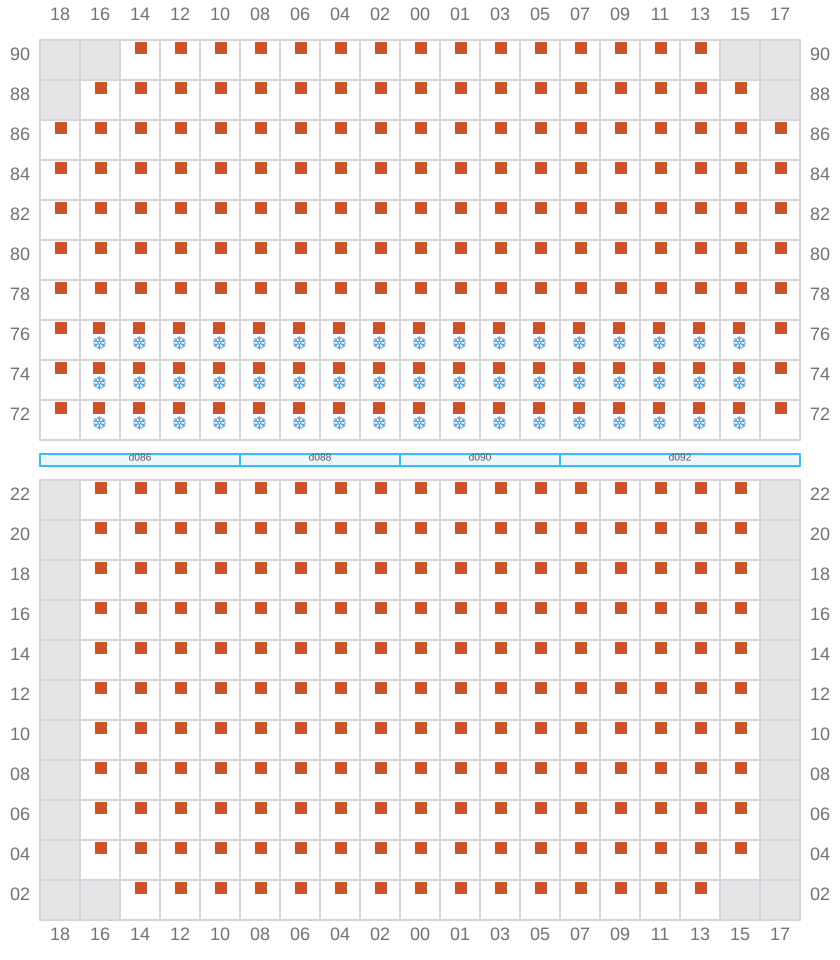

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK EINDHOVEN

049 (050)

  • →
Bay 049 view and slots of MAERSK EINDHOVEN

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK EINDHOVEN

053 (054)

  • →
Bay 053 view and slots of MAERSK EINDHOVEN

055

  • ←
  • → / ?

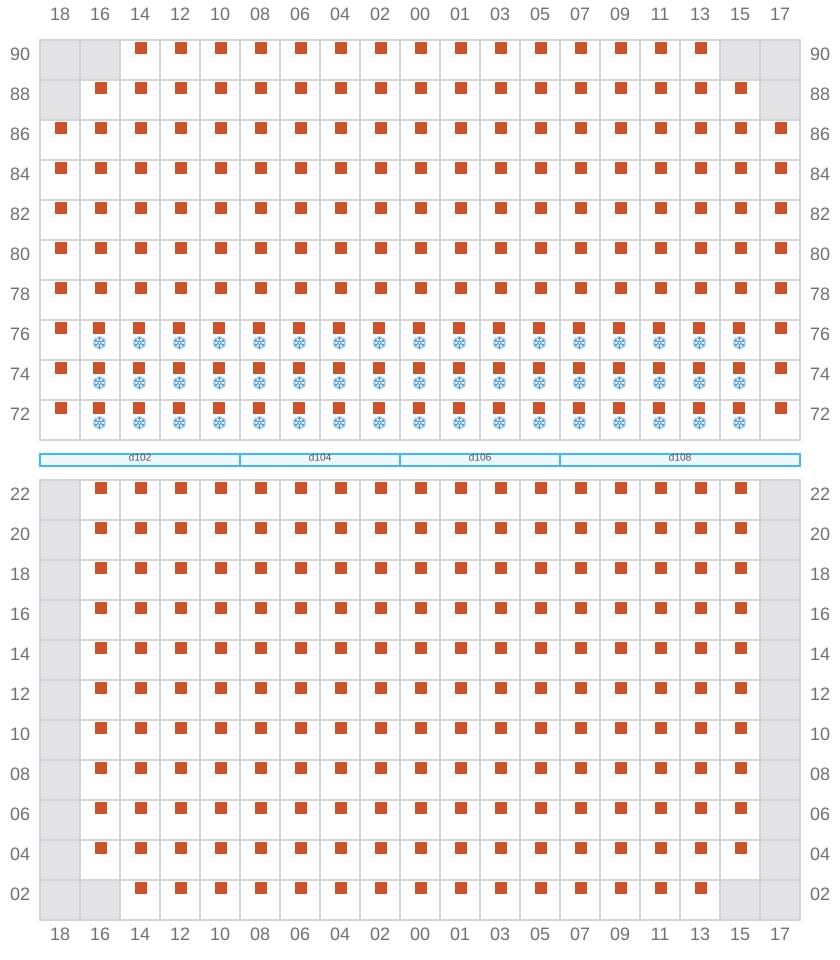

Bay 055 view and slots of MAERSK EINDHOVEN

057 (058)

  • →

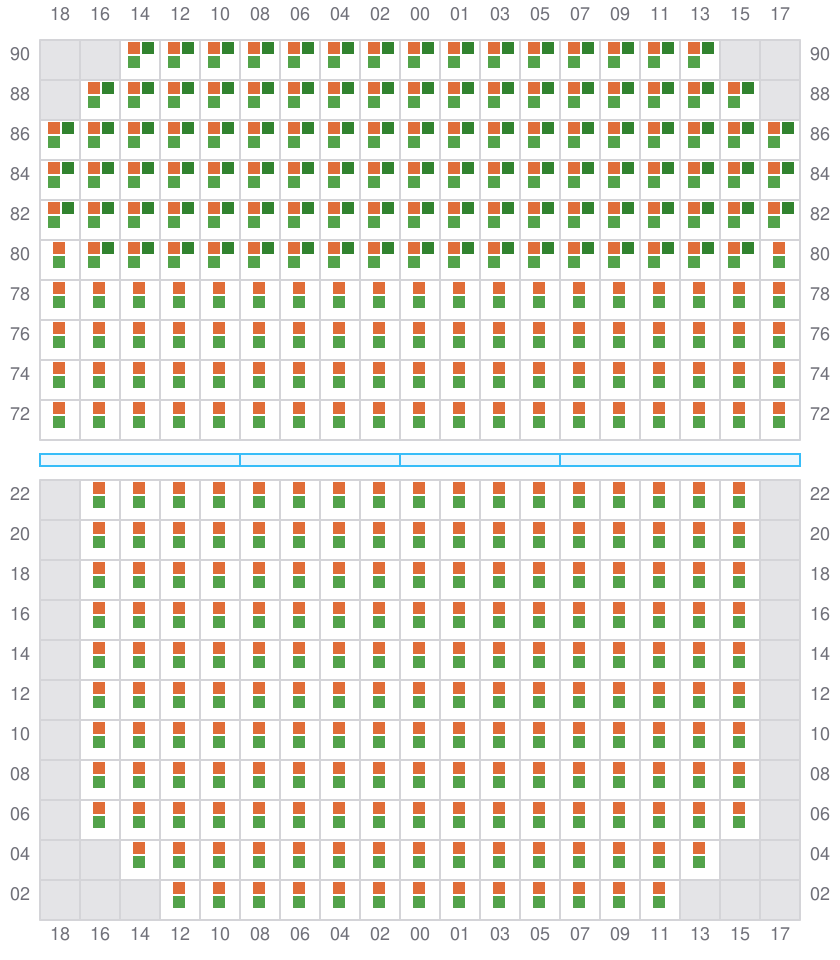

Bay 057 view and slots of MAERSK EINDHOVEN

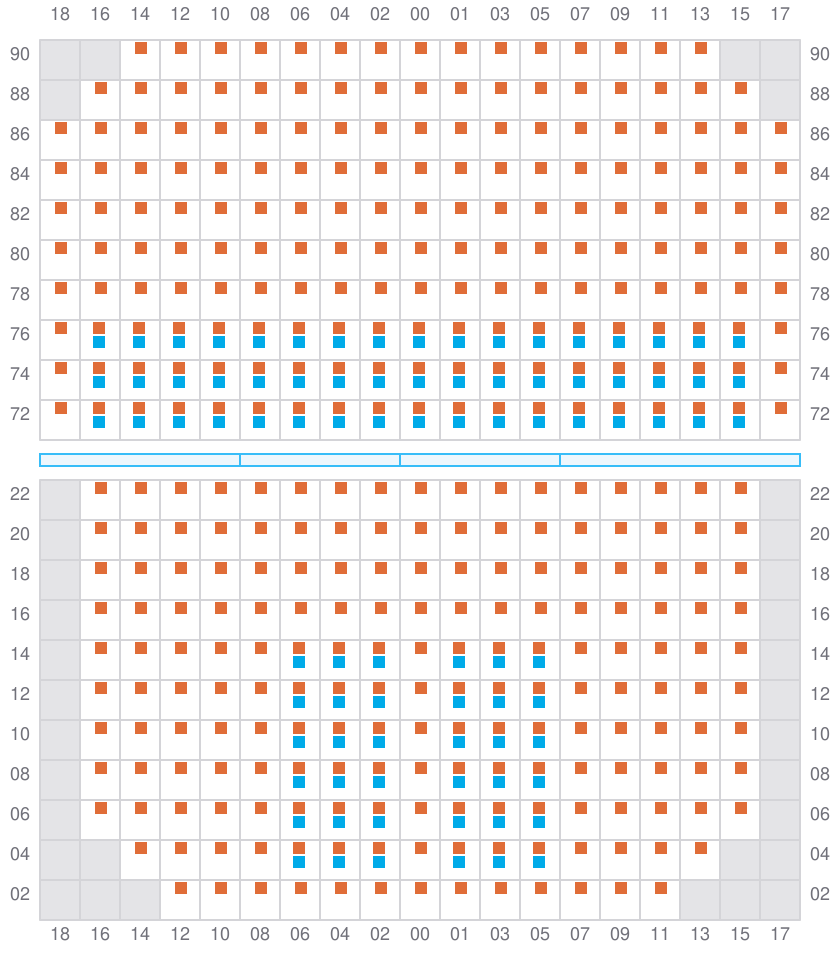

059

  • ←
  • →
Bay 059 view and slots of MAERSK EINDHOVEN

061 (062)

  • →
Bay 061 view and slots of MAERSK EINDHOVEN

063

  • ←
  • → / ?

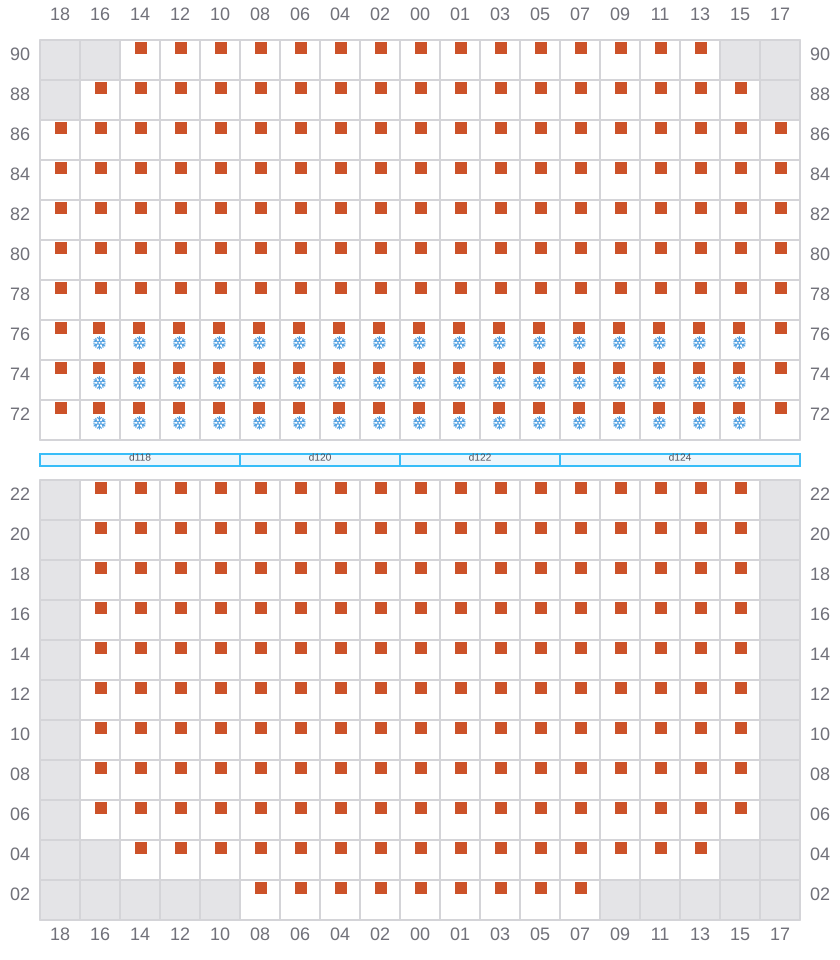

Bay 063 view and slots of MAERSK EINDHOVEN

065 (066)

  • →

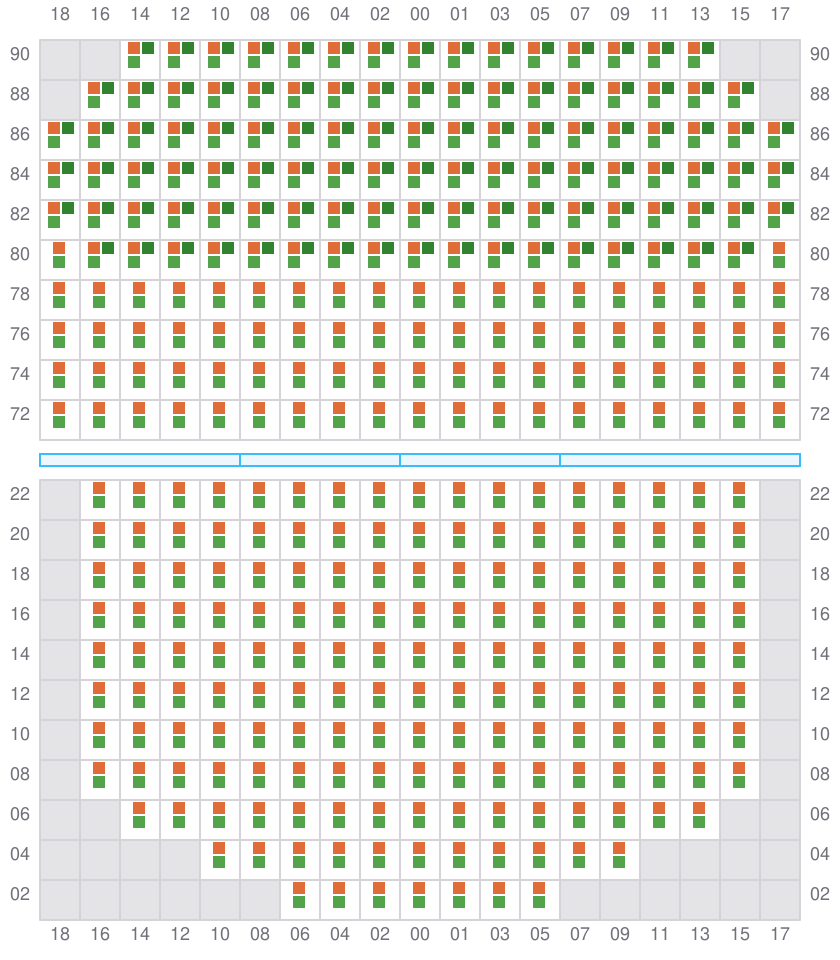

Bay 065 view and slots of MAERSK EINDHOVEN

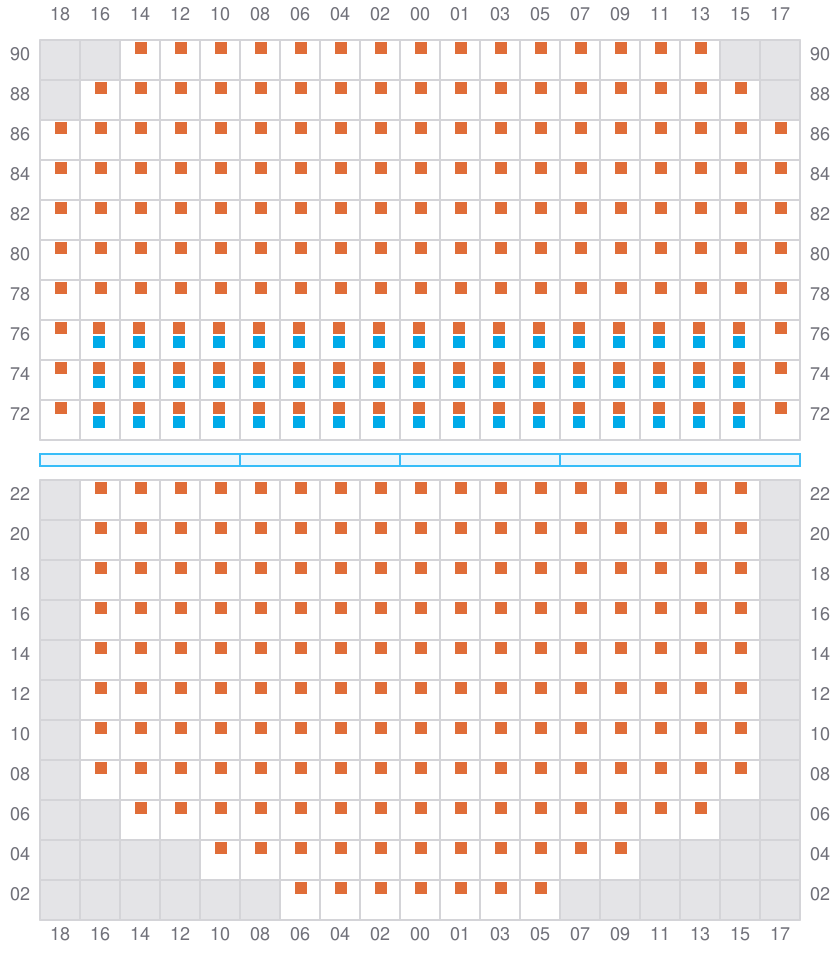

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK EINDHOVEN

069 (070)

  • →

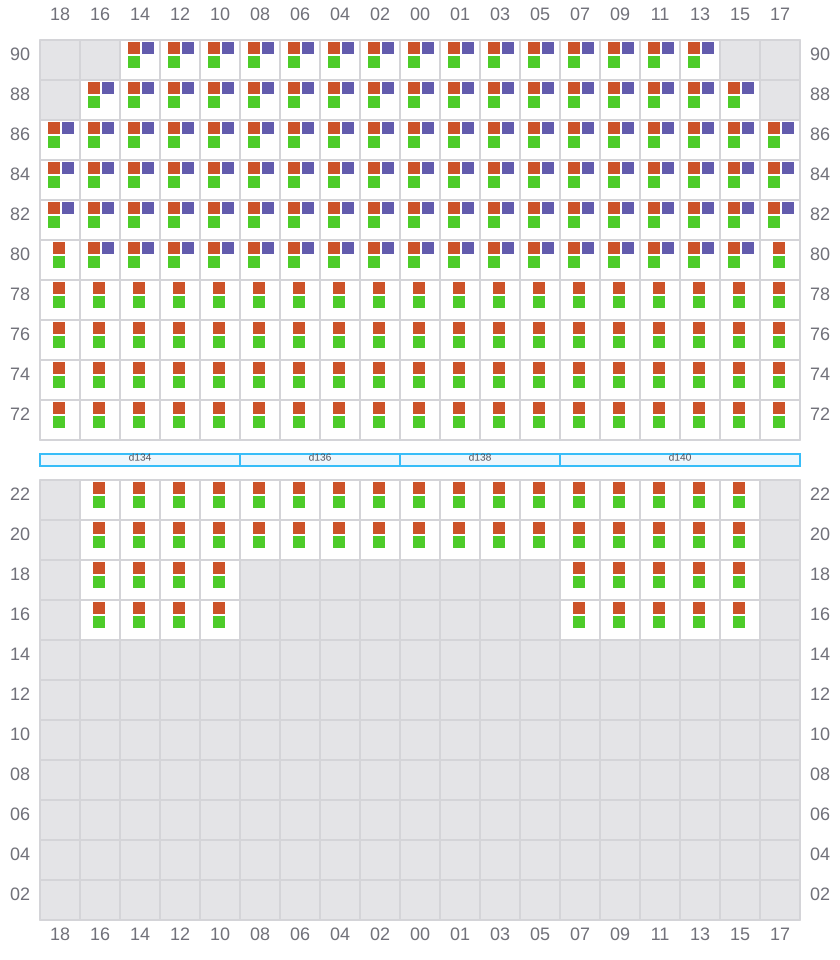

Bay 069 view and slots of MAERSK EINDHOVEN

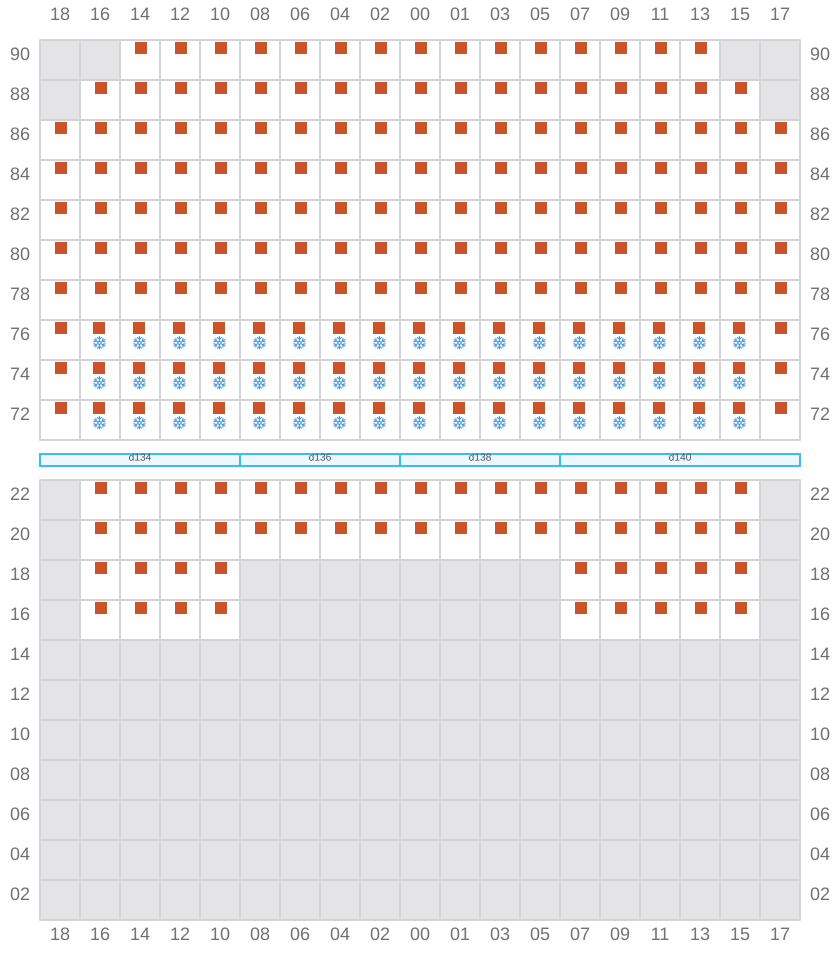

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK EINDHOVEN

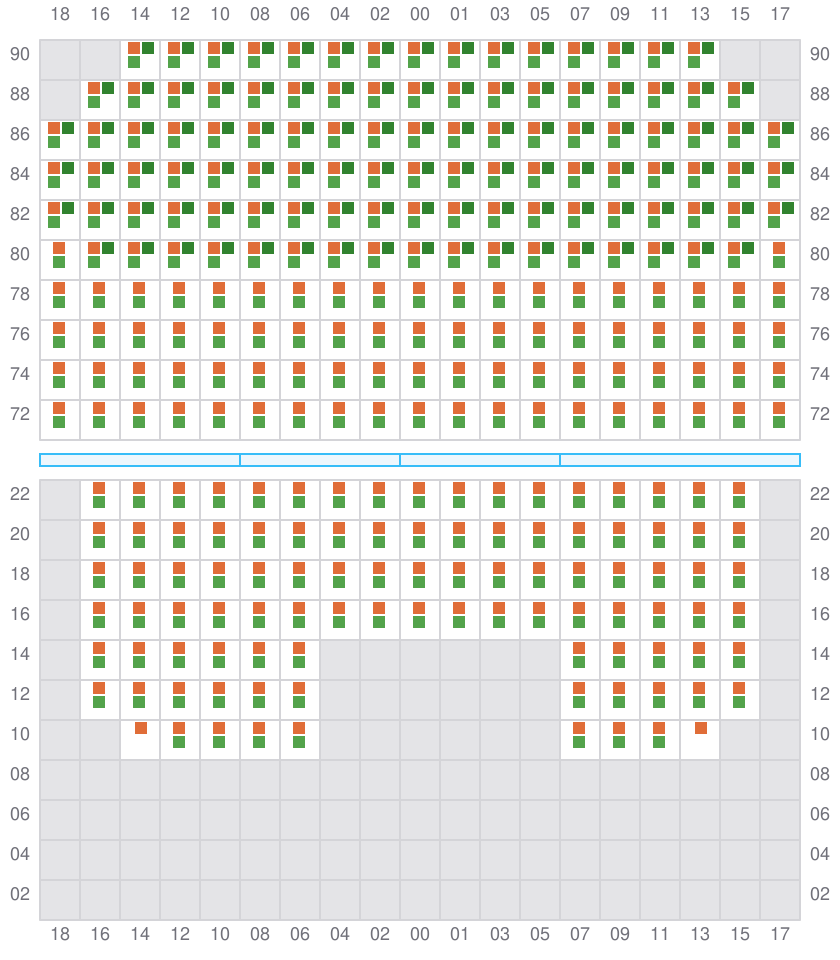

073 (074)

  • →
Bay 073 view and slots of MAERSK EINDHOVEN

075

  • ←
  • → / ?

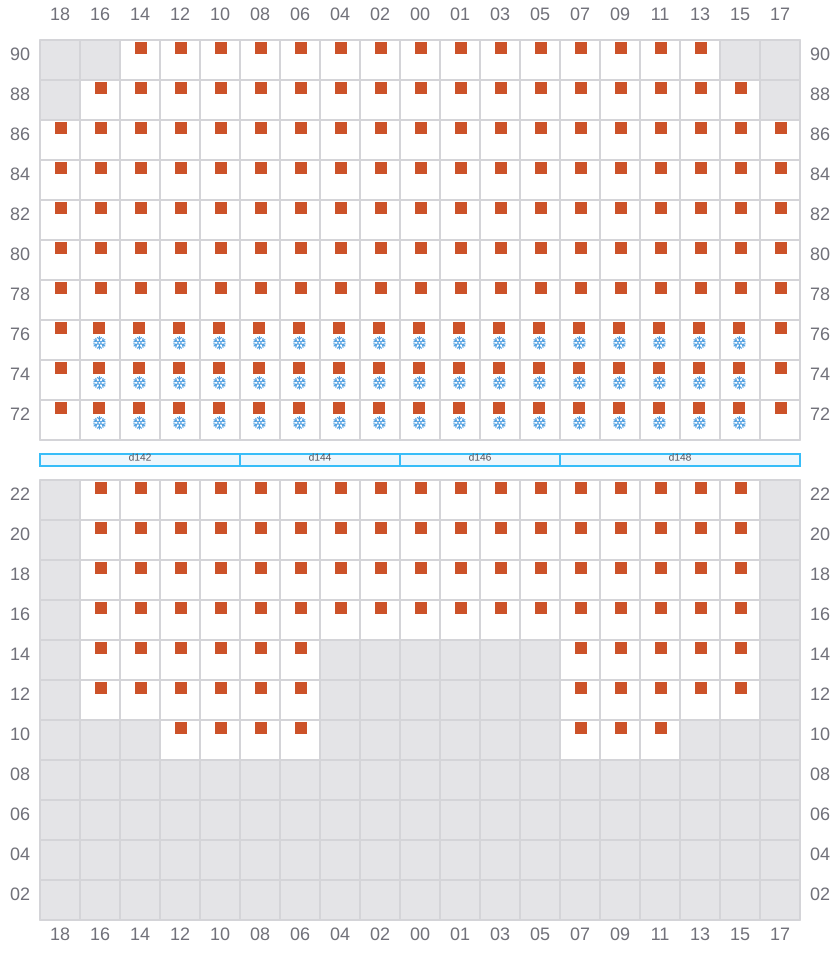

Bay 075 view and slots of MAERSK EINDHOVEN

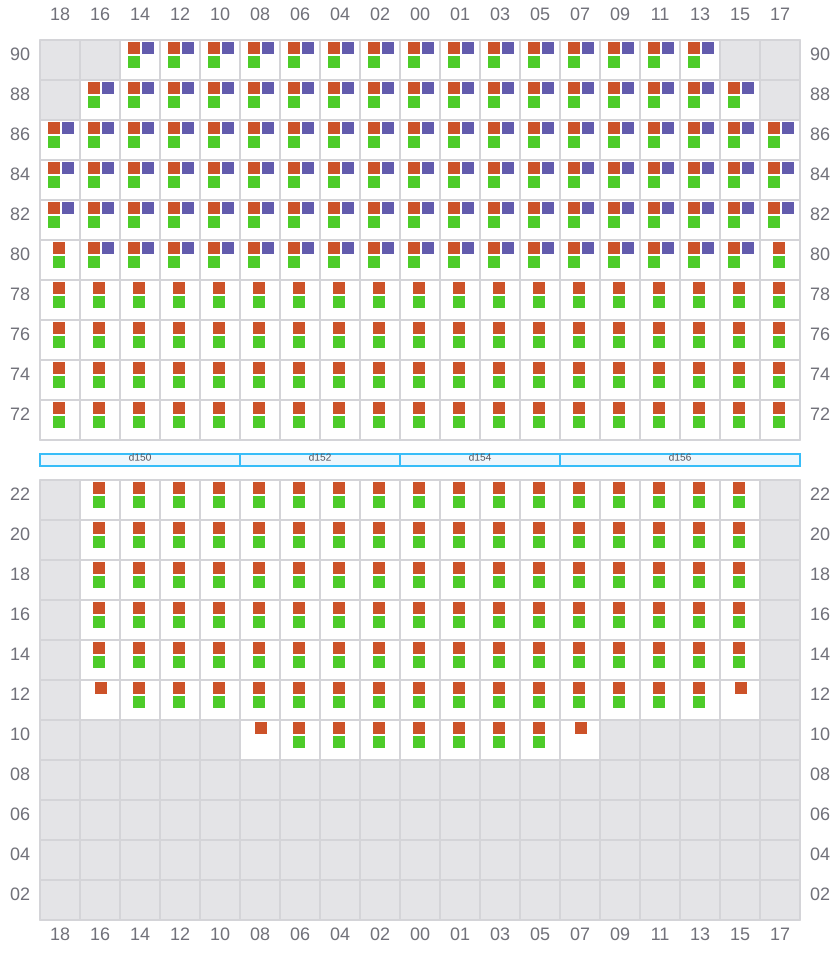

077 (078)

  • →
Bay 077 view and slots of MAERSK EINDHOVEN

079

  • ←
  • → / ?

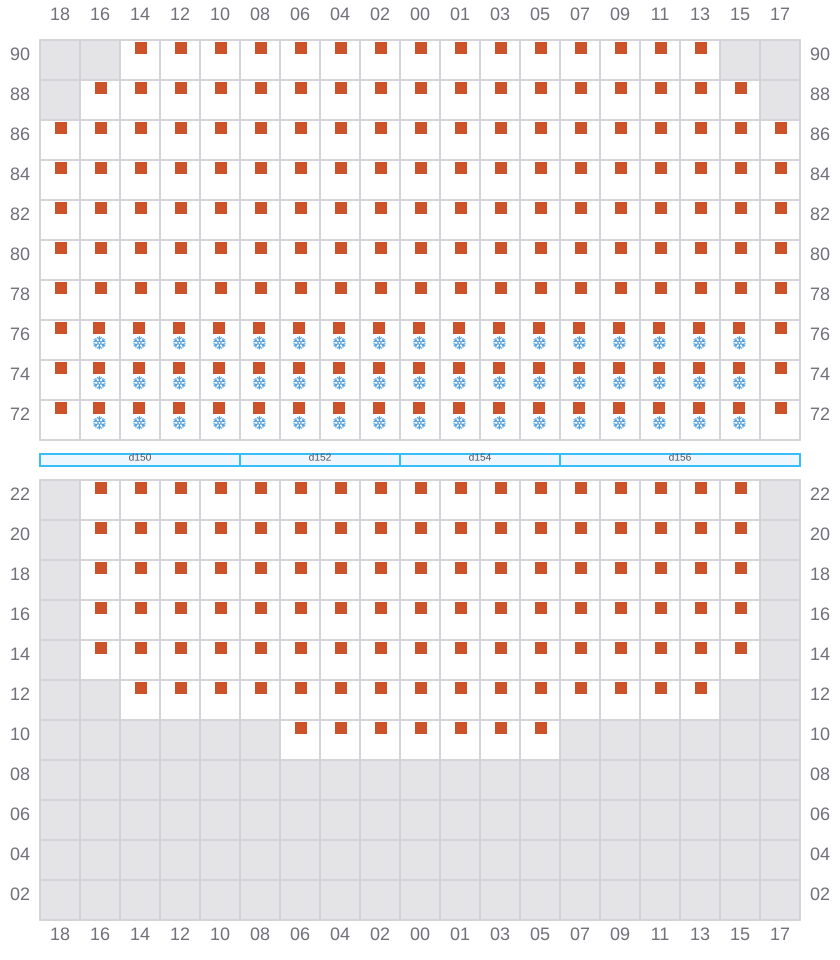

Bay 079 view and slots of MAERSK EINDHOVEN

081 (082)

  • →

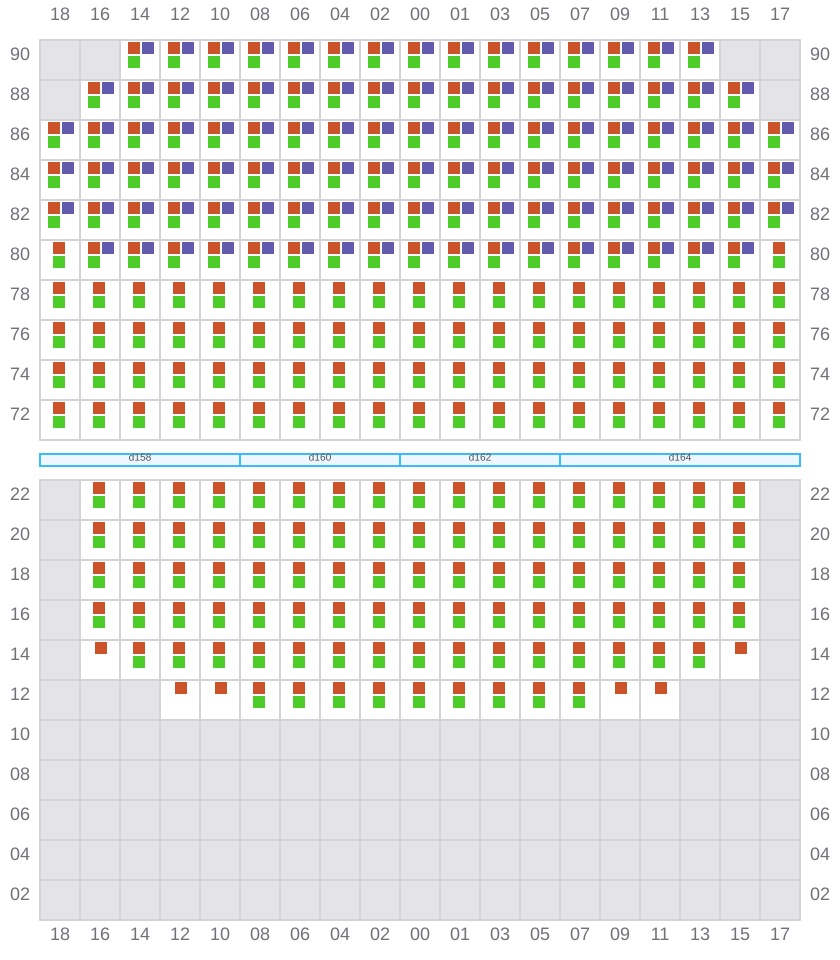

Bay 081 view and slots of MAERSK EINDHOVEN

083

  • ←
  • → / ?

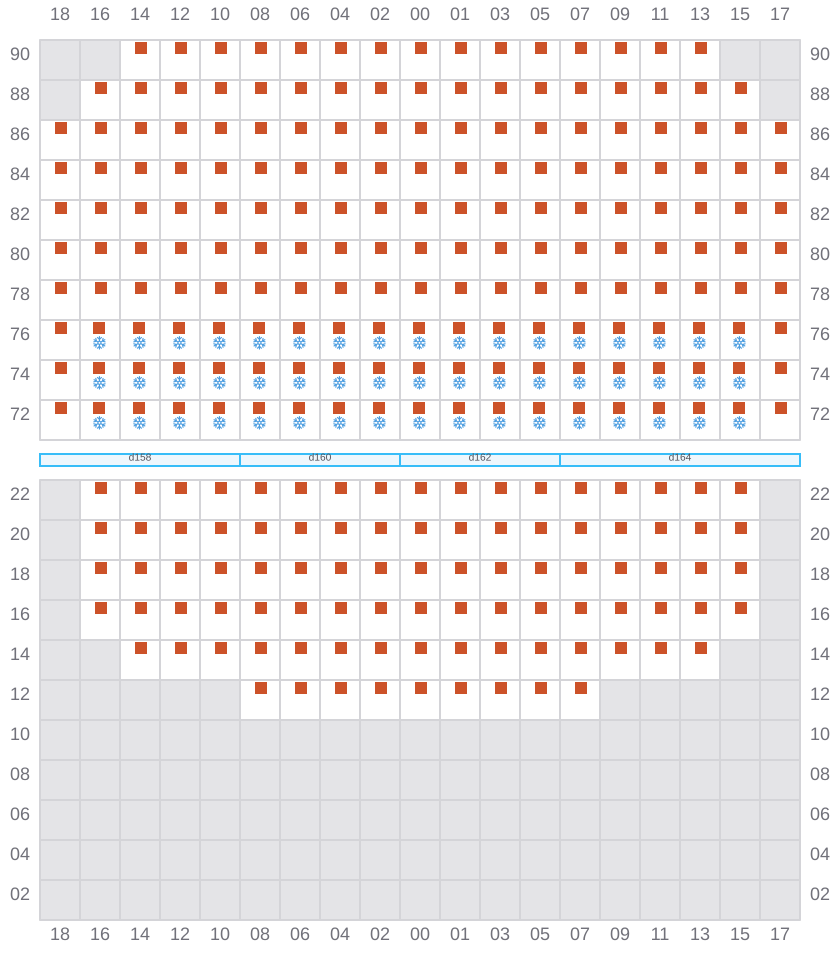

Bay 083 view and slots of MAERSK EINDHOVEN

085 (086)

  • → / ?

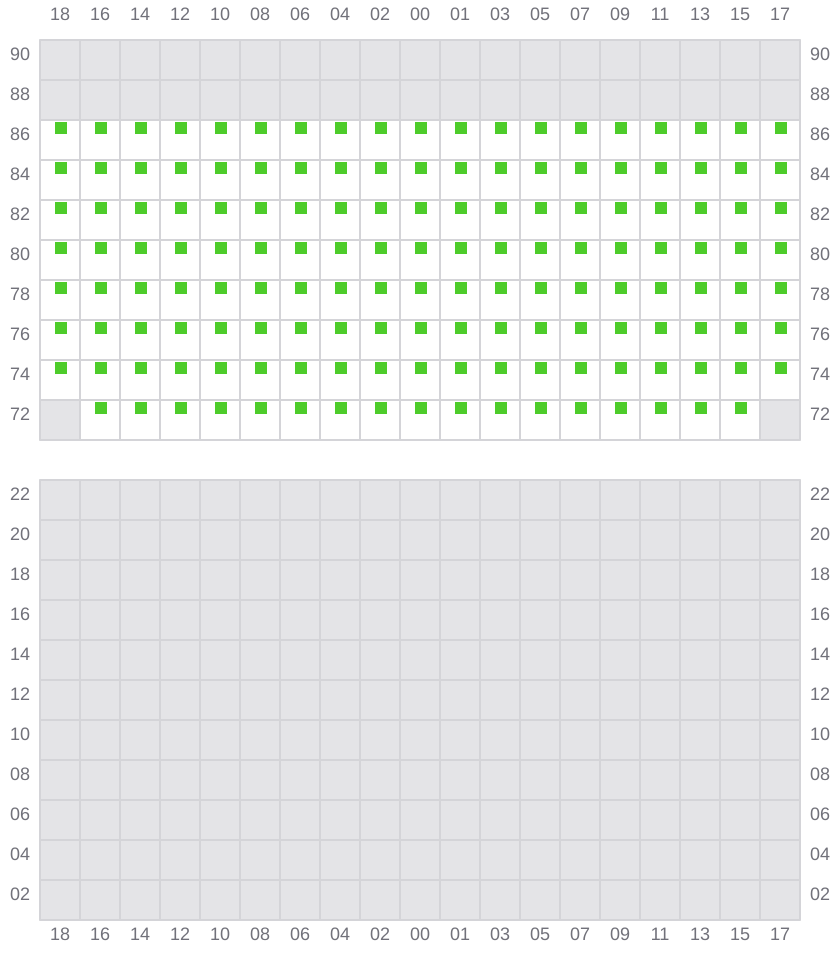

Bay 085 view and slots of MAERSK EINDHOVEN
