MAERSK ELBA
9458078 | OYHL2 | MAERSK by ********* Last update: Wed Mar 27 2024

General Info

Ship Name:MAERSK ELBA
IMO Code:9458078
Call Sign:OYHL2
Line Operator:MAERSK
Class Name for Sister Ships:EDINBURGH
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,102

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK ELBA

Hatch-Covers View

Deck view of MAERSK ELBA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

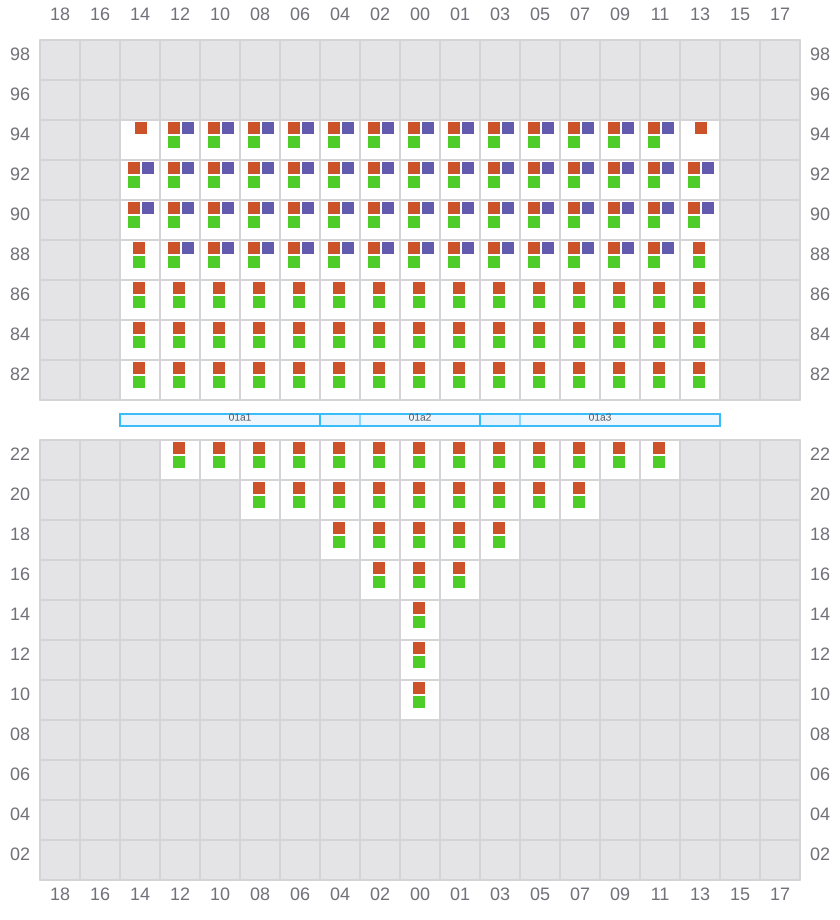

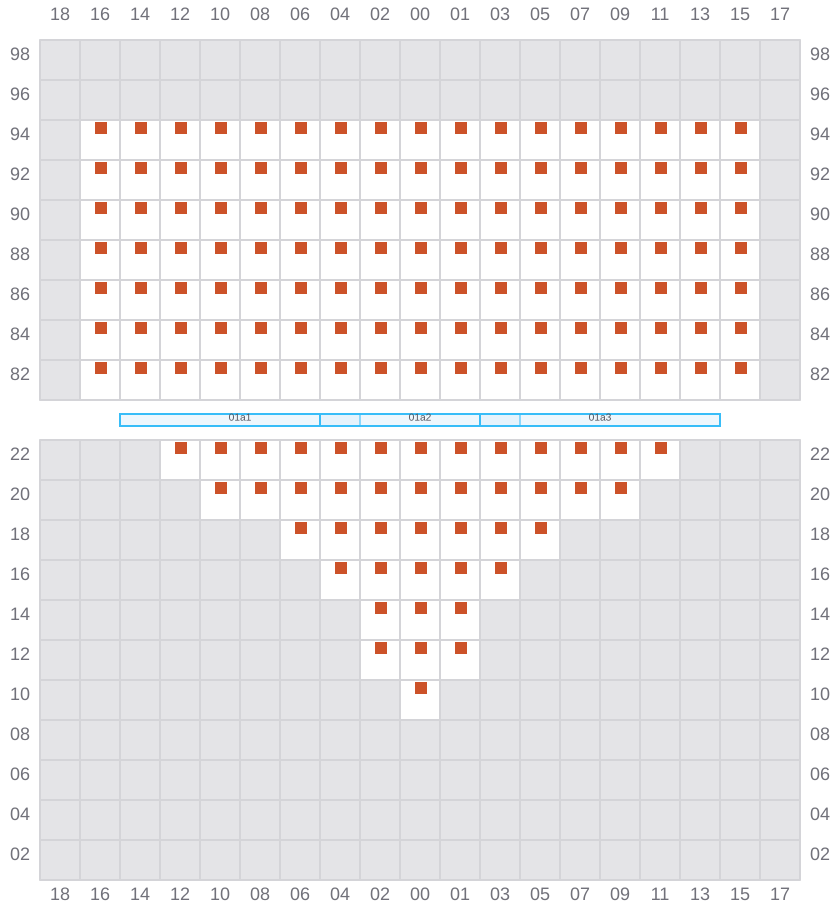

001 (002)

  • →
Bay 001 view and slots of MAERSK ELBA

003

  • ←
Bay 003 view and slots of MAERSK ELBA

005 (006)

  • →
Bay 005 view and slots of MAERSK ELBA

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK ELBA

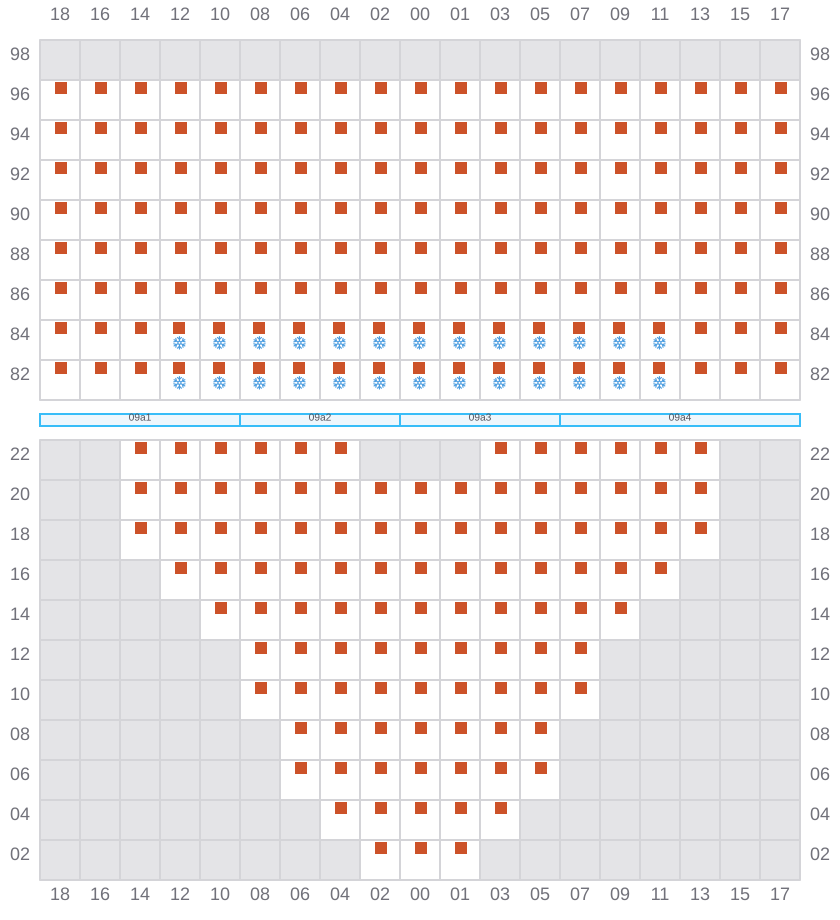

009 (010)

  • →

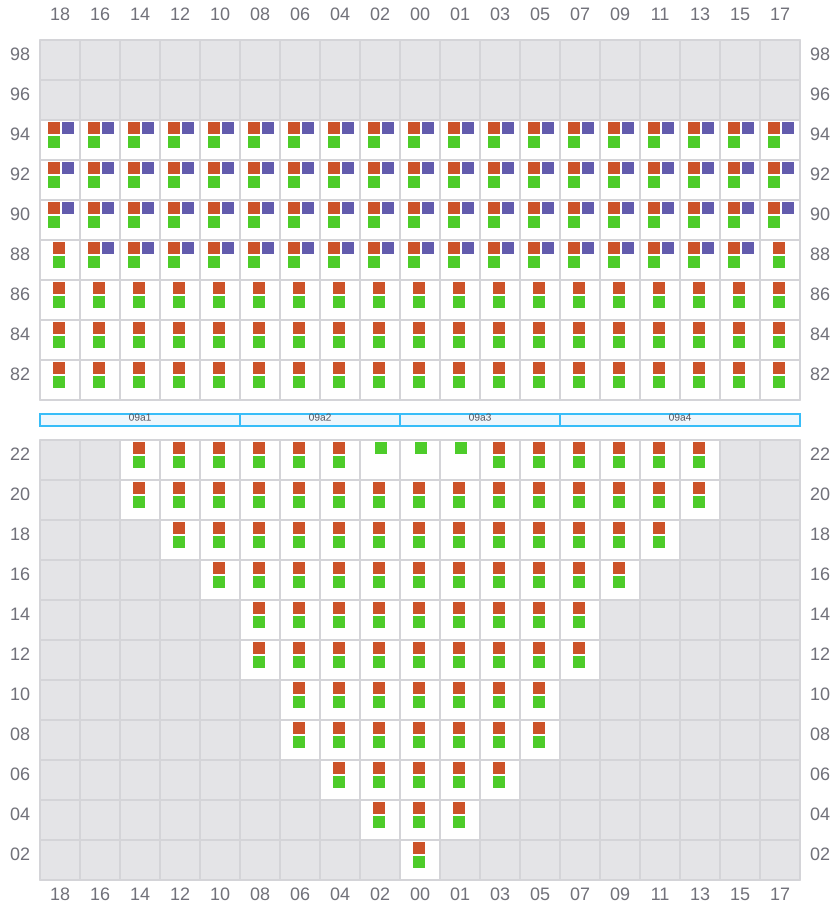

Bay 009 view and slots of MAERSK ELBA

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK ELBA

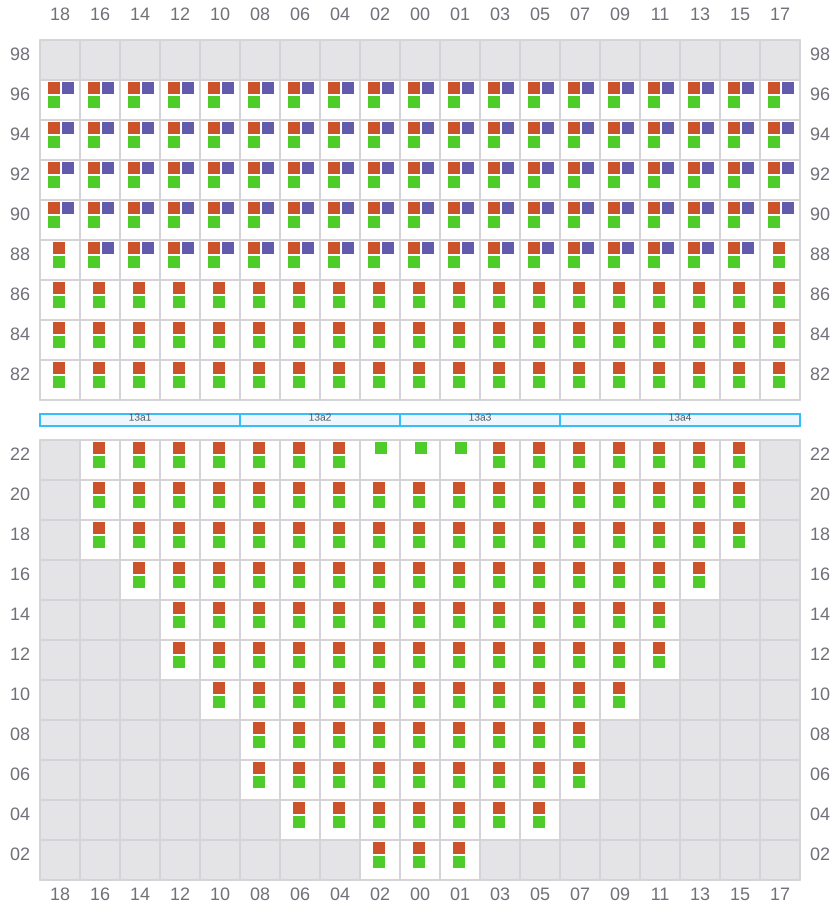

013 (014)

  • →
Bay 013 view and slots of MAERSK ELBA

015

  • ←
  • → / ?

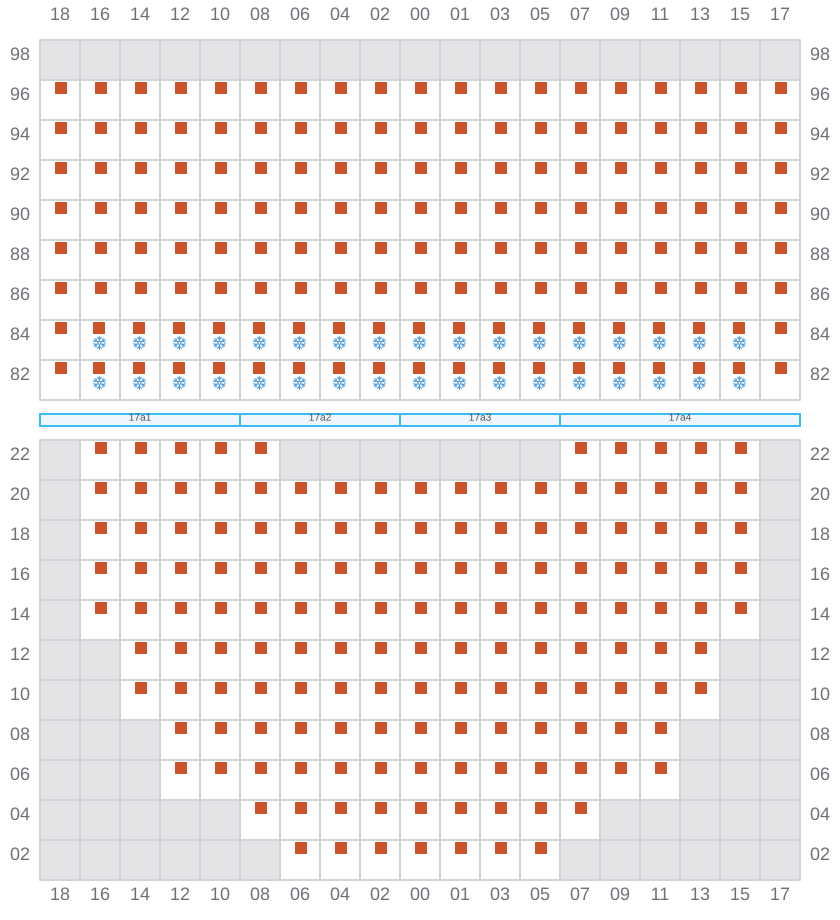

Bay 015 view and slots of MAERSK ELBA

017 (018)

  • →
Bay 017 view and slots of MAERSK ELBA

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK ELBA

021 (022)

  • →

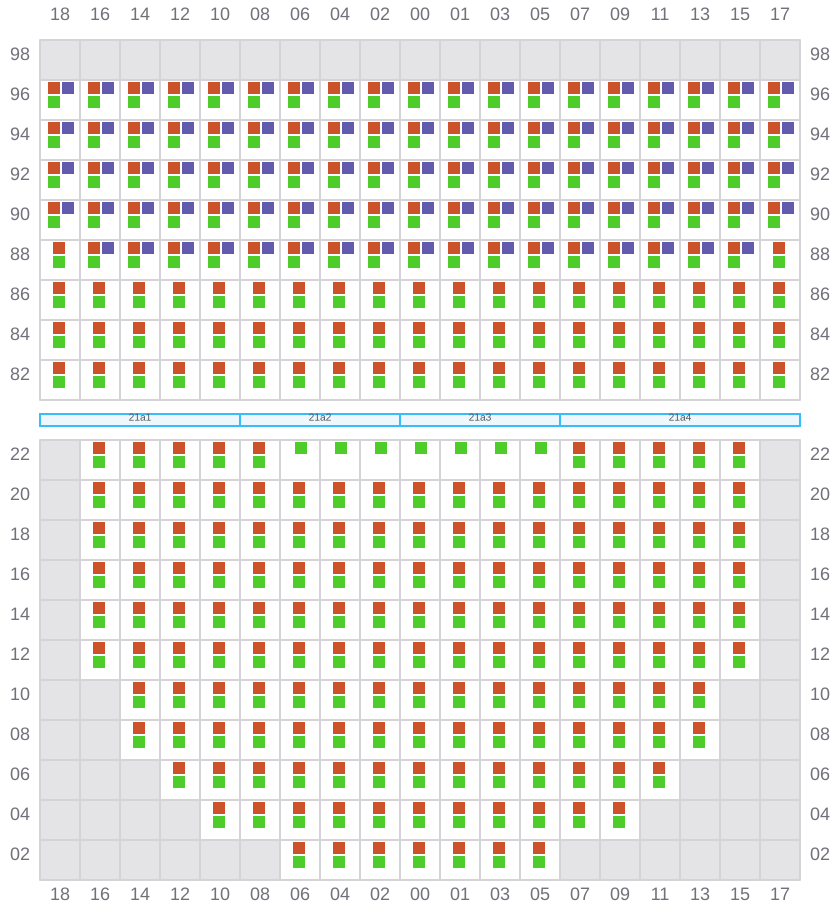

Bay 021 view and slots of MAERSK ELBA

023

  • ←
  • → / ?

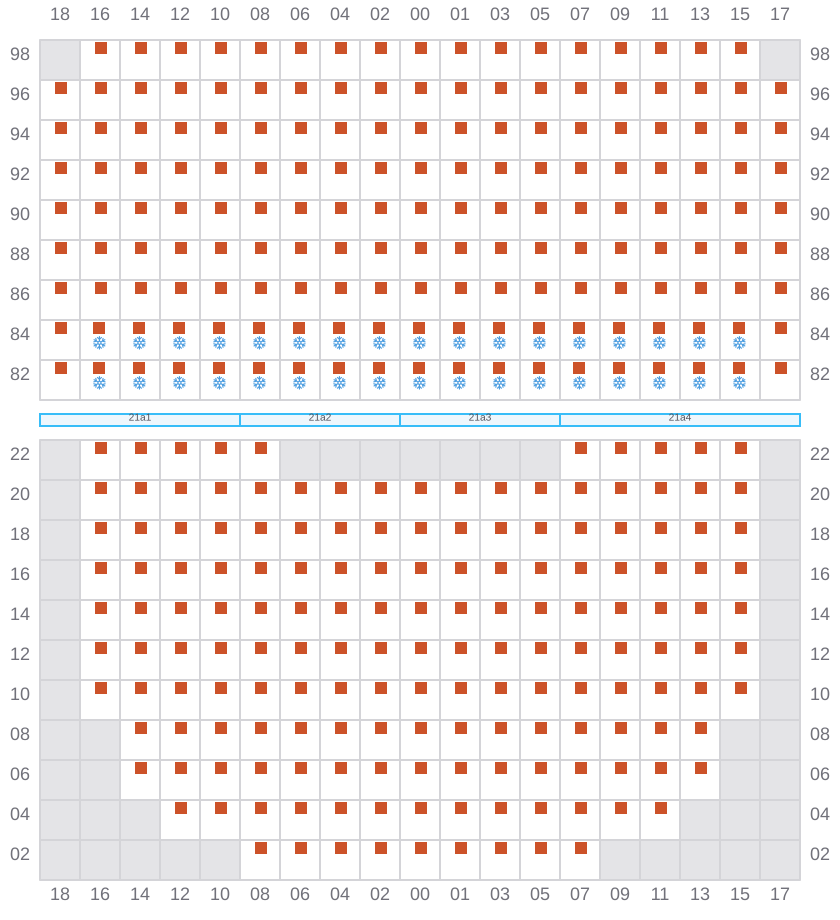

Bay 023 view and slots of MAERSK ELBA

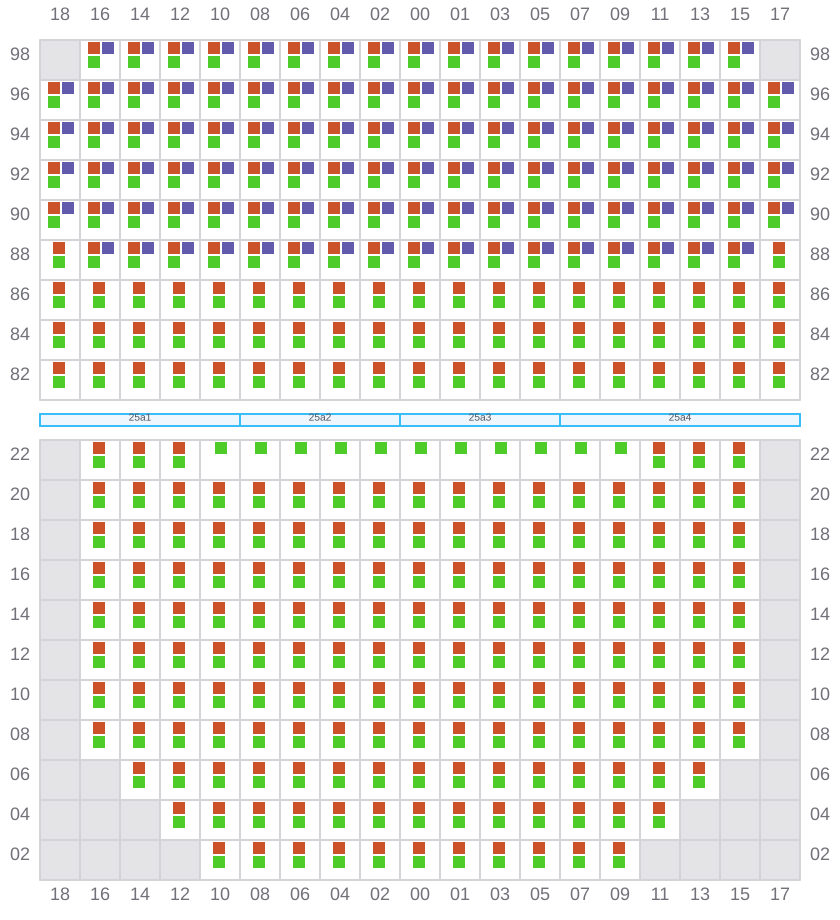

025 (026)

  • →
Bay 025 view and slots of MAERSK ELBA

027

  • ←
  • → / ?

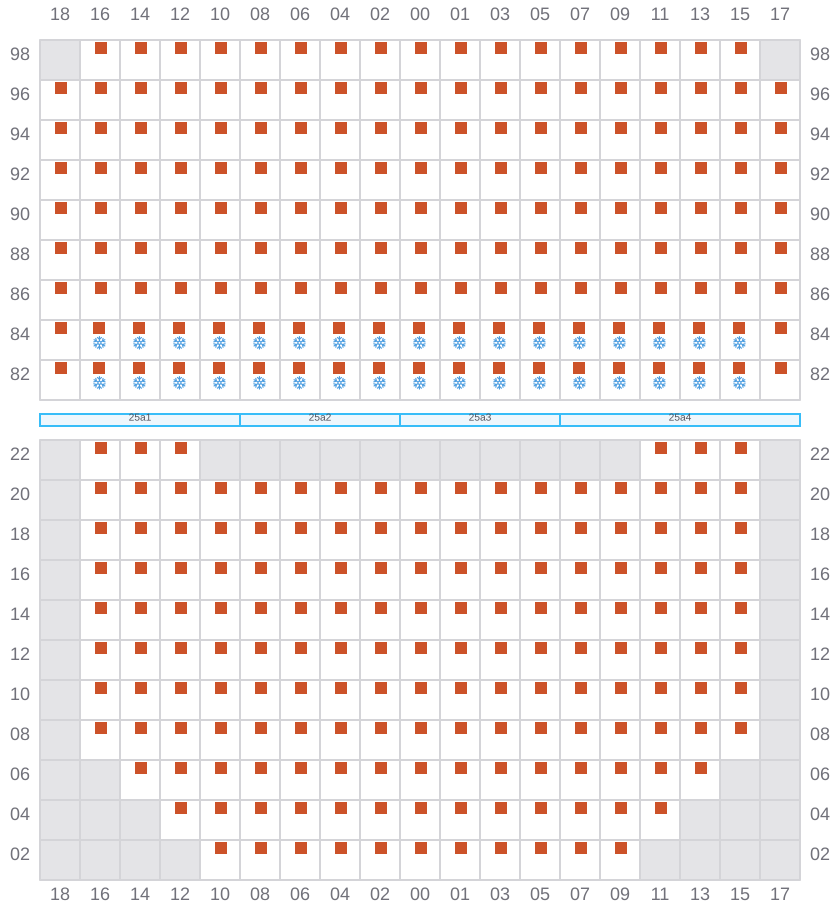

Bay 027 view and slots of MAERSK ELBA

029 (030)

  • →

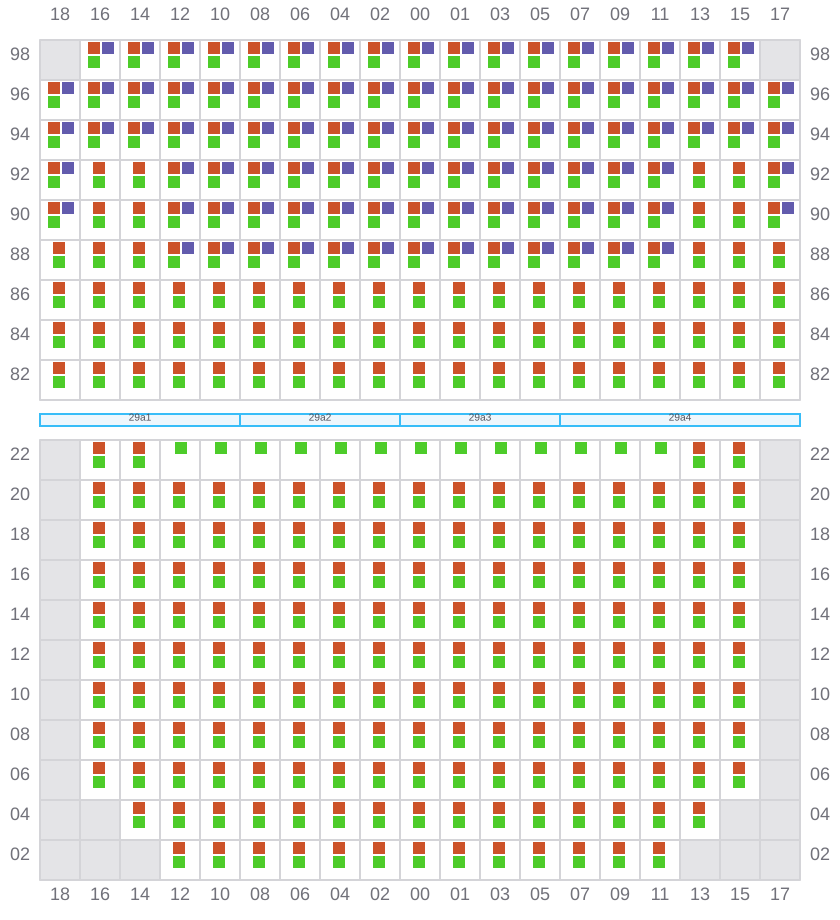

Bay 029 view and slots of MAERSK ELBA

031

  • ←
  • → / ?

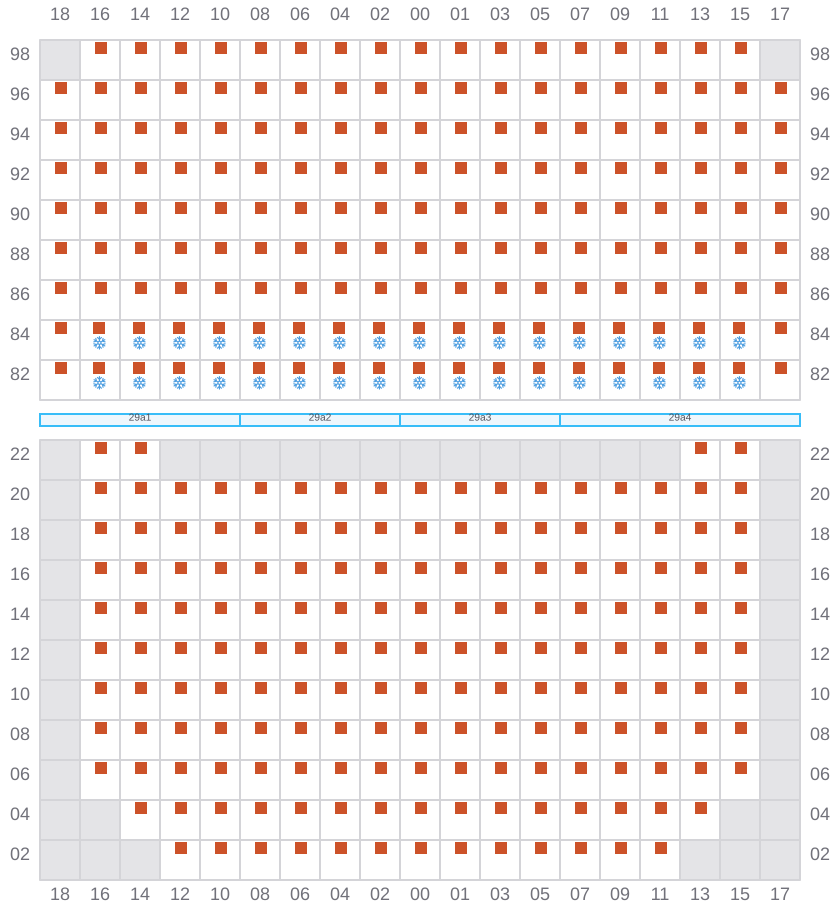

Bay 031 view and slots of MAERSK ELBA

033 (034)

  • →

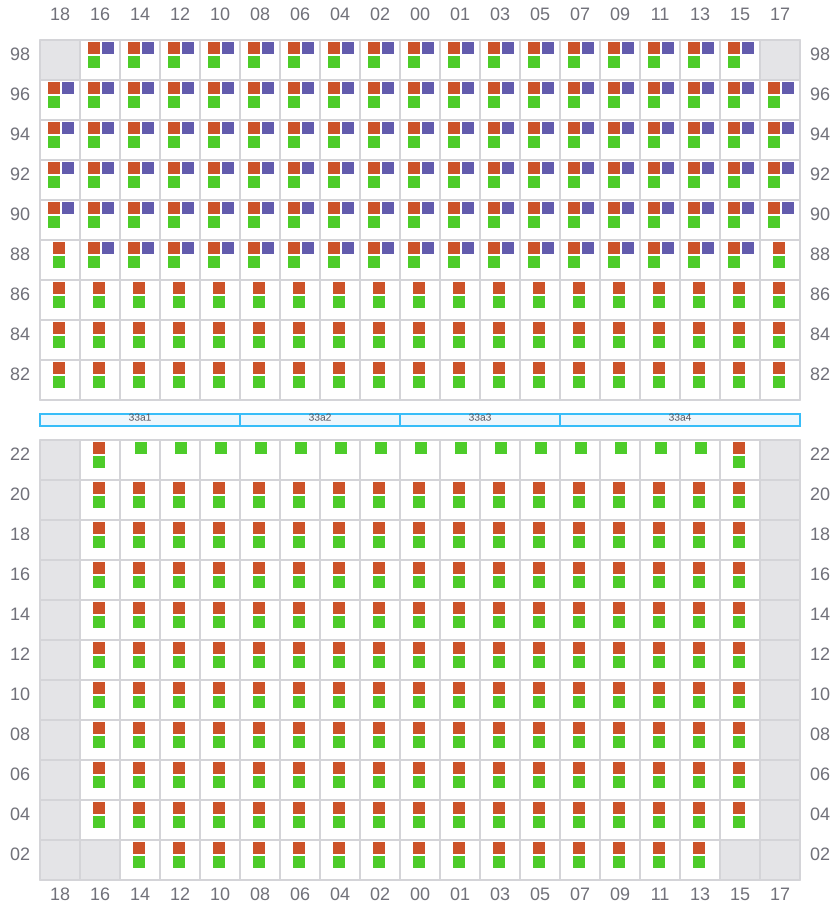

Bay 033 view and slots of MAERSK ELBA

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK ELBA

037 (038)

  • →
Bay 037 view and slots of MAERSK ELBA

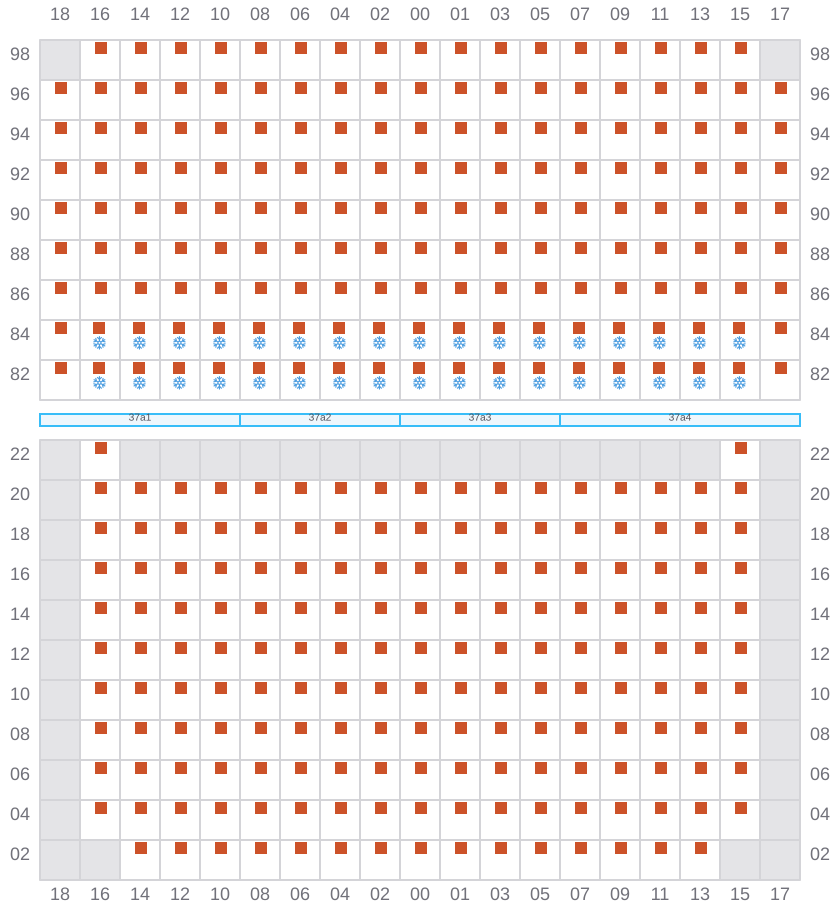

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK ELBA

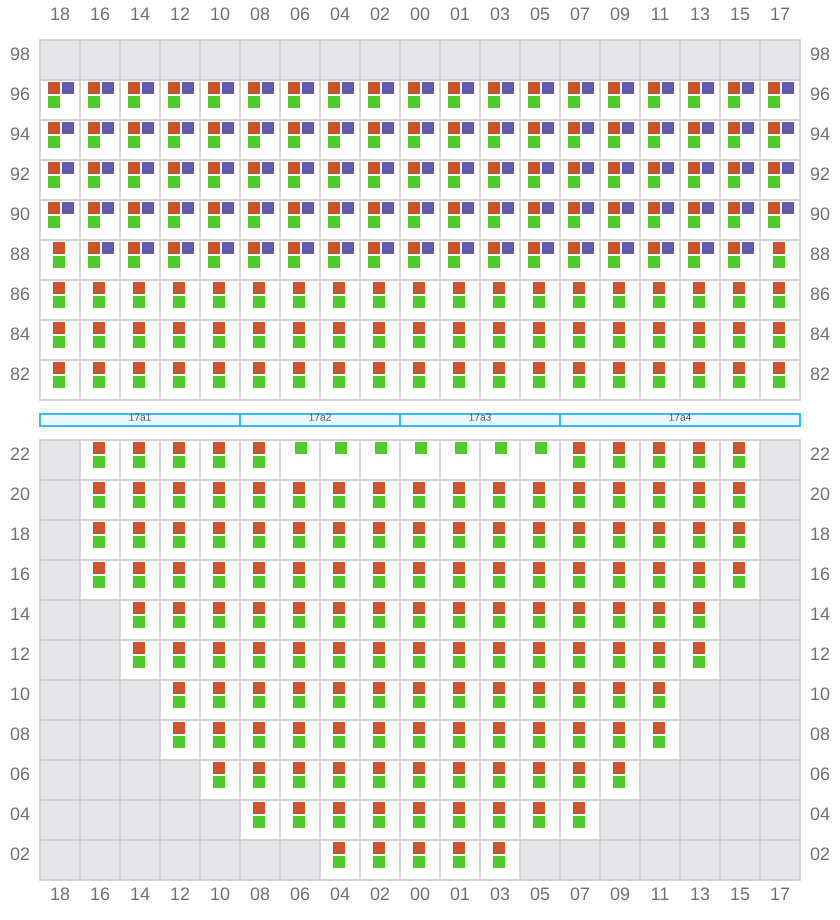

041 (042)

  • →
Bay 041 view and slots of MAERSK ELBA

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK ELBA

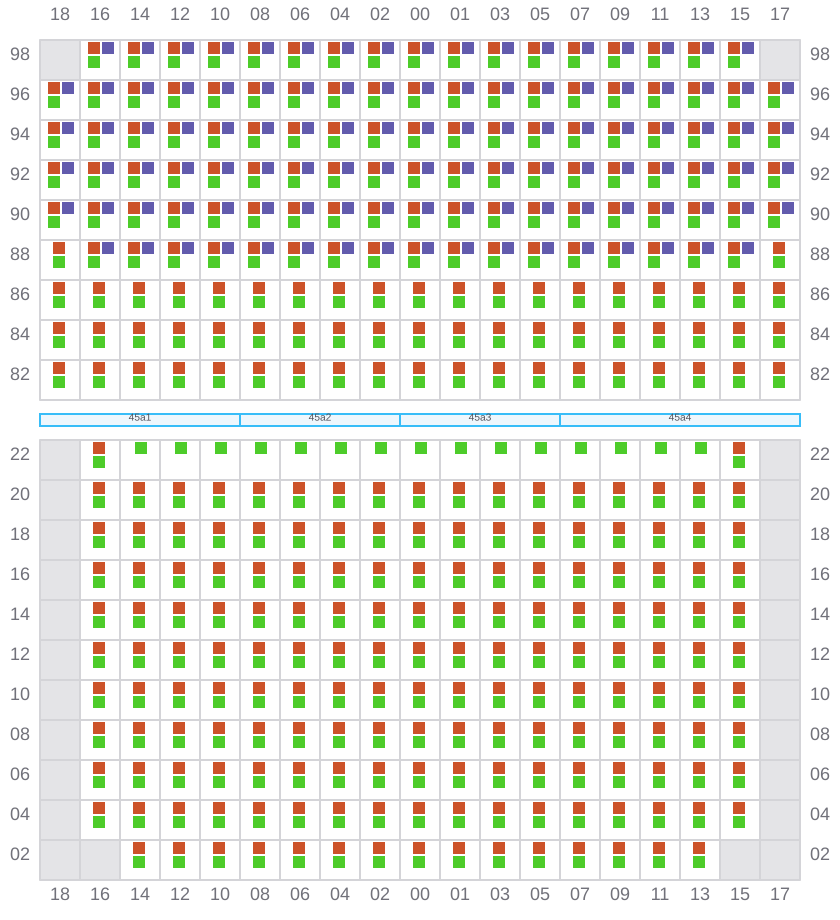

045 (046)

  • →
Bay 045 view and slots of MAERSK ELBA

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK ELBA

049 (050)

  • →
Bay 049 view and slots of MAERSK ELBA

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK ELBA

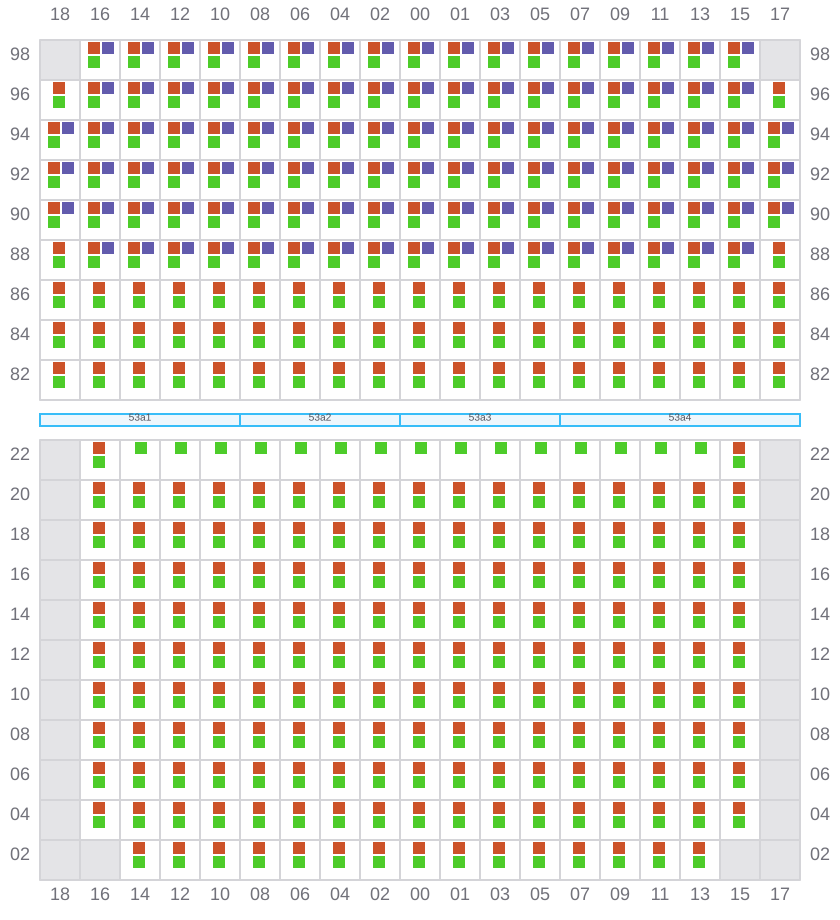

053 (054)

  • →
Bay 053 view and slots of MAERSK ELBA

055

  • ←
  • → / ?

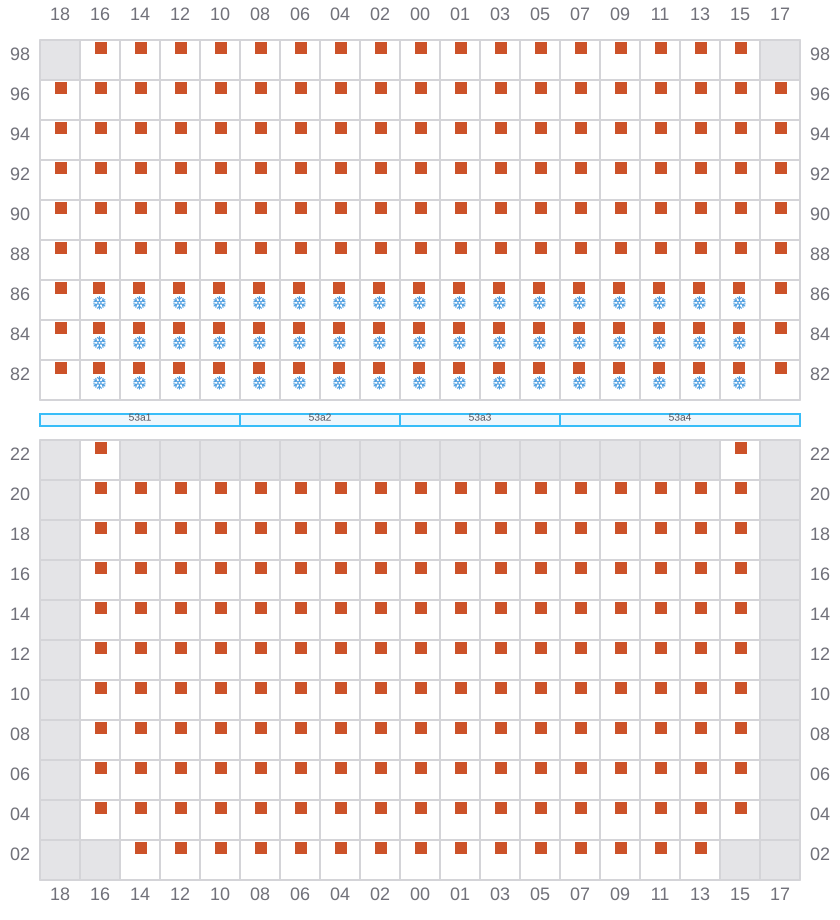

Bay 055 view and slots of MAERSK ELBA

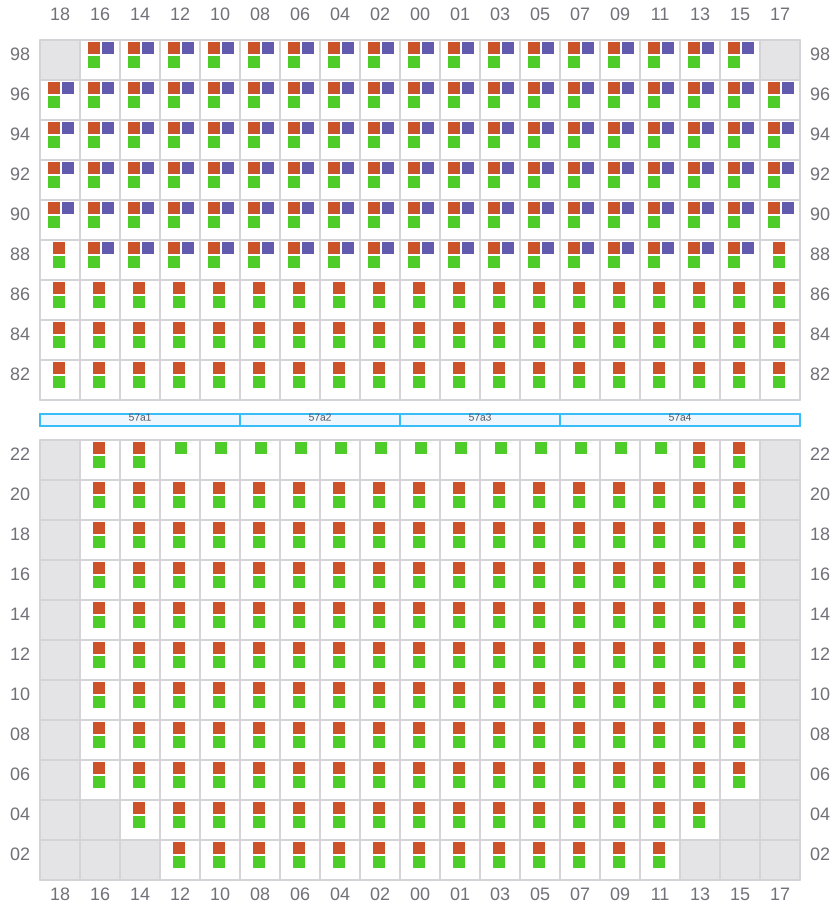

057 (058)

  • →
Bay 057 view and slots of MAERSK ELBA

059

  • ←
  • → / ?
Bay 059 view and slots of MAERSK ELBA

061 (062)

  • →
Bay 061 view and slots of MAERSK ELBA

063

  • ←
  • → / ?
Bay 063 view and slots of MAERSK ELBA

065 (066)

  • →

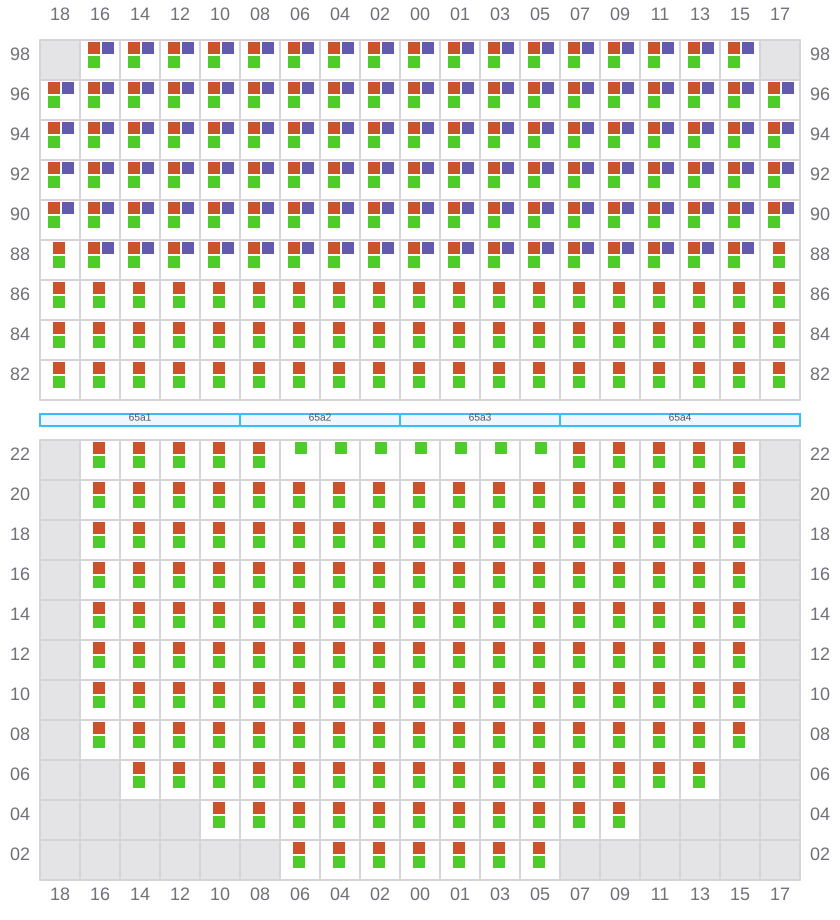

Bay 065 view and slots of MAERSK ELBA

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK ELBA

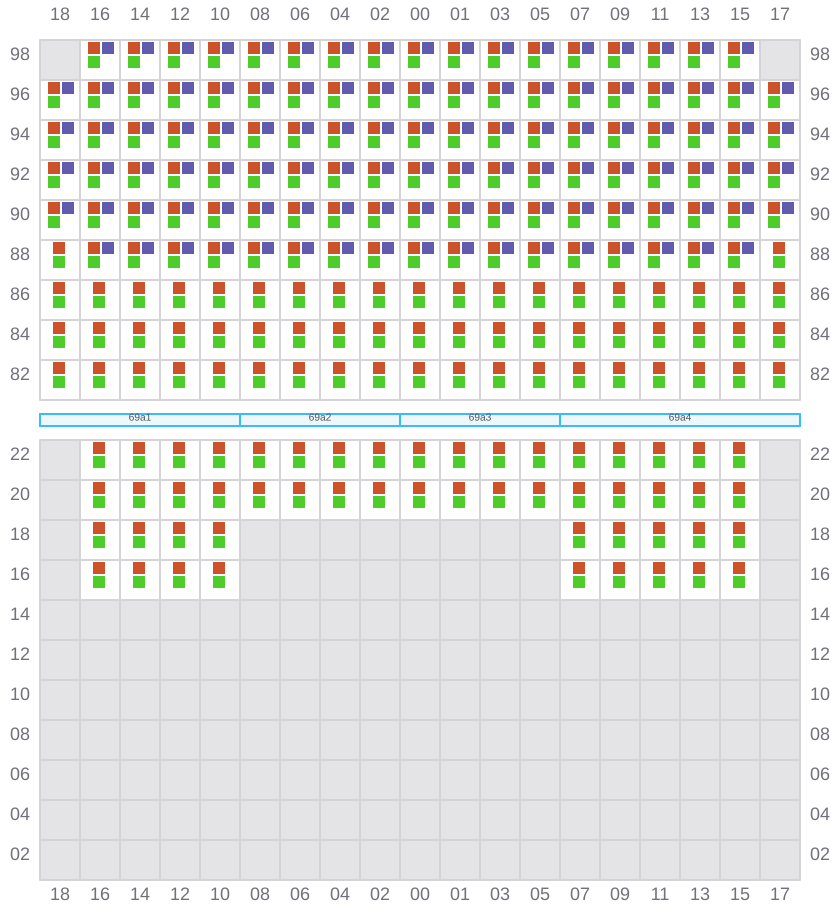

069 (070)

  • →

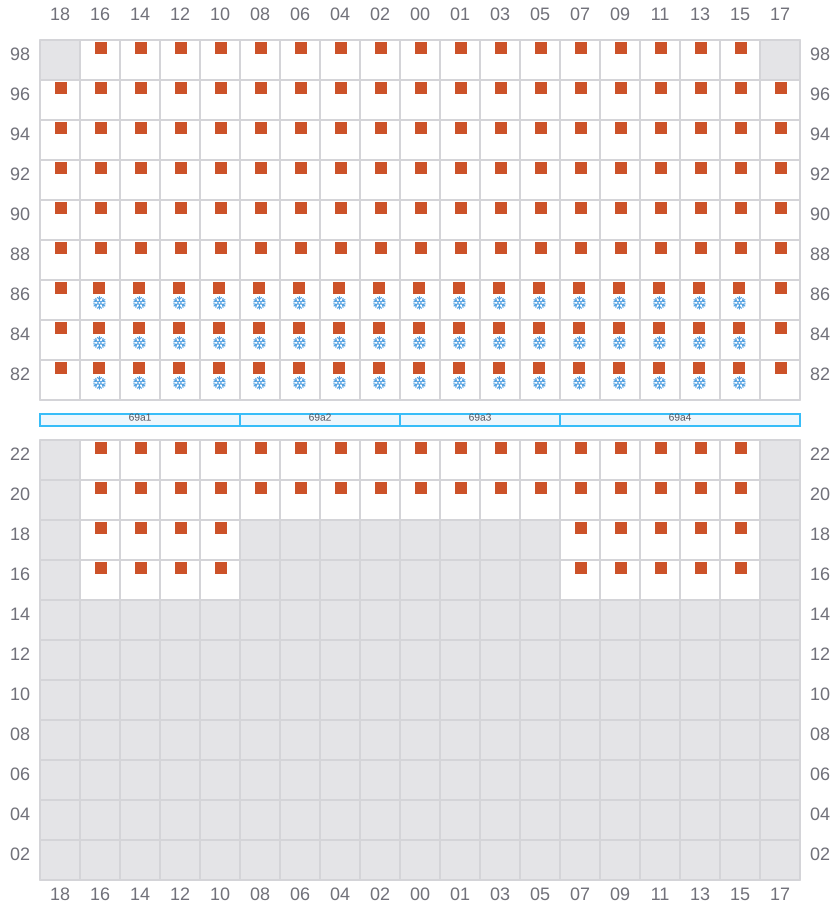

Bay 069 view and slots of MAERSK ELBA

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK ELBA

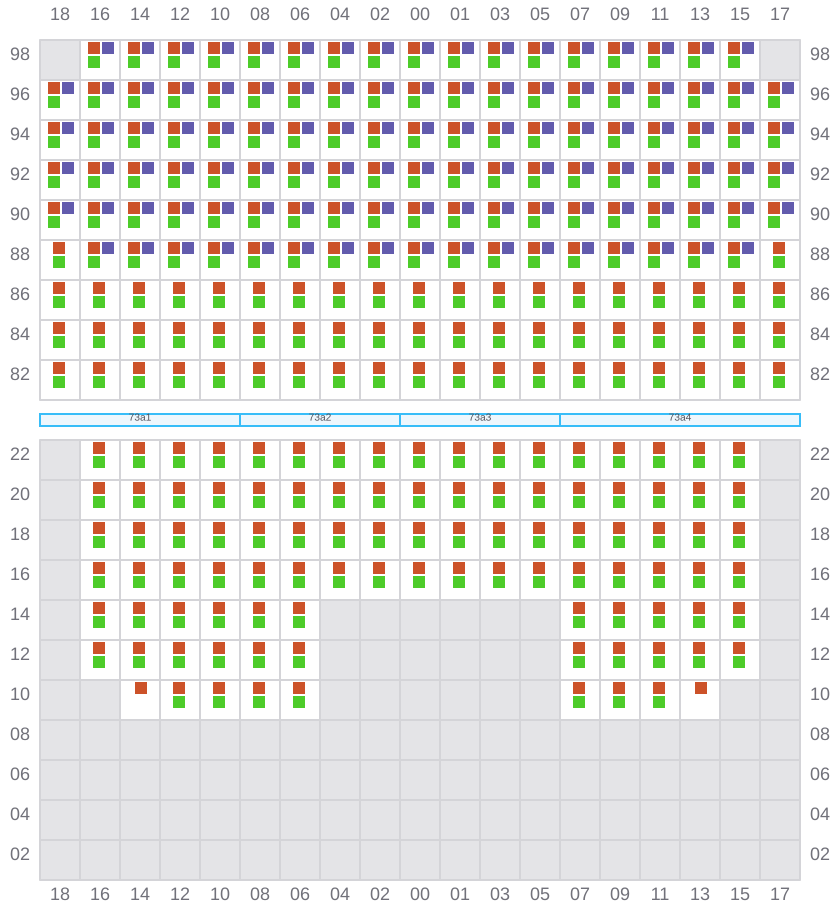

073 (074)

  • →
Bay 073 view and slots of MAERSK ELBA

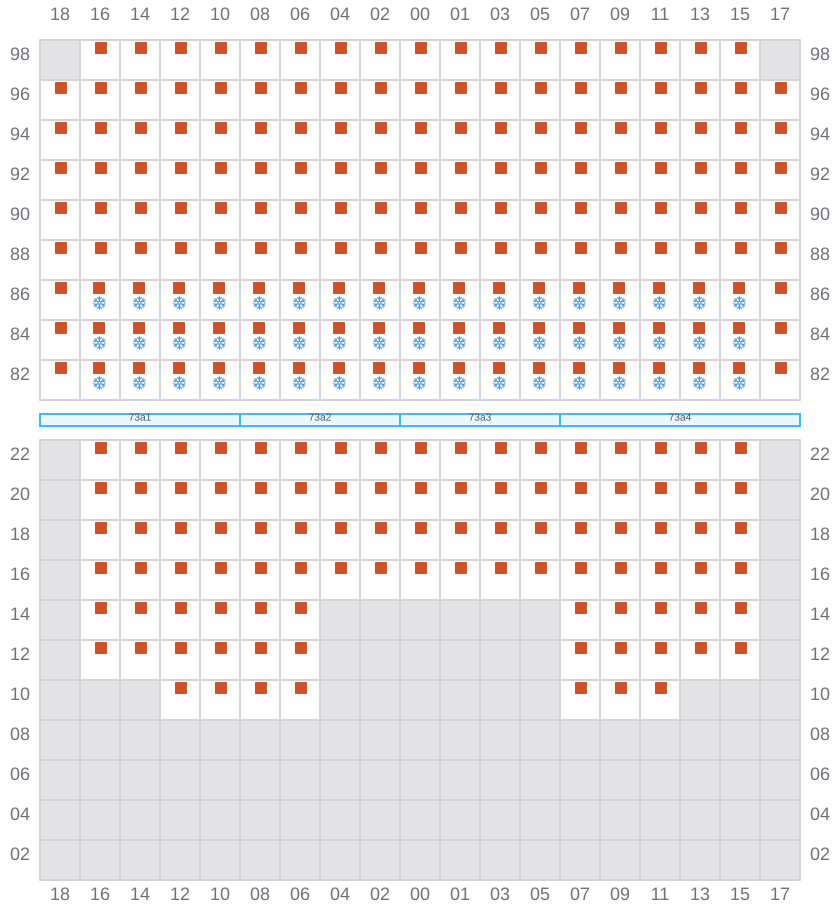

075

  • ←
  • → / ?
Bay 075 view and slots of MAERSK ELBA

077 (078)

  • →

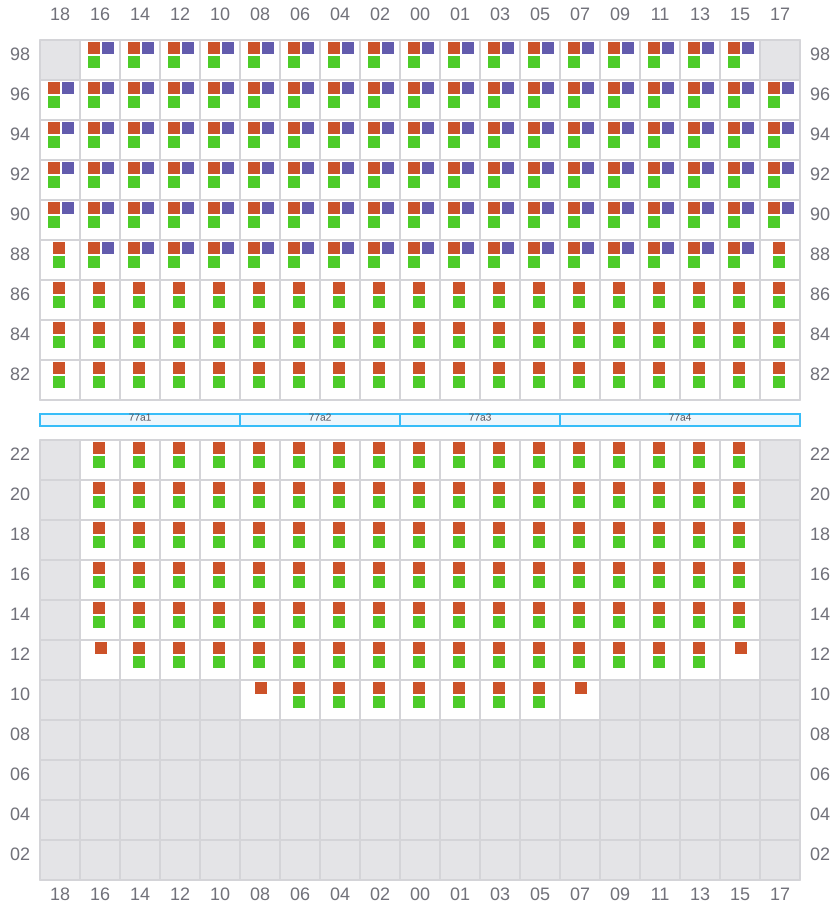

Bay 077 view and slots of MAERSK ELBA

079

  • ←
  • → / ?

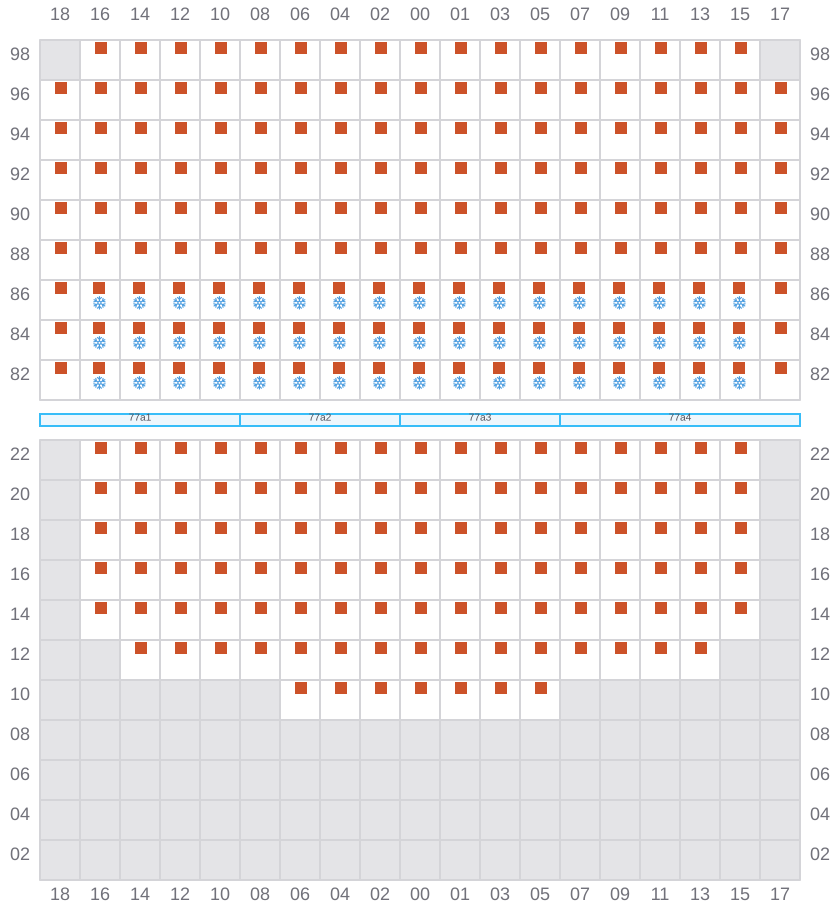

Bay 079 view and slots of MAERSK ELBA

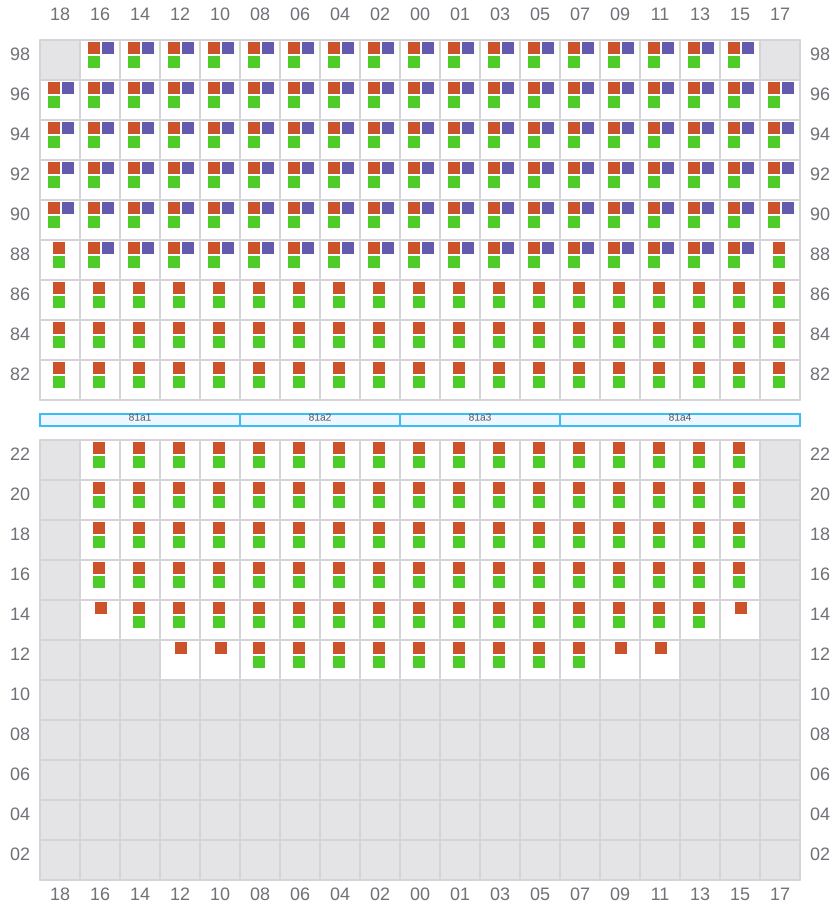

081 (082)

  • →
Bay 081 view and slots of MAERSK ELBA

083

  • ←
  • → / ?

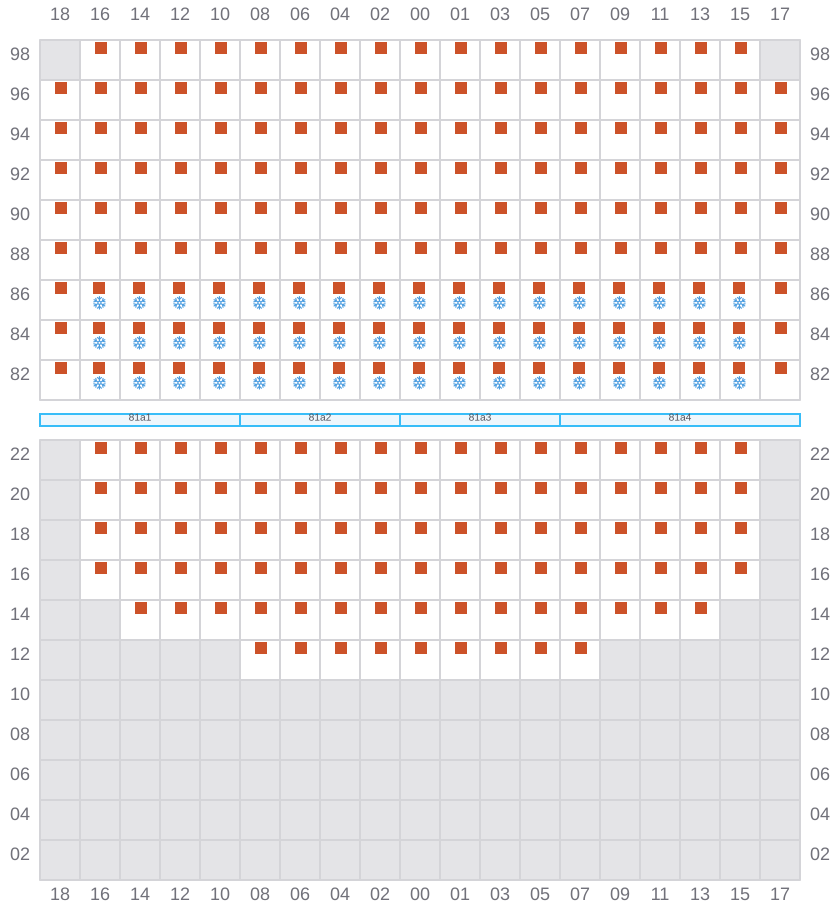

Bay 083 view and slots of MAERSK ELBA

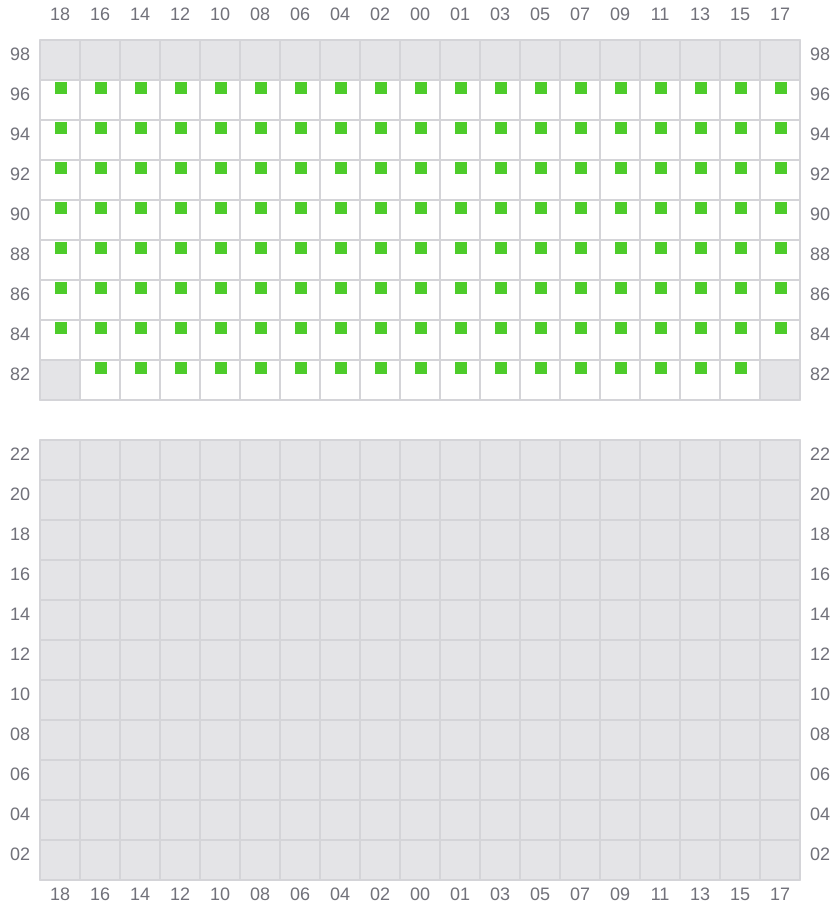

085 (086)

  • → / ?
Bay 085 view and slots of MAERSK ELBA
