MAERSK EMDEN
9456769 | OXLK2 | MAERSK by ********* Last update: Wed Mar 27 2024
General Info
Ship Name:MAERSK EMDEN
IMO Code:9456769
Call Sign:OXLK2
Line Operator:MAERSK
Class Name for Sister Ships:EDINBURGH
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,102
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

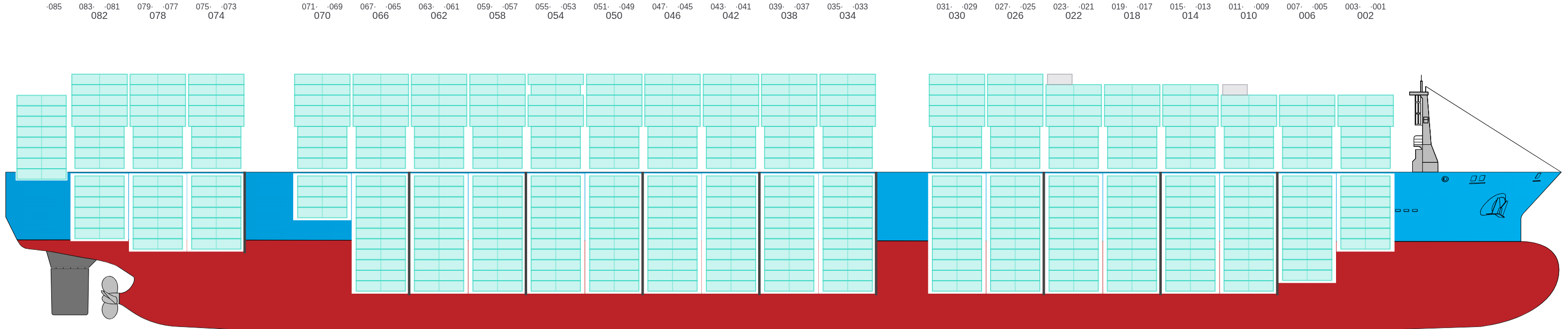

Side View
![Side view of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-sideView.png?v=1711559894377)
Hatch-Covers View
![Deck view of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-deckView.png?v=1711559894377)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b001.png?v=1711559894377)

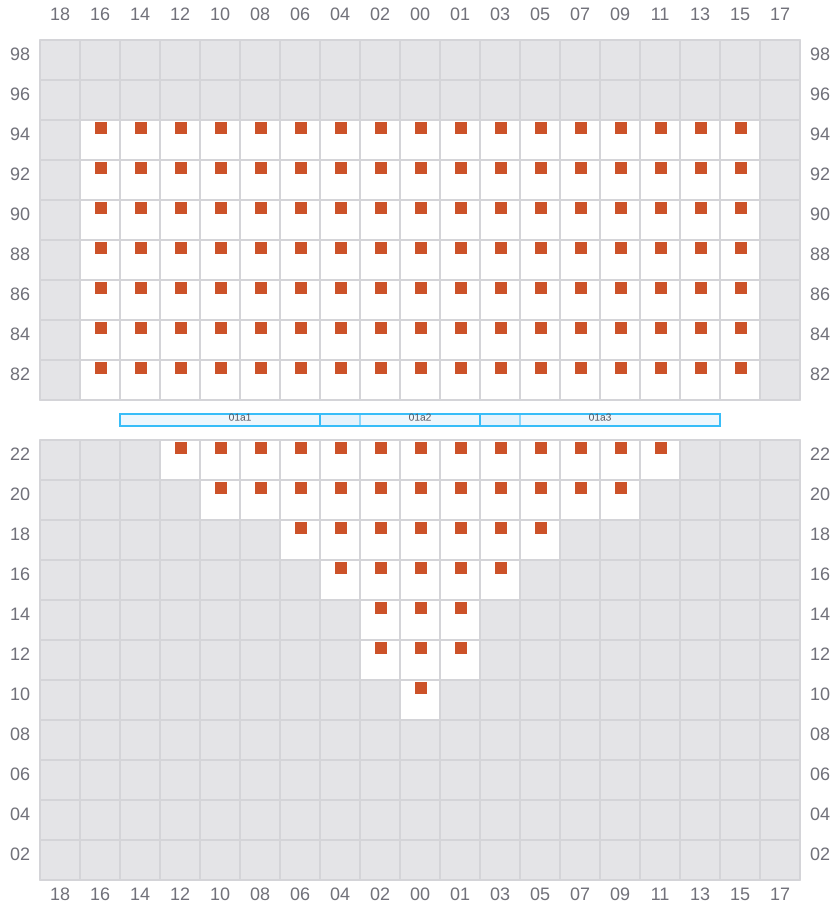

003
- ←
![Bay 003 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b003.png?v=1711559894377)

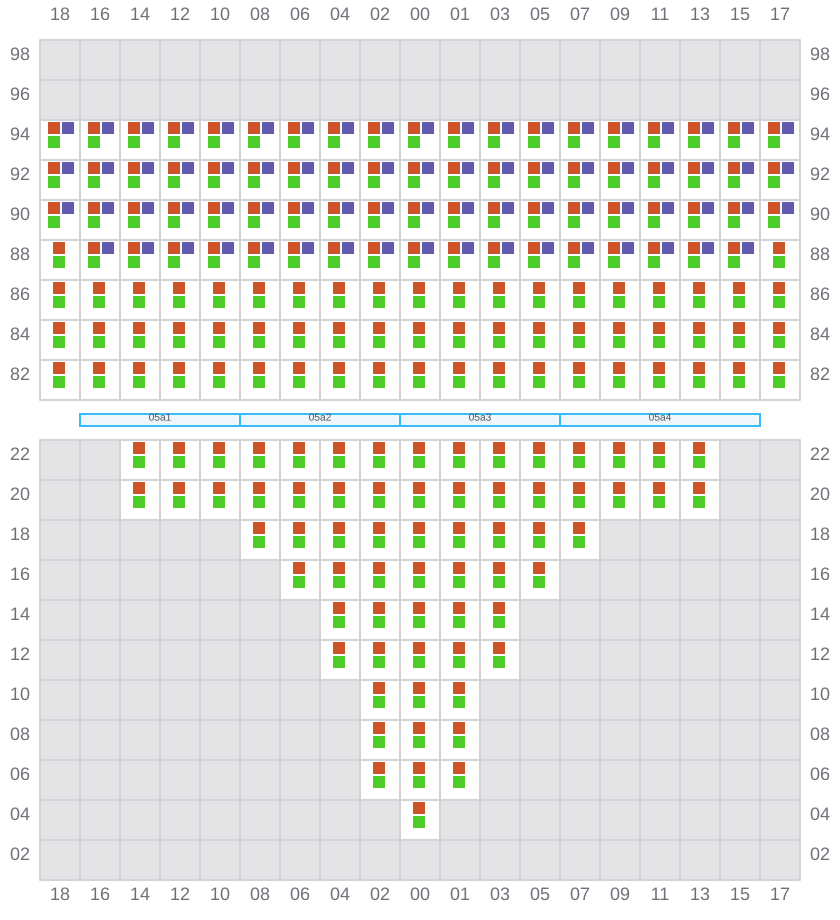

005 (006)
- →
![Bay 005 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b005.png?v=1711559894377)
007
- ←
- → / ?
![Bay 007 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b007.png?v=1711559894377)

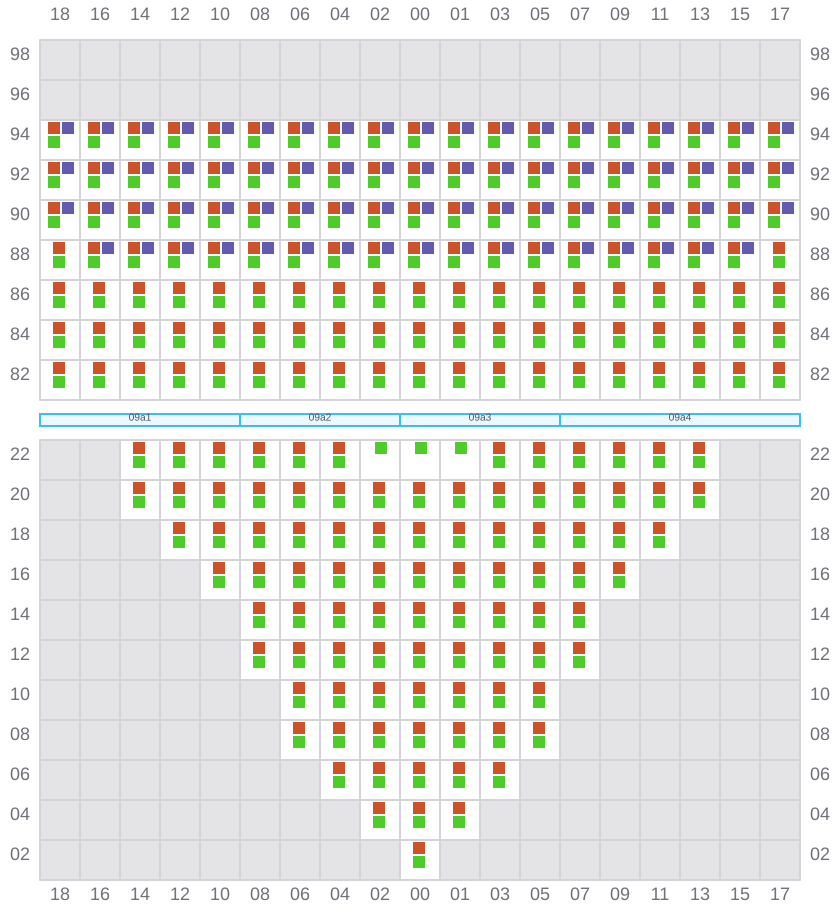

009 (010)
- →
![Bay 009 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b009.png?v=1711559894377)

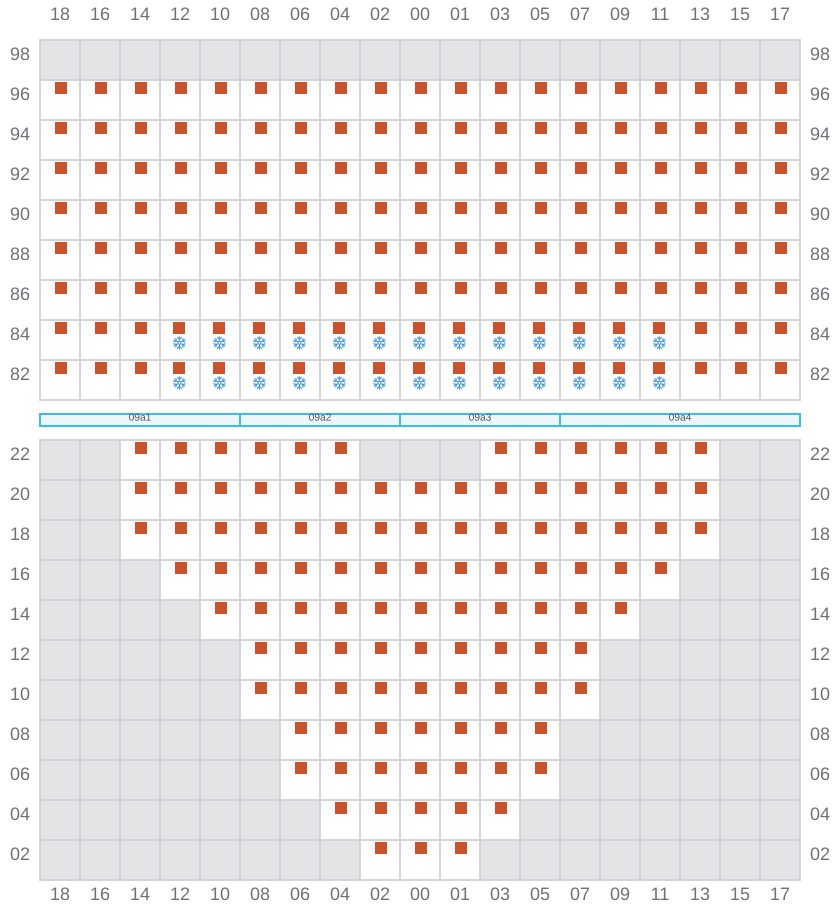

011
- ←
- → / ?
![Bay 011 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b011.png?v=1711559894377)
013 (014)
- →
![Bay 013 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b013.png?v=1711559894377)

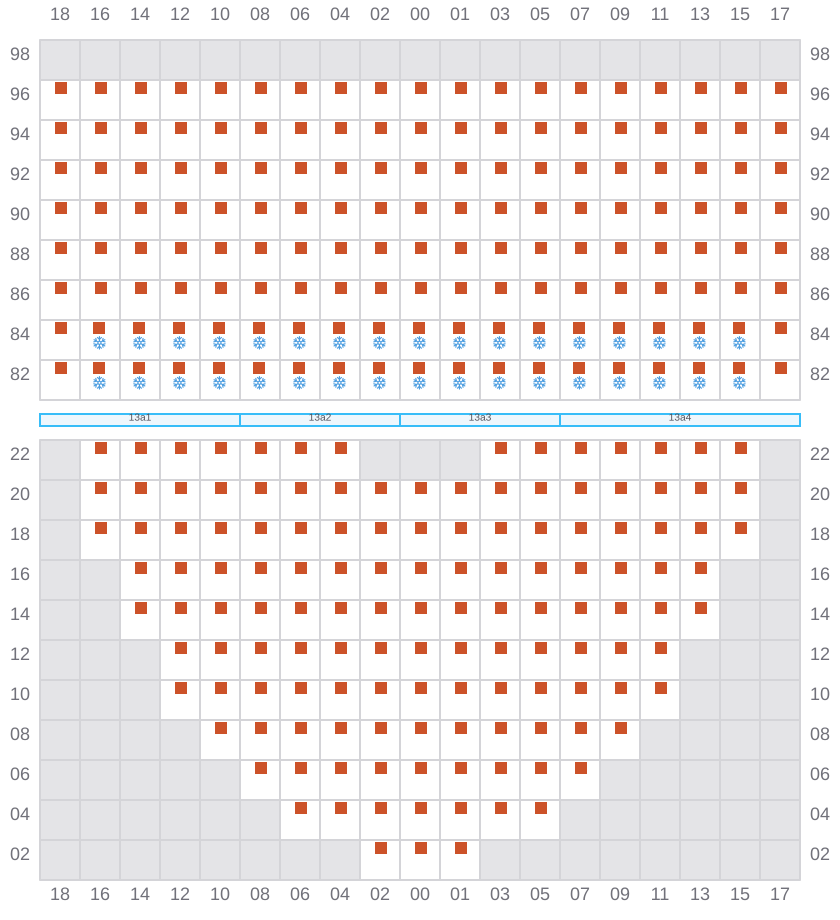

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b015.png?v=1711559894377)

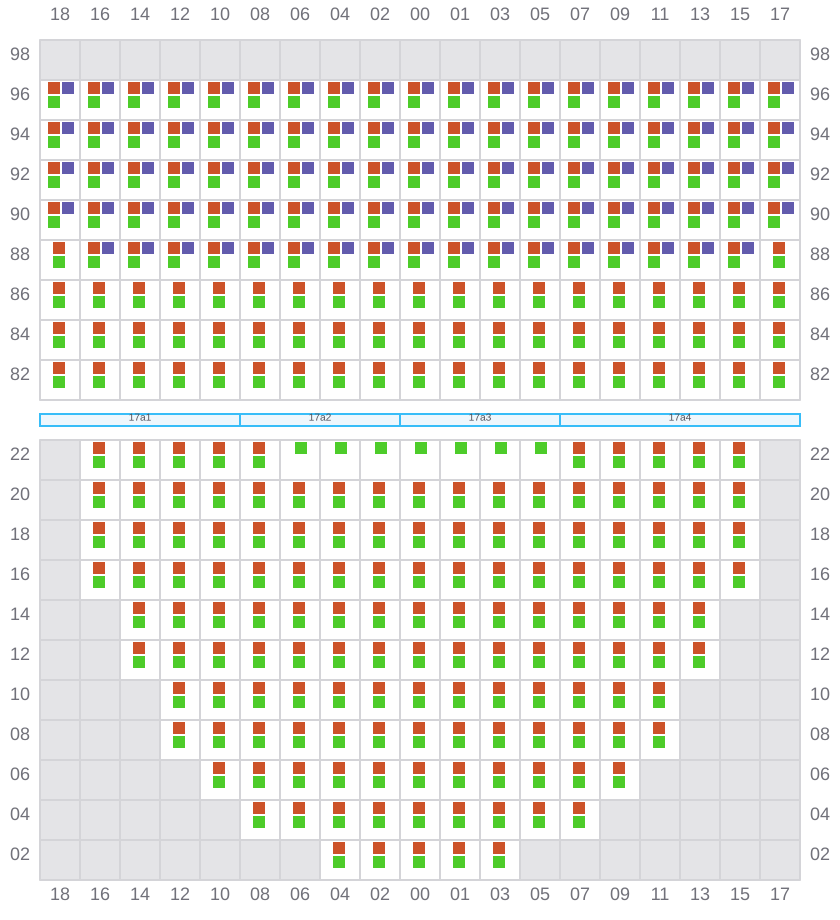

017 (018)
- →
![Bay 017 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b017.png?v=1711559894377)

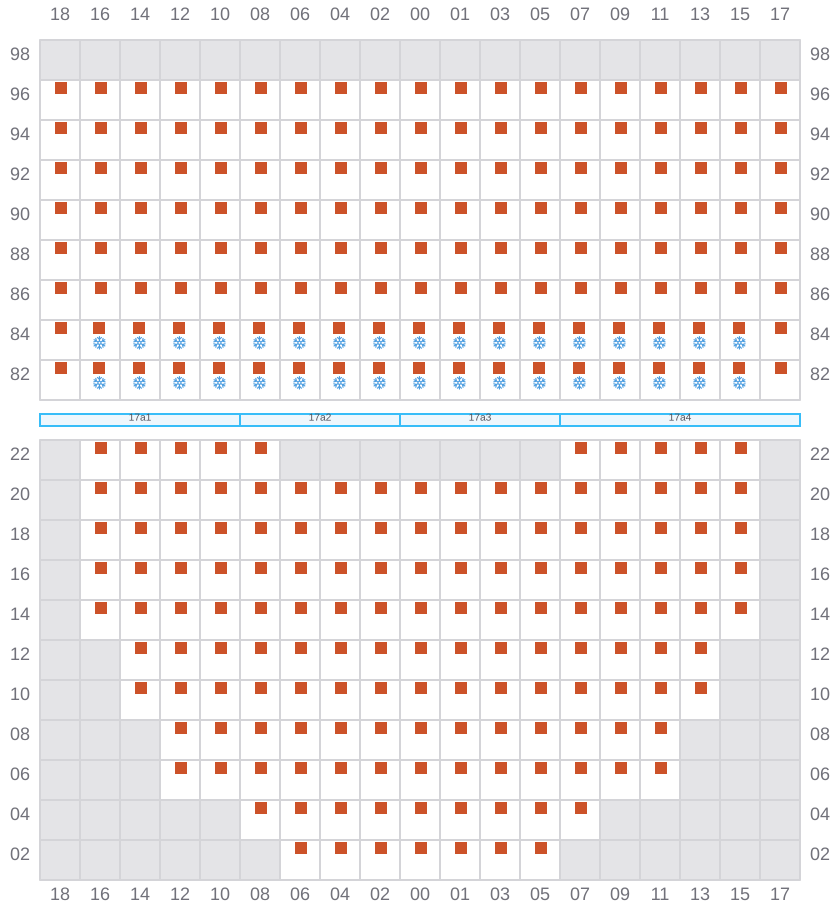

019
- ←
- → / ?
![Bay 019 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b019.png?v=1711559894377)

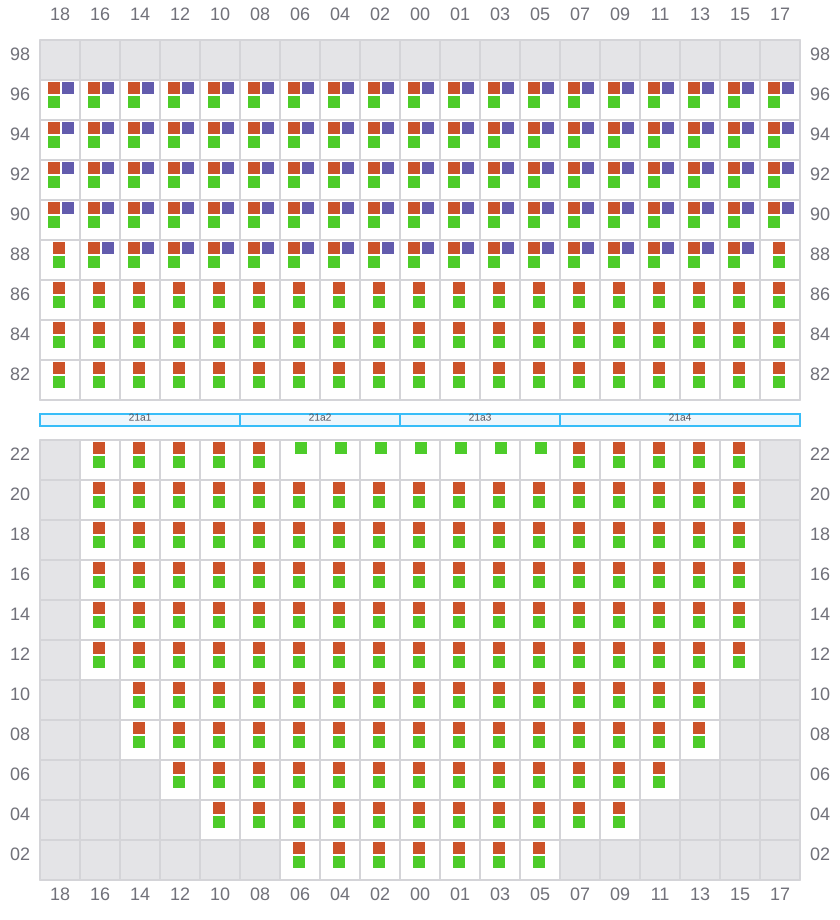

021 (022)
- →
![Bay 021 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b021.png?v=1711559894377)

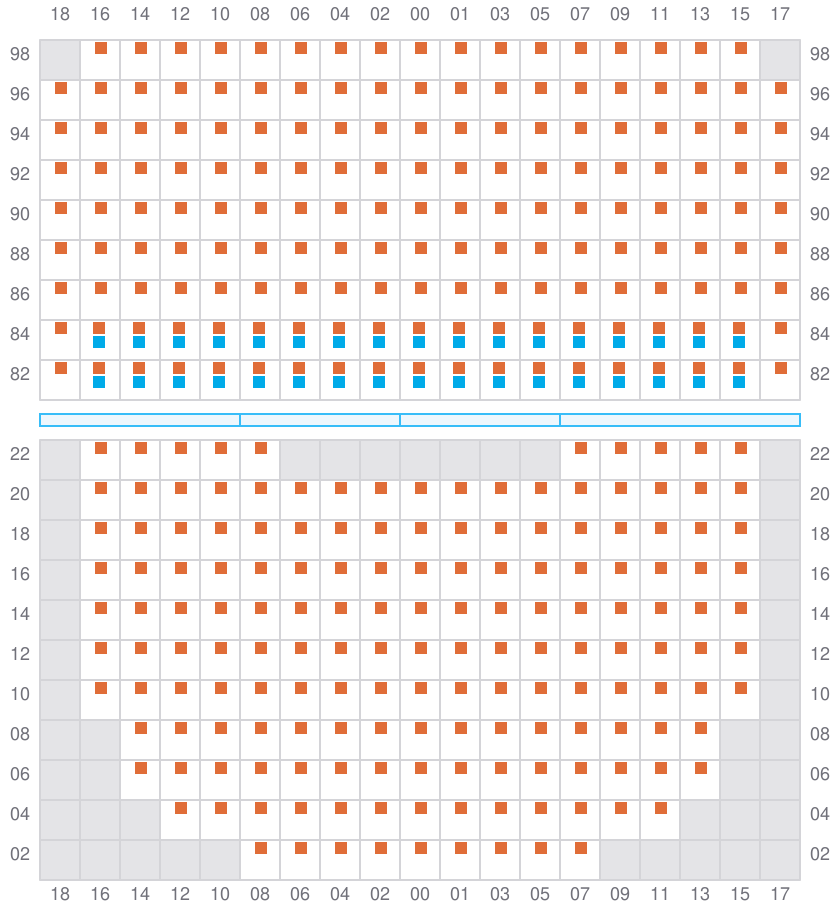

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b023.png?v=1711559894377)

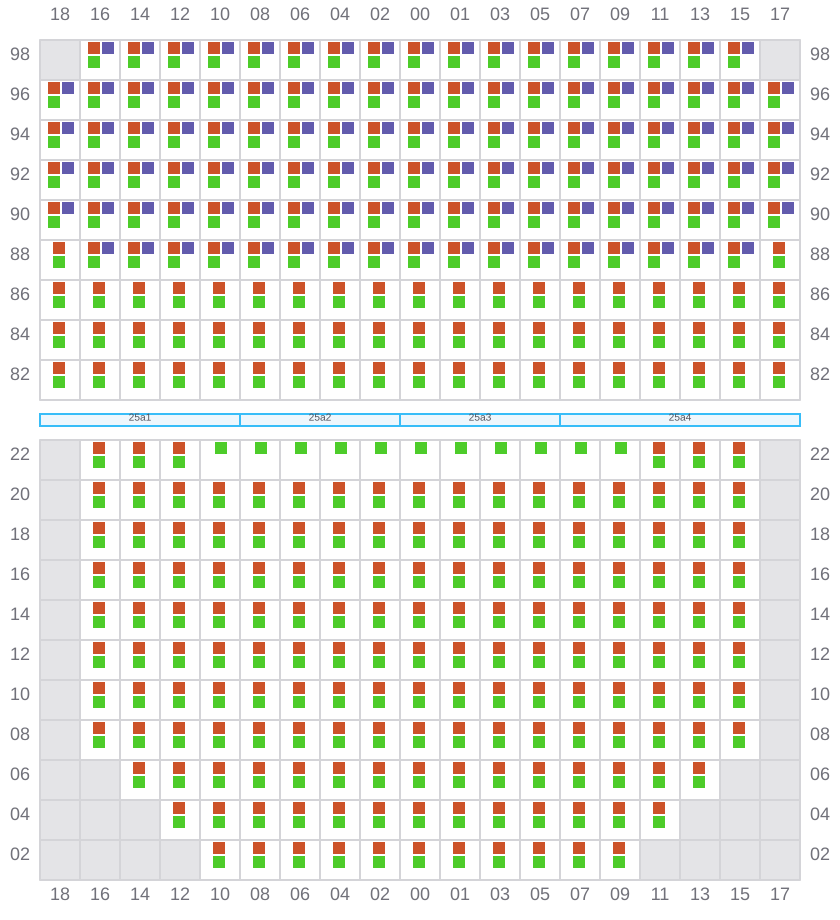

025 (026)
- →
![Bay 025 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b025.png?v=1711559894377)

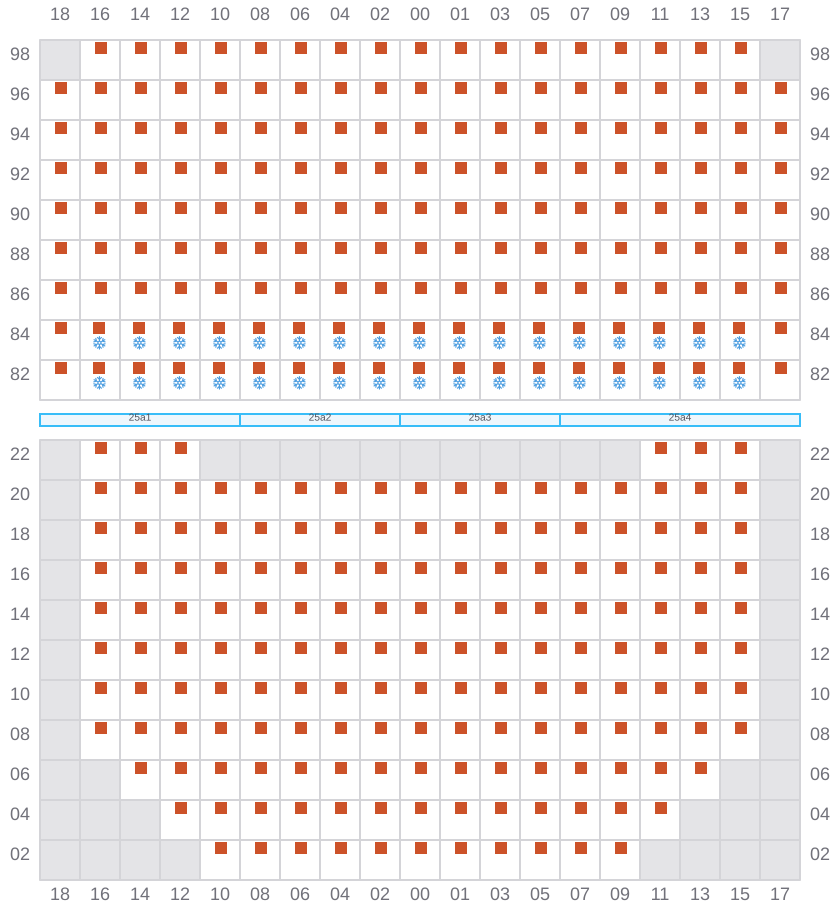

027
- ←
- → / ?
![Bay 027 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b027.png?v=1711559894377)

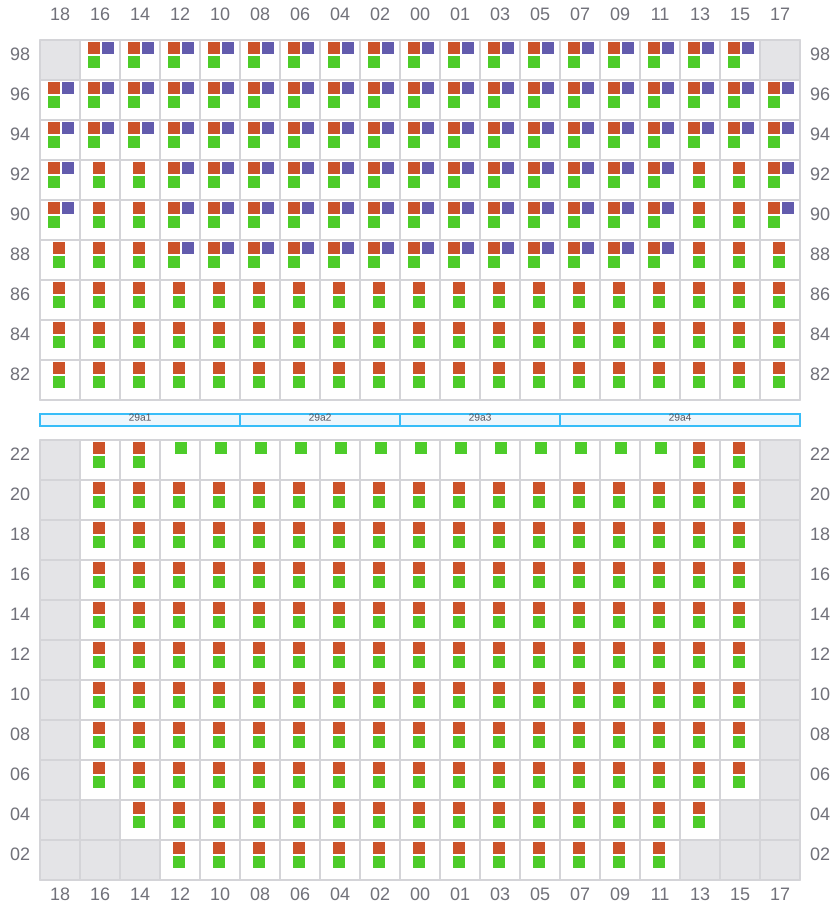

029 (030)
- →
![Bay 029 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b029.png?v=1711559894377)
031
- ←
- → / ?
![Bay 031 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b031.png?v=1711559894377)

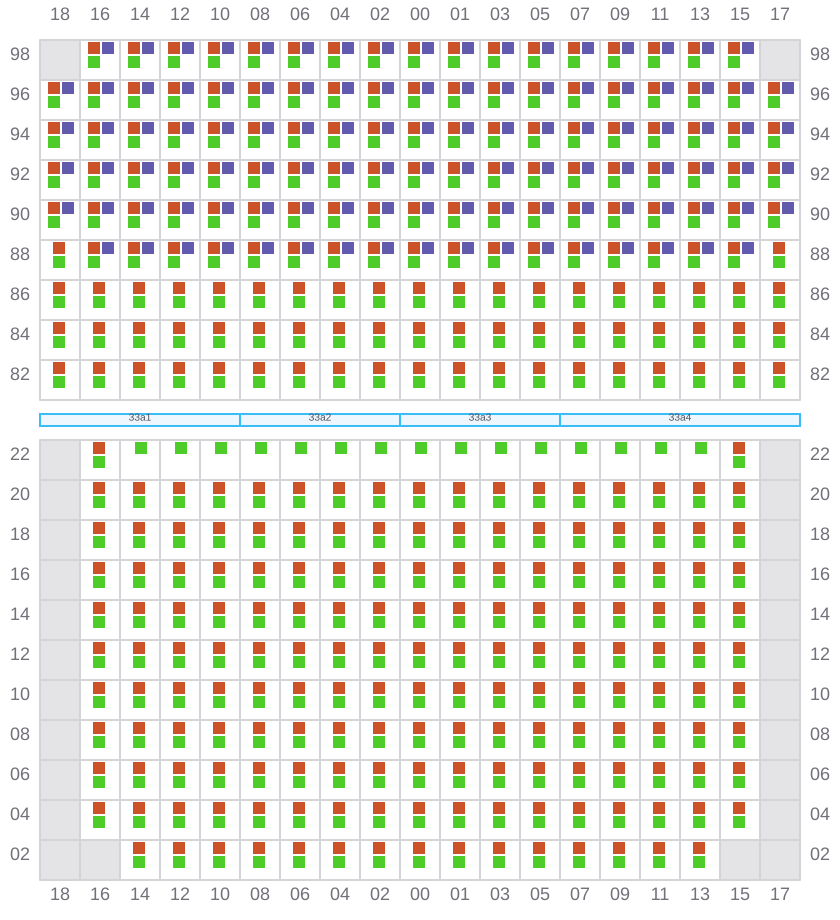

033 (034)
- →
![Bay 033 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b033.png?v=1711559894377)

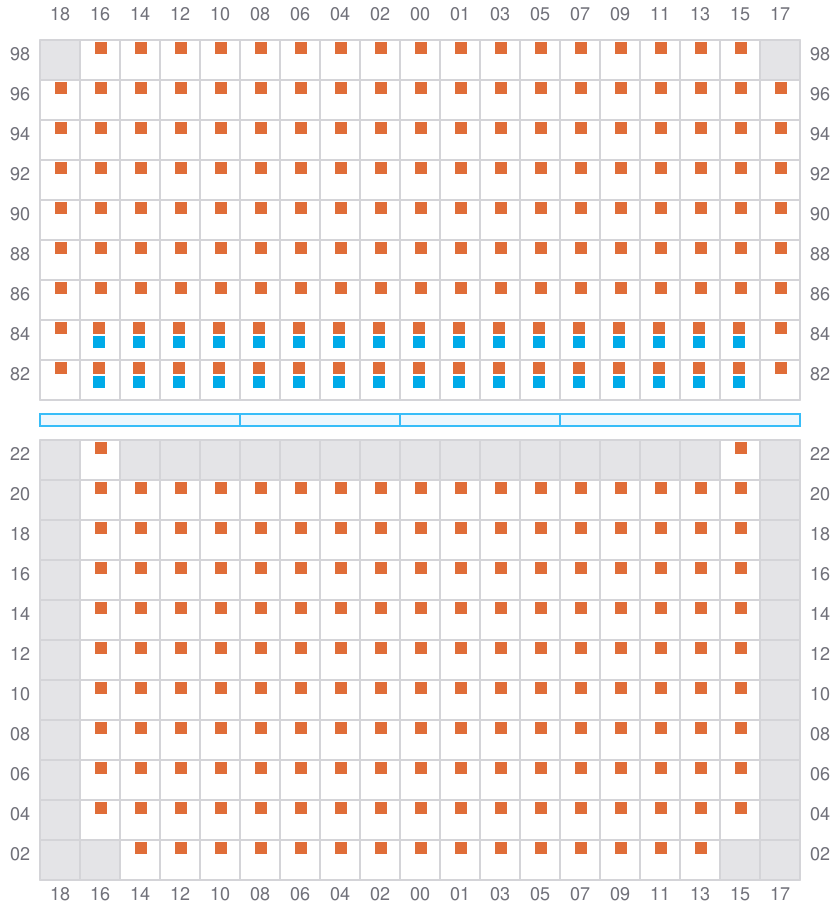

035
- ←
- → / ?
![Bay 035 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b035.png?v=1711559894377)
037 (038)
- →
![Bay 037 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b037.png?v=1711559894377)
039
- ←
- → / ?
![Bay 039 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b039.png?v=1711559894377)
041 (042)
- →
![Bay 041 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b041.png?v=1711559894377)

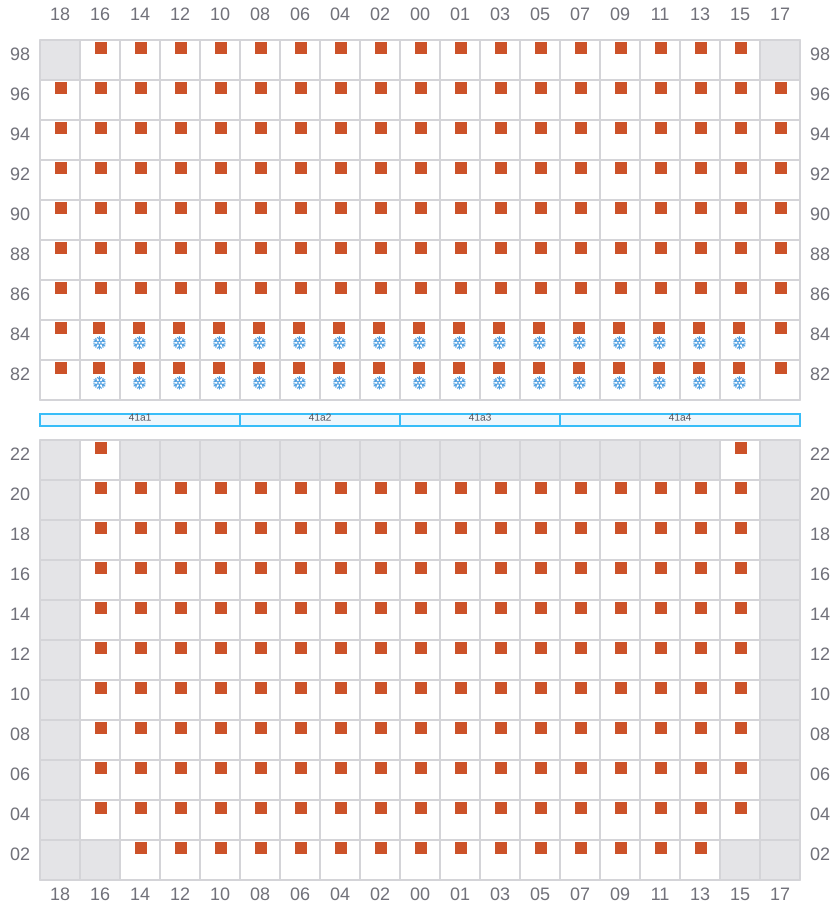

043
- ←
- → / ?
![Bay 043 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b043.png?v=1711559894377)

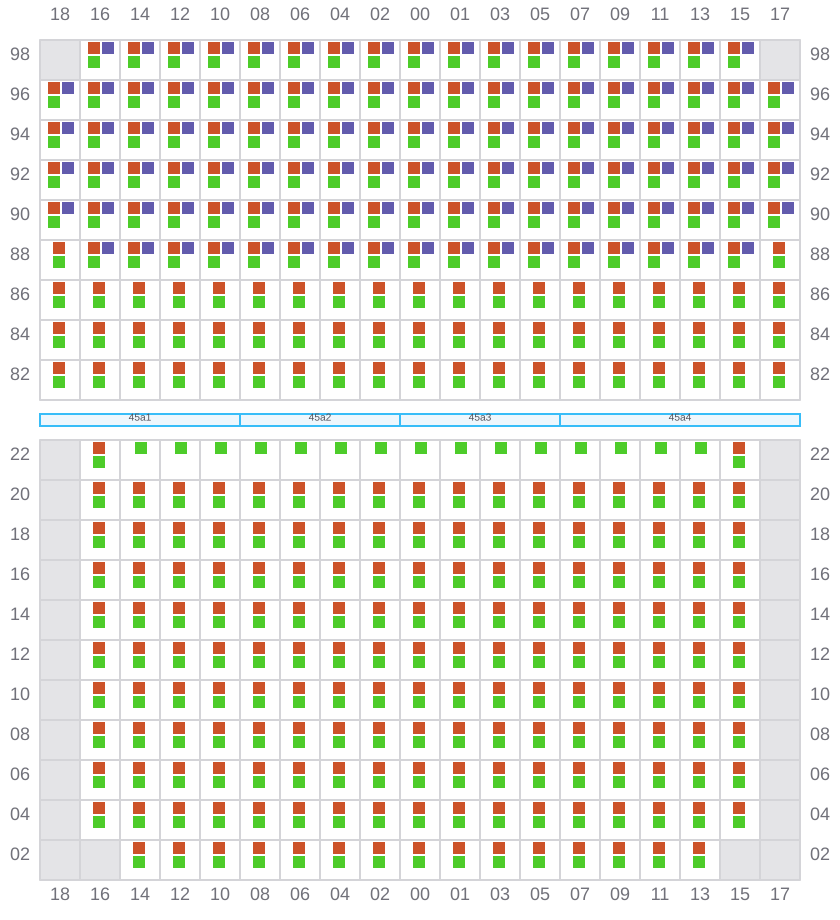

045 (046)
- →
![Bay 045 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b045.png?v=1711559894377)
047
- ←
- → / ?
![Bay 047 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b047.png?v=1711559894377)
049 (050)
- →
![Bay 049 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b049.png?v=1711559894377)

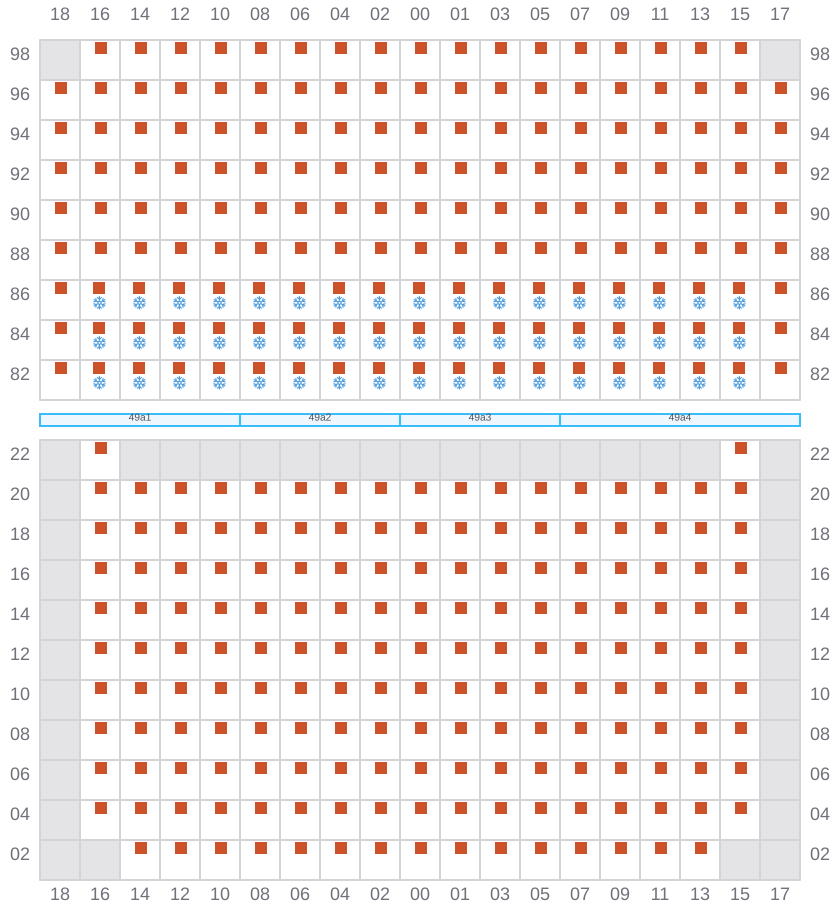

051
- ←
- → / ?
![Bay 051 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b051.png?v=1711559894377)

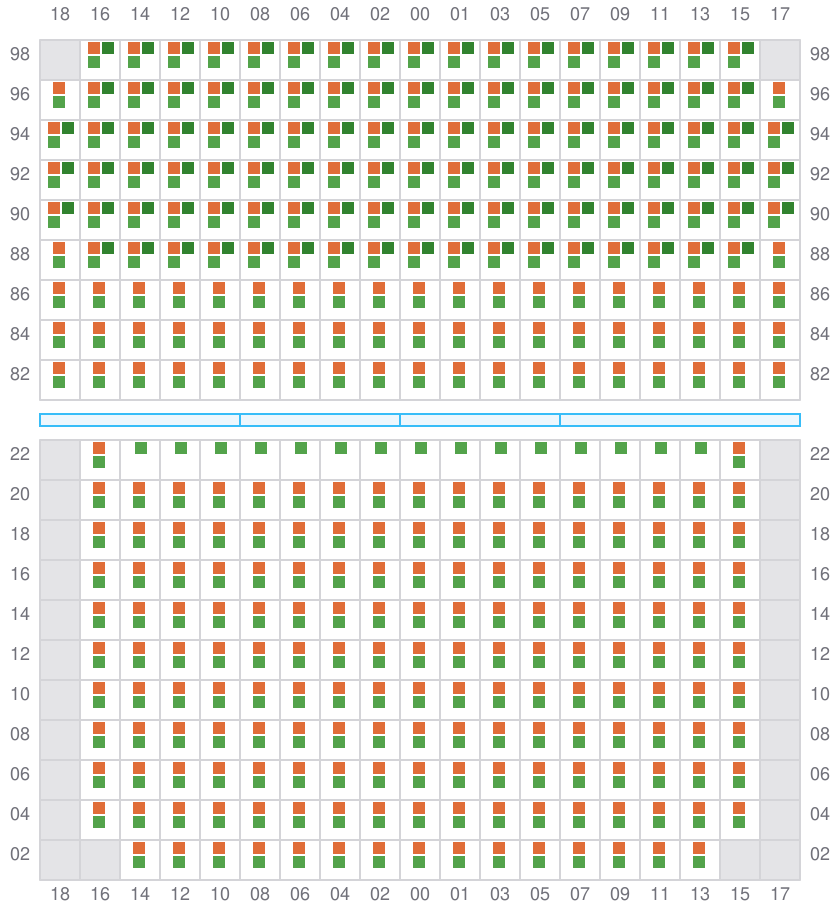

053 (054)
- →
![Bay 053 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b053.png?v=1711559894377)
055
- ←
- → / ?
![Bay 055 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b055.png?v=1711559894377)

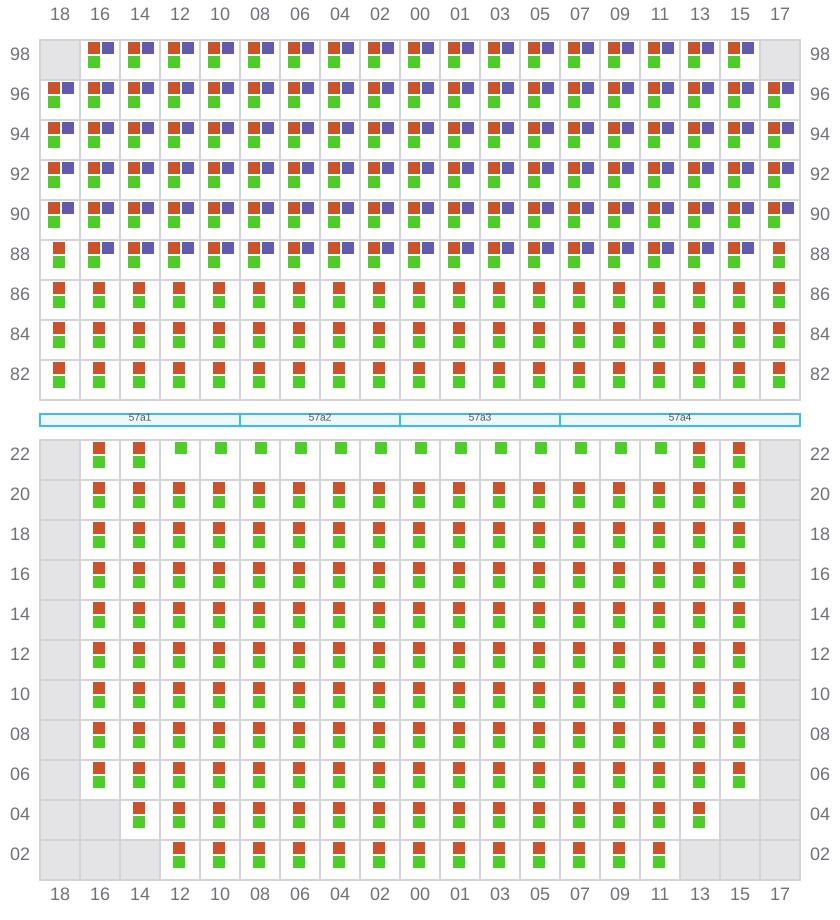

057 (058)
- →
![Bay 057 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b057.png?v=1711559894377)

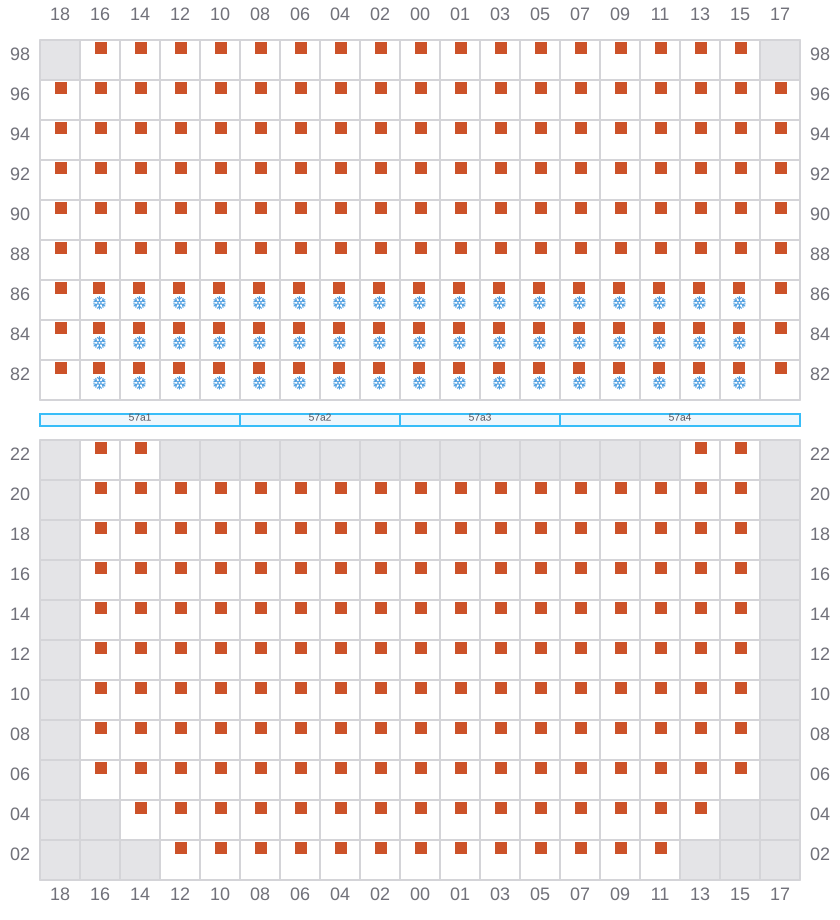

059
- ←
- → / ?
![Bay 059 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b059.png?v=1711559894377)

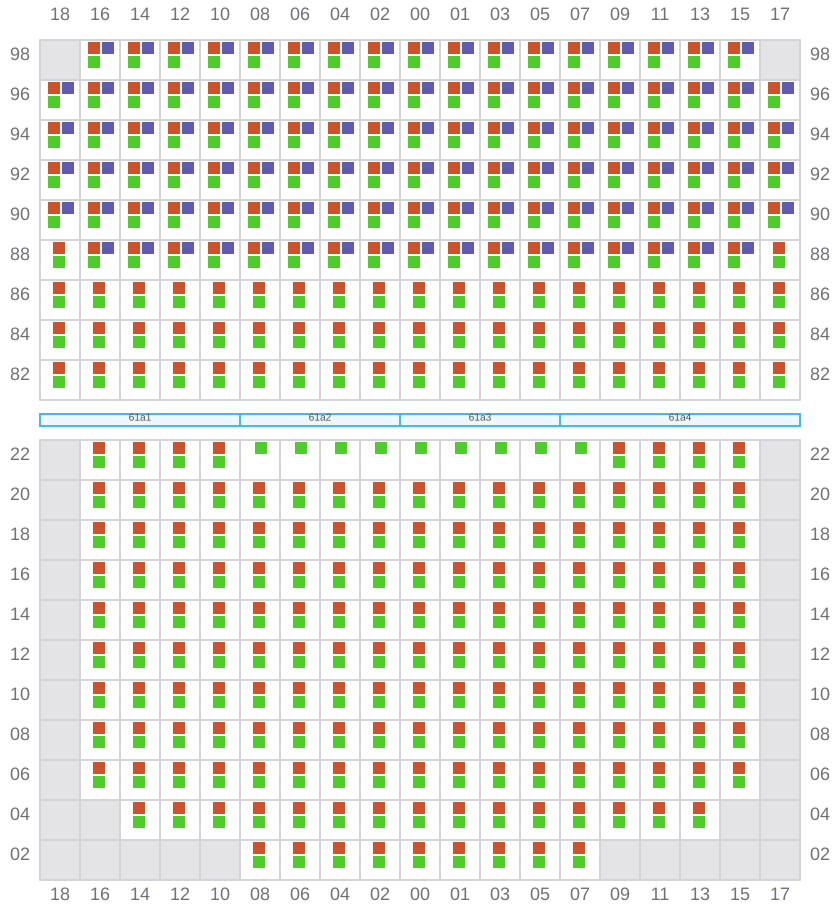

061 (062)
- →
![Bay 061 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b061.png?v=1711559894377)

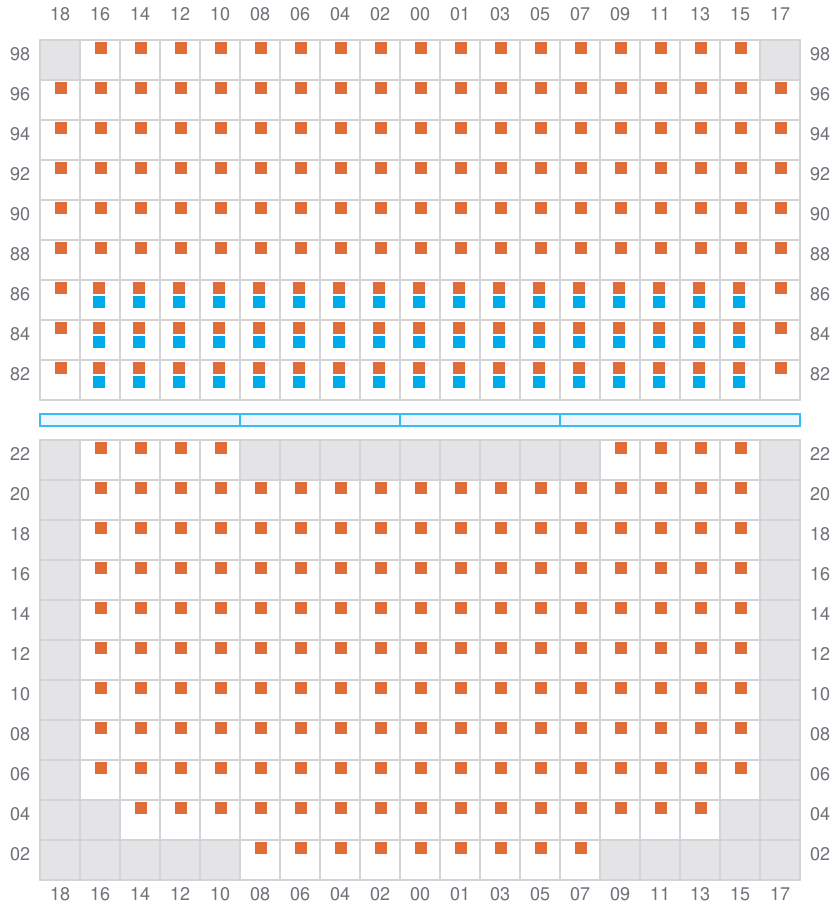

063
- ←
- → / ?
![Bay 063 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b063.png?v=1711559894377)
065 (066)
- →
![Bay 065 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b065.png?v=1711559894377)
067
- ←
- → / ?
![Bay 067 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b067.png?v=1711559894377)

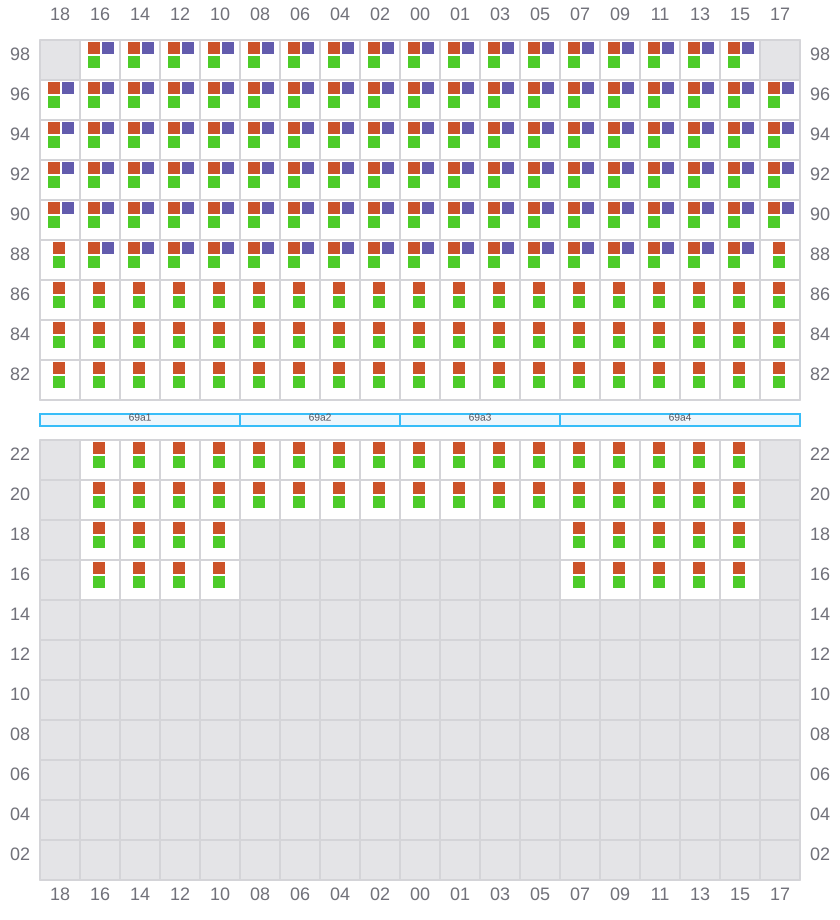

069 (070)
- →
![Bay 069 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b069.png?v=1711559894377)

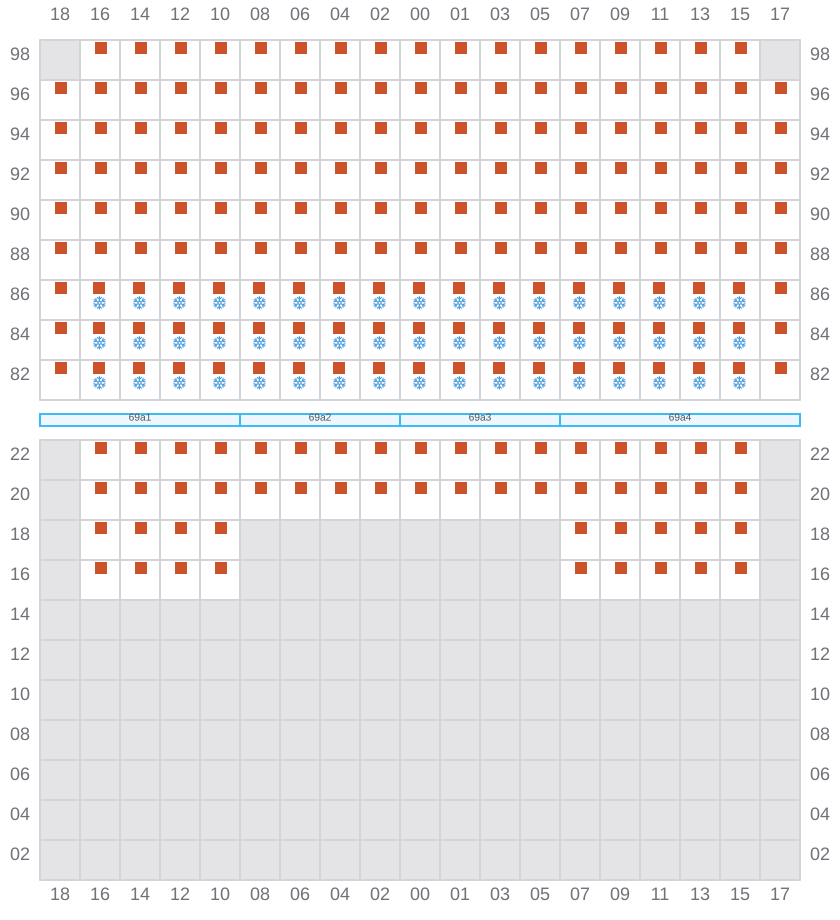

071
- ←
- → / ?
![Bay 071 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b071.png?v=1711559894377)

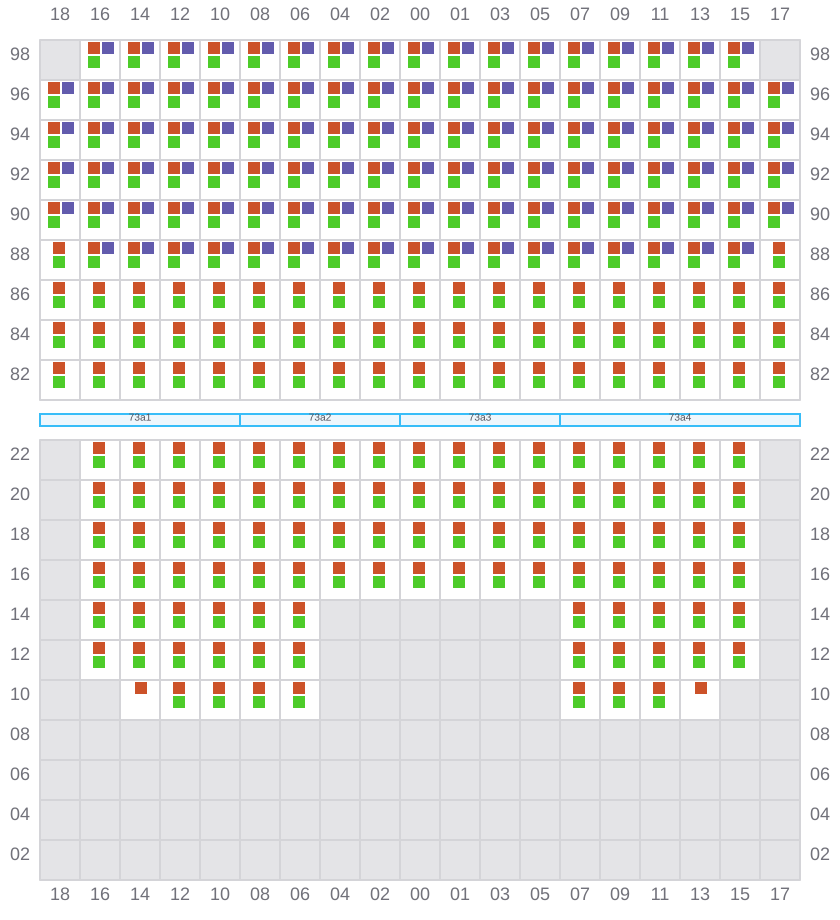

073 (074)
- →
![Bay 073 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b073.png?v=1711559894377)

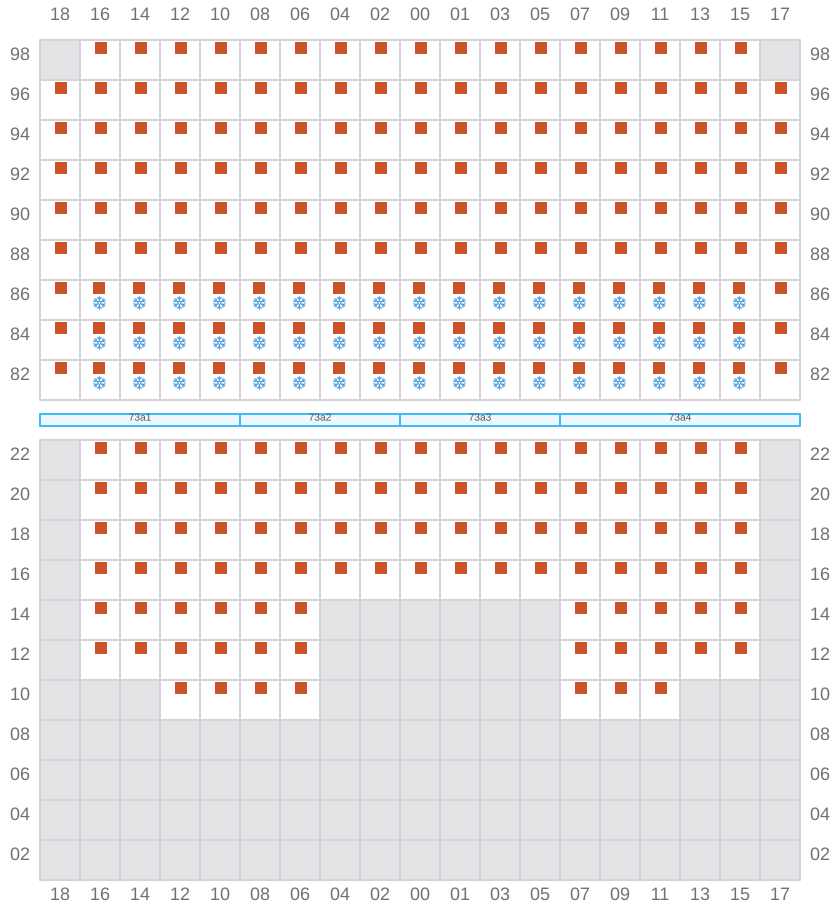

075
- ←
- → / ?
![Bay 075 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b075.png?v=1711559894377)

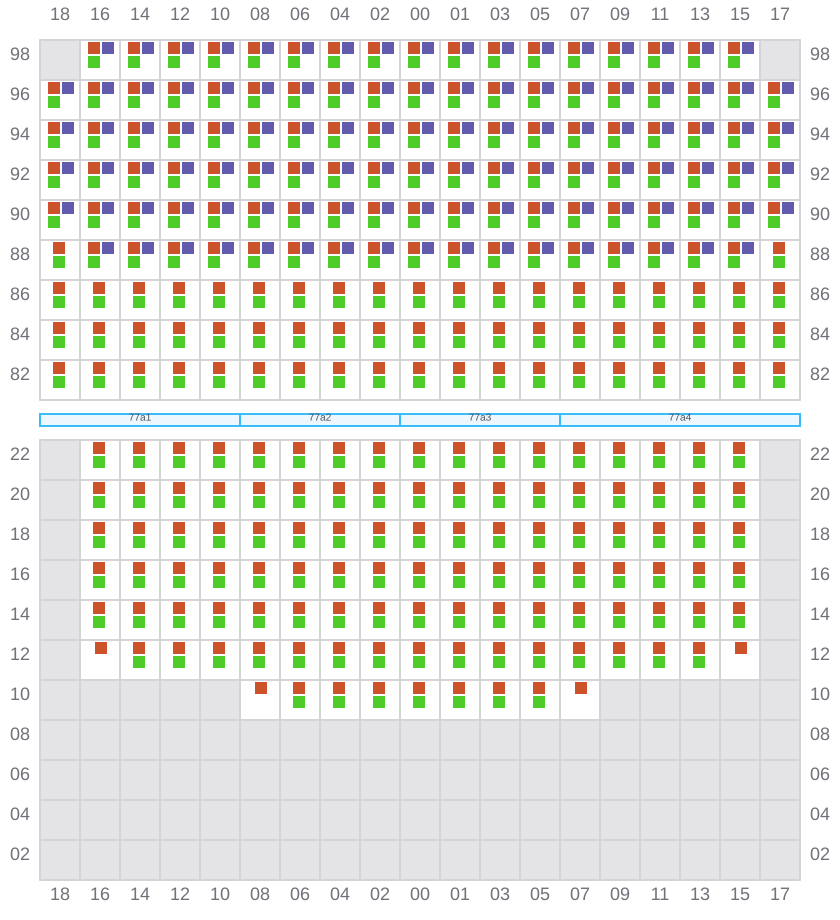

077 (078)
- →
![Bay 077 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b077.png?v=1711559894377)

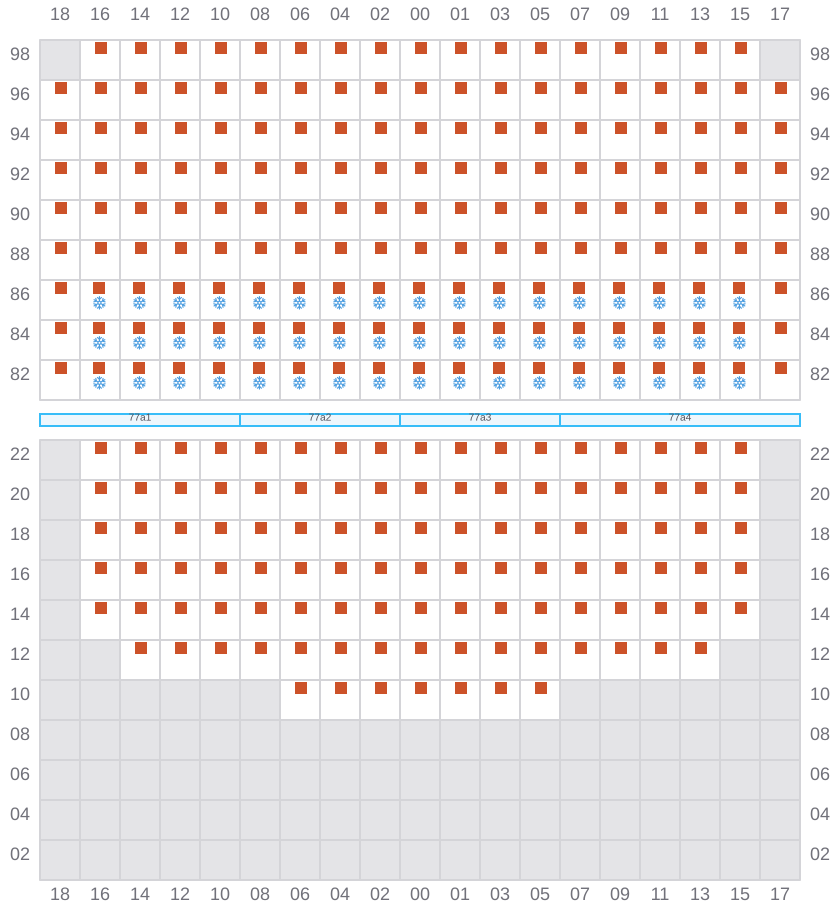

079
- ←
- → / ?
![Bay 079 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b079.png?v=1711559894377)

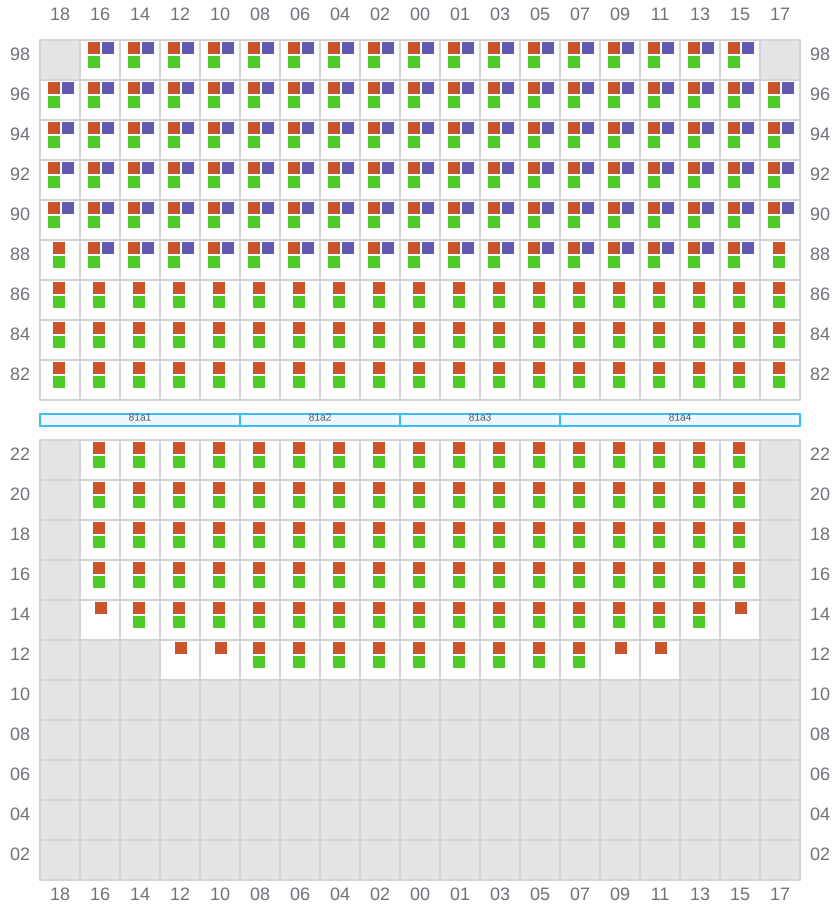

081 (082)
- →
![Bay 081 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b081.png?v=1711559894377)

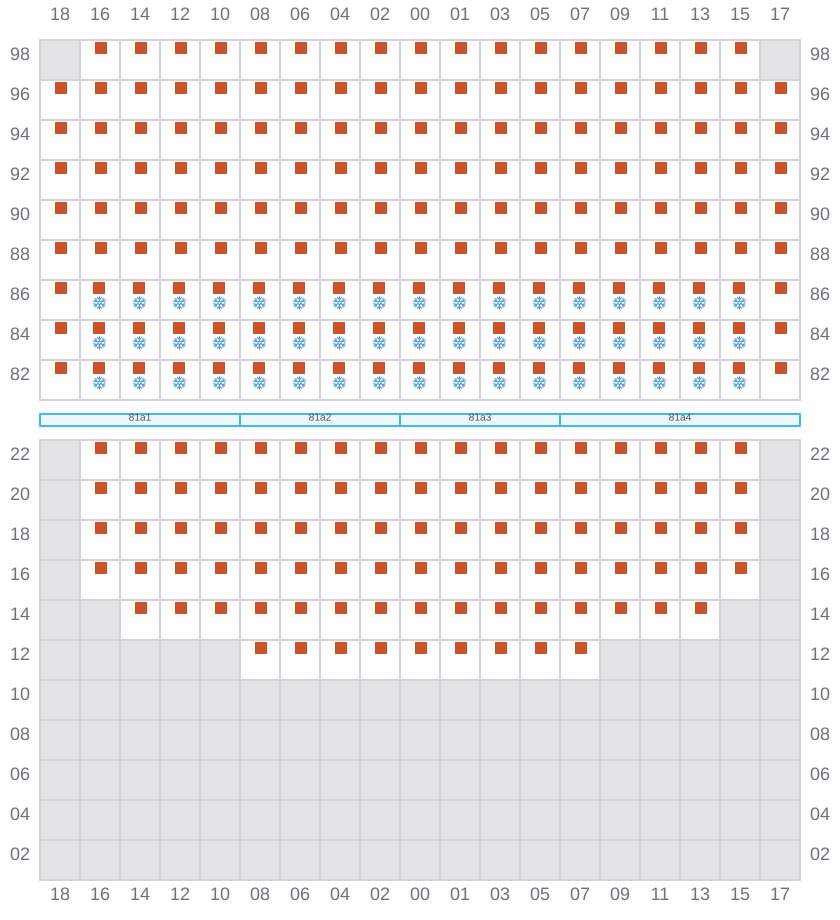

083
- ←
- → / ?
![Bay 083 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b083.png?v=1711559894377)

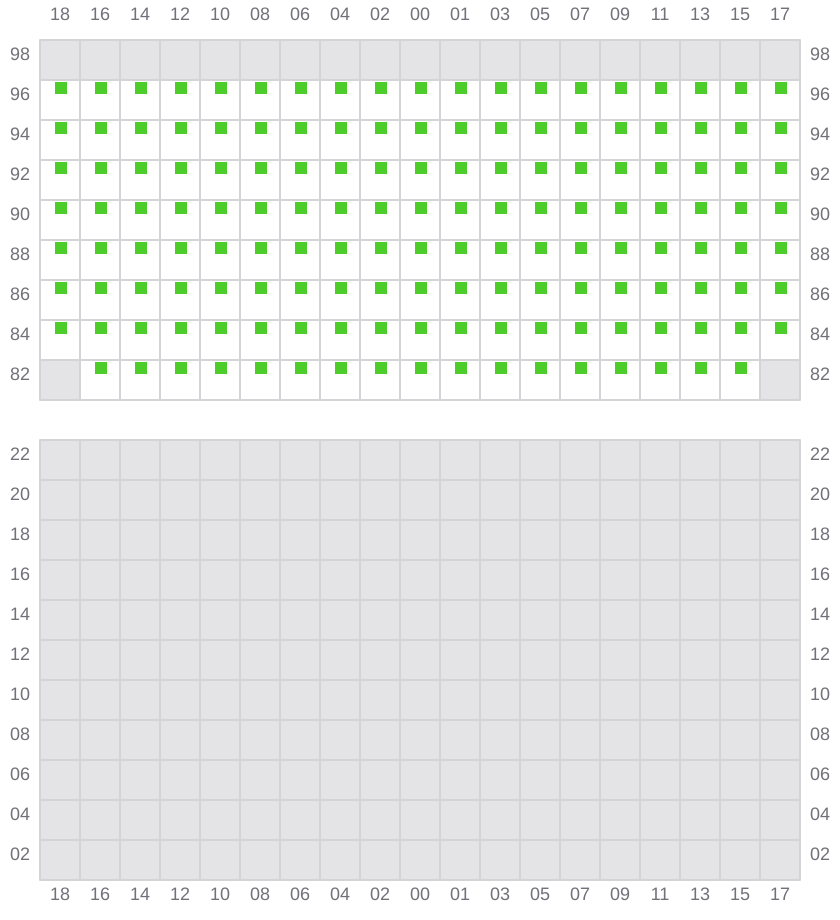

085 (086)
- → / ?
![Bay 085 view and slots of MAERSK EMDEN](/vessel-images/9933c421-2126-40ce-97db-a089fdf84a3c-b085.png?v=1711559894377)
