MAERSK ENSHI
9502946 | 3FIL | 9502946 by ********* Last update: Wed Jun 12 2024

General Info

Ship Name:MAERSK ENSHI
IMO Code:9502946
Call Sign:3FIL
Line Operator:9502946
Class Name for Sister Ships:13,000 TEU
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):353.00
LOA (Length Overall):366.50
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,102

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK ENSHI

Hatch-Covers View

Deck view of MAERSK ENSHI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

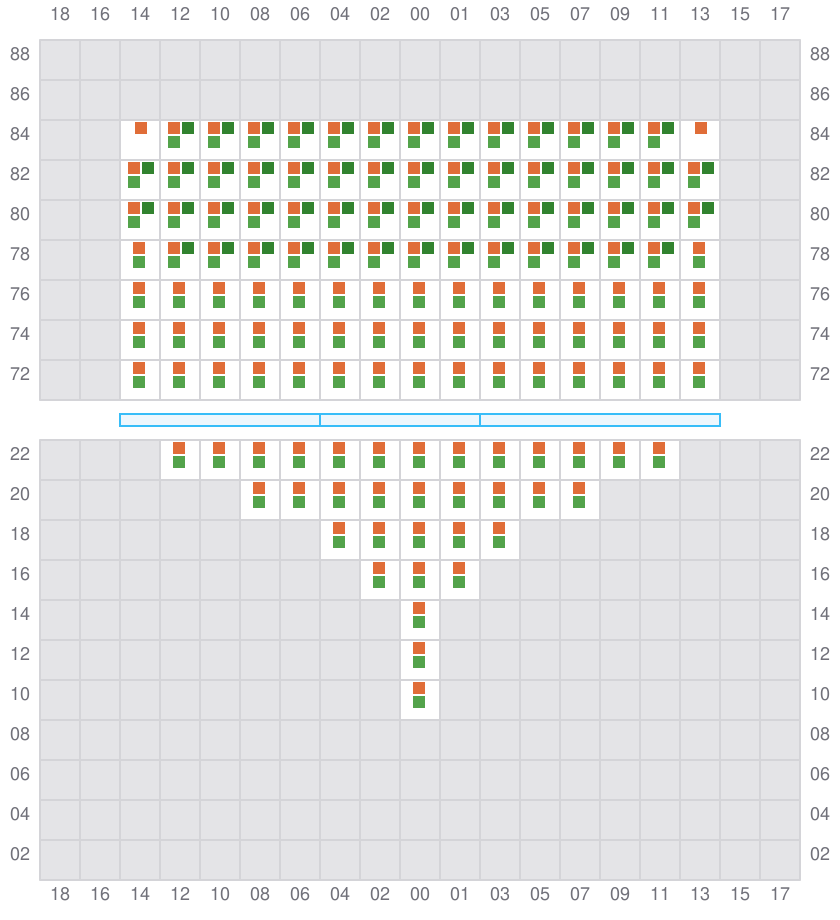

001 (002)

  • →
Bay 001 view and slots of MAERSK ENSHI

003

  • ←

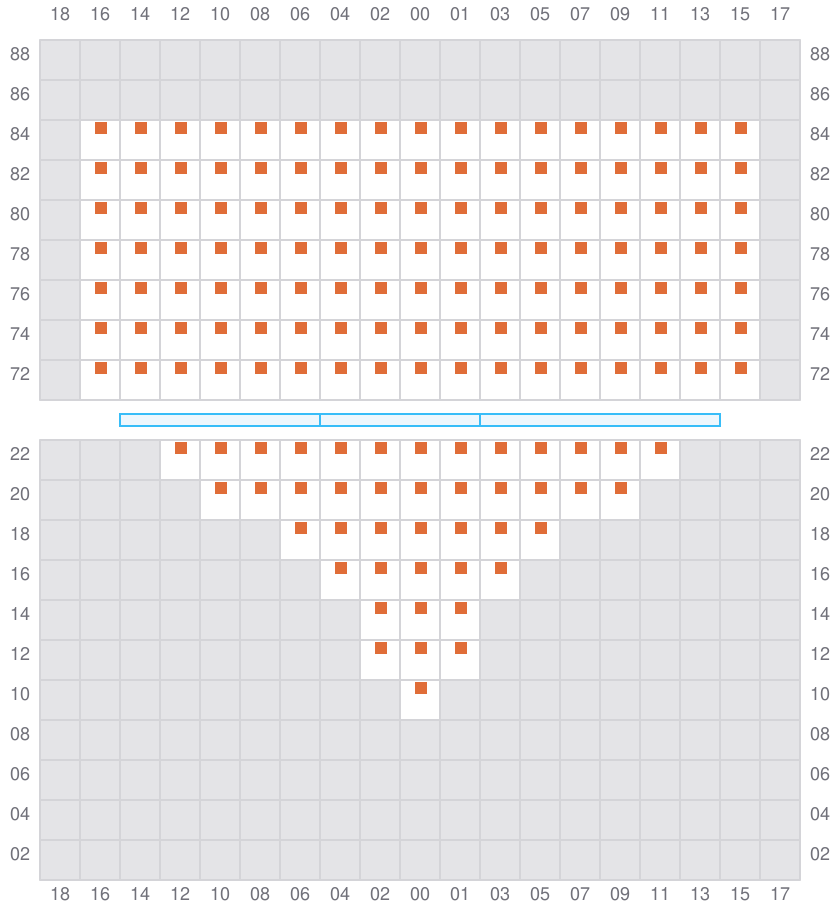

Bay 003 view and slots of MAERSK ENSHI

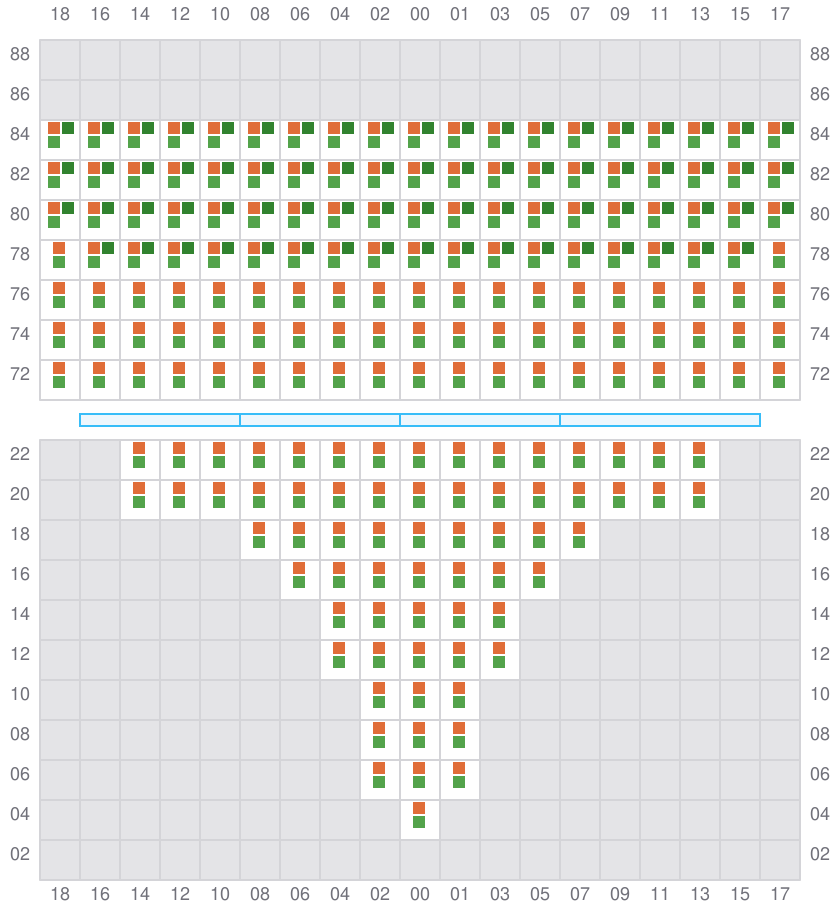

005 (006)

  • →
Bay 005 view and slots of MAERSK ENSHI

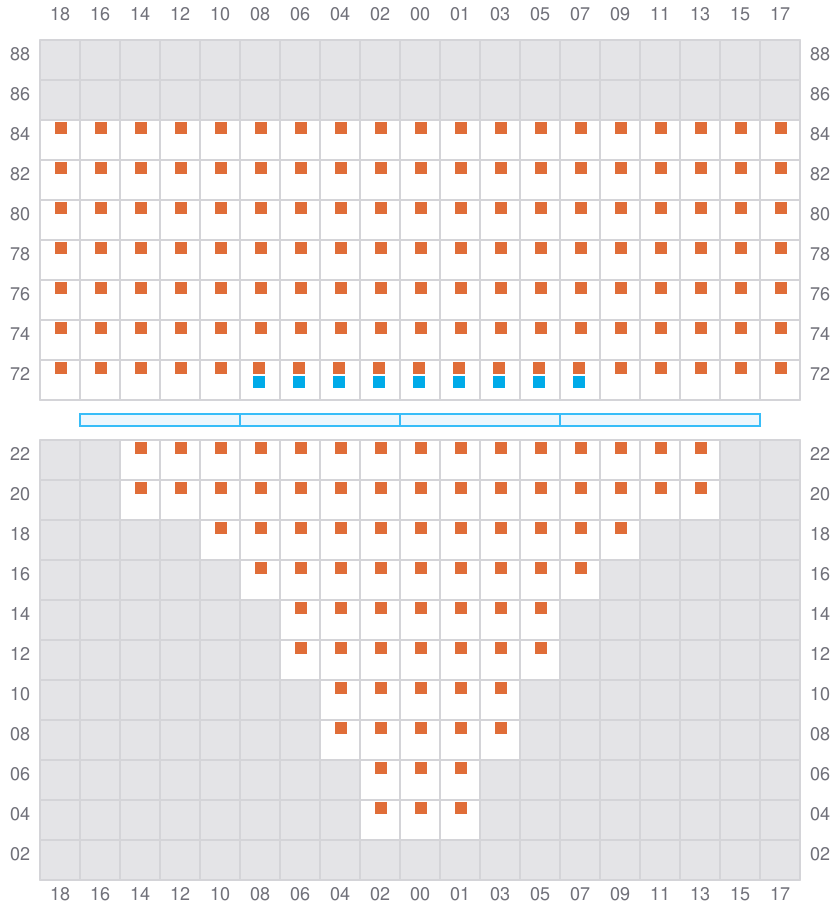

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK ENSHI

009 (010)

  • →

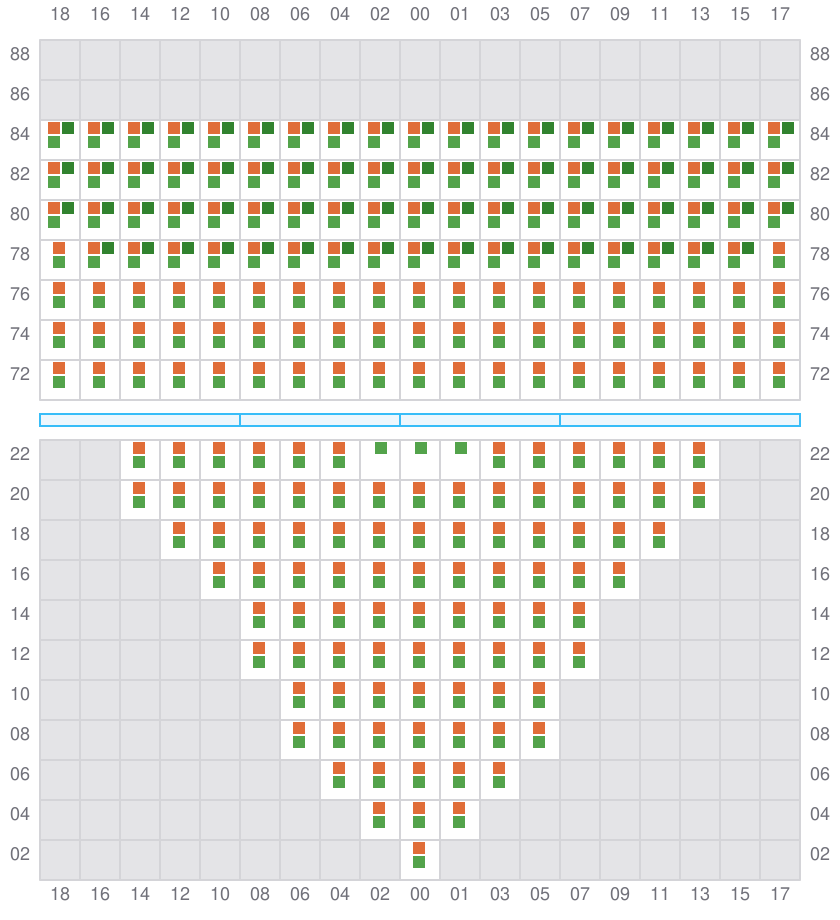

Bay 009 view and slots of MAERSK ENSHI

011

  • ←
  • → / ?

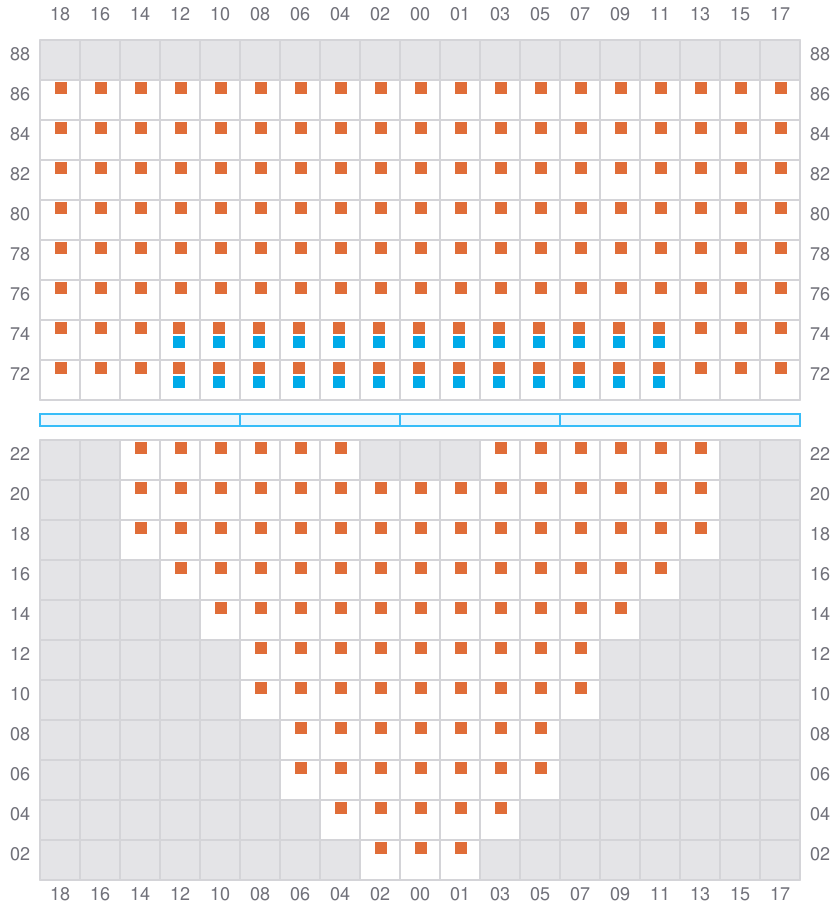

Bay 011 view and slots of MAERSK ENSHI

013 (014)

  • →

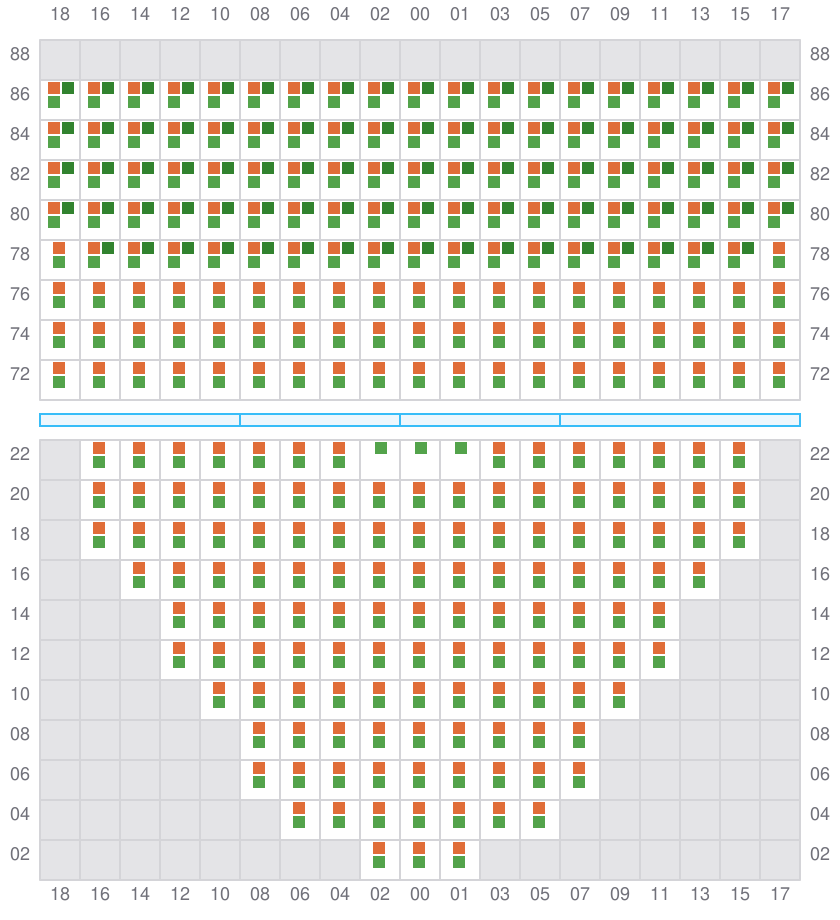

Bay 013 view and slots of MAERSK ENSHI

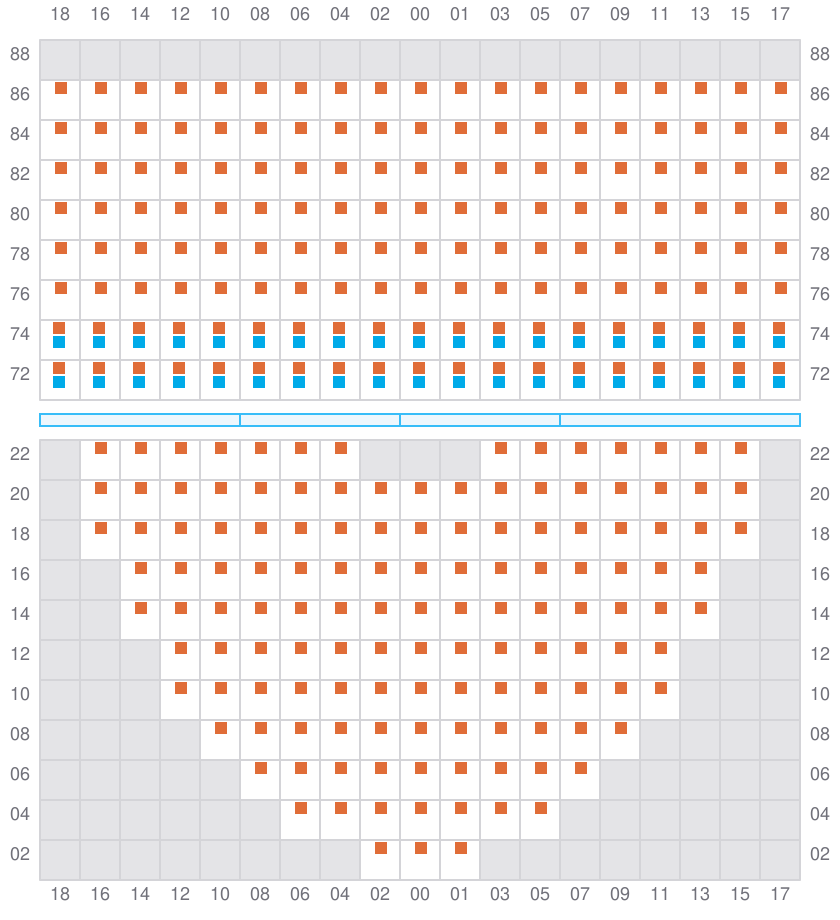

015

  • ←
  • → / ?
Bay 015 view and slots of MAERSK ENSHI

017 (018)

  • →

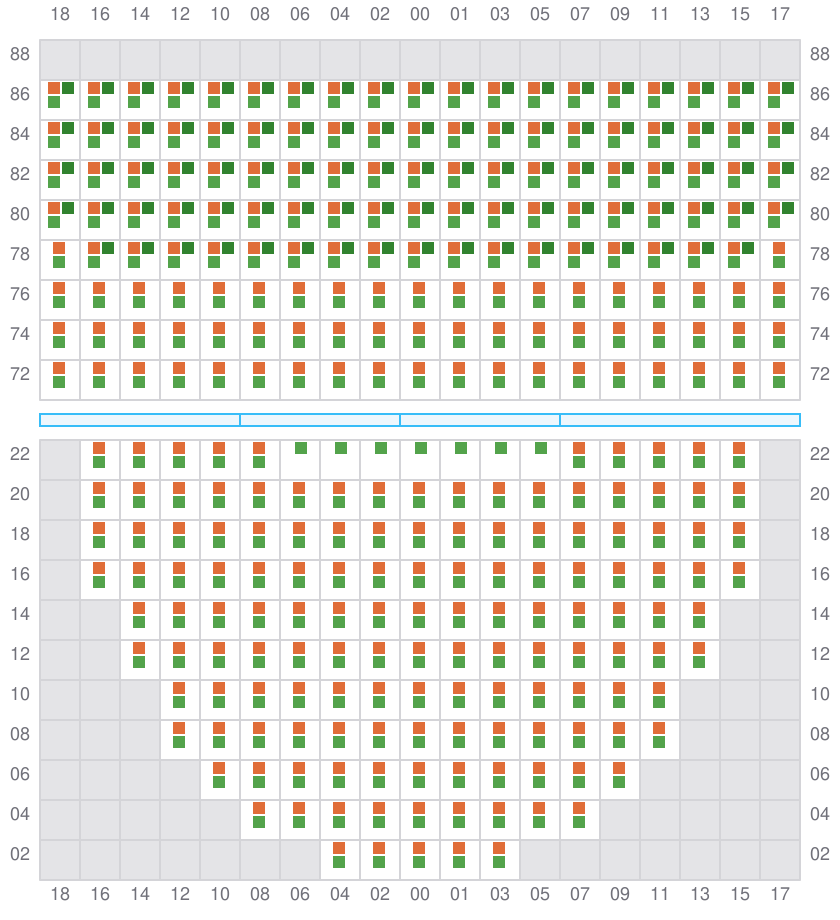

Bay 017 view and slots of MAERSK ENSHI

019

  • ←
  • → / ?

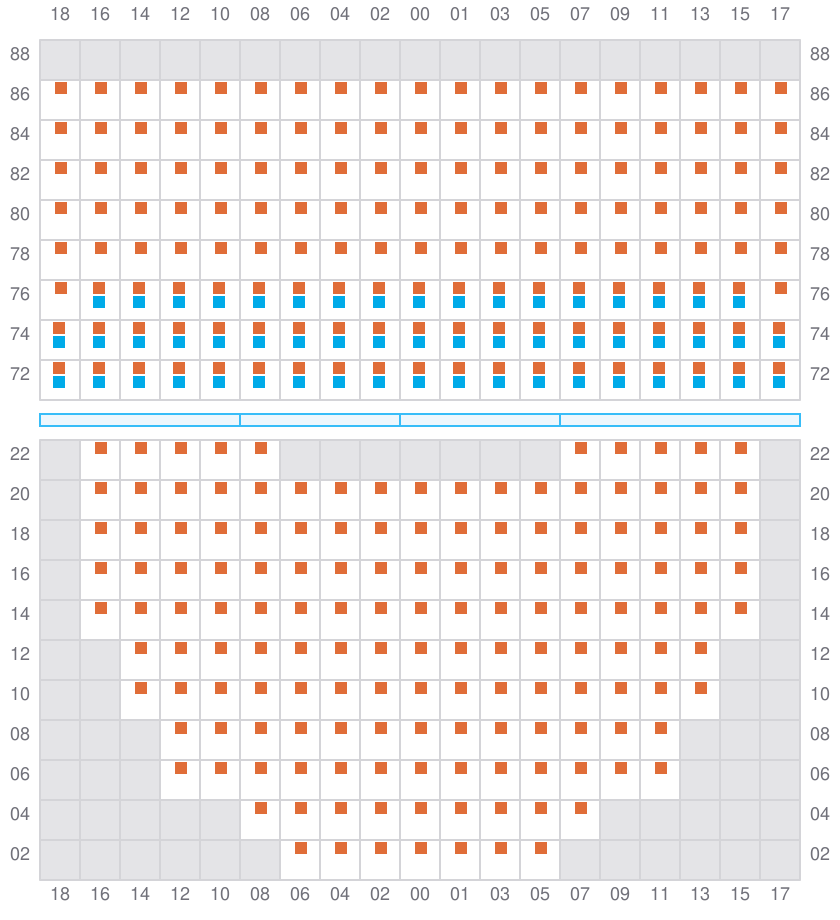

Bay 019 view and slots of MAERSK ENSHI

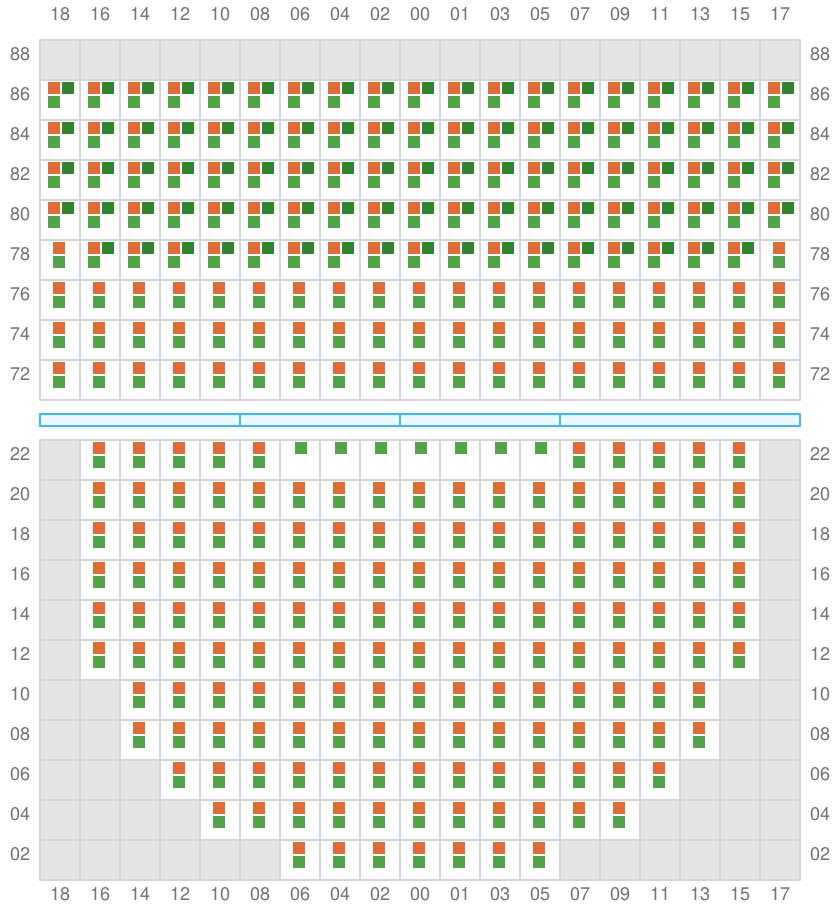

021 (022)

  • →
Bay 021 view and slots of MAERSK ENSHI

023

  • ←
  • → / ?

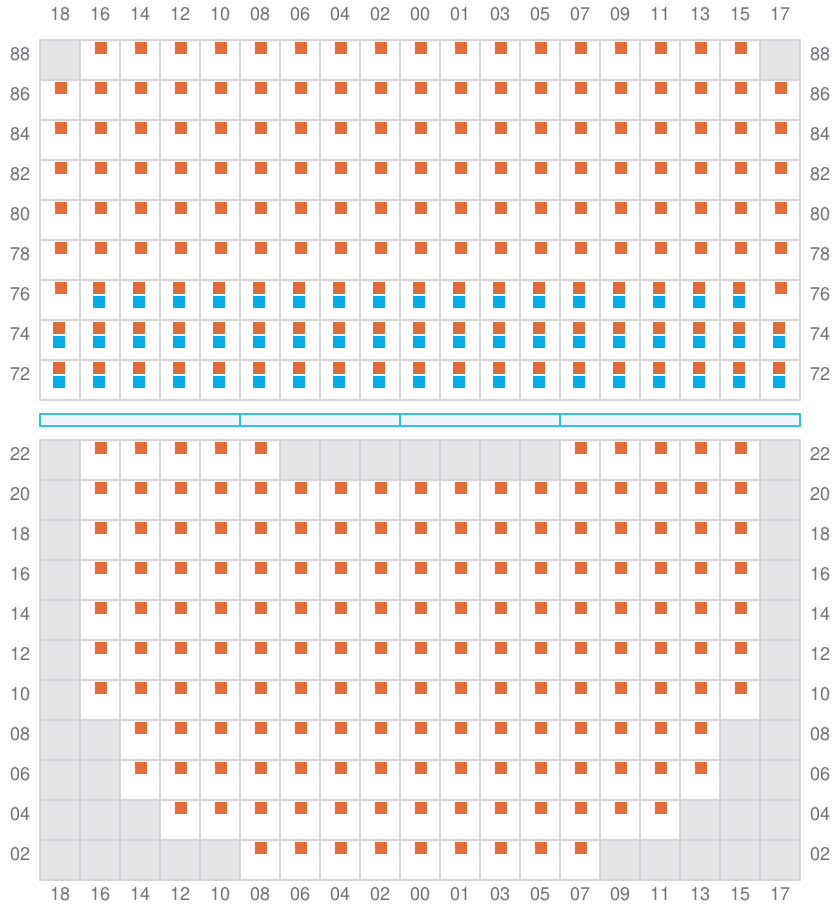

Bay 023 view and slots of MAERSK ENSHI

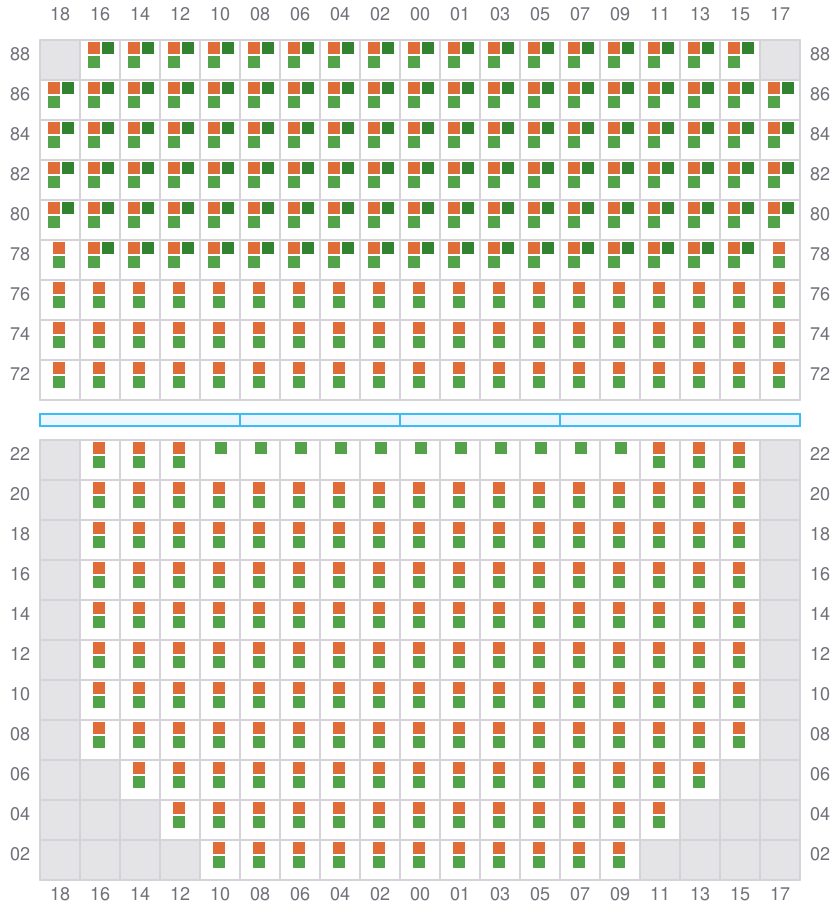

025 (026)

  • →
Bay 025 view and slots of MAERSK ENSHI

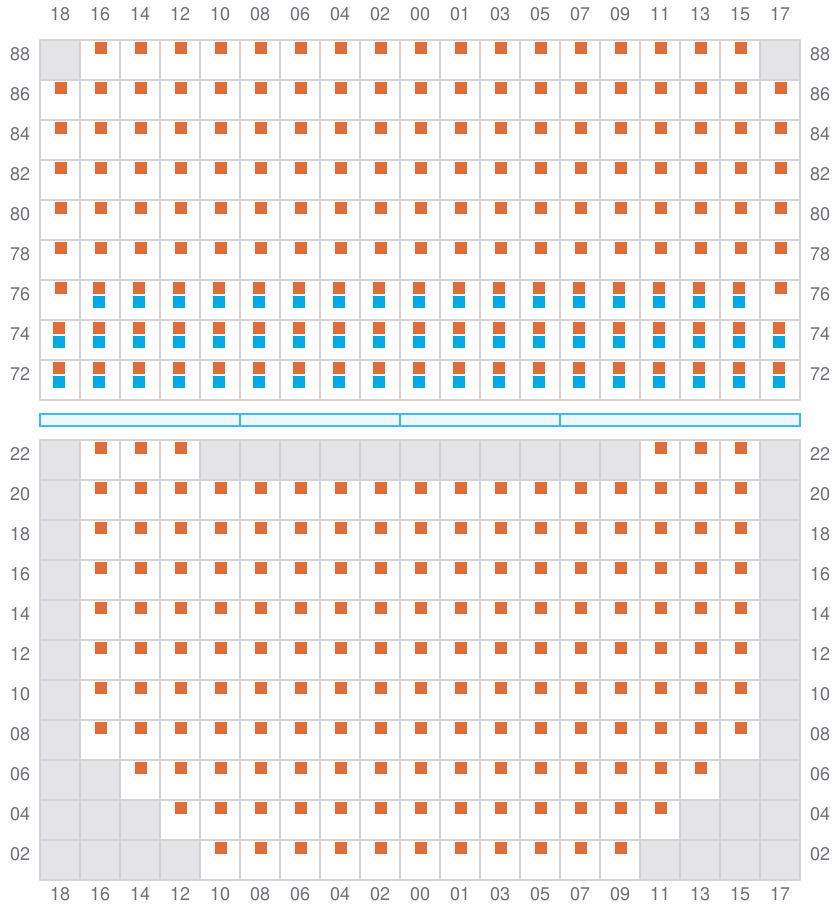

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK ENSHI

029 (030)

  • →

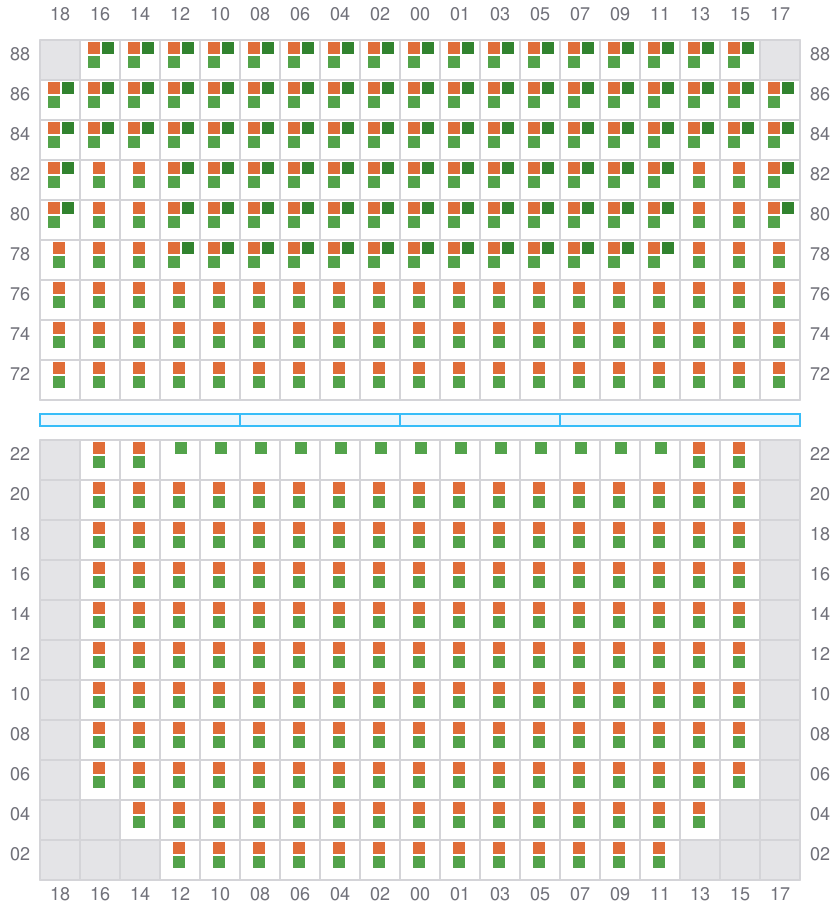

Bay 029 view and slots of MAERSK ENSHI

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK ENSHI

033 (034)

  • →

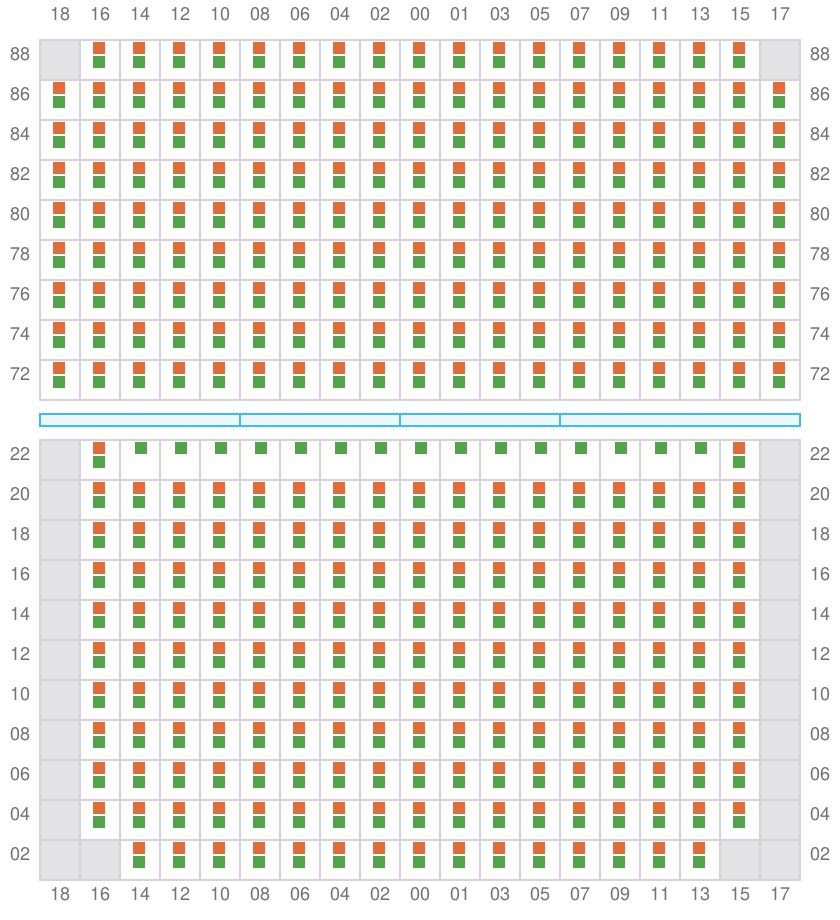

Bay 033 view and slots of MAERSK ENSHI

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK ENSHI

037 (038)

  • →
Bay 037 view and slots of MAERSK ENSHI

039

  • ←
  • → / ?

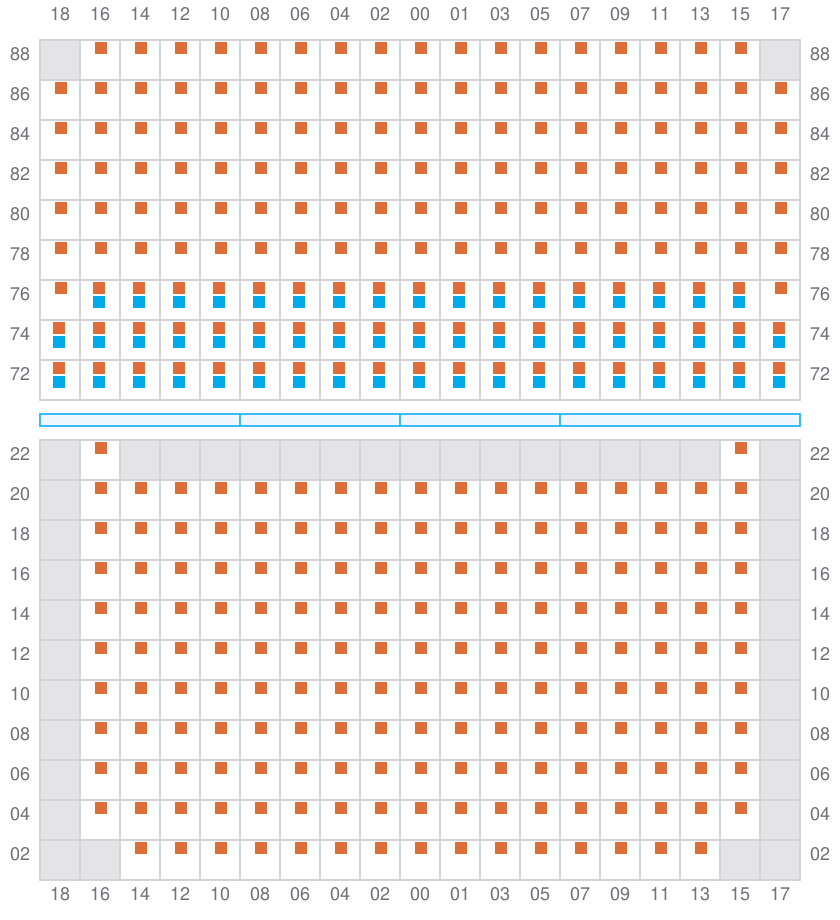

Bay 039 view and slots of MAERSK ENSHI

041 (042)

  • →

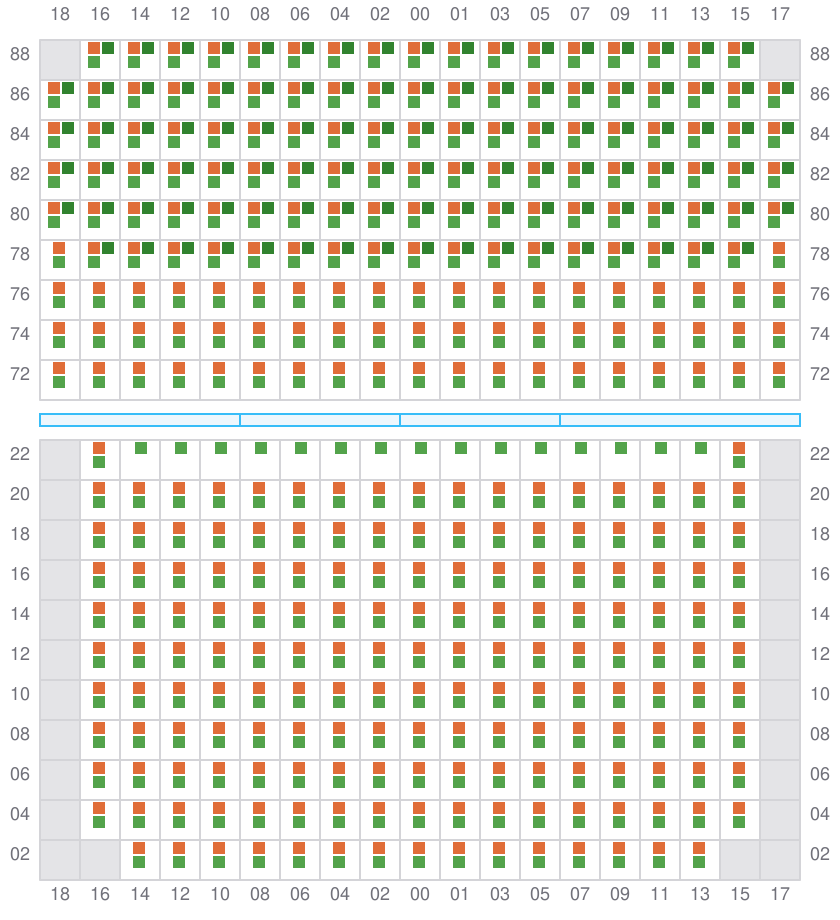

Bay 041 view and slots of MAERSK ENSHI

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK ENSHI

045 (046)

  • →
Bay 045 view and slots of MAERSK ENSHI

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK ENSHI

049 (050)

  • →
Bay 049 view and slots of MAERSK ENSHI

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK ENSHI

053 (054)

  • →
Bay 053 view and slots of MAERSK ENSHI

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK ENSHI

057 (058)

  • →

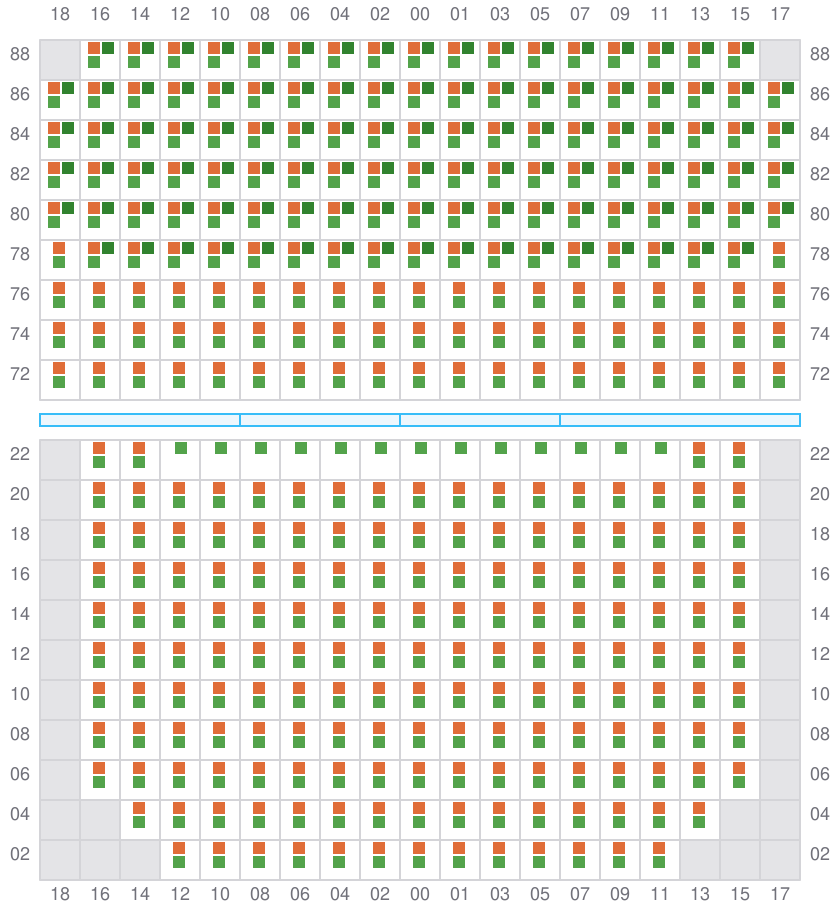

Bay 057 view and slots of MAERSK ENSHI

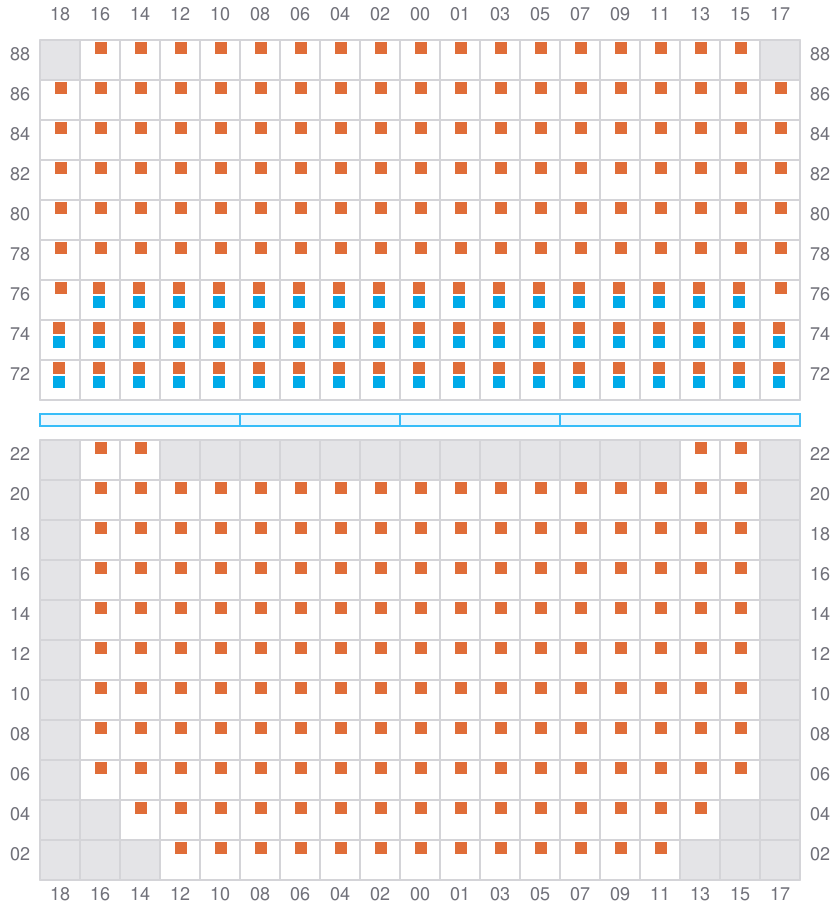

059

  • ←
  • → / ?
Bay 059 view and slots of MAERSK ENSHI

061 (062)

  • →
Bay 061 view and slots of MAERSK ENSHI

063

  • ←
  • → / ?

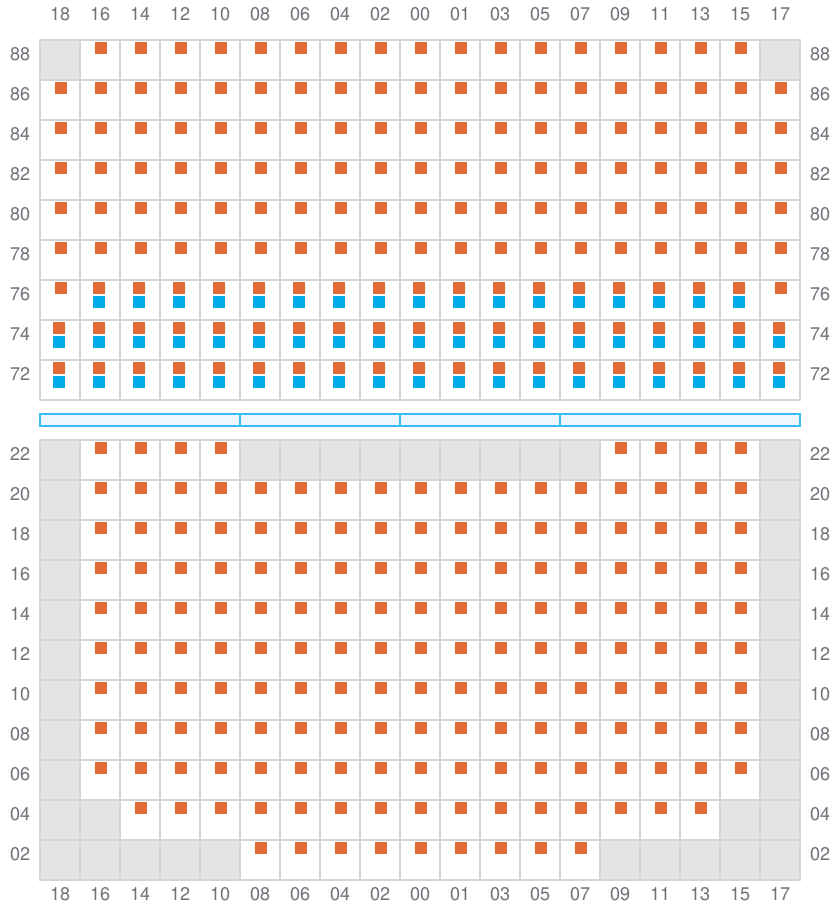

Bay 063 view and slots of MAERSK ENSHI

065 (066)

  • →

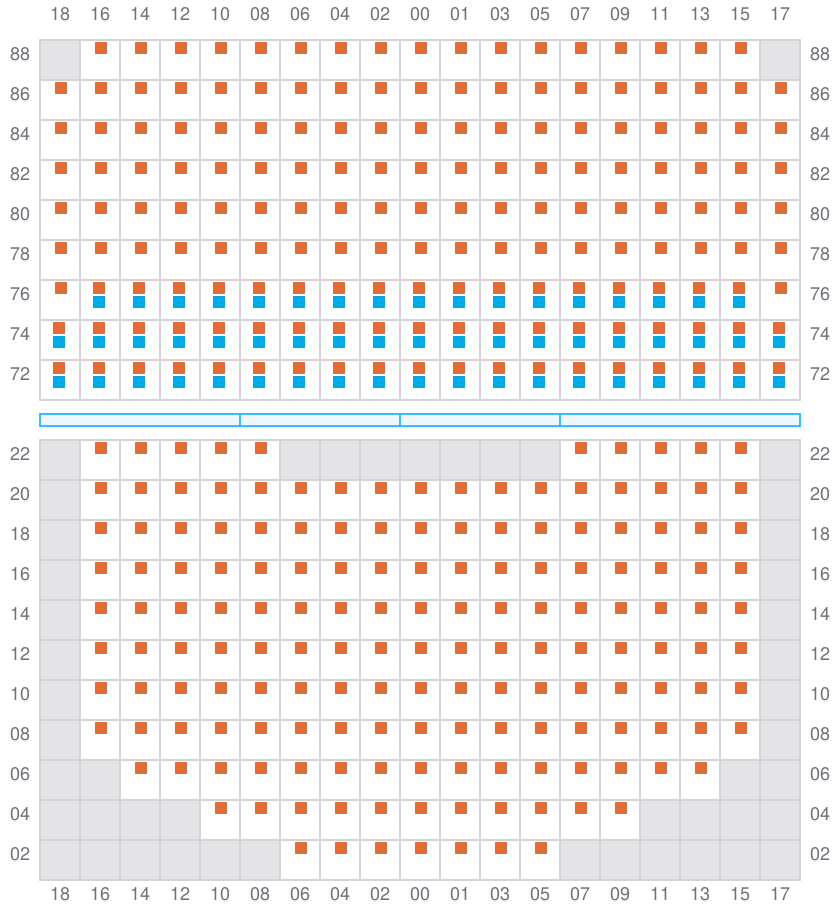

Bay 065 view and slots of MAERSK ENSHI

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK ENSHI

069 (070)

  • →

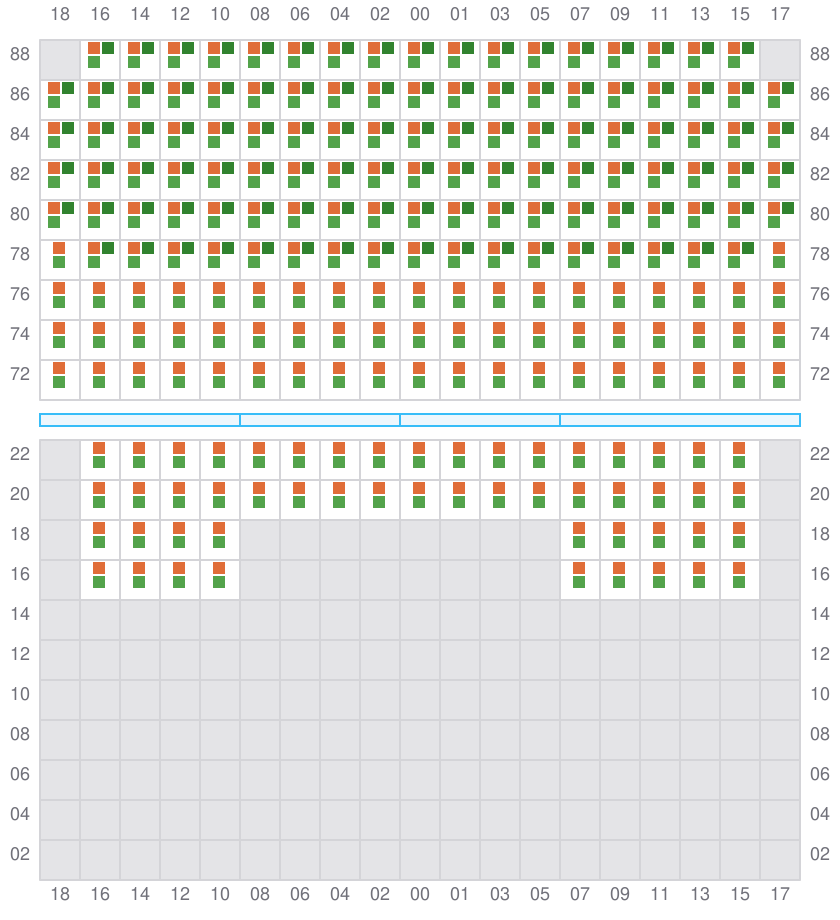

Bay 069 view and slots of MAERSK ENSHI

071

  • ←
  • → / ?

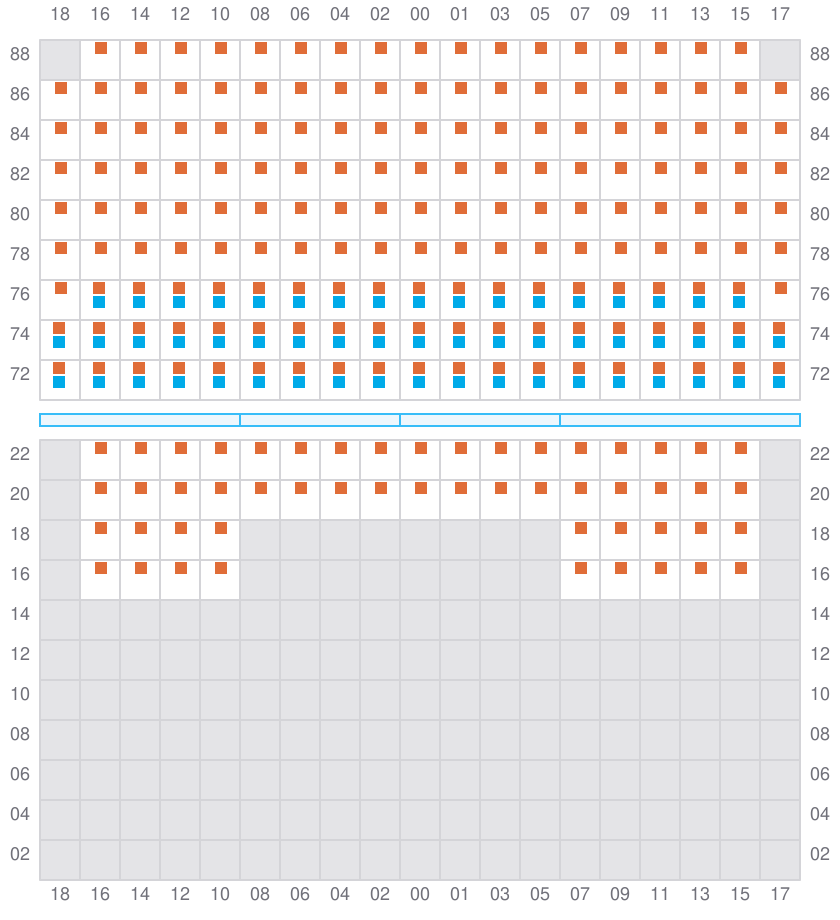

Bay 071 view and slots of MAERSK ENSHI

073 (074)

  • →

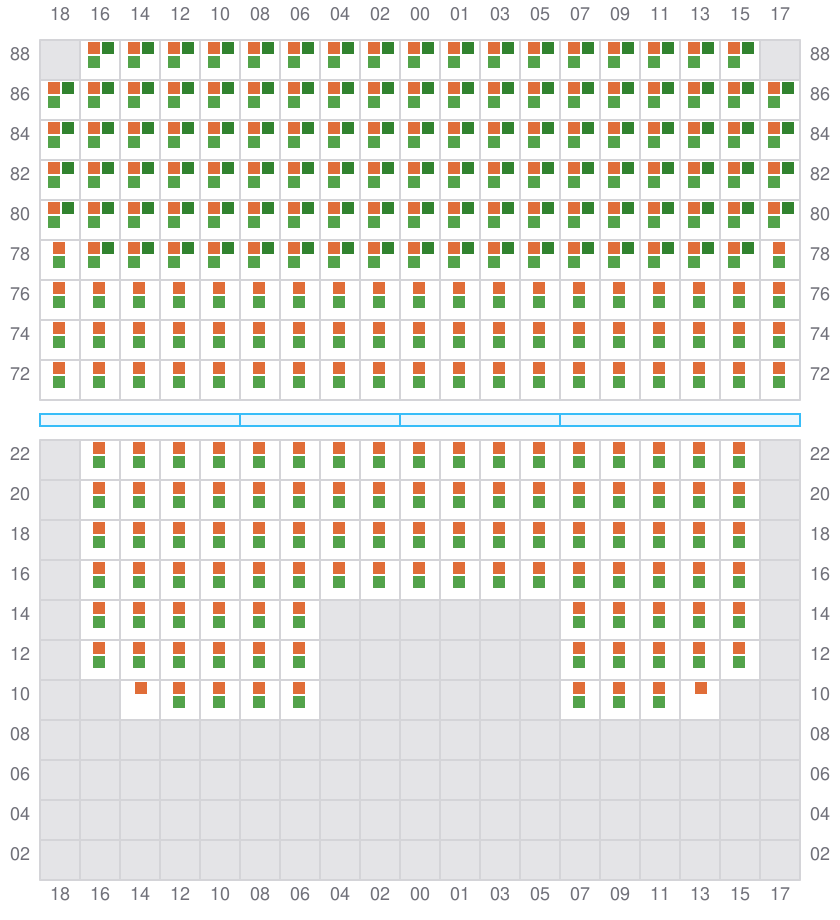

Bay 073 view and slots of MAERSK ENSHI

075

  • ←
  • → / ?

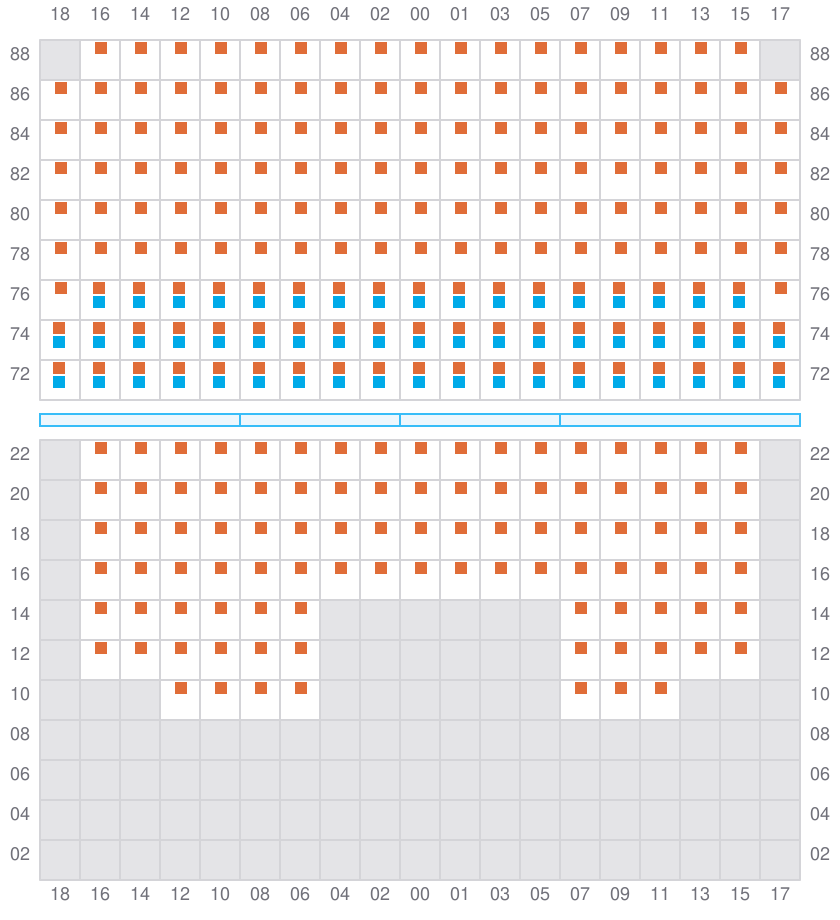

Bay 075 view and slots of MAERSK ENSHI

077 (078)

  • →
Bay 077 view and slots of MAERSK ENSHI

079

  • ←
  • → / ?

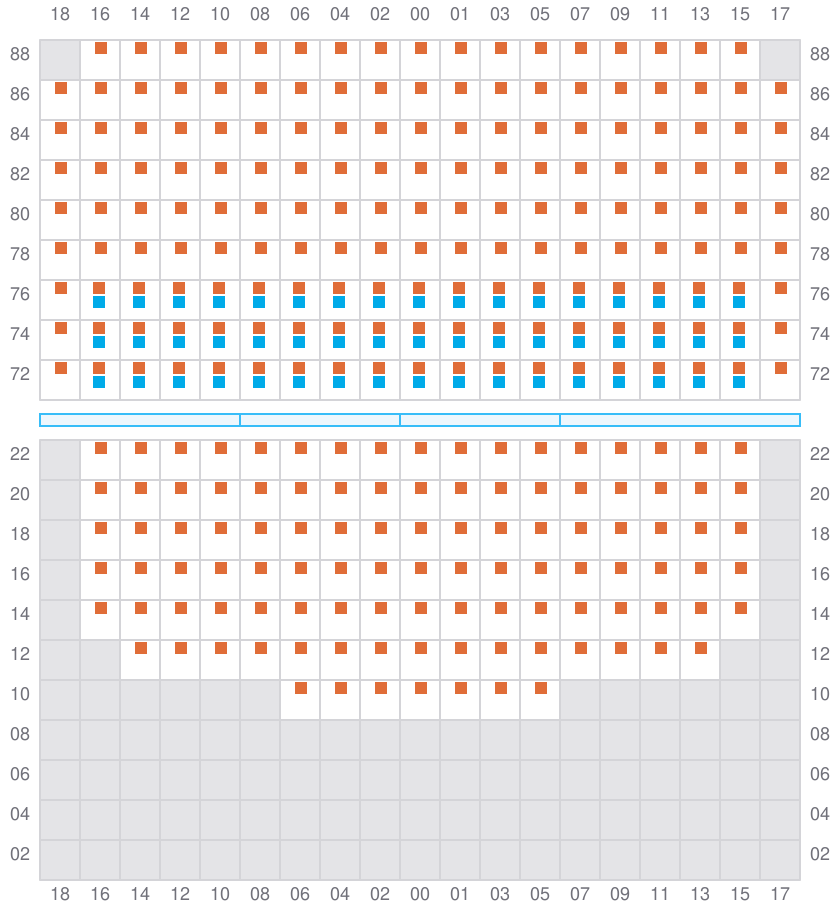

Bay 079 view and slots of MAERSK ENSHI

081 (082)

  • →

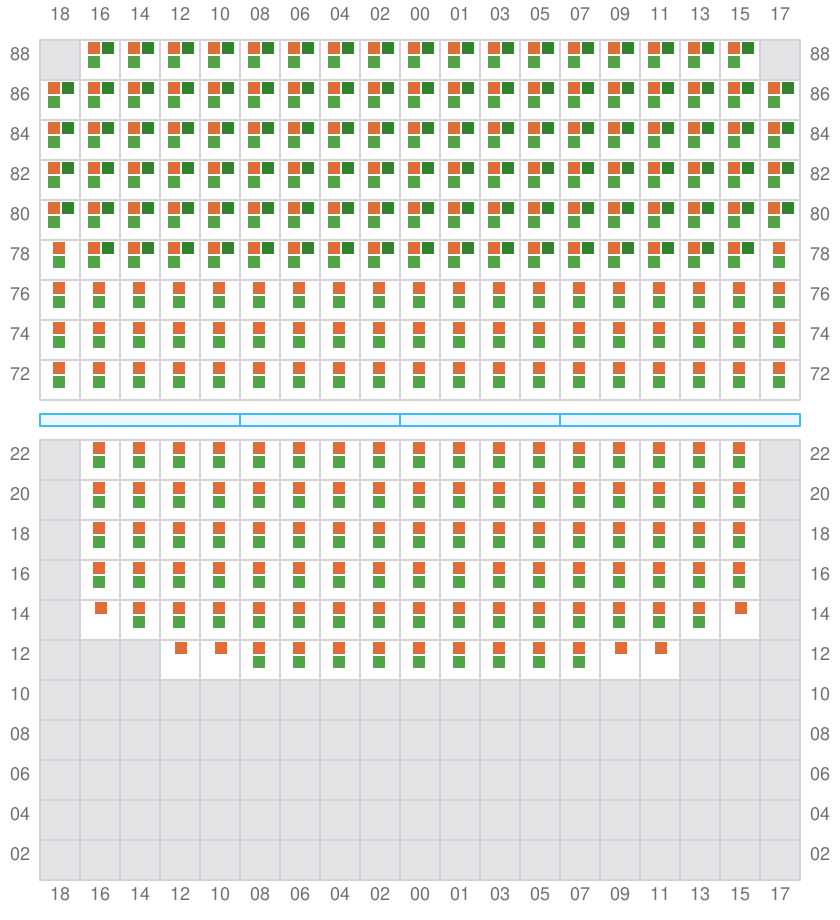

Bay 081 view and slots of MAERSK ENSHI

083

  • ←
  • → / ?

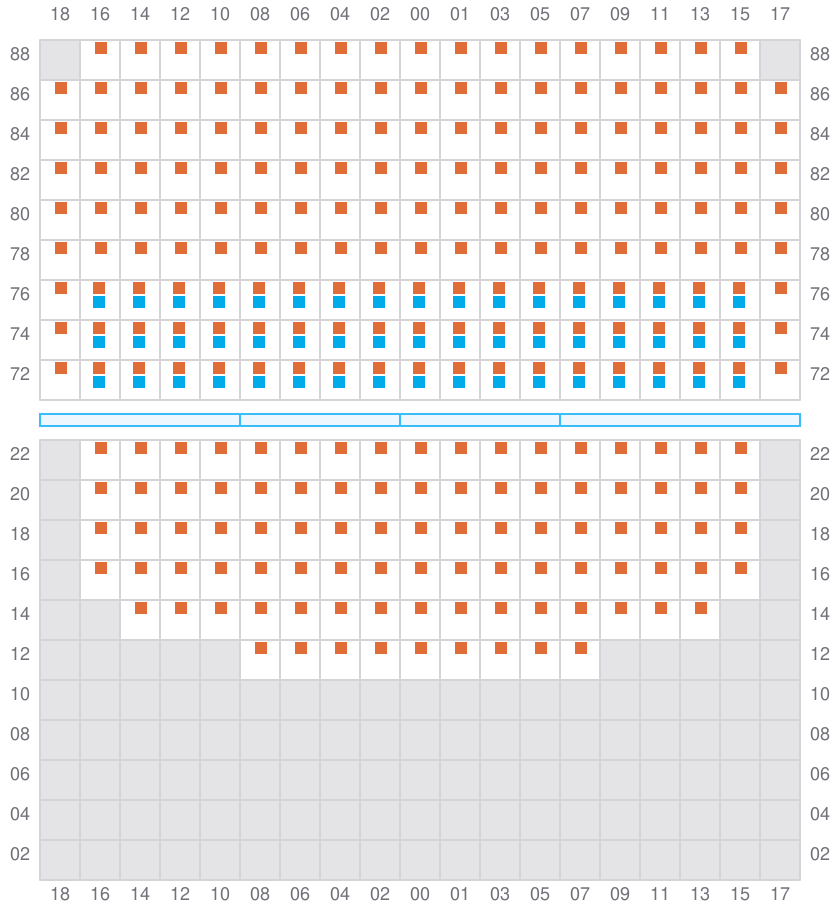

Bay 083 view and slots of MAERSK ENSHI

085 (086)

  • → / ?

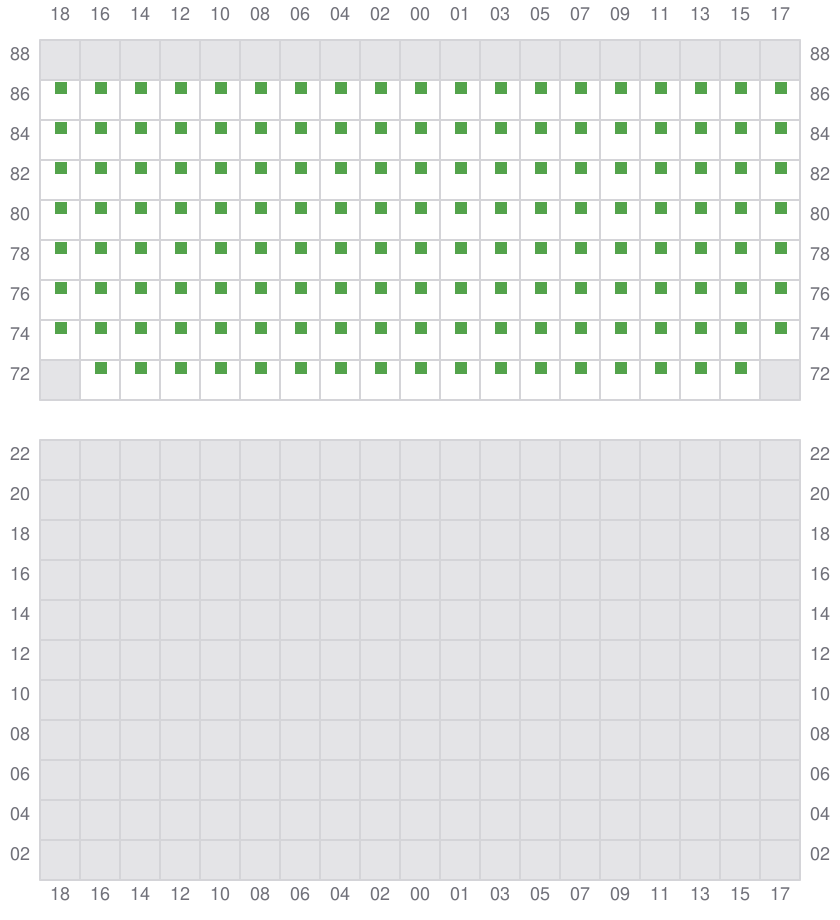

Bay 085 view and slots of MAERSK ENSHI
