MAERSK ESMERALDAS
9502972 | HPDM | 950297 by ********* Last update: Thu Mar 28 2024

General Info

Ship Name:MAERSK ESMERALDAS
IMO Code:9502972
Call Sign:HPDM
Line Operator:950297
Class Name for Sister Ships:E2O
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):353.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,017

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

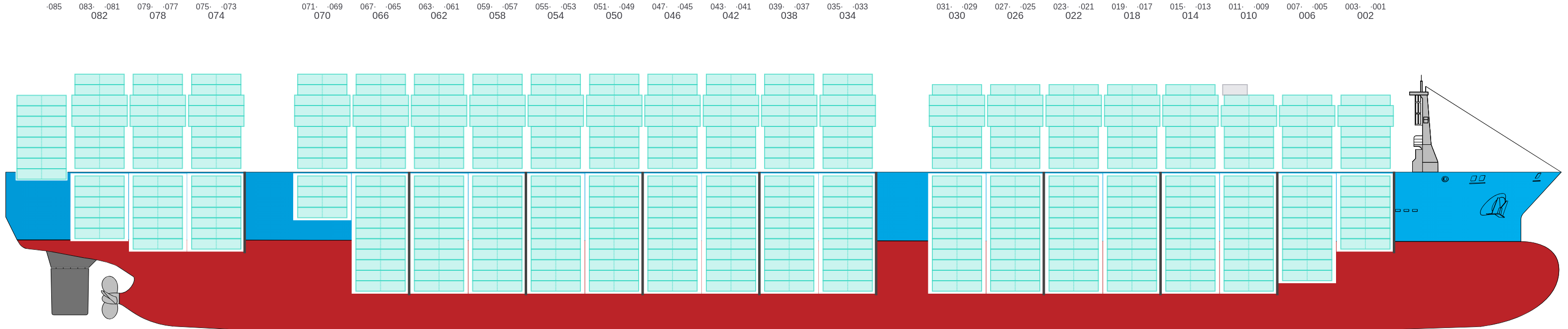

Side view of MAERSK ESMERALDAS

Hatch-Covers View

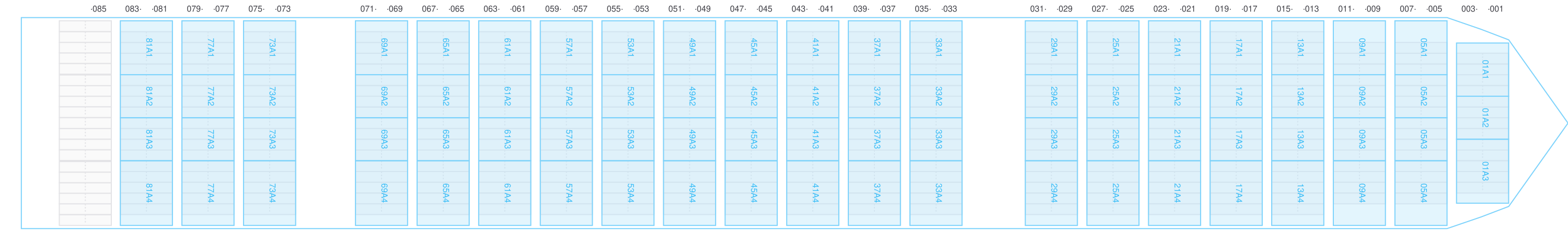

Deck view of MAERSK ESMERALDAS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

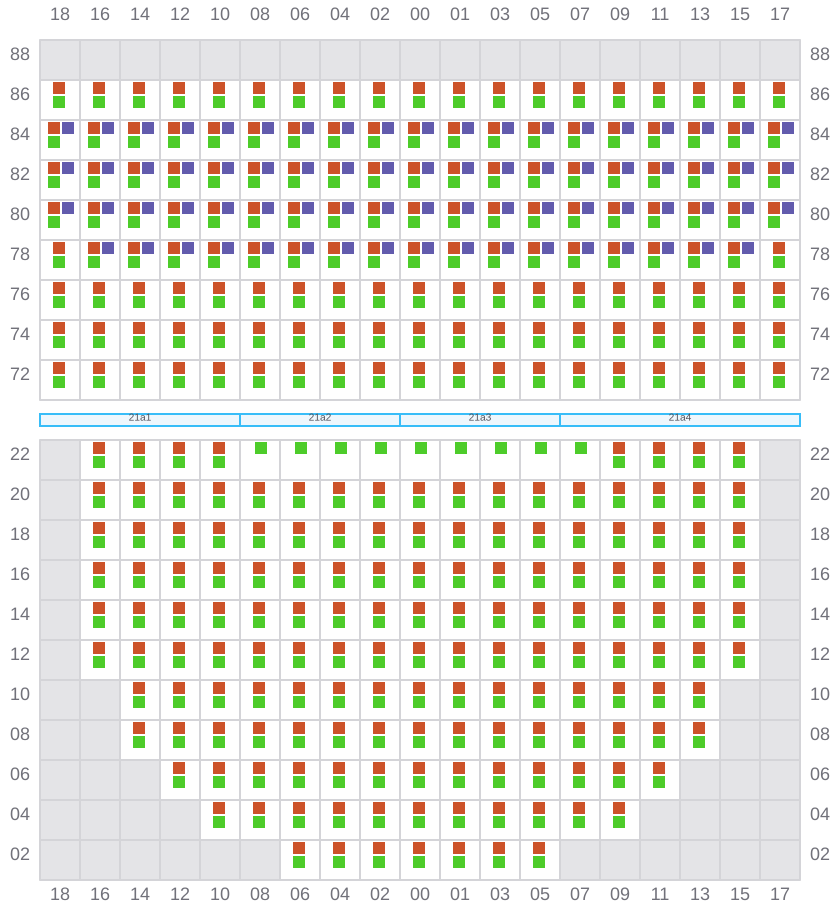

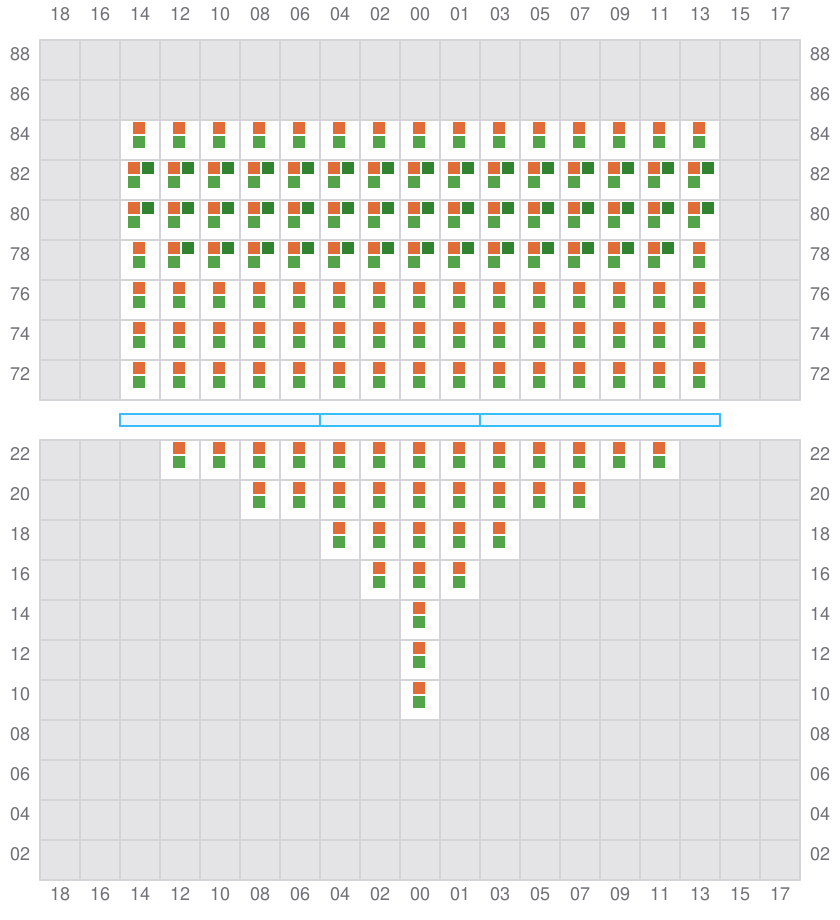

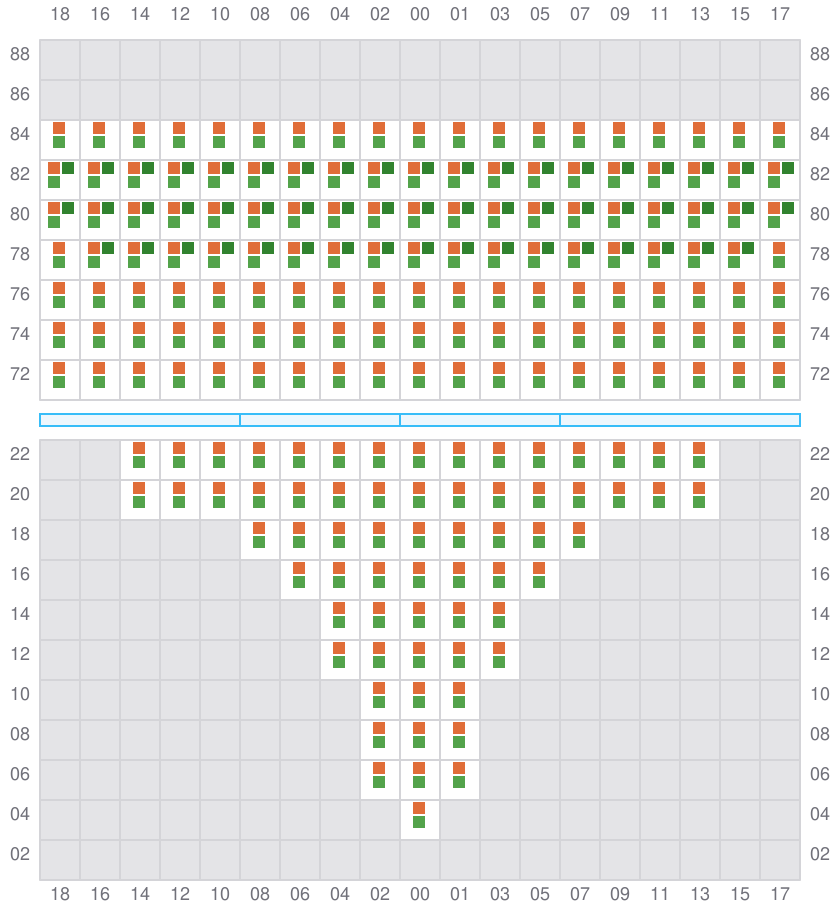

Bay 001 view and slots of MAERSK ESMERALDAS

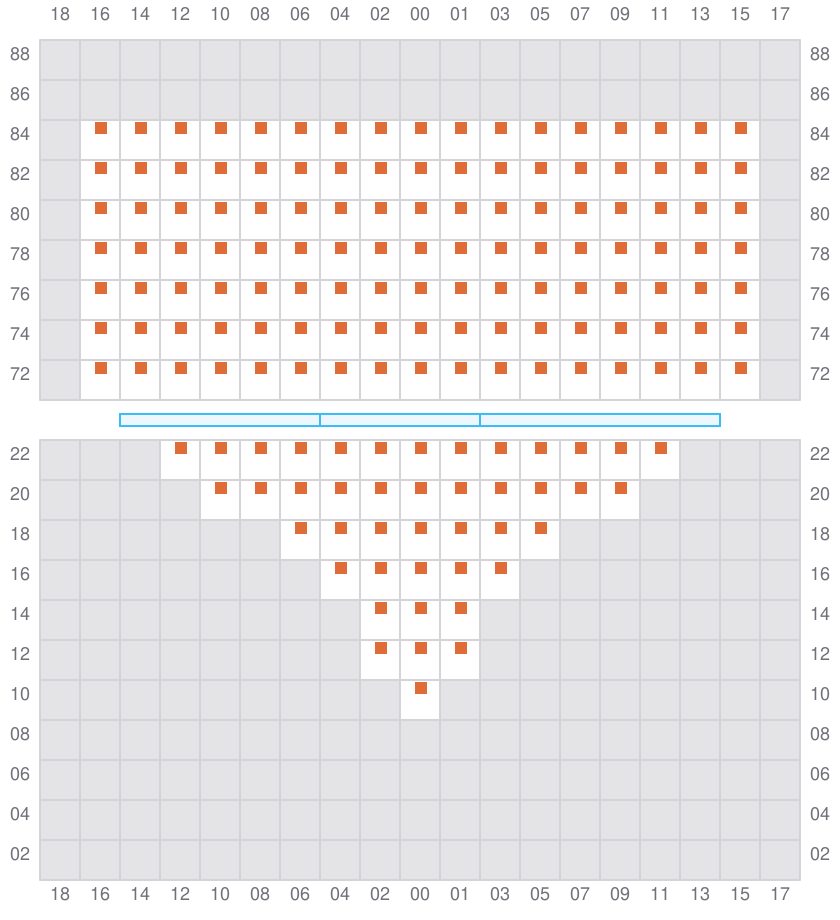

003

  • ←
  • → / ?

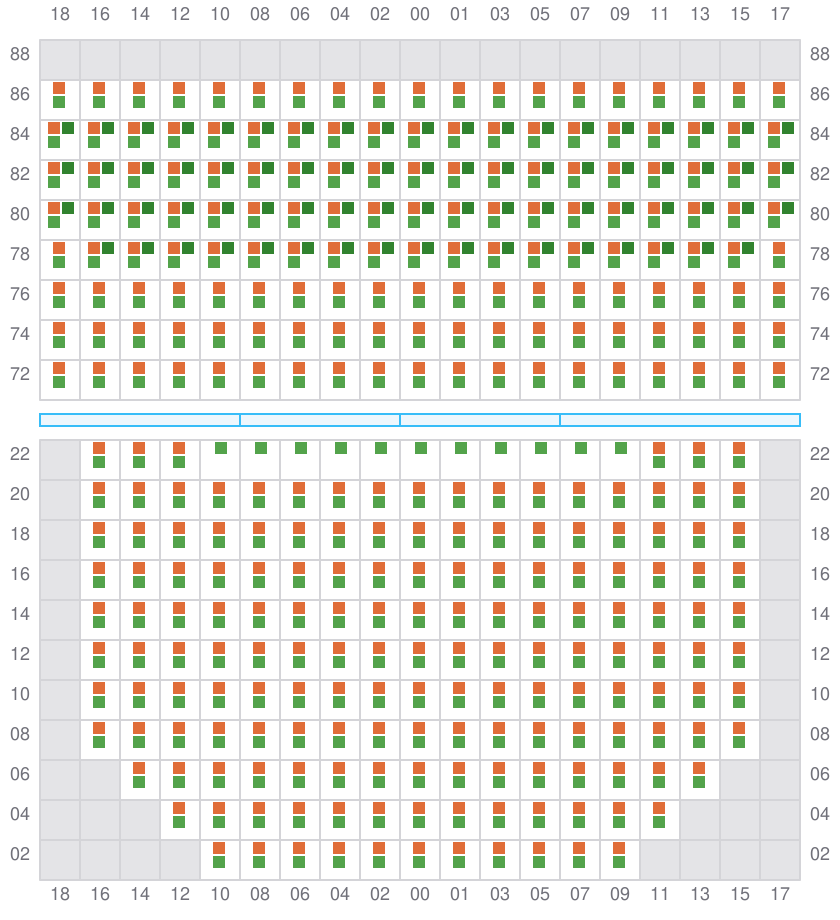

Bay 003 view and slots of MAERSK ESMERALDAS

005 (006)

  • →
Bay 005 view and slots of MAERSK ESMERALDAS

007

  • ←
  • → / ?

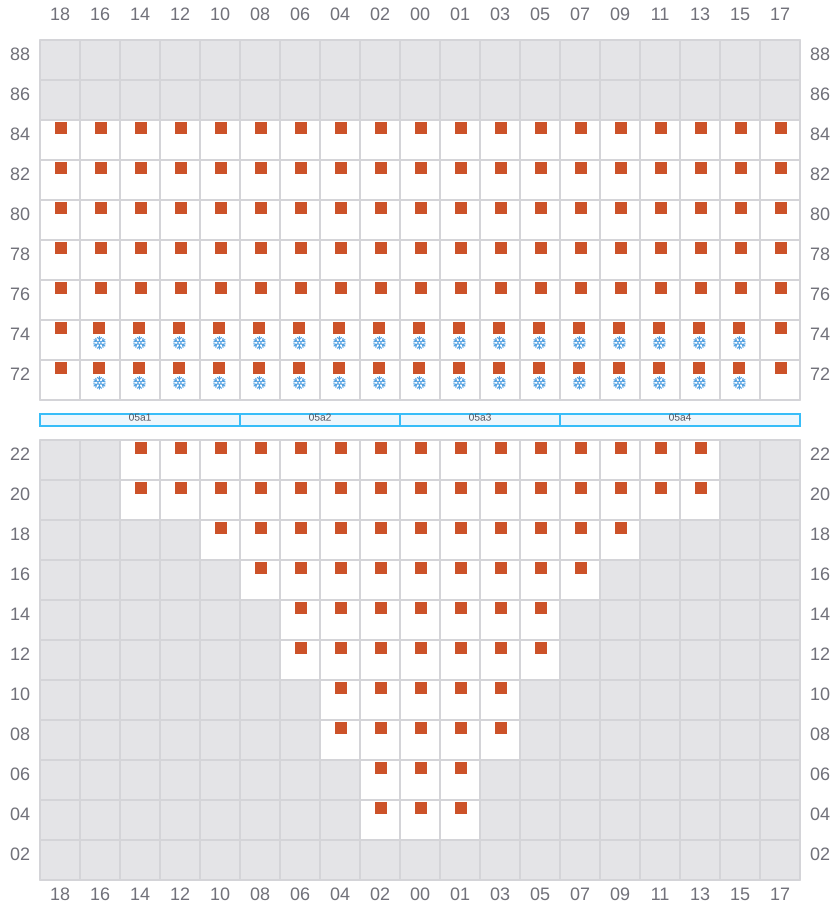

Bay 007 view and slots of MAERSK ESMERALDAS

009 (010)

  • →

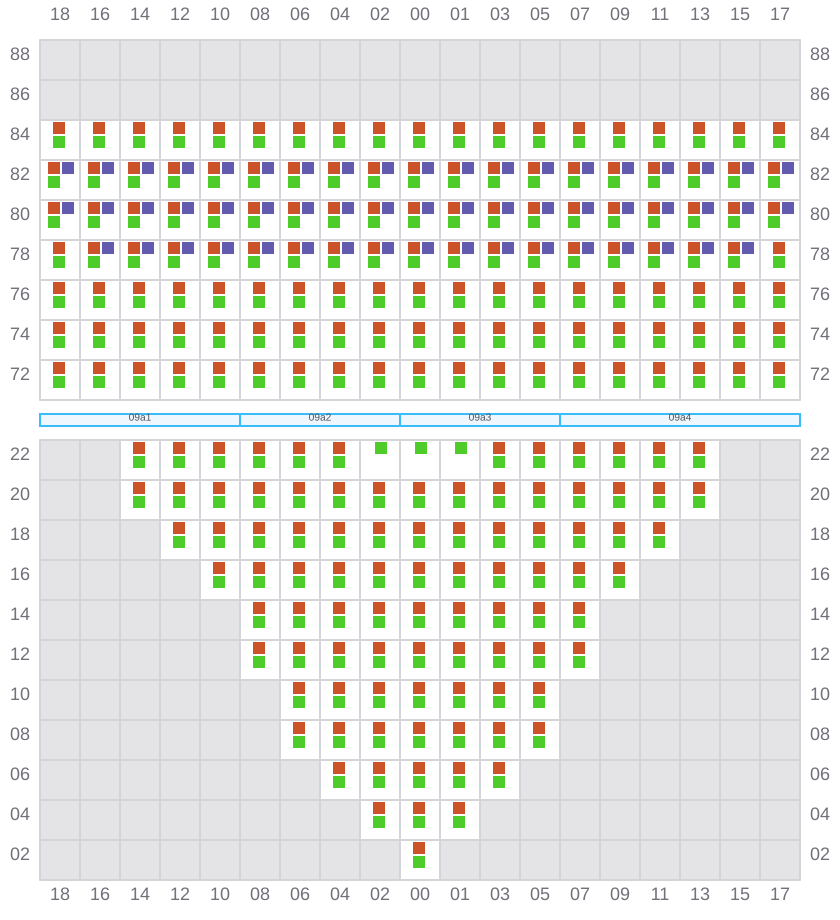

Bay 009 view and slots of MAERSK ESMERALDAS

011

  • ←
  • → / ?

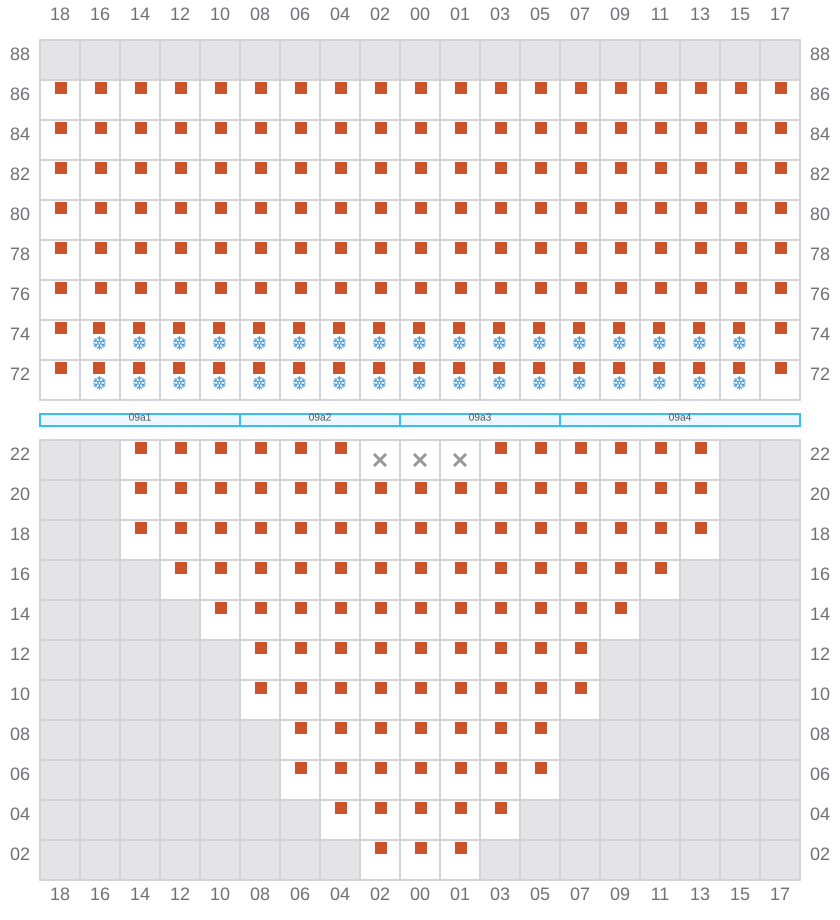

Bay 011 view and slots of MAERSK ESMERALDAS

013 (014)

  • →

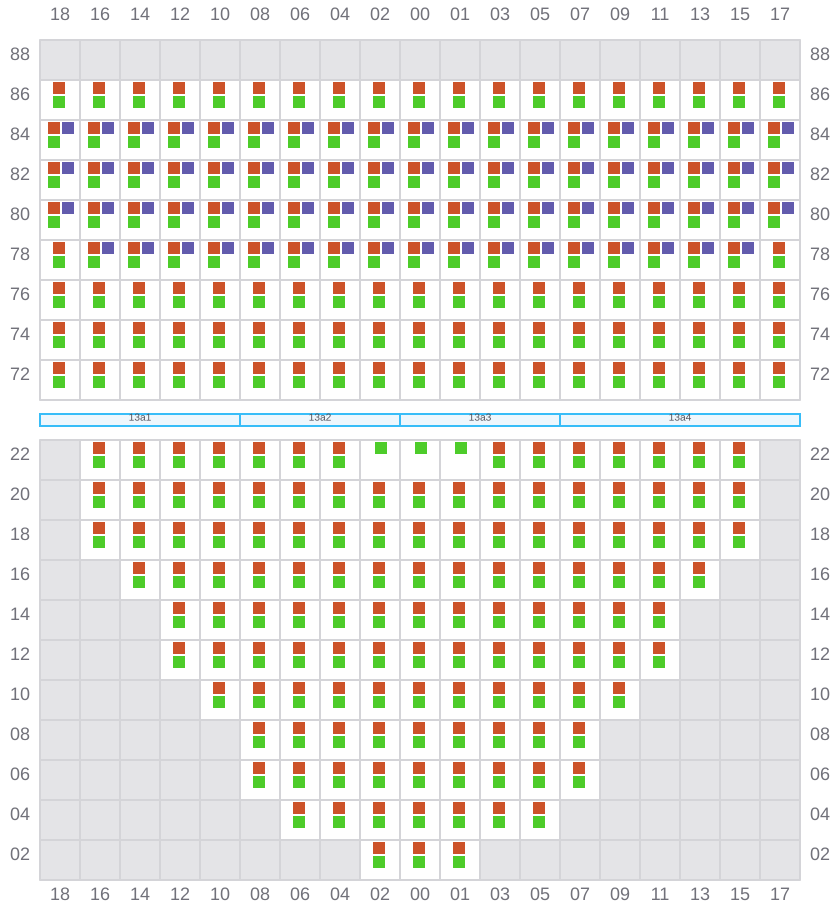

Bay 013 view and slots of MAERSK ESMERALDAS

015

  • ←
  • → / ?

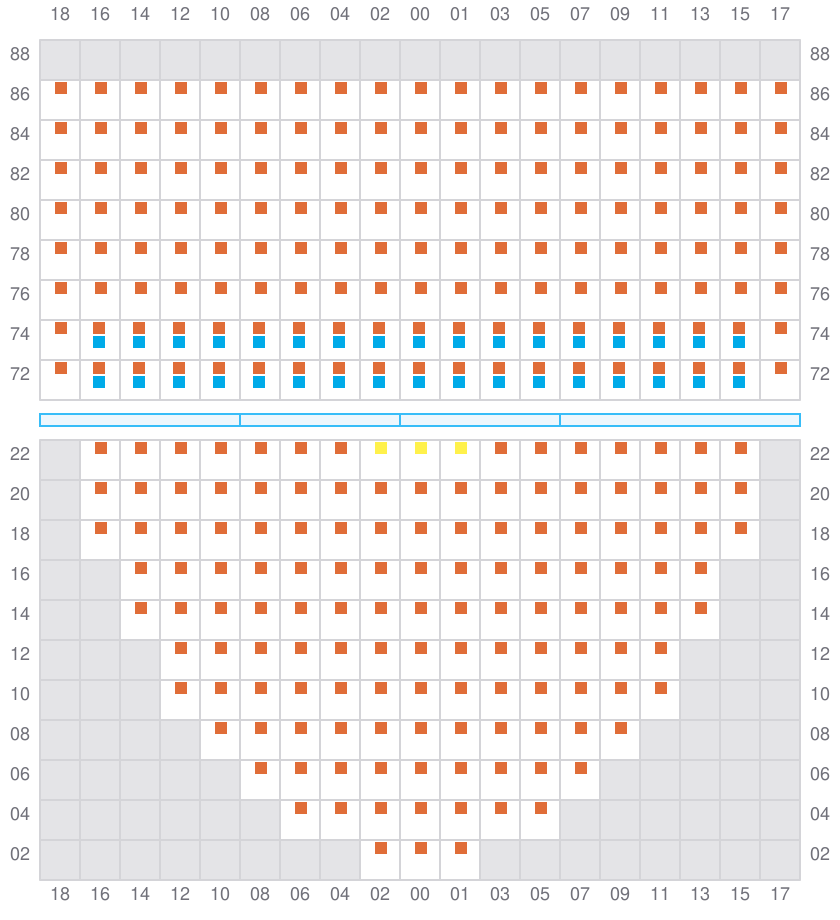

Bay 015 view and slots of MAERSK ESMERALDAS

017 (018)

  • →

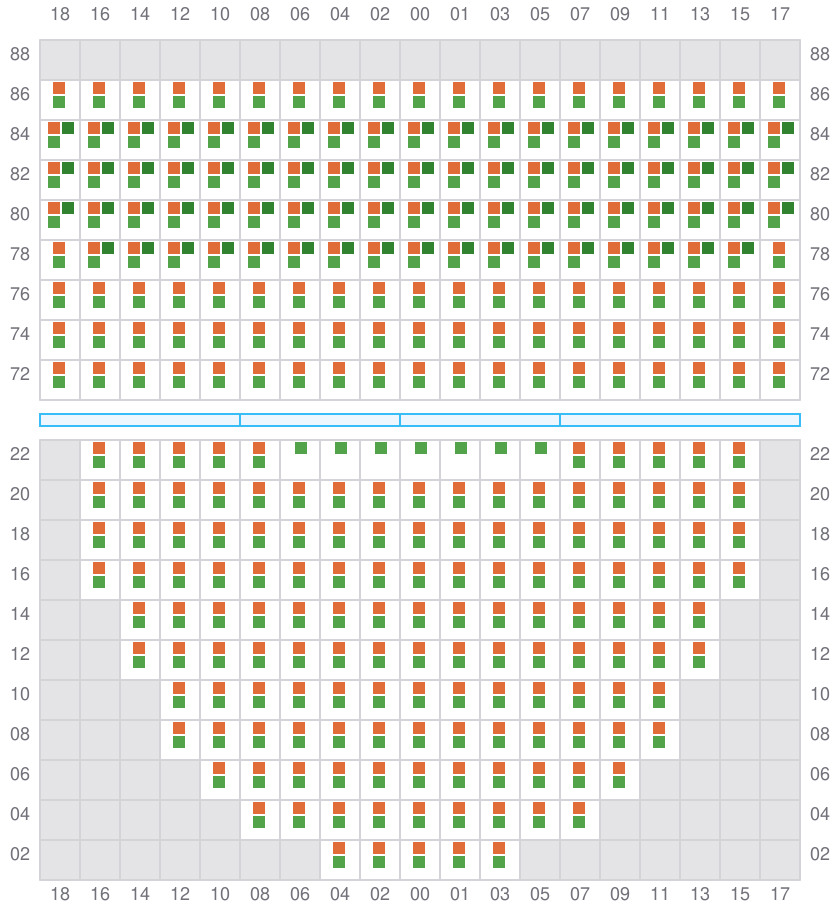

Bay 017 view and slots of MAERSK ESMERALDAS

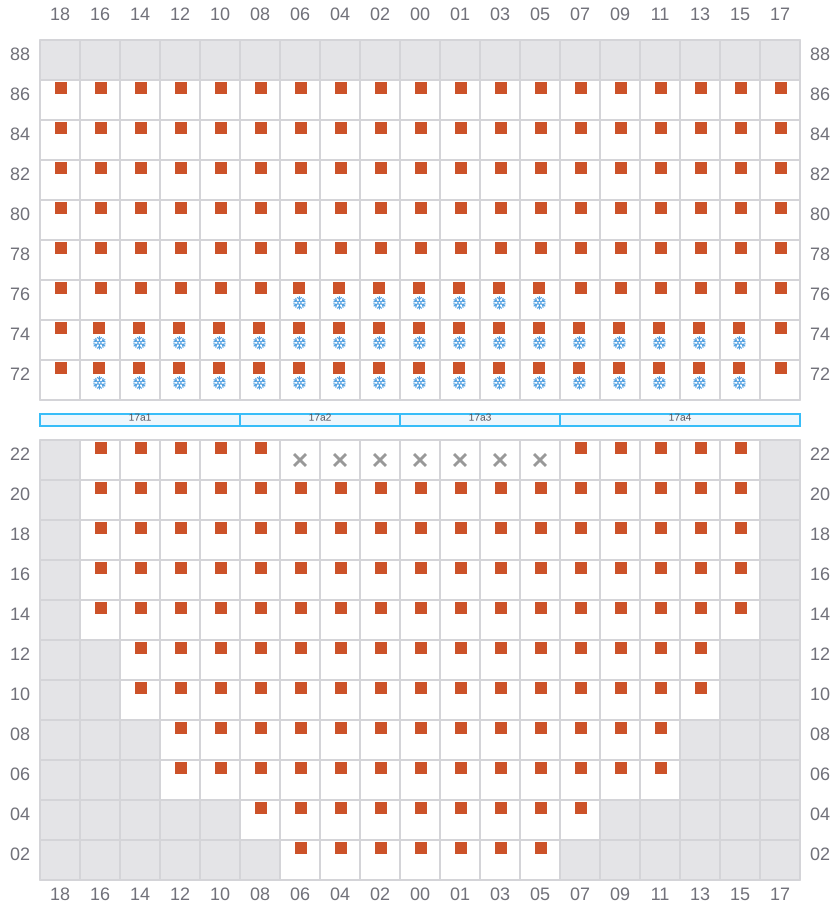

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK ESMERALDAS

021 (022)

  • →
Bay 021 view and slots of MAERSK ESMERALDAS

023

  • ←
  • → / ?

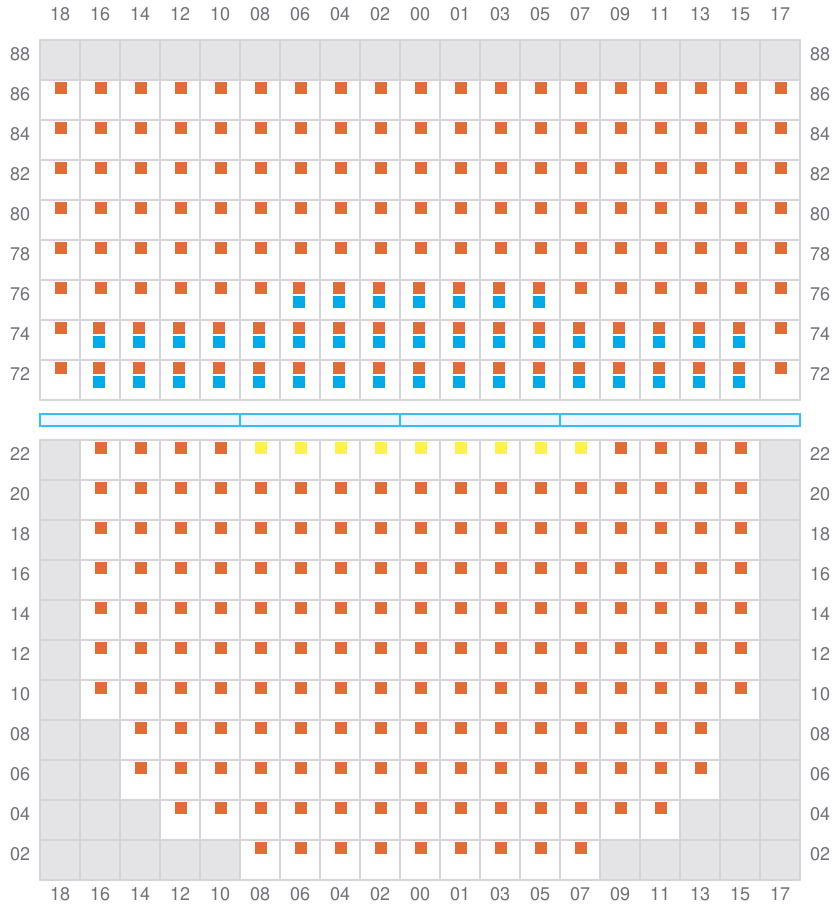

Bay 023 view and slots of MAERSK ESMERALDAS

025 (026)

  • →
Bay 025 view and slots of MAERSK ESMERALDAS

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK ESMERALDAS

029 (030)

  • →

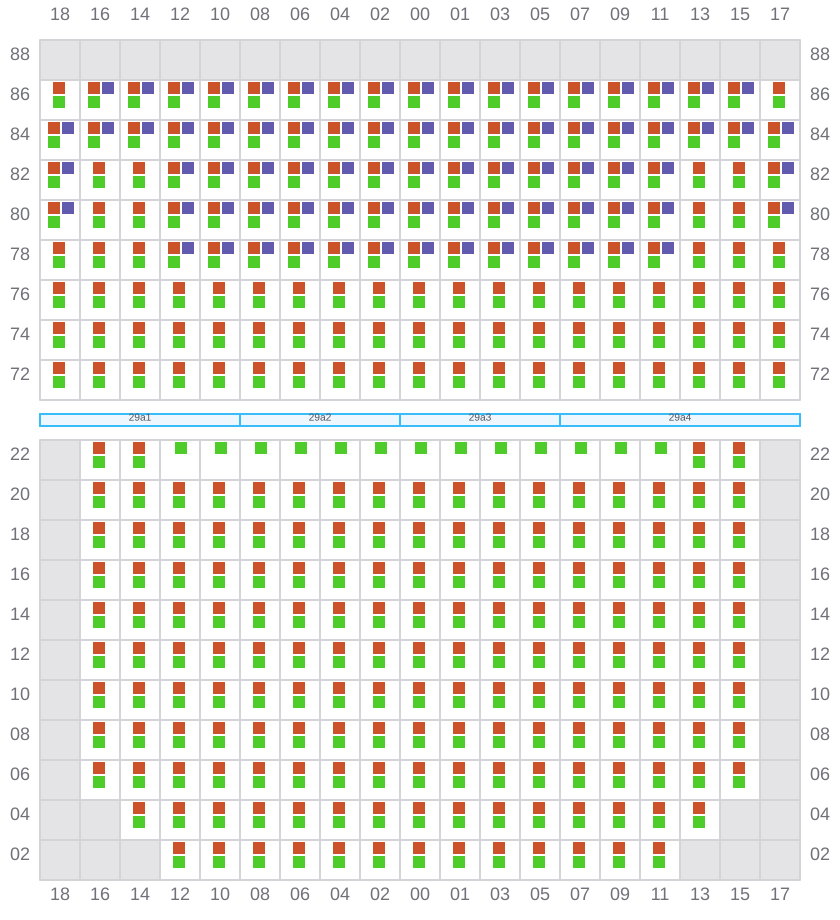

Bay 029 view and slots of MAERSK ESMERALDAS

031

  • ←
  • → / ?

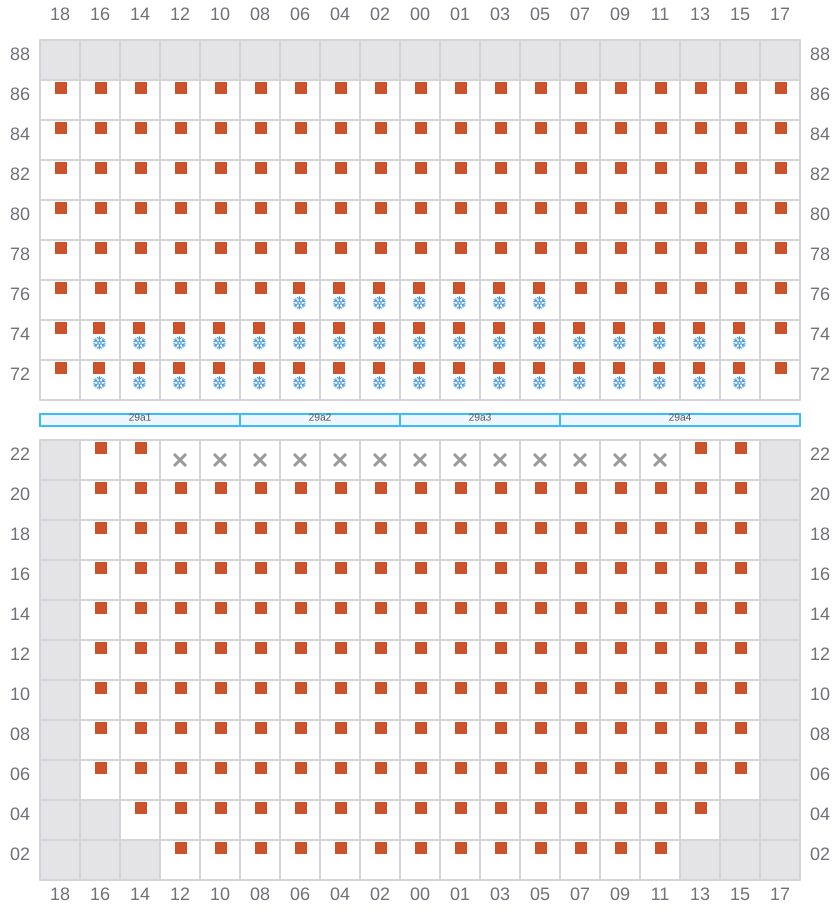

Bay 031 view and slots of MAERSK ESMERALDAS

033 (034)

  • →
Bay 033 view and slots of MAERSK ESMERALDAS

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK ESMERALDAS

037 (038)

  • →
Bay 037 view and slots of MAERSK ESMERALDAS

039

  • ←
  • → / ?

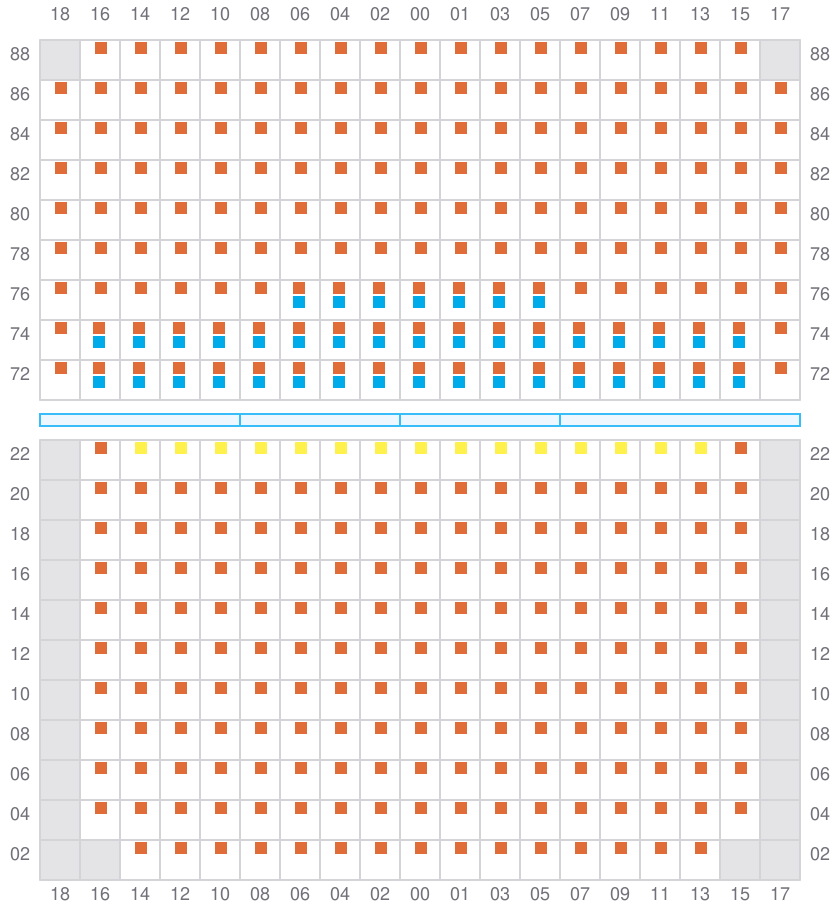

Bay 039 view and slots of MAERSK ESMERALDAS

041 (042)

  • →
Bay 041 view and slots of MAERSK ESMERALDAS

043

  • ←
  • → / ?

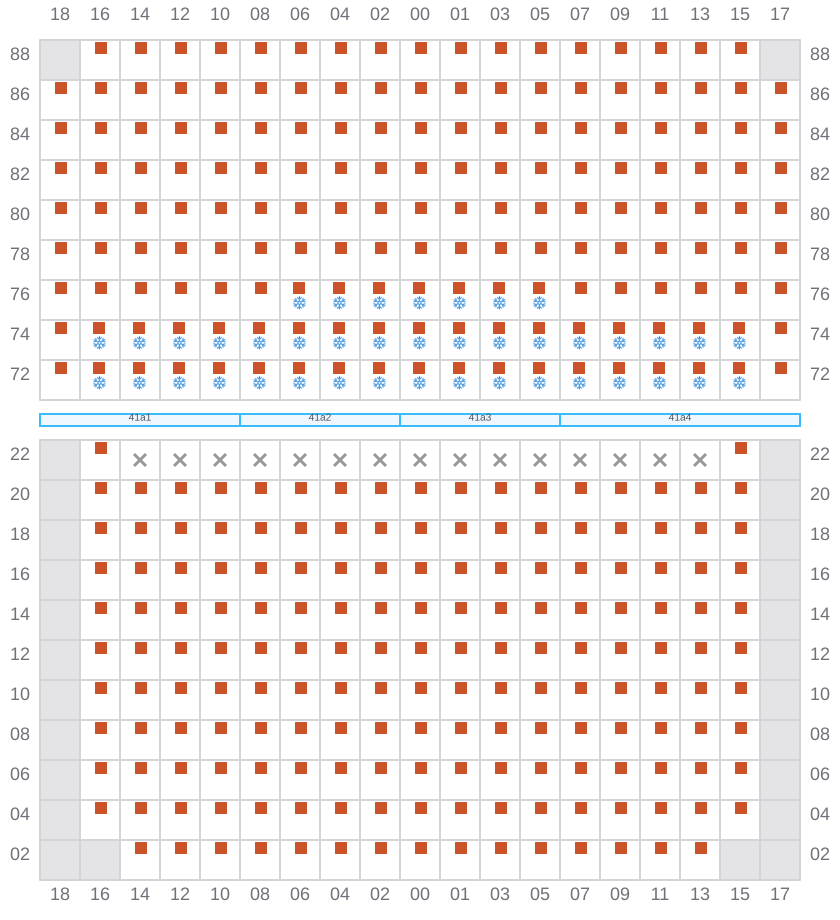

Bay 043 view and slots of MAERSK ESMERALDAS

045 (046)

  • →

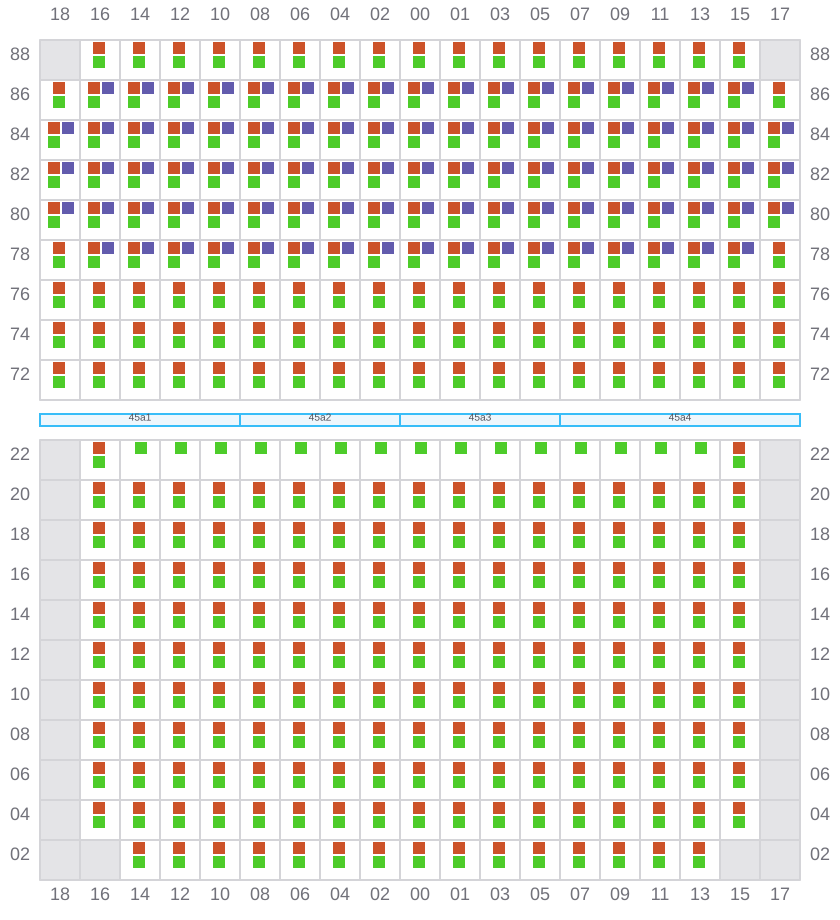

Bay 045 view and slots of MAERSK ESMERALDAS

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK ESMERALDAS

049 (050)

  • →
Bay 049 view and slots of MAERSK ESMERALDAS

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK ESMERALDAS

053 (054)

  • →
Bay 053 view and slots of MAERSK ESMERALDAS

055

  • ←
  • → / ?

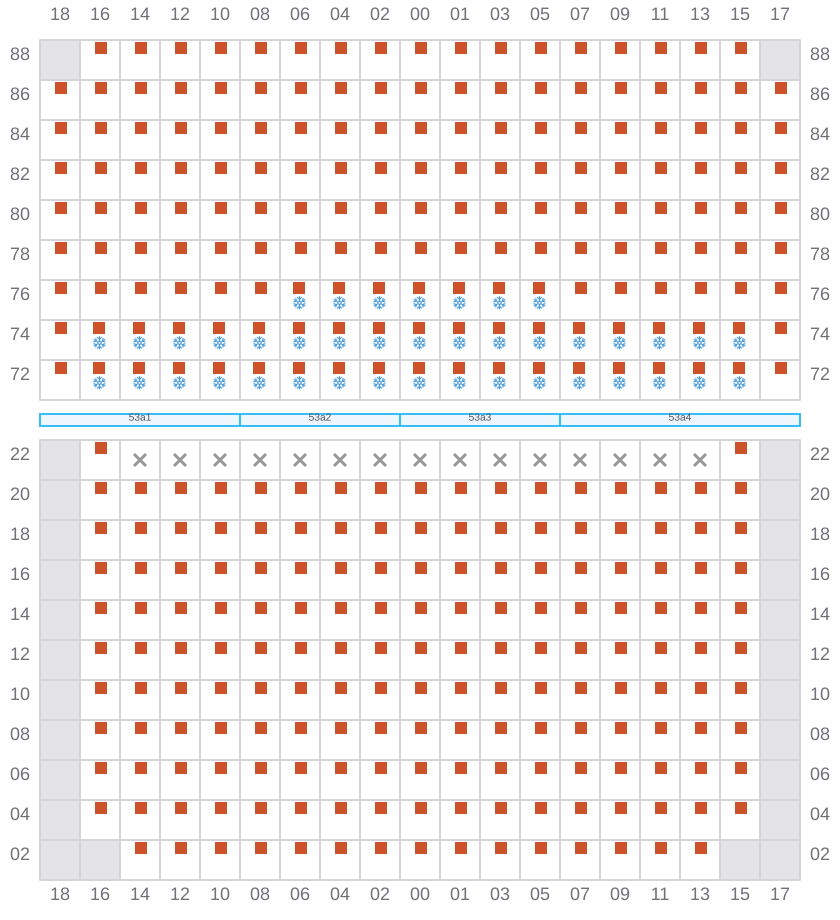

Bay 055 view and slots of MAERSK ESMERALDAS

057 (058)

  • →

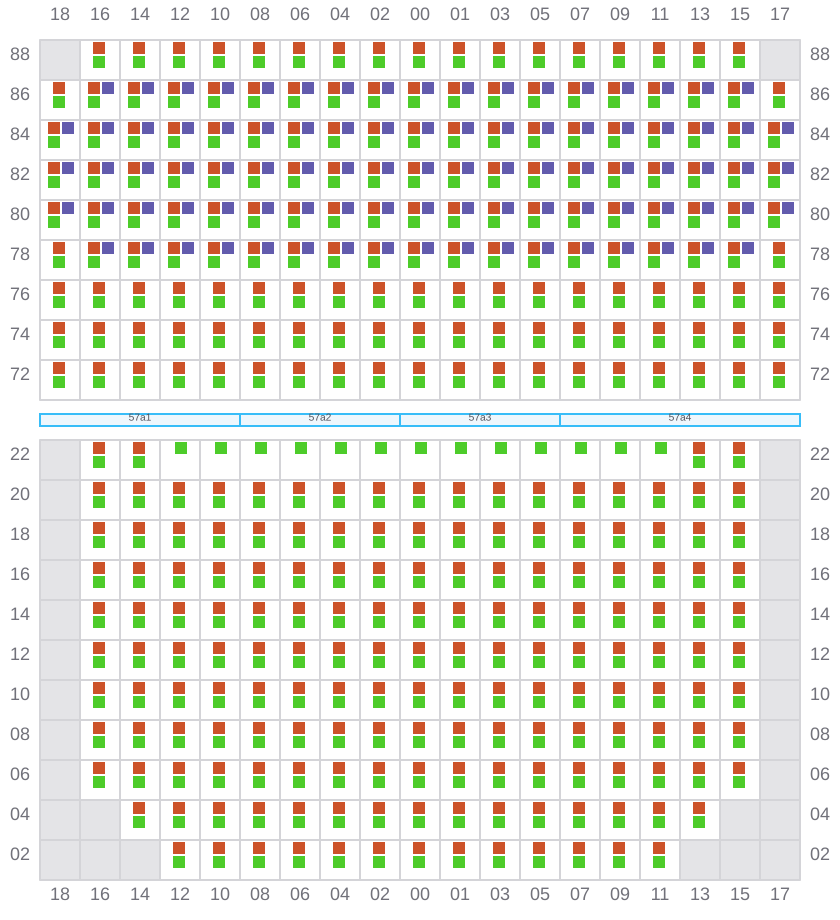

Bay 057 view and slots of MAERSK ESMERALDAS

059

  • ←
  • → / ?

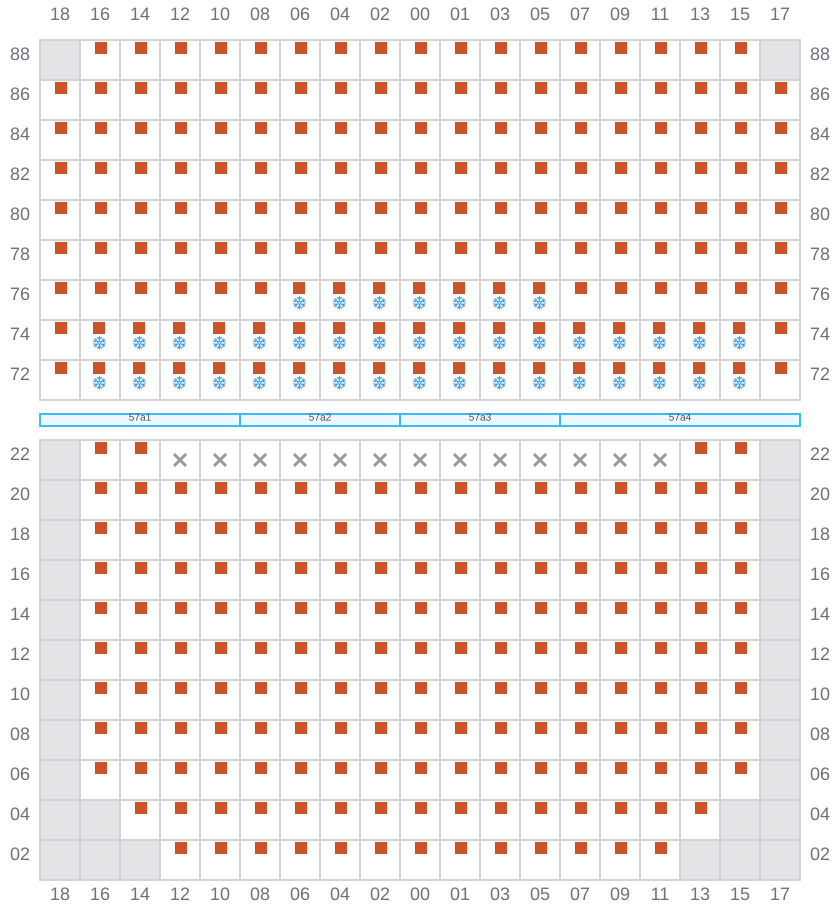

Bay 059 view and slots of MAERSK ESMERALDAS

061 (062)

  • →

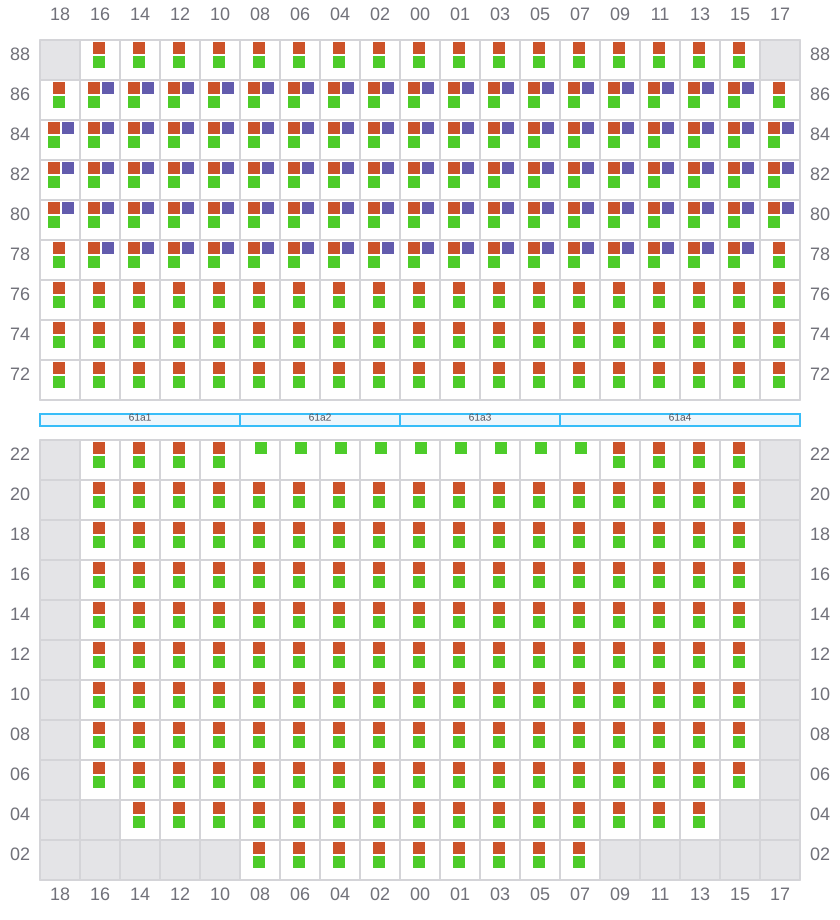

Bay 061 view and slots of MAERSK ESMERALDAS

063

  • ←
  • → / ?
Bay 063 view and slots of MAERSK ESMERALDAS

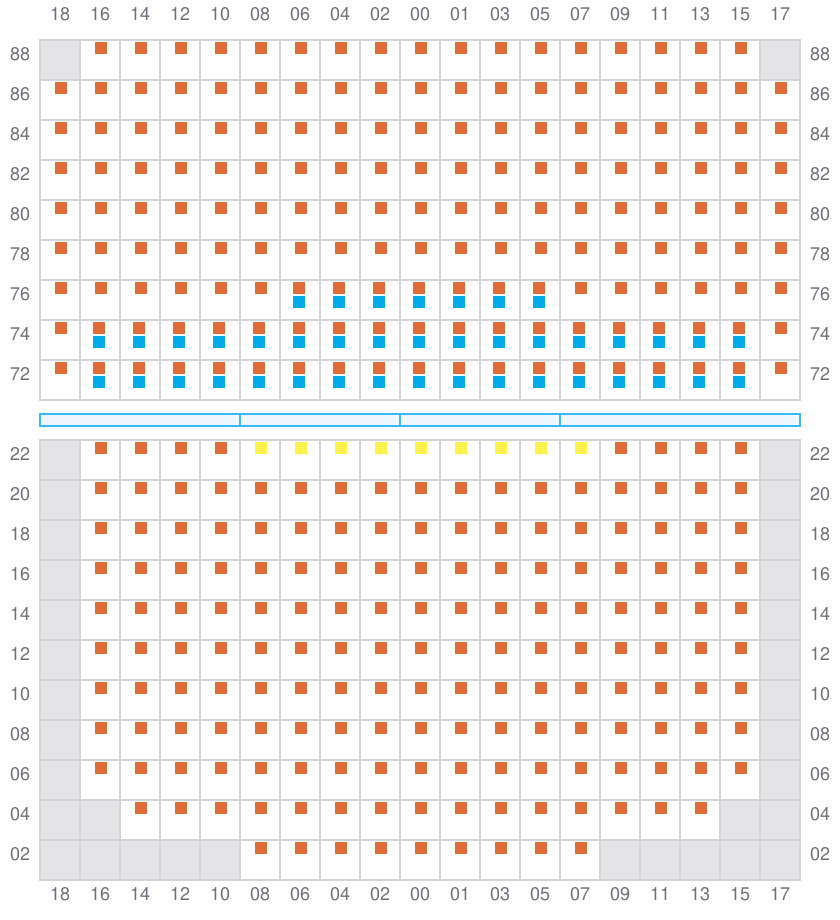

065 (066)

  • →

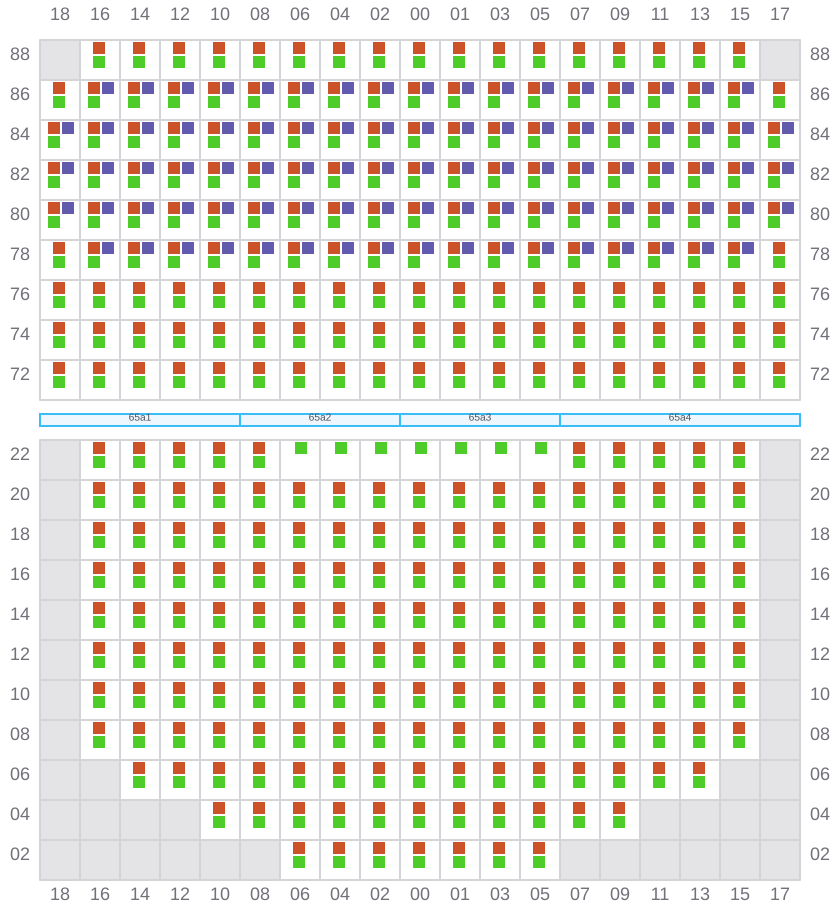

Bay 065 view and slots of MAERSK ESMERALDAS

067

  • ←
  • → / ?

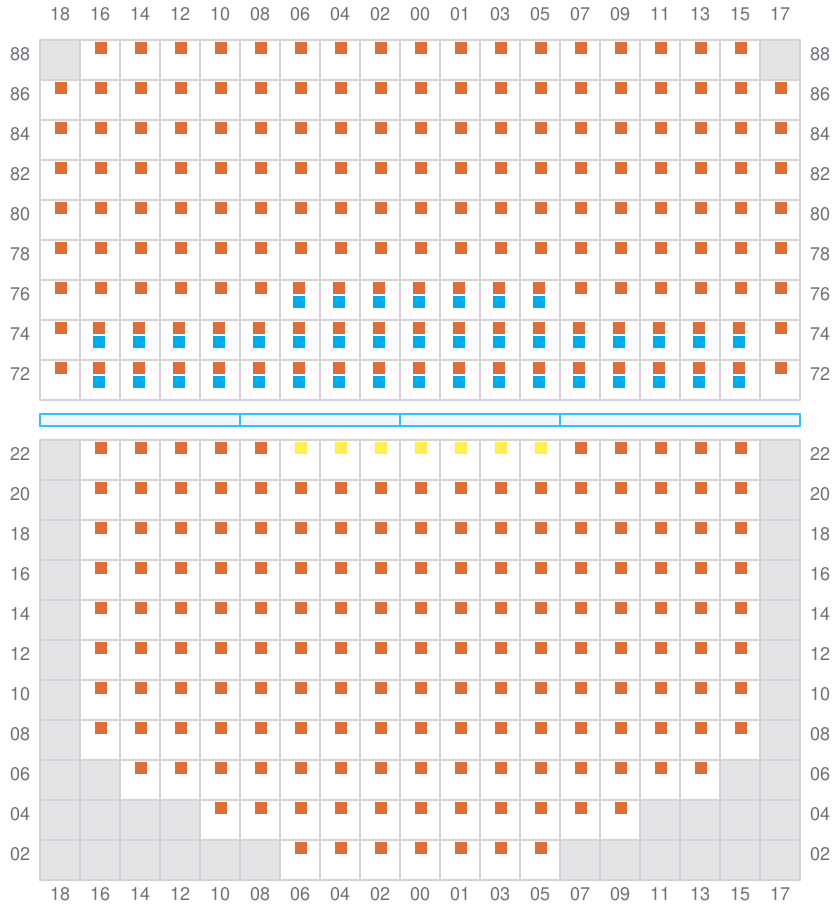

Bay 067 view and slots of MAERSK ESMERALDAS

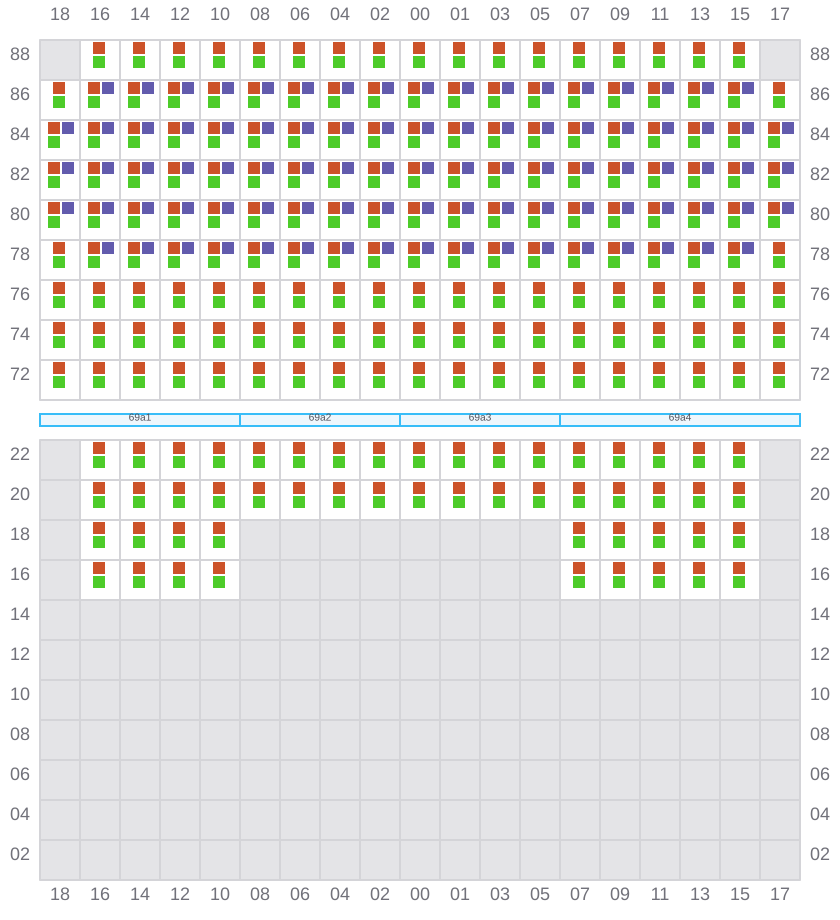

069 (070)

  • →
Bay 069 view and slots of MAERSK ESMERALDAS

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK ESMERALDAS

073 (074)

  • →
  • ← / ?

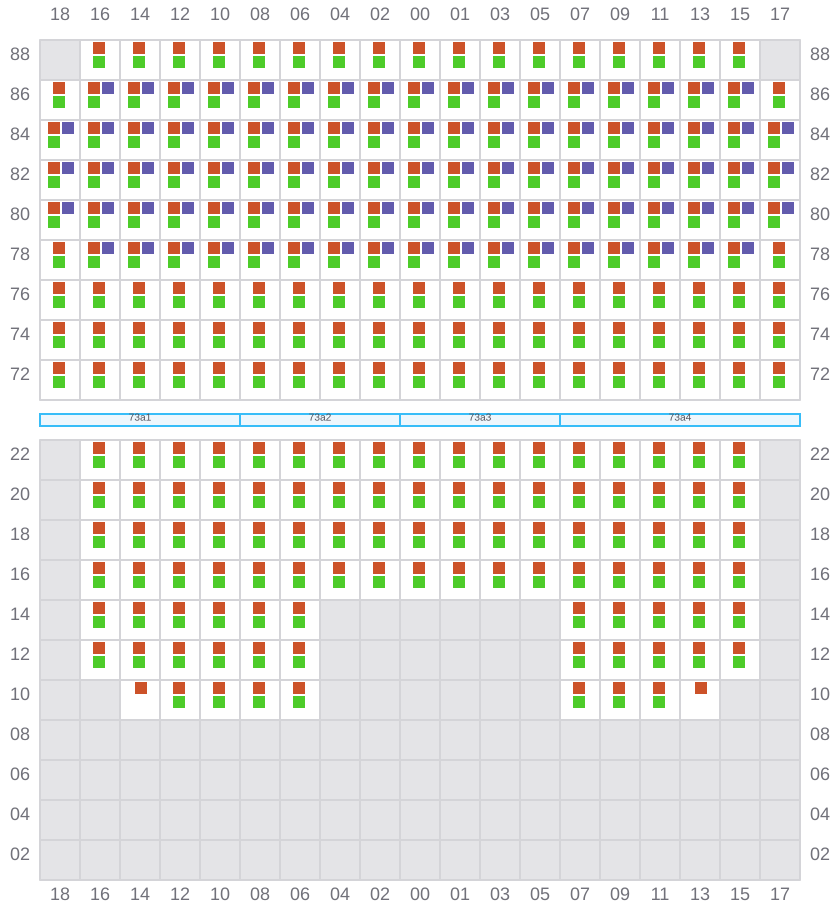

Bay 073 view and slots of MAERSK ESMERALDAS

075

  • ←
  • → / ?

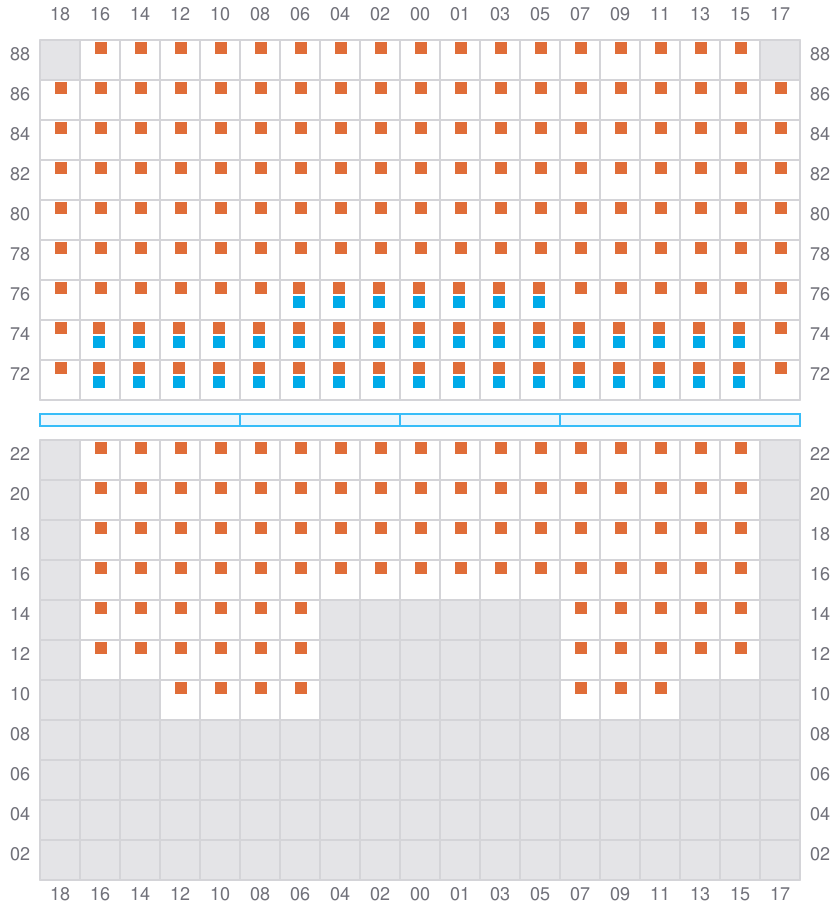

Bay 075 view and slots of MAERSK ESMERALDAS

077 (078)

  • →

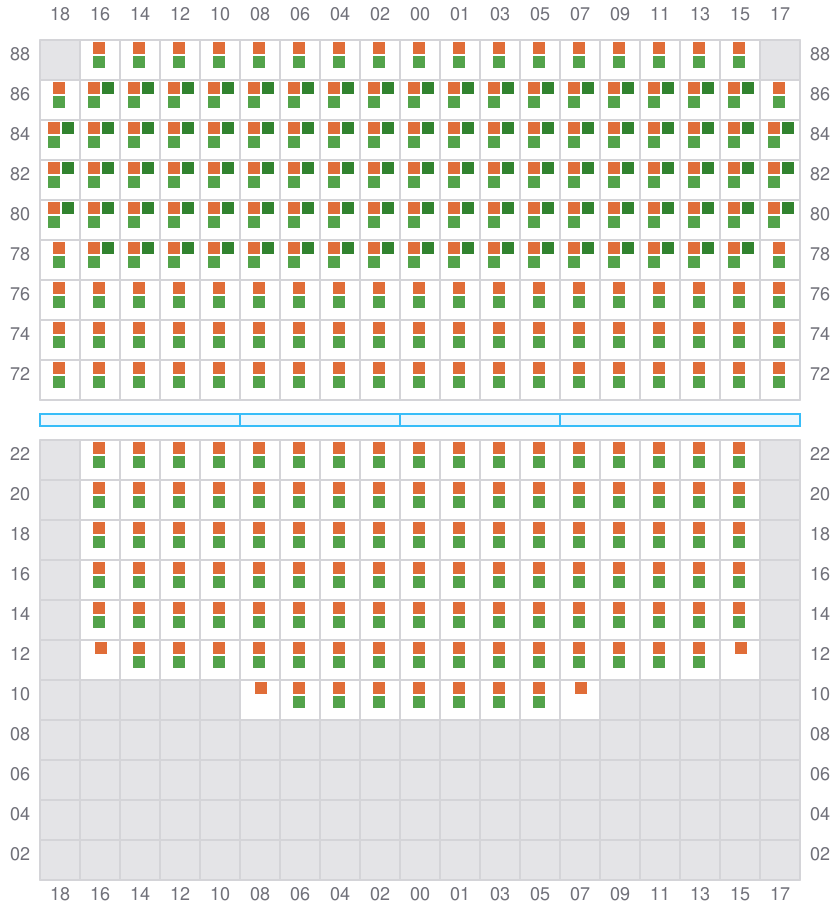

Bay 077 view and slots of MAERSK ESMERALDAS

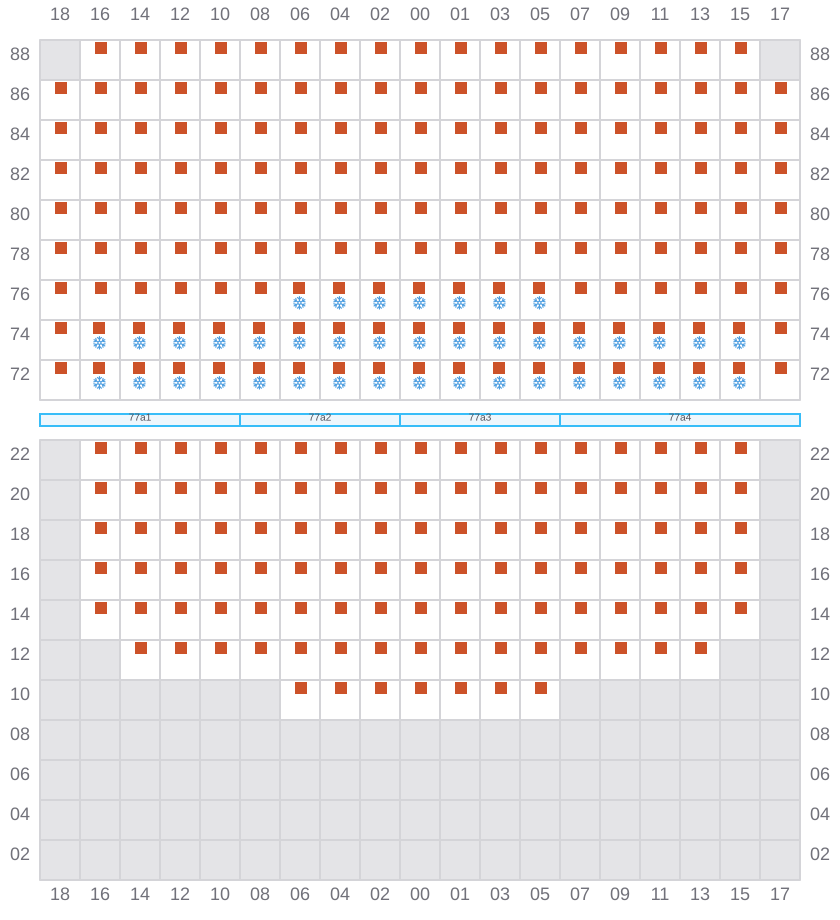

079

  • ←
  • → / ?
Bay 079 view and slots of MAERSK ESMERALDAS

081 (082)

  • →

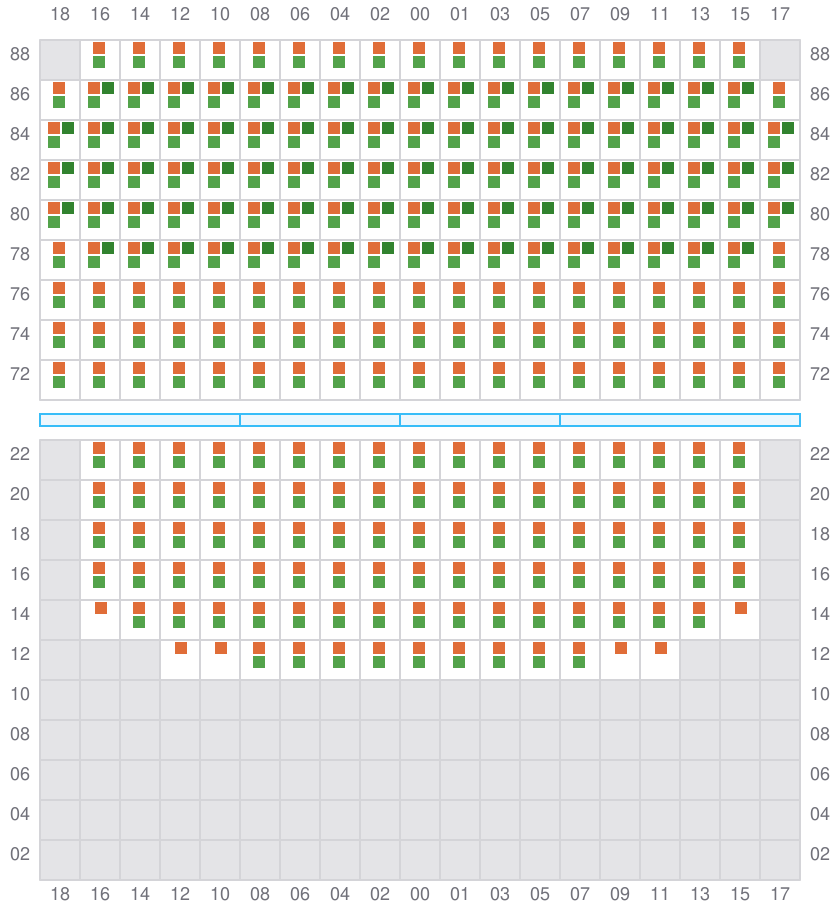

Bay 081 view and slots of MAERSK ESMERALDAS

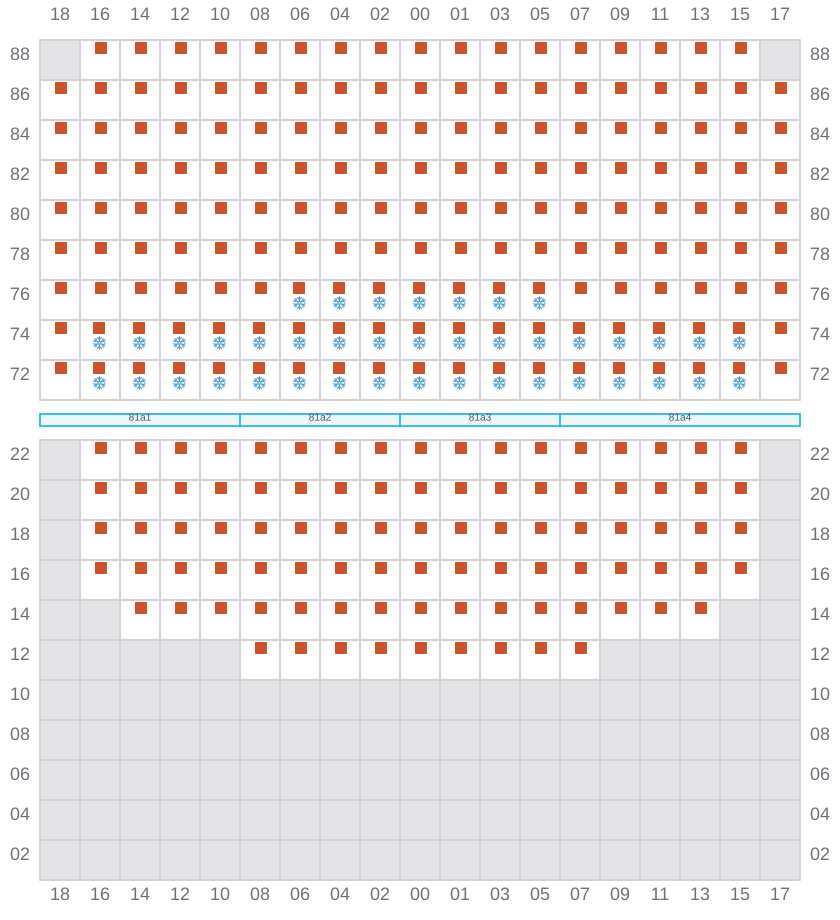

083

  • ←
  • → / ?
Bay 083 view and slots of MAERSK ESMERALDAS

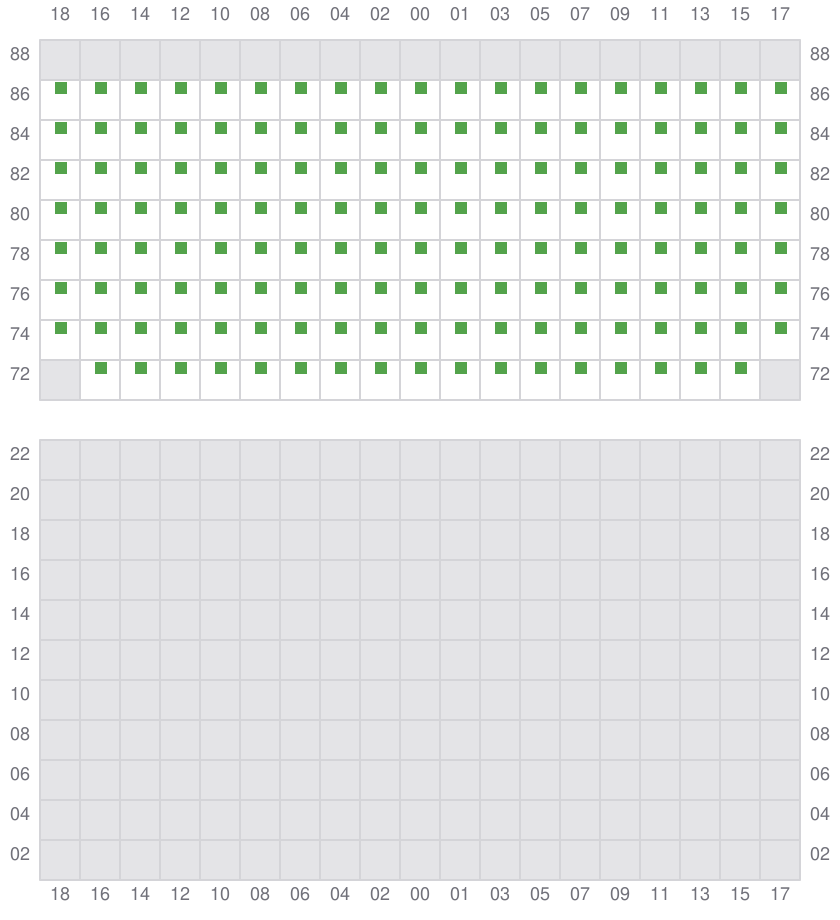

085 (086)

  • → / ?
