MAERSK ESSEN
9456783 | OYID2 | MAERSK by ********* Last update: Wed Mar 27 2024

General Info

Ship Name:MAERSK ESSEN
IMO Code:9456783
Call Sign:OYID2
Line Operator:MAERSK
Class Name for Sister Ships:EDINBURGH
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,102

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

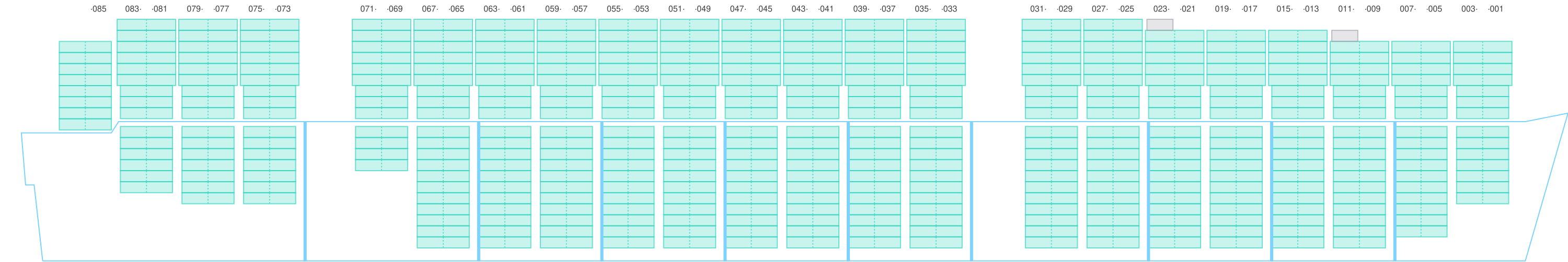

Side View

Side view of MAERSK ESSEN

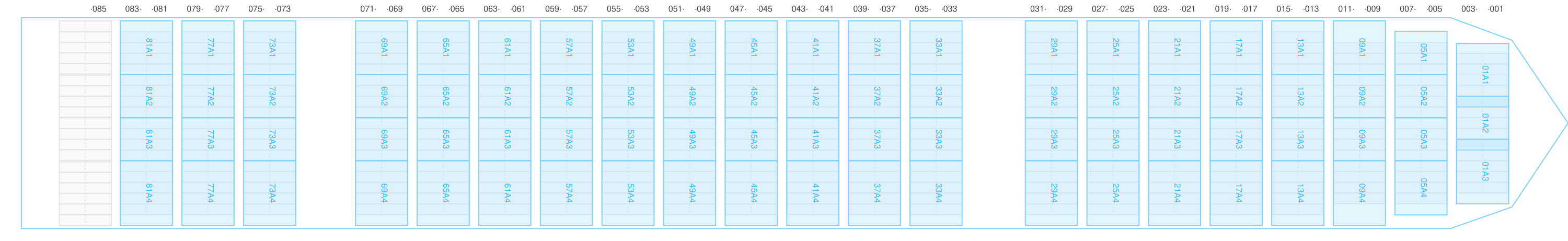

Hatch-Covers View

Deck view of MAERSK ESSEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

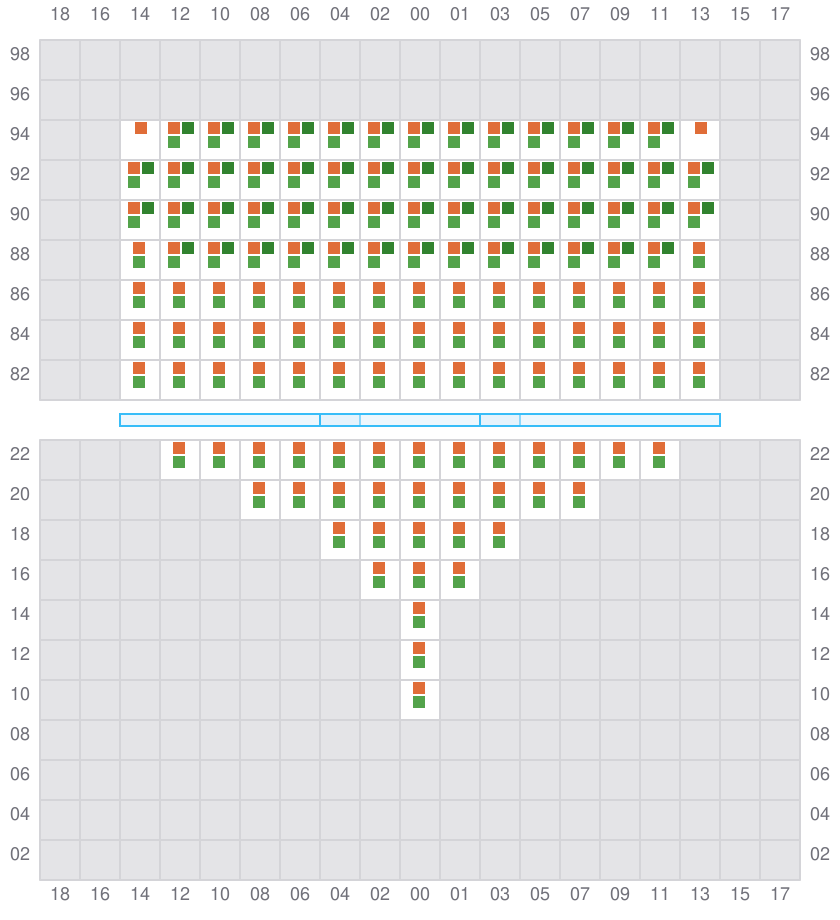

Bay 001 view and slots of MAERSK ESSEN

003

  • ←

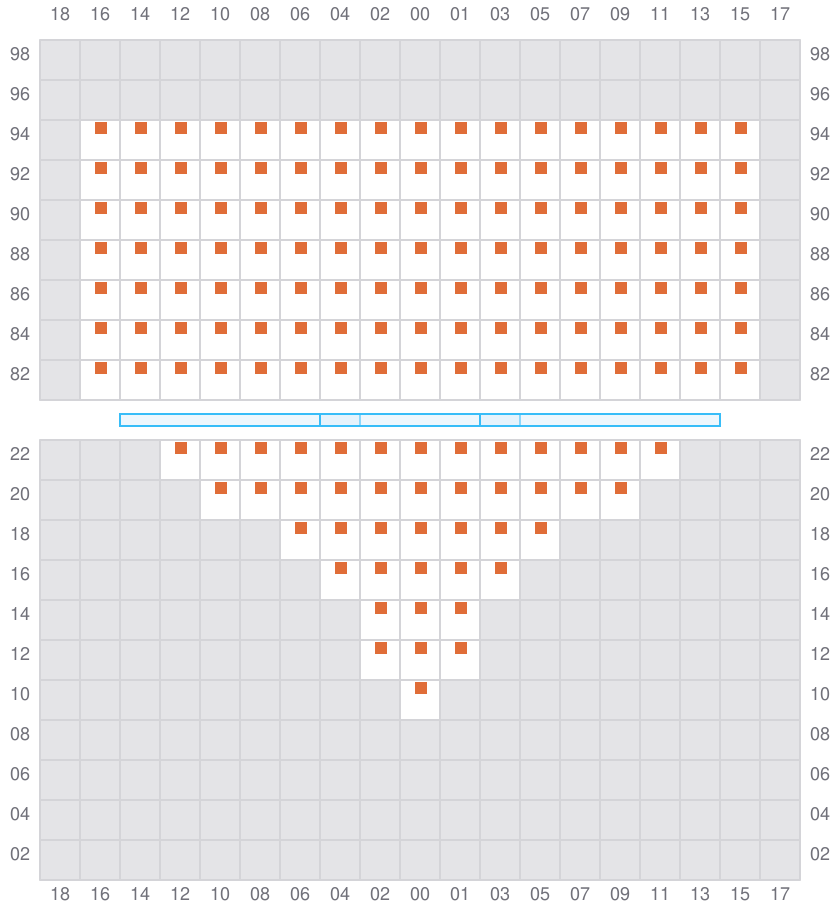

Bay 003 view and slots of MAERSK ESSEN

005 (006)

  • →

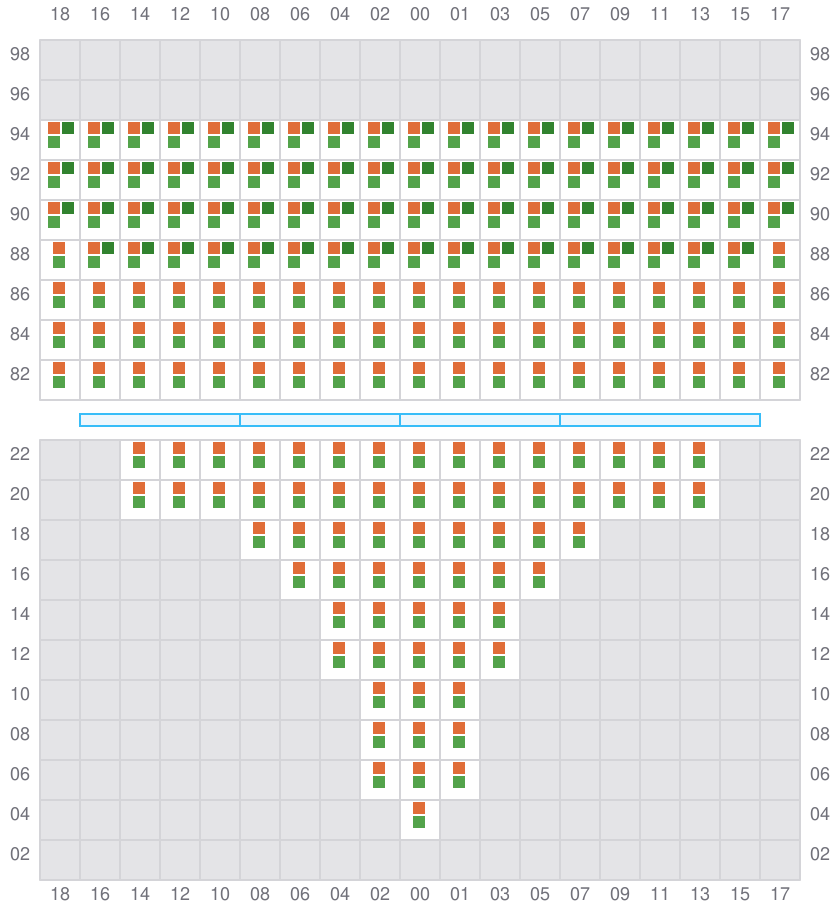

Bay 005 view and slots of MAERSK ESSEN

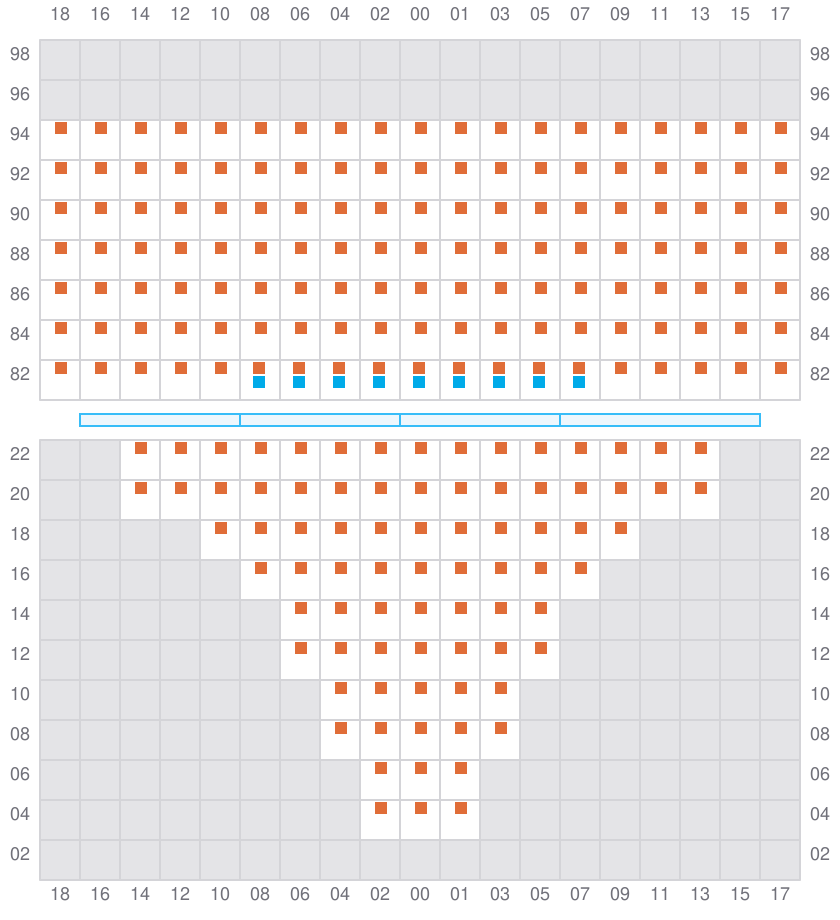

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK ESSEN

009 (010)

  • →

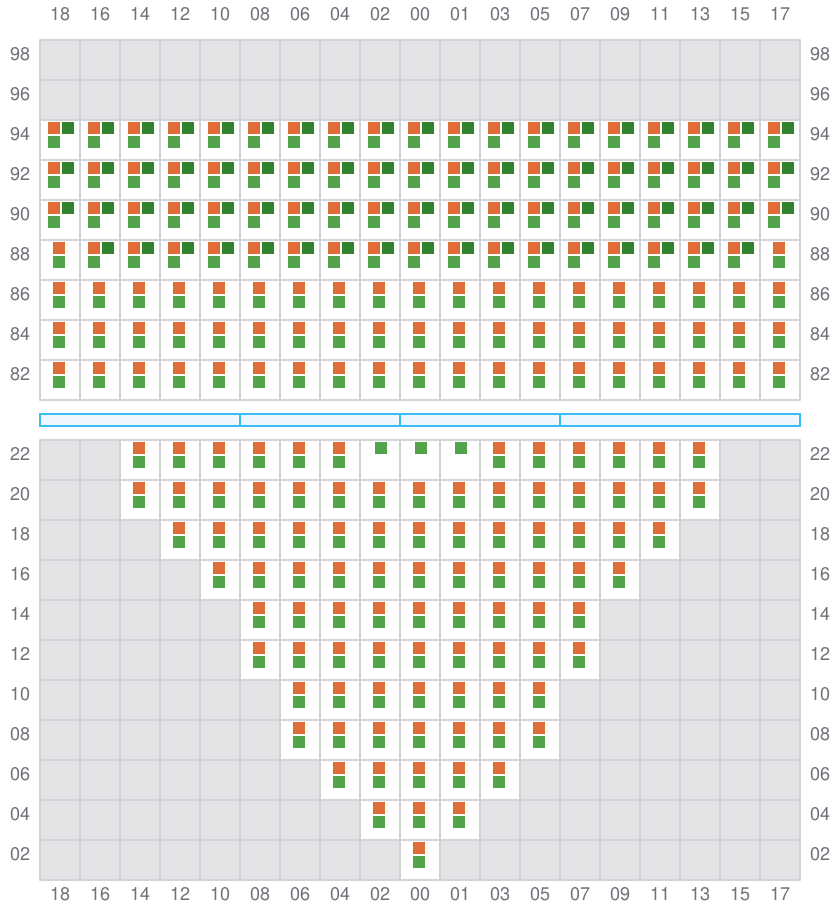

Bay 009 view and slots of MAERSK ESSEN

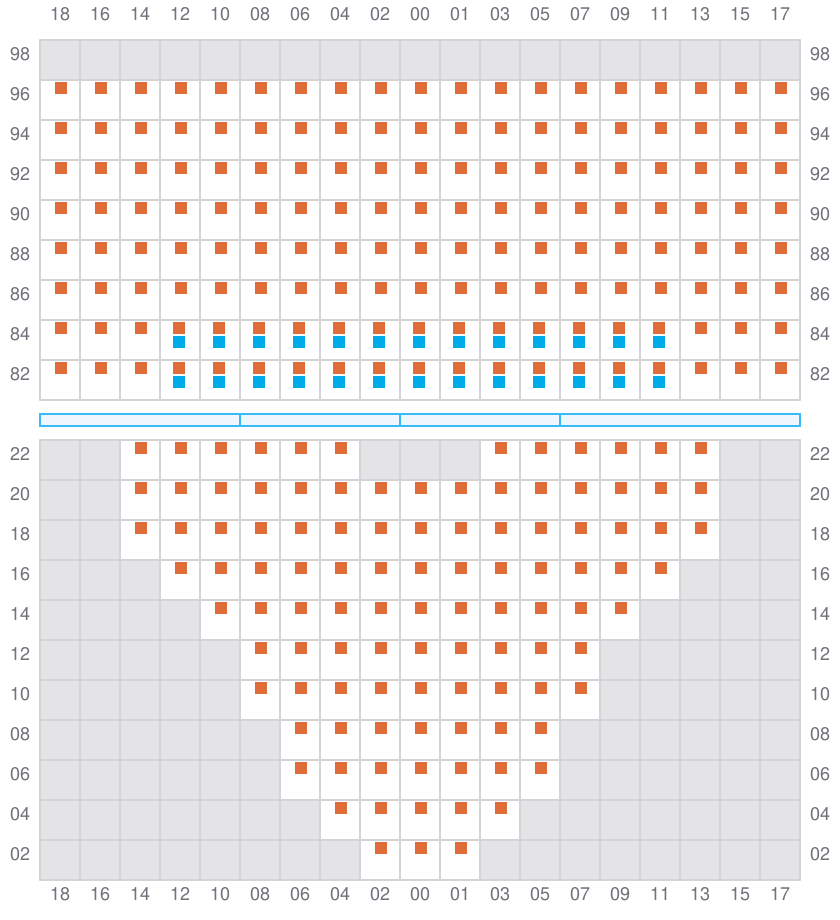

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK ESSEN

013 (014)

  • →

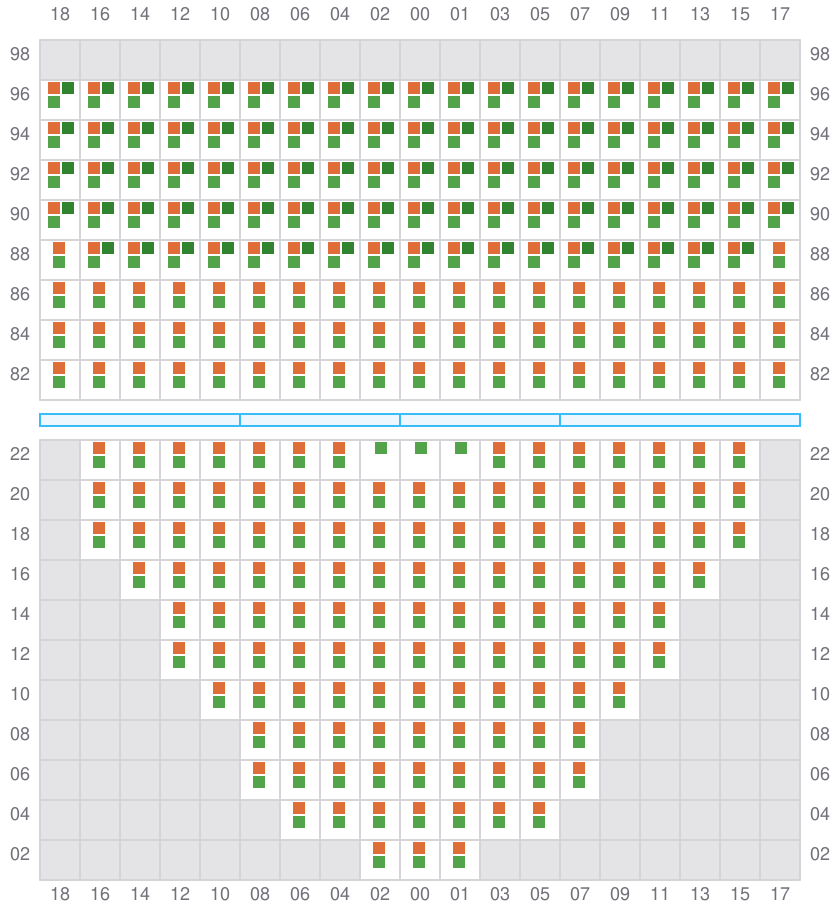

Bay 013 view and slots of MAERSK ESSEN

015

  • ←
  • → / ?

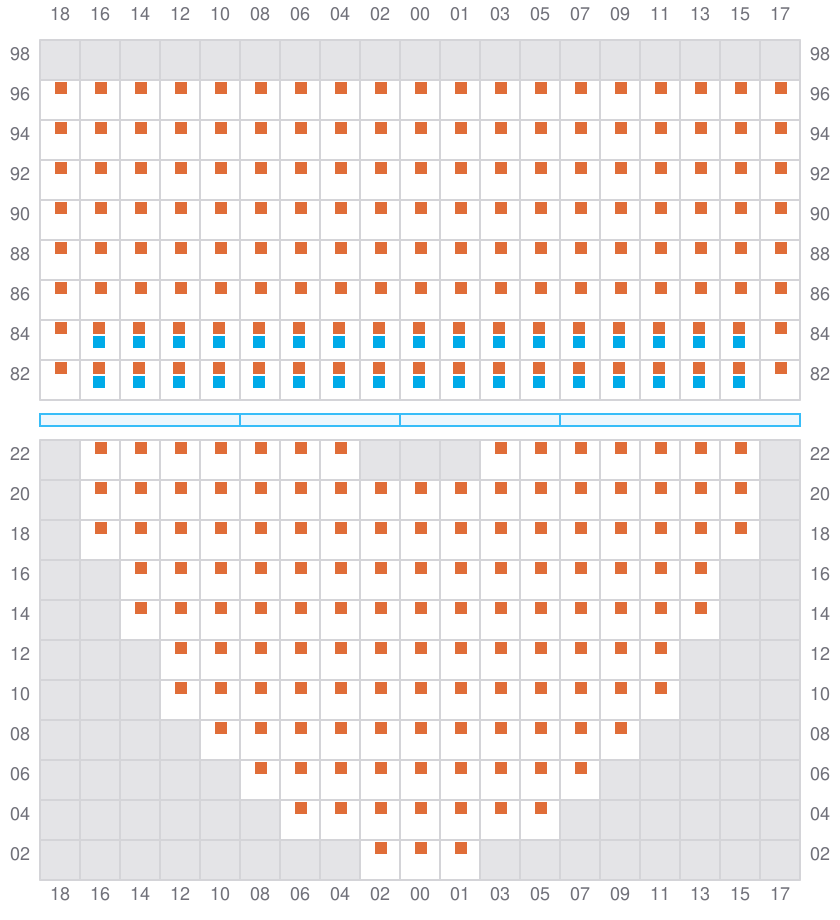

Bay 015 view and slots of MAERSK ESSEN

017 (018)

  • →

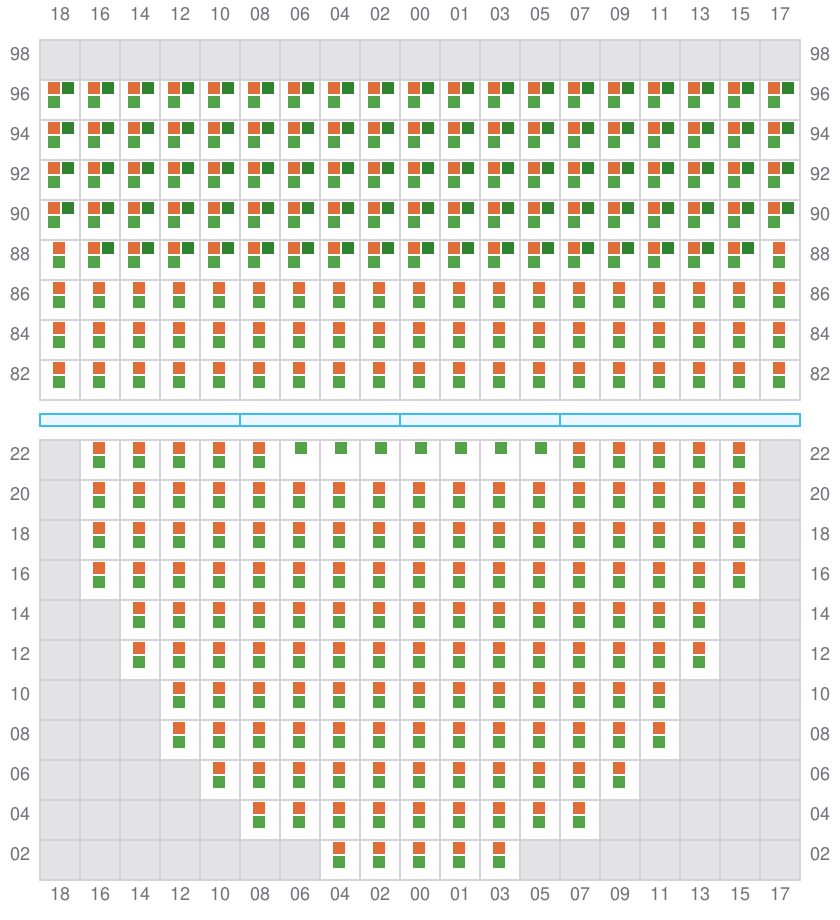

Bay 017 view and slots of MAERSK ESSEN

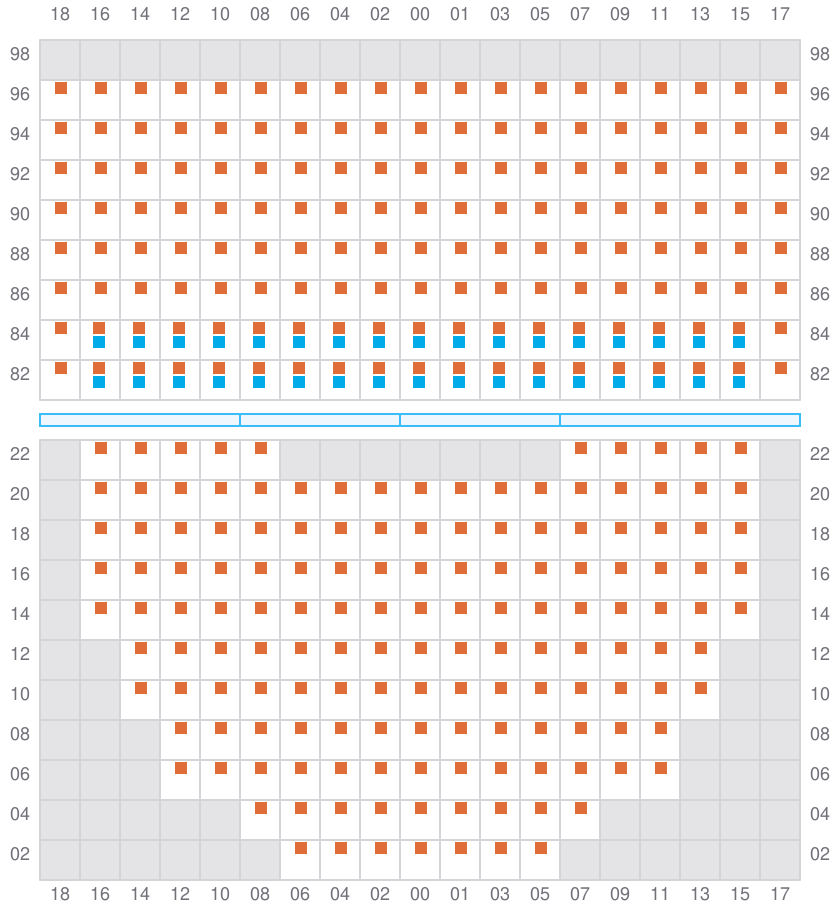

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK ESSEN

021 (022)

  • →

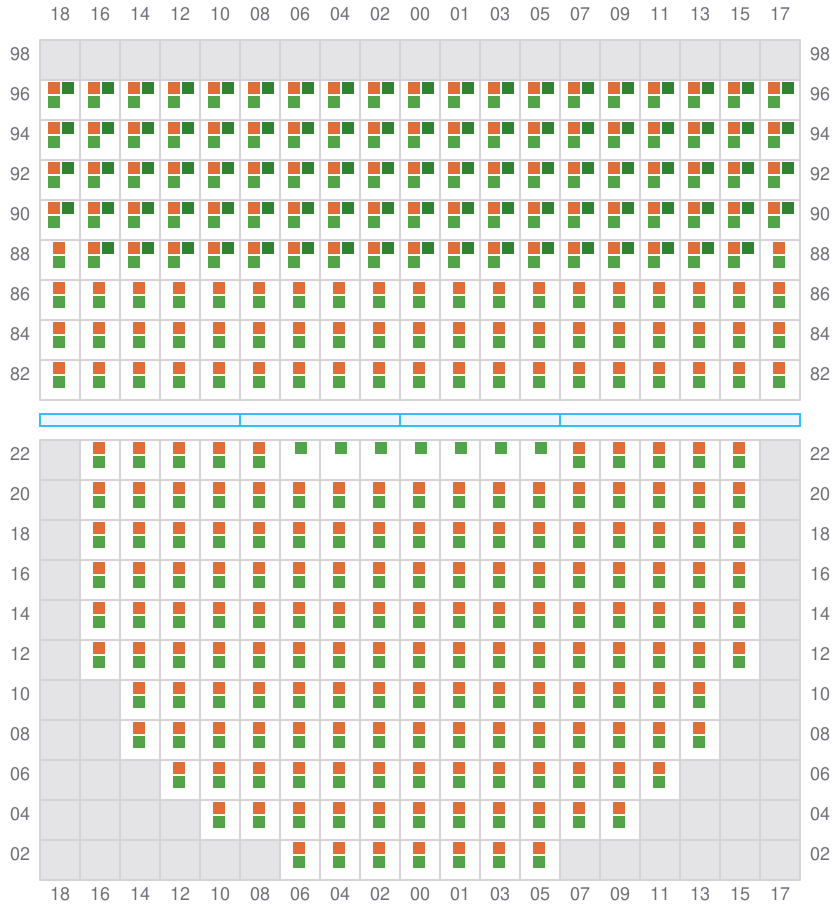

Bay 021 view and slots of MAERSK ESSEN

023

  • ←
  • → / ?

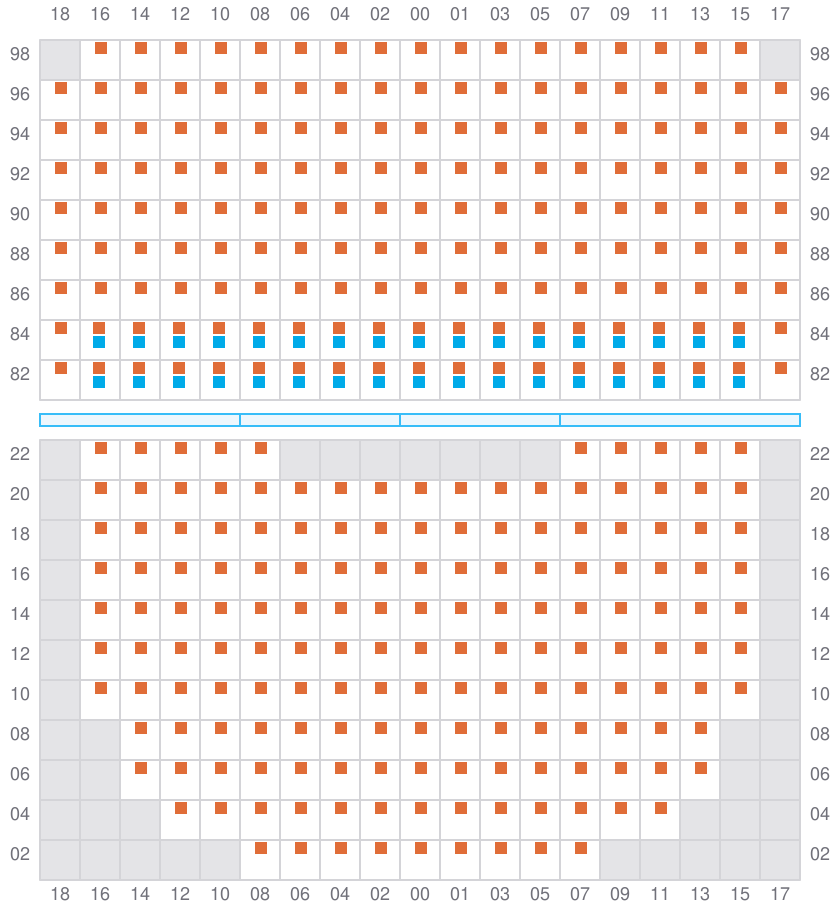

Bay 023 view and slots of MAERSK ESSEN

025 (026)

  • →
Bay 025 view and slots of MAERSK ESSEN

027

  • ←
  • → / ?

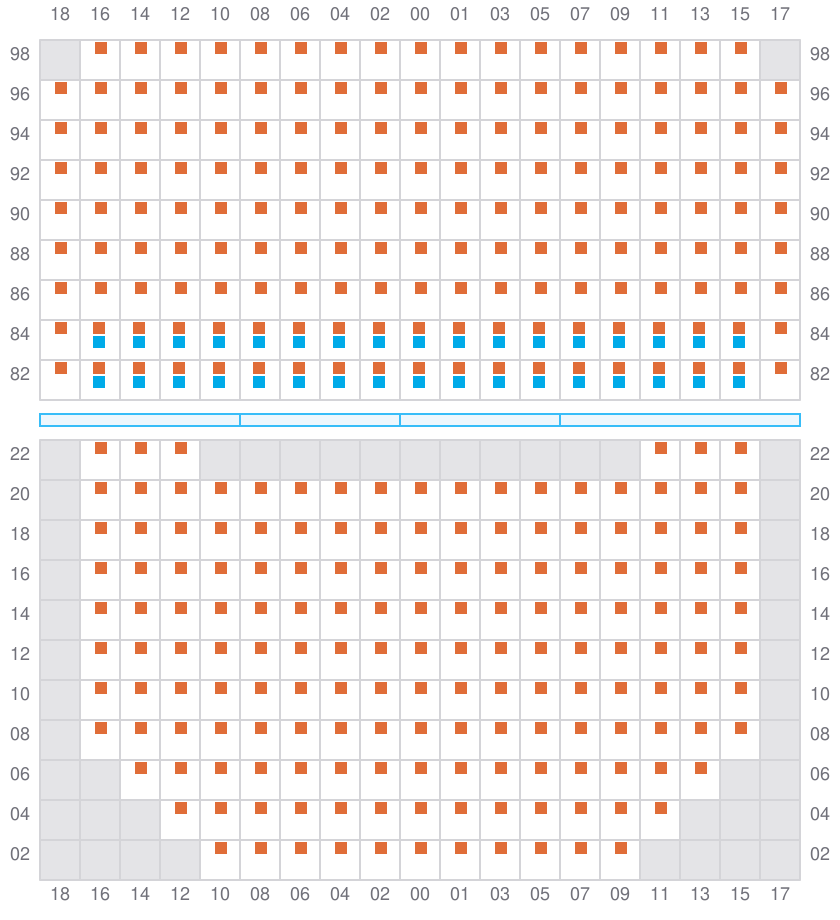

Bay 027 view and slots of MAERSK ESSEN

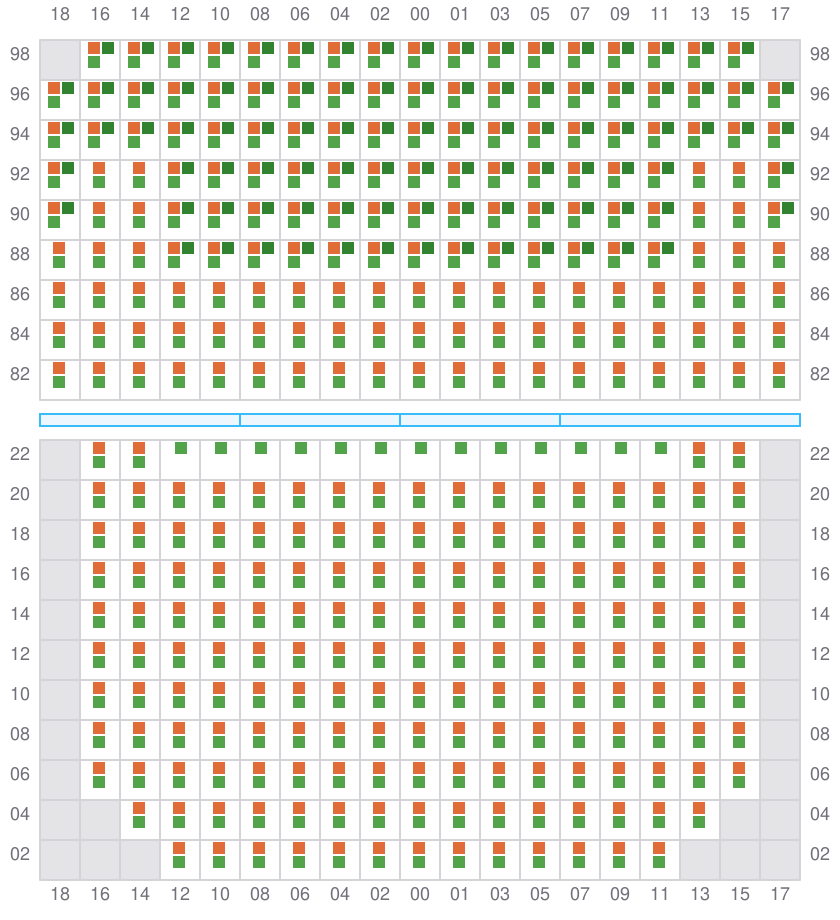

029 (030)

  • →
Bay 029 view and slots of MAERSK ESSEN

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK ESSEN

033 (034)

  • →
Bay 033 view and slots of MAERSK ESSEN

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK ESSEN

037 (038)

  • →
Bay 037 view and slots of MAERSK ESSEN

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK ESSEN

041 (042)

  • →
Bay 041 view and slots of MAERSK ESSEN

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK ESSEN

045 (046)

  • →

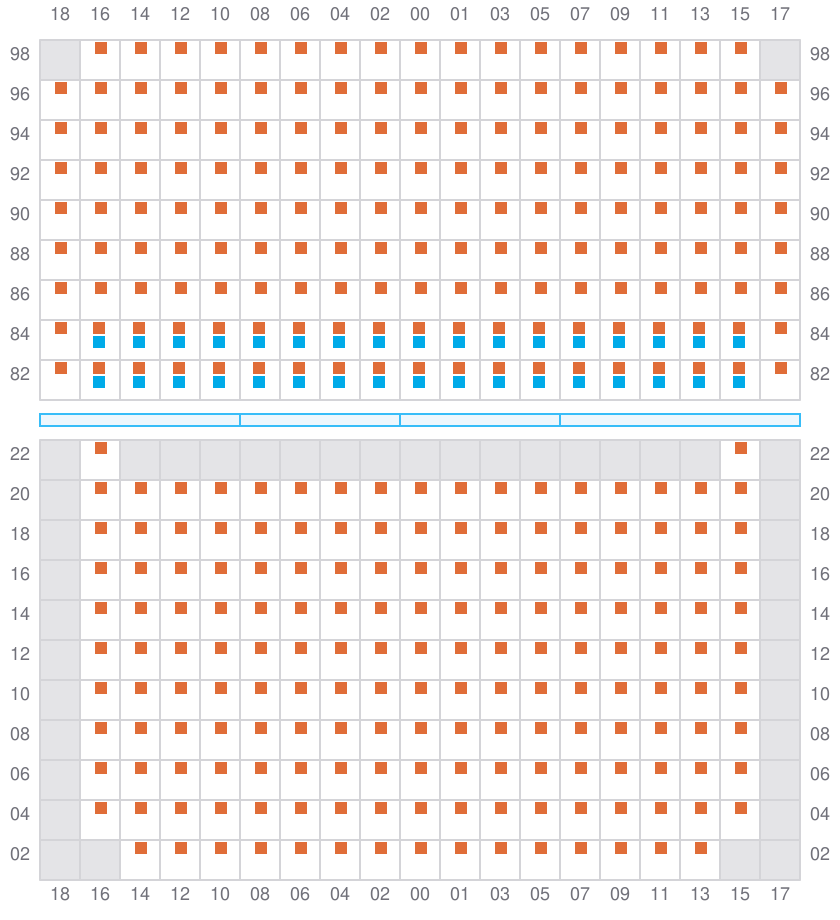

Bay 045 view and slots of MAERSK ESSEN

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK ESSEN

049 (050)

  • →
Bay 049 view and slots of MAERSK ESSEN

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK ESSEN

053 (054)

  • →

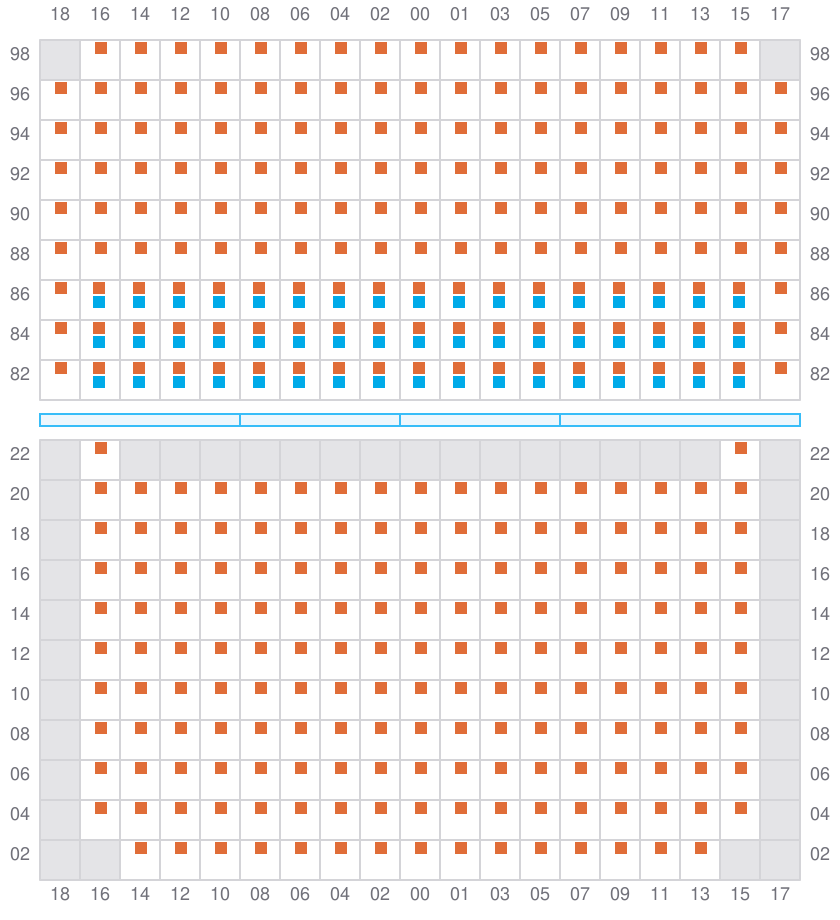

Bay 053 view and slots of MAERSK ESSEN

055

  • ←
  • → / ?
Bay 055 view and slots of MAERSK ESSEN

057 (058)

  • →

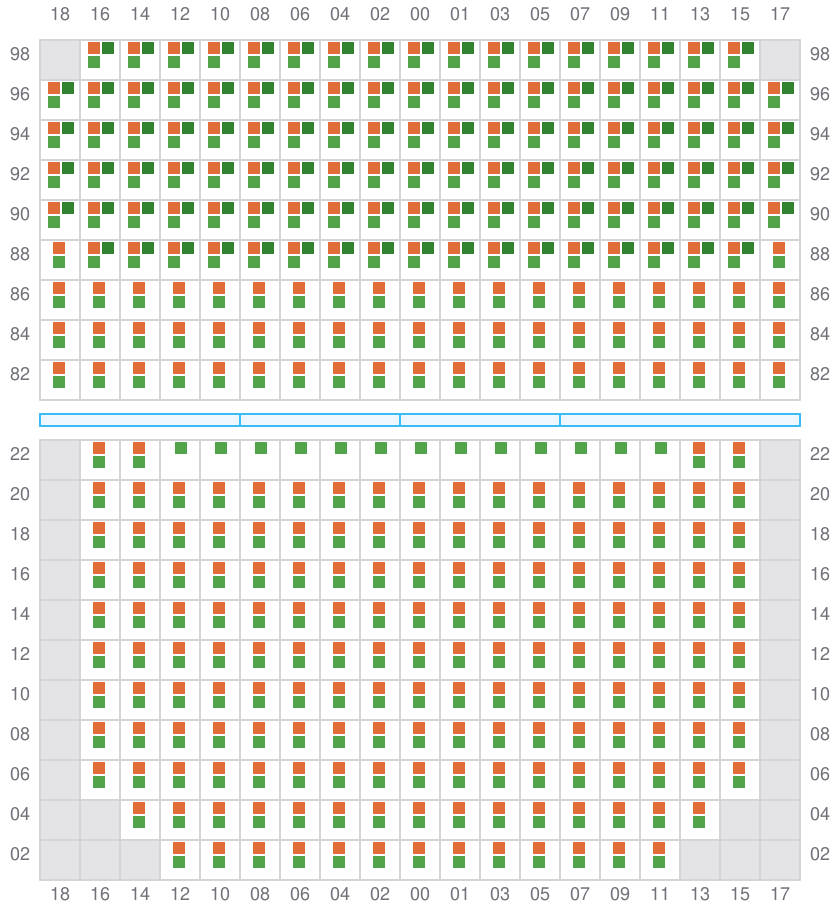

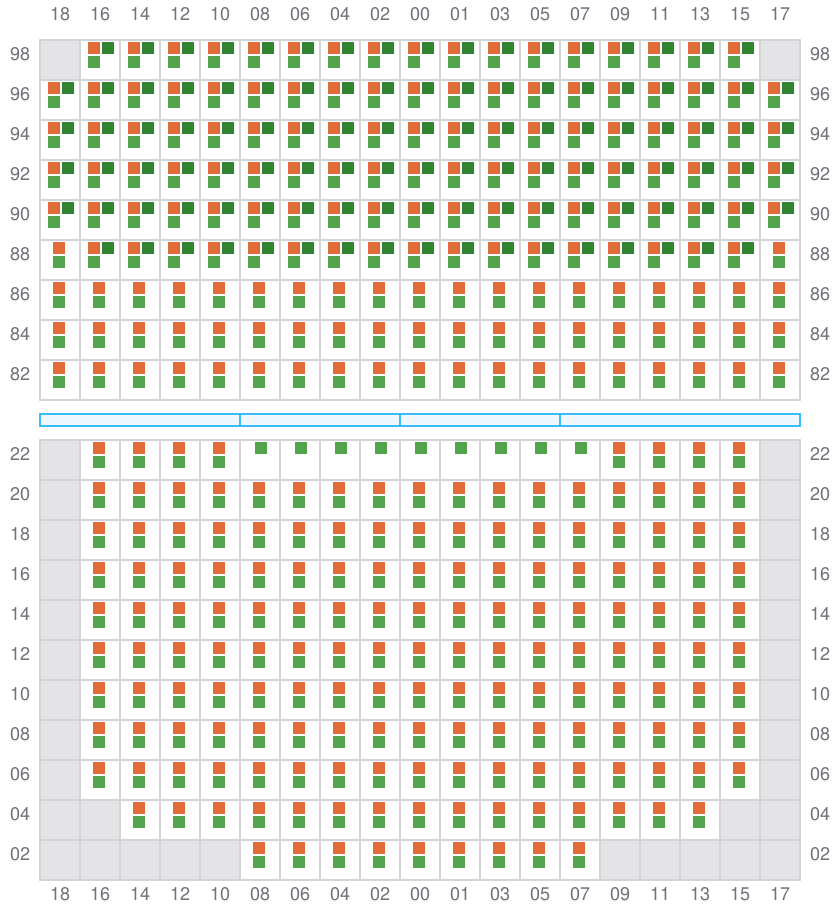

Bay 057 view and slots of MAERSK ESSEN

059

  • ←
  • → / ?

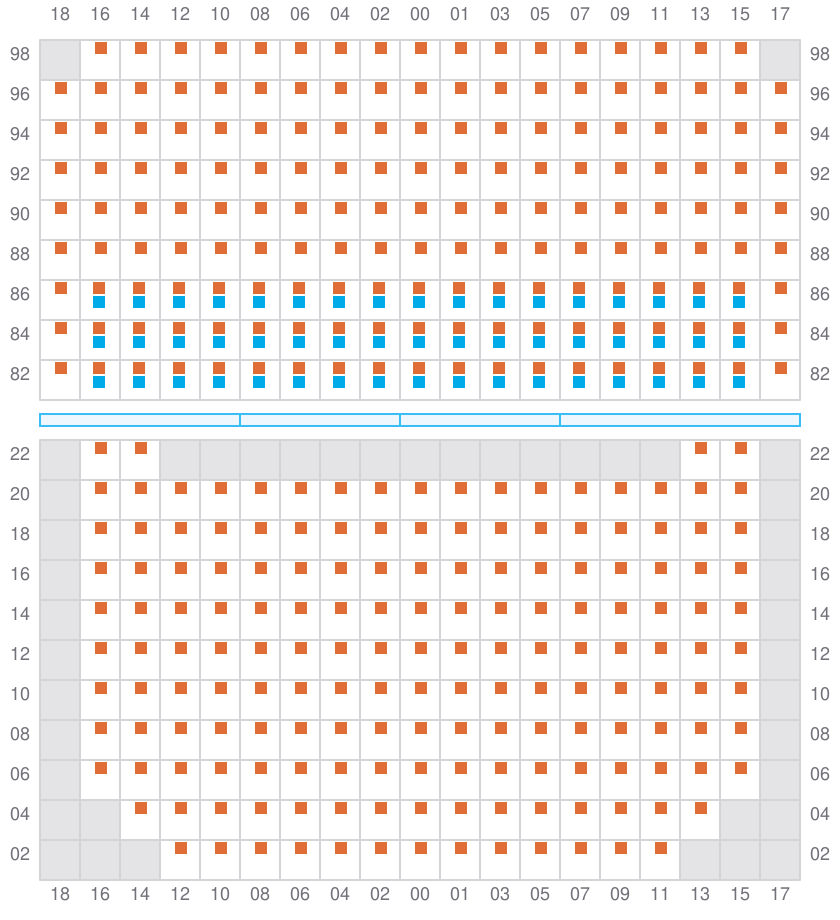

Bay 059 view and slots of MAERSK ESSEN

061 (062)

  • →
Bay 061 view and slots of MAERSK ESSEN

063

  • ←
  • → / ?
Bay 063 view and slots of MAERSK ESSEN

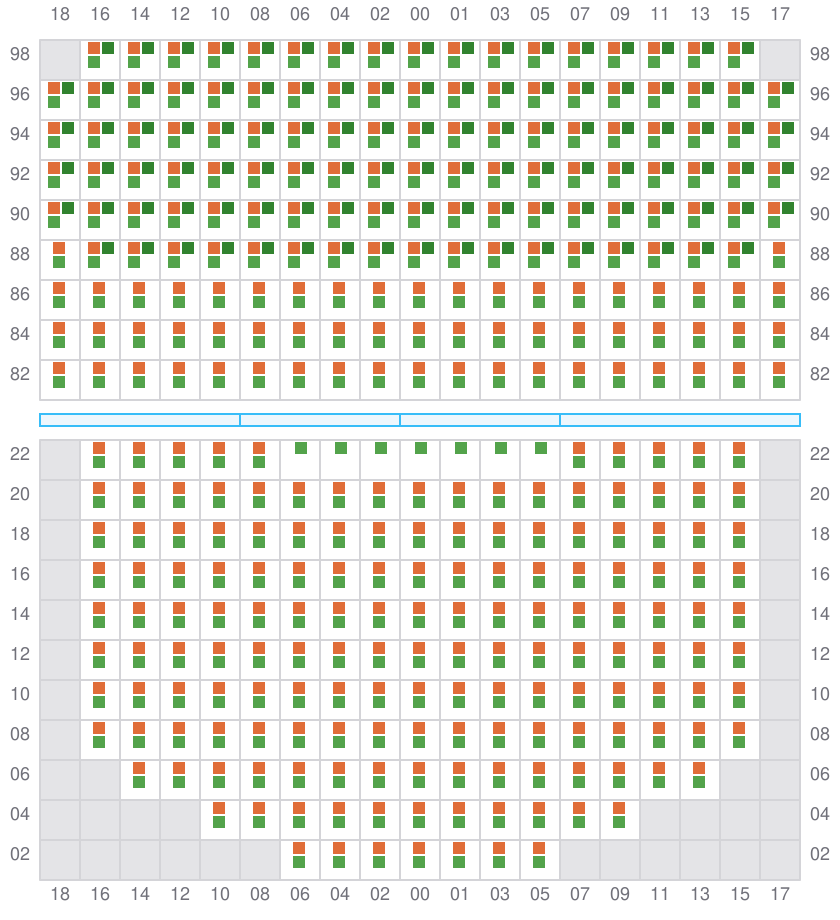

065 (066)

  • →
Bay 065 view and slots of MAERSK ESSEN

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK ESSEN

069 (070)

  • →

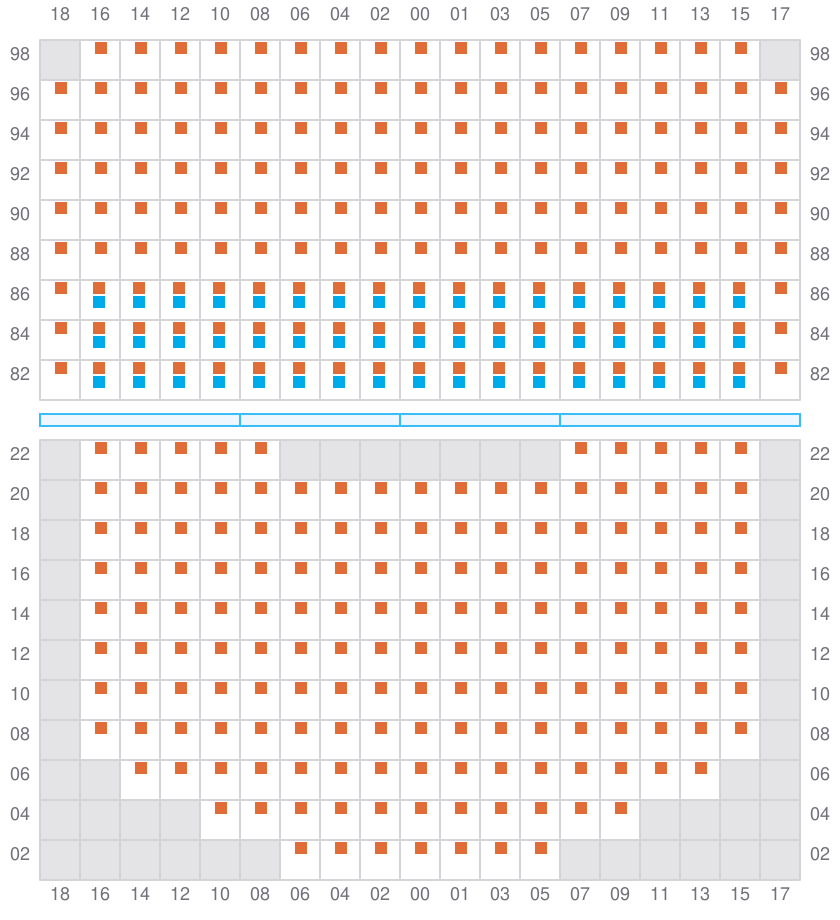

Bay 069 view and slots of MAERSK ESSEN

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK ESSEN

073 (074)

  • →

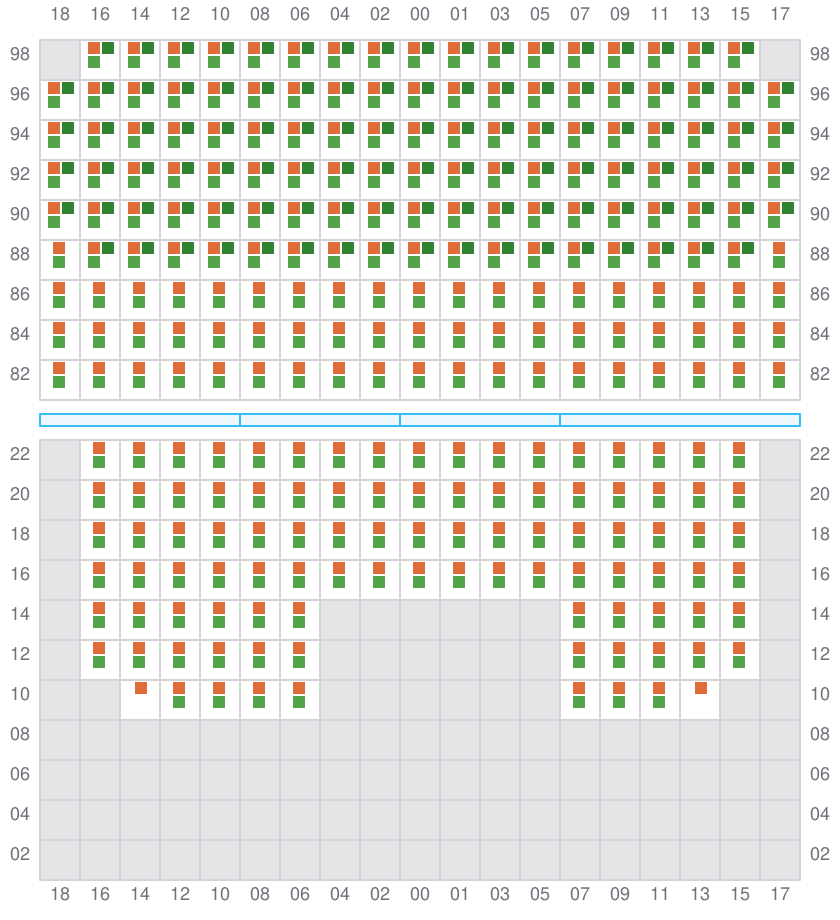

Bay 073 view and slots of MAERSK ESSEN

075

  • ←
  • → / ?
Bay 075 view and slots of MAERSK ESSEN

077 (078)

  • →

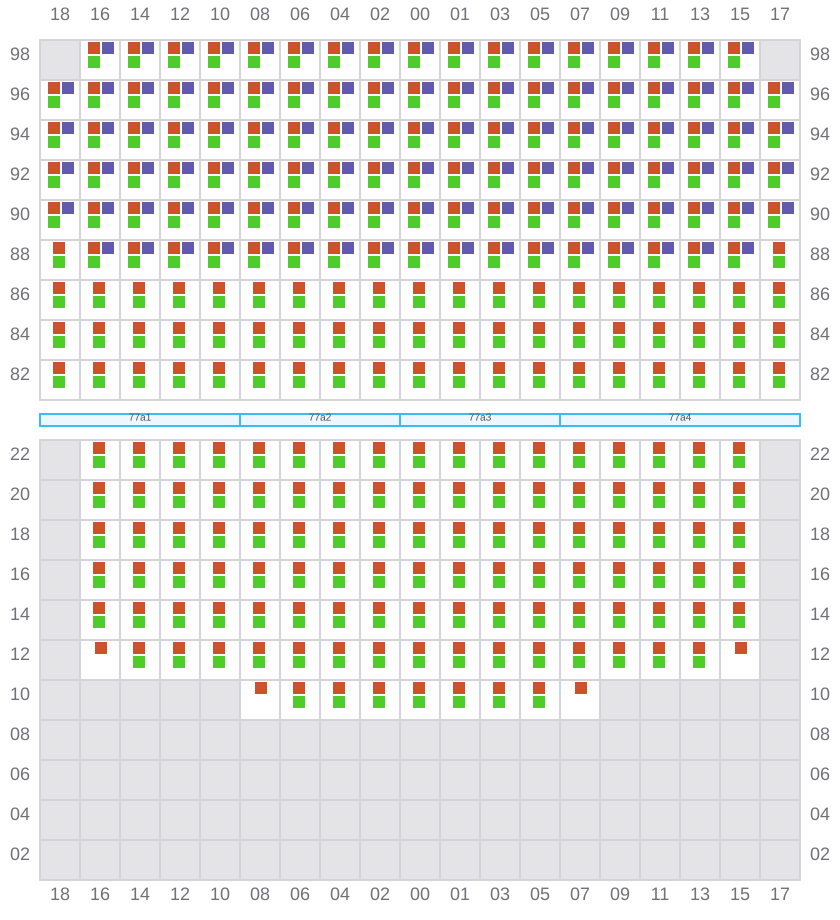

Bay 077 view and slots of MAERSK ESSEN

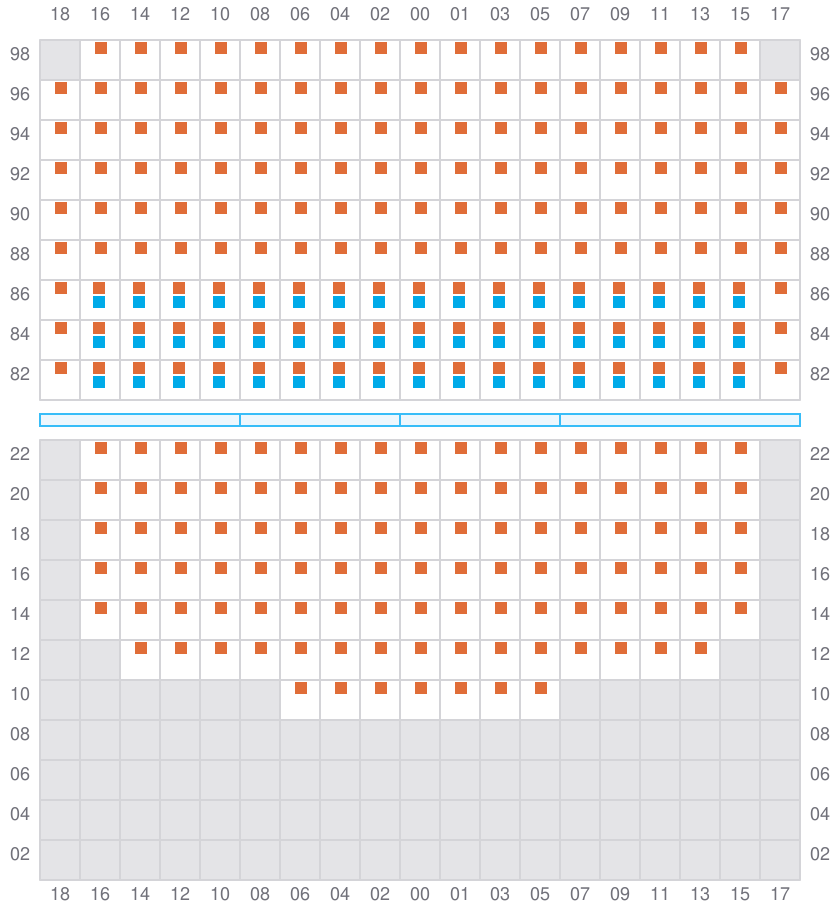

079

  • ←
  • → / ?
Bay 079 view and slots of MAERSK ESSEN

081 (082)

  • →
Bay 081 view and slots of MAERSK ESSEN

083

  • ←
  • → / ?

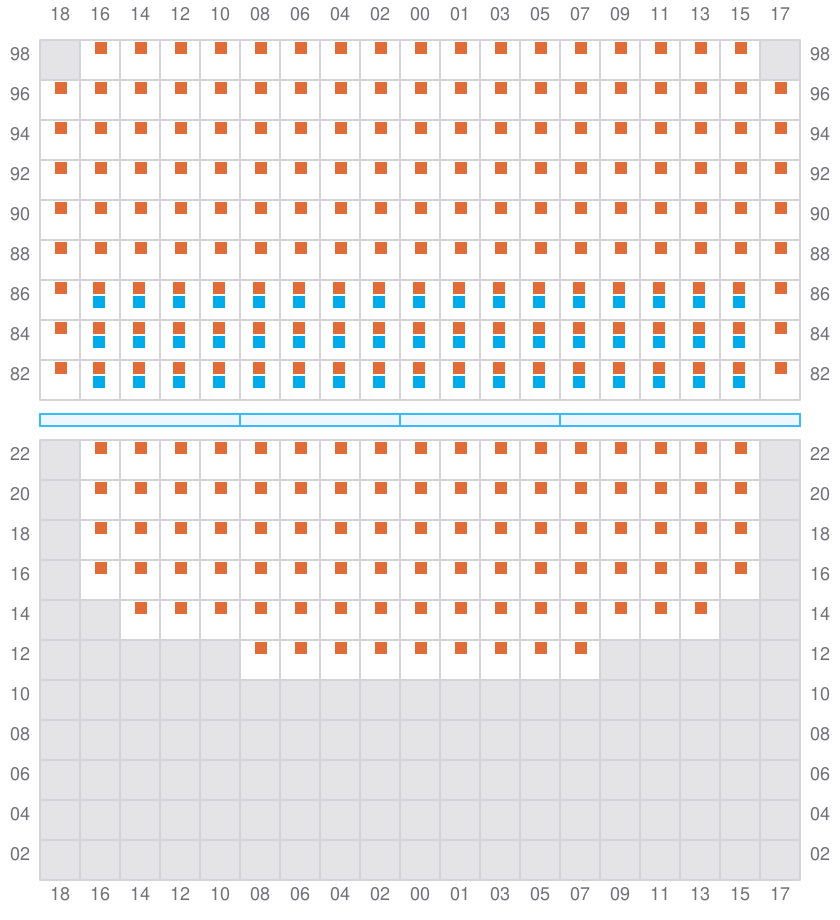

Bay 083 view and slots of MAERSK ESSEN

085 (086)

  • → / ?

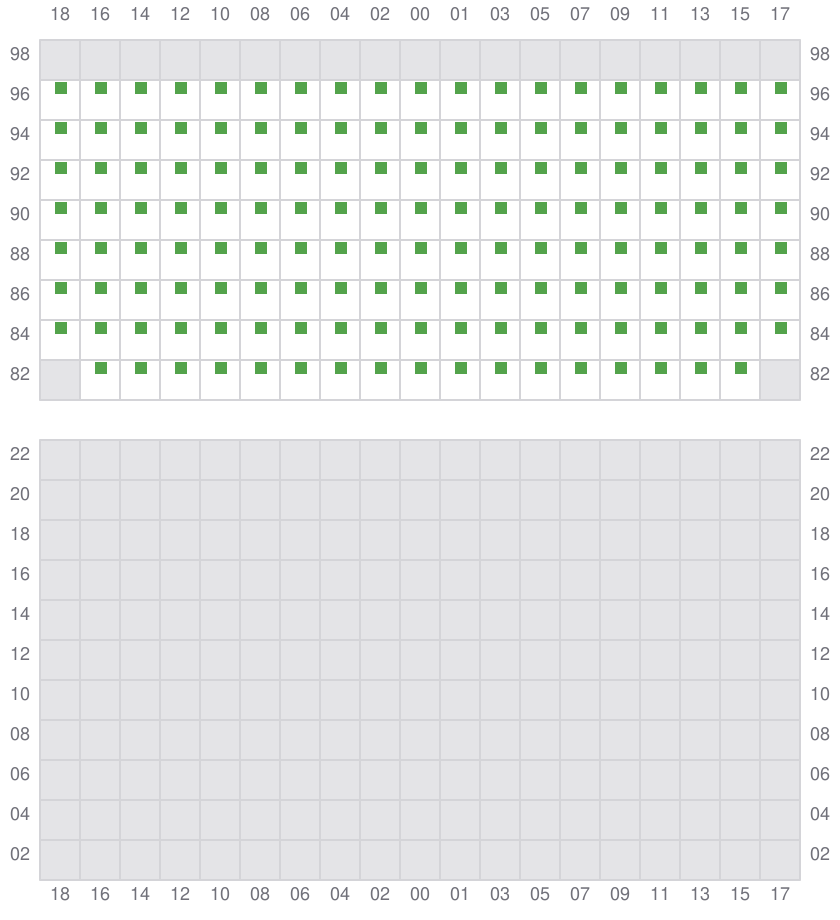

Bay 085 view and slots of MAERSK ESSEN
