MAERSK EUPHRATES
9694567 | V7GQ5 | MSK by ************************** Last update: Fri Jun 23 2023

General Info

Ship Name:MAERSK EUPHRATES
IMO Code:9694567
Call Sign:V7GQ5
Line Operator:MSK
Class Name for Sister Ships:EUP
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):244.00
LOA (Length Overall):255.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,466

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK EUPHRATES

Hatch-Covers View

Deck view of MAERSK EUPHRATES

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

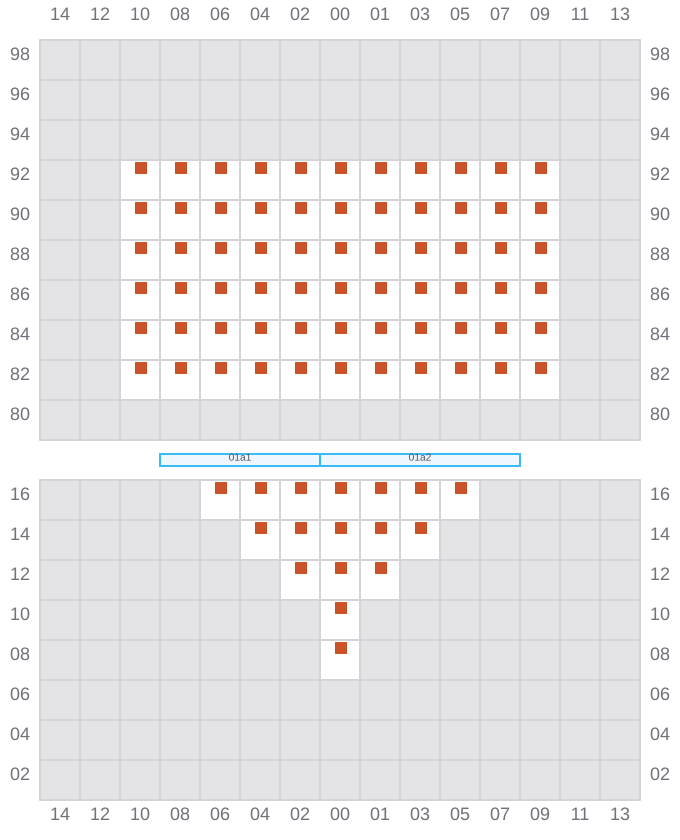

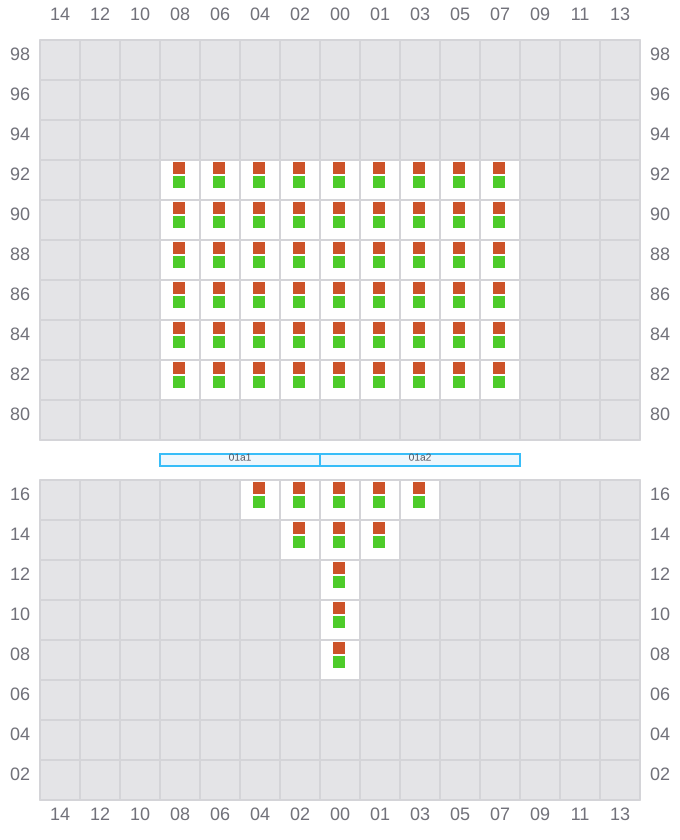

Bay 001 view and slots of MAERSK EUPHRATES

003

  • ←
Bay 003 view and slots of MAERSK EUPHRATES

005 (006)

  • →

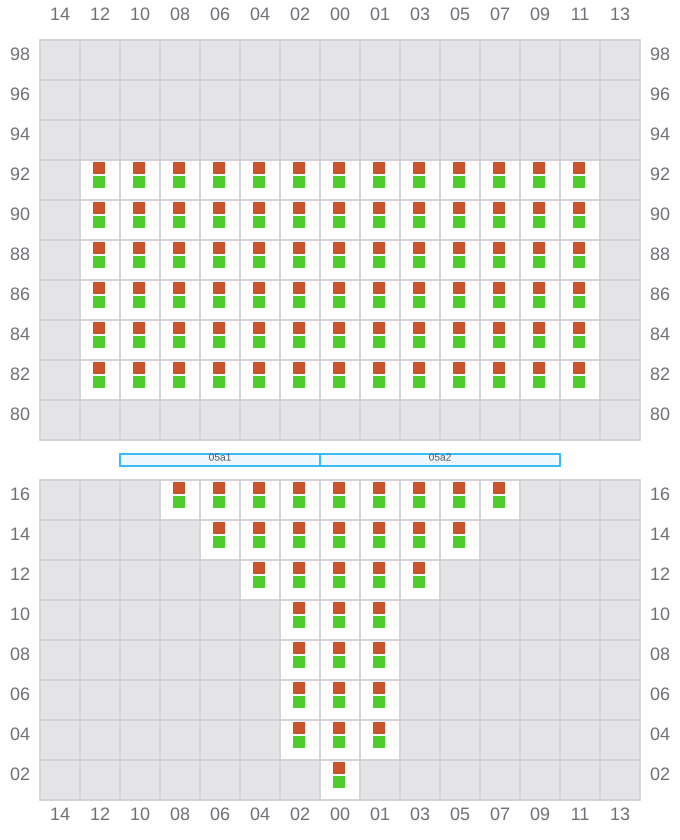

Bay 005 view and slots of MAERSK EUPHRATES

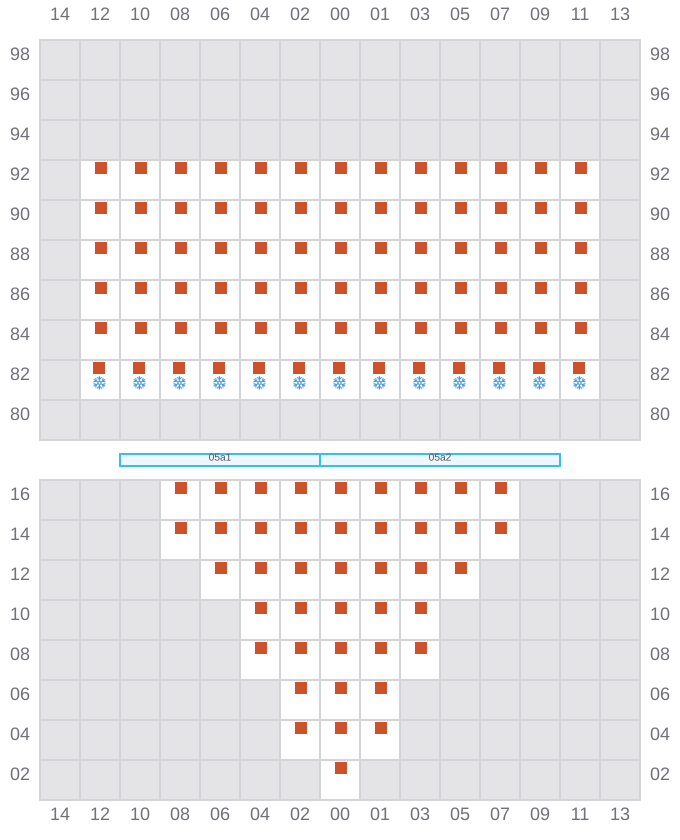

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK EUPHRATES

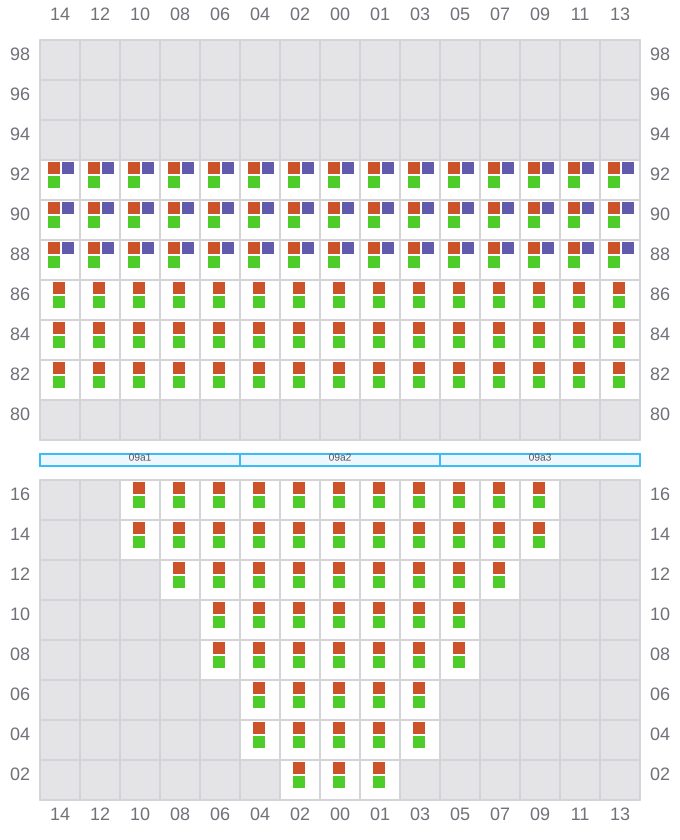

009 (010)

  • →
Bay 009 view and slots of MAERSK EUPHRATES

011

  • ←
  • → / ?

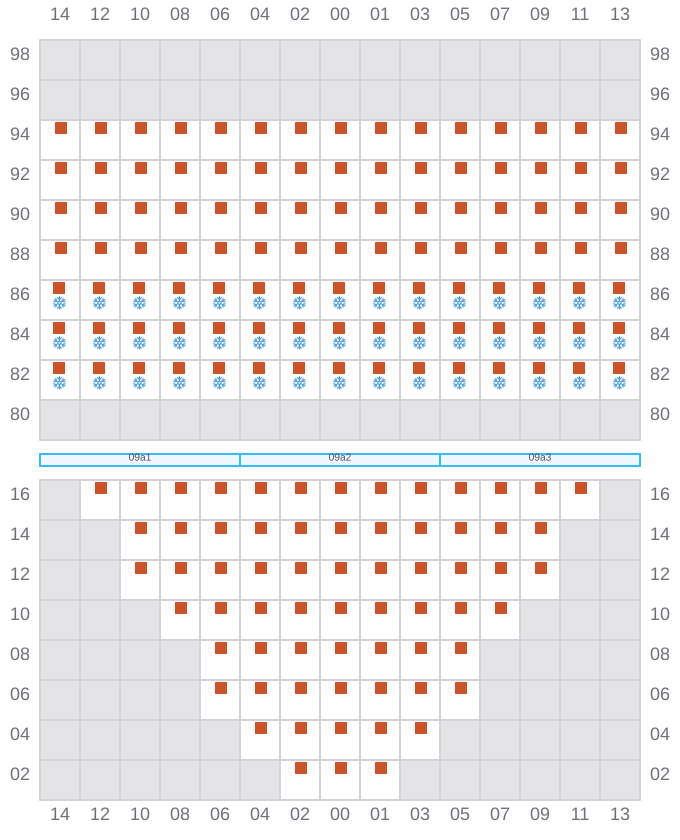

Bay 011 view and slots of MAERSK EUPHRATES

013 (014)

  • →

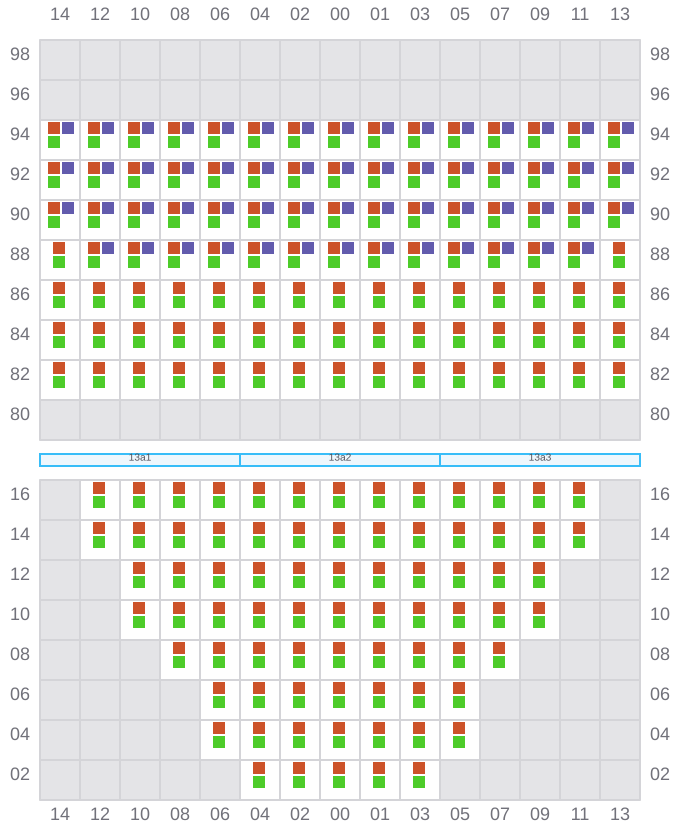

Bay 013 view and slots of MAERSK EUPHRATES

015

  • ←
  • → / ?

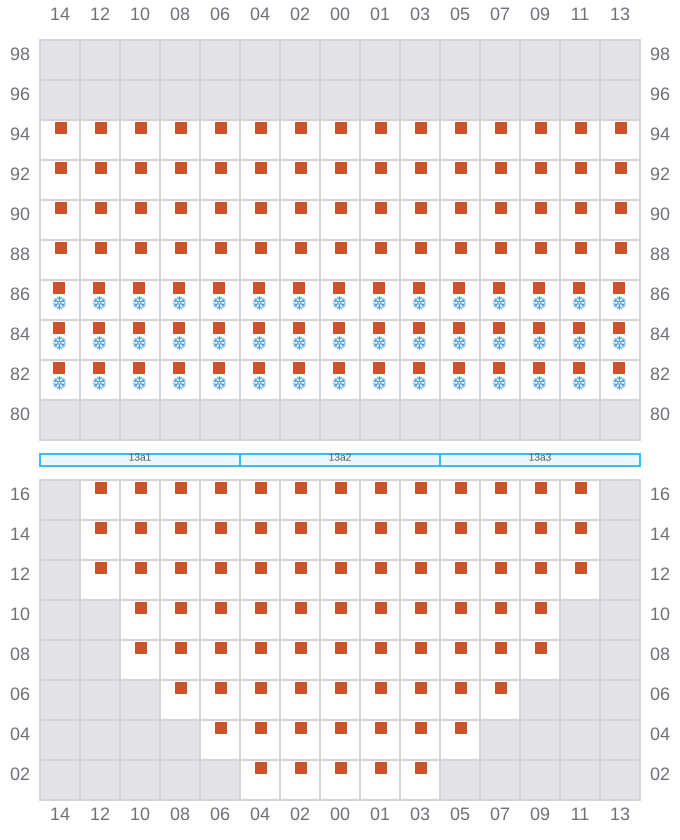

Bay 015 view and slots of MAERSK EUPHRATES

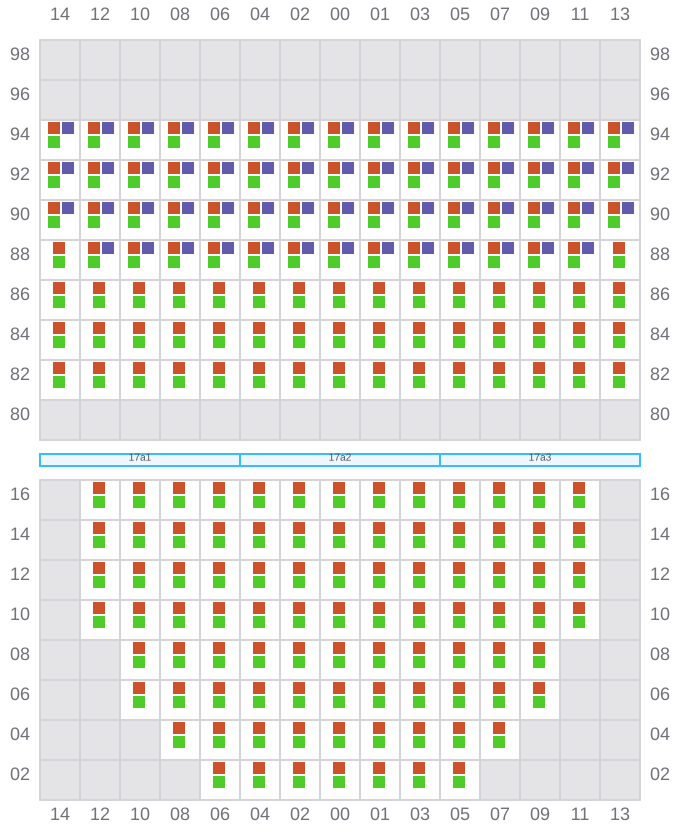

017 (018)

  • →
Bay 017 view and slots of MAERSK EUPHRATES

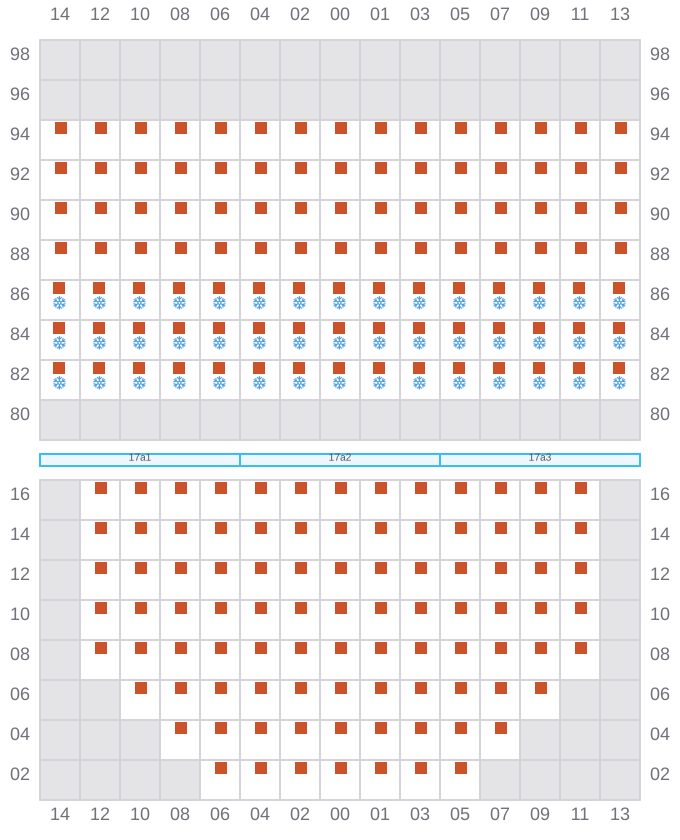

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK EUPHRATES

021 (022)

  • →

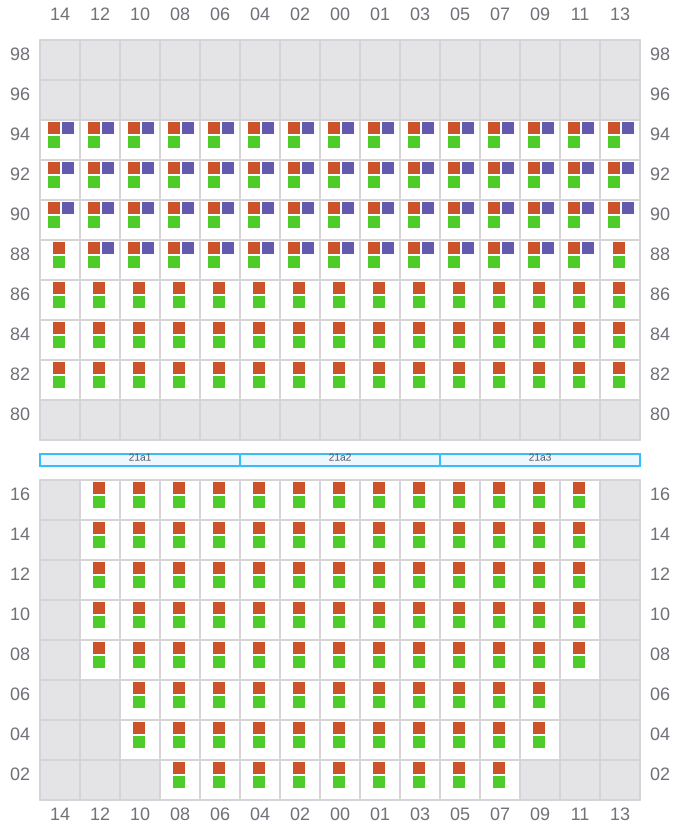

Bay 021 view and slots of MAERSK EUPHRATES

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK EUPHRATES

025 (026)

  • →
Bay 025 view and slots of MAERSK EUPHRATES

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK EUPHRATES

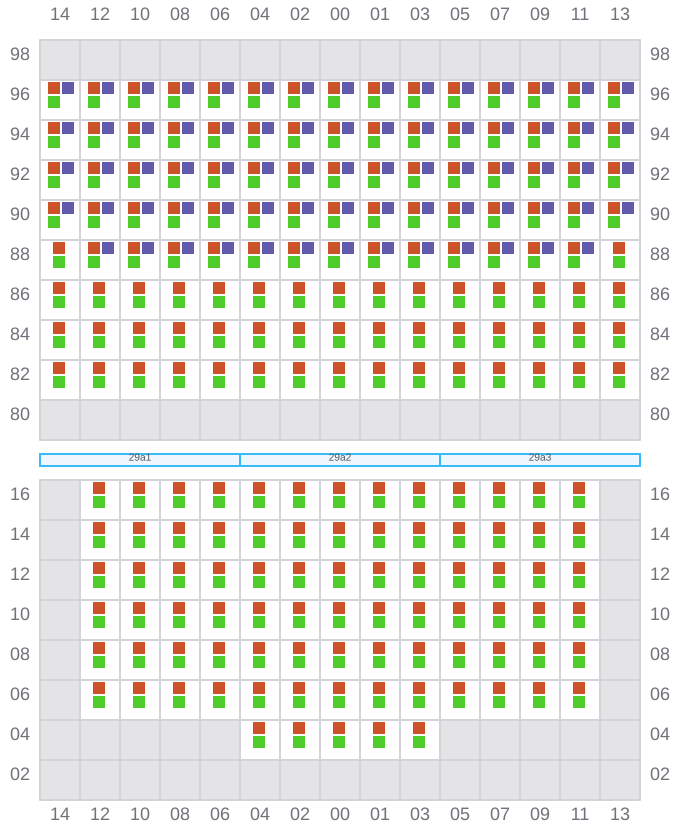

029 (030)

  • →
Bay 029 view and slots of MAERSK EUPHRATES

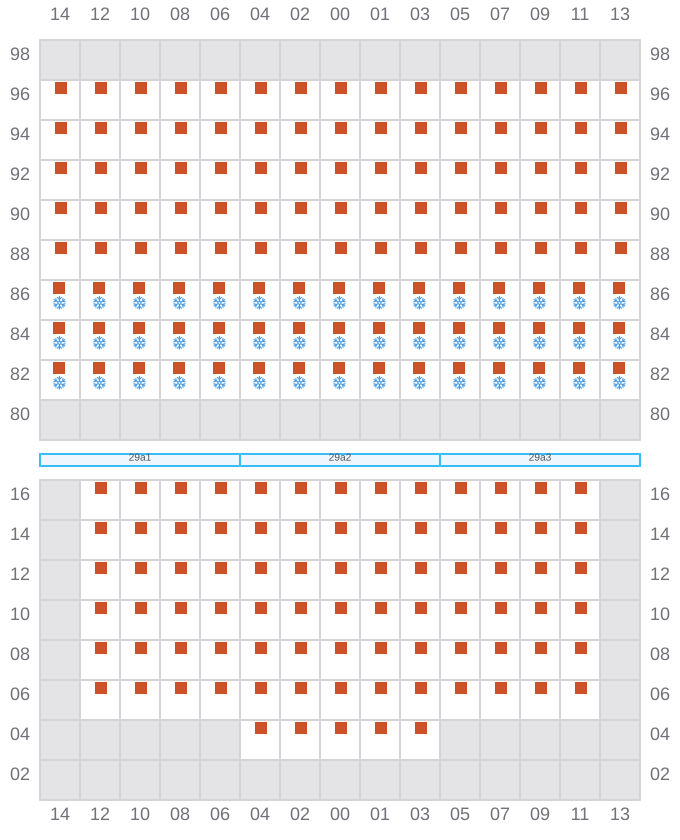

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK EUPHRATES

033 (034)

  • →

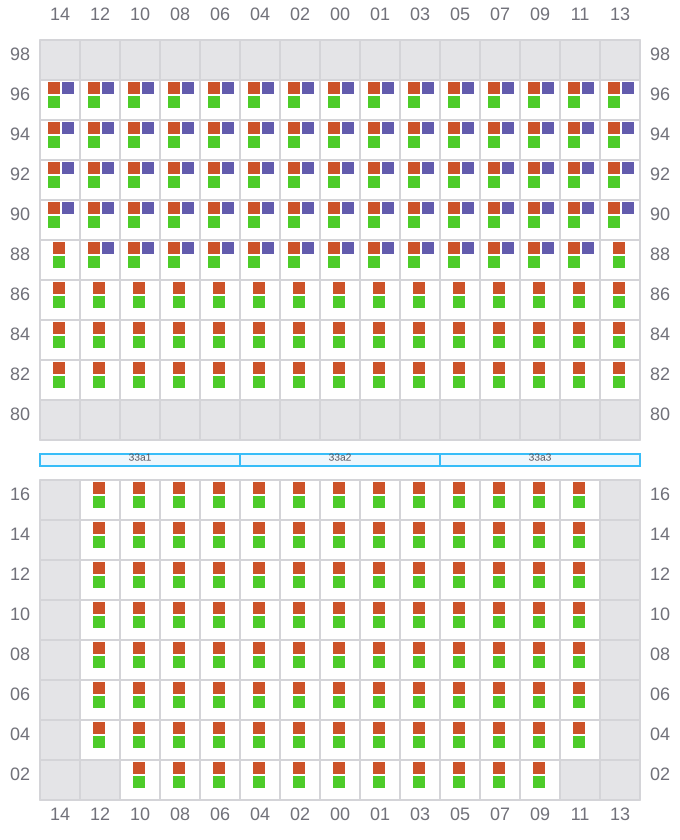

Bay 033 view and slots of MAERSK EUPHRATES

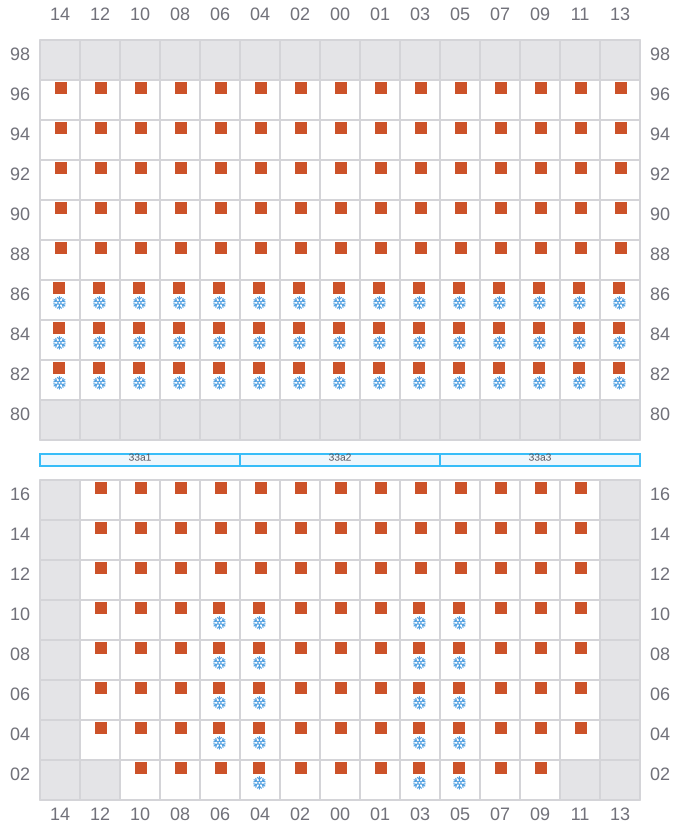

035

  • ←
  • →
Bay 035 view and slots of MAERSK EUPHRATES

037 (038)

  • →

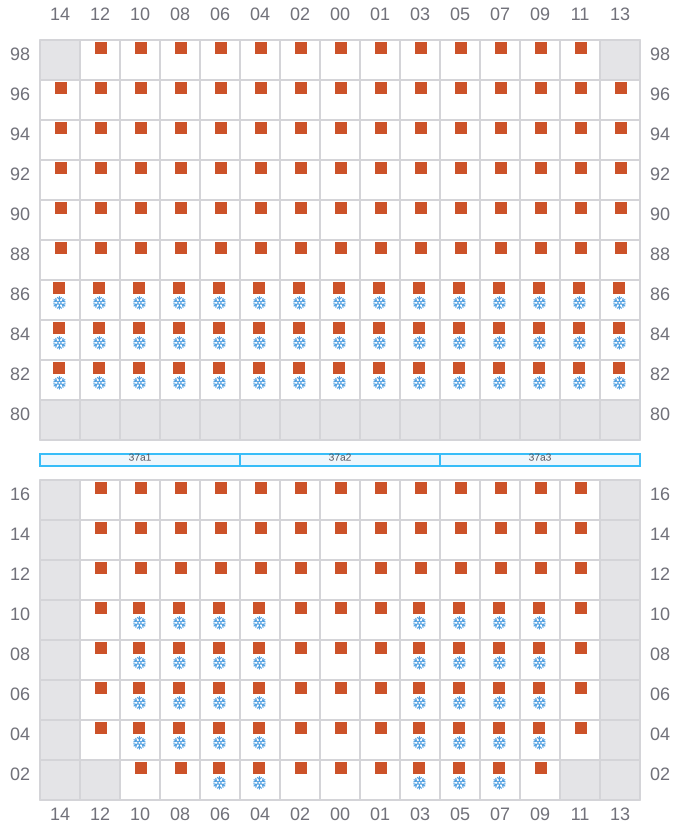

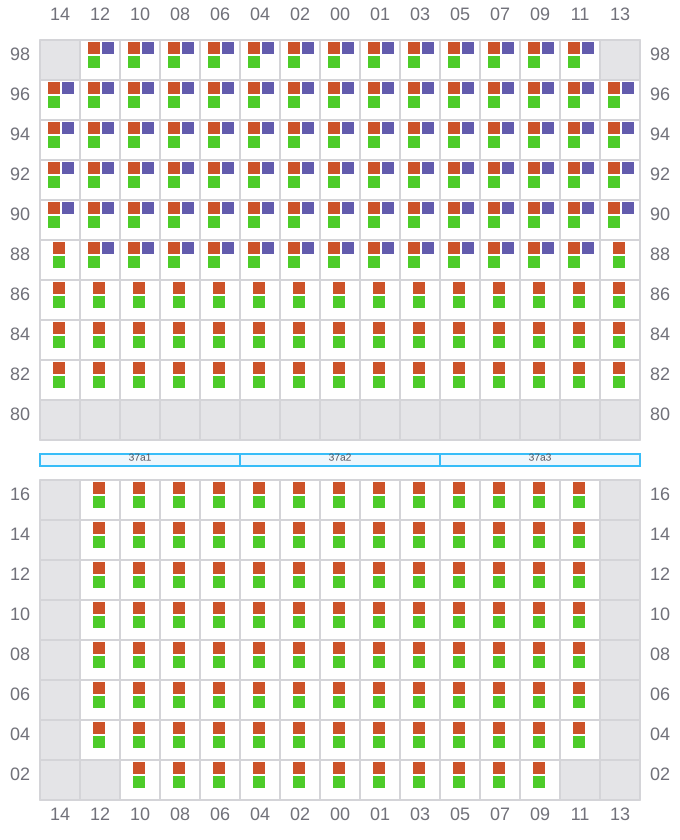

Bay 037 view and slots of MAERSK EUPHRATES

039

  • ←
  • →
Bay 039 view and slots of MAERSK EUPHRATES

041 (042)

  • →

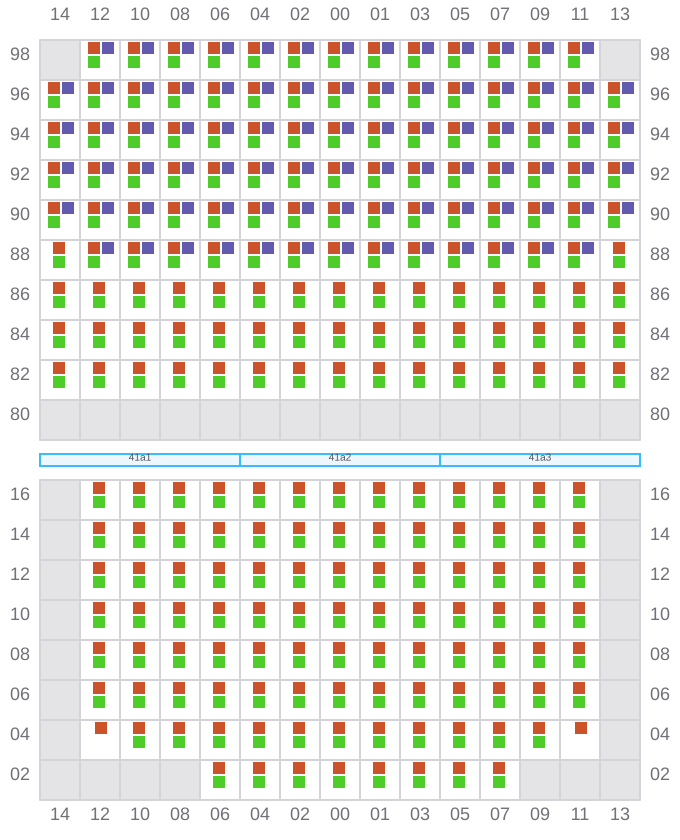

Bay 041 view and slots of MAERSK EUPHRATES

043

  • ←
  • → / ?

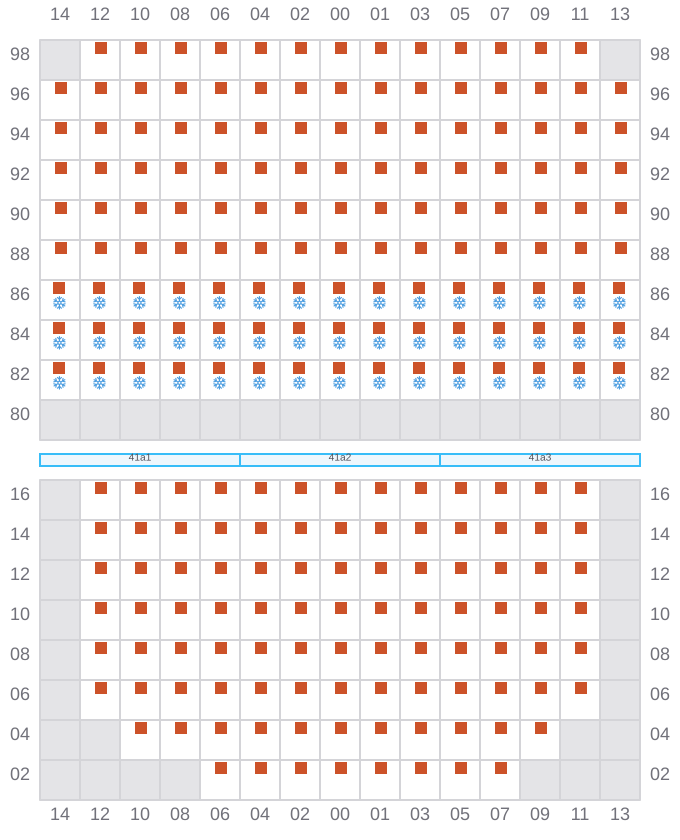

Bay 043 view and slots of MAERSK EUPHRATES

045 (046)

  • →

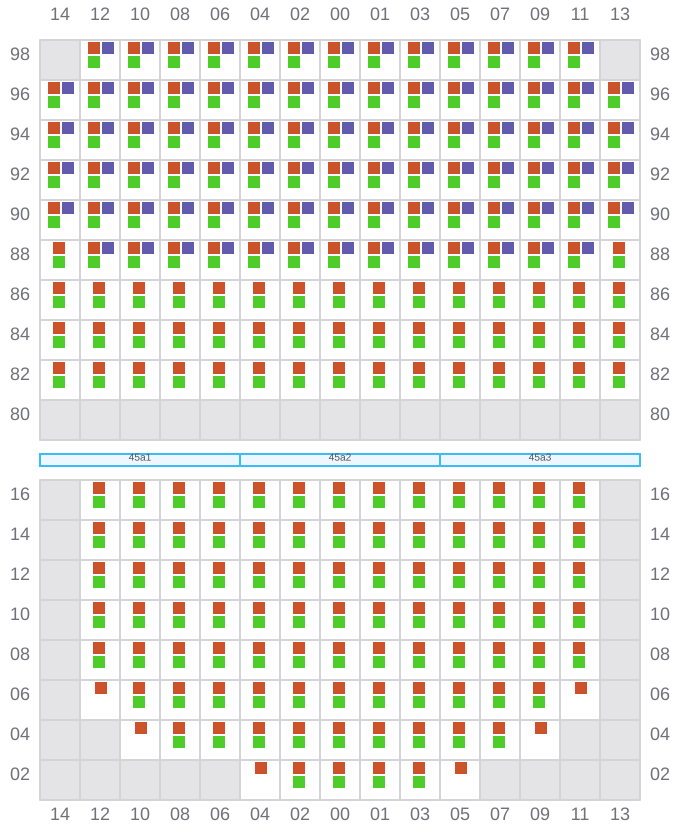

Bay 045 view and slots of MAERSK EUPHRATES

047

  • ←
  • → / ?

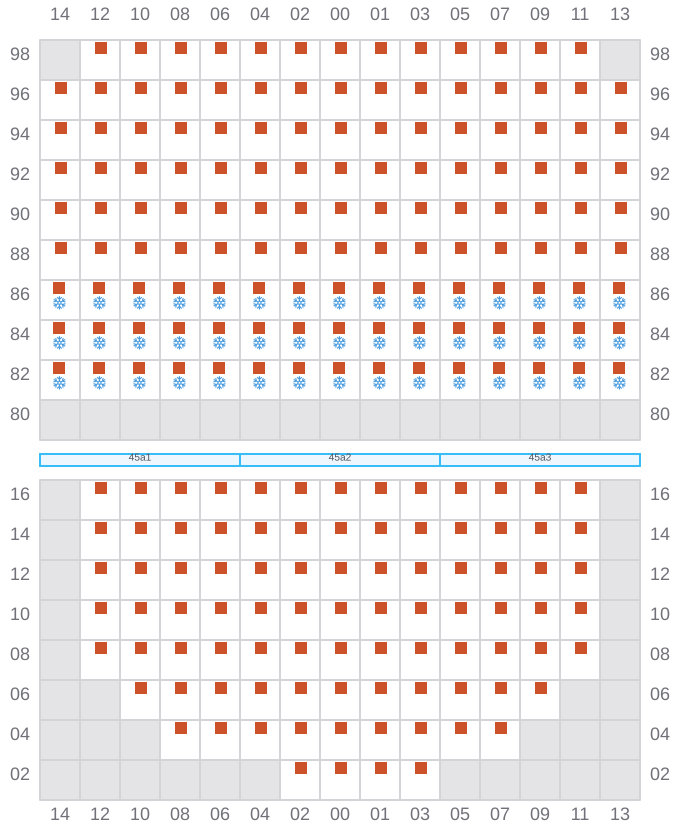

Bay 047 view and slots of MAERSK EUPHRATES

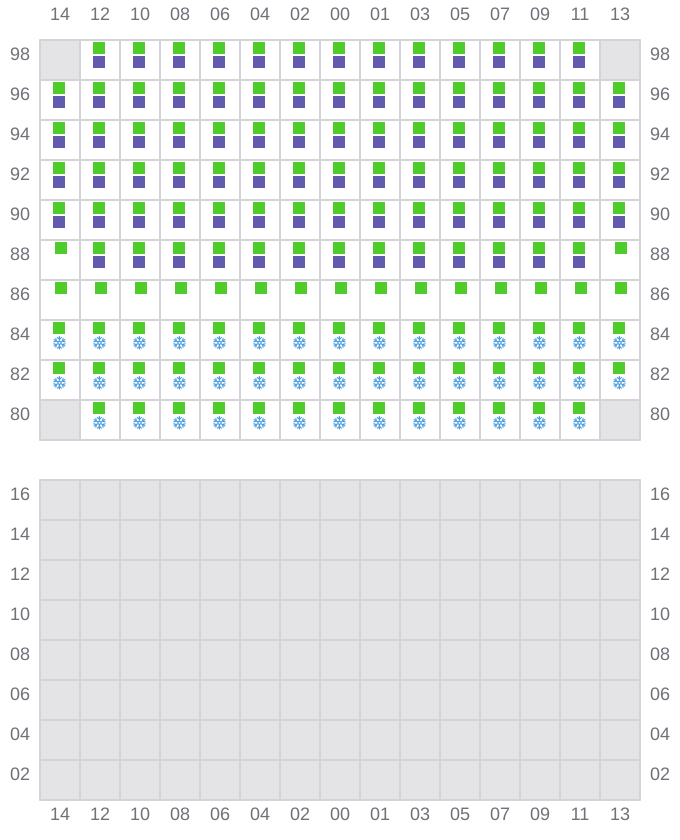

049 (050)

  • → / ?
  • ← / ?
Bay 049 view and slots of MAERSK EUPHRATES

051

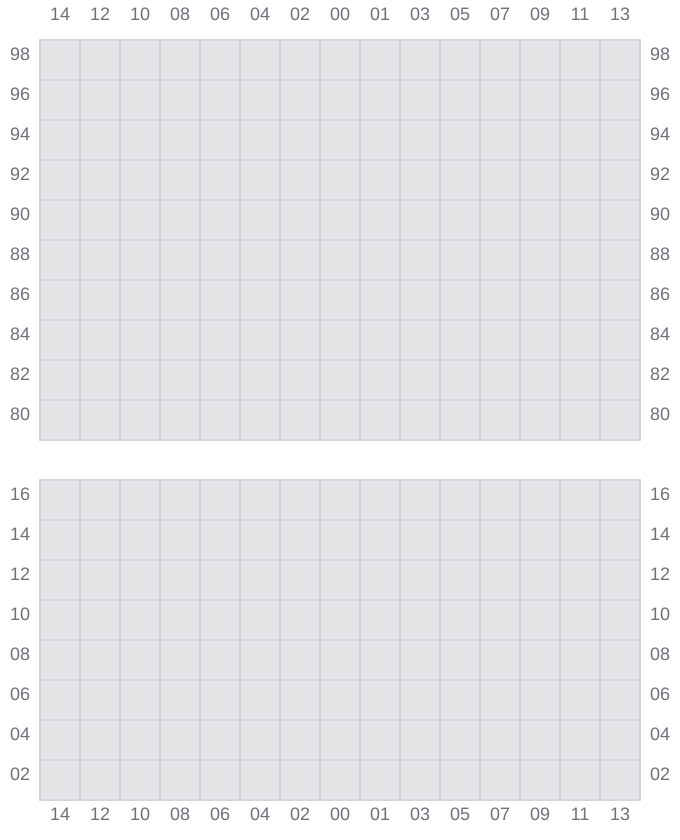

Bay 051 view and slots of MAERSK EUPHRATES

053 (054)

  • →
  • ← / ?
Bay 053 view and slots of MAERSK EUPHRATES

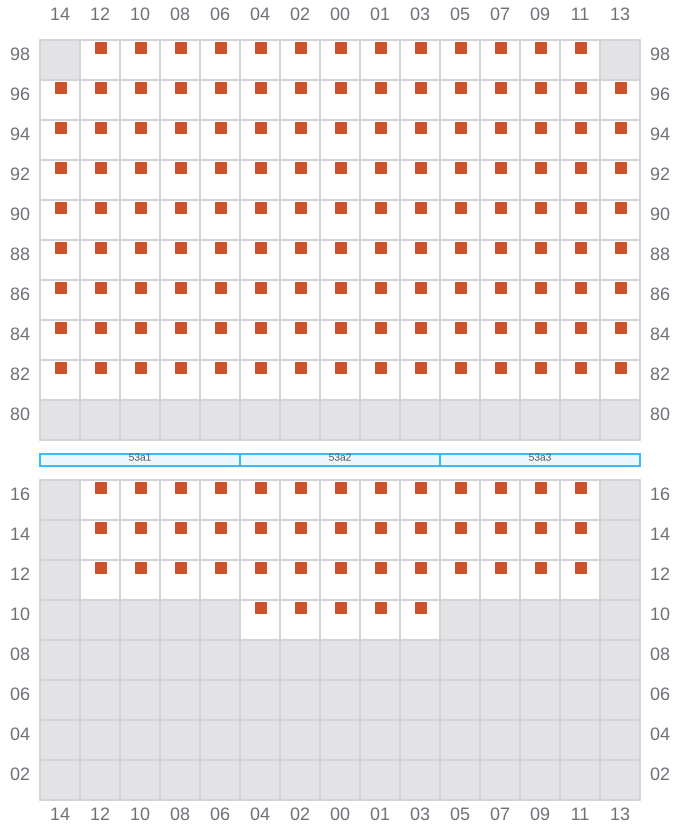

055

  • ←
Bay 055 view and slots of MAERSK EUPHRATES

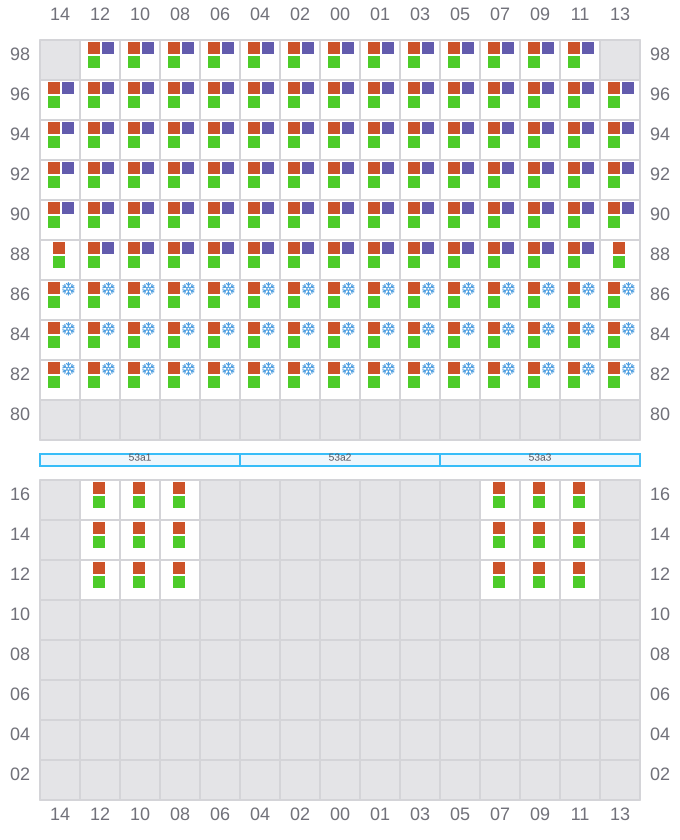

057 (058)

  • → / ?
  • ← / ?

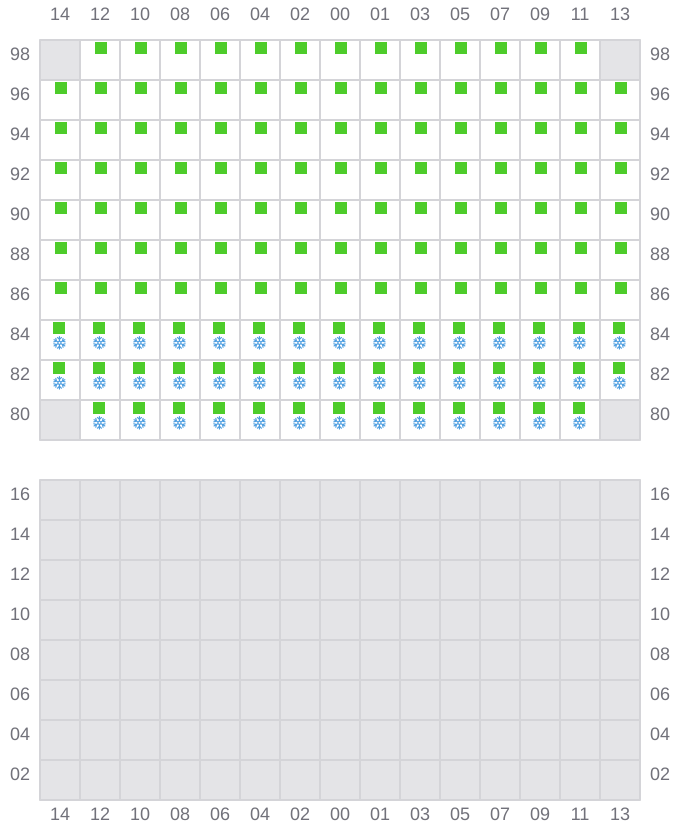

Bay 057 view and slots of MAERSK EUPHRATES
