MAERSK EVORA
9458080 | OXVS2 | MAERSK by ********* Last update: Wed Mar 27 2024

General Info

Ship Name:MAERSK EVORA
IMO Code:9458080
Call Sign:OXVS2
Line Operator:MAERSK
Class Name for Sister Ships:EDINBURGH
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,554

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

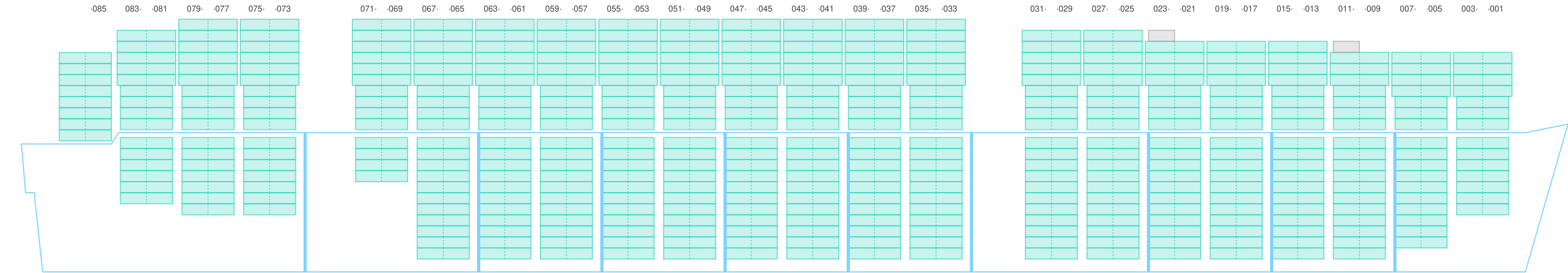

Side View

Side view of MAERSK EVORA

Hatch-Covers View

Deck view of MAERSK EVORA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

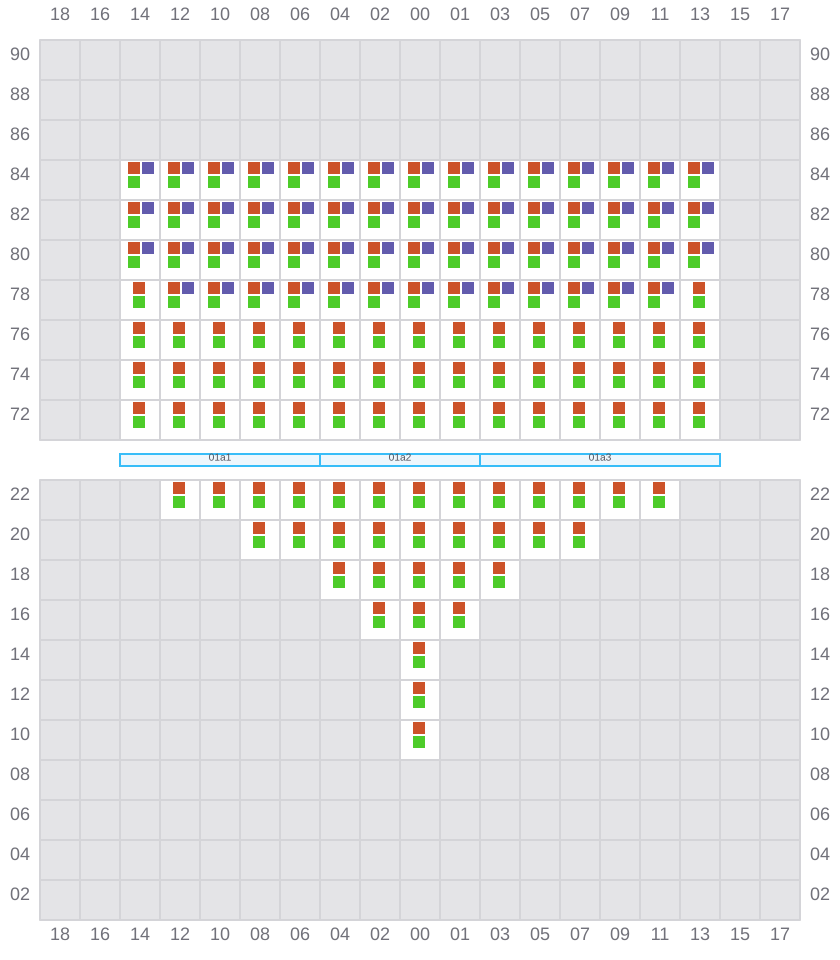

Bay 001 view and slots of MAERSK EVORA

003

  • ←
Bay 003 view and slots of MAERSK EVORA

005 (006)

  • →

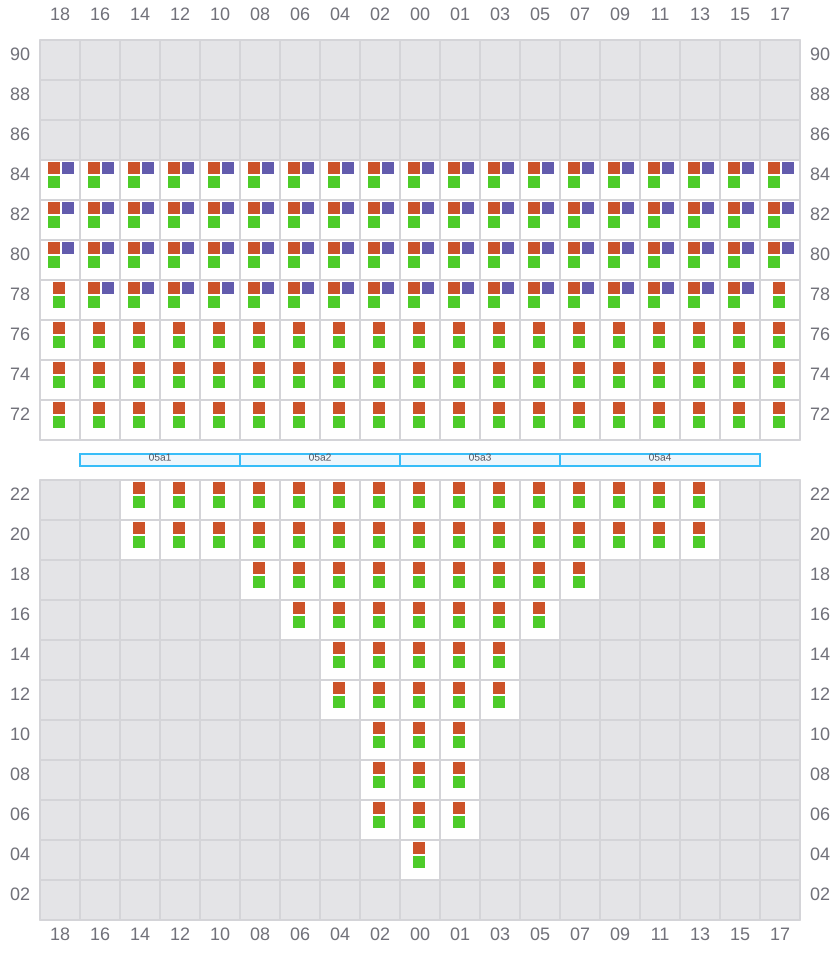

Bay 005 view and slots of MAERSK EVORA

007

  • ←
  • → / ?

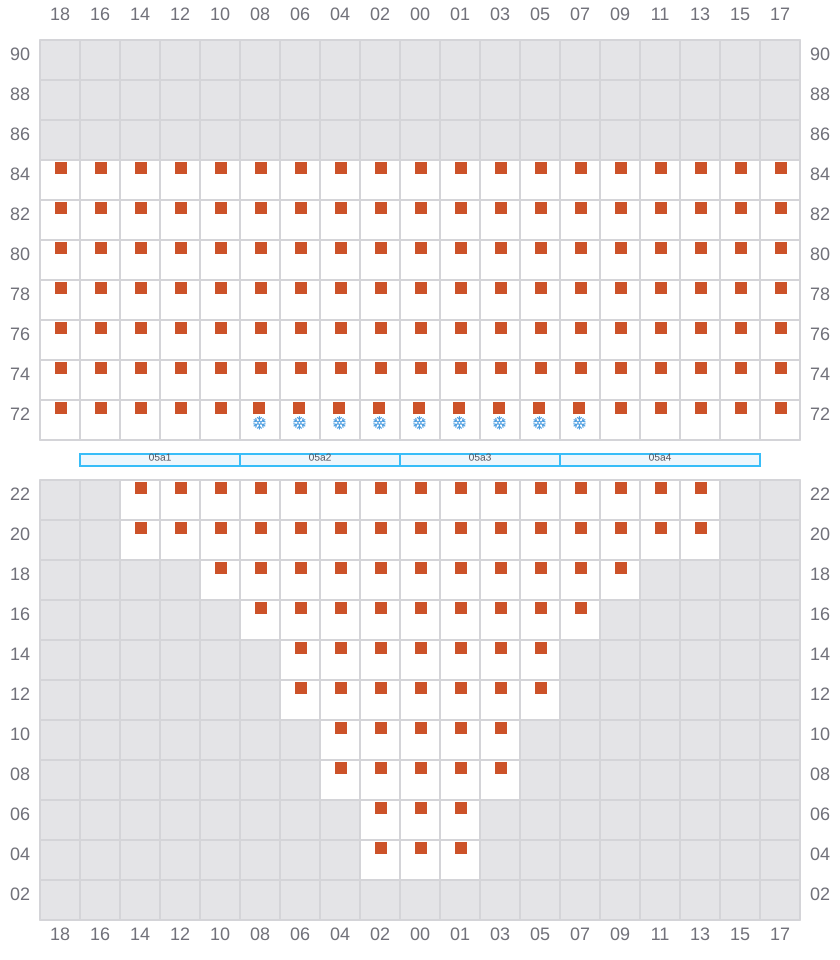

Bay 007 view and slots of MAERSK EVORA

009 (010)

  • →

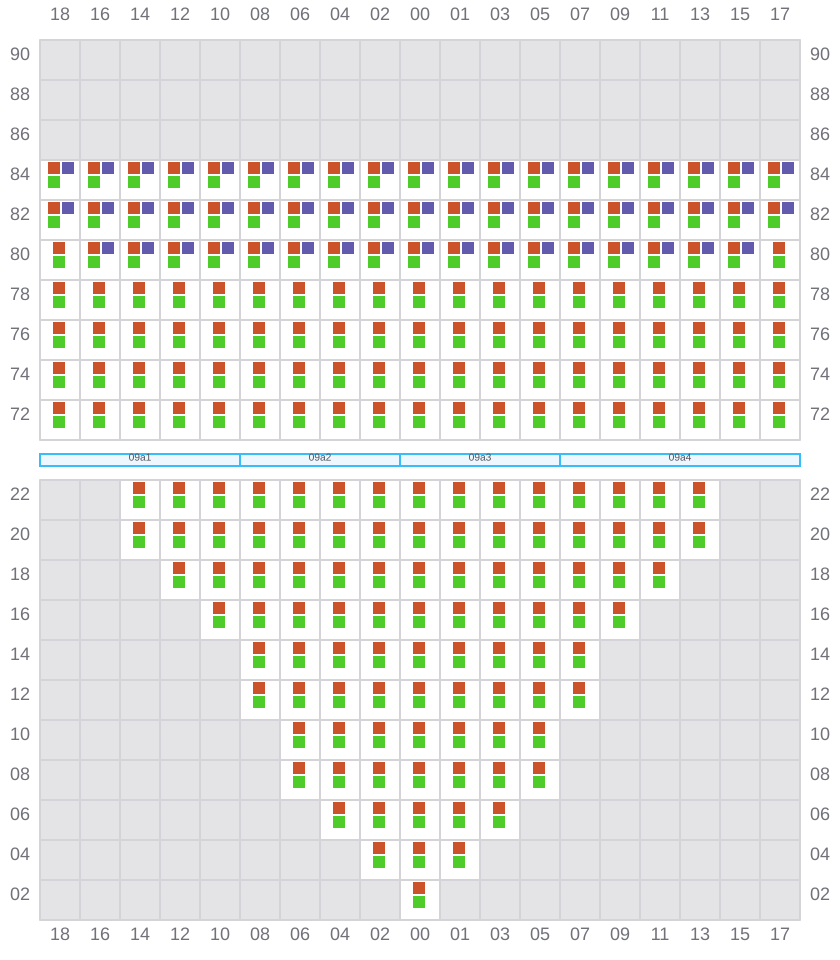

Bay 009 view and slots of MAERSK EVORA

011

  • ←
  • → / ?

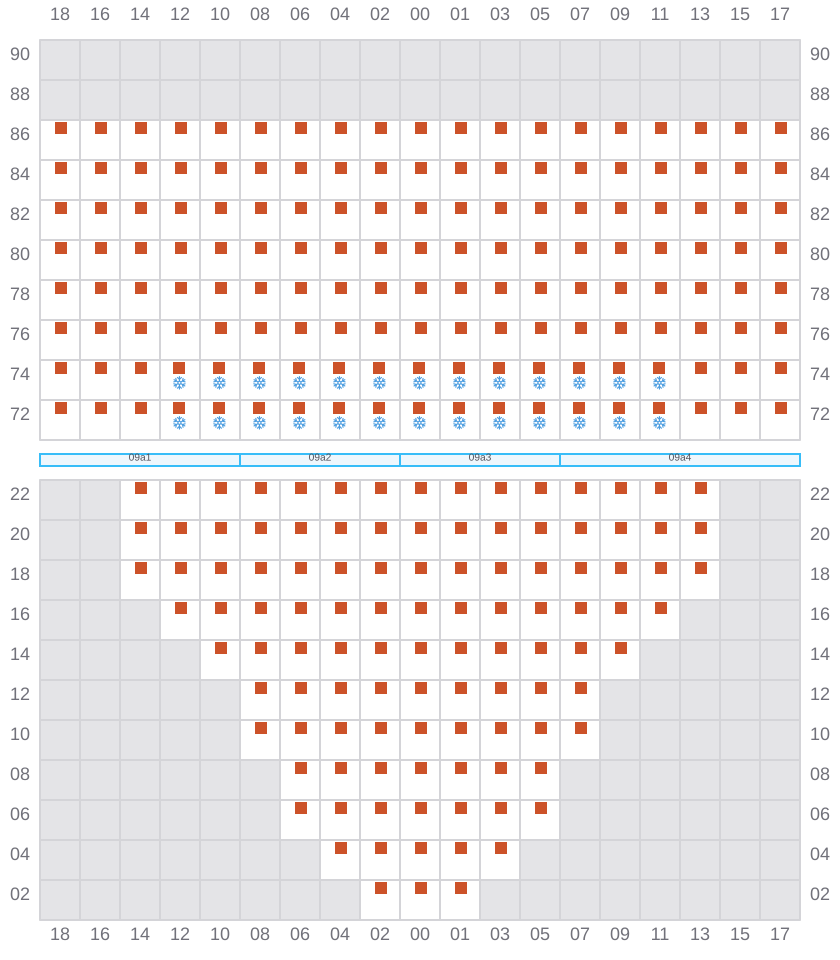

Bay 011 view and slots of MAERSK EVORA

013 (014)

  • →
Bay 013 view and slots of MAERSK EVORA

015

  • ←
  • → / ?

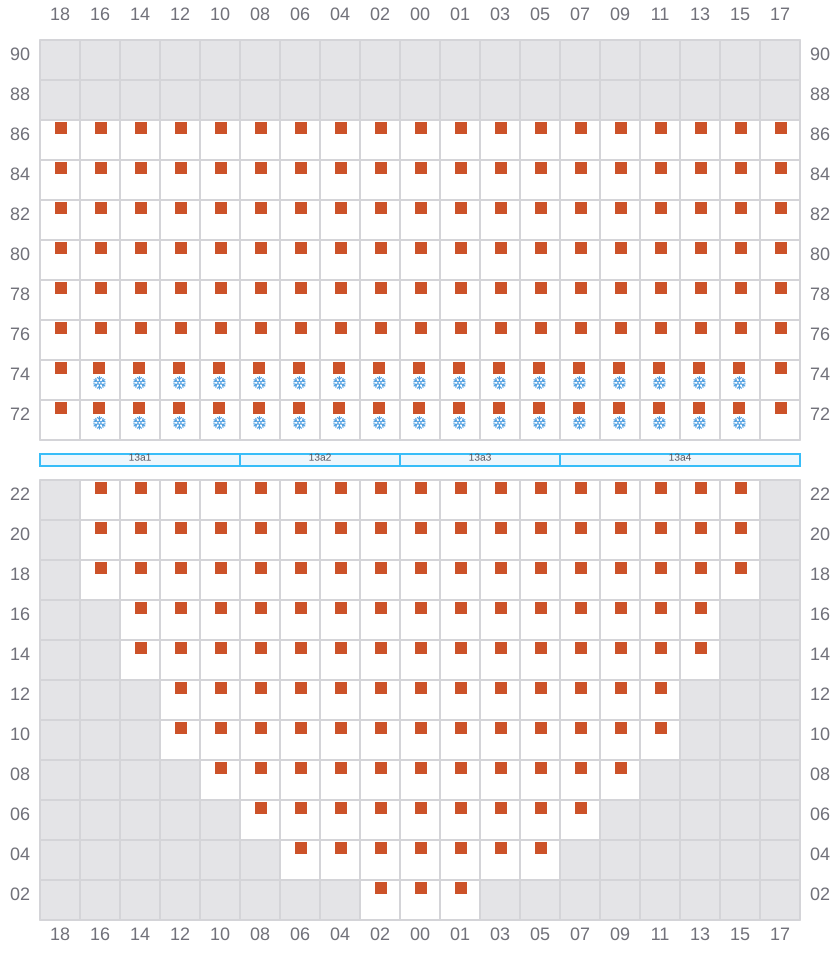

Bay 015 view and slots of MAERSK EVORA

017 (018)

  • →

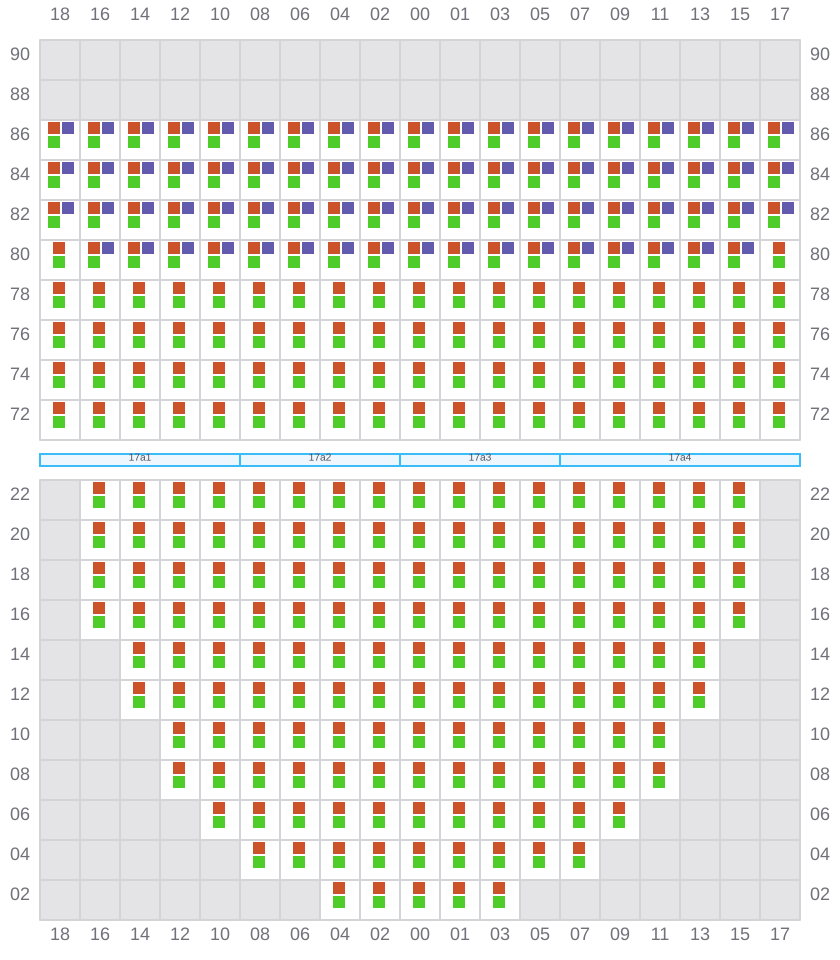

Bay 017 view and slots of MAERSK EVORA

019

  • ←
  • → / ?

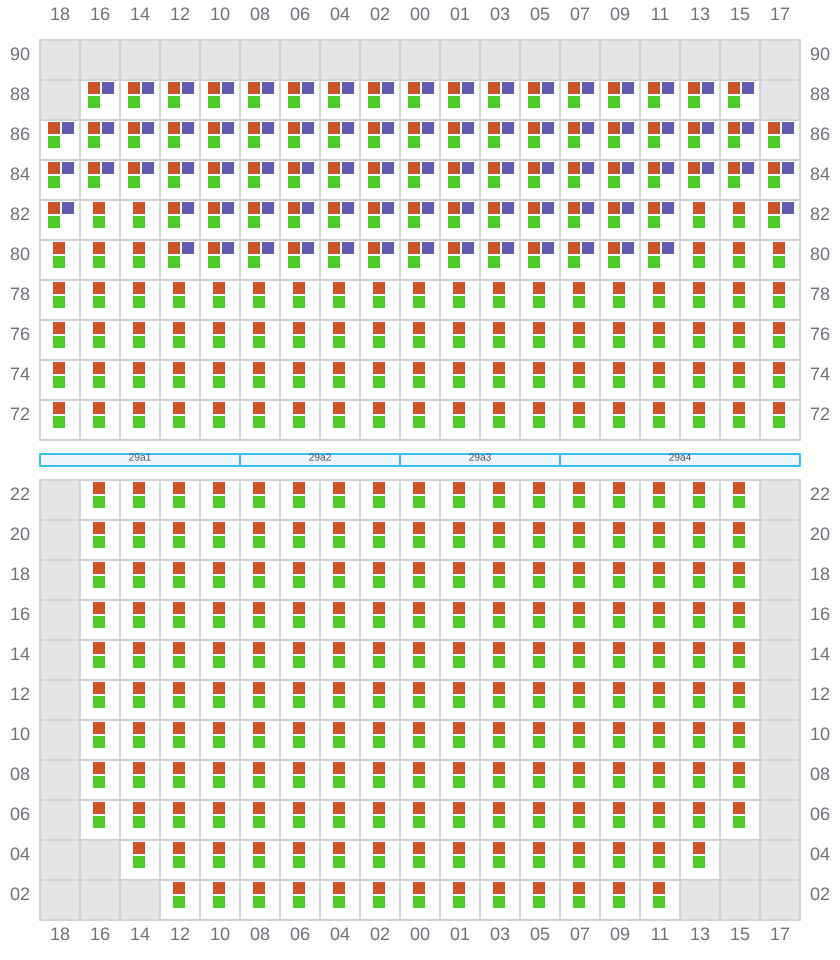

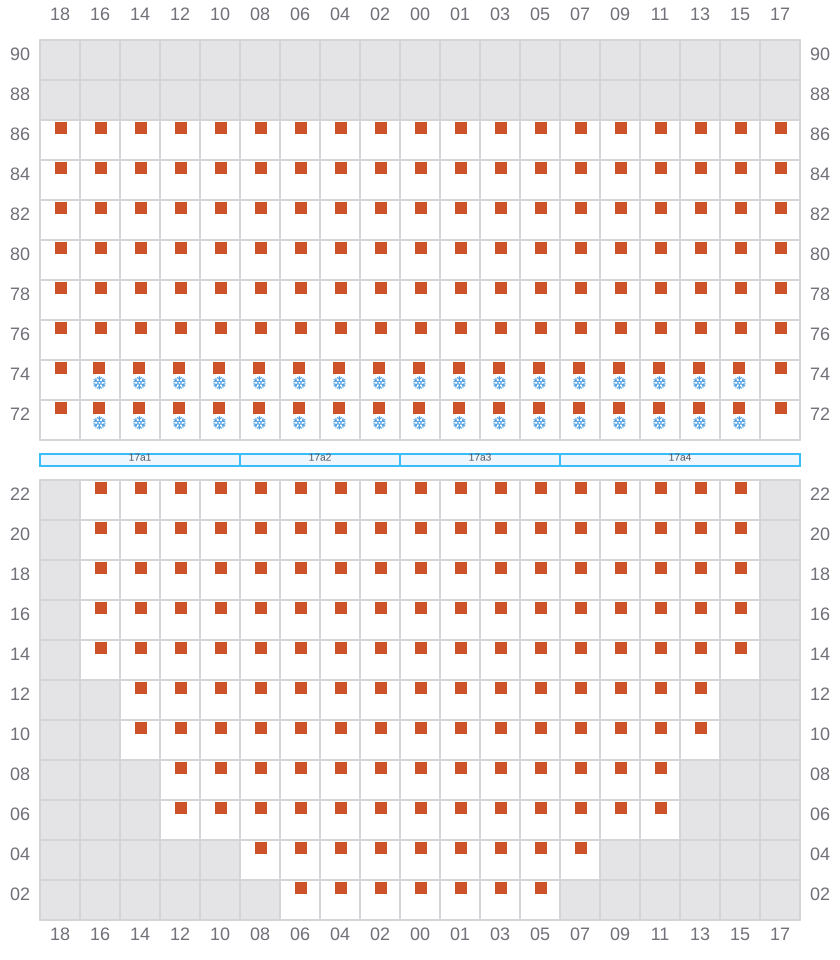

Bay 019 view and slots of MAERSK EVORA

021 (022)

  • →

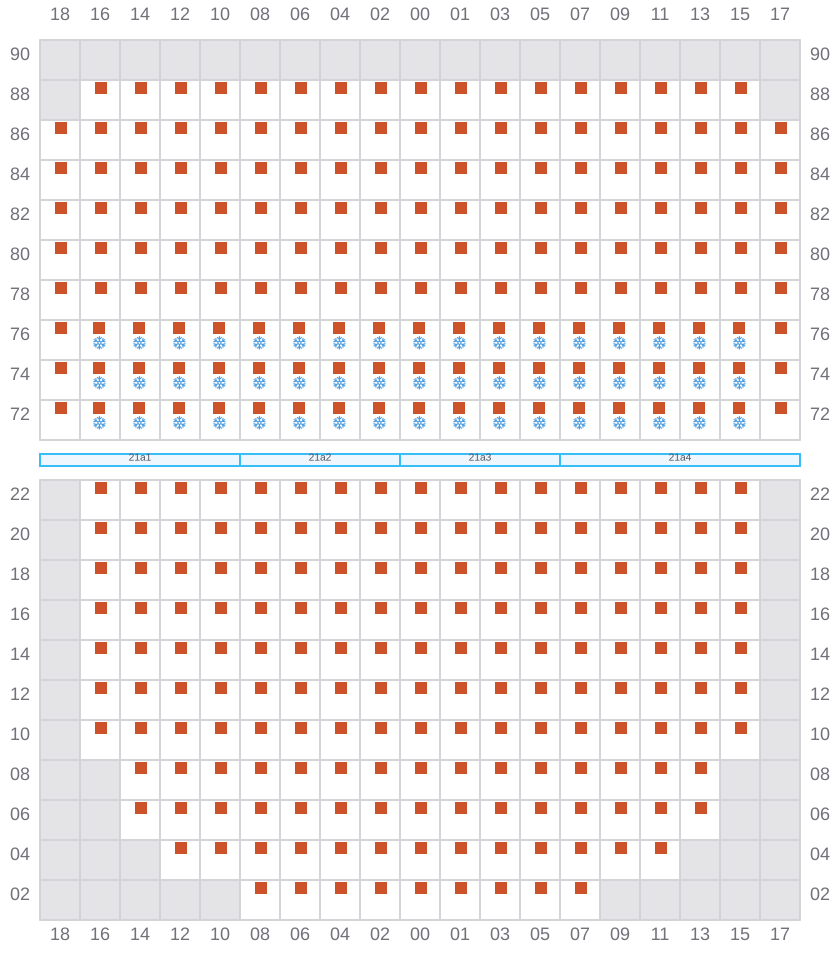

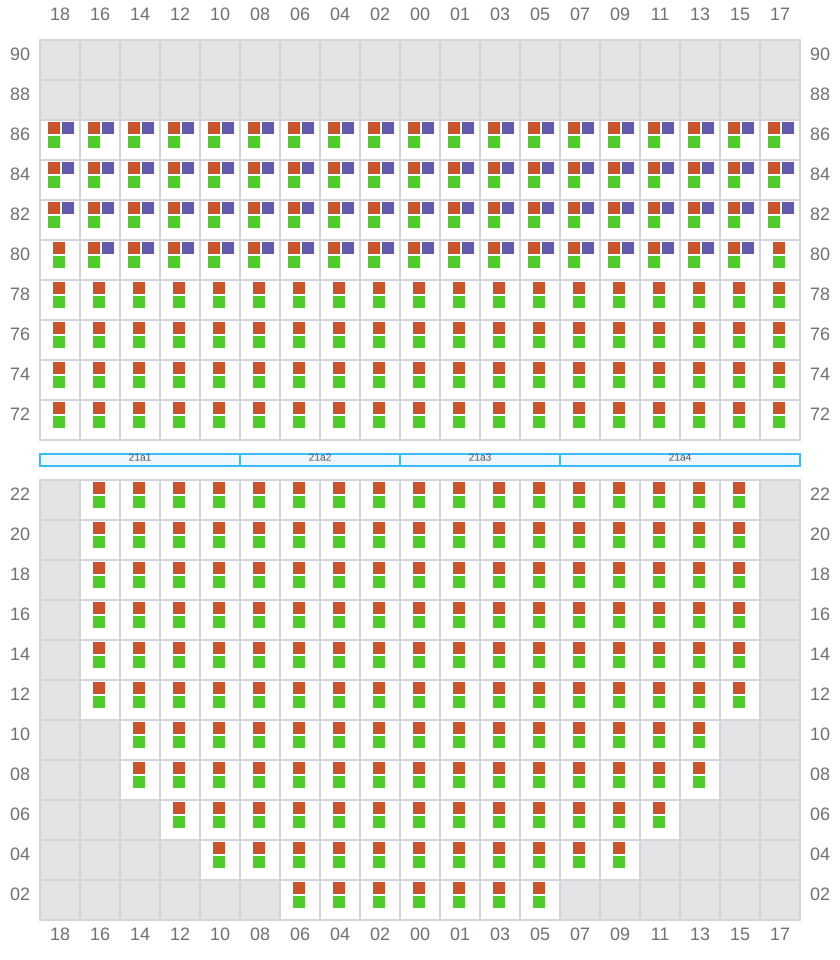

Bay 021 view and slots of MAERSK EVORA

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK EVORA

025 (026)

  • →

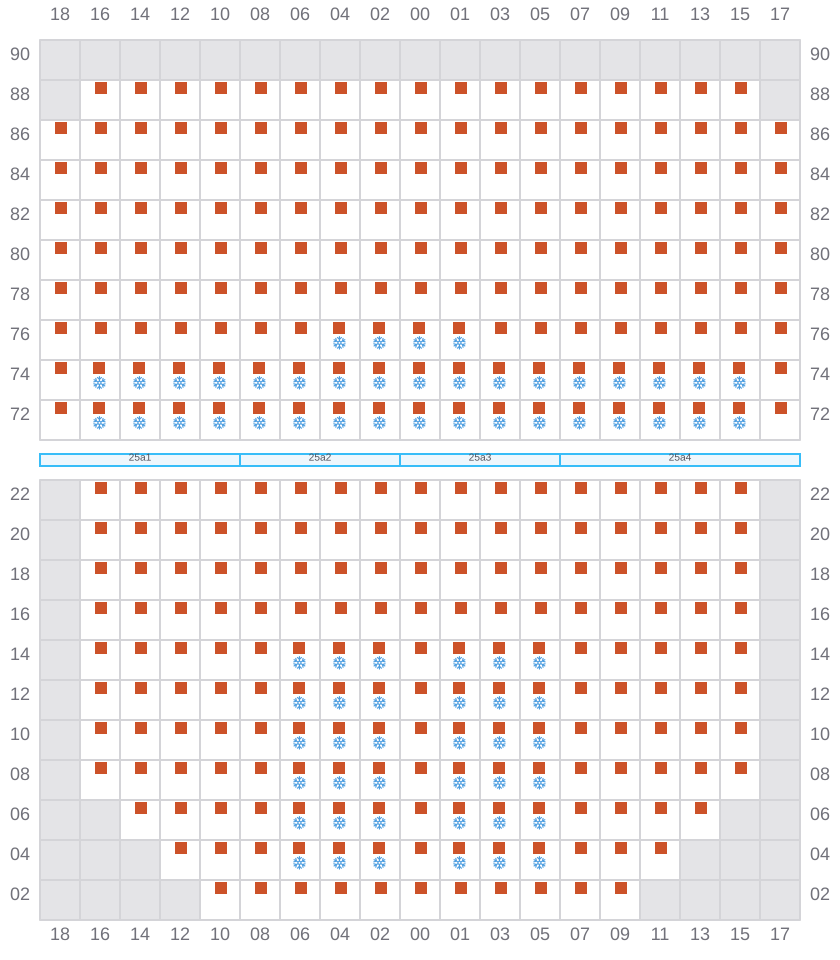

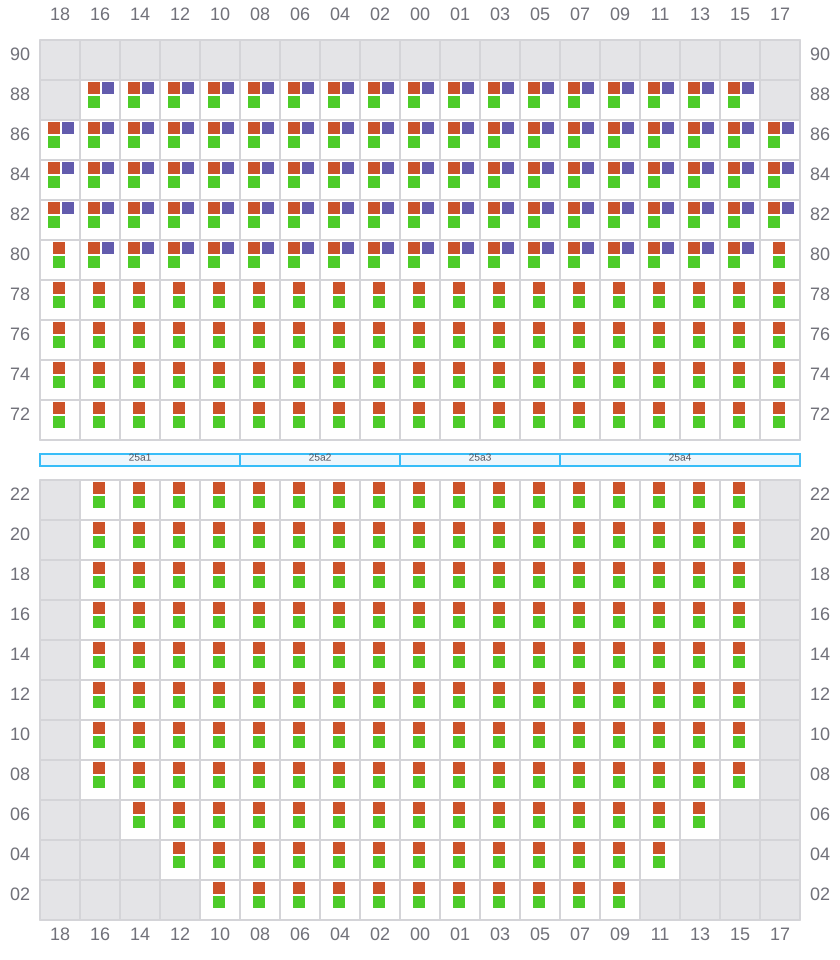

Bay 025 view and slots of MAERSK EVORA

027

  • ←
  • →
Bay 027 view and slots of MAERSK EVORA

029 (030)

  • →
Bay 029 view and slots of MAERSK EVORA

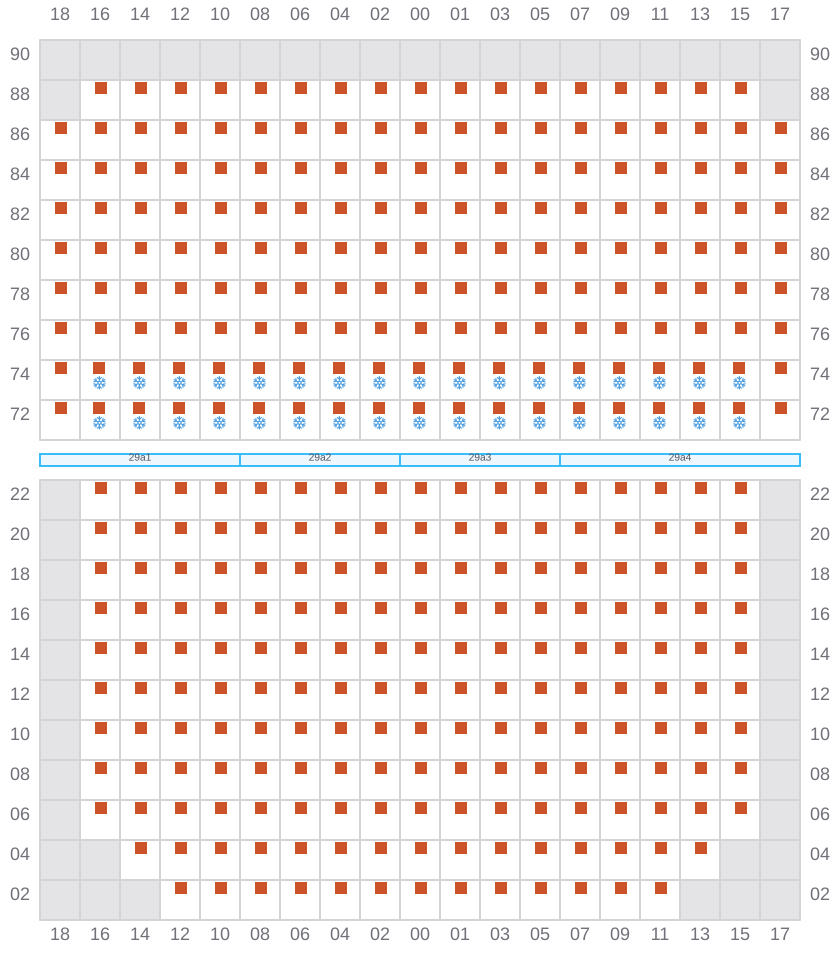

031

  • ←
  • → / ?
Bay 031 view and slots of MAERSK EVORA

033 (034)

  • →
Bay 033 view and slots of MAERSK EVORA

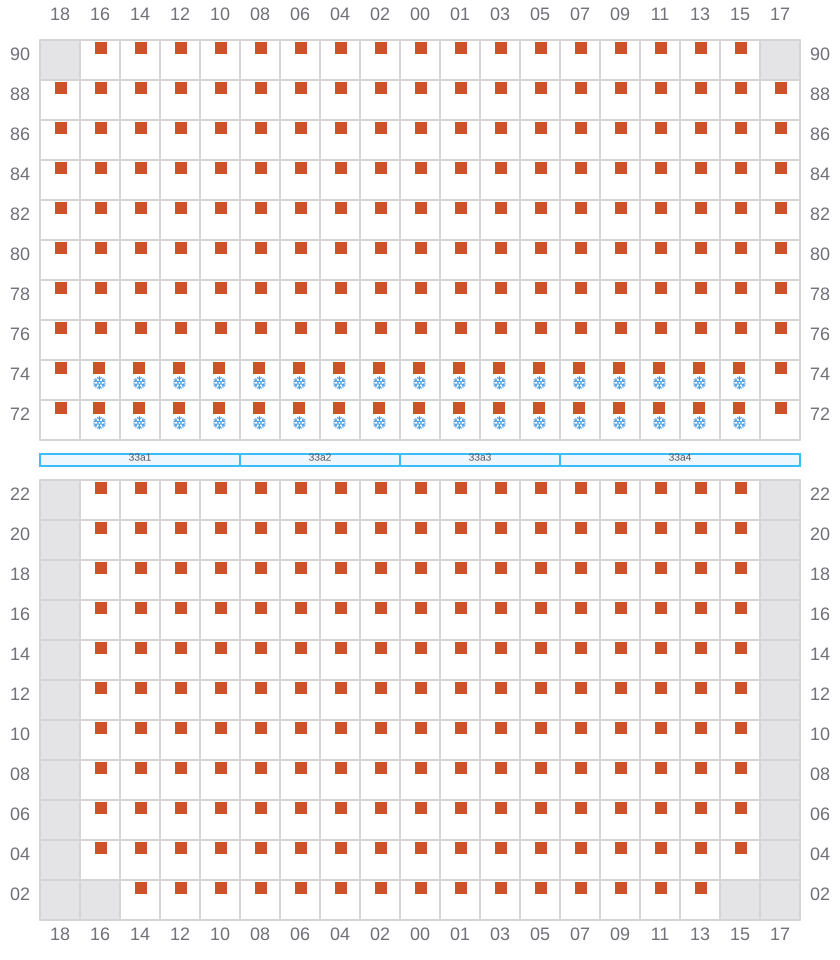

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK EVORA

037 (038)

  • →
Bay 037 view and slots of MAERSK EVORA

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK EVORA

041 (042)

  • →

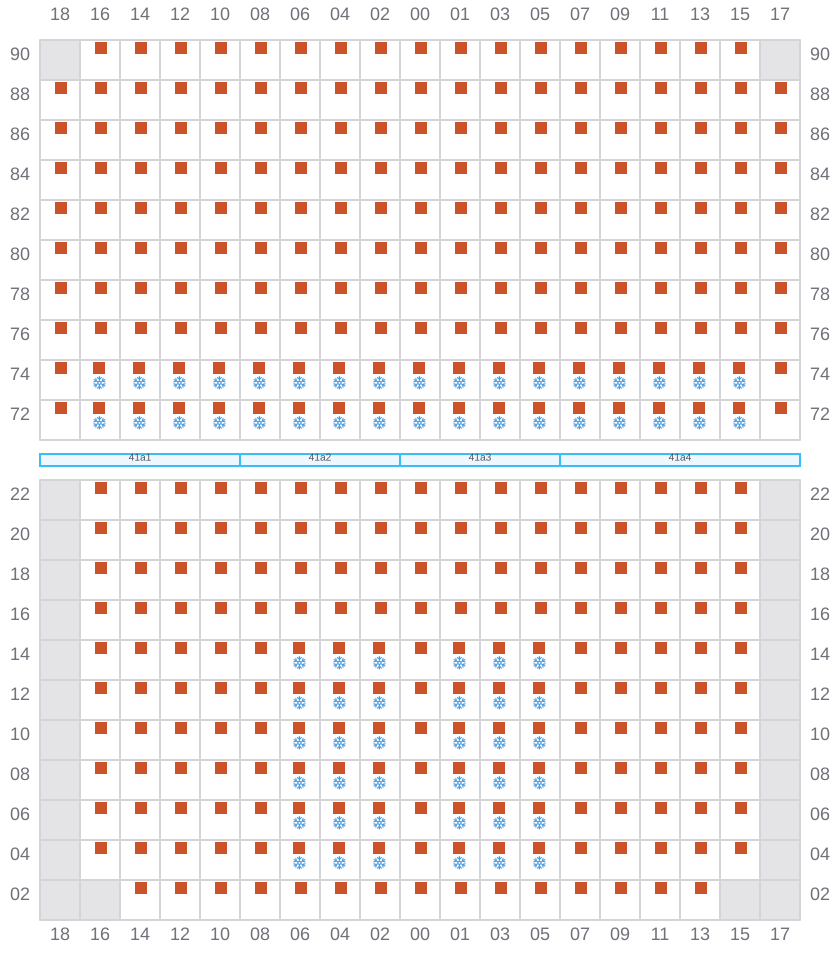

Bay 041 view and slots of MAERSK EVORA

043

  • ←
  • →
Bay 043 view and slots of MAERSK EVORA

045 (046)

  • →

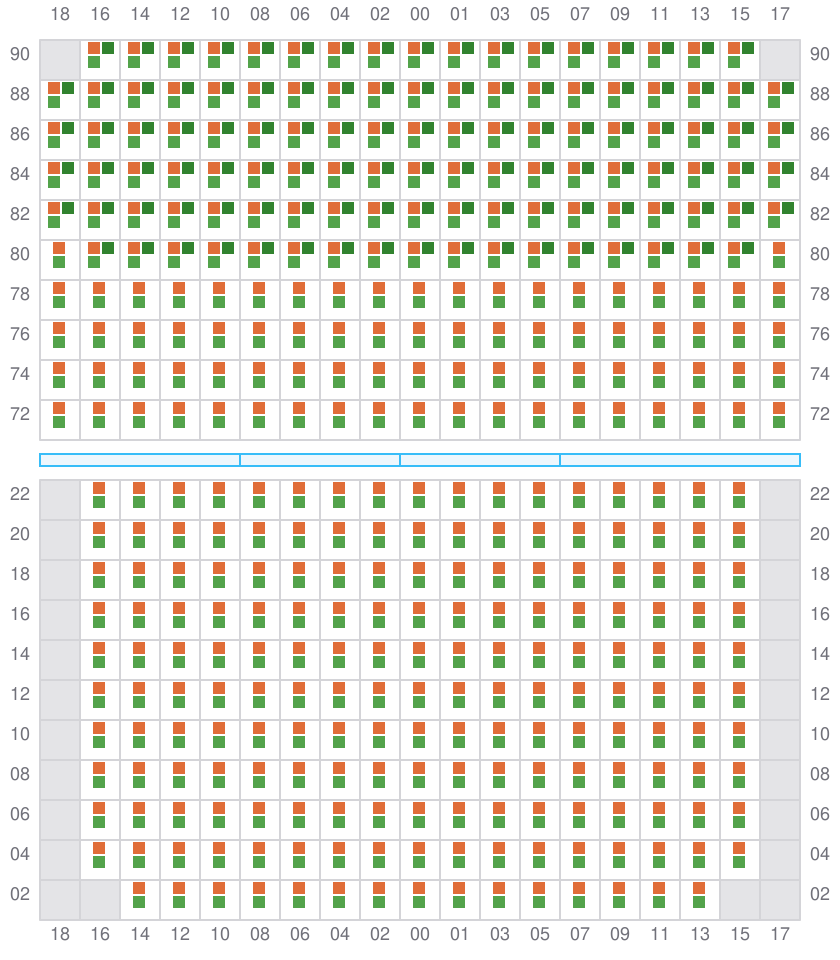

Bay 045 view and slots of MAERSK EVORA

047

  • ←
  • → / ?
Bay 047 view and slots of MAERSK EVORA

049 (050)

  • →
Bay 049 view and slots of MAERSK EVORA

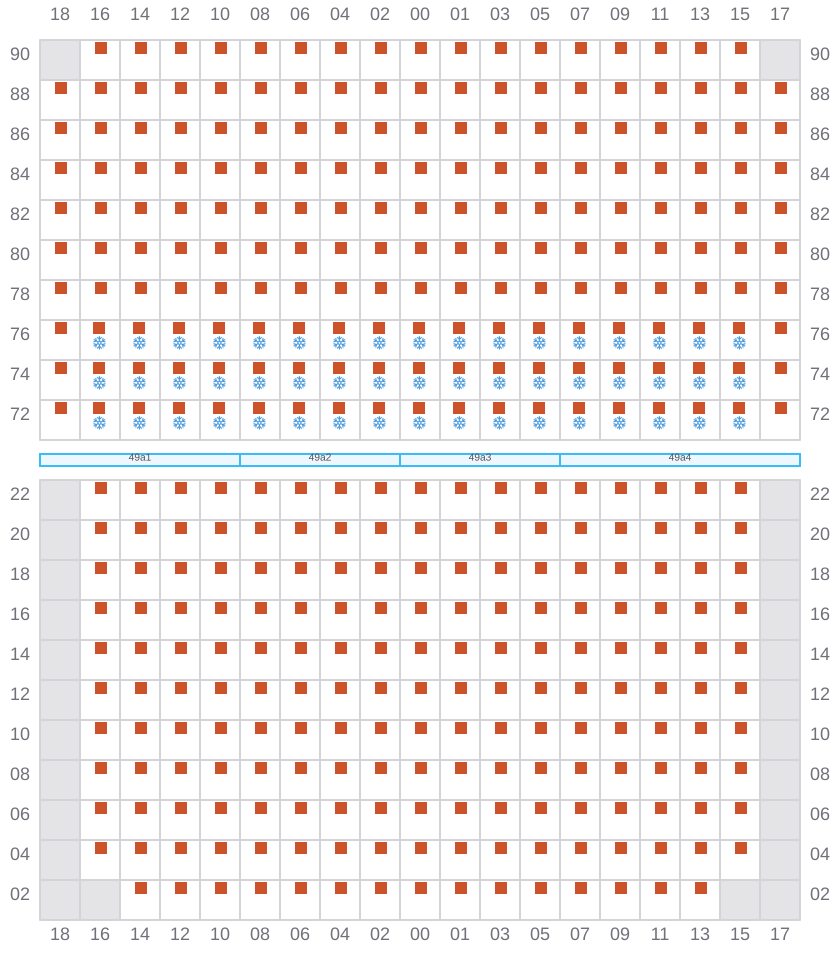

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK EVORA

053 (054)

  • →

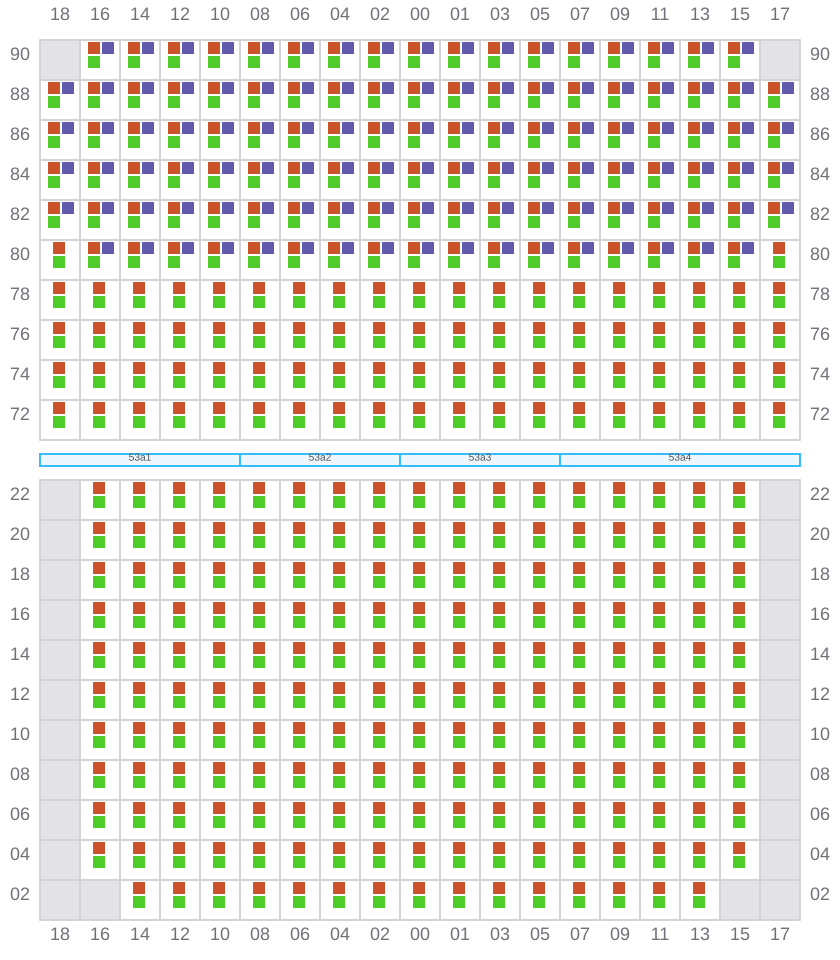

Bay 053 view and slots of MAERSK EVORA

055

  • ←
  • → / ?

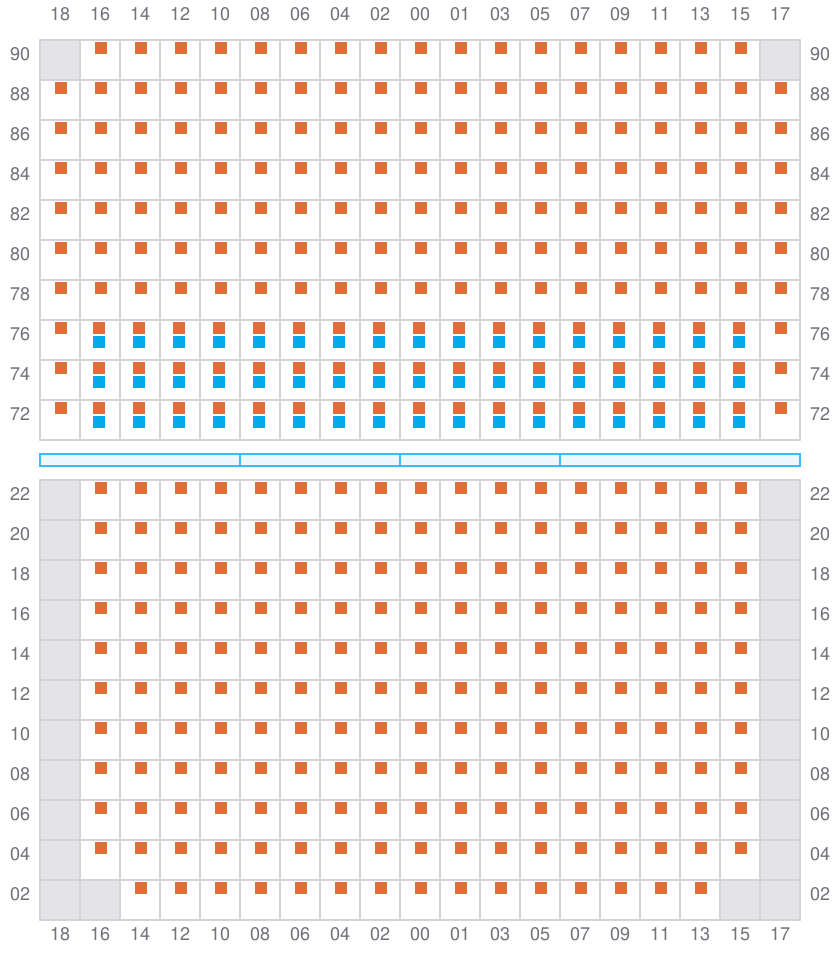

Bay 055 view and slots of MAERSK EVORA

057 (058)

  • →

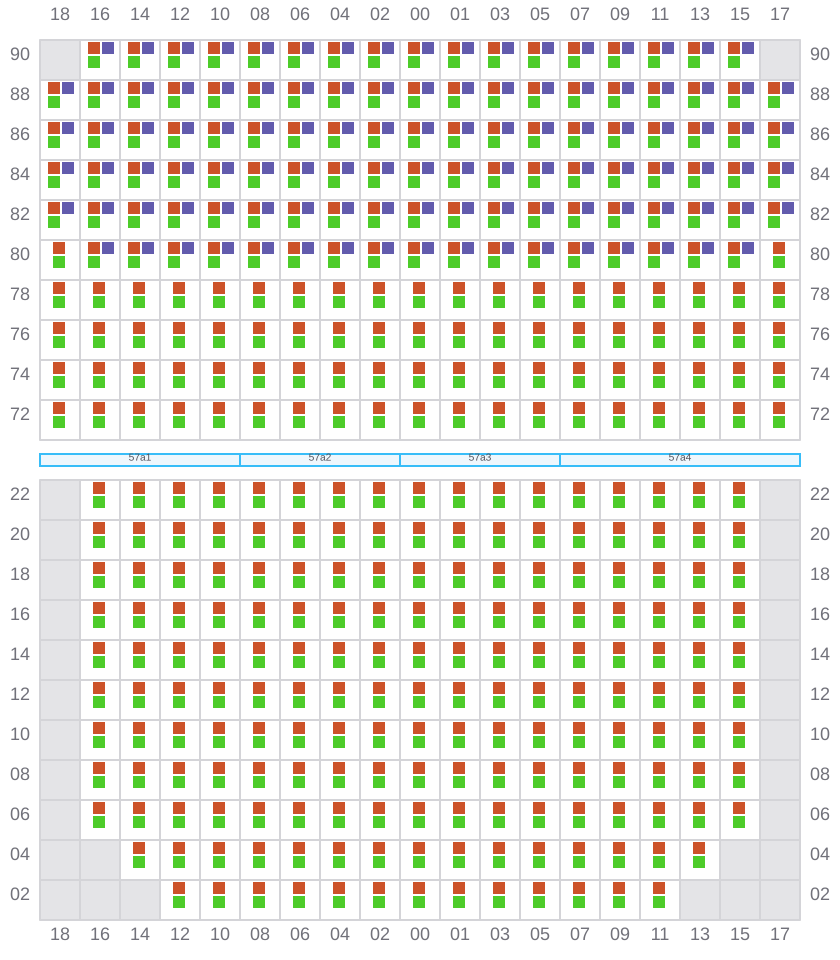

Bay 057 view and slots of MAERSK EVORA

059

  • ←
  • →

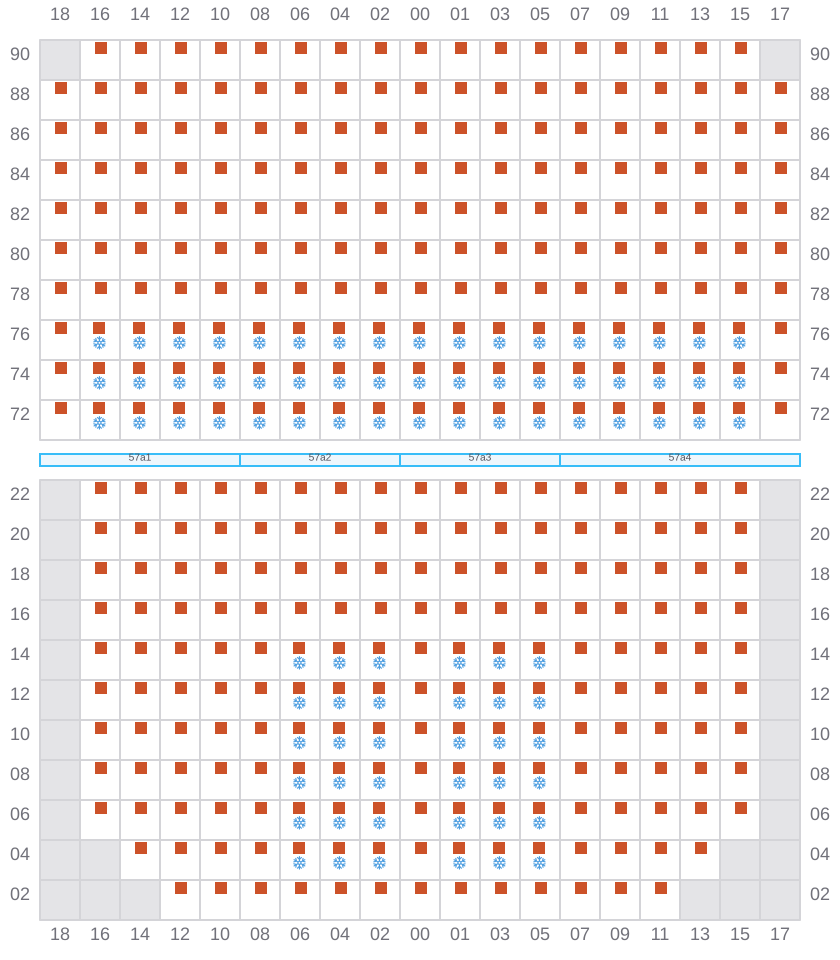

Bay 059 view and slots of MAERSK EVORA

061 (062)

  • →
Bay 061 view and slots of MAERSK EVORA

063

  • ←
  • → / ?

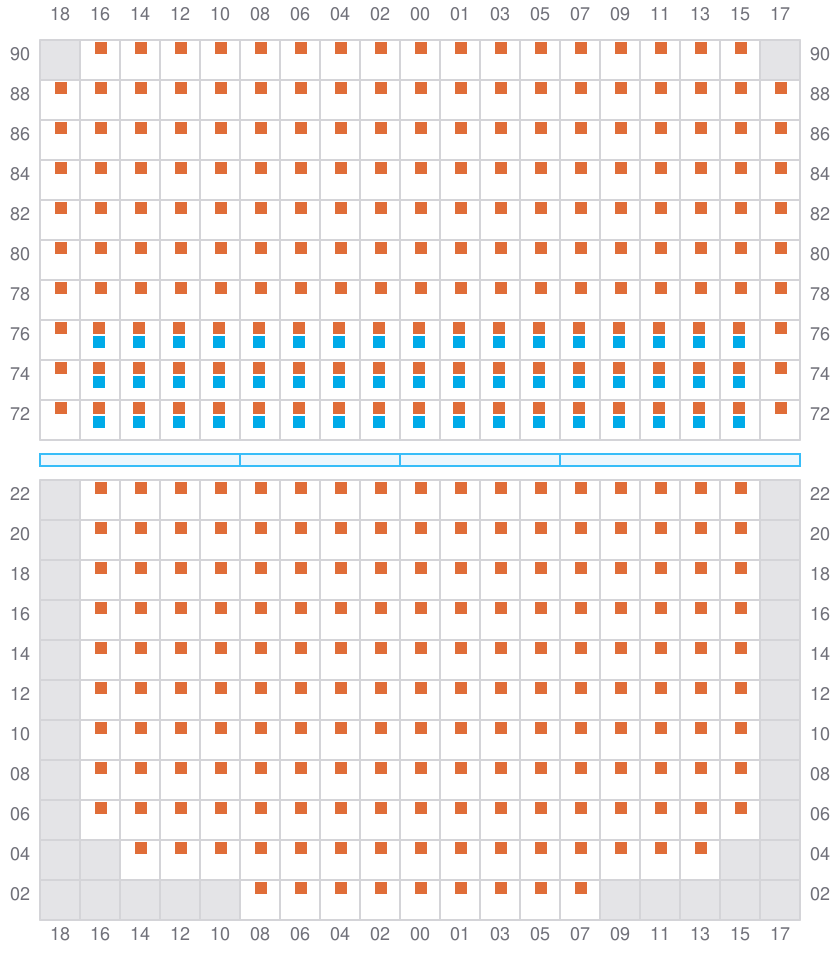

Bay 063 view and slots of MAERSK EVORA

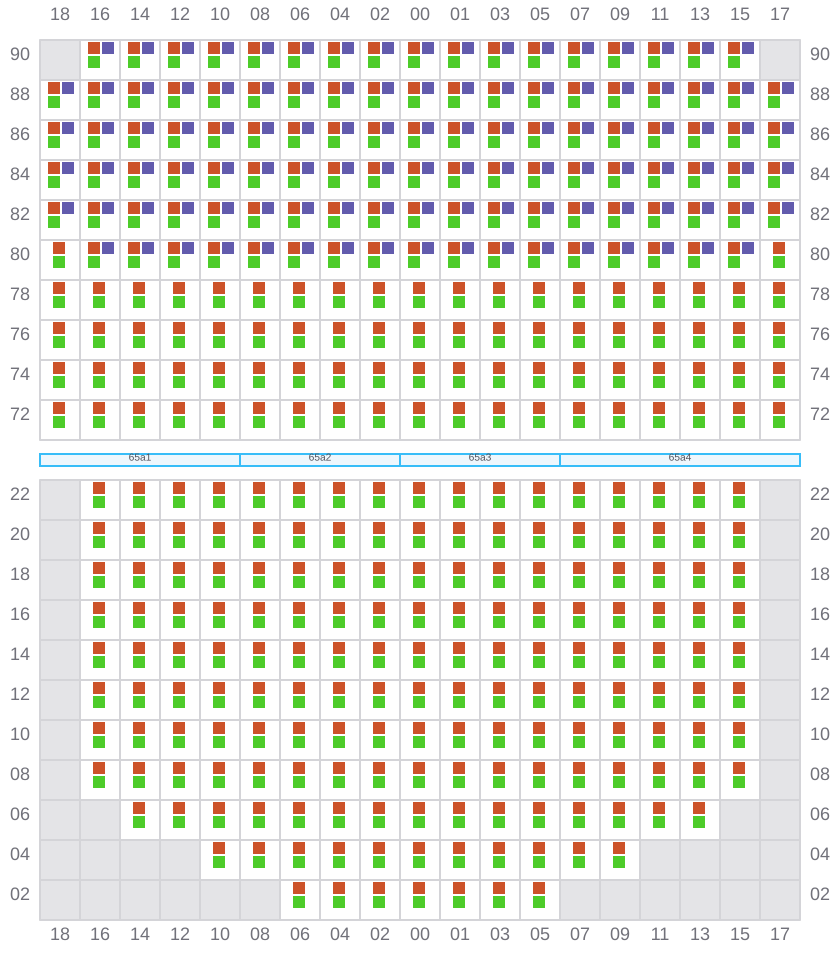

065 (066)

  • →
Bay 065 view and slots of MAERSK EVORA

067

  • ←
  • → / ?

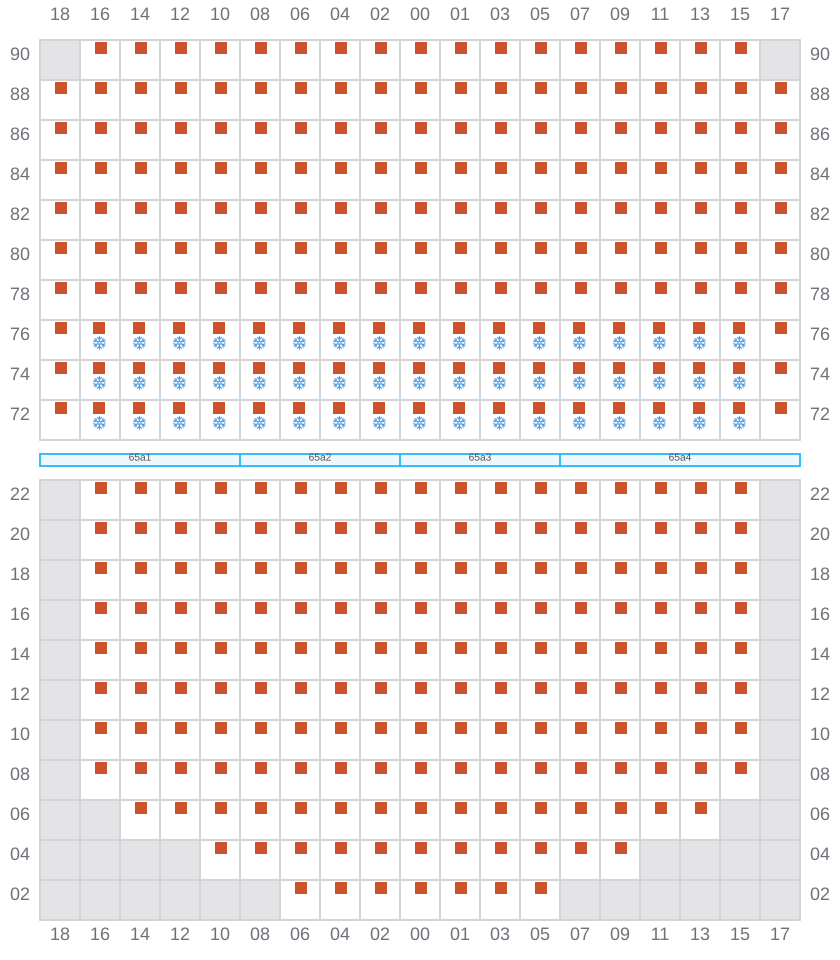

Bay 067 view and slots of MAERSK EVORA

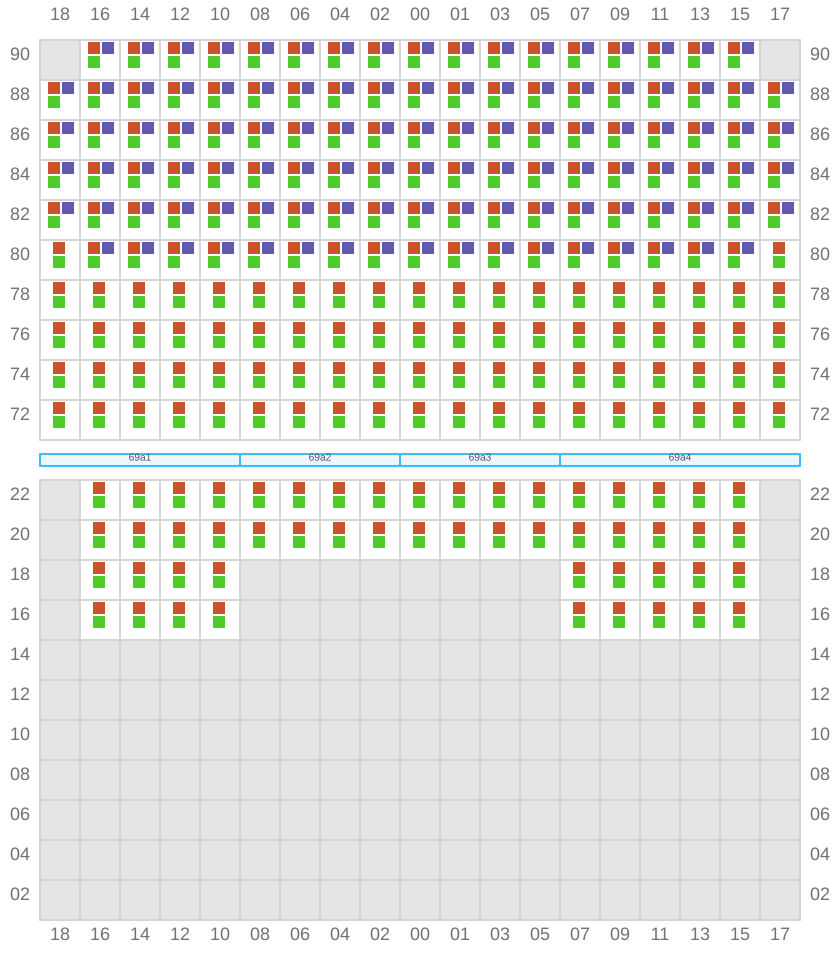

069 (070)

  • →

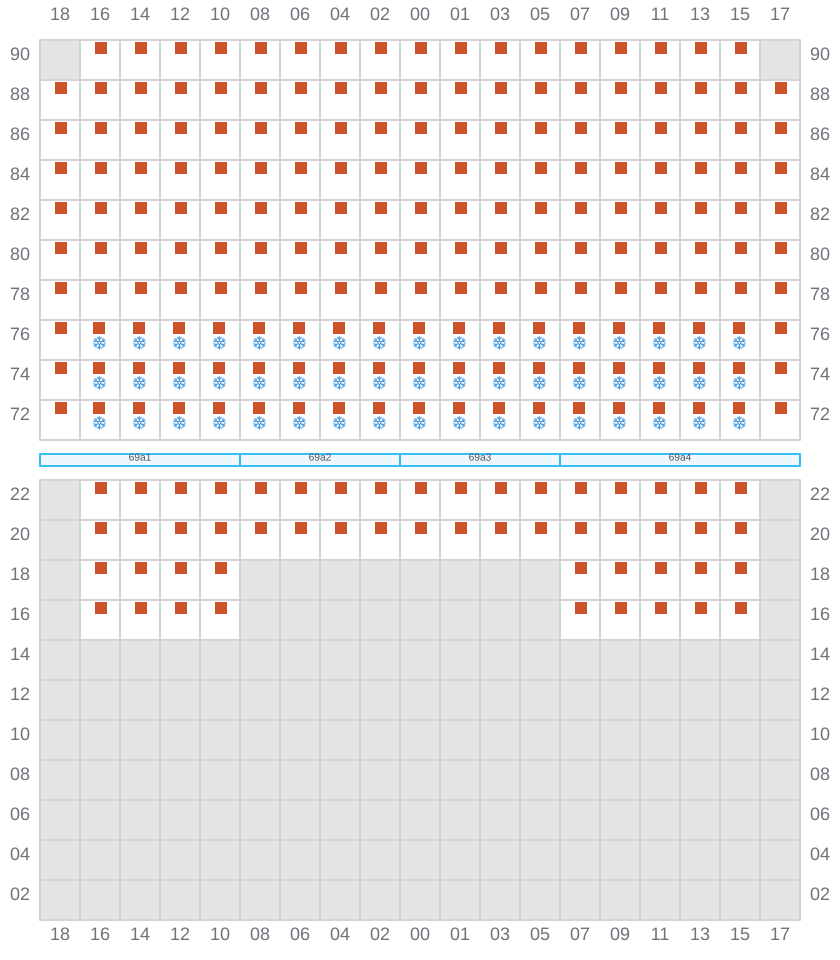

Bay 069 view and slots of MAERSK EVORA

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK EVORA

073 (074)

  • →

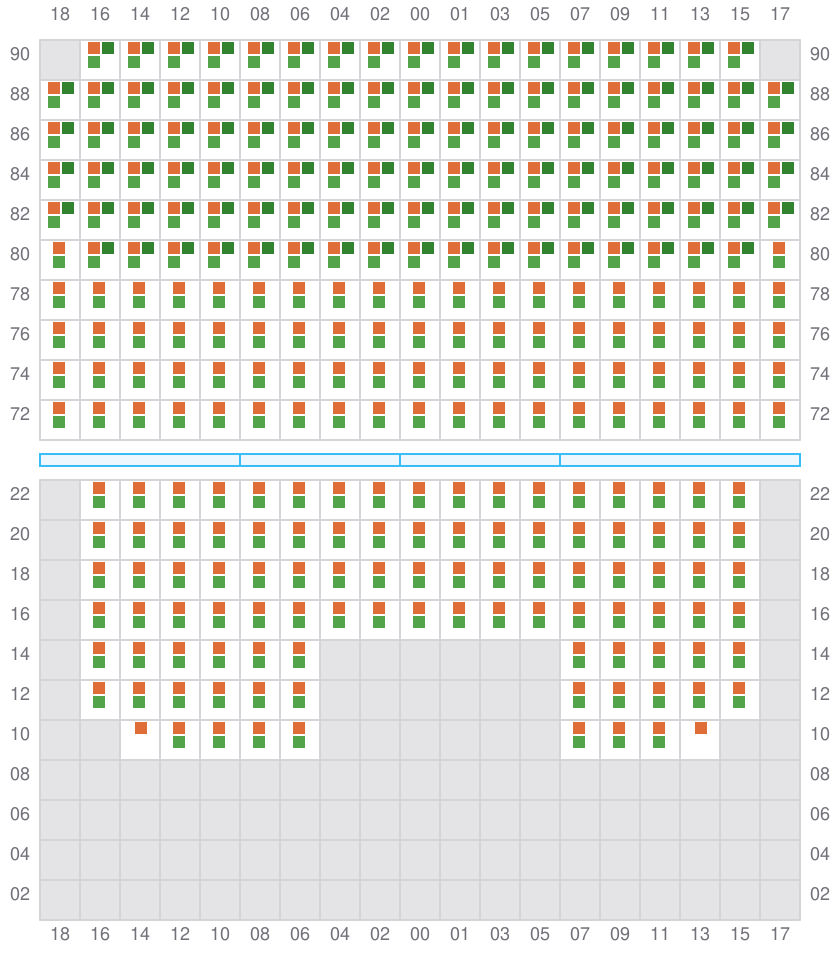

Bay 073 view and slots of MAERSK EVORA

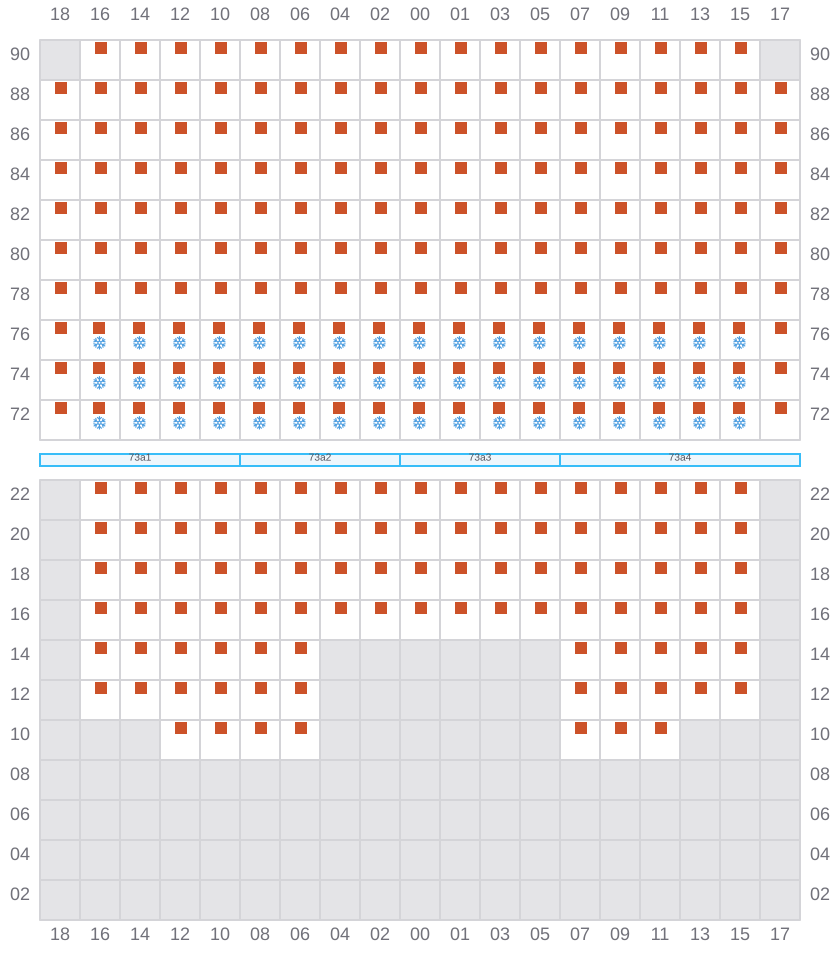

075

  • ←
  • → / ?
Bay 075 view and slots of MAERSK EVORA

077 (078)

  • →

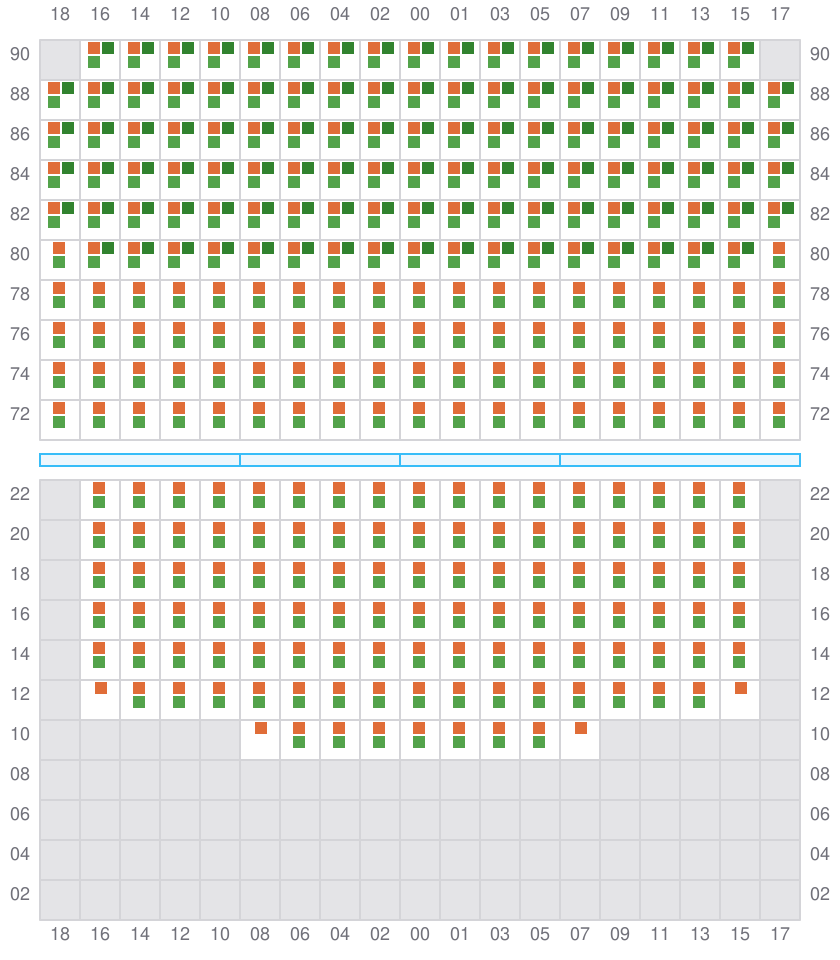

Bay 077 view and slots of MAERSK EVORA

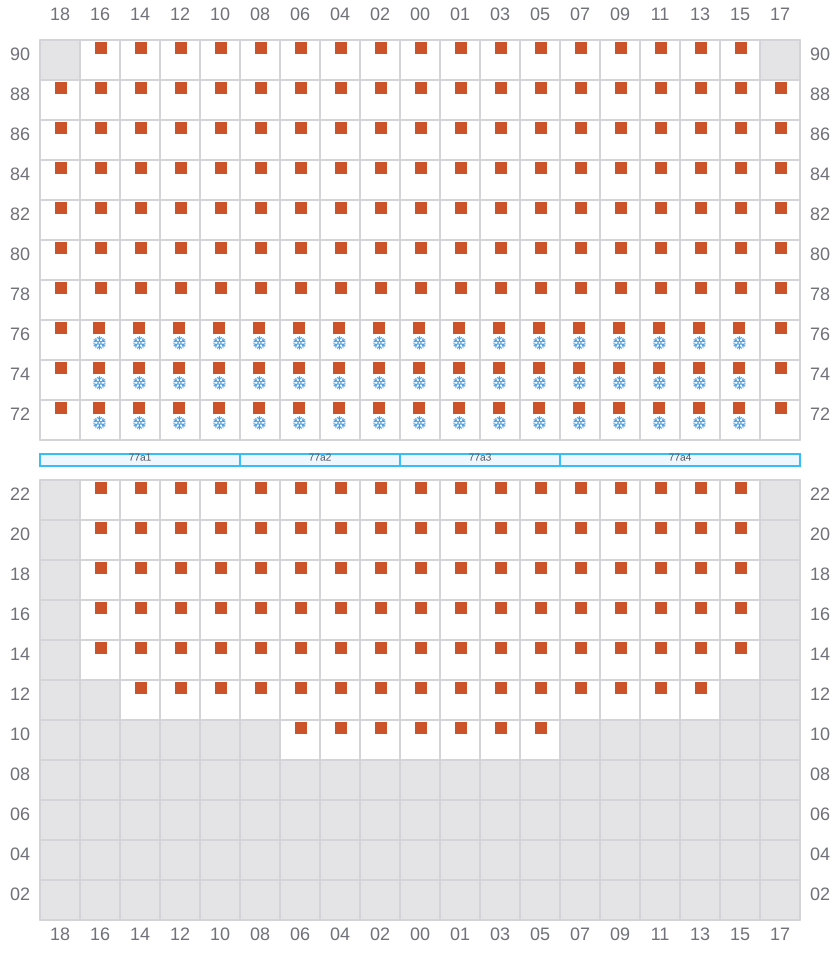

079

  • ←
  • → / ?
Bay 079 view and slots of MAERSK EVORA

081 (082)

  • →

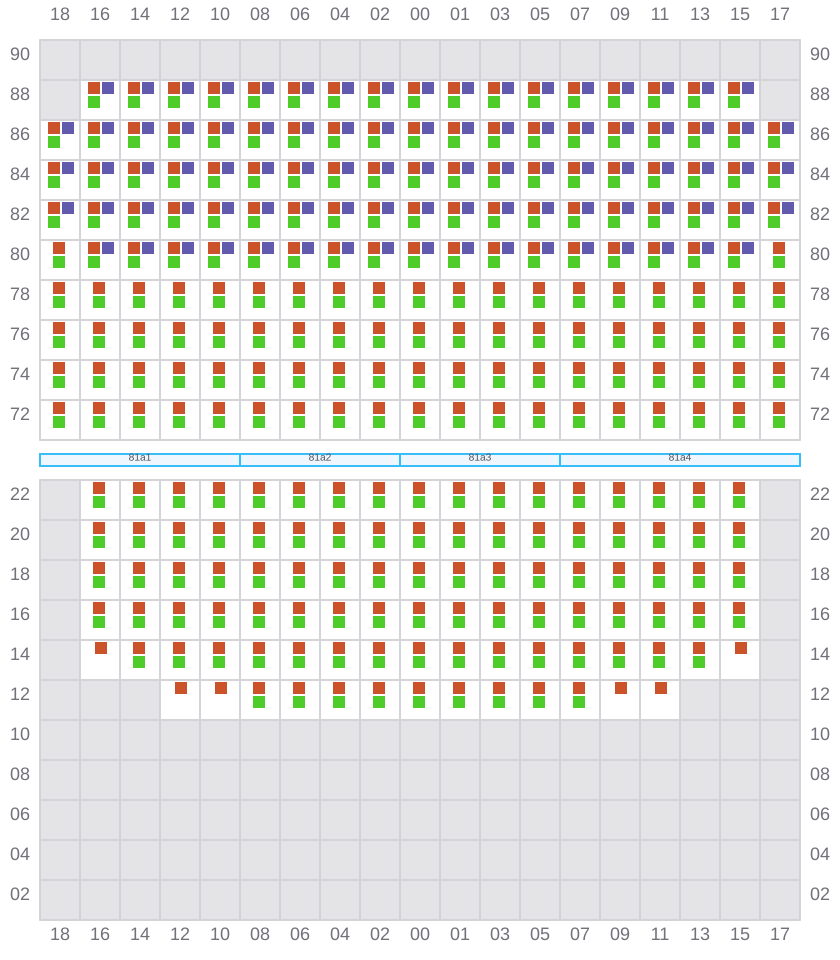

Bay 081 view and slots of MAERSK EVORA

083

  • ←
  • → / ?

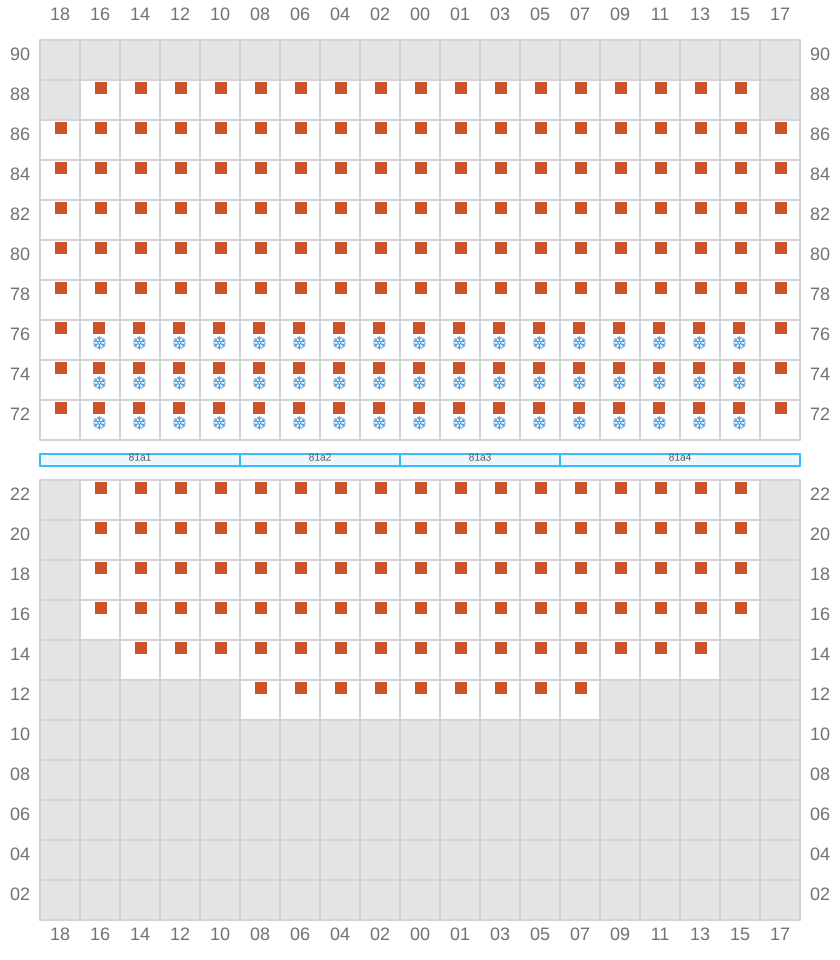

Bay 083 view and slots of MAERSK EVORA

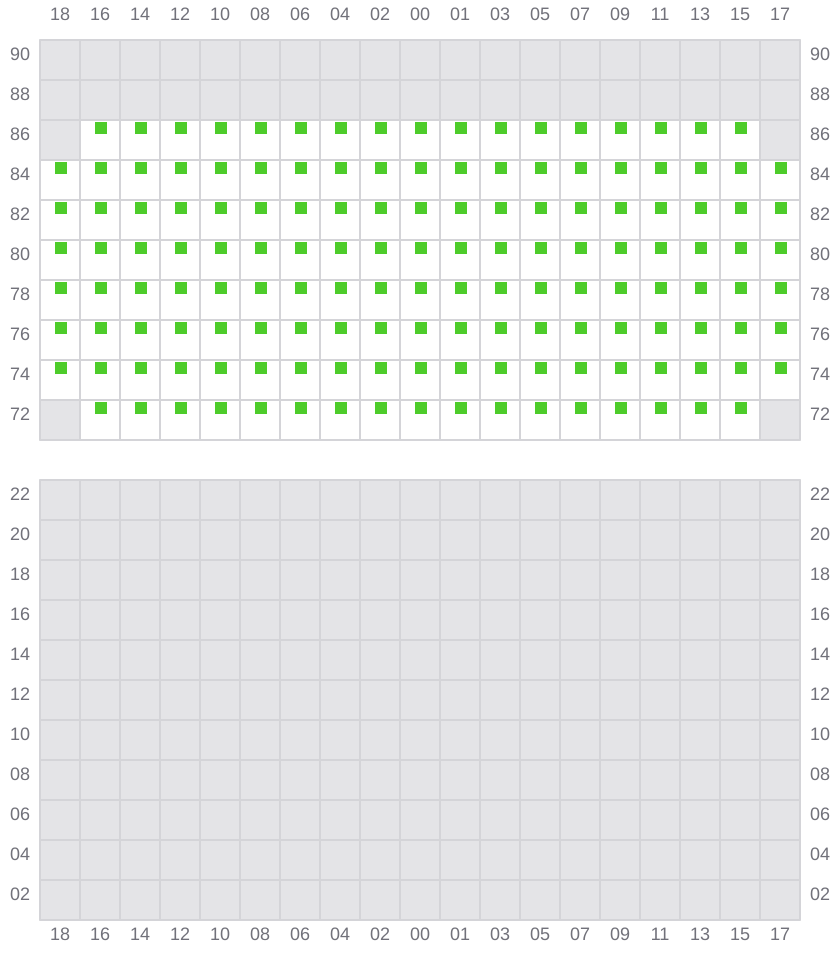

085 (086)

  • → / ?
Bay 085 view and slots of MAERSK EVORA
