MAERSK FREDERICIA
9969077 | 9V8565 | BERNHARD SCHULTE-HKG LP by ************************** Last update: Wed Dec 10 2025

General Info

Ship Name:MAERSK FREDERICIA
IMO Code:9969077
Call Sign:9V8565
Line Operator:BERNHARD SCHULTE-HKG LP
Class Name for Sister Ships:MFR
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):247.00
LOA (Length Overall):255.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:059
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,920

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

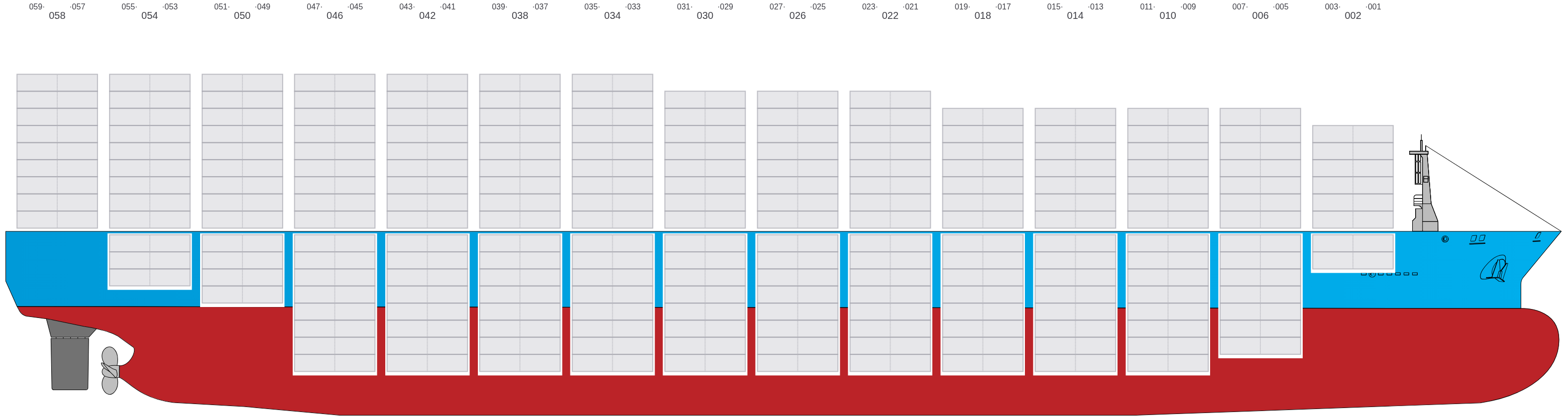

Side view of MAERSK FREDERICIA

Hatch-Covers View

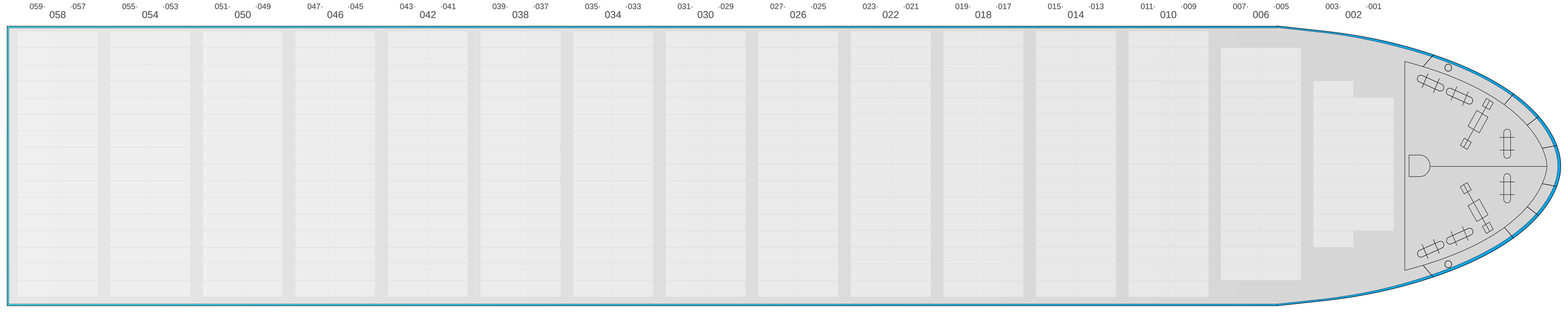

Deck view of MAERSK FREDERICIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

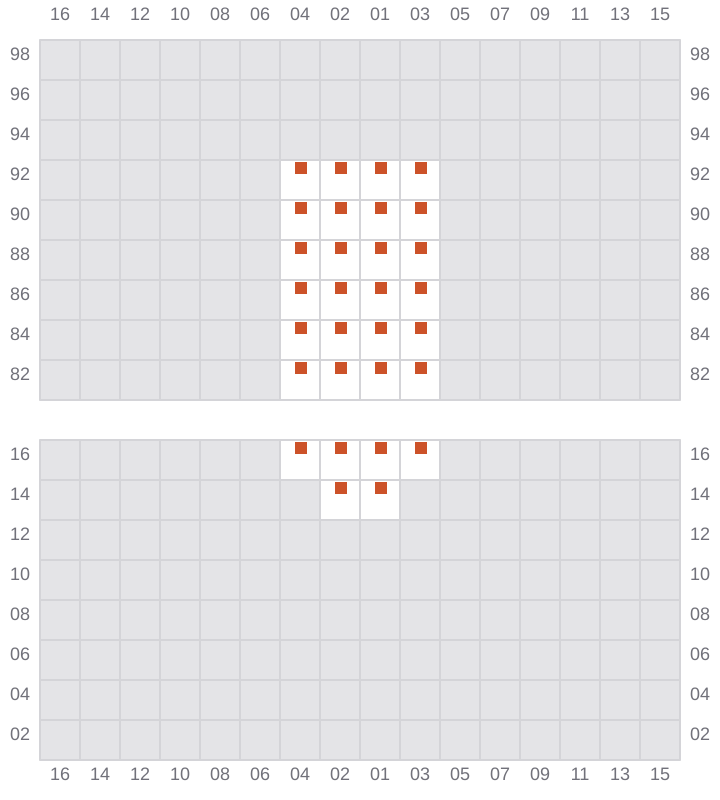

Bay 001 view and slots of MAERSK FREDERICIA

003 (002)

  • ←
  • ✓

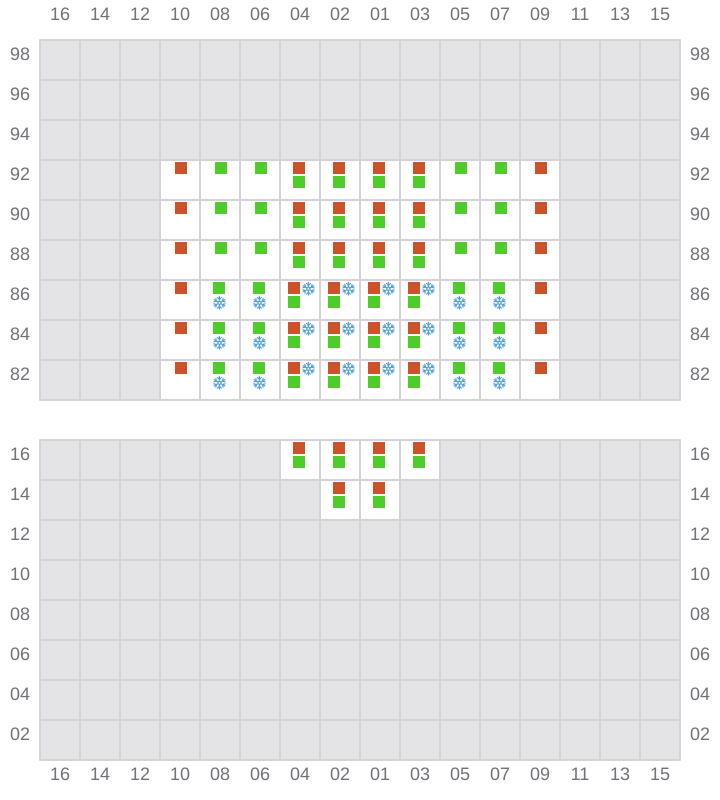

Bay 003 view and slots of MAERSK FREDERICIA

005

  • →
  • ✓

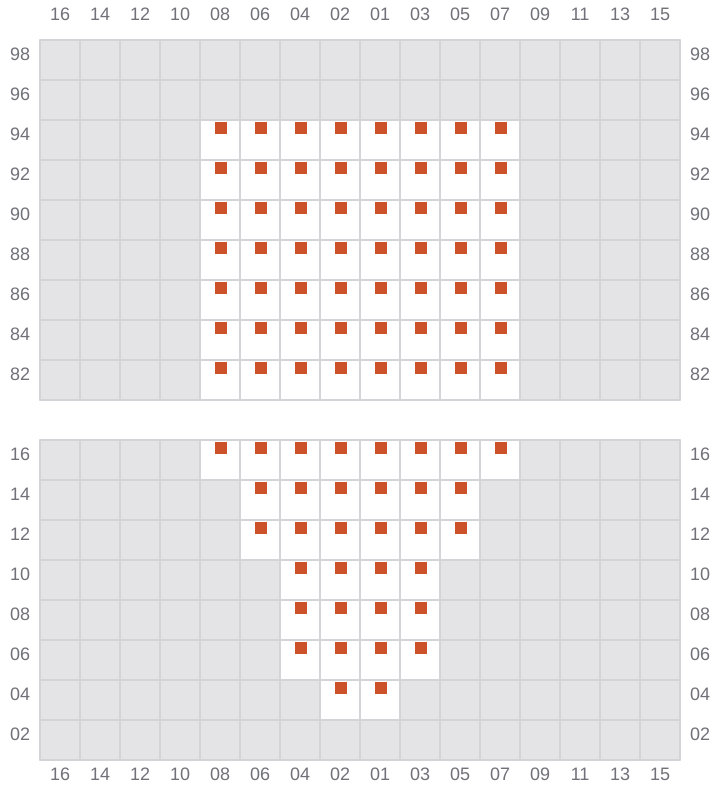

Bay 005 view and slots of MAERSK FREDERICIA

007 (006)

  • ←
  • ✓

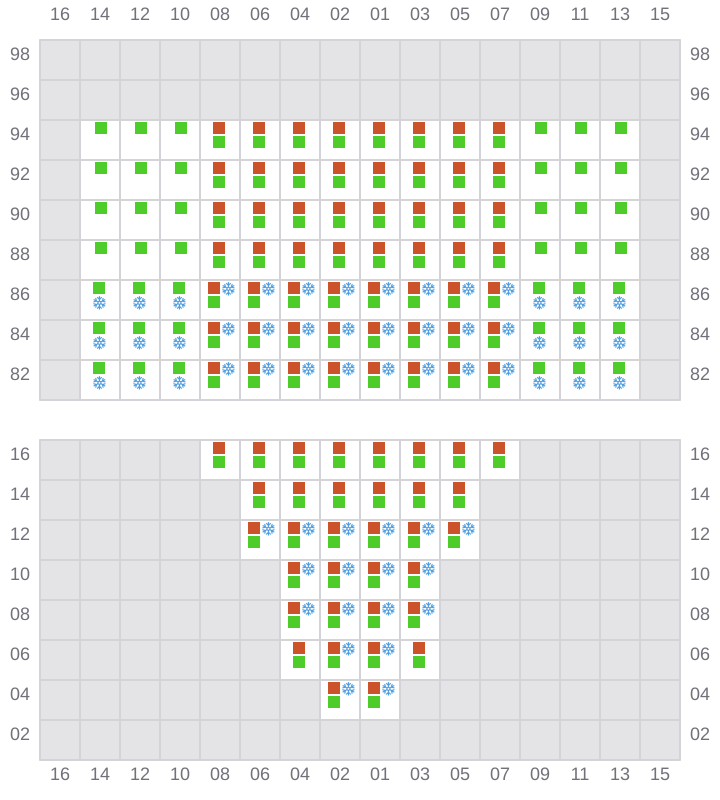

Bay 007 view and slots of MAERSK FREDERICIA

009

  • →
  • ✓

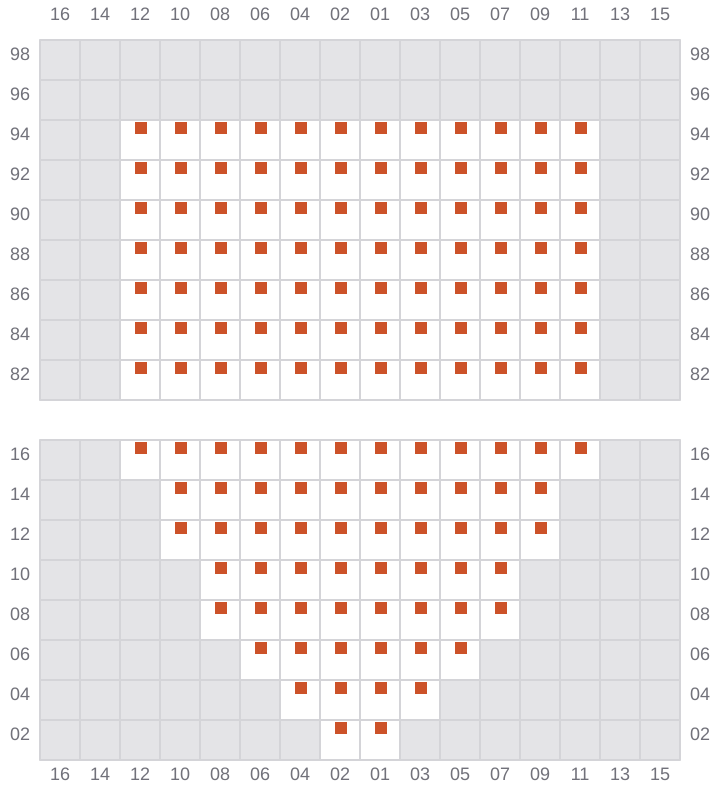

Bay 009 view and slots of MAERSK FREDERICIA

011 (010)

  • ←
  • ✓

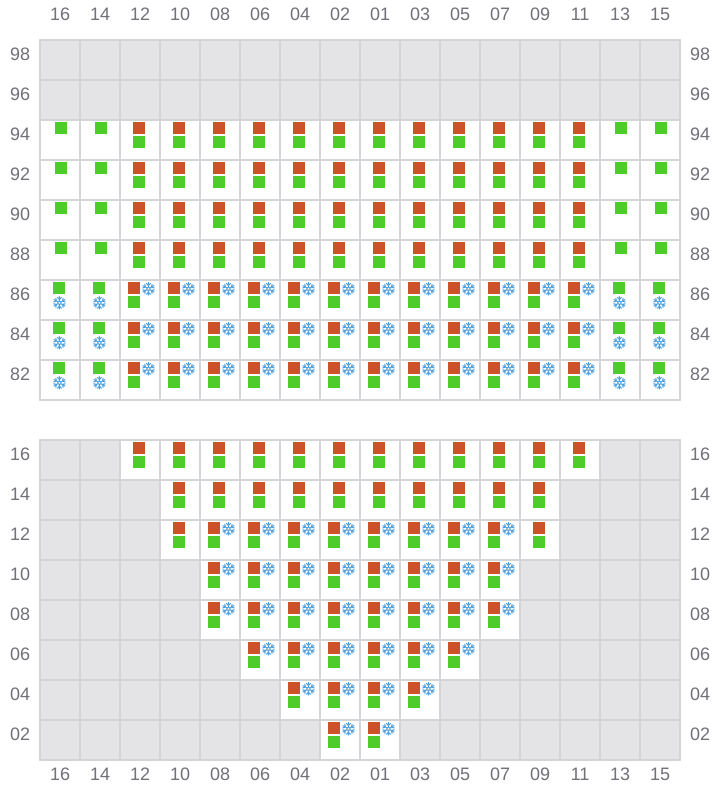

Bay 011 view and slots of MAERSK FREDERICIA

013

  • →
  • ✓

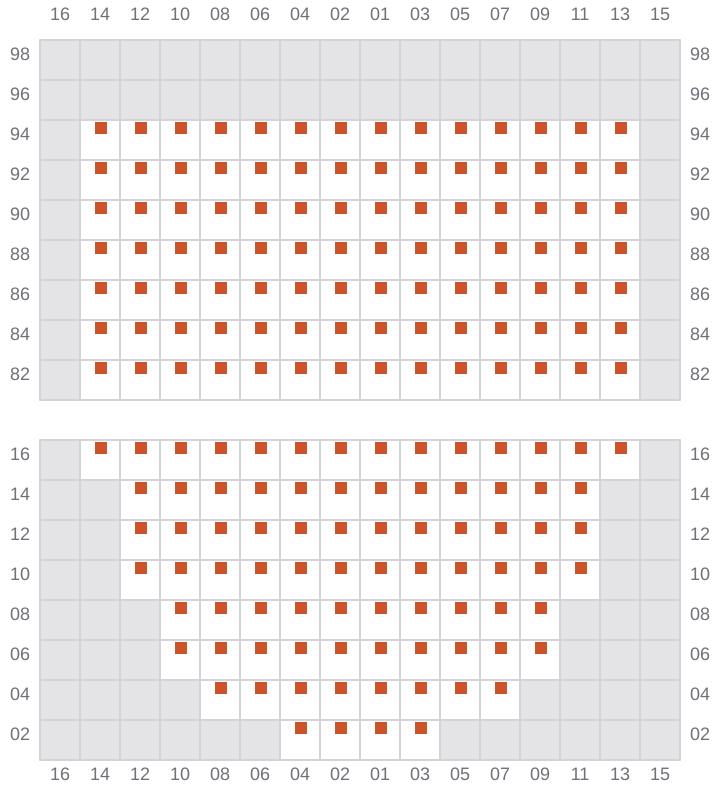

Bay 013 view and slots of MAERSK FREDERICIA

015 (014)

  • ←
  • ✓

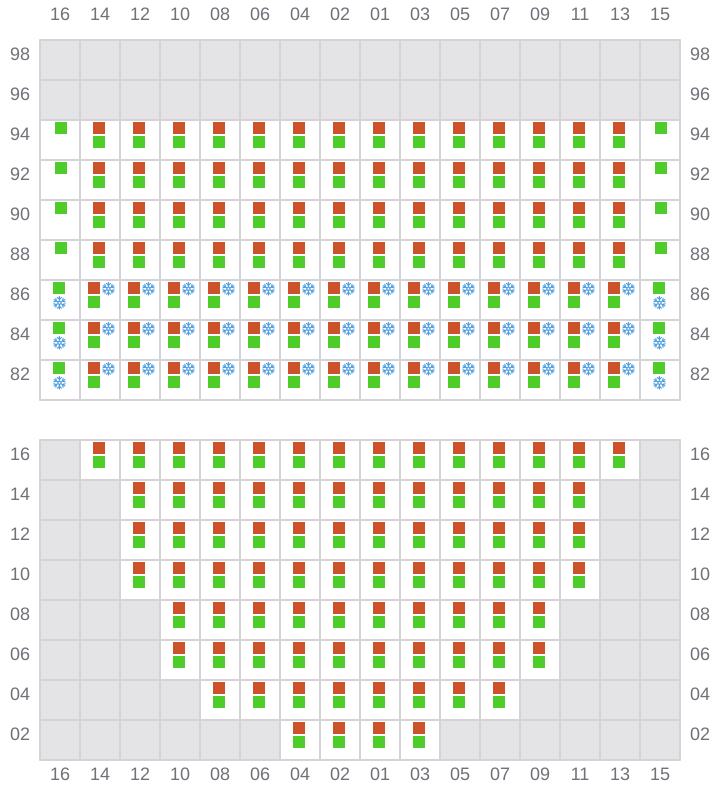

Bay 015 view and slots of MAERSK FREDERICIA

017

  • →
  • ✓

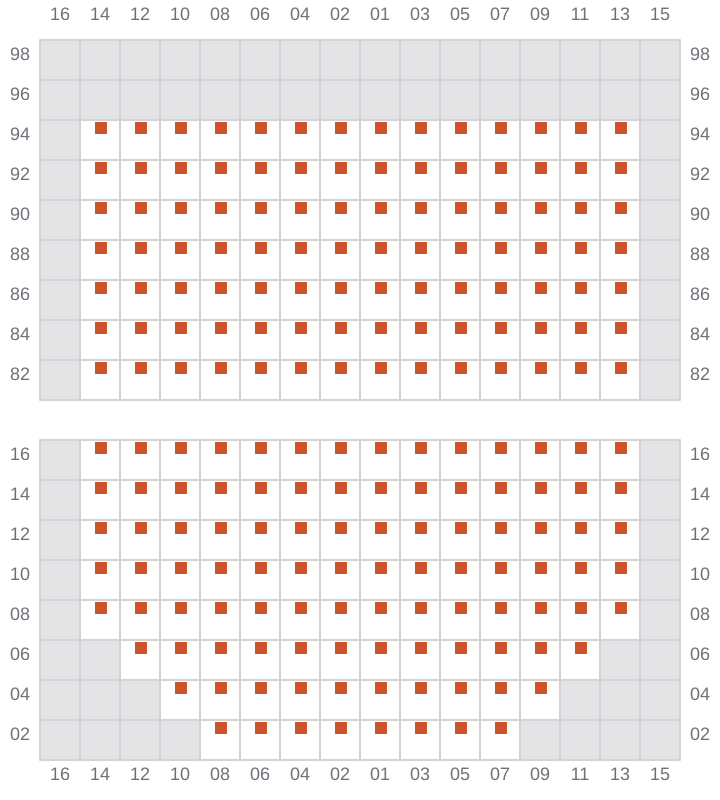

Bay 017 view and slots of MAERSK FREDERICIA

019 (018)

  • ←
  • ✓

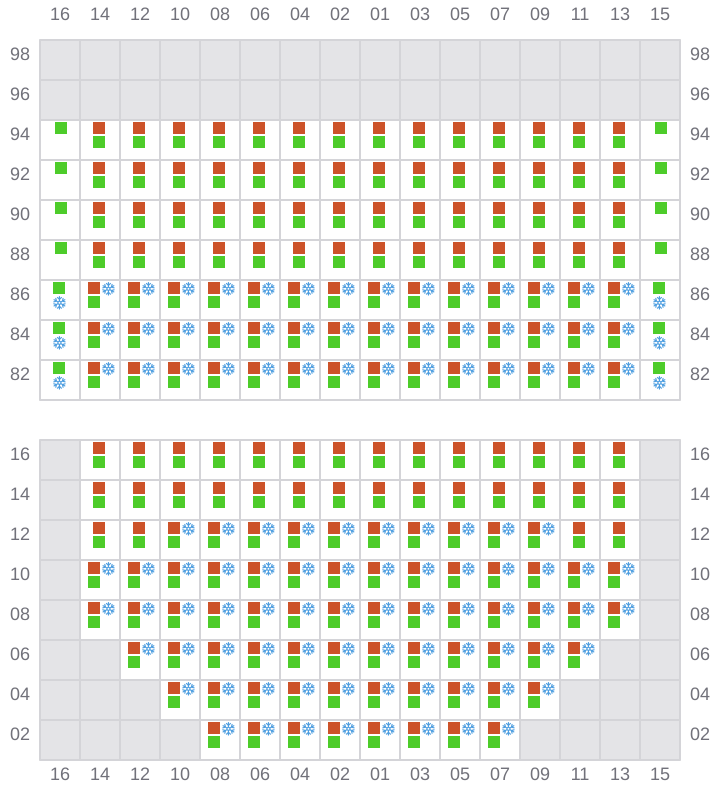

Bay 019 view and slots of MAERSK FREDERICIA

021

  • →
  • ✓

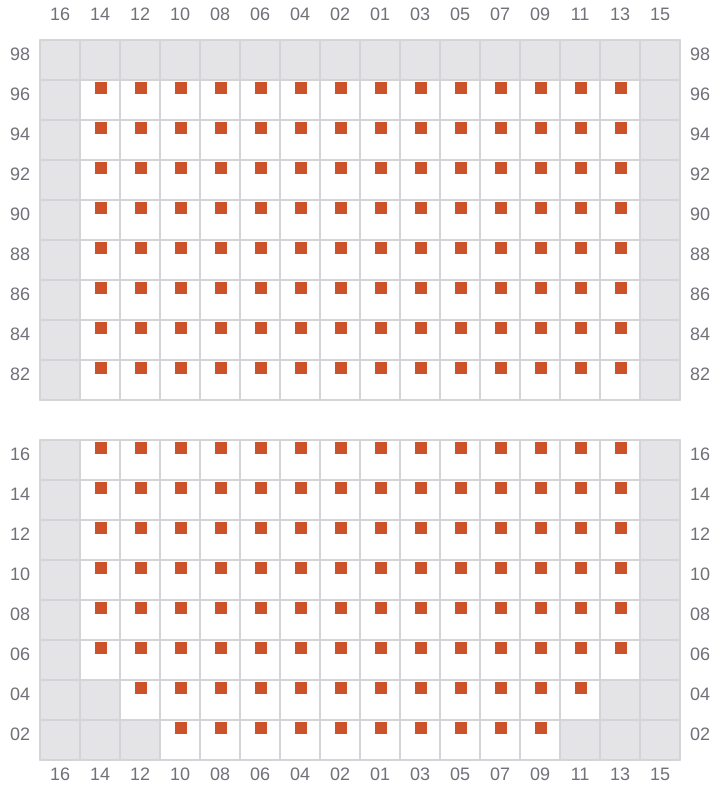

Bay 021 view and slots of MAERSK FREDERICIA

023 (022)

  • ←
  • ✓

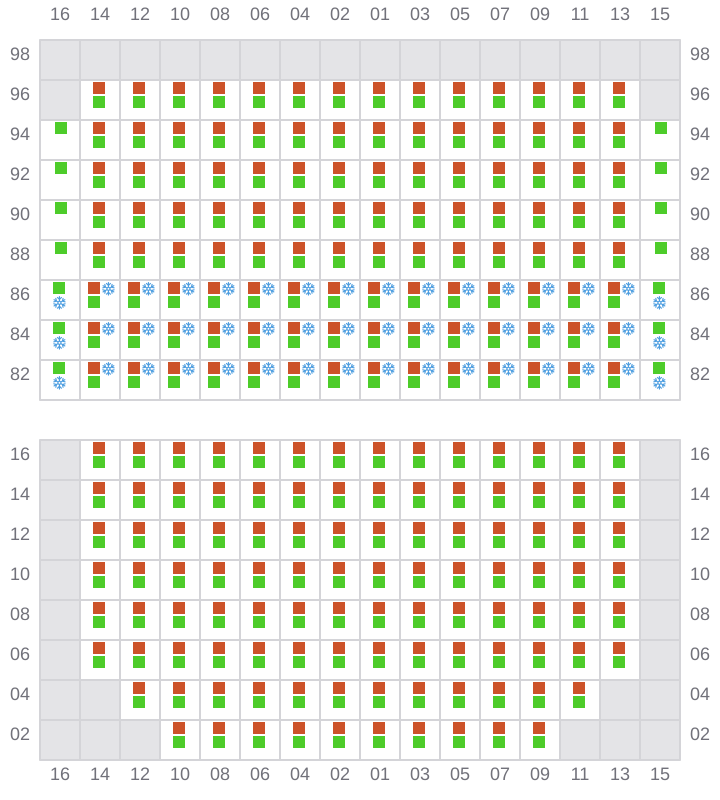

Bay 023 view and slots of MAERSK FREDERICIA

025

  • →
  • ✓

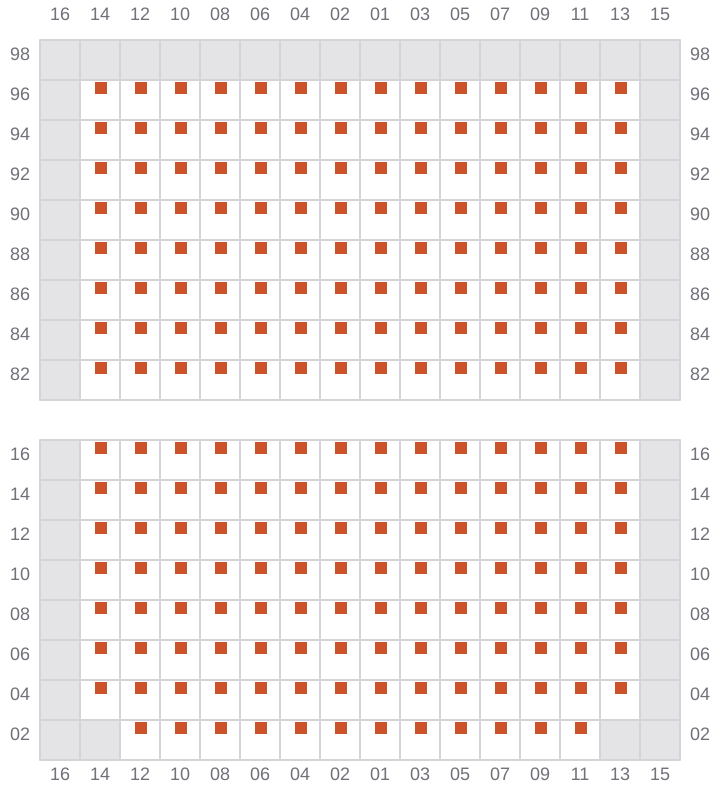

Bay 025 view and slots of MAERSK FREDERICIA

027 (026)

  • ←
  • ✓

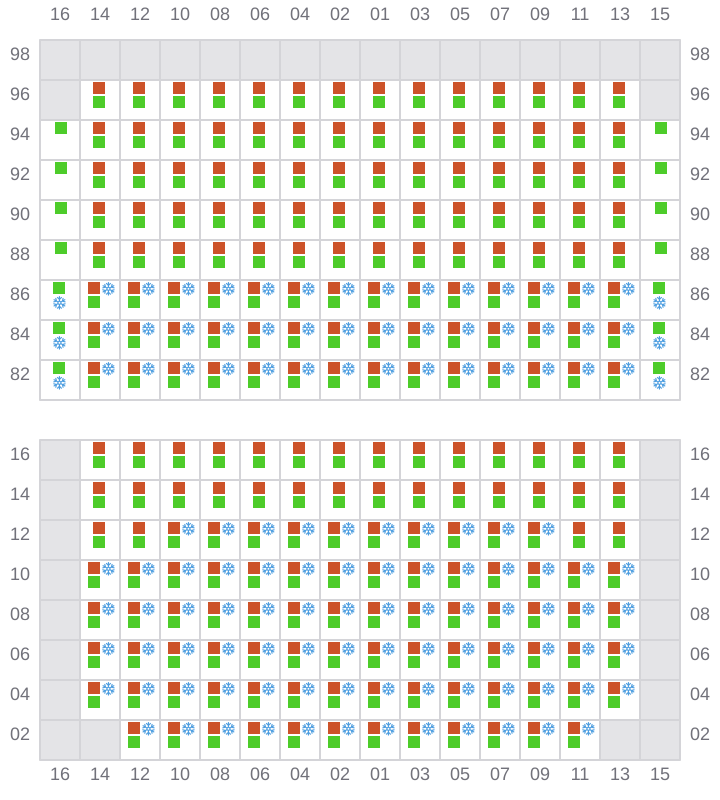

Bay 027 view and slots of MAERSK FREDERICIA

029

  • →
  • ✓
Bay 029 view and slots of MAERSK FREDERICIA

031 (030)

  • ←
  • ✓

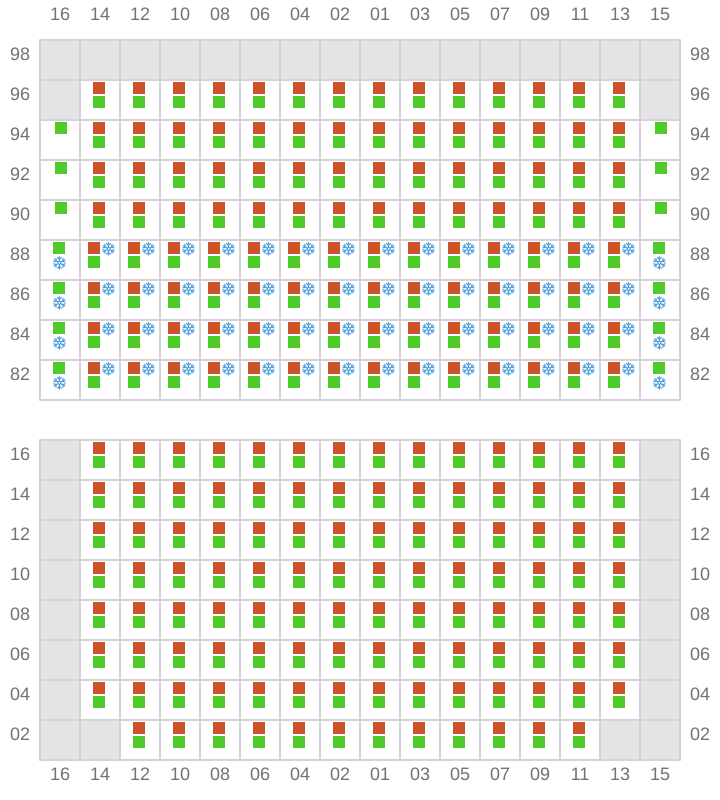

Bay 031 view and slots of MAERSK FREDERICIA

033

  • →
  • ✓
Bay 033 view and slots of MAERSK FREDERICIA

035 (034)

  • ←
  • ✓

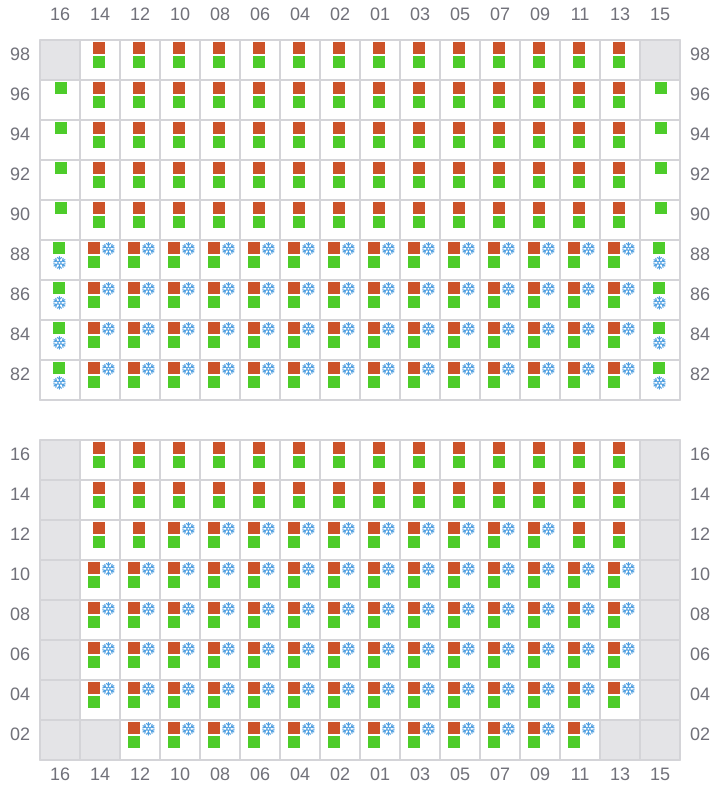

Bay 035 view and slots of MAERSK FREDERICIA

037

  • →
  • ✓

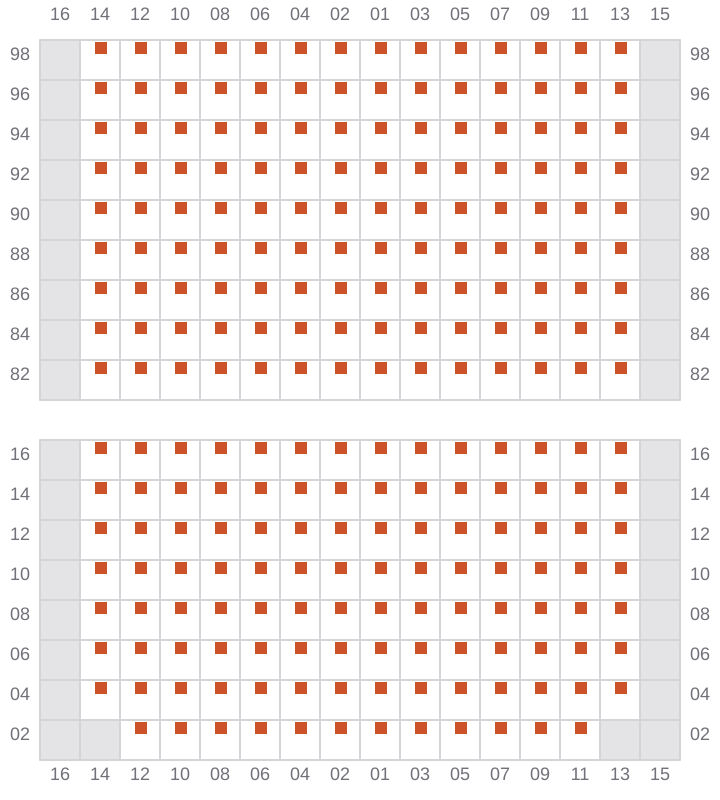

Bay 037 view and slots of MAERSK FREDERICIA

039 (038)

  • ←
  • ✓

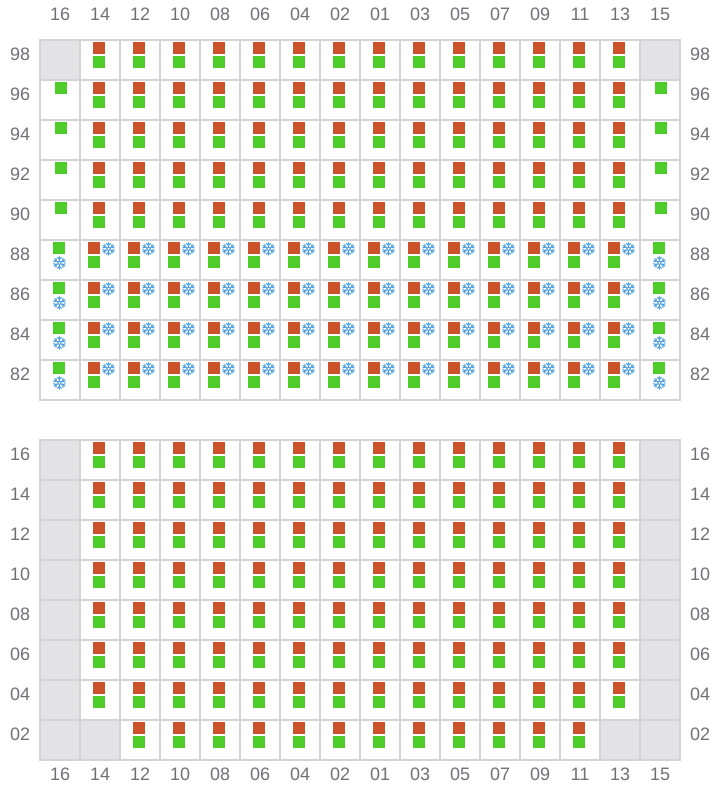

Bay 039 view and slots of MAERSK FREDERICIA

041

  • →
  • ✓

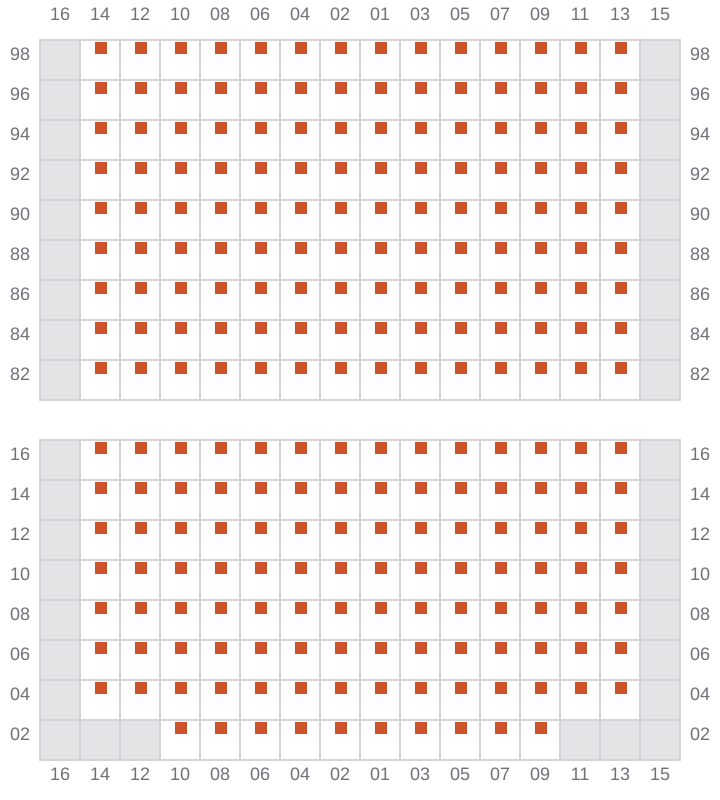

Bay 041 view and slots of MAERSK FREDERICIA

043 (042)

  • ←
  • ✓

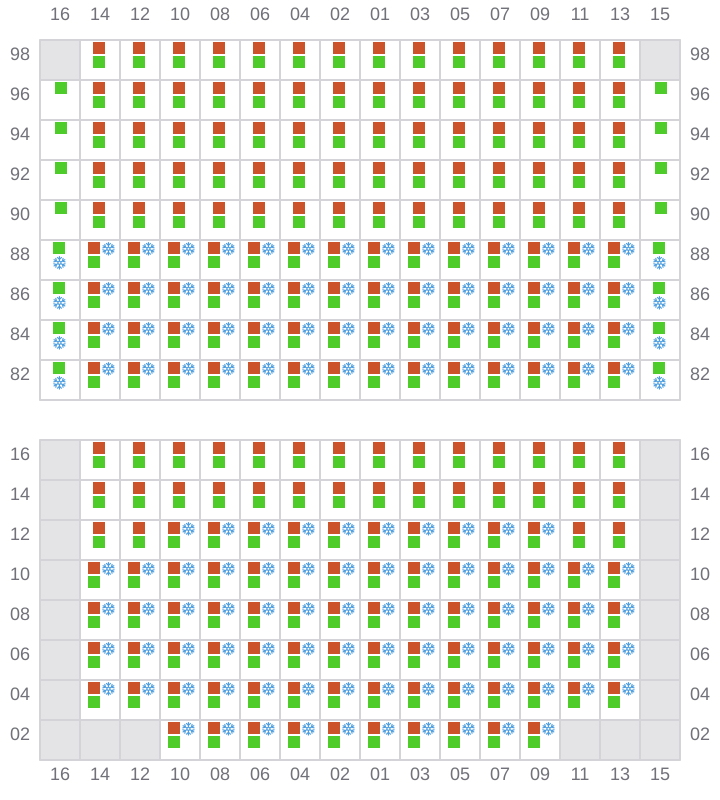

Bay 043 view and slots of MAERSK FREDERICIA

045

  • →
  • ✓

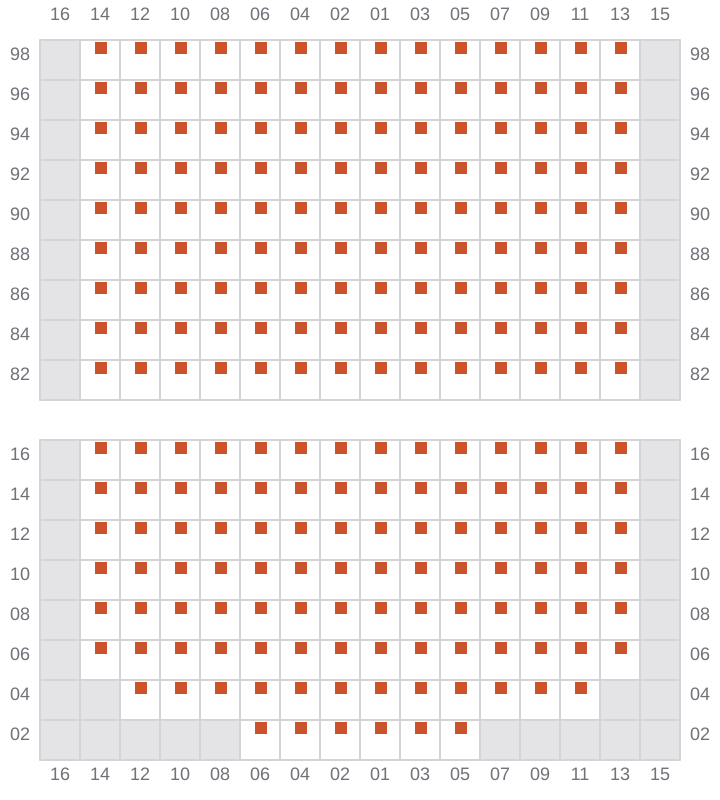

Bay 045 view and slots of MAERSK FREDERICIA

047 (046)

  • ←
  • ✓

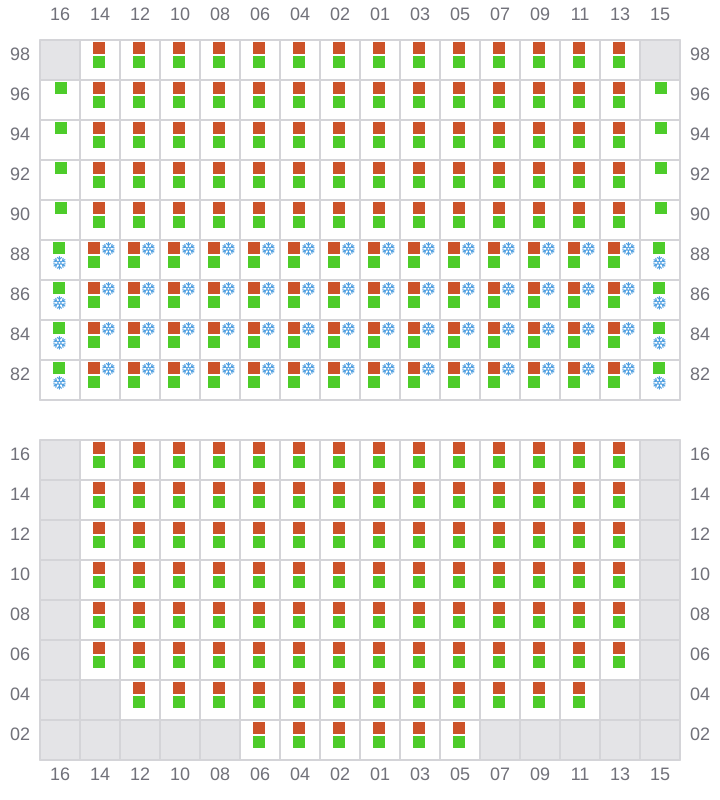

Bay 047 view and slots of MAERSK FREDERICIA

049

  • →
  • ✓

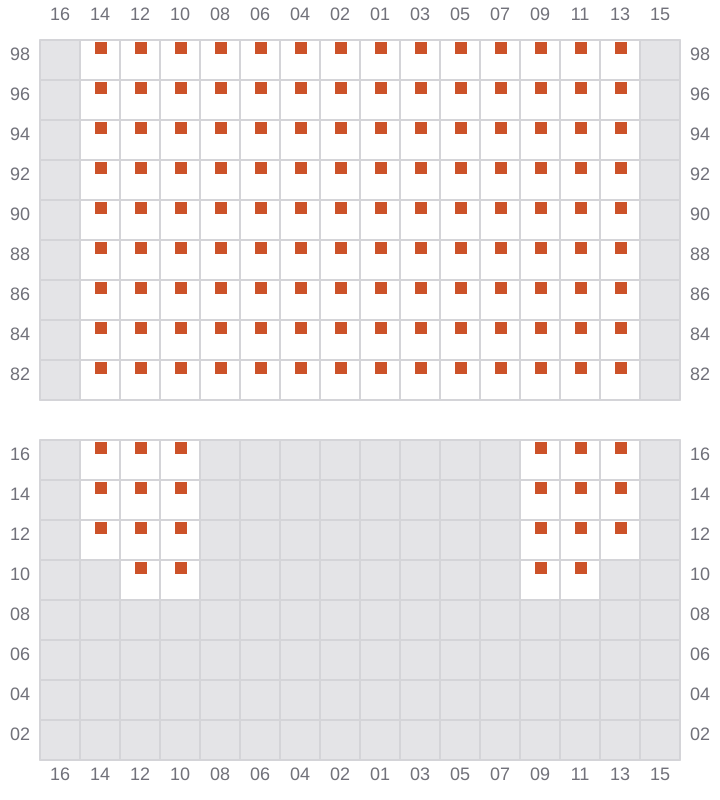

Bay 049 view and slots of MAERSK FREDERICIA

051 (050)

  • ←
  • ✓

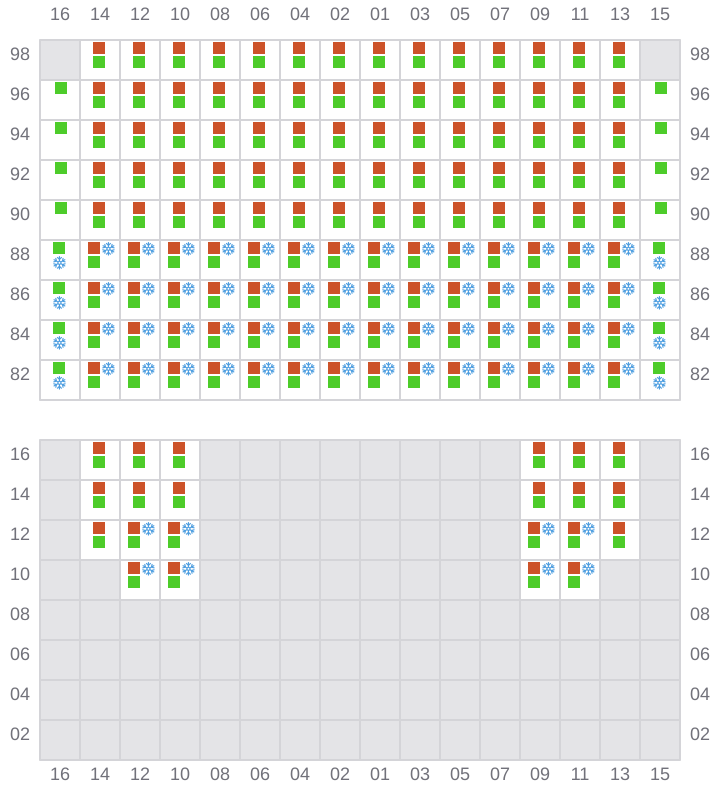

Bay 051 view and slots of MAERSK FREDERICIA

053

  • →
  • ✓

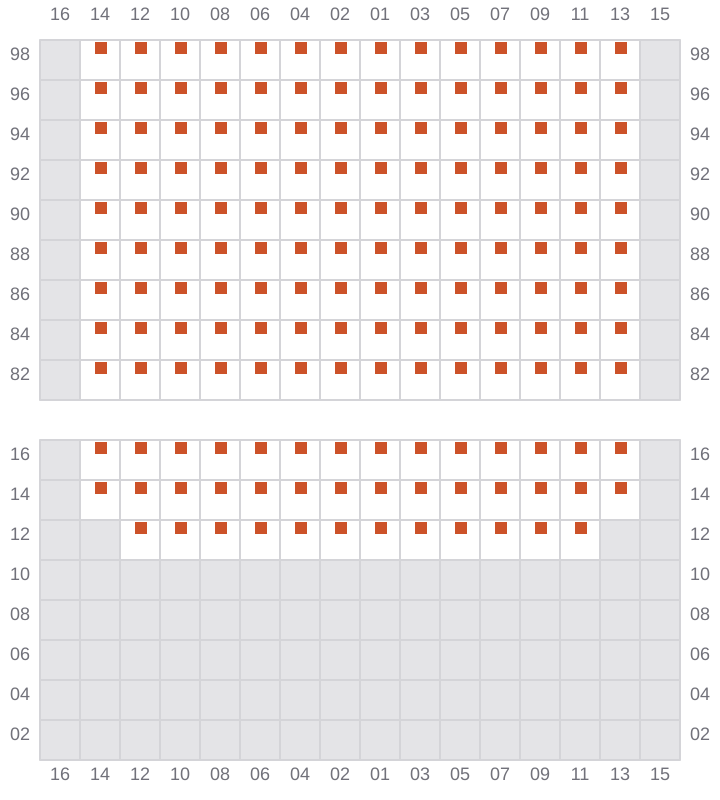

Bay 053 view and slots of MAERSK FREDERICIA

055 (054)

  • ←
  • ✓

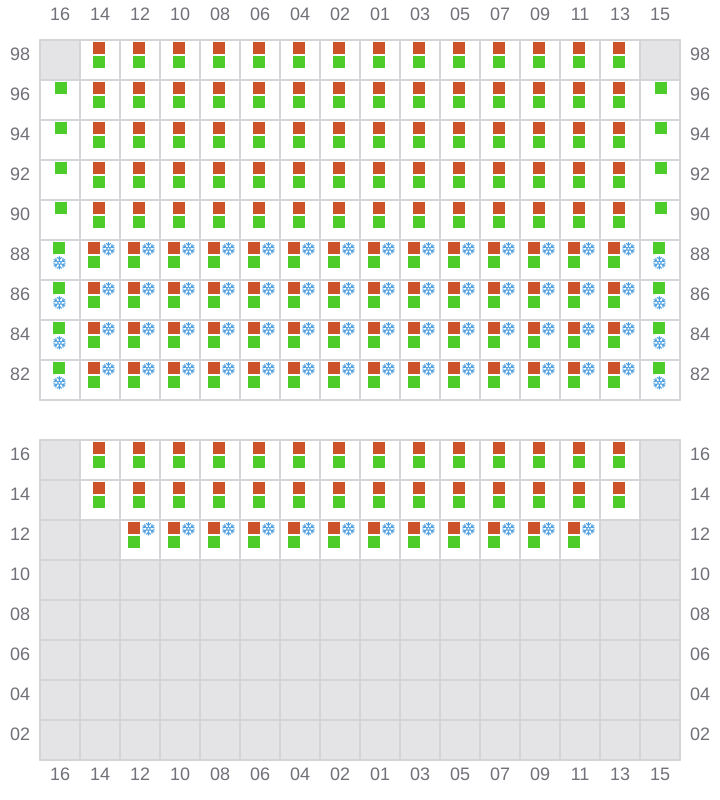

Bay 055 view and slots of MAERSK FREDERICIA

057

  • →
  • ✓

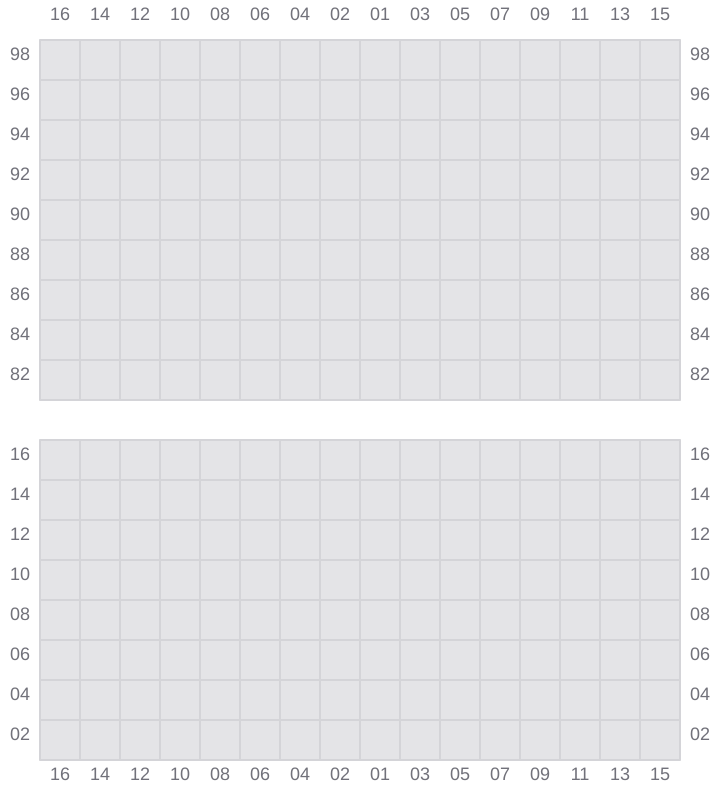

Bay 057 view and slots of MAERSK FREDERICIA

059 (058)

  • ←
  • ✓

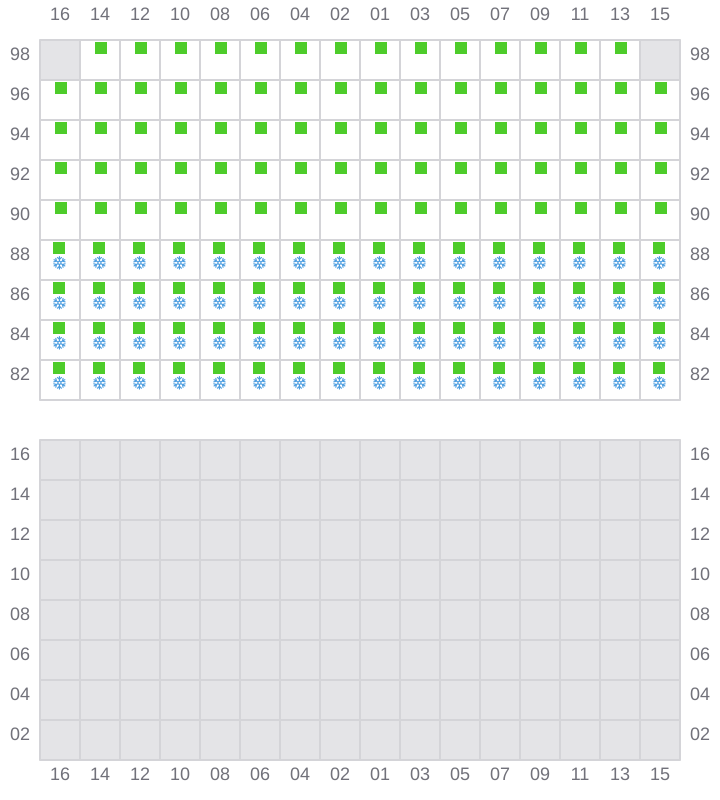

Bay 059 view and slots of MAERSK FREDERICIA
