MAERSK GARONNE
9235579 | 9V6222 | MAERSK by ************************** Last update: Fri Mar 08 2024
General Info
Ship Name:MAERSK GARONNE
IMO Code:9235579
Call Sign:9V6222
Line Operator:MAERSK
Class Name for Sister Ships:GAR
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,731
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

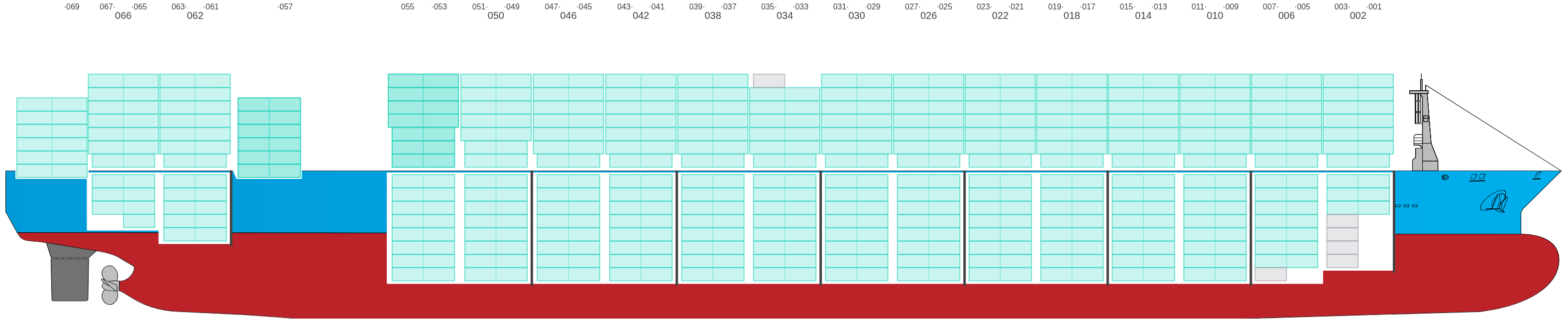

Side View
![Side view of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-sideView.png?v=1709924103819)

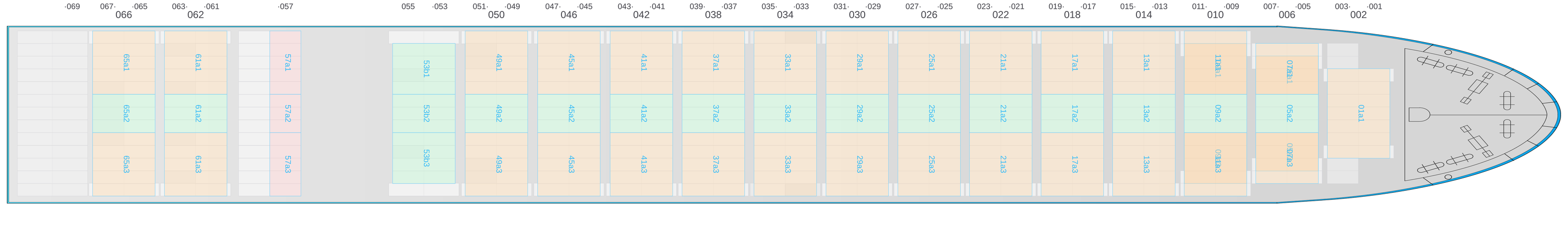

Hatch-Covers View
![Deck view of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-deckView.png?v=1709924103819)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

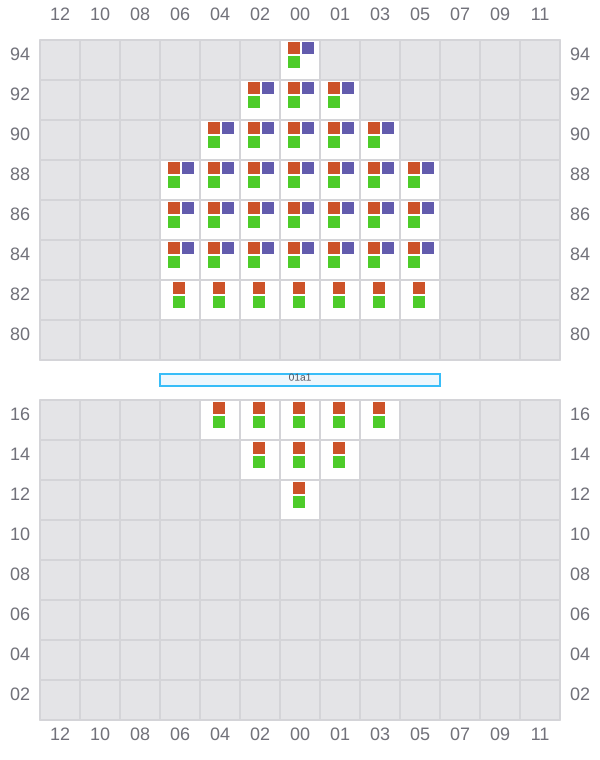

001 (002)
- →
![Bay 001 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b001.png?v=1709924103819)

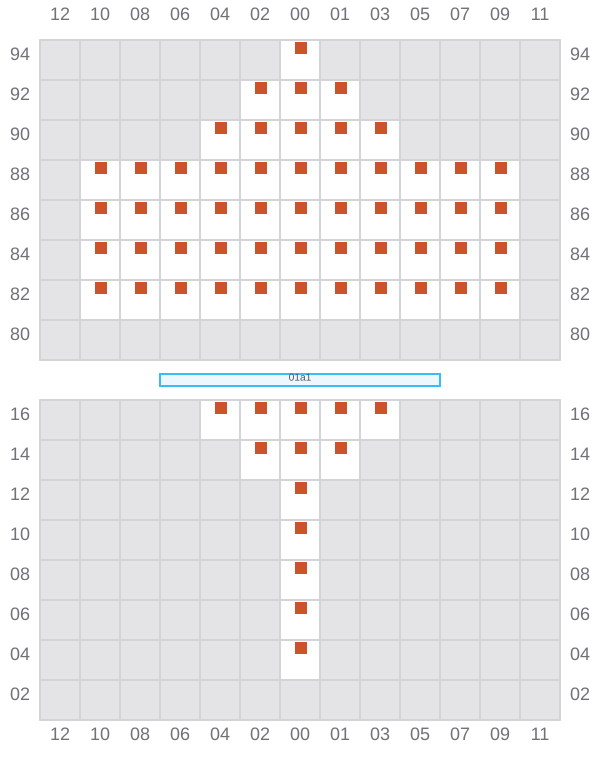

003
- ←
![Bay 003 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b003.png?v=1709924103819)

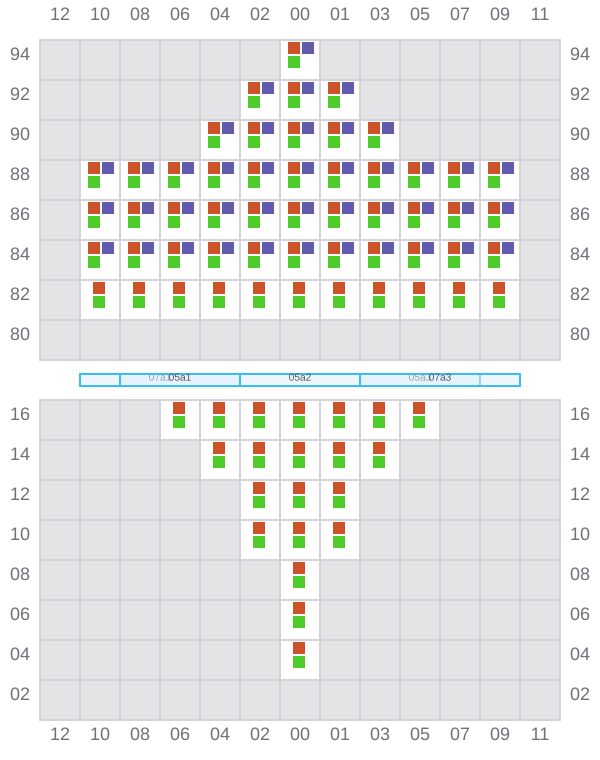

005 (006)
- →
![Bay 005 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b005.png?v=1709924103819)

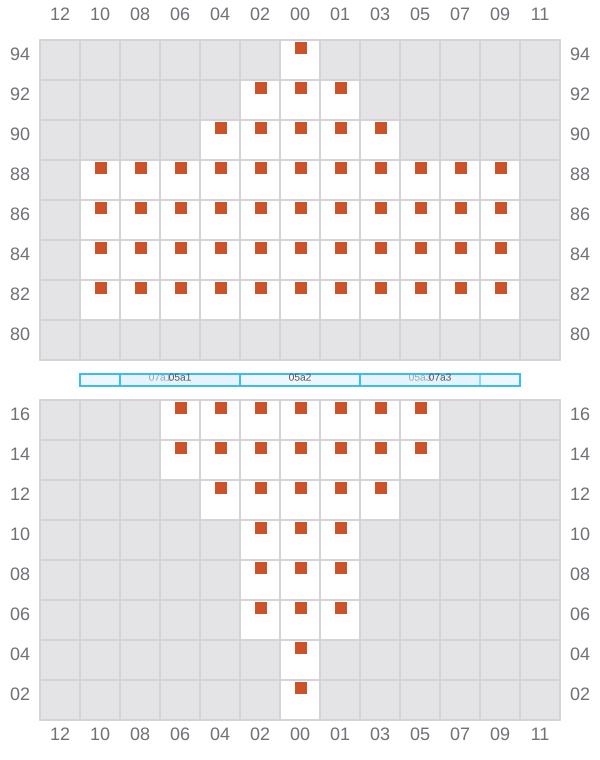

007
- ←
![Bay 007 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b007.png?v=1709924103819)

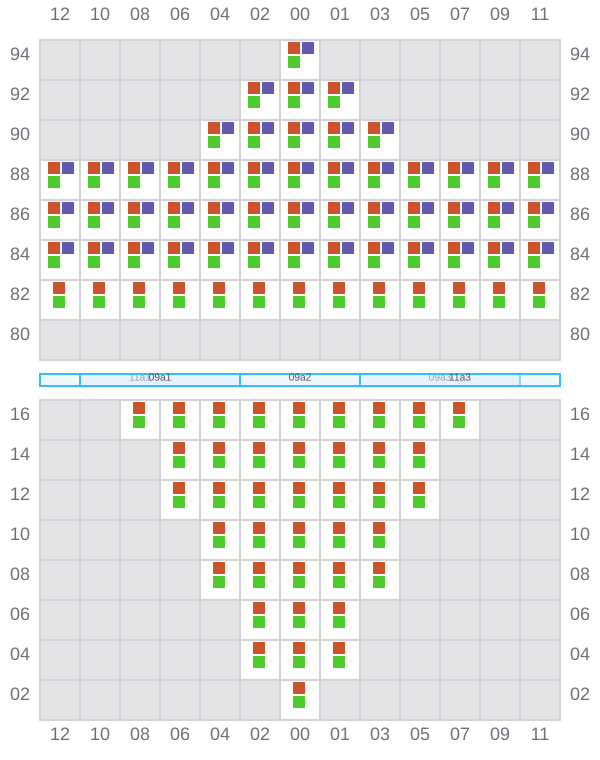

009 (010)
- →
![Bay 009 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b009.png?v=1709924103819)

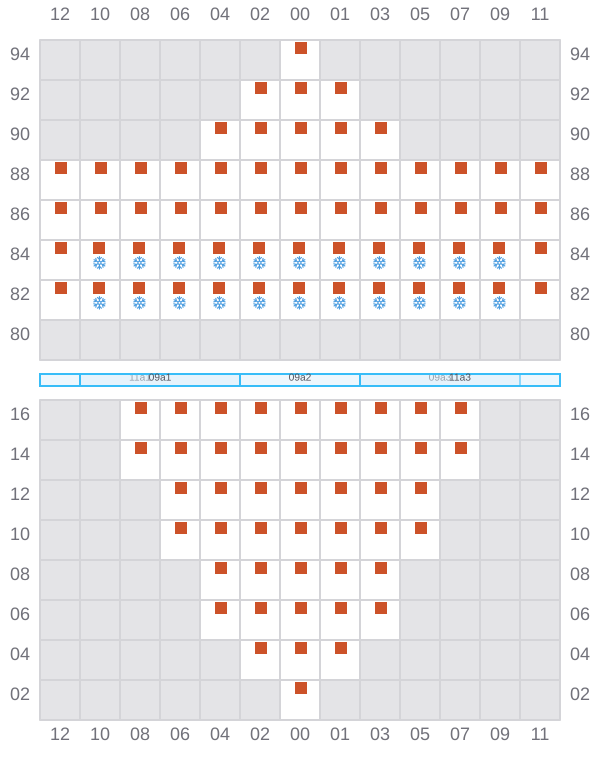

011
- ←
- → / ?
![Bay 011 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b011.png?v=1709924103819)

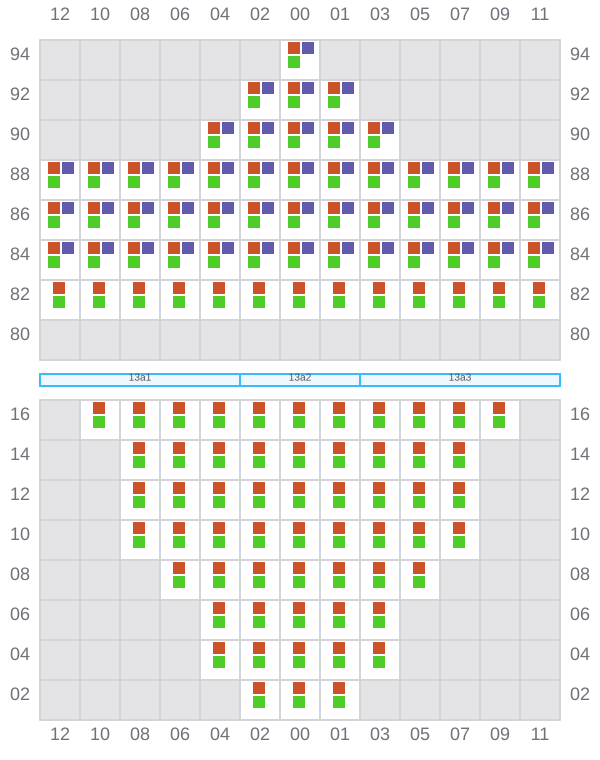

013 (014)
- →
![Bay 013 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b013.png?v=1709924103819)

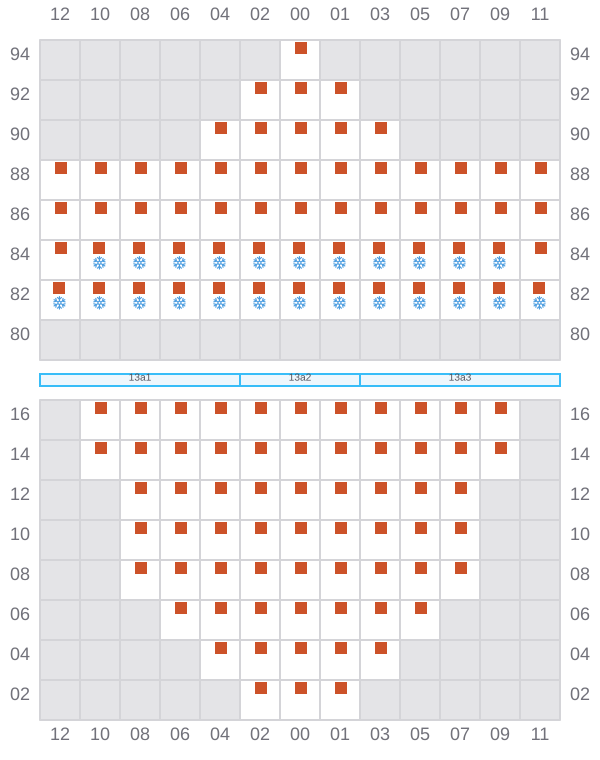

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b015.png?v=1709924103819)

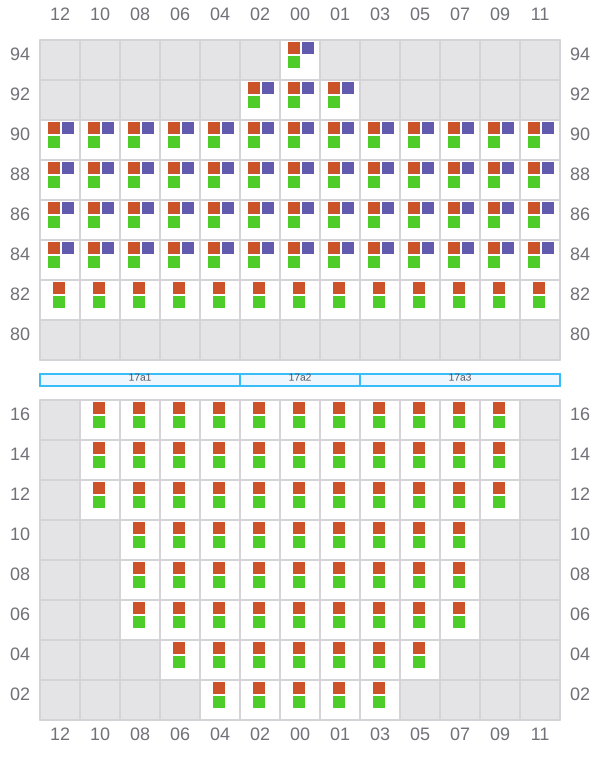

017 (018)
- →
![Bay 017 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b017.png?v=1709924103819)

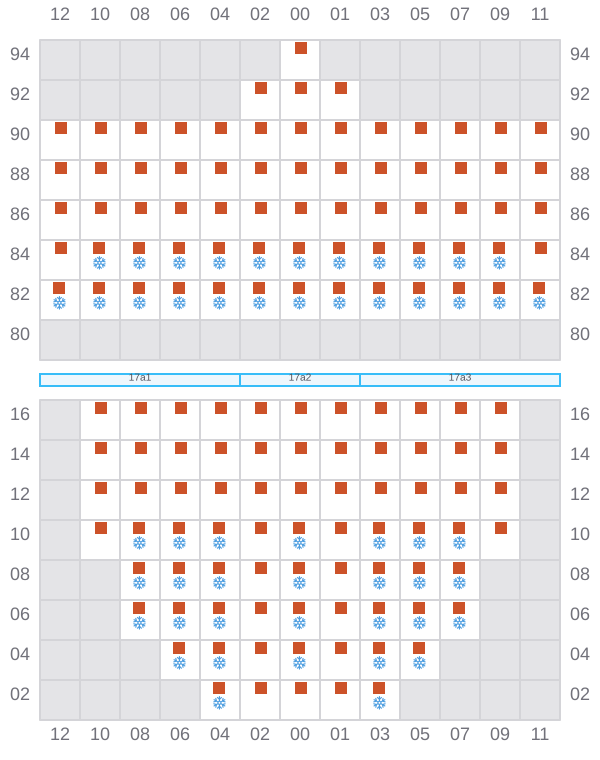

019
- ←
- → / ?
![Bay 019 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b019.png?v=1709924103819)

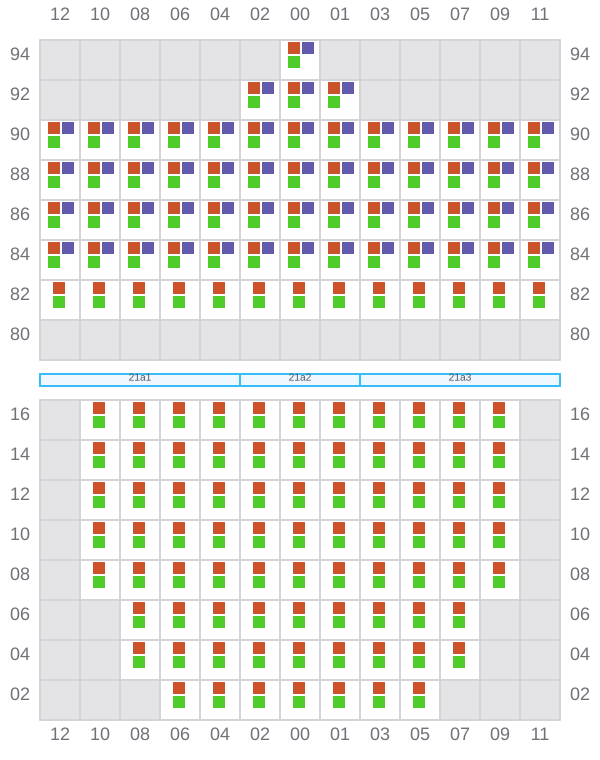

021 (022)
- →
![Bay 021 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b021.png?v=1709924103819)

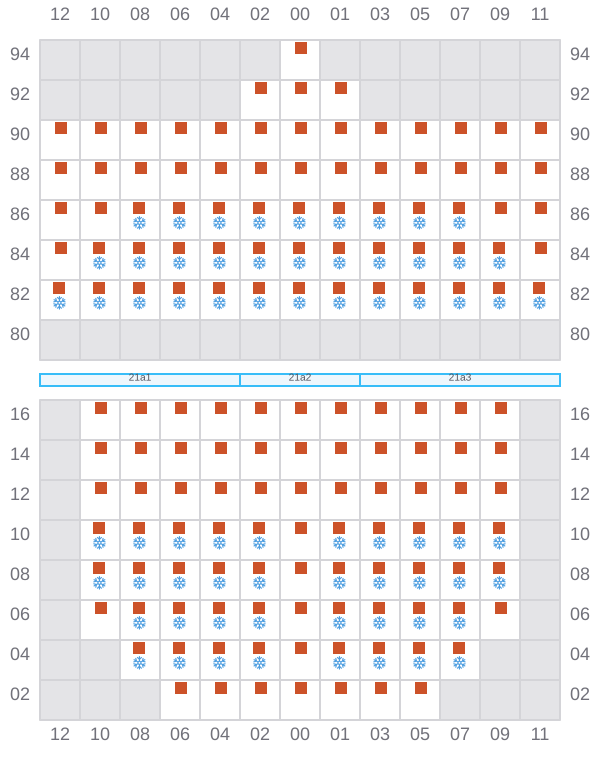

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b023.png?v=1709924103819)

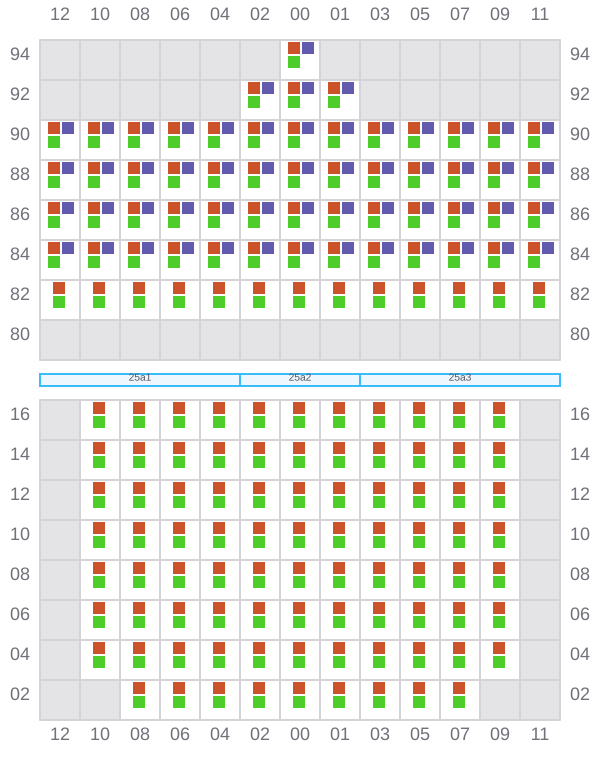

025 (026)
- →
- ? / →
![Bay 025 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b025.png?v=1709924103819)

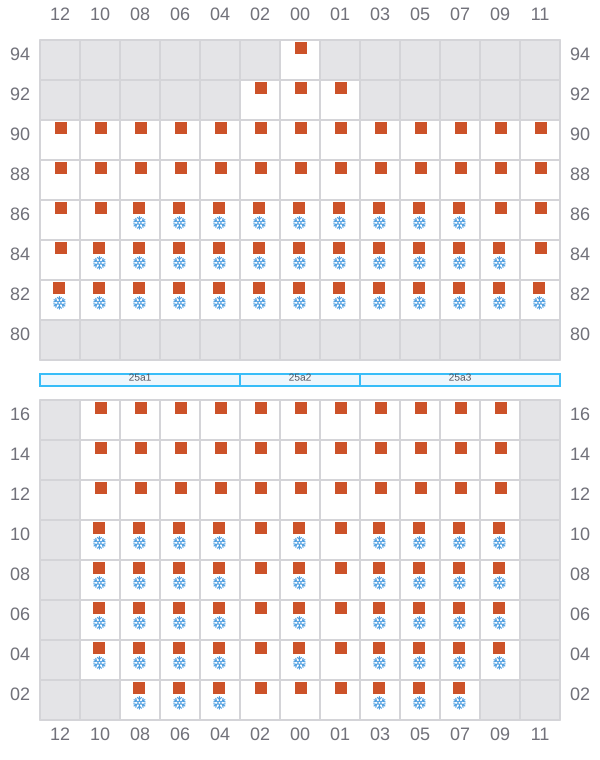

027
- ←
- →
![Bay 027 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b027.png?v=1709924103819)

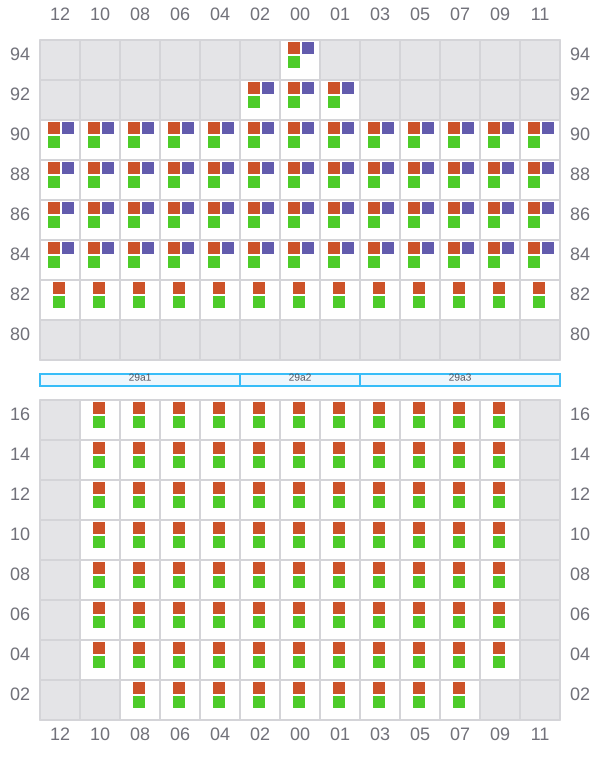

029 (030)
- →
- ? / →
![Bay 029 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b029.png?v=1709924103819)

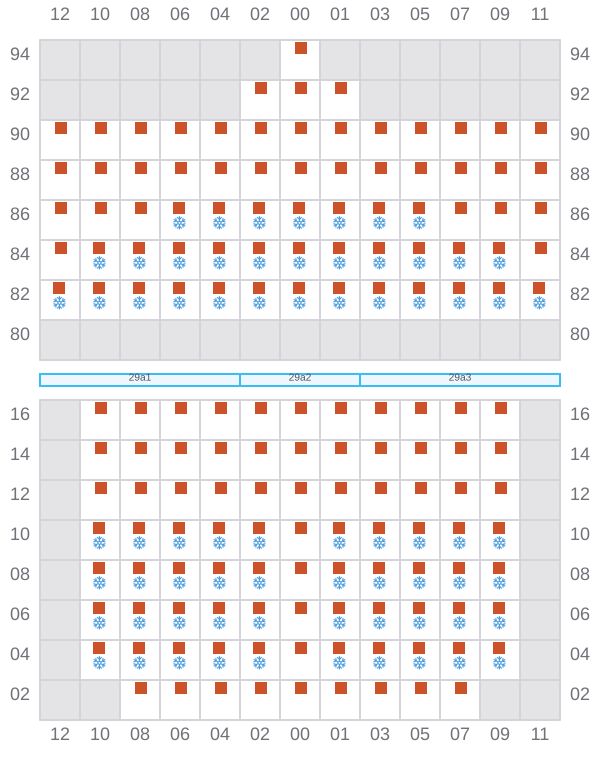

031
- ←
- → / ?
![Bay 031 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b031.png?v=1709924103819)

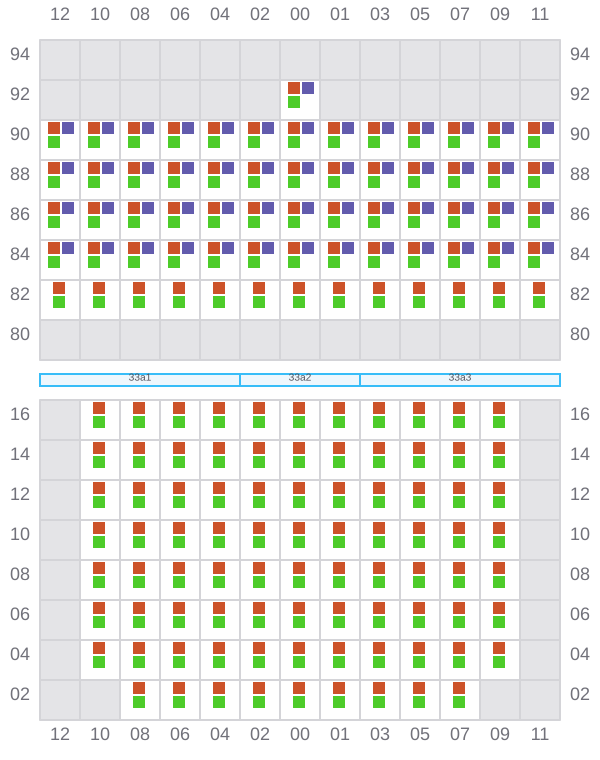

033 (034)
- →
- ? / →
![Bay 033 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b033.png?v=1709924103819)

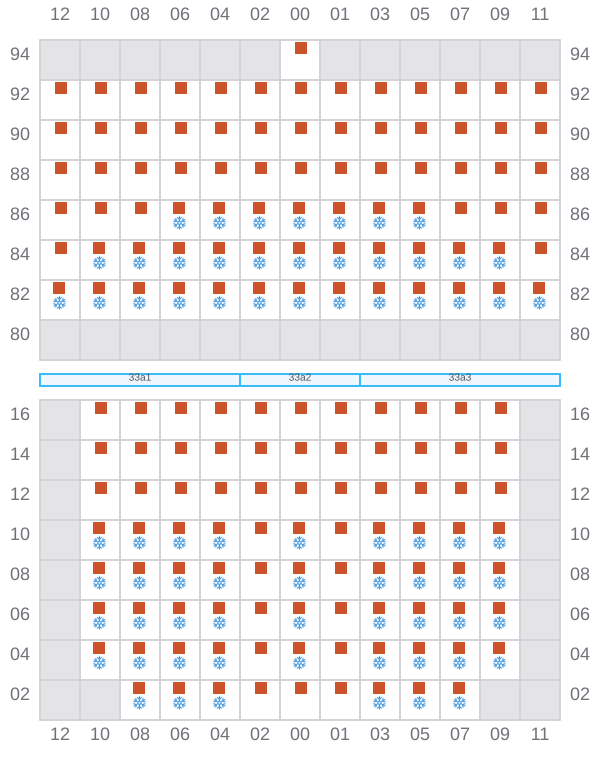

035
- ←
- →
![Bay 035 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b035.png?v=1709924103819)

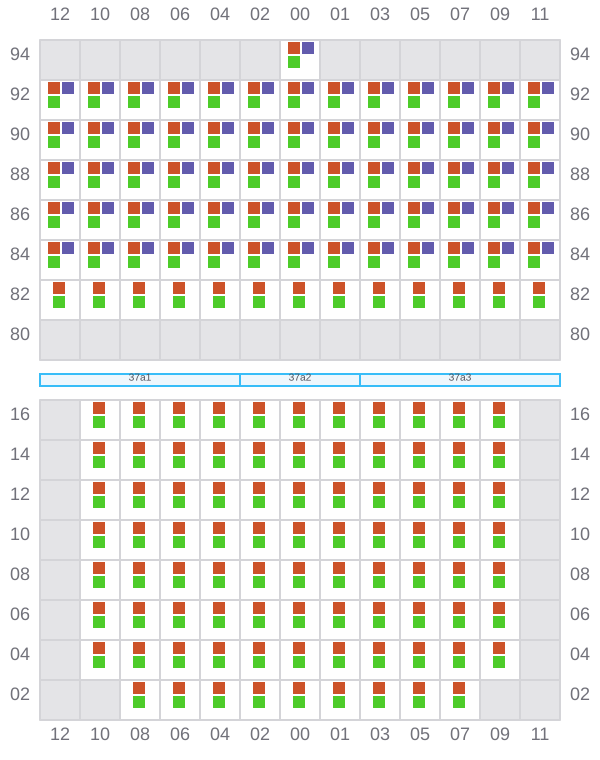

037 (038)
- →
![Bay 037 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b037.png?v=1709924103819)

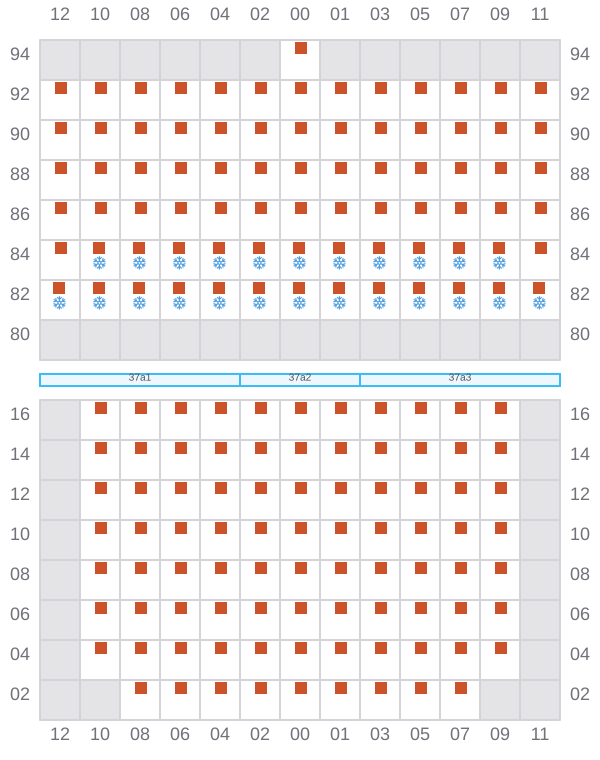

039
- ←
- → / ?
![Bay 039 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b039.png?v=1709924103819)
041 (042)
- →
- ? / →
![Bay 041 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b041.png?v=1709924103819)
043
- ←
- →
![Bay 043 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b043.png?v=1709924103819)
045 (046)
- →
- ? / →
![Bay 045 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b045.png?v=1709924103819)

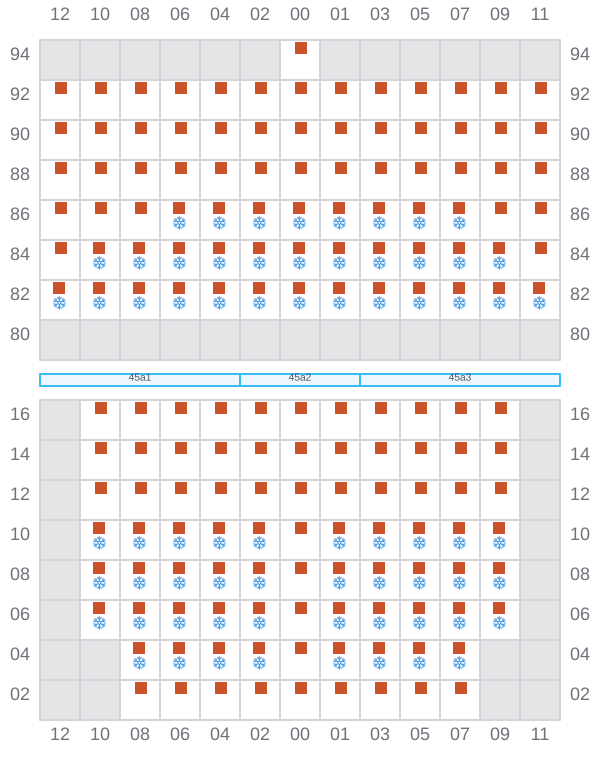

047
- ←
- → / ?
![Bay 047 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b047.png?v=1709924103819)

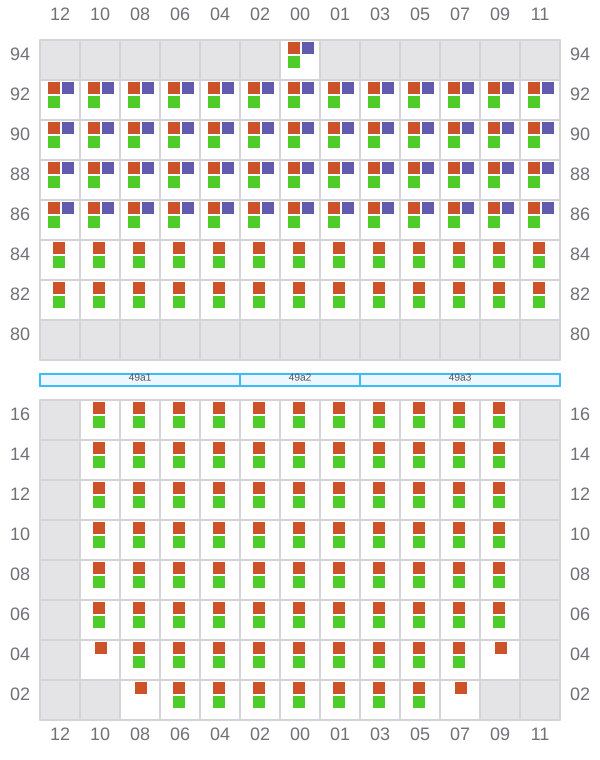

049 (050)
- →
- ? / →
![Bay 049 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b049.png?v=1709924103819)

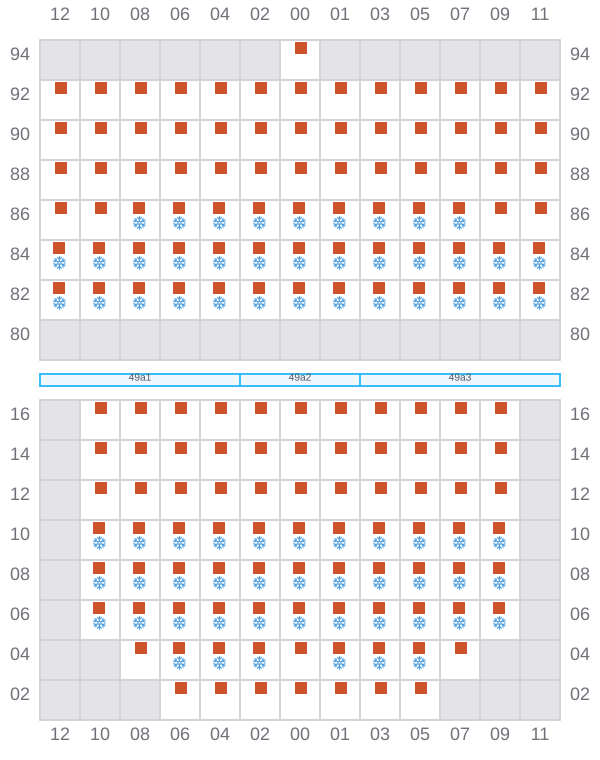

051
- ←
- →
![Bay 051 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b051.png?v=1709924103819)

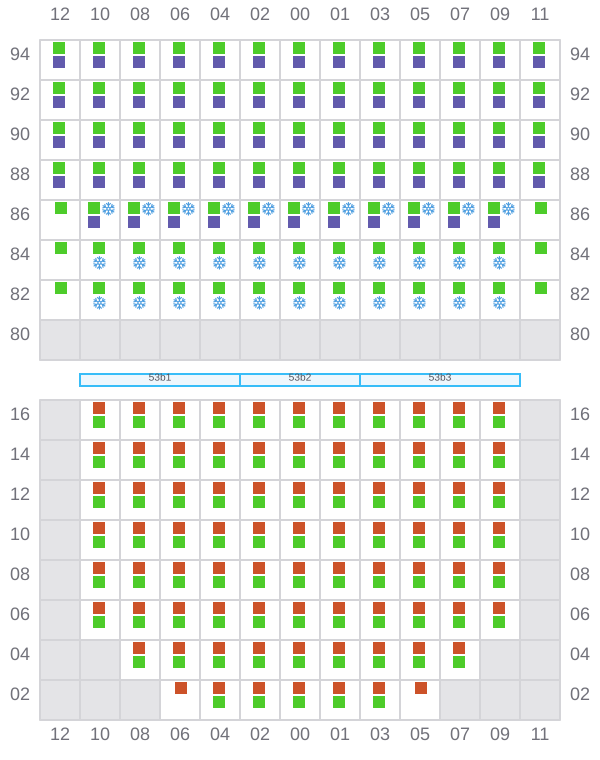

053 (054)
- →
- →
![Bay 053 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b053.png?v=1709924103819)

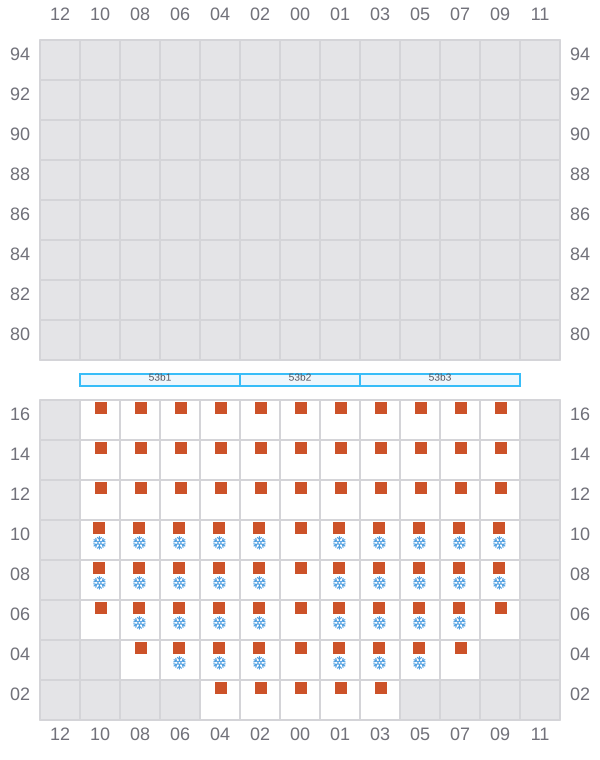

055
- ? / ←
- ? / →
![Bay 055 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b055.png?v=1709924103819)

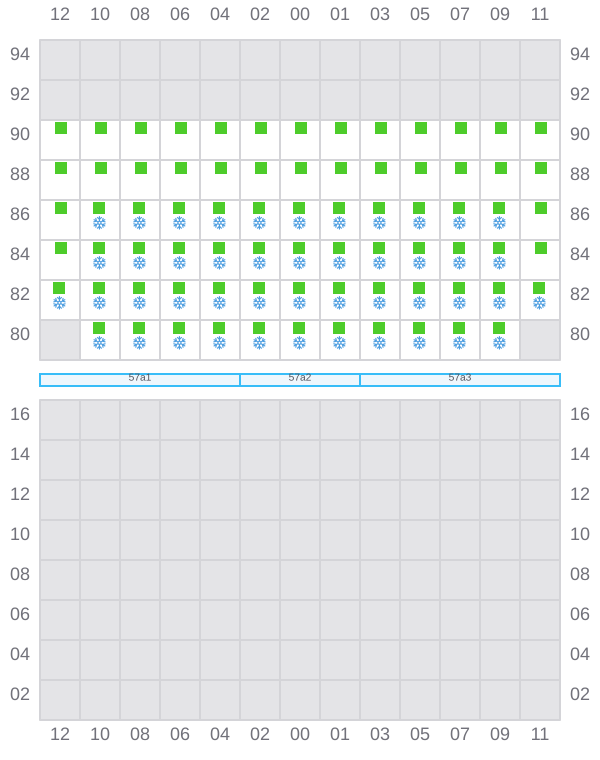

057 (058)
- → / ?
- ← / ?
![Bay 057 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b057.png?v=1709924103819)
059
![Bay 059 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b059.png?v=1709924103819)

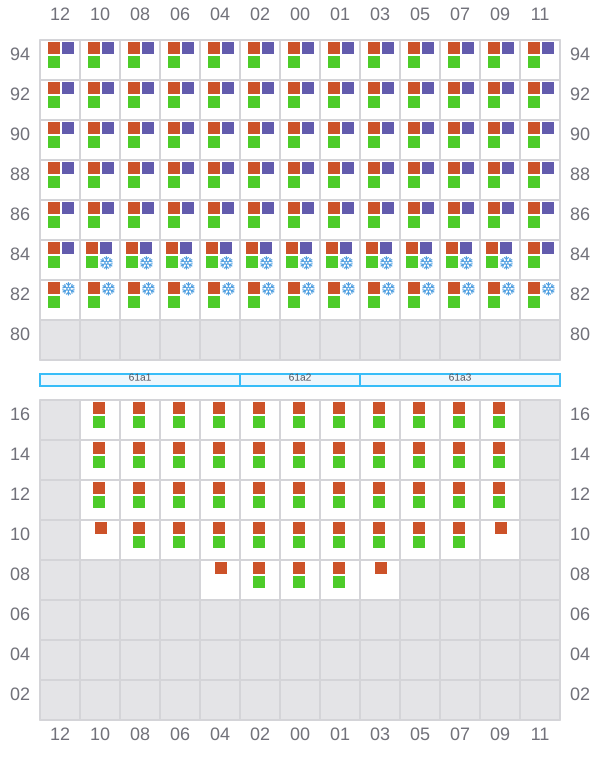

061 (062)
- →
- ← / →
![Bay 061 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b061.png?v=1709924103819)

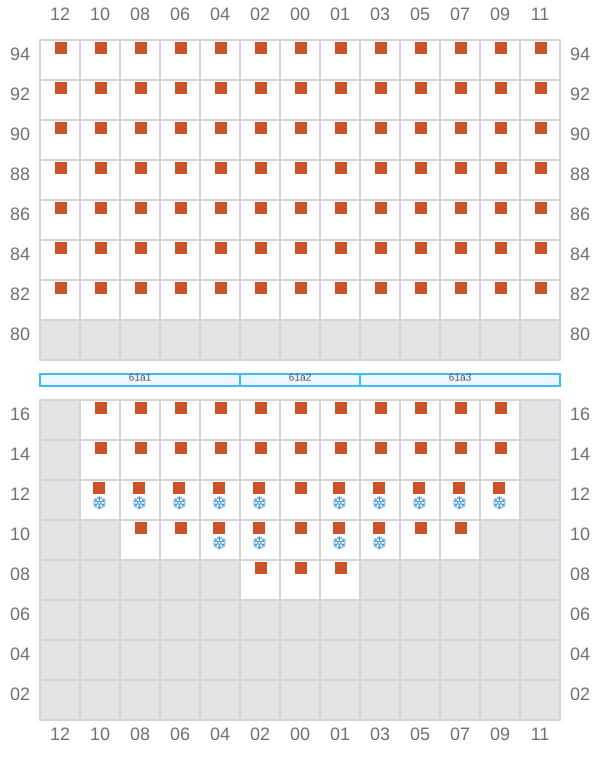

063
- ←
- ? / →
![Bay 063 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b063.png?v=1709924103819)

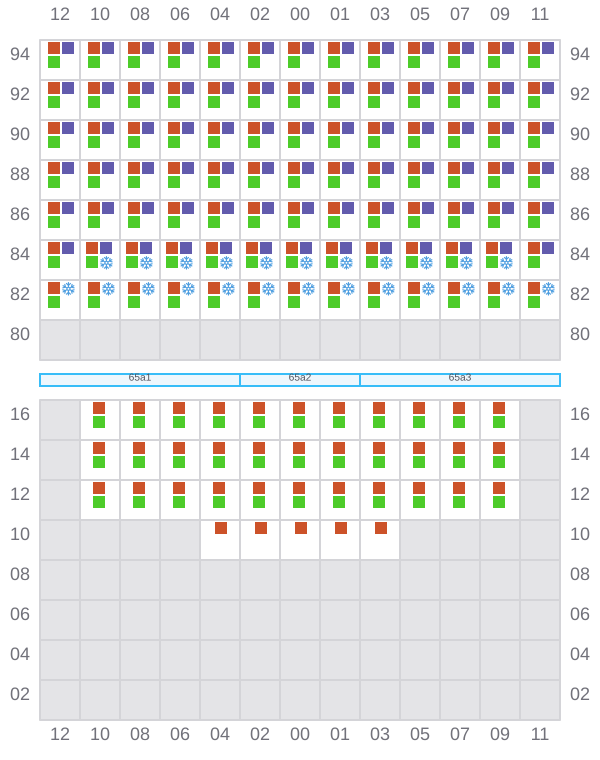

065 (066)
- →
- ← / ?
![Bay 065 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b065.png?v=1709924103819)

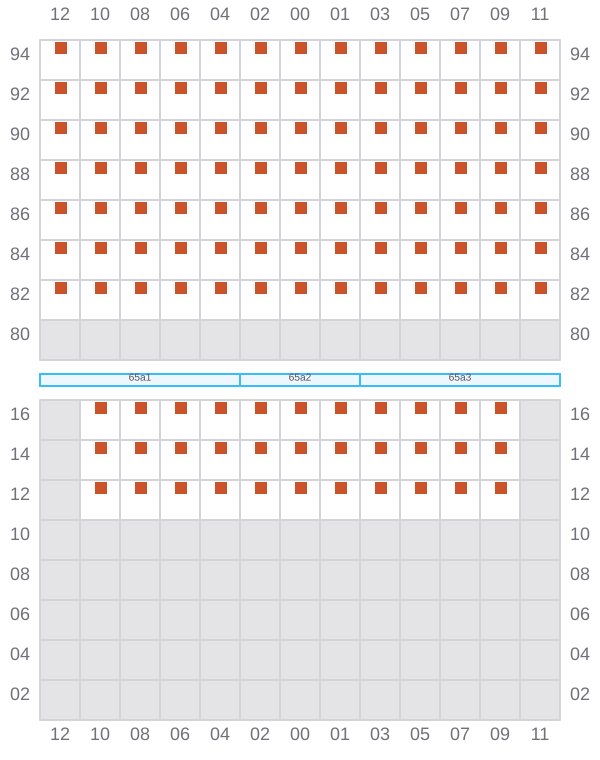

067
- ←
![Bay 067 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b067.png?v=1709924103819)

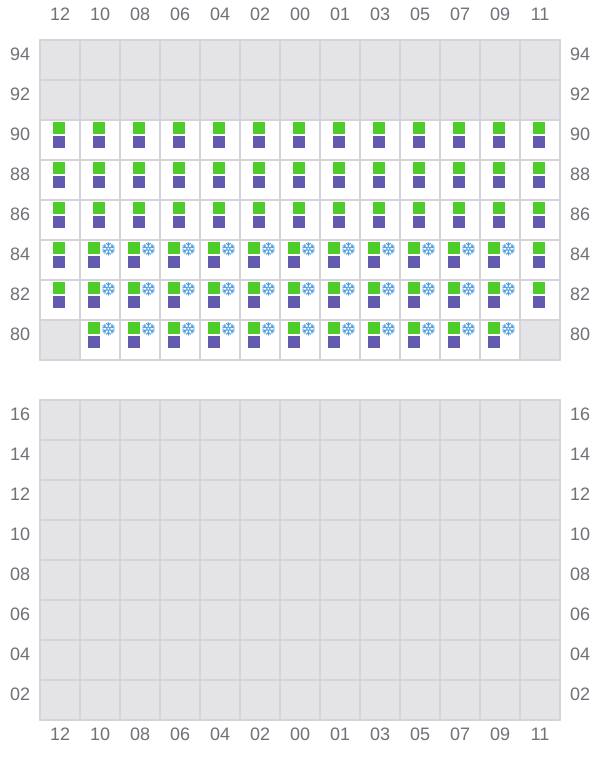

069 (070)
- → / ?
- ← / ?
![Bay 069 view and slots of MAERSK GARONNE](/vessel-images/00d1ed8b-6d82-46ea-b95e-b41f57146952-b069.png?v=1709924103819)
