MAERSK GATESHEAD
9235543 | 9V6210 | MSK by ************************** Last update: Sat Jun 24 2023
General Info
Ship Name:MAERSK GATESHEAD
IMO Code:9235543
Call Sign:9V6210
Line Operator:MSK
Class Name for Sister Ships:GHD
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,731
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-sideView.png?v=1687626579822)

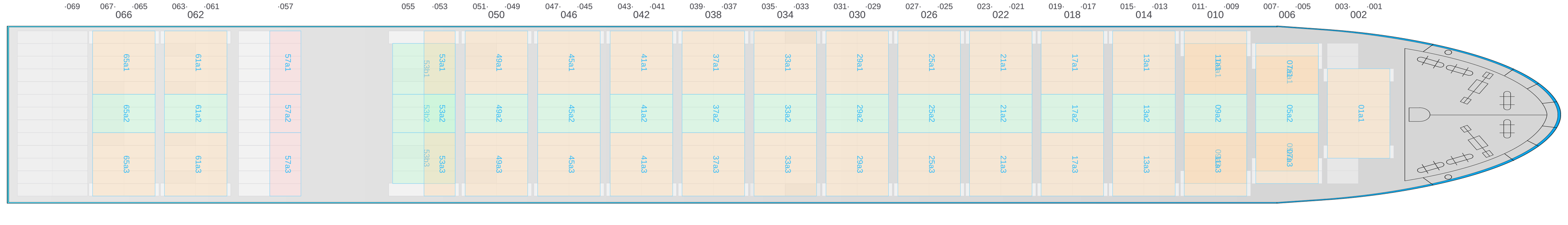

Hatch-Covers View
![Deck view of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-deckView.png?v=1687626579822)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

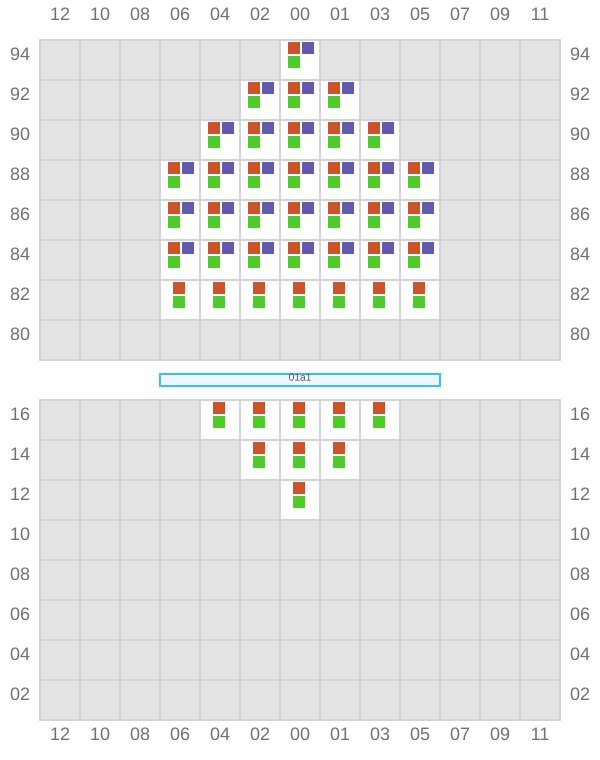

001 (002)
- →
![Bay 001 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b001.png?v=1687626579822)

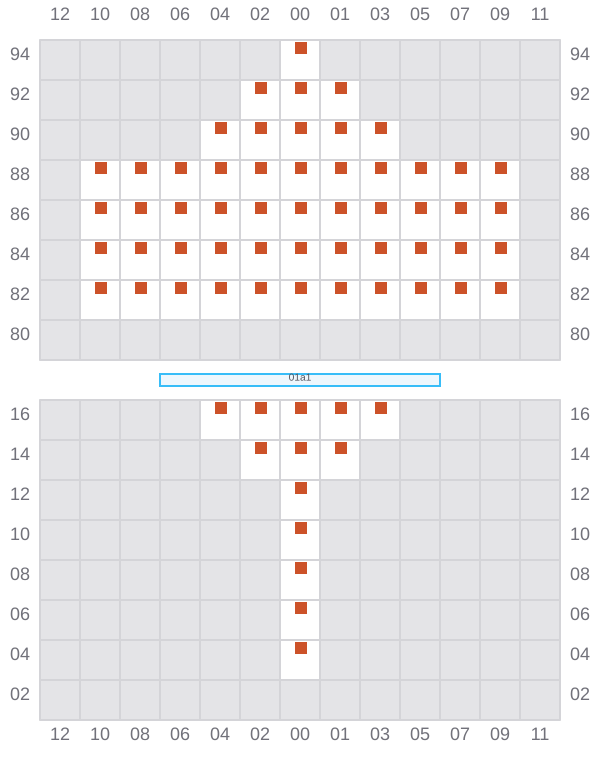

003
- ←
![Bay 003 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b003.png?v=1687626579822)

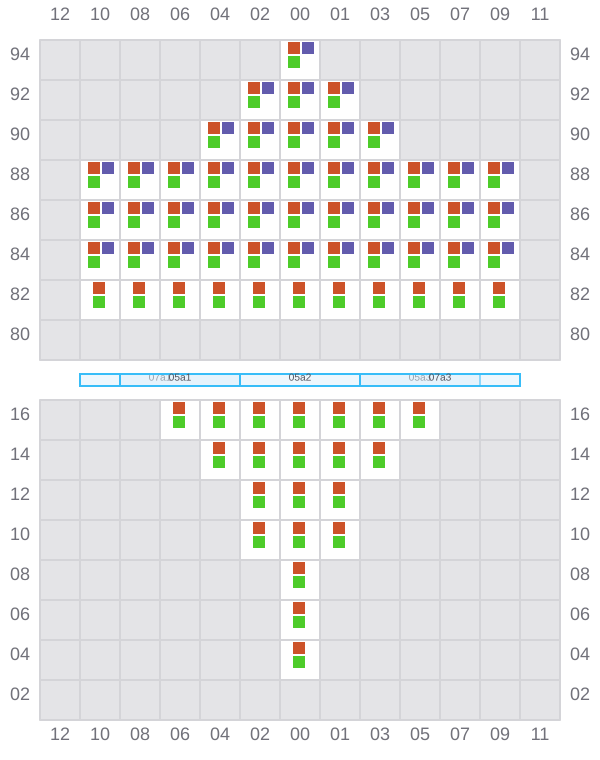

005 (006)
- →
![Bay 005 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b005.png?v=1687626579822)

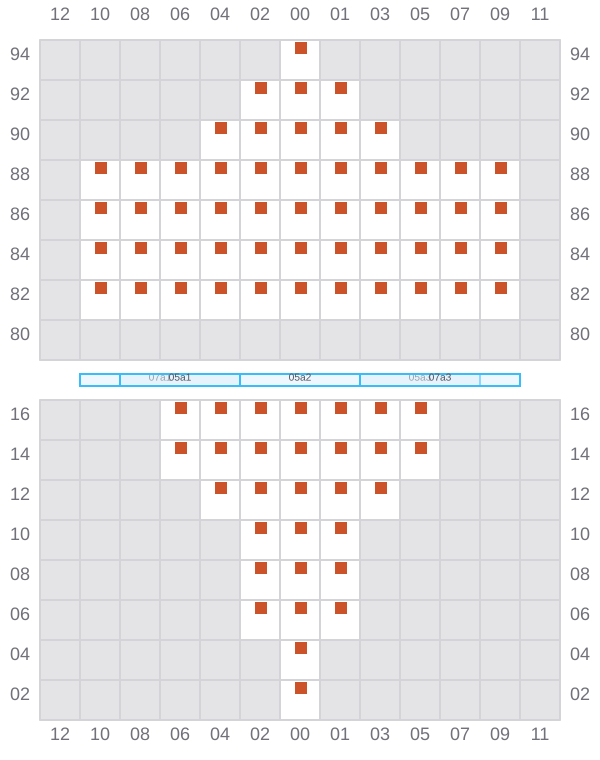

007
- ←
![Bay 007 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b007.png?v=1687626579822)

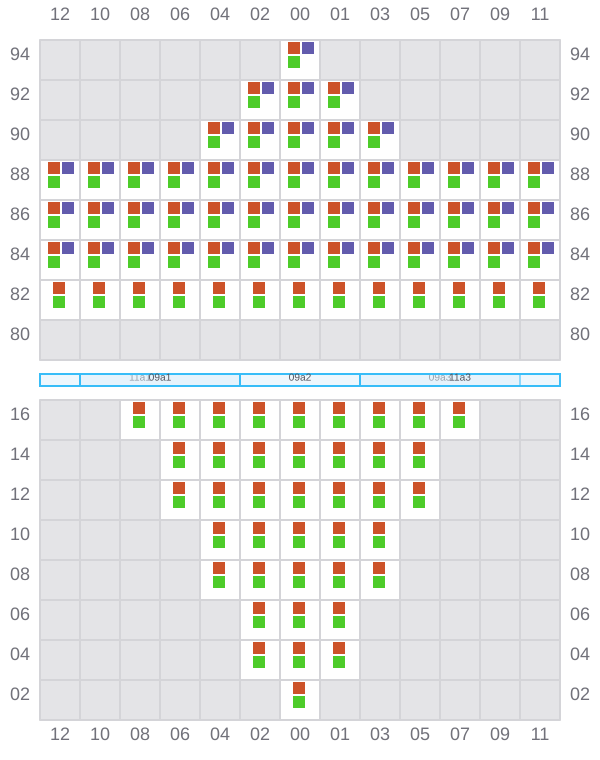

009 (010)
- →
![Bay 009 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b009.png?v=1687626579822)

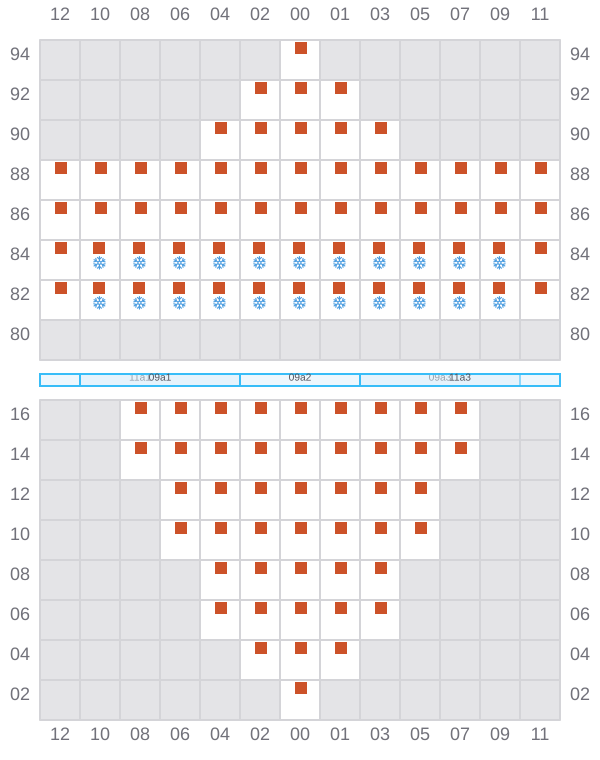

011
- ←
- → / ?
![Bay 011 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b011.png?v=1687626579822)

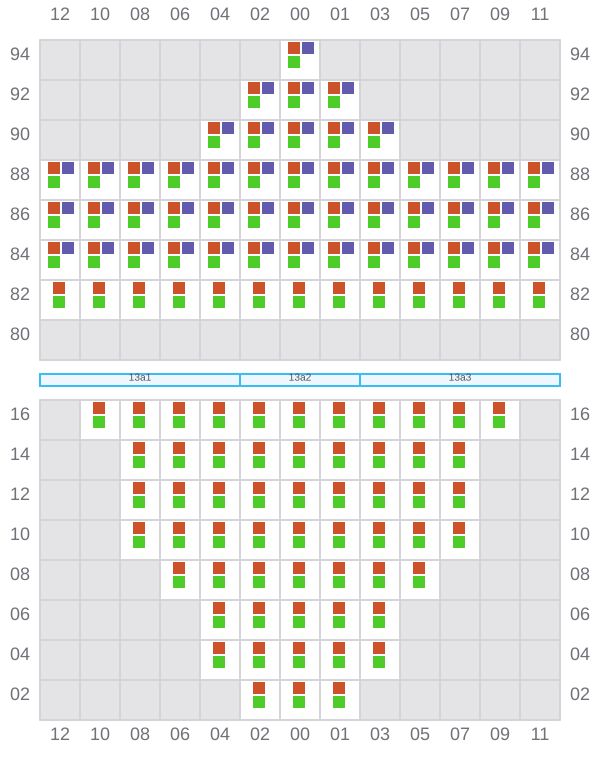

013 (014)
- →
![Bay 013 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b013.png?v=1687626579822)

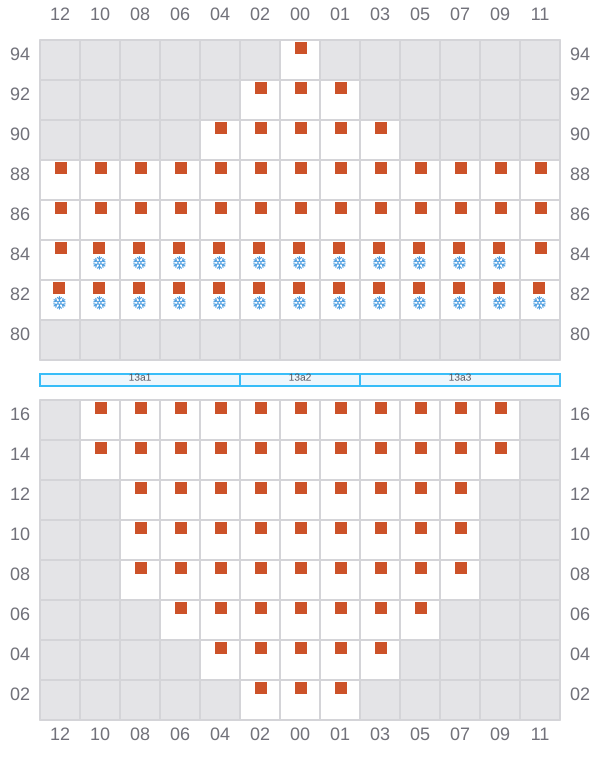

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b015.png?v=1687626579822)

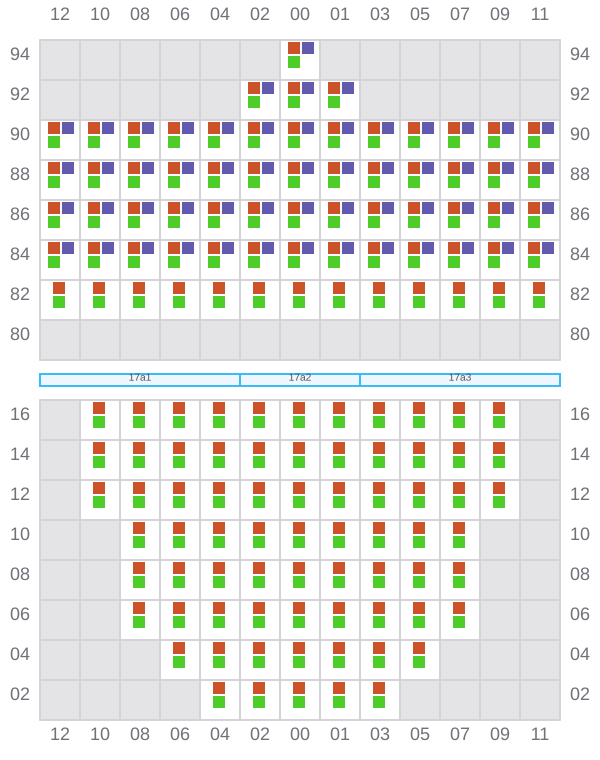

017 (018)
- →
![Bay 017 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b017.png?v=1687626579822)

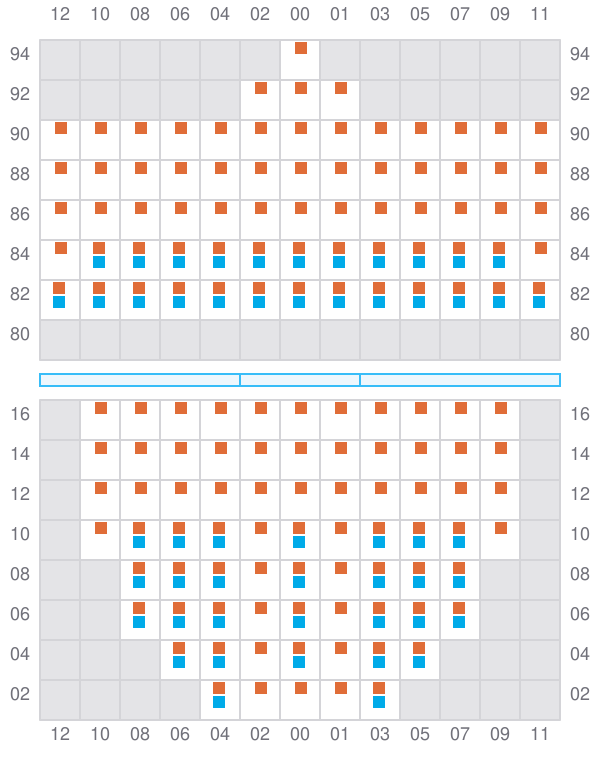

019
- ←
- → / ?
![Bay 019 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b019.png?v=1687626579822)

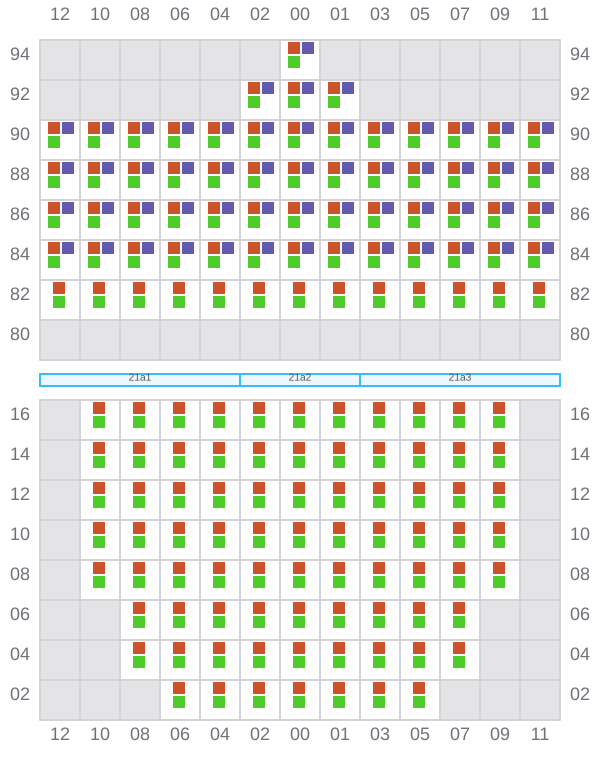

021 (022)
- →
![Bay 021 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b021.png?v=1687626579822)

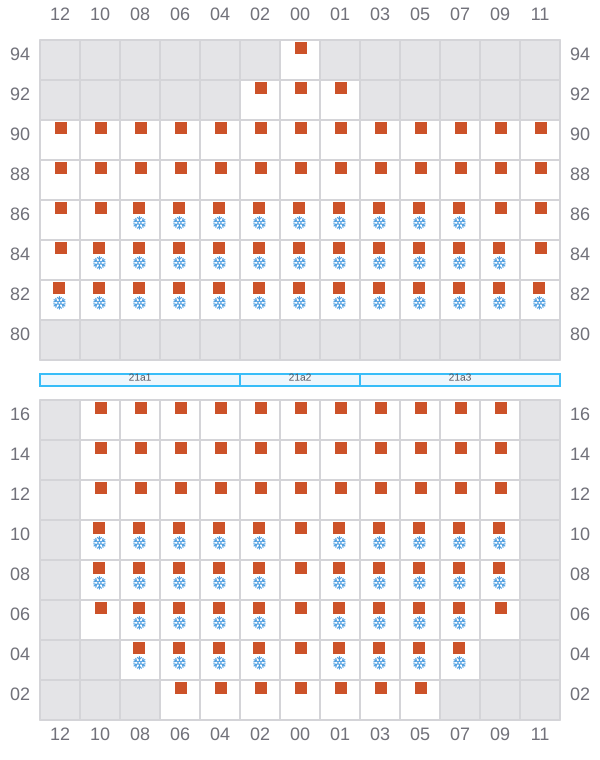

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b023.png?v=1687626579822)

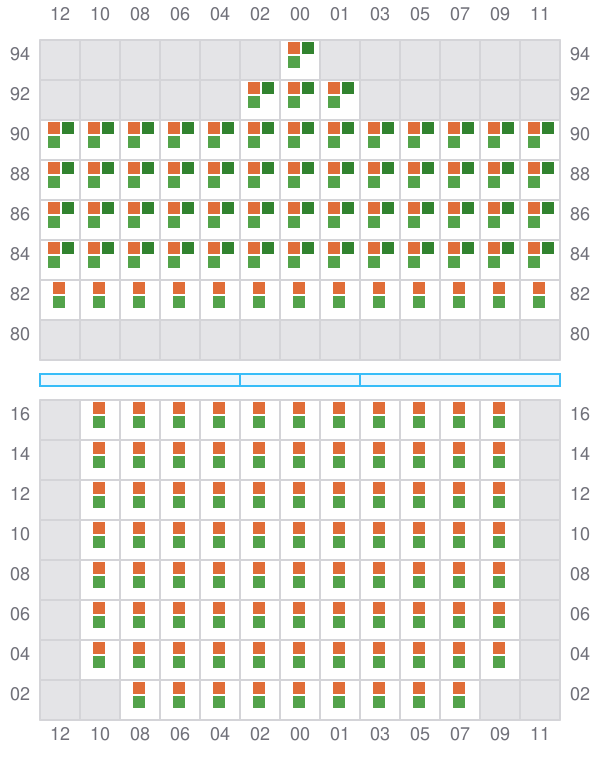

025 (026)
- →
- ? / →
![Bay 025 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b025.png?v=1687626579822)

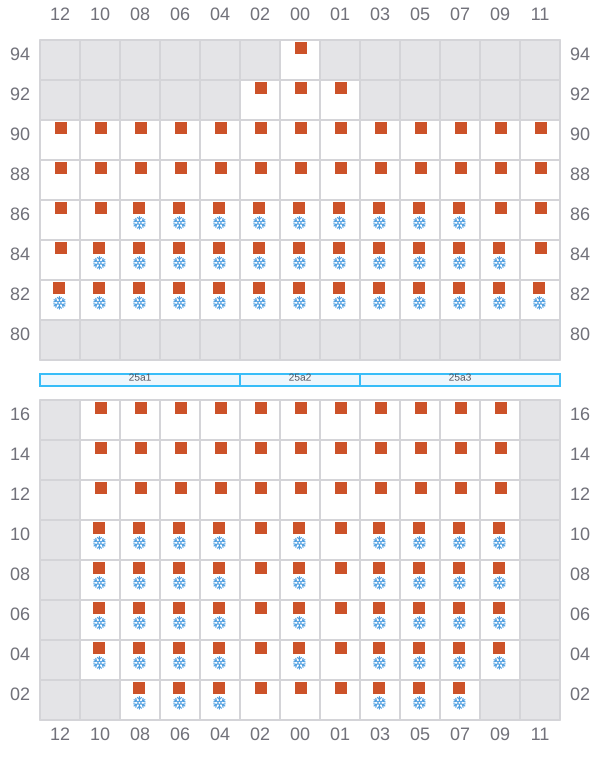

027
- ←
- →
![Bay 027 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b027.png?v=1687626579822)
029 (030)
- →
- ? / →
![Bay 029 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b029.png?v=1687626579822)

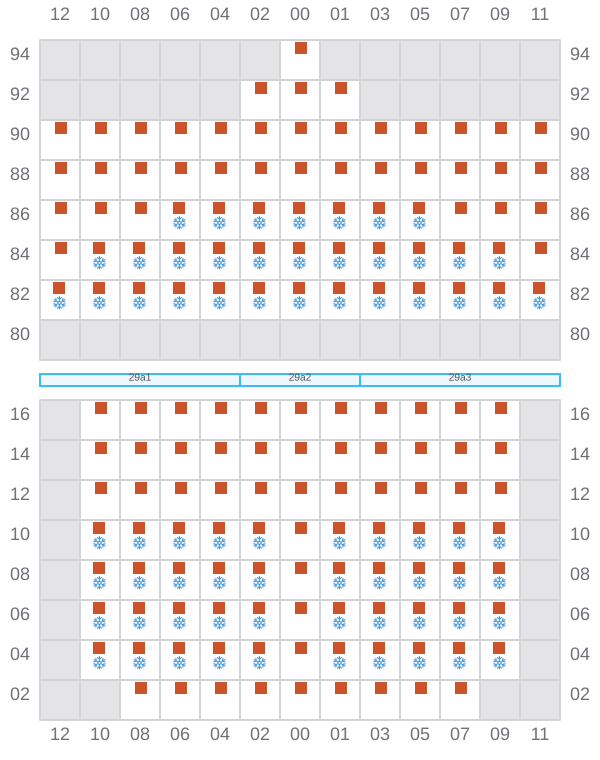

031
- ←
- → / ?
![Bay 031 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b031.png?v=1687626579822)

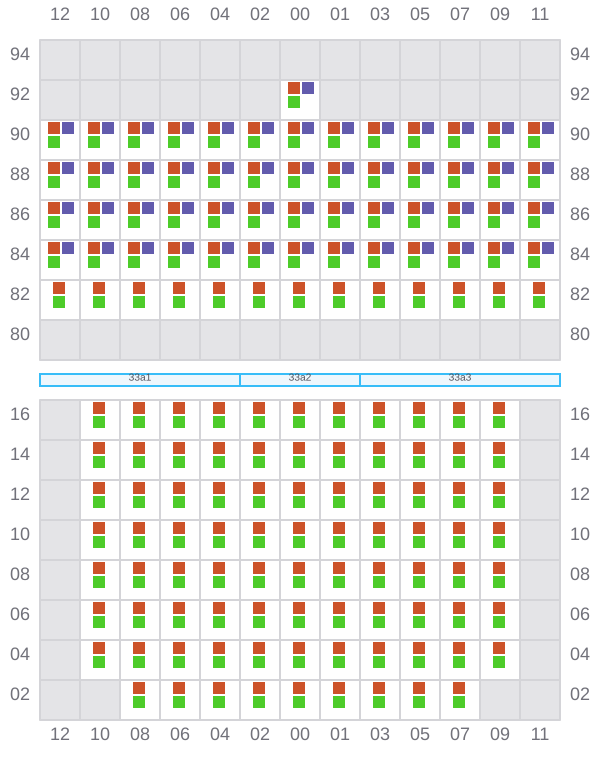

033 (034)
- →
- ? / →
![Bay 033 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b033.png?v=1687626579822)

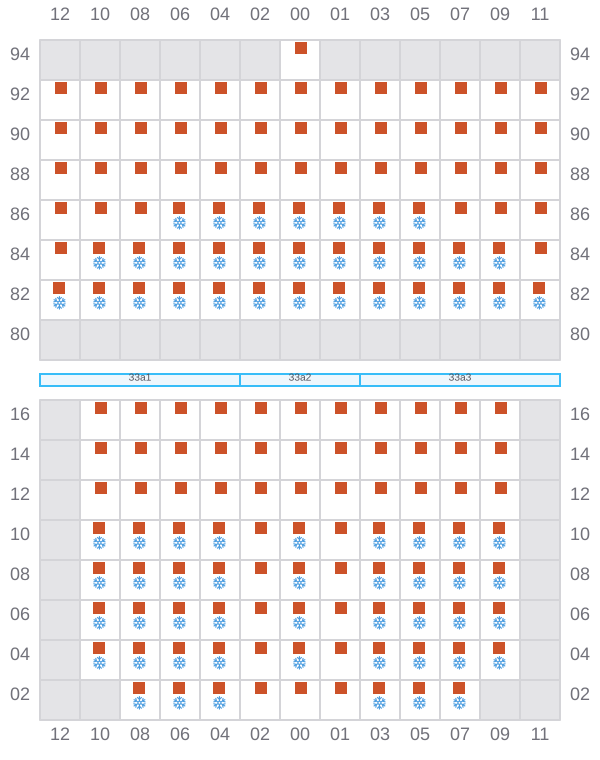

035
- ←
- →
![Bay 035 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b035.png?v=1687626579822)
037 (038)
- →
![Bay 037 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b037.png?v=1687626579822)
039
- ←
- → / ?
![Bay 039 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b039.png?v=1687626579822)

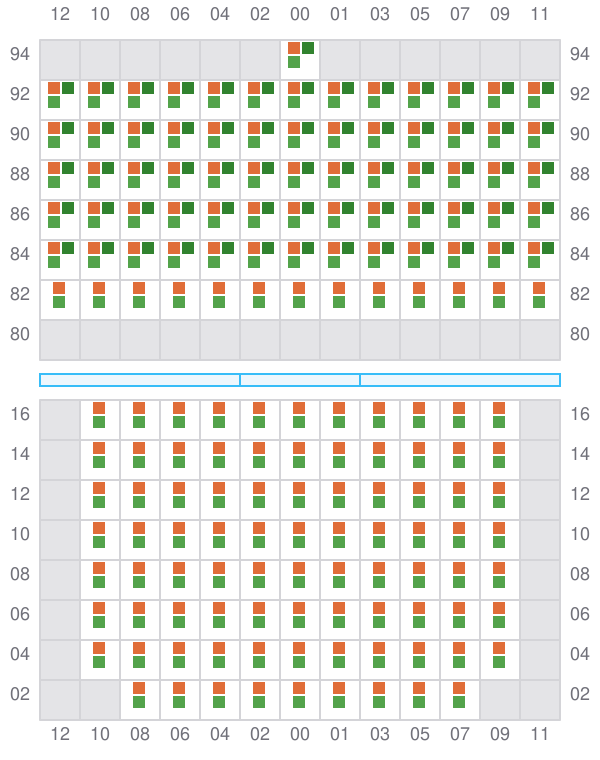

041 (042)
- →
- ? / →
![Bay 041 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b041.png?v=1687626579822)

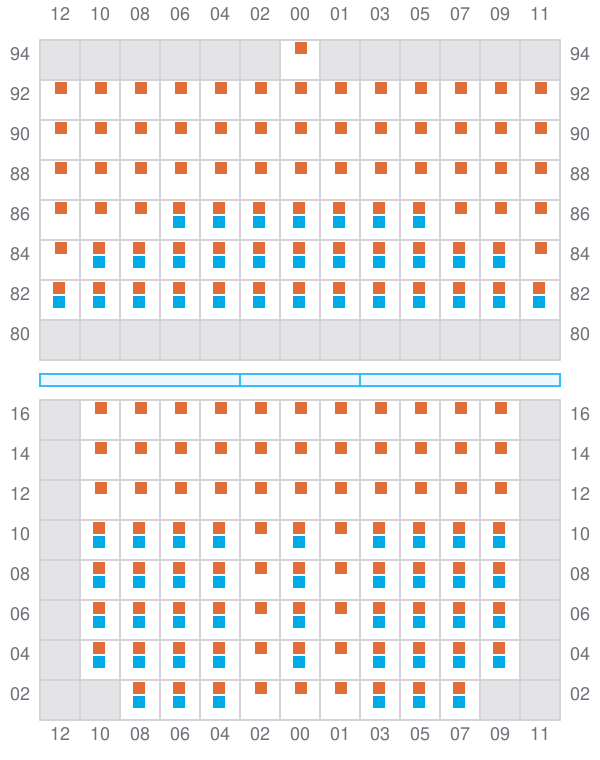

043
- ←
- →
![Bay 043 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b043.png?v=1687626579822)

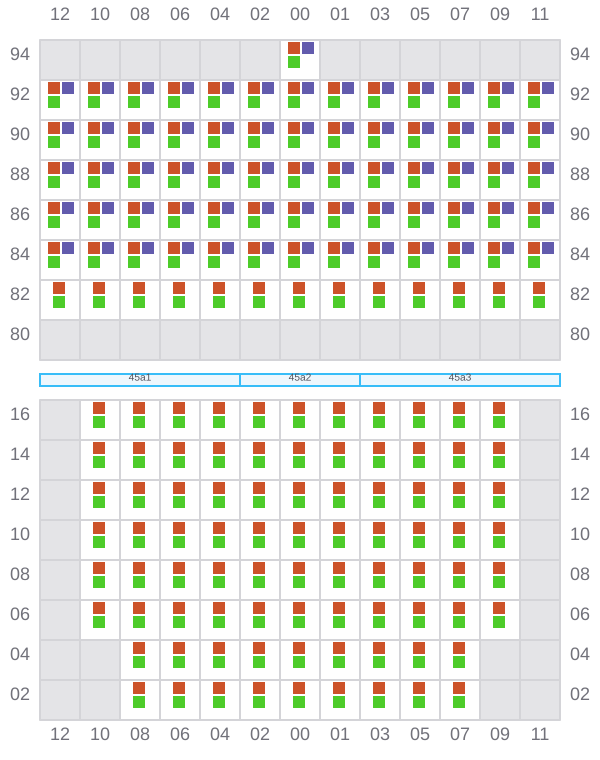

045 (046)
- →
- ? / →
![Bay 045 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b045.png?v=1687626579822)

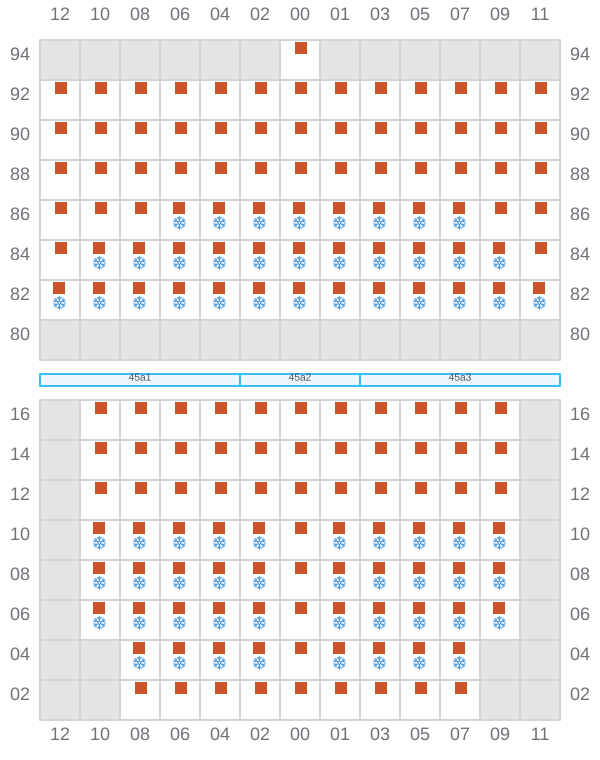

047
- ←
- → / ?
![Bay 047 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b047.png?v=1687626579822)

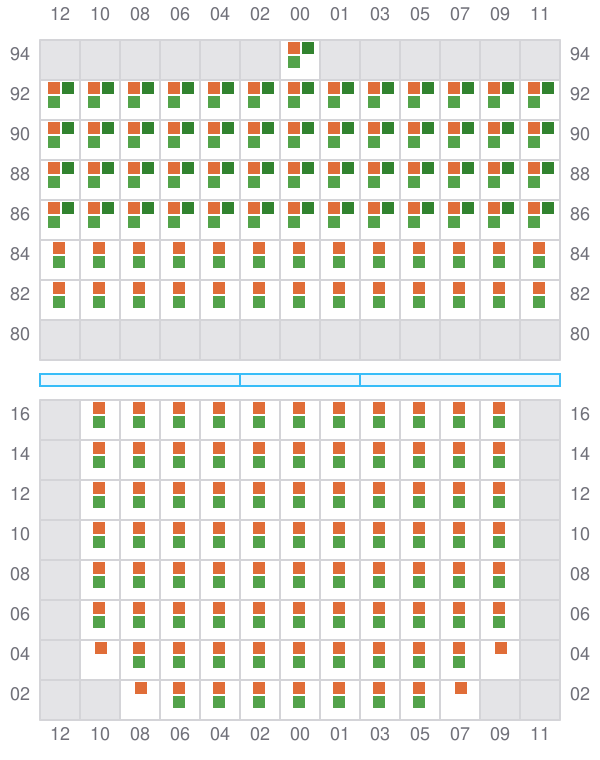

049 (050)
- →
- ? / →
![Bay 049 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b049.png?v=1687626579822)

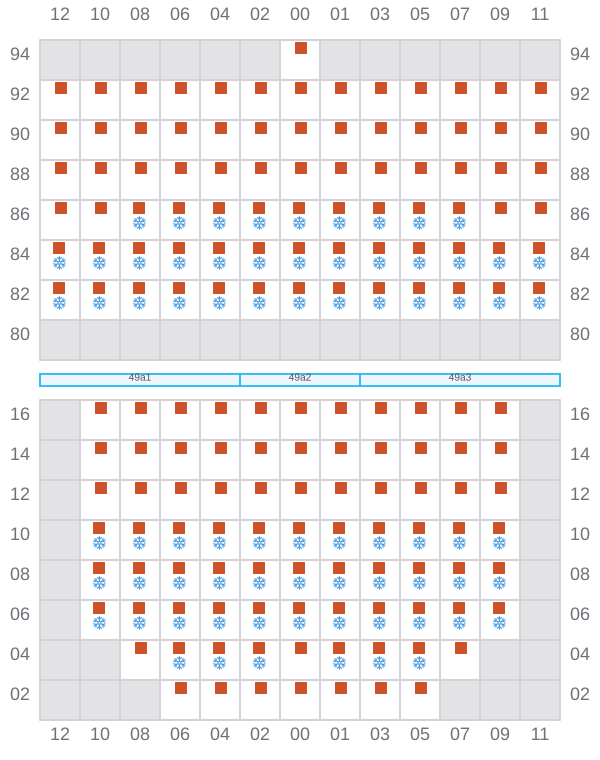

051
- ←
- →
![Bay 051 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b051.png?v=1687626579822)

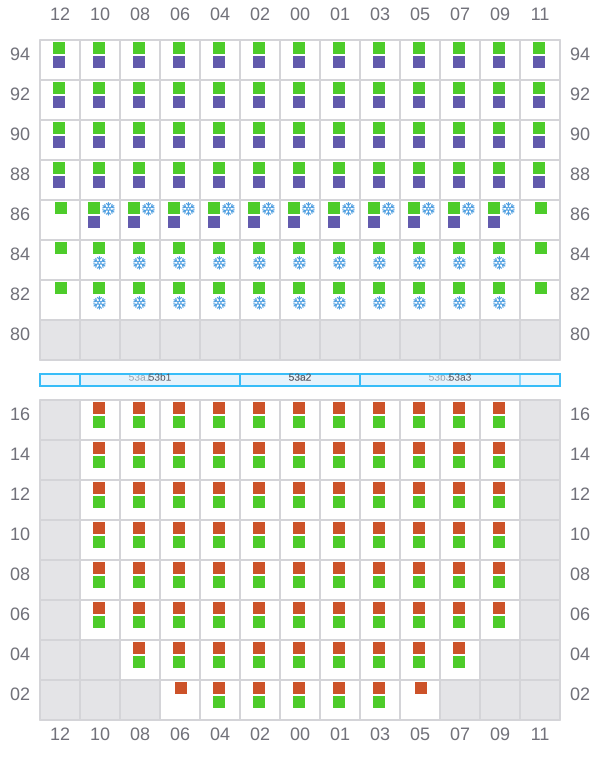

053 (054)
- →
- →
![Bay 053 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b053.png?v=1687626579822)

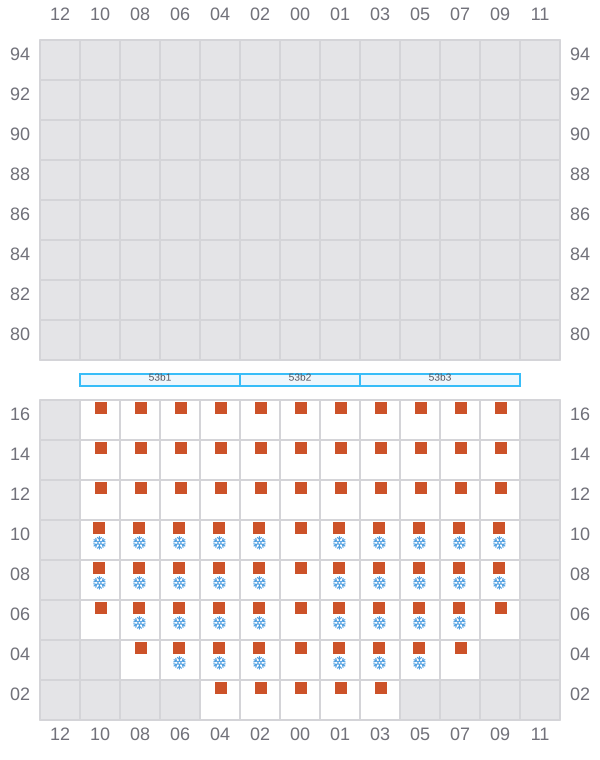

055
- ? / ←
- ? / →
![Bay 055 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b055.png?v=1687626579822)

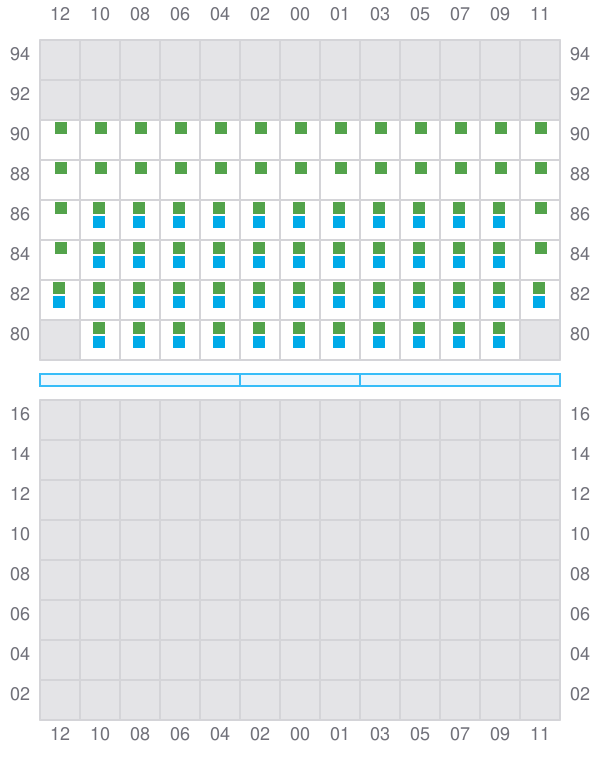

057 (058)
- → / ?
- ← / ?
![Bay 057 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b057.png?v=1687626579822)
059
![Bay 059 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b059.png?v=1687626579822)

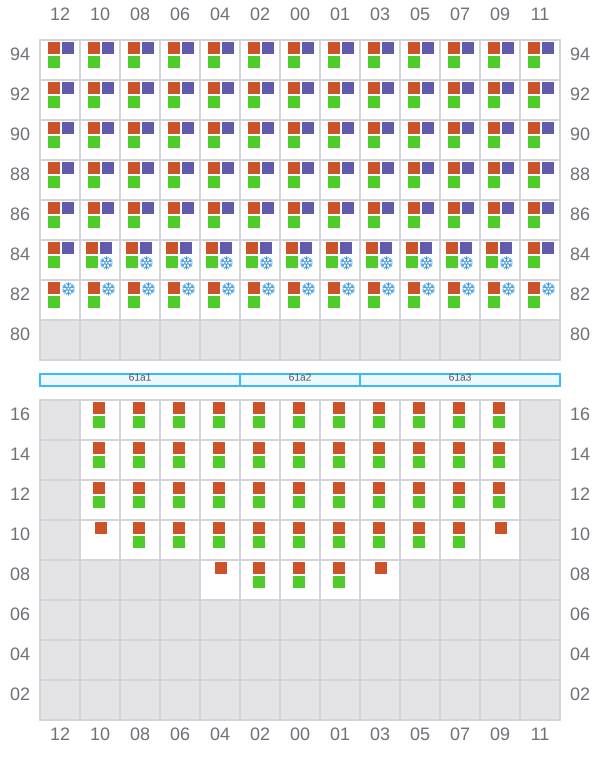

061 (062)
- →
- ← / →
![Bay 061 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b061.png?v=1687626579822)

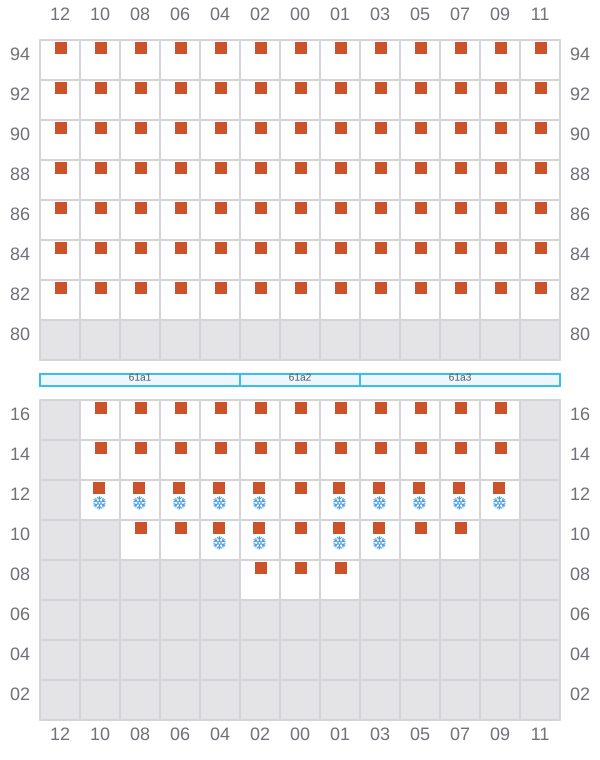

063
- ←
- ? / →
![Bay 063 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b063.png?v=1687626579822)

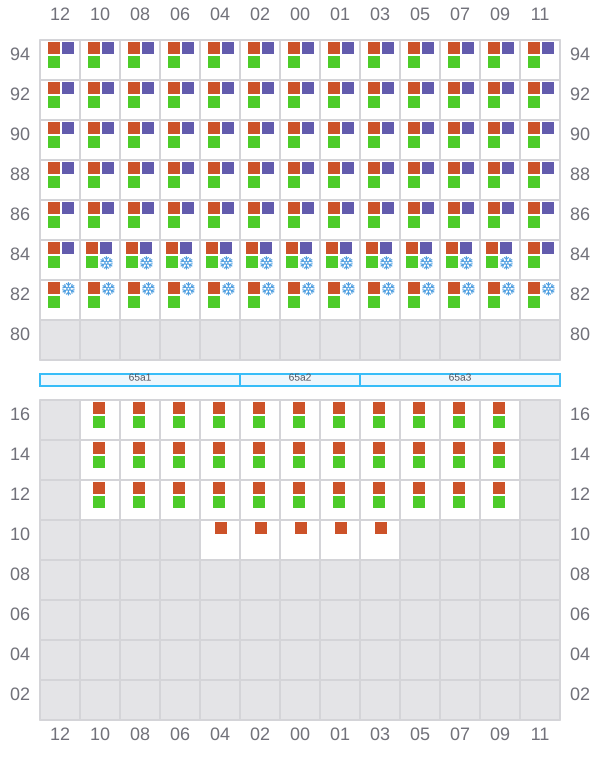

065 (066)
- →
- ← / ?
![Bay 065 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b065.png?v=1687626579822)
067
- ←
![Bay 067 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b067.png?v=1687626579822)

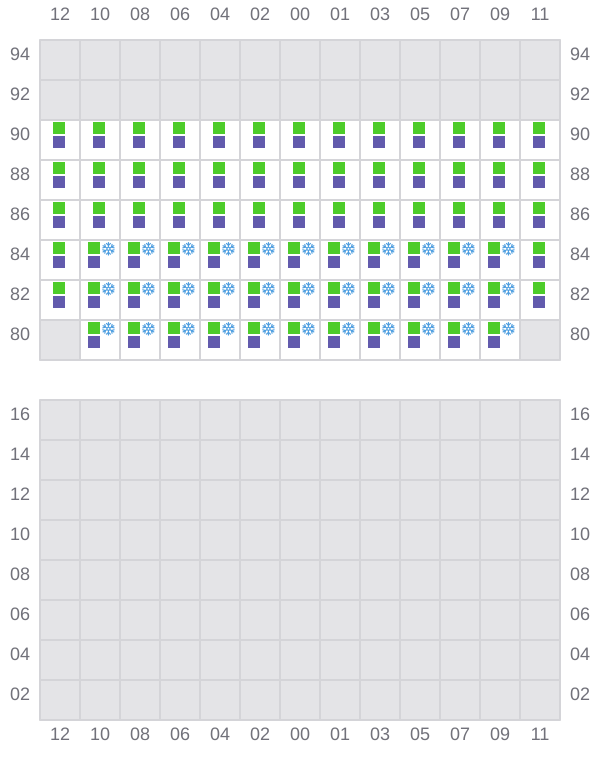

069 (070)
- → / ?
- ← / ?
![Bay 069 view and slots of MAERSK GATESHEAD](/vessel-images/c4d3333b-1d75-46f5-b7e5-16705d70257c-b069.png?v=1687626579822)
