MAERSK GIBRALTAR
9739692 | VRPN6 | 9739692 by ********* Last update: Thu Jun 13 2024

General Info

Ship Name:MAERSK GIBRALTAR
IMO Code:9739692
Call Sign:VRPN6
Line Operator:9739692
Class Name for Sister Ships:MSL
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:72
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,100

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

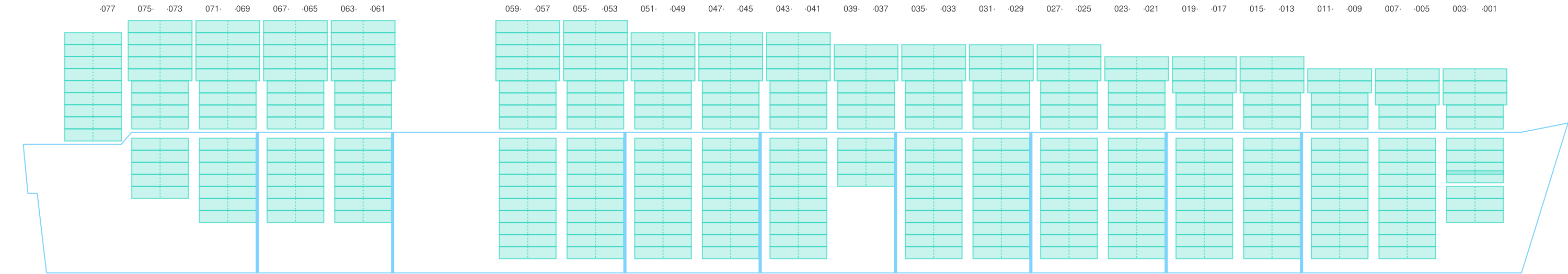

Side view of MAERSK GIBRALTAR

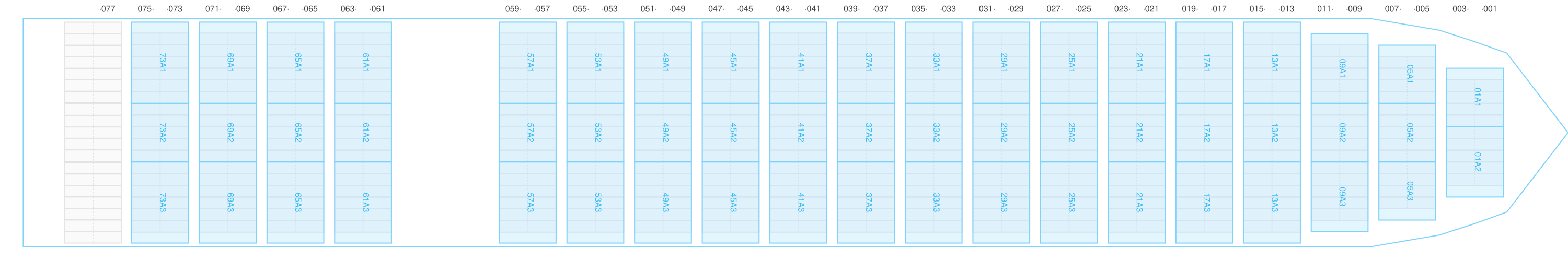

Hatch-Covers View

Deck view of MAERSK GIBRALTAR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

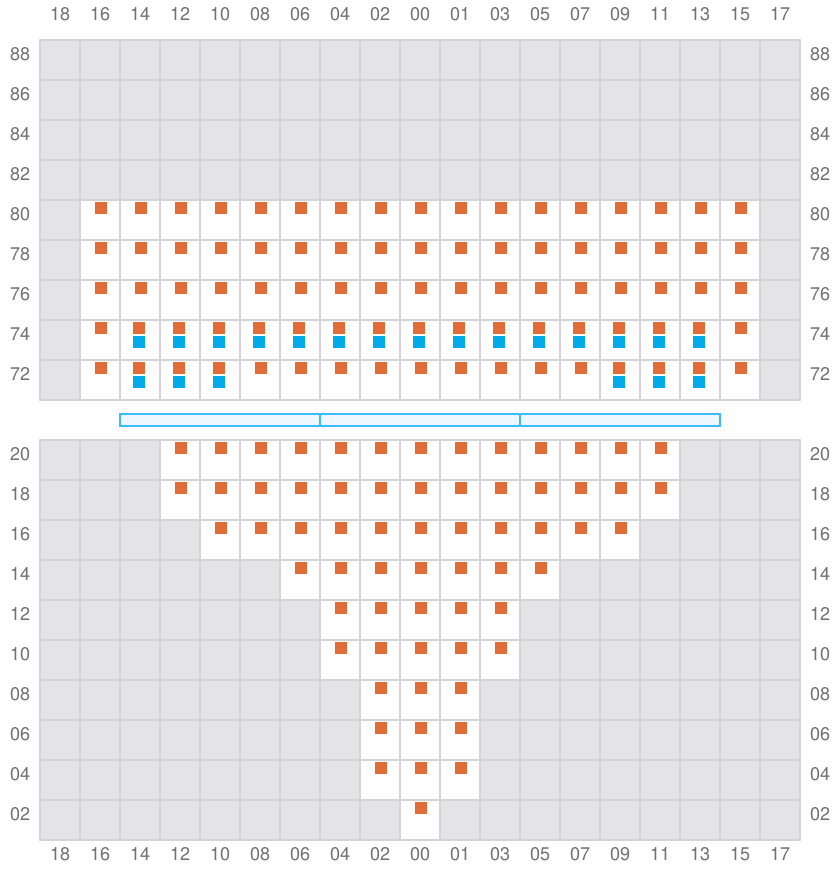

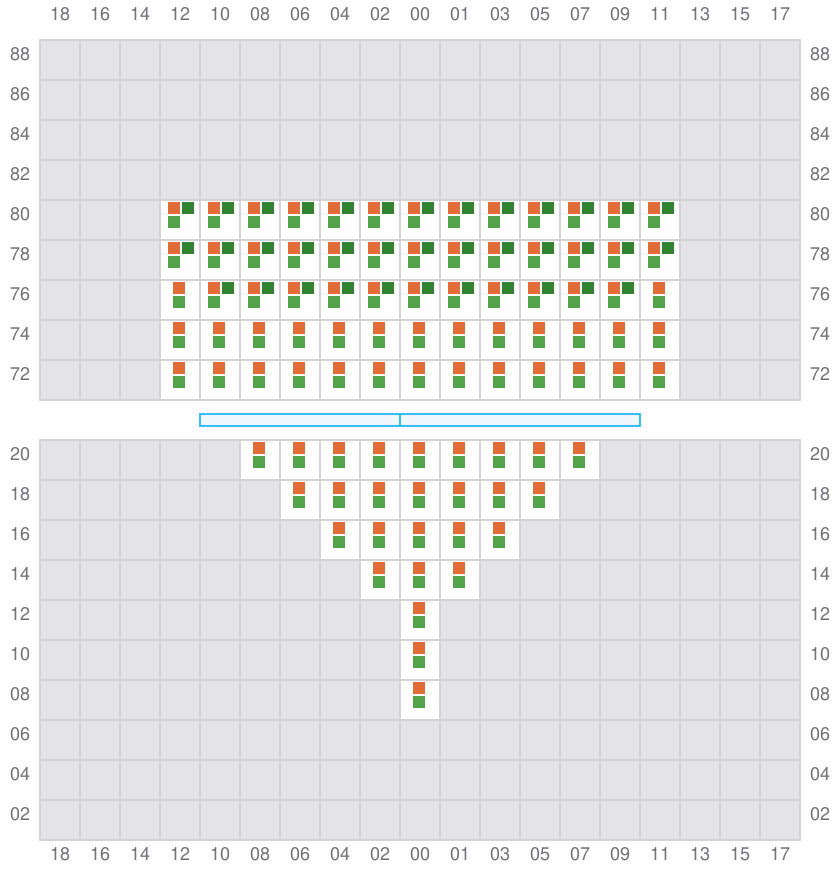

Bay 001 view and slots of MAERSK GIBRALTAR

003

  • ←
  • → / ?

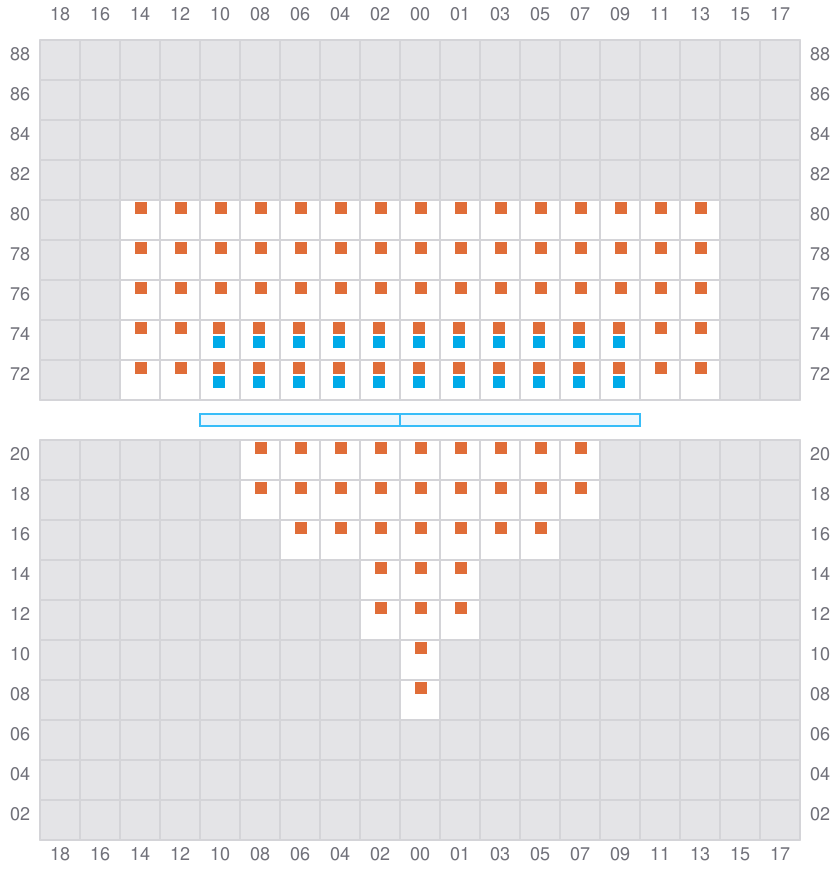

Bay 003 view and slots of MAERSK GIBRALTAR

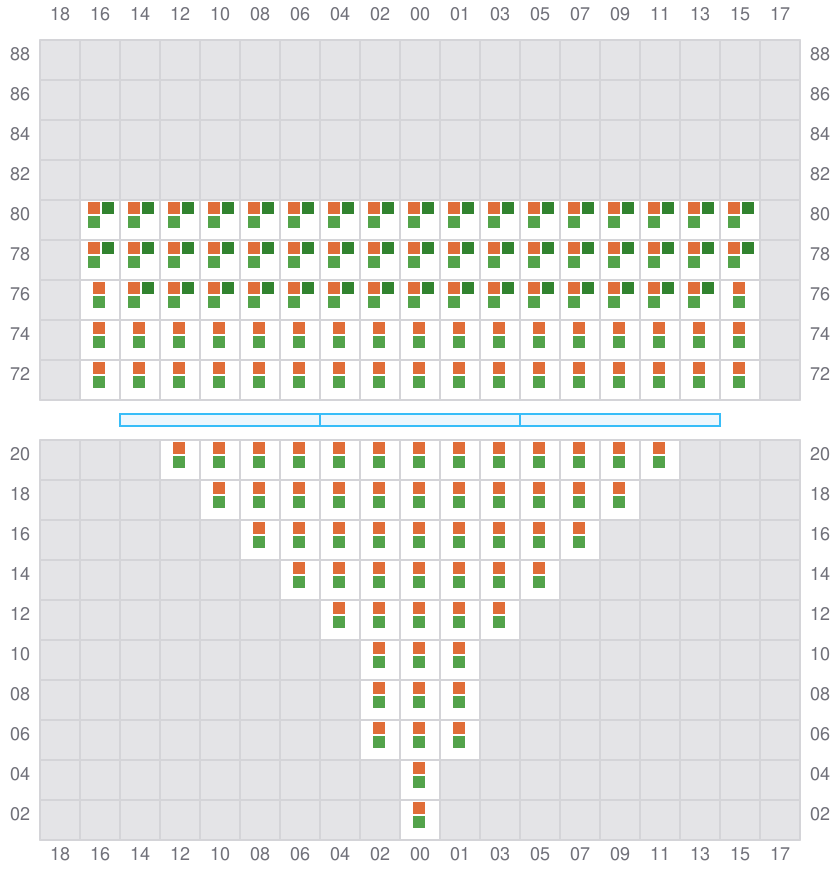

005 (006)

  • →
Bay 005 view and slots of MAERSK GIBRALTAR

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK GIBRALTAR

009 (010)

  • →

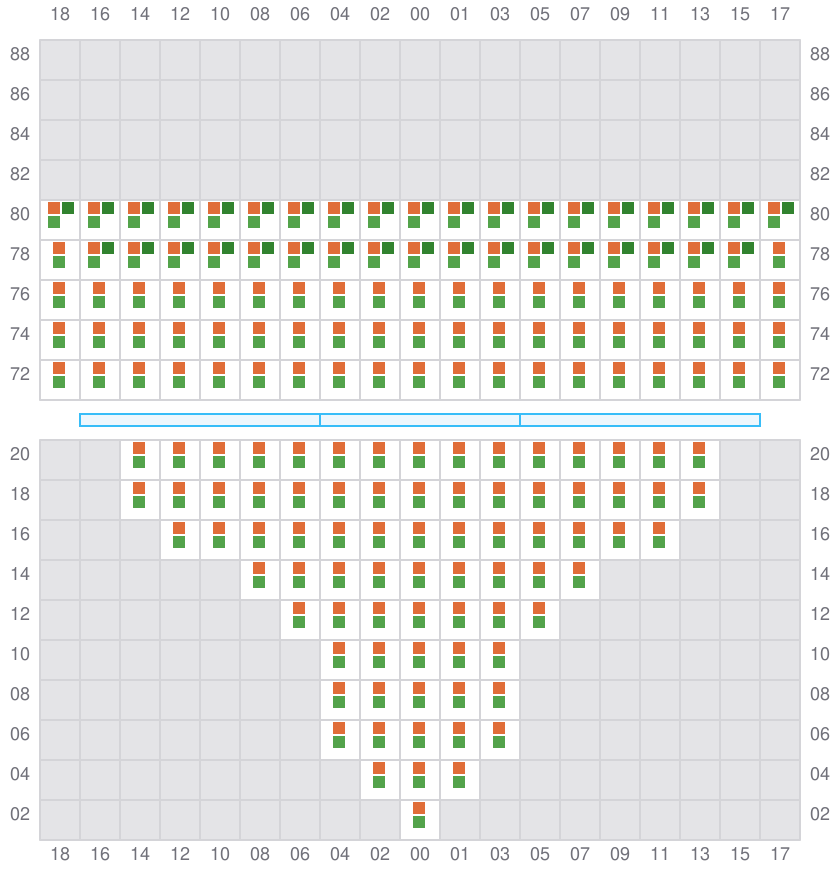

Bay 009 view and slots of MAERSK GIBRALTAR

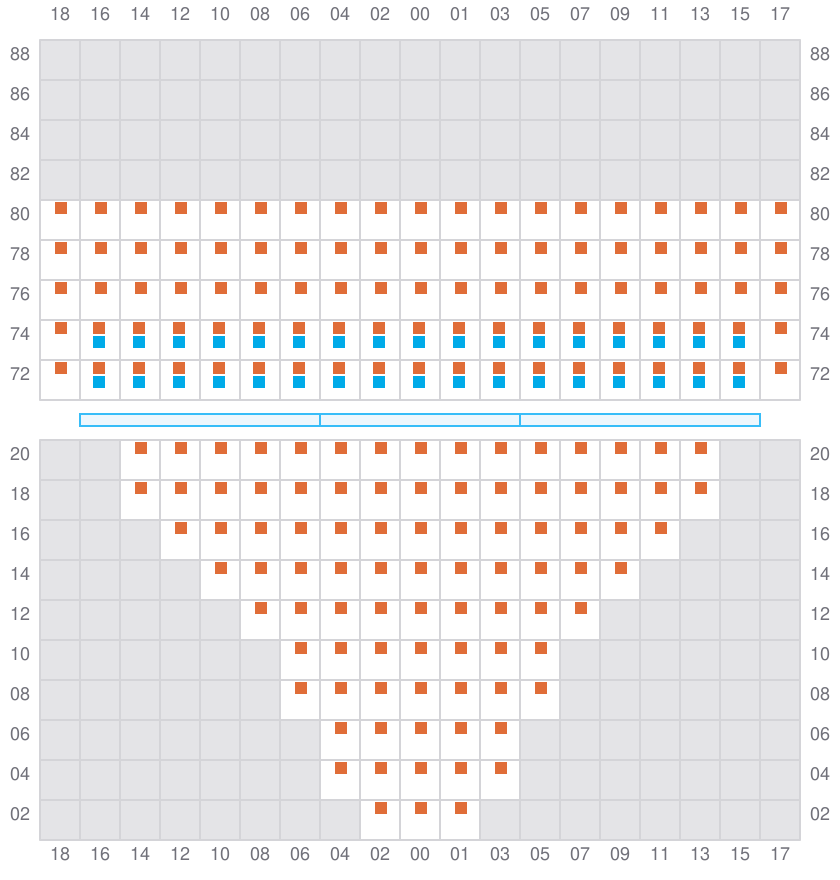

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK GIBRALTAR

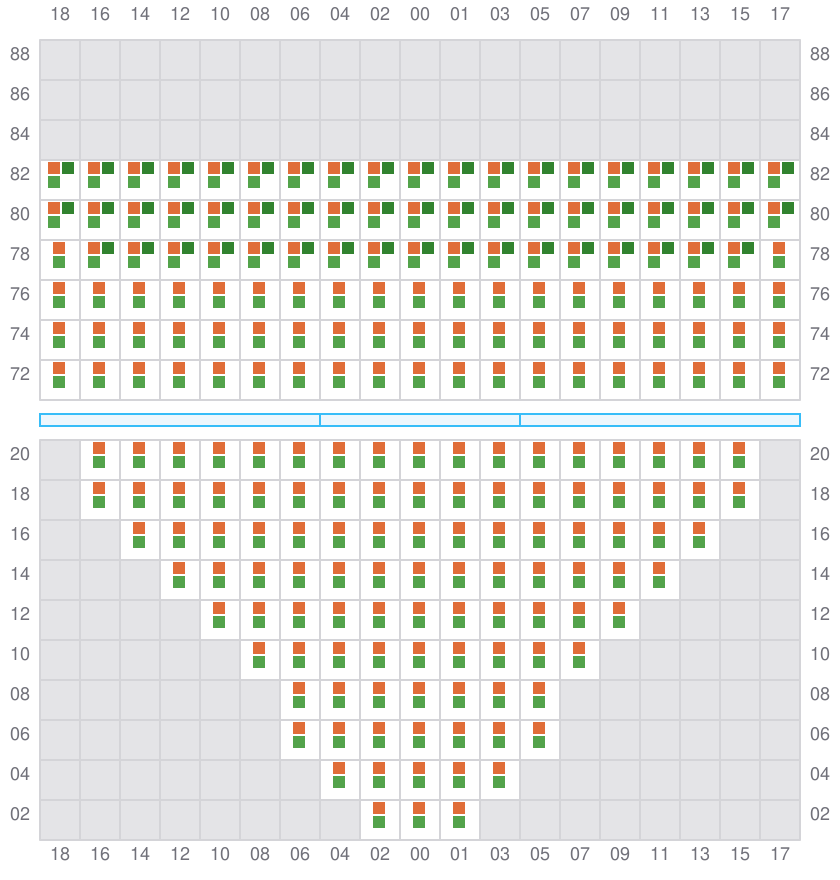

013 (014)

  • →
Bay 013 view and slots of MAERSK GIBRALTAR

015

  • ←
  • → / ?

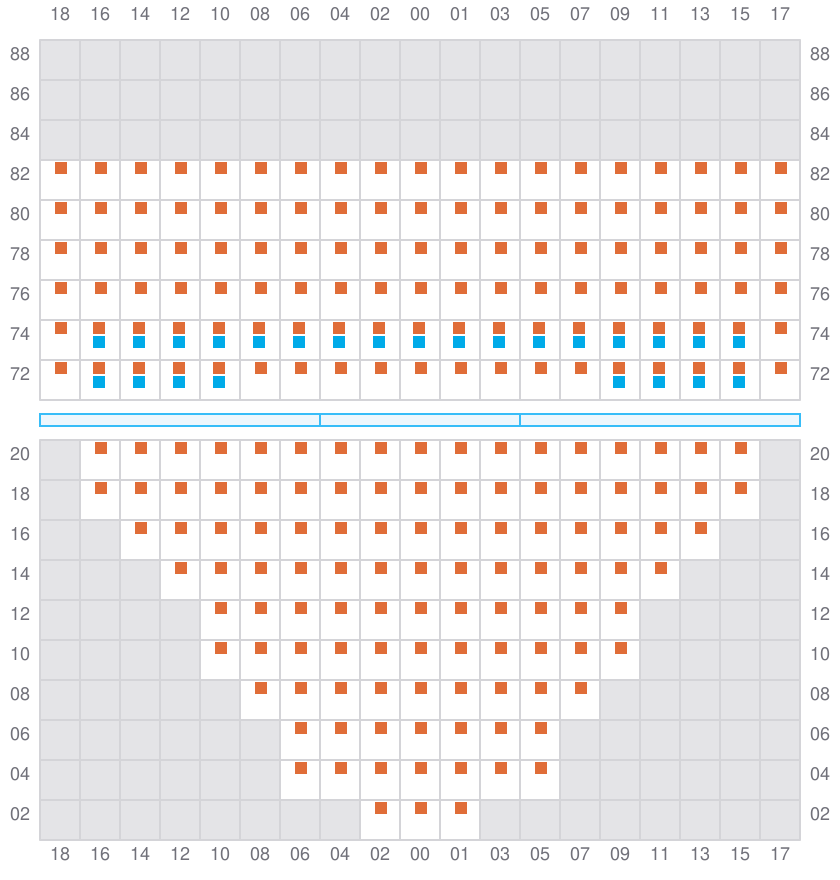

Bay 015 view and slots of MAERSK GIBRALTAR

017 (018)

  • →
Bay 017 view and slots of MAERSK GIBRALTAR

019

  • ←
  • → / ?

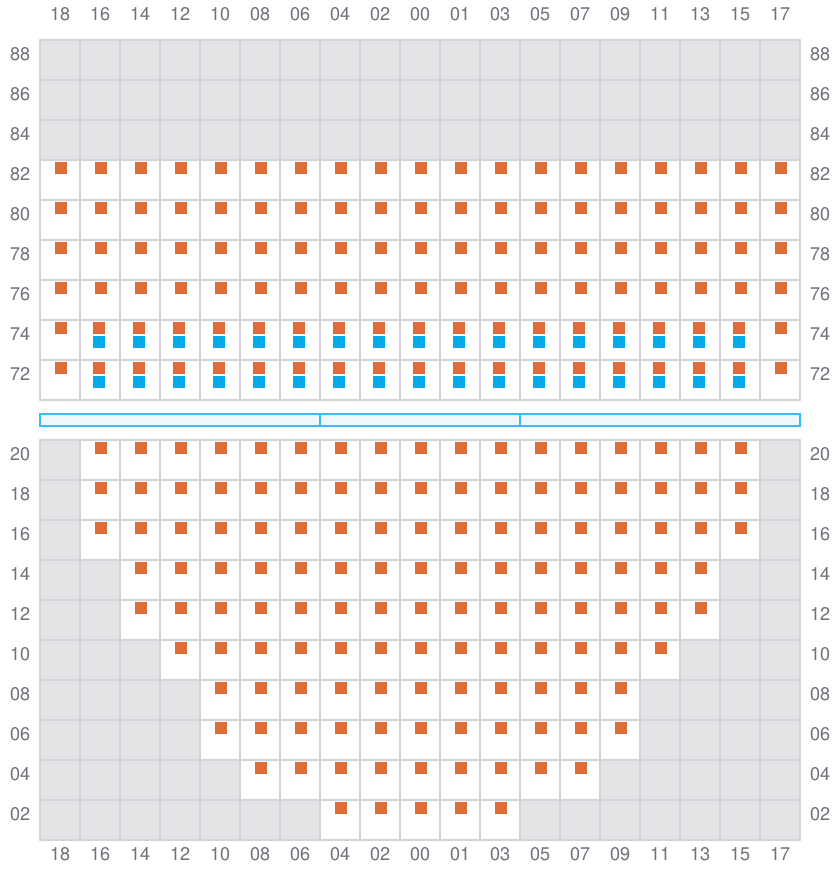

Bay 019 view and slots of MAERSK GIBRALTAR

021 (022)

  • →

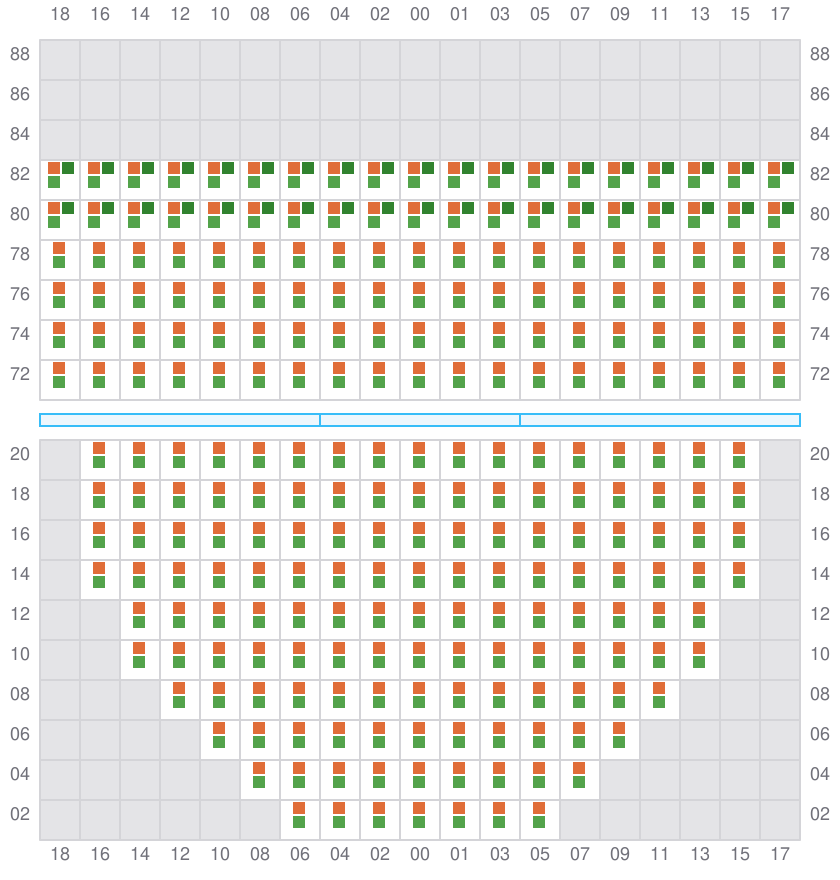

Bay 021 view and slots of MAERSK GIBRALTAR

023

  • ←
  • → / ?

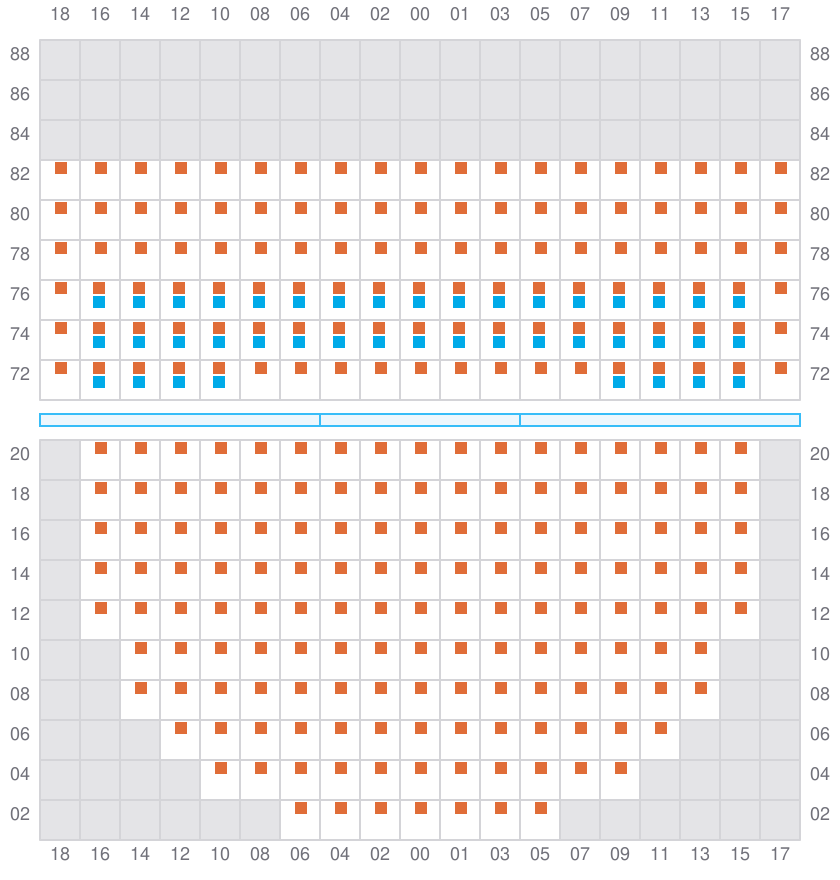

Bay 023 view and slots of MAERSK GIBRALTAR

025 (026)

  • →

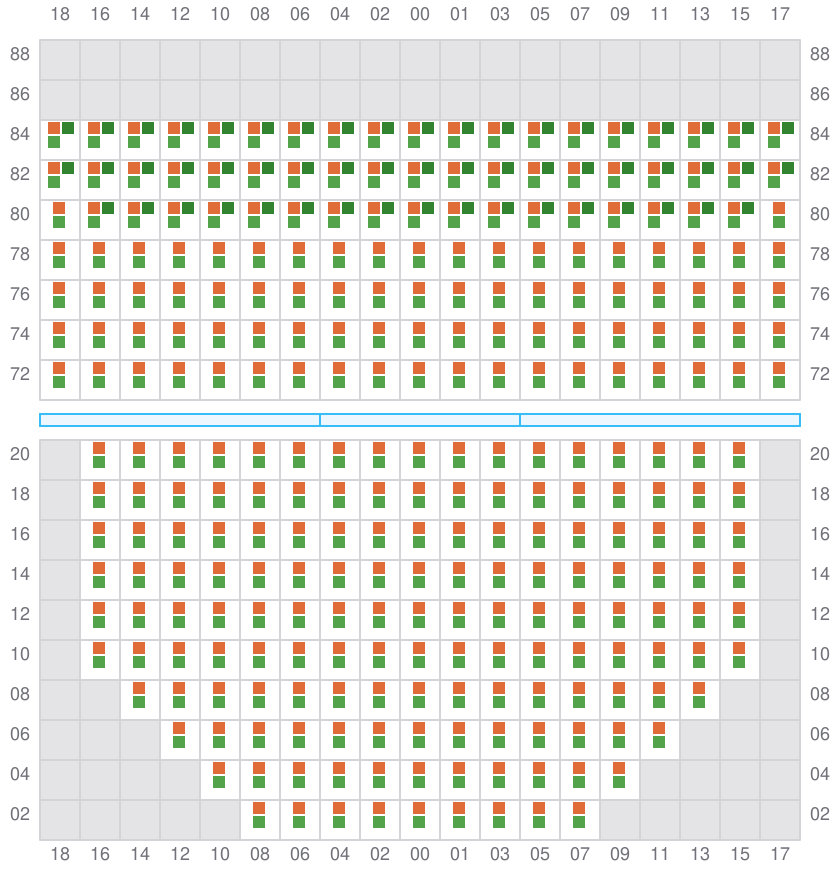

Bay 025 view and slots of MAERSK GIBRALTAR

027

  • ←
  • → / ?

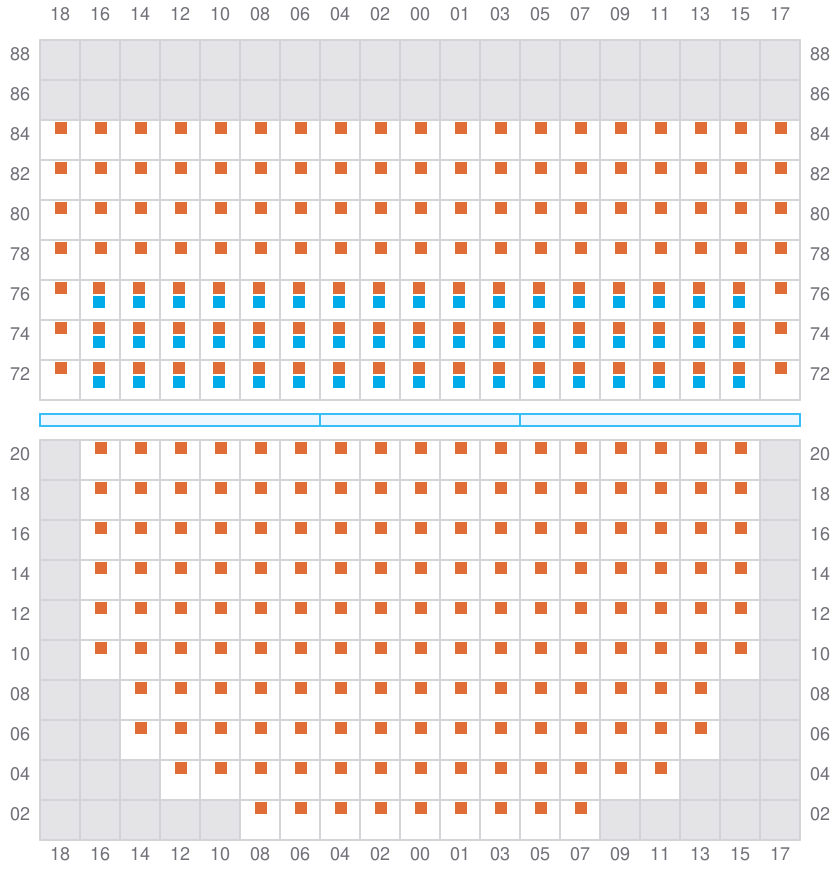

Bay 027 view and slots of MAERSK GIBRALTAR

029 (030)

  • →

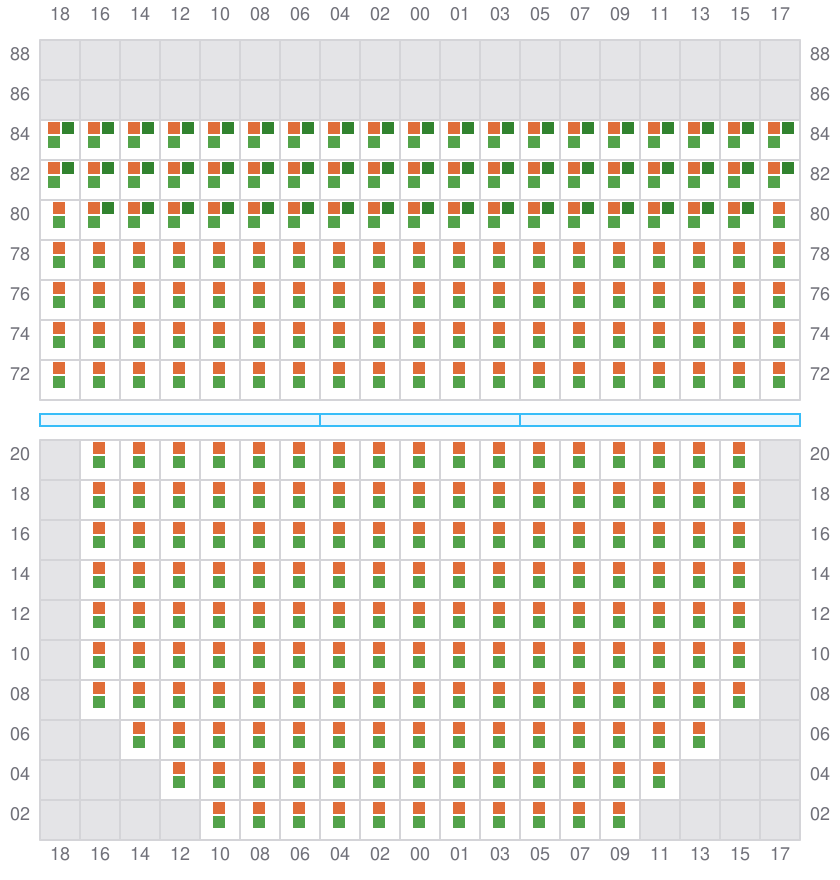

Bay 029 view and slots of MAERSK GIBRALTAR

031

  • ←
  • → / ?

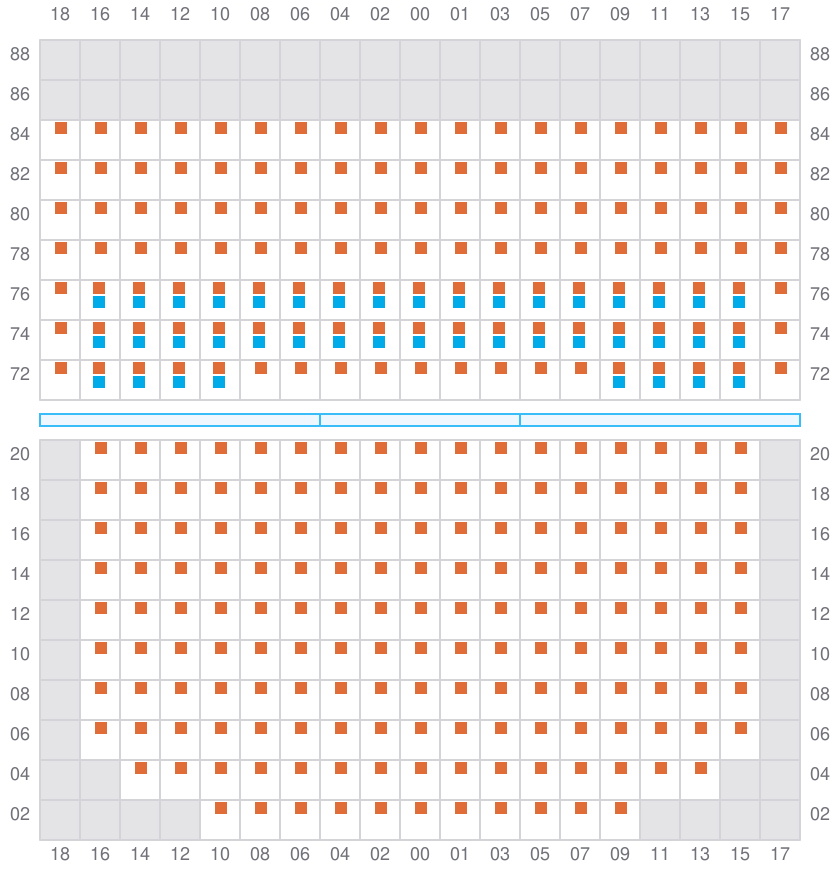

Bay 031 view and slots of MAERSK GIBRALTAR

033 (034)

  • →

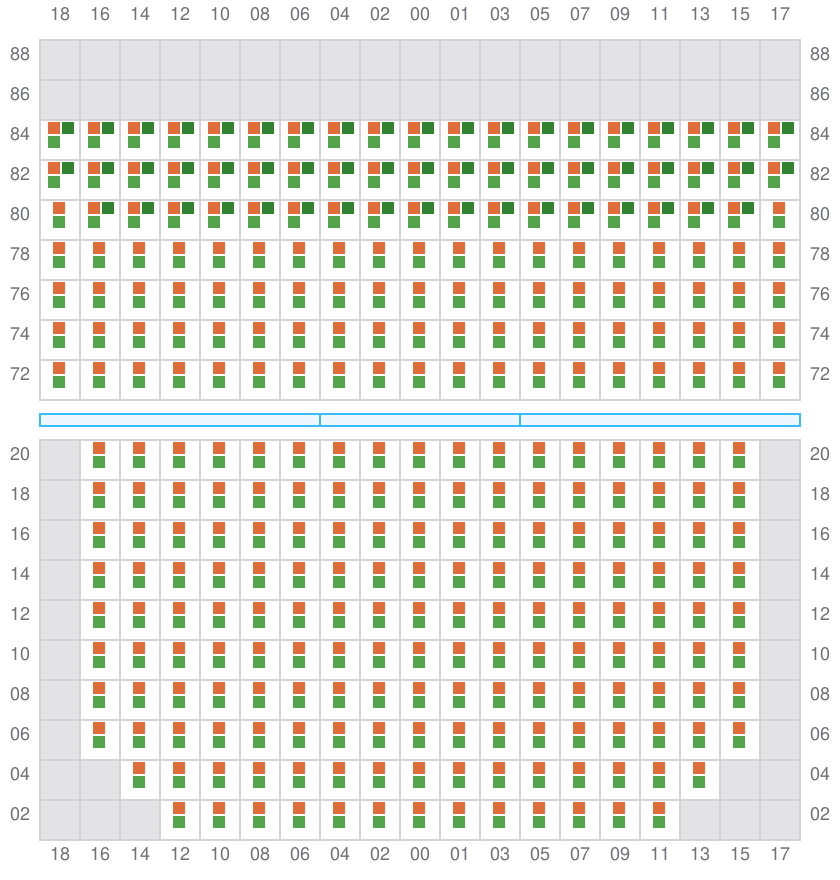

Bay 033 view and slots of MAERSK GIBRALTAR

035

  • ←
  • → / ?

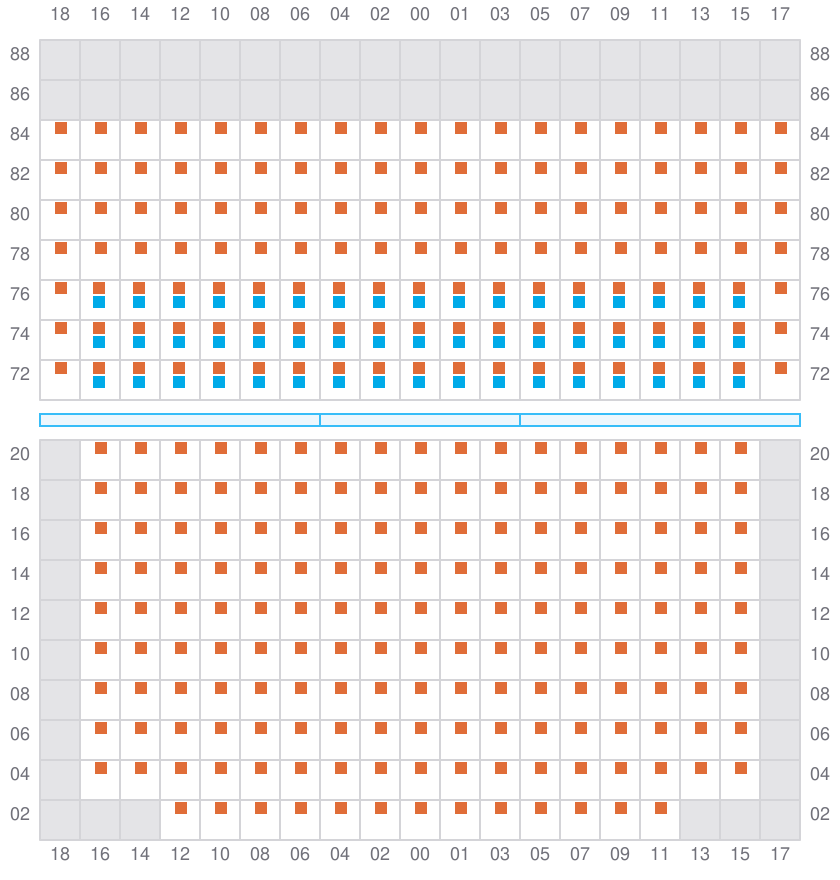

Bay 035 view and slots of MAERSK GIBRALTAR

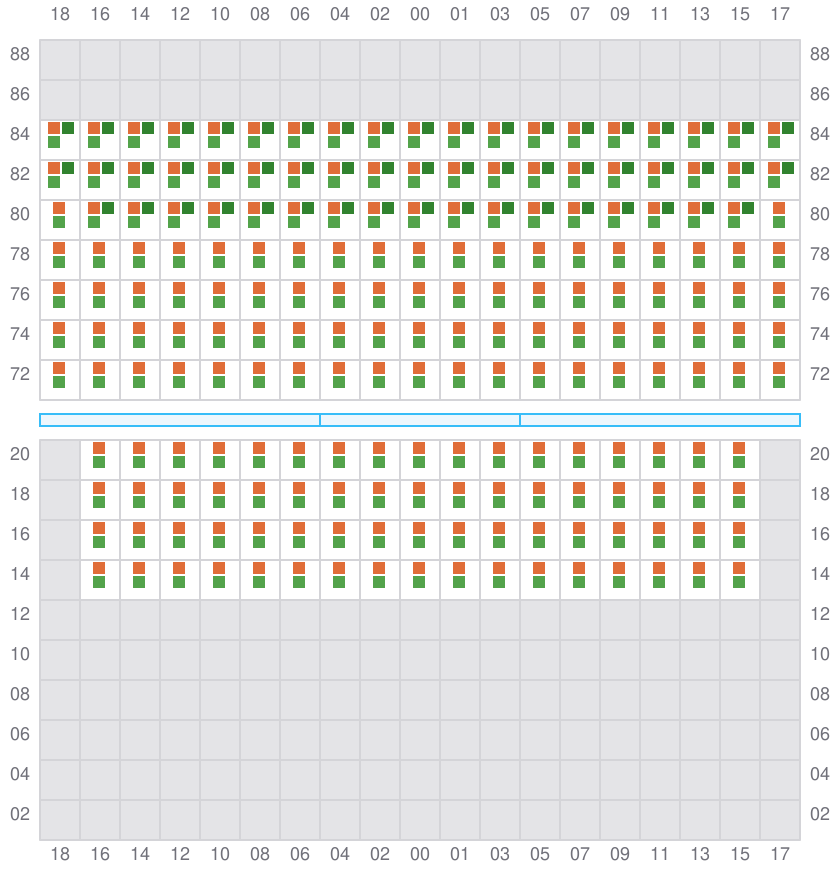

037 (038)

  • →
Bay 037 view and slots of MAERSK GIBRALTAR

039

  • ←
  • → / ?

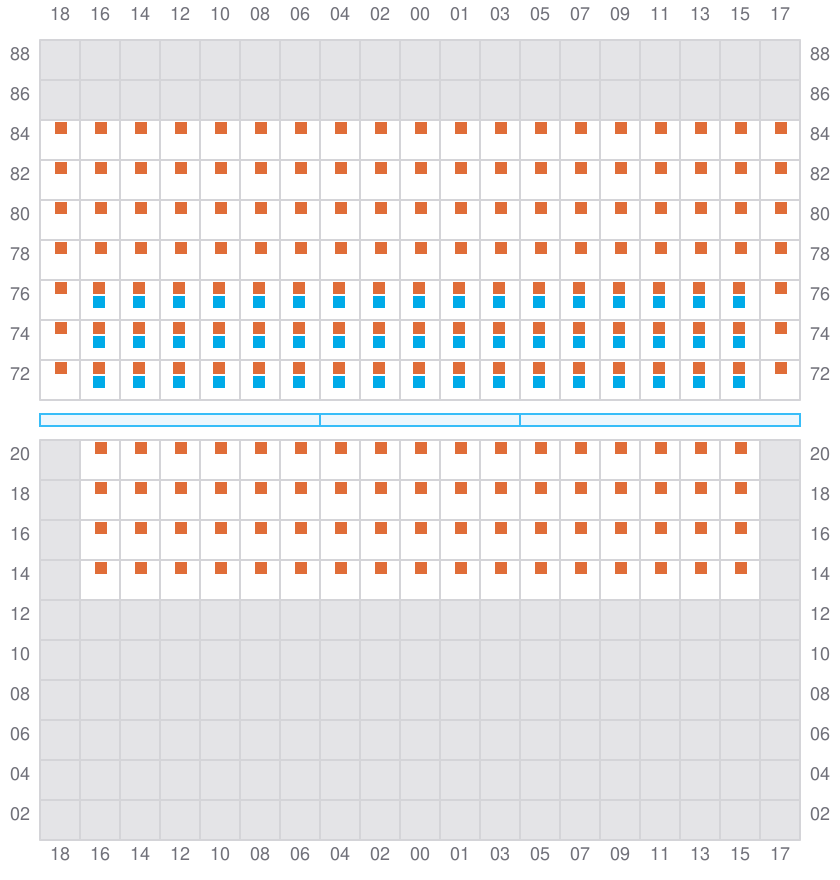

Bay 039 view and slots of MAERSK GIBRALTAR

041 (042)

  • →
Bay 041 view and slots of MAERSK GIBRALTAR

043

  • ←
  • → / ?

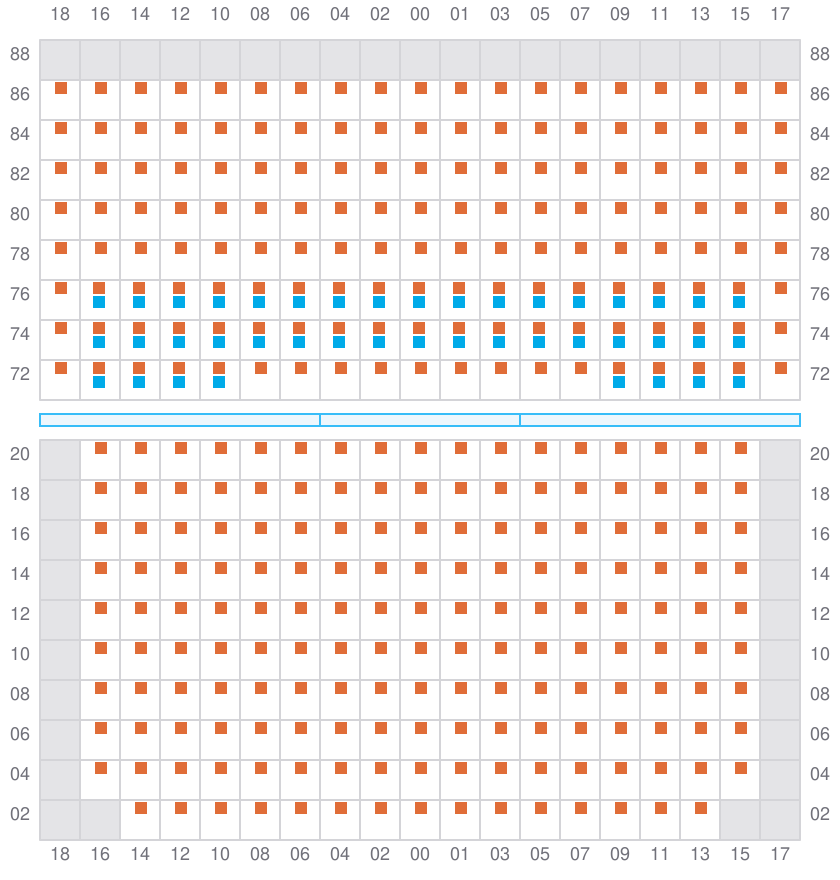

Bay 043 view and slots of MAERSK GIBRALTAR

045 (046)

  • →

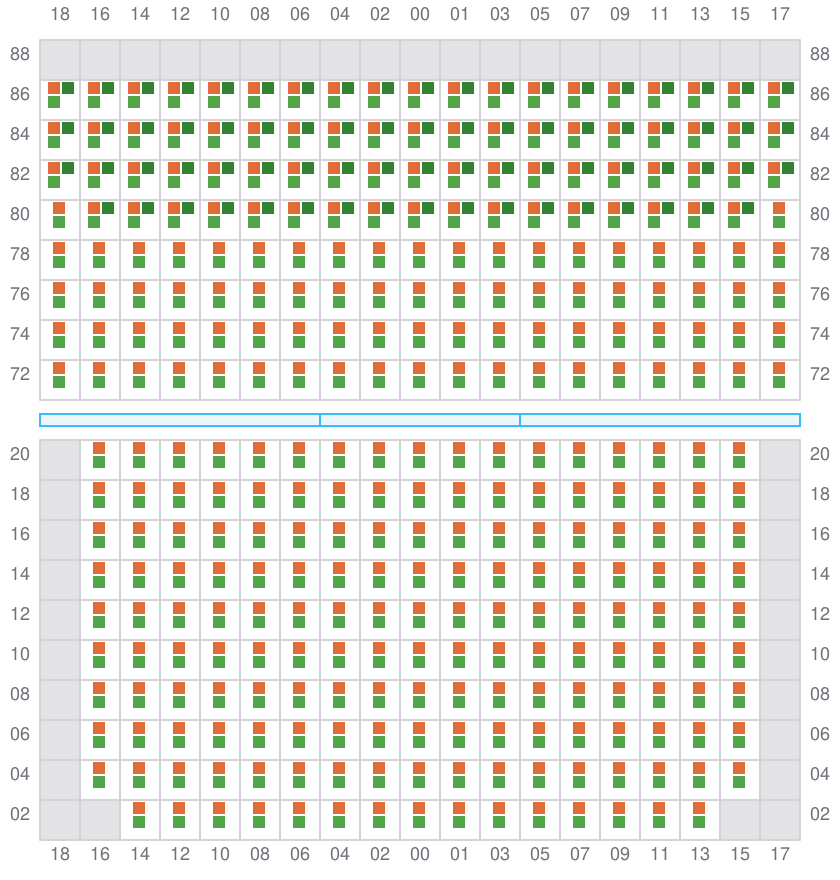

Bay 045 view and slots of MAERSK GIBRALTAR

047

  • ←
  • →

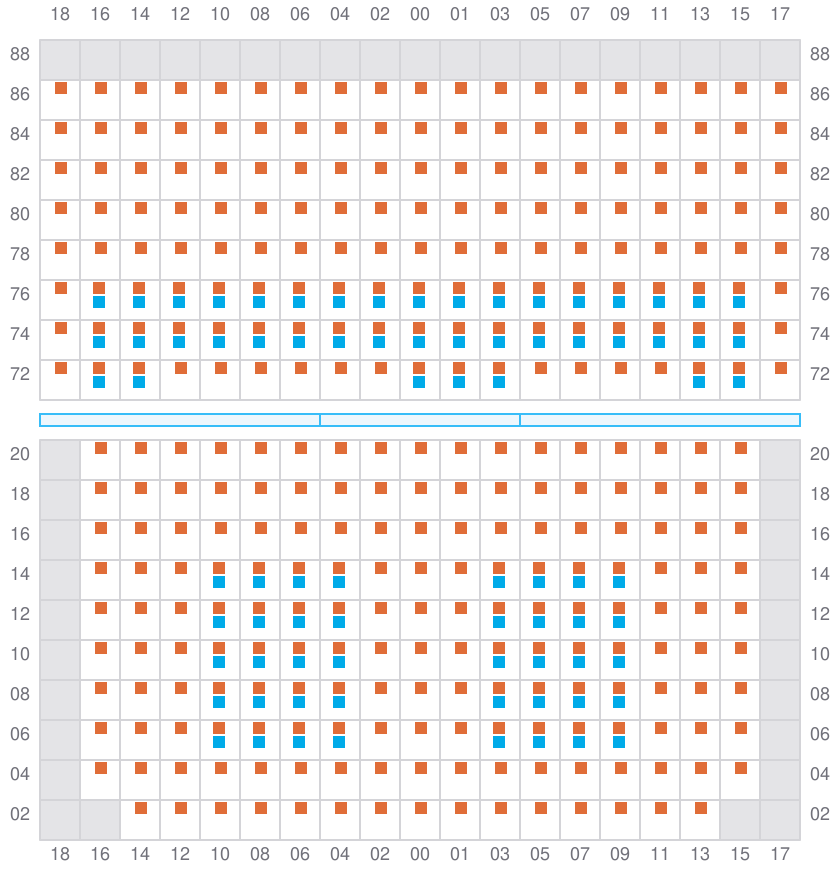

Bay 047 view and slots of MAERSK GIBRALTAR

049 (050)

  • →
Bay 049 view and slots of MAERSK GIBRALTAR

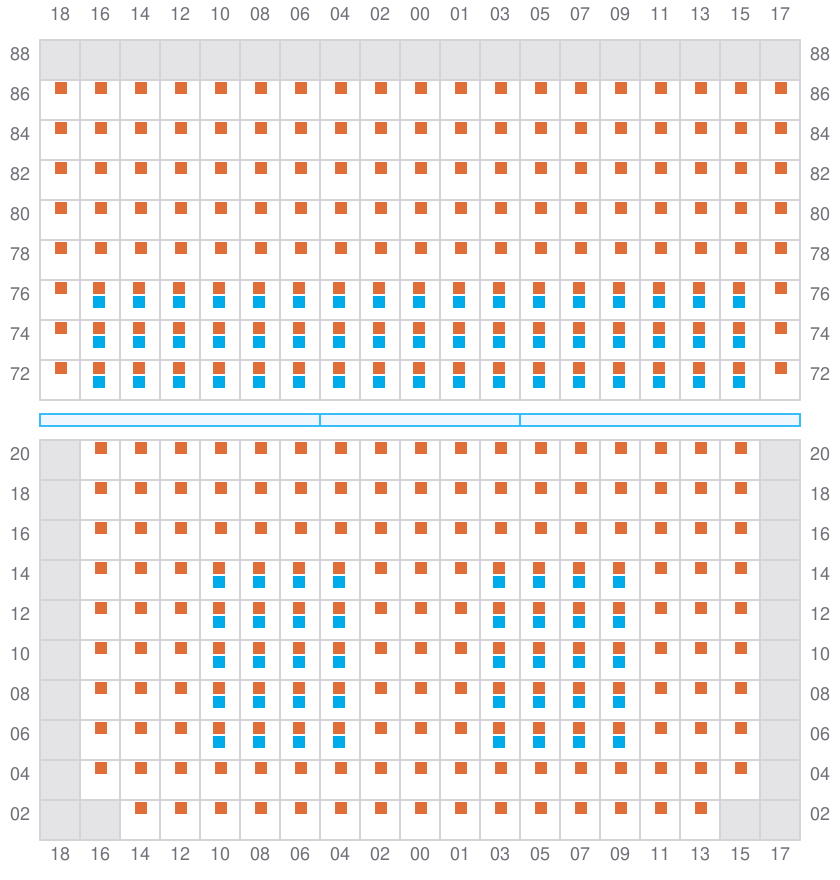

051

  • ←
  • →
Bay 051 view and slots of MAERSK GIBRALTAR

053 (054)

  • →

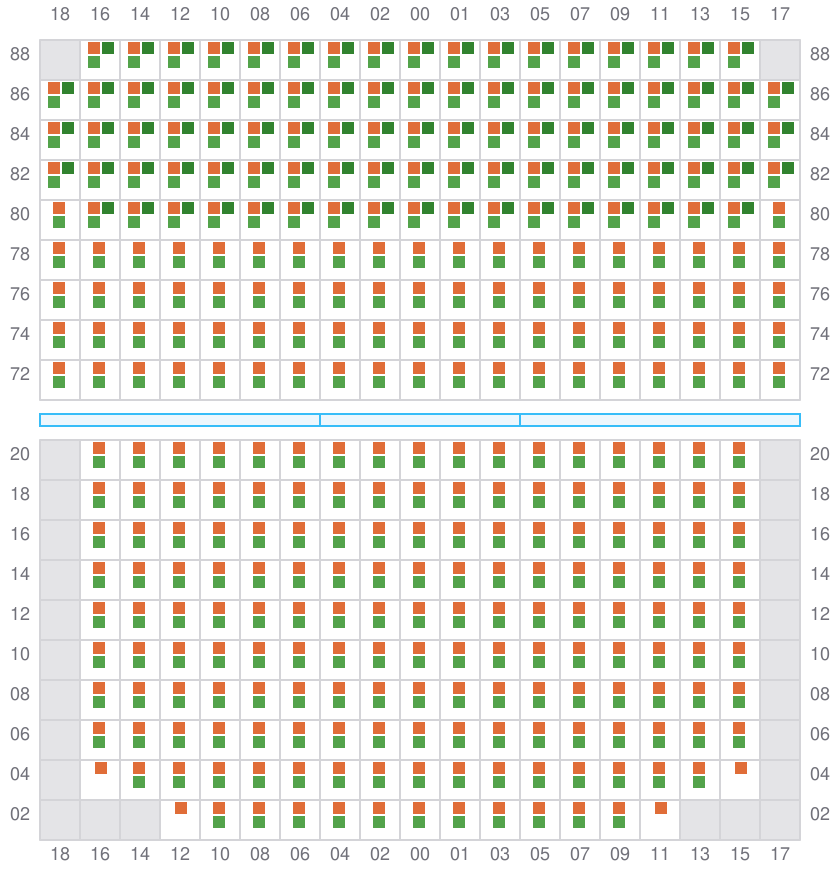

Bay 053 view and slots of MAERSK GIBRALTAR

055

  • ←
  • →

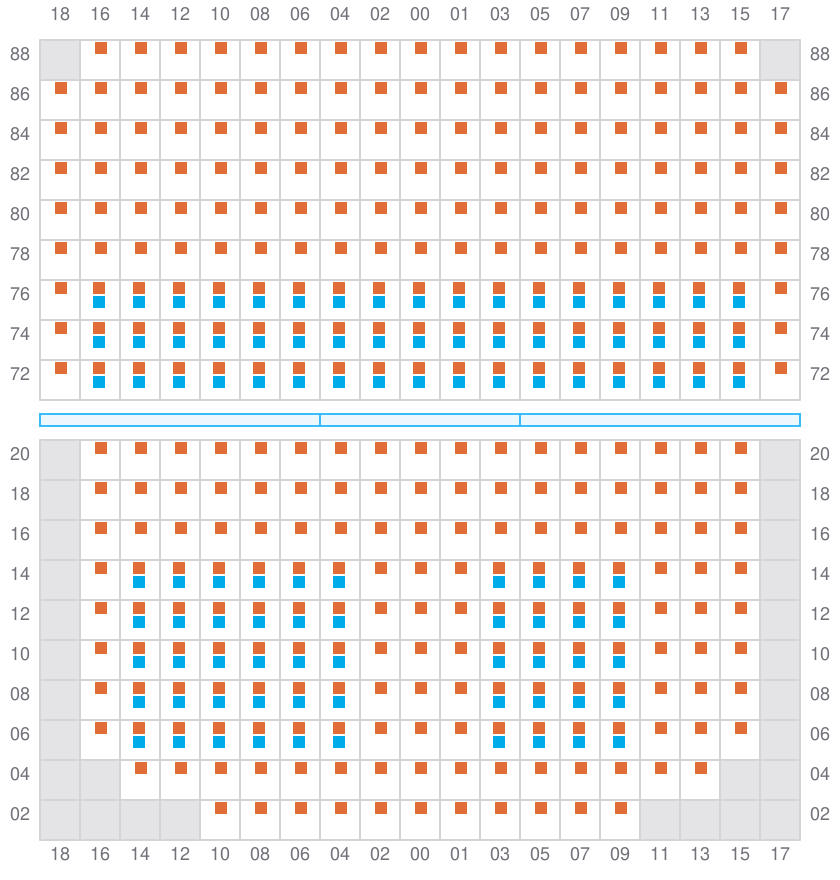

Bay 055 view and slots of MAERSK GIBRALTAR

057 (058)

  • →

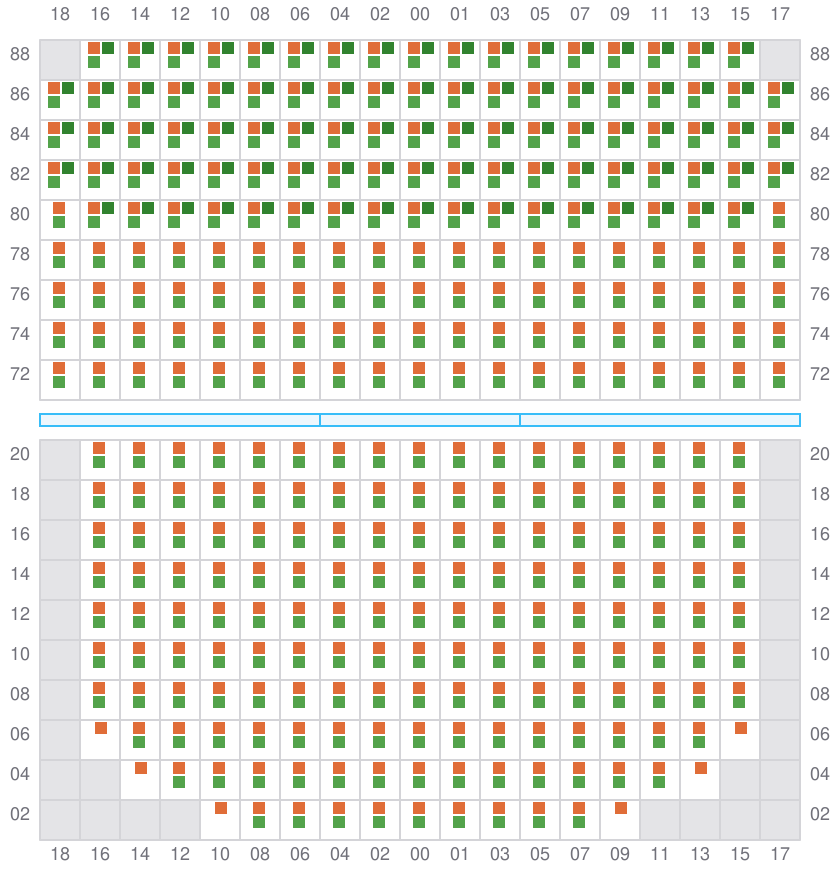

Bay 057 view and slots of MAERSK GIBRALTAR

059

  • ←
  • →

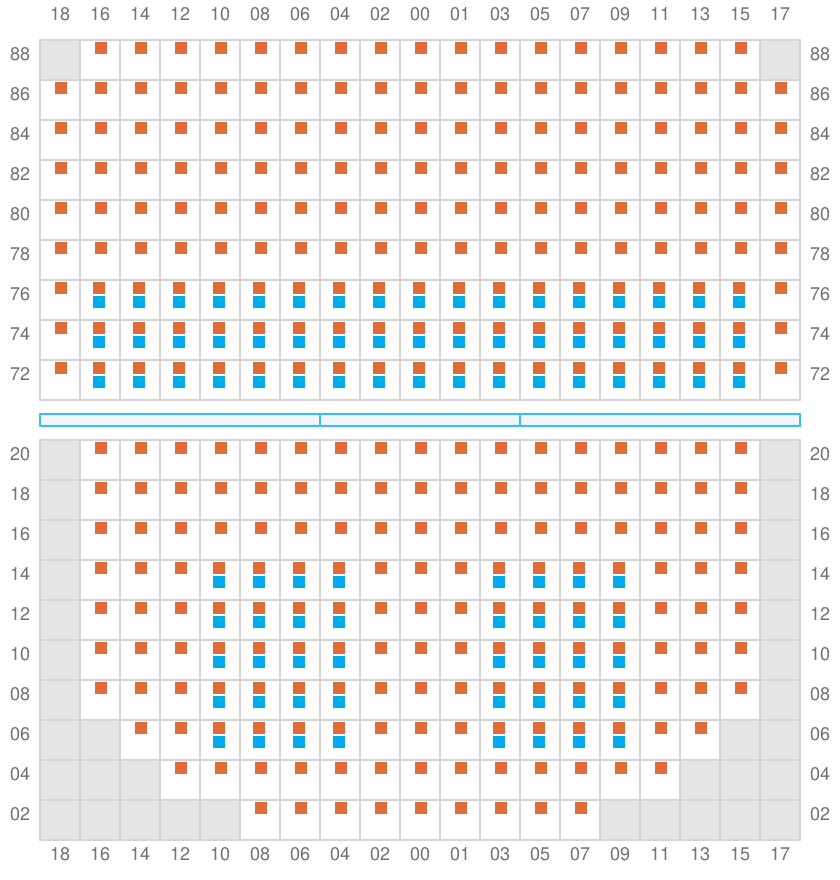

Bay 059 view and slots of MAERSK GIBRALTAR

061 (062)

  • →

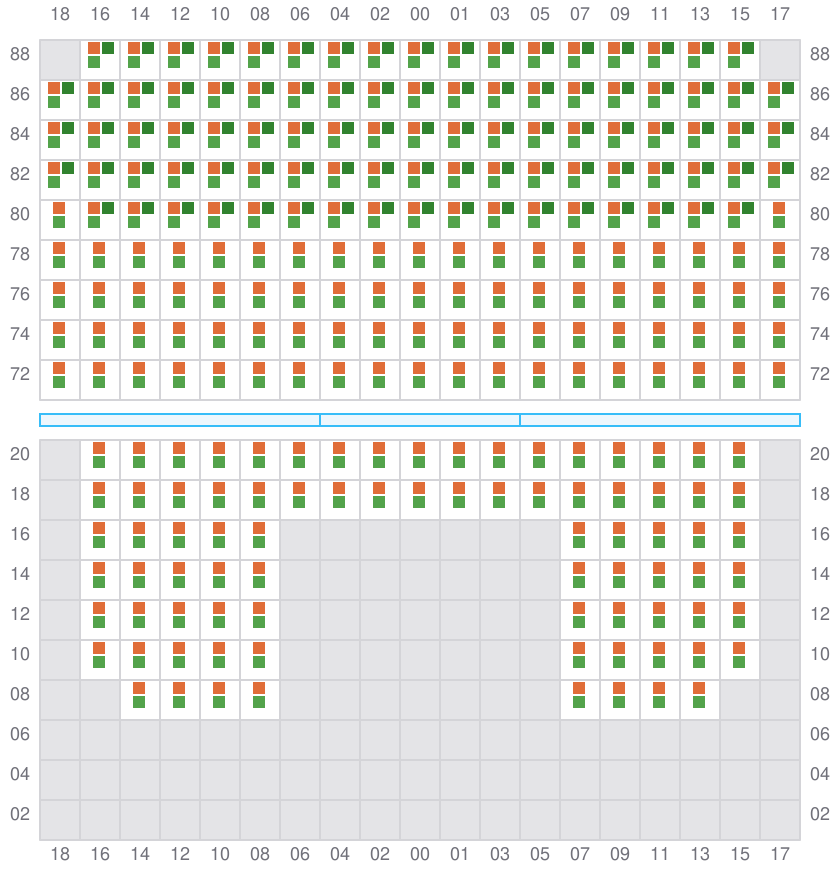

Bay 061 view and slots of MAERSK GIBRALTAR

063

  • ←
  • → / ?

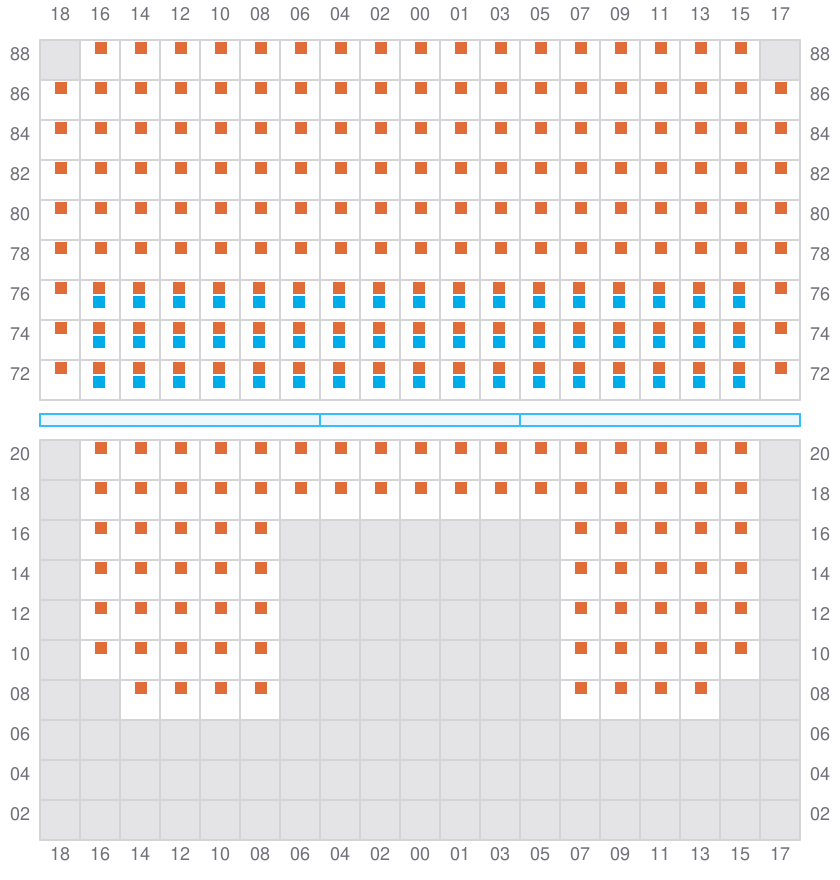

Bay 063 view and slots of MAERSK GIBRALTAR

065 (066)

  • →

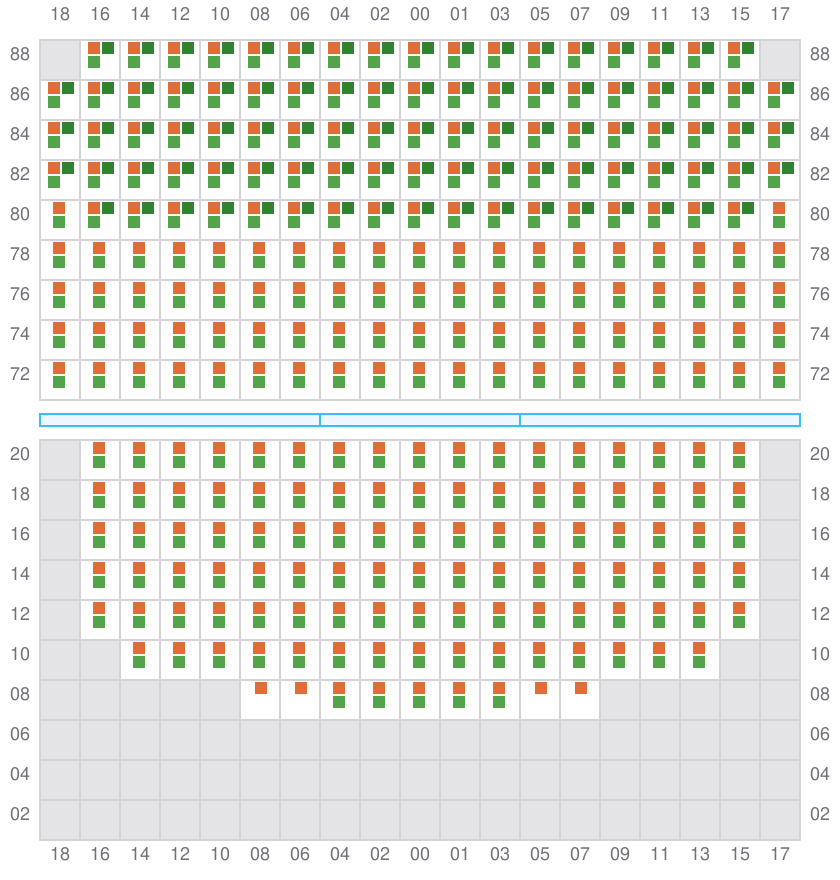

Bay 065 view and slots of MAERSK GIBRALTAR

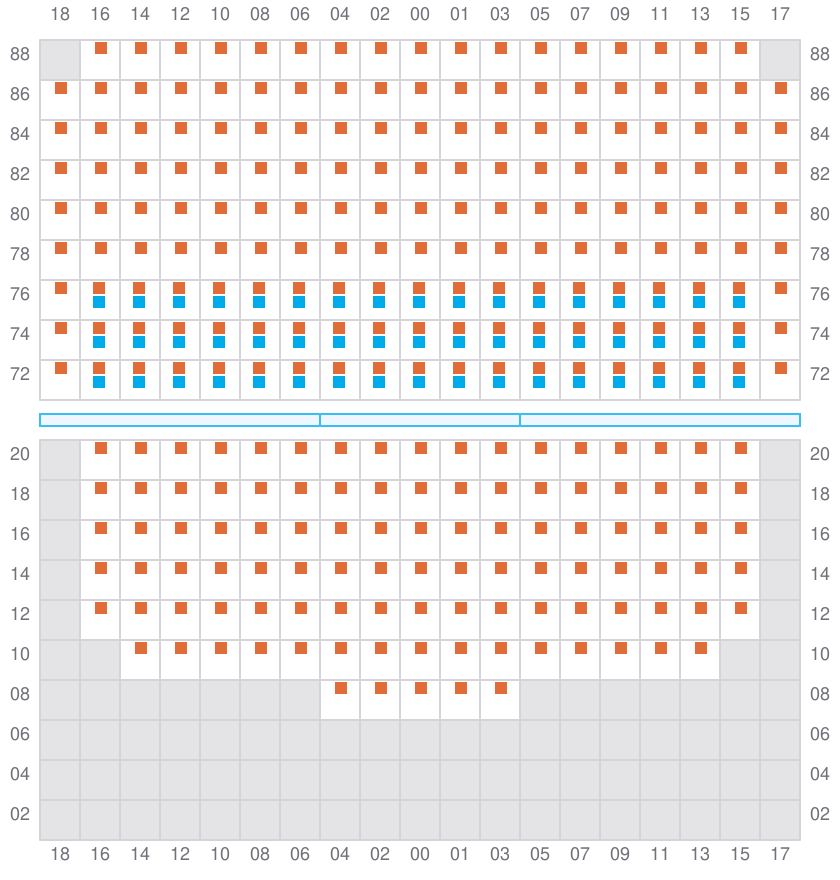

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK GIBRALTAR

069 (070)

  • →

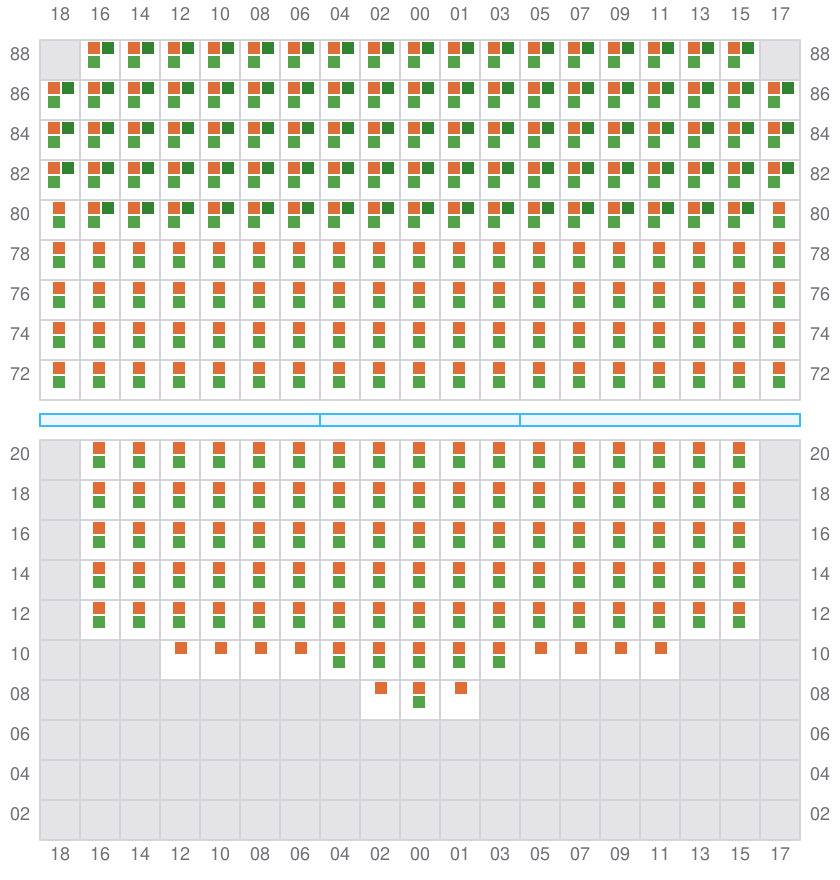

Bay 069 view and slots of MAERSK GIBRALTAR

071

  • ←
  • → / ?

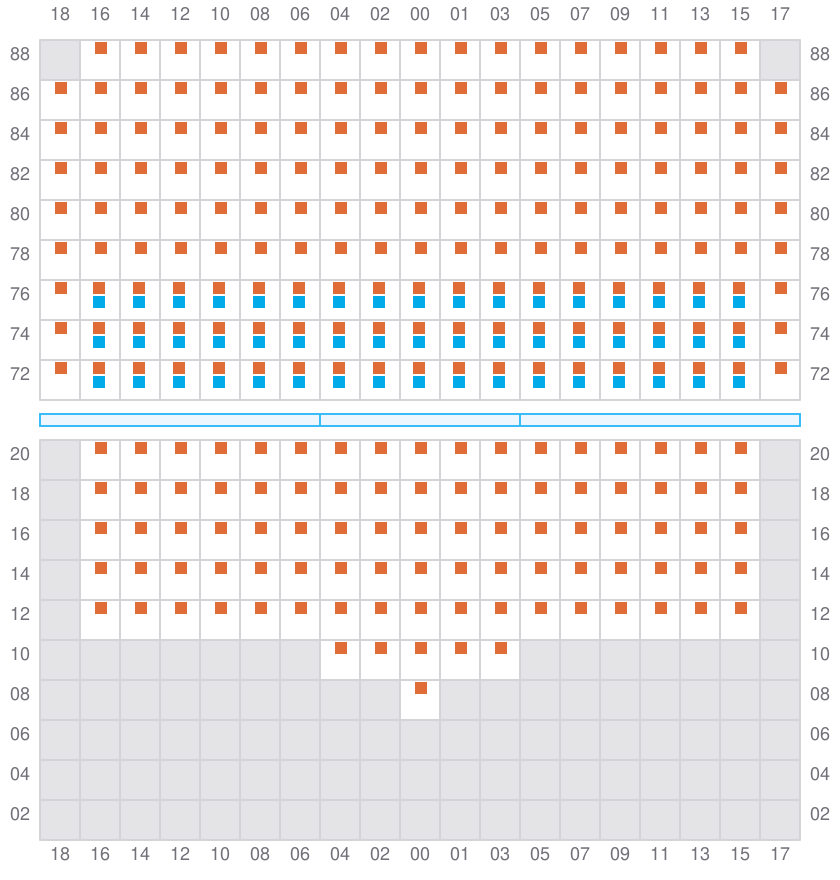

Bay 071 view and slots of MAERSK GIBRALTAR

073 (074)

  • →

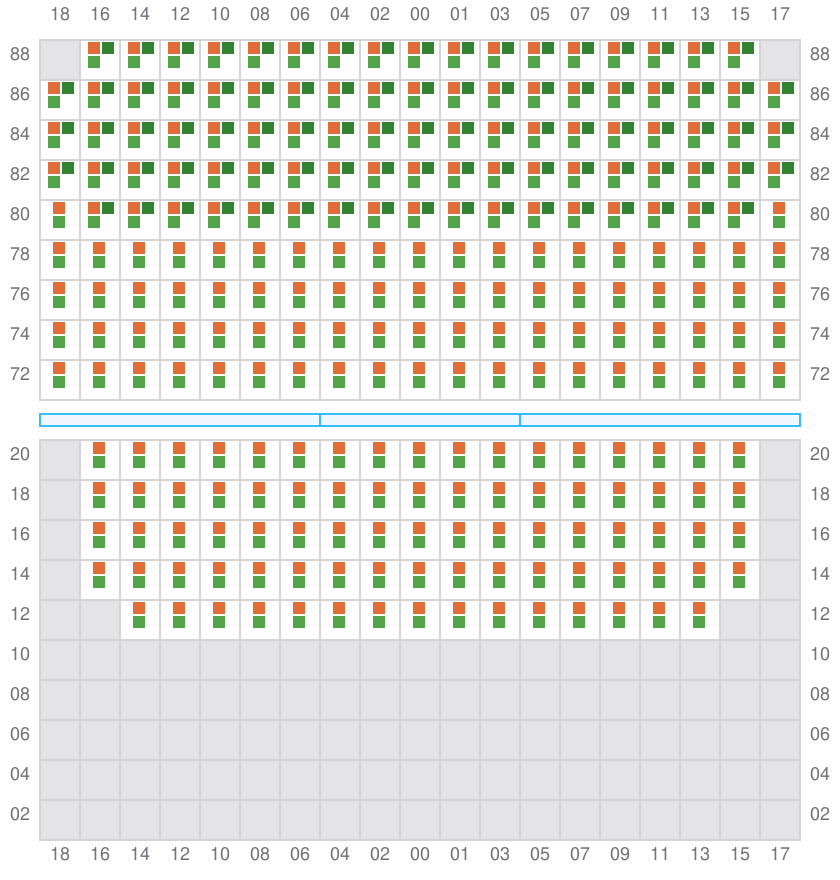

Bay 073 view and slots of MAERSK GIBRALTAR

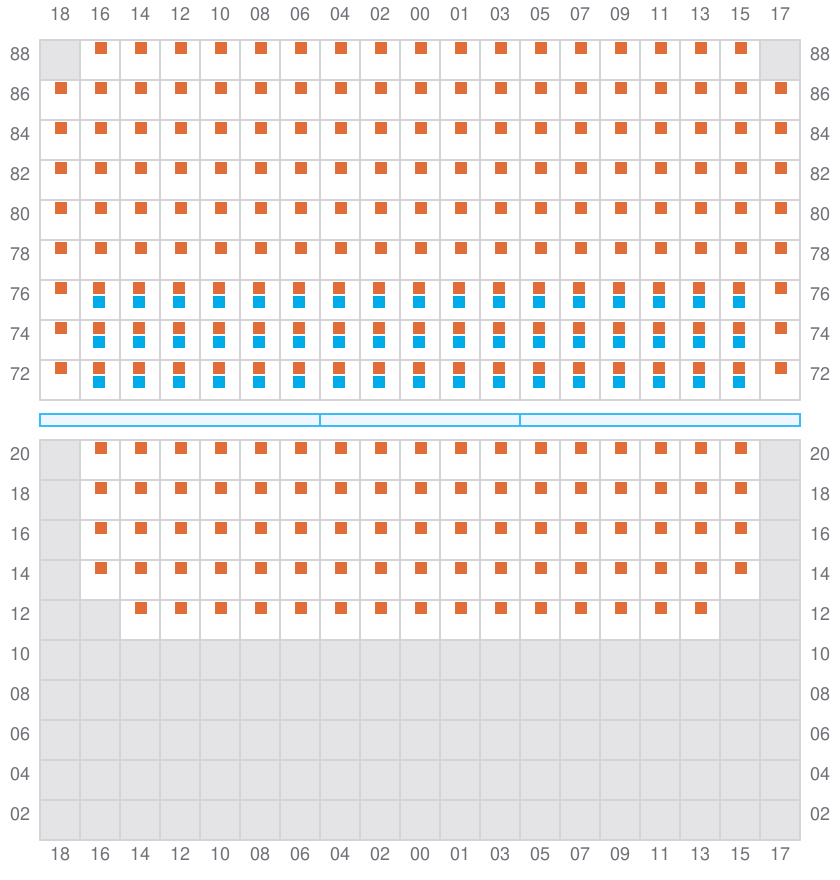

075

  • ←
  • → / ?
Bay 075 view and slots of MAERSK GIBRALTAR

077 (078)

  • → / ?
  • ← / ?

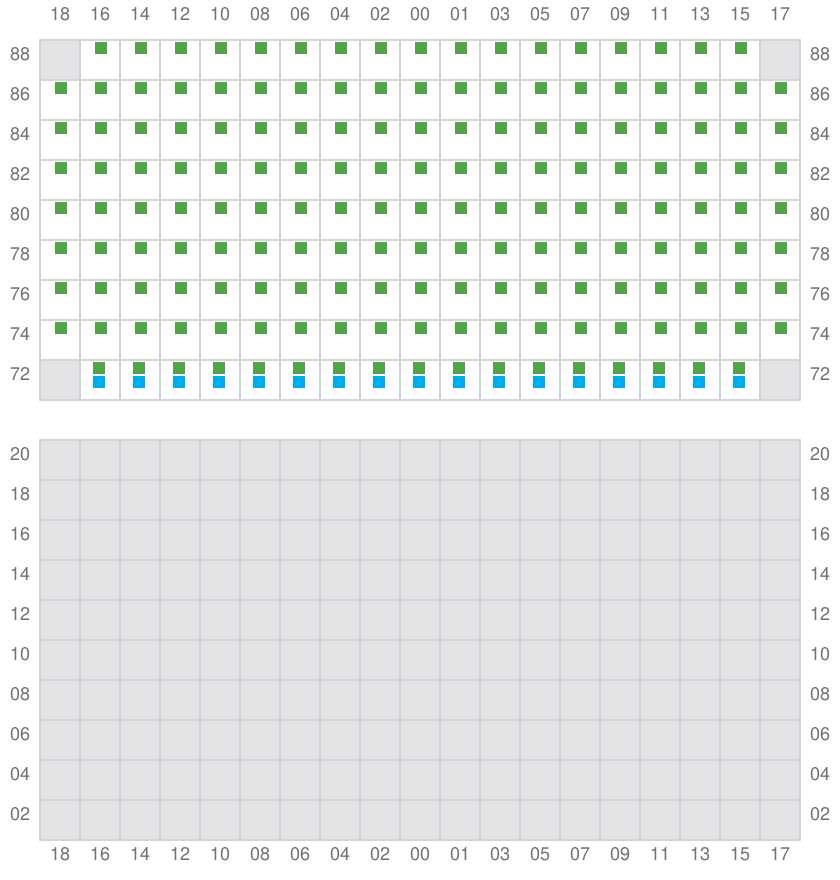

Bay 077 view and slots of MAERSK GIBRALTAR
