MAERSK GIRONDE
MSK by ************************** Last update: Mon Oct 02 2023

General Info

Ship Name:MAERSK GIRONDE

IMO Code:-

Call Sign:-

Line Operator:MSK

Class Name for Sister Ships:MGD

Year Built:-

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):-

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:069

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,783

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

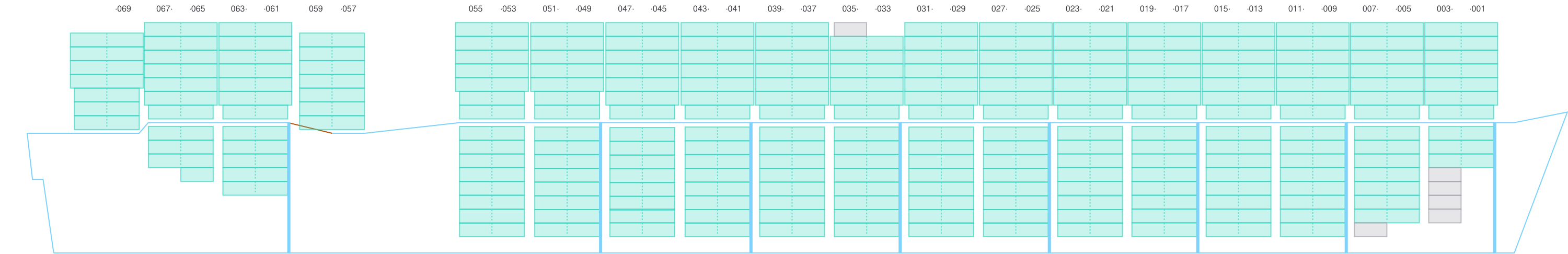

Side view of MAERSK GIRONDE

Hatch-Covers View

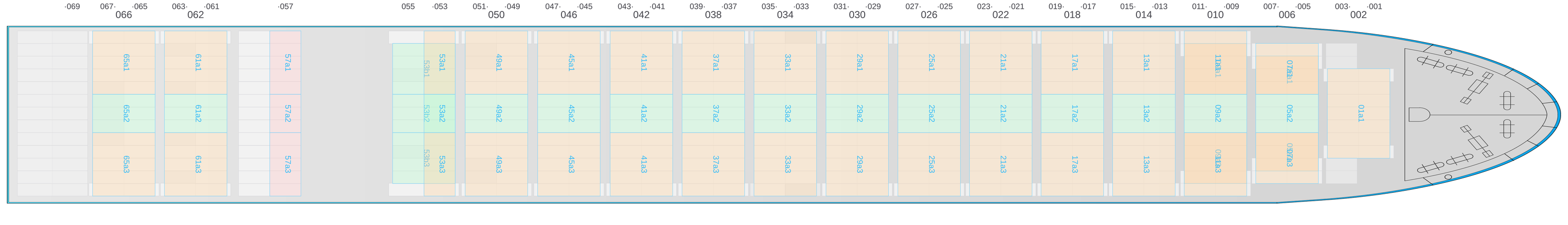

Deck view of MAERSK GIRONDE

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

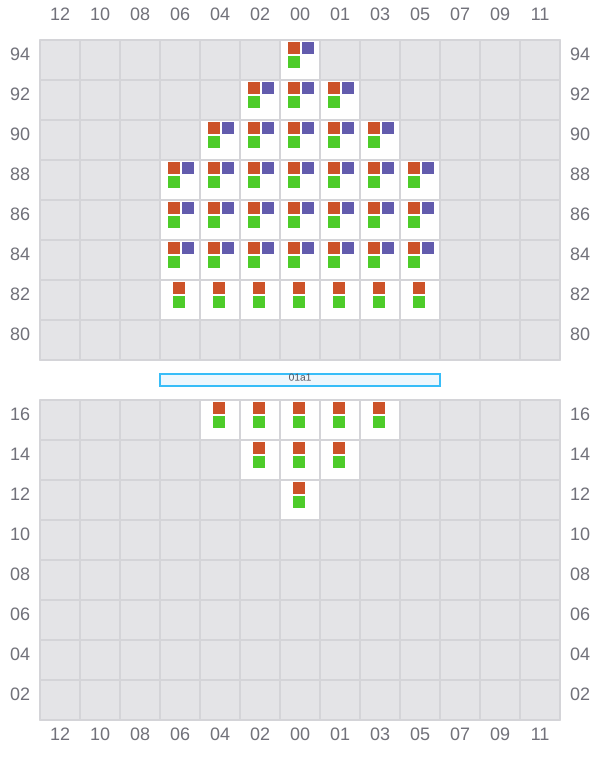

Bay 001 view and slots of MAERSK GIRONDE

003

←

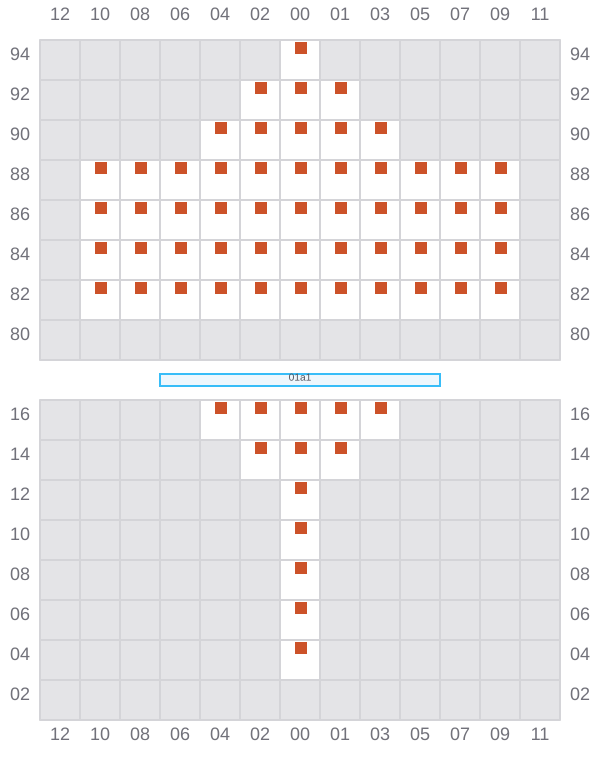

Bay 003 view and slots of MAERSK GIRONDE

005 (006)

→

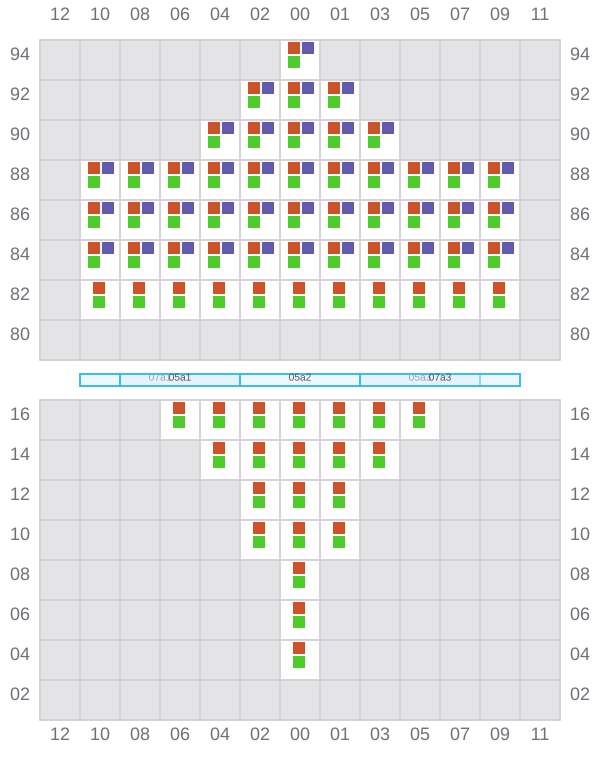

Bay 005 view and slots of MAERSK GIRONDE

007

←

Bay 007 view and slots of MAERSK GIRONDE

009 (010)

→

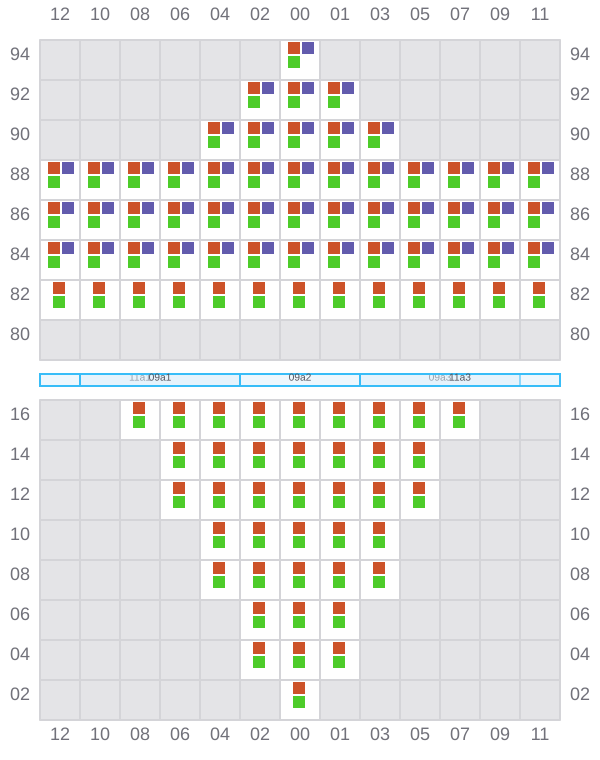

Bay 009 view and slots of MAERSK GIRONDE

011

←
^→ / _?

Bay 011 view and slots of MAERSK GIRONDE

013 (014)

→

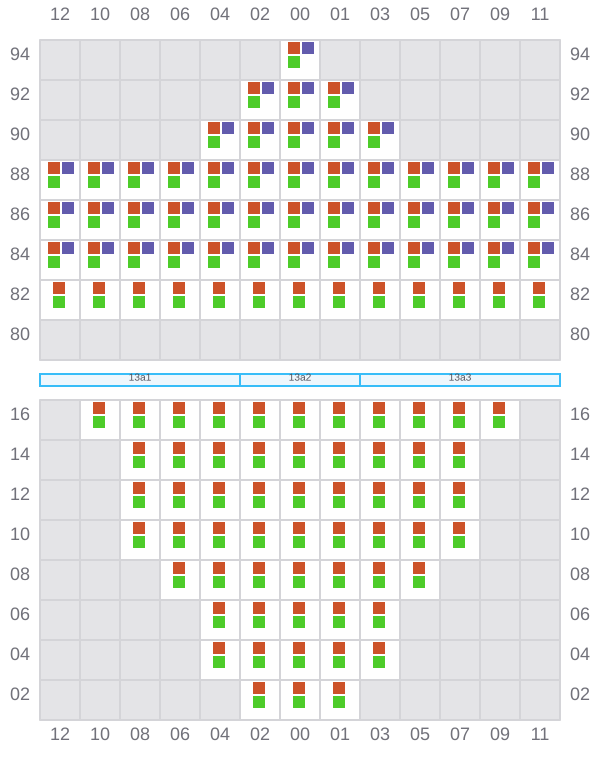

Bay 013 view and slots of MAERSK GIRONDE

015

←
^→ / _?

Bay 015 view and slots of MAERSK GIRONDE

017 (018)

→

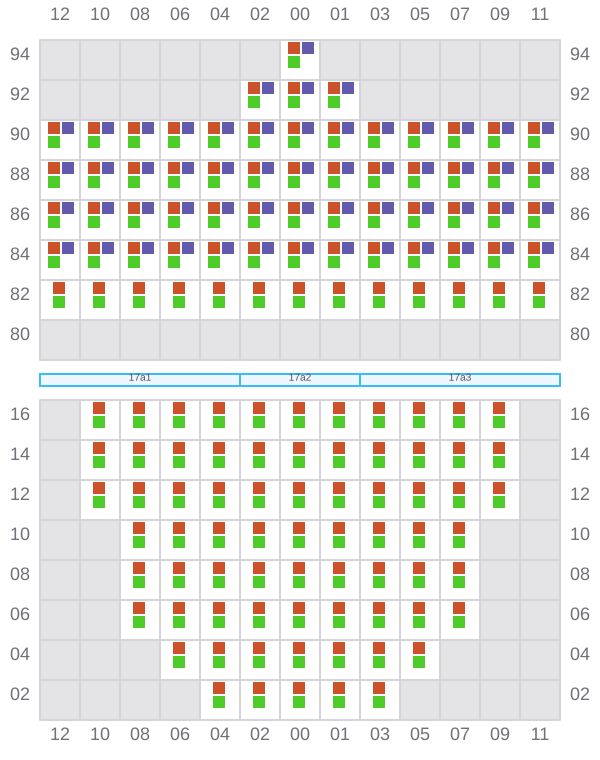

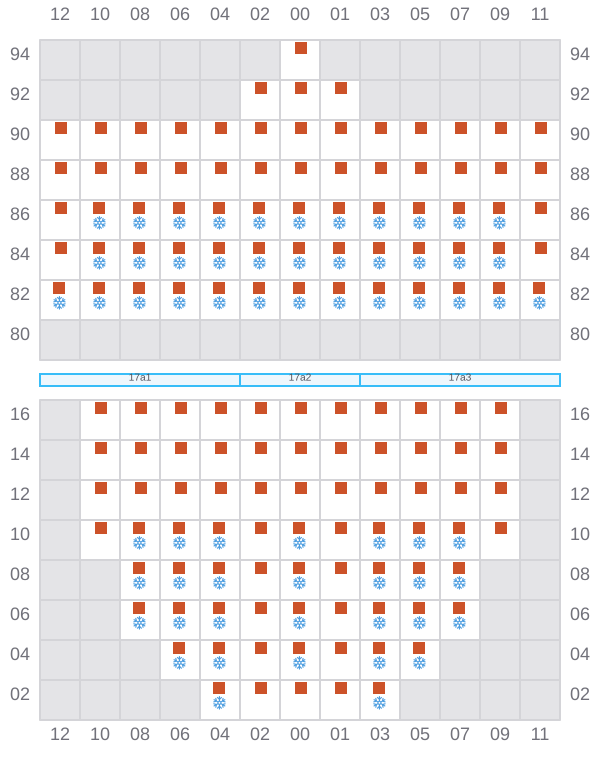

Bay 017 view and slots of MAERSK GIRONDE

019

←

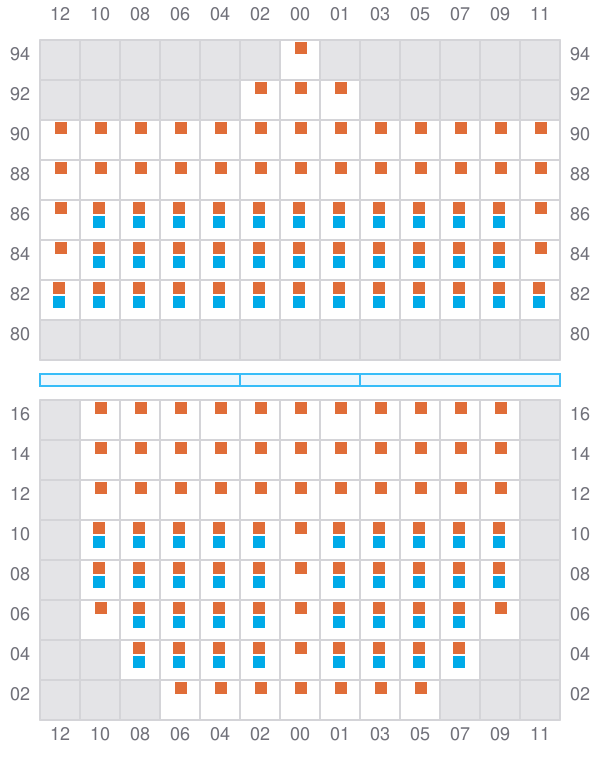

Bay 019 view and slots of MAERSK GIRONDE

021 (022)

→

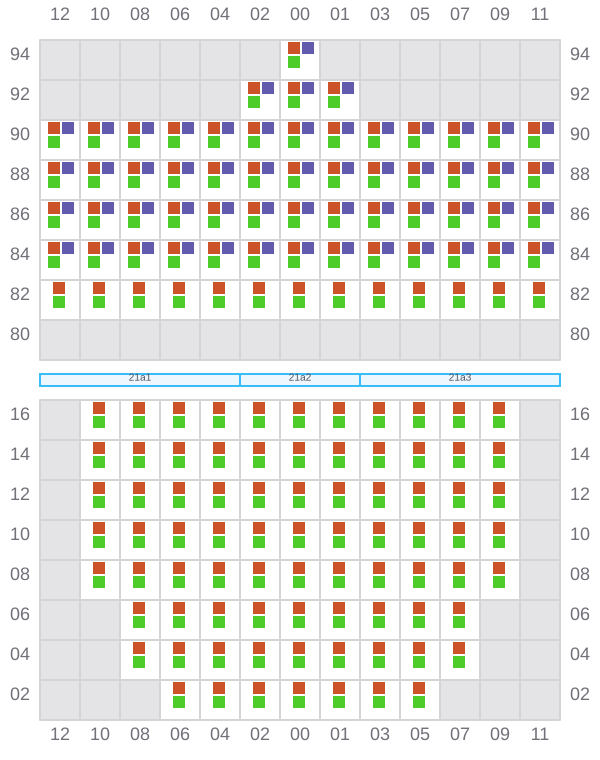

Bay 021 view and slots of MAERSK GIRONDE

023

←
^→ / _?

Bay 023 view and slots of MAERSK GIRONDE

025 (026)

→
^? / _→

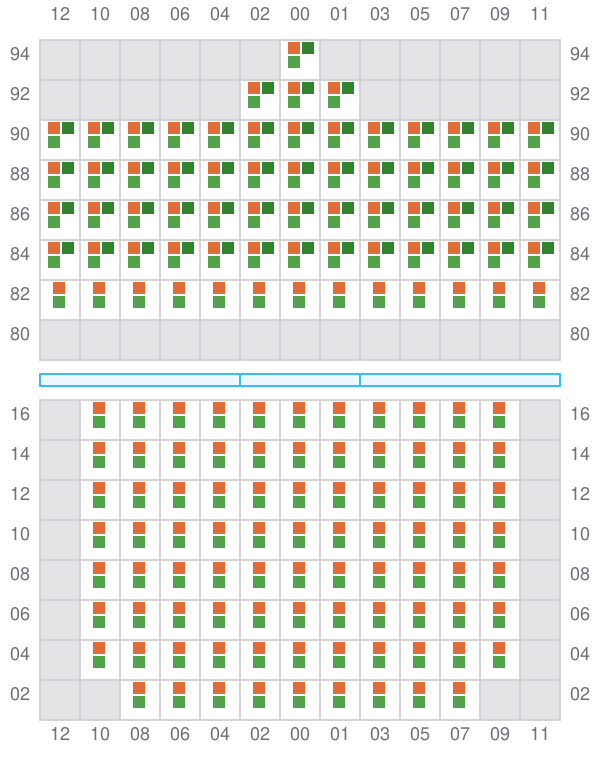

Bay 025 view and slots of MAERSK GIRONDE

027

←
→

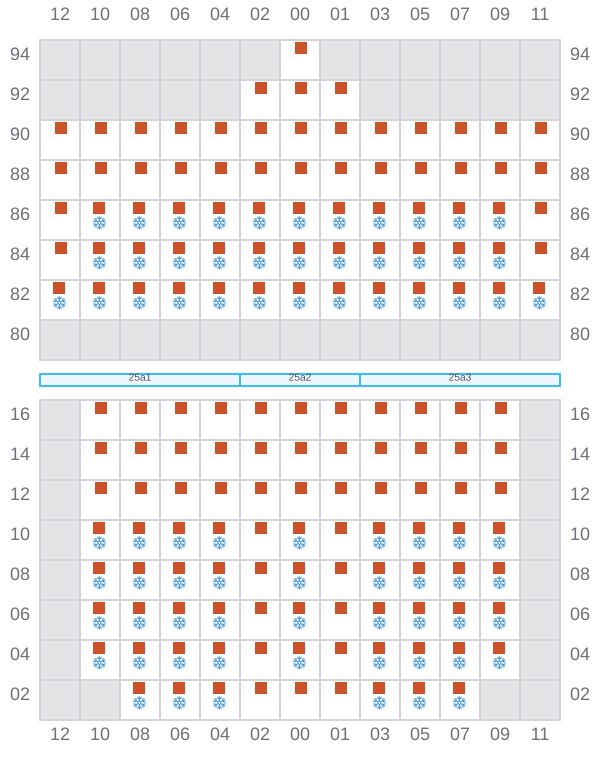

Bay 027 view and slots of MAERSK GIRONDE

029 (030)

→
^? / _→

Bay 029 view and slots of MAERSK GIRONDE

031

←
^→ / _?

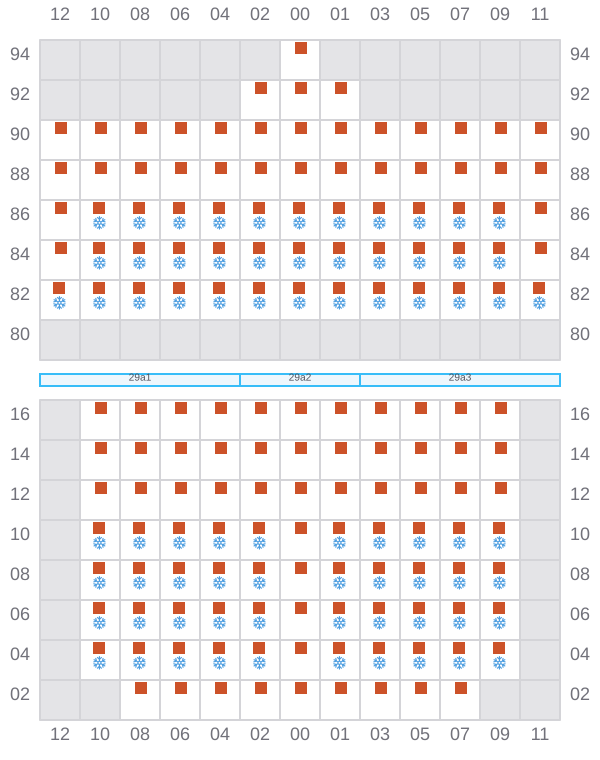

Bay 031 view and slots of MAERSK GIRONDE

033 (034)

→
^? / _→

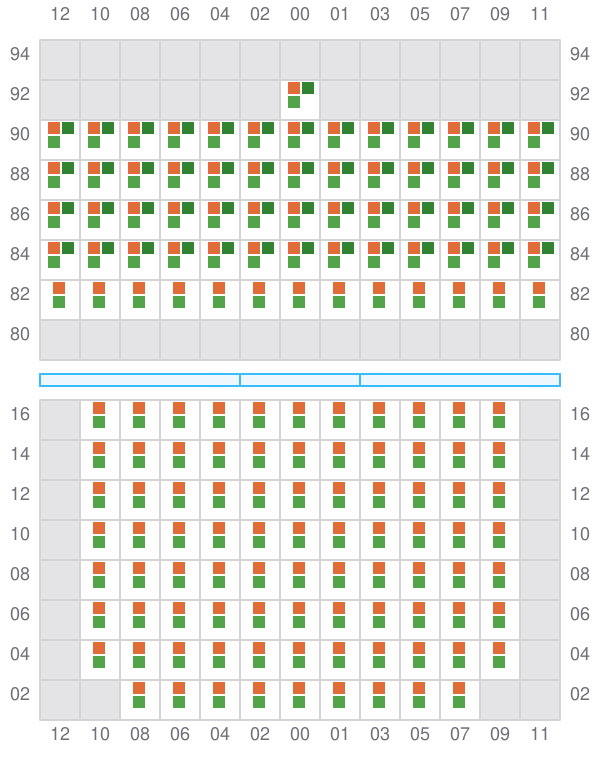

Bay 033 view and slots of MAERSK GIRONDE

035

←
→

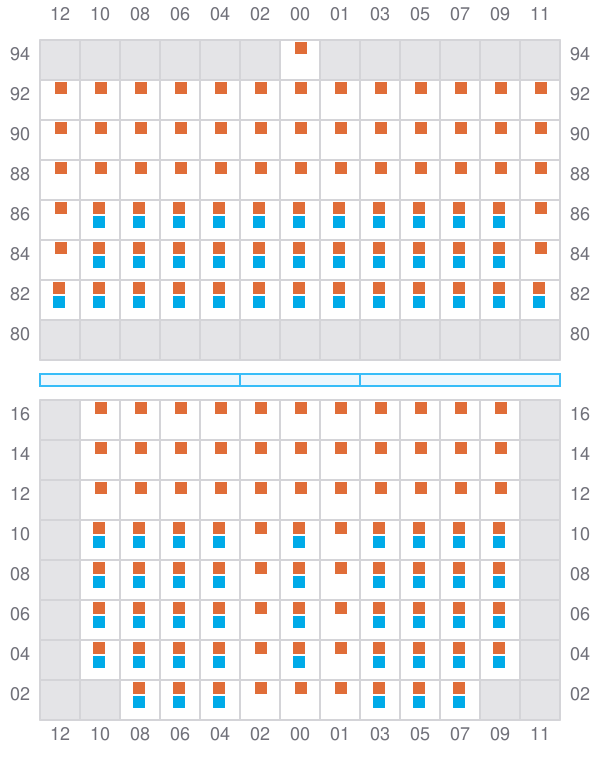

Bay 035 view and slots of MAERSK GIRONDE

037 (038)

→

Bay 037 view and slots of MAERSK GIRONDE

039

←
^→ / _?

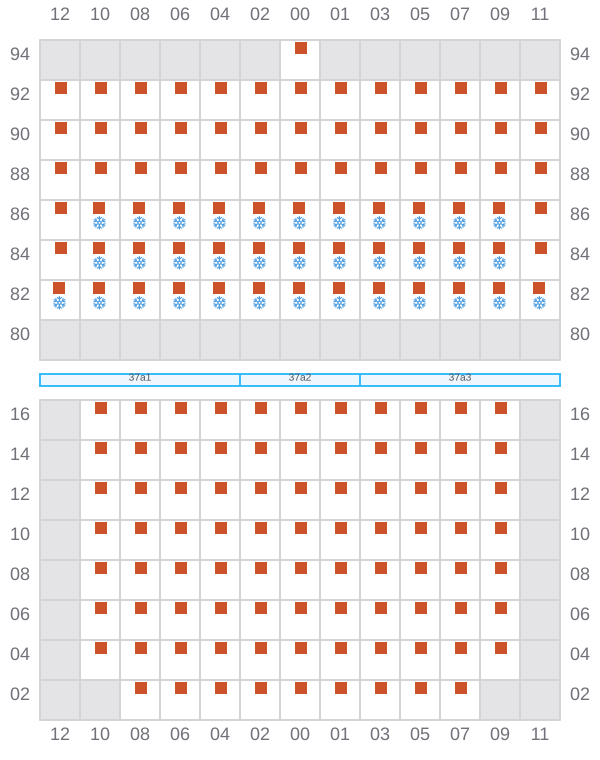

Bay 039 view and slots of MAERSK GIRONDE

041 (042)

→
^? / _→

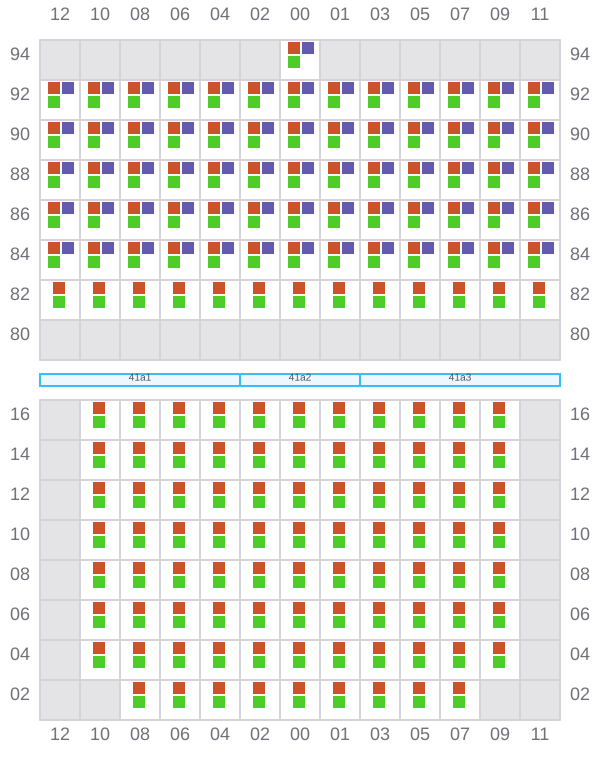

Bay 041 view and slots of MAERSK GIRONDE

043

←
→

Bay 043 view and slots of MAERSK GIRONDE

045 (046)

→
^? / _→

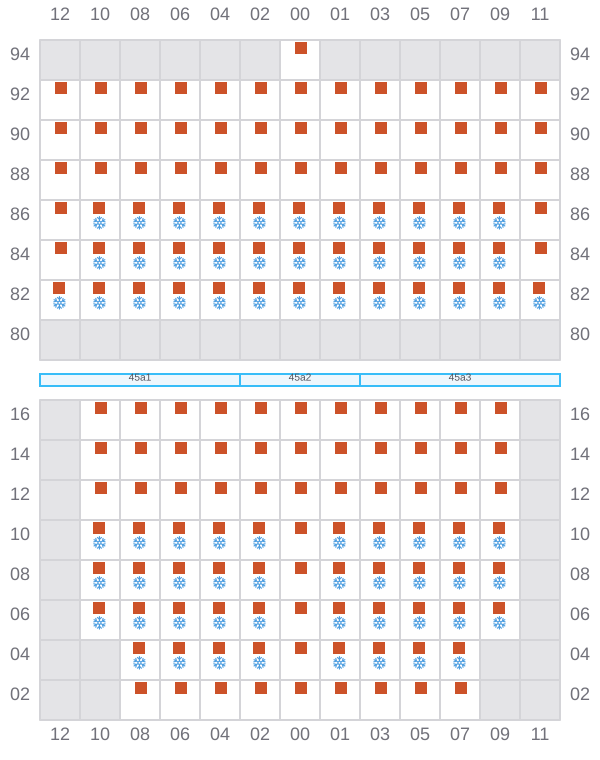

Bay 045 view and slots of MAERSK GIRONDE

047

←
^→ / _?

Bay 047 view and slots of MAERSK GIRONDE

049 (050)

→
^? / _→

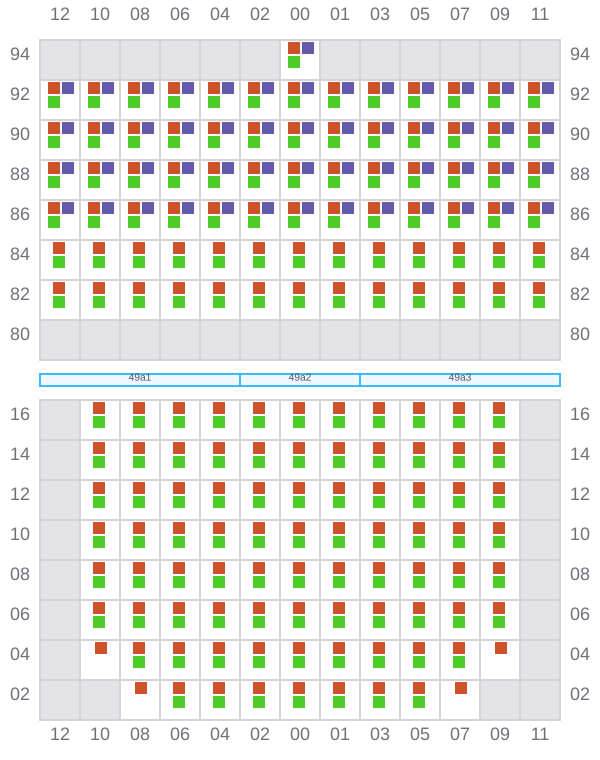

Bay 049 view and slots of MAERSK GIRONDE

051

←
→

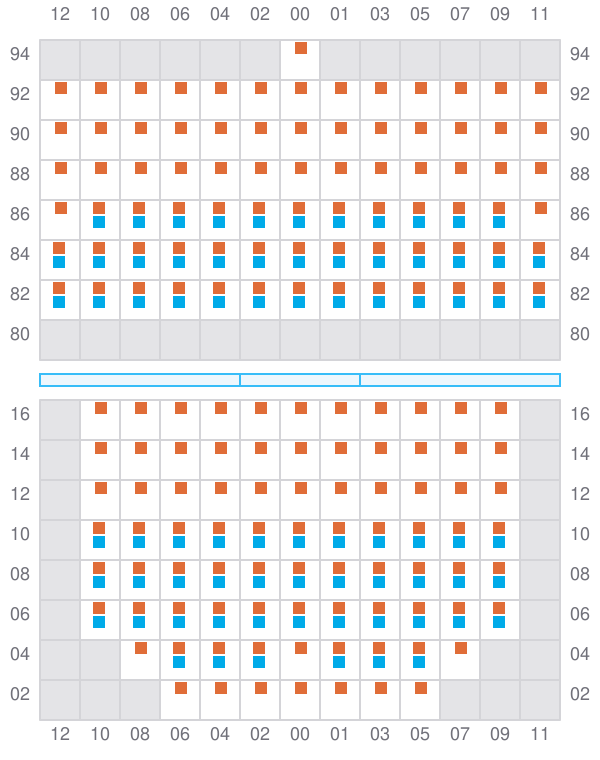

Bay 051 view and slots of MAERSK GIRONDE

053 (054)

→
→

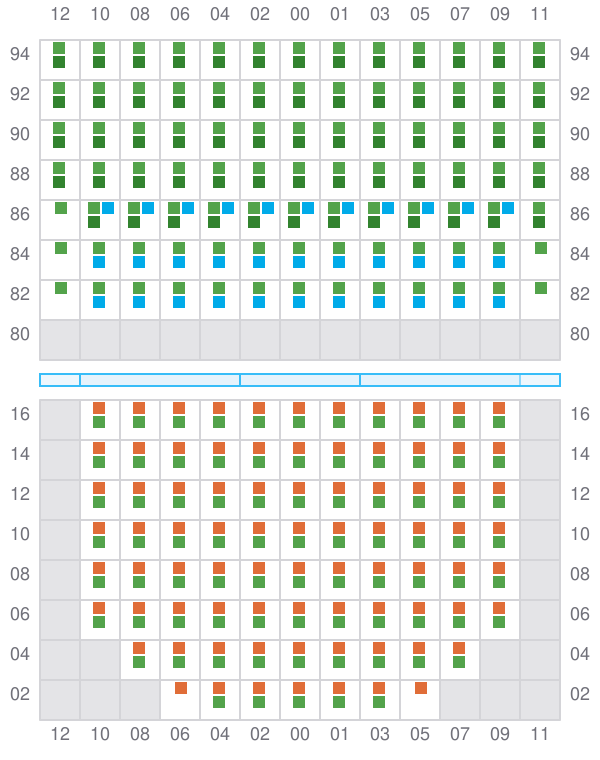

Bay 053 view and slots of MAERSK GIRONDE

055

^? / _←
^? / _→

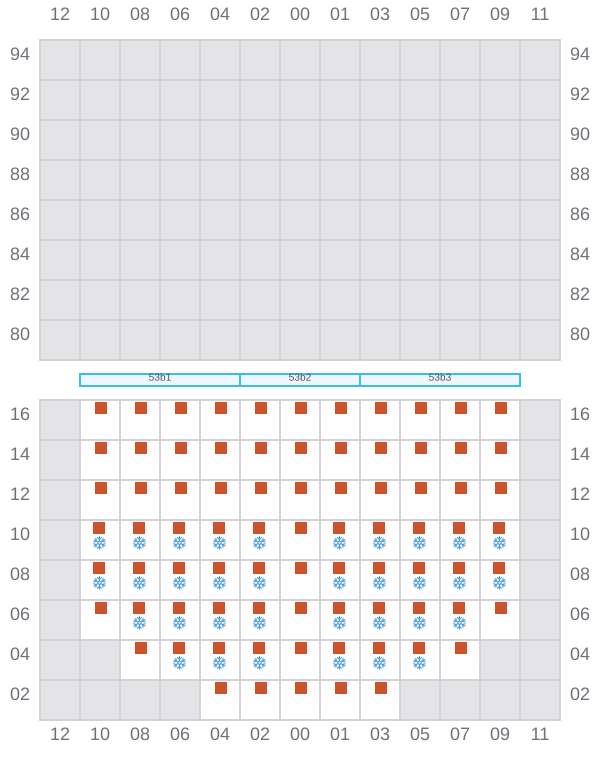

Bay 055 view and slots of MAERSK GIRONDE

057 (058)

^→ / _?
^← / _?

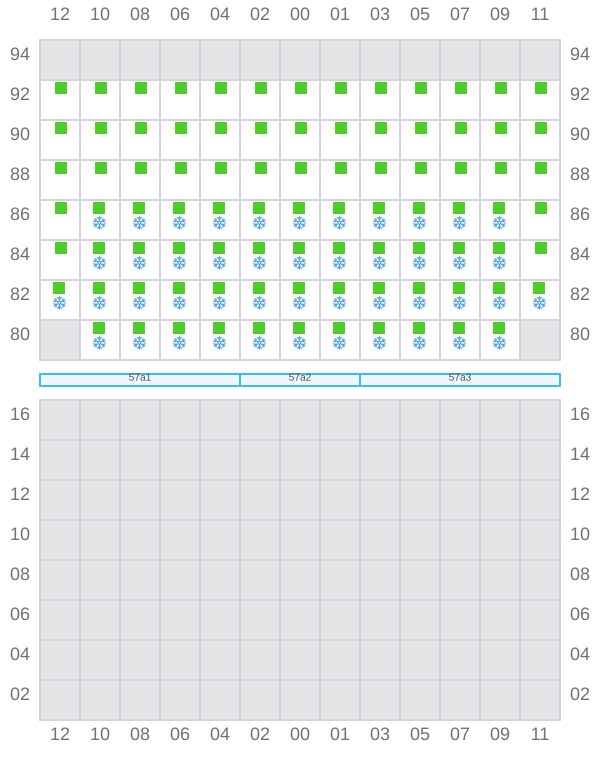

Bay 057 view and slots of MAERSK GIRONDE

059

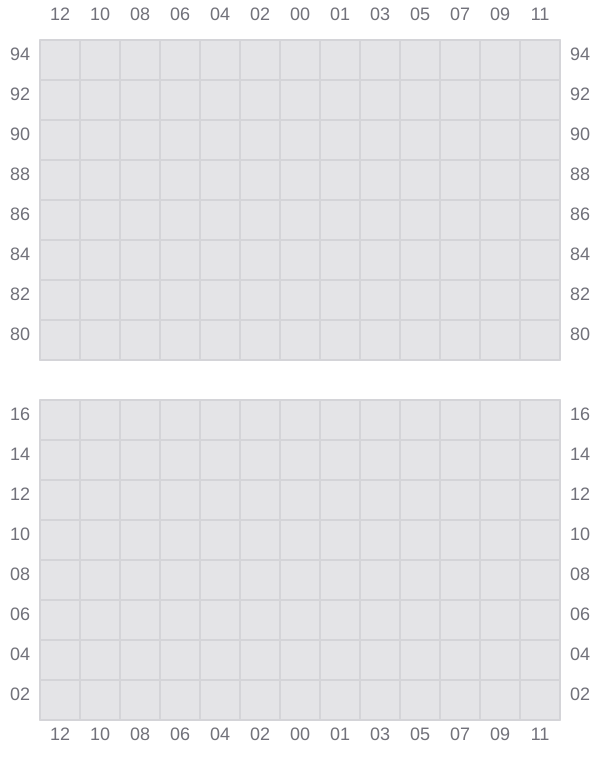

Bay 059 view and slots of MAERSK GIRONDE

061 (062)

→
^← / _→

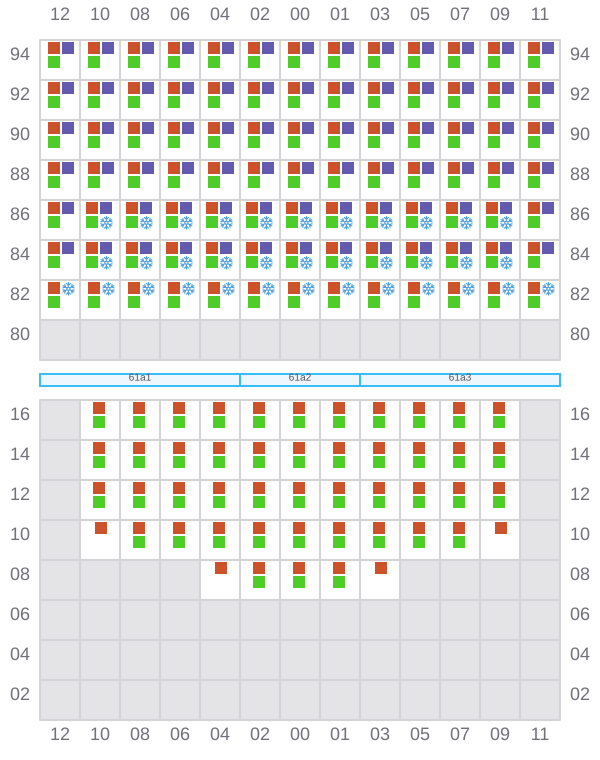

Bay 061 view and slots of MAERSK GIRONDE

063

←
^? / _→

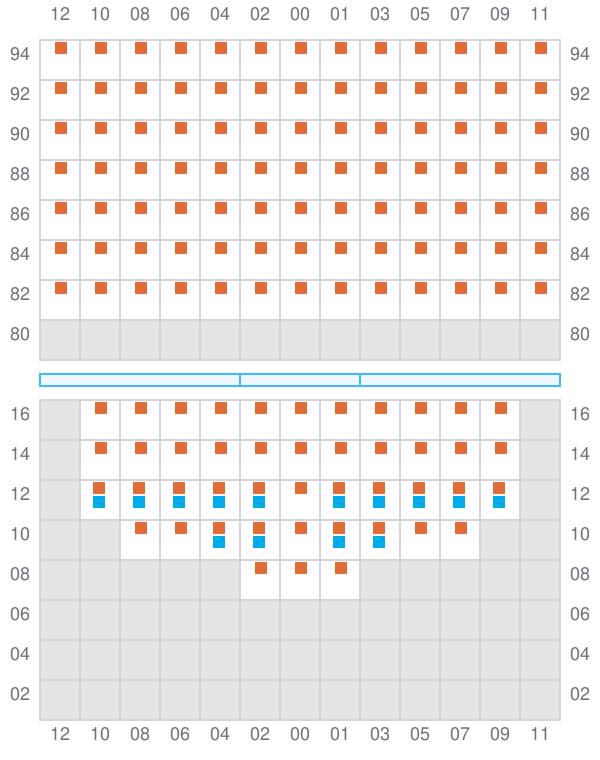

Bay 063 view and slots of MAERSK GIRONDE

065 (066)

→
^← / _?

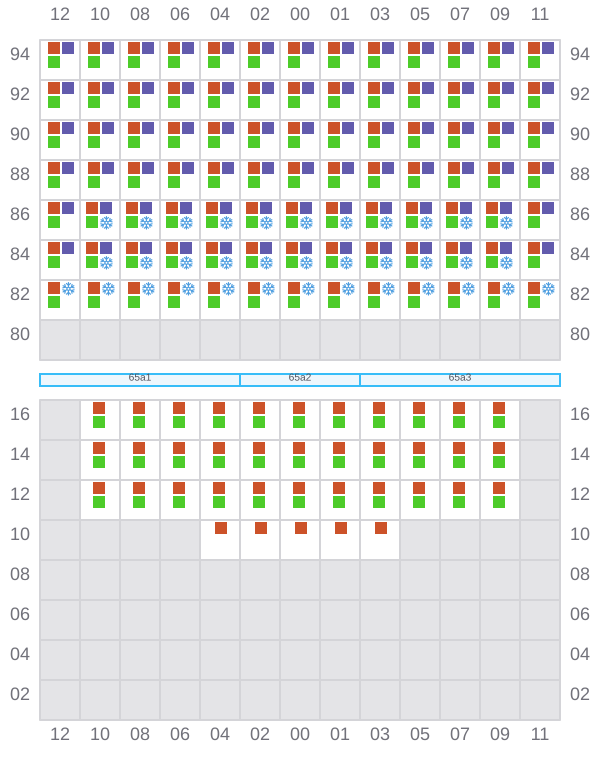

Bay 065 view and slots of MAERSK GIRONDE

067

←

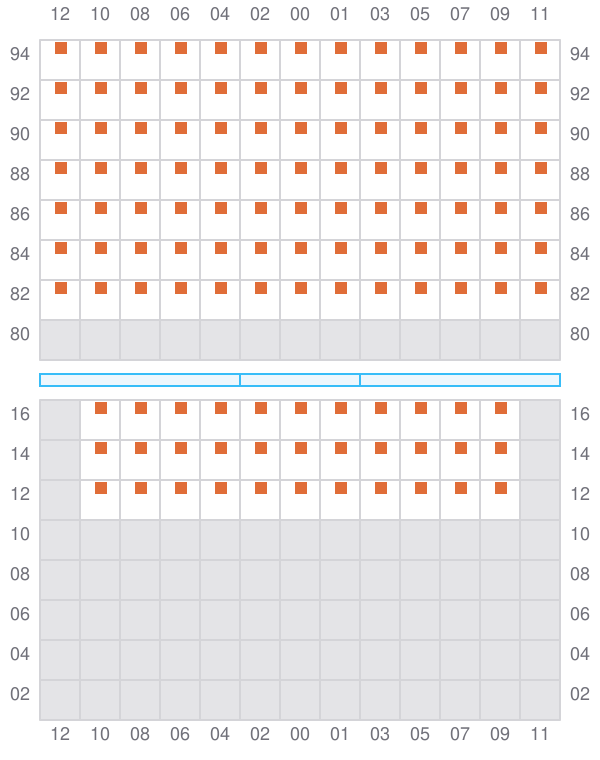

Bay 067 view and slots of MAERSK GIRONDE

069 (070)

^→ / _?
^← / _?

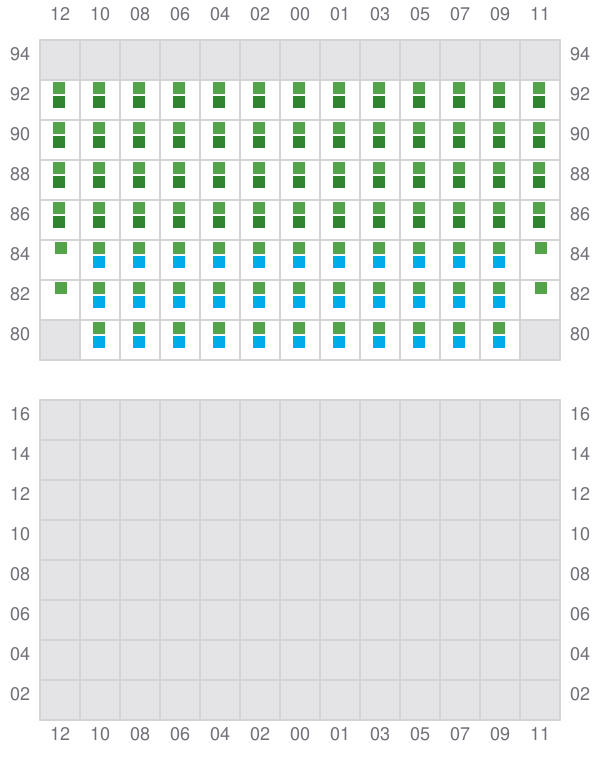

Bay 069 view and slots of MAERSK GIRONDE
