MAERSK GIRONDE
9235555 | 9V6212 | 9235555 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:MAERSK GIRONDE
IMO Code:9235555
Call Sign:9V6212
Line Operator:9235555
Class Name for Sister Ships:022
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,783
Centers of Gravity
LCG Values:Known
LCG Data:99%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

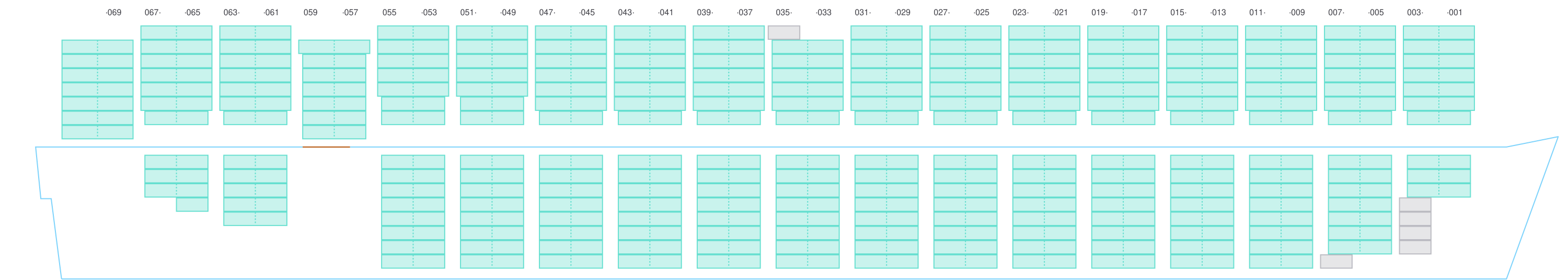

Side View
![Side view of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-sideView.png?v=1710533517871)

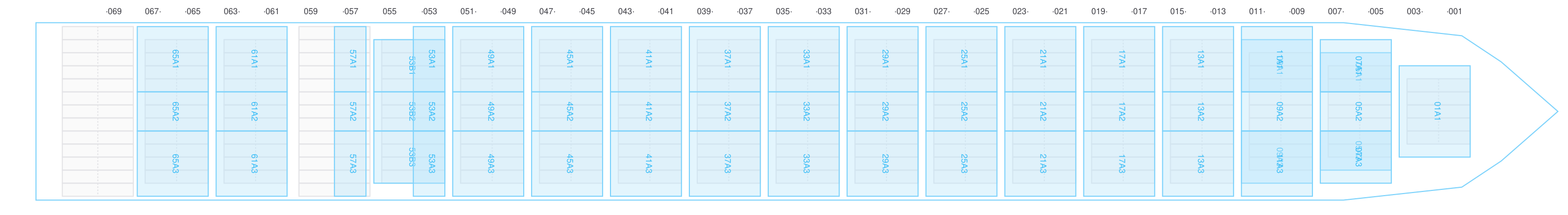

Hatch-Covers View
![Deck view of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-deckView.png?v=1710533517871)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

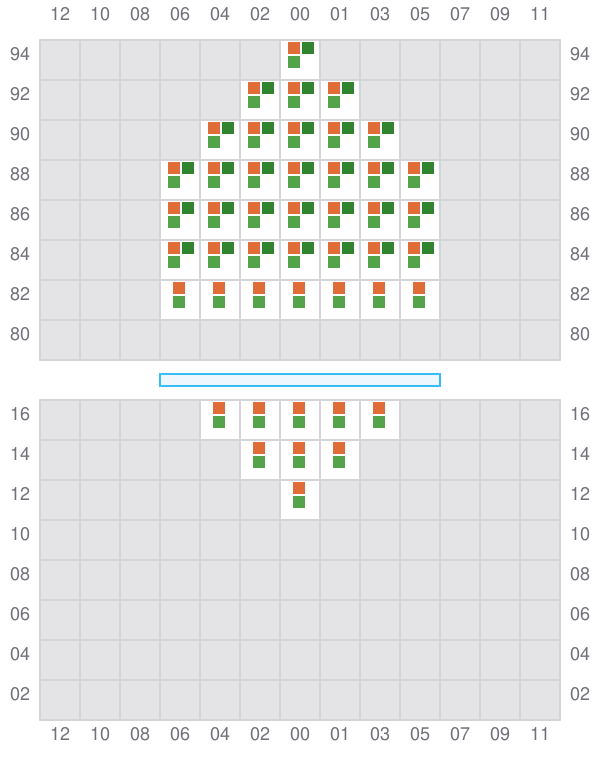

001 (002)
- →
![Bay 001 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b001.png?v=1710533517871)

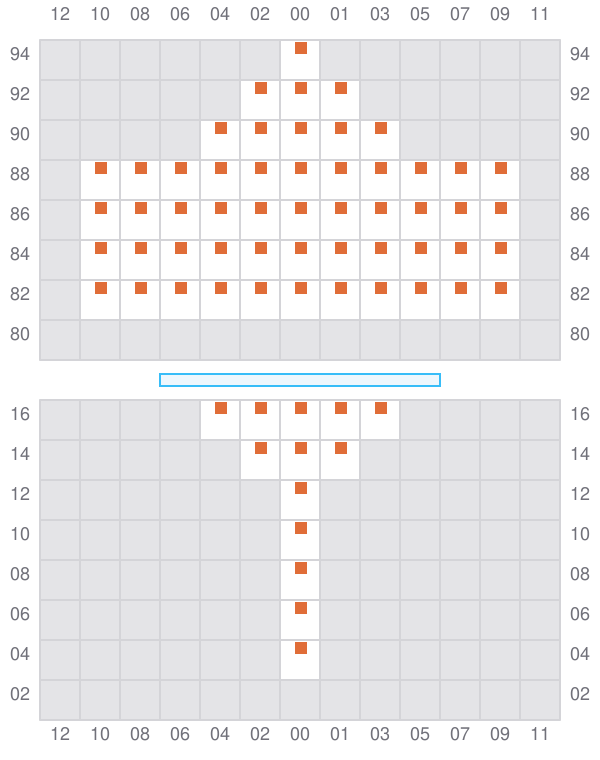

003
- ←
![Bay 003 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b003.png?v=1710533517871)

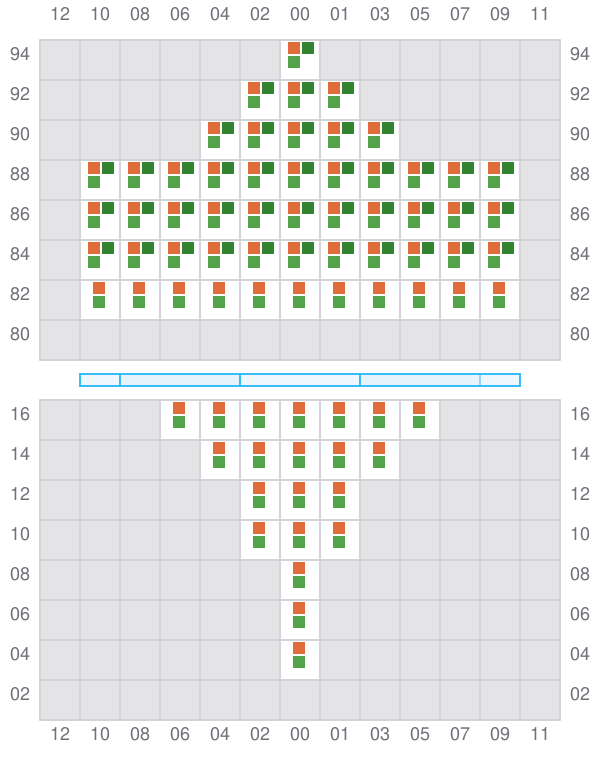

005 (006)
- →
![Bay 005 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b005.png?v=1710533517871)

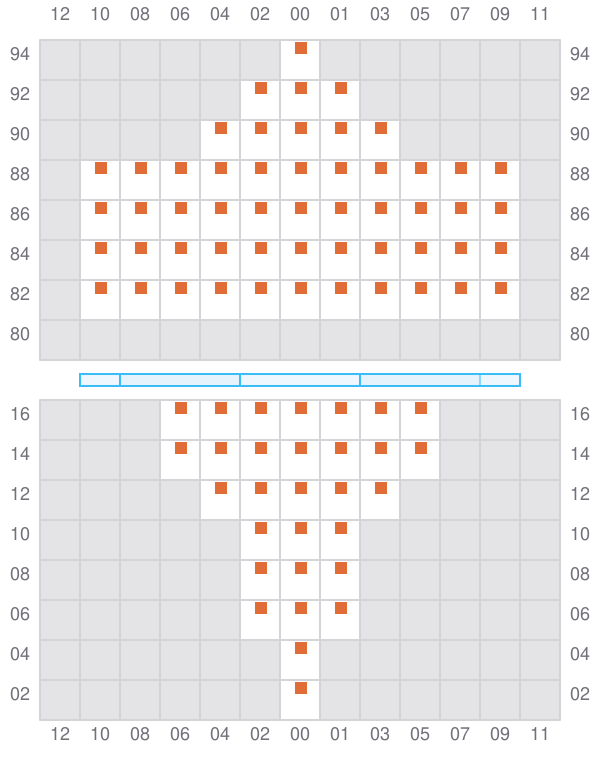

007
- ←
![Bay 007 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b007.png?v=1710533517871)

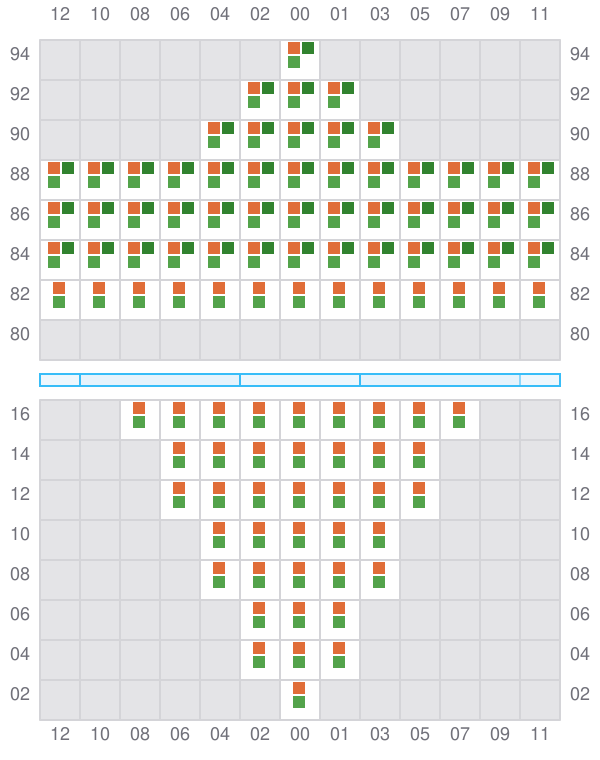

009 (010)
- →
![Bay 009 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b009.png?v=1710533517871)

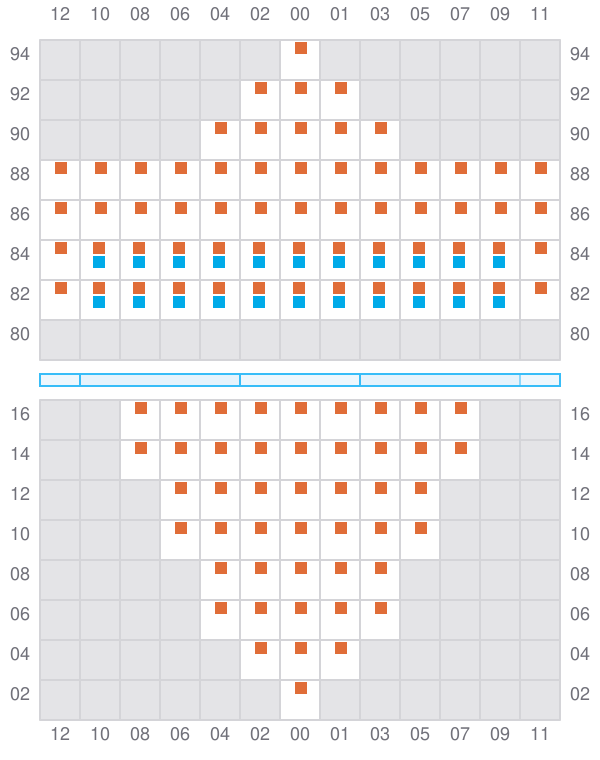

011
- ←
- → / ?
![Bay 011 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b011.png?v=1710533517871)

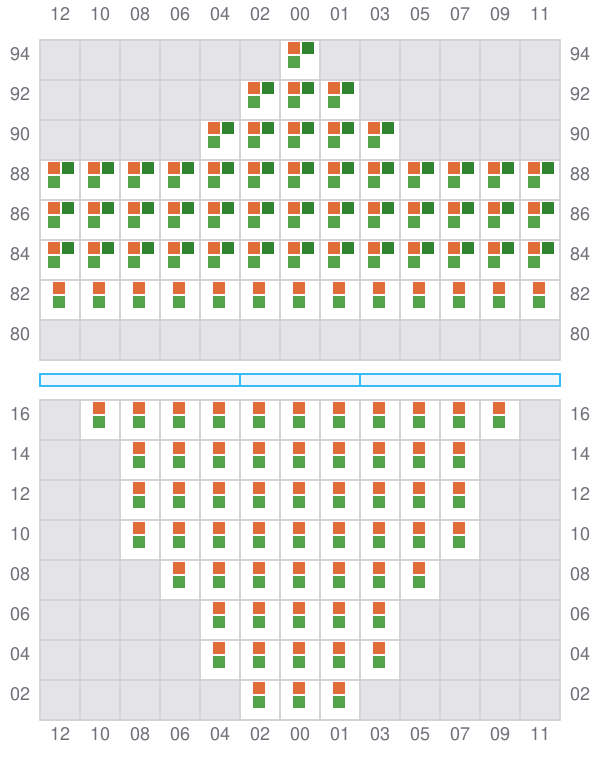

013 (014)
- →
![Bay 013 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b013.png?v=1710533517871)

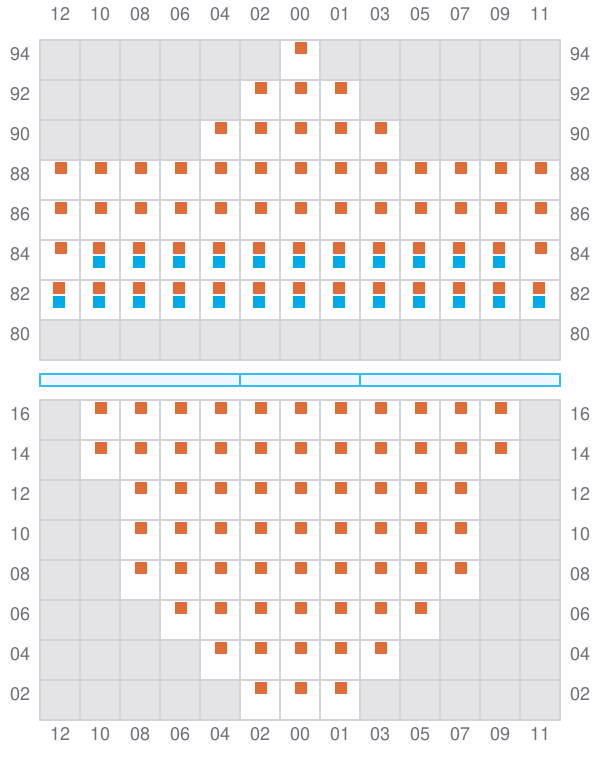

015
- ←
- → / ?
![Bay 015 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b015.png?v=1710533517871)

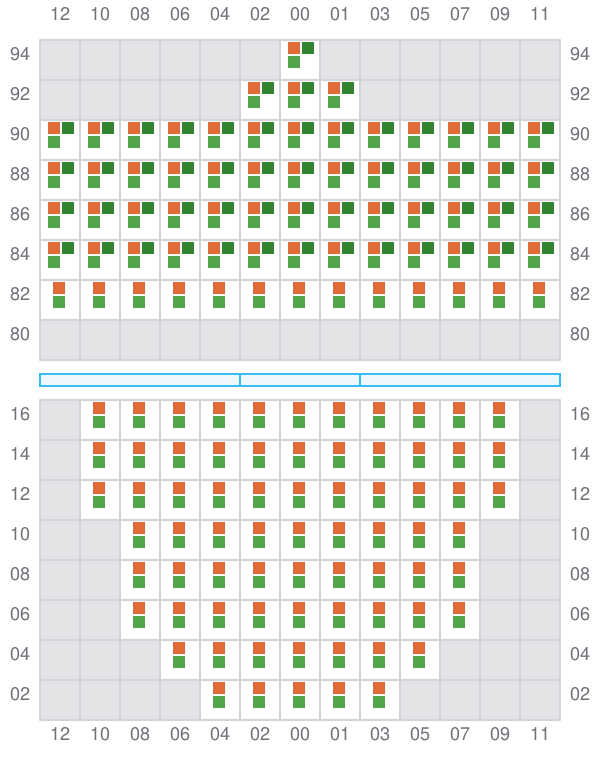

017 (018)
- →
![Bay 017 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b017.png?v=1710533517871)

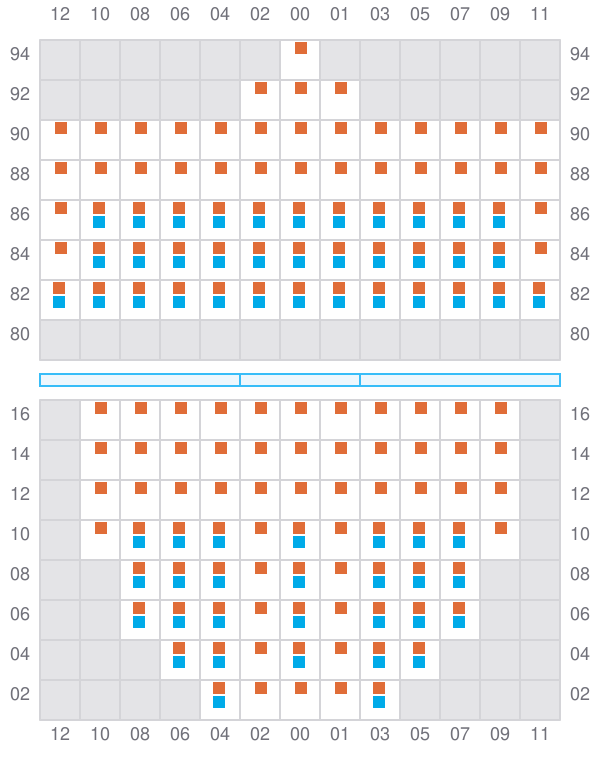

019
- ←
![Bay 019 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b019.png?v=1710533517871)

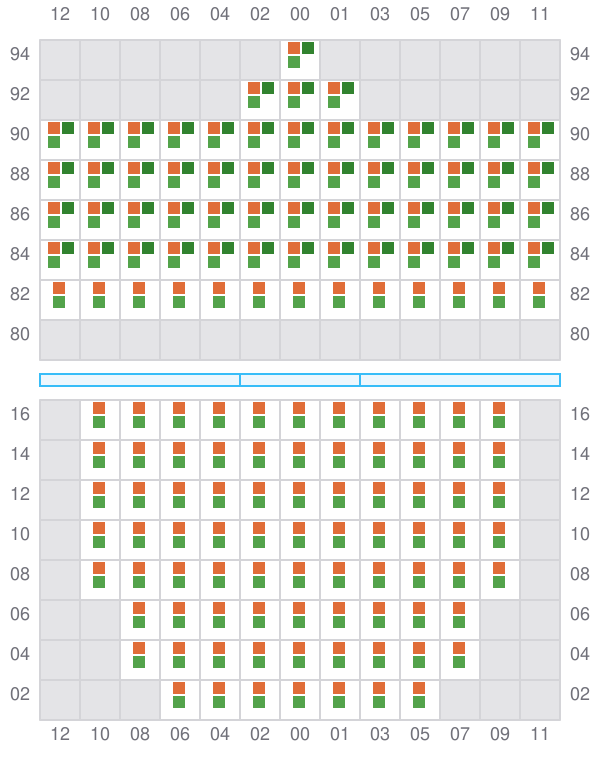

021 (022)
- →
![Bay 021 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b021.png?v=1710533517871)

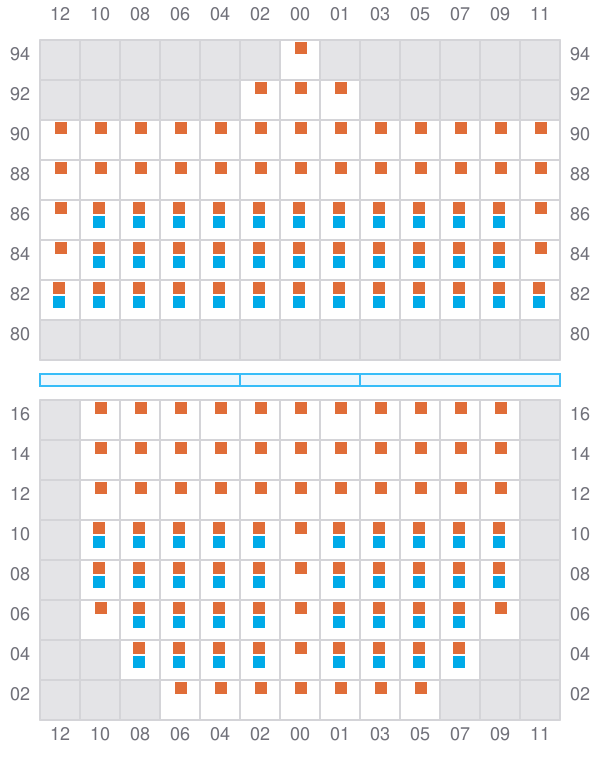

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b023.png?v=1710533517871)

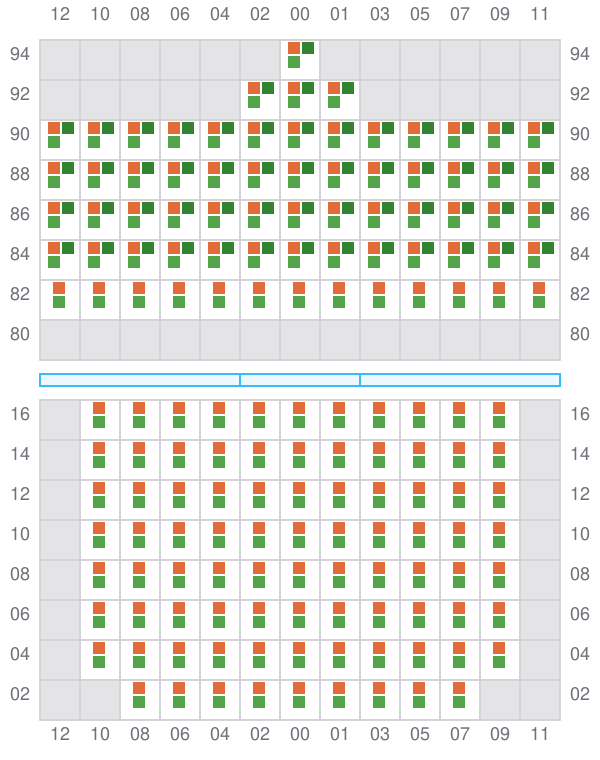

025 (026)
- →
- ? / →
![Bay 025 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b025.png?v=1710533517871)

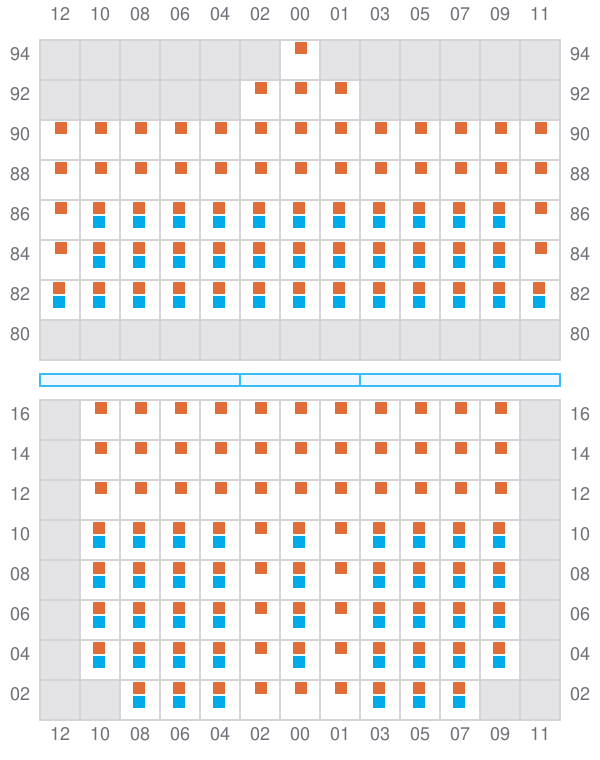

027
- ←
- →
![Bay 027 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b027.png?v=1710533517871)
029 (030)
- →
- ? / →
![Bay 029 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b029.png?v=1710533517871)

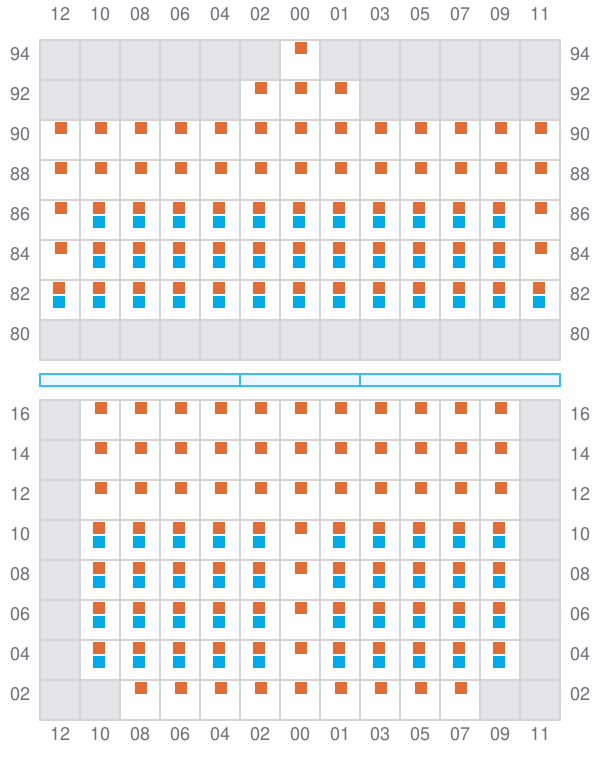

031
- ←
- → / ?
![Bay 031 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b031.png?v=1710533517871)

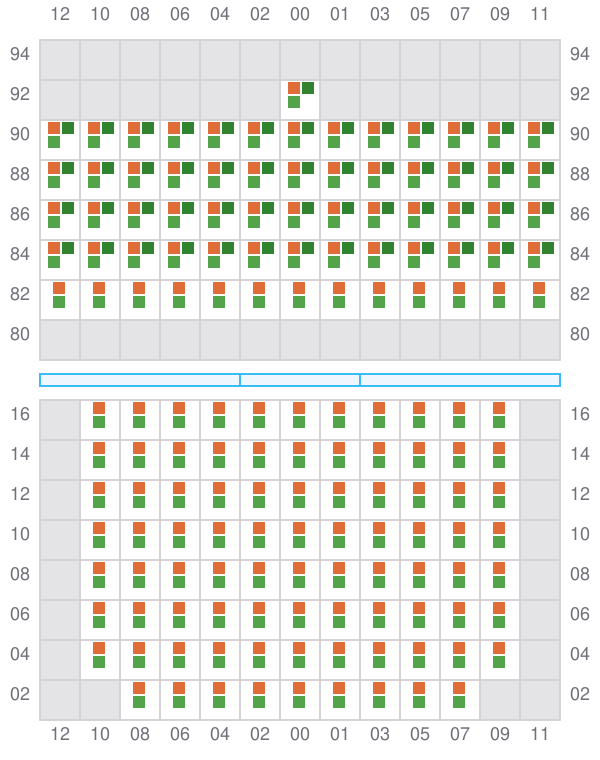

033 (034)
- →
- ? / →
![Bay 033 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b033.png?v=1710533517871)
035
- ←
- →
![Bay 035 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b035.png?v=1710533517871)

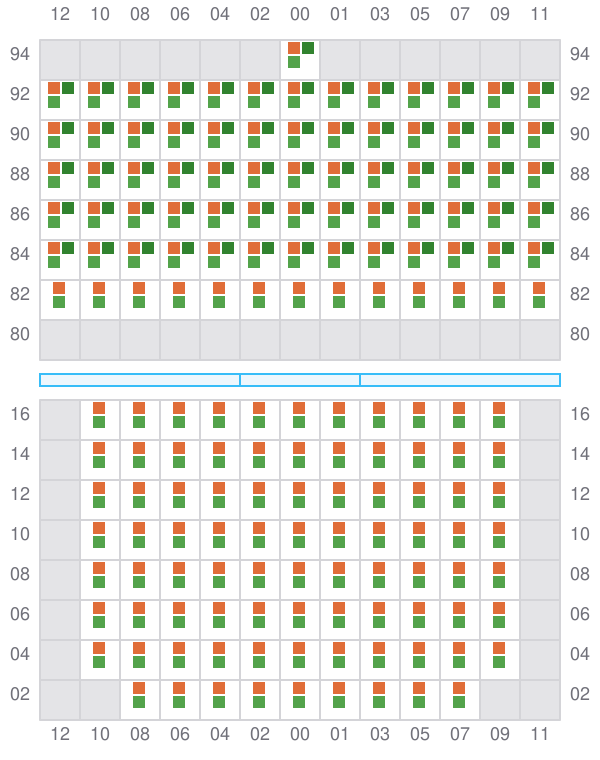

037 (038)
- →
![Bay 037 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b037.png?v=1710533517871)

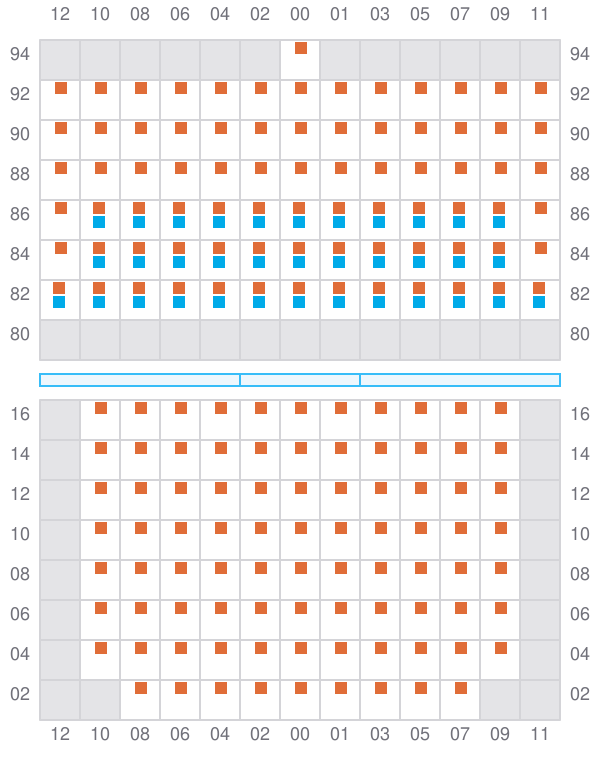

039
- ←
- → / ?
![Bay 039 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b039.png?v=1710533517871)
041 (042)
- →
- ? / →
![Bay 041 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b041.png?v=1710533517871)

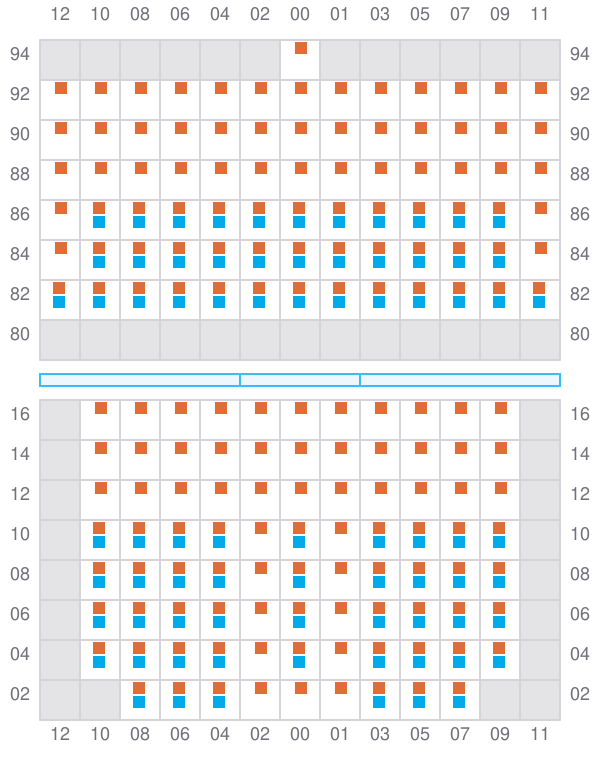

043
- ←
- →
![Bay 043 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b043.png?v=1710533517871)

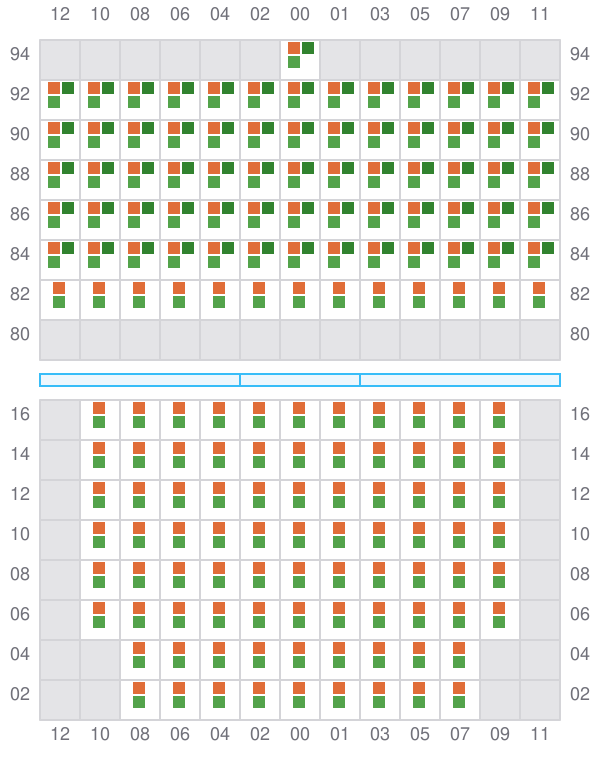

045 (046)
- →
- ? / →
![Bay 045 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b045.png?v=1710533517871)

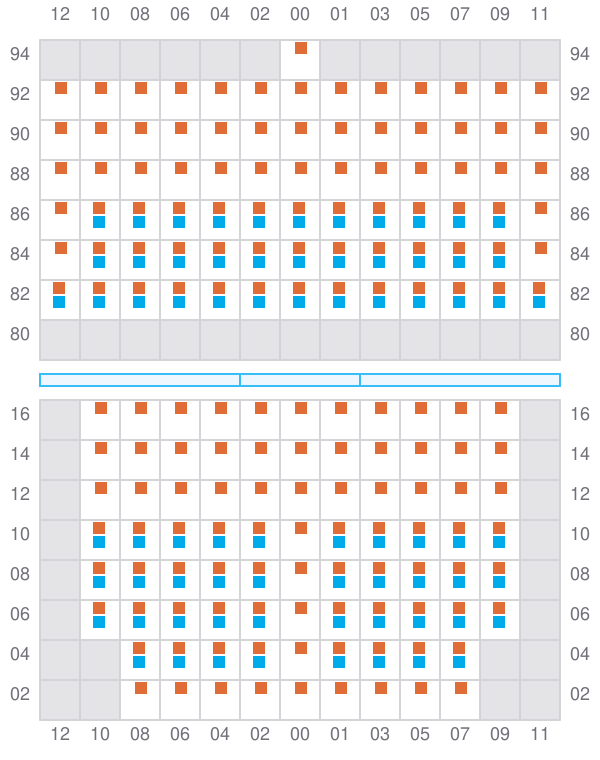

047
- ←
- → / ?
![Bay 047 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b047.png?v=1710533517871)

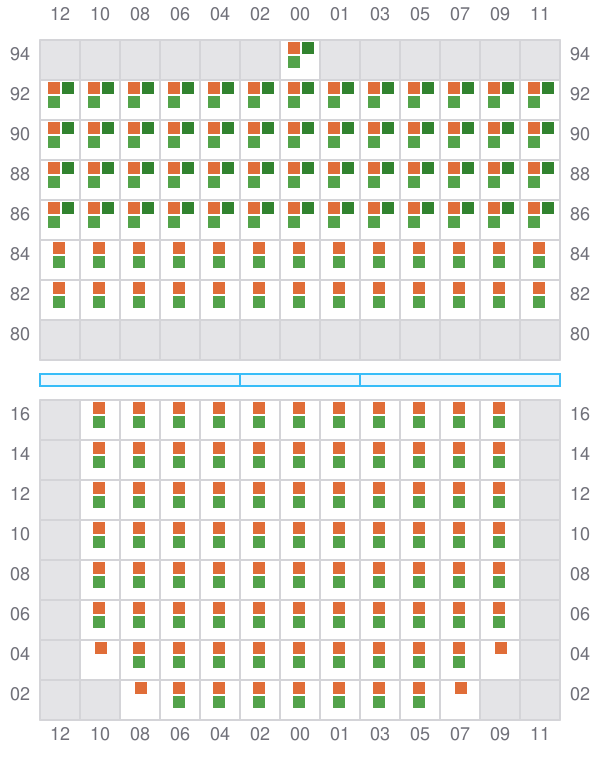

049 (050)
- →
- ? / →
![Bay 049 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b049.png?v=1710533517871)

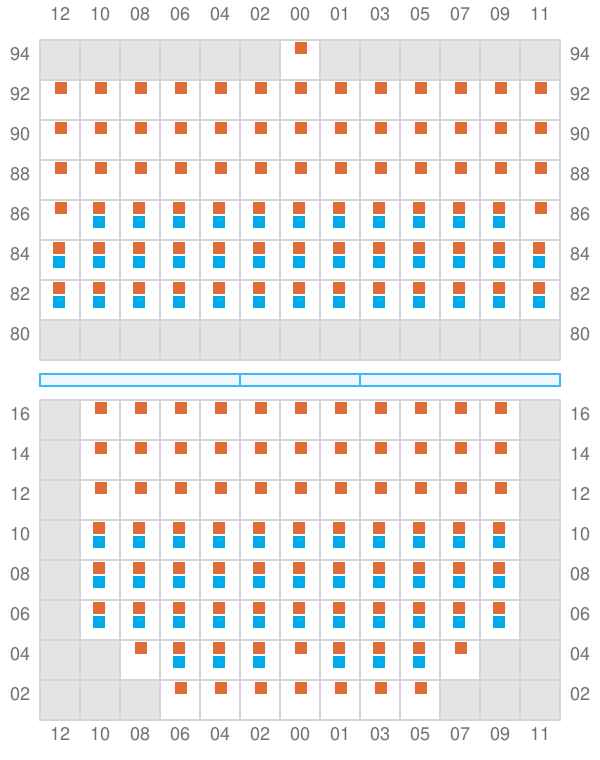

051
- ←
- →
![Bay 051 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b051.png?v=1710533517871)

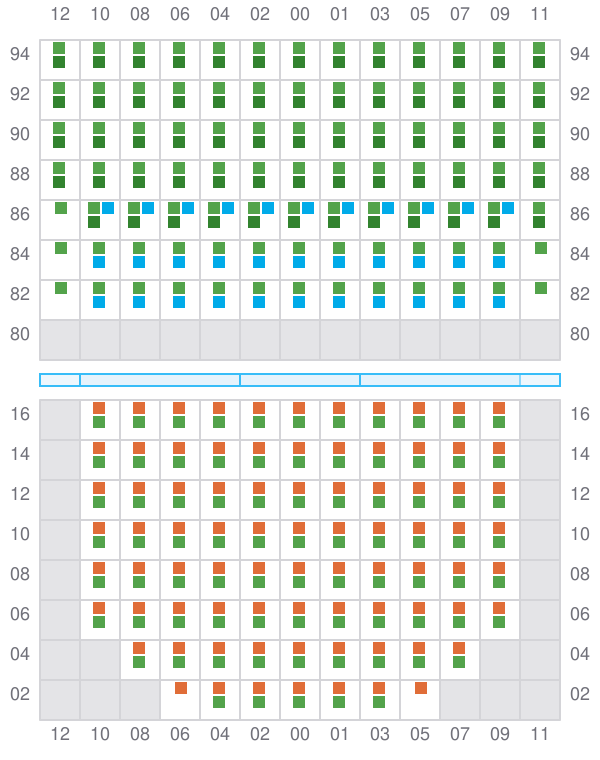

053 (054)
- →
- →
![Bay 053 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b053.png?v=1710533517871)

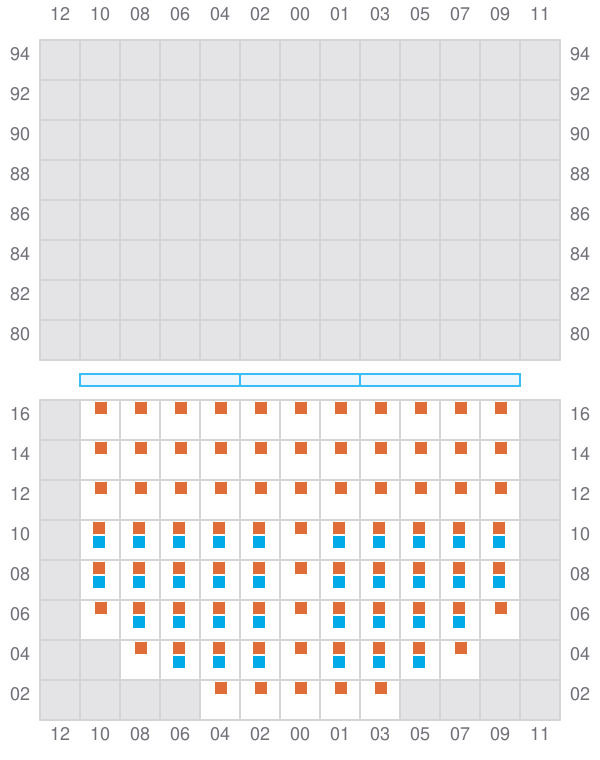

055
- ? / ←
- ? / →
![Bay 055 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b055.png?v=1710533517871)

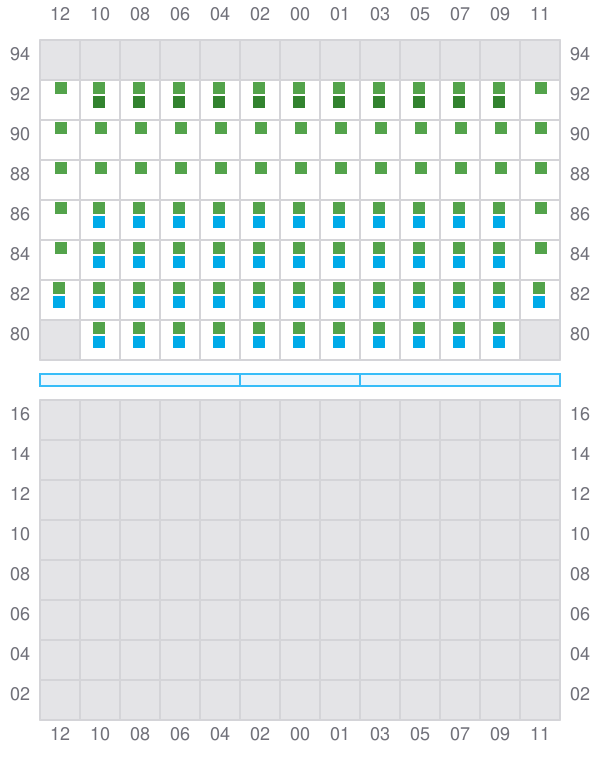

057 (058)
- → / ?
- ← / ?
![Bay 057 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b057.png?v=1710533517871)

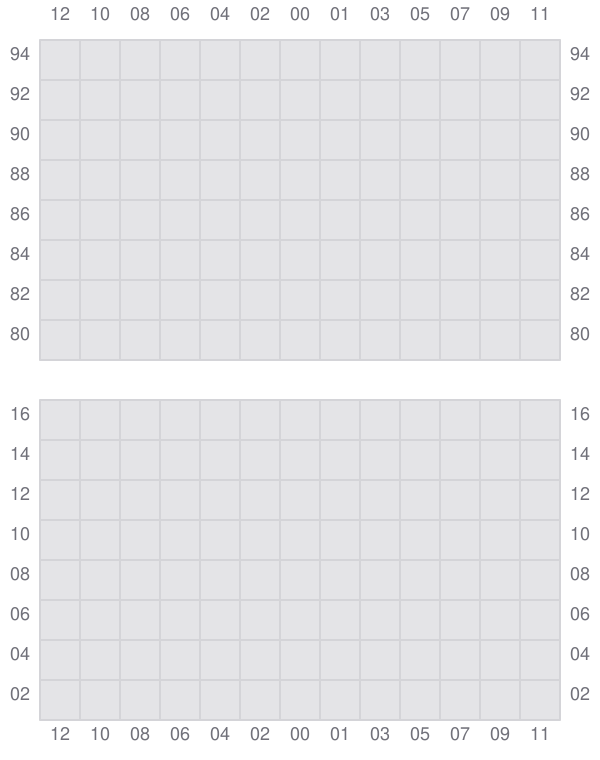

059
![Bay 059 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b059.png?v=1710533517871)

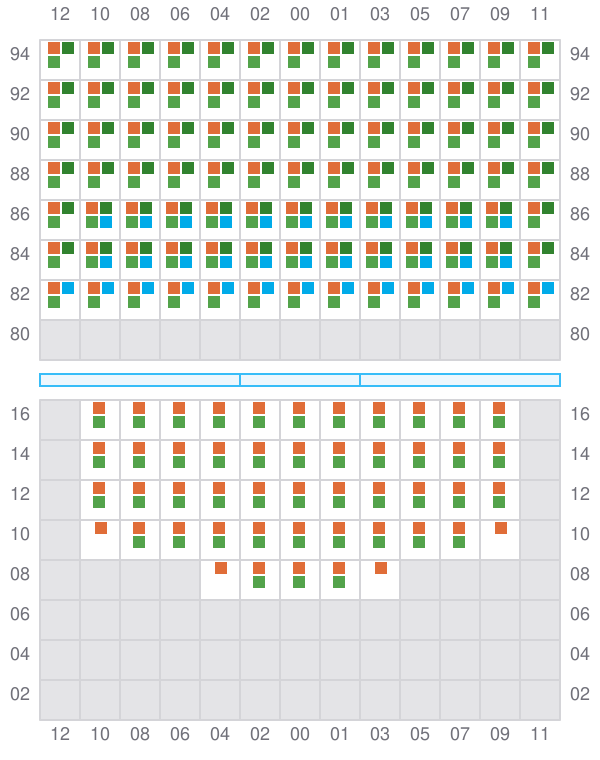

061 (062)
- →
- ← / →
![Bay 061 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b061.png?v=1710533517871)

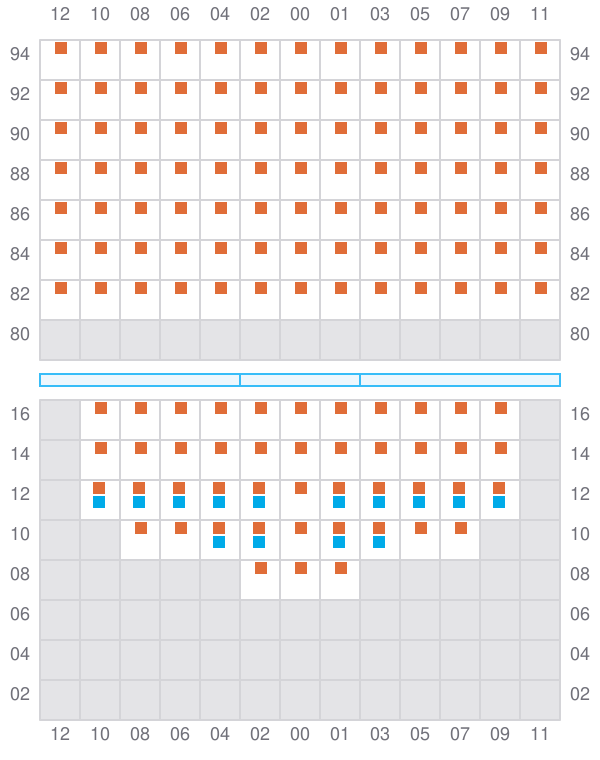

063
- ←
- ? / →
![Bay 063 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b063.png?v=1710533517871)

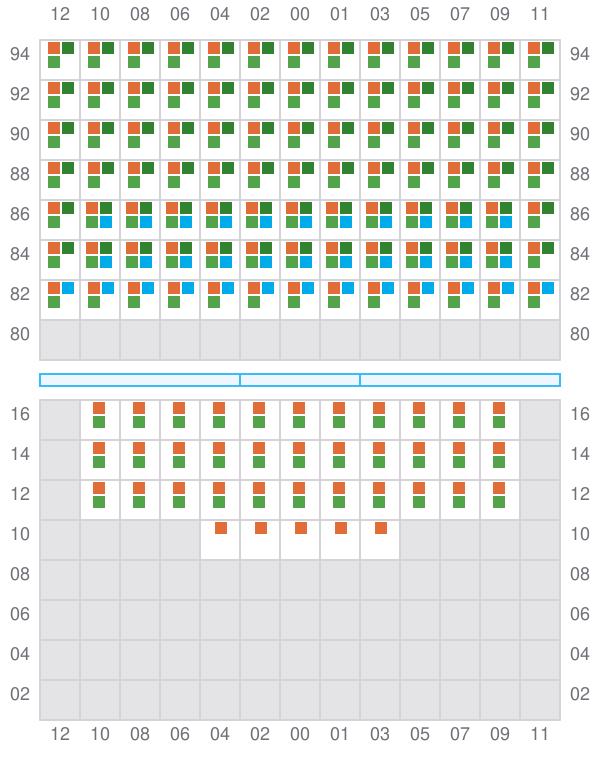

065 (066)
- →
- ← / ?
![Bay 065 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b065.png?v=1710533517871)

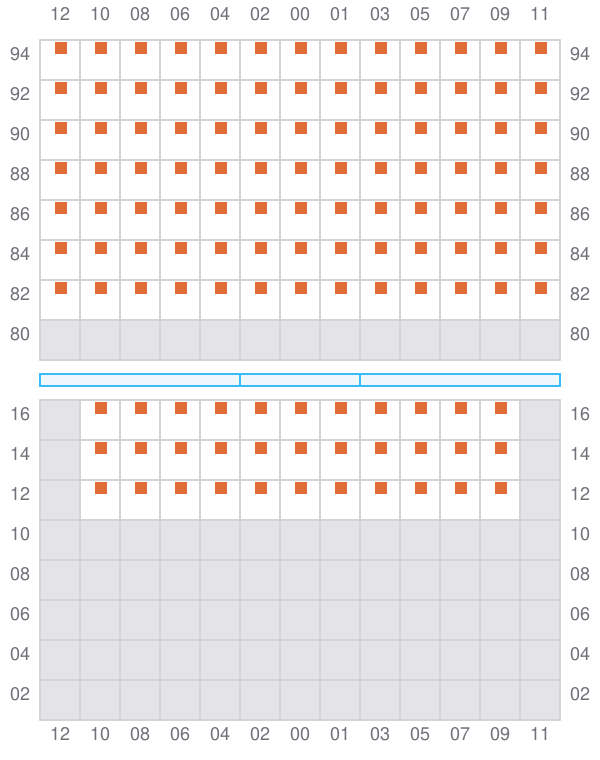

067
- ←
![Bay 067 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b067.png?v=1710533517871)

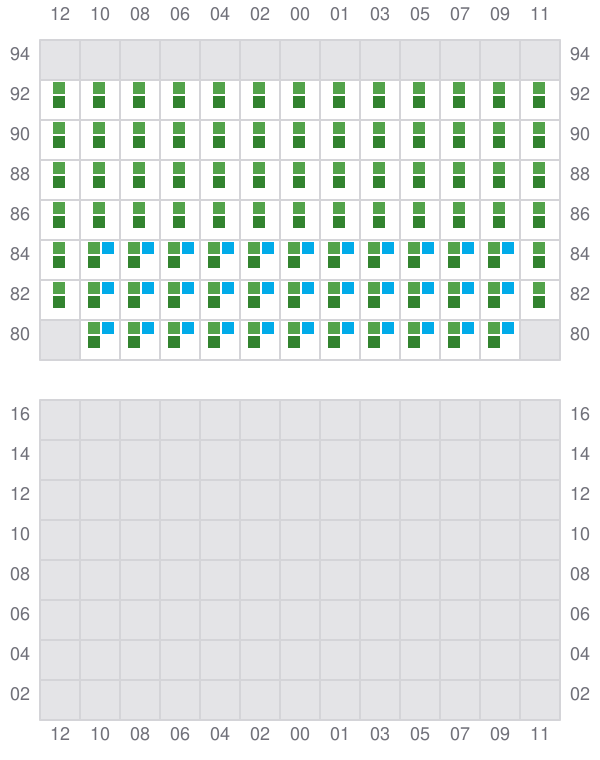

069 (070)
- → / ?
- ← / ?
![Bay 069 view and slots of MAERSK GIRONDE](/vessel-images/a9b1486b-55d4-4941-ad60-d5cdf366d98b-b069.png?v=1710533517871)
