MAERSK GUATEMALA
9713375 | VROS7 | 971 by ********* Last update: Fri Mar 29 2024

General Info

Ship Name:MAERSK GUATEMALA
IMO Code:9713375
Call Sign:VROS7
Line Operator:971
Class Name for Sister Ships:MSL
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,092

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK GUATEMALA

Hatch-Covers View

Deck view of MAERSK GUATEMALA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

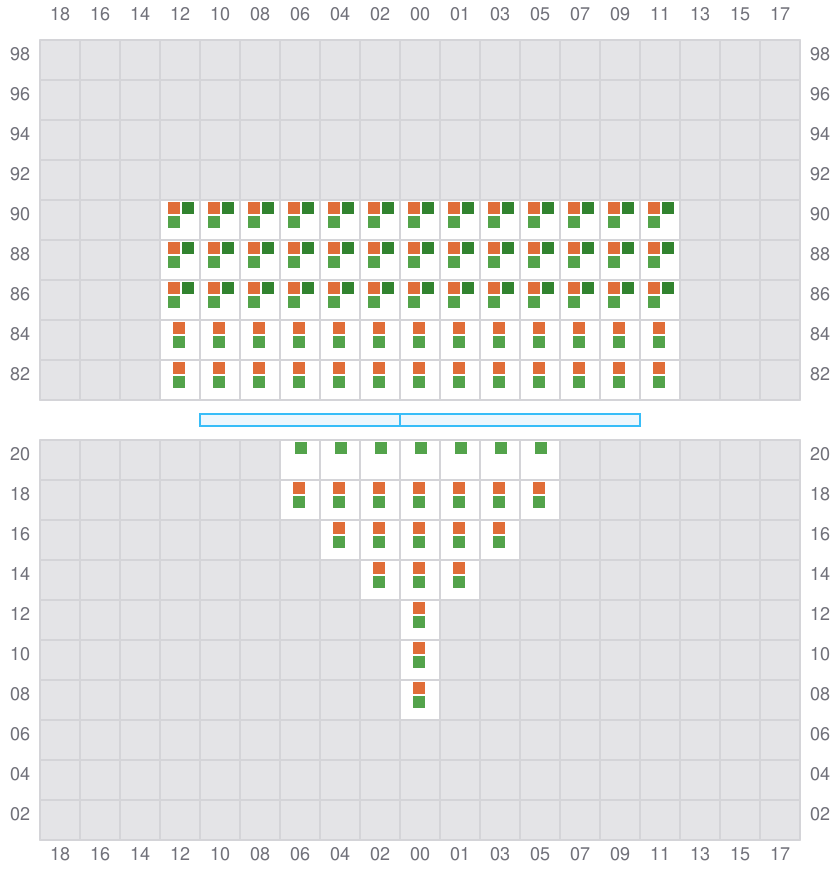

Bay 001 view and slots of MAERSK GUATEMALA

003

  • ←
  • → / ?

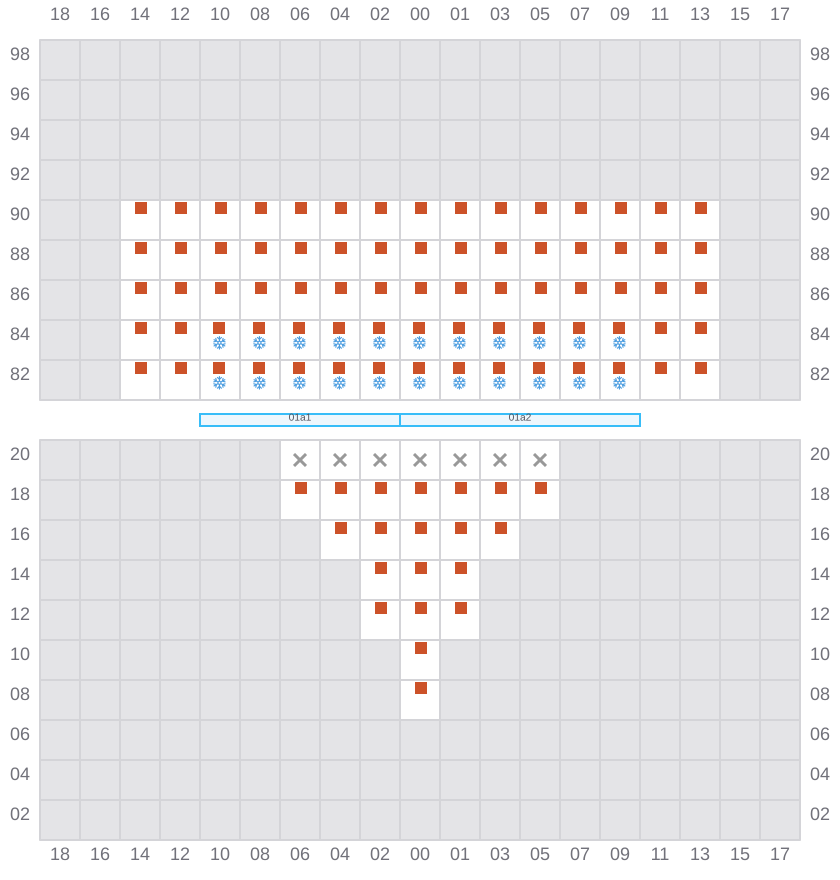

Bay 003 view and slots of MAERSK GUATEMALA

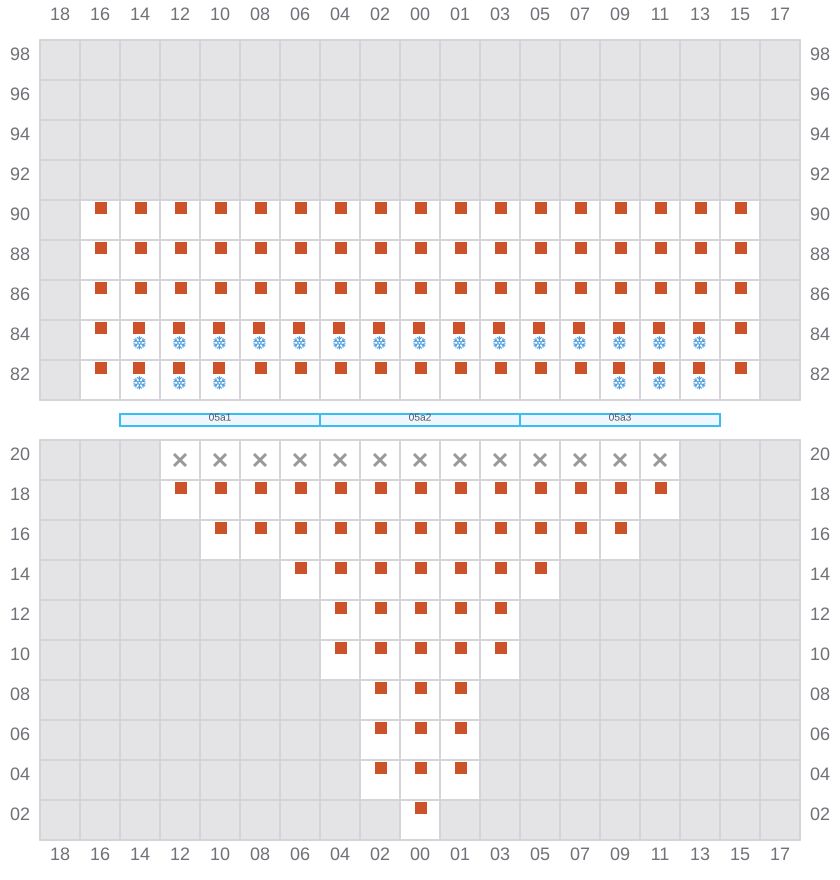

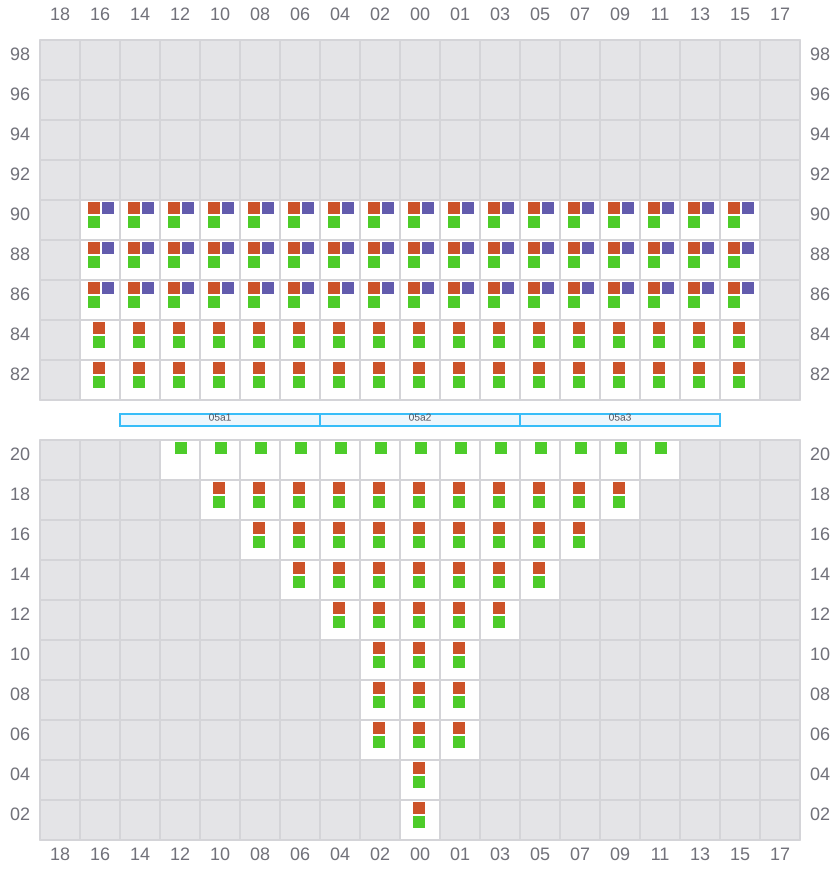

005 (006)

  • →
Bay 005 view and slots of MAERSK GUATEMALA

007

  • ←
  • → / ?
Bay 007 view and slots of MAERSK GUATEMALA

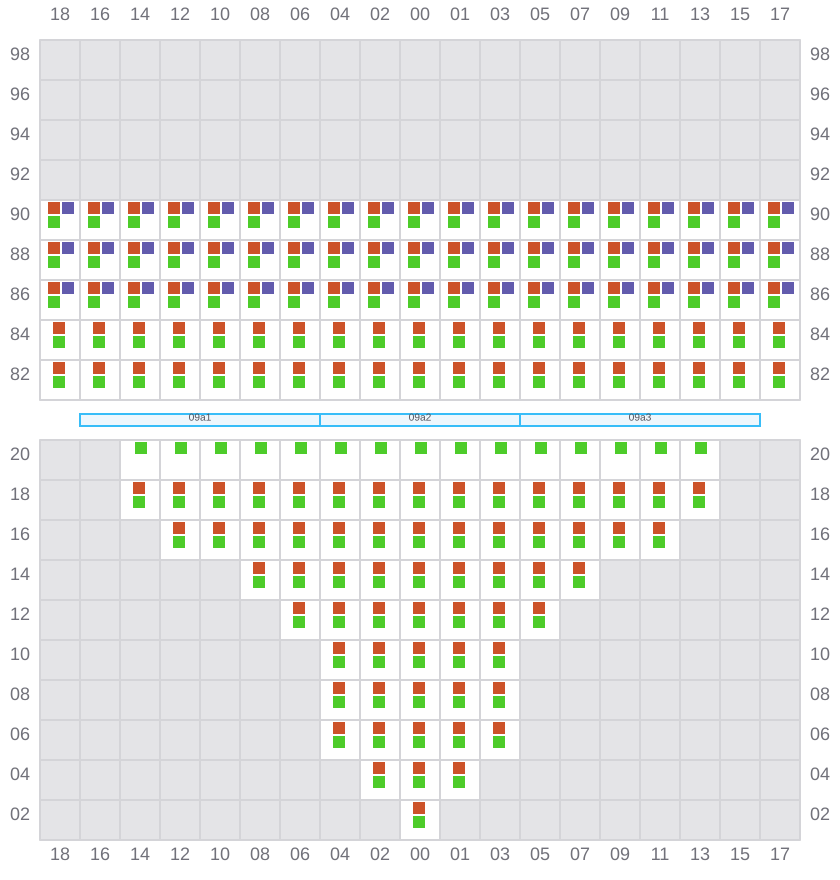

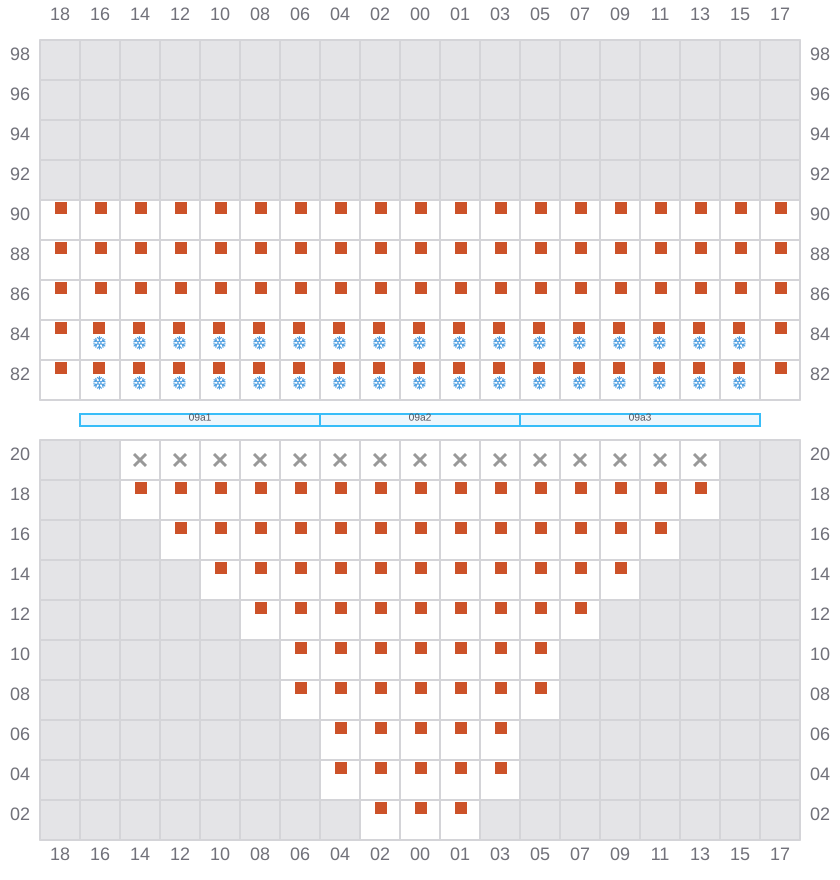

009 (010)

  • →
Bay 009 view and slots of MAERSK GUATEMALA

011

  • ←
  • → / ?
Bay 011 view and slots of MAERSK GUATEMALA

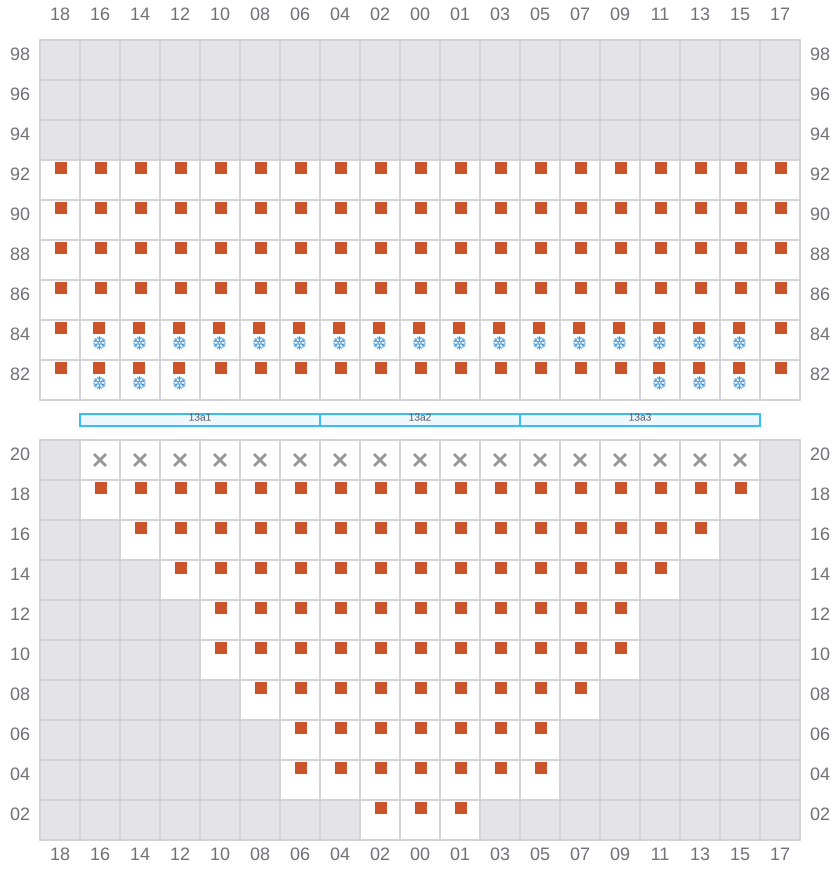

013 (014)

  • →

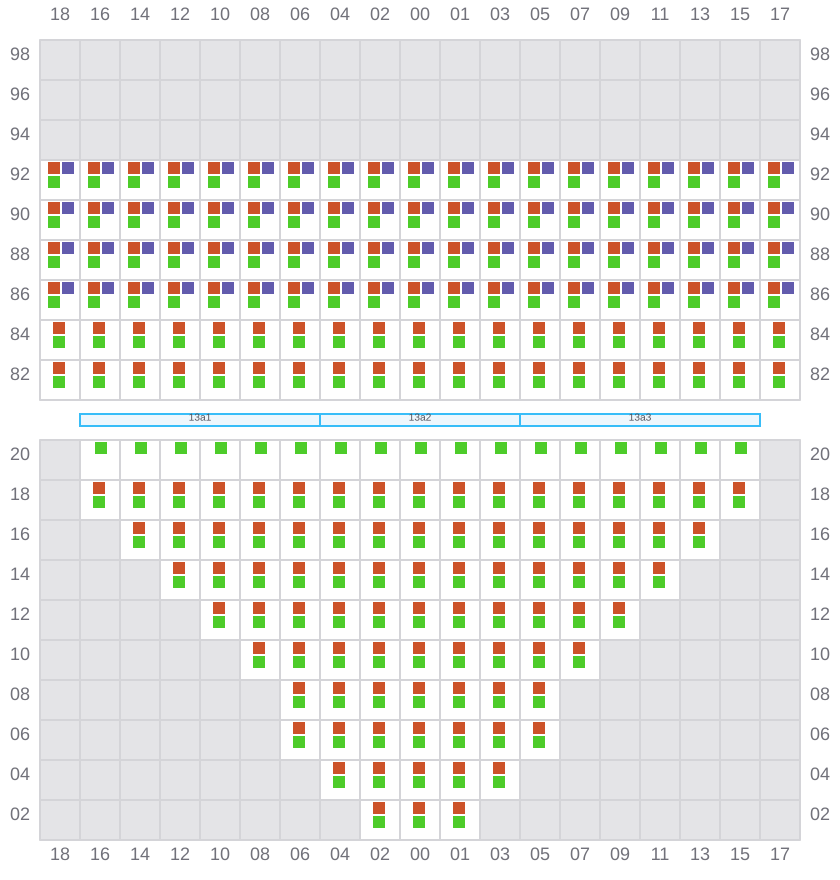

Bay 013 view and slots of MAERSK GUATEMALA

015

  • ←
  • → / ?
Bay 015 view and slots of MAERSK GUATEMALA

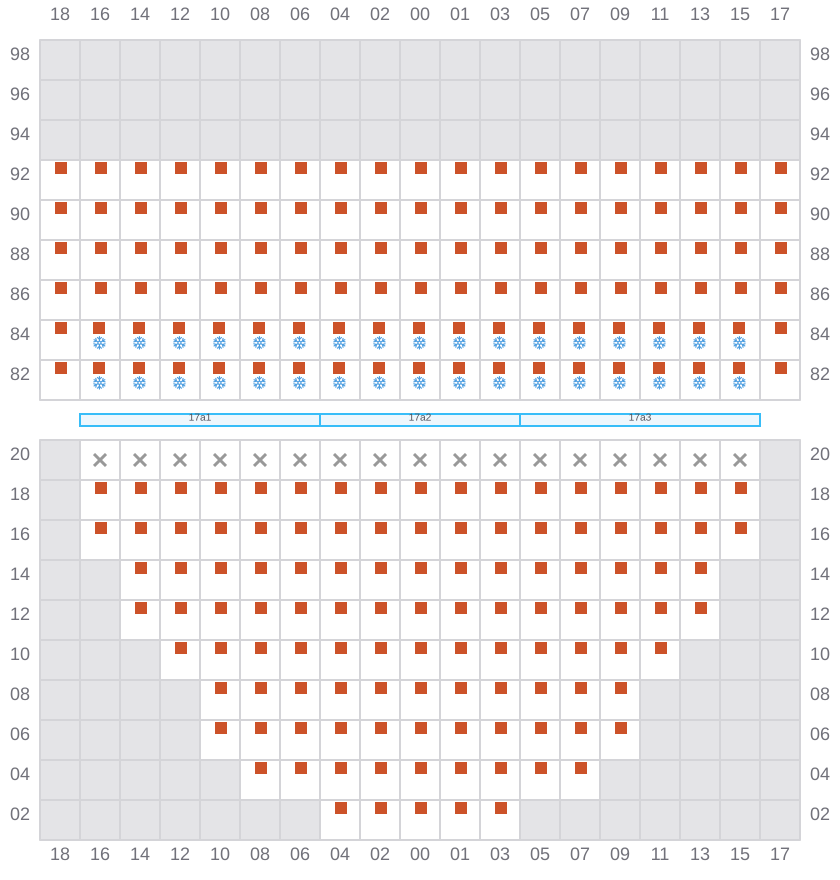

017 (018)

  • →

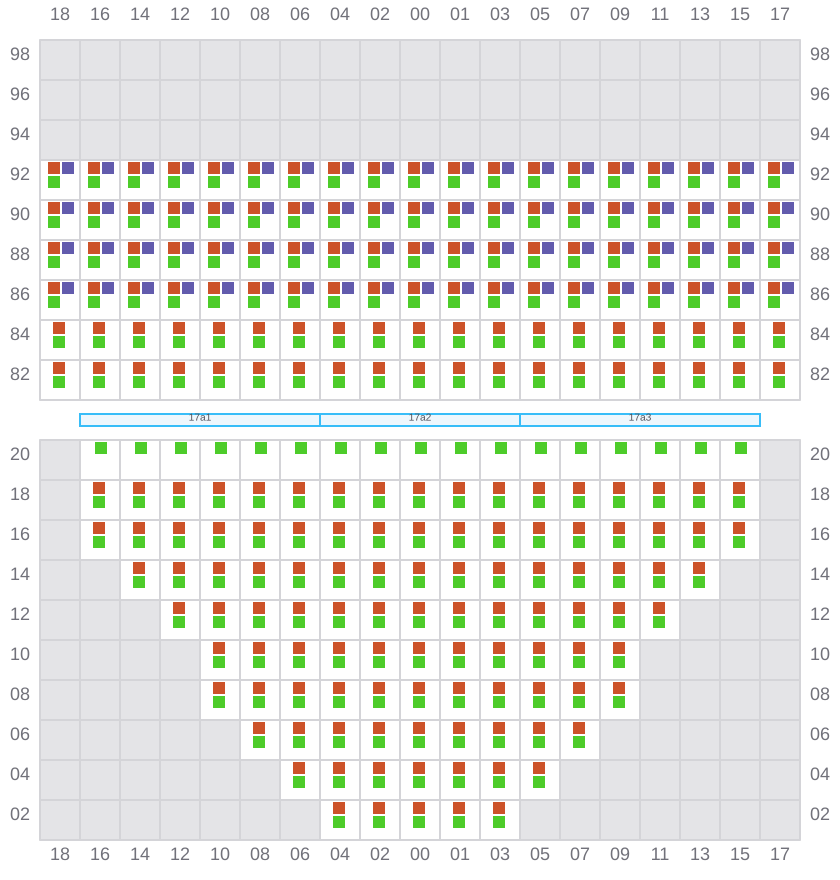

Bay 017 view and slots of MAERSK GUATEMALA

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK GUATEMALA

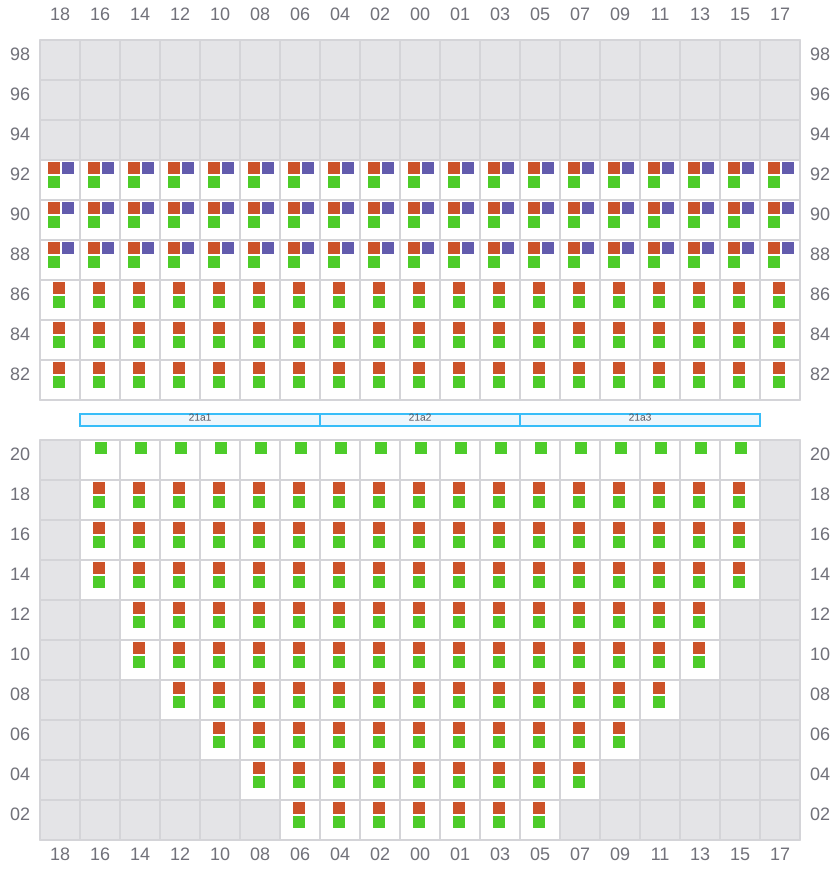

021 (022)

  • →
Bay 021 view and slots of MAERSK GUATEMALA

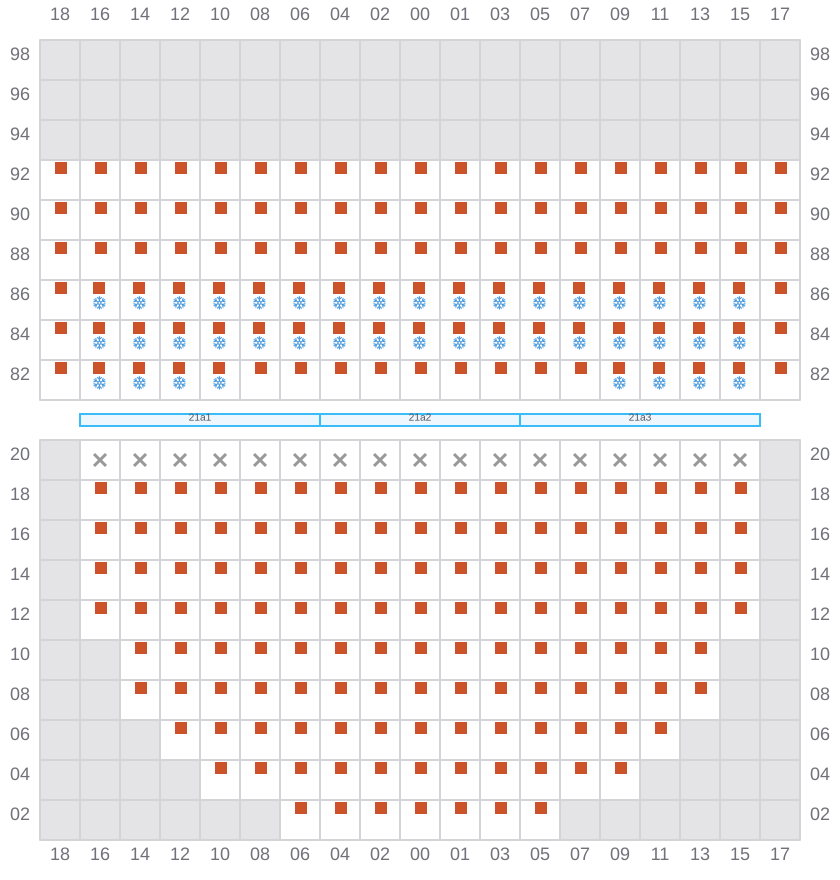

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK GUATEMALA

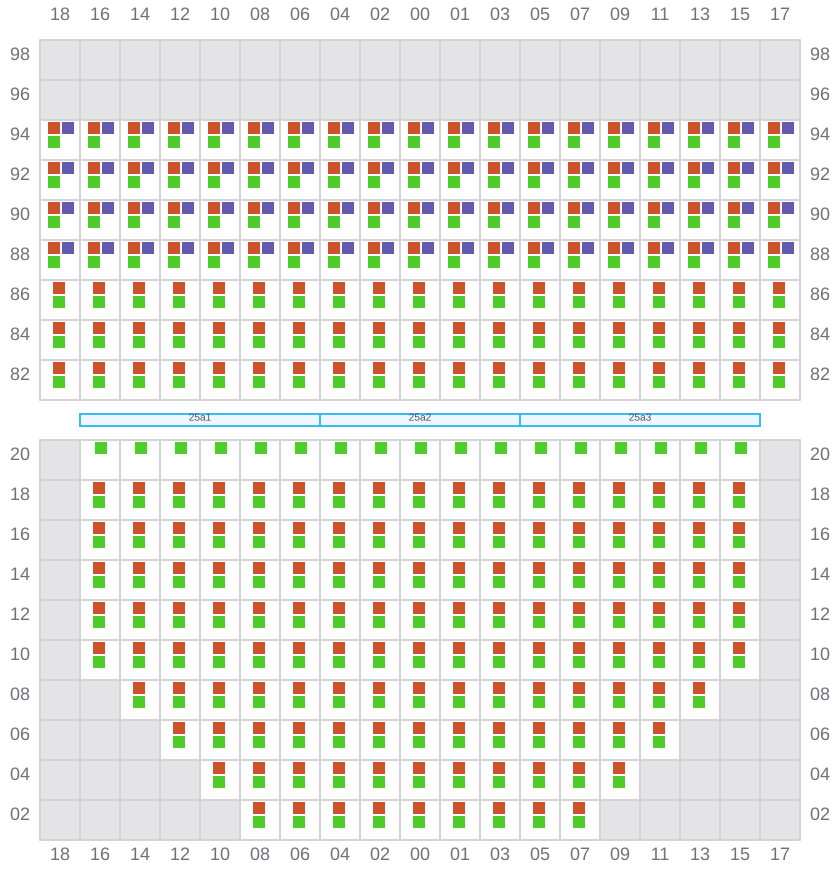

025 (026)

  • →
Bay 025 view and slots of MAERSK GUATEMALA

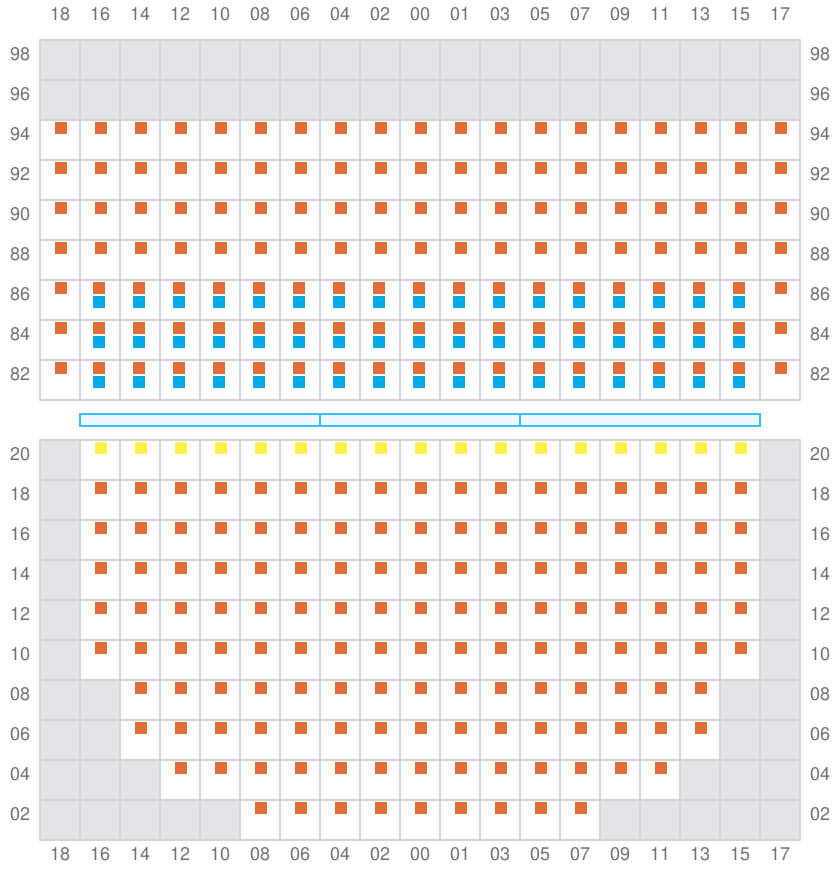

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK GUATEMALA

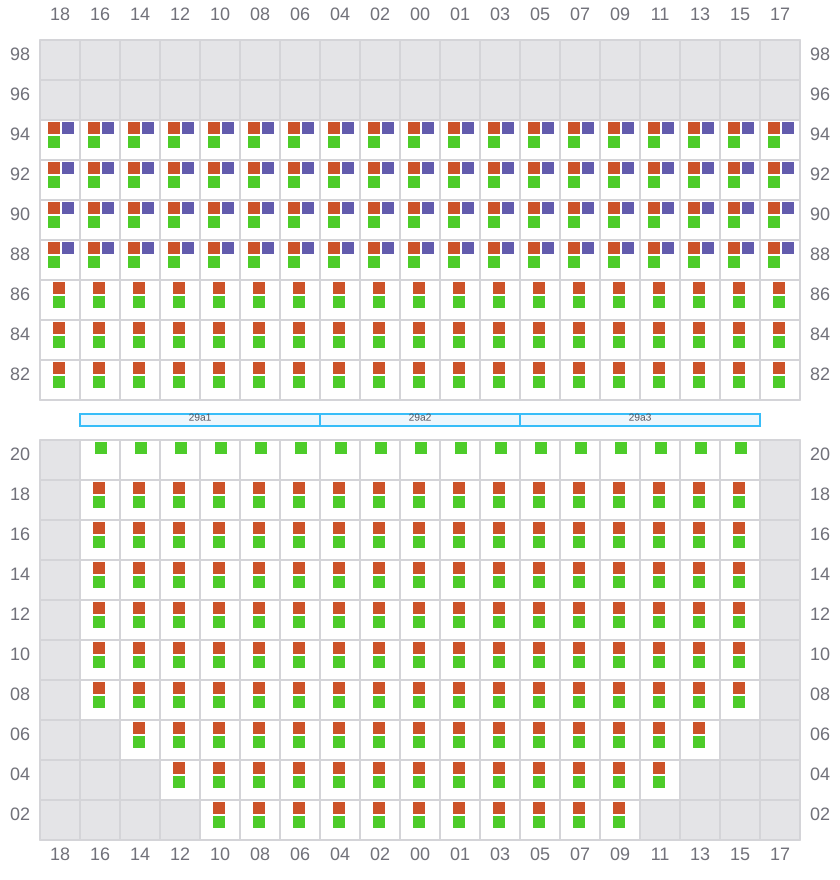

029 (030)

  • →
Bay 029 view and slots of MAERSK GUATEMALA

031

  • ←
  • → / ?

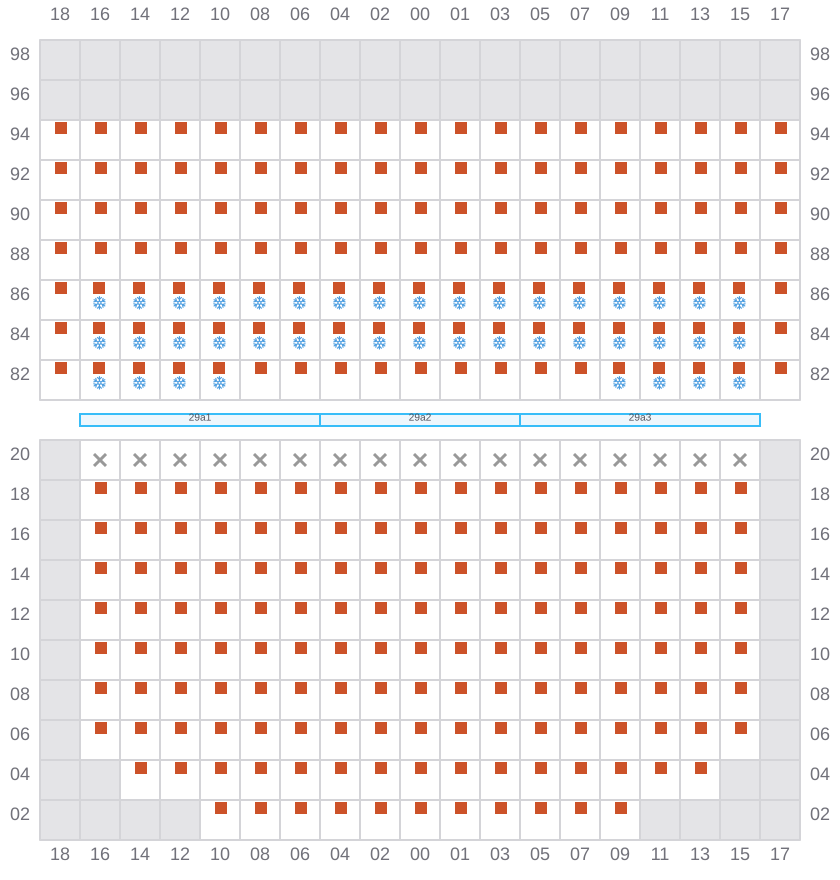

Bay 031 view and slots of MAERSK GUATEMALA

033 (034)

  • →
Bay 033 view and slots of MAERSK GUATEMALA

035

  • ←
  • → / ?

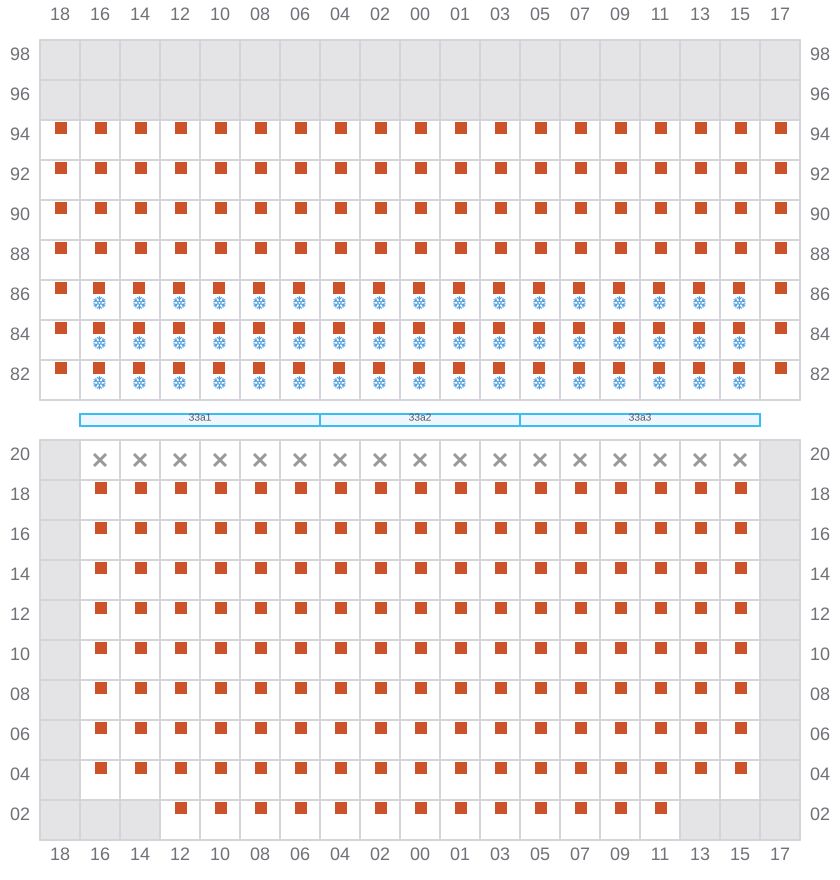

Bay 035 view and slots of MAERSK GUATEMALA

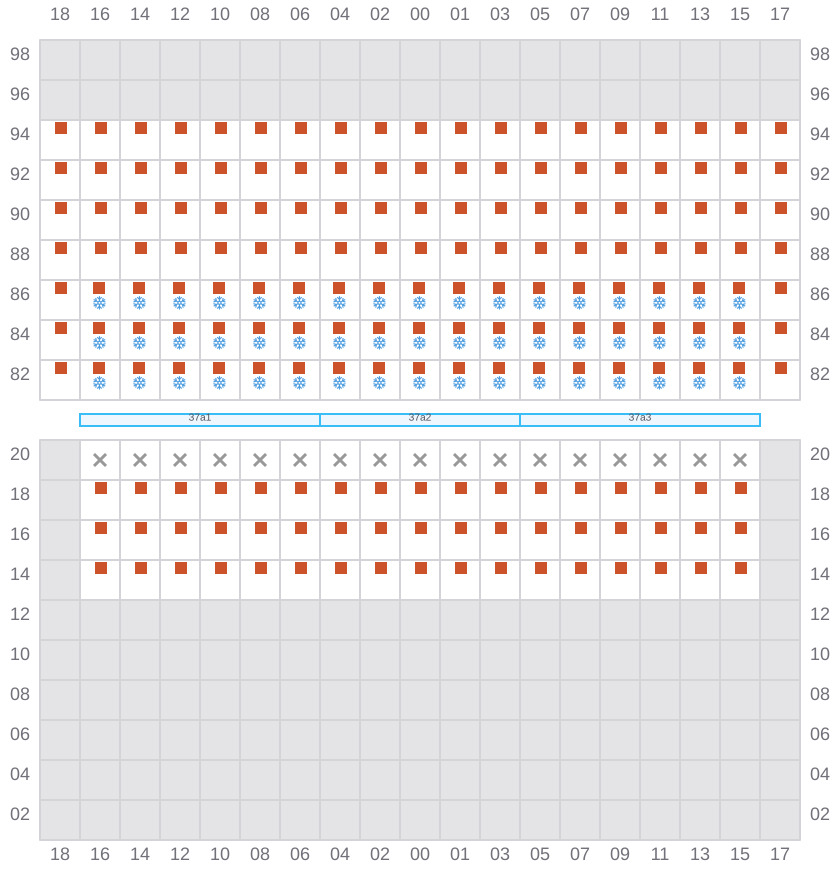

037 (038)

  • →
Bay 037 view and slots of MAERSK GUATEMALA

039

  • ←
  • → / ?
Bay 039 view and slots of MAERSK GUATEMALA

041 (042)

  • →
Bay 041 view and slots of MAERSK GUATEMALA

043

  • ←
  • → / ?

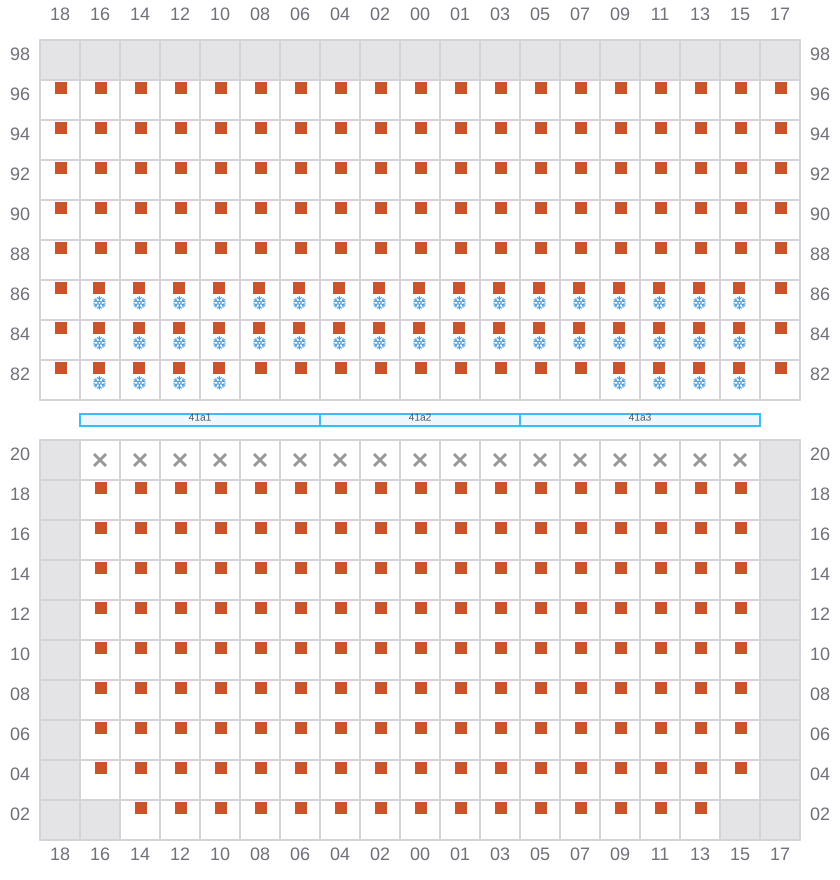

Bay 043 view and slots of MAERSK GUATEMALA

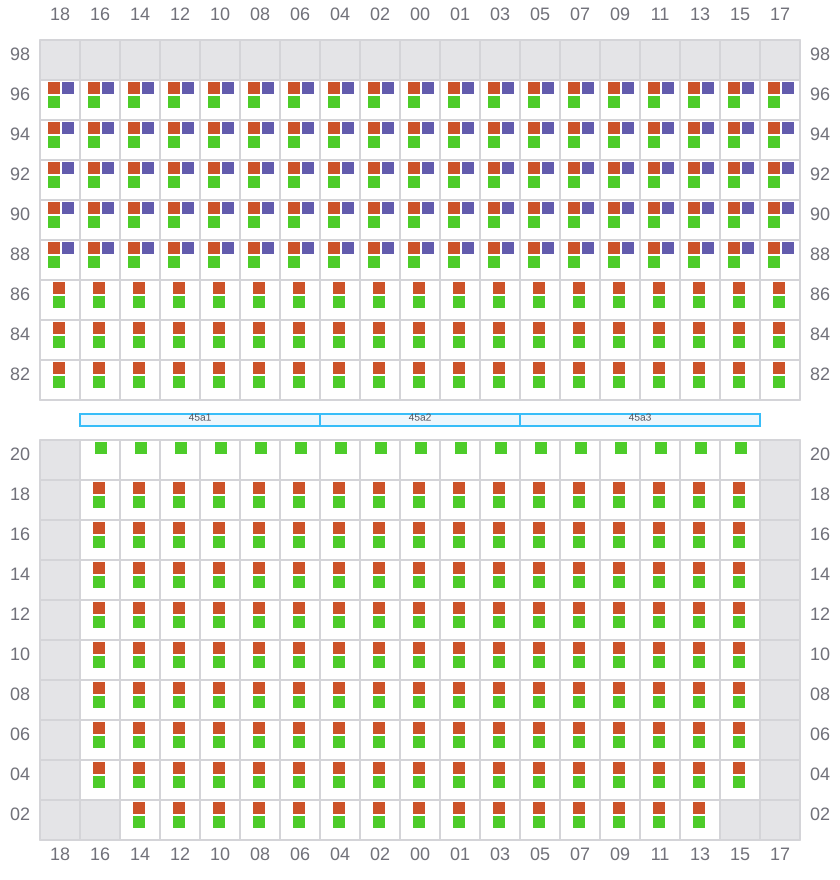

045 (046)

  • →
Bay 045 view and slots of MAERSK GUATEMALA

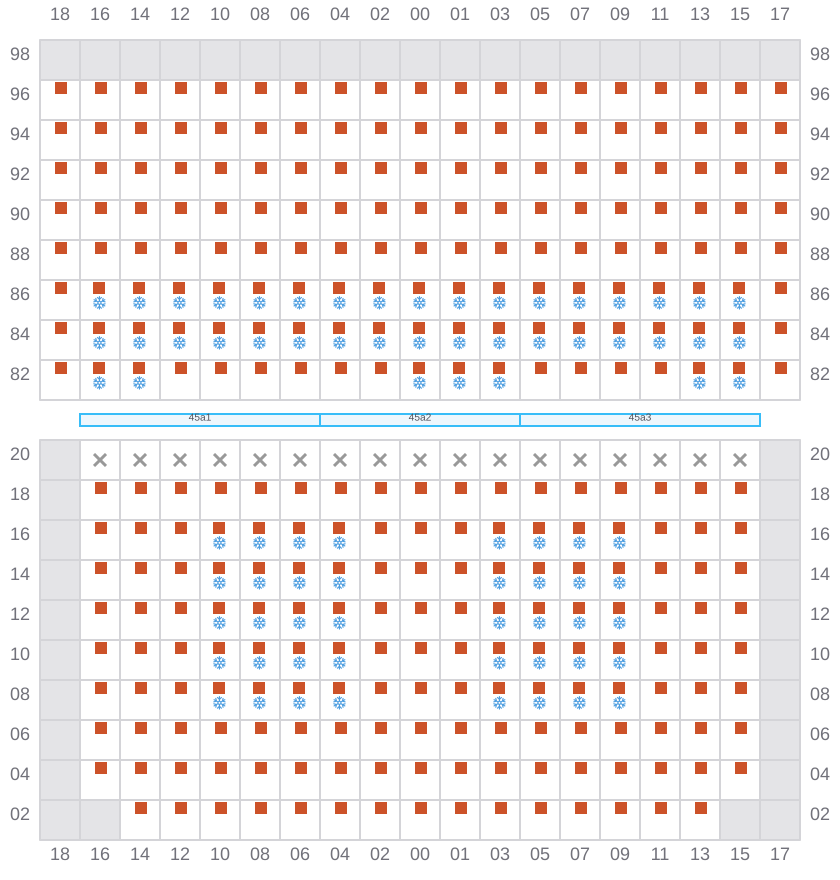

047

  • ←
  • →
Bay 047 view and slots of MAERSK GUATEMALA

049 (050)

  • →
Bay 049 view and slots of MAERSK GUATEMALA

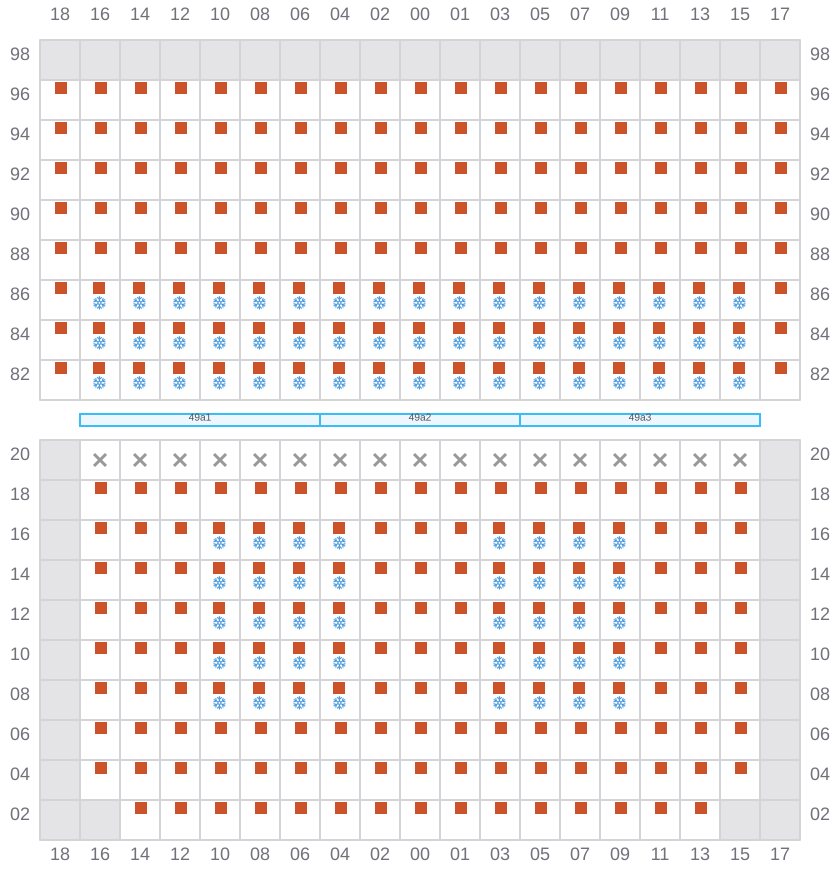

051

  • ←
  • →
Bay 051 view and slots of MAERSK GUATEMALA

053 (054)

  • →

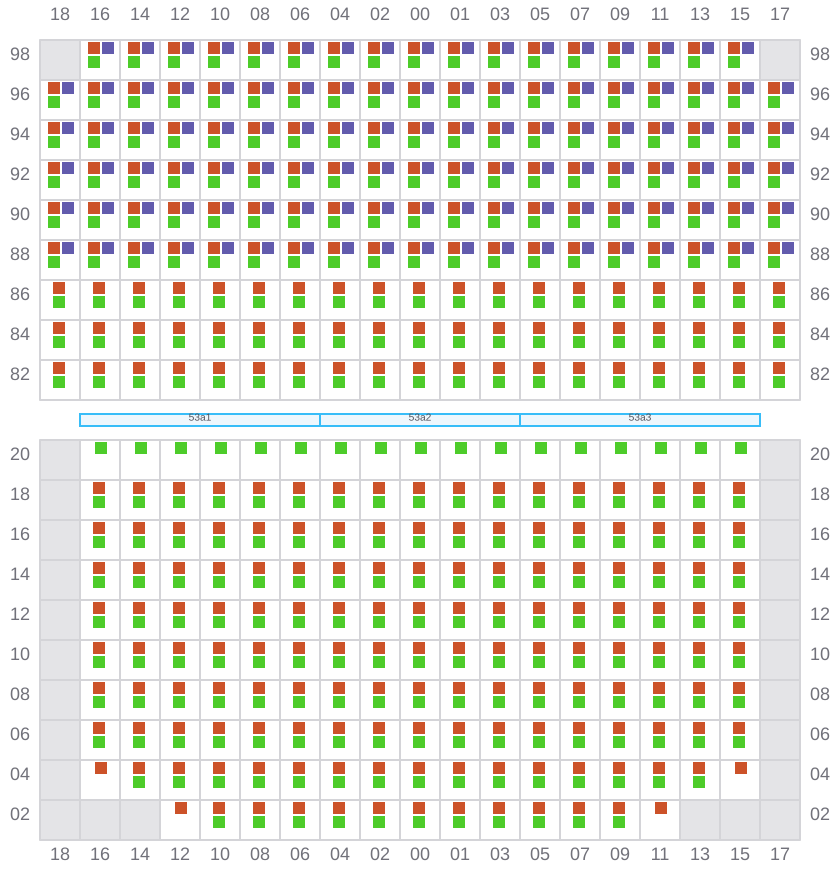

Bay 053 view and slots of MAERSK GUATEMALA

055

  • ←
  • →

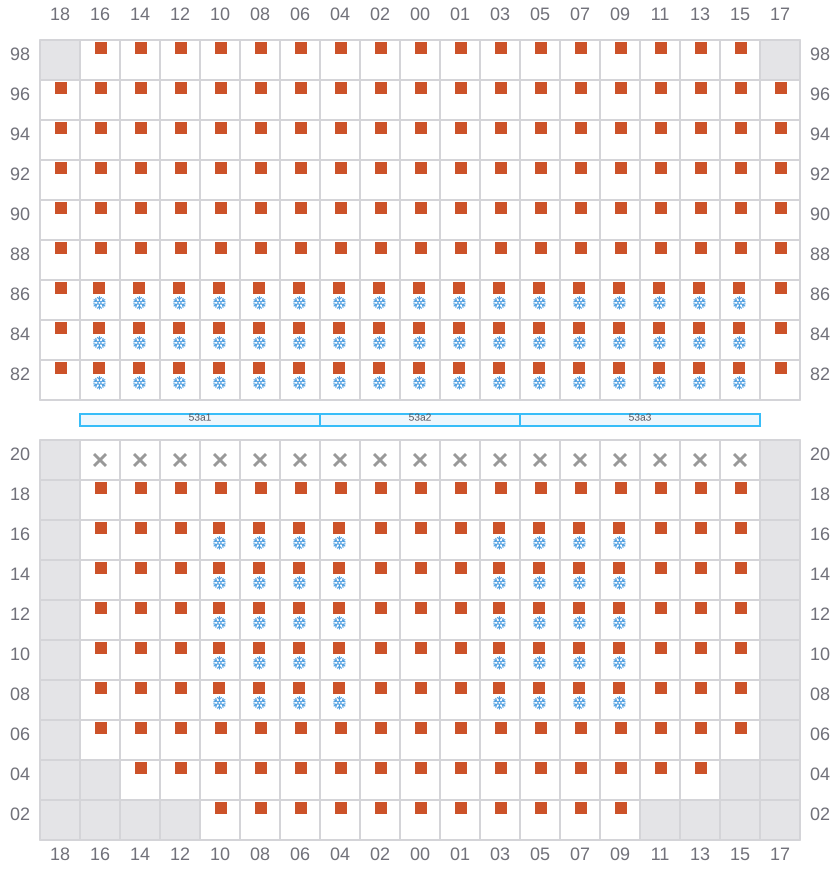

Bay 055 view and slots of MAERSK GUATEMALA

057 (058)

  • →

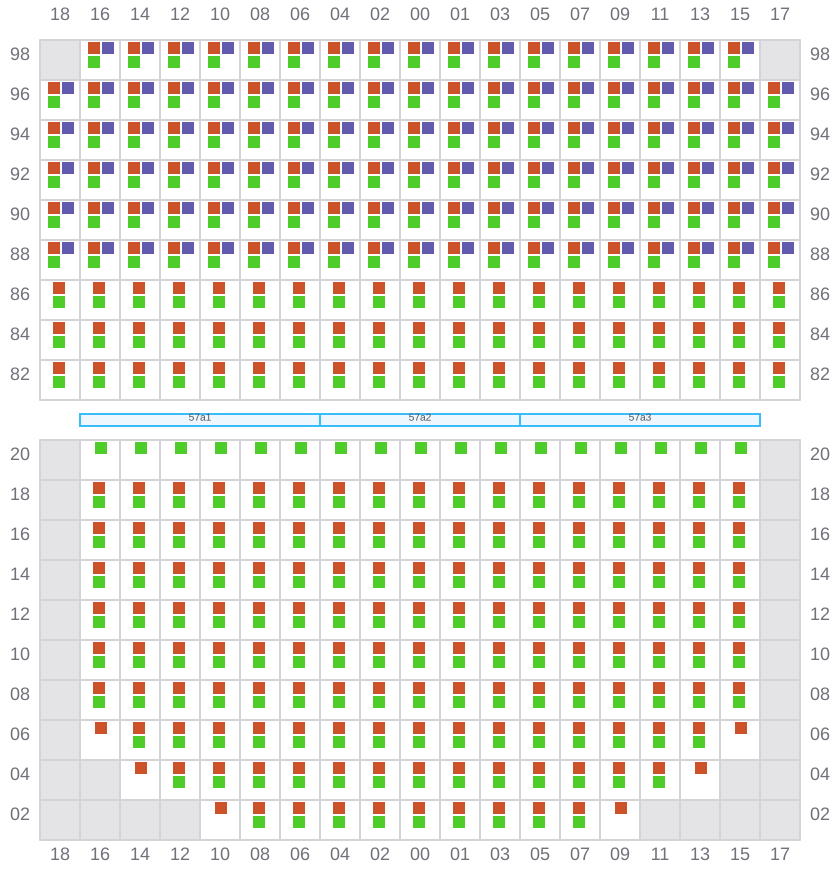

Bay 057 view and slots of MAERSK GUATEMALA

059

  • ←
  • →

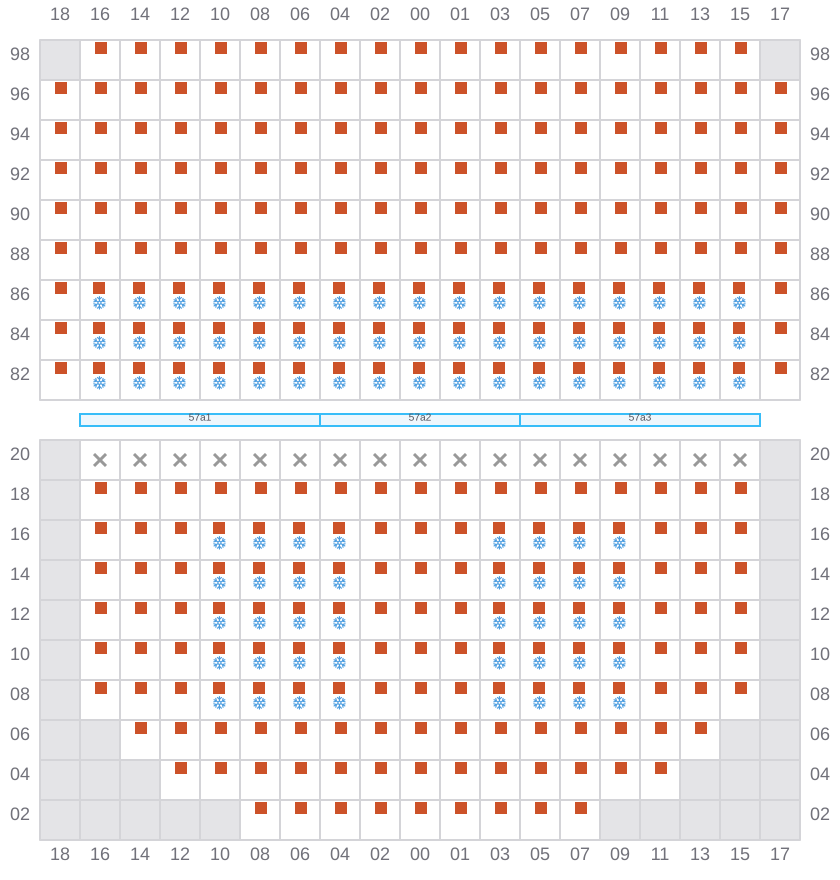

Bay 059 view and slots of MAERSK GUATEMALA

061 (062)

  • →

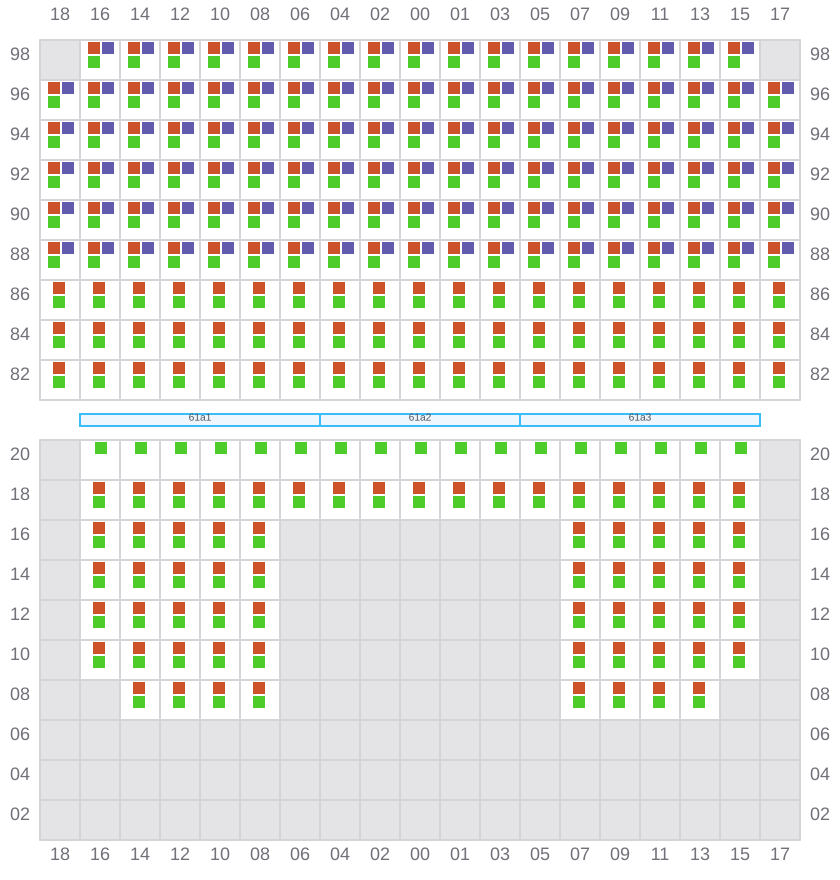

Bay 061 view and slots of MAERSK GUATEMALA

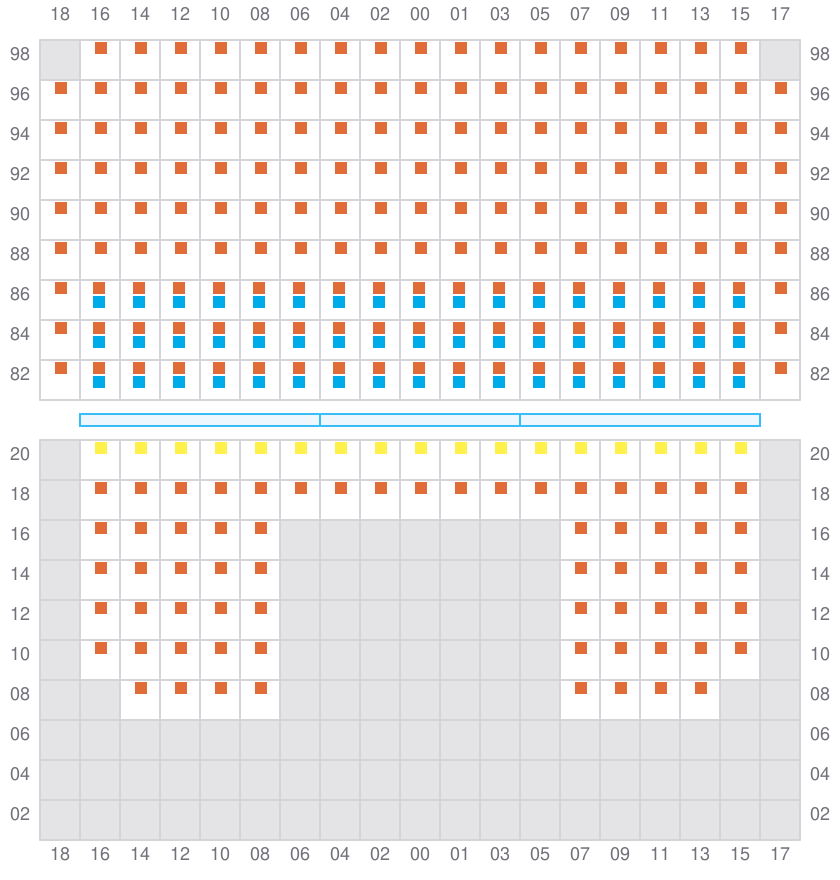

063

  • ←
  • → / ?
Bay 063 view and slots of MAERSK GUATEMALA

065 (066)

  • →

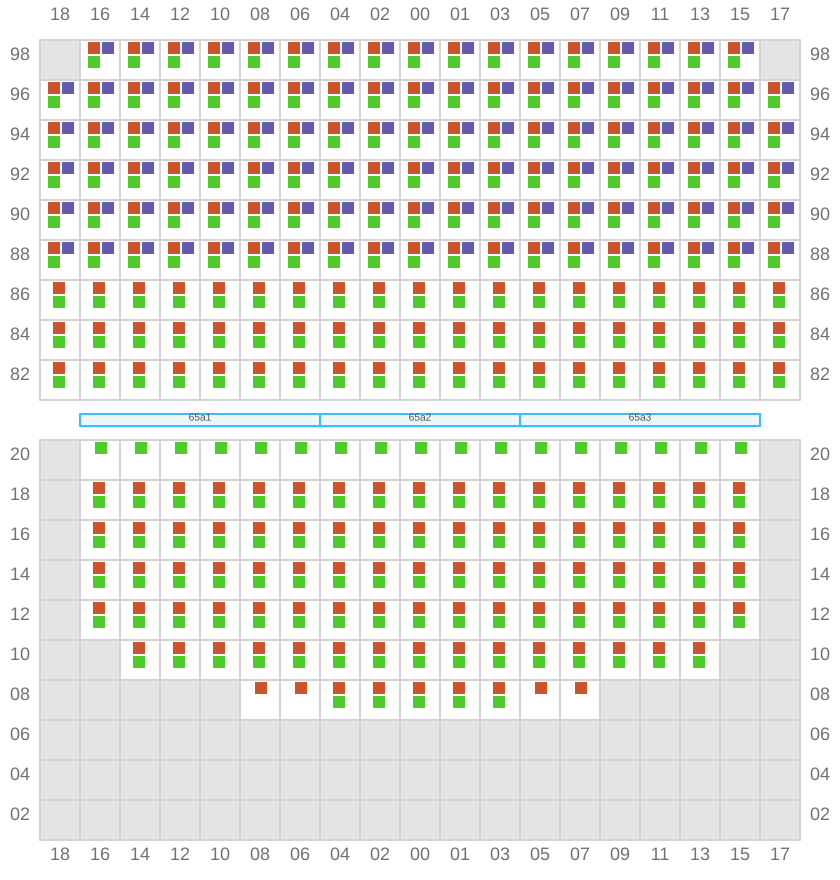

Bay 065 view and slots of MAERSK GUATEMALA

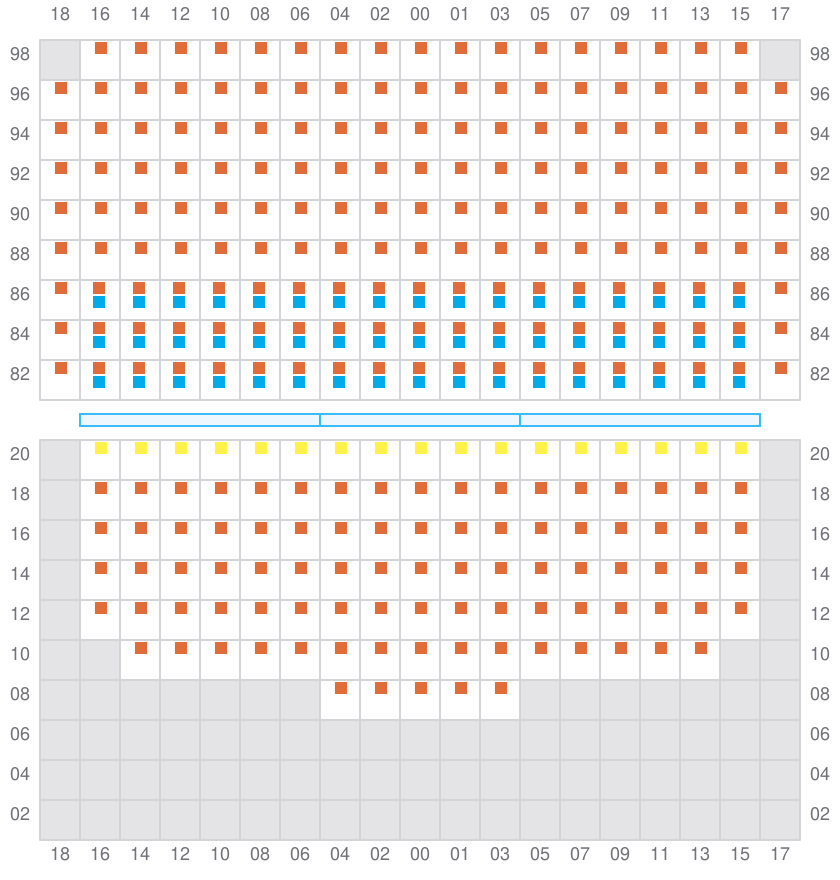

067

  • ←
  • → / ?
Bay 067 view and slots of MAERSK GUATEMALA

069 (070)

  • →

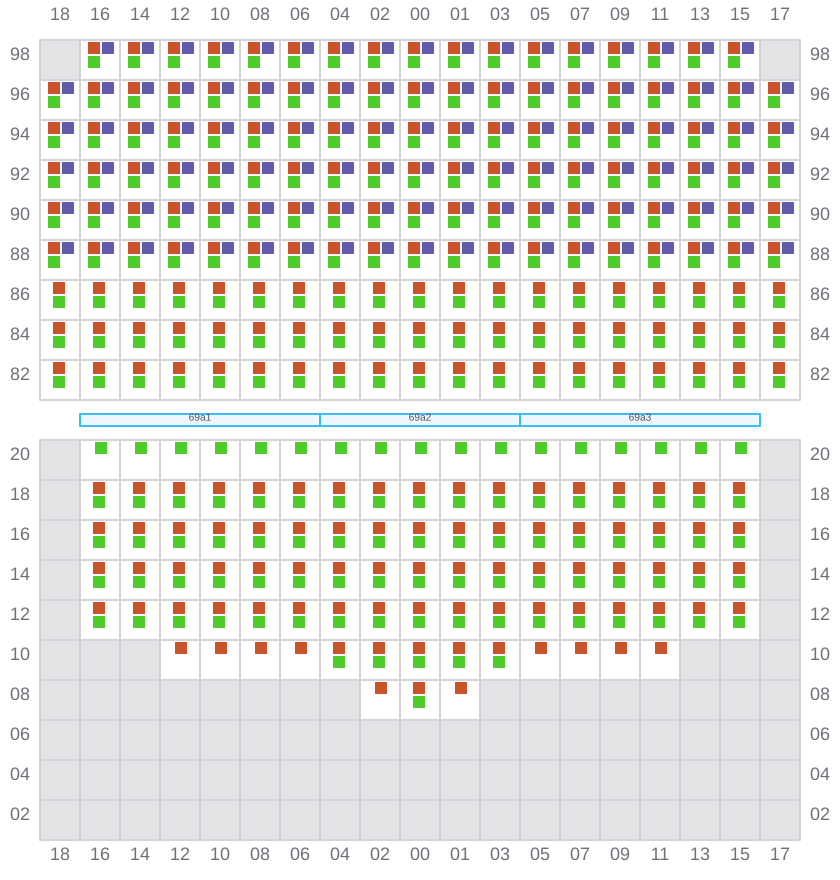

Bay 069 view and slots of MAERSK GUATEMALA

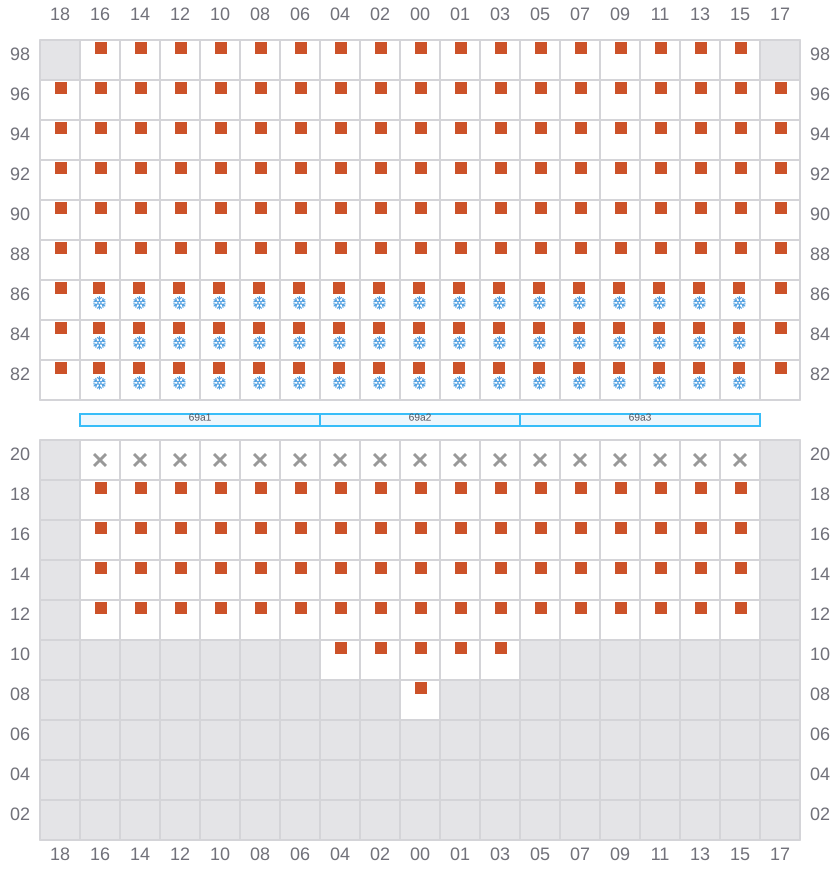

071

  • ←
  • → / ?
Bay 071 view and slots of MAERSK GUATEMALA

073 (074)

  • →

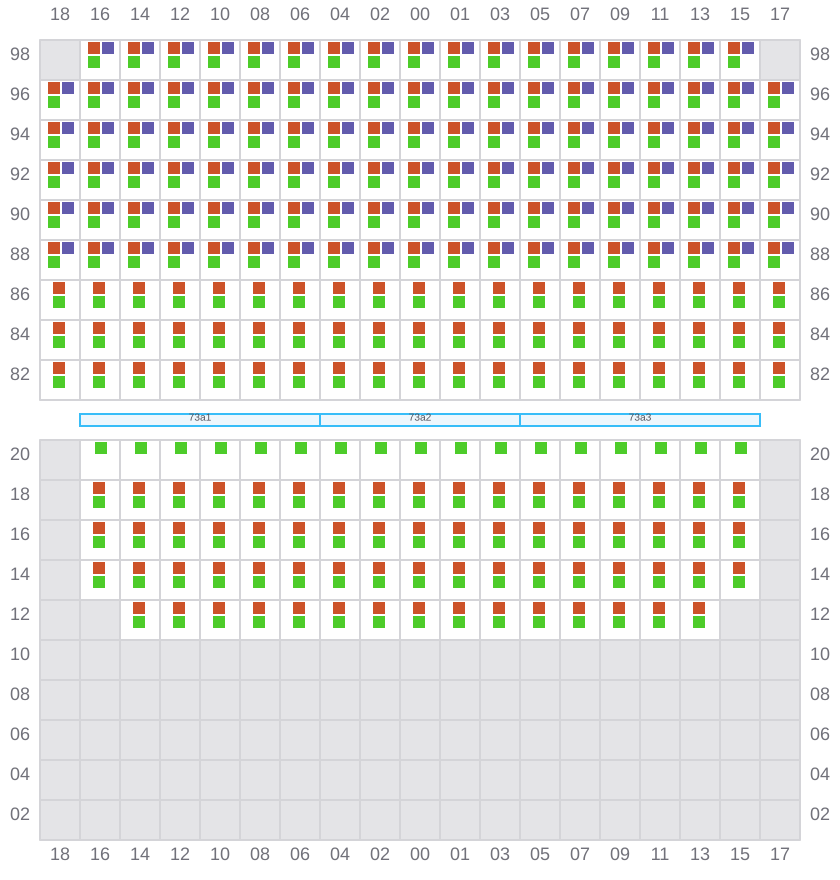

Bay 073 view and slots of MAERSK GUATEMALA

075

  • ←
  • → / ?

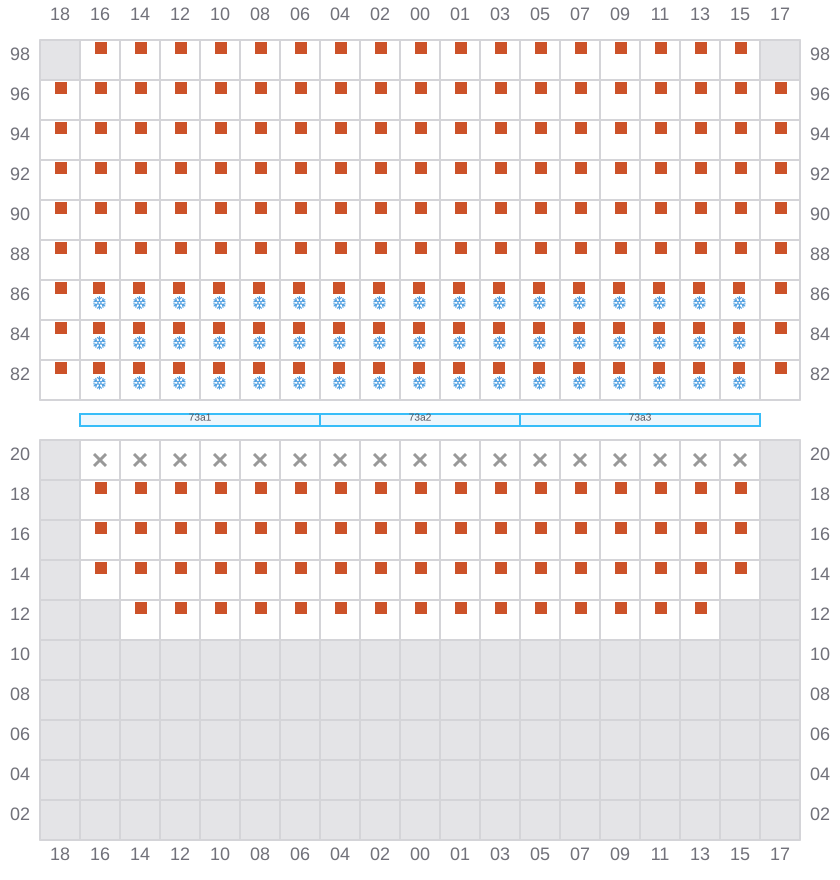

Bay 075 view and slots of MAERSK GUATEMALA

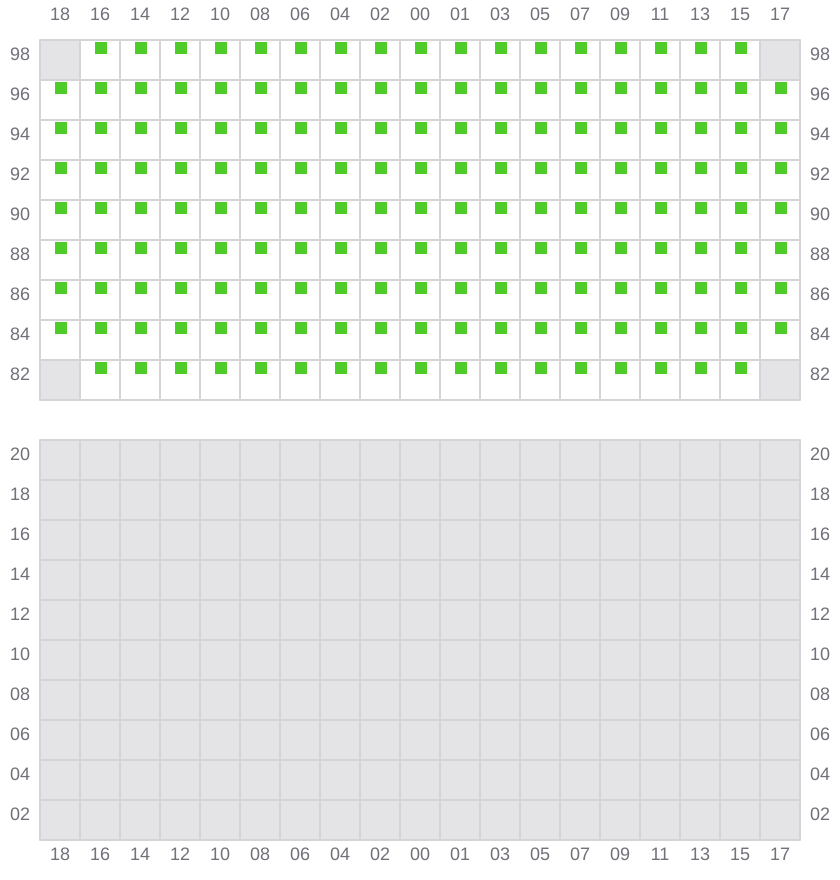

077 (078)

  • → / ?
Bay 077 view and slots of MAERSK GUATEMALA
