MAERSK HANGZHOU
9784300 | 9V5602 | 9784300 by ********* Last update: Tue Jun 25 2024

General Info

Ship Name:MAERSK HANGZHOU
IMO Code:9784300
Call Sign:9V5602
Line Operator:9784300
Class Name for Sister Ships:MAE
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):340.50
LOA (Length Overall):353.02
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:081
Max ISO Row:20
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,802

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

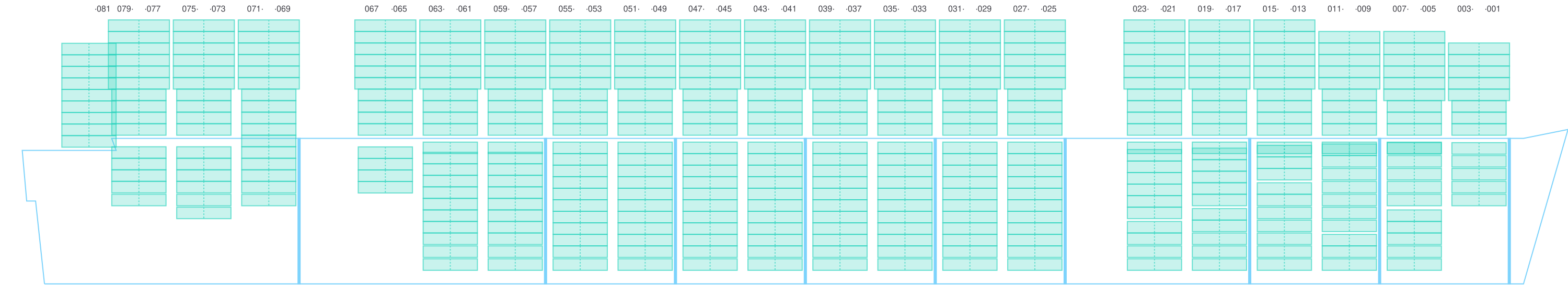

Side View

Side view of MAERSK HANGZHOU

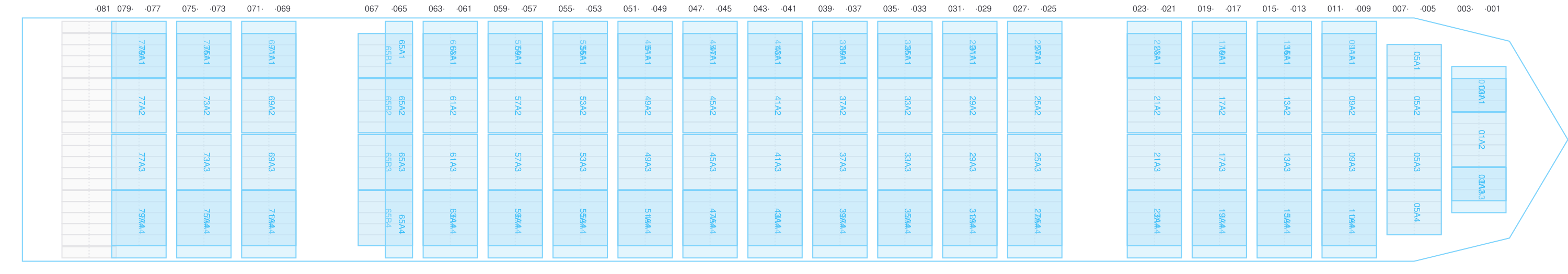

Hatch-Covers View

Deck view of MAERSK HANGZHOU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

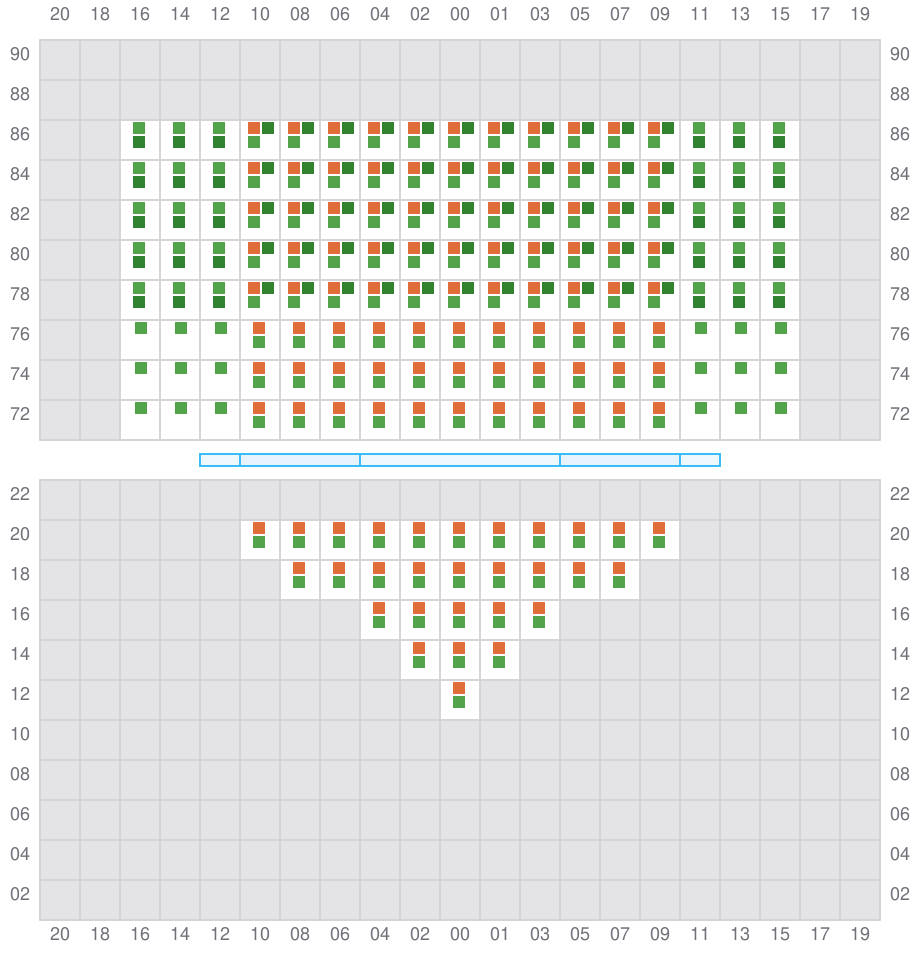

001 (002)

  • →
Bay 001 view and slots of MAERSK HANGZHOU

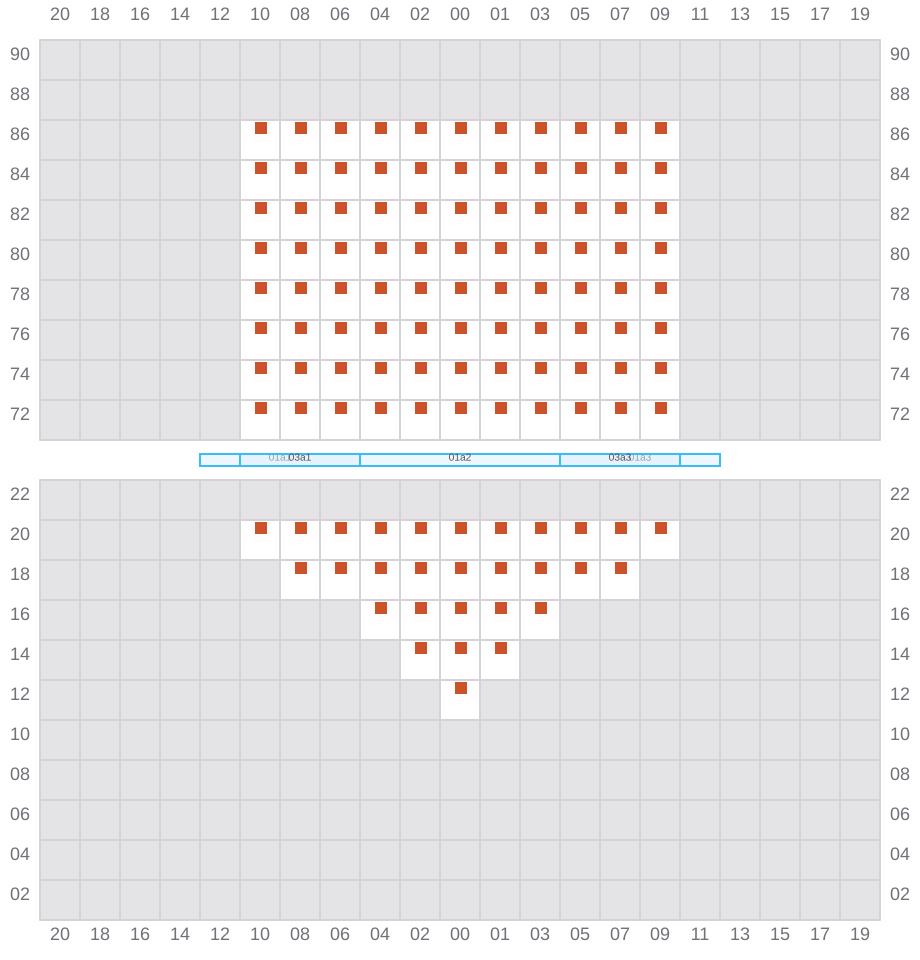

003

  • ←
Bay 003 view and slots of MAERSK HANGZHOU

005 (006)

  • →

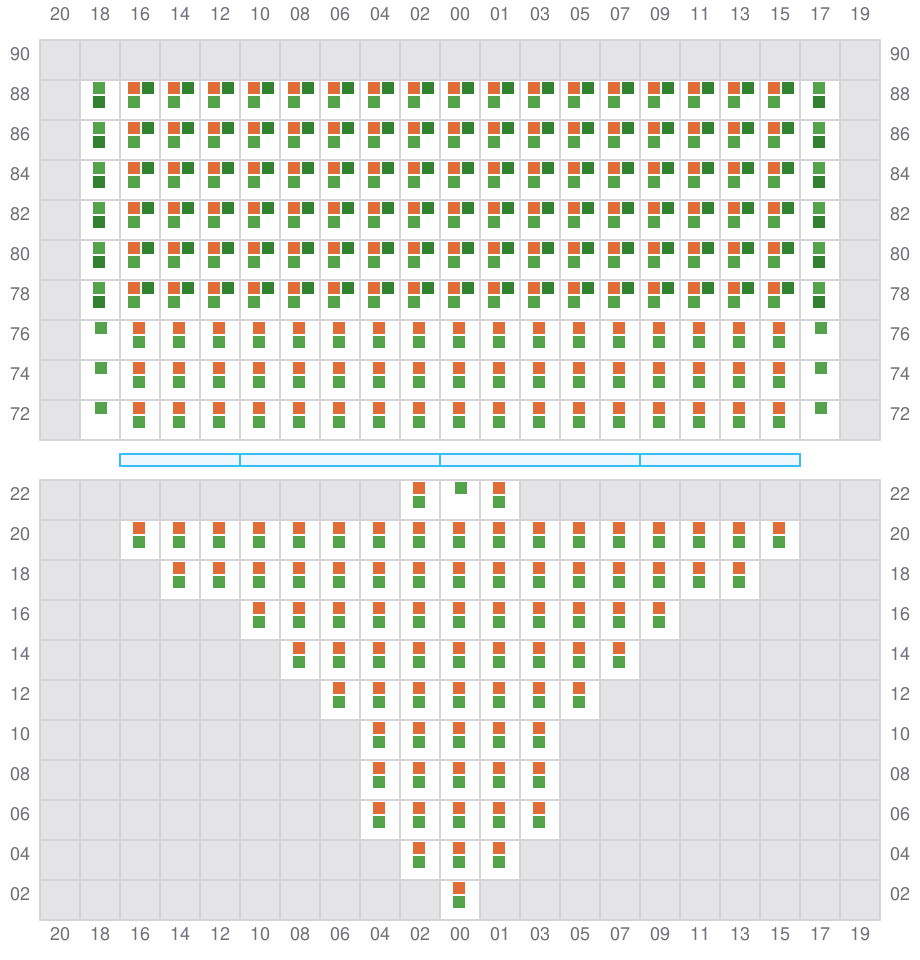

Bay 005 view and slots of MAERSK HANGZHOU

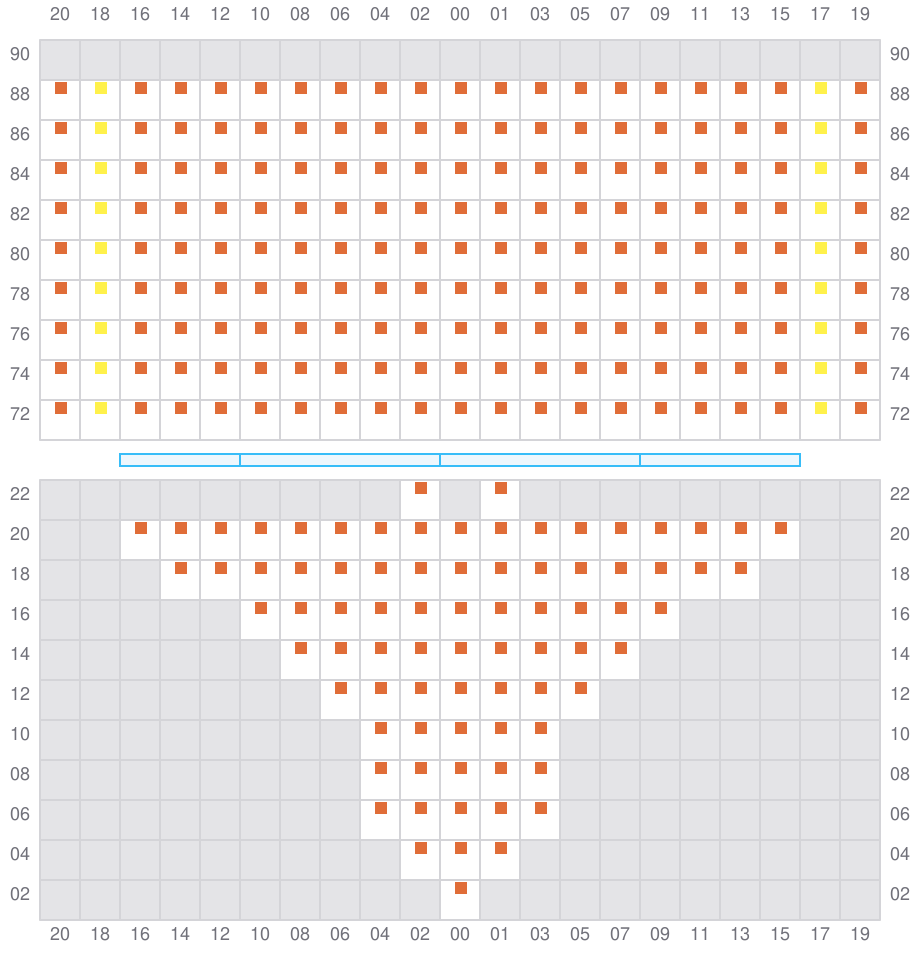

007

  • ←
Bay 007 view and slots of MAERSK HANGZHOU

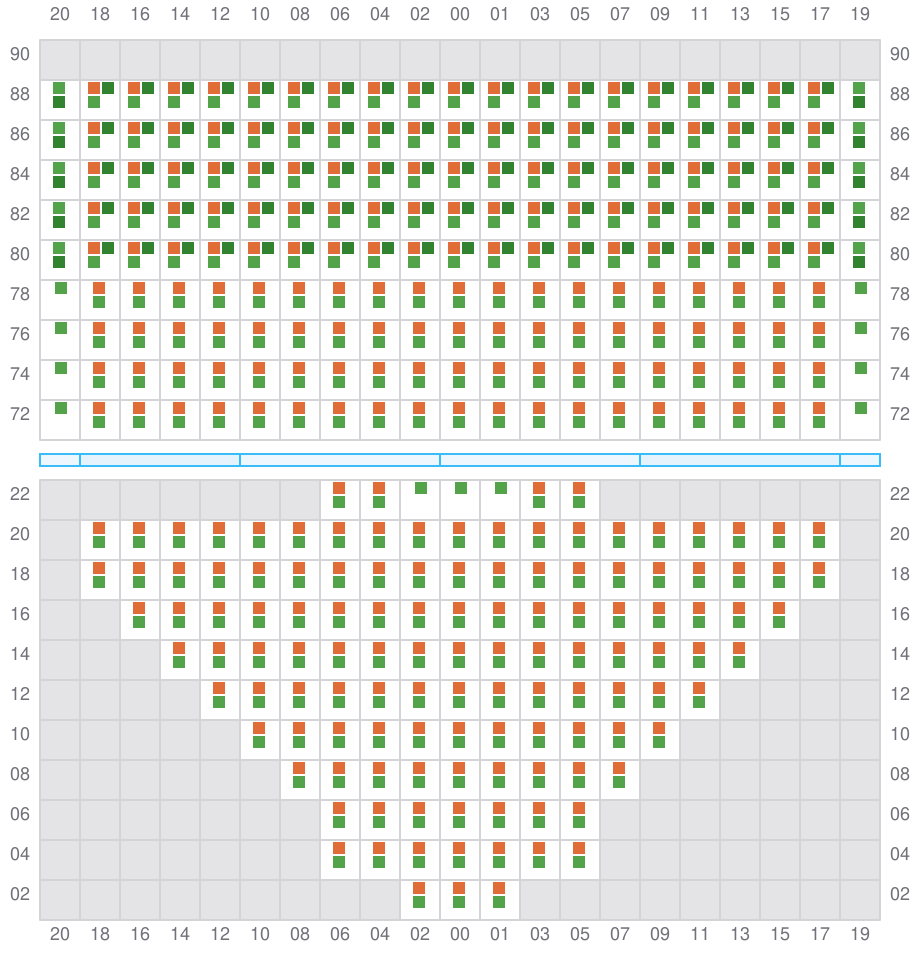

009 (010)

  • →
Bay 009 view and slots of MAERSK HANGZHOU

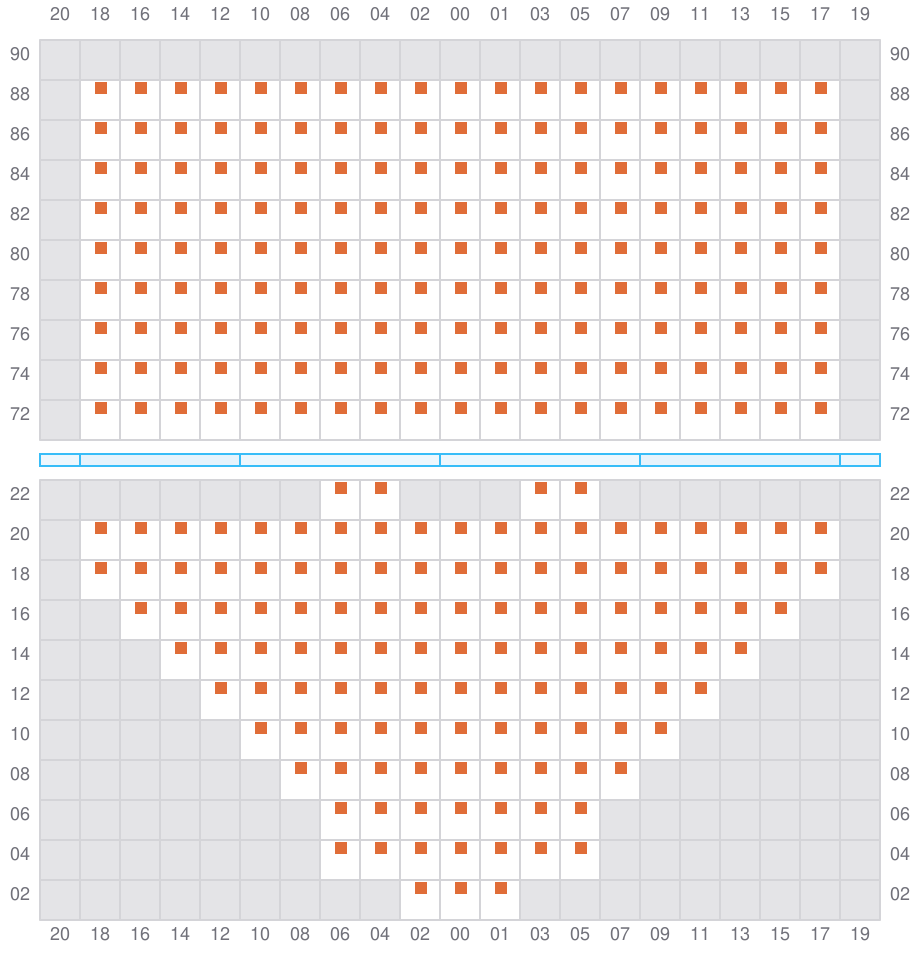

011

  • ←
Bay 011 view and slots of MAERSK HANGZHOU

013 (014)

  • →

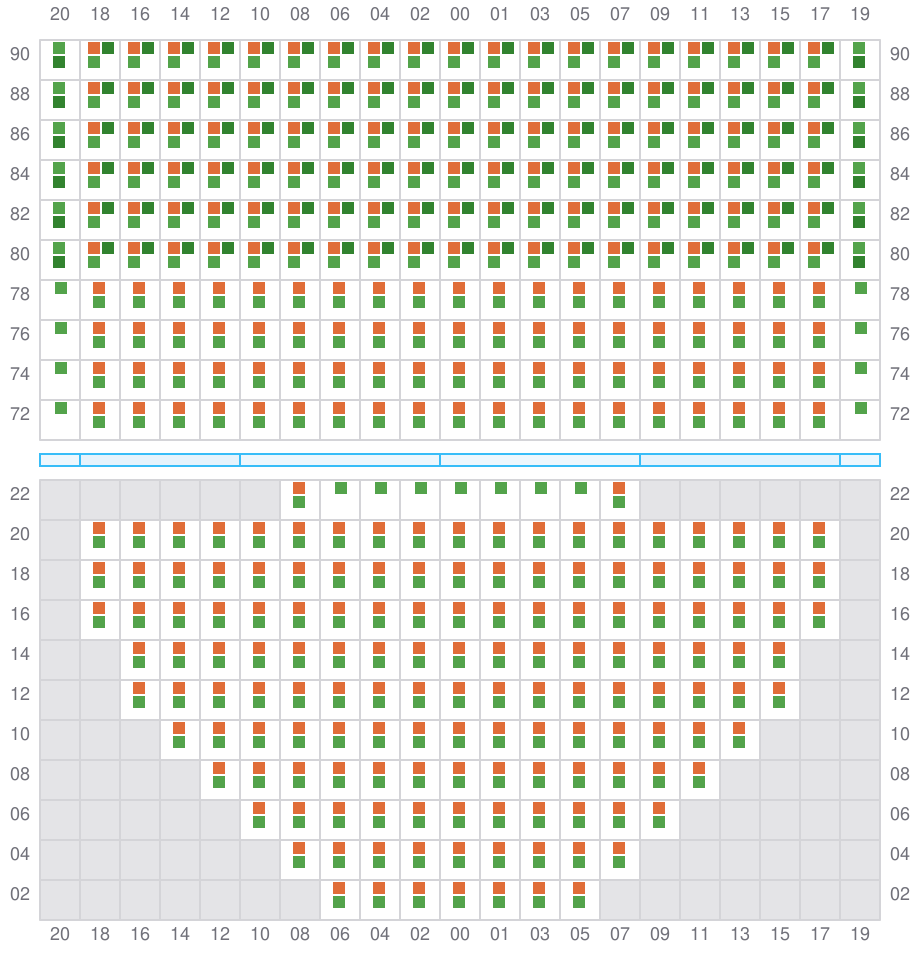

Bay 013 view and slots of MAERSK HANGZHOU

015

  • ←

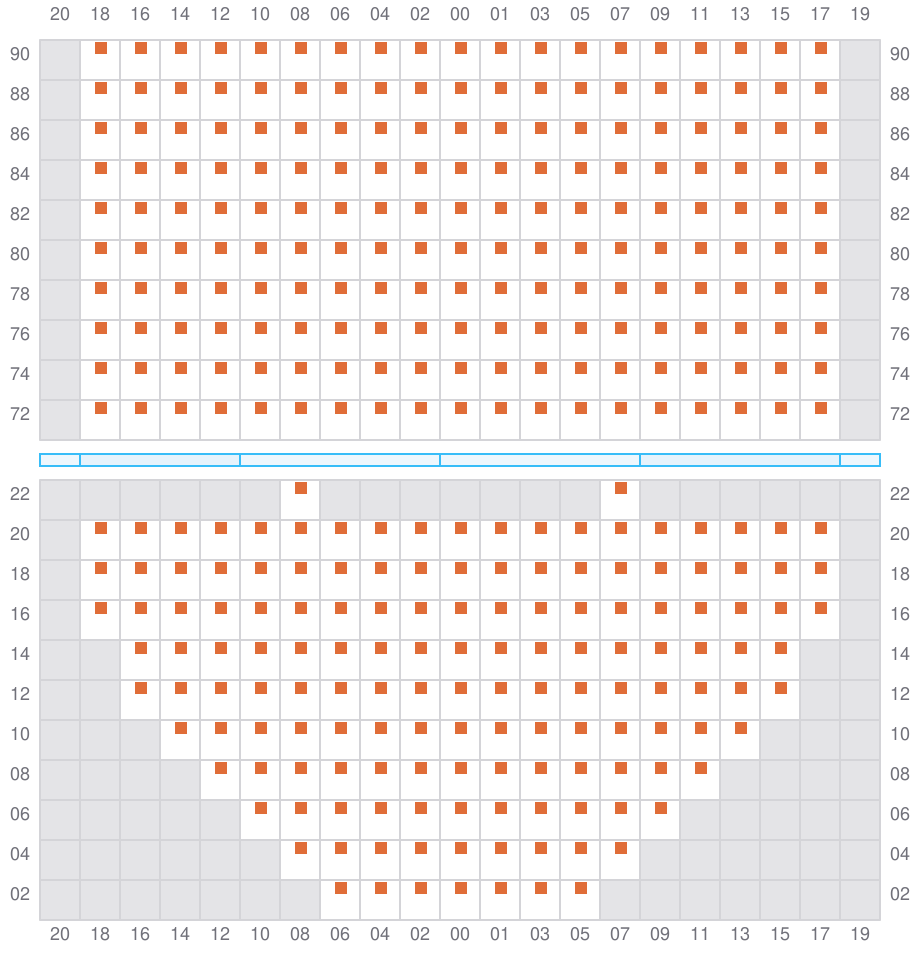

Bay 015 view and slots of MAERSK HANGZHOU

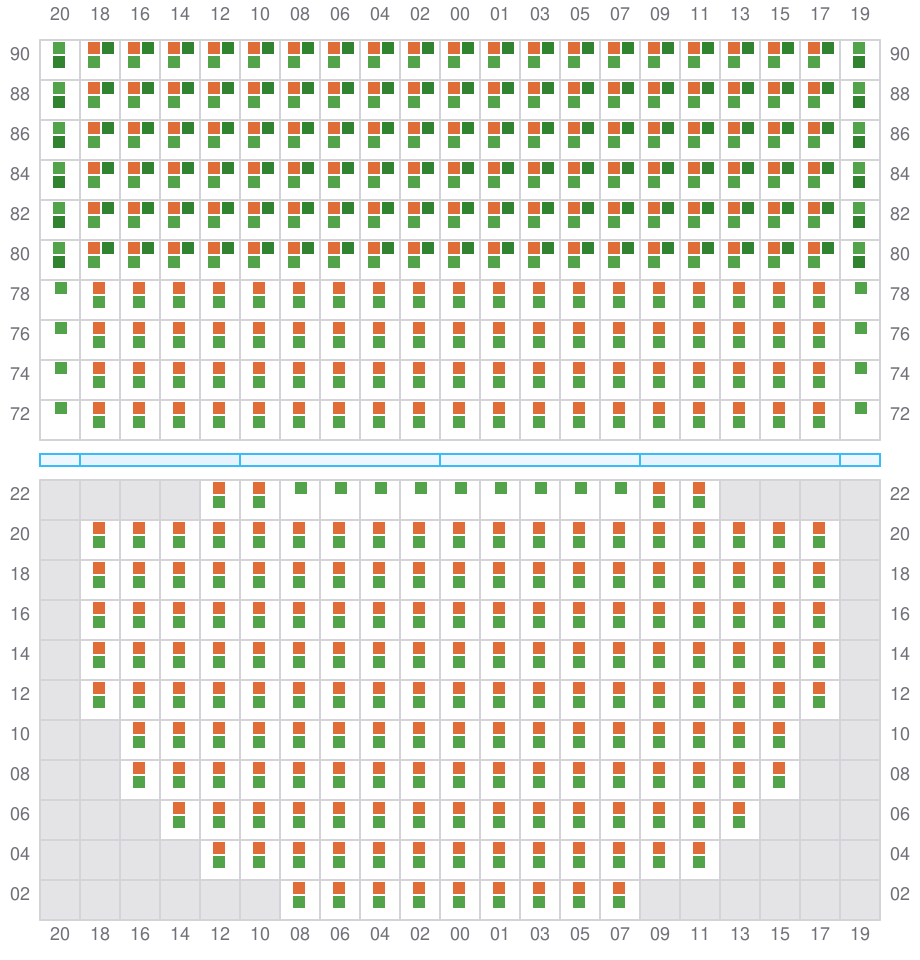

017 (018)

  • →
Bay 017 view and slots of MAERSK HANGZHOU

019

  • ←

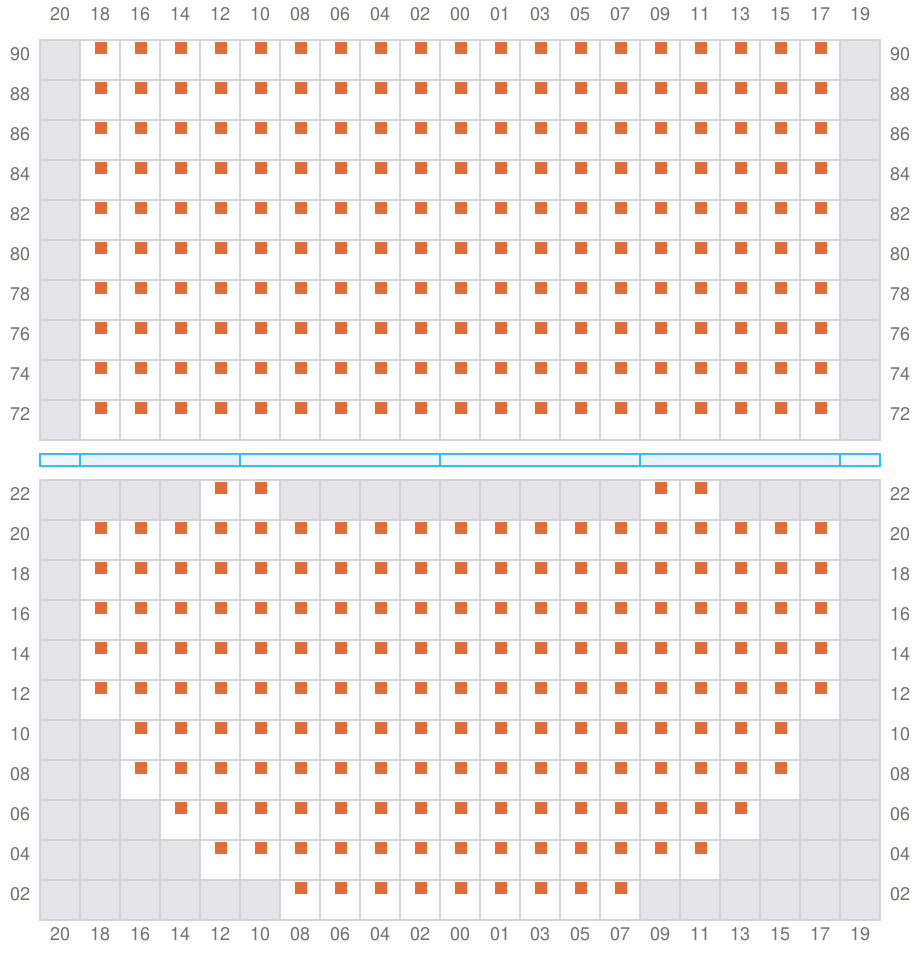

Bay 019 view and slots of MAERSK HANGZHOU

021 (022)

  • →
Bay 021 view and slots of MAERSK HANGZHOU

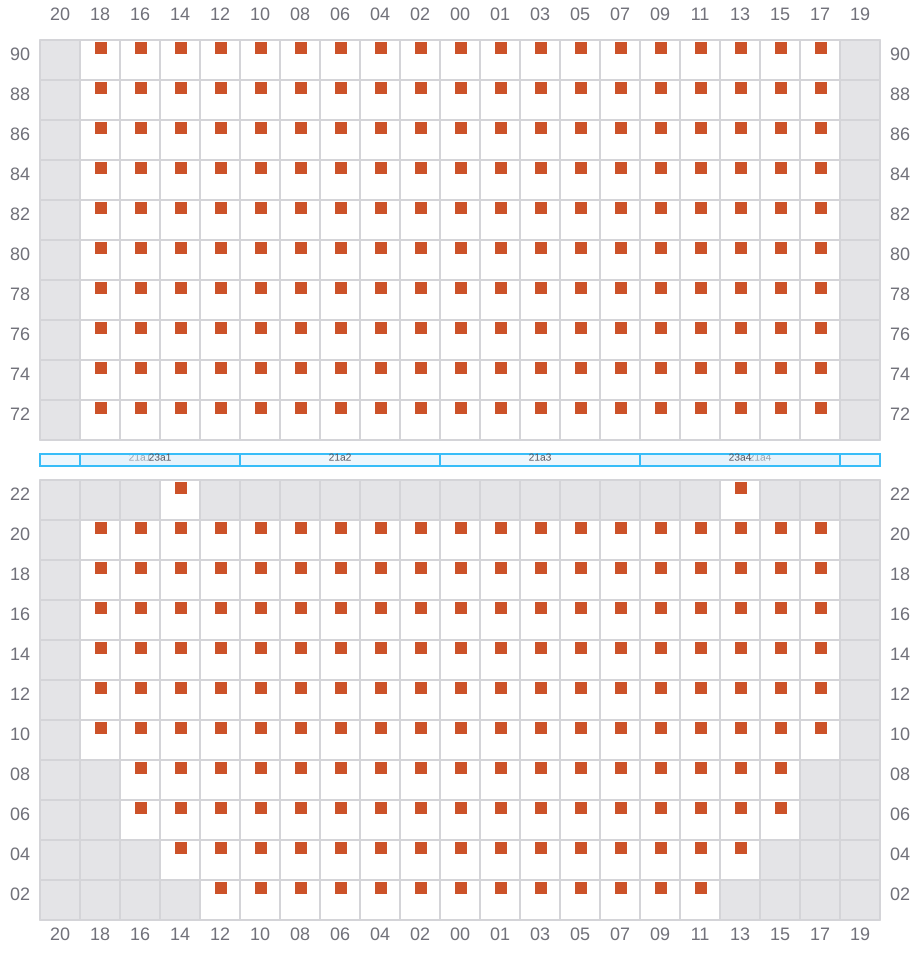

023

  • ←
Bay 023 view and slots of MAERSK HANGZHOU

025 (026)

  • →
  • → / ?
Bay 025 view and slots of MAERSK HANGZHOU

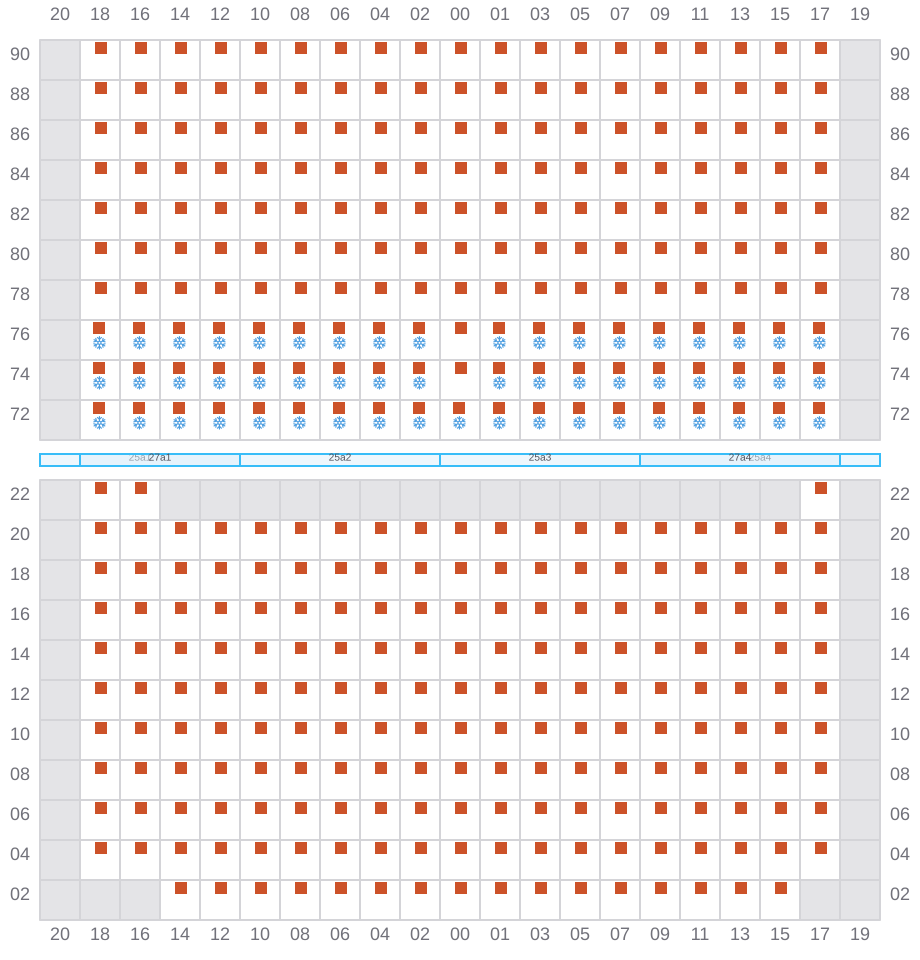

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK HANGZHOU

029 (030)

  • →
  • → / ?
Bay 029 view and slots of MAERSK HANGZHOU

031

  • ←
  • →

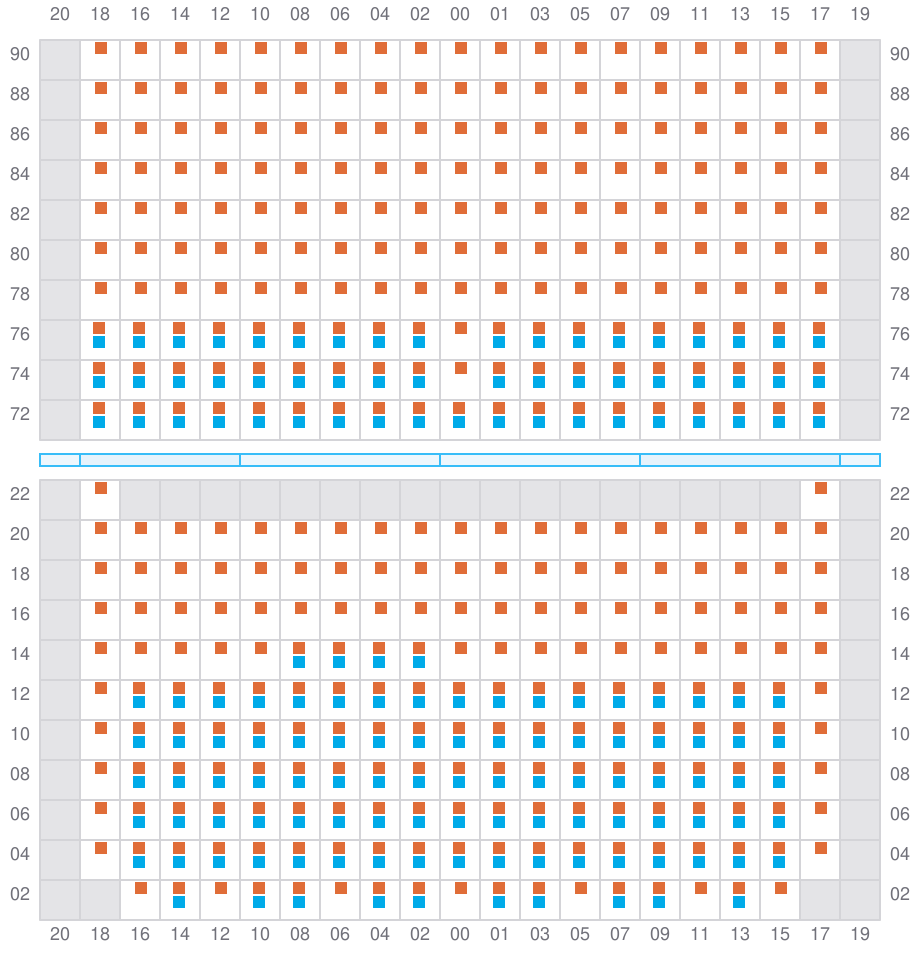

Bay 031 view and slots of MAERSK HANGZHOU

033 (034)

  • →
  • → / ?
Bay 033 view and slots of MAERSK HANGZHOU

035

  • ←
  • → / ?
Bay 035 view and slots of MAERSK HANGZHOU

037 (038)

  • →
  • → / ?

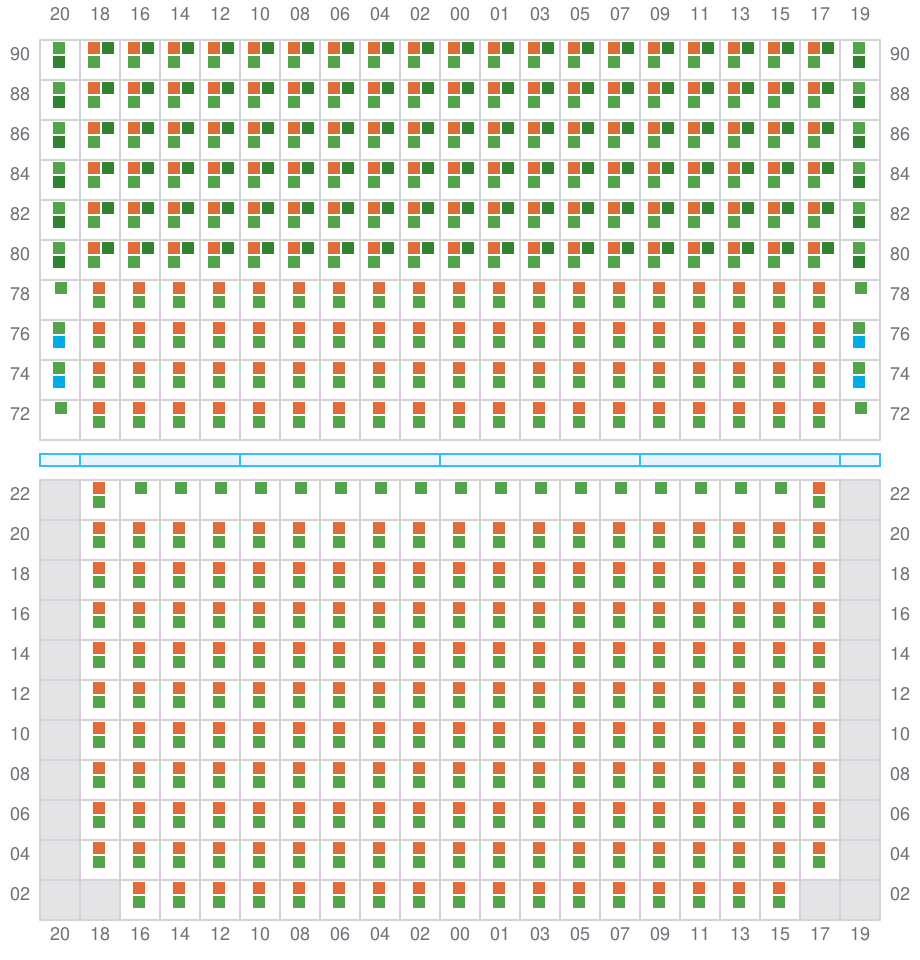

Bay 037 view and slots of MAERSK HANGZHOU

039

  • ←
  • →
Bay 039 view and slots of MAERSK HANGZHOU

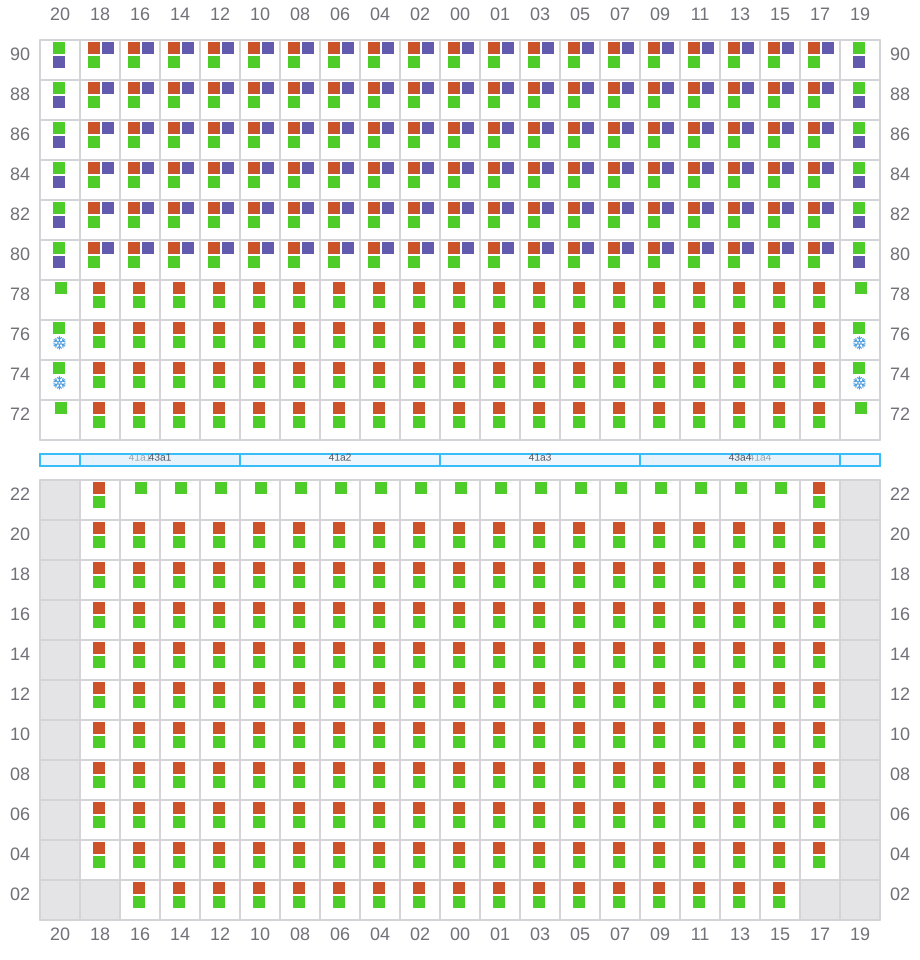

041 (042)

  • →
  • → / ?
Bay 041 view and slots of MAERSK HANGZHOU

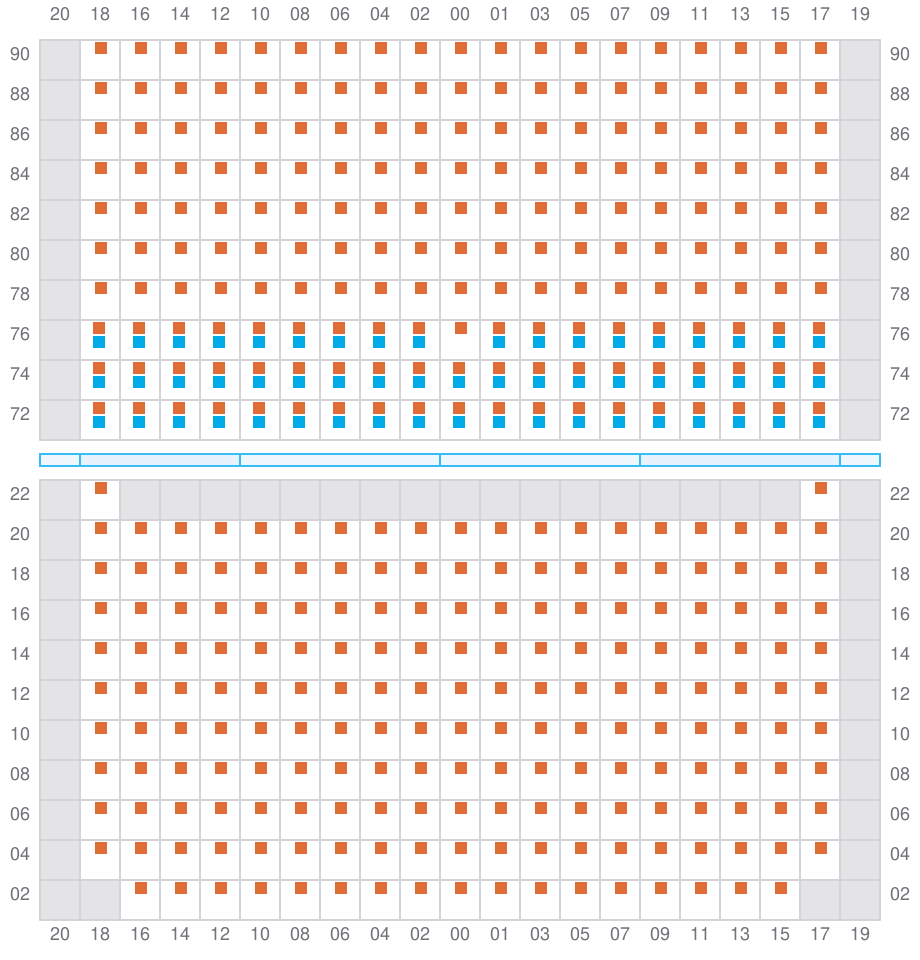

043

  • ←
  • → / ?

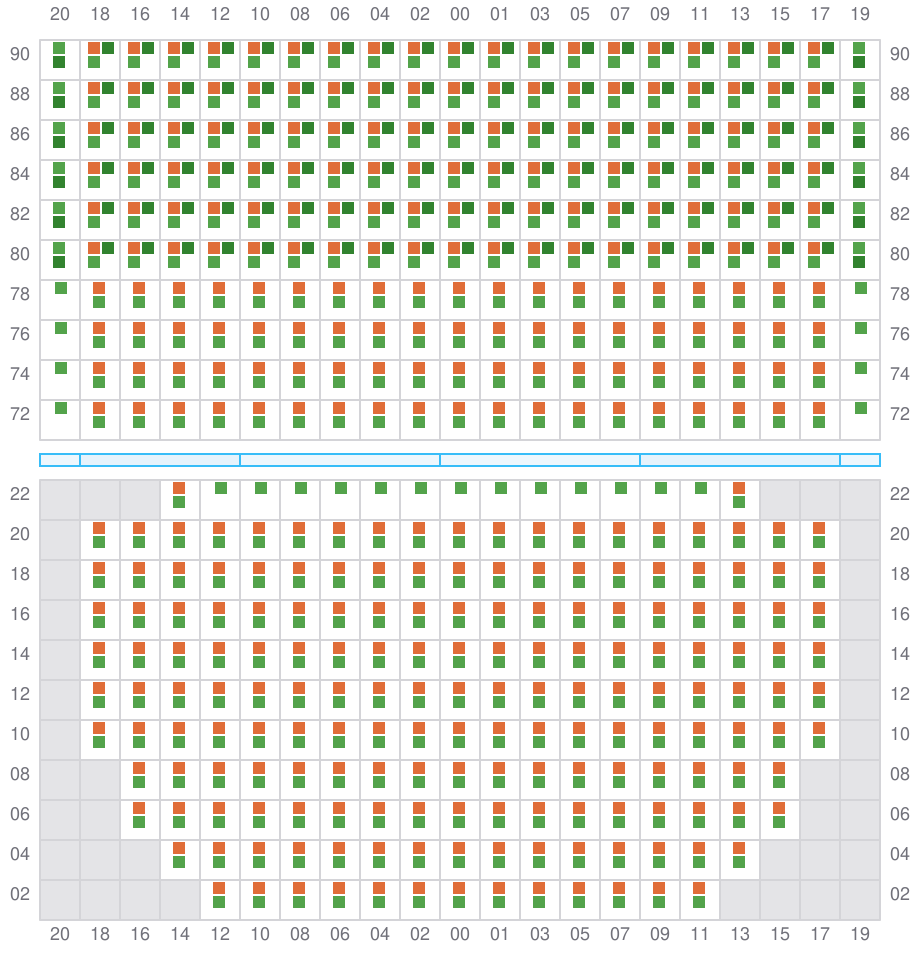

Bay 043 view and slots of MAERSK HANGZHOU

045 (046)

  • →
  • → / ?
Bay 045 view and slots of MAERSK HANGZHOU

047

  • ←
  • →

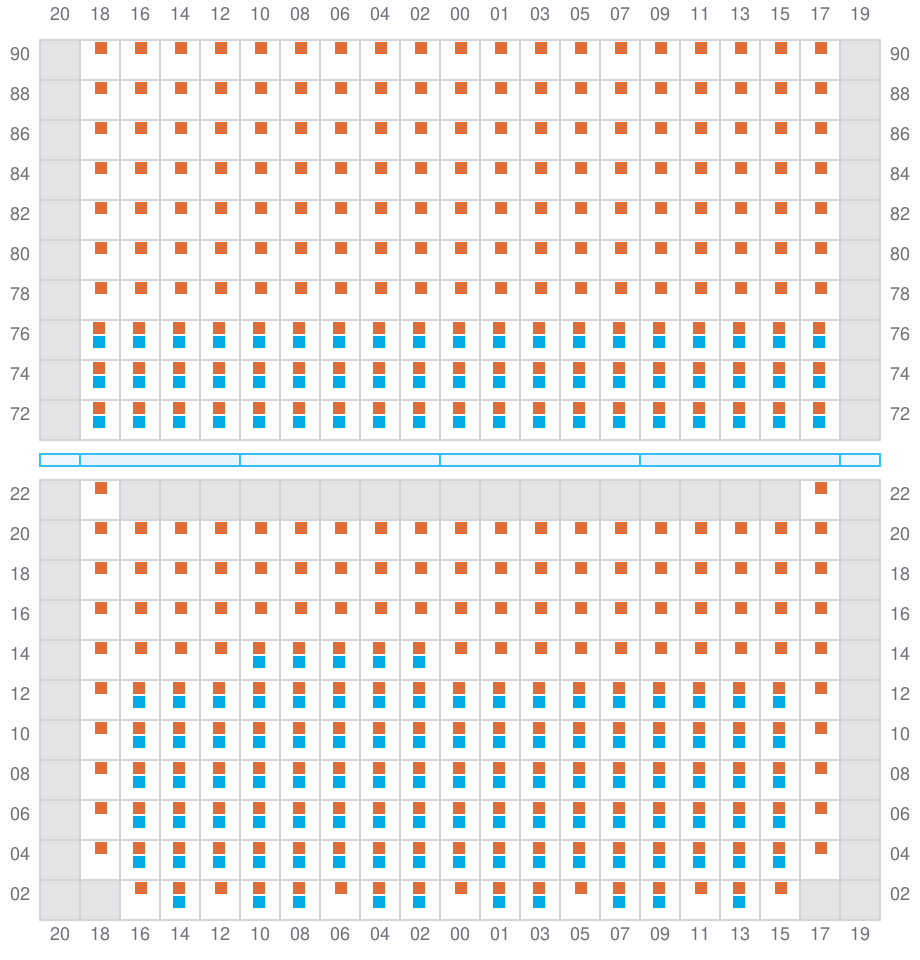

Bay 047 view and slots of MAERSK HANGZHOU

049 (050)

  • →
  • → / ?
Bay 049 view and slots of MAERSK HANGZHOU

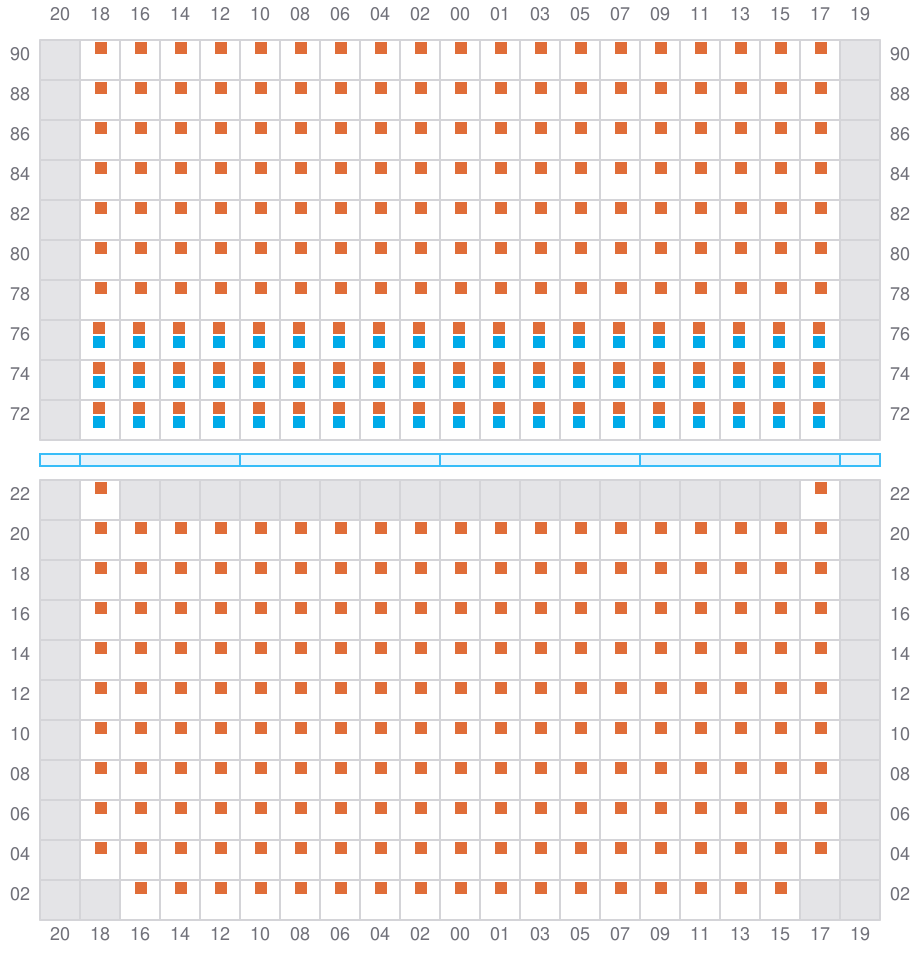

051

  • ←
  • → / ?
Bay 051 view and slots of MAERSK HANGZHOU

053 (054)

  • →
  • → / ?

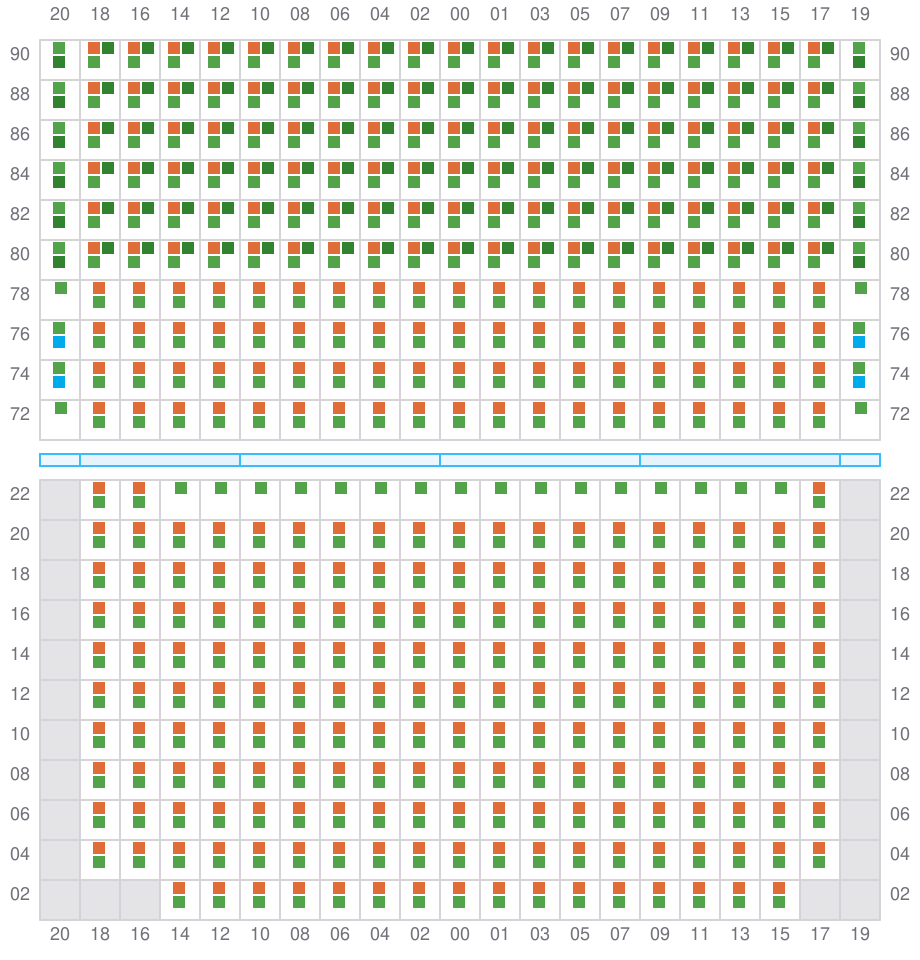

Bay 053 view and slots of MAERSK HANGZHOU

055

  • ←
  • →

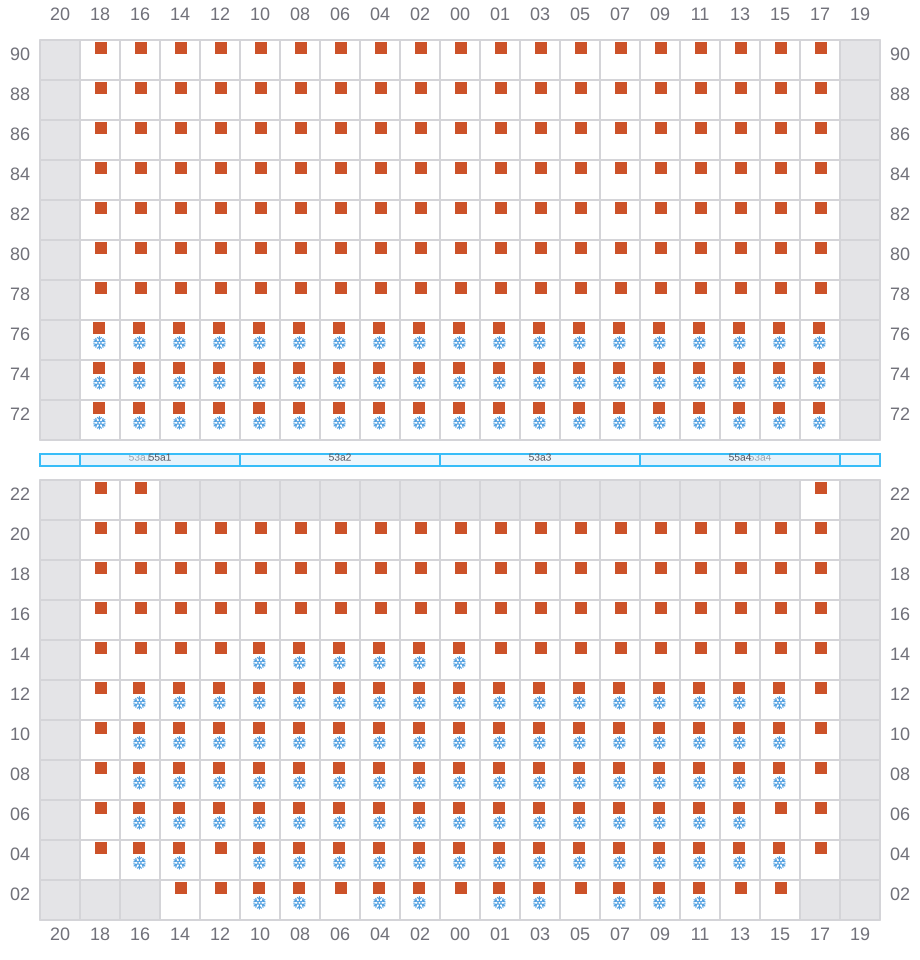

Bay 055 view and slots of MAERSK HANGZHOU

057 (058)

  • →
  • → / ?
Bay 057 view and slots of MAERSK HANGZHOU

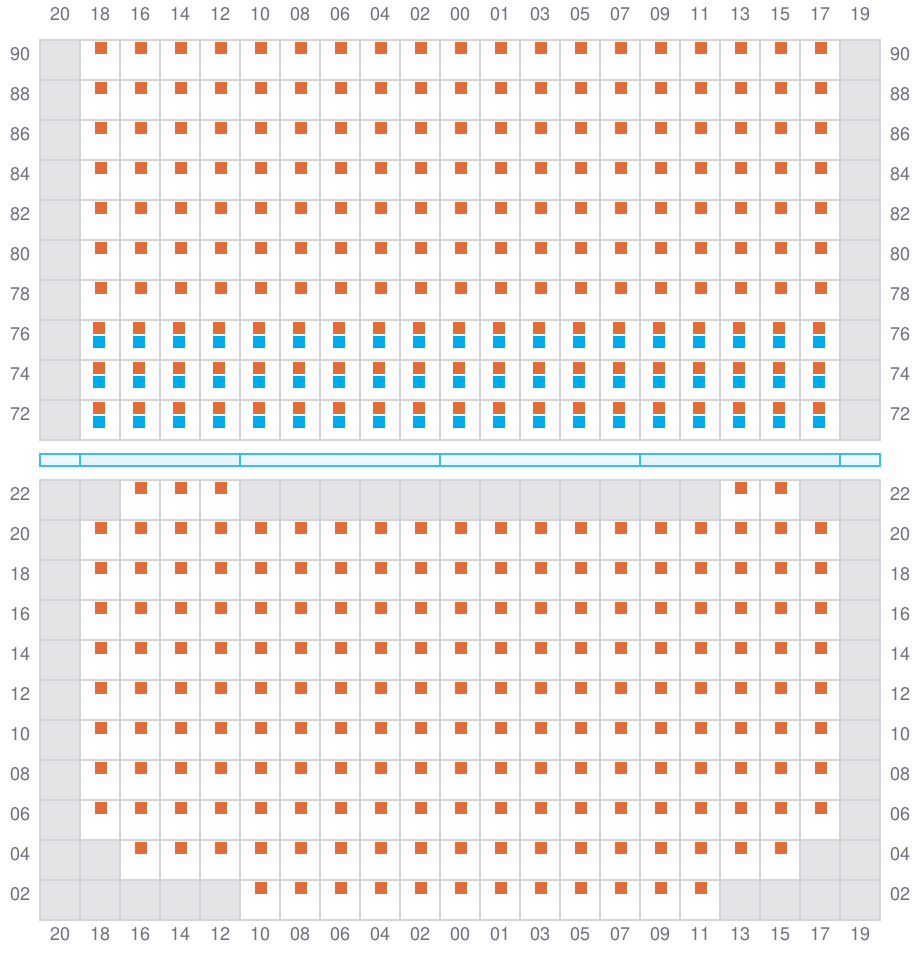

059

  • ←
  • → / ?
Bay 059 view and slots of MAERSK HANGZHOU

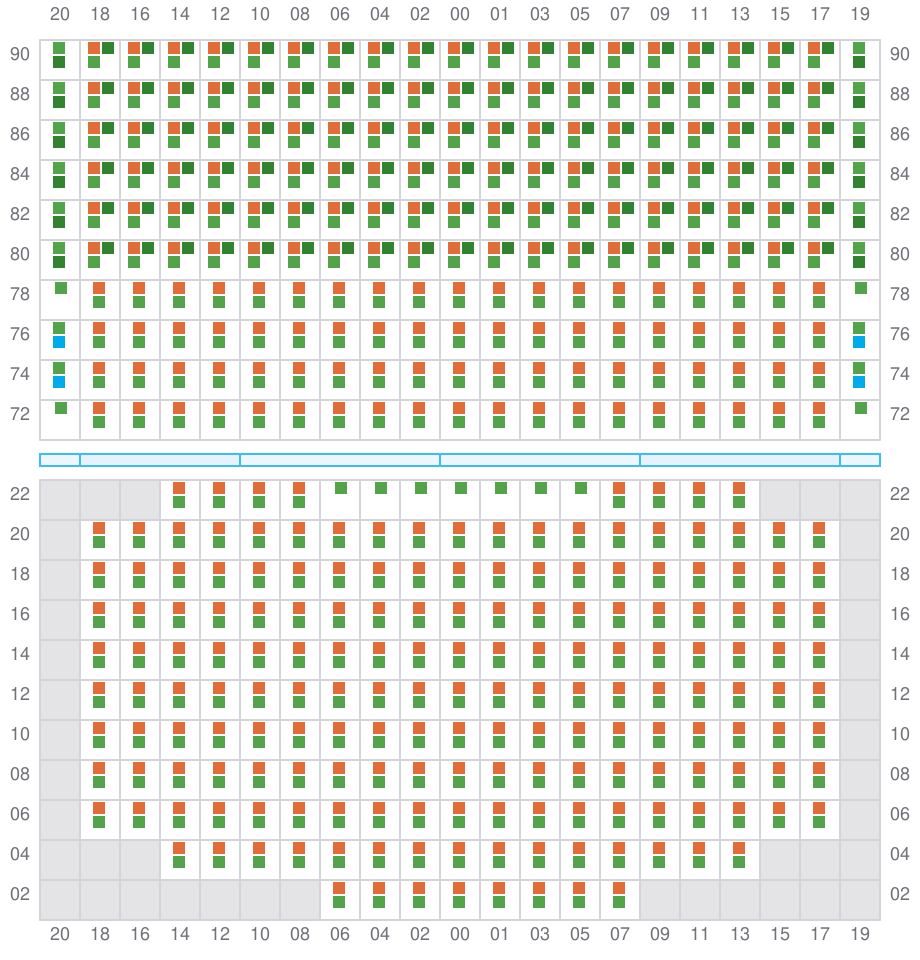

061 (062)

  • →
  • → / ?
Bay 061 view and slots of MAERSK HANGZHOU

063

  • ←
  • → / ?

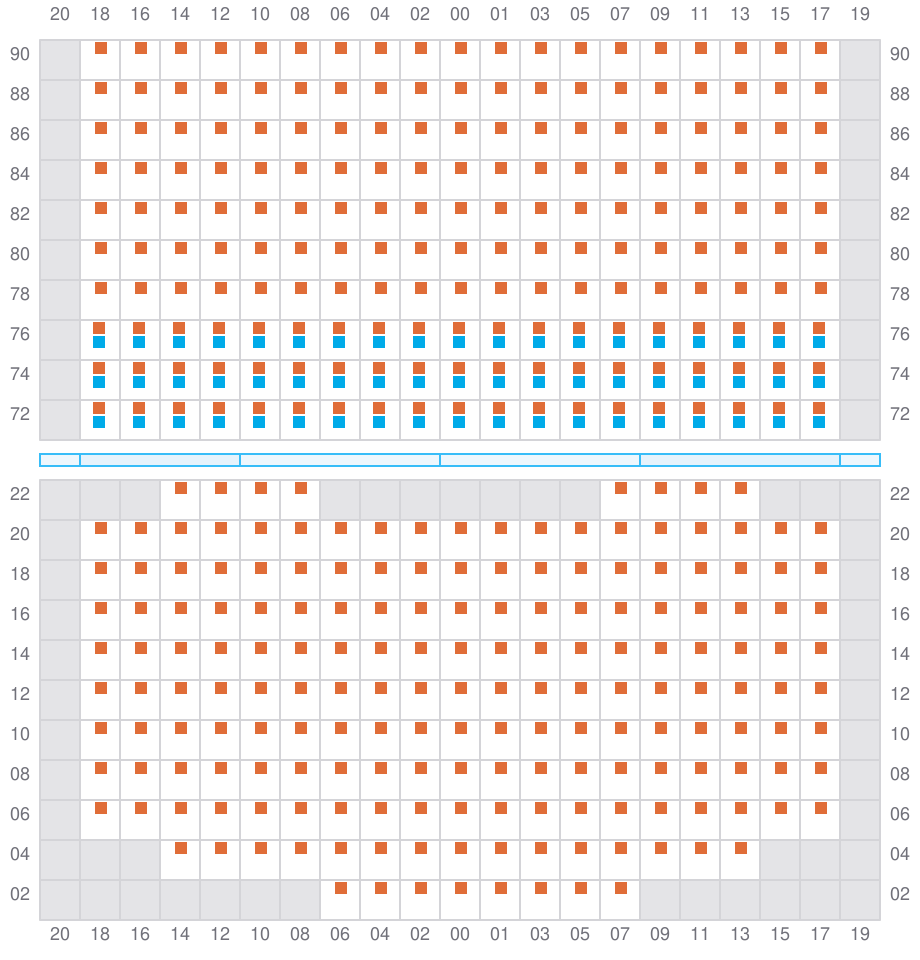

Bay 063 view and slots of MAERSK HANGZHOU

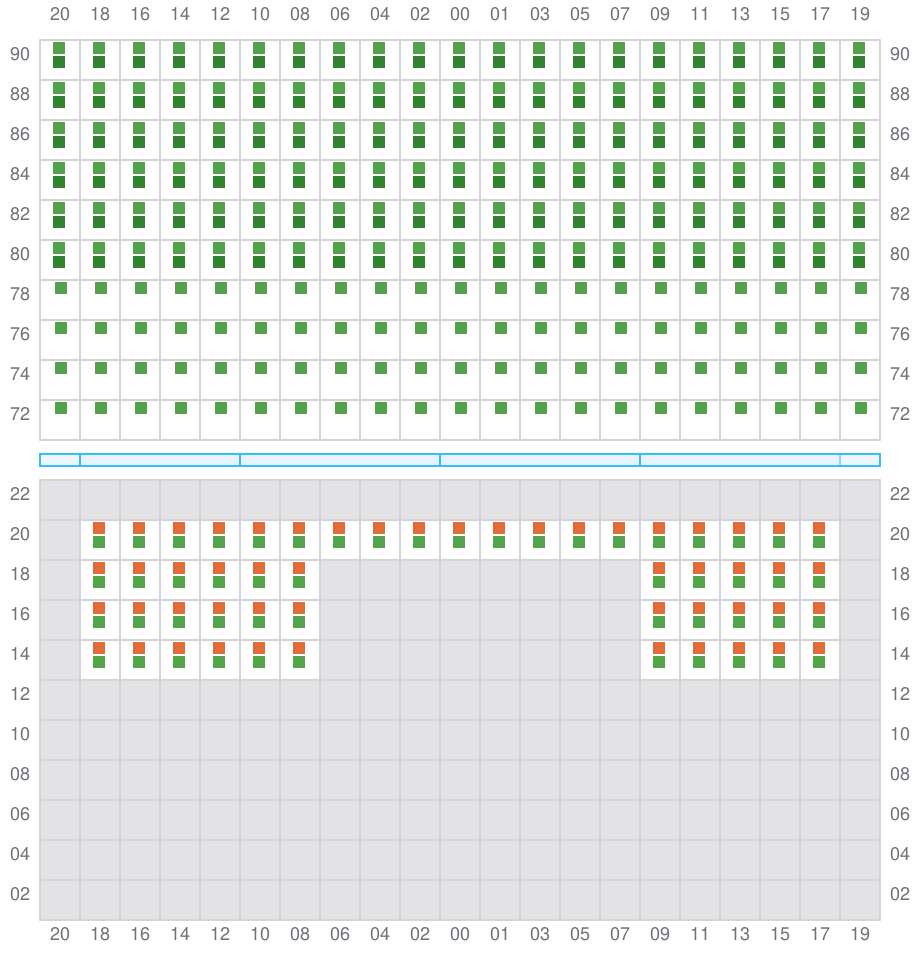

065 (066)

  • →
  • → / ?
Bay 065 view and slots of MAERSK HANGZHOU

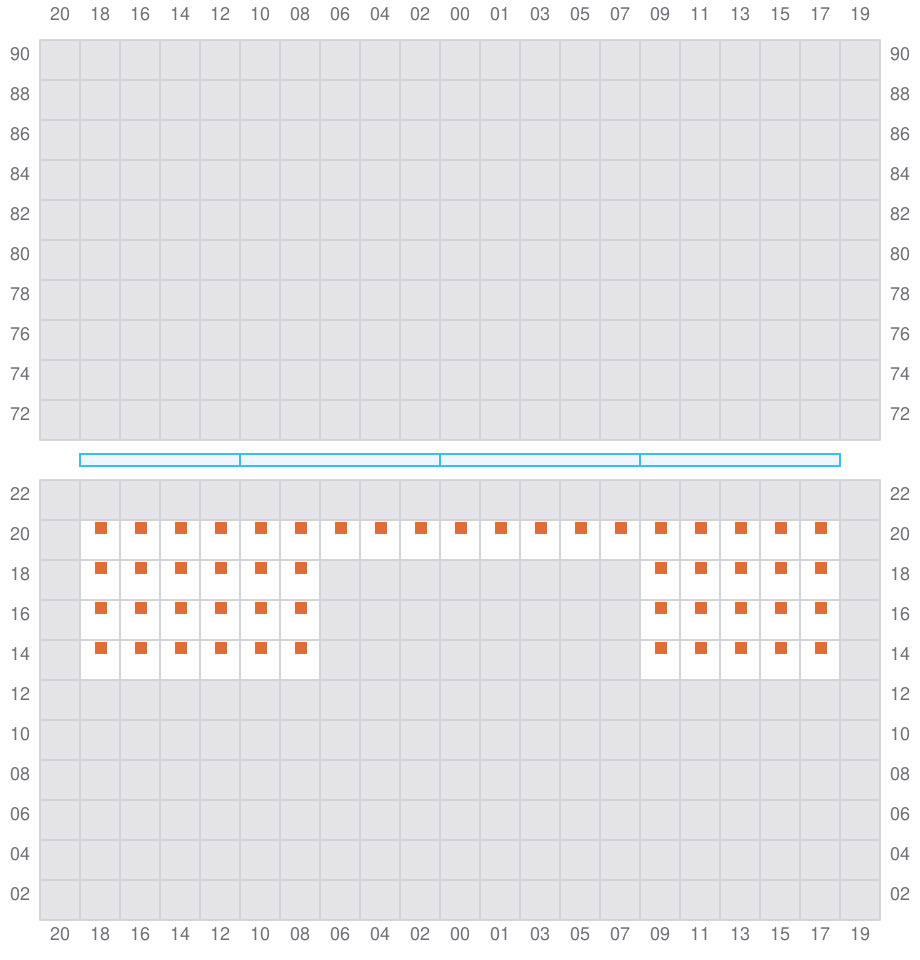

067

  • ? / ←
Bay 067 view and slots of MAERSK HANGZHOU

069 (070)

  • →
  • → / ?
Bay 069 view and slots of MAERSK HANGZHOU

071

  • ←
  • → / ?

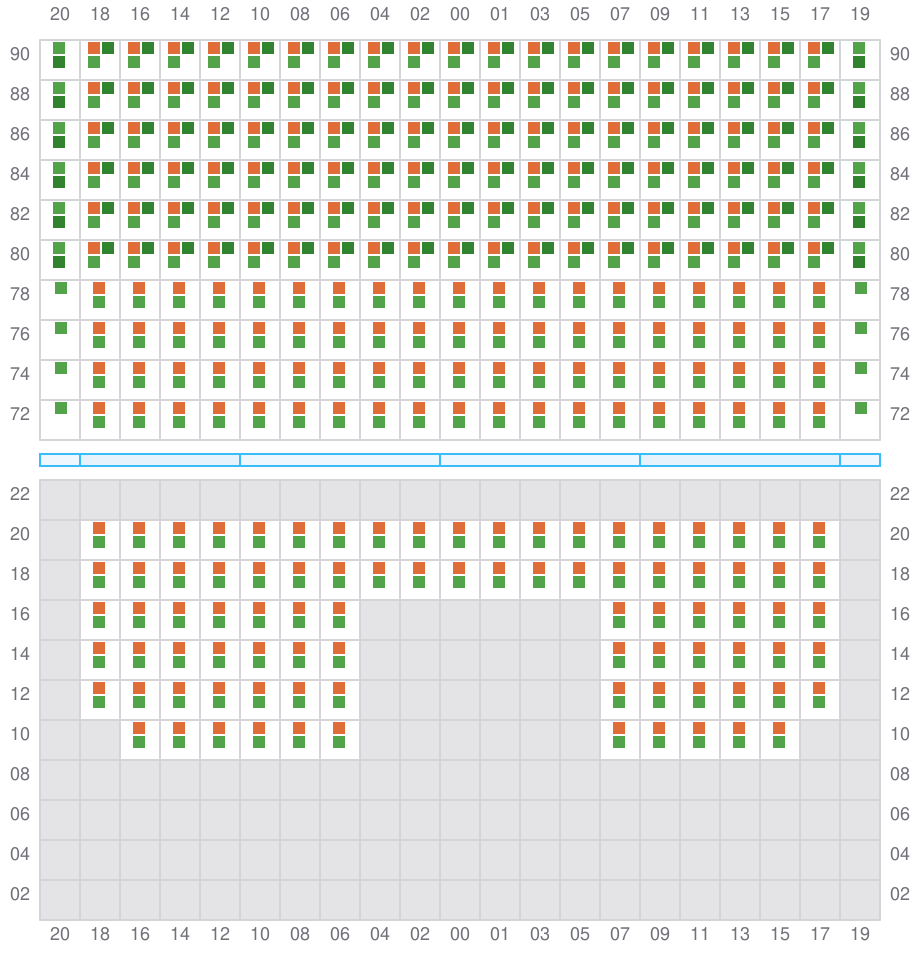

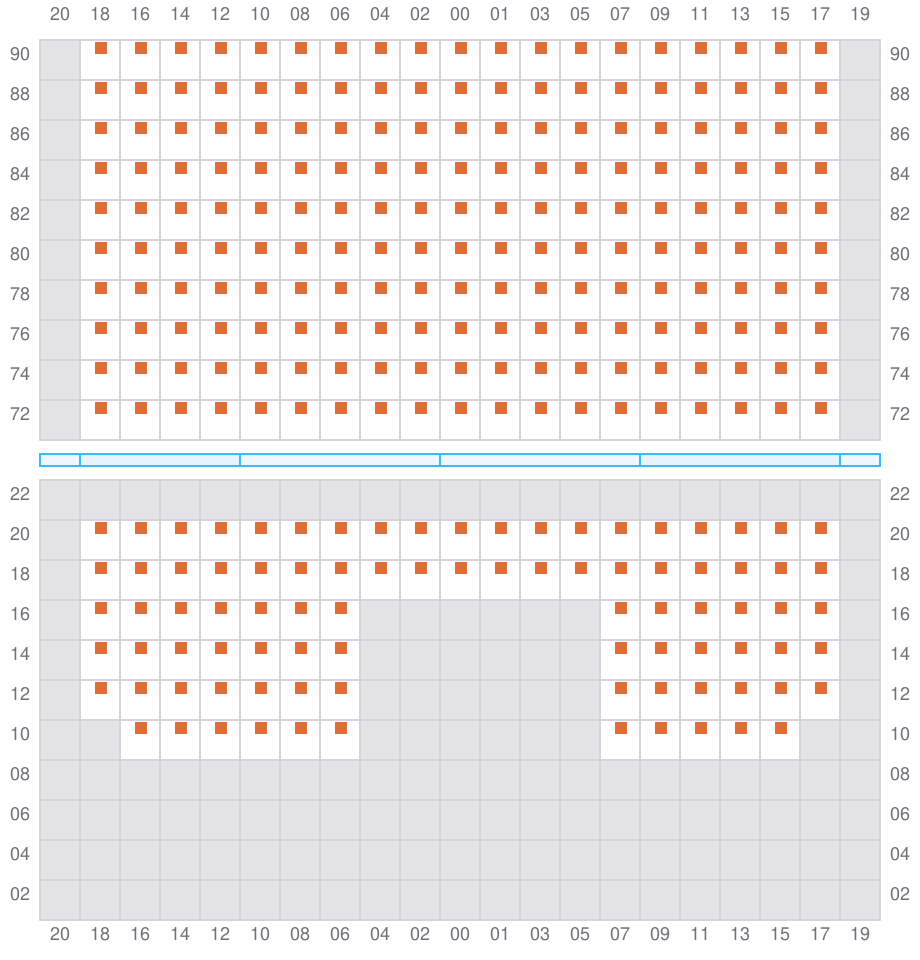

Bay 071 view and slots of MAERSK HANGZHOU

073 (074)

  • →
  • → / ?
Bay 073 view and slots of MAERSK HANGZHOU

075

  • ←
  • → / ?

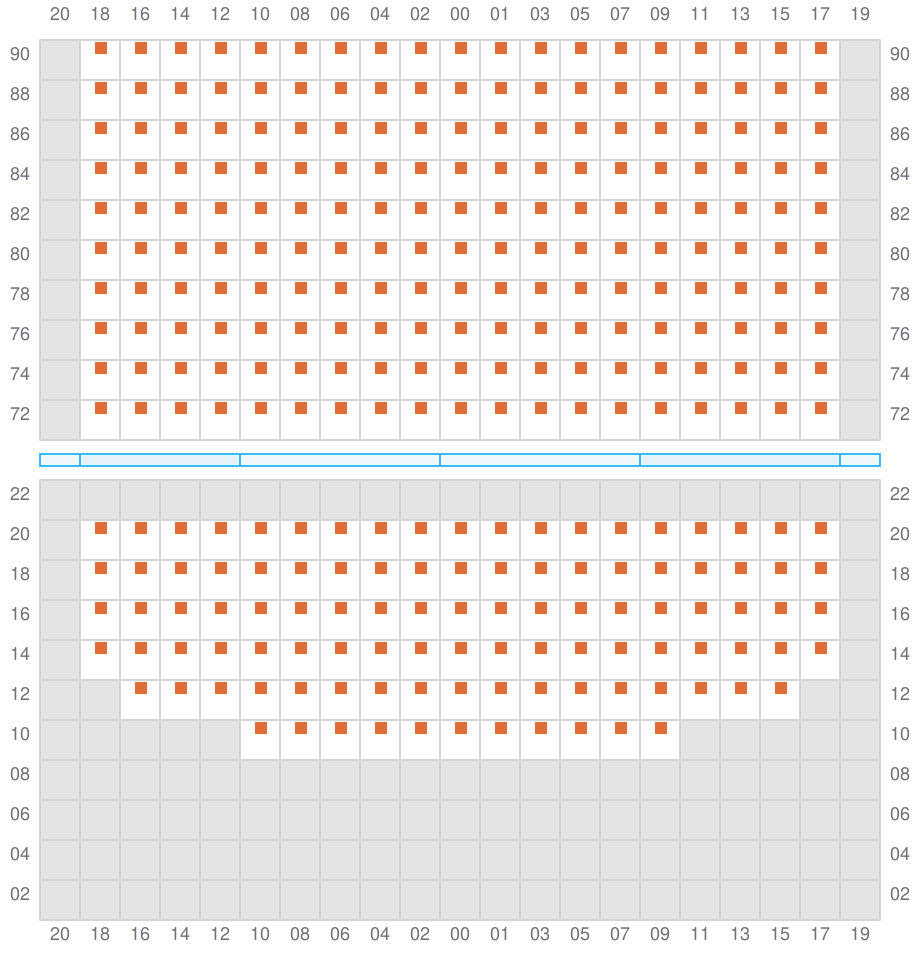

Bay 075 view and slots of MAERSK HANGZHOU

077 (078)

  • →
  • → / ?

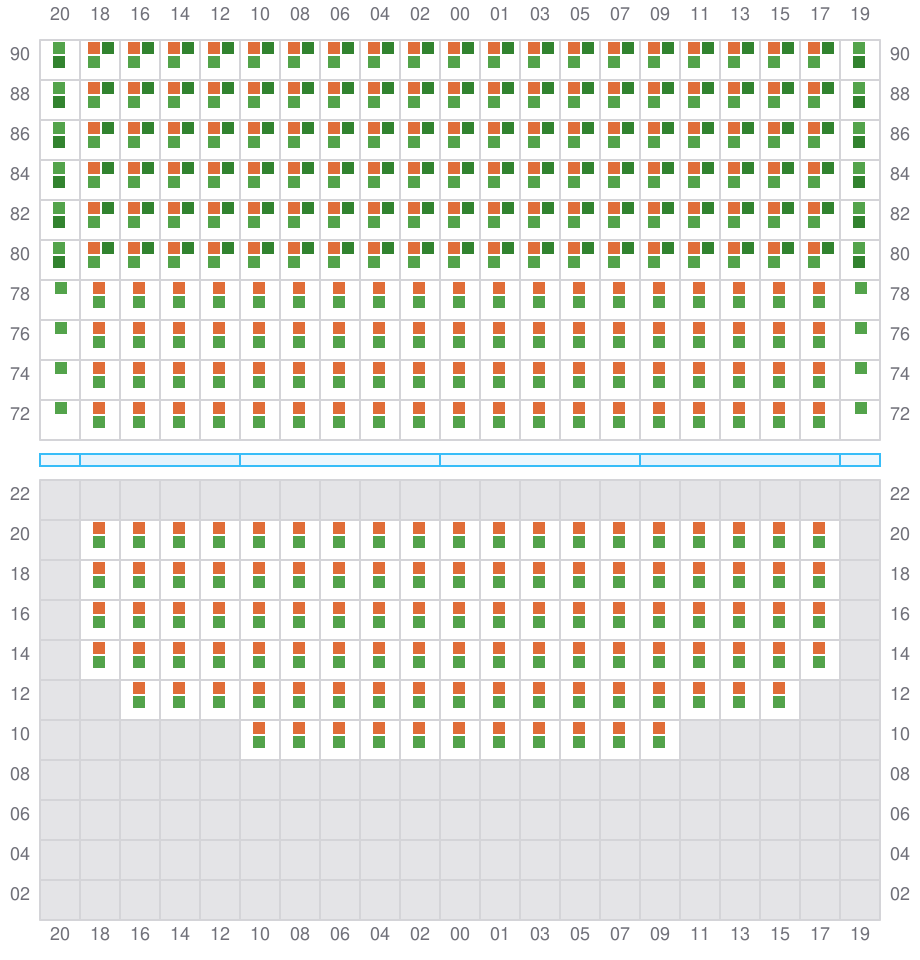

Bay 077 view and slots of MAERSK HANGZHOU

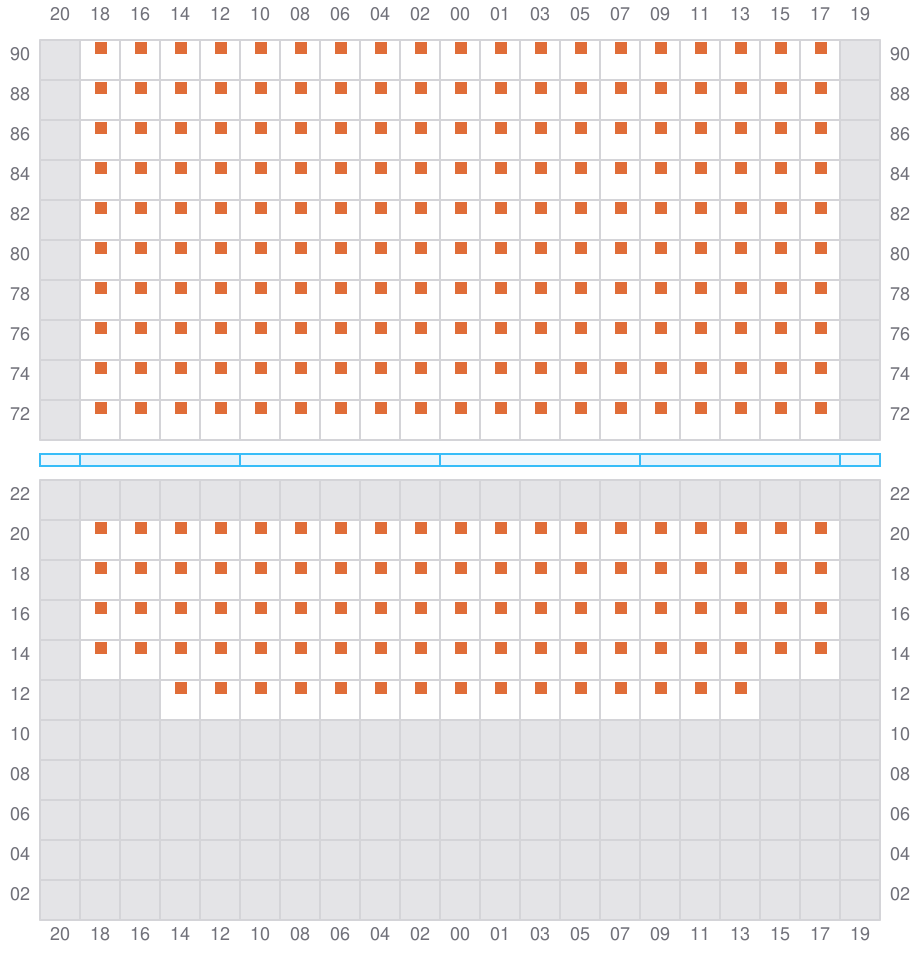

079

  • ←
  • → / ?

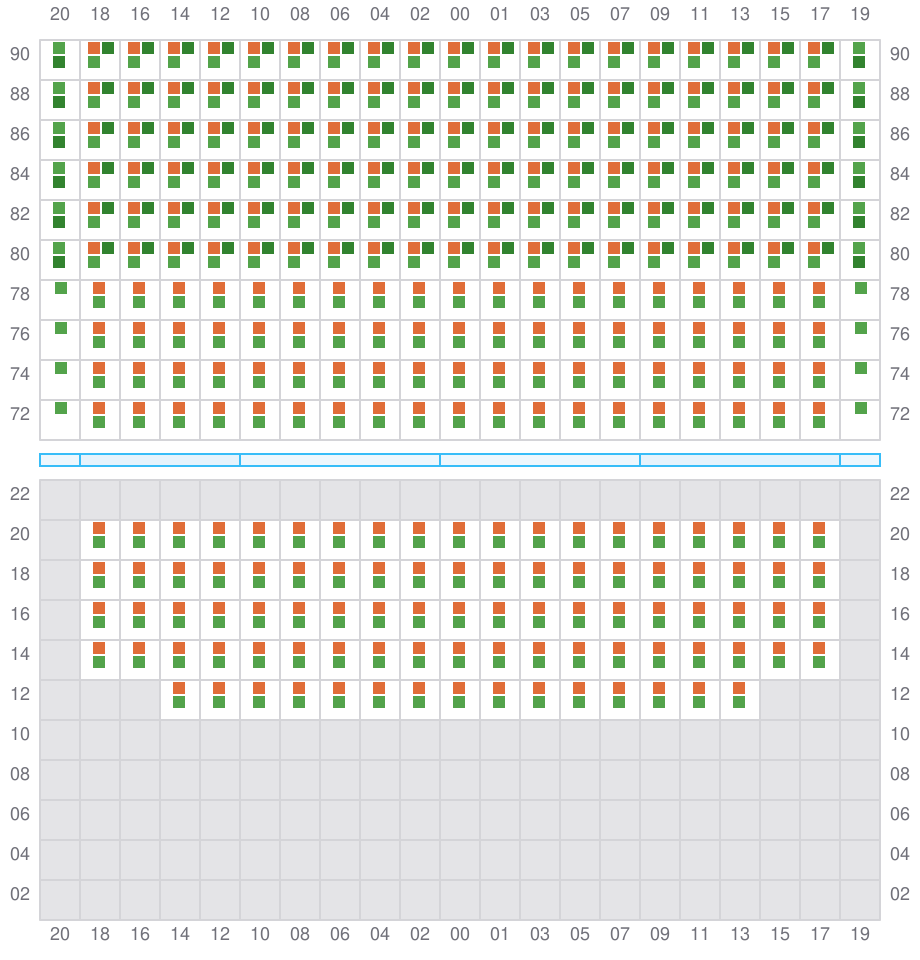

Bay 079 view and slots of MAERSK HANGZHOU

081 (082)

  • → / ?

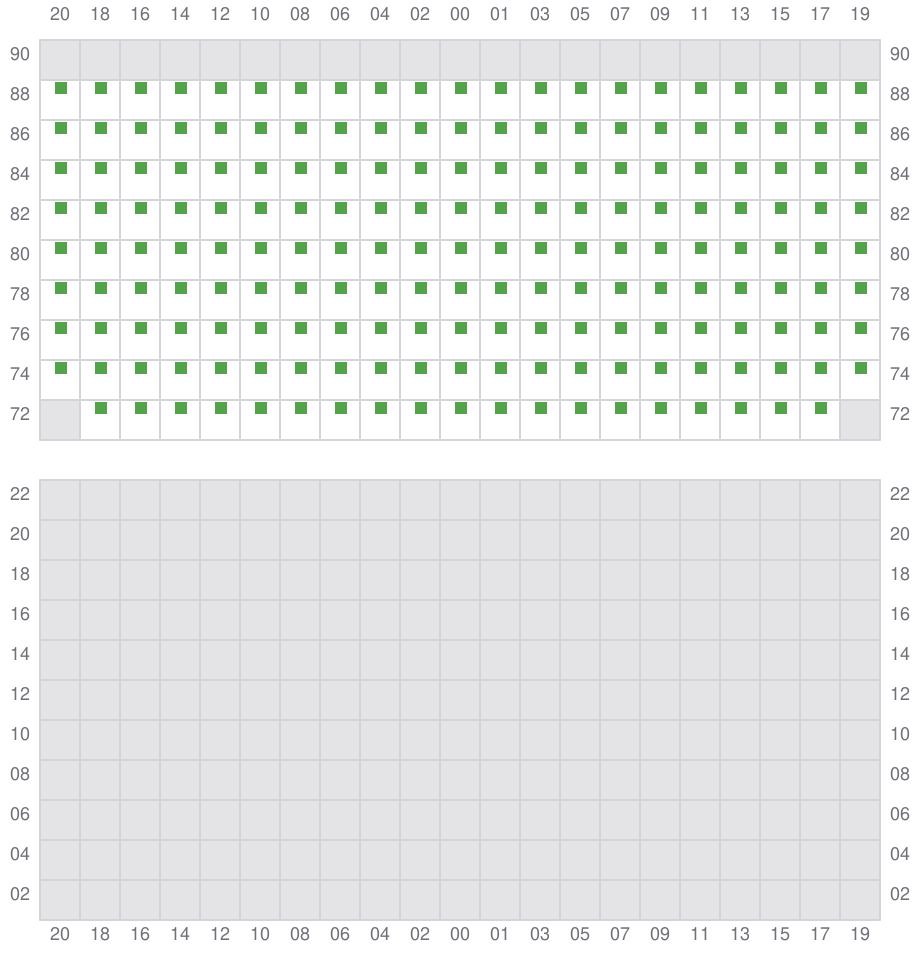

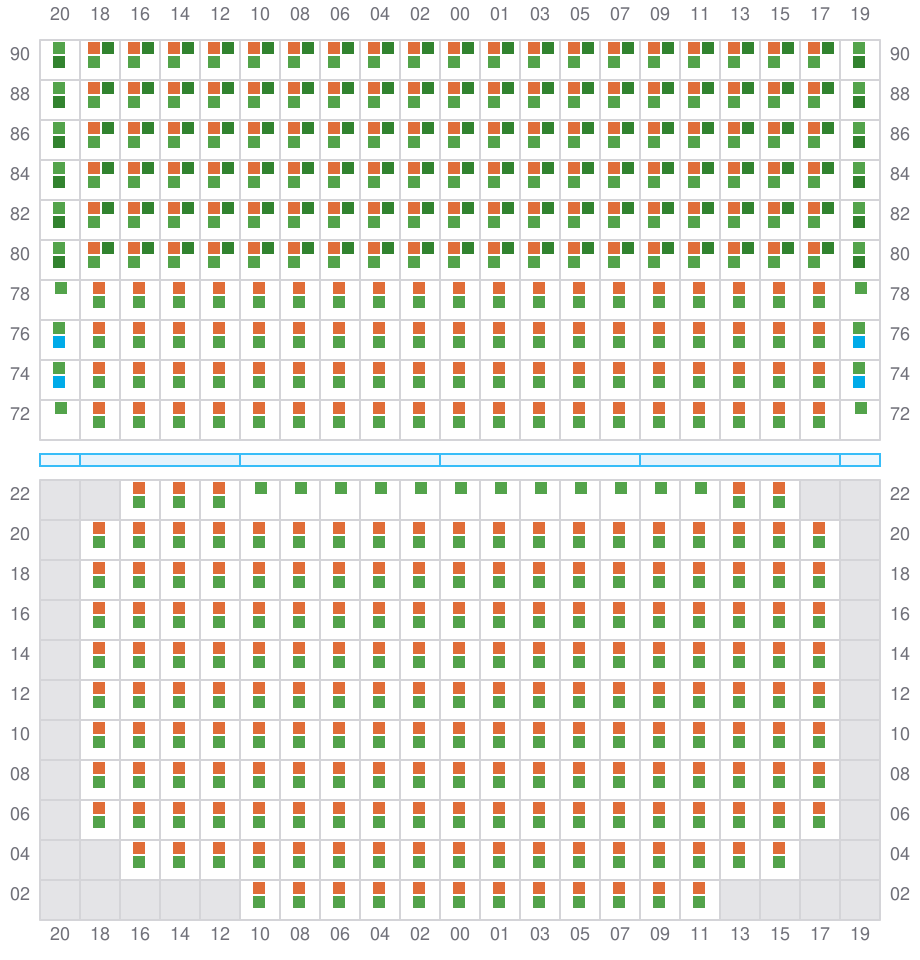

Bay 081 view and slots of MAERSK HANGZHOU
