MAERSK HANOI
9784295 | 9V5601 | 9784295 by ********* Last update: Tue Jun 25 2024

General Info

Ship Name:MAERSK HANOI
IMO Code:9784295
Call Sign:9V5601
Line Operator:9784295
Class Name for Sister Ships:MAE
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):340.50
LOA (Length Overall):353.02
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:081
Max ISO Row:20
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,802

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

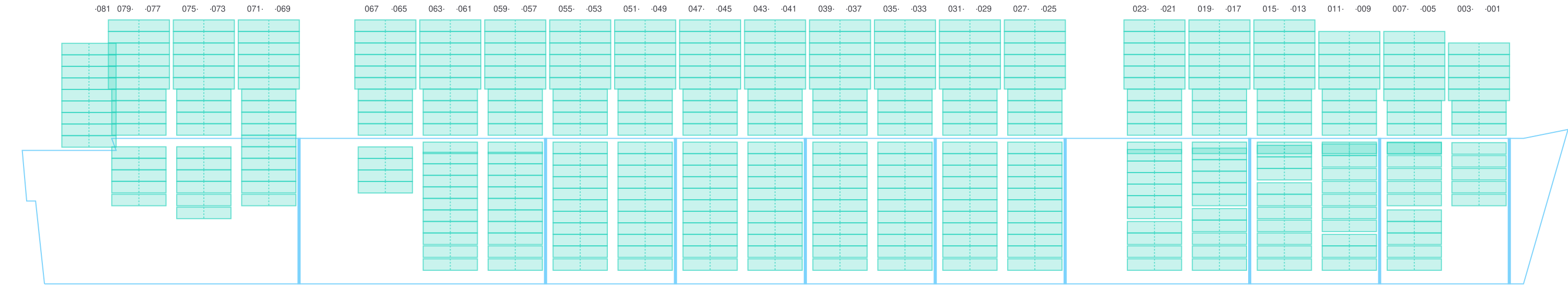

Side view of MAERSK HANOI

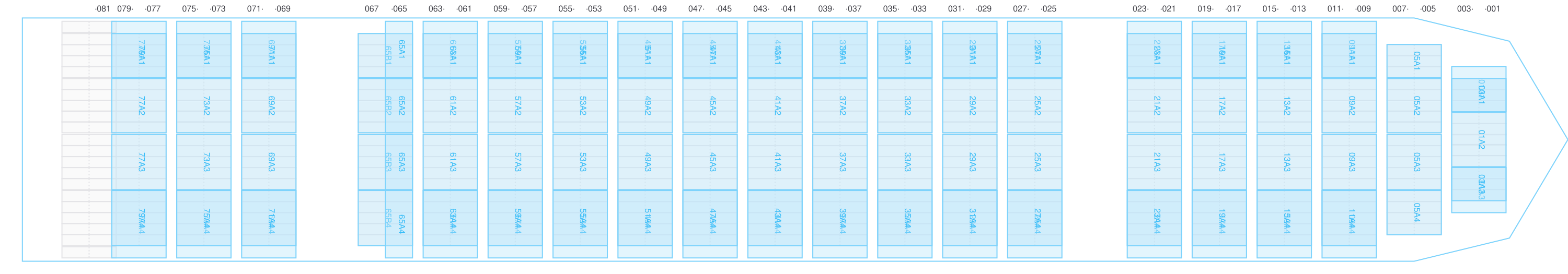

Hatch-Covers View

Deck view of MAERSK HANOI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

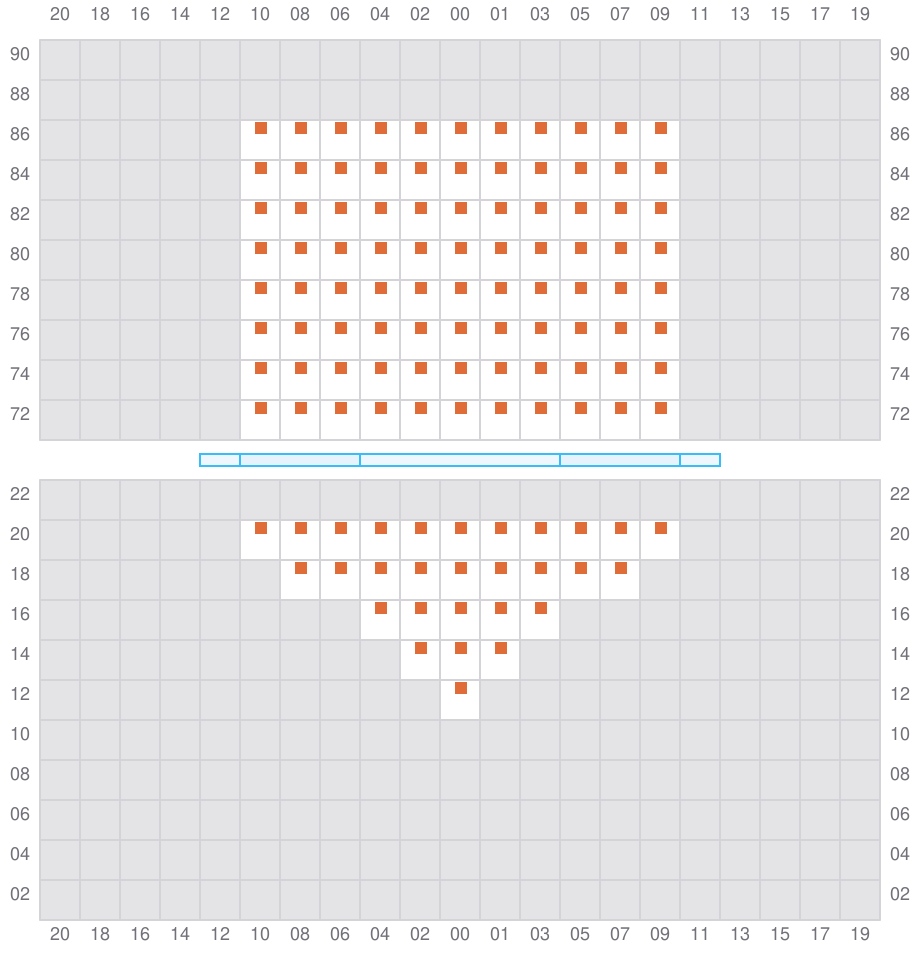

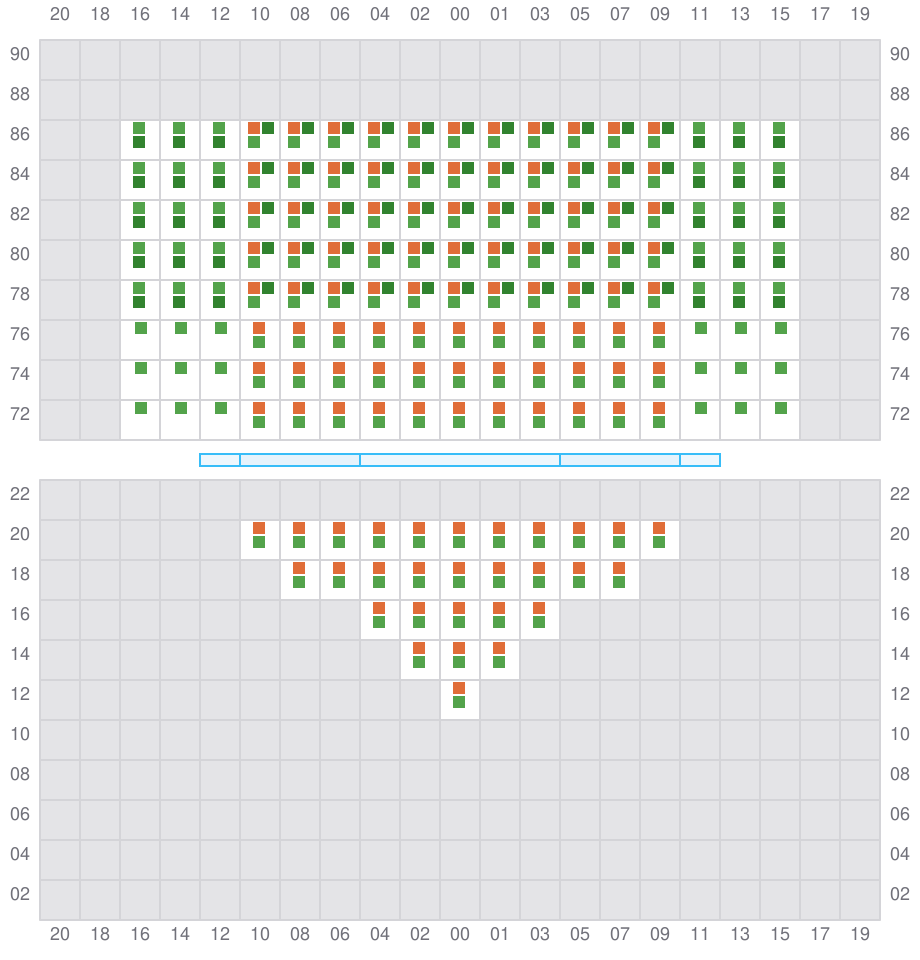

Bay 001 view and slots of MAERSK HANOI

003

  • ←
Bay 003 view and slots of MAERSK HANOI

005 (006)

  • →

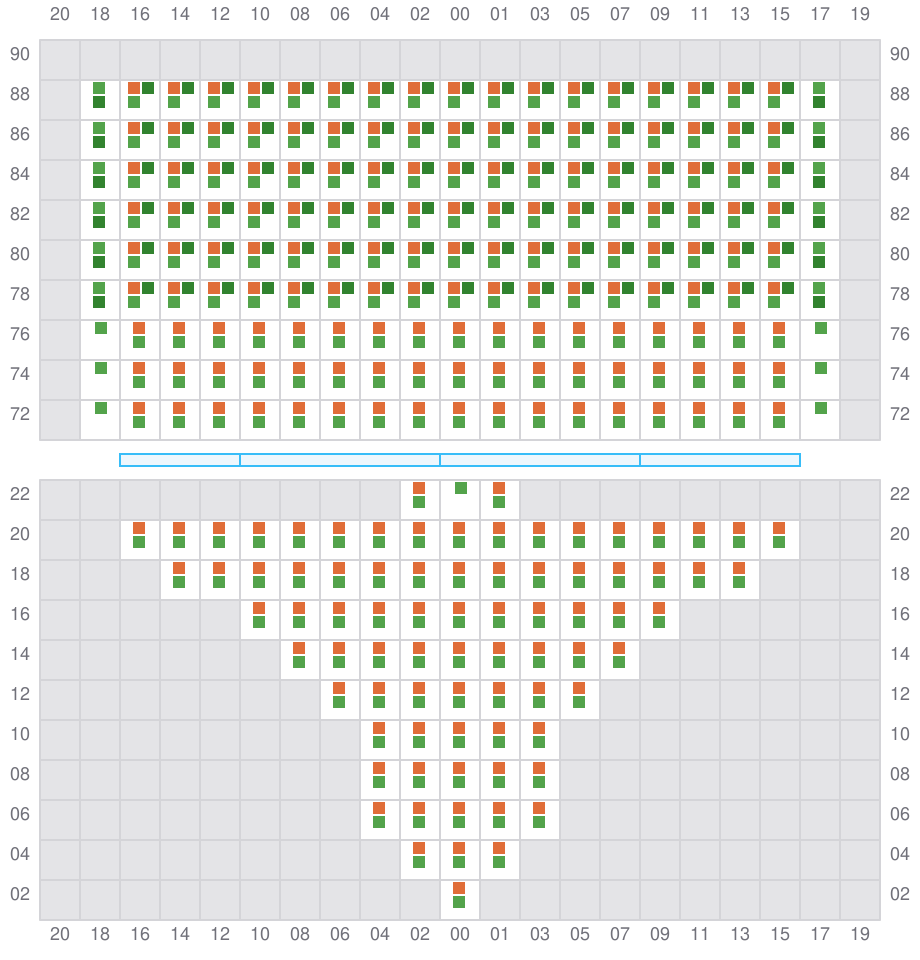

Bay 005 view and slots of MAERSK HANOI

007

  • ←

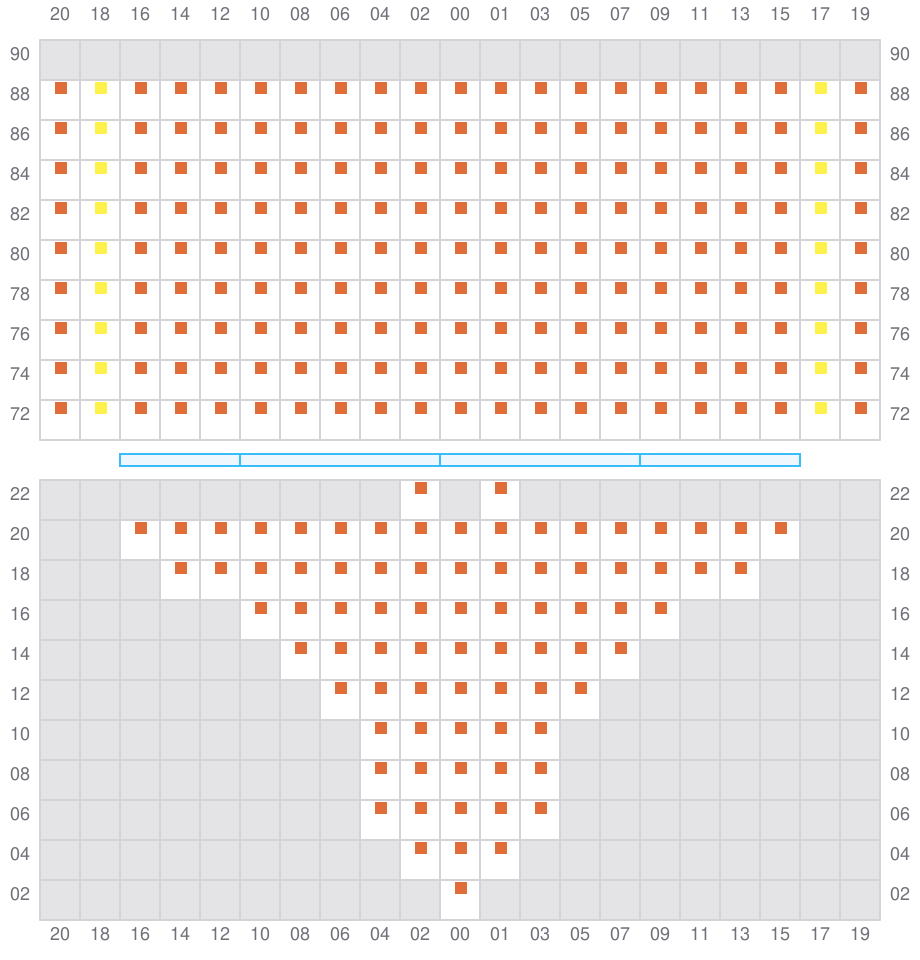

Bay 007 view and slots of MAERSK HANOI

009 (010)

  • →

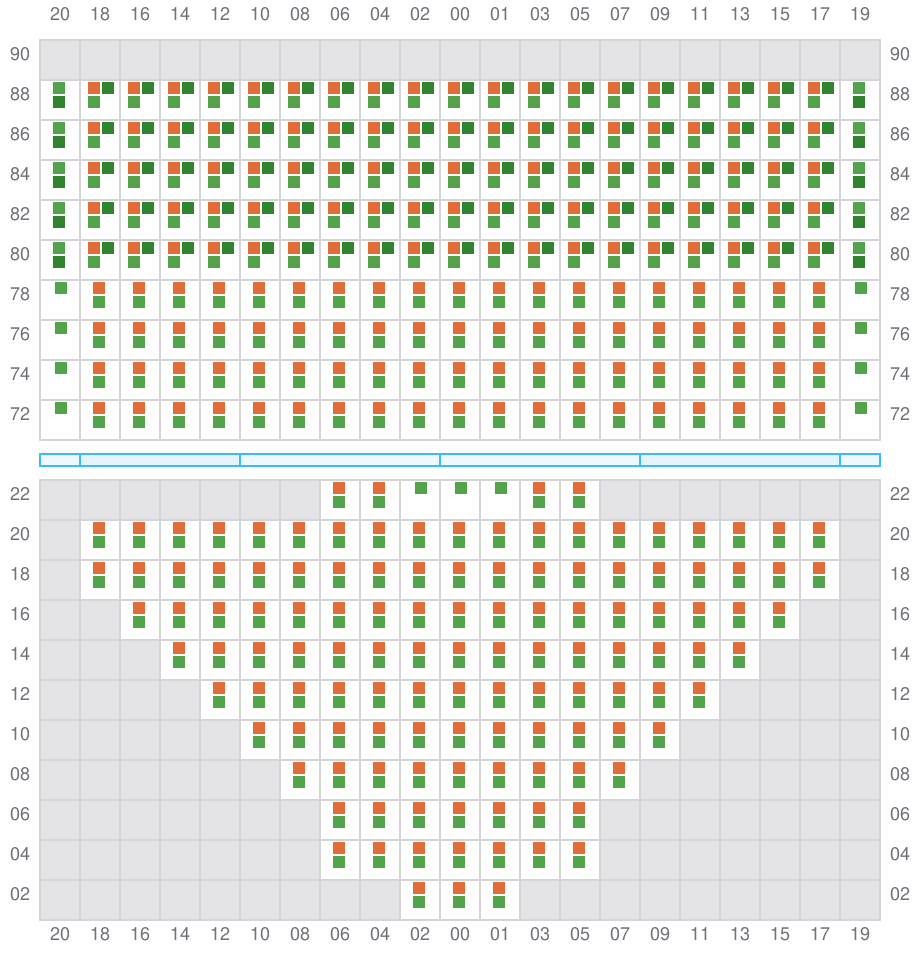

Bay 009 view and slots of MAERSK HANOI

011

  • ←

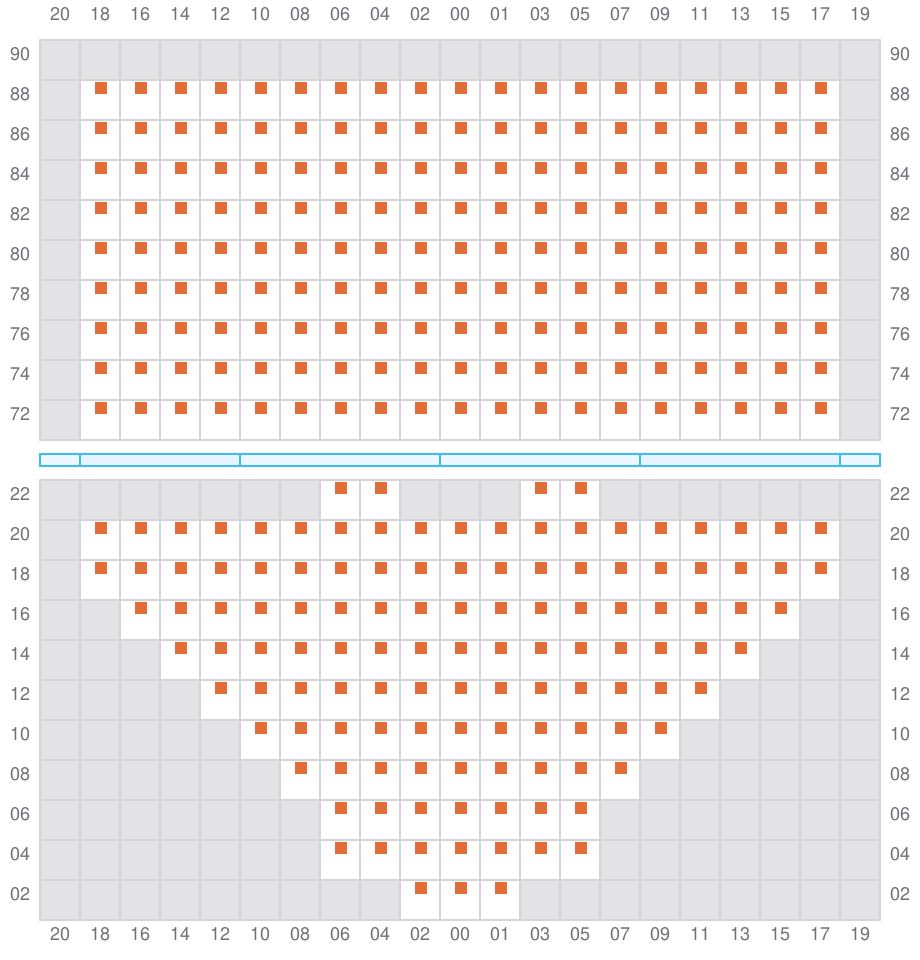

Bay 011 view and slots of MAERSK HANOI

013 (014)

  • →

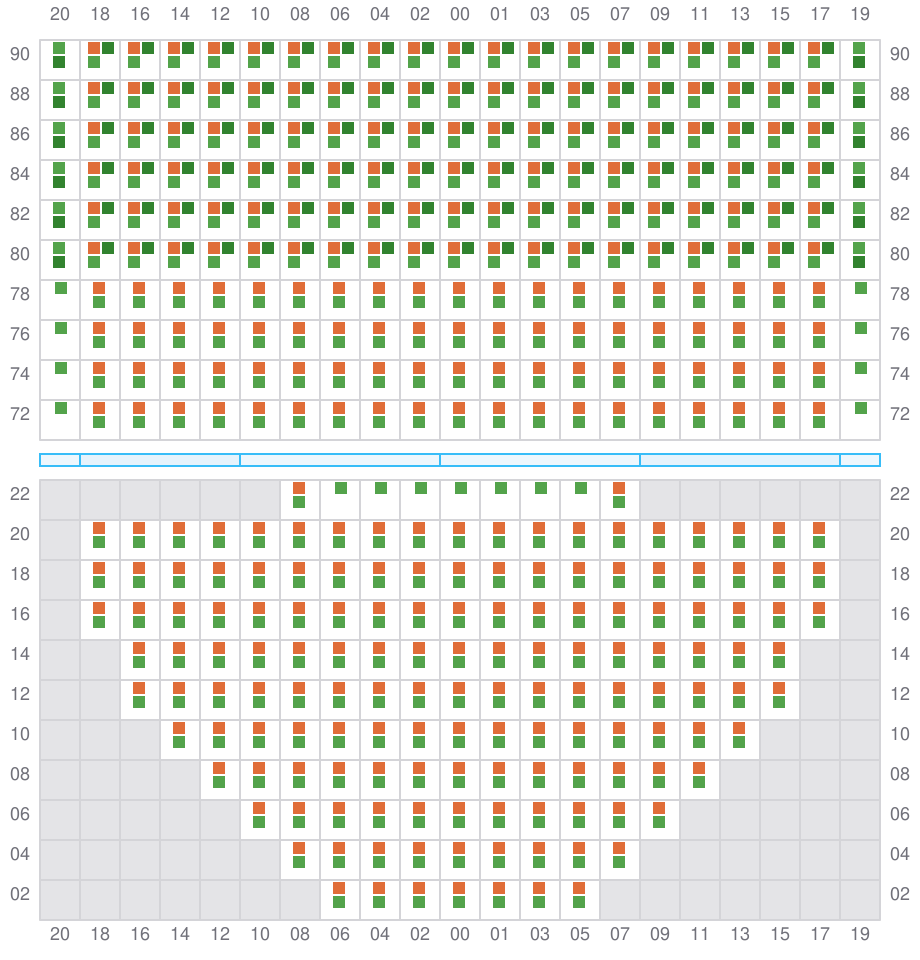

Bay 013 view and slots of MAERSK HANOI

015

  • ←

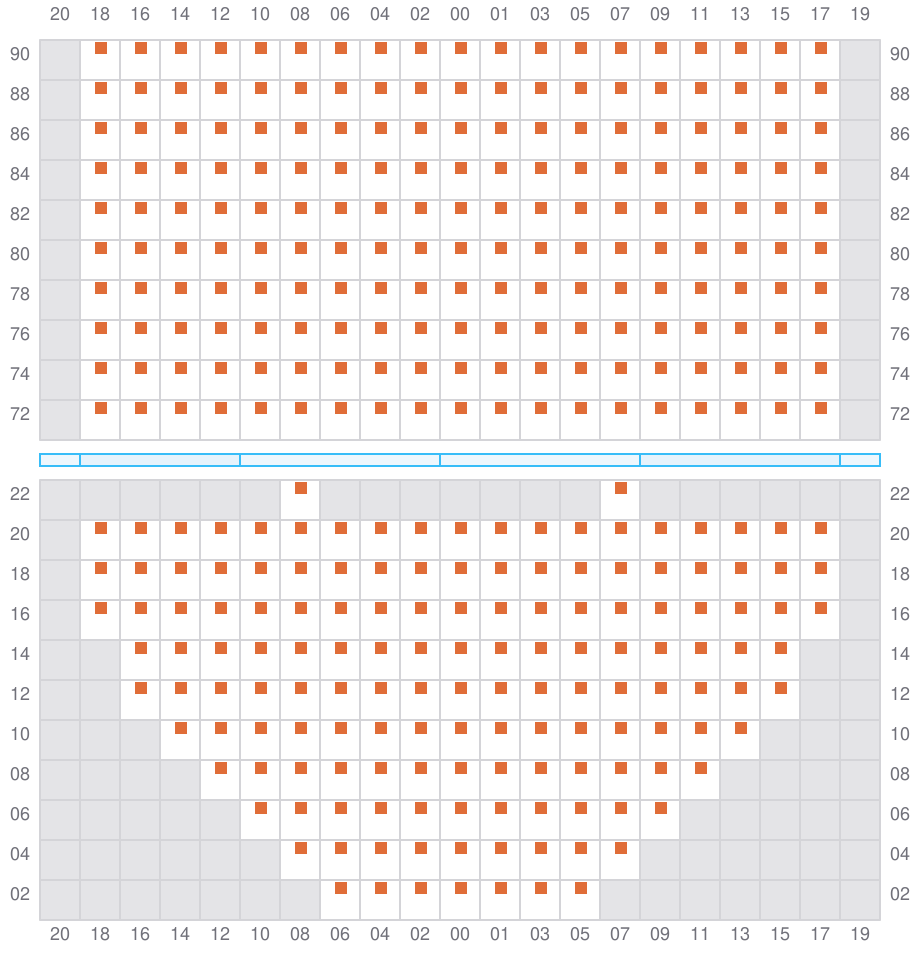

Bay 015 view and slots of MAERSK HANOI

017 (018)

  • →

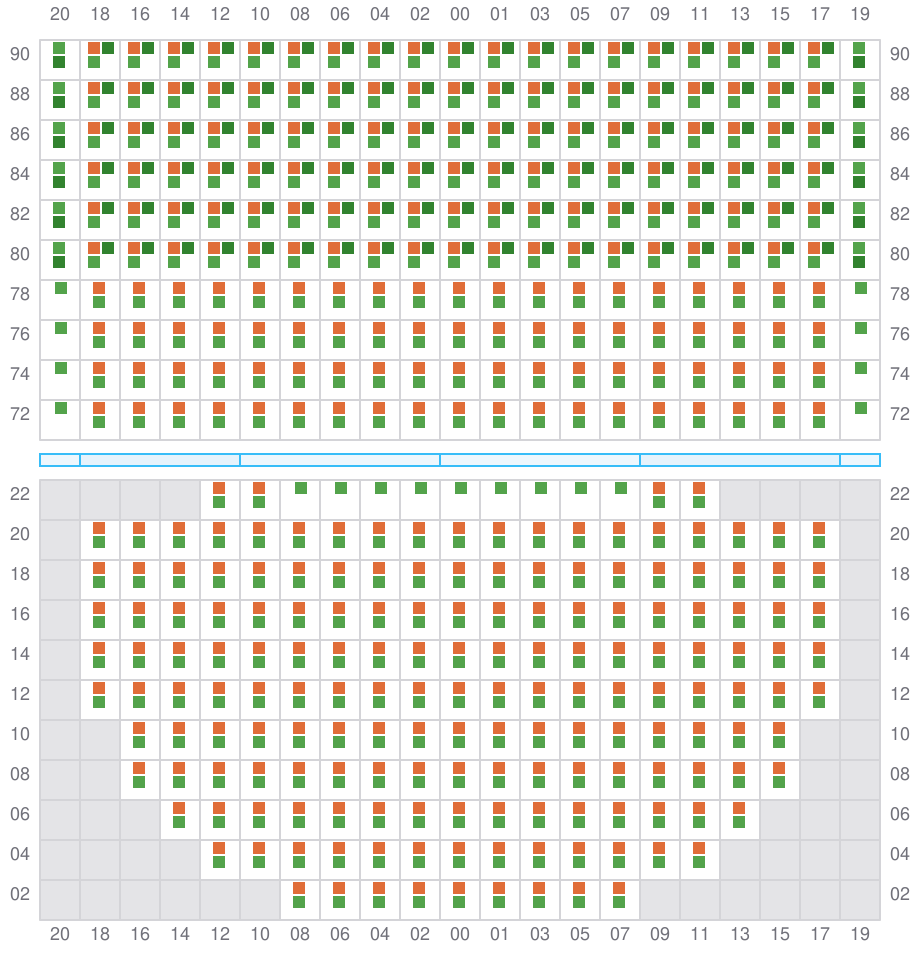

Bay 017 view and slots of MAERSK HANOI

019

  • ←

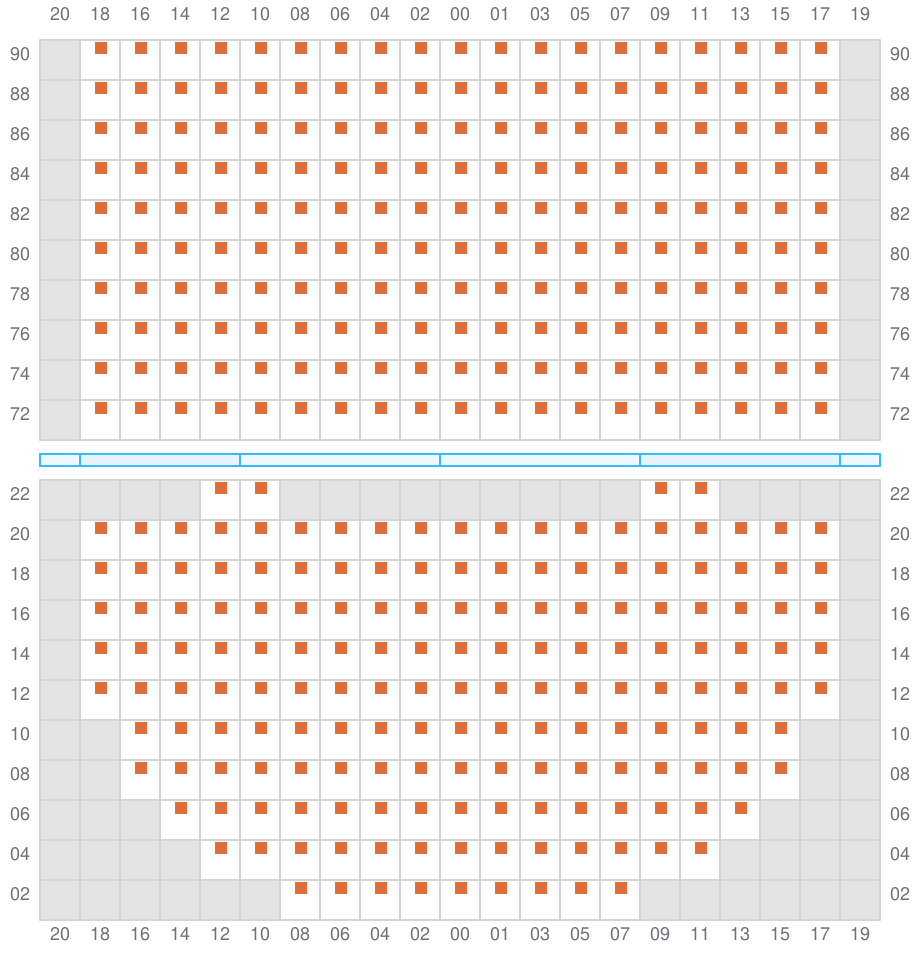

Bay 019 view and slots of MAERSK HANOI

021 (022)

  • →

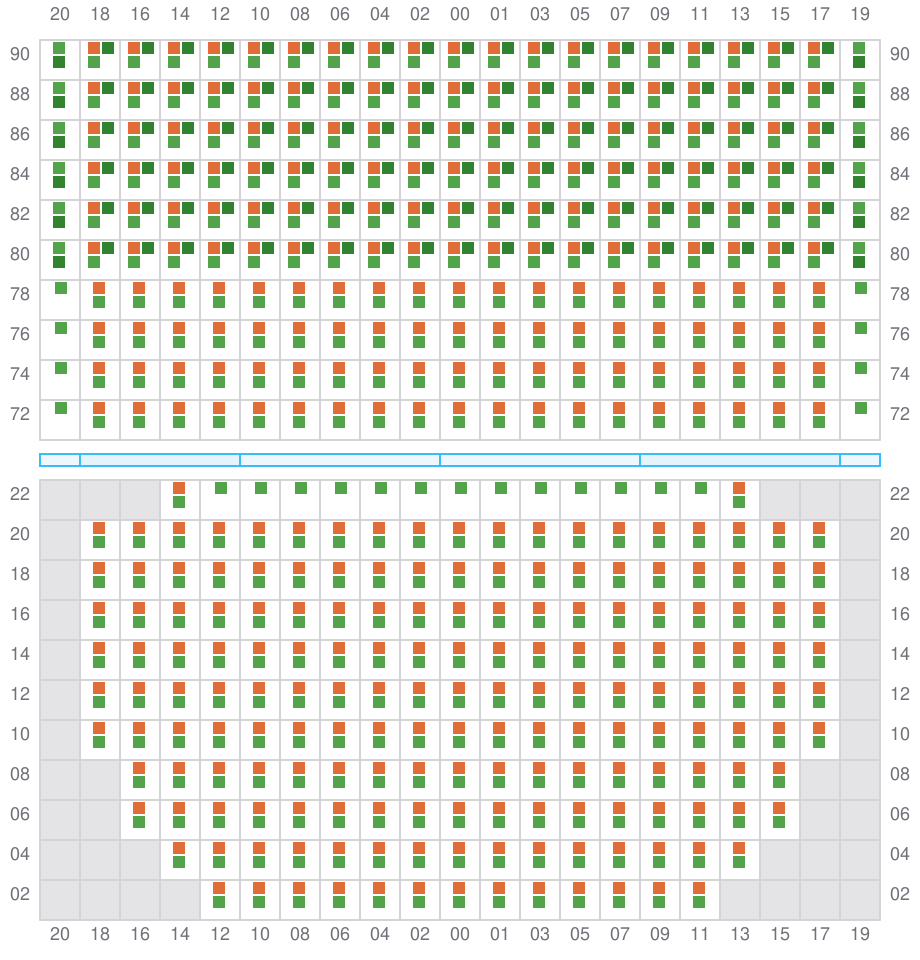

Bay 021 view and slots of MAERSK HANOI

023

  • ←

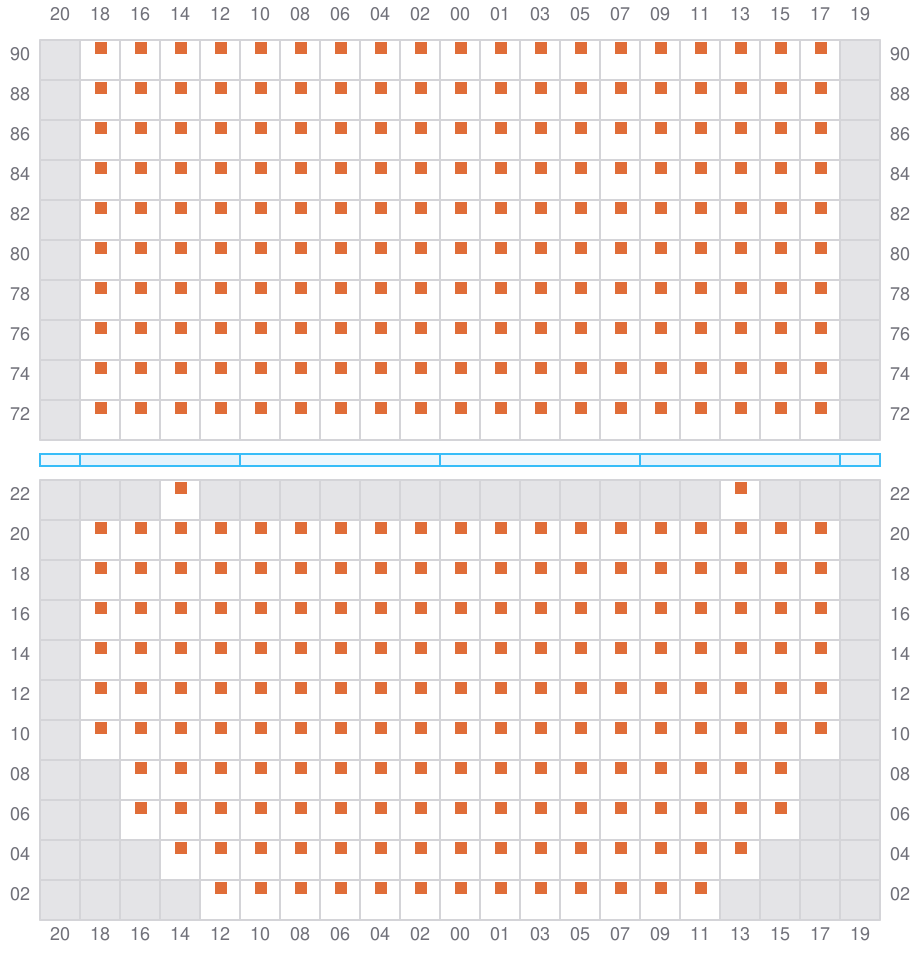

Bay 023 view and slots of MAERSK HANOI

025 (026)

  • →
  • → / ?

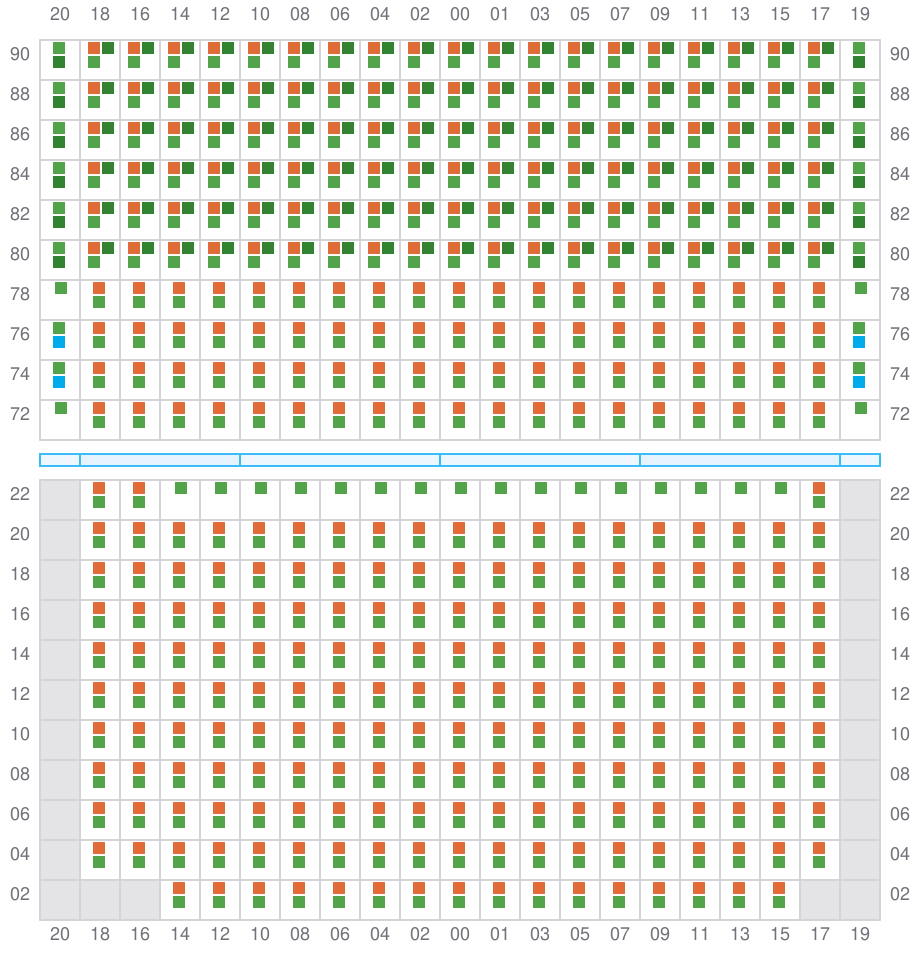

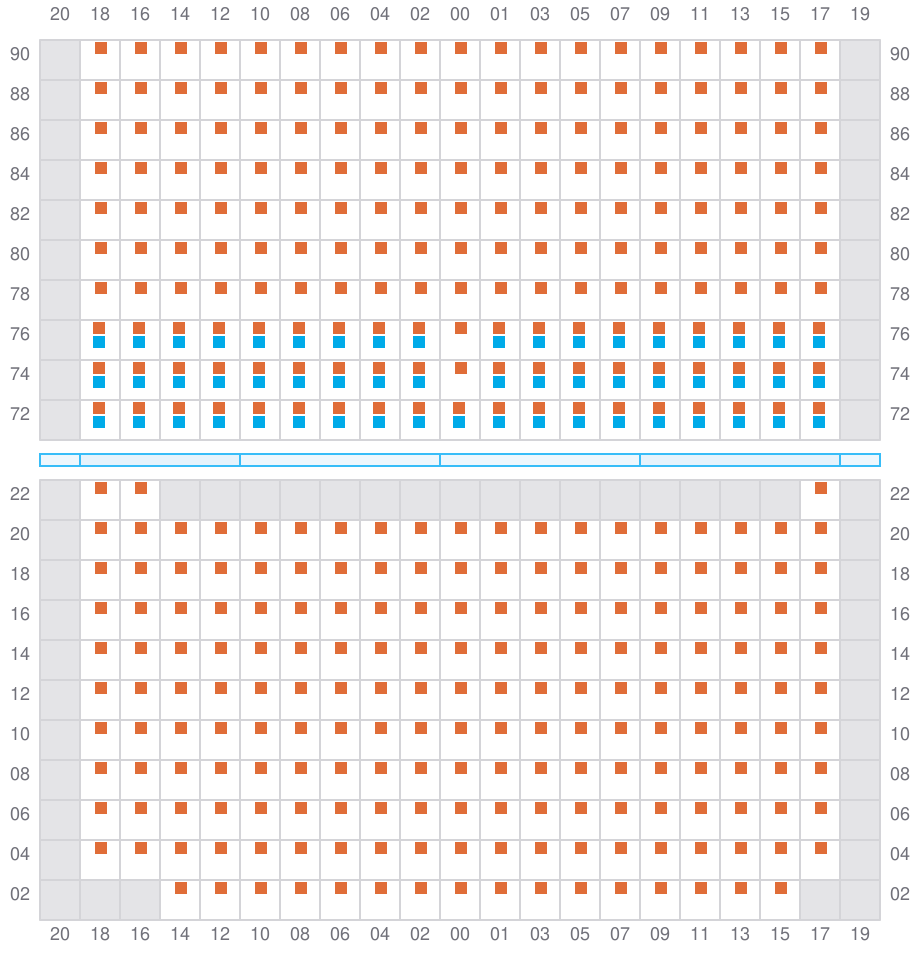

Bay 025 view and slots of MAERSK HANOI

027

  • ←
  • → / ?
Bay 027 view and slots of MAERSK HANOI

029 (030)

  • →
  • → / ?
Bay 029 view and slots of MAERSK HANOI

031

  • ←
  • →

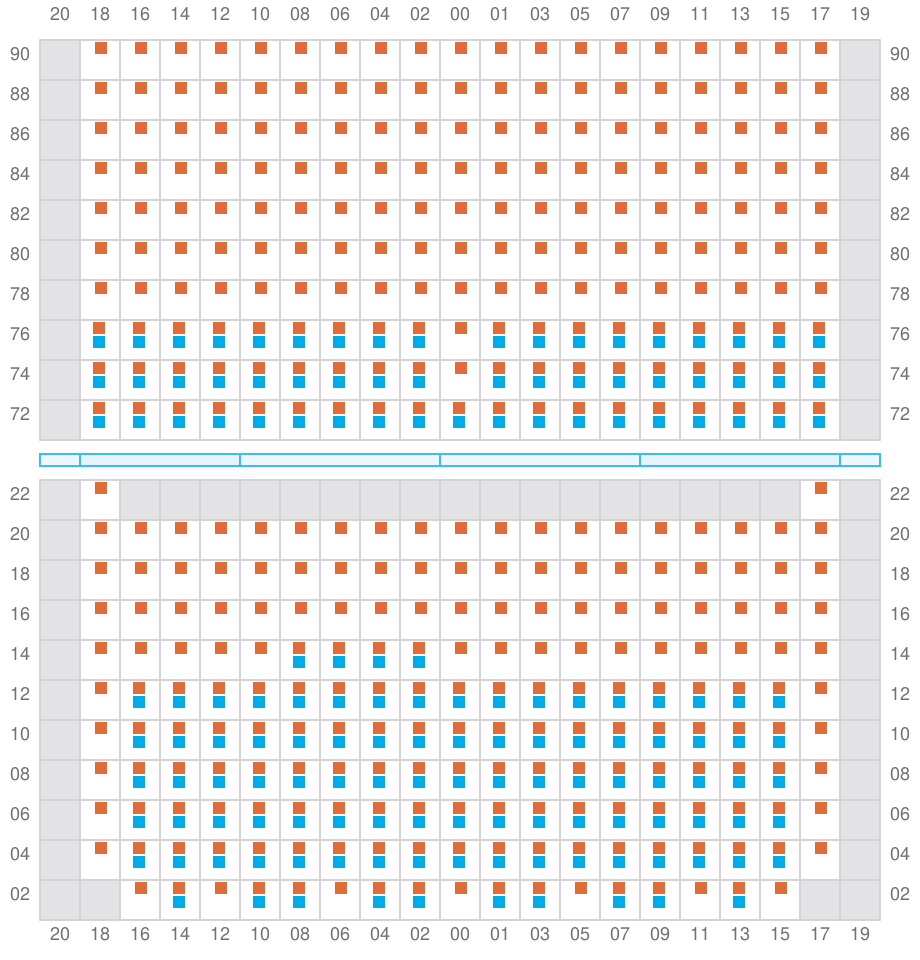

Bay 031 view and slots of MAERSK HANOI

033 (034)

  • →
  • → / ?
Bay 033 view and slots of MAERSK HANOI

035

  • ←
  • → / ?

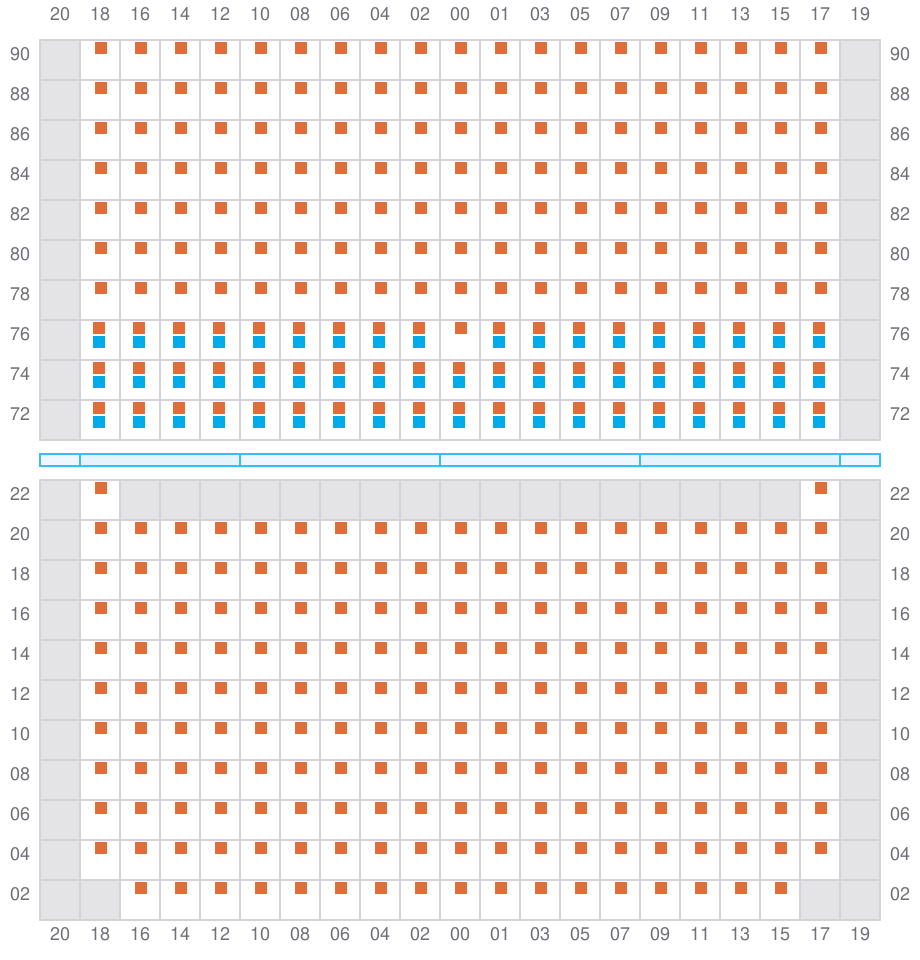

Bay 035 view and slots of MAERSK HANOI

037 (038)

  • →
  • → / ?
Bay 037 view and slots of MAERSK HANOI

039

  • ←
  • →

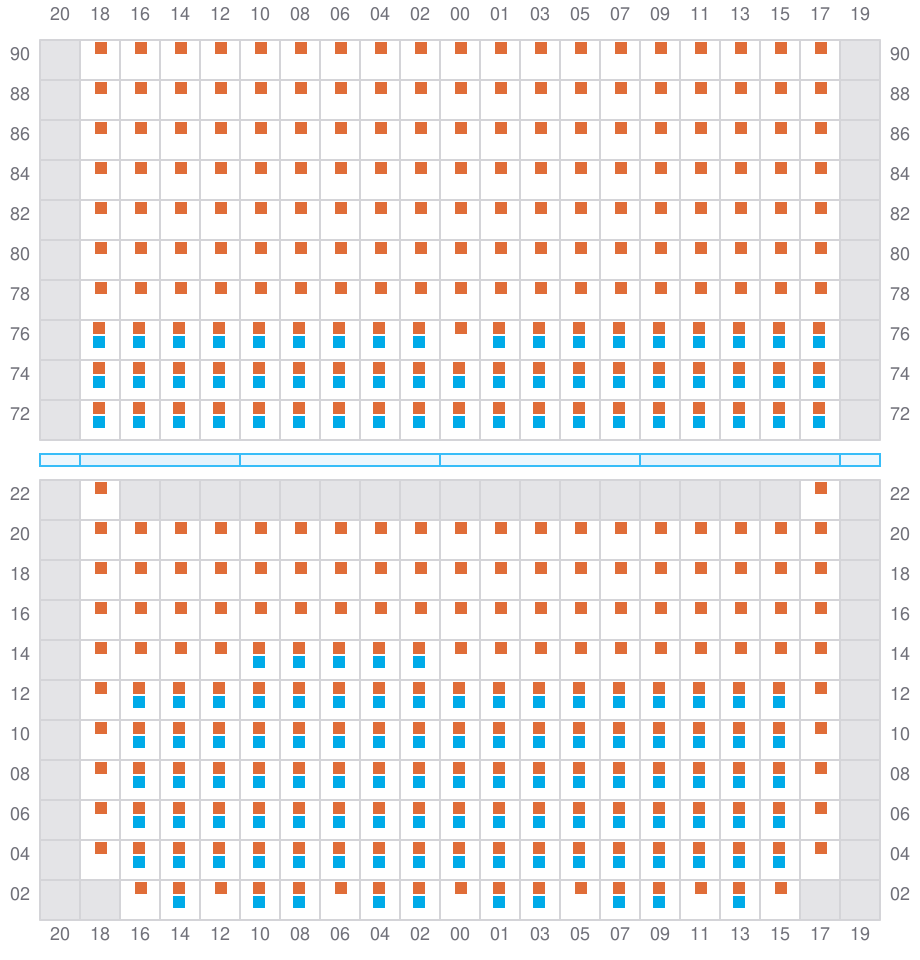

Bay 039 view and slots of MAERSK HANOI

041 (042)

  • →
  • → / ?

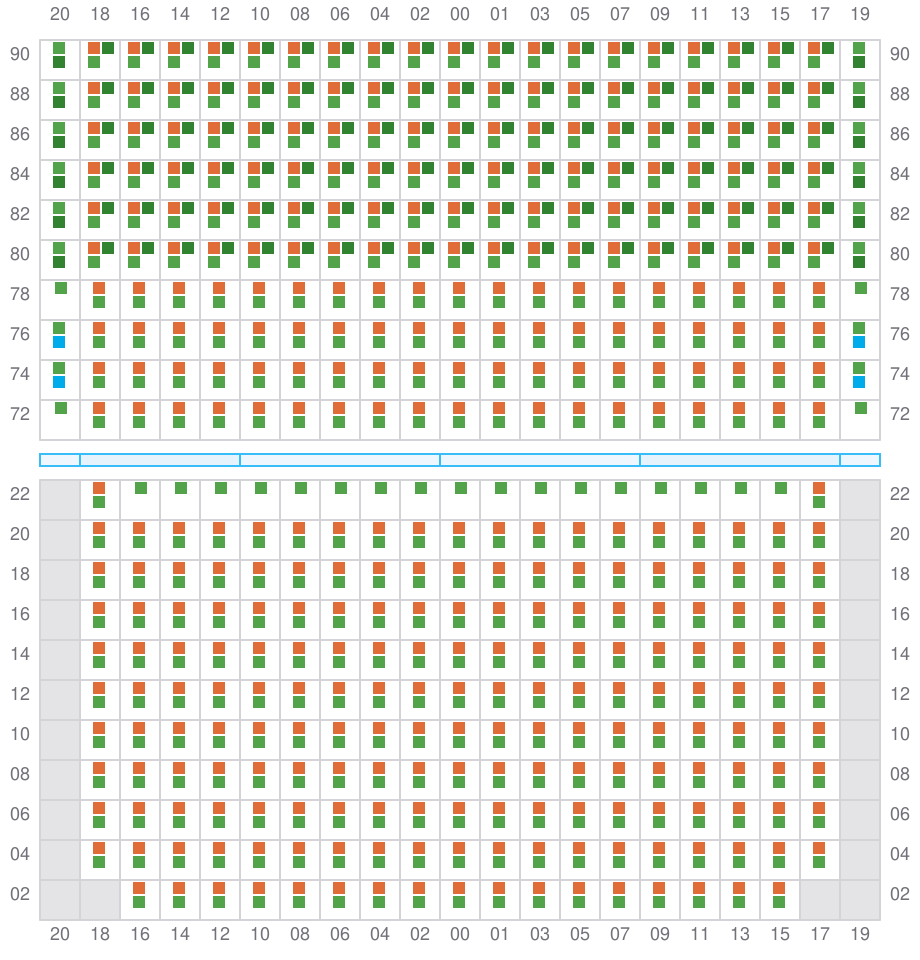

Bay 041 view and slots of MAERSK HANOI

043

  • ←
  • → / ?
Bay 043 view and slots of MAERSK HANOI

045 (046)

  • →
  • → / ?
Bay 045 view and slots of MAERSK HANOI

047

  • ←
  • →
Bay 047 view and slots of MAERSK HANOI

049 (050)

  • →
  • → / ?
Bay 049 view and slots of MAERSK HANOI

051

  • ←
  • → / ?

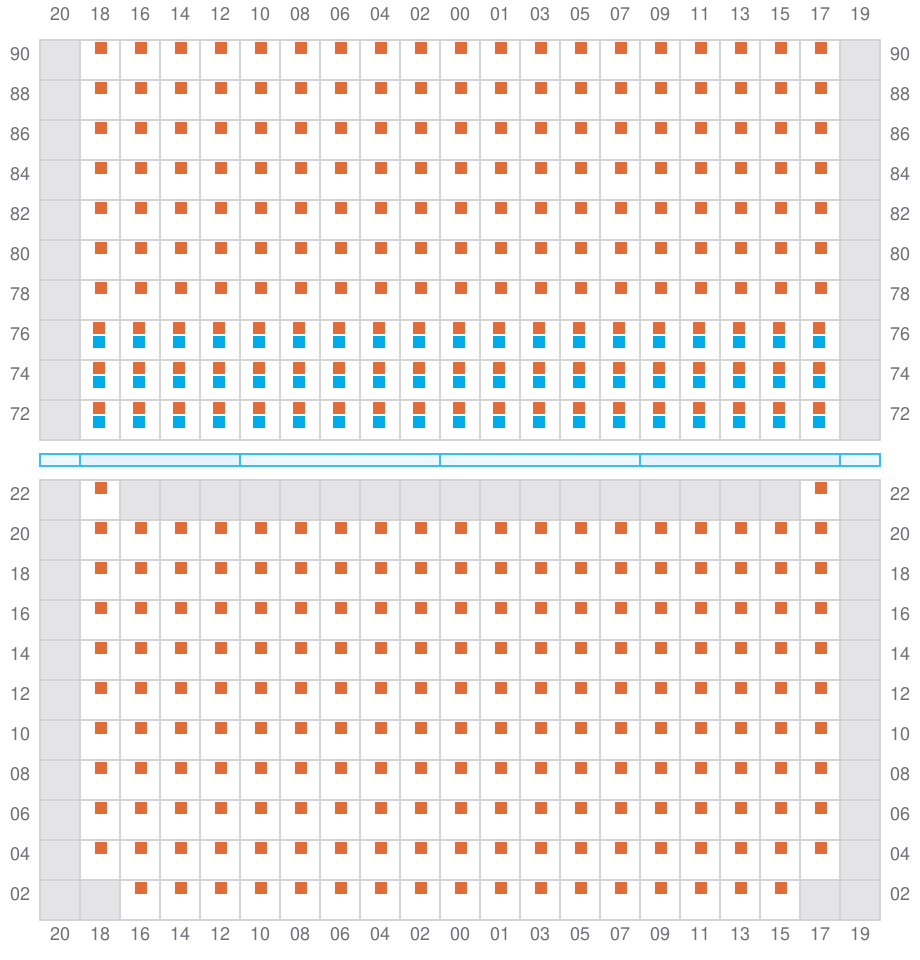

Bay 051 view and slots of MAERSK HANOI

053 (054)

  • →
  • → / ?
Bay 053 view and slots of MAERSK HANOI

055

  • ←
  • →

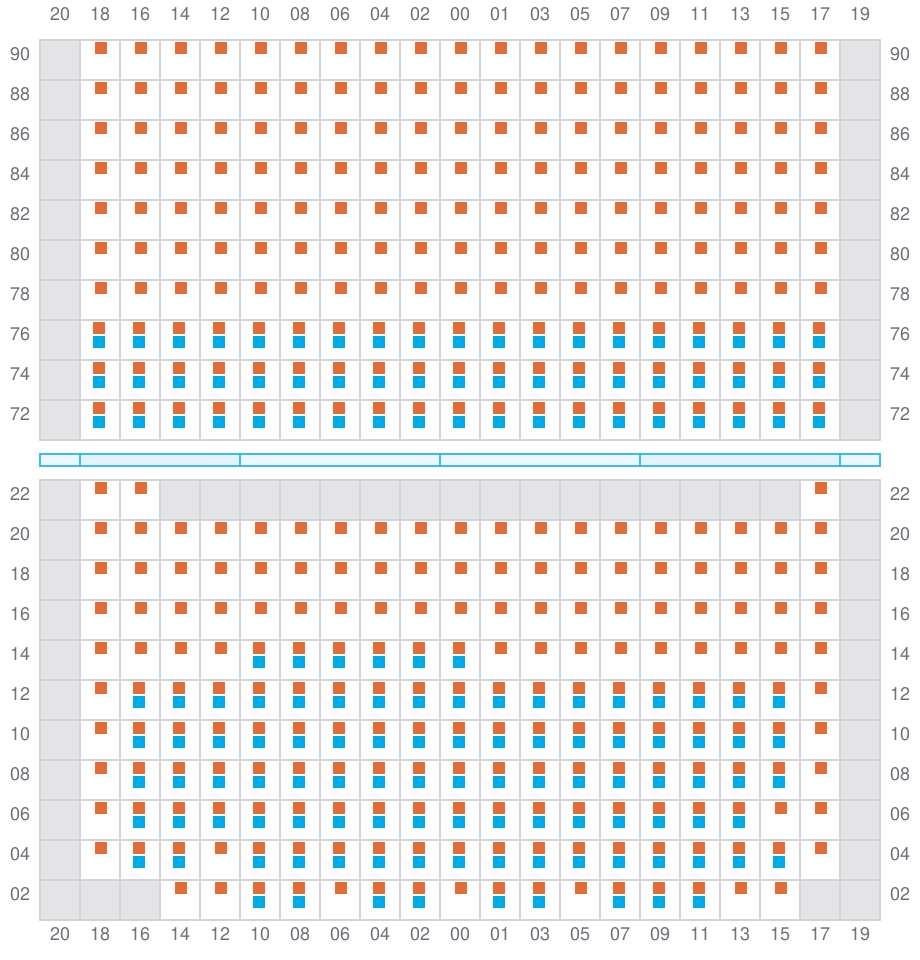

Bay 055 view and slots of MAERSK HANOI

057 (058)

  • →
  • → / ?
Bay 057 view and slots of MAERSK HANOI

059

  • ←
  • → / ?
Bay 059 view and slots of MAERSK HANOI

061 (062)

  • →
  • → / ?

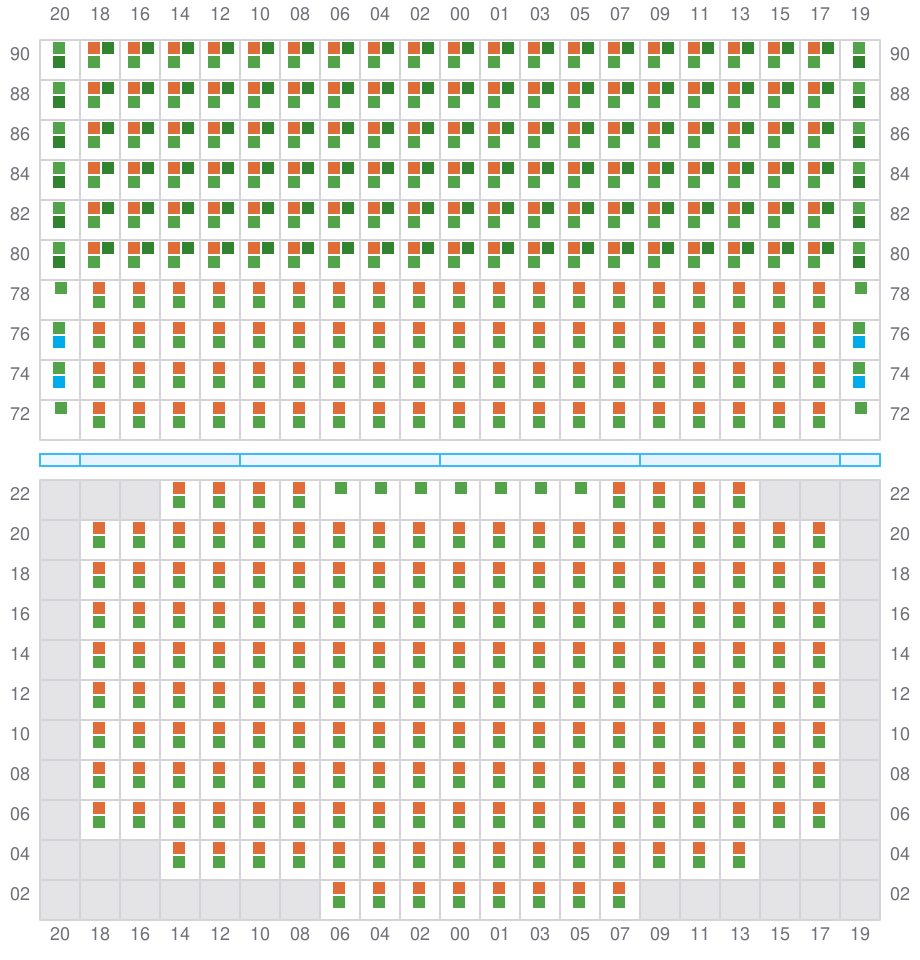

Bay 061 view and slots of MAERSK HANOI

063

  • ←
  • → / ?
Bay 063 view and slots of MAERSK HANOI

065 (066)

  • →
  • → / ?

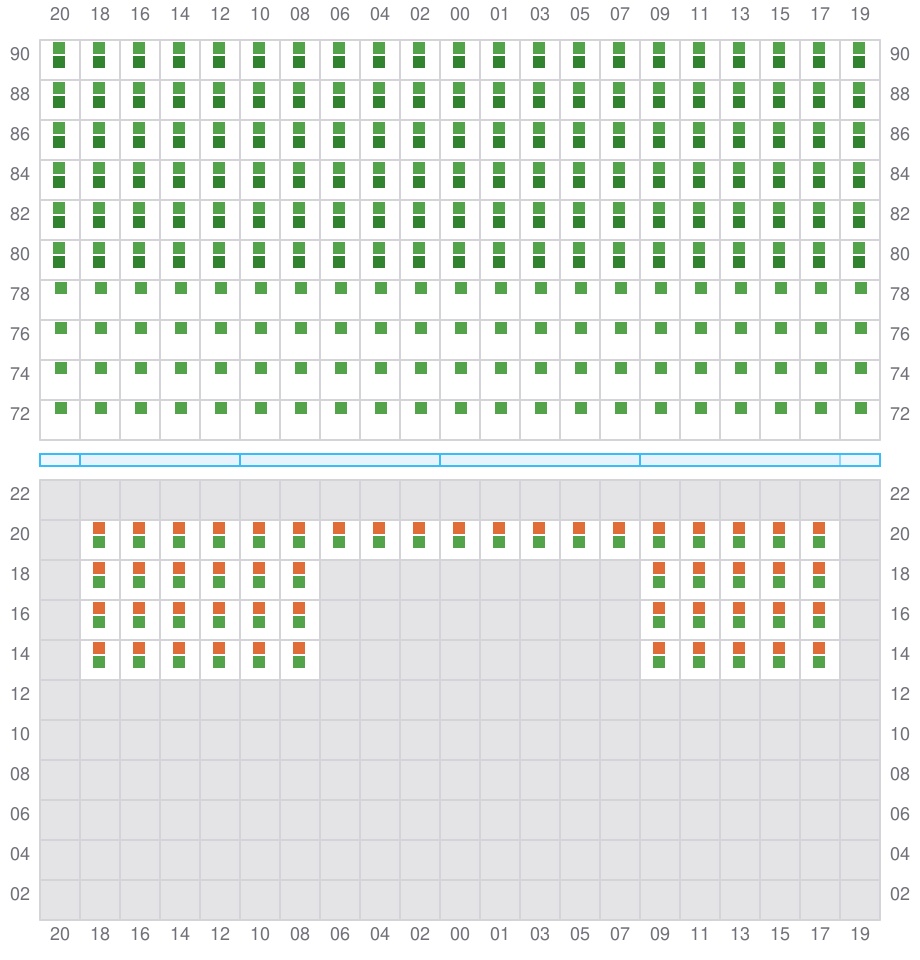

Bay 065 view and slots of MAERSK HANOI

067

  • ? / ←

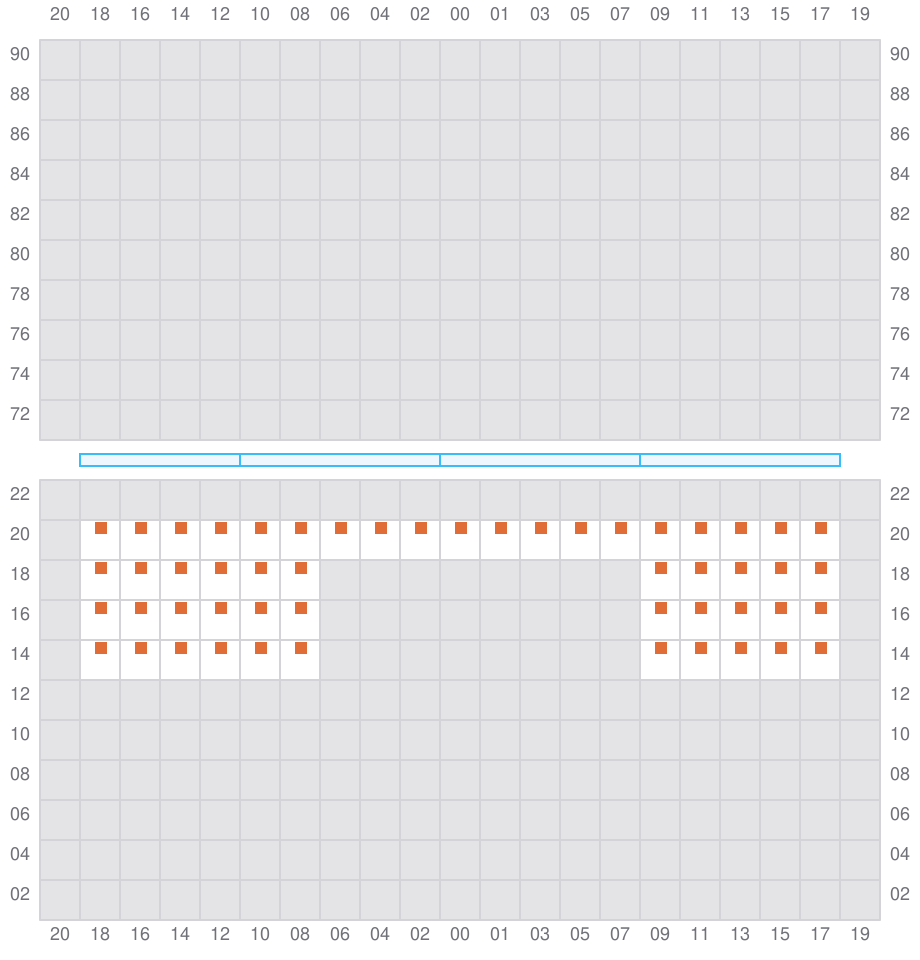

Bay 067 view and slots of MAERSK HANOI

069 (070)

  • →
  • → / ?

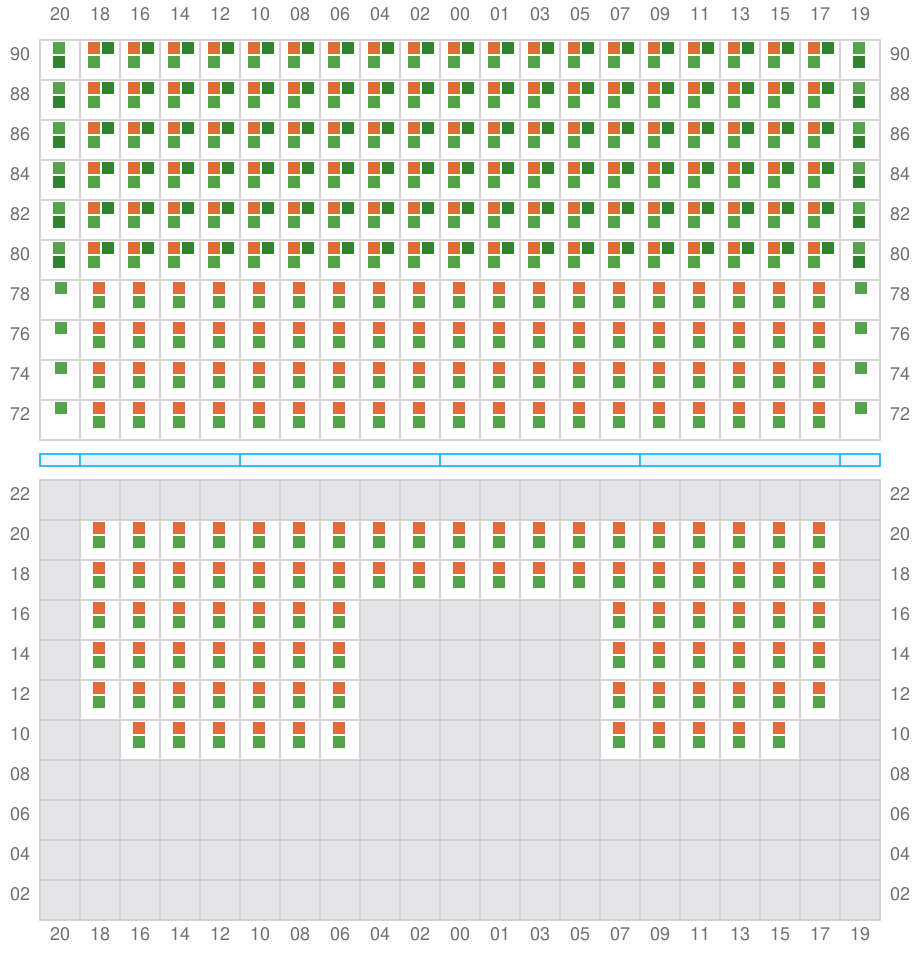

Bay 069 view and slots of MAERSK HANOI

071

  • ←
  • → / ?

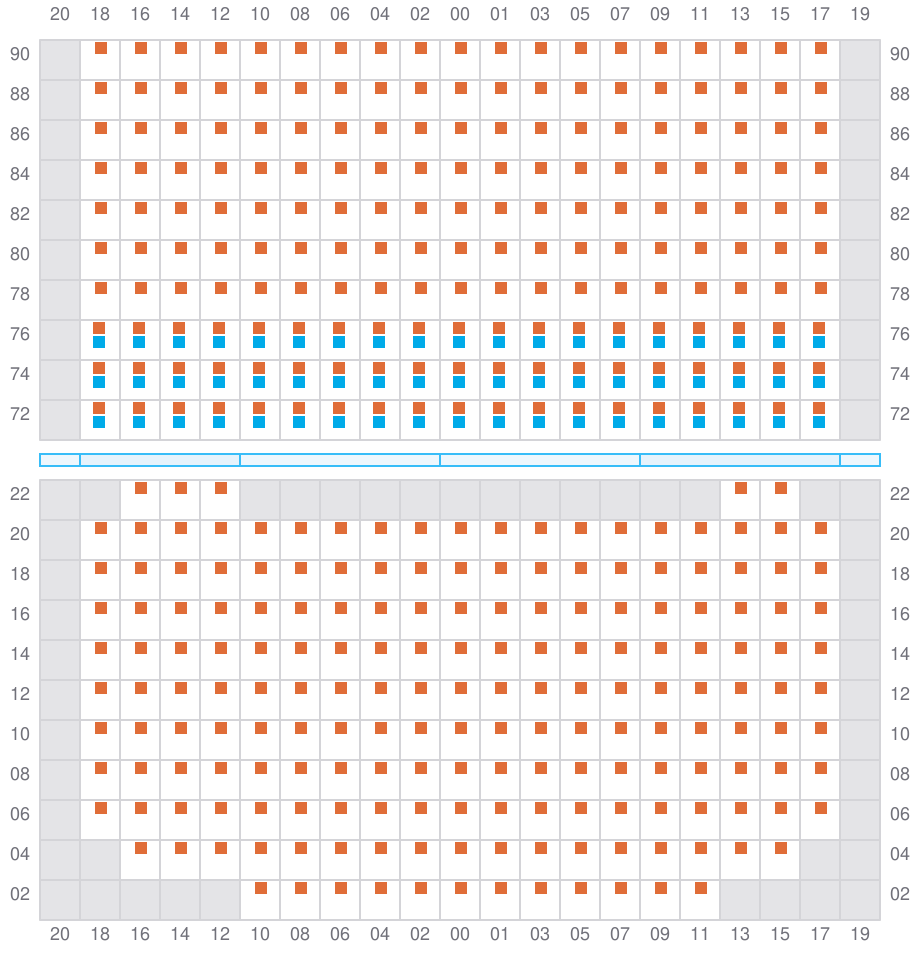

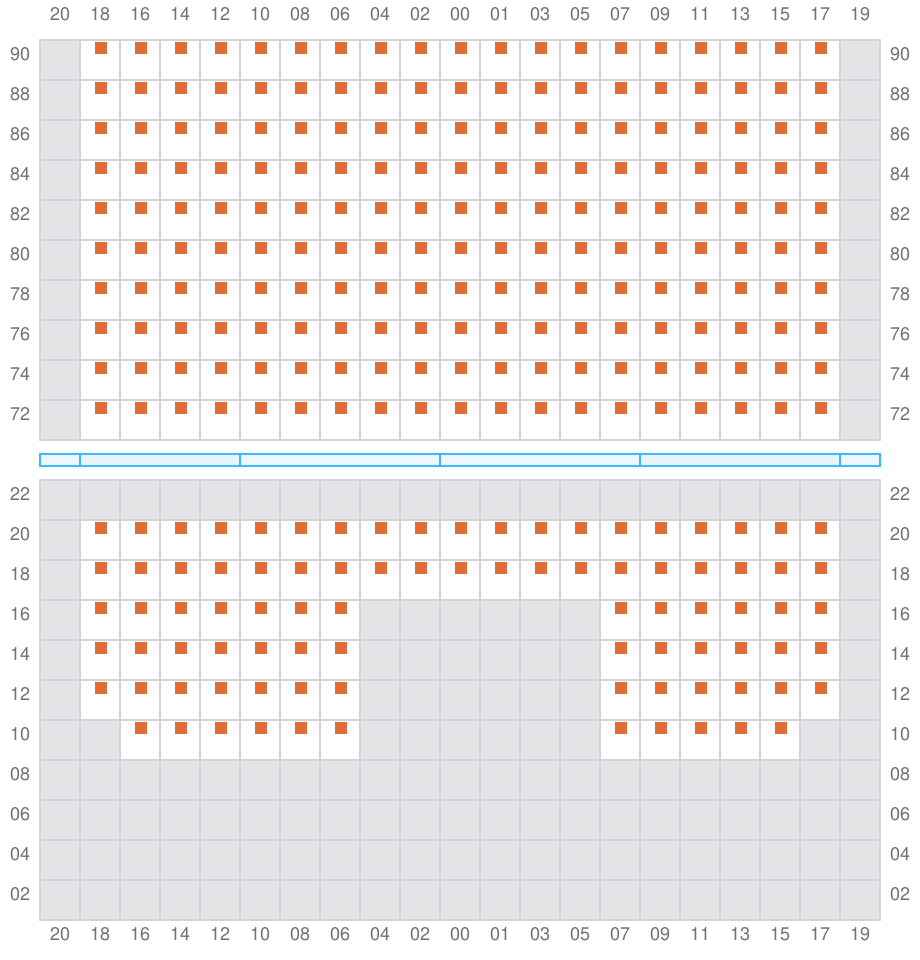

Bay 071 view and slots of MAERSK HANOI

073 (074)

  • →
  • → / ?

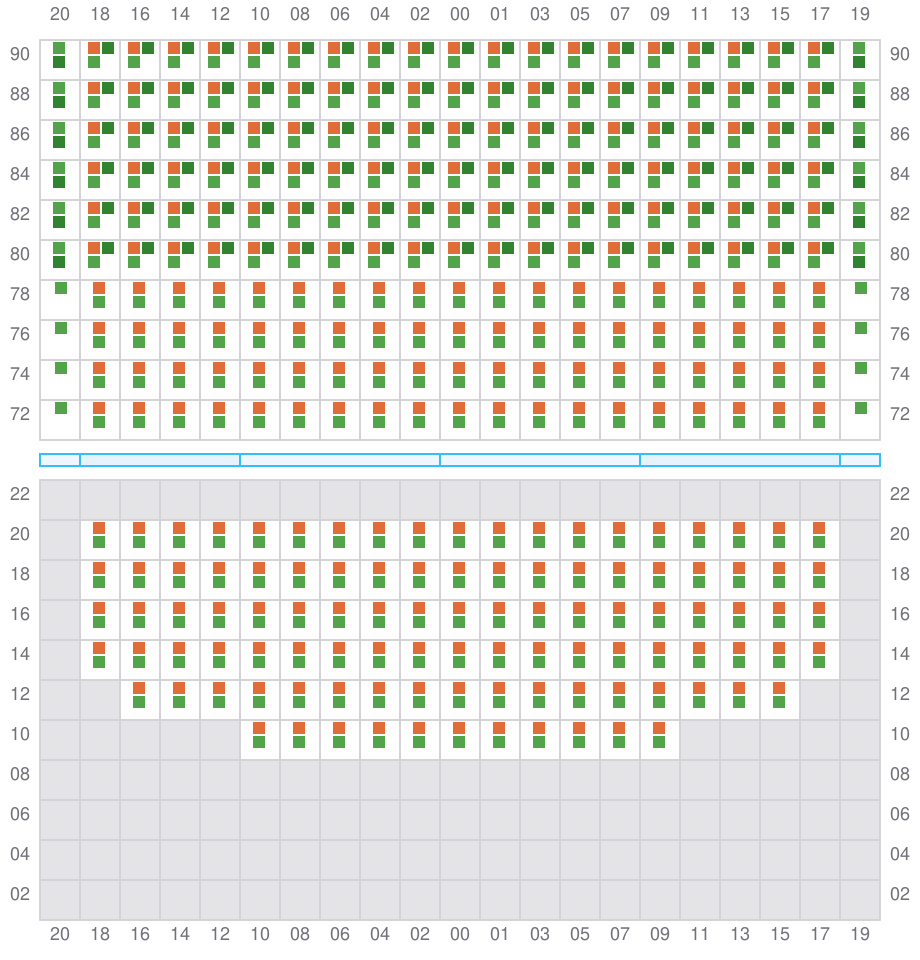

Bay 073 view and slots of MAERSK HANOI

075

  • ←
  • → / ?

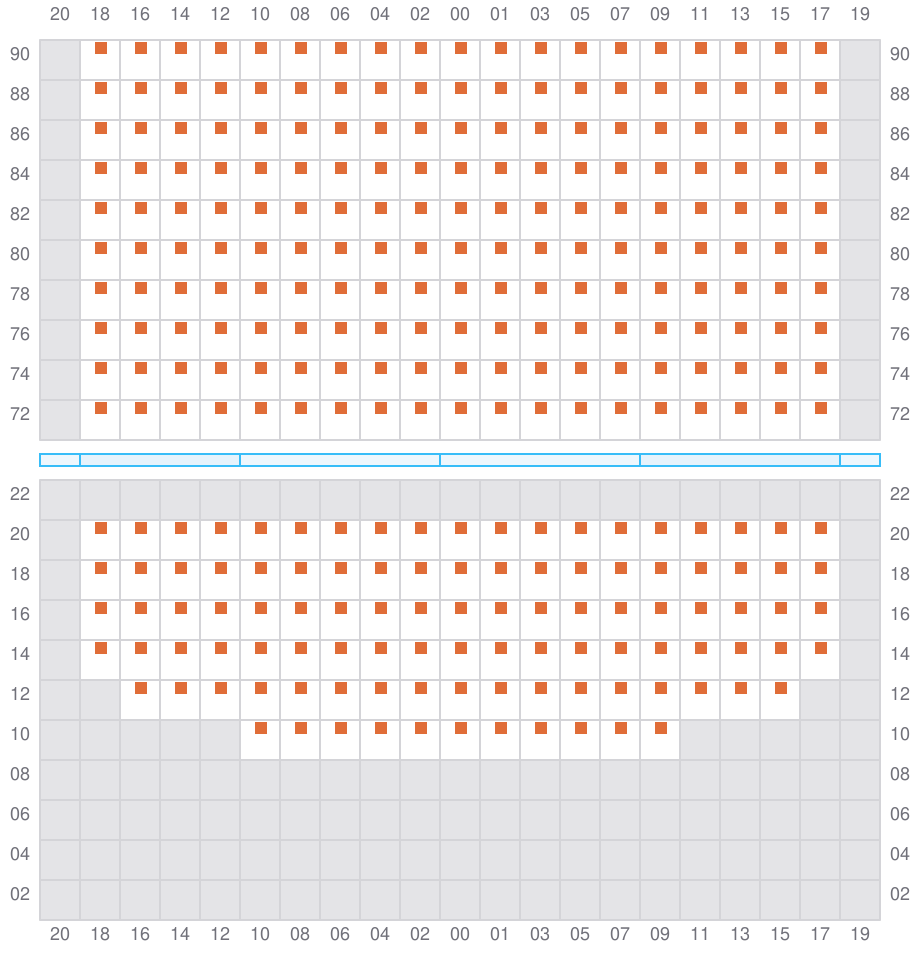

Bay 075 view and slots of MAERSK HANOI

077 (078)

  • →
  • → / ?
Bay 077 view and slots of MAERSK HANOI

079

  • ←
  • → / ?

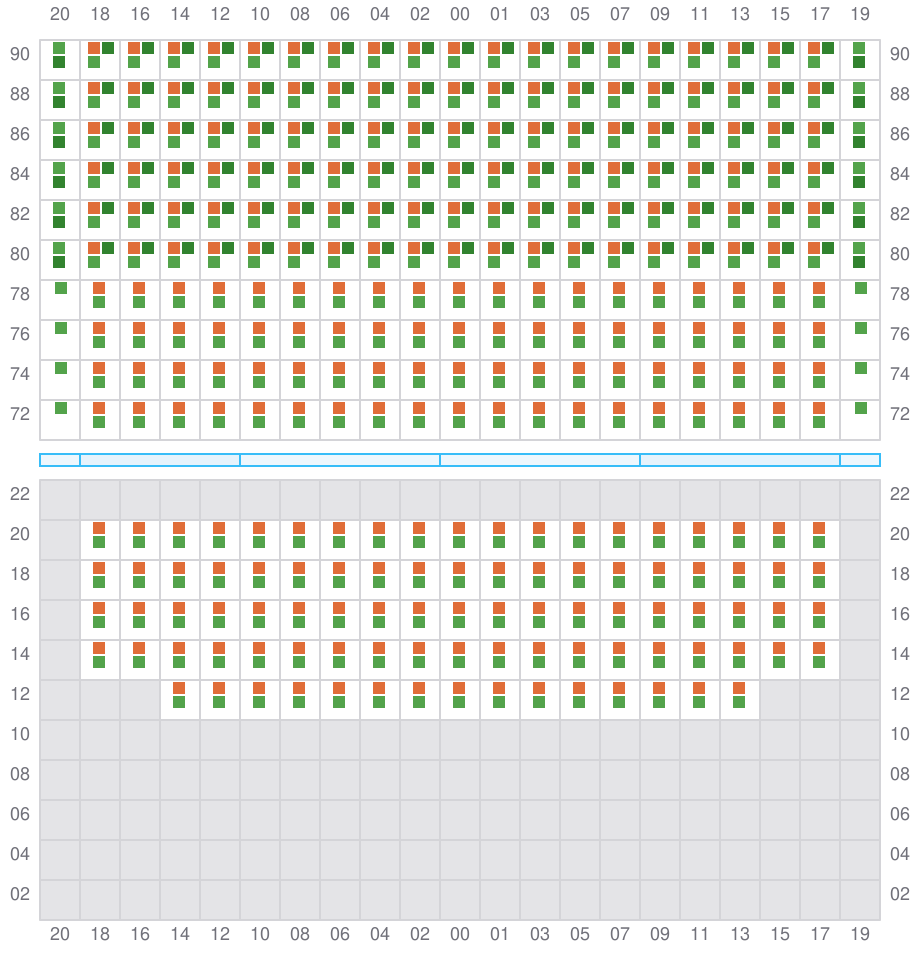

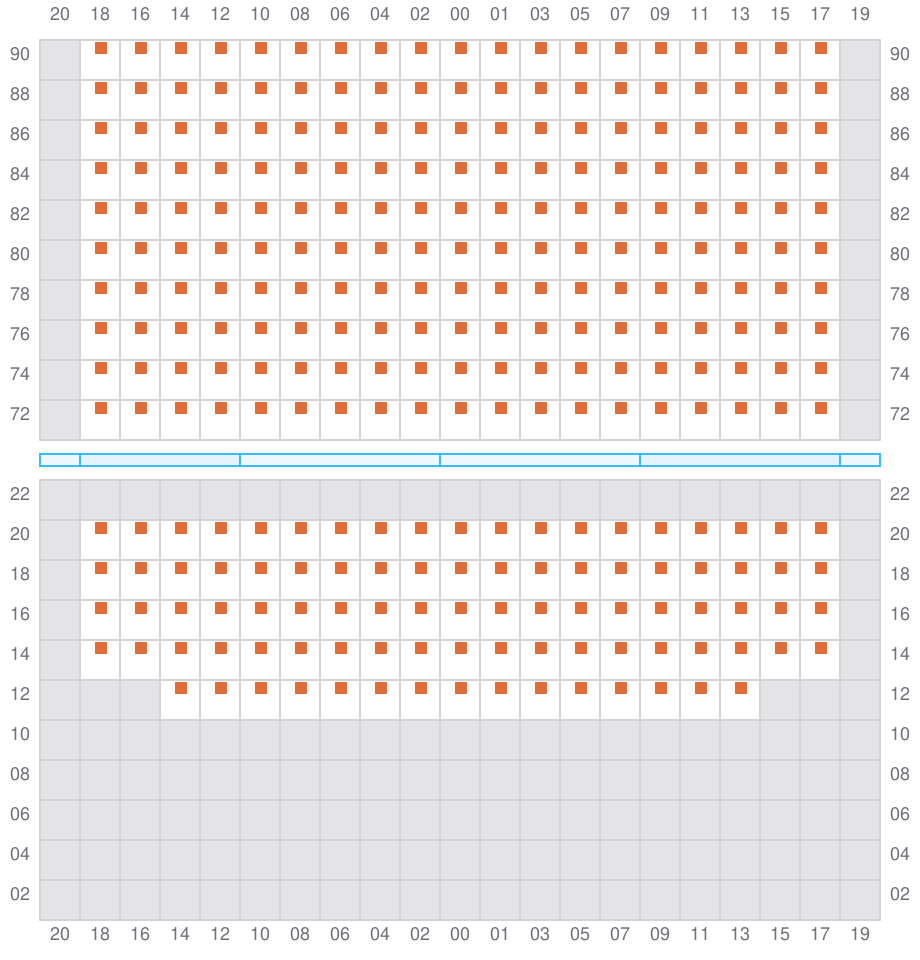

Bay 079 view and slots of MAERSK HANOI

081 (082)

  • → / ?

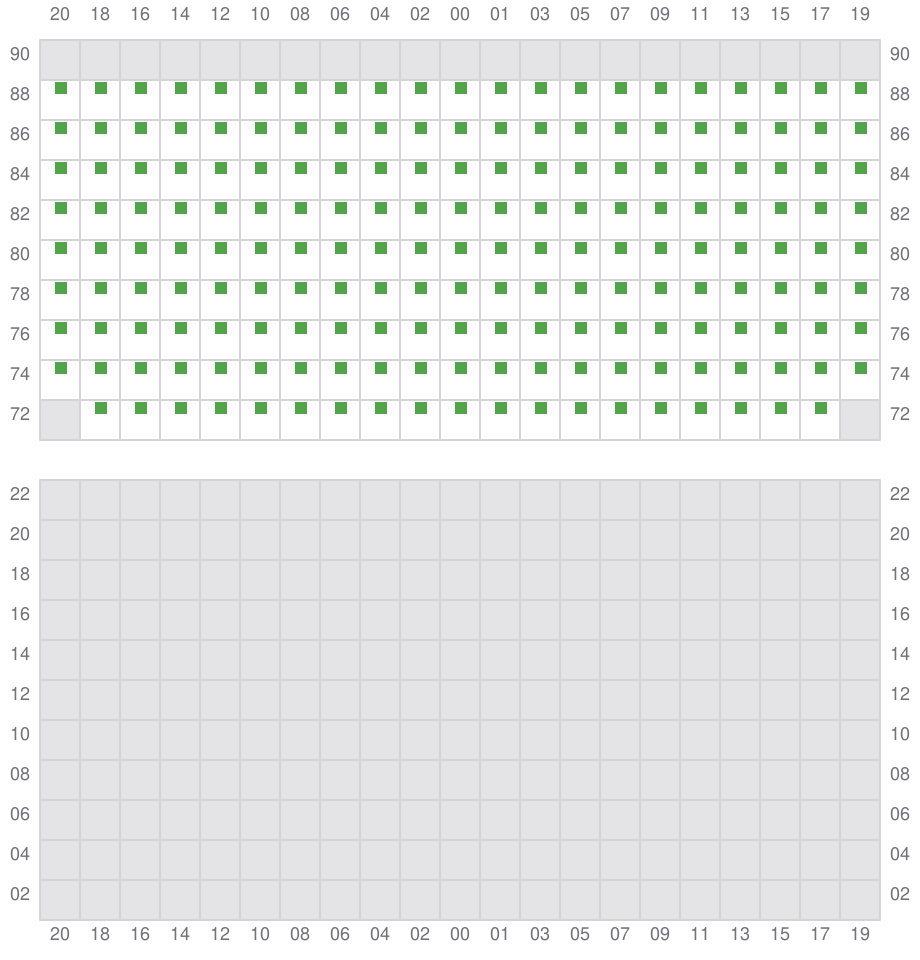

Bay 081 view and slots of MAERSK HANOI
