MAERSK HARTFORD
9333008 | WMHA | 9333008 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK HARTFORD
IMO Code:9333008
Call Sign:WMHA
Line Operator:9333008
Class Name for Sister Ships:402
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,711

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

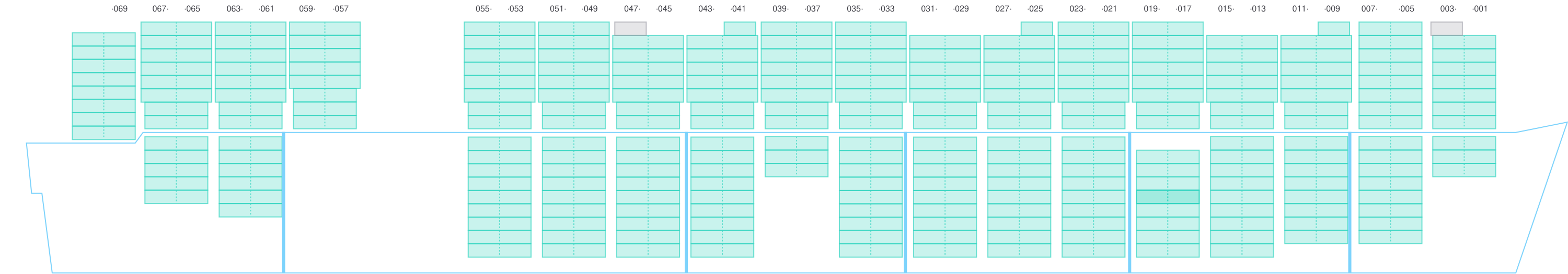

Side View

Side view of MAERSK HARTFORD

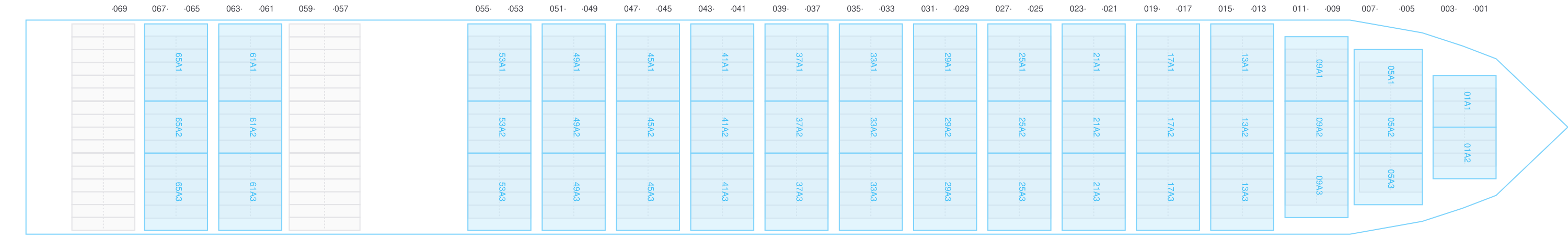

Hatch-Covers View

Deck view of MAERSK HARTFORD

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

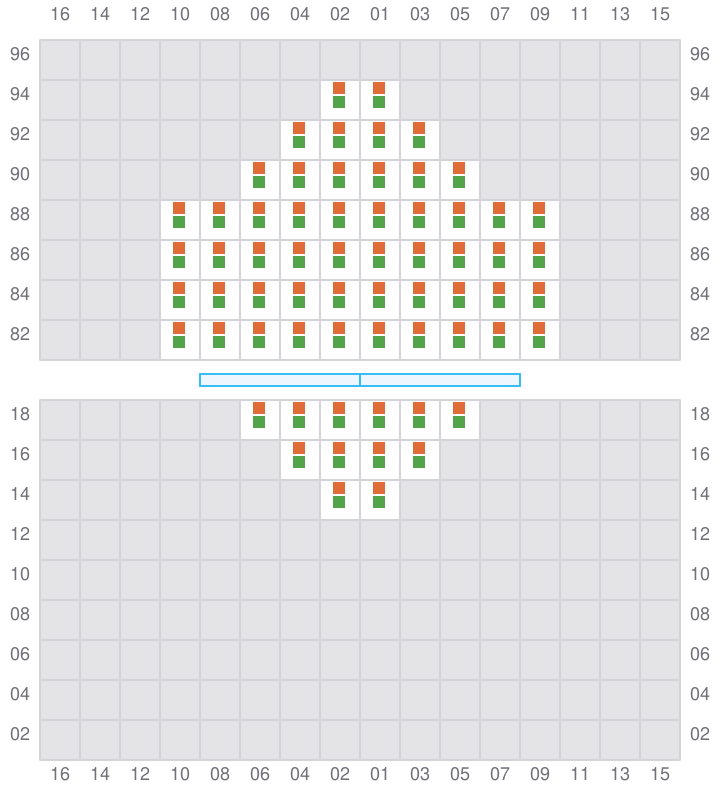

Bay 001 view and slots of MAERSK HARTFORD

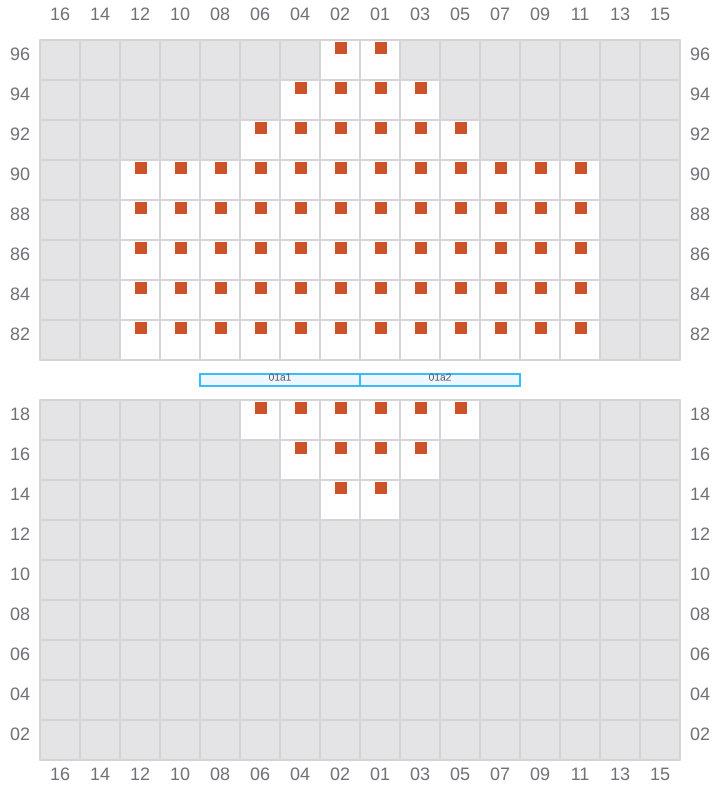

003

  • ←
Bay 003 view and slots of MAERSK HARTFORD

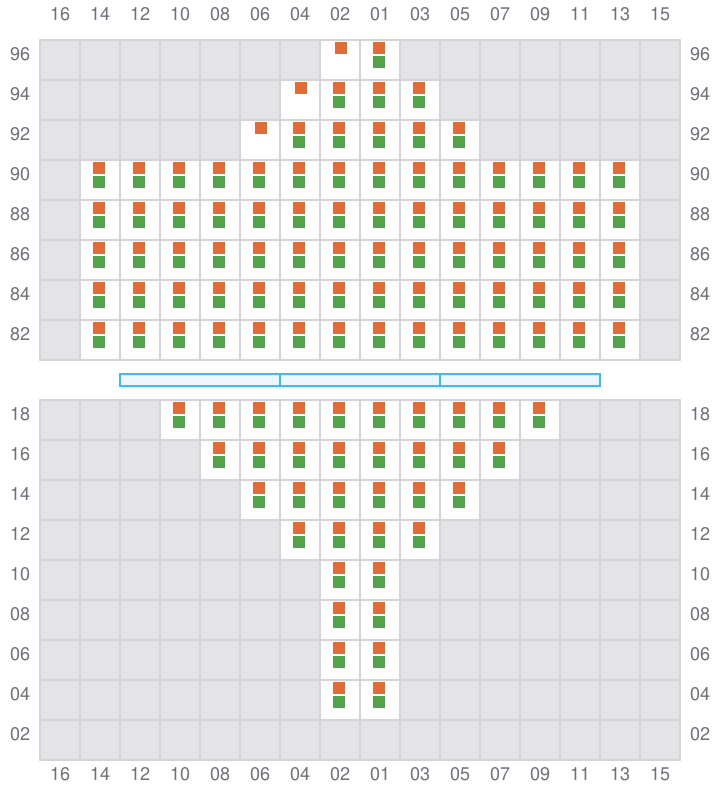

005 (006)

  • →
Bay 005 view and slots of MAERSK HARTFORD

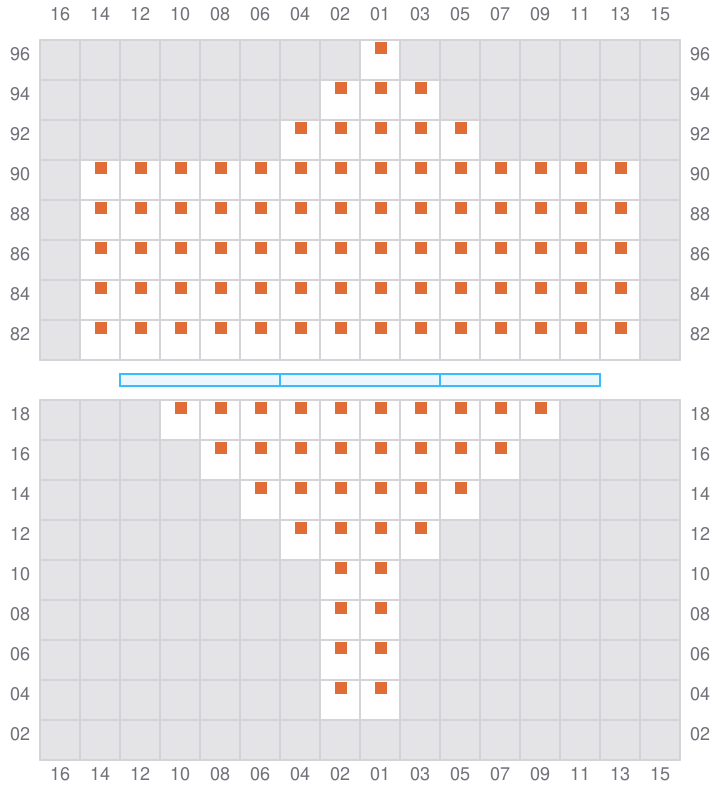

007

  • ←
Bay 007 view and slots of MAERSK HARTFORD

009 (010)

  • →

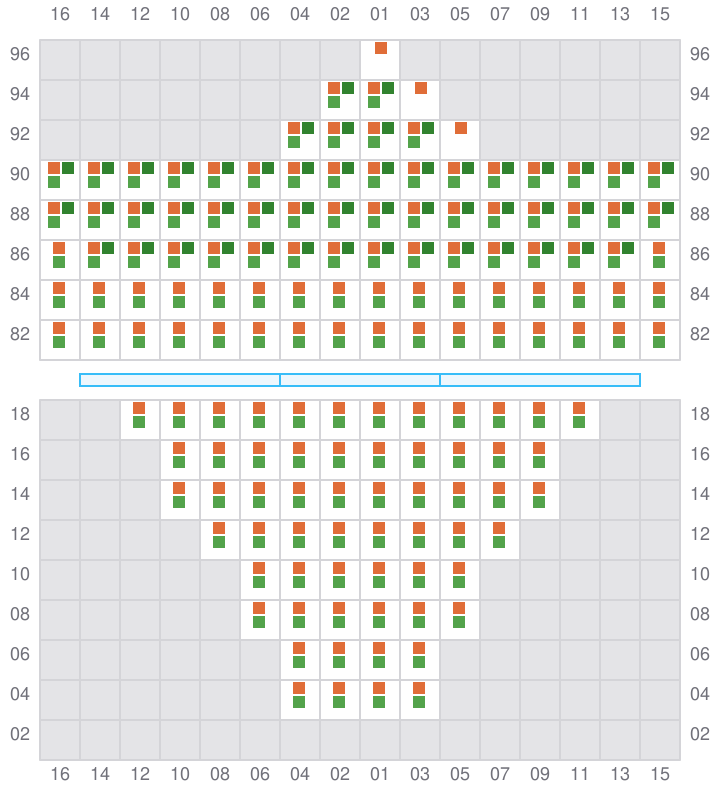

Bay 009 view and slots of MAERSK HARTFORD

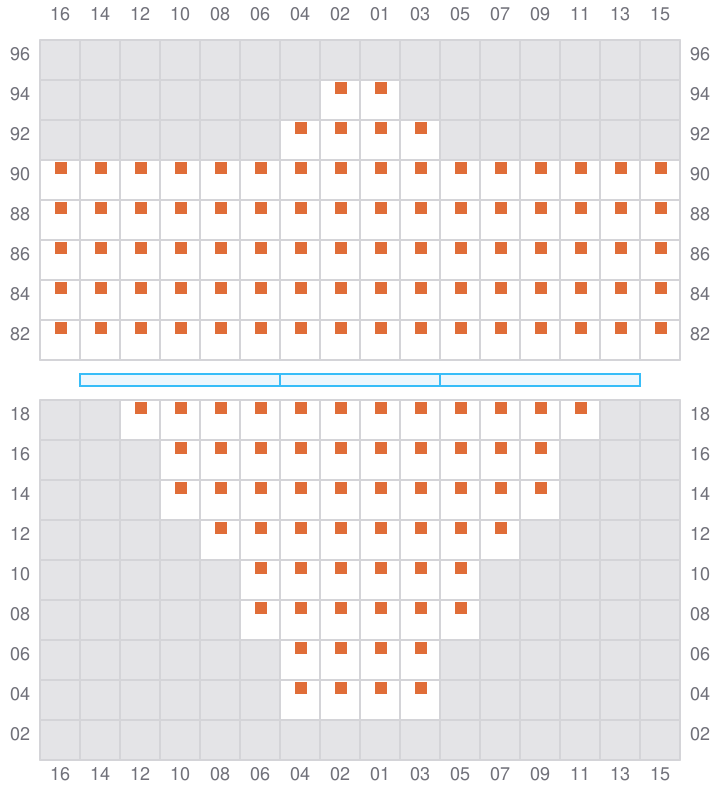

011

  • ←
Bay 011 view and slots of MAERSK HARTFORD

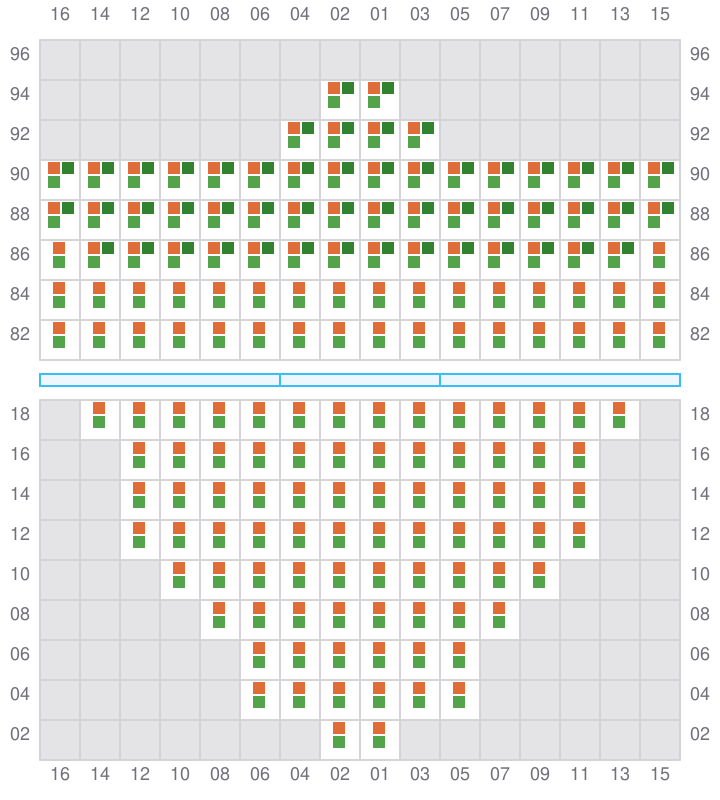

013 (014)

  • →
Bay 013 view and slots of MAERSK HARTFORD

015

  • ←

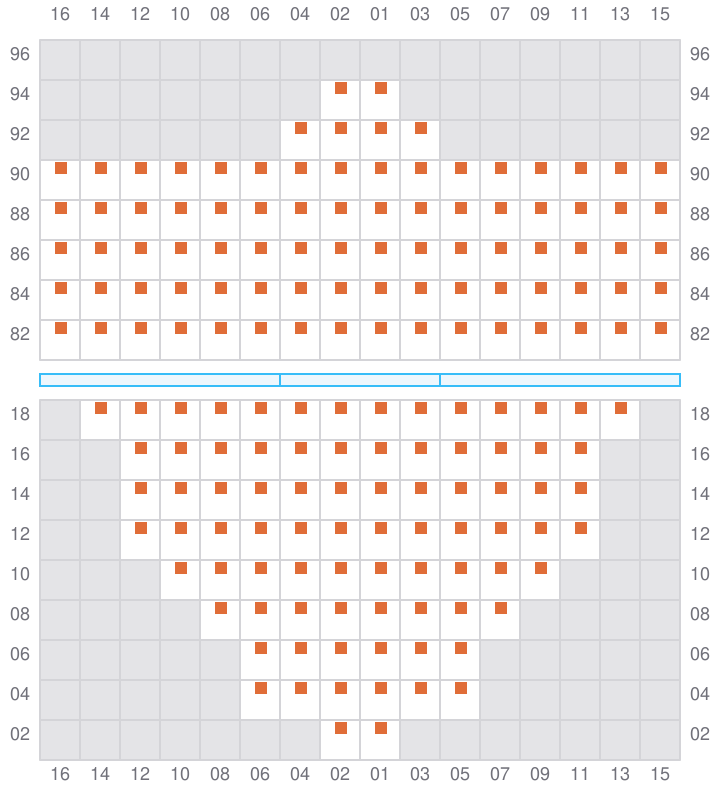

Bay 015 view and slots of MAERSK HARTFORD

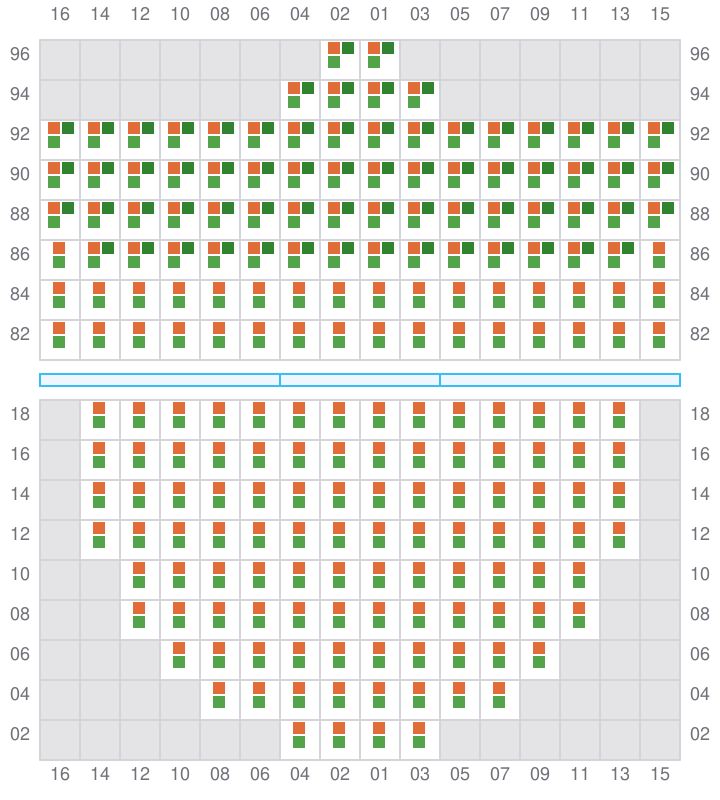

017 (018)

  • →
Bay 017 view and slots of MAERSK HARTFORD

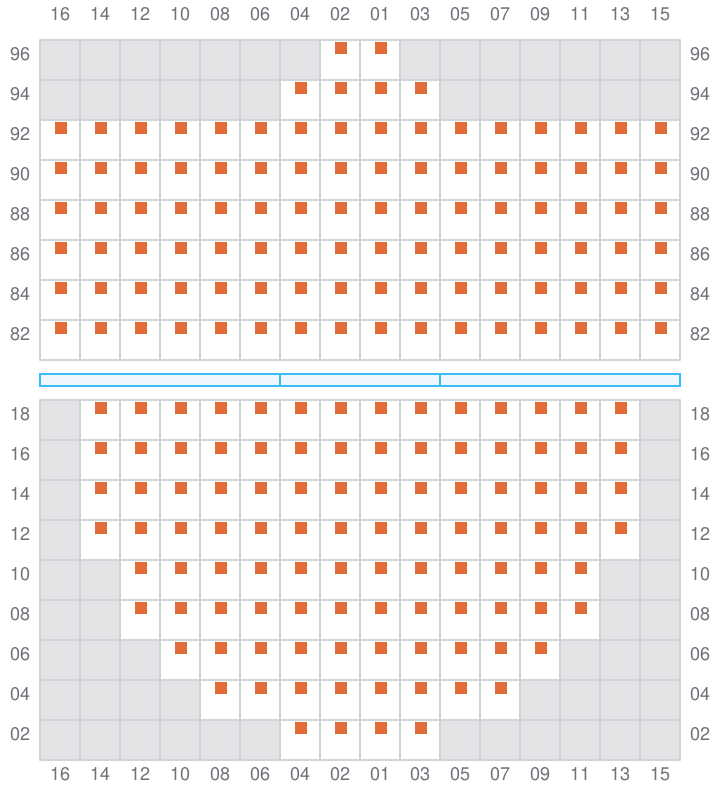

019

  • ←
Bay 019 view and slots of MAERSK HARTFORD

021 (022)

  • →

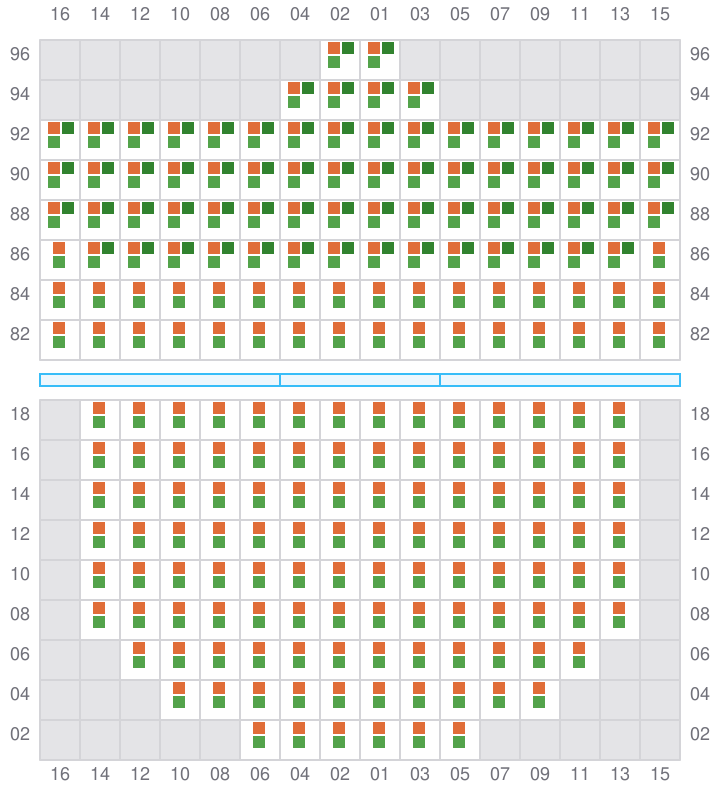

Bay 021 view and slots of MAERSK HARTFORD

023

  • ←
  • → / ?

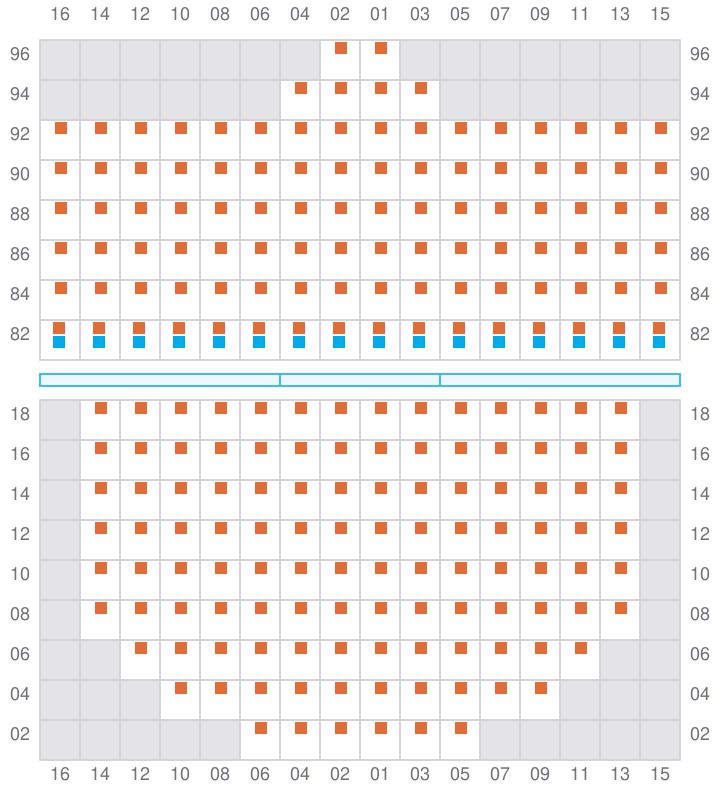

Bay 023 view and slots of MAERSK HARTFORD

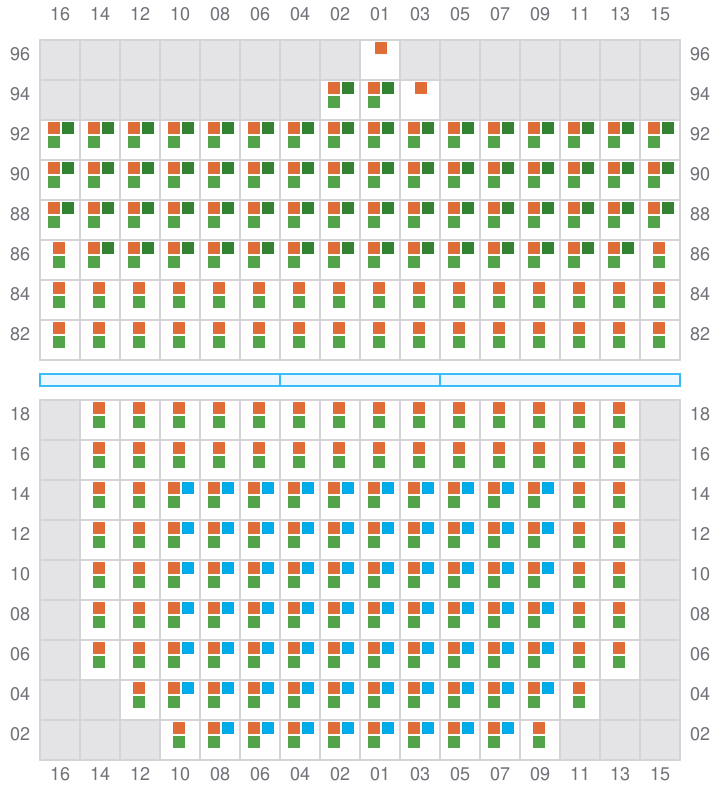

025 (026)

  • →
  • ? / ←
Bay 025 view and slots of MAERSK HARTFORD

027

  • ←
  • → / ←

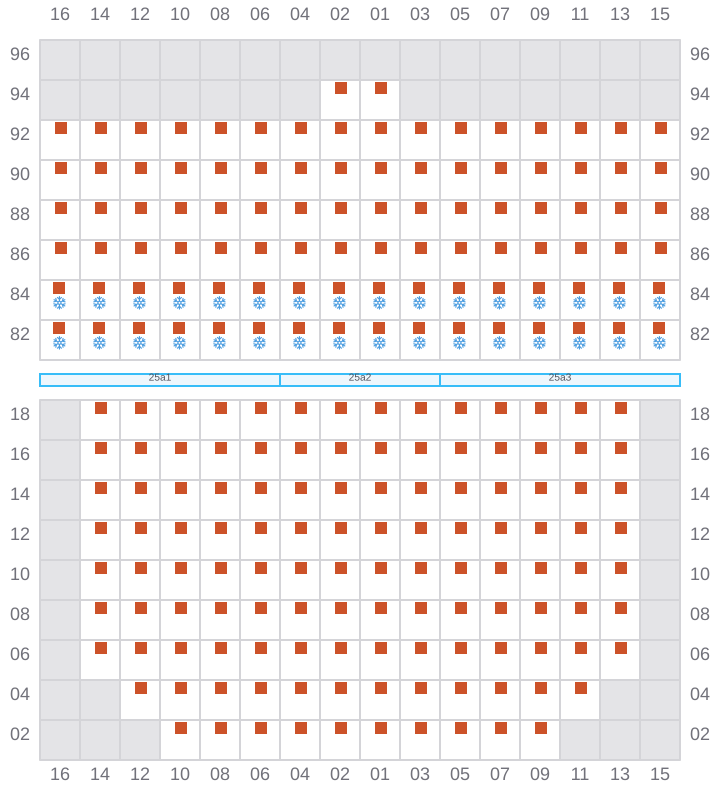

Bay 027 view and slots of MAERSK HARTFORD

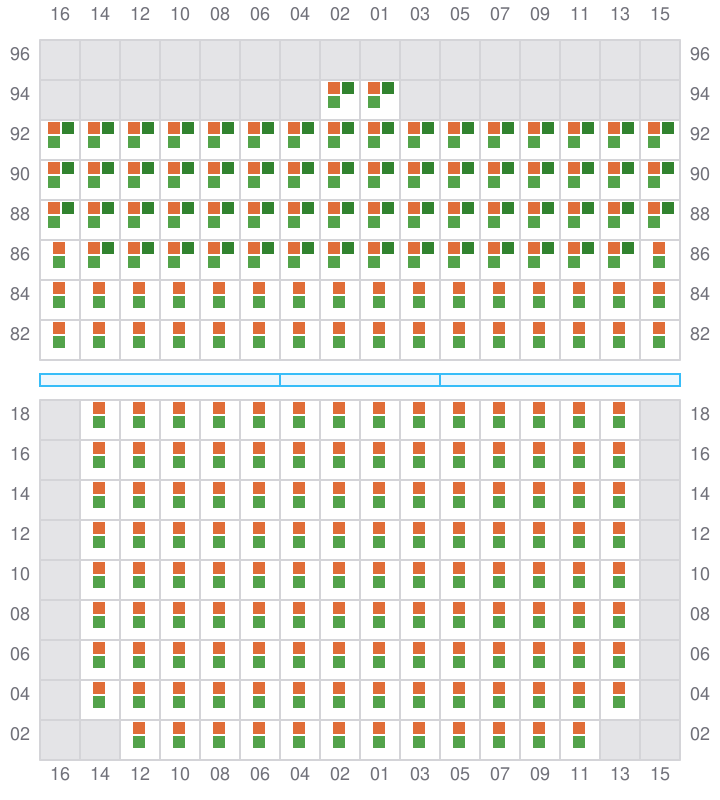

029 (030)

  • →
Bay 029 view and slots of MAERSK HARTFORD

031

  • ←
  • → / ?

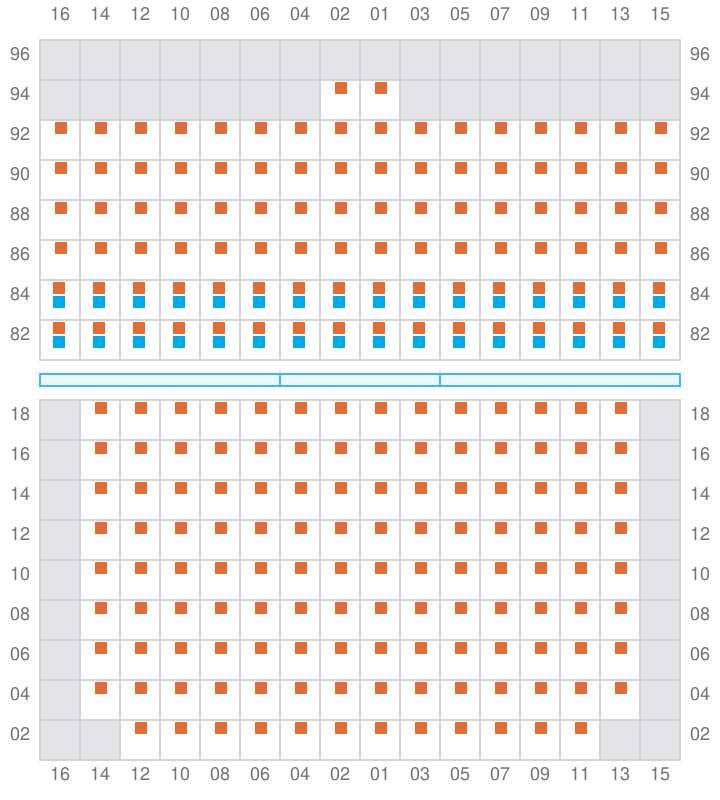

Bay 031 view and slots of MAERSK HARTFORD

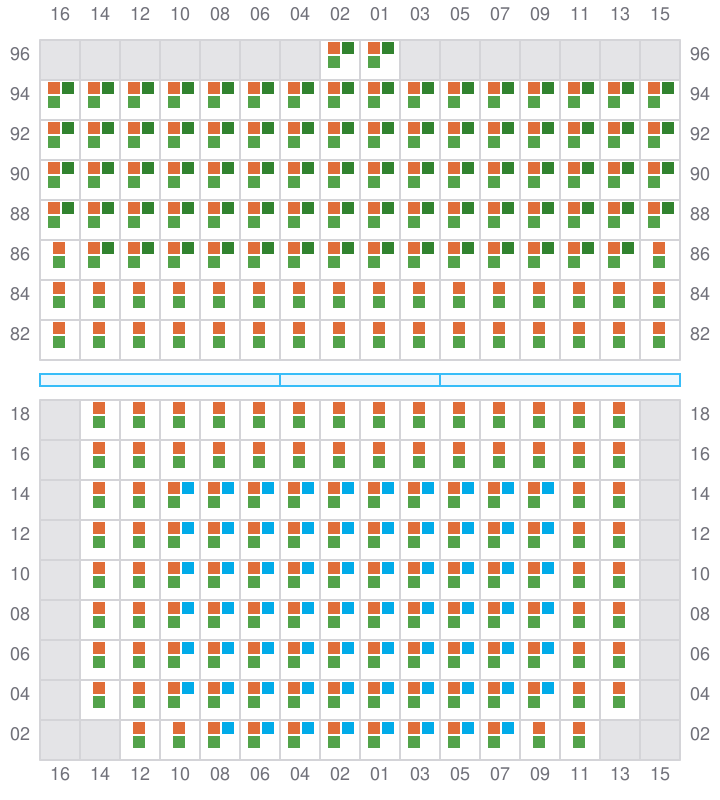

033 (034)

  • →
  • ? / ←
Bay 033 view and slots of MAERSK HARTFORD

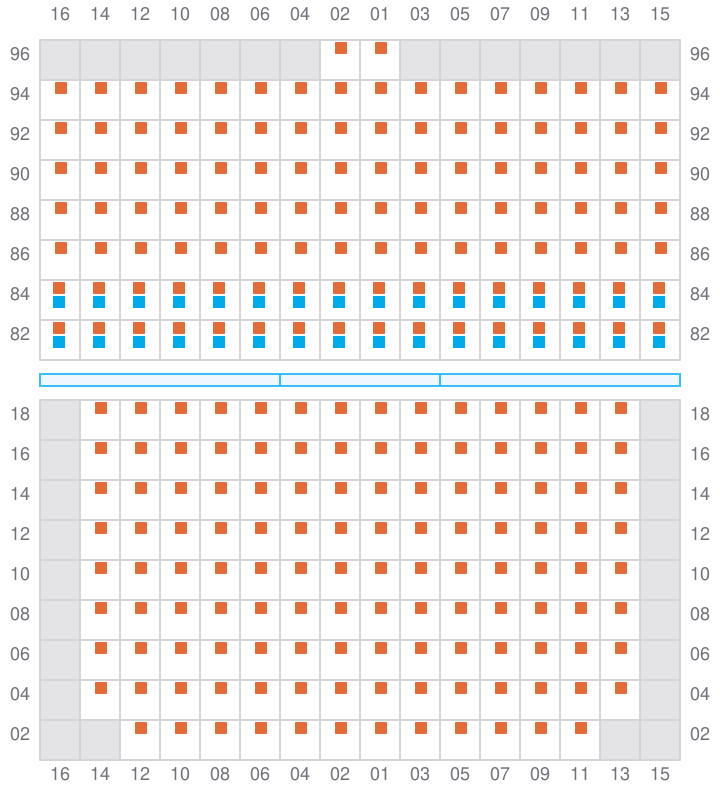

035

  • ←
  • → / ←
Bay 035 view and slots of MAERSK HARTFORD

037 (038)

  • →
  • ? / ←
Bay 037 view and slots of MAERSK HARTFORD

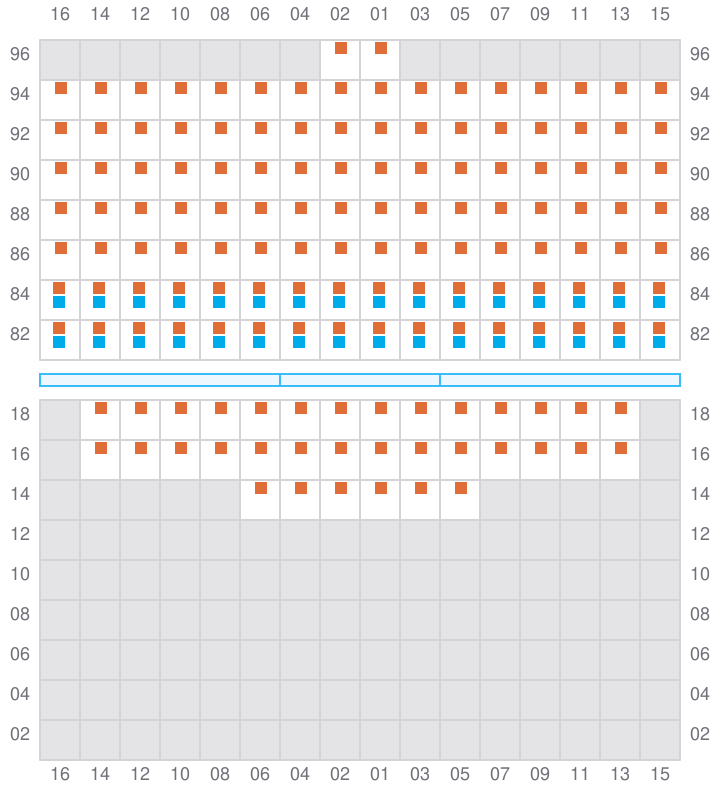

039

  • ←
  • → / ←

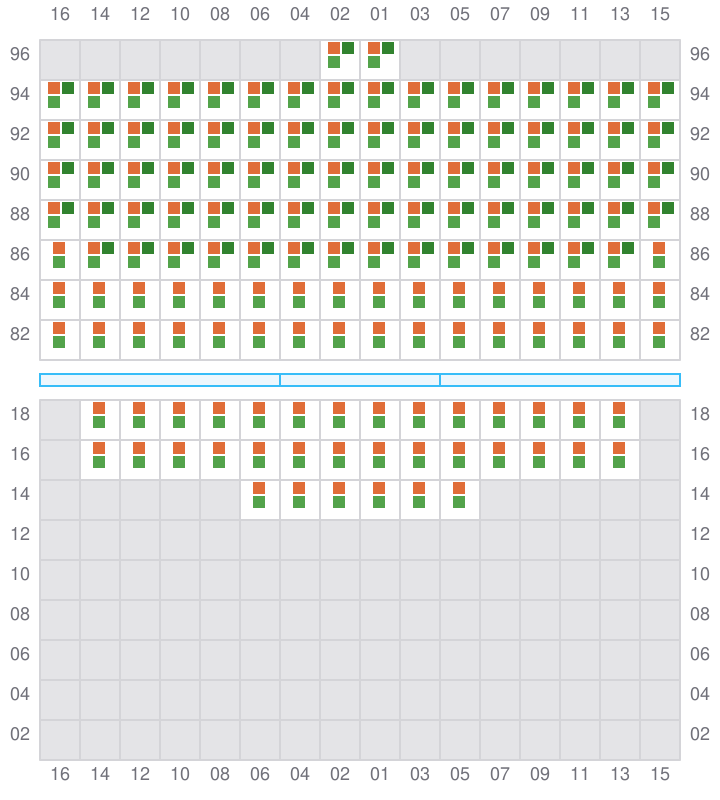

Bay 039 view and slots of MAERSK HARTFORD

041 (042)

  • →
  • ? / ←

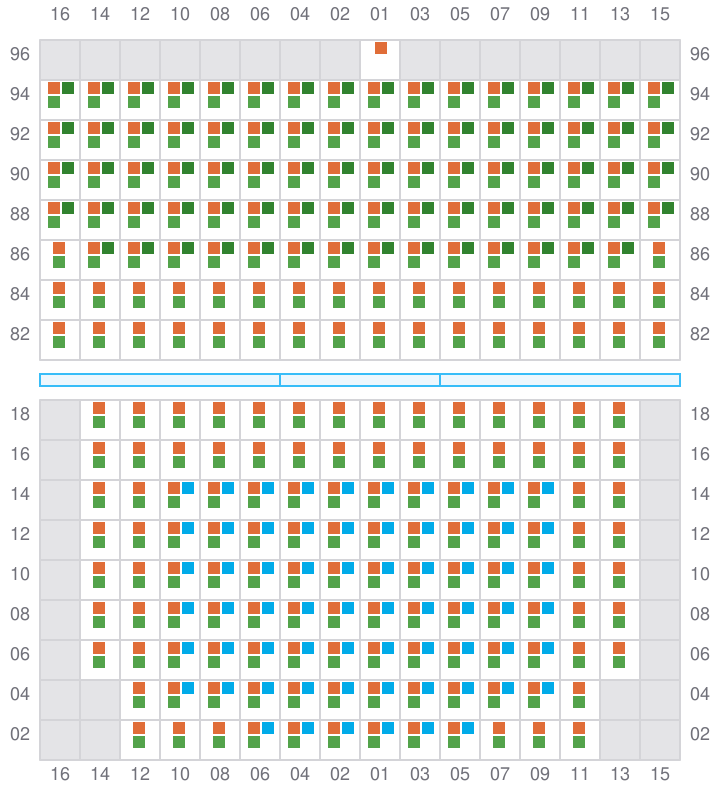

Bay 041 view and slots of MAERSK HARTFORD

043

  • ←
  • → / ←

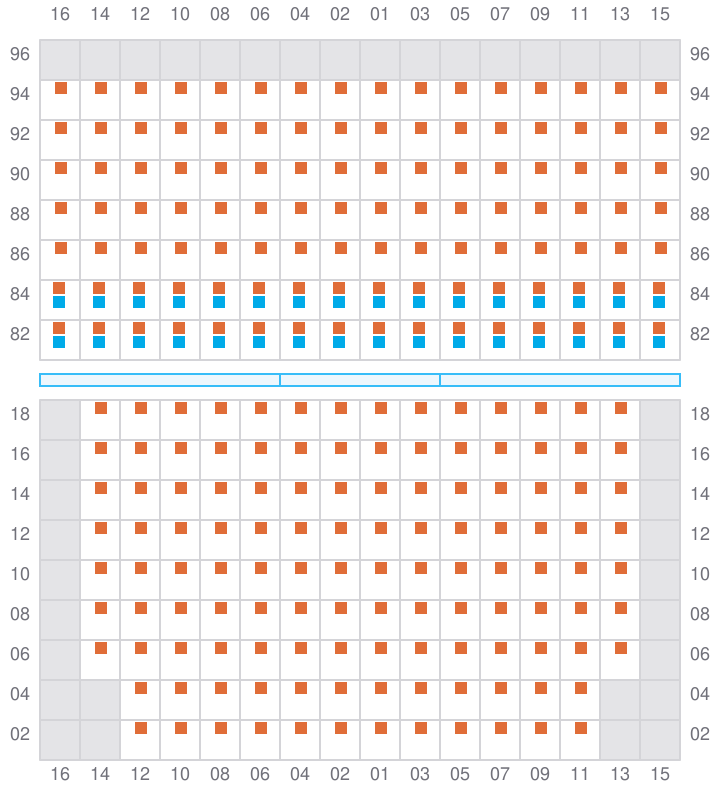

Bay 043 view and slots of MAERSK HARTFORD

045 (046)

  • →
  • ? / ←
Bay 045 view and slots of MAERSK HARTFORD

047

  • ←
  • → / ←

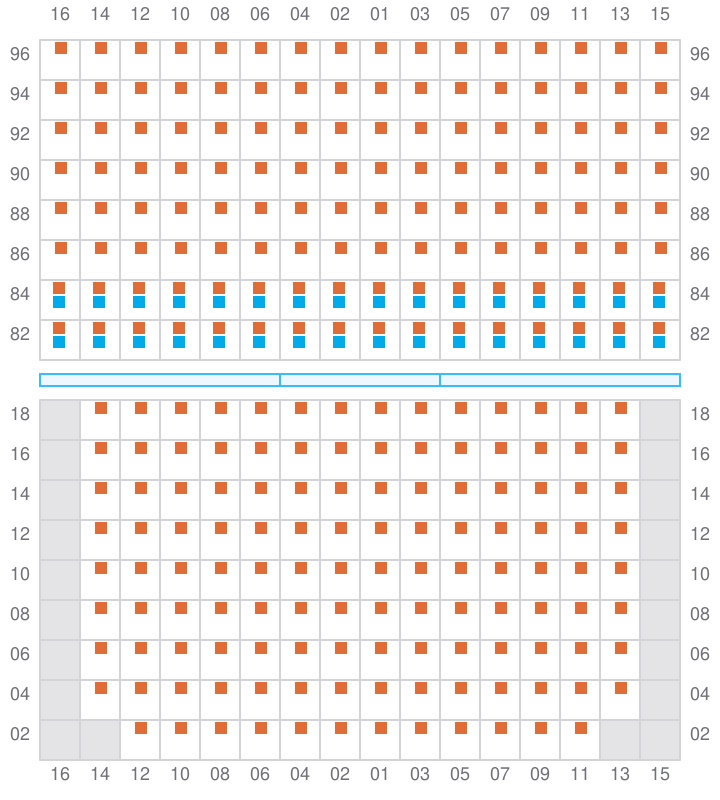

Bay 047 view and slots of MAERSK HARTFORD

049 (050)

  • →
  • ? / ←

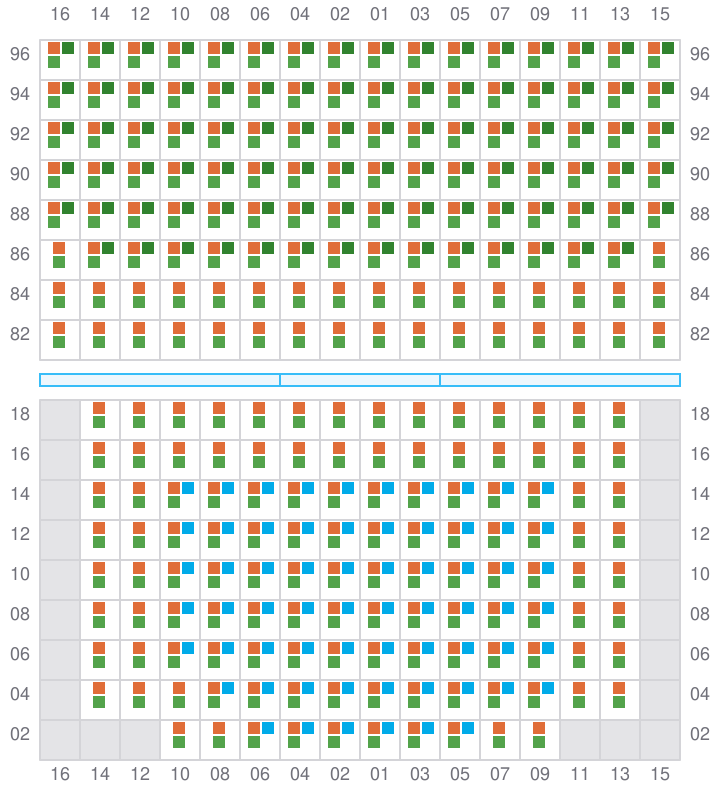

Bay 049 view and slots of MAERSK HARTFORD

051

  • ←
  • → / ←
Bay 051 view and slots of MAERSK HARTFORD

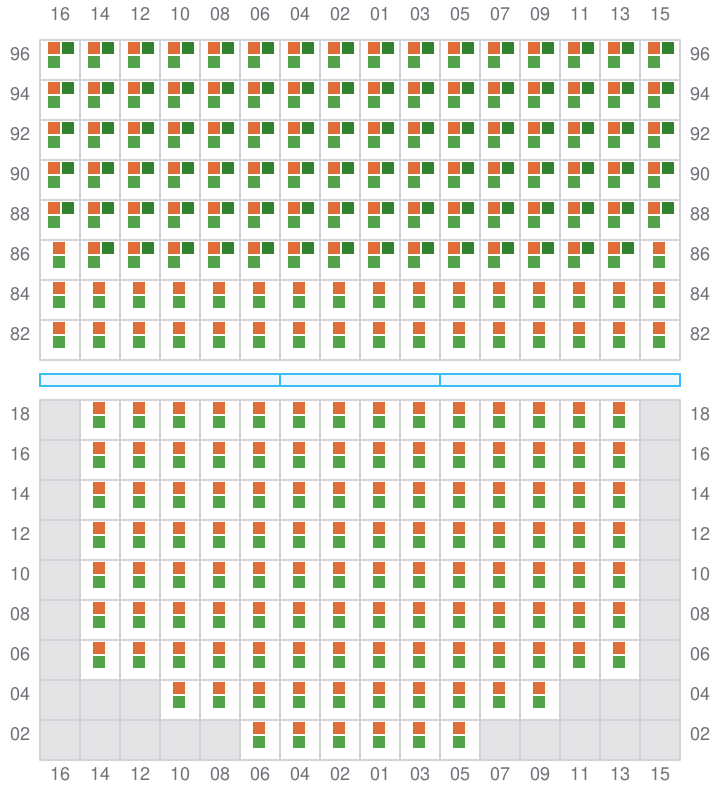

053 (054)

  • →
  • ? / ←
Bay 053 view and slots of MAERSK HARTFORD

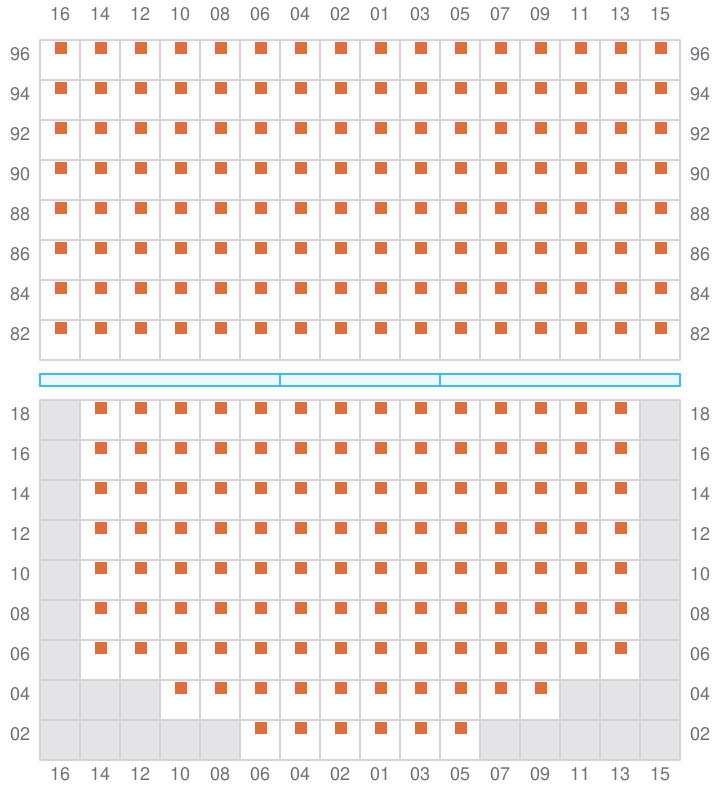

055

  • ←
  • ? / ←
Bay 055 view and slots of MAERSK HARTFORD

057 (058)

  • → / ?

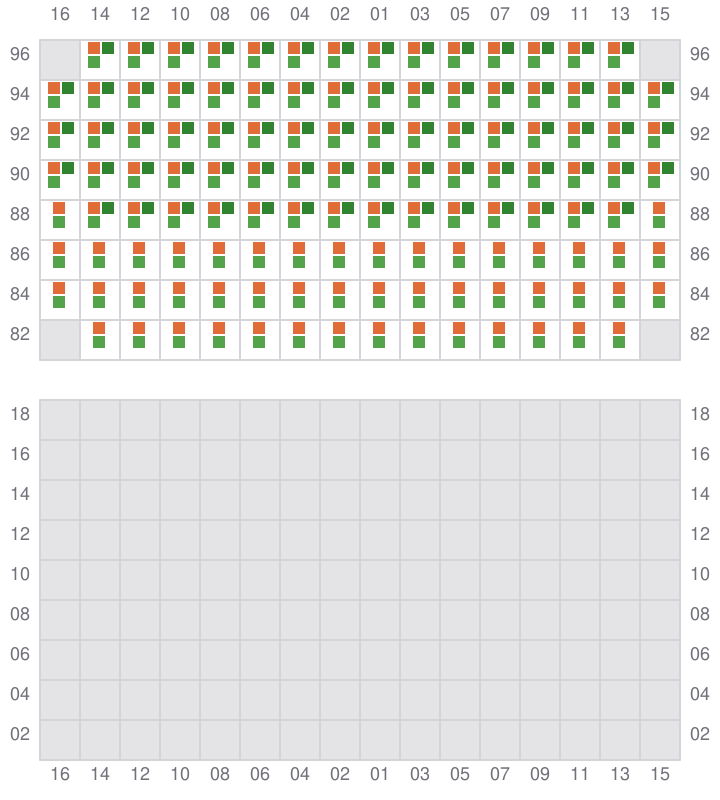

Bay 057 view and slots of MAERSK HARTFORD

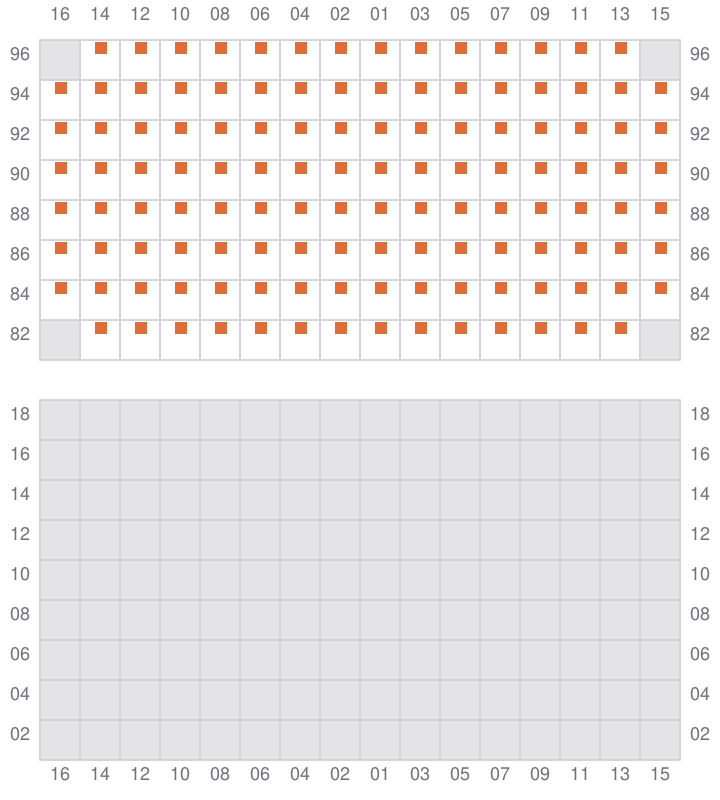

059

  • ← / ?
Bay 059 view and slots of MAERSK HARTFORD

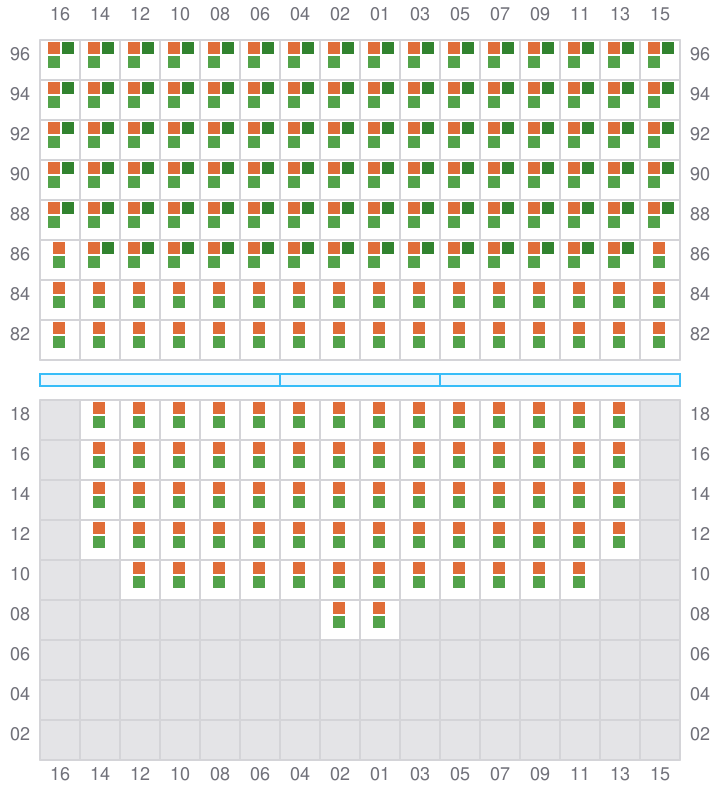

061 (062)

  • →
  • ? / ←
Bay 061 view and slots of MAERSK HARTFORD

063

  • ←
  • ? / ←

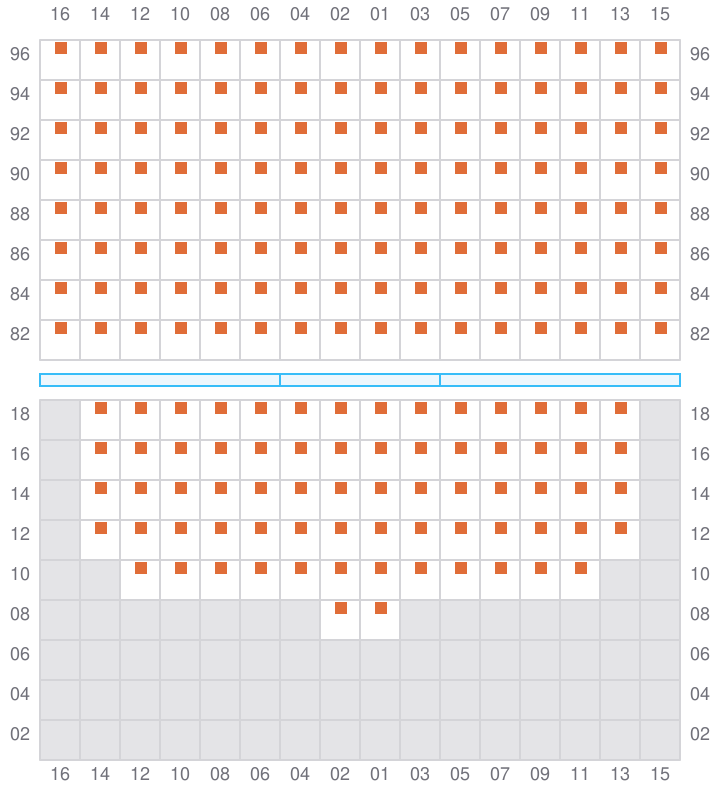

Bay 063 view and slots of MAERSK HARTFORD

065 (066)

  • →
  • ? / ←

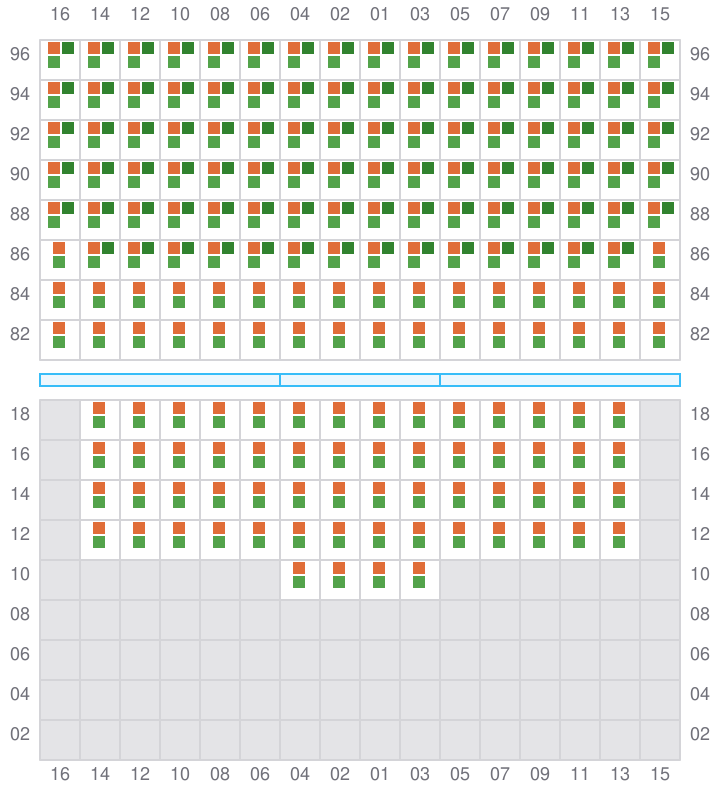

Bay 065 view and slots of MAERSK HARTFORD

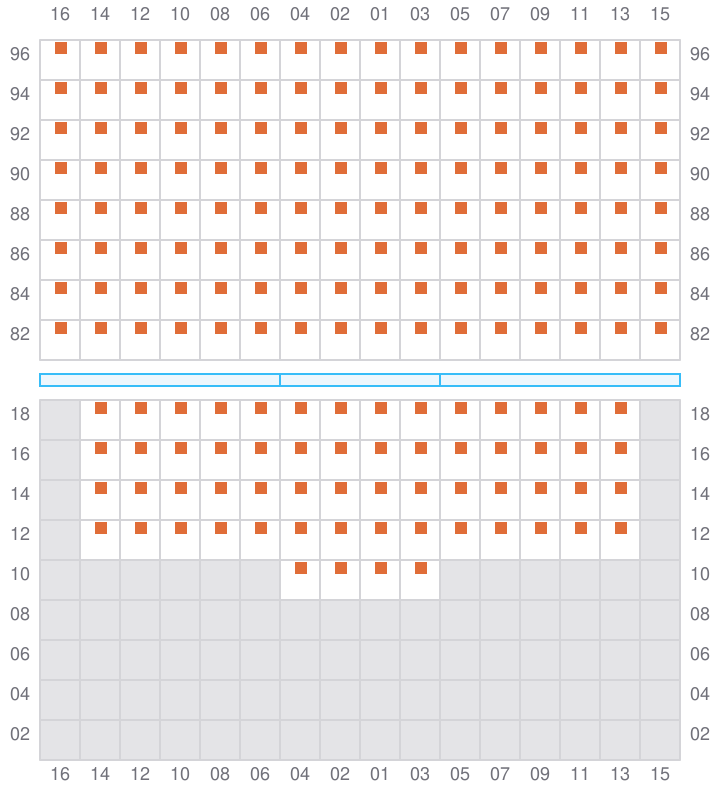

067

  • ←
  • ? / ←
Bay 067 view and slots of MAERSK HARTFORD

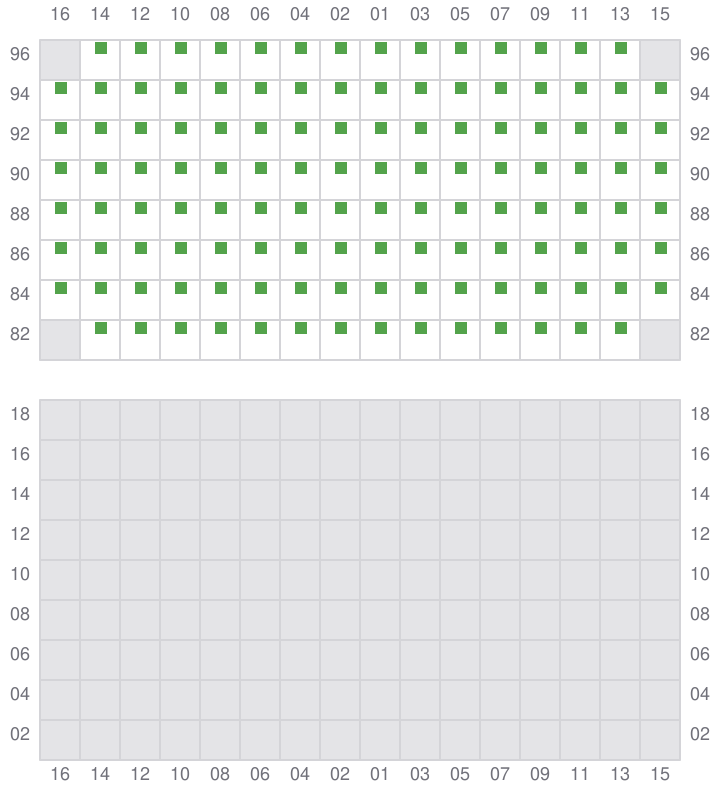

069 (070)

  • → / ?
Bay 069 view and slots of MAERSK HARTFORD
