MAERSK HIDALGO
9784283 | 9V5600 | 9784283 by ********* Last update: Fri May 10 2024

General Info

Ship Name:MAERSK HIDALGO

IMO Code:9784283

Call Sign:9V5600

Line Operator:9784283

Class Name for Sister Ships:MAERSKHIDALGO

Year Built:2017

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):340.50

LOA (Length Overall):353.02

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:081

Max ISO Row:20

Center Line Row:Yes

Max Above ISO Tier:90

Min Above ISO Tier:72

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:14,802

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

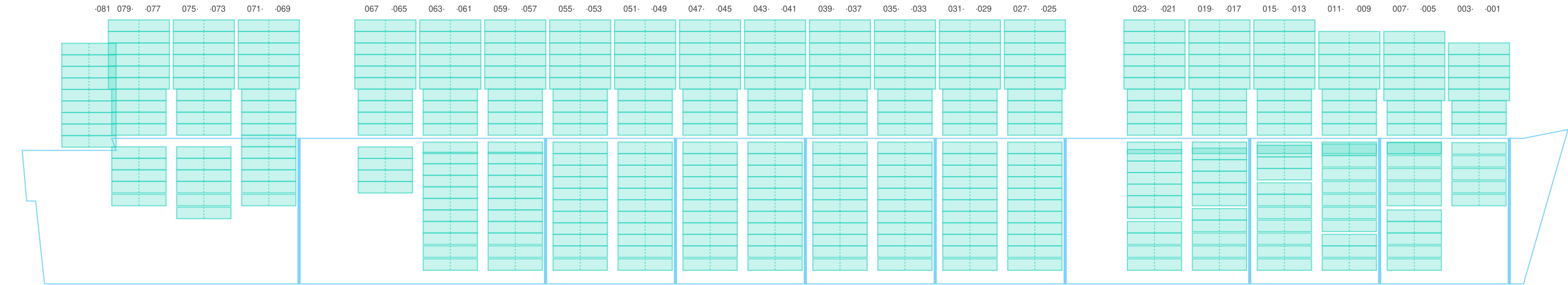

Side view of MAERSK HIDALGO

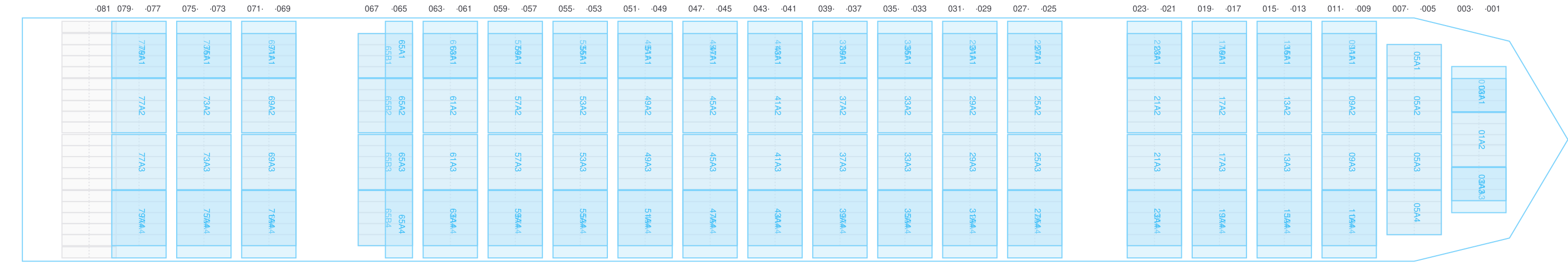

Hatch-Covers View

Deck view of MAERSK HIDALGO

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

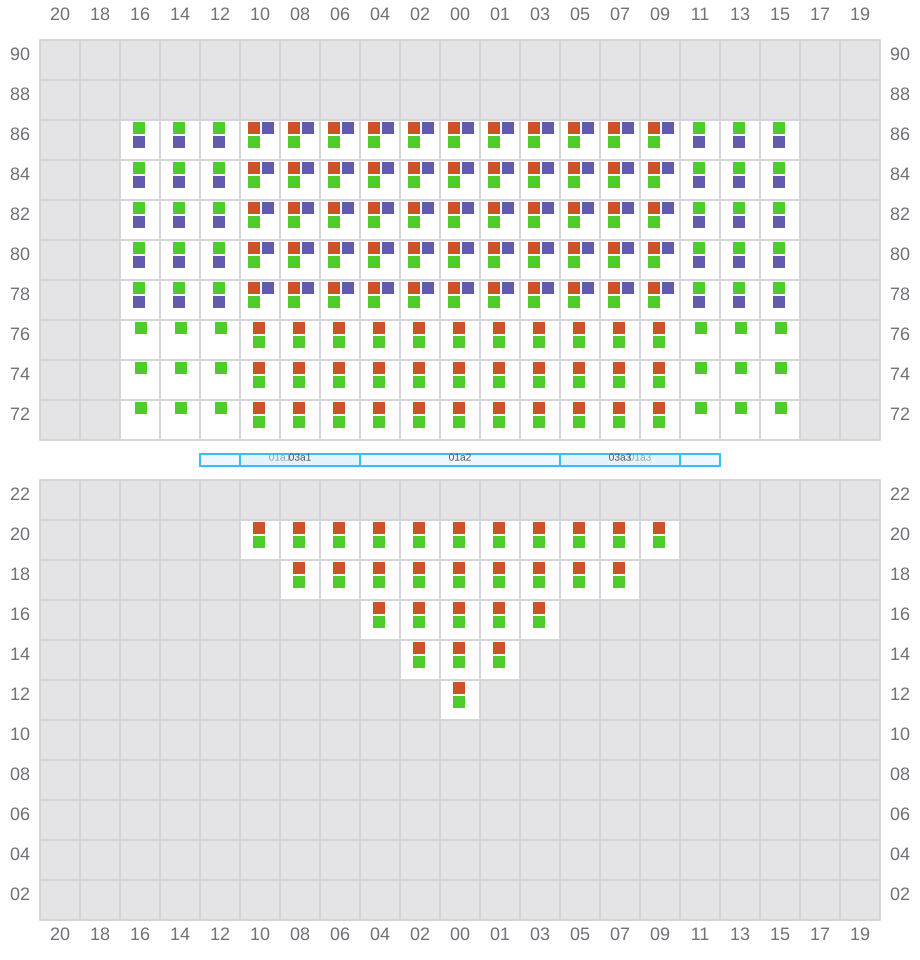

Bay 001 view and slots of MAERSK HIDALGO

003

←

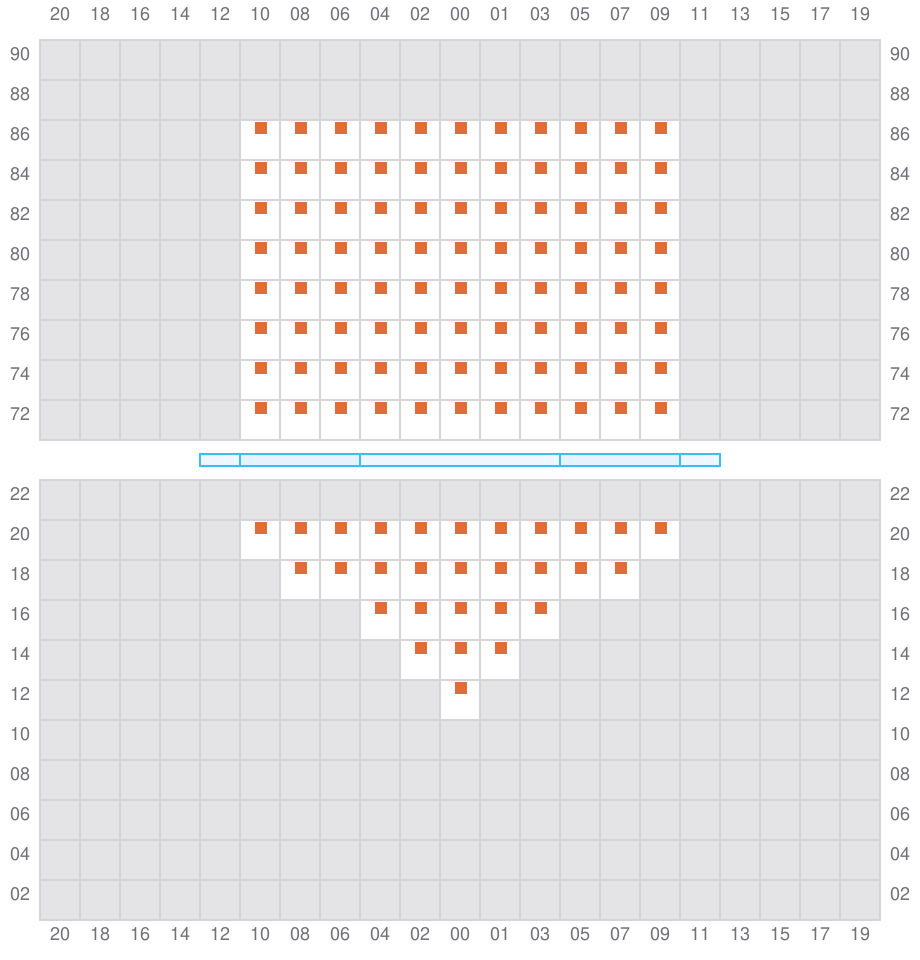

Bay 003 view and slots of MAERSK HIDALGO

005 (006)

→

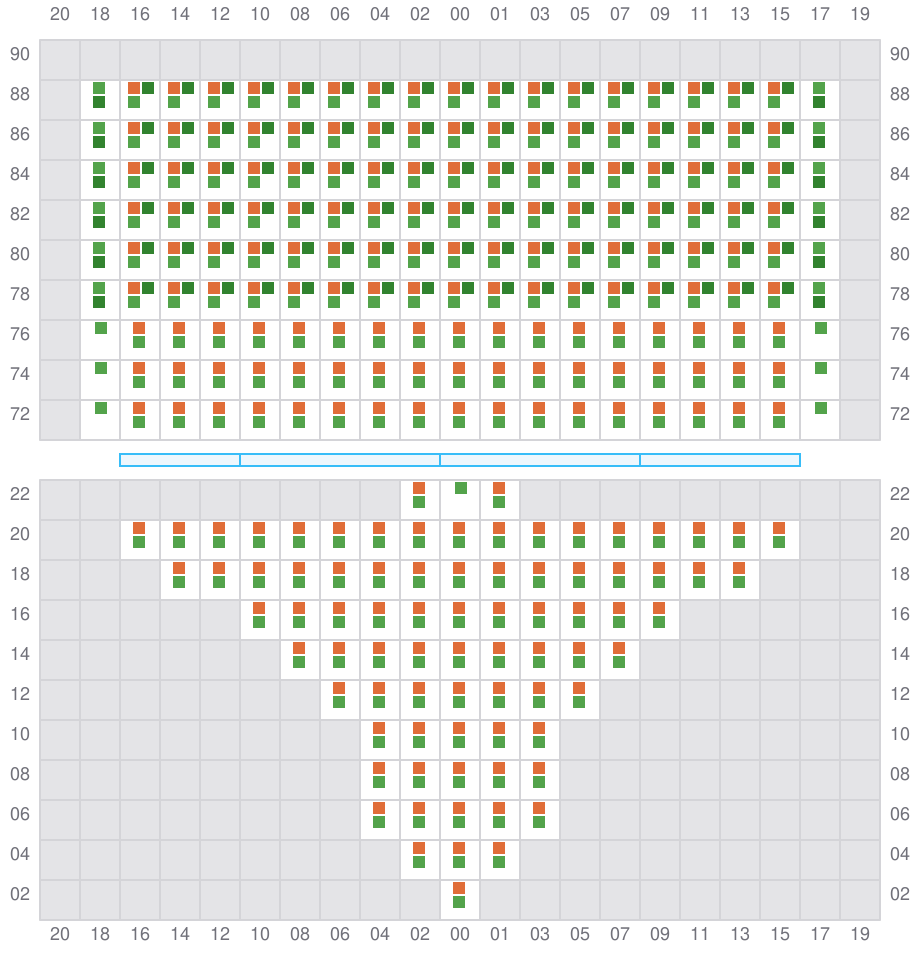

Bay 005 view and slots of MAERSK HIDALGO

007

←

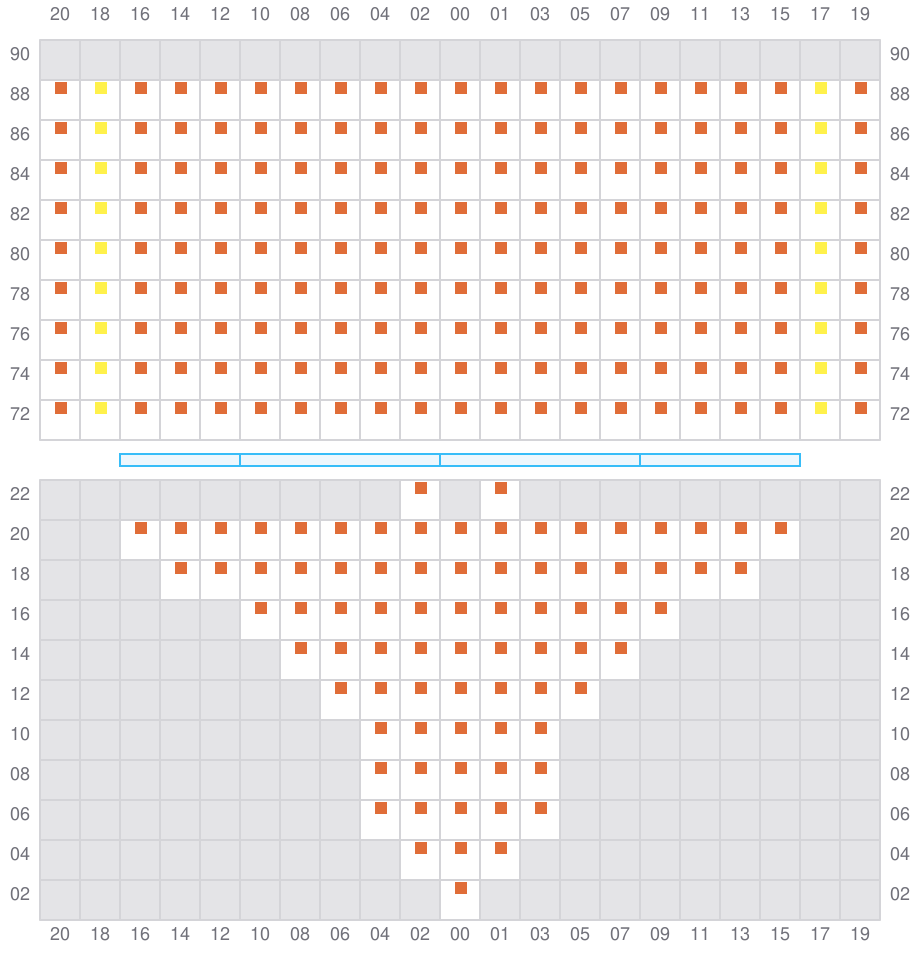

Bay 007 view and slots of MAERSK HIDALGO

009 (010)

→

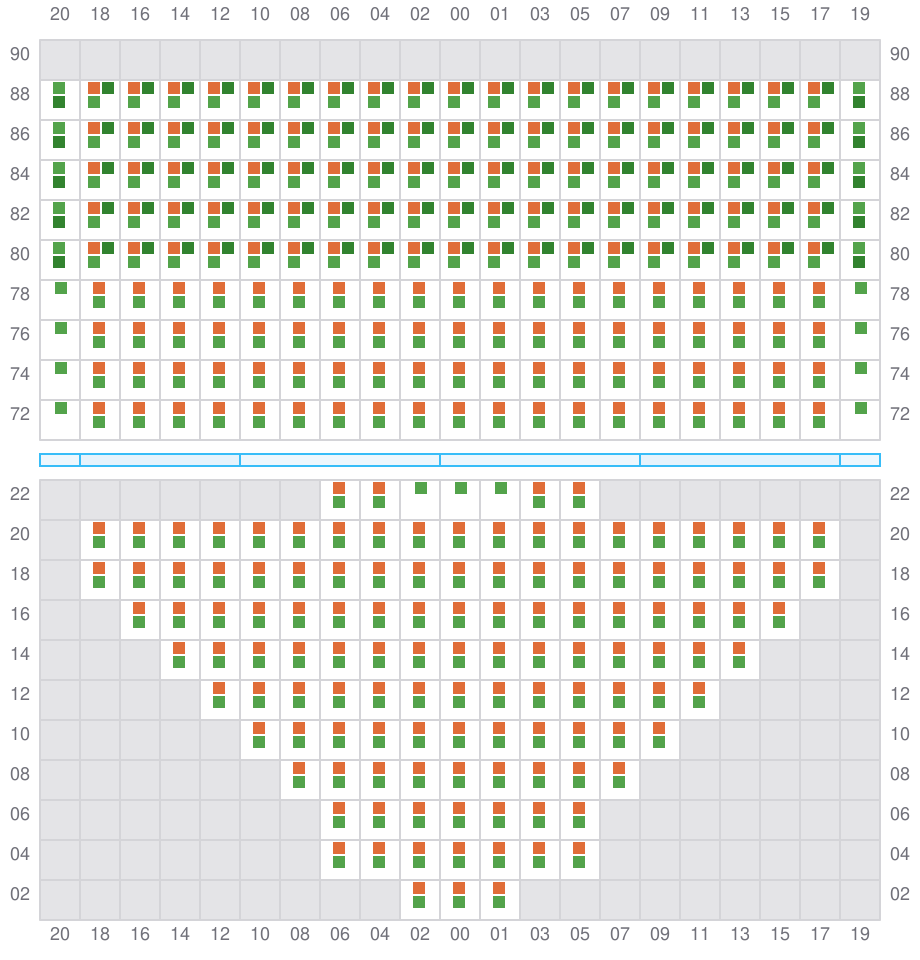

Bay 009 view and slots of MAERSK HIDALGO

011

←

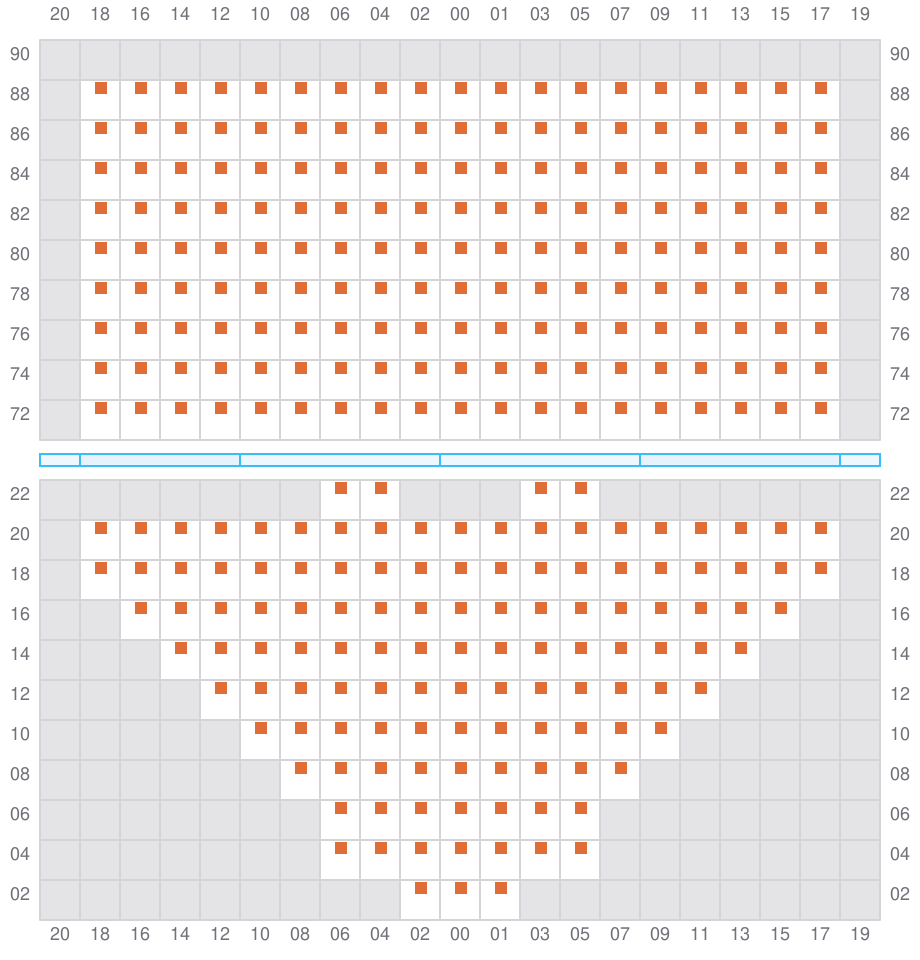

Bay 011 view and slots of MAERSK HIDALGO

013 (014)

→

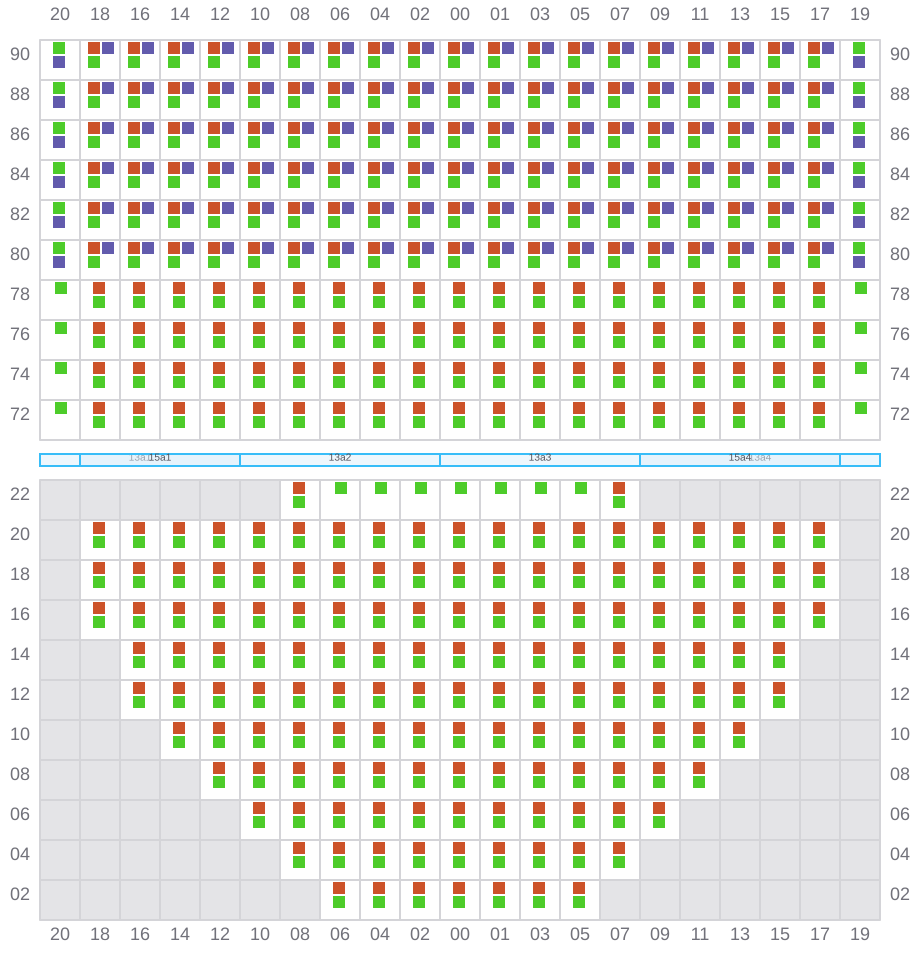

Bay 013 view and slots of MAERSK HIDALGO

015

←

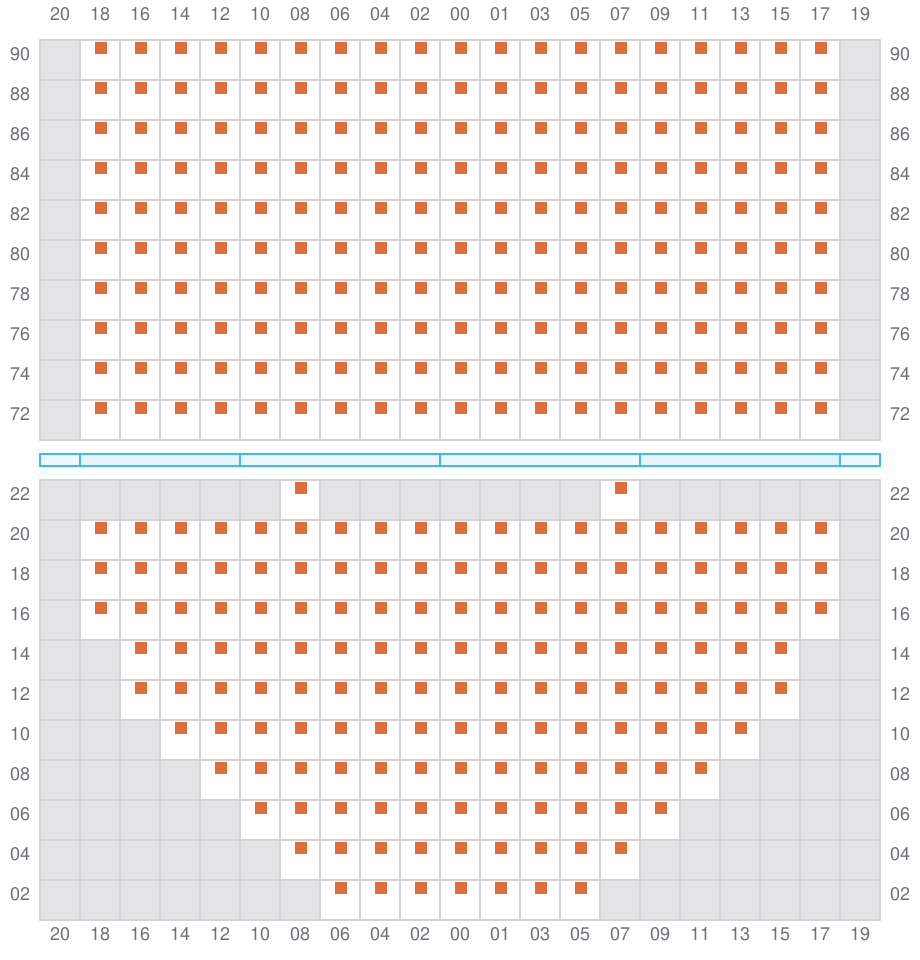

Bay 015 view and slots of MAERSK HIDALGO

017 (018)

→

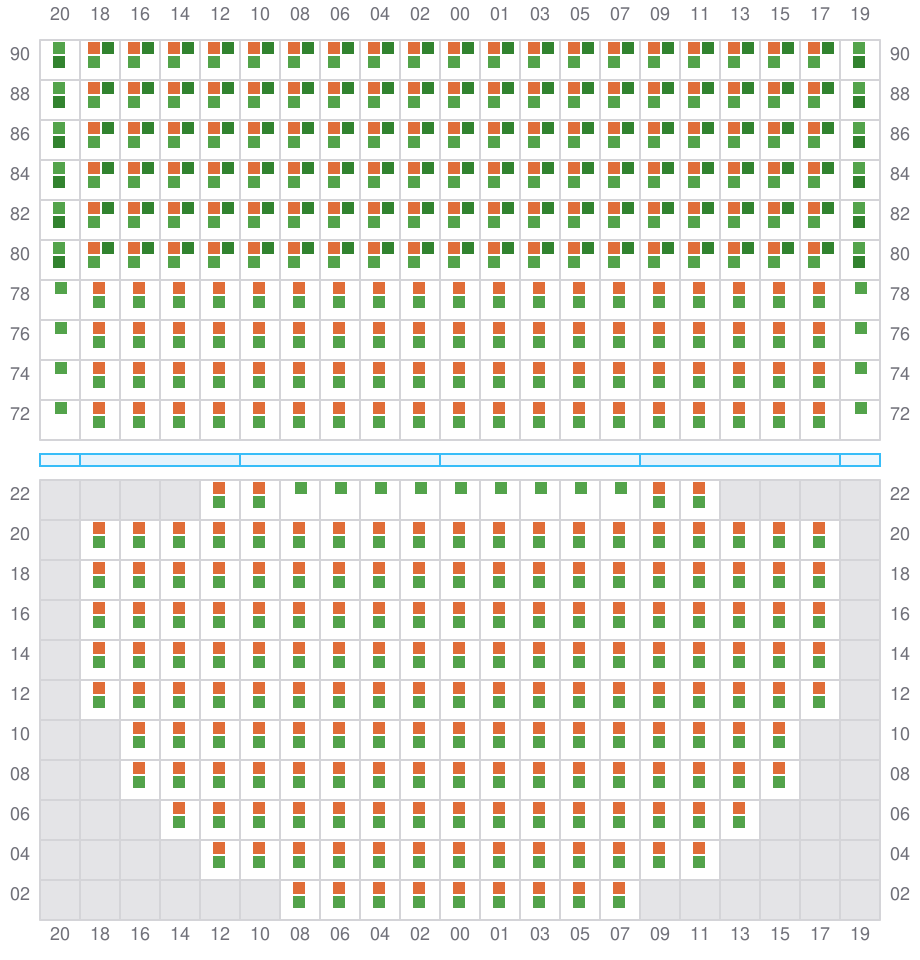

Bay 017 view and slots of MAERSK HIDALGO

019

←

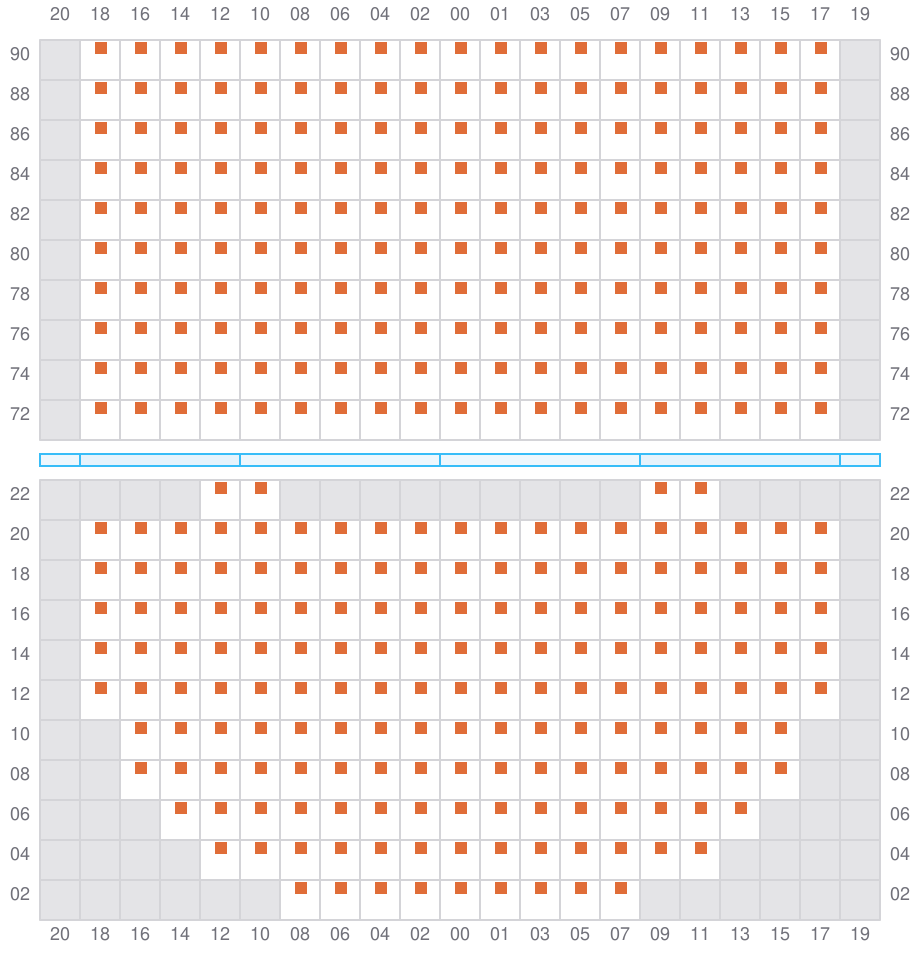

Bay 019 view and slots of MAERSK HIDALGO

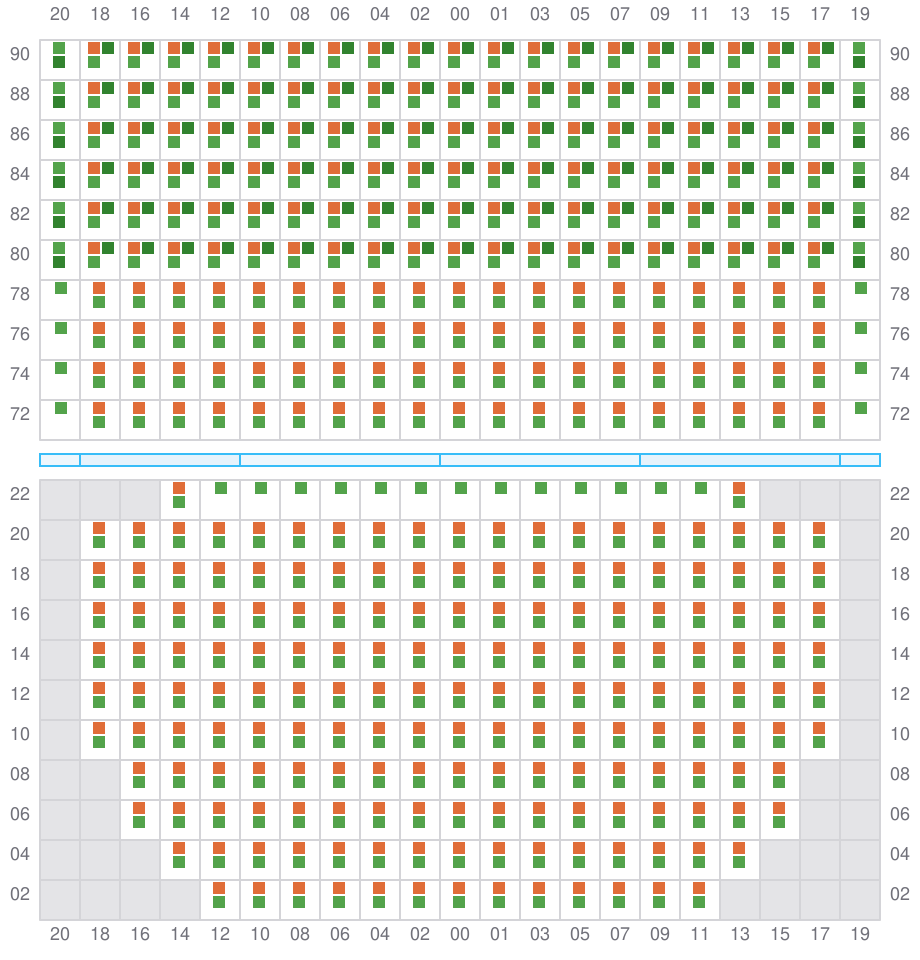

021 (022)

→

Bay 021 view and slots of MAERSK HIDALGO

023

←

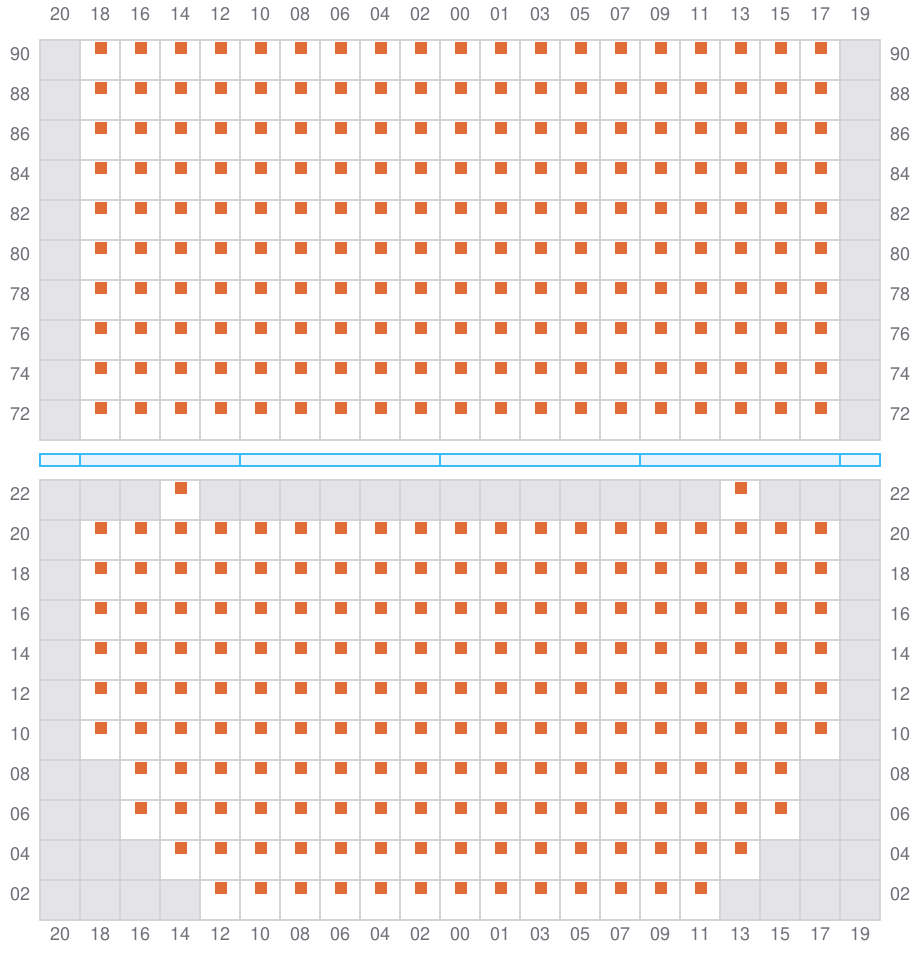

Bay 023 view and slots of MAERSK HIDALGO

025 (026)

→
^→ / _?

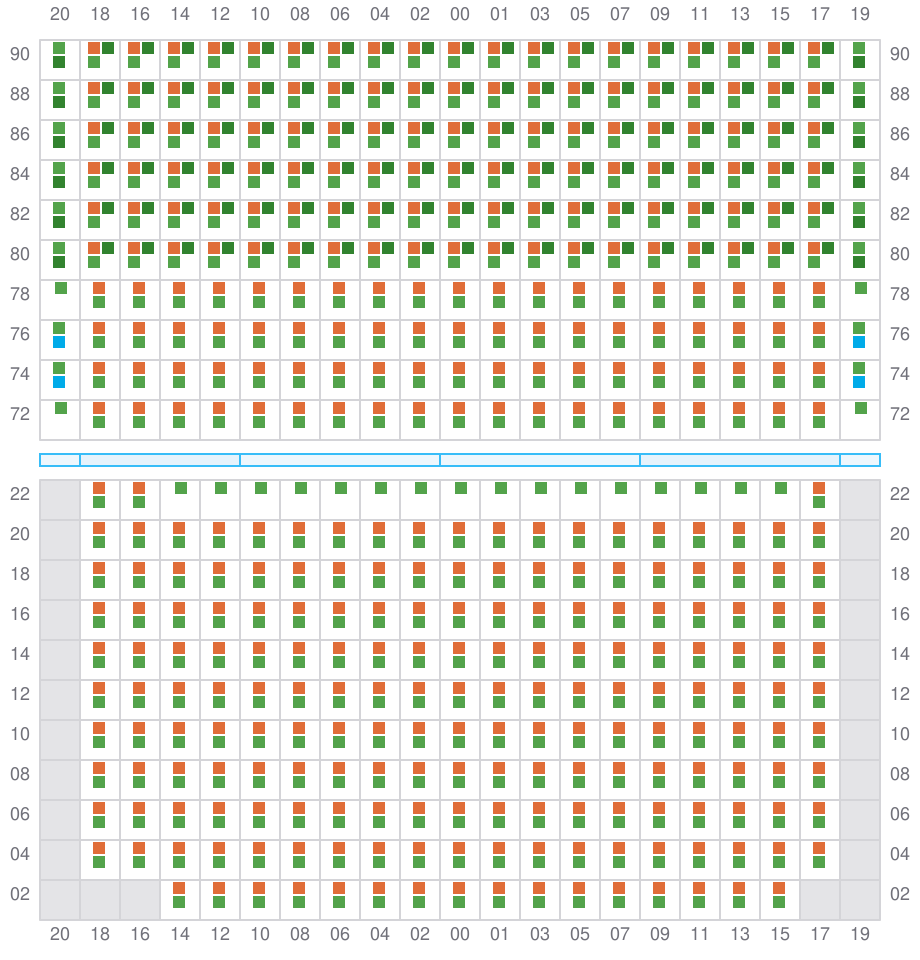

Bay 025 view and slots of MAERSK HIDALGO

027

←
^→ / _?

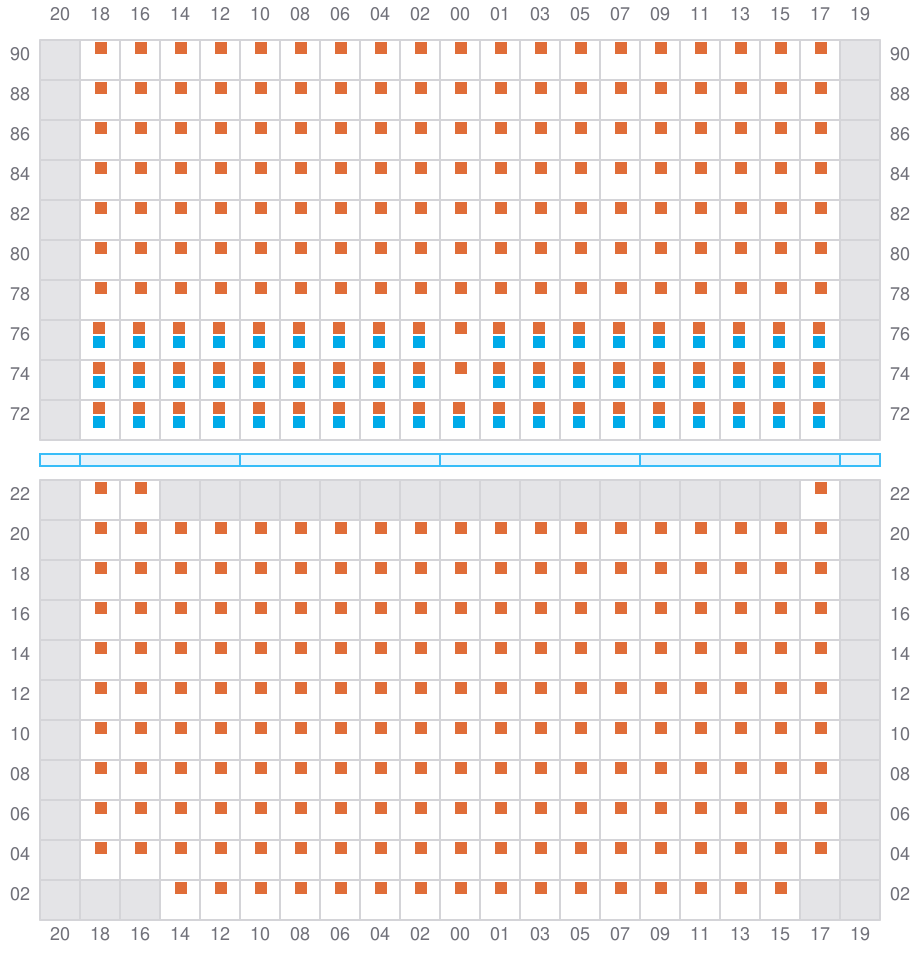

Bay 027 view and slots of MAERSK HIDALGO

029 (030)

→
^→ / _?

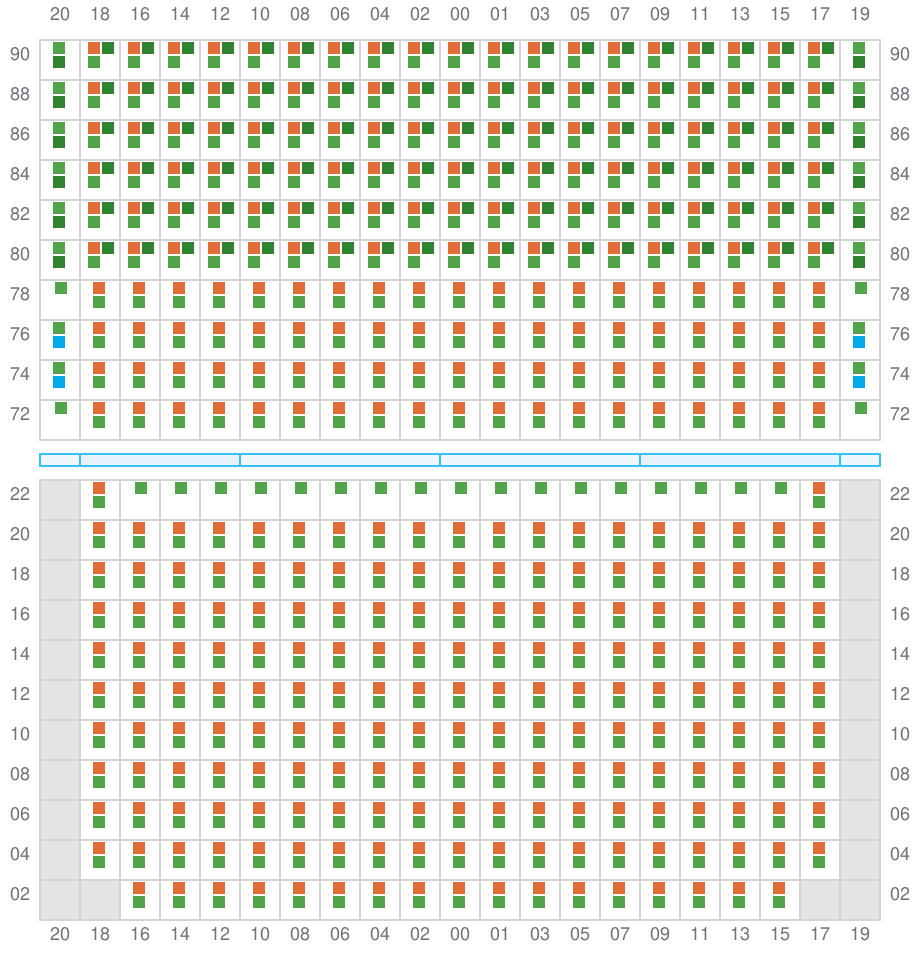

Bay 029 view and slots of MAERSK HIDALGO

031

←
→

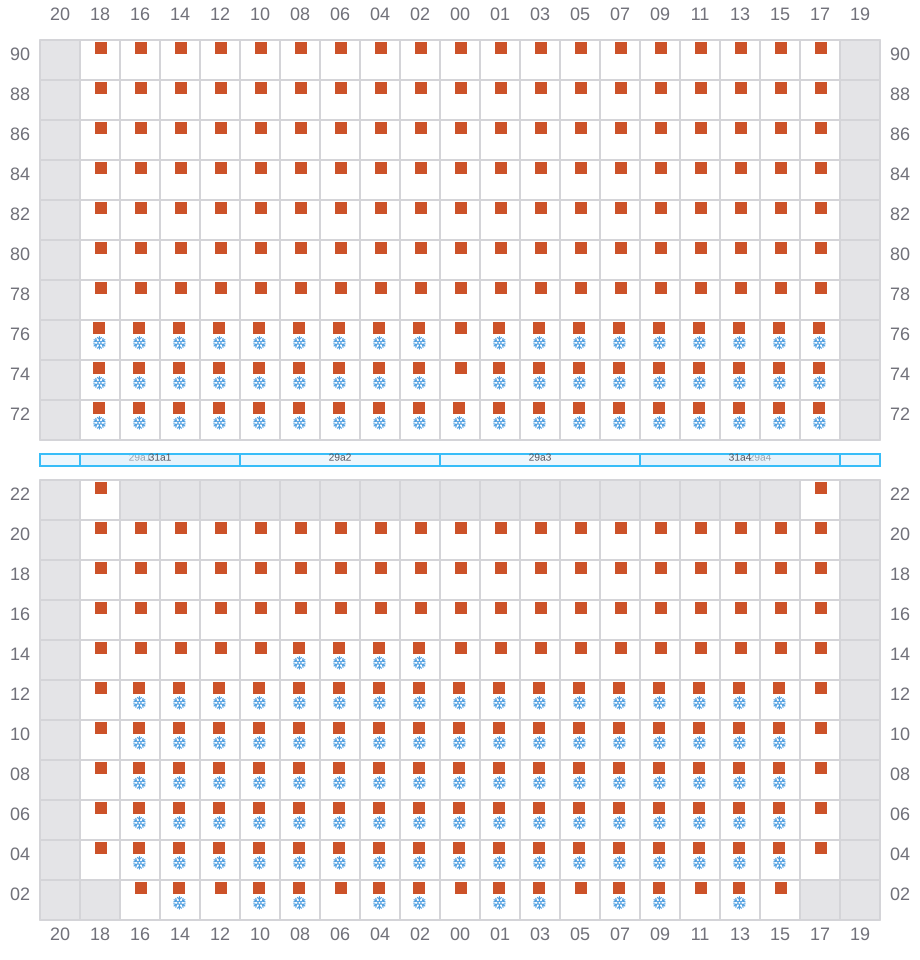

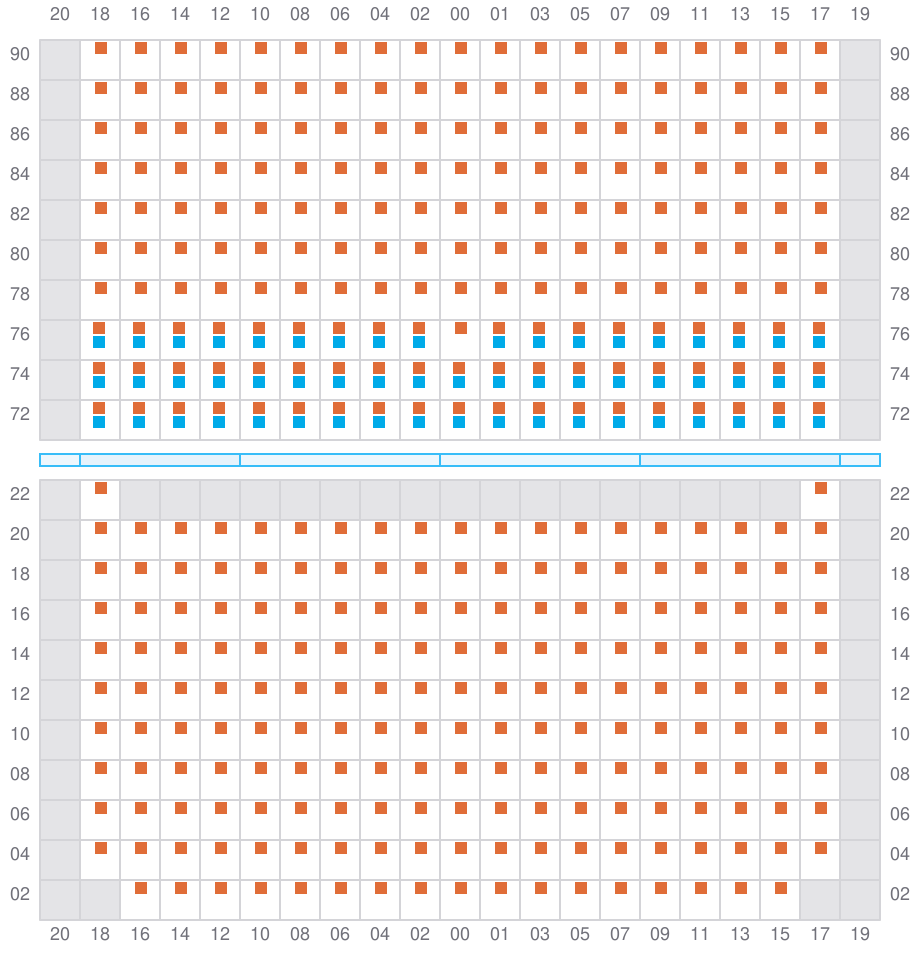

Bay 031 view and slots of MAERSK HIDALGO

033 (034)

→
^→ / _?

Bay 033 view and slots of MAERSK HIDALGO

035

←
^→ / _?

Bay 035 view and slots of MAERSK HIDALGO

037 (038)

→
^→ / _?

Bay 037 view and slots of MAERSK HIDALGO

039

←
→

Bay 039 view and slots of MAERSK HIDALGO

041 (042)

→
^→ / _?

Bay 041 view and slots of MAERSK HIDALGO

043

←
^→ / _?

Bay 043 view and slots of MAERSK HIDALGO

045 (046)

→
^→ / _?

Bay 045 view and slots of MAERSK HIDALGO

047

←
→

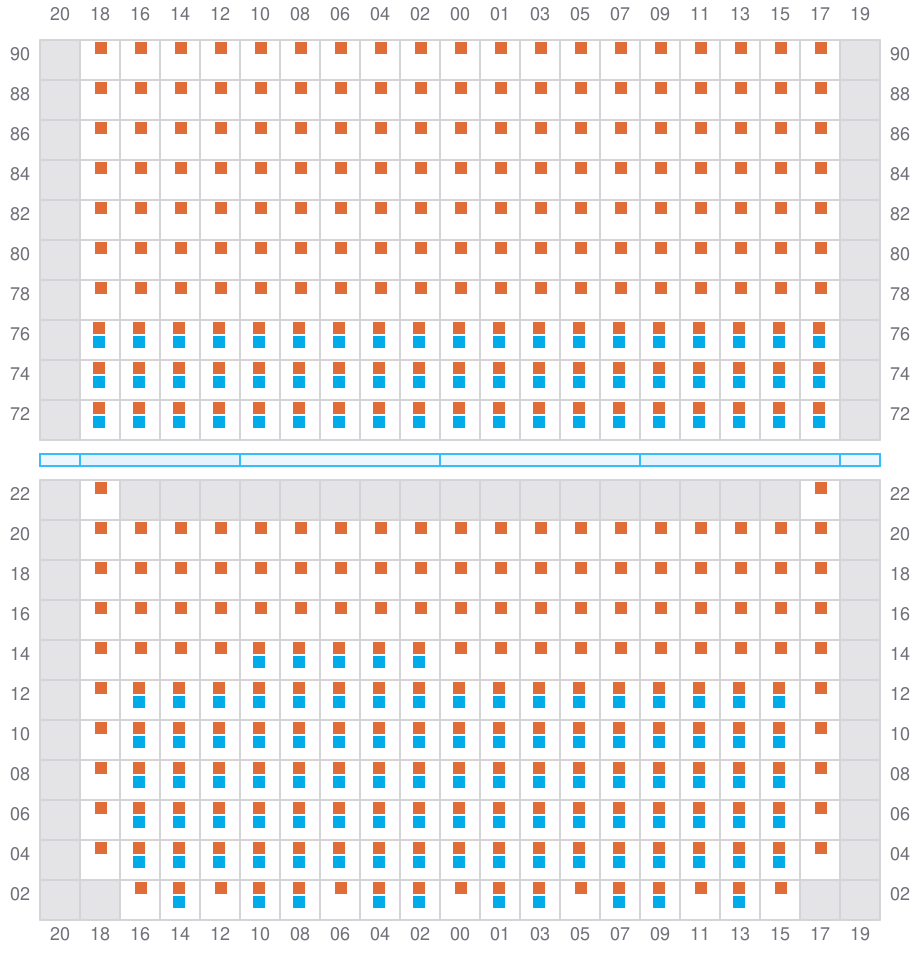

Bay 047 view and slots of MAERSK HIDALGO

049 (050)

→
^→ / _?

Bay 049 view and slots of MAERSK HIDALGO

051

←
^→ / _?

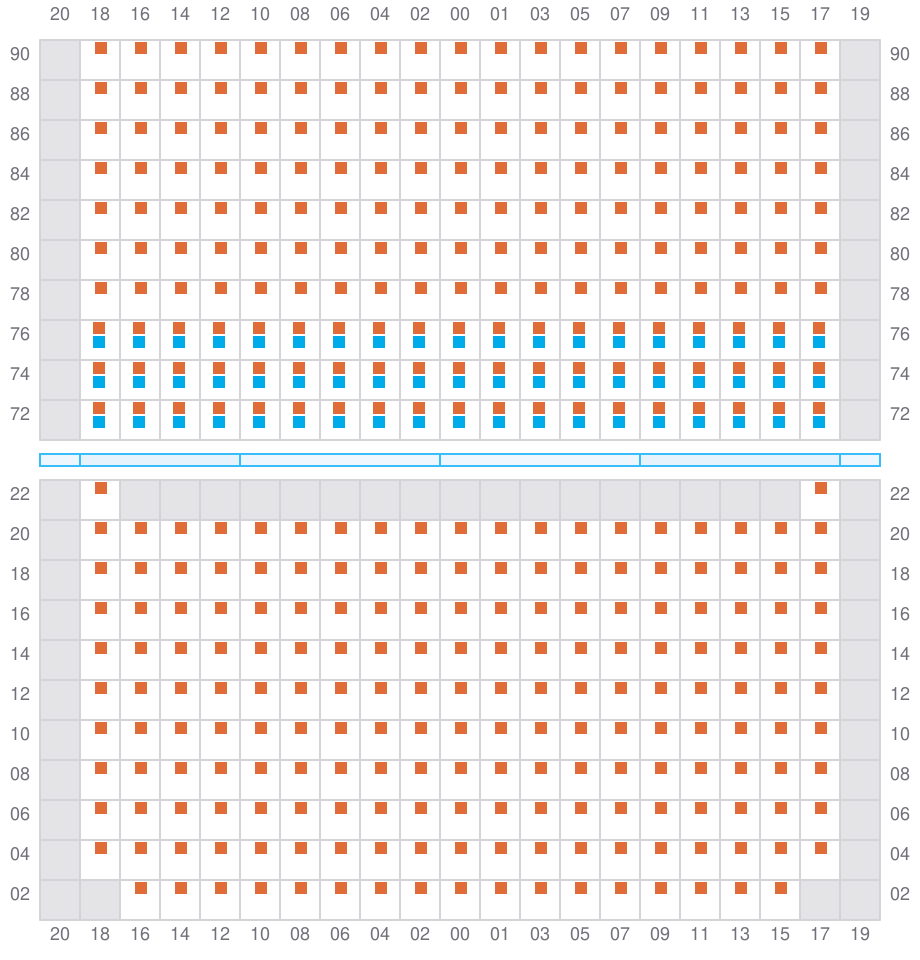

Bay 051 view and slots of MAERSK HIDALGO

053 (054)

→
^→ / _?

Bay 053 view and slots of MAERSK HIDALGO

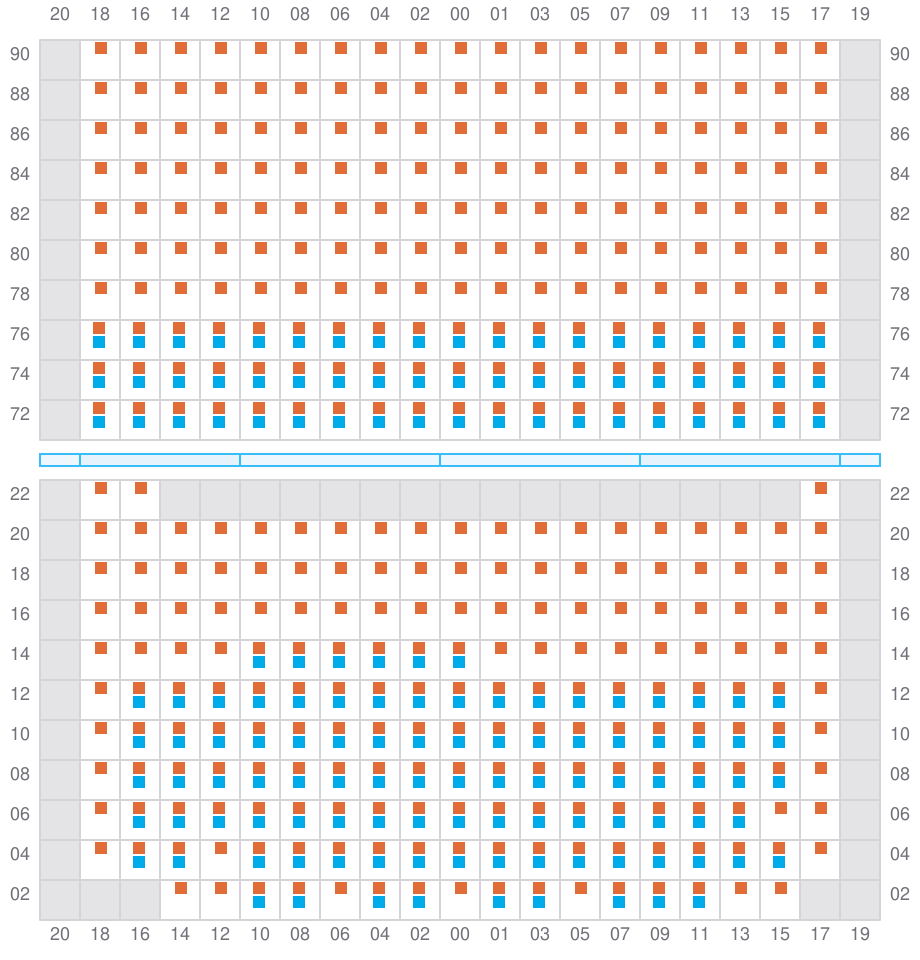

055

←
→

Bay 055 view and slots of MAERSK HIDALGO

057 (058)

→
^→ / _?

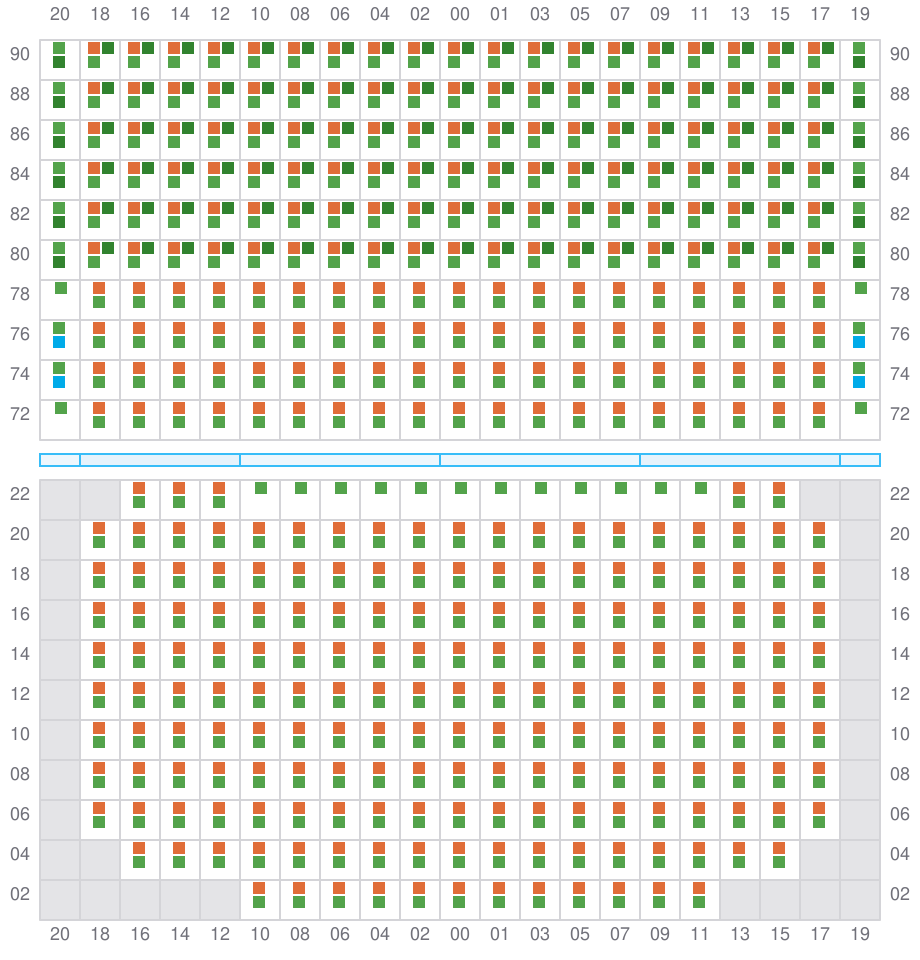

Bay 057 view and slots of MAERSK HIDALGO

059

←
^→ / _?

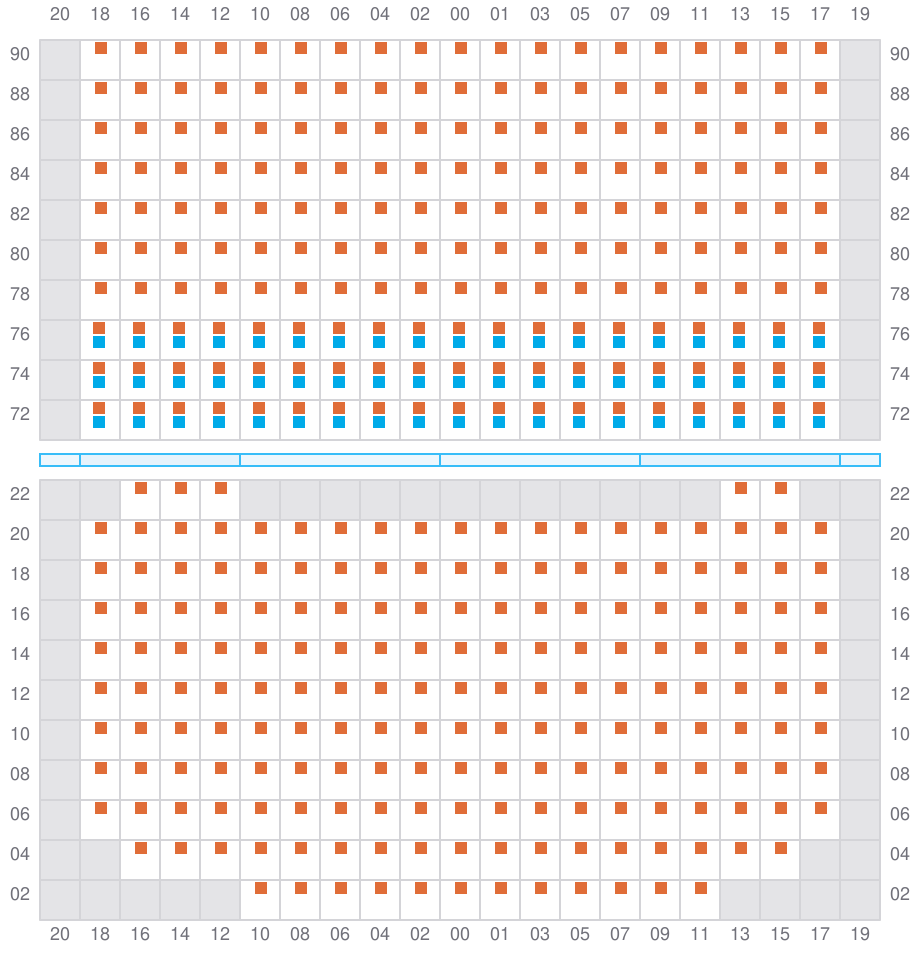

Bay 059 view and slots of MAERSK HIDALGO

061 (062)

→
^→ / _?

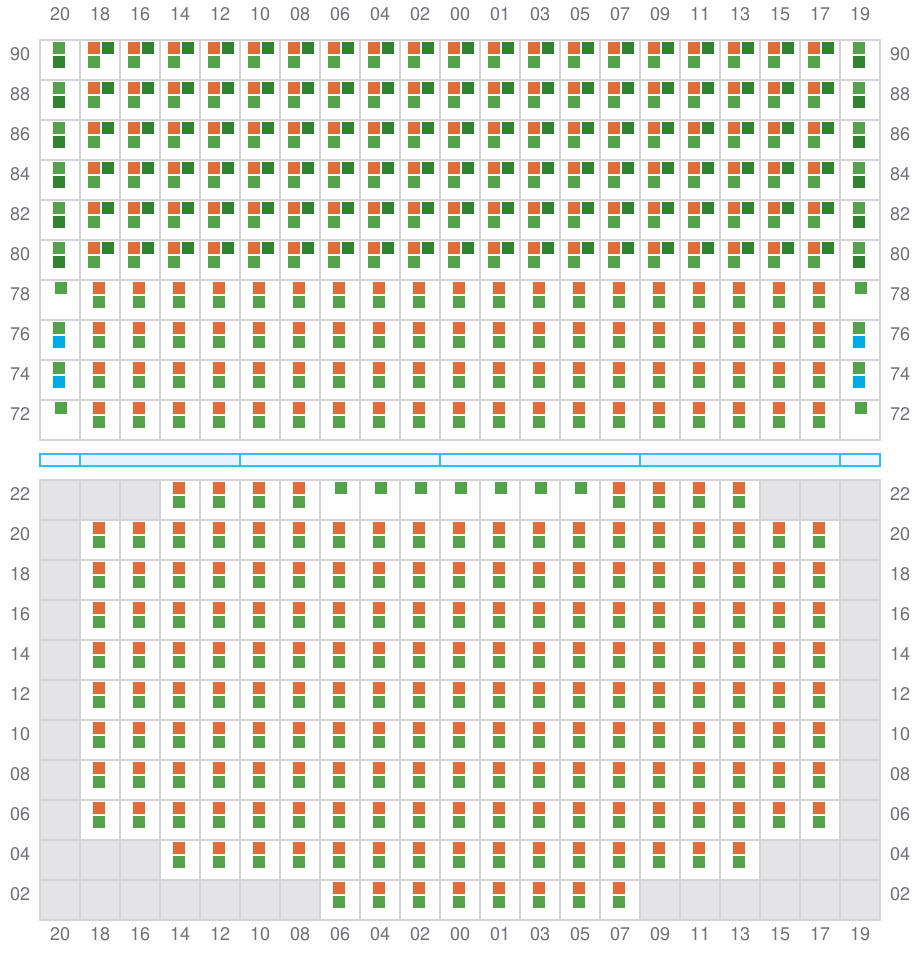

Bay 061 view and slots of MAERSK HIDALGO

063

←
^→ / _?

Bay 063 view and slots of MAERSK HIDALGO

065 (066)

→
^→ / _?

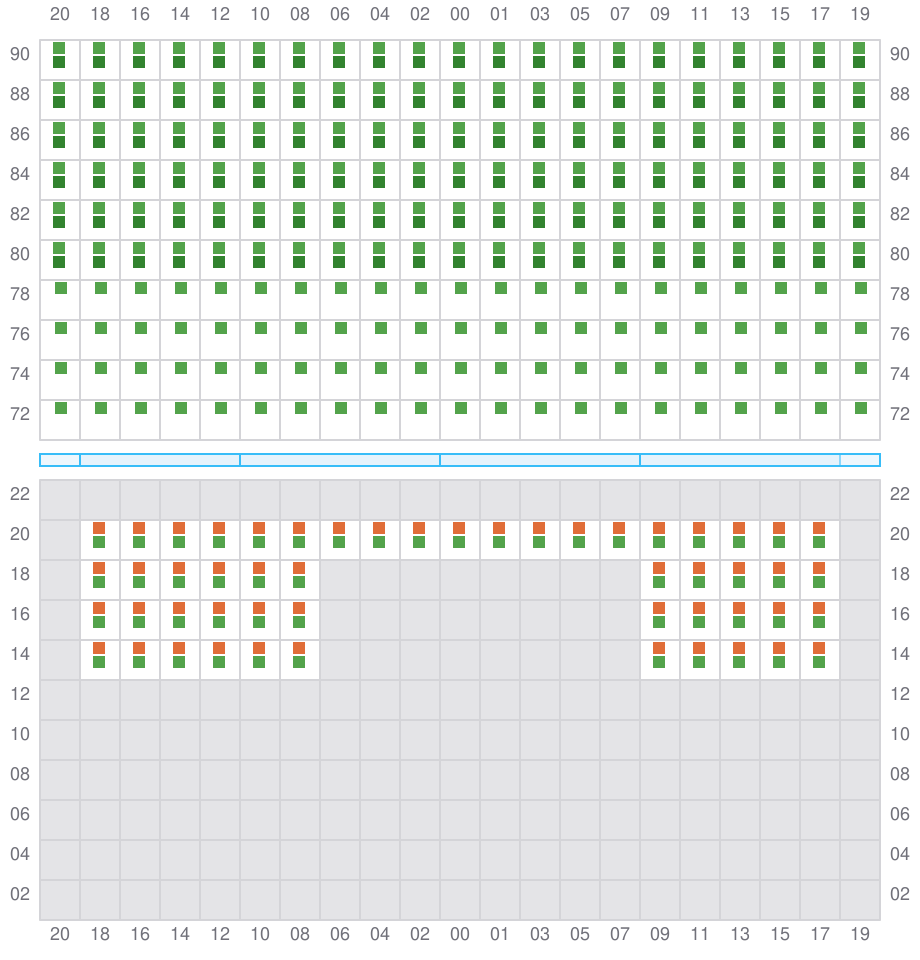

Bay 065 view and slots of MAERSK HIDALGO

067

^? / _←

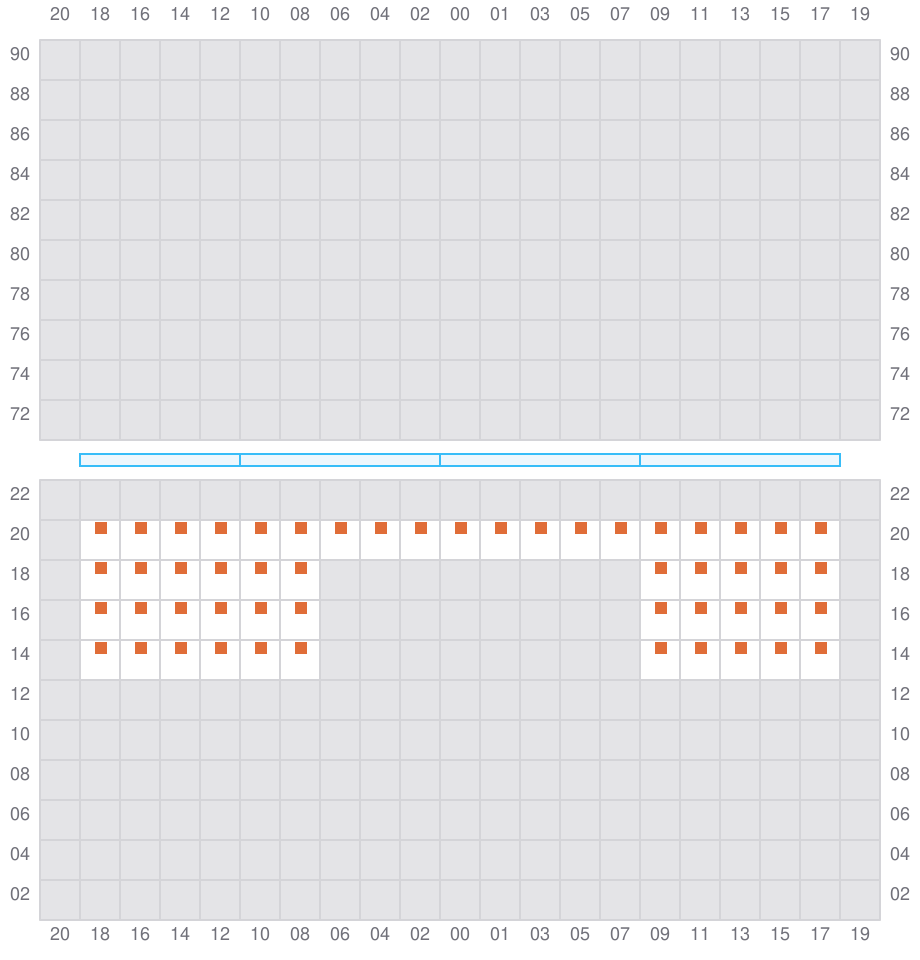

Bay 067 view and slots of MAERSK HIDALGO

069 (070)

→
^→ / _?

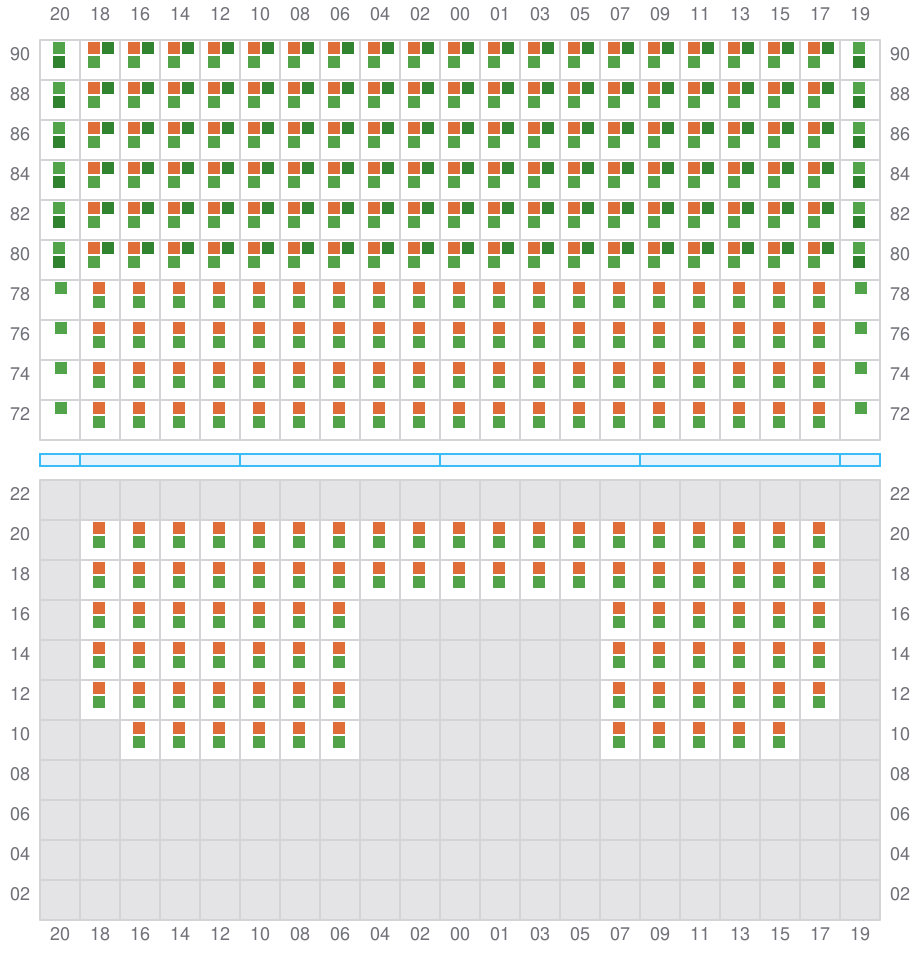

Bay 069 view and slots of MAERSK HIDALGO

071

←
^→ / _?

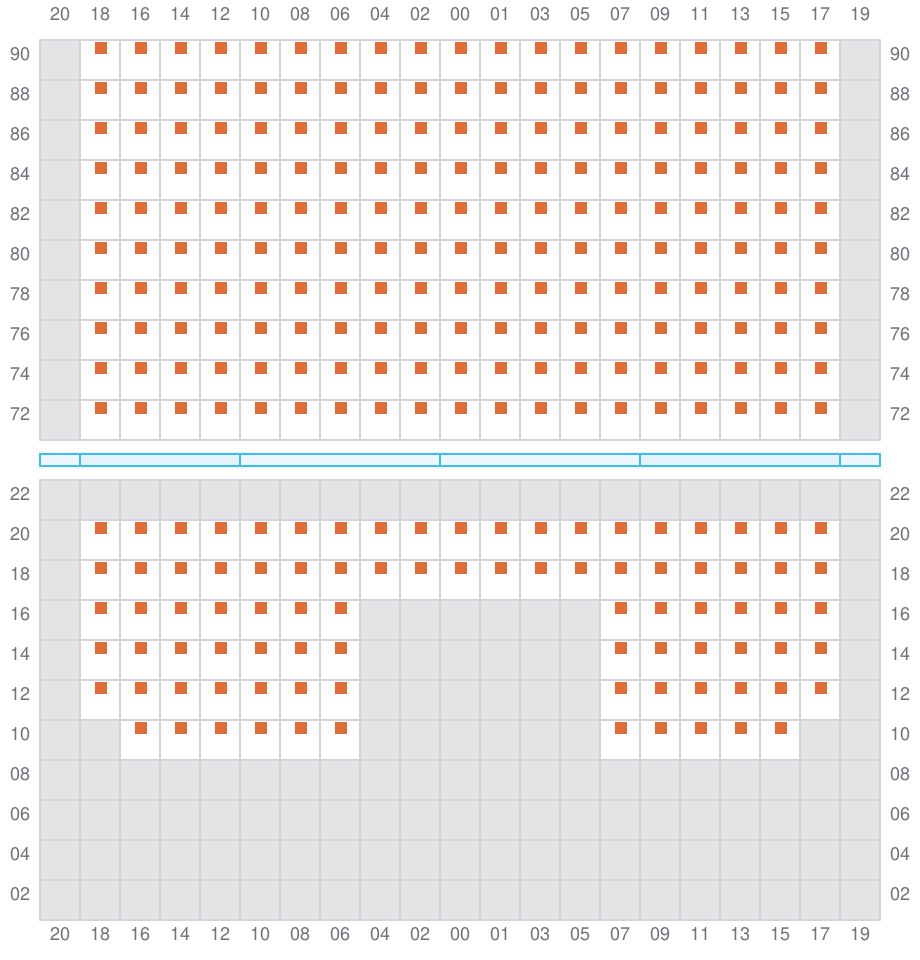

Bay 071 view and slots of MAERSK HIDALGO

073 (074)

→
^→ / _?

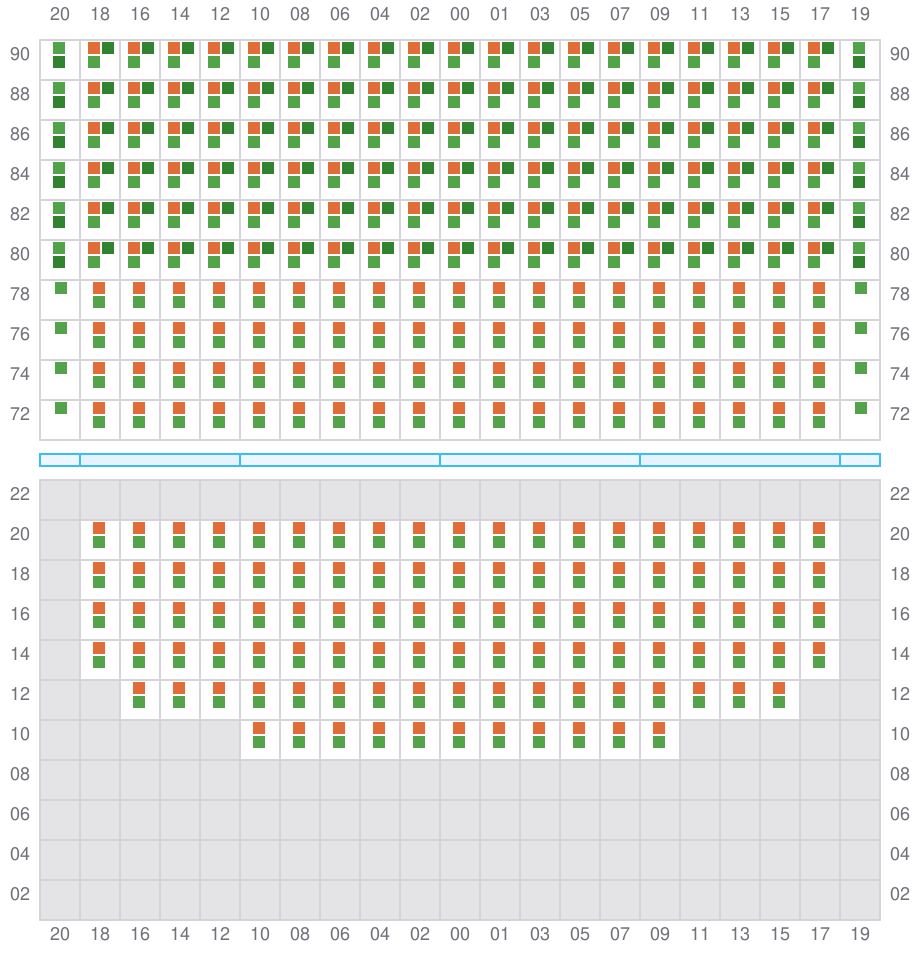

Bay 073 view and slots of MAERSK HIDALGO

075

←
^→ / _?

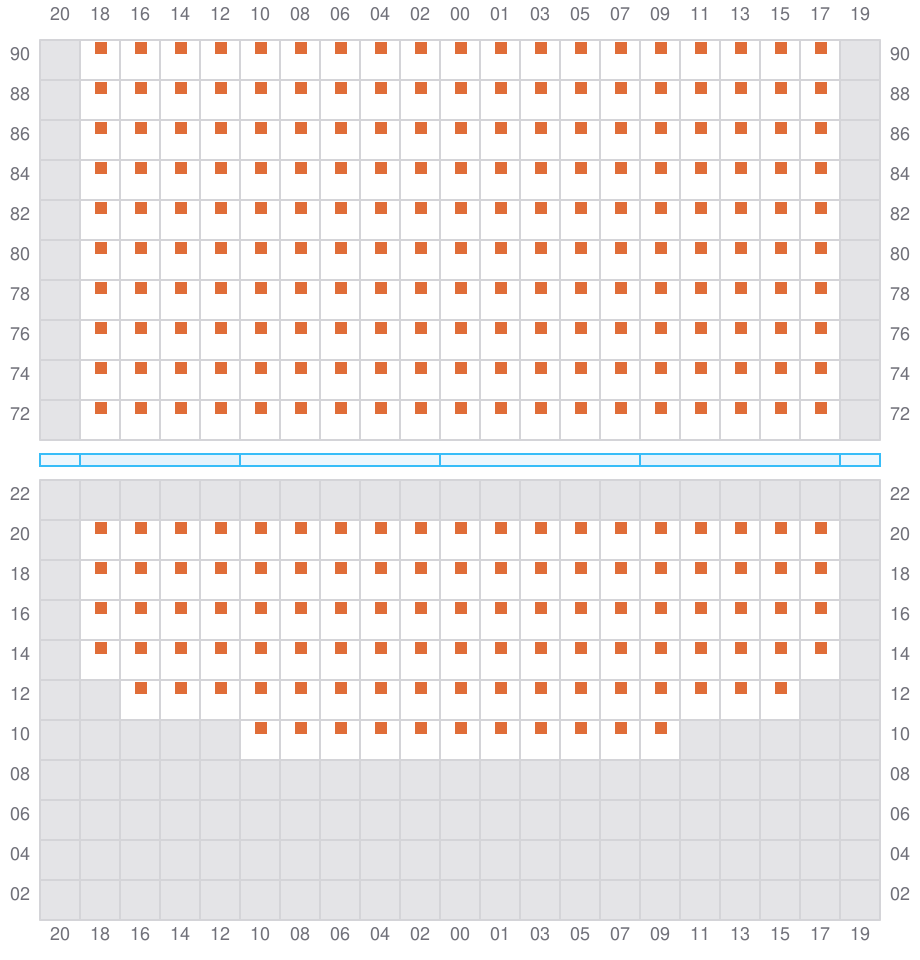

Bay 075 view and slots of MAERSK HIDALGO

077 (078)

→
^→ / _?

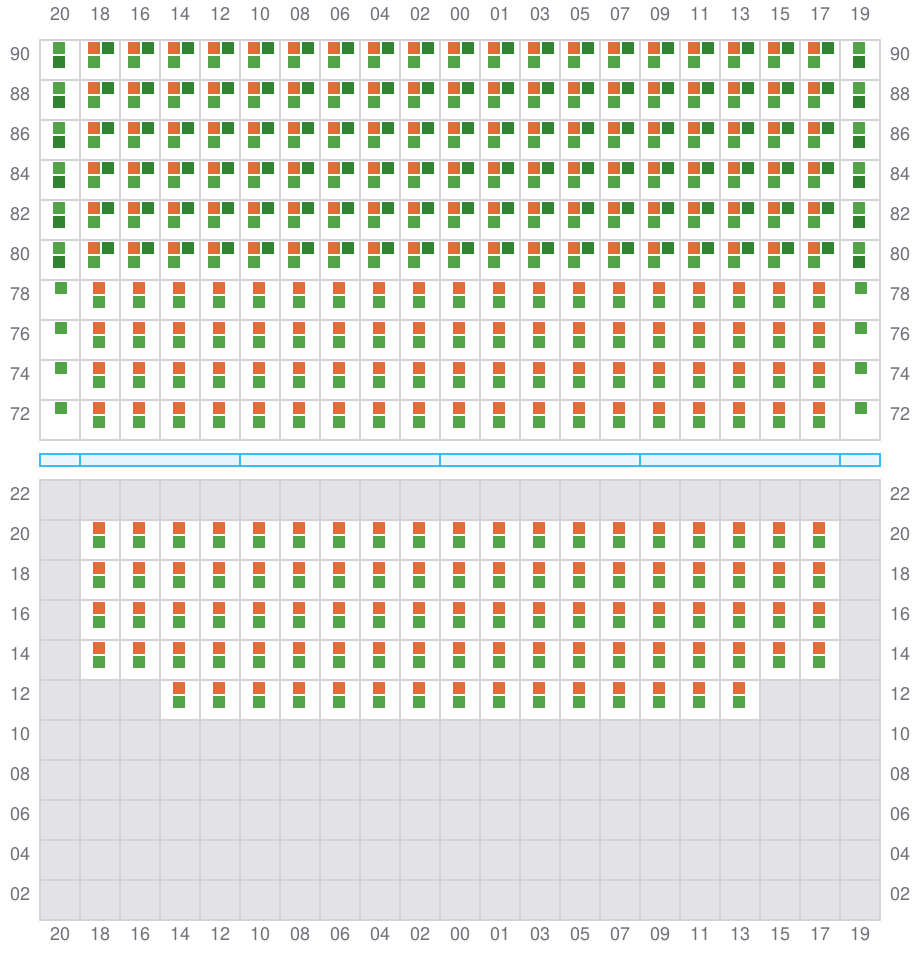

Bay 077 view and slots of MAERSK HIDALGO

079

←
^→ / _?

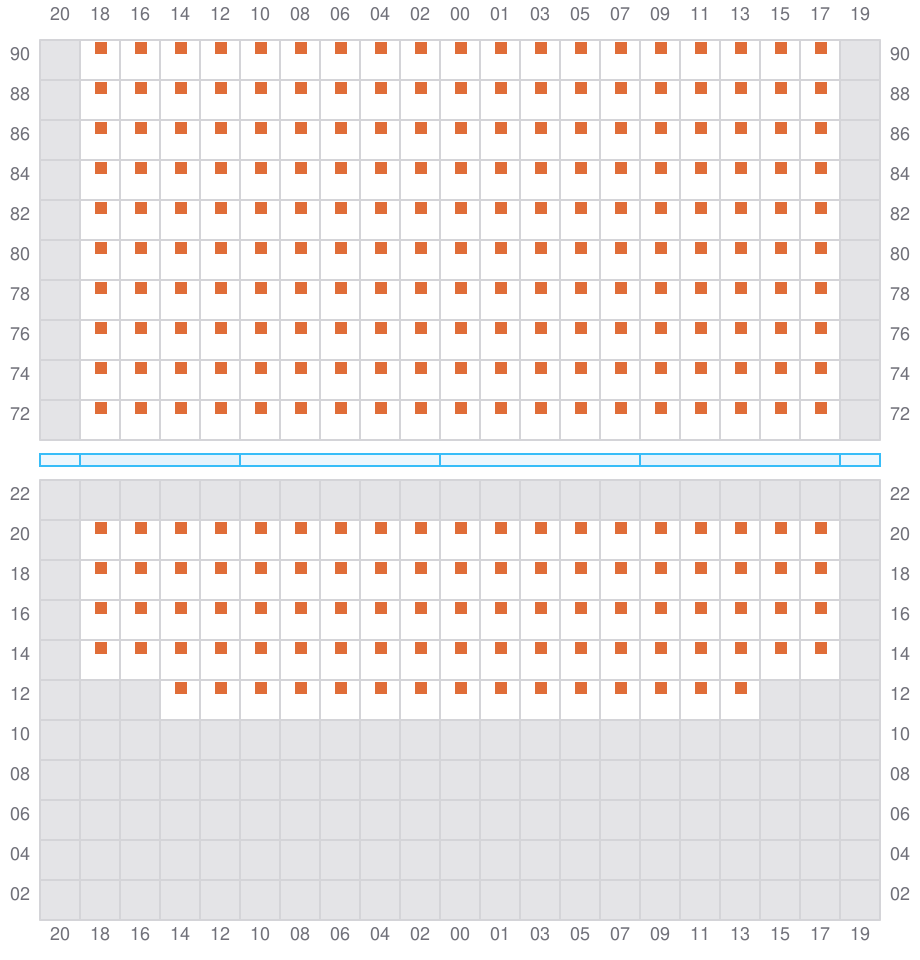

Bay 079 view and slots of MAERSK HIDALGO

081 (082)

^→ / _?

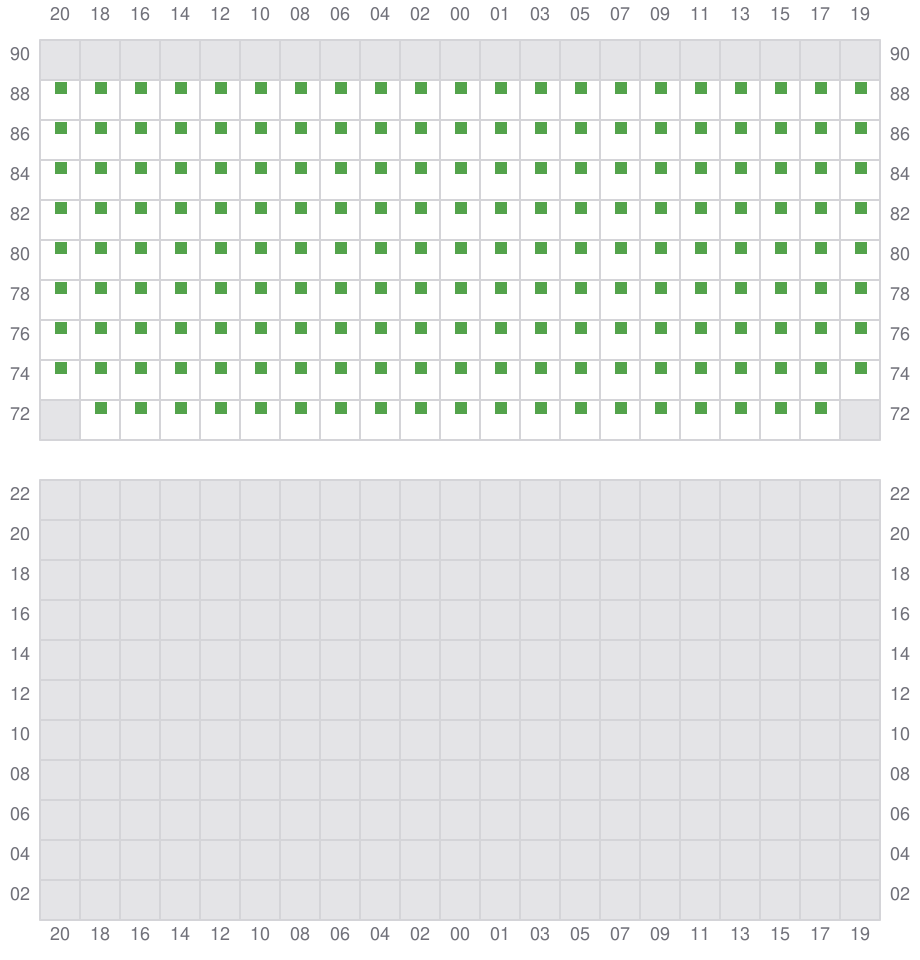

Bay 081 view and slots of MAERSK HIDALGO
