MAERSK INNOSHIMA
9348170 | 9V2003 | 9348170 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:MAERSK INNOSHIMA
IMO Code:9348170
Call Sign:9V2003
Line Operator:9348170
Class Name for Sister Ships:6KF
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):219.00
LOA (Length Overall):232.33
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,533
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-sideView.png?v=1711142419726)
Hatch-Covers View
![Deck view of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-deckView.png?v=1711142419726)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

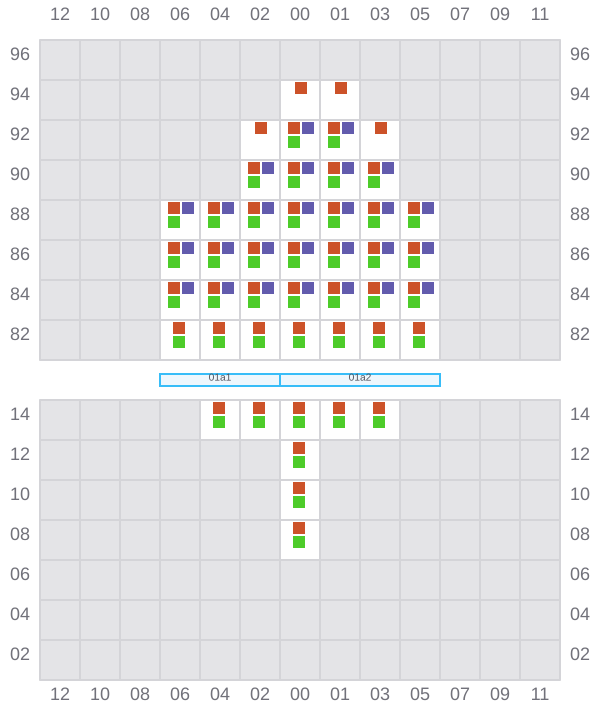

001 (002)
- →
![Bay 001 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b001.png?v=1711142419726)

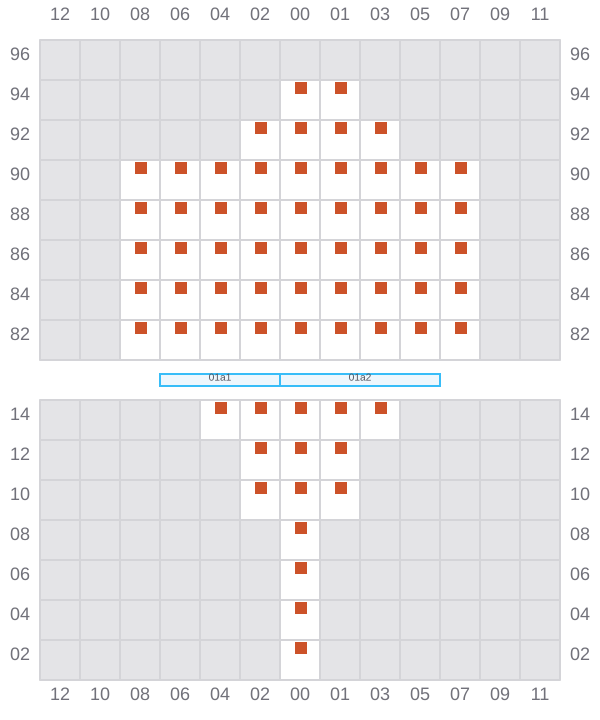

003
- ←
![Bay 003 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b003.png?v=1711142419726)

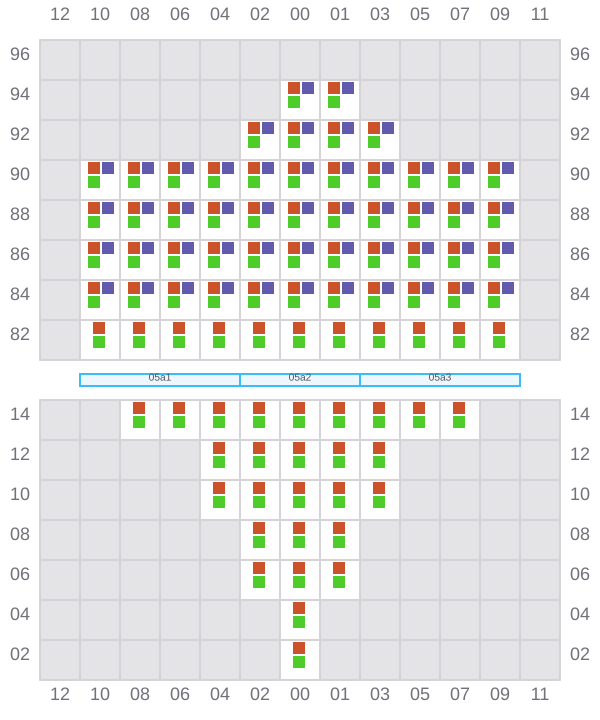

005 (006)
- →
![Bay 005 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b005.png?v=1711142419726)

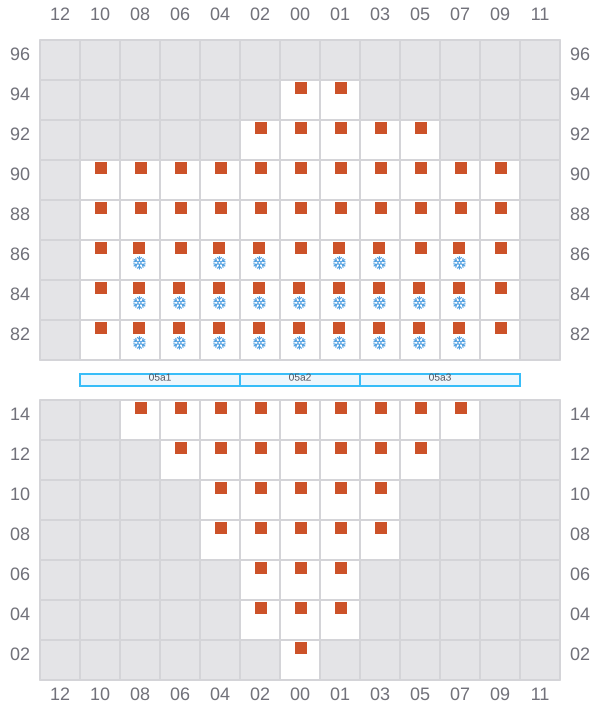

007
- ←
- → / ?
![Bay 007 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b007.png?v=1711142419726)

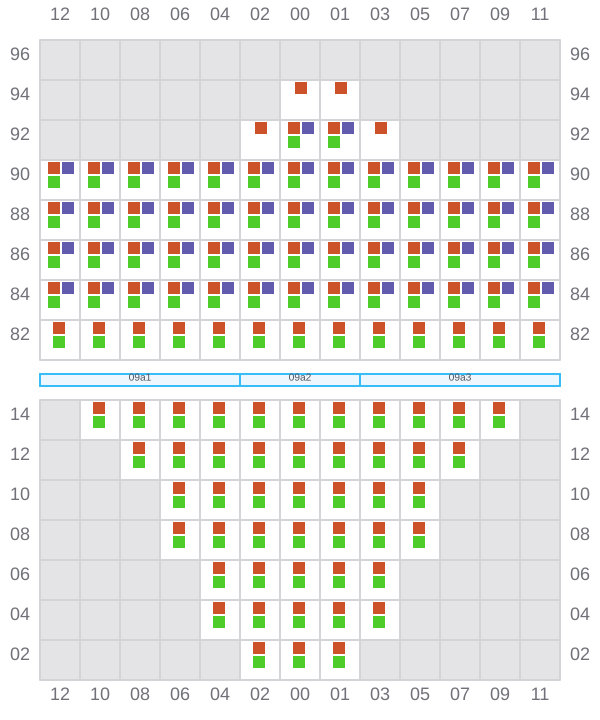

009 (010)
- →
![Bay 009 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b009.png?v=1711142419726)

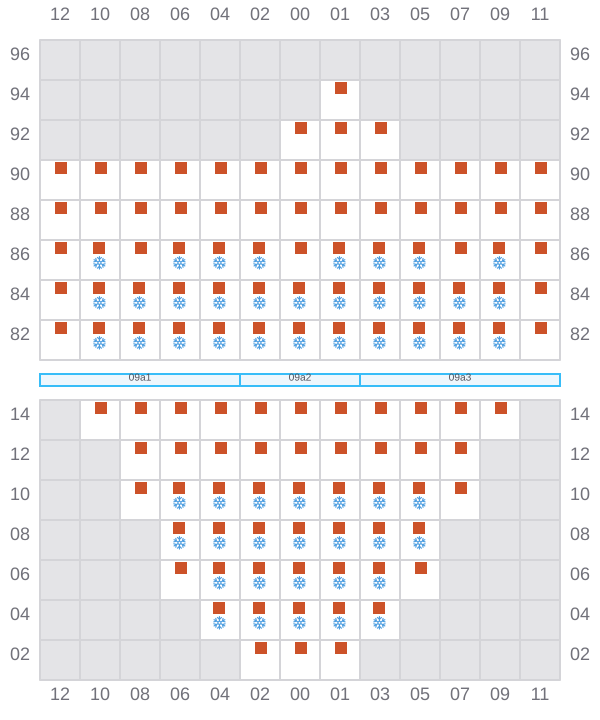

011
- ←
- →
![Bay 011 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b011.png?v=1711142419726)

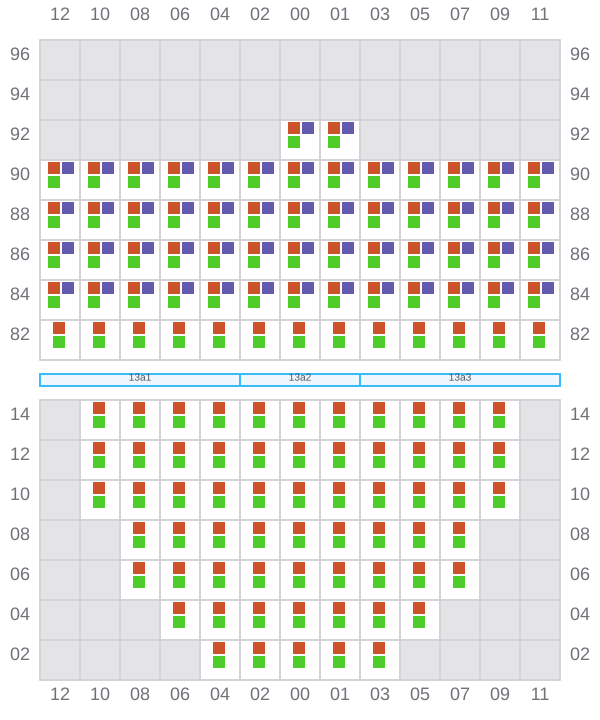

013 (014)
- →
![Bay 013 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b013.png?v=1711142419726)

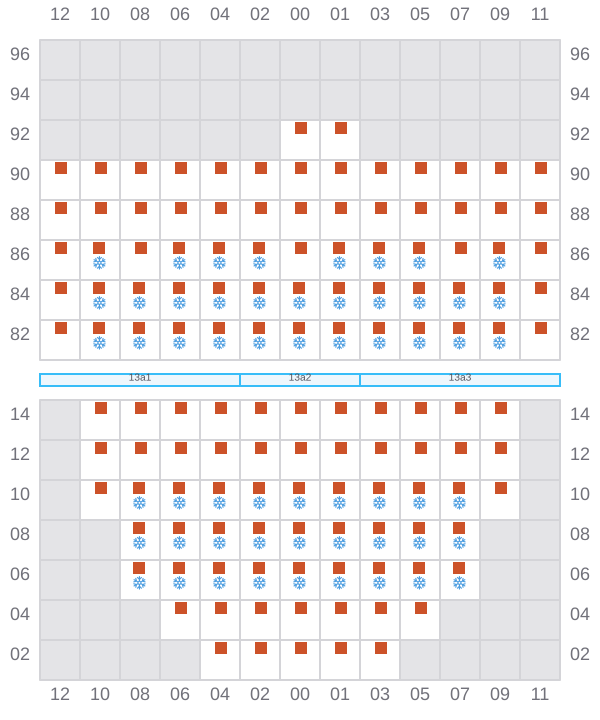

015
- ←
- →
![Bay 015 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b015.png?v=1711142419726)

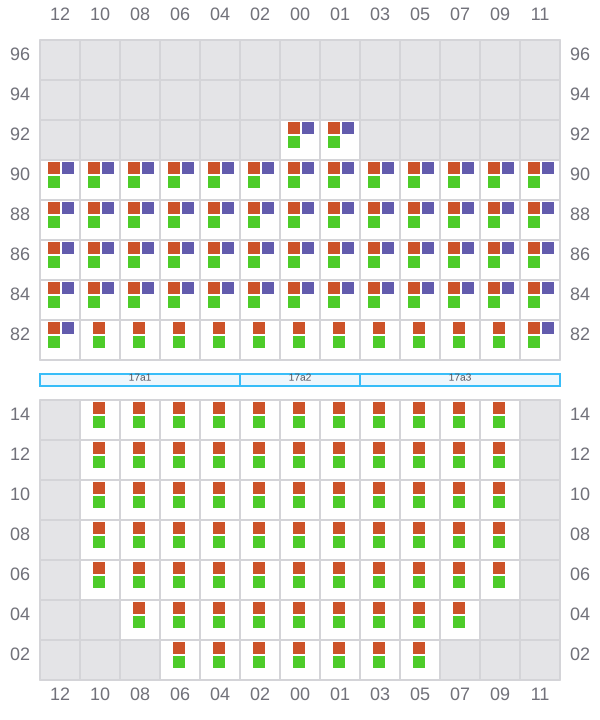

017 (018)
- →
![Bay 017 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b017.png?v=1711142419726)

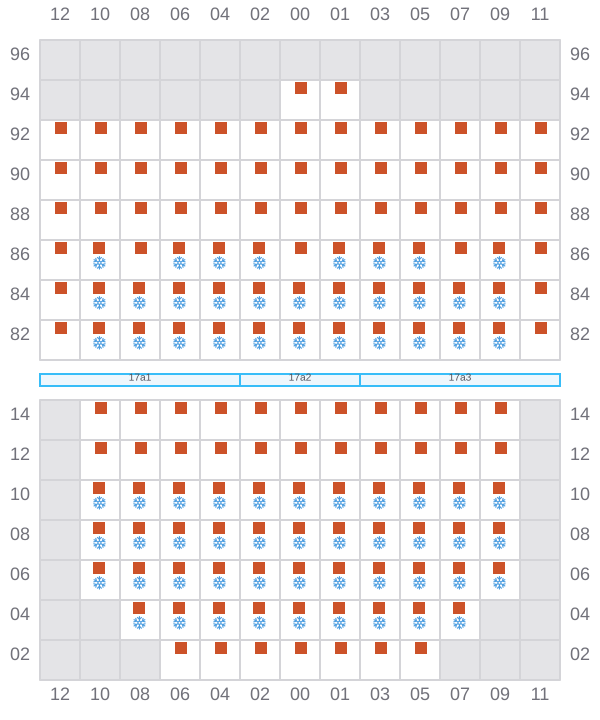

019
- ←
- →
![Bay 019 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b019.png?v=1711142419726)

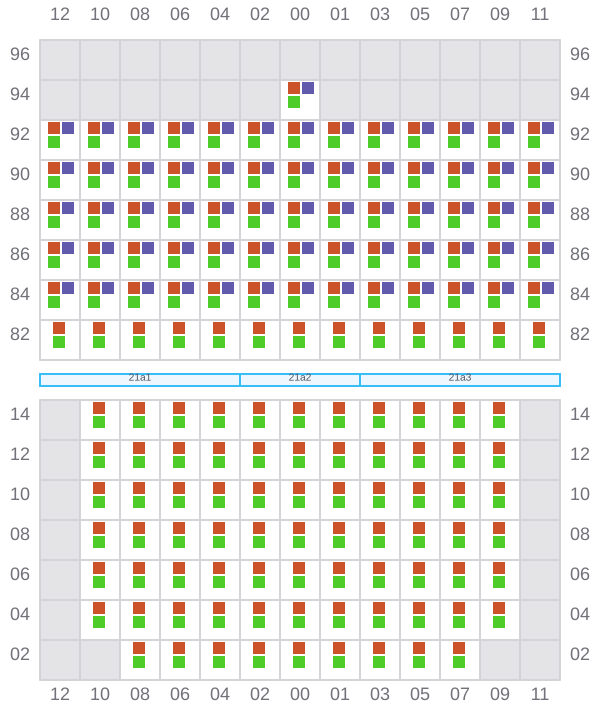

021 (022)
- →
![Bay 021 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b021.png?v=1711142419726)
023
- ←
- →
![Bay 023 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b023.png?v=1711142419726)

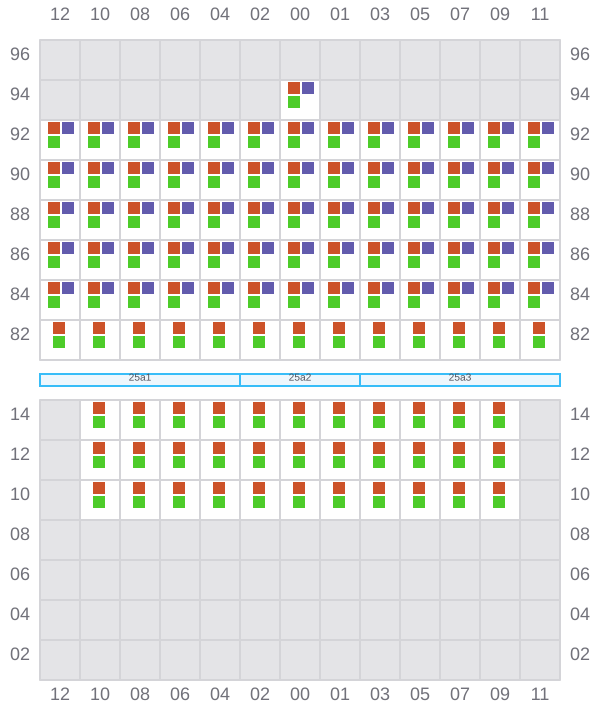

025 (026)
- →
![Bay 025 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b025.png?v=1711142419726)

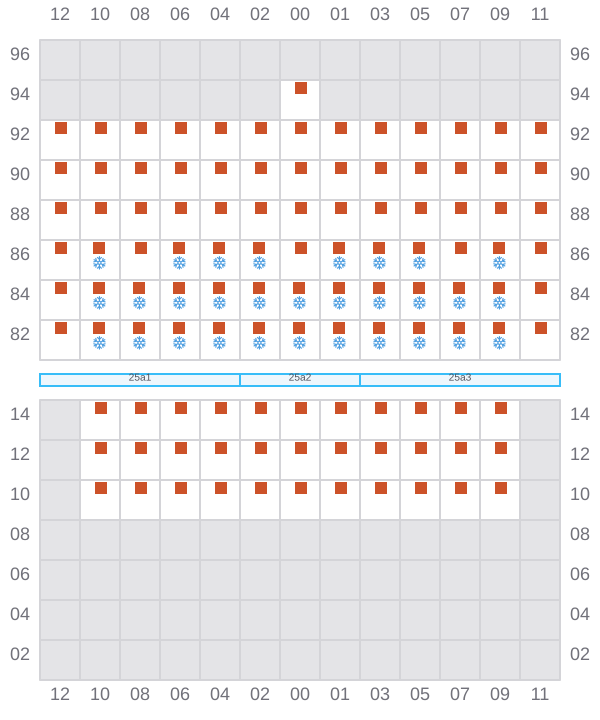

027
- ←
- → / ?
![Bay 027 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b027.png?v=1711142419726)

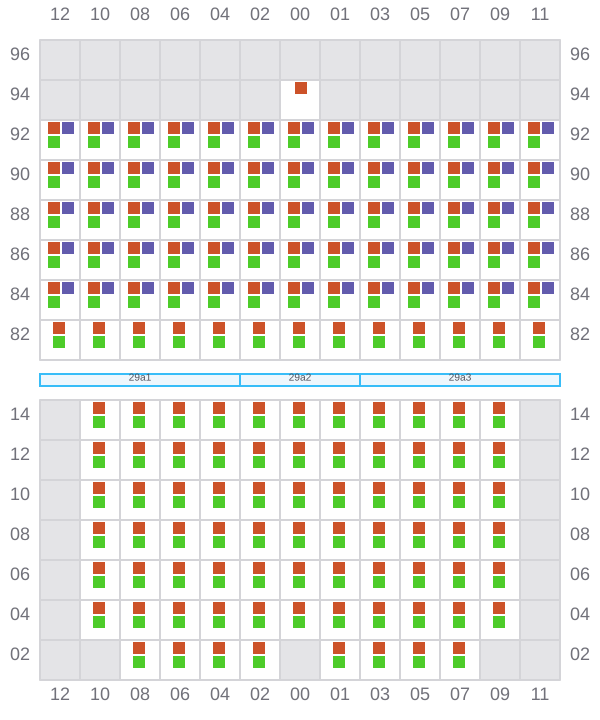

029 (030)
- →
![Bay 029 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b029.png?v=1711142419726)

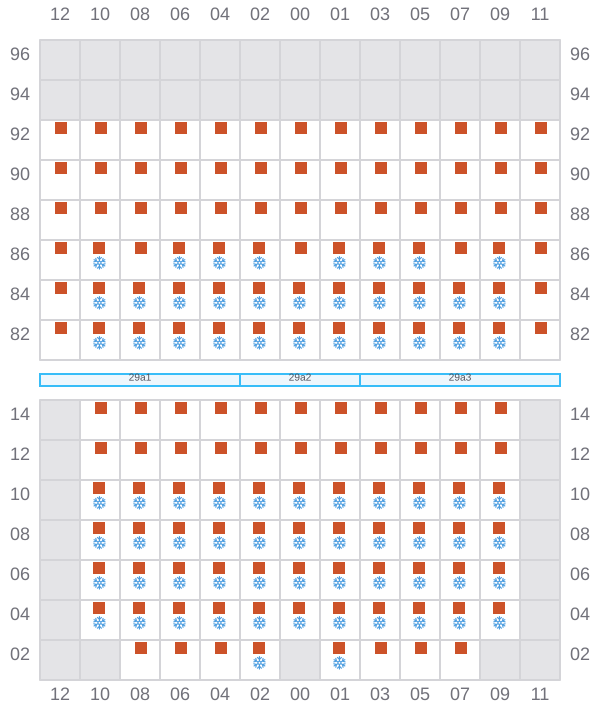

031
- ←
- →
![Bay 031 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b031.png?v=1711142419726)

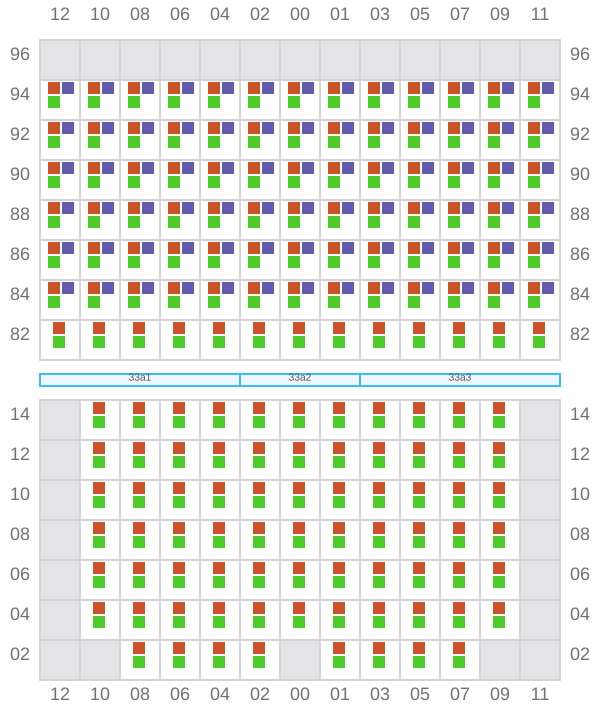

033 (034)
- →
![Bay 033 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b033.png?v=1711142419726)
035
- ←
- →
![Bay 035 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b035.png?v=1711142419726)

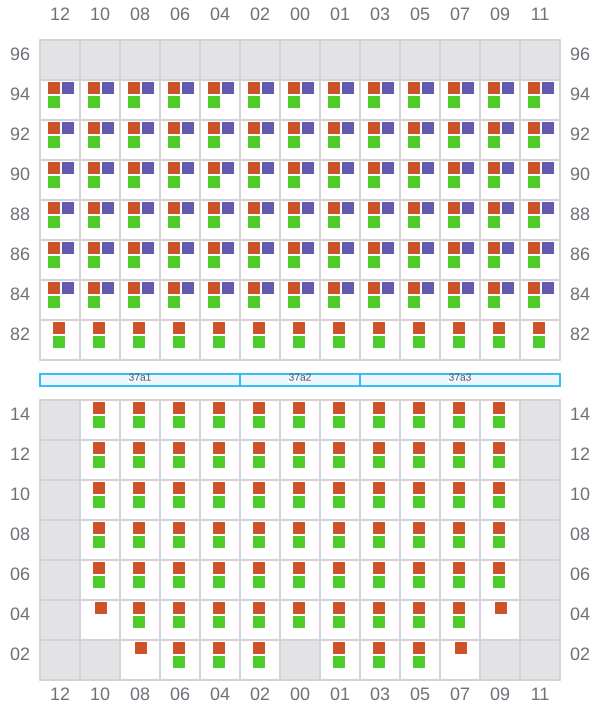

037 (038)
- →
![Bay 037 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b037.png?v=1711142419726)

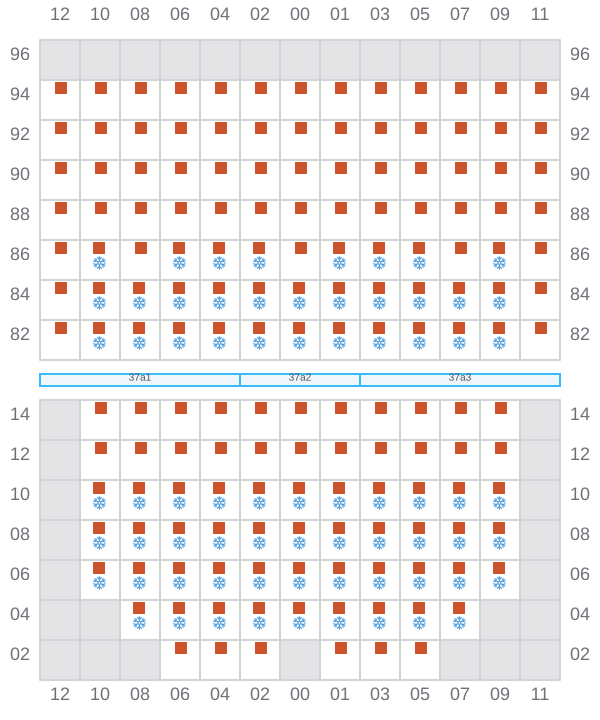

039
- ←
- →
![Bay 039 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b039.png?v=1711142419726)

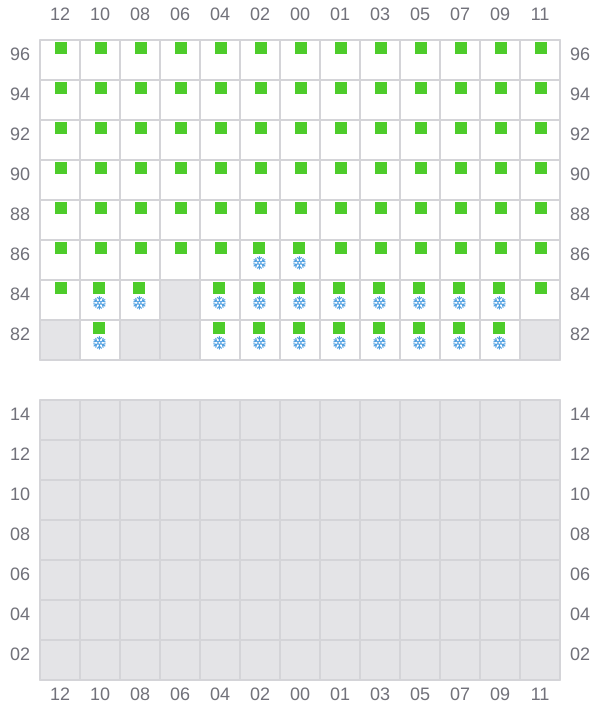

041 (042)
- → / ?
- → / ?
![Bay 041 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b041.png?v=1711142419726)

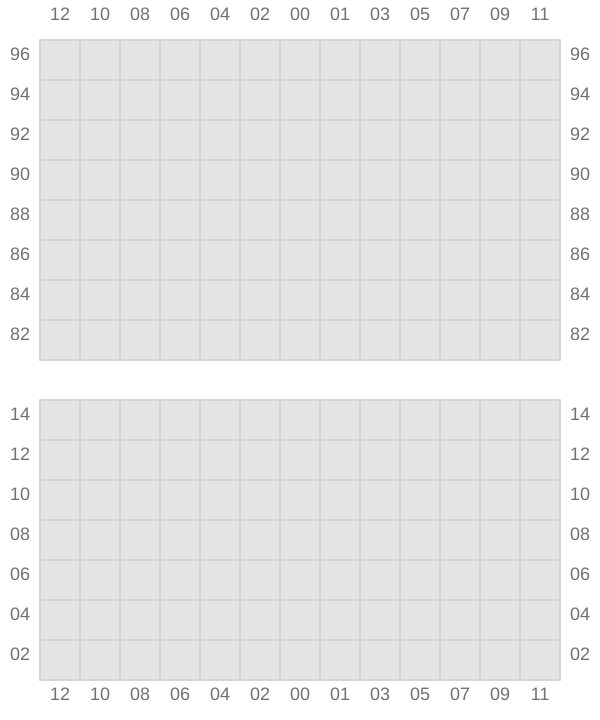

043
![Bay 043 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b043.png?v=1711142419726)

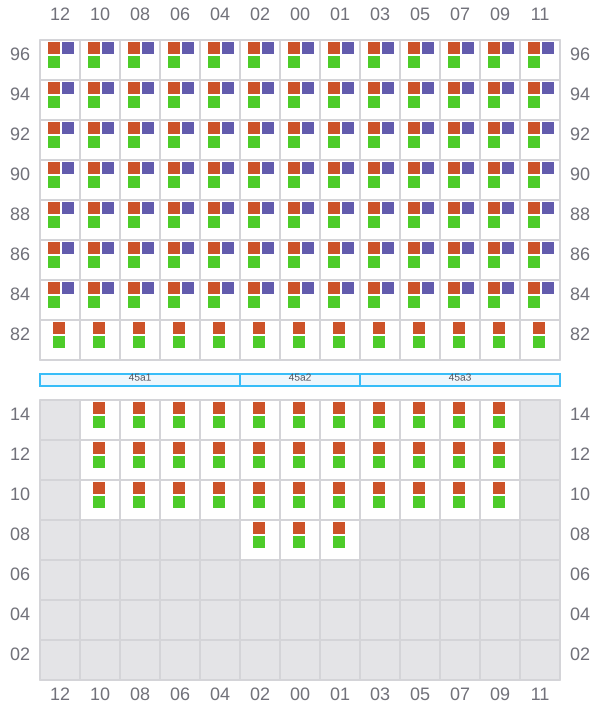

045 (046)
- →
![Bay 045 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b045.png?v=1711142419726)

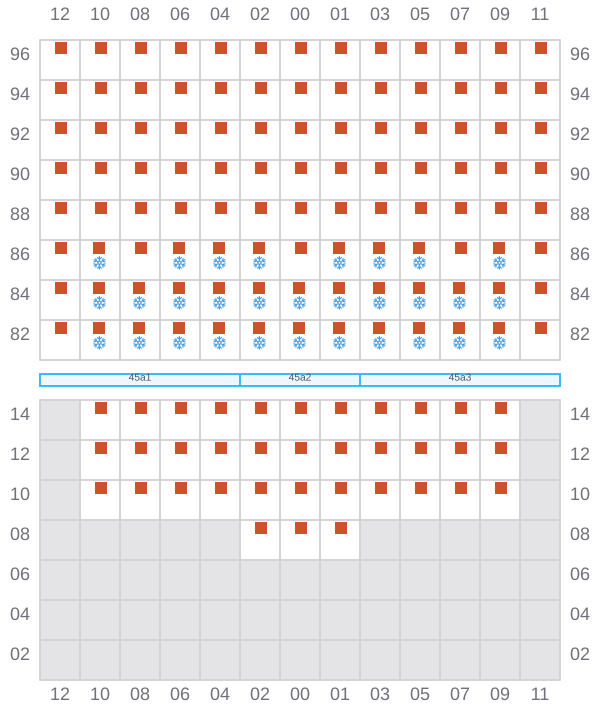

047
- ←
- → / ?
![Bay 047 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b047.png?v=1711142419726)

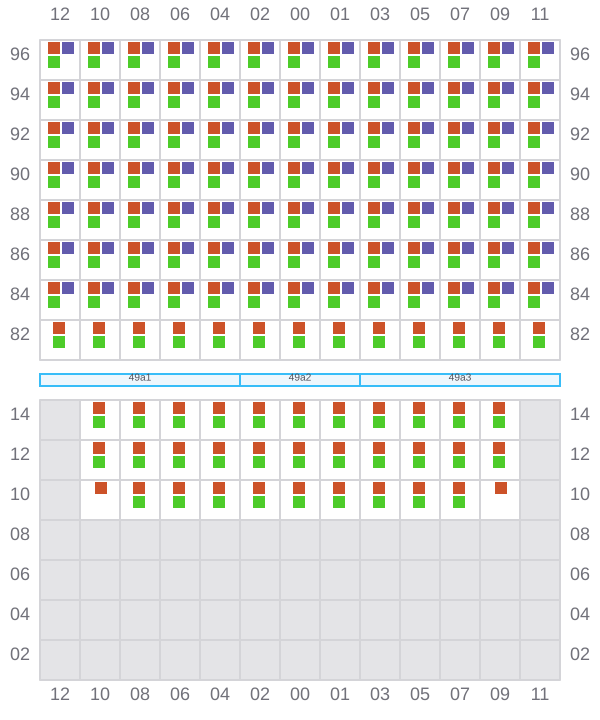

049 (050)
- →
![Bay 049 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b049.png?v=1711142419726)

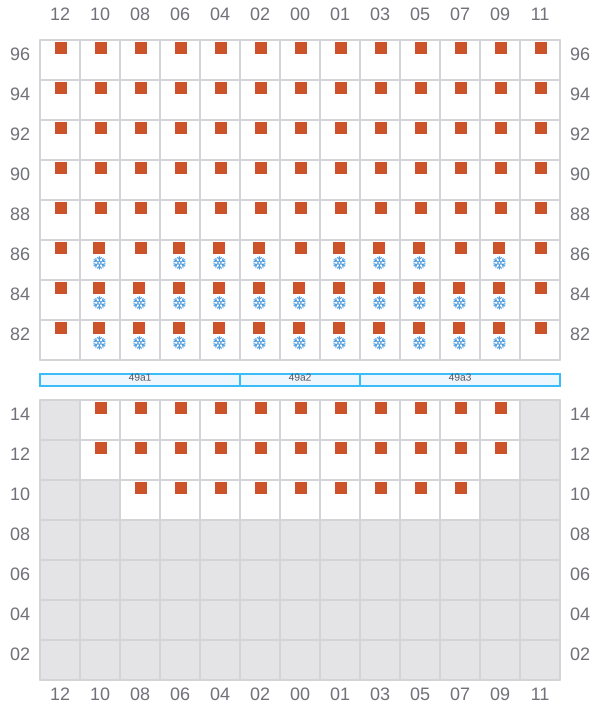

051
- ←
- → / ?
![Bay 051 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b051.png?v=1711142419726)

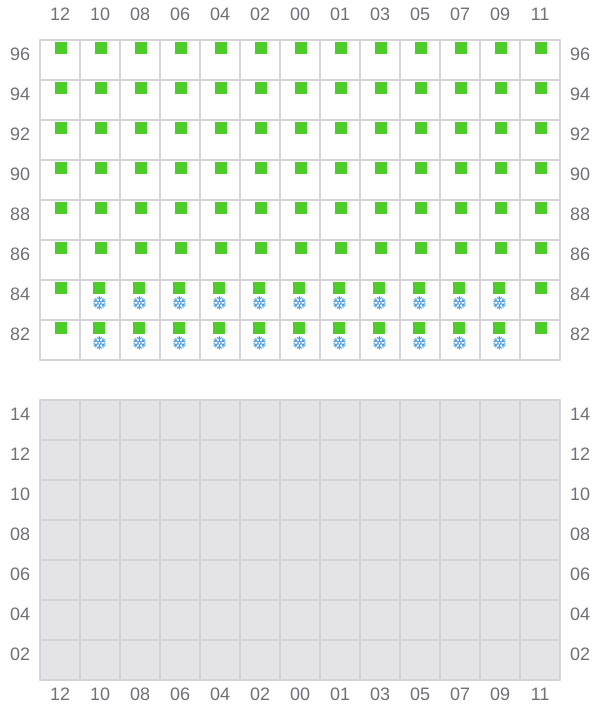

053 (054)
- → / ?
- → / ?
![Bay 053 view and slots of MAERSK INNOSHIMA](/vessel-images/8da830e8-6efb-48aa-9549-0e50f6c2d52f-b053.png?v=1711142419726)
