MAERSK INVERNESS
9348156 | 9V2005 | 9348156 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:MAERSK INVERNESS
IMO Code:9348156
Call Sign:9V2005
Line Operator:9348156
Class Name for Sister Ships:6IF
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):232.00
LOA (Length Overall):232.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,533
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

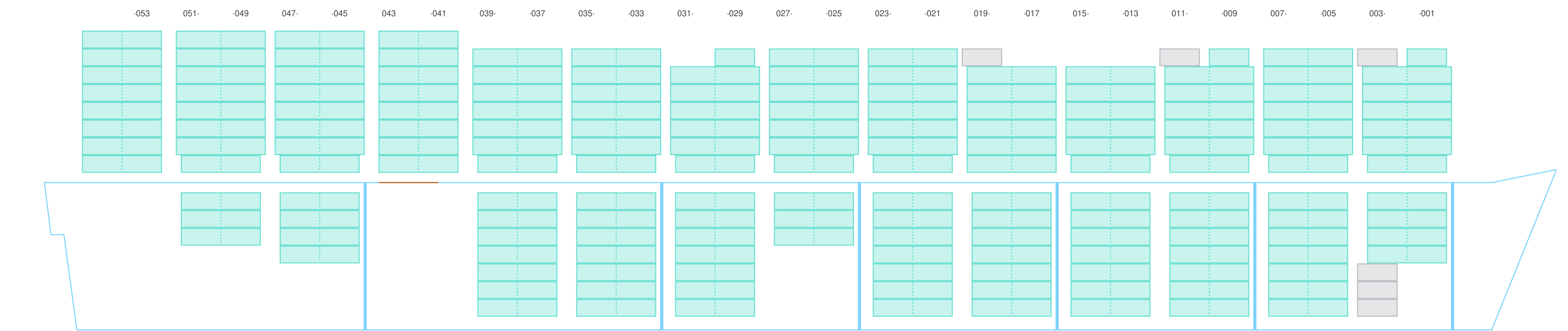

Side View
![Side view of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-sideView.png?v=1711137177908)

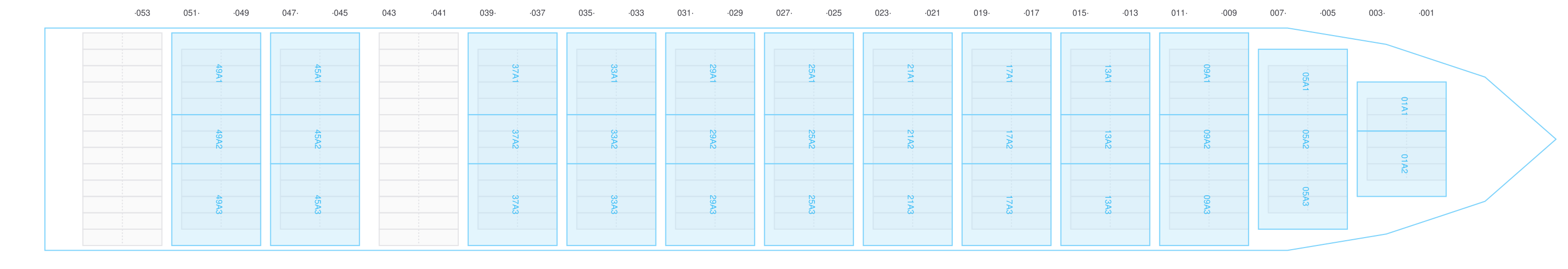

Hatch-Covers View
![Deck view of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-deckView.png?v=1711137177908)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b001.png?v=1711137177908)

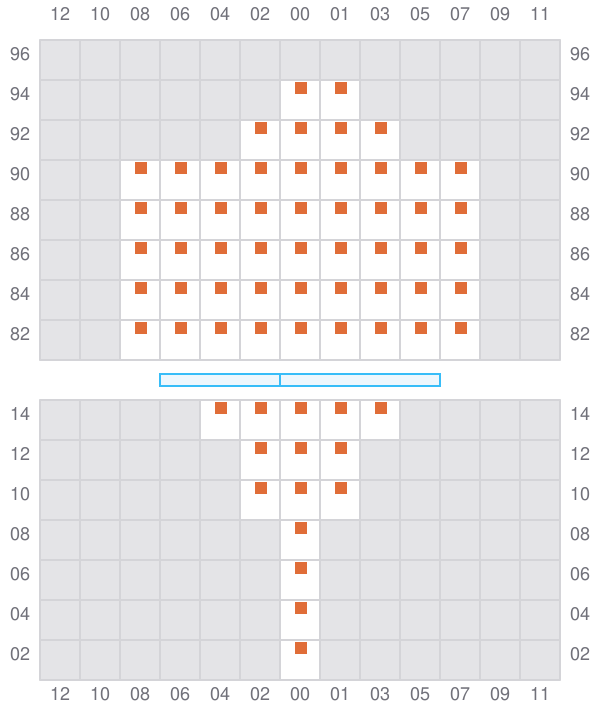

003
- ←
![Bay 003 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b003.png?v=1711137177908)

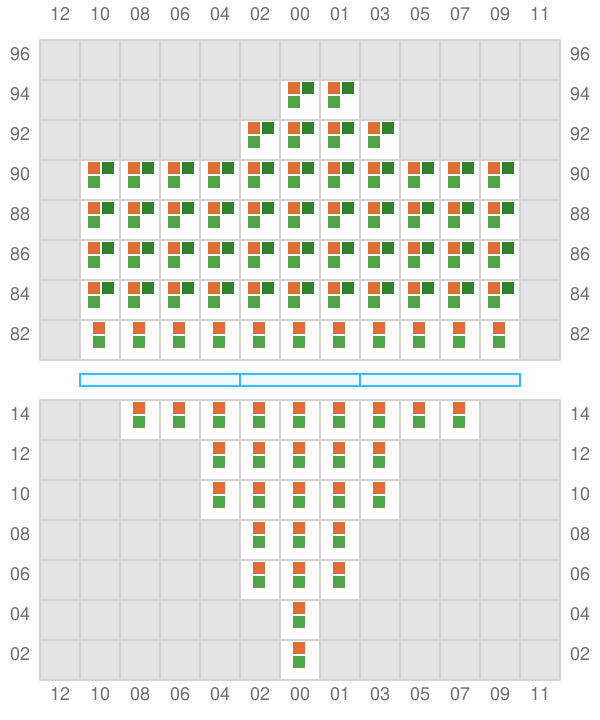

005 (006)
- →
![Bay 005 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b005.png?v=1711137177908)

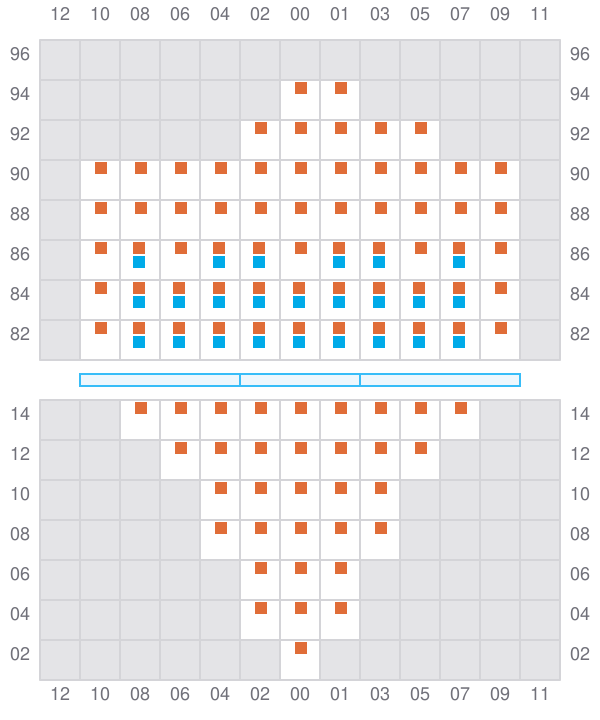

007
- ←
- → / ?
![Bay 007 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b007.png?v=1711137177908)

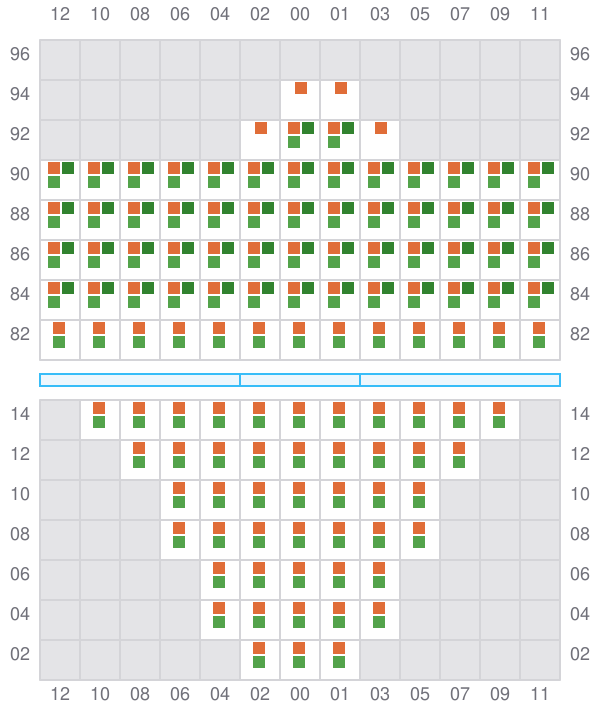

009 (010)
- →
![Bay 009 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b009.png?v=1711137177908)
011
- ←
- →
![Bay 011 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b011.png?v=1711137177908)

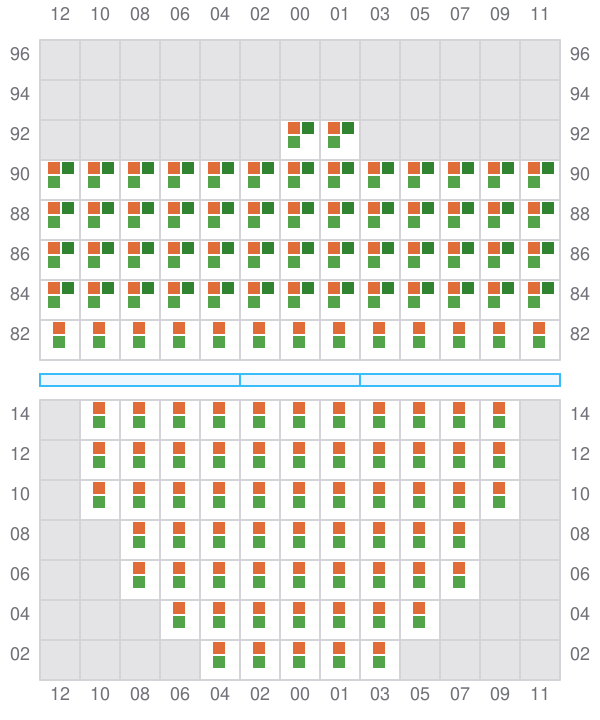

013 (014)
- →
![Bay 013 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b013.png?v=1711137177908)

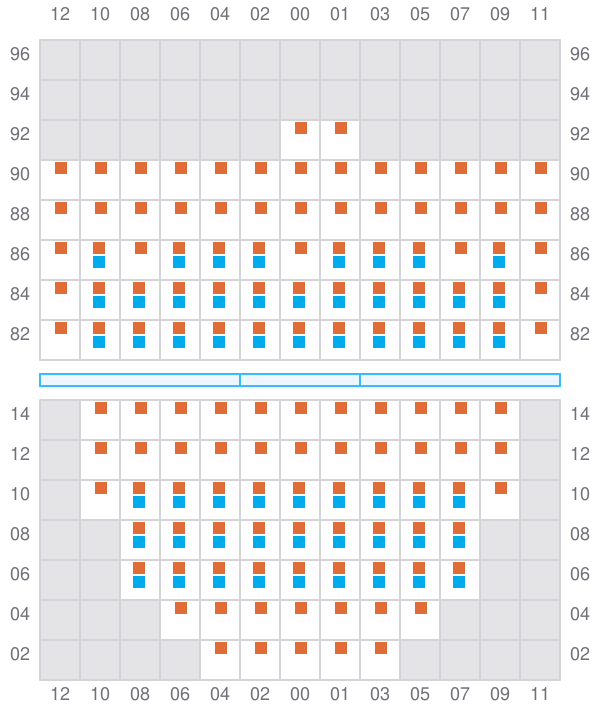

015
- ←
- →
![Bay 015 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b015.png?v=1711137177908)

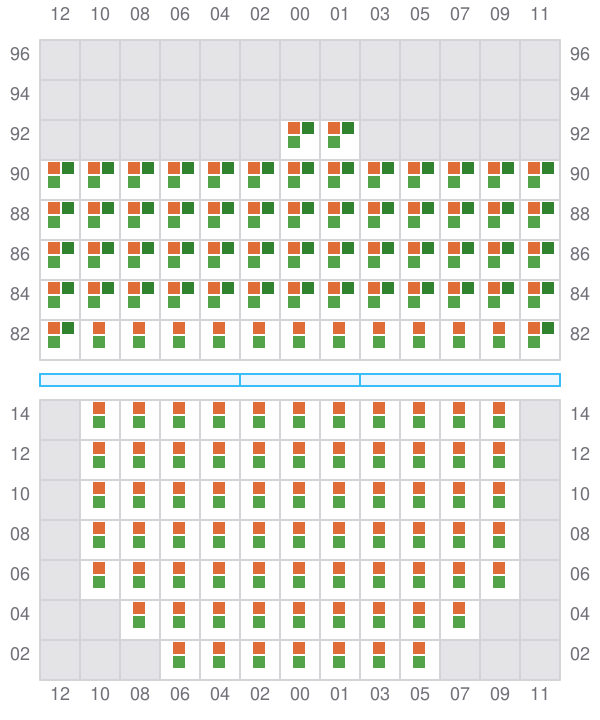

017 (018)
- →
![Bay 017 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b017.png?v=1711137177908)

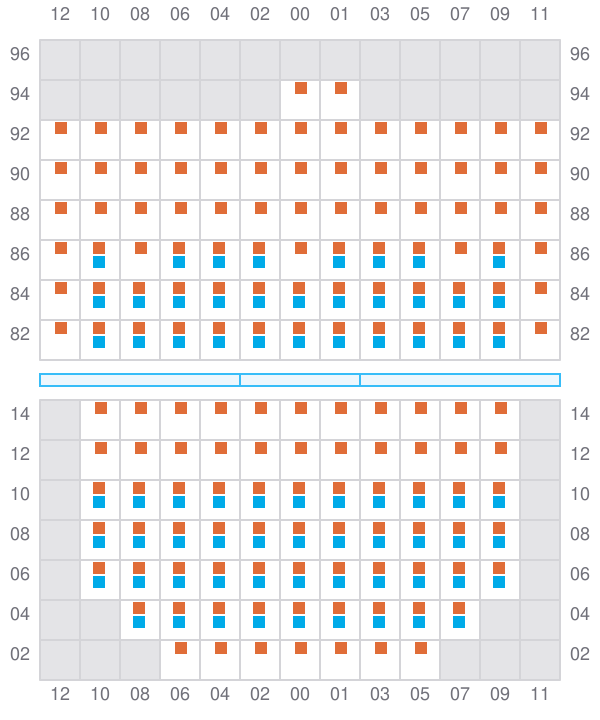

019
- ←
- →
![Bay 019 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b019.png?v=1711137177908)

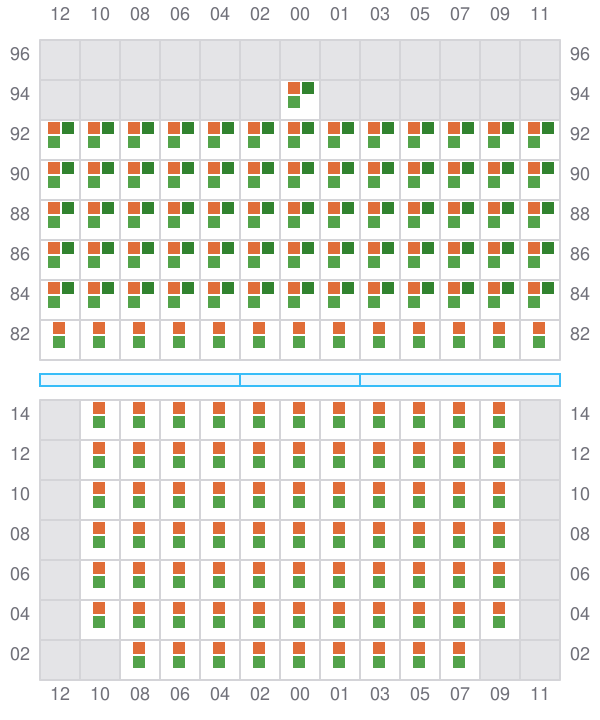

021 (022)
- →
![Bay 021 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b021.png?v=1711137177908)

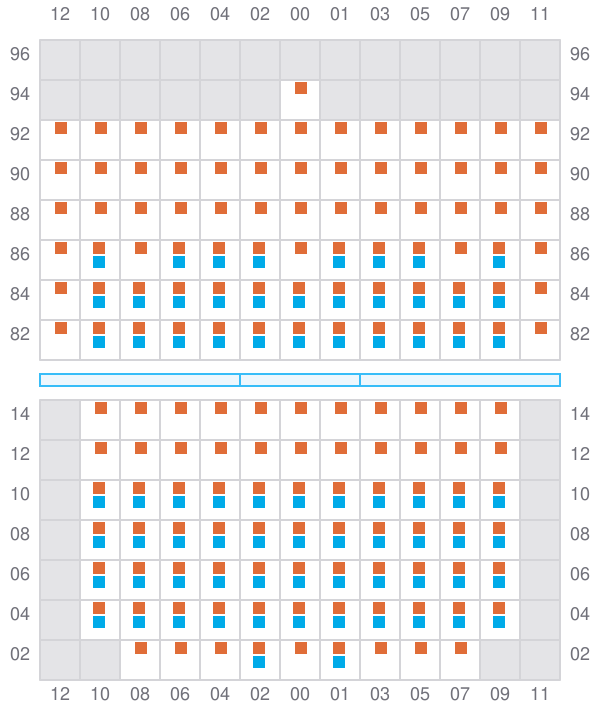

023
- ←
- →
![Bay 023 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b023.png?v=1711137177908)

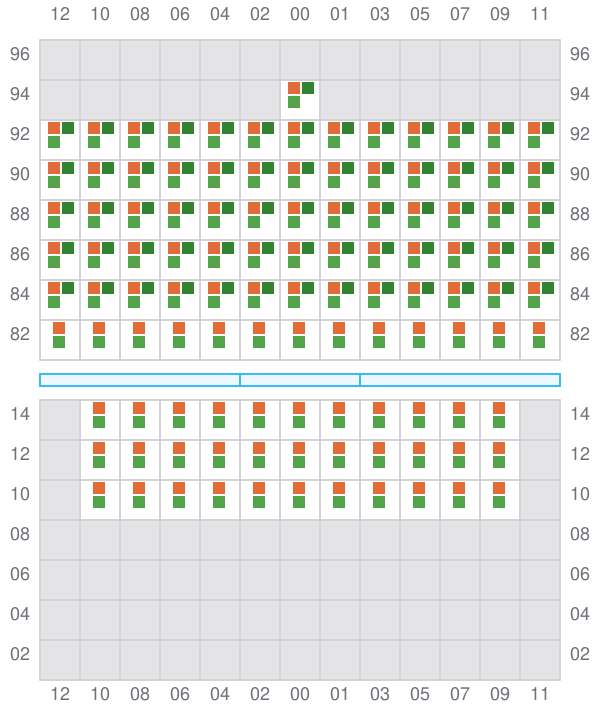

025 (026)
- →
![Bay 025 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b025.png?v=1711137177908)
027
- ←
- → / ?
![Bay 027 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b027.png?v=1711137177908)

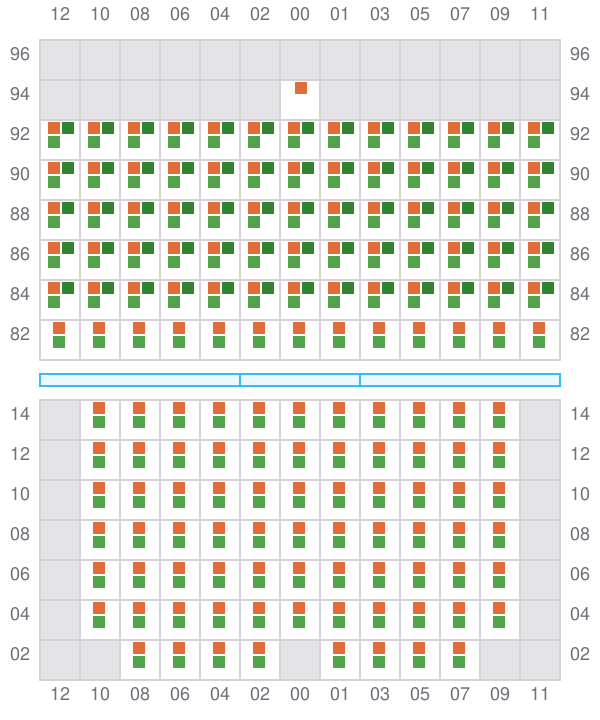

029 (030)
- →
![Bay 029 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b029.png?v=1711137177908)

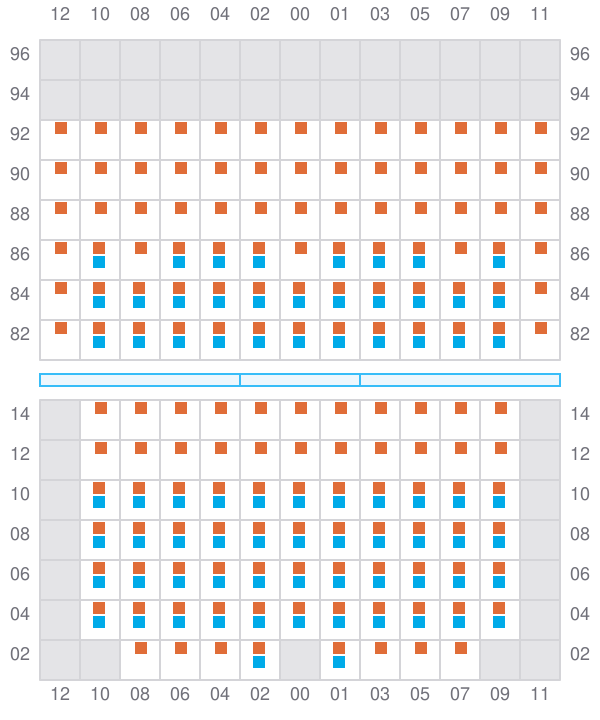

031
- ←
- →
![Bay 031 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b031.png?v=1711137177908)

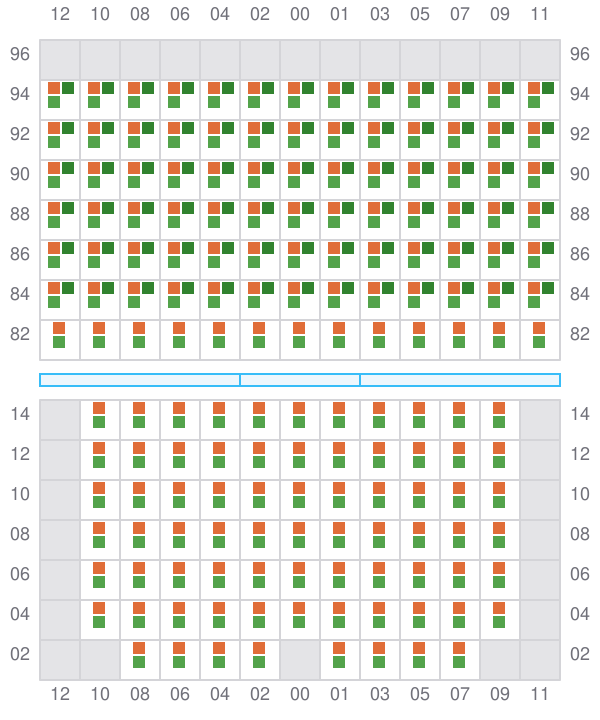

033 (034)
- →
![Bay 033 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b033.png?v=1711137177908)

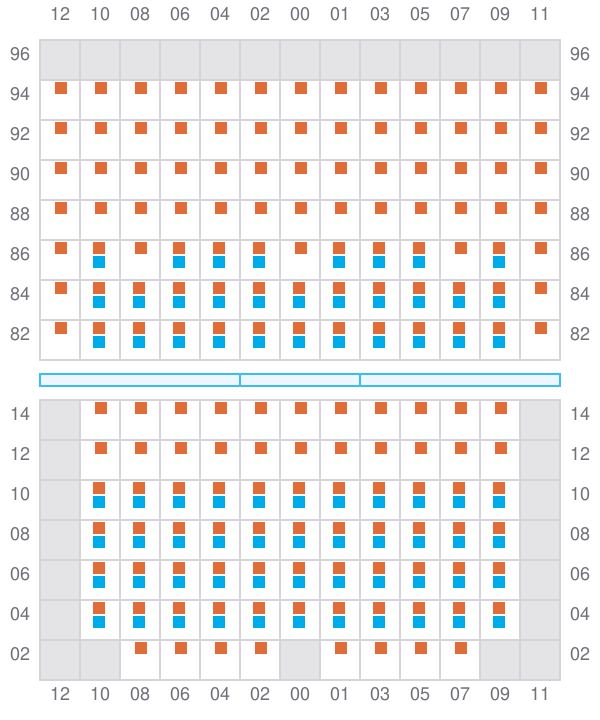

035
- ←
- →
![Bay 035 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b035.png?v=1711137177908)
037 (038)
- →
![Bay 037 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b037.png?v=1711137177908)

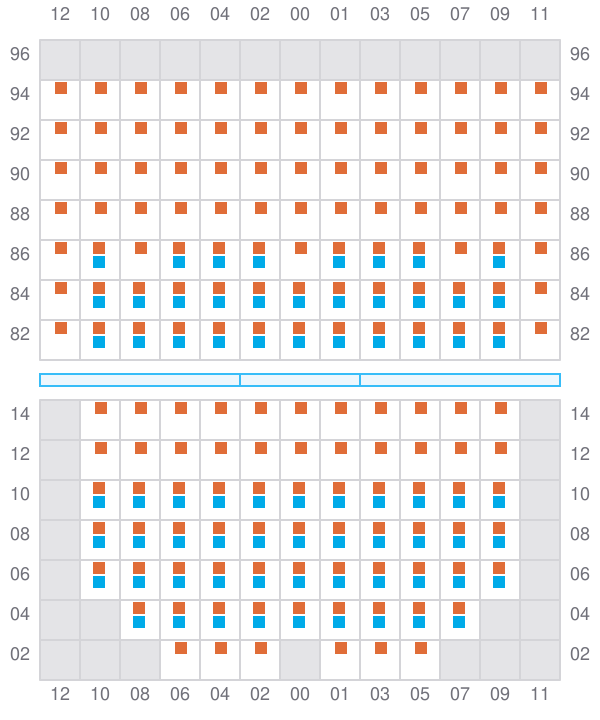

039
- ←
- →
![Bay 039 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b039.png?v=1711137177908)

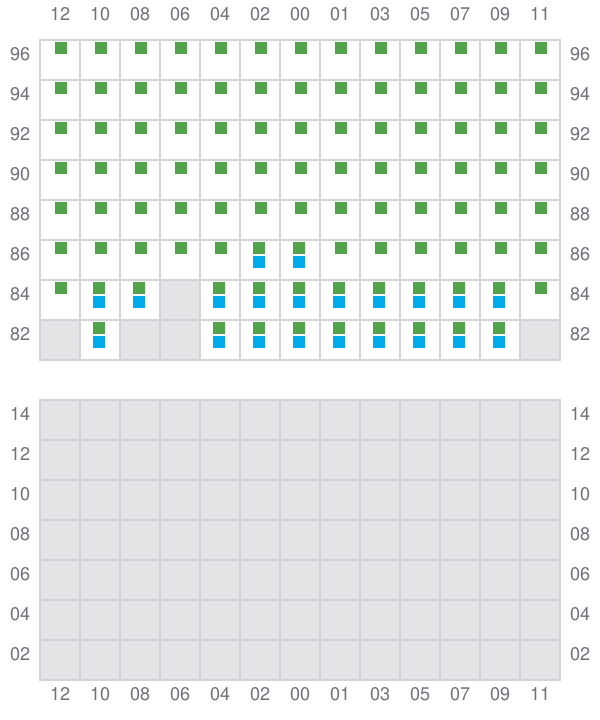

041 (042)
- → / ?
- → / ?
![Bay 041 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b041.png?v=1711137177908)

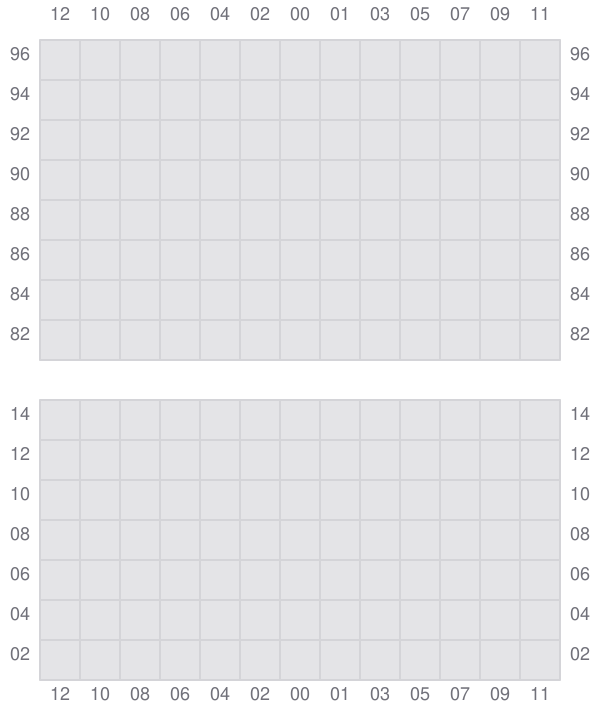

043
![Bay 043 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b043.png?v=1711137177908)

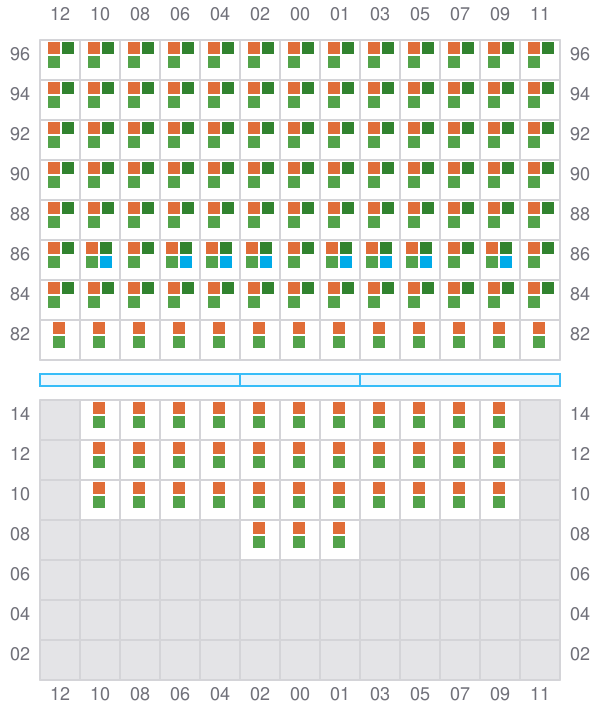

045 (046)
- →
- ← / ?
![Bay 045 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b045.png?v=1711137177908)
047
- ←
- → / ?
![Bay 047 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b047.png?v=1711137177908)

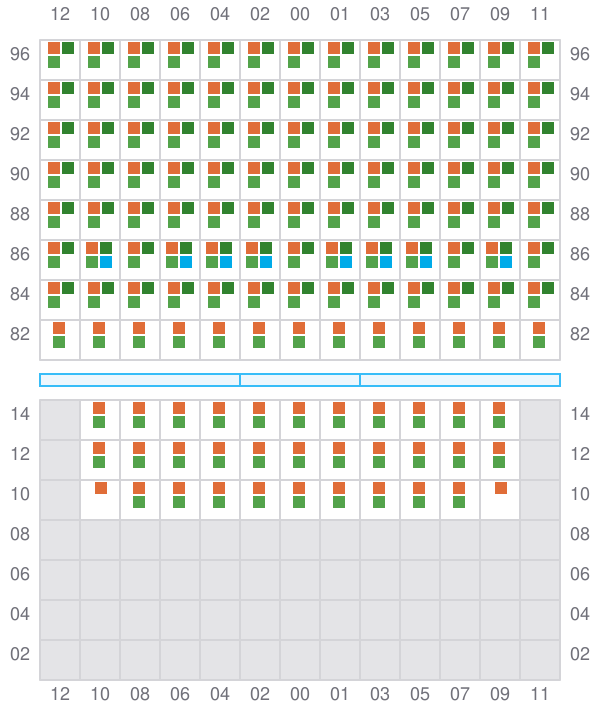

049 (050)
- →
- ← / ?
![Bay 049 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b049.png?v=1711137177908)

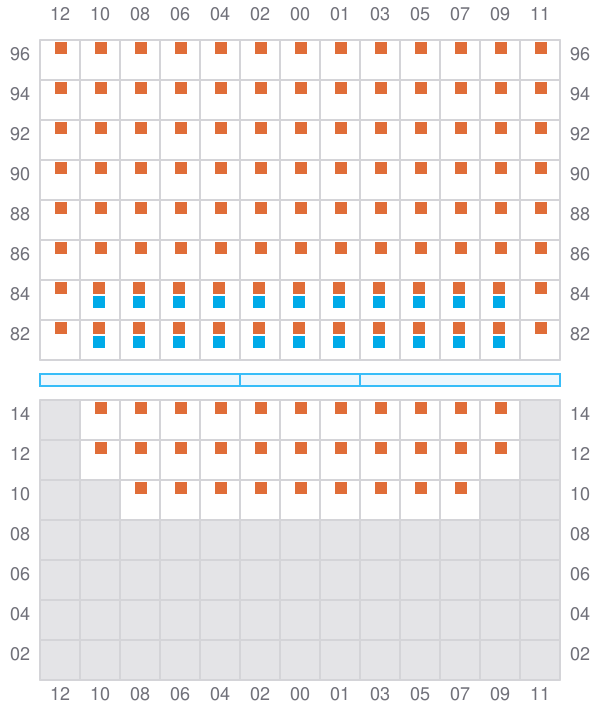

051
- ←
- → / ?
![Bay 051 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b051.png?v=1711137177908)

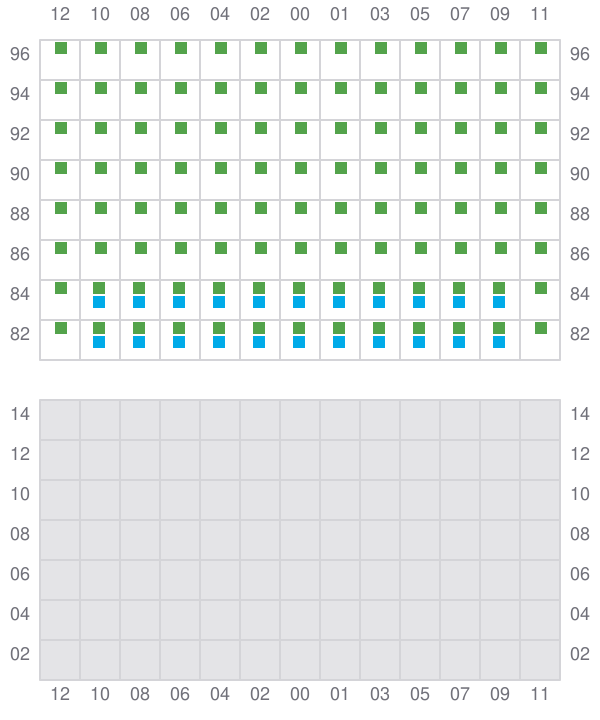

053 (054)
- → / ?
- → / ?
![Bay 053 view and slots of MAERSK INVERNESS](/vessel-images/719b6b14-d115-494c-9396-f904d8a99c4f-b053.png?v=1711137177908)
