MAERSK INVERNESS
9348156 | 9V2005 | 9348156 by ********* Last update: Mon Jul 01 2024

General Info

Ship Name:MAERSK INVERNESS
IMO Code:9348156
Call Sign:9V2005
Line Operator:9348156
Class Name for Sister Ships:MSL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):219.00
LOA (Length Overall):232.33
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,460

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK INVERNESS

Hatch-Covers View

Deck view of MAERSK INVERNESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

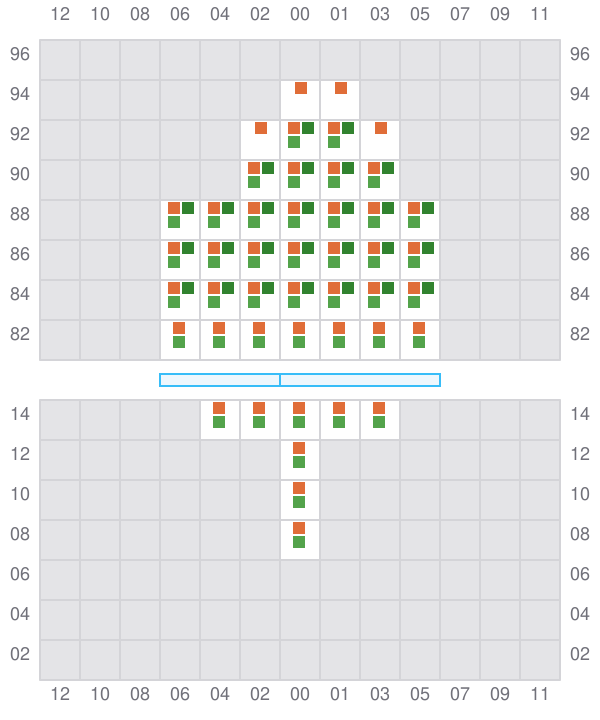

Bay 001 view and slots of MAERSK INVERNESS

003

  • ←

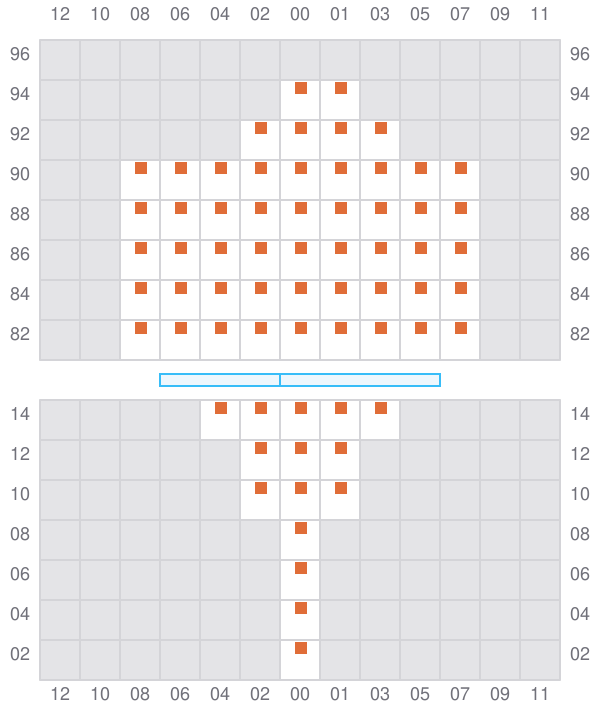

Bay 003 view and slots of MAERSK INVERNESS

005 (006)

  • →

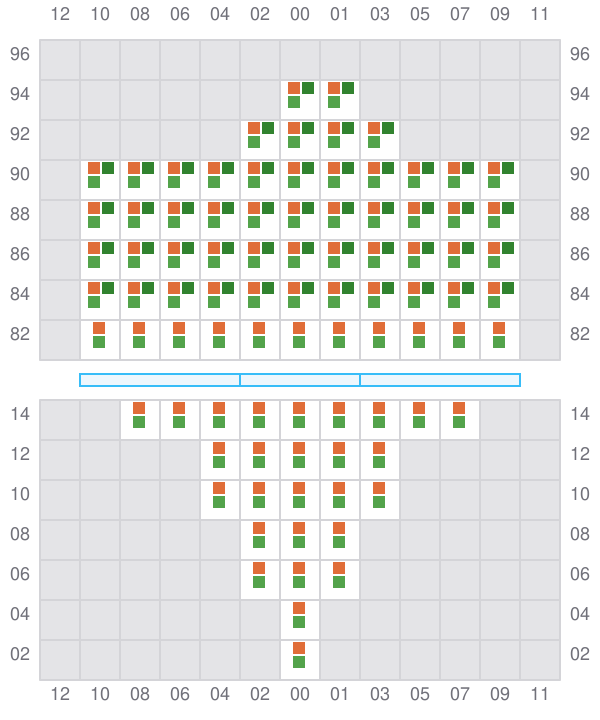

Bay 005 view and slots of MAERSK INVERNESS

007

  • ←
  • → / ?

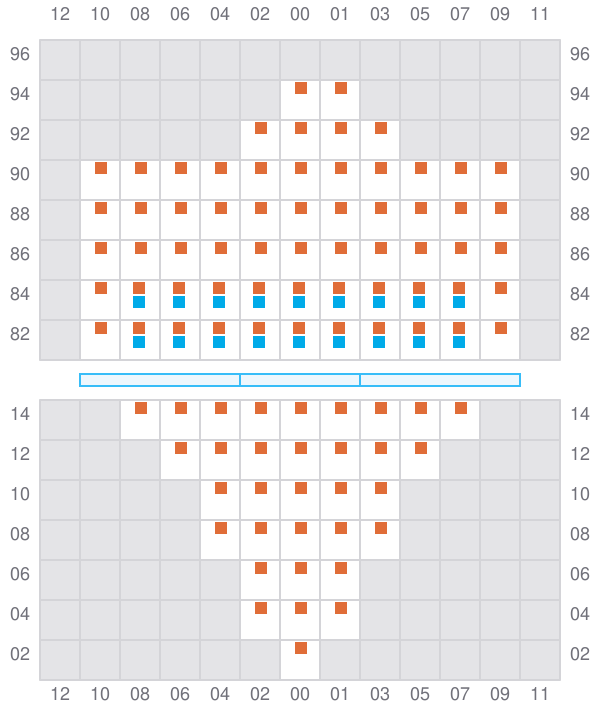

Bay 007 view and slots of MAERSK INVERNESS

009 (010)

  • →

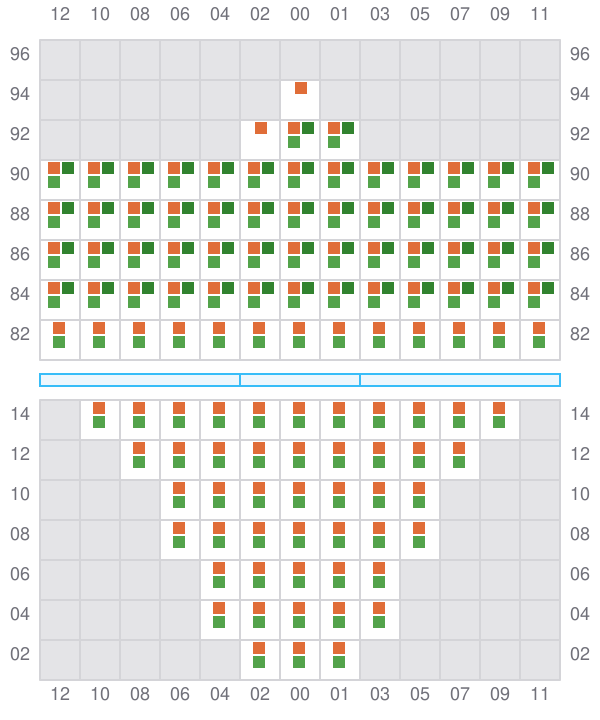

Bay 009 view and slots of MAERSK INVERNESS

011

  • ←
  • →
Bay 011 view and slots of MAERSK INVERNESS

013 (014)

  • →
Bay 013 view and slots of MAERSK INVERNESS

015

  • ←
  • →

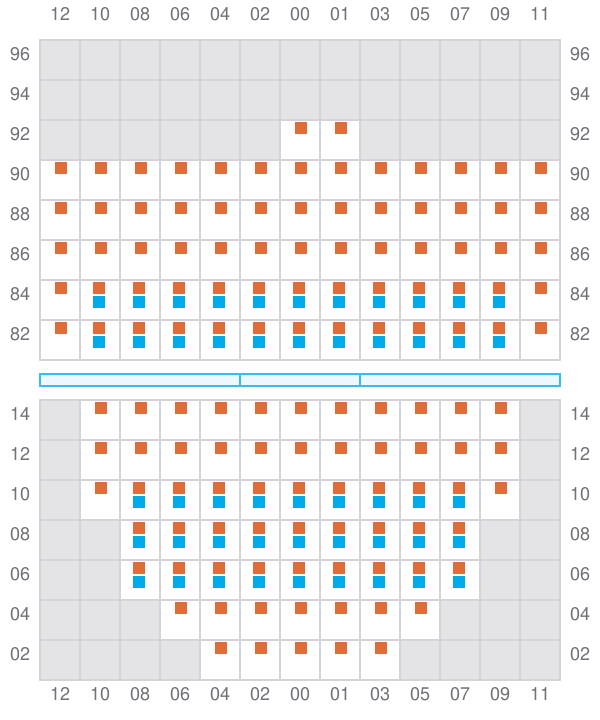

Bay 015 view and slots of MAERSK INVERNESS

017 (018)

  • →

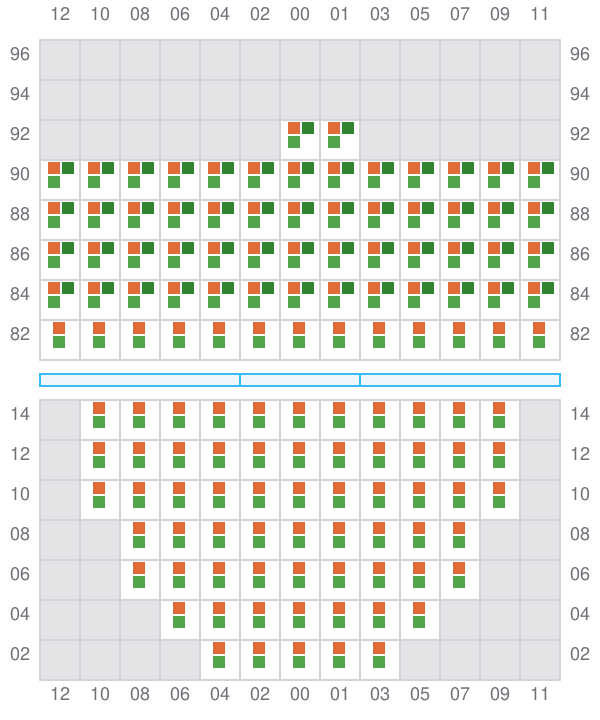

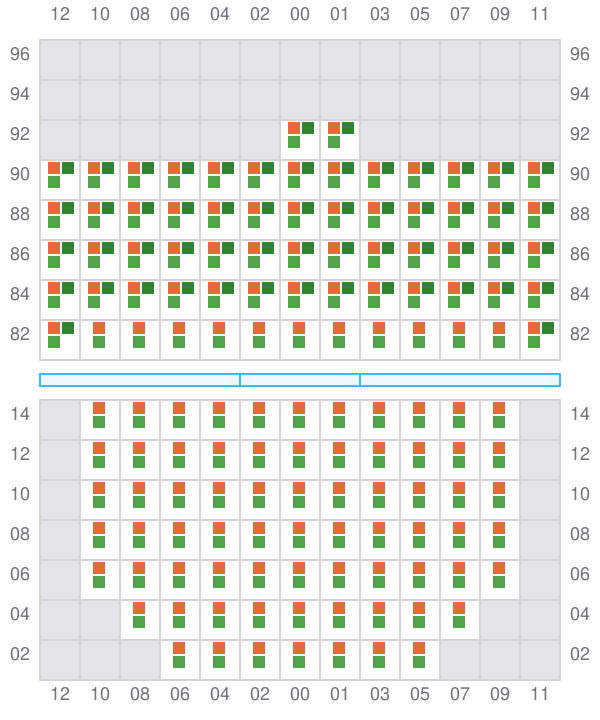

Bay 017 view and slots of MAERSK INVERNESS

019

  • ←
  • →
Bay 019 view and slots of MAERSK INVERNESS

021 (022)

  • →
Bay 021 view and slots of MAERSK INVERNESS

023

  • ←
  • →
Bay 023 view and slots of MAERSK INVERNESS

025 (026)

  • →

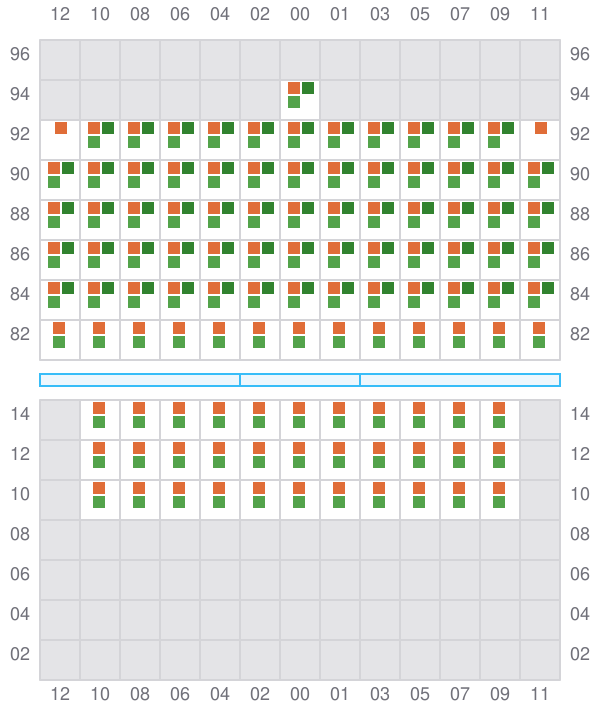

Bay 025 view and slots of MAERSK INVERNESS

027

  • ←
  • → / ?

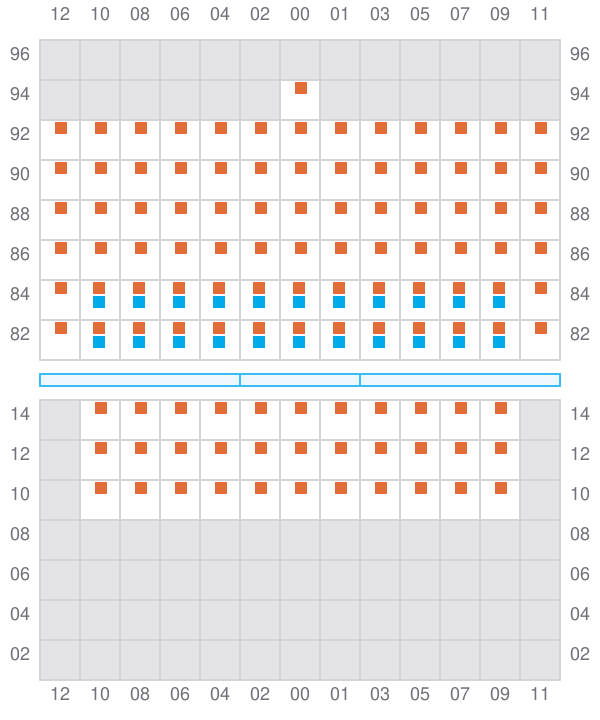

Bay 027 view and slots of MAERSK INVERNESS

029 (030)

  • →

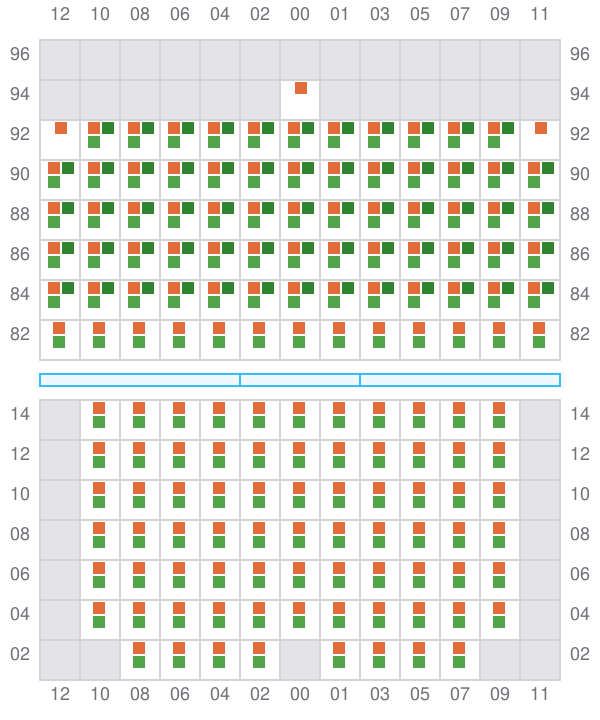

Bay 029 view and slots of MAERSK INVERNESS

031

  • ←
  • →

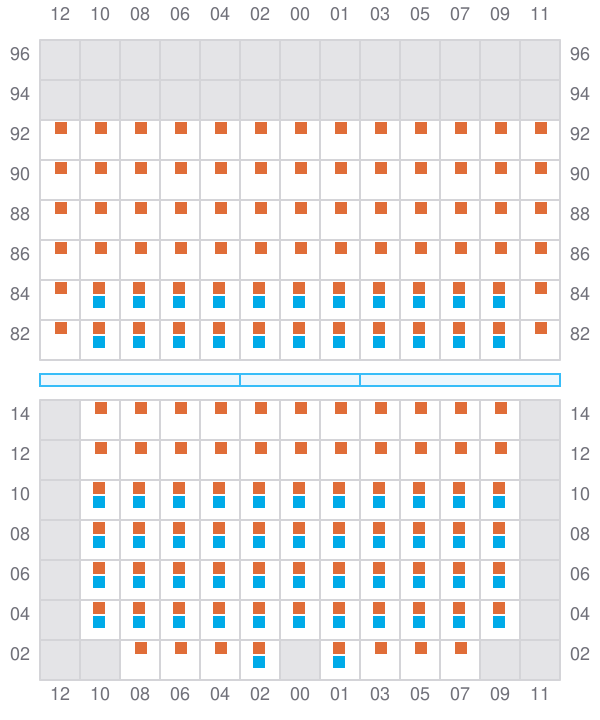

Bay 031 view and slots of MAERSK INVERNESS

033 (034)

  • →

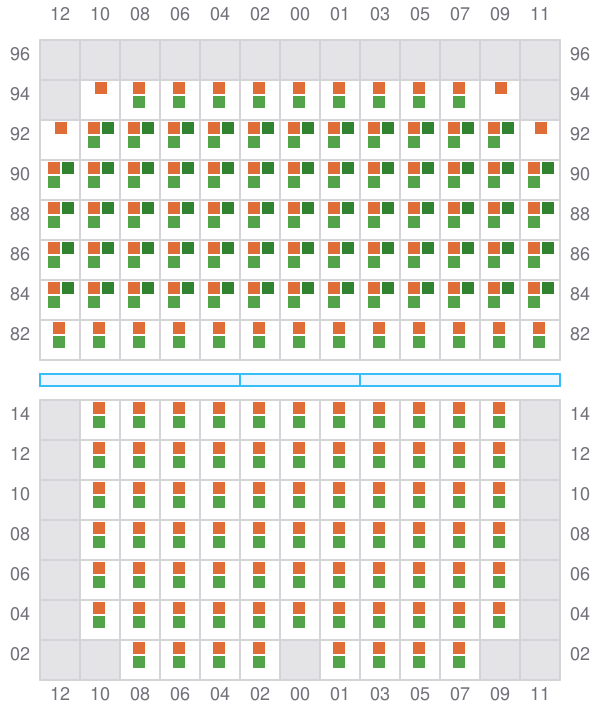

Bay 033 view and slots of MAERSK INVERNESS

035

  • ←
  • →

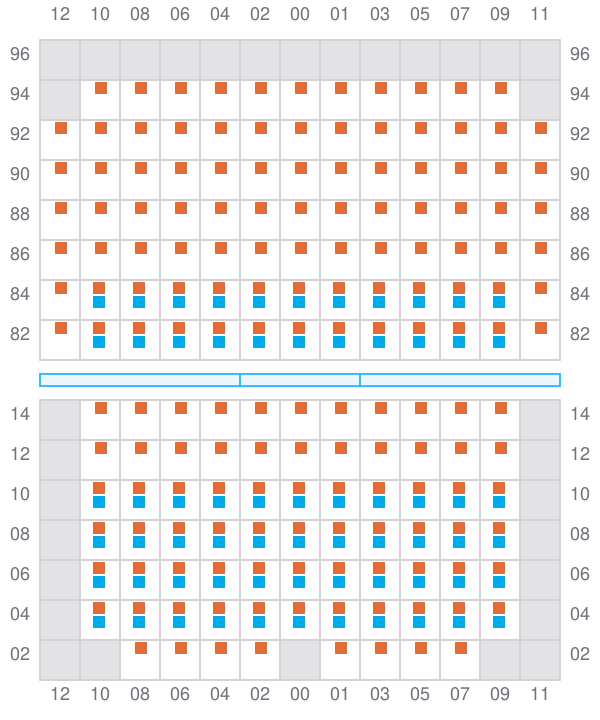

Bay 035 view and slots of MAERSK INVERNESS

037 (038)

  • →

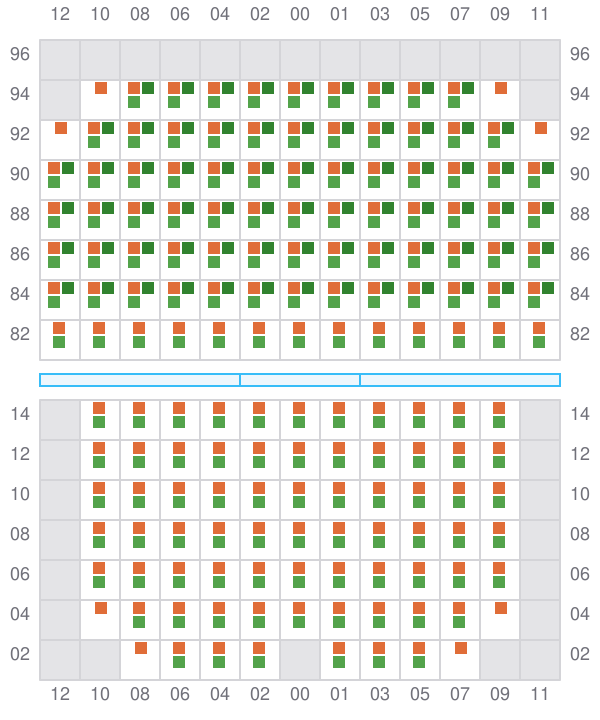

Bay 037 view and slots of MAERSK INVERNESS

039

  • ←
  • →

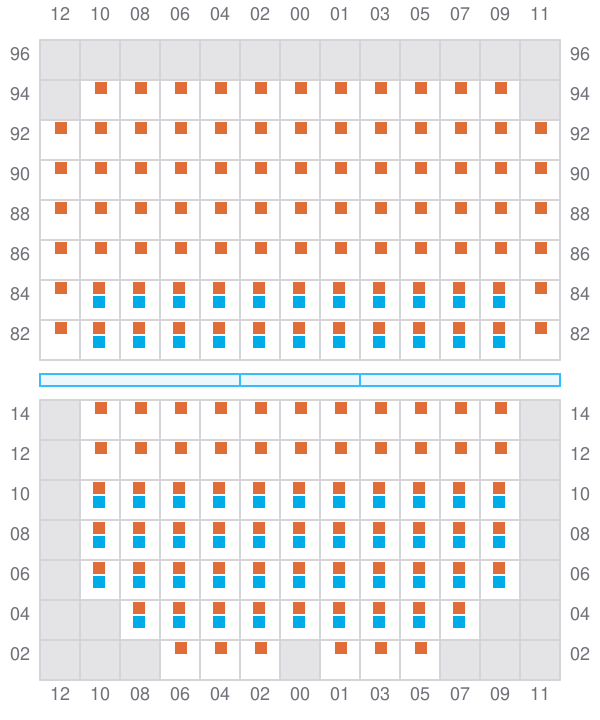

Bay 039 view and slots of MAERSK INVERNESS

041 (042)

  • → / ?
  • → / ?

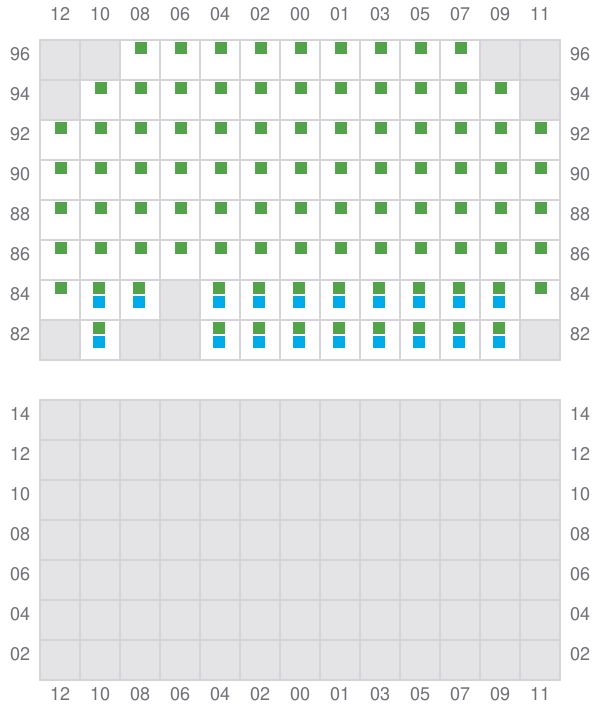

Bay 041 view and slots of MAERSK INVERNESS

043

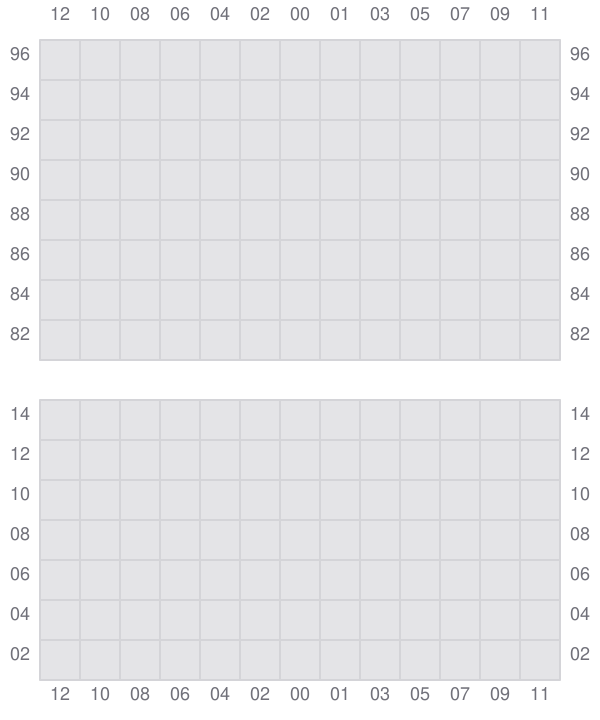

Bay 043 view and slots of MAERSK INVERNESS

045 (046)

  • →
Bay 045 view and slots of MAERSK INVERNESS

047

  • ←
  • → / ?

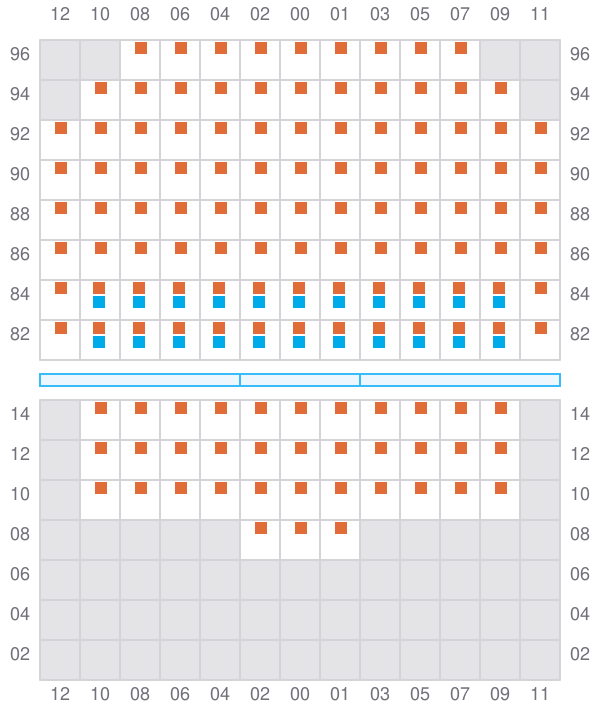

Bay 047 view and slots of MAERSK INVERNESS

049 (050)

  • →

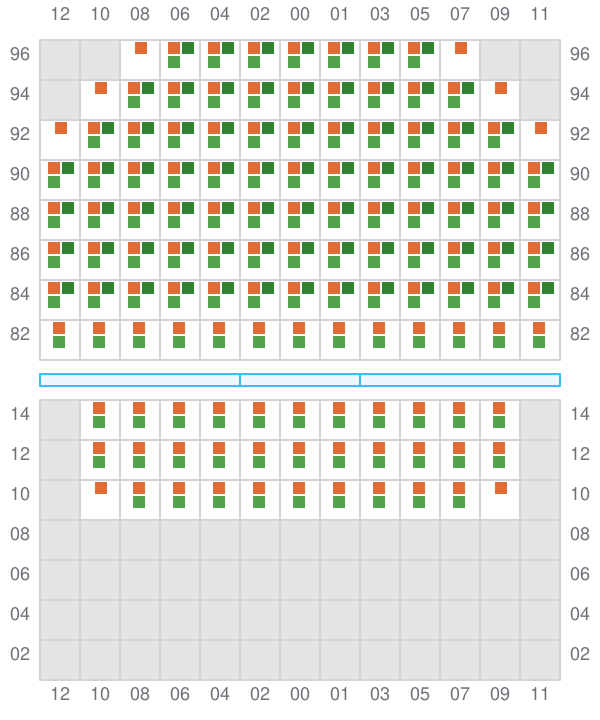

Bay 049 view and slots of MAERSK INVERNESS

051

  • ←
  • → / ?

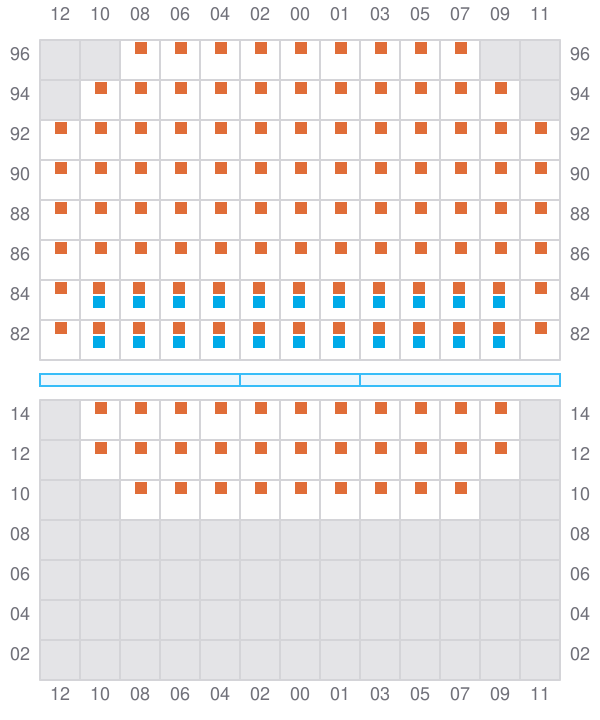

Bay 051 view and slots of MAERSK INVERNESS

053 (054)

  • → / ?
  • → / ?

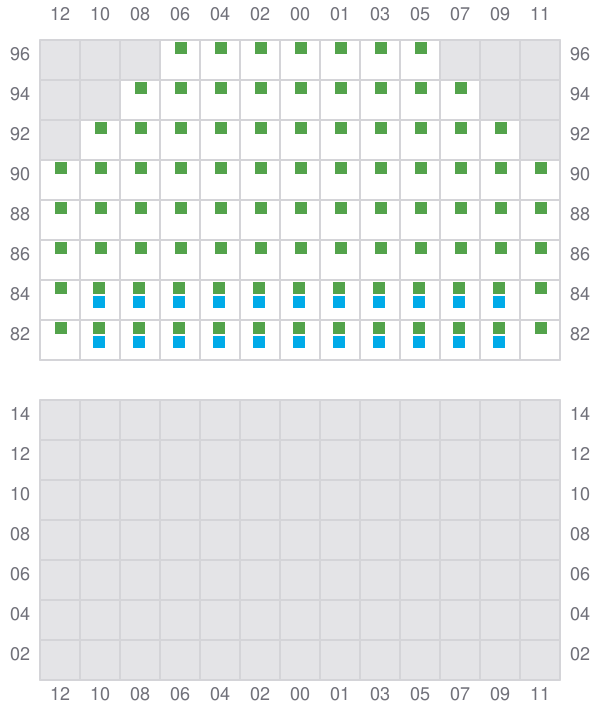

Bay 053 view and slots of MAERSK INVERNESS
