MAERSK IOWA
9298686 | KABL | MSK by ************************** Last update: Sat Jun 24 2023

General Info

Ship Name:MAERSK IOWA

IMO Code:9298686

Call Sign:KABL

Line Operator:MSK

Class Name for Sister Ships:IWA

Year Built:2006

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):277.00

LOA (Length Overall):292.08

Stern to AFT PP:-

Features Informed:

Also Known As...:-

Size Summary

ISO Bays:069

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:4,769

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Side view of MAERSK IOWA

Hatch-Covers View

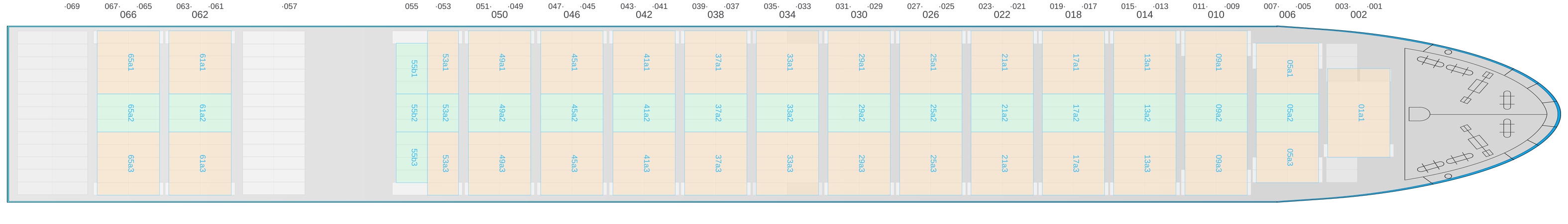

Deck view of MAERSK IOWA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

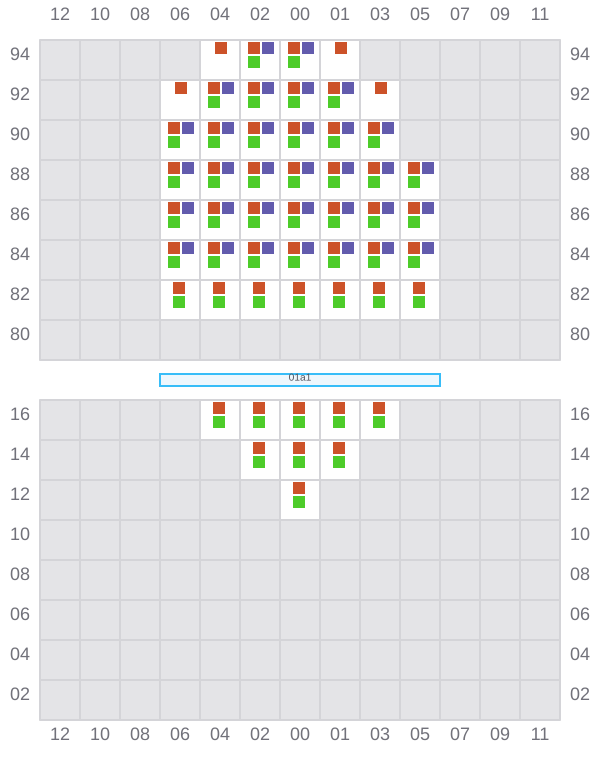

Bay 001 view and slots of MAERSK IOWA

003

←

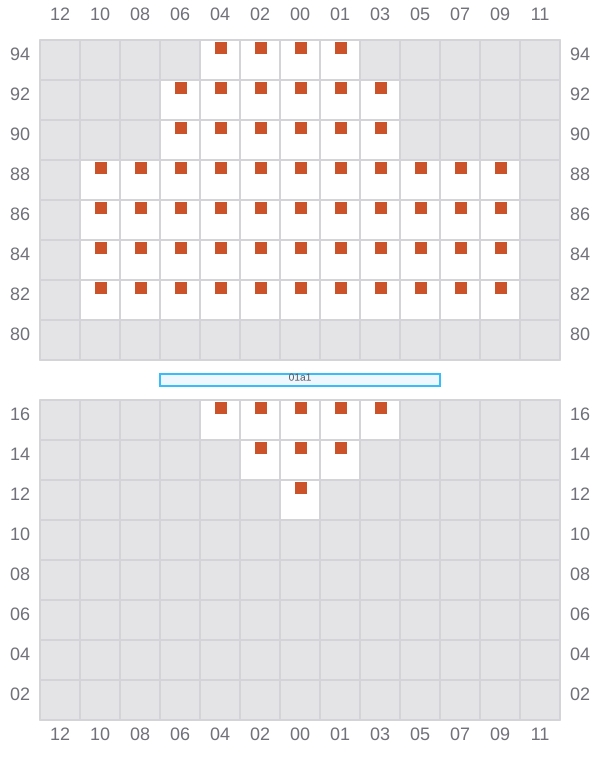

Bay 003 view and slots of MAERSK IOWA

005 (006)

→

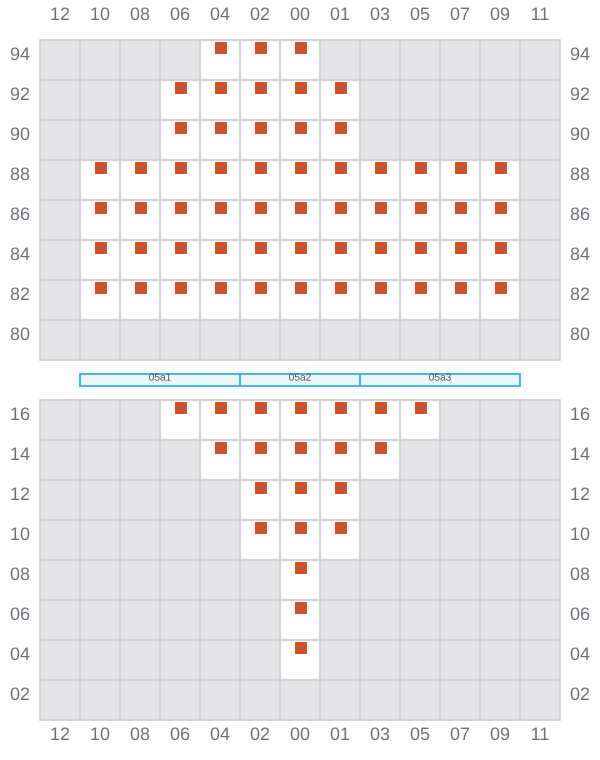

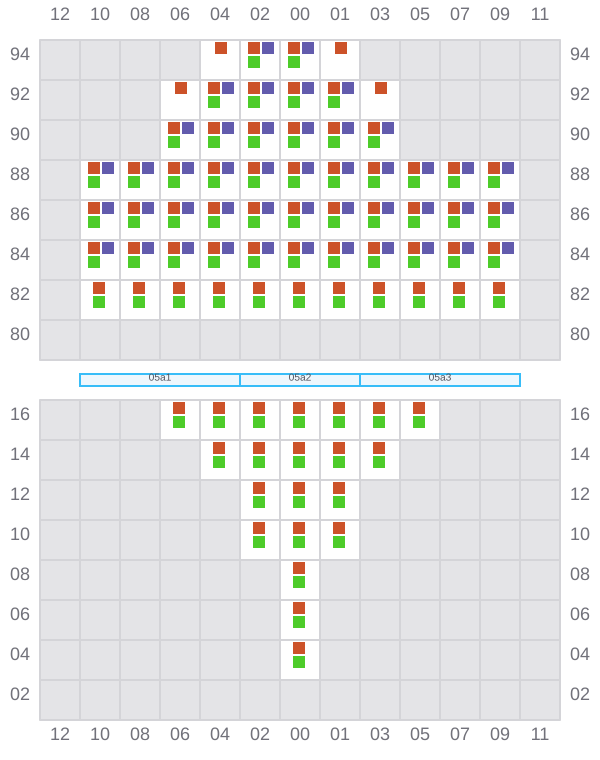

Bay 005 view and slots of MAERSK IOWA

007

←

Bay 007 view and slots of MAERSK IOWA

009 (010)

→

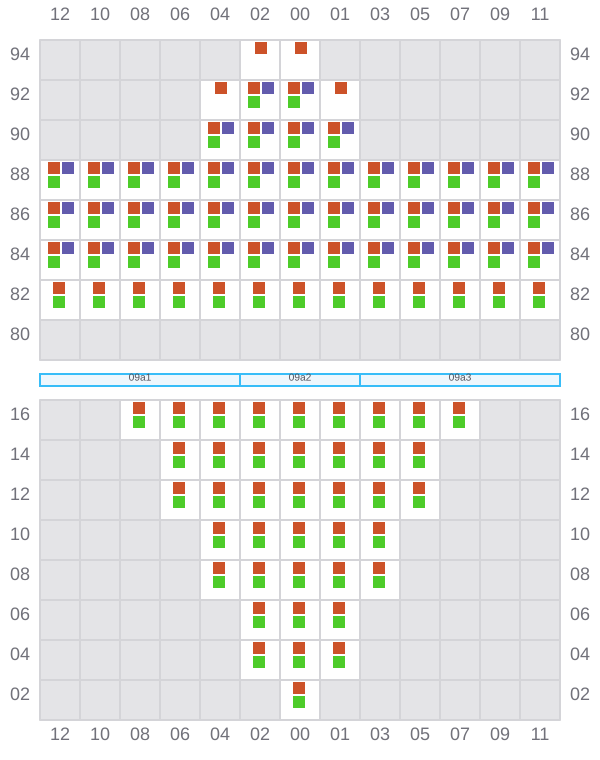

Bay 009 view and slots of MAERSK IOWA

011

←

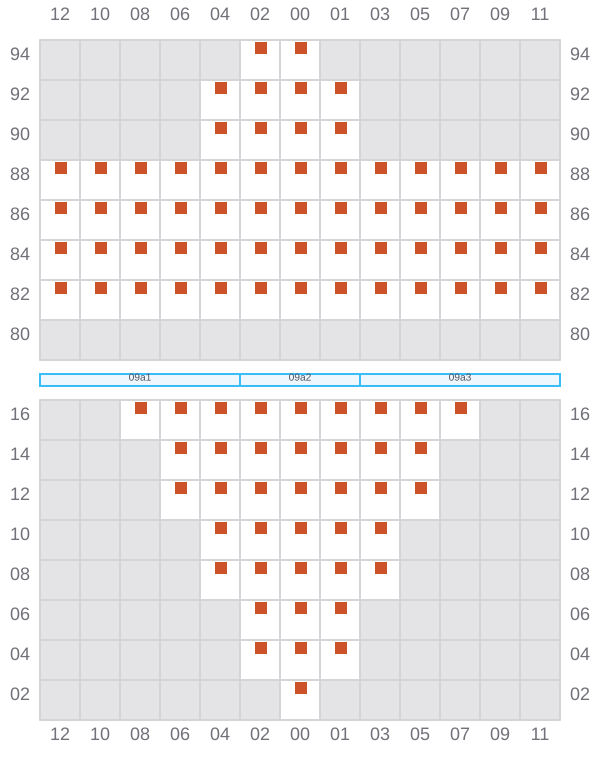

Bay 011 view and slots of MAERSK IOWA

013 (014)

→

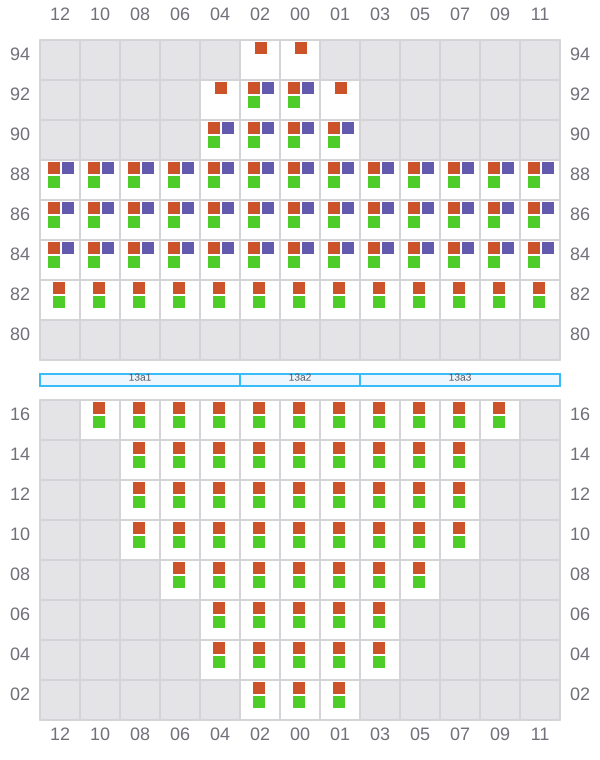

Bay 013 view and slots of MAERSK IOWA

015

←

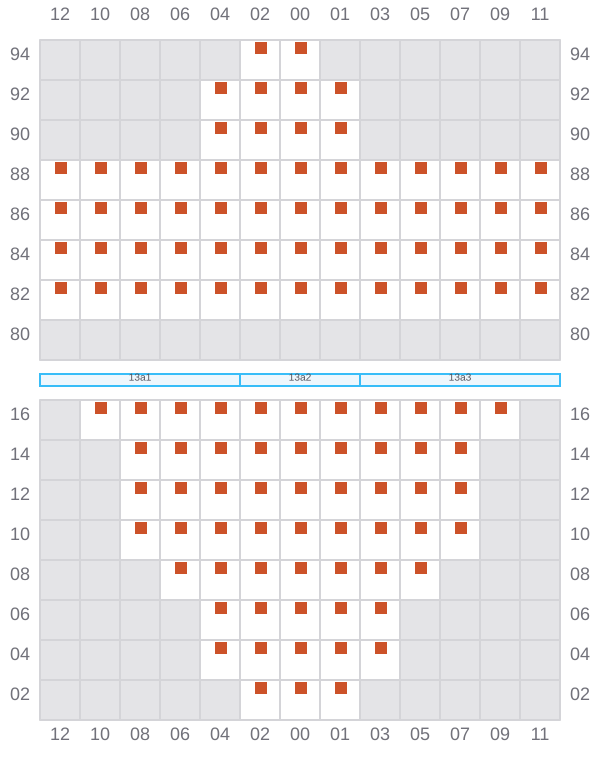

Bay 015 view and slots of MAERSK IOWA

017 (018)

→

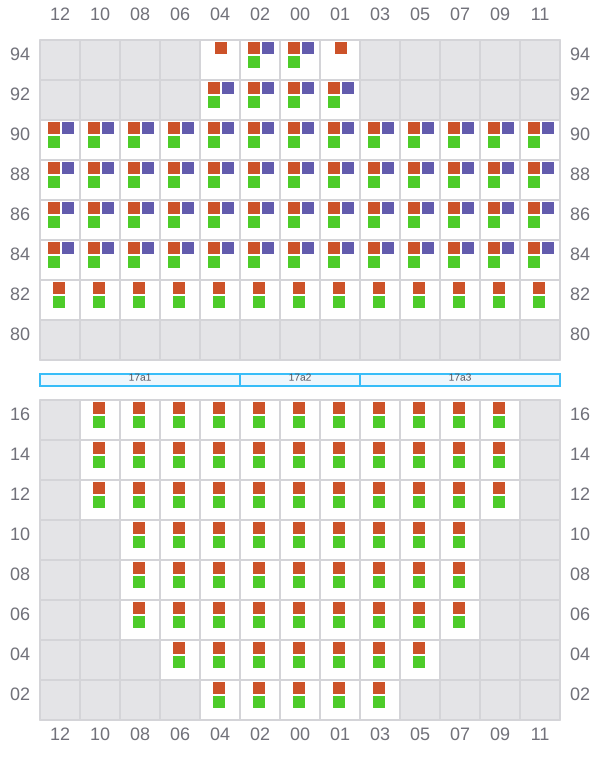

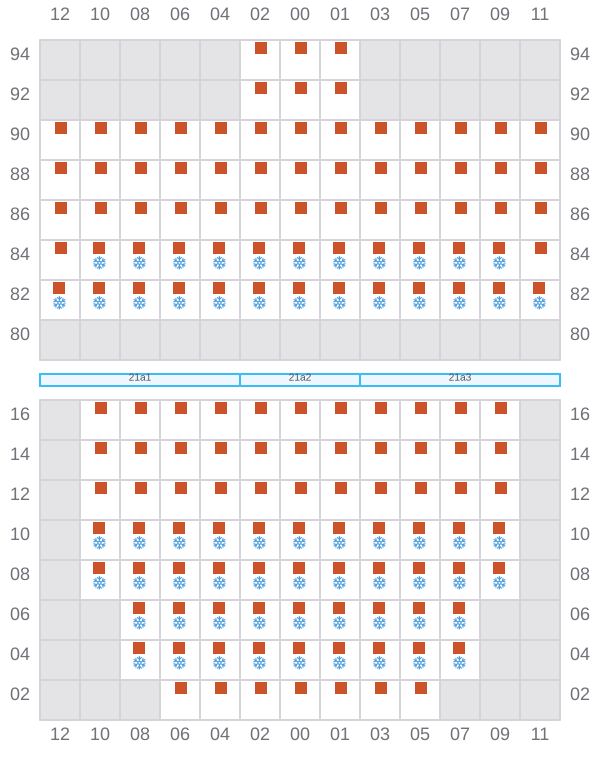

Bay 017 view and slots of MAERSK IOWA

019

←
→

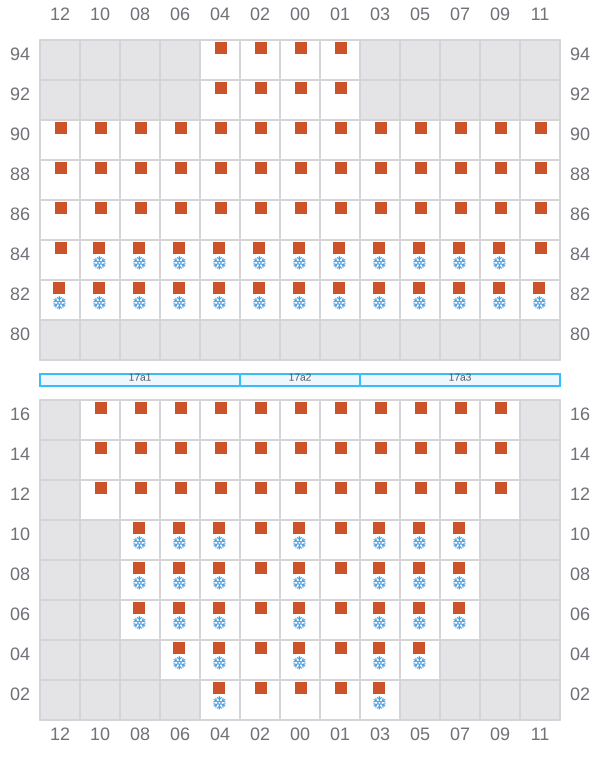

Bay 019 view and slots of MAERSK IOWA

021 (022)

→

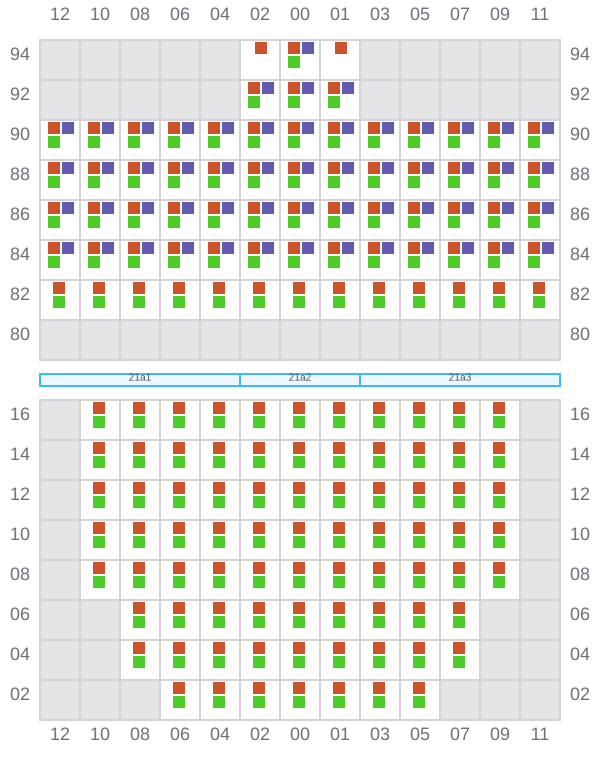

Bay 021 view and slots of MAERSK IOWA

023

←
→

Bay 023 view and slots of MAERSK IOWA

025 (026)

→

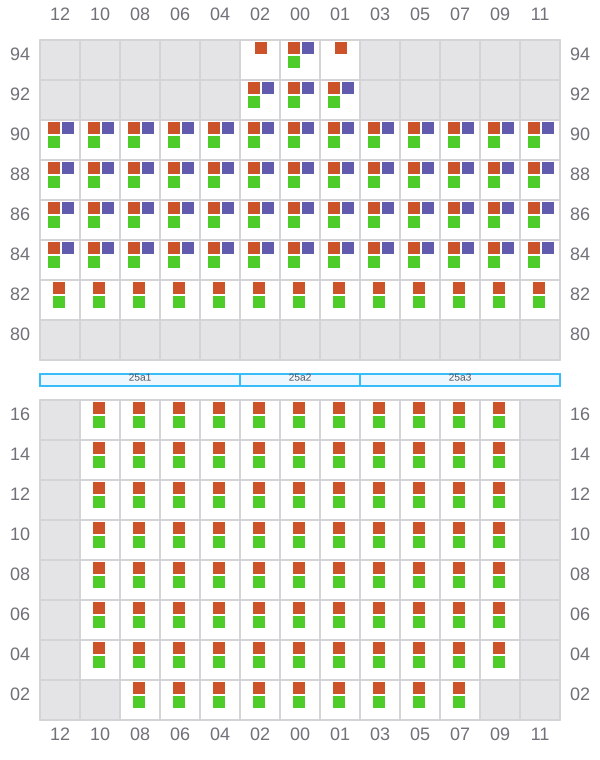

Bay 025 view and slots of MAERSK IOWA

027

←
→

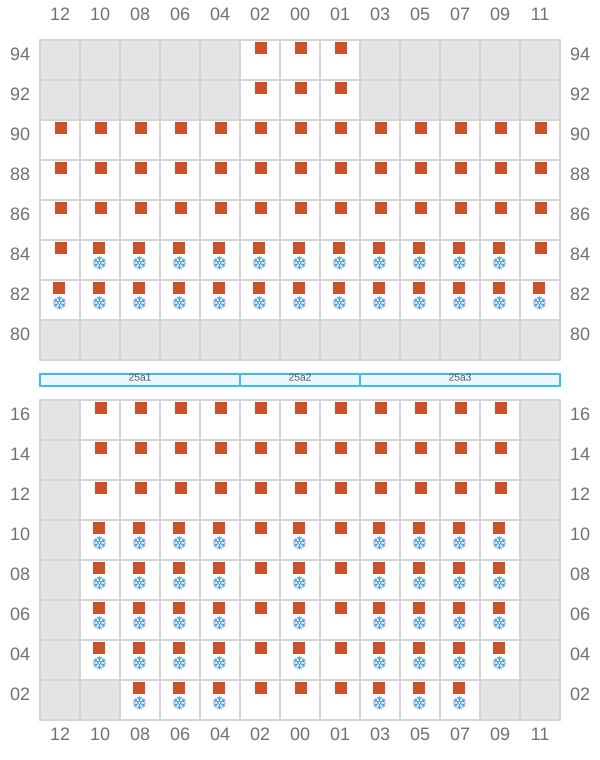

Bay 027 view and slots of MAERSK IOWA

029 (030)

→

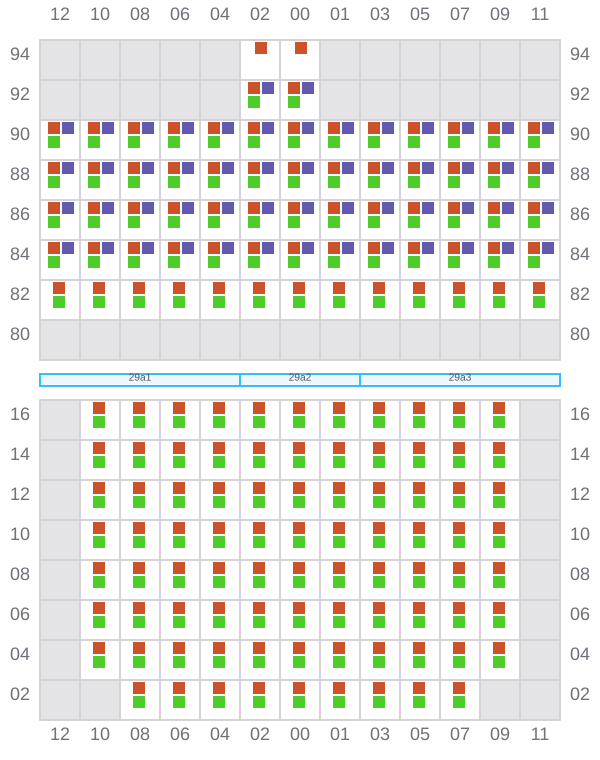

Bay 029 view and slots of MAERSK IOWA

031

←
^→ / _?

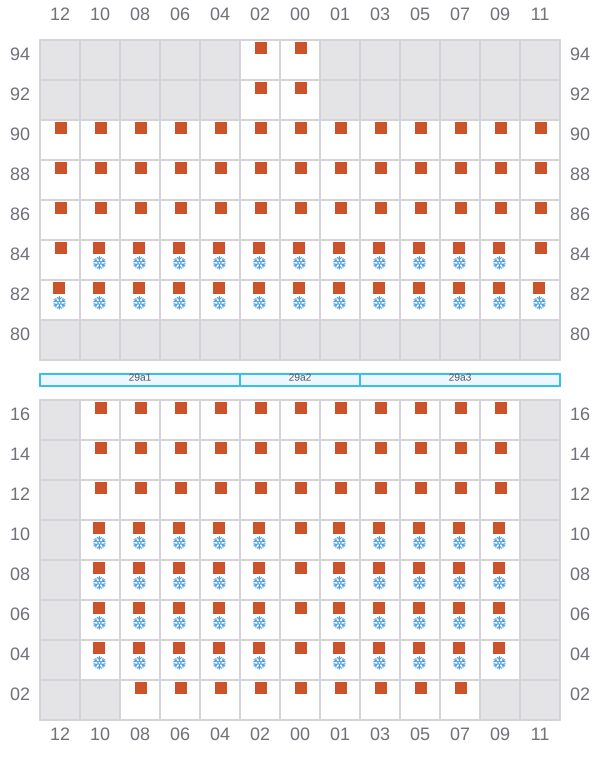

Bay 031 view and slots of MAERSK IOWA

033 (034)

→

Bay 033 view and slots of MAERSK IOWA

035

←
→

Bay 035 view and slots of MAERSK IOWA

037 (038)

→

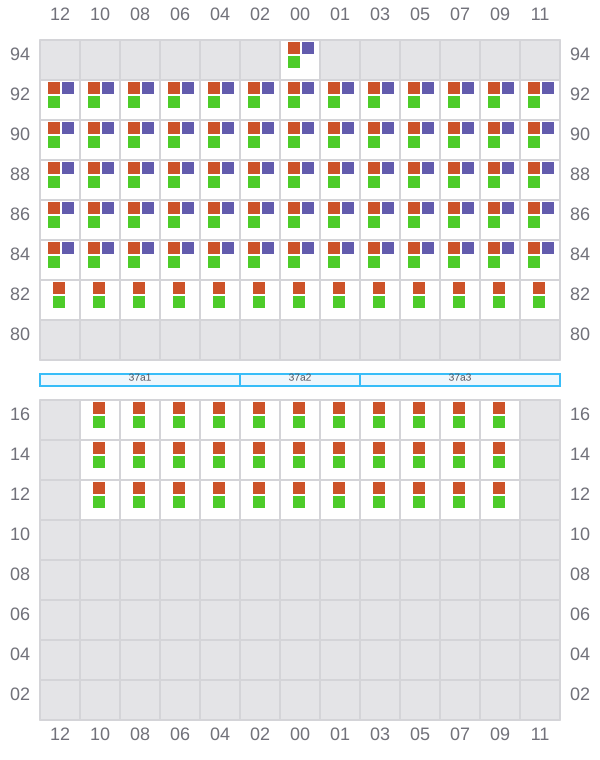

Bay 037 view and slots of MAERSK IOWA

039

←
^→ / _?

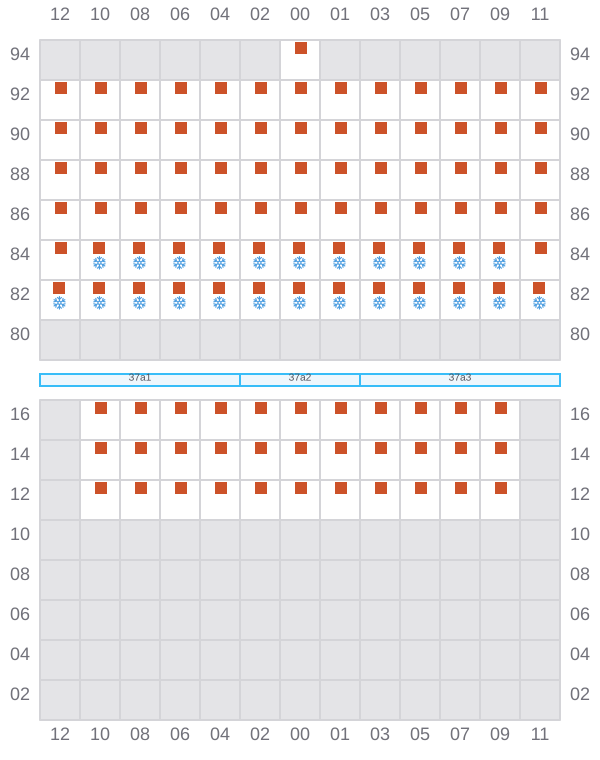

Bay 039 view and slots of MAERSK IOWA

041 (042)

→

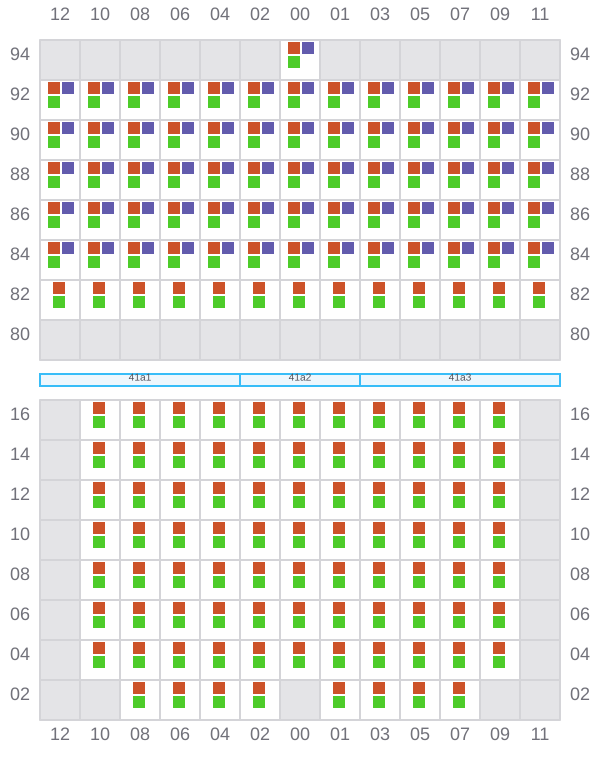

Bay 041 view and slots of MAERSK IOWA

043

←
→

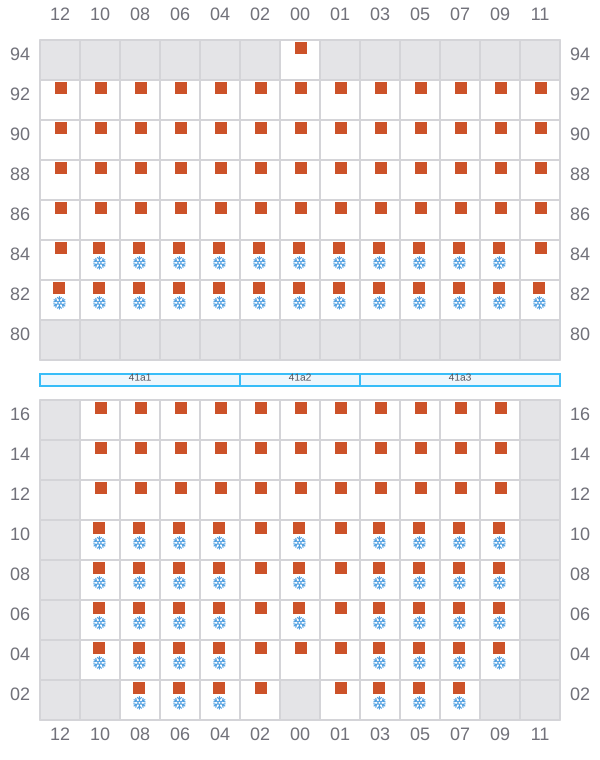

Bay 043 view and slots of MAERSK IOWA

045 (046)

→

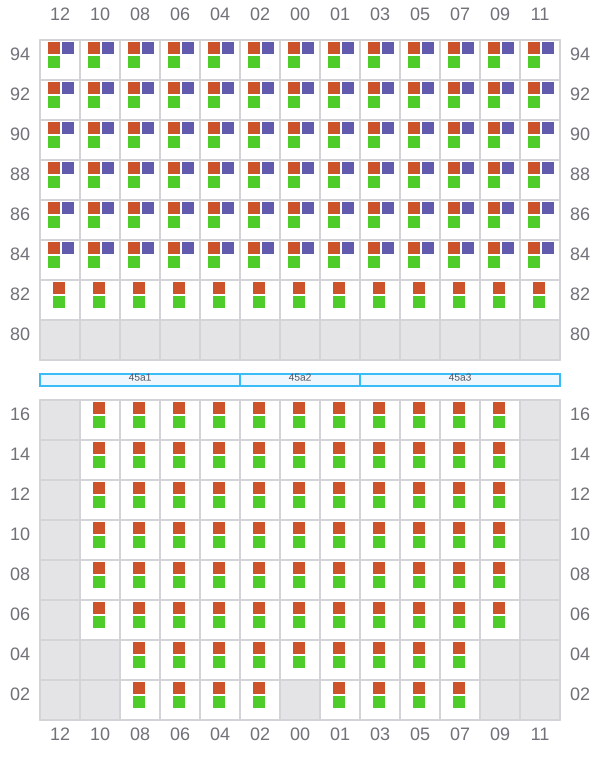

Bay 045 view and slots of MAERSK IOWA

047

←
→

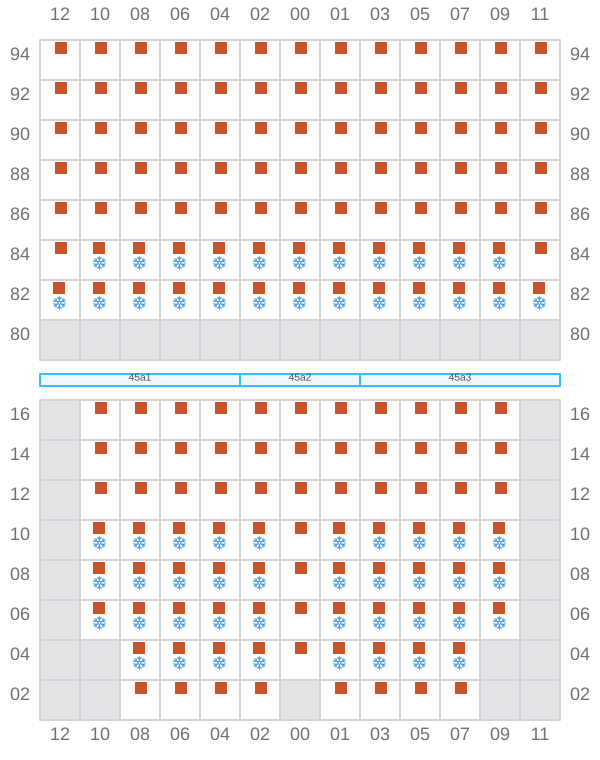

Bay 047 view and slots of MAERSK IOWA

049 (050)

→

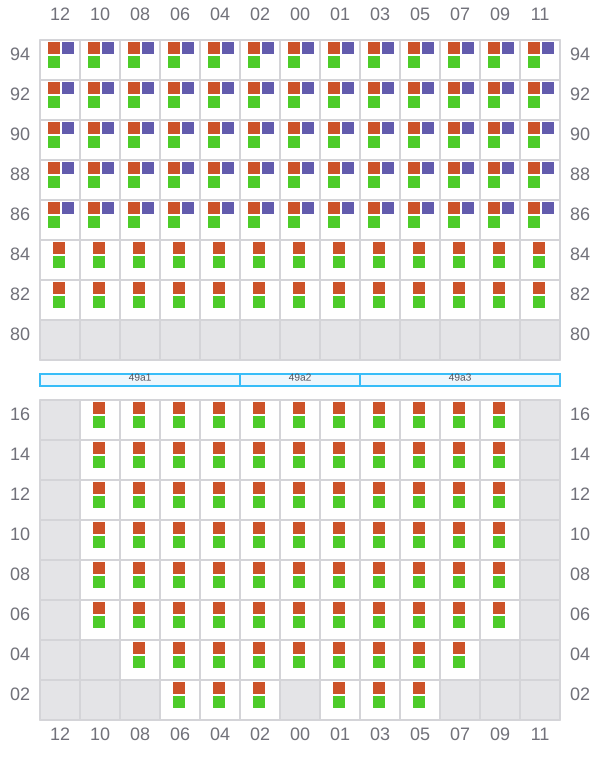

Bay 049 view and slots of MAERSK IOWA

051

←
→

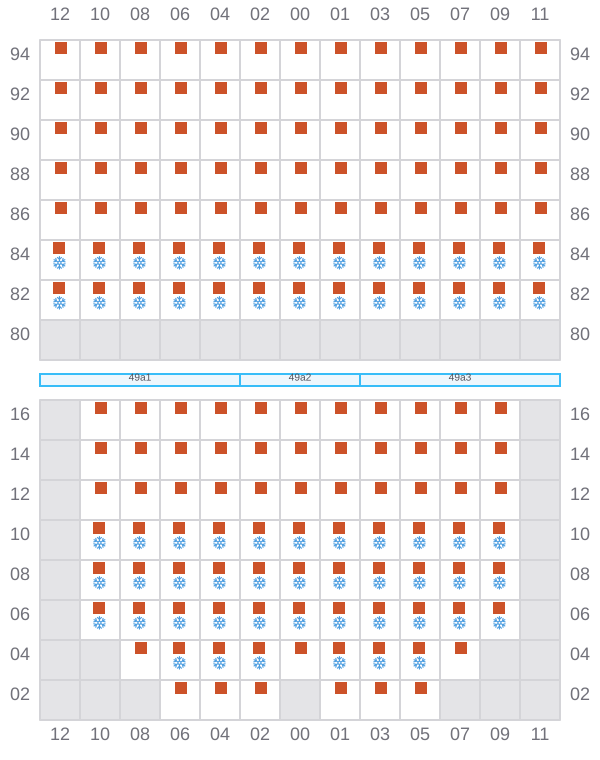

Bay 051 view and slots of MAERSK IOWA

053 (054)

→
^→ / _?

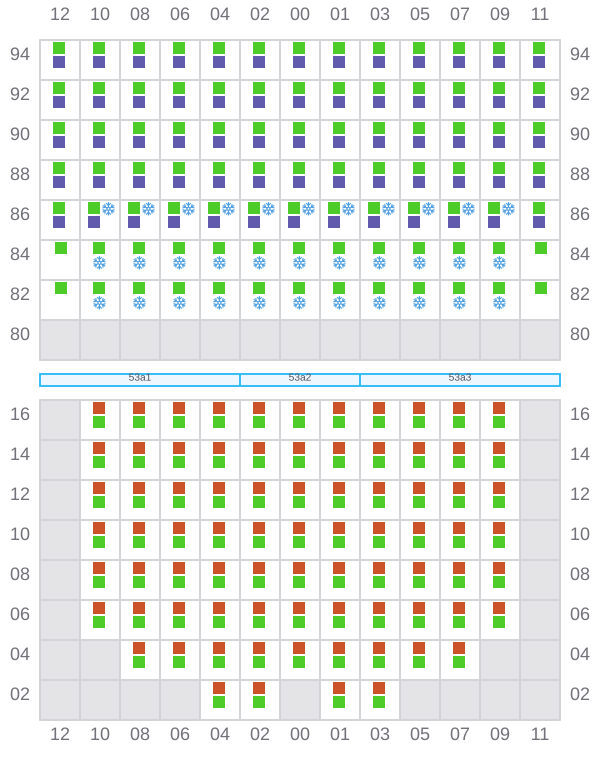

Bay 053 view and slots of MAERSK IOWA

055

^? / _←
^? / _→

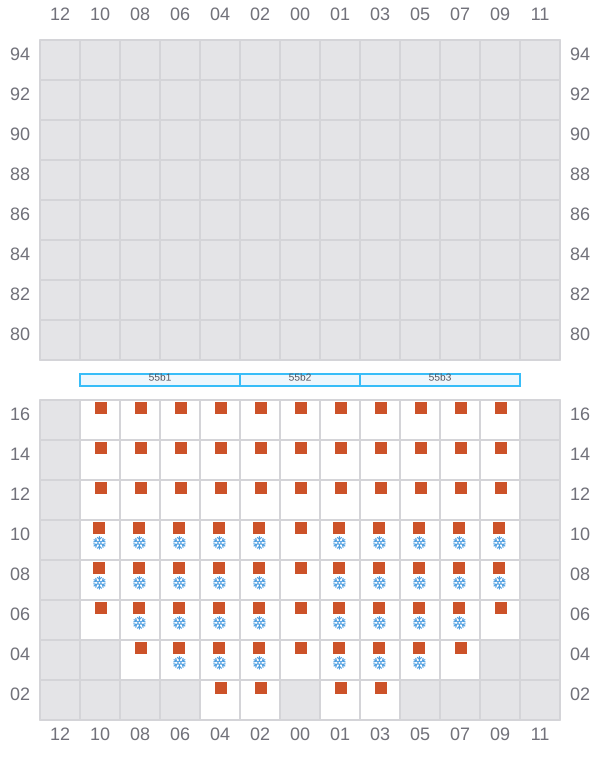

Bay 055 view and slots of MAERSK IOWA

057 (058)

^→ / _?
^← / _?

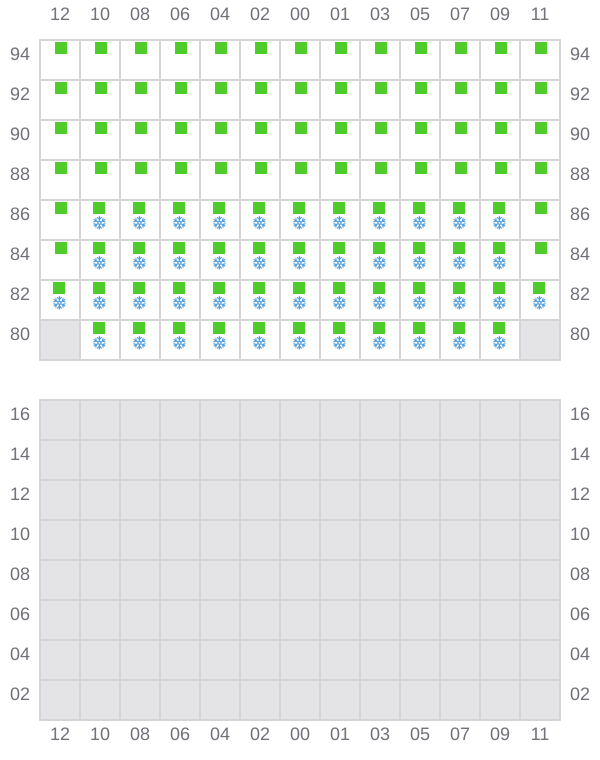

Bay 057 view and slots of MAERSK IOWA

059

Bay 059 view and slots of MAERSK IOWA

061 (062)

→
^← / _?

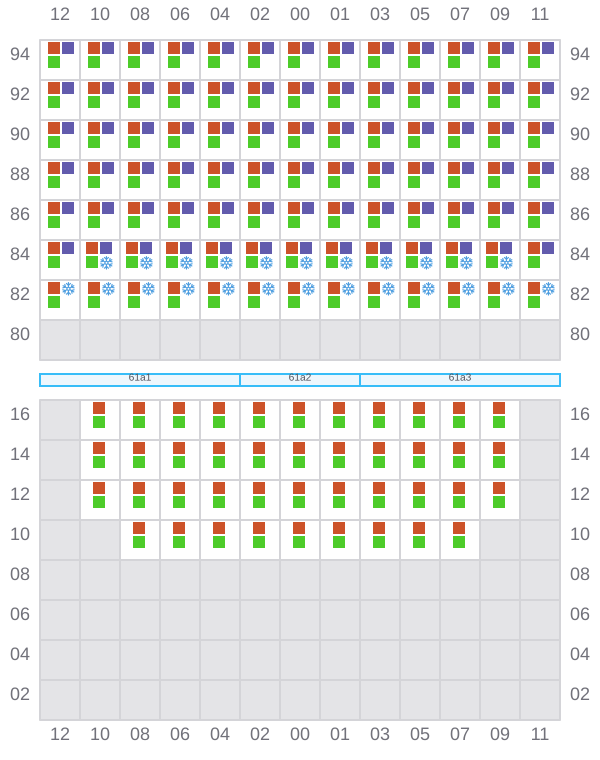

Bay 061 view and slots of MAERSK IOWA

063

←
^? / _→

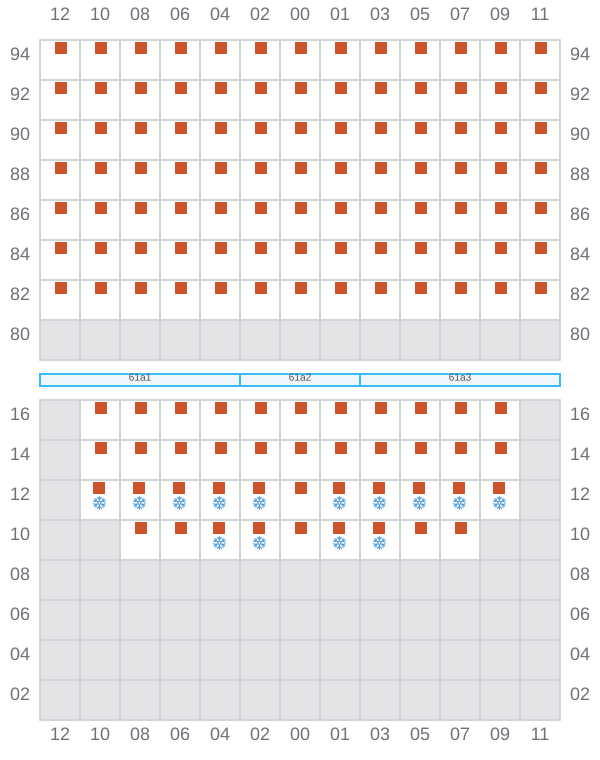

Bay 063 view and slots of MAERSK IOWA

065 (066)

→
^← / _?

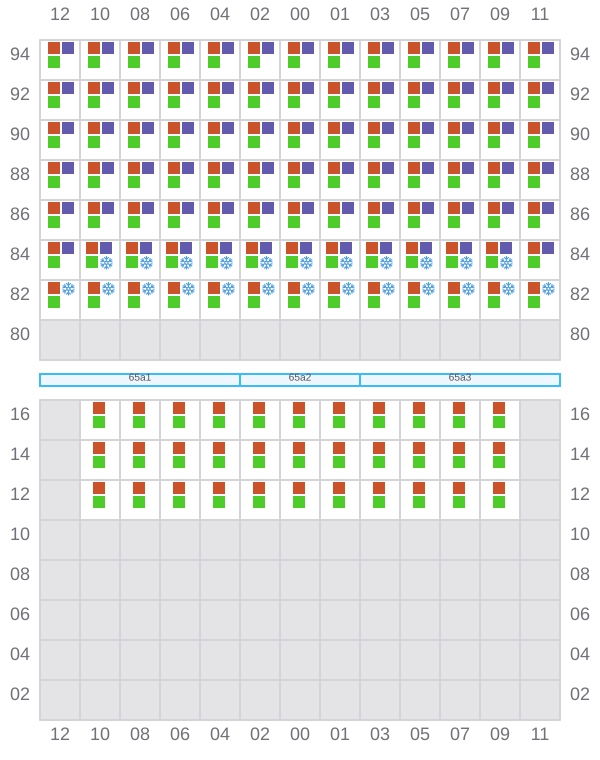

Bay 065 view and slots of MAERSK IOWA

067

←

Bay 067 view and slots of MAERSK IOWA

069 (070)

^→ / _?

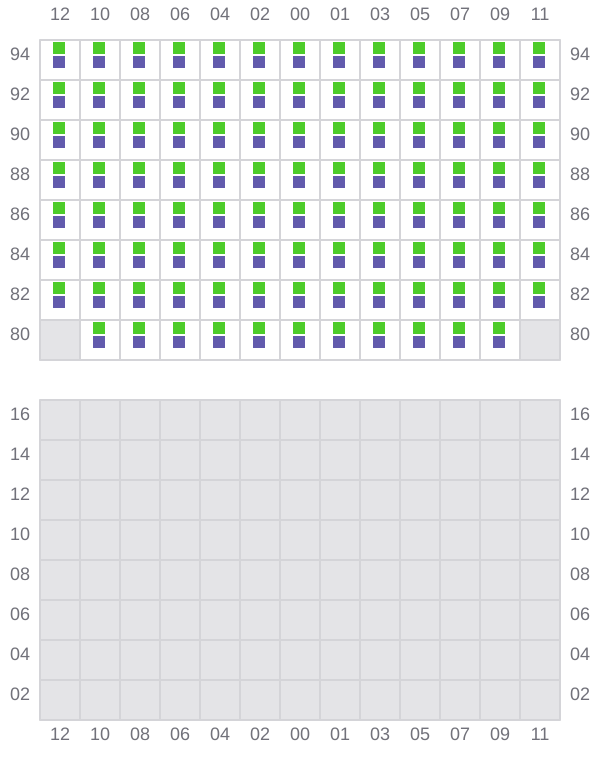

Bay 069 view and slots of MAERSK IOWA
