MAERSK JABAL
9343077 | 9V5003 | 9343077 by ********* Last update: Tue Jun 11 2024
General Info
Ship Name:MAERSK JABAL
IMO Code:9343077
Call Sign:9V5003
Line Operator:9343077
Class Name for Sister Ships:MSL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

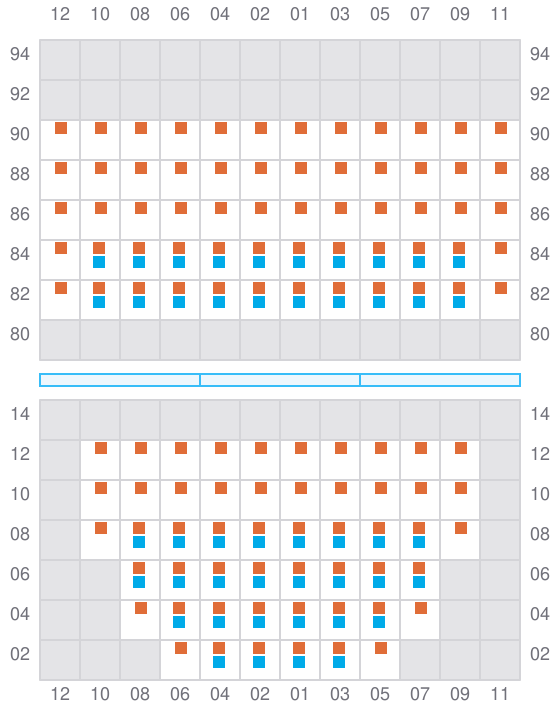

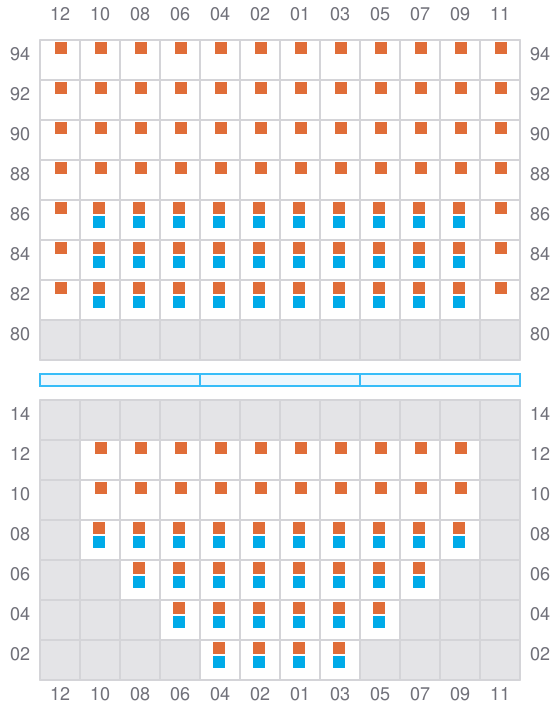

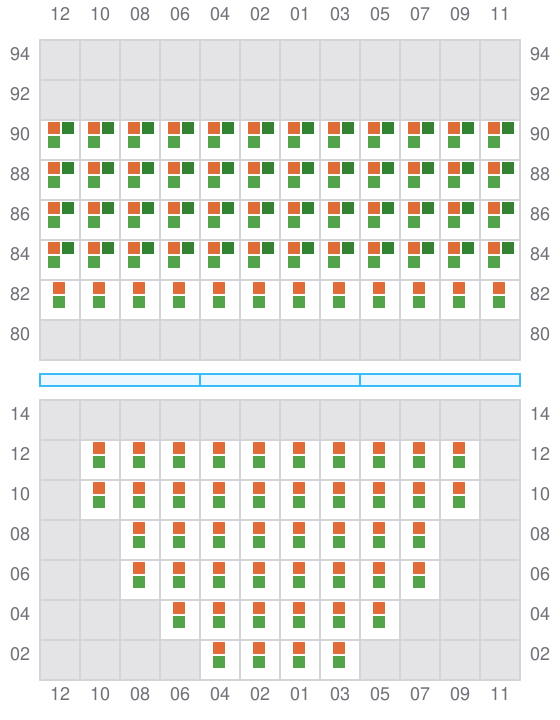

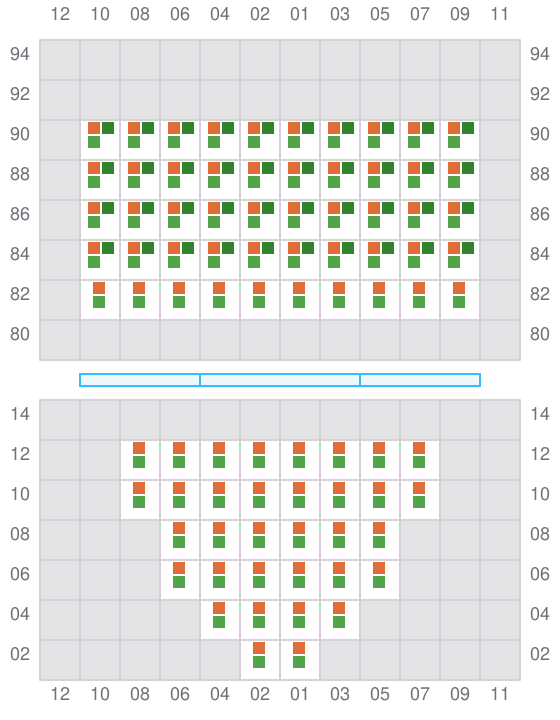

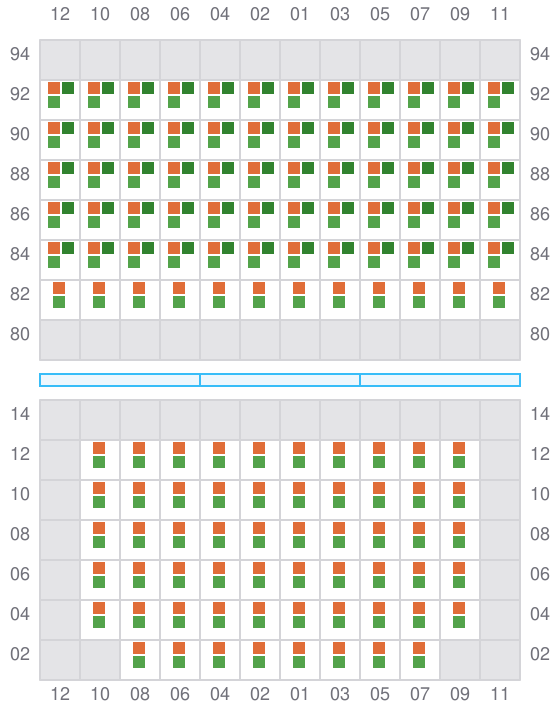

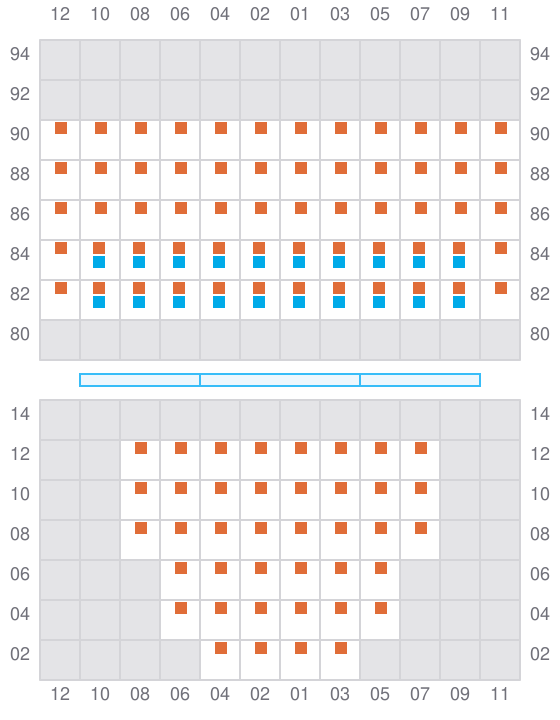

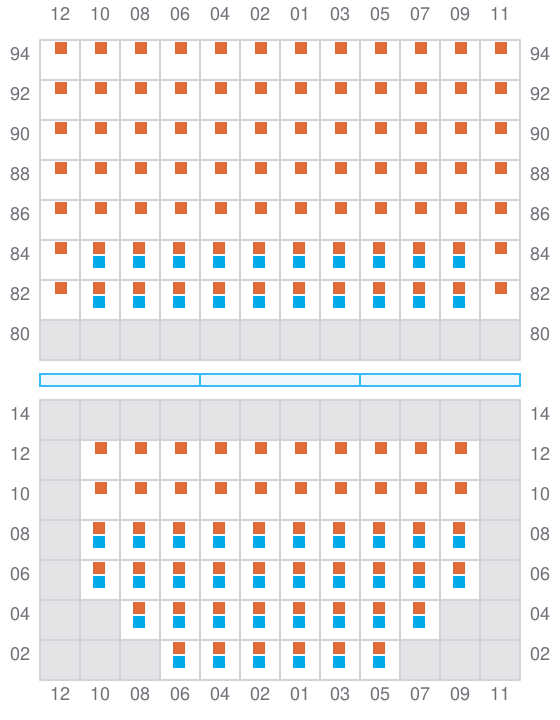

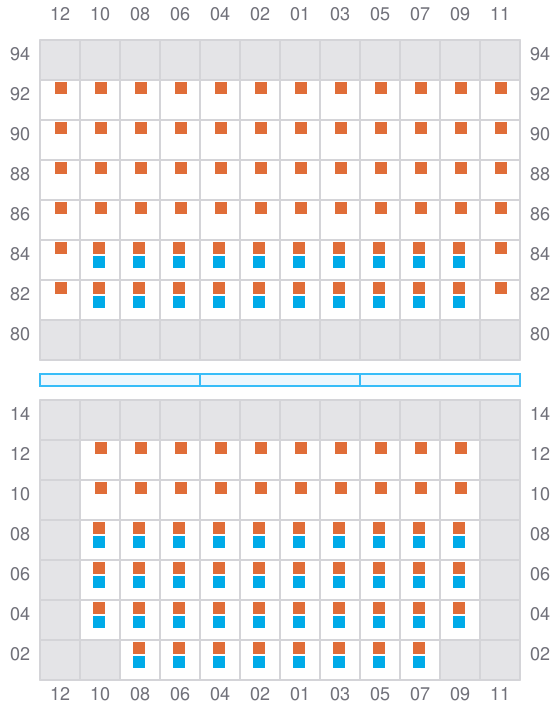

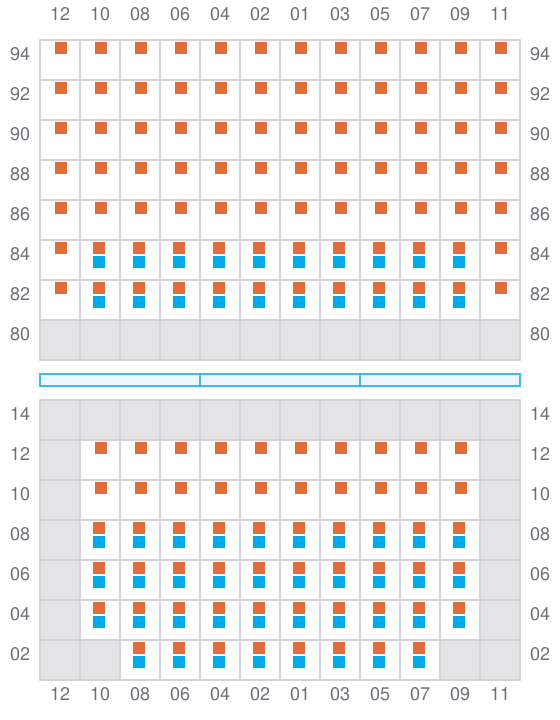

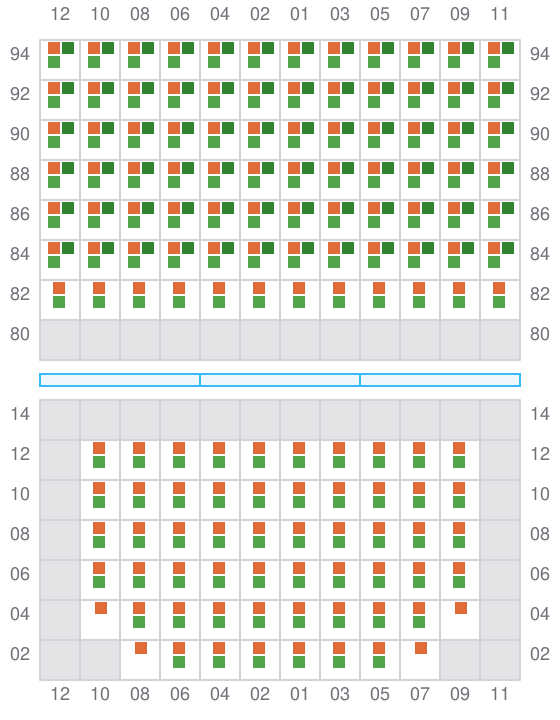

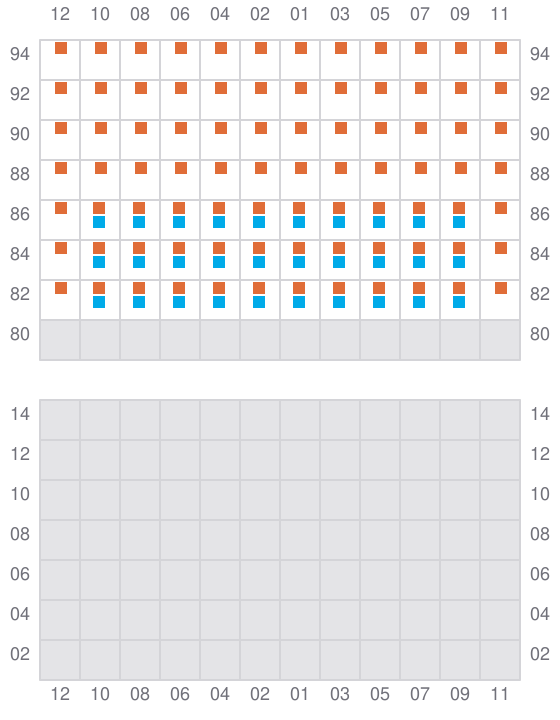

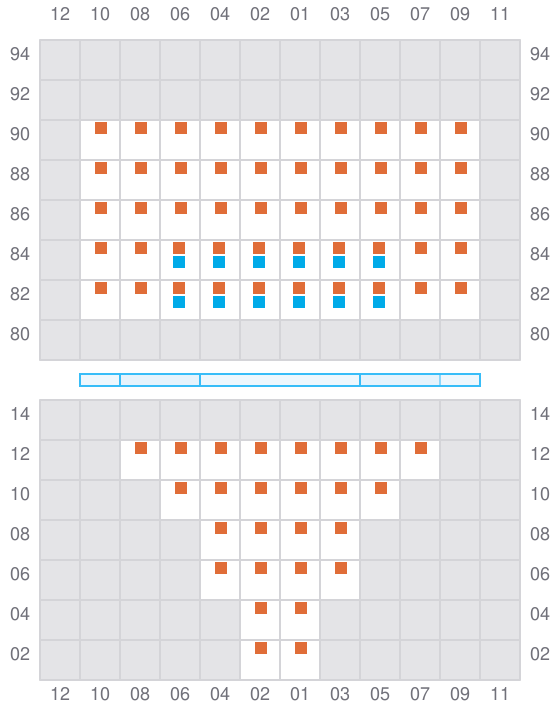

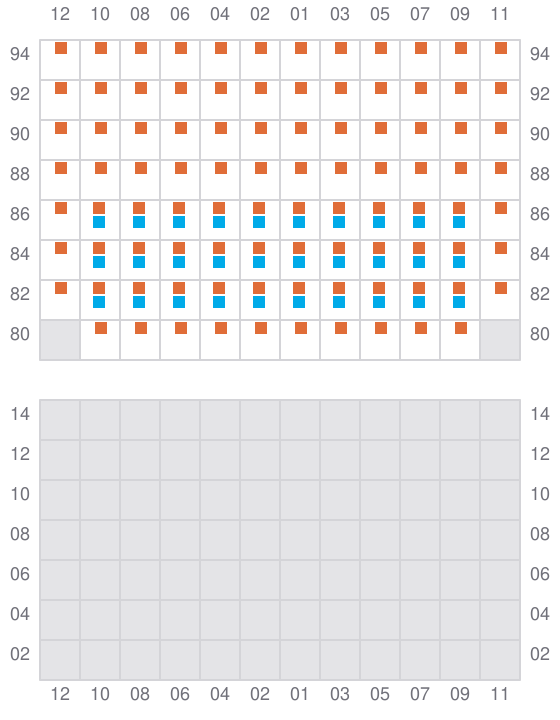

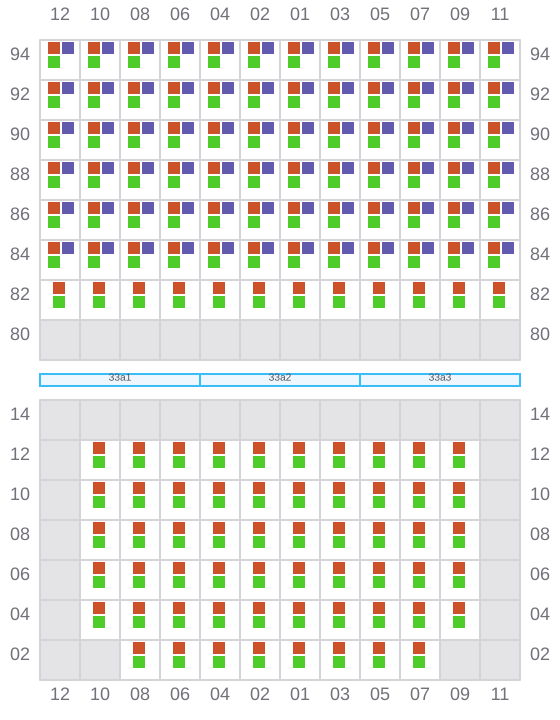

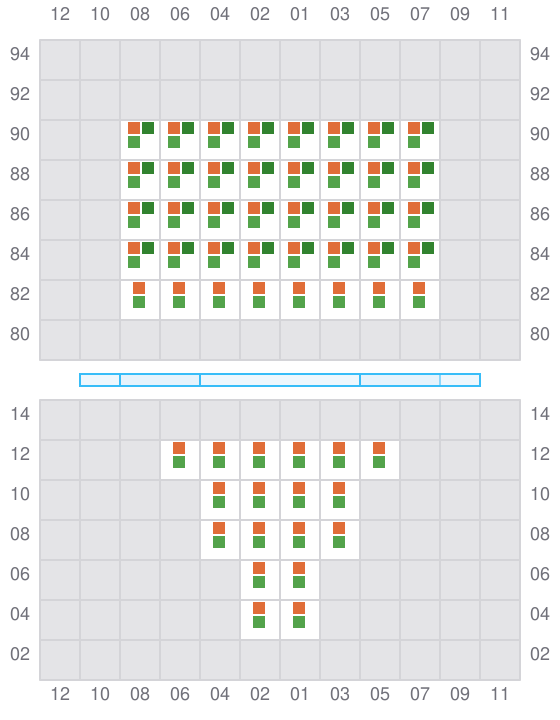

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

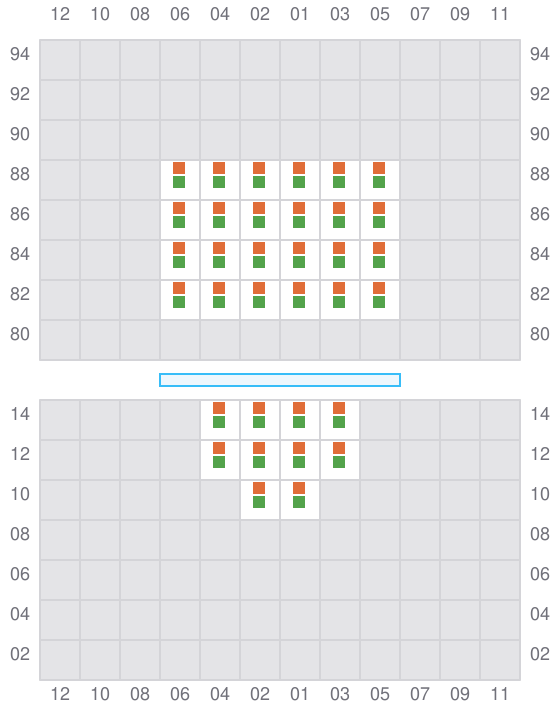

001 (002)
- →

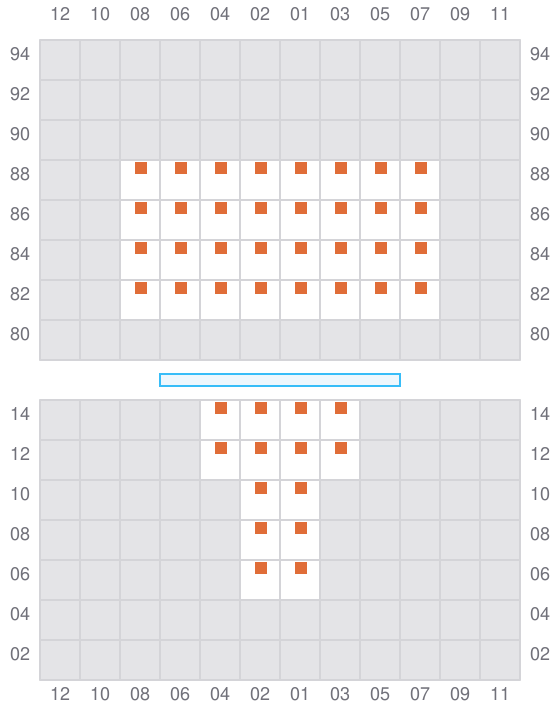

003
- ←
- → / ?
005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- → / ?
013 (014)
- →
- → / ?
015
- ←
- →
017 (018)
- →
019
- ←
- →
021 (022)
- →
023
- ←
- →
025 (026)
- →
027
- ←
- →
029 (030)
- →
031
- ←
- →
033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
- ? / ←
039
- ←
- →
041 (042)
- →
- ← / ?
043
- ←
- →
045
- ← / ?
047
- → / ?

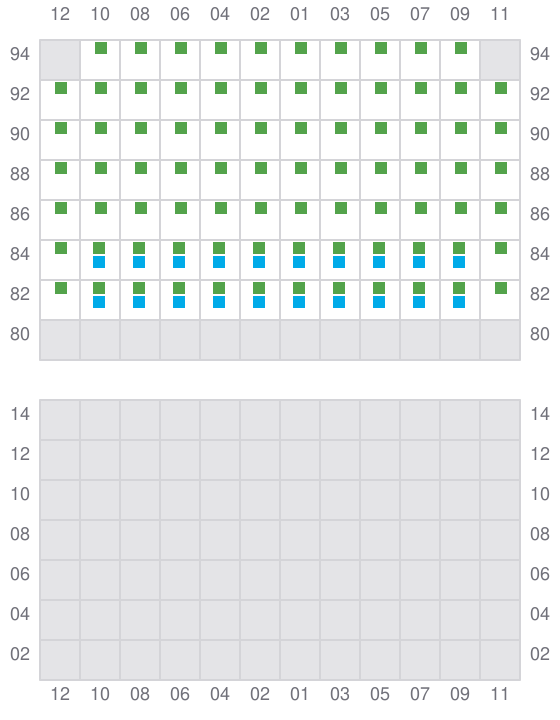

049 (050)
- → / ?
- ← / ?
