MAERSK JALAN
9294161 | PPXU | 9294161 by ********* Last update: Sun Mar 17 2024
General Info
Ship Name:MAERSK JALAN
IMO Code:9294161
Call Sign:PPXU
Line Operator:9294161
Class Name for Sister Ships:08R
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,822
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

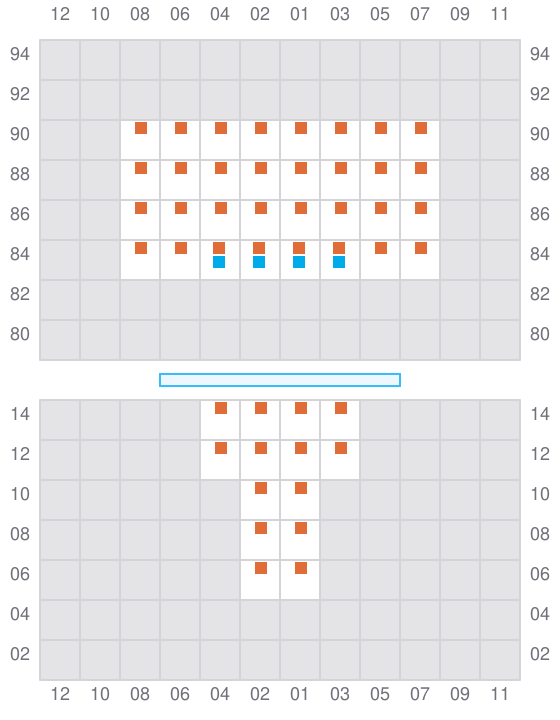

003
- ←
005 (006)
- →
- ← / ?

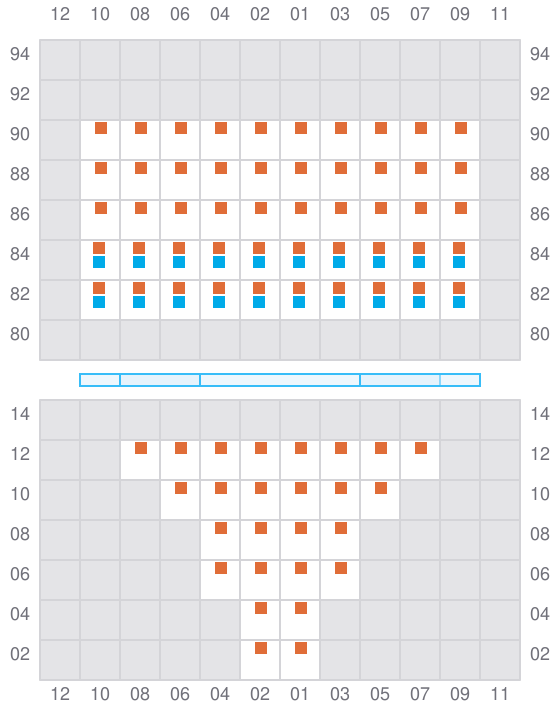

007
- ←
- → / ?

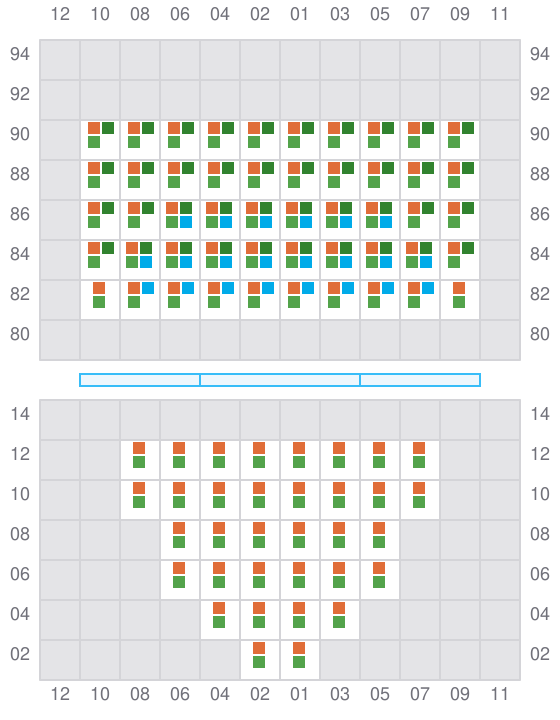

009 (010)
- →
- ← / ?

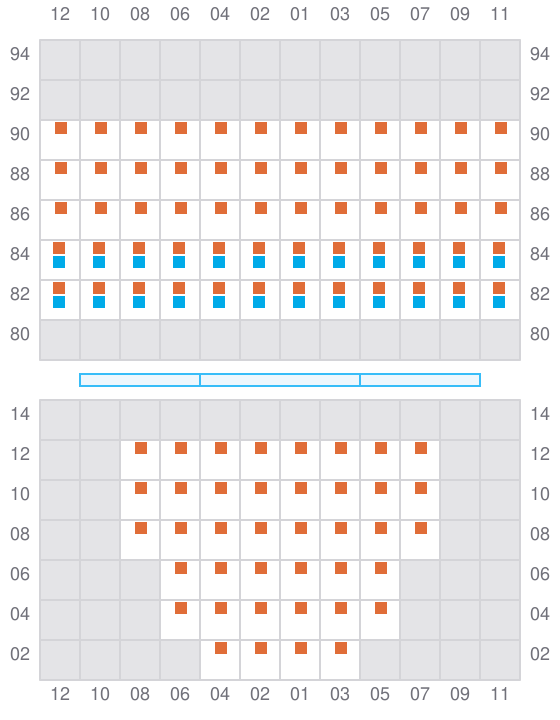

011
- ←
- → / ?
013 (014)
- →
- → / ?
015
- ←
- →

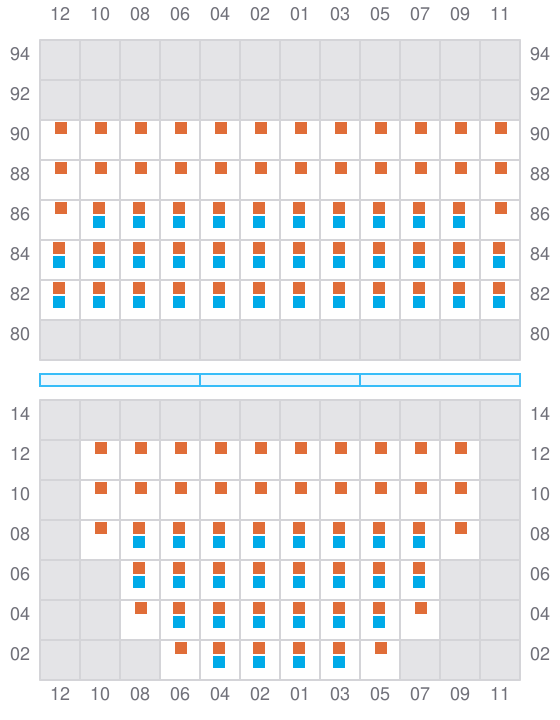

017 (018)
- →

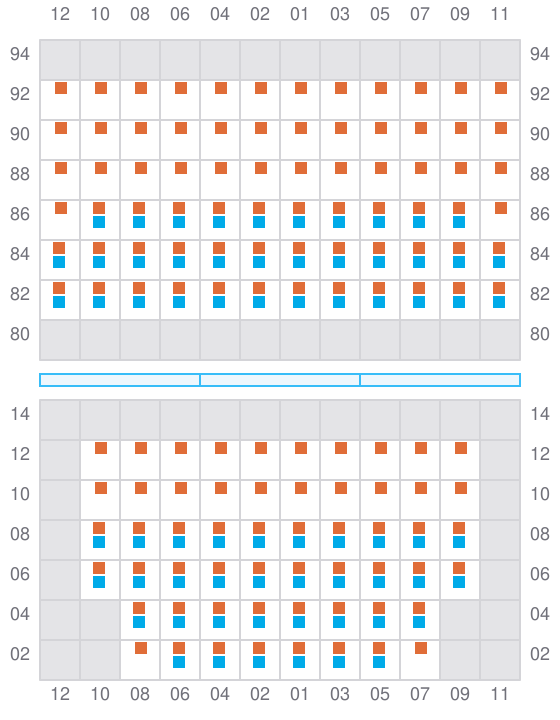

019
- ←
- →
021 (022)
- →

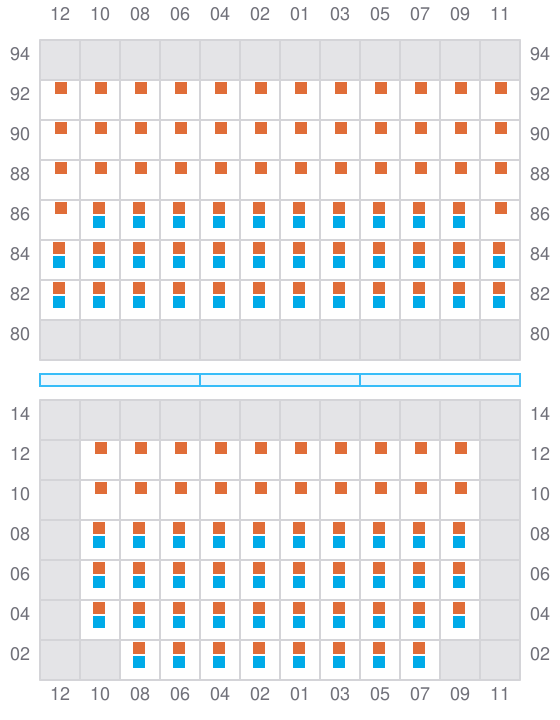

023
- ←
- →
025 (026)
- →
027
- ←
- →

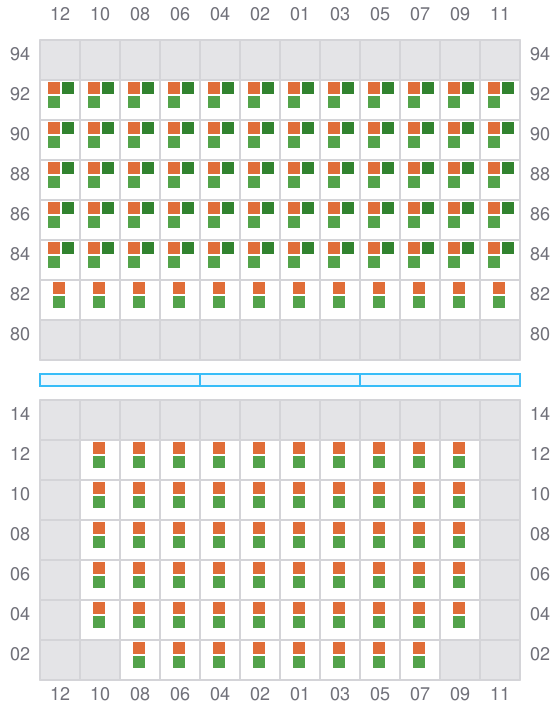

029 (030)
- →
031
- ←
- →

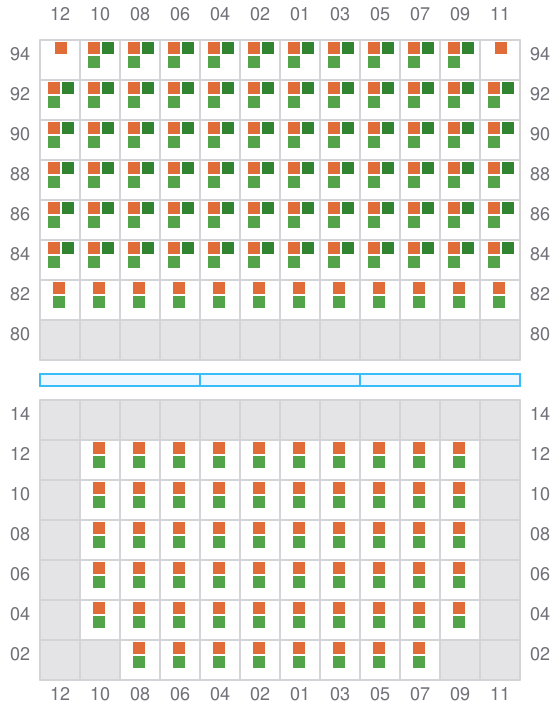

033 (034)
- →

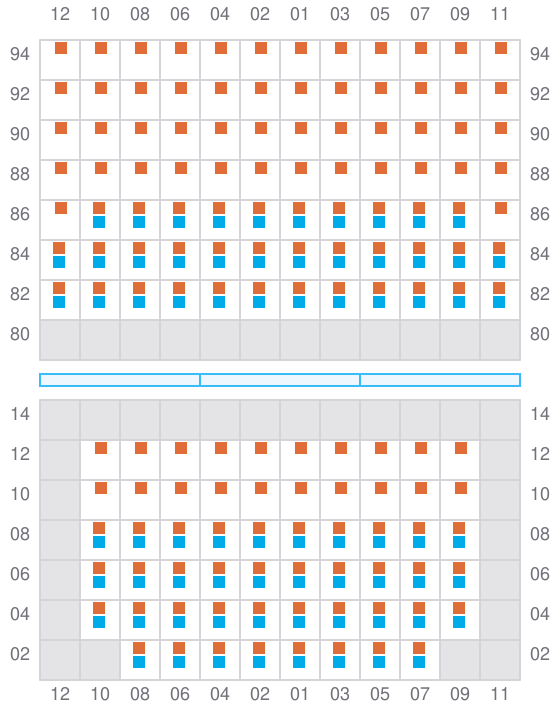

035
- ←
- → / ?
037 (038)
- →
039
- ←
- →

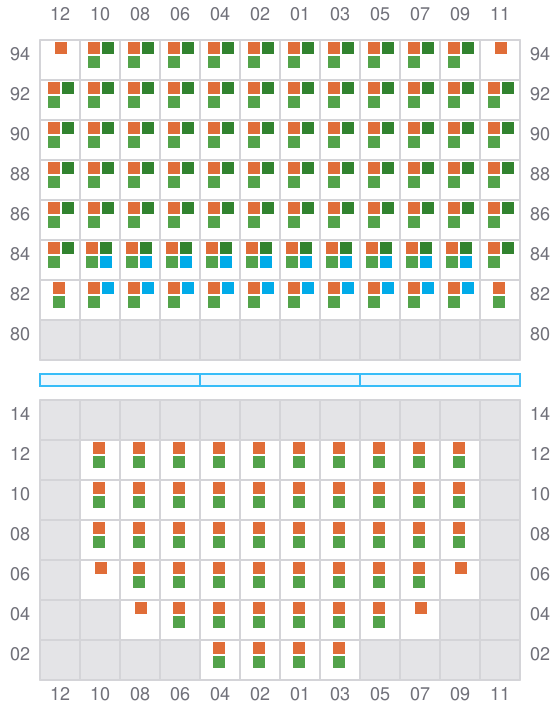

041 (042)
- →
- ← / ?
043
- ←
- →

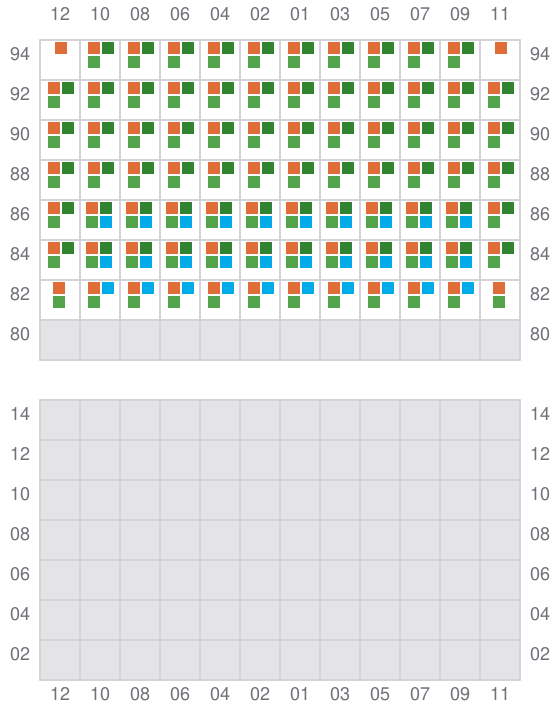

045 (046)
- → / ?
- ← / ?

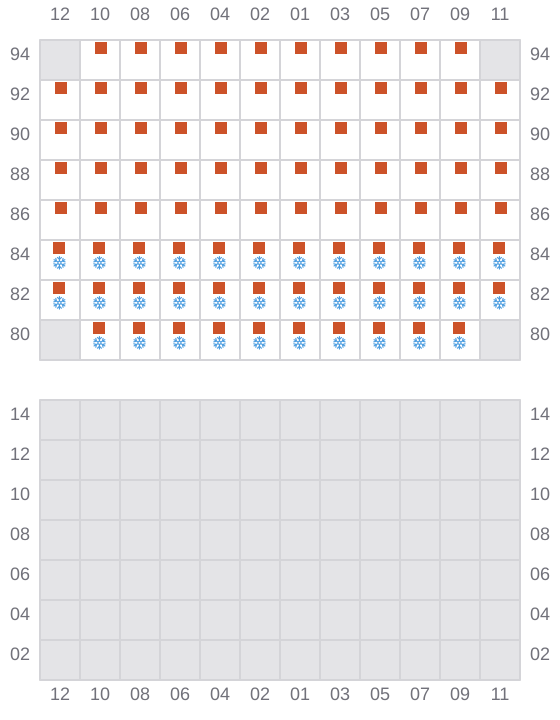

047
- ← / ?
- → / ?

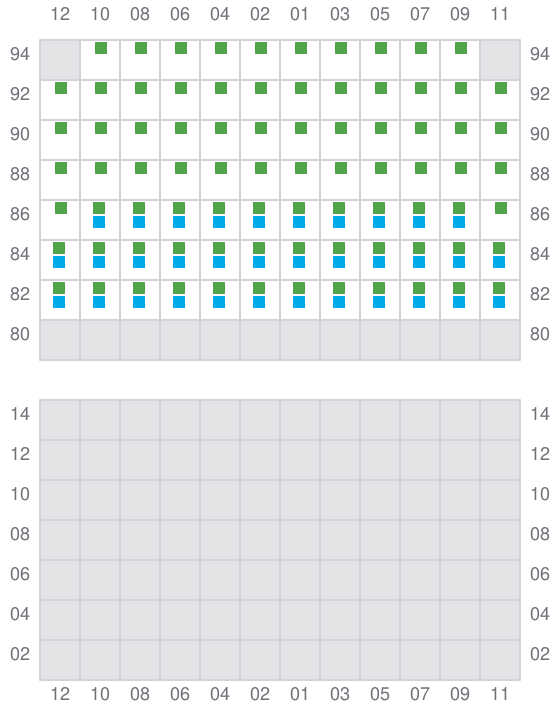

049 (050)
- → / ?
- ← / ?
