MAERSK KANSAS
9311701 | WMKQ | 9311701 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:MAERSK KANSAS
IMO Code:9311701
Call Sign:WMKQ
Line Operator:9311701
Class Name for Sister Ships:5G2
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):277.00
LOA (Length Overall):292.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,719

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

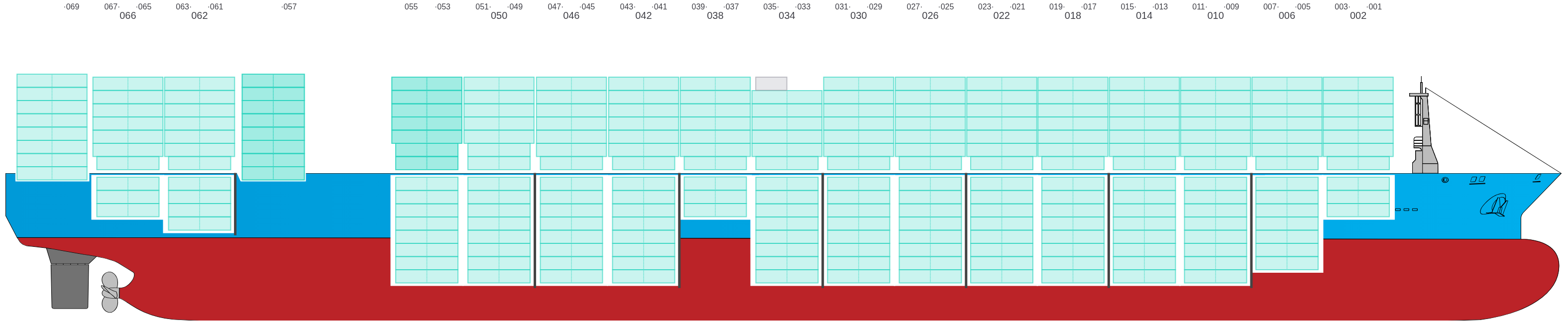

Side View

Side view of MAERSK KANSAS

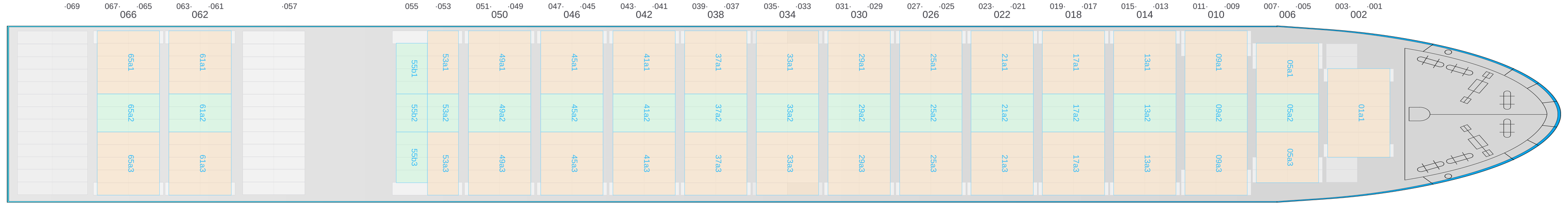

Hatch-Covers View

Deck view of MAERSK KANSAS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

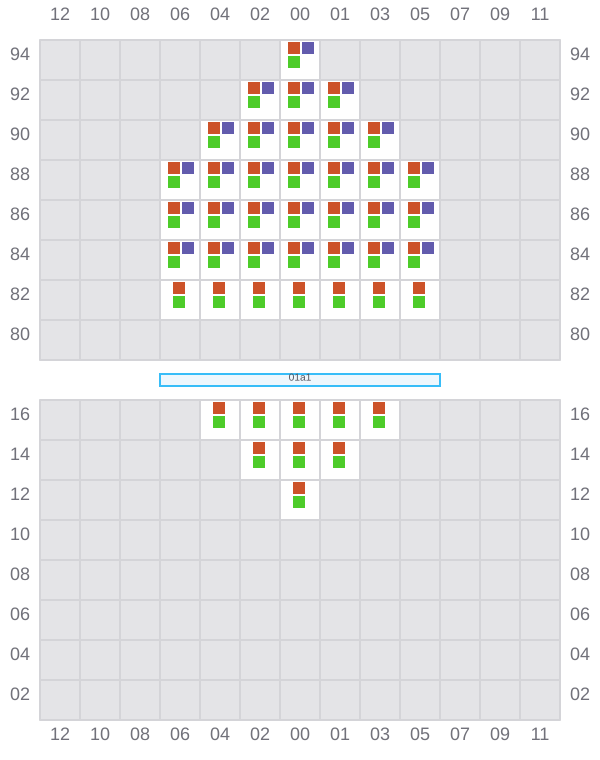

001 (002)

Bay 001 view and slots of MAERSK KANSAS

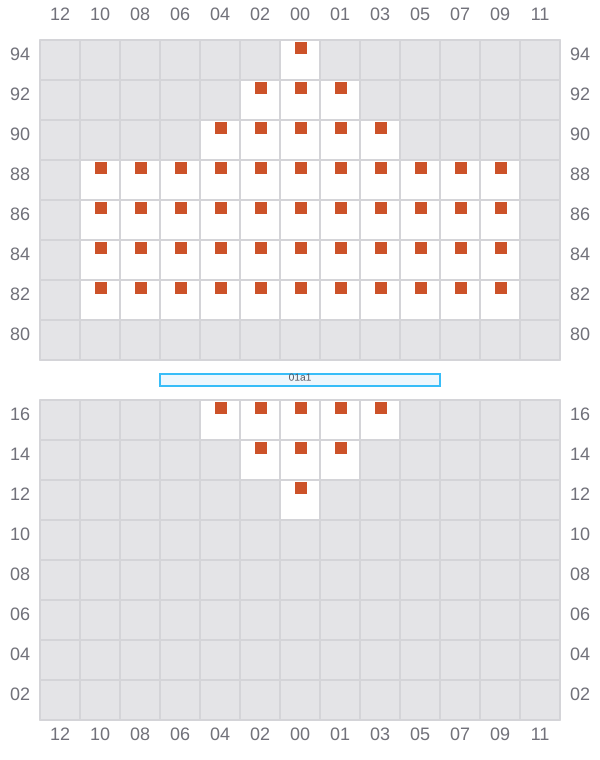

003

Bay 003 view and slots of MAERSK KANSAS

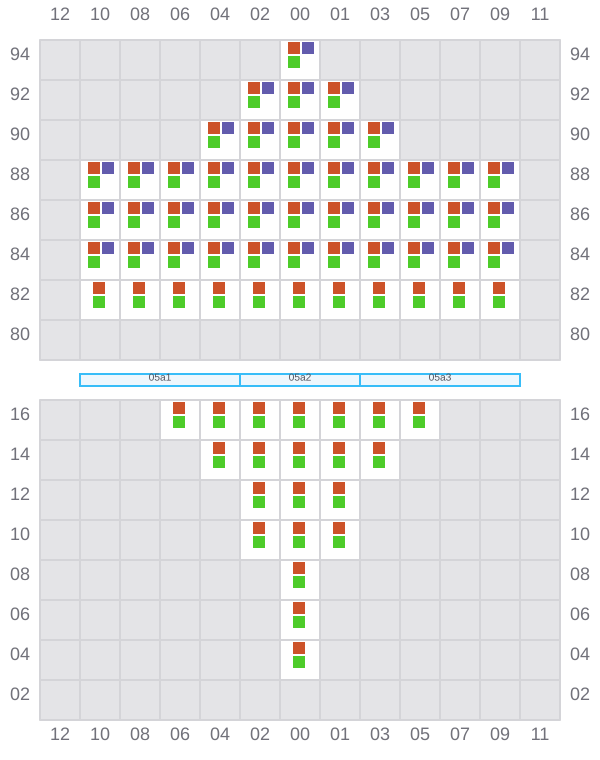

005 (006)

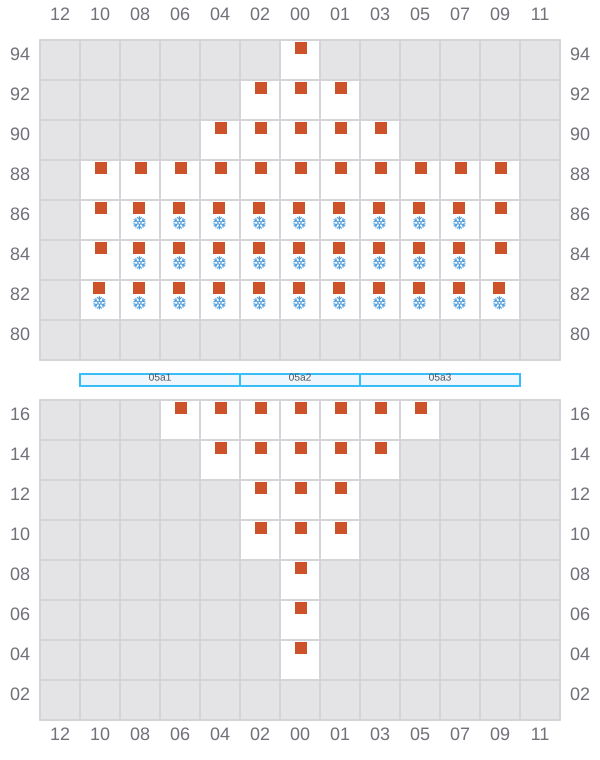

Bay 005 view and slots of MAERSK KANSAS

007

  • / ?
Bay 007 view and slots of MAERSK KANSAS

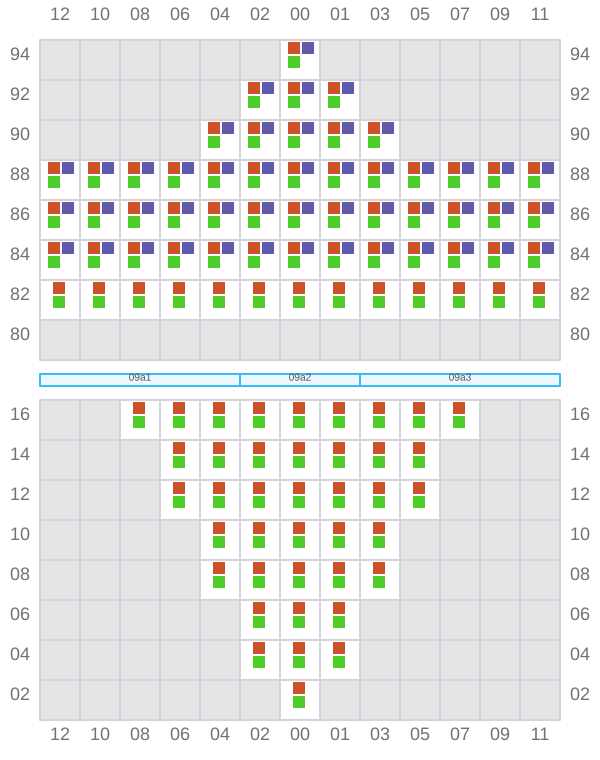

009 (010)

Bay 009 view and slots of MAERSK KANSAS

011

  • / ?

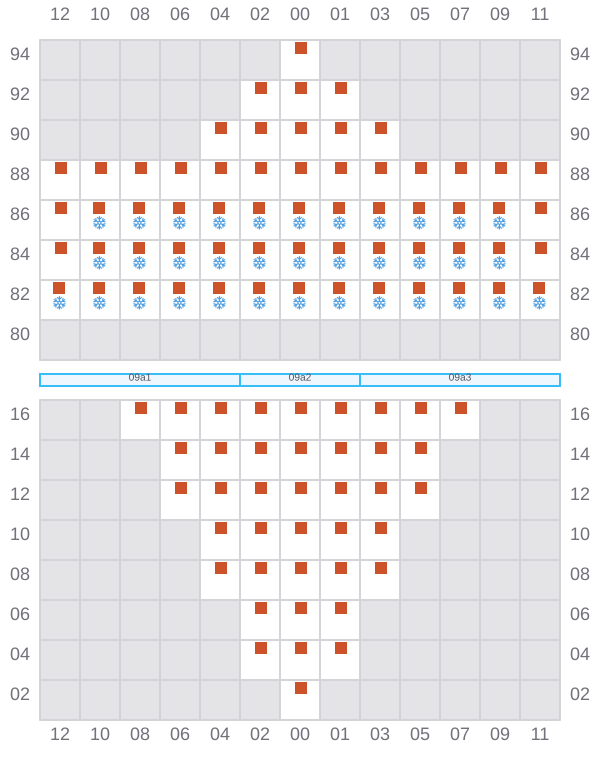

Bay 011 view and slots of MAERSK KANSAS

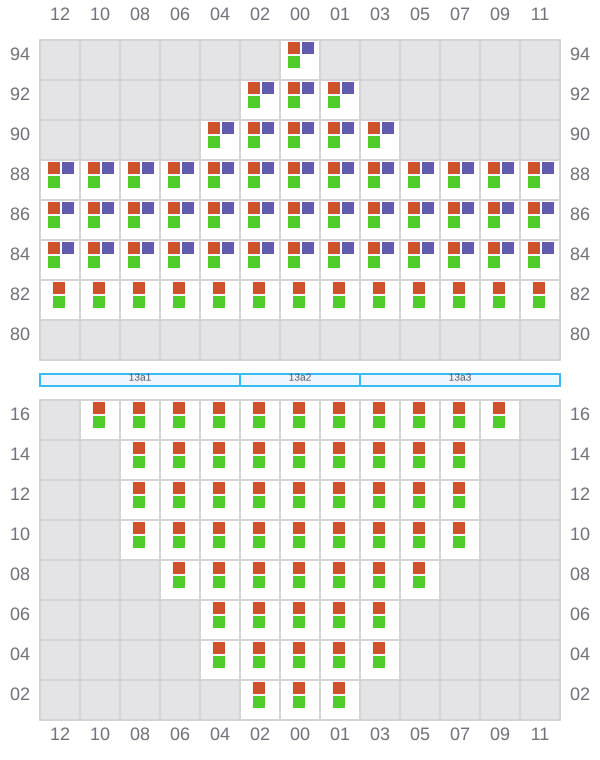

013 (014)

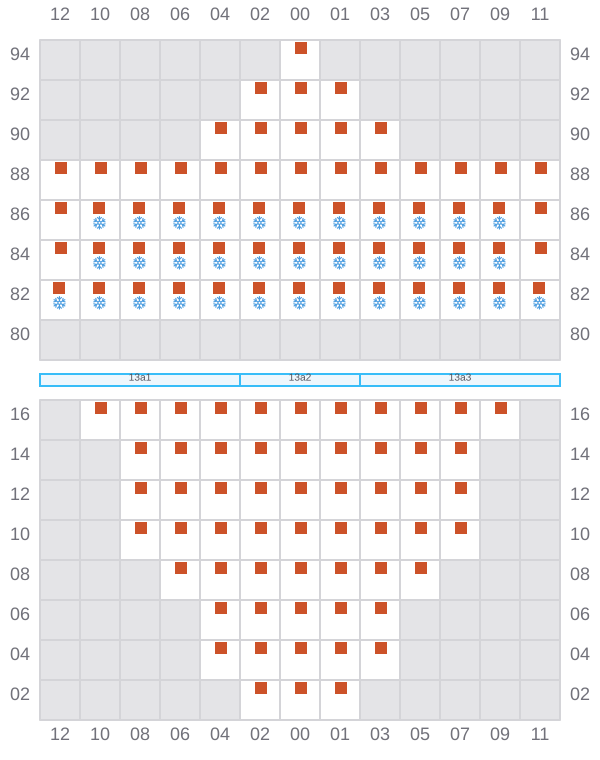

Bay 013 view and slots of MAERSK KANSAS

015

  • / ?
Bay 015 view and slots of MAERSK KANSAS

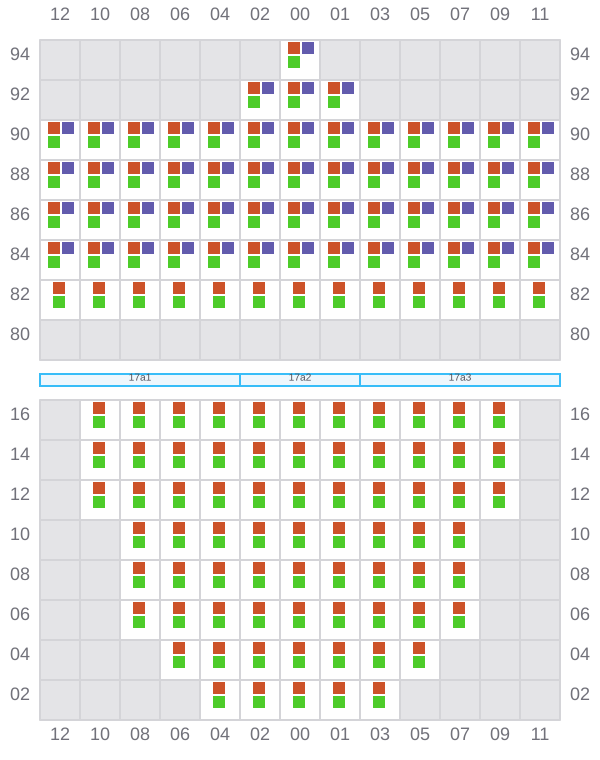

017 (018)

Bay 017 view and slots of MAERSK KANSAS

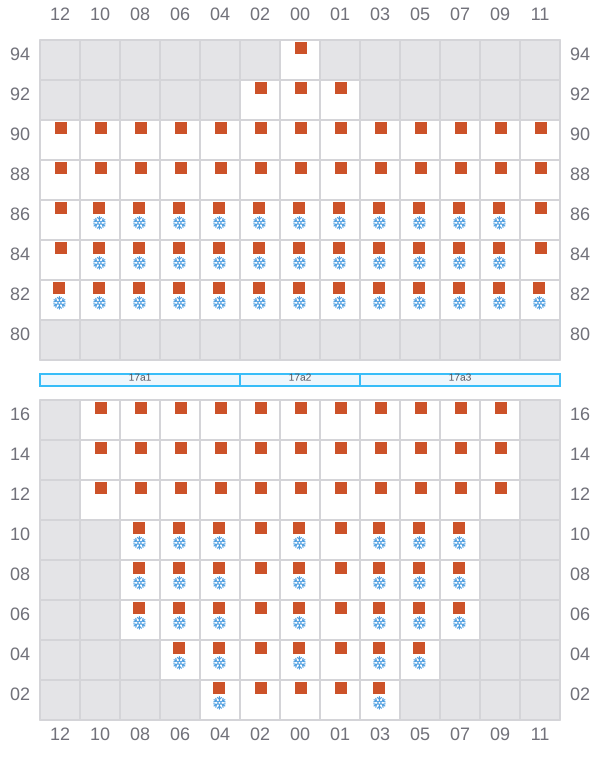

019

Bay 019 view and slots of MAERSK KANSAS

021 (022)

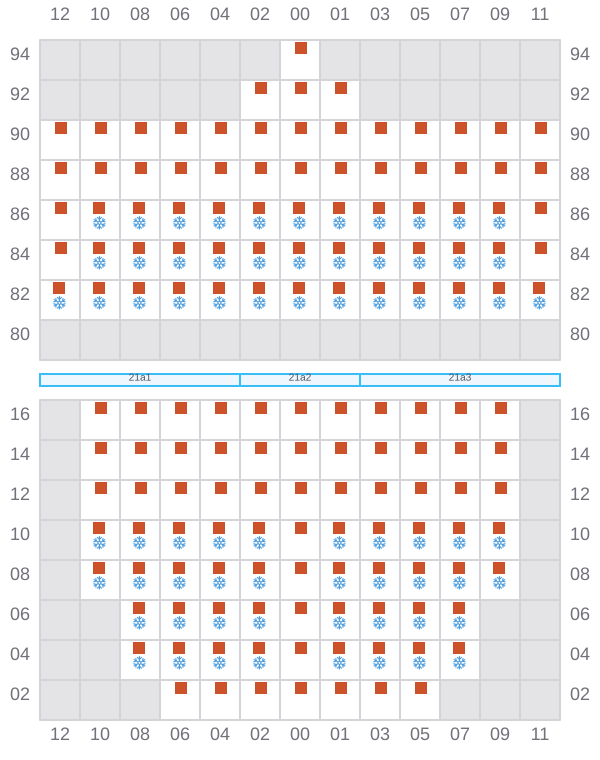

Bay 021 view and slots of MAERSK KANSAS

023

Bay 023 view and slots of MAERSK KANSAS

025 (026)

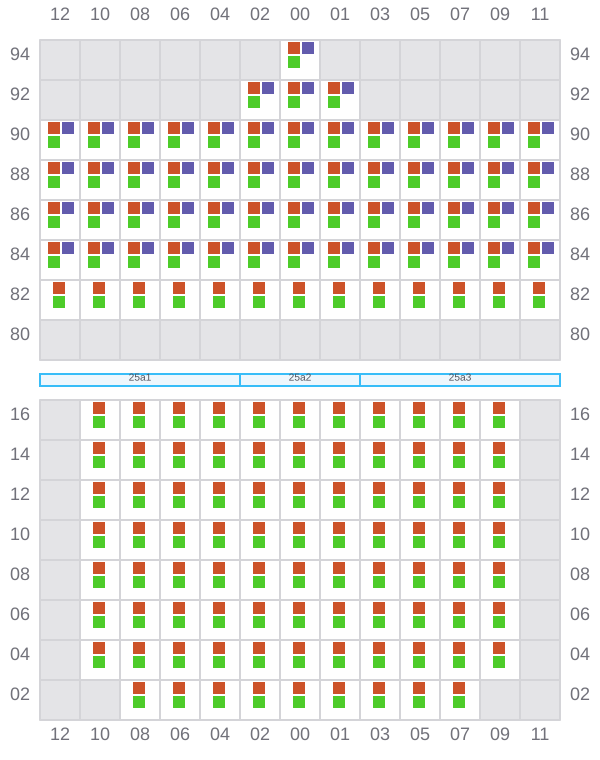

Bay 025 view and slots of MAERSK KANSAS

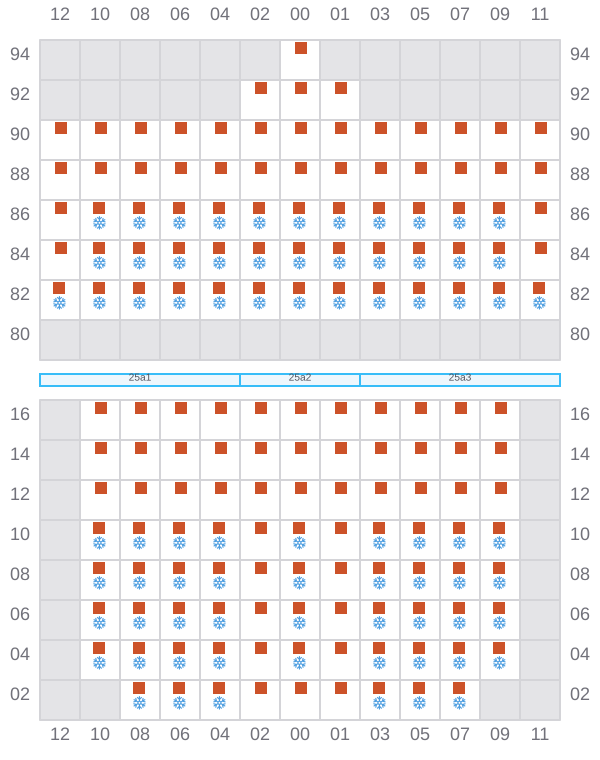

027

Bay 027 view and slots of MAERSK KANSAS

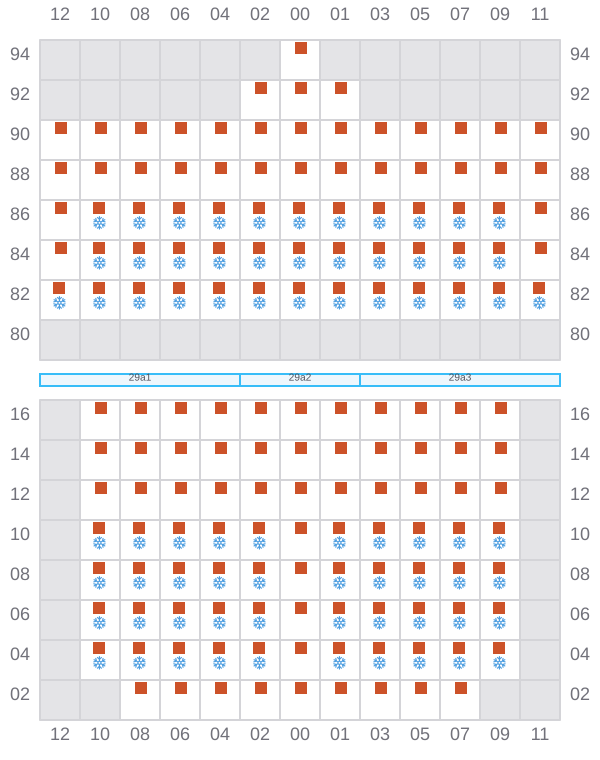

029 (030)

Bay 029 view and slots of MAERSK KANSAS

031

Bay 031 view and slots of MAERSK KANSAS

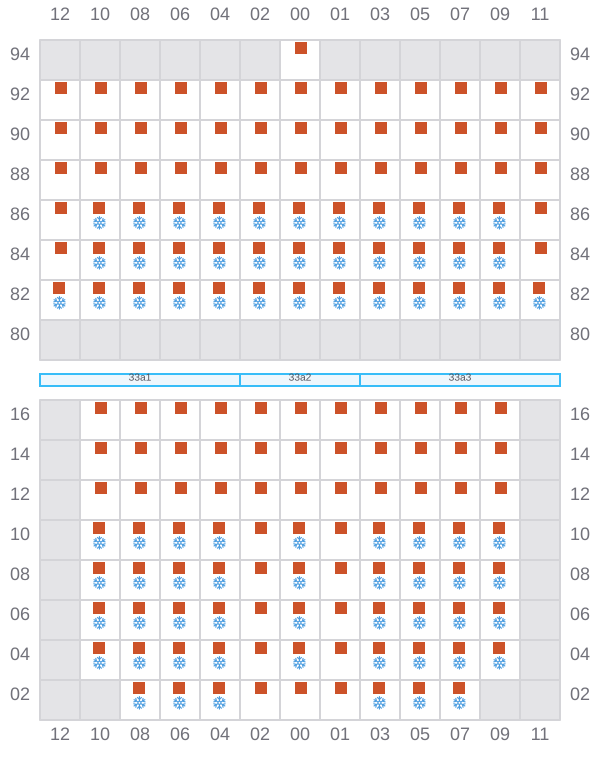

033 (034)

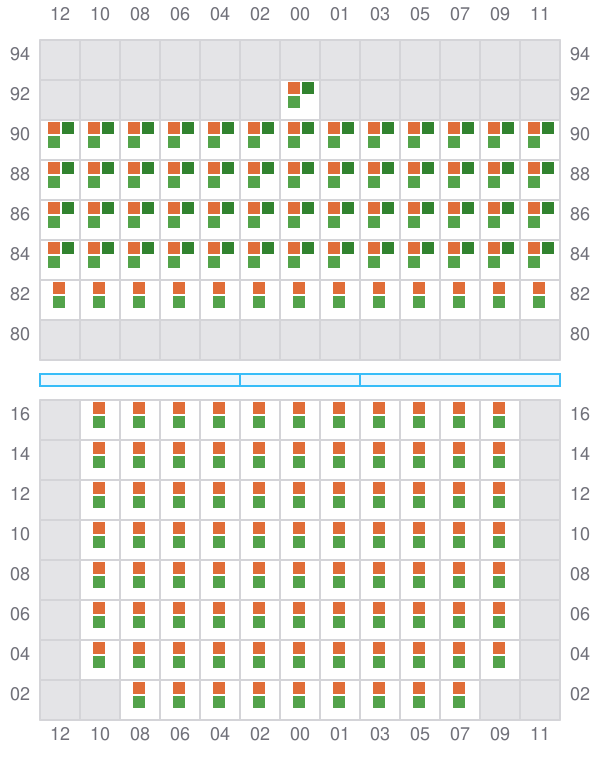

Bay 033 view and slots of MAERSK KANSAS

035

Bay 035 view and slots of MAERSK KANSAS

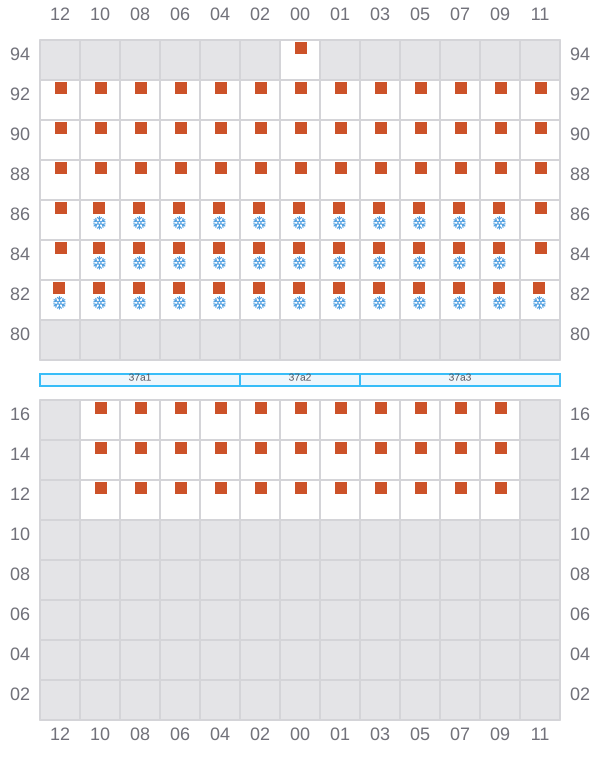

037 (038)

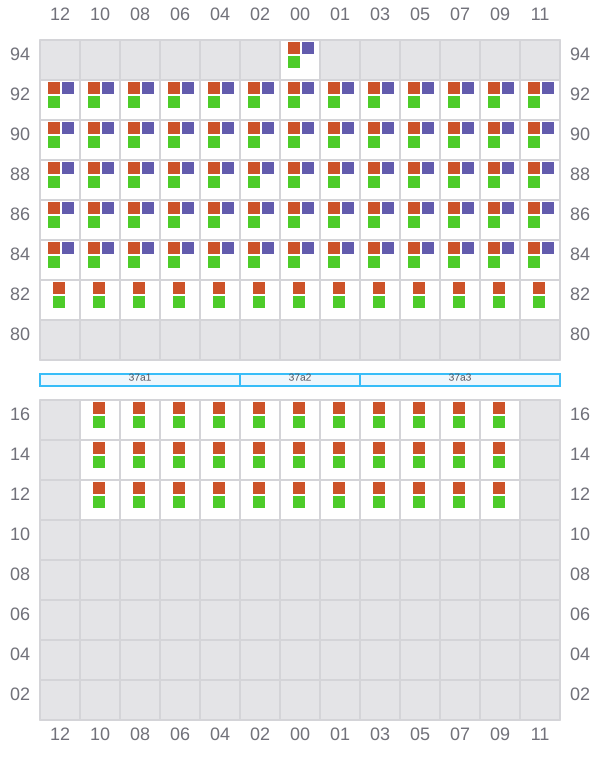

Bay 037 view and slots of MAERSK KANSAS

039

  • / ?
Bay 039 view and slots of MAERSK KANSAS

041 (042)

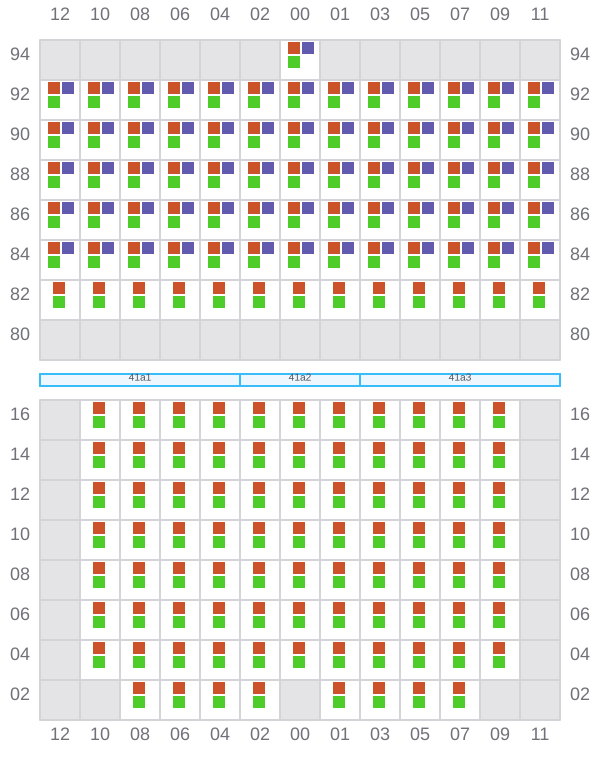

Bay 041 view and slots of MAERSK KANSAS

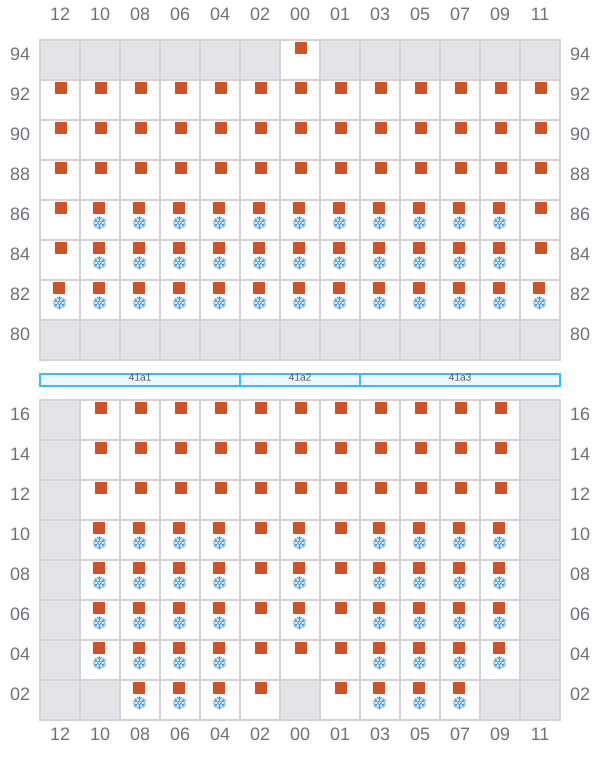

043

Bay 043 view and slots of MAERSK KANSAS

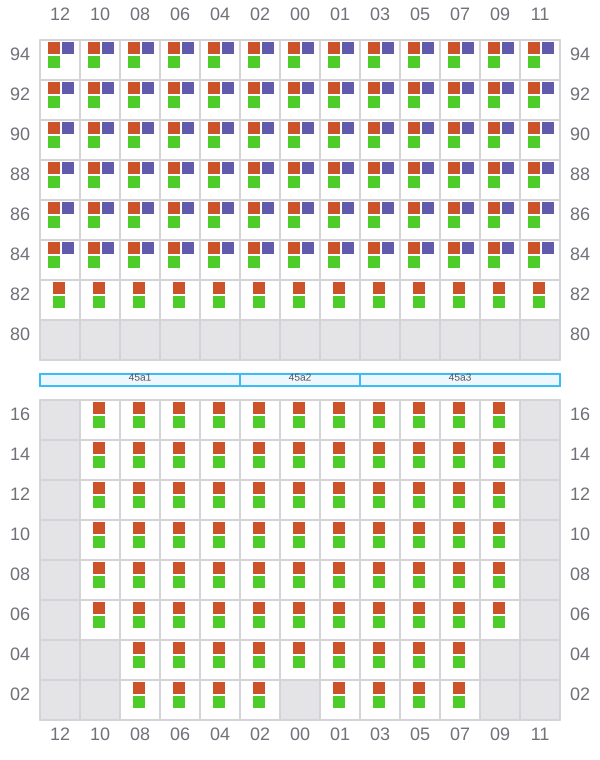

045 (046)

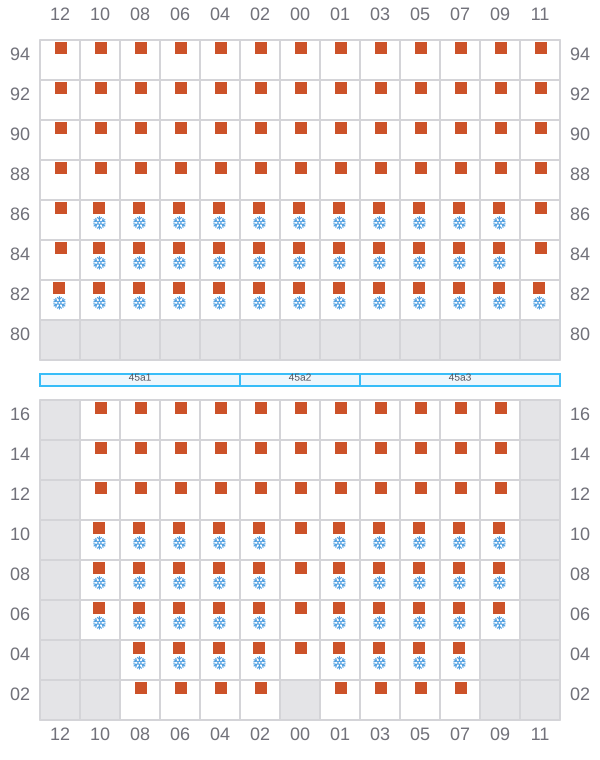

Bay 045 view and slots of MAERSK KANSAS

047

Bay 047 view and slots of MAERSK KANSAS

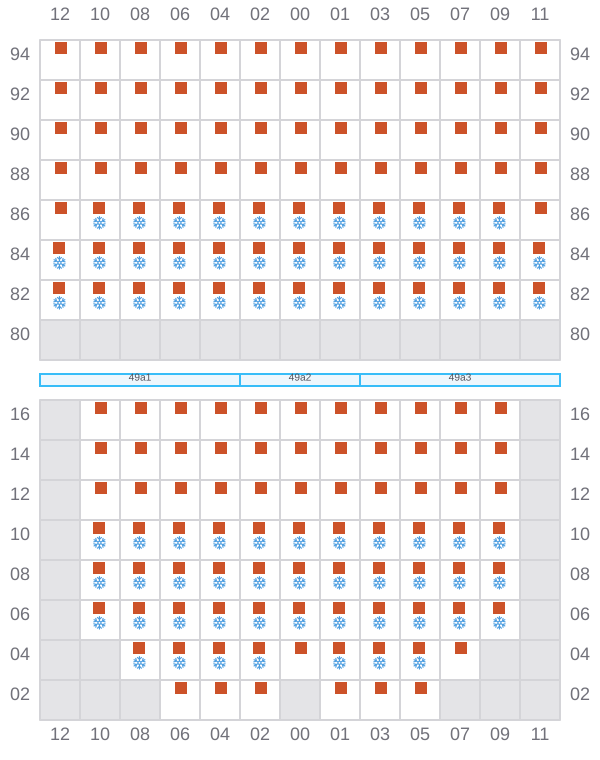

049 (050)

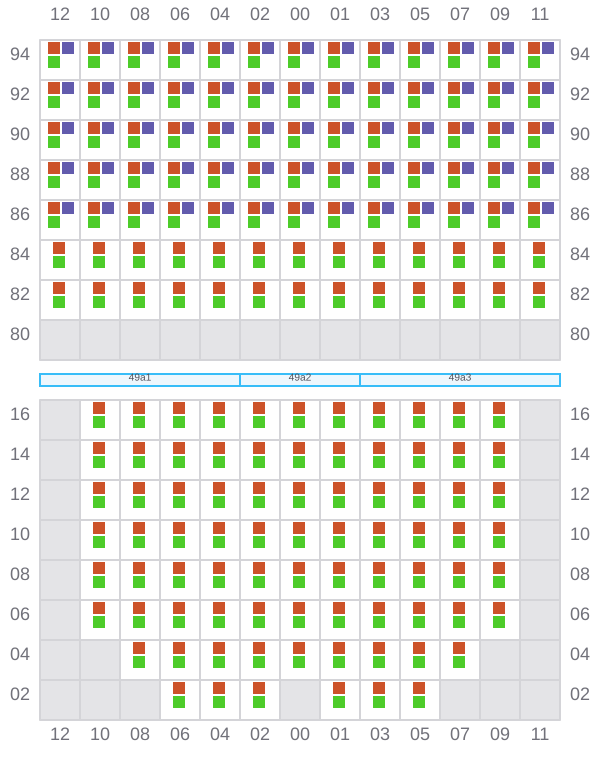

Bay 049 view and slots of MAERSK KANSAS

051

Bay 051 view and slots of MAERSK KANSAS

053 (054)

  • / ?

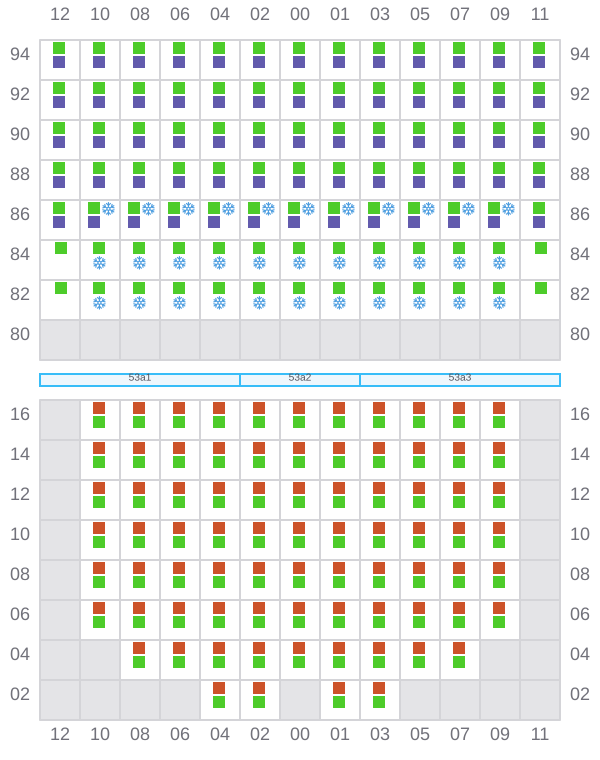

Bay 053 view and slots of MAERSK KANSAS

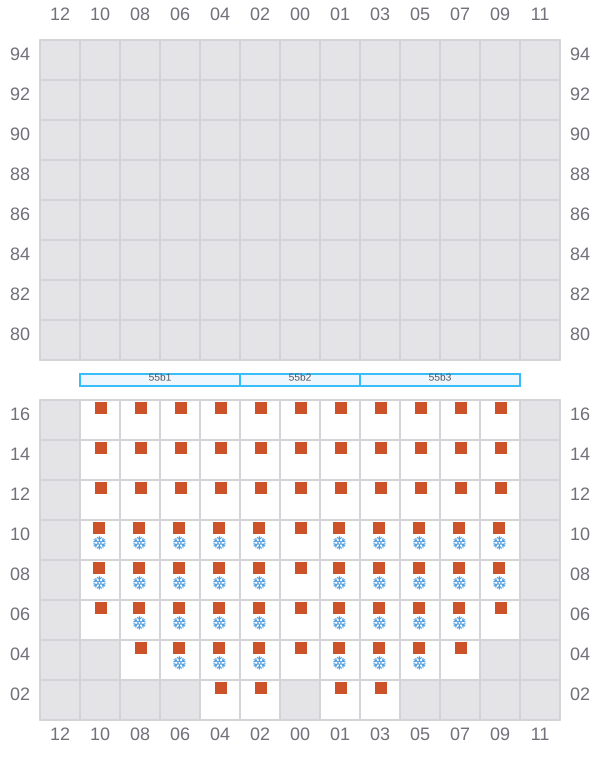

055

  • ? /
Bay 055 view and slots of MAERSK KANSAS

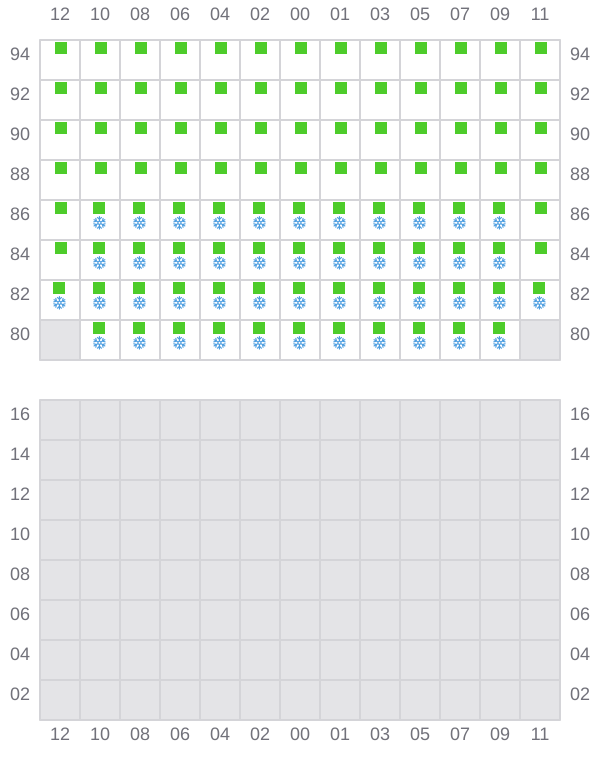

057 (058)

  • / ?
Bay 057 view and slots of MAERSK KANSAS

059

Bay 059 view and slots of MAERSK KANSAS

061 (062)

  • / ?

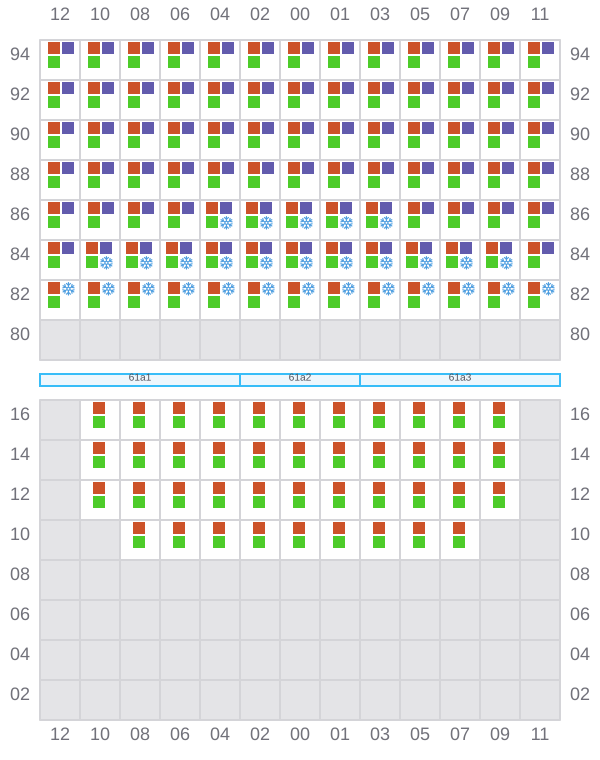

Bay 061 view and slots of MAERSK KANSAS

063

  • ? /

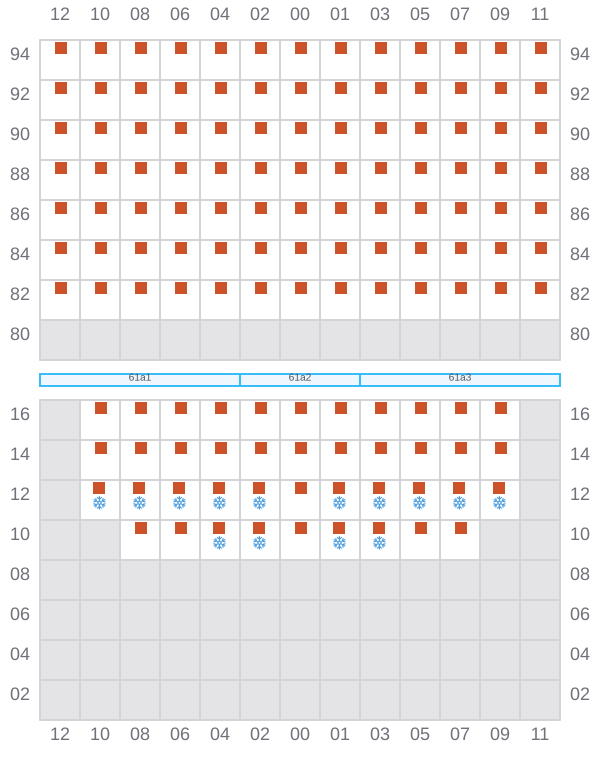

Bay 063 view and slots of MAERSK KANSAS

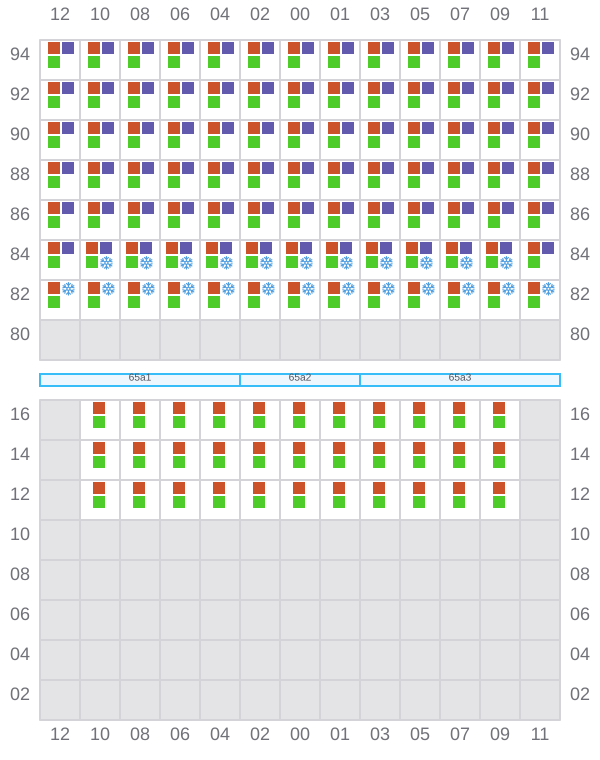

065 (066)

  • / ?
Bay 065 view and slots of MAERSK KANSAS

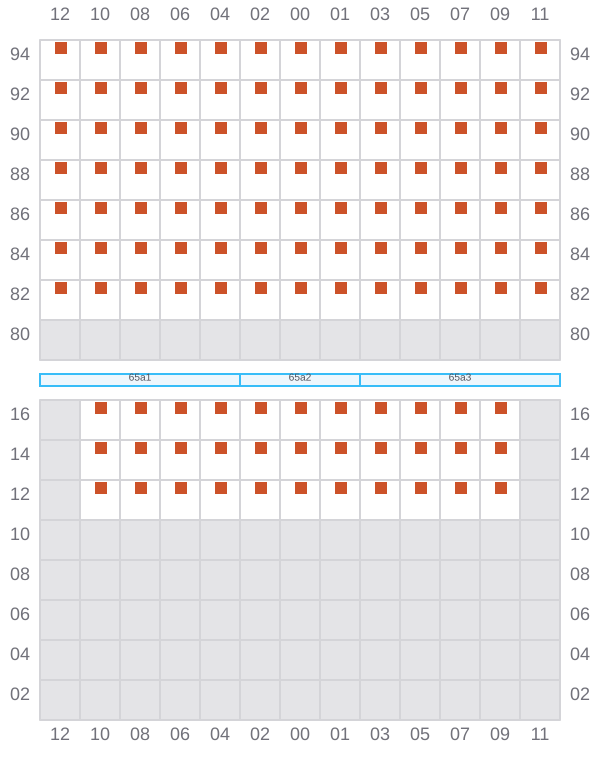

067

Bay 067 view and slots of MAERSK KANSAS

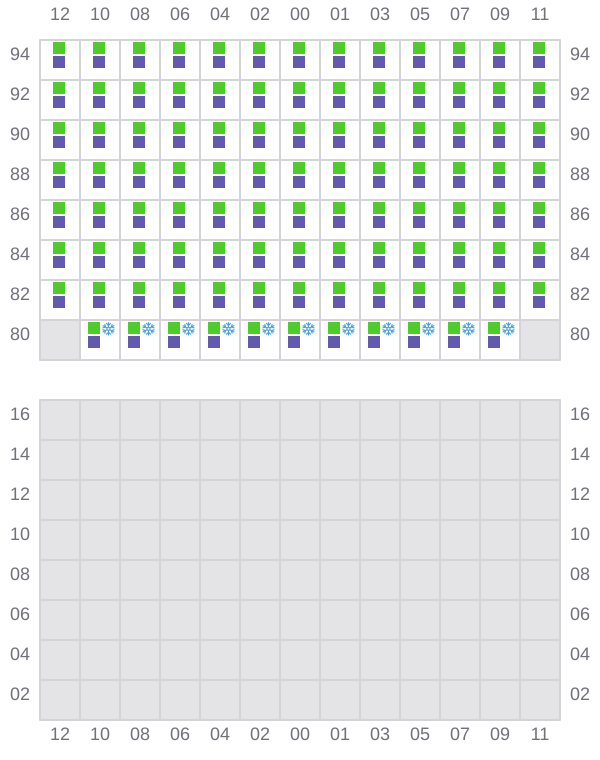

069 (070)

  • / ?
Bay 069 view and slots of MAERSK KANSAS
