MAERSK KARLSKRONA
9085558 | D5RL4 | MSK by ************************** Last update: Sat Jun 24 2023

General Info

Ship Name:MAERSK KARLSKRONA
IMO Code:9085558
Call Sign:D5RL4
Line Operator:MSK
Class Name for Sister Ships:KRO
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:073
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,328

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

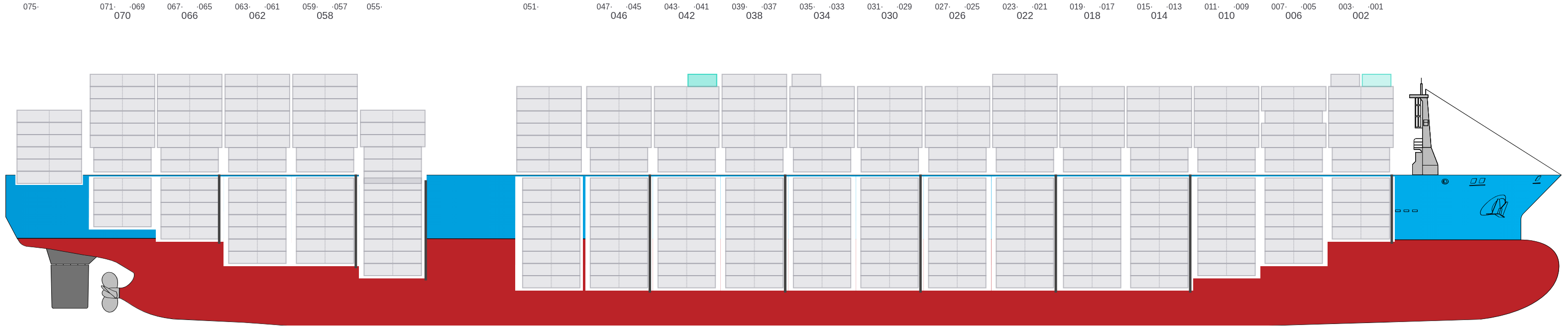

Side view of MAERSK KARLSKRONA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

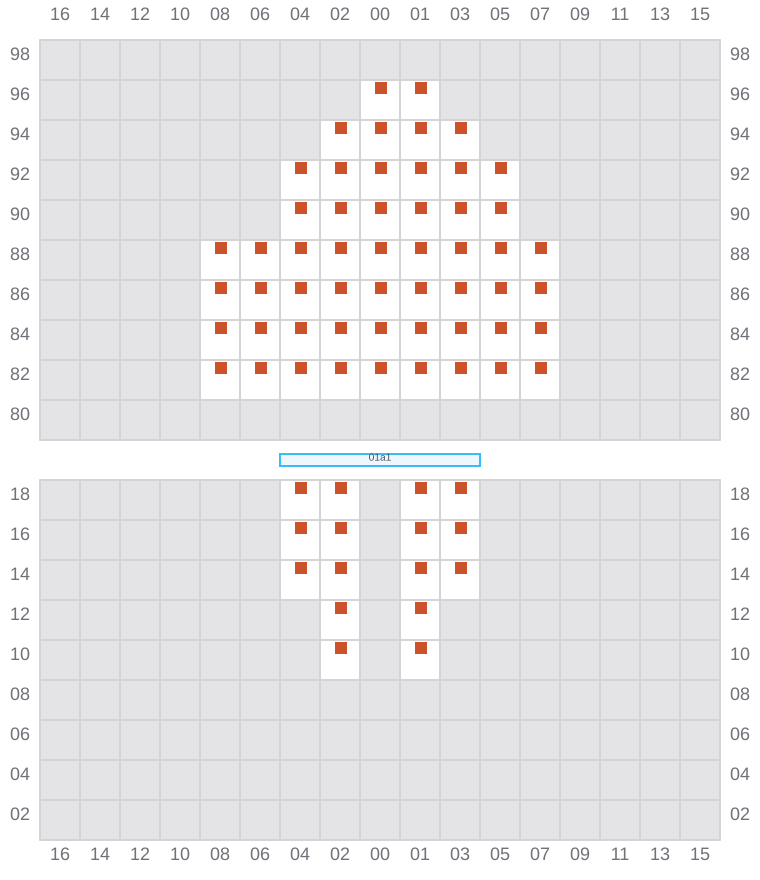

Bay 001 view and slots of MAERSK KARLSKRONA

003

  • ←

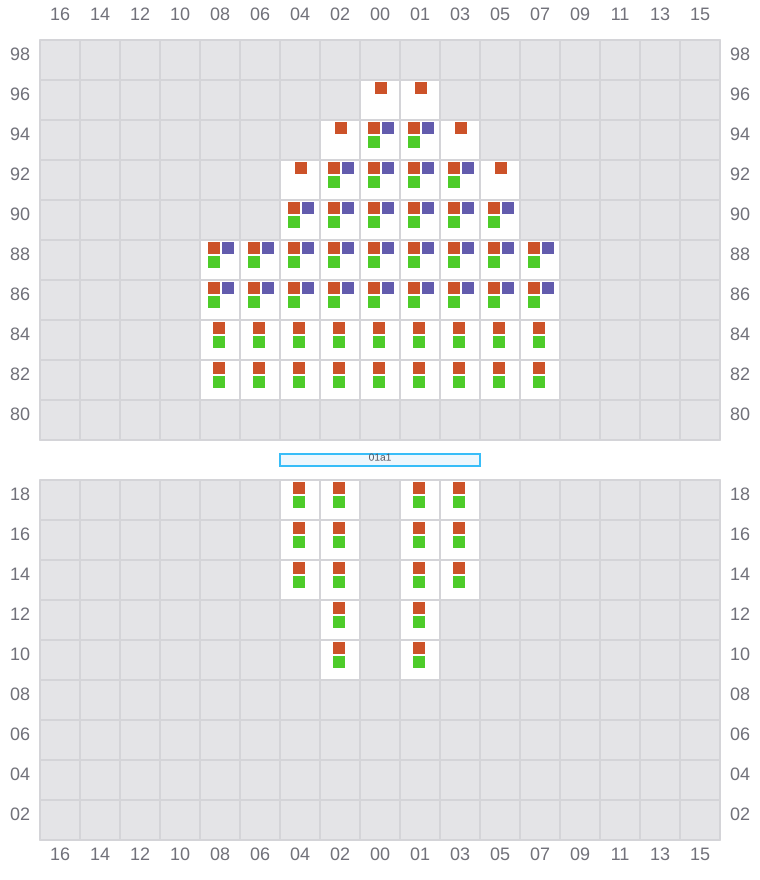

Bay 003 view and slots of MAERSK KARLSKRONA

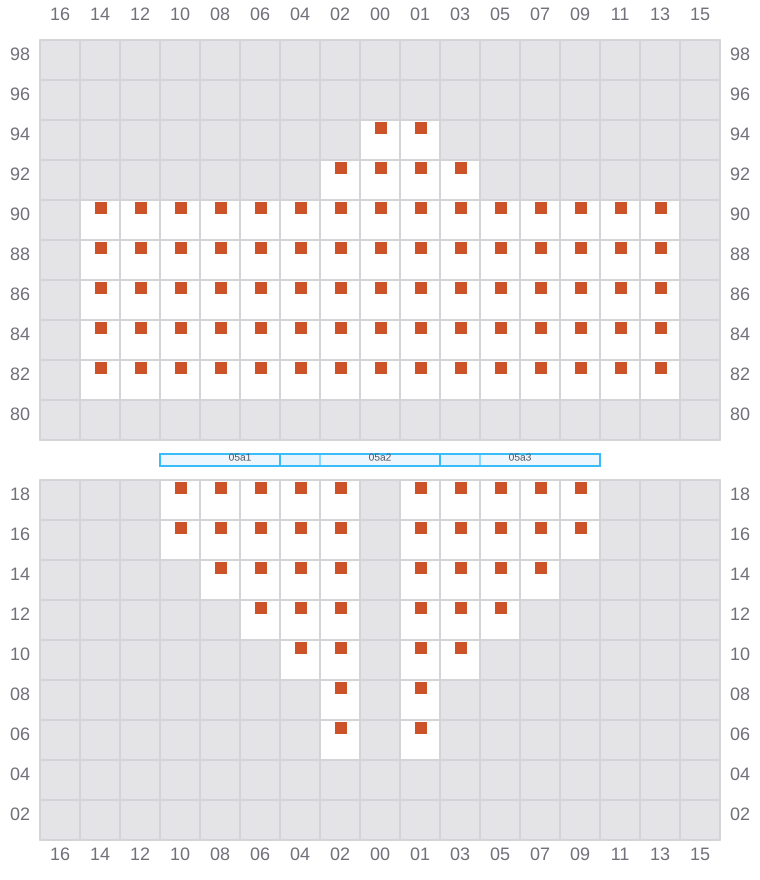

005 (006)

  • →

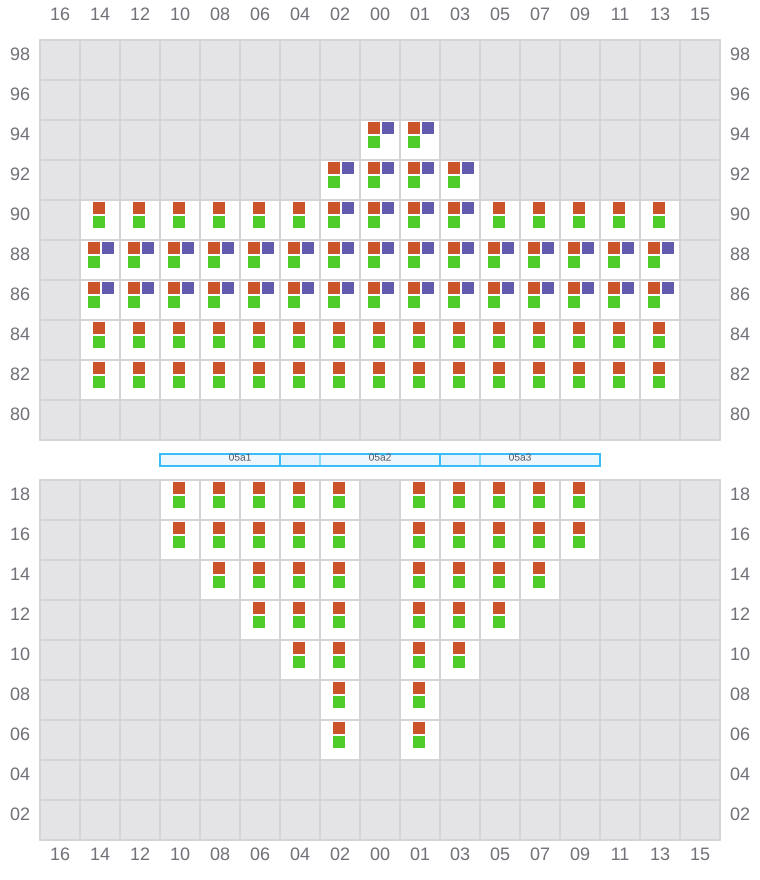

Bay 005 view and slots of MAERSK KARLSKRONA

007

  • ←
Bay 007 view and slots of MAERSK KARLSKRONA

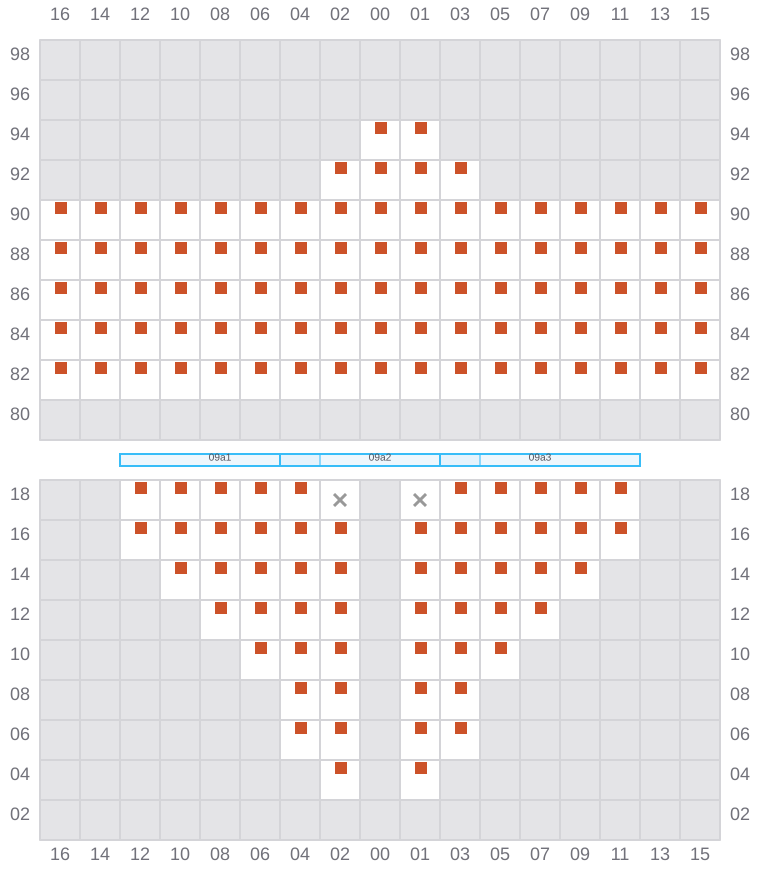

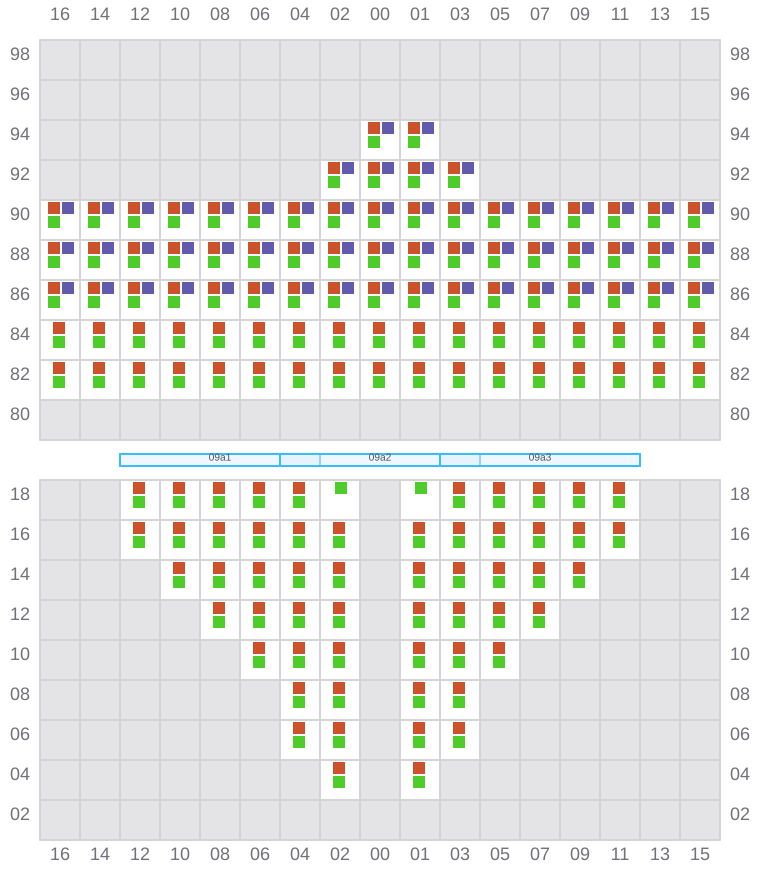

009 (010)

  • →
Bay 009 view and slots of MAERSK KARLSKRONA

011

  • ←
Bay 011 view and slots of MAERSK KARLSKRONA

013 (014)

  • →

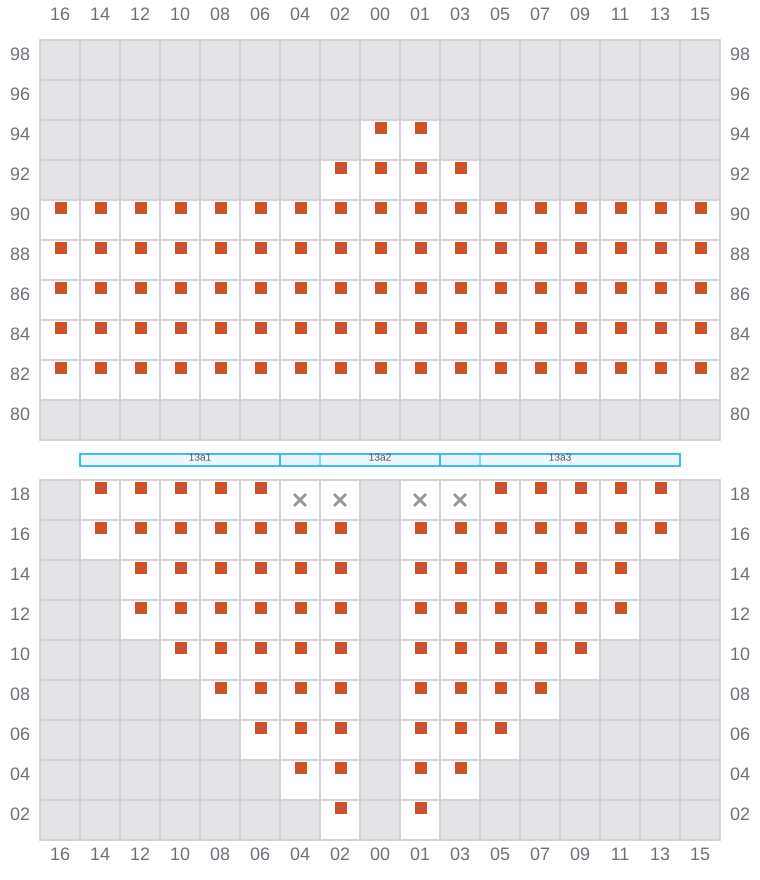

Bay 013 view and slots of MAERSK KARLSKRONA

015

  • ←
Bay 015 view and slots of MAERSK KARLSKRONA

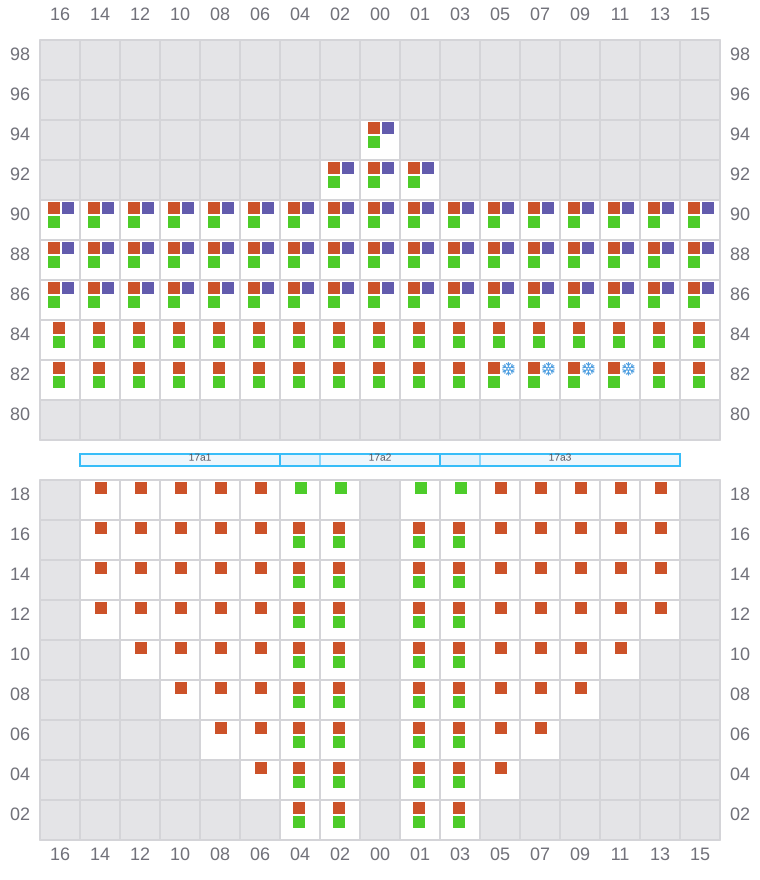

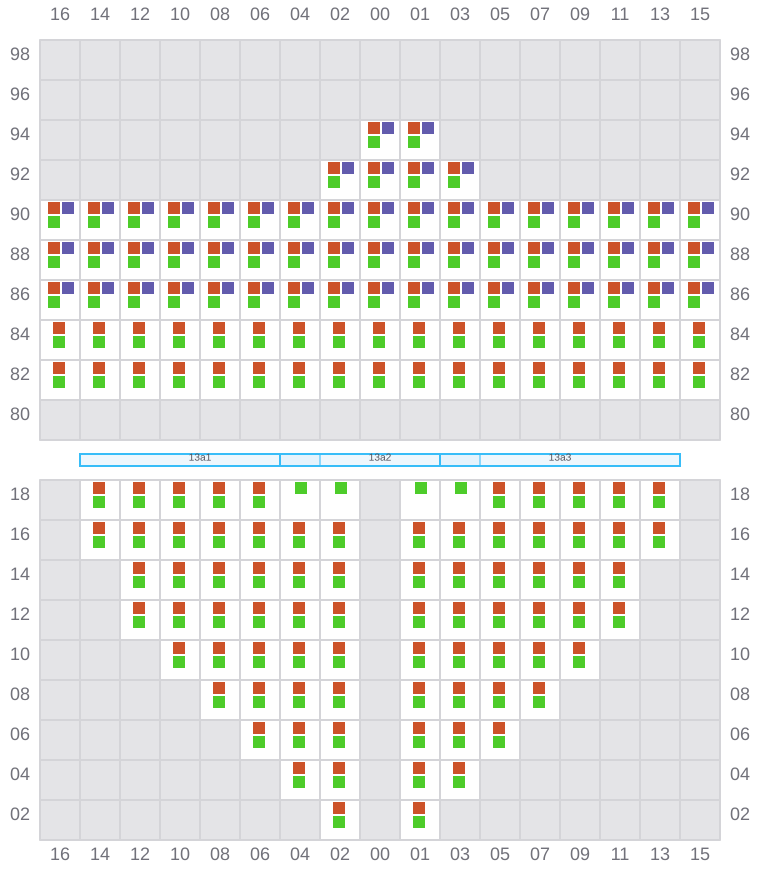

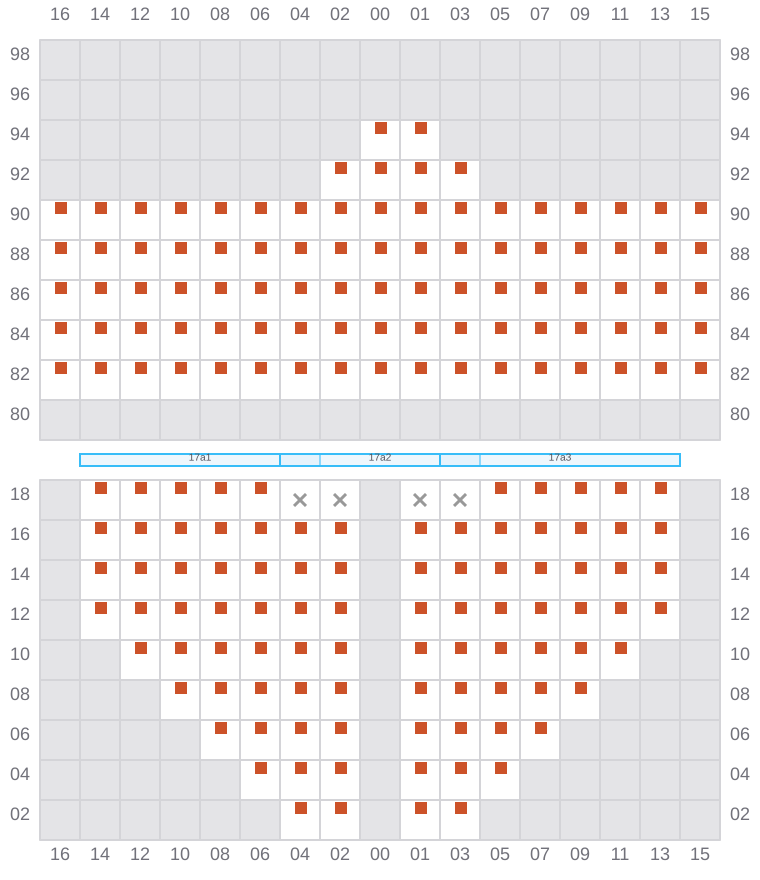

017 (018)

  • →
Bay 017 view and slots of MAERSK KARLSKRONA

019

  • ←
  • → / ?
Bay 019 view and slots of MAERSK KARLSKRONA

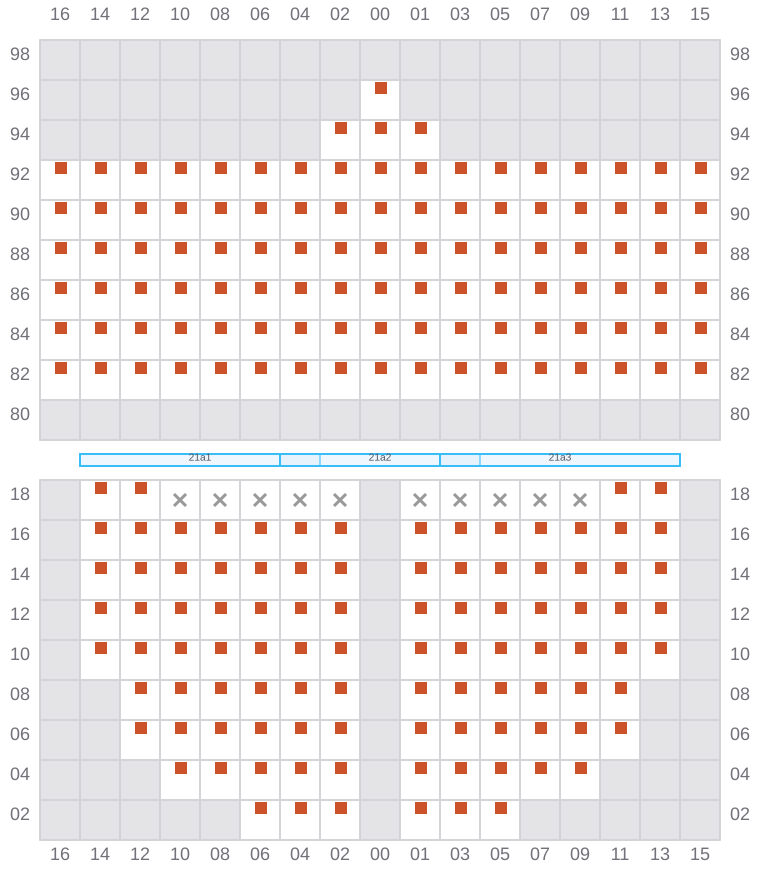

021 (022)

  • →

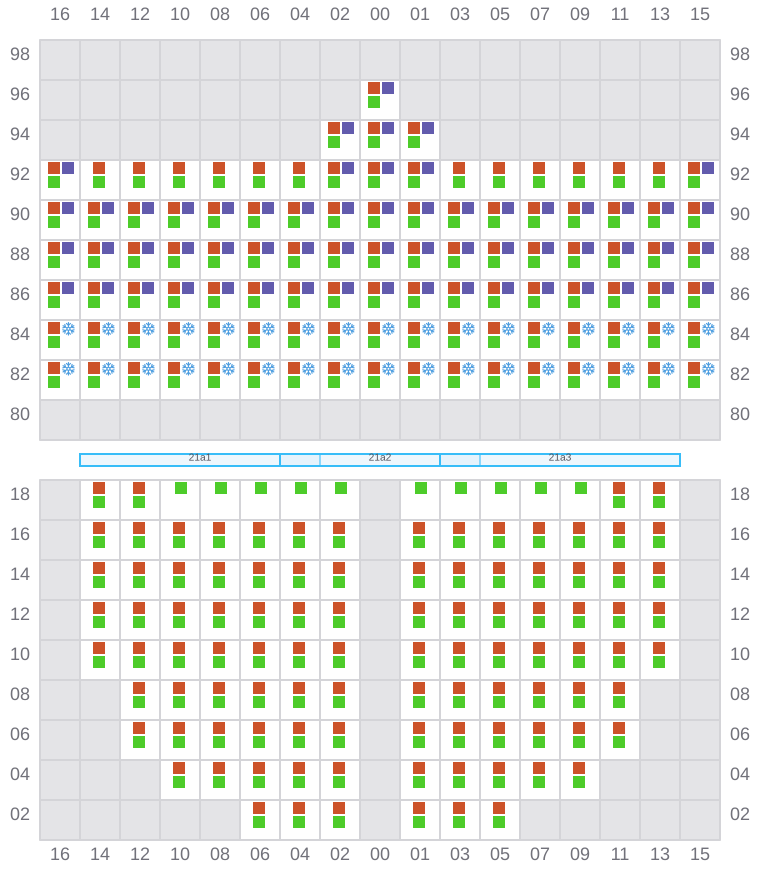

Bay 021 view and slots of MAERSK KARLSKRONA

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK KARLSKRONA

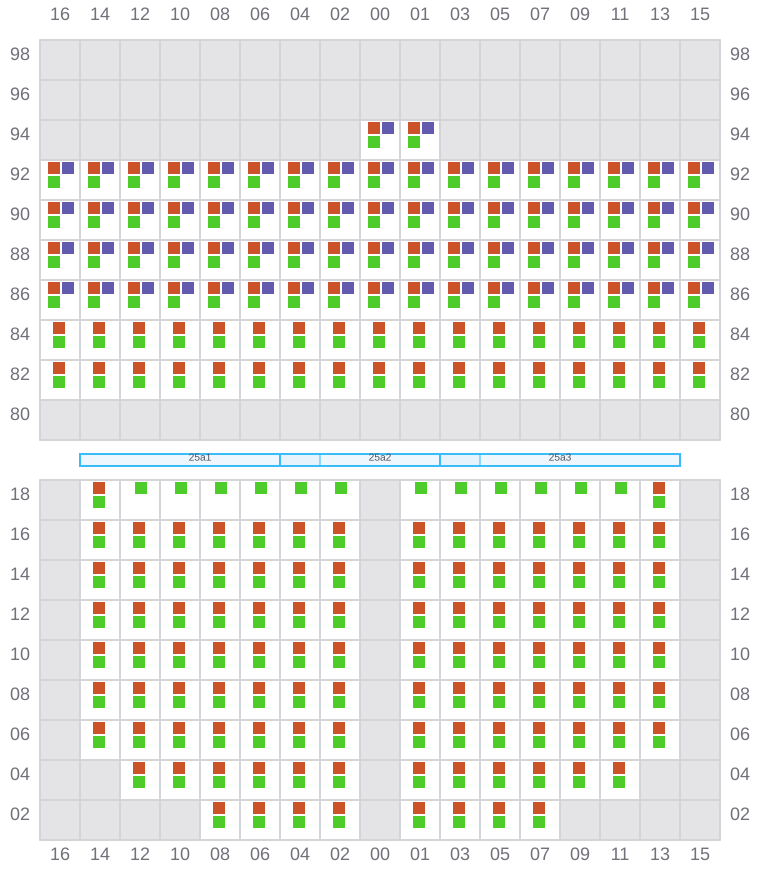

025 (026)

  • →

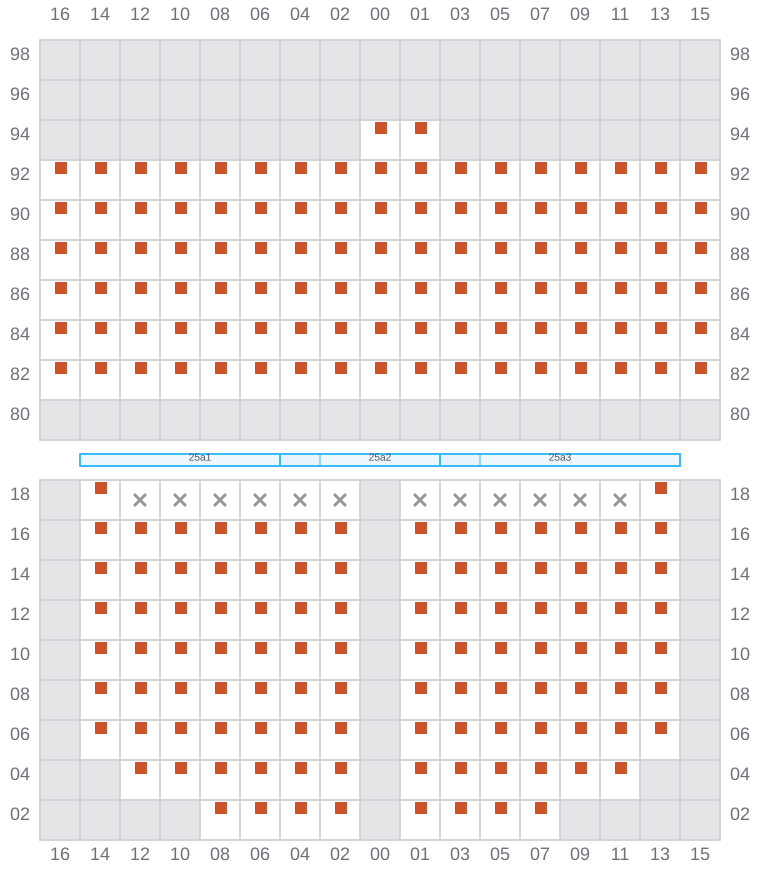

Bay 025 view and slots of MAERSK KARLSKRONA

027

  • ←
Bay 027 view and slots of MAERSK KARLSKRONA

029 (030)

  • →
  • ? / →

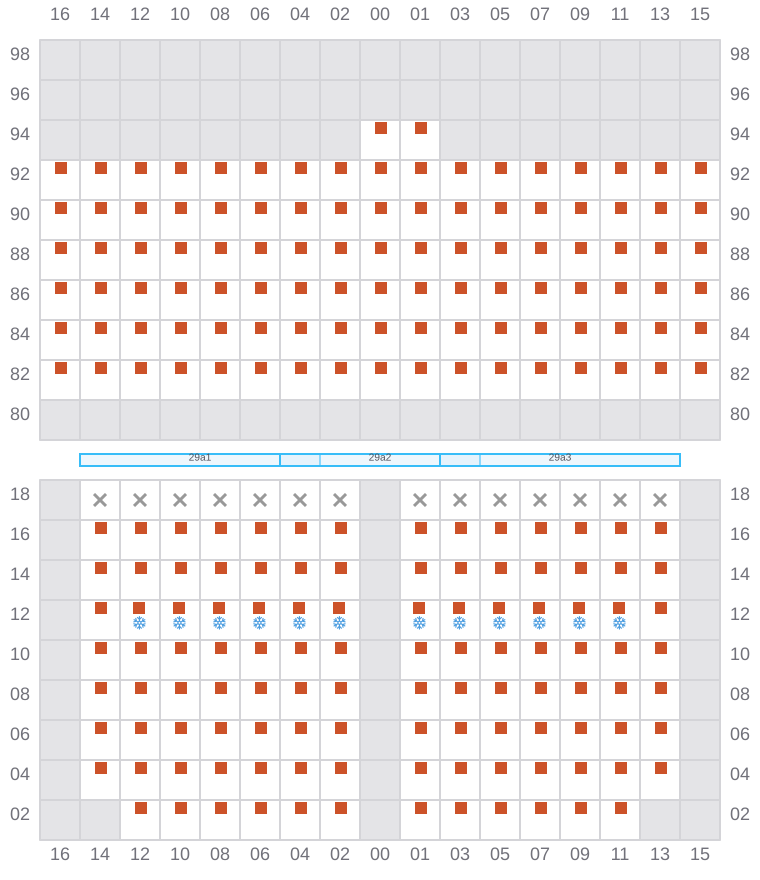

Bay 029 view and slots of MAERSK KARLSKRONA

031

  • ←
  • →
Bay 031 view and slots of MAERSK KARLSKRONA

033 (034)

  • →

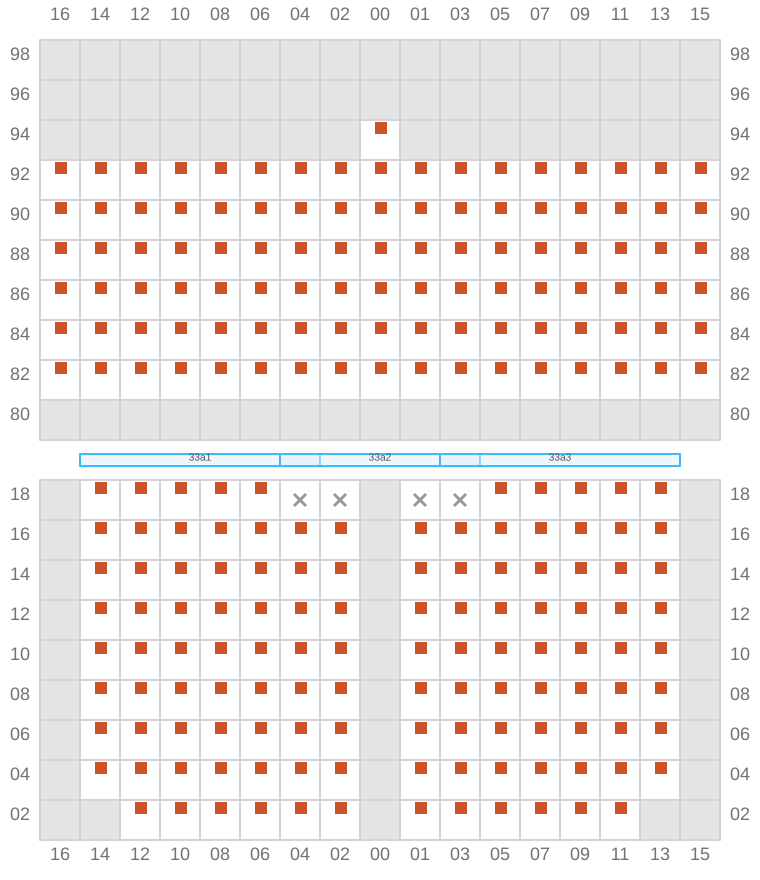

Bay 033 view and slots of MAERSK KARLSKRONA

035

  • ←

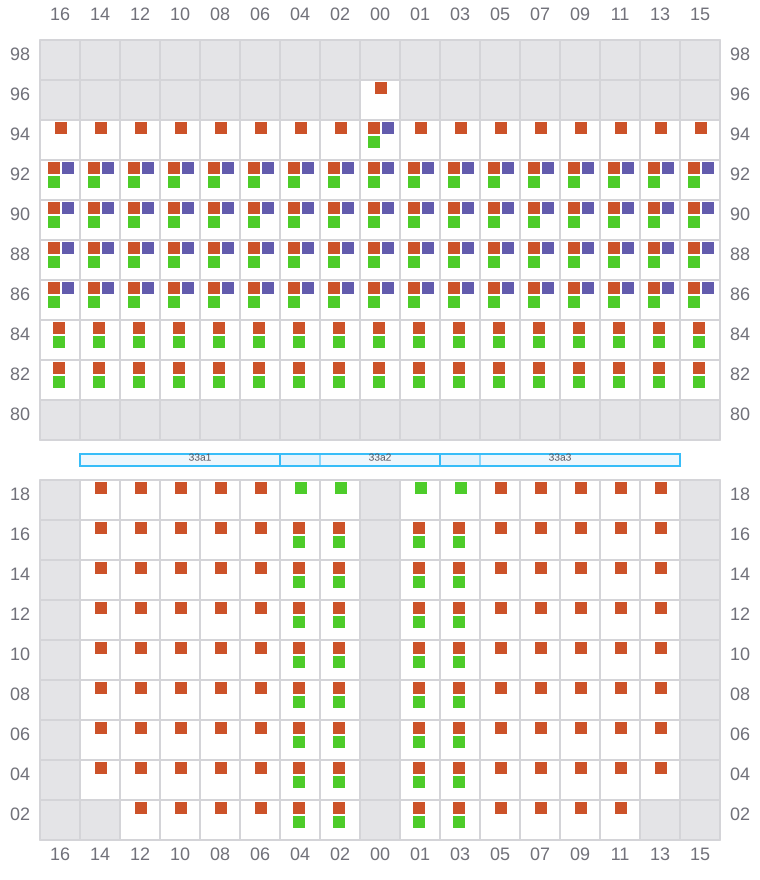

Bay 035 view and slots of MAERSK KARLSKRONA

037 (038)

  • →
  • ? / →
Bay 037 view and slots of MAERSK KARLSKRONA

039

  • ←
  • →

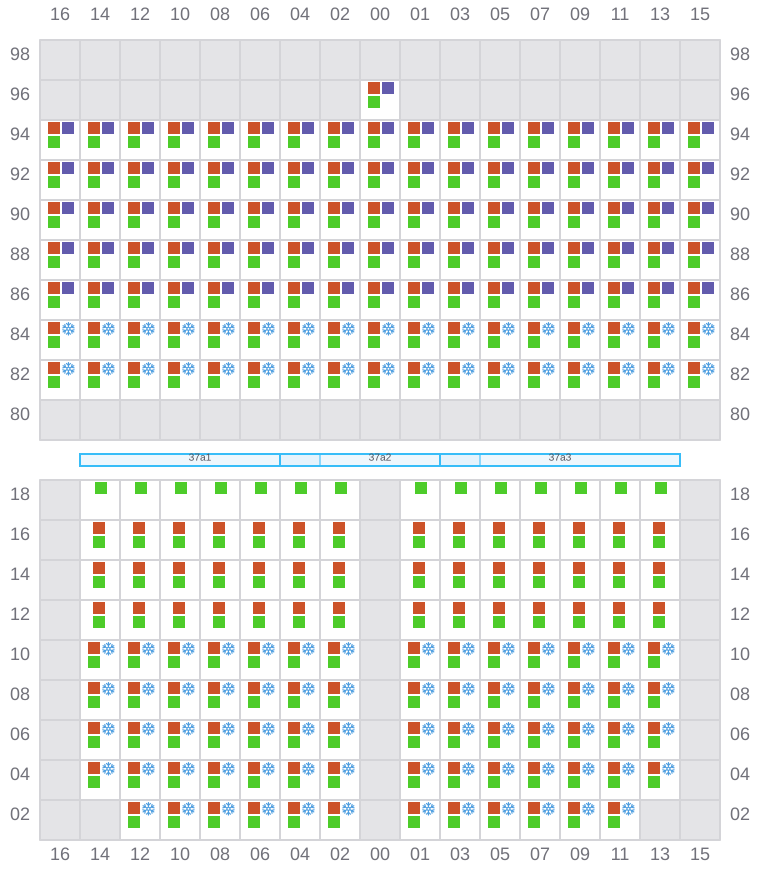

Bay 039 view and slots of MAERSK KARLSKRONA

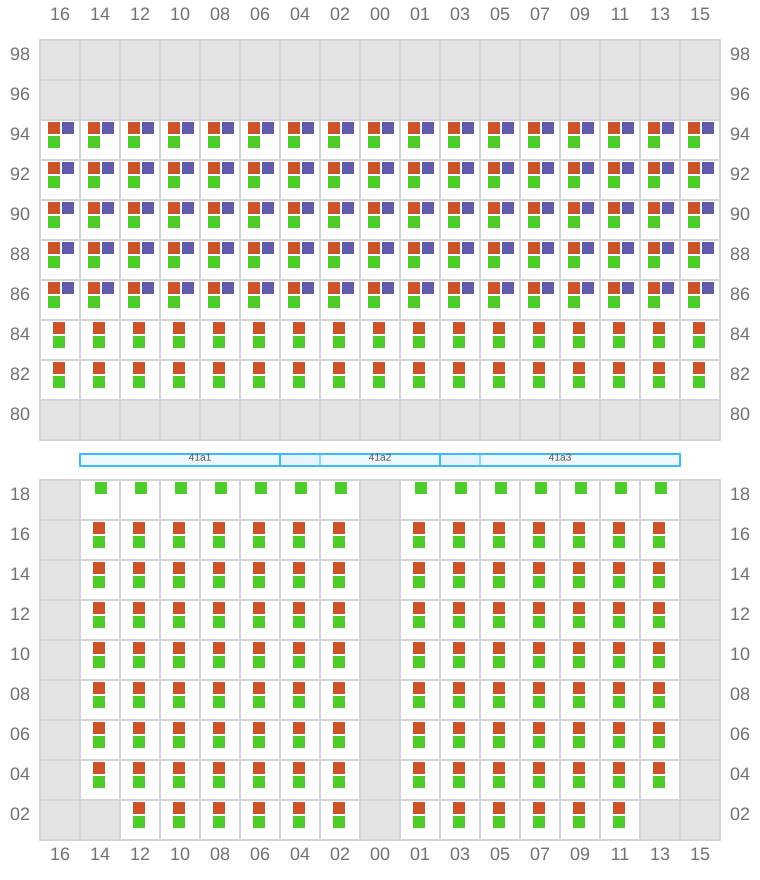

041 (042)

  • →

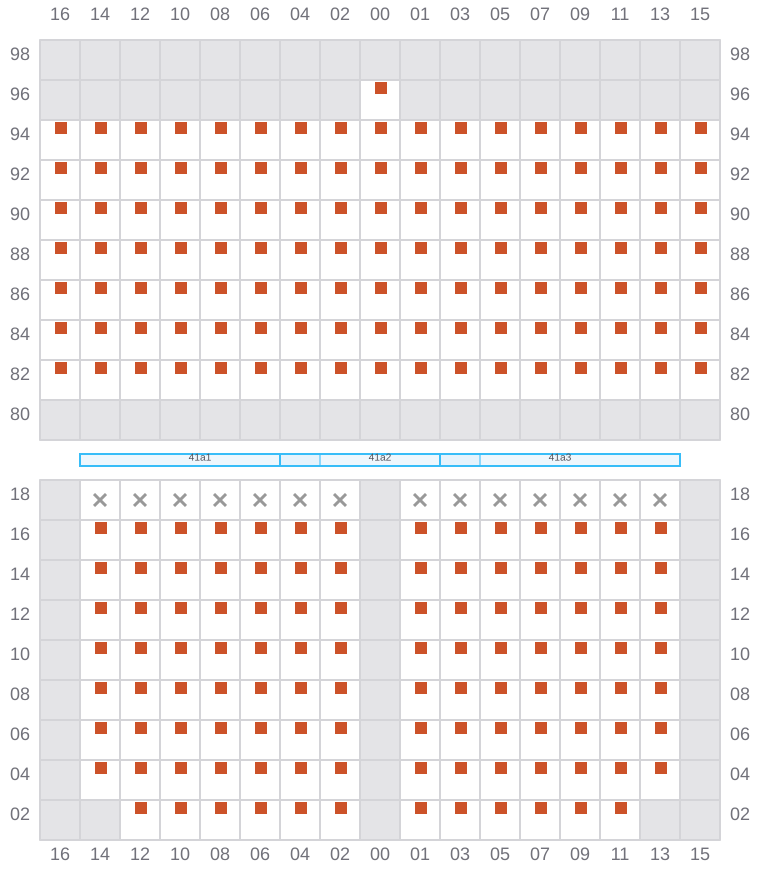

Bay 041 view and slots of MAERSK KARLSKRONA

043

  • ←
Bay 043 view and slots of MAERSK KARLSKRONA

045 (046)

  • →
  • ? / →

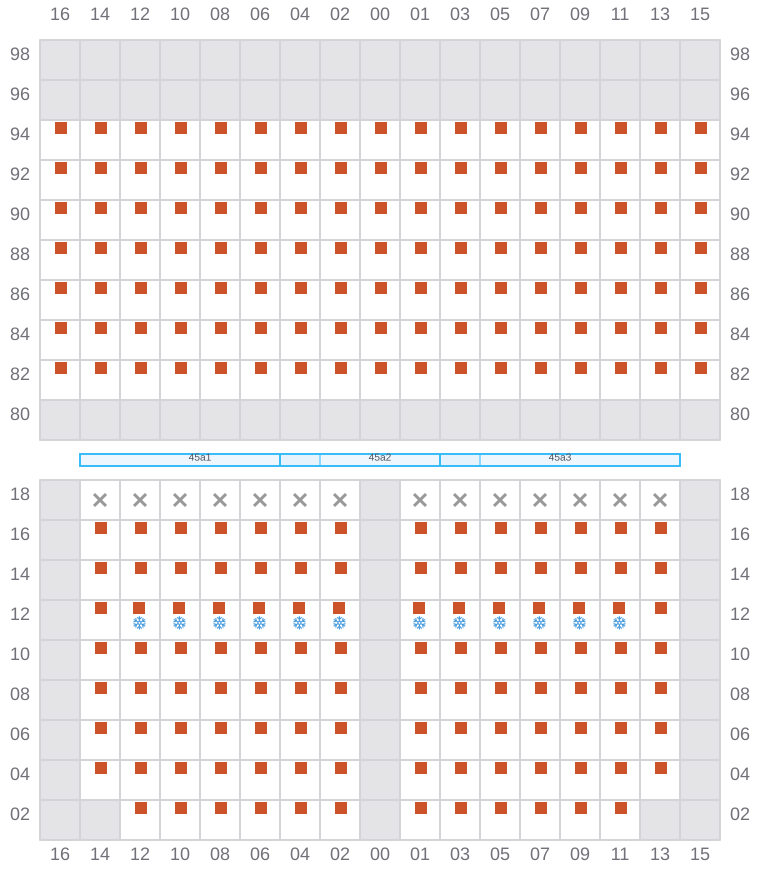

Bay 045 view and slots of MAERSK KARLSKRONA

047

  • ←
  • →
Bay 047 view and slots of MAERSK KARLSKRONA

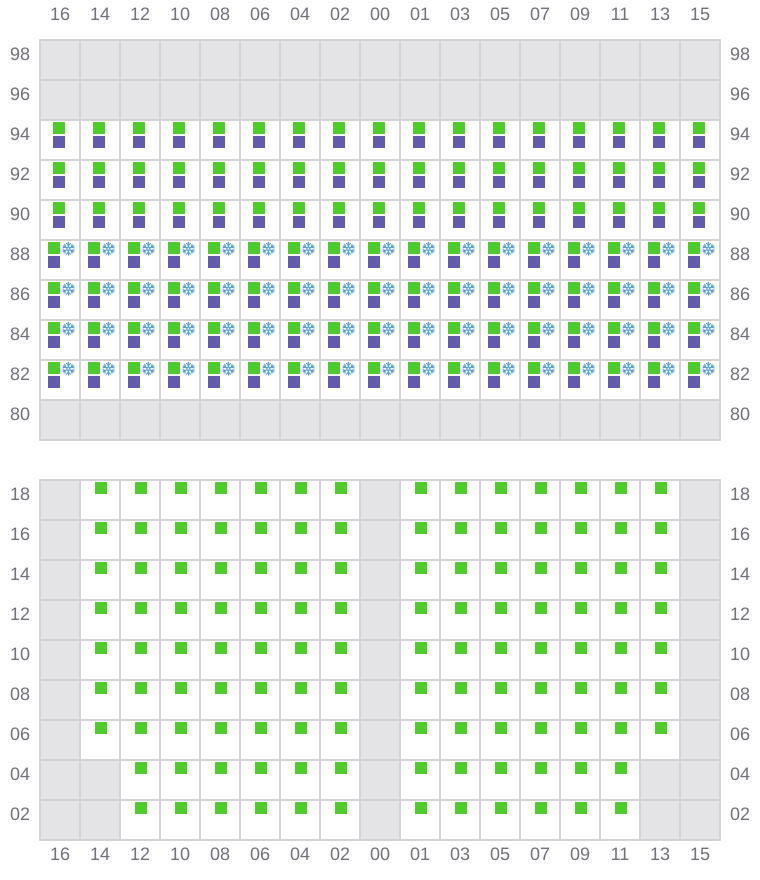

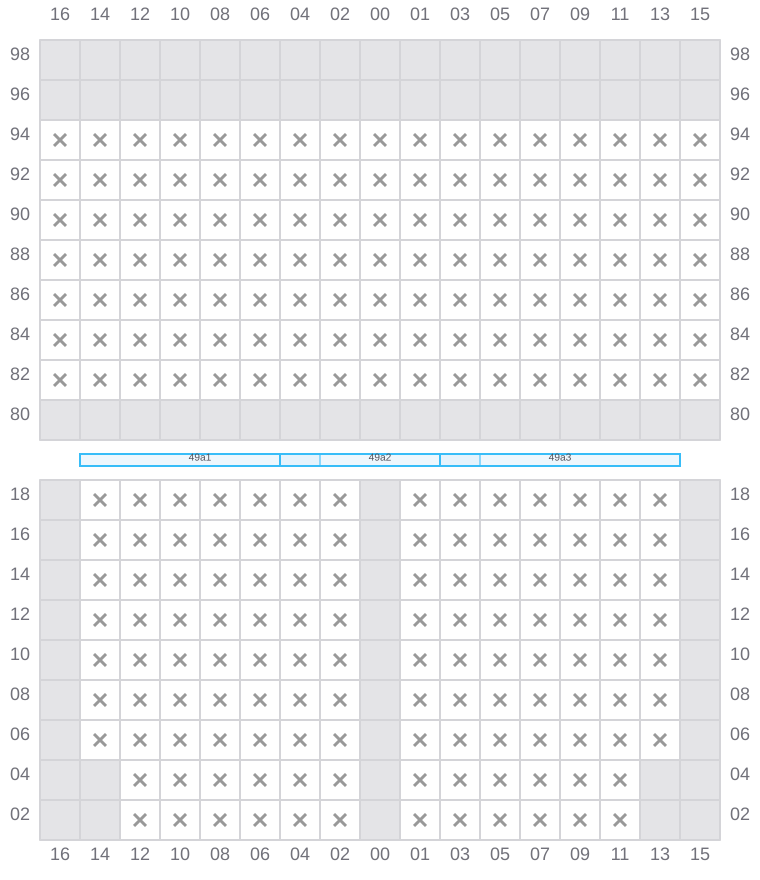

049 (050)

  • →
  • → / ?
Bay 049 view and slots of MAERSK KARLSKRONA

051

Bay 051 view and slots of MAERSK KARLSKRONA

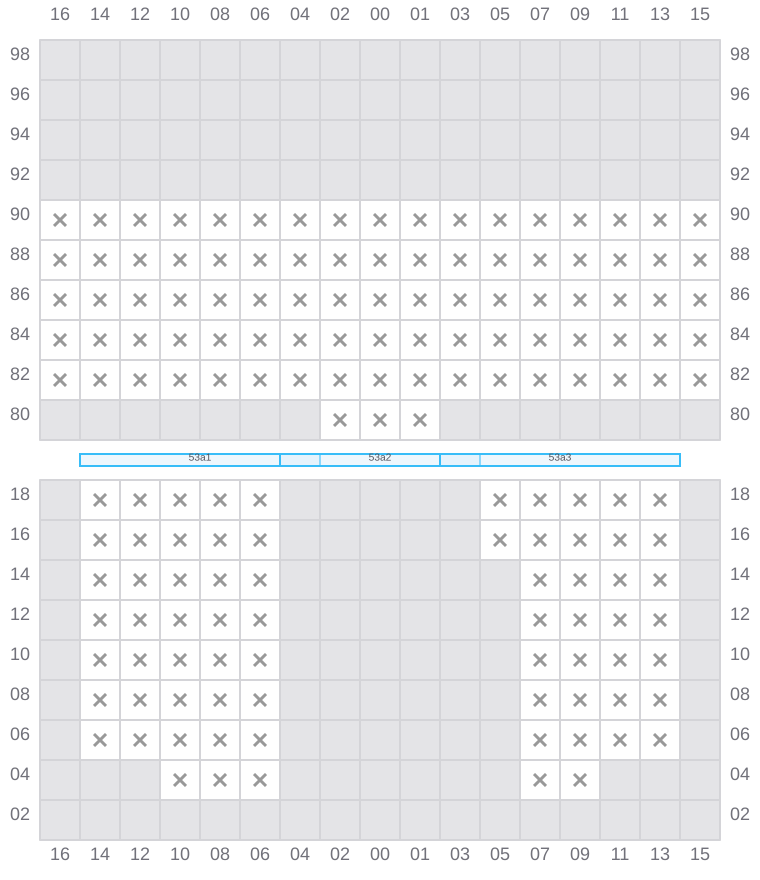

053 (054)

  • →
  • ← / ?
Bay 053 view and slots of MAERSK KARLSKRONA

055

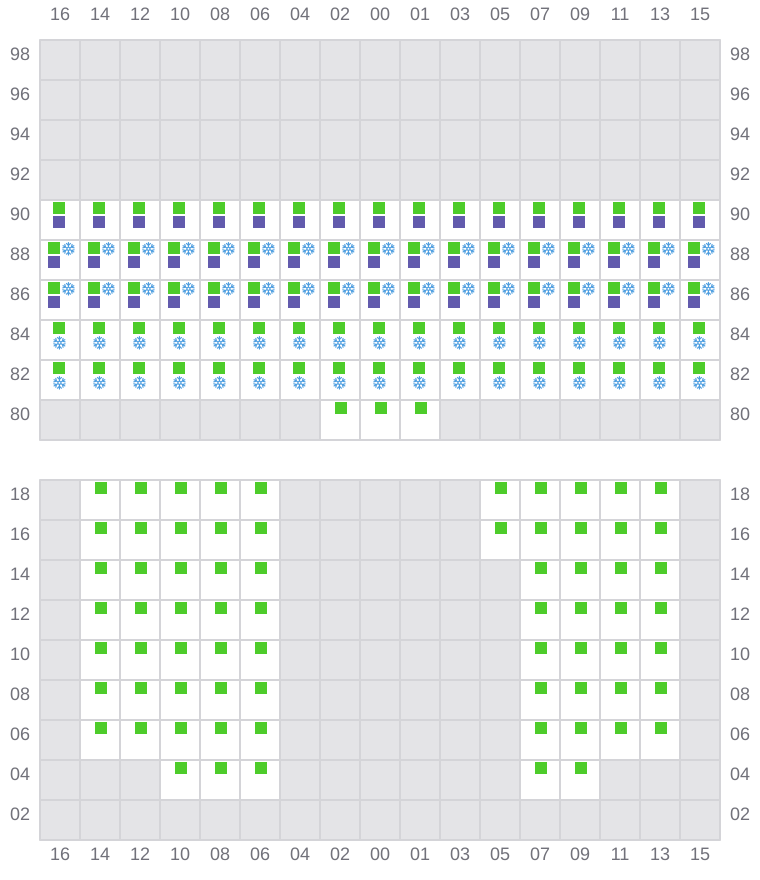

Bay 055 view and slots of MAERSK KARLSKRONA

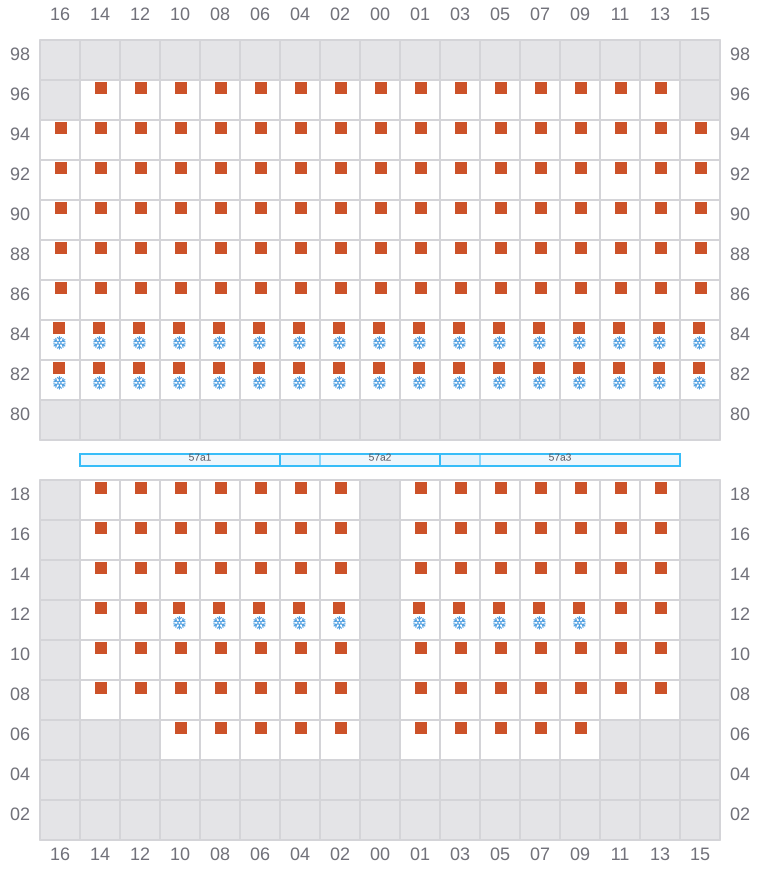

057 (058)

  • →
  • ← / →
Bay 057 view and slots of MAERSK KARLSKRONA

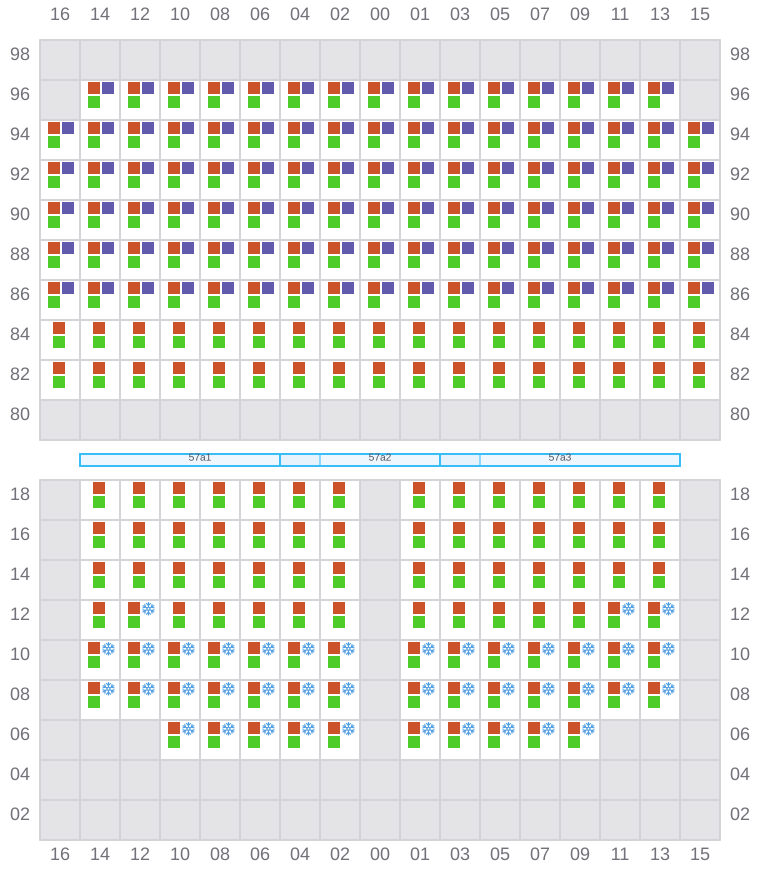

059

  • ←
  • ? / →
Bay 059 view and slots of MAERSK KARLSKRONA

061 (062)

  • →
  • ← / ?
Bay 061 view and slots of MAERSK KARLSKRONA

063

  • ←
Bay 063 view and slots of MAERSK KARLSKRONA

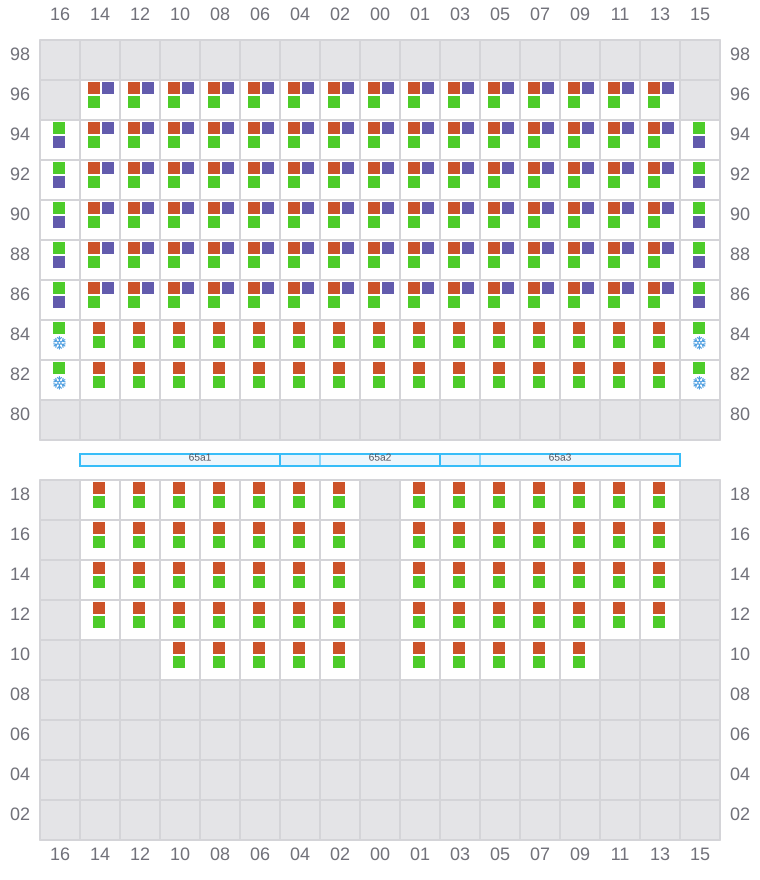

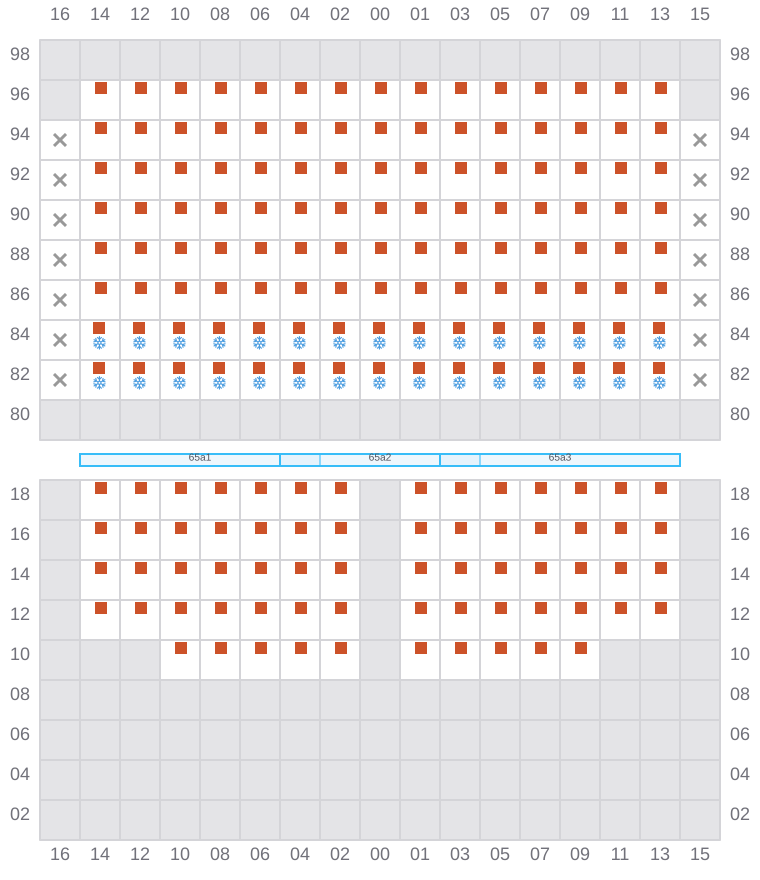

065 (066)

  • →
  • ← / ?
Bay 065 view and slots of MAERSK KARLSKRONA

067

  • ←
Bay 067 view and slots of MAERSK KARLSKRONA

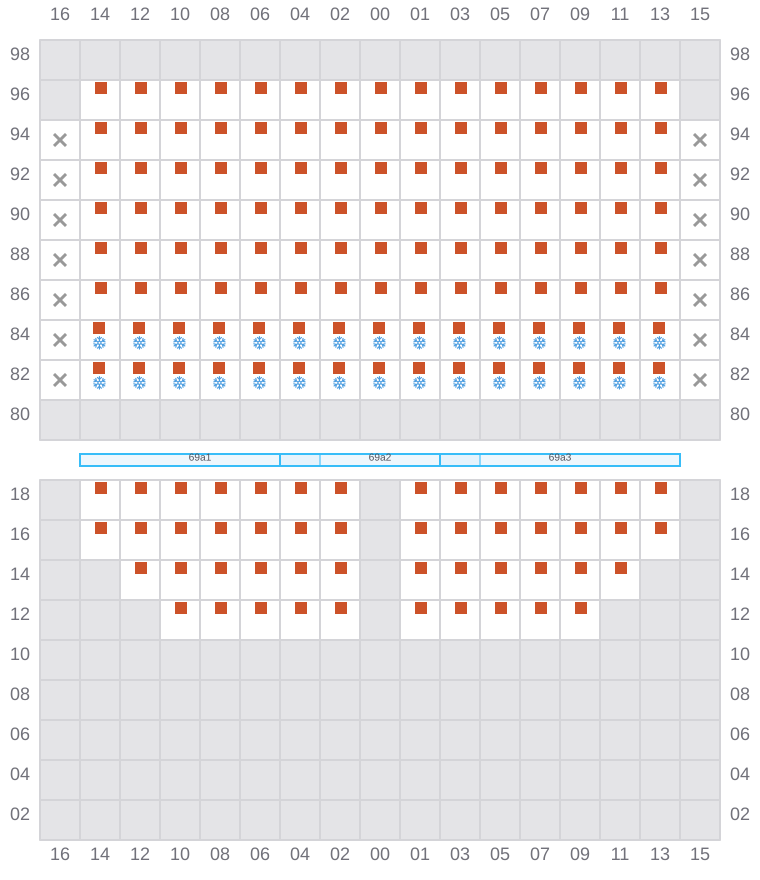

069 (070)

  • →
  • ← / ?

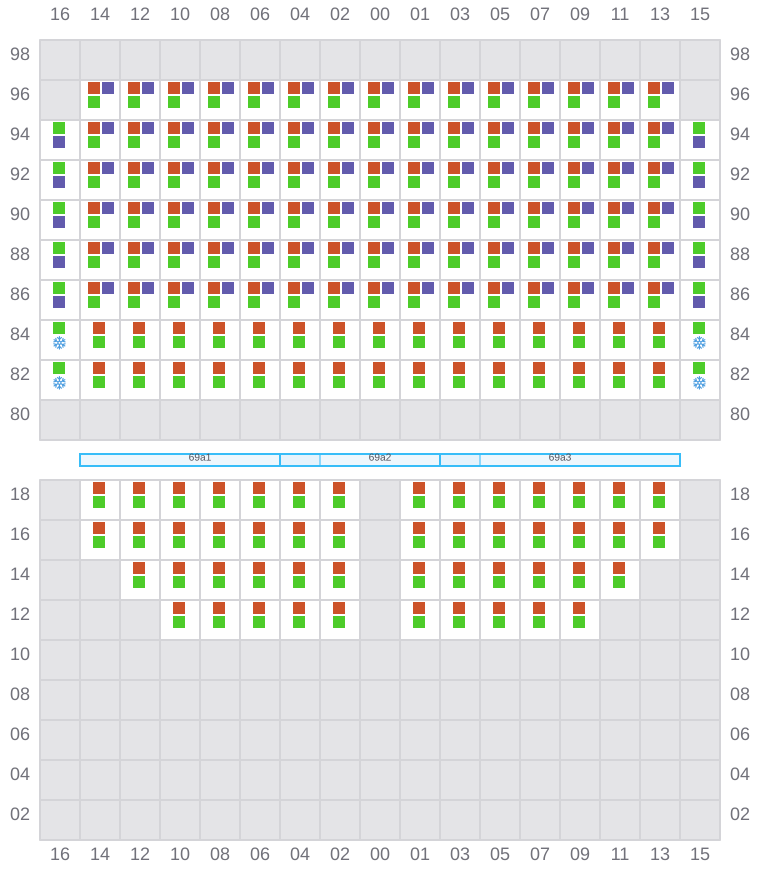

Bay 069 view and slots of MAERSK KARLSKRONA

071

  • ←
Bay 071 view and slots of MAERSK KARLSKRONA

073 (074)

  • → / ?

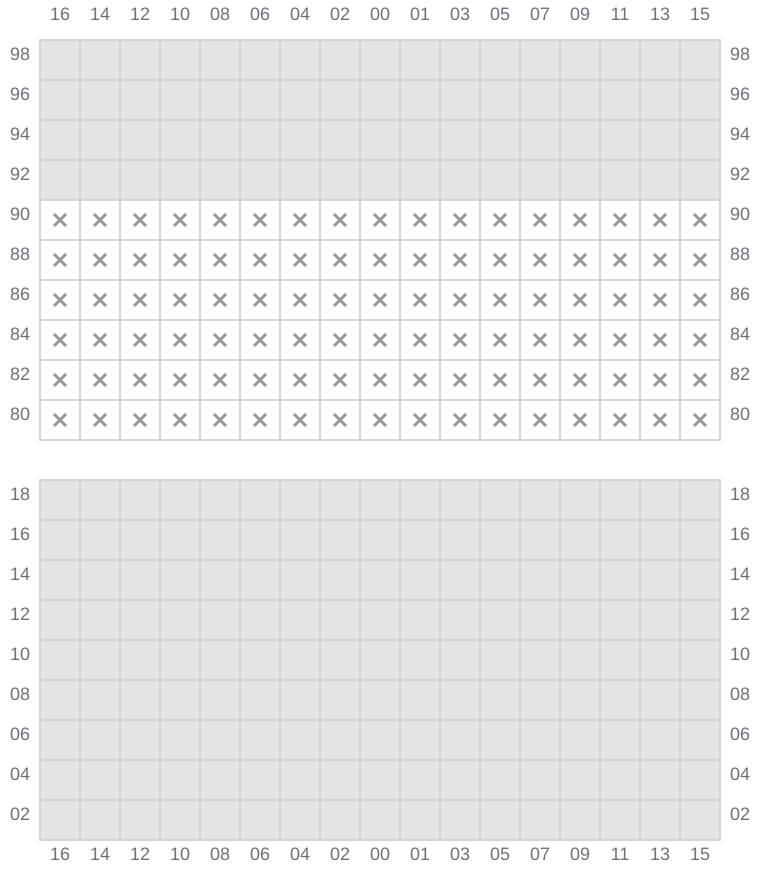

Bay 073 view and slots of MAERSK KARLSKRONA
