MAERSK KARUN
9624299 | H3NI | 9624299 by ********* Last update: Mon Jul 01 2024
General Info
Ship Name:MAERSK KARUN
IMO Code:9624299
Call Sign:H3NI
Line Operator:9624299
Class Name for Sister Ships:MAE
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,662
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

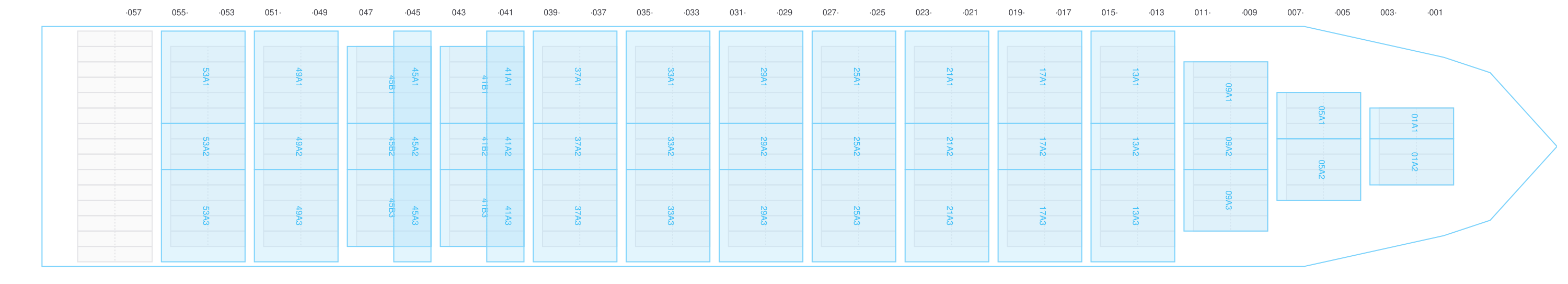

Hatch-Covers View

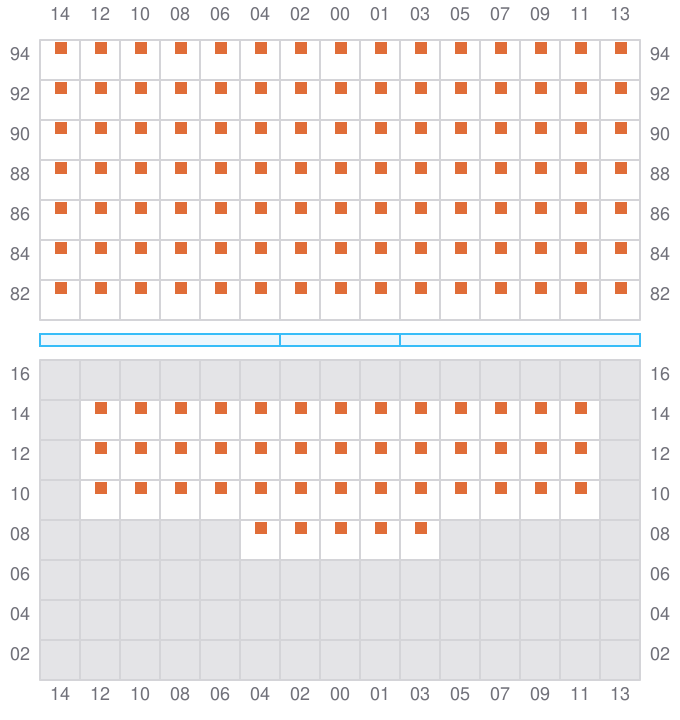

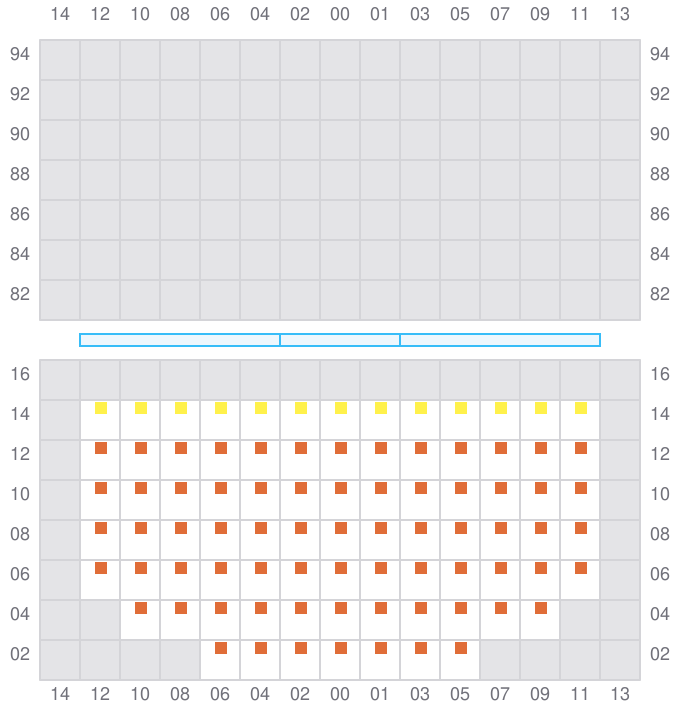

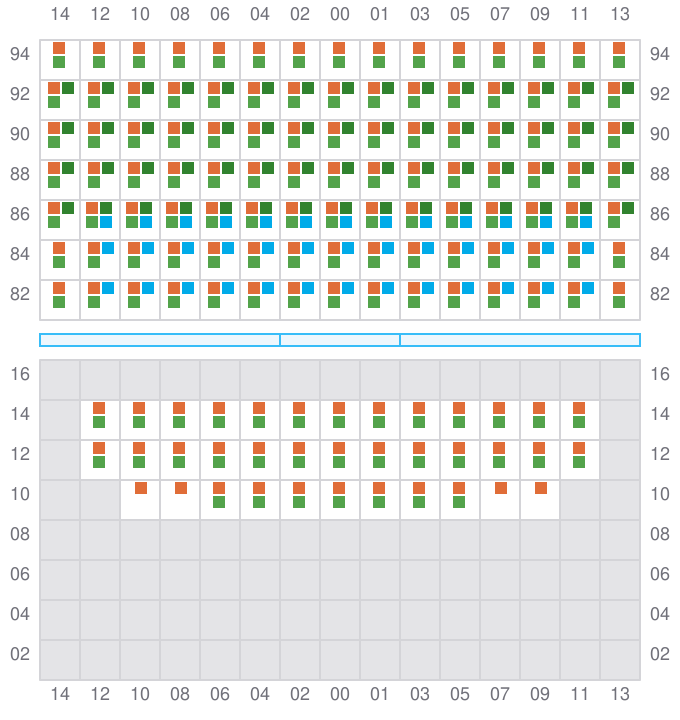

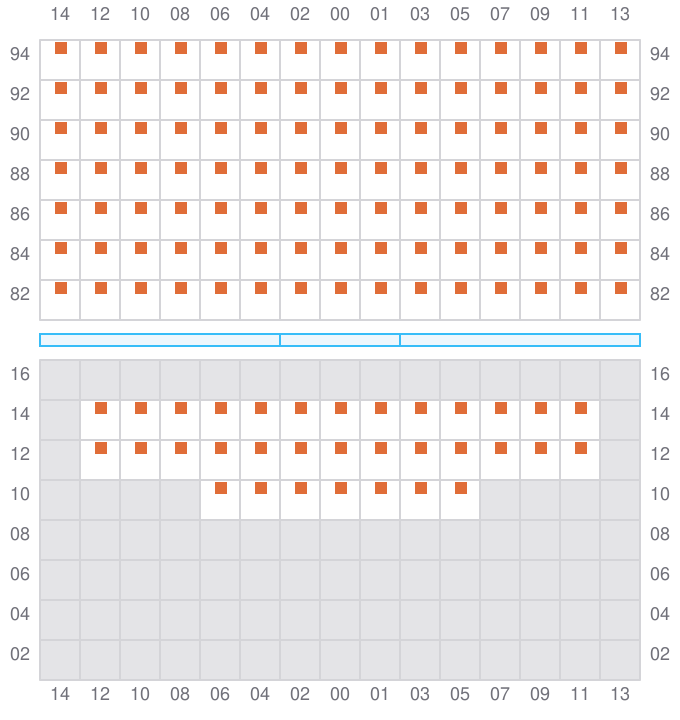

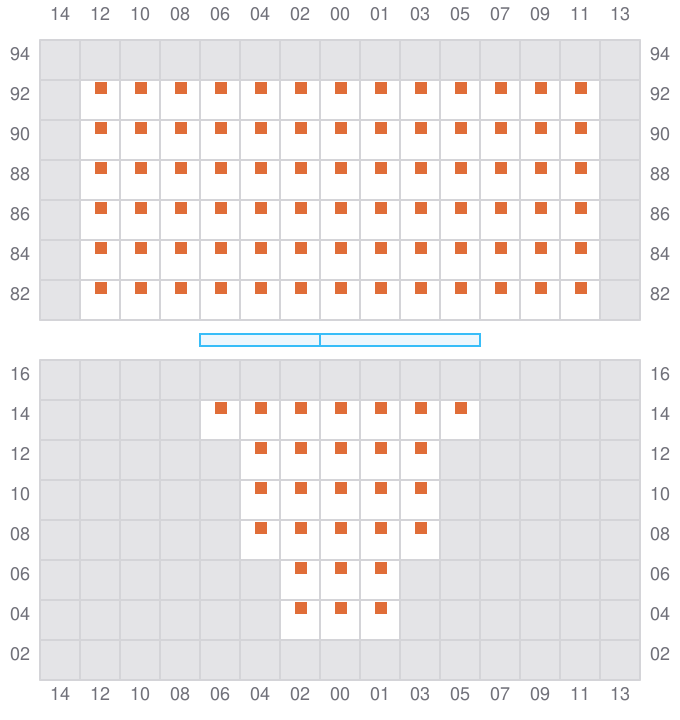

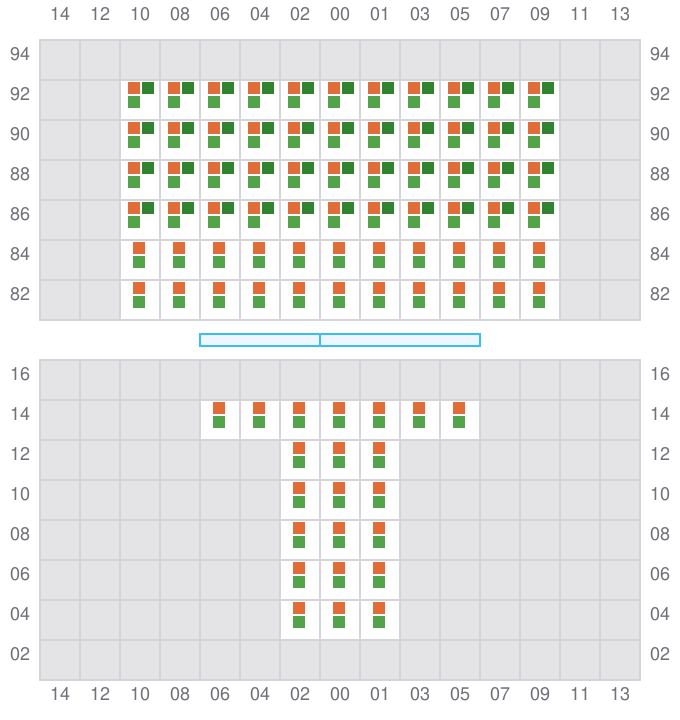

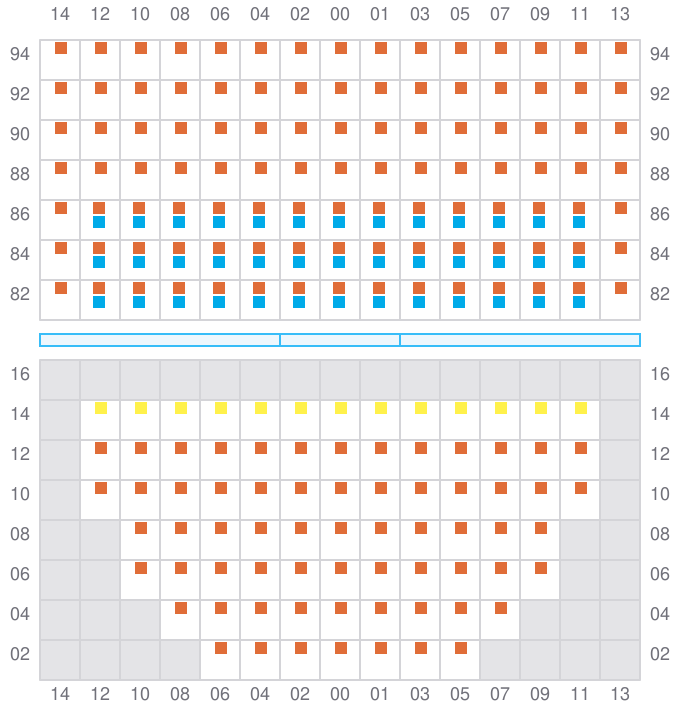

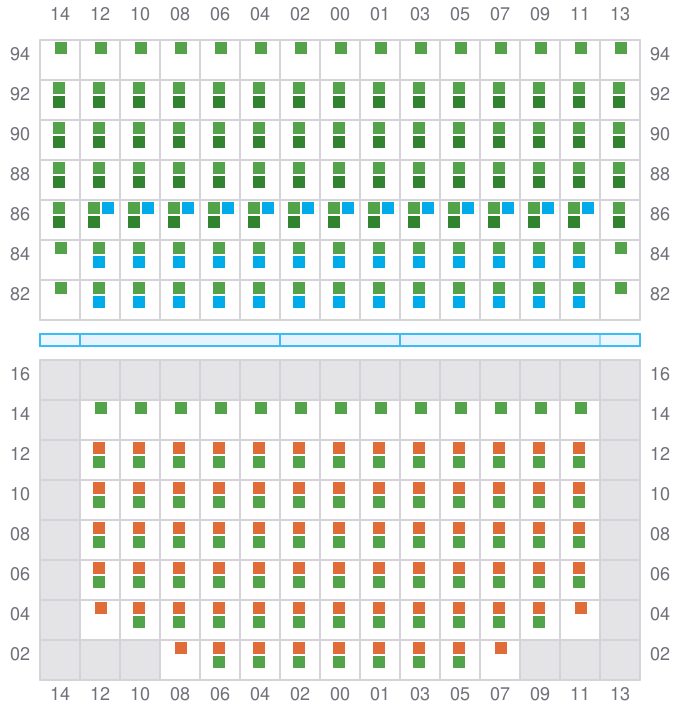

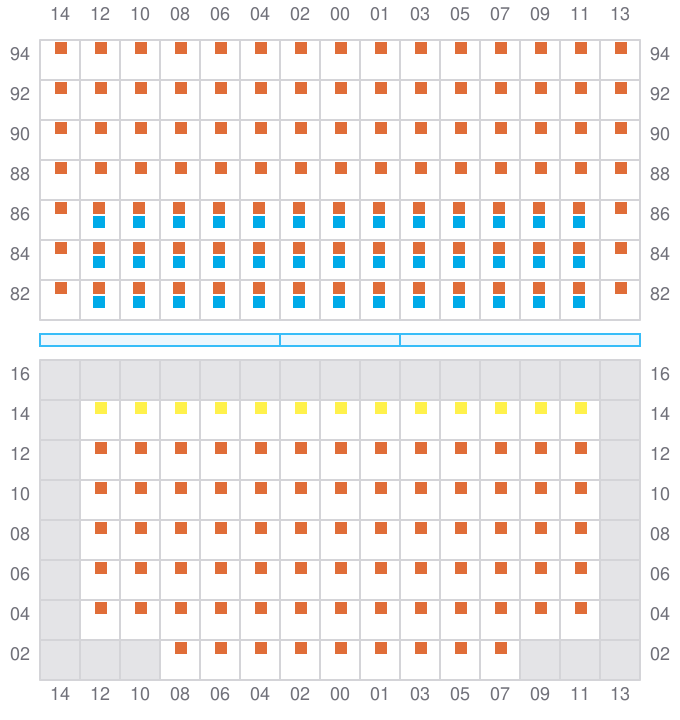

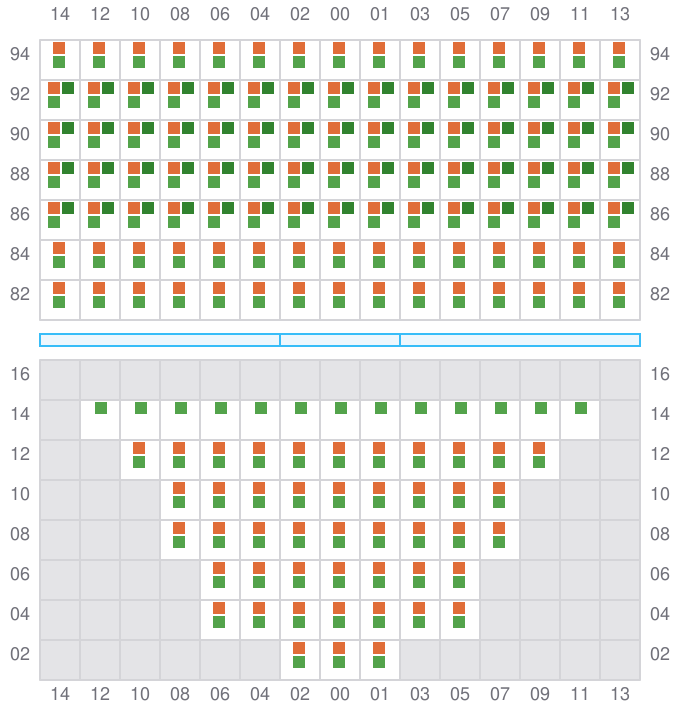

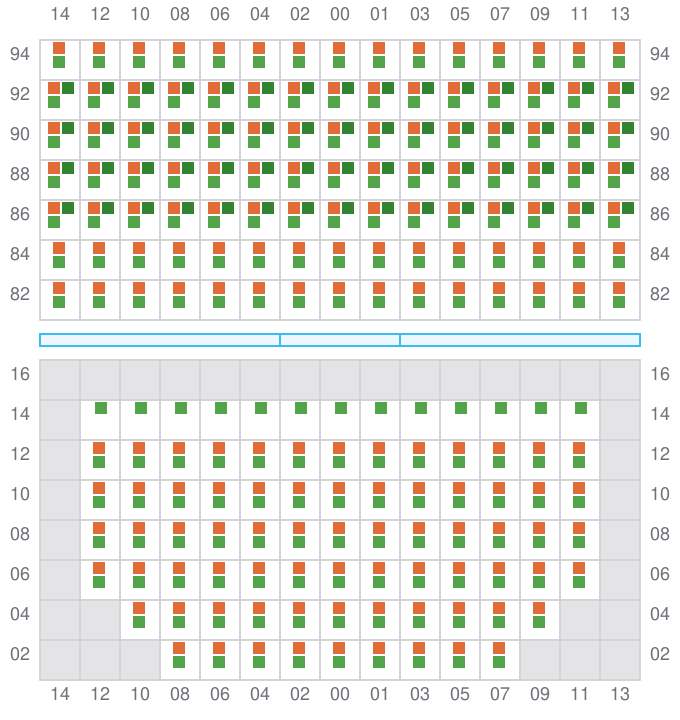

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

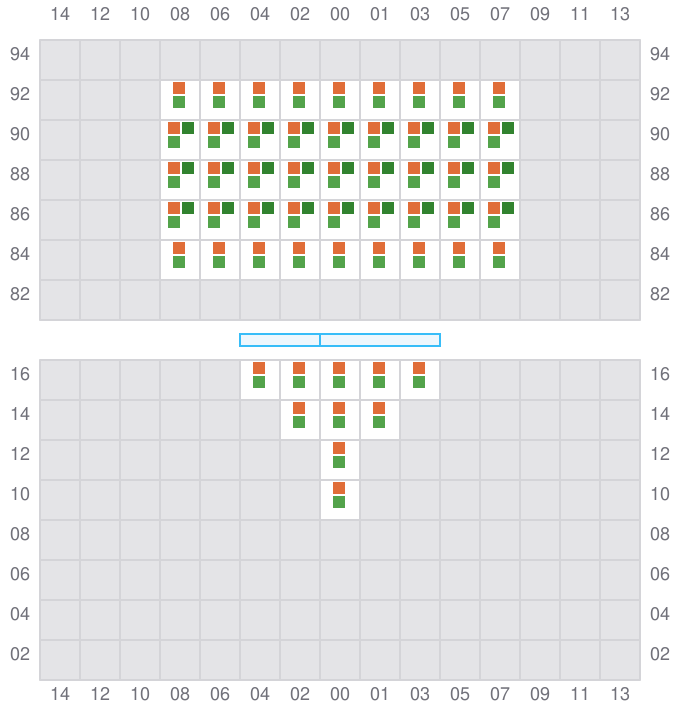

001 (002)
- →

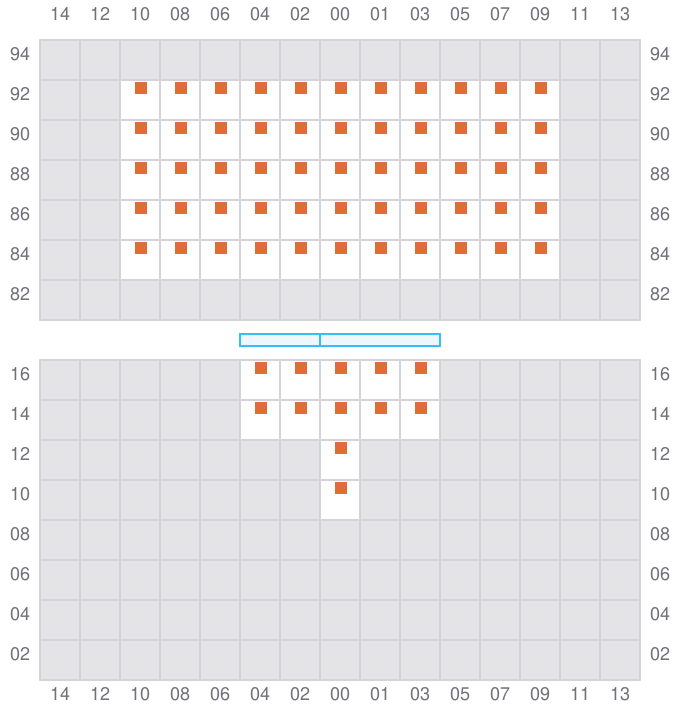

003
- ←
005 (006)
- →
007
- ←

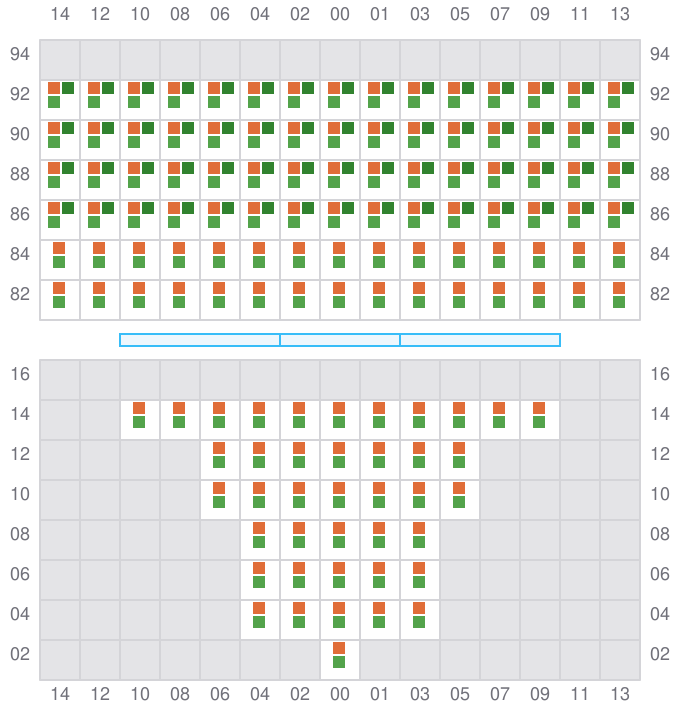

009 (010)
- →

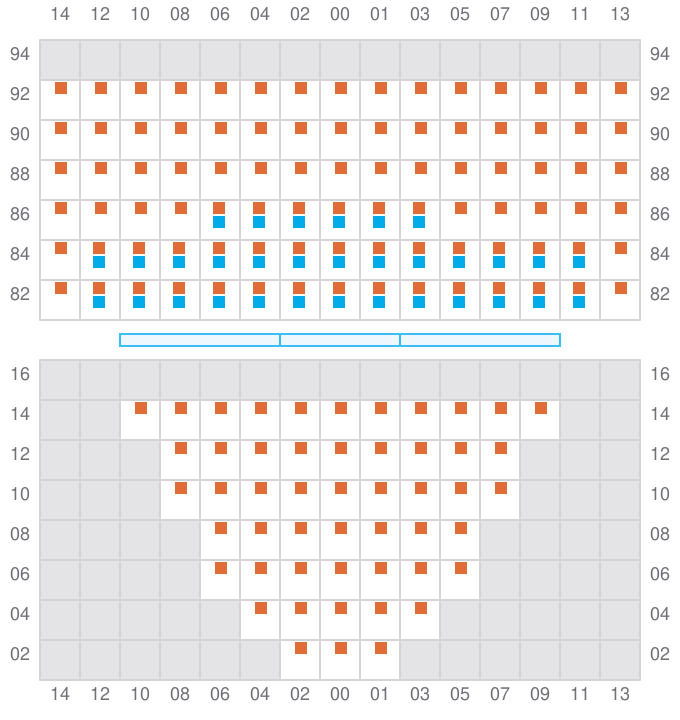

011
- ←
- → / ?
013 (014)
- →

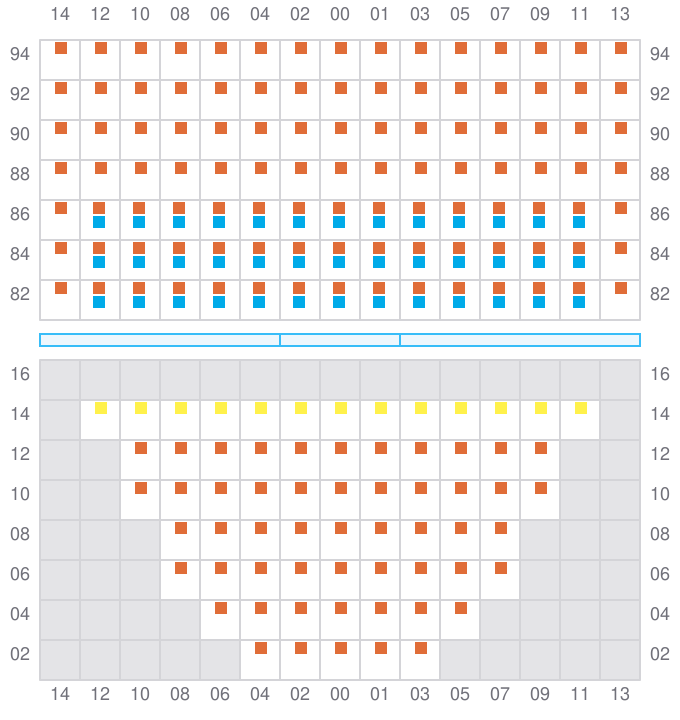

015
- ←
- → / ?

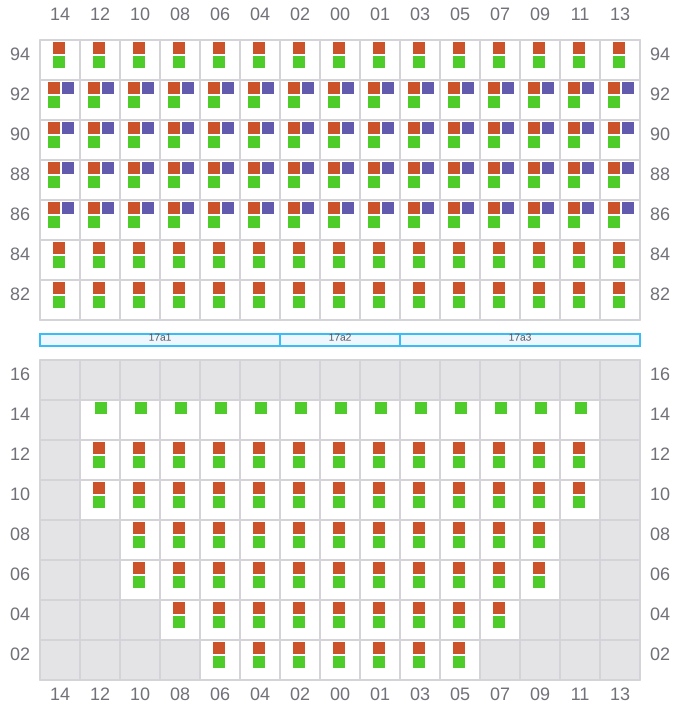

017 (018)
- →
019
- ←
- → / ?
021 (022)
- →

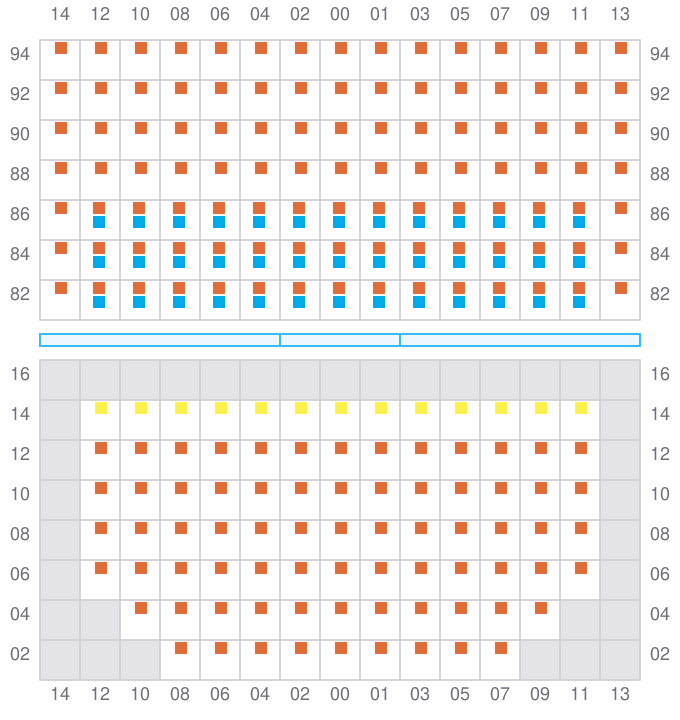

023
- ←
- → / ?
025 (026)
- →
027
- ←
- → / ?

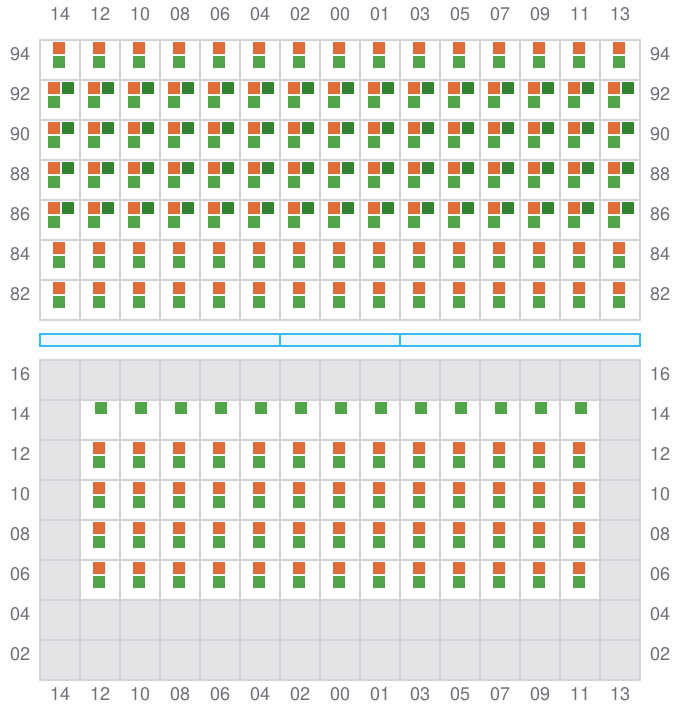

029 (030)
- →
031
- ←
- → / ?

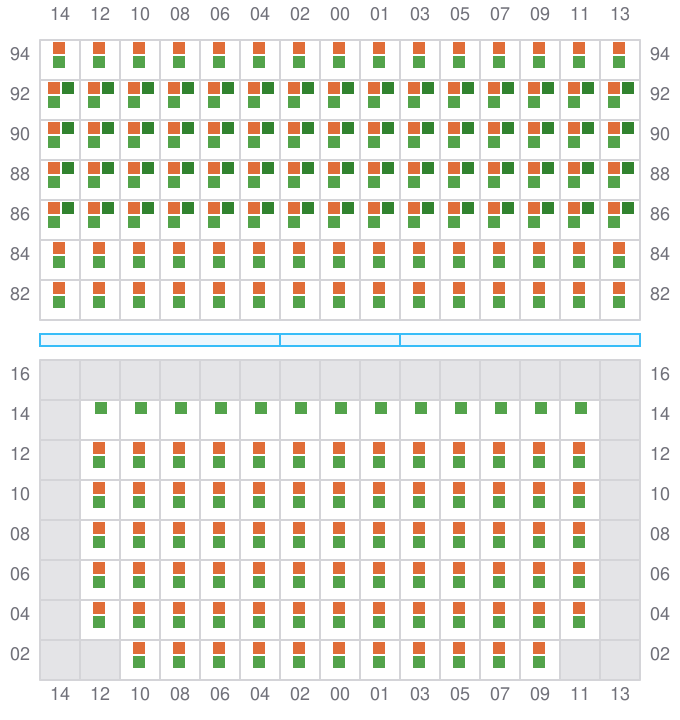

033 (034)
- →

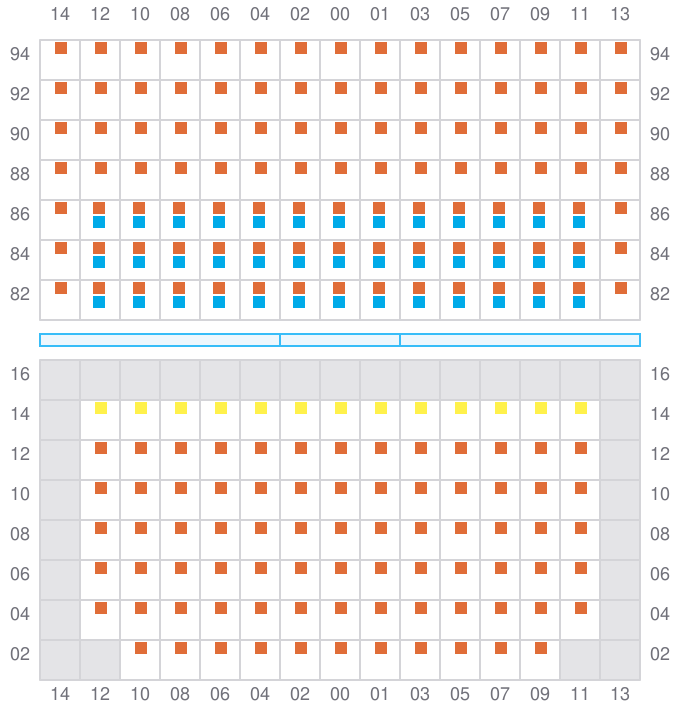

035
- ←
- → / ?
037 (038)
- →
039
- ←
- → / ?
041 (042)
- →
- → / ?
043
- ? / ←

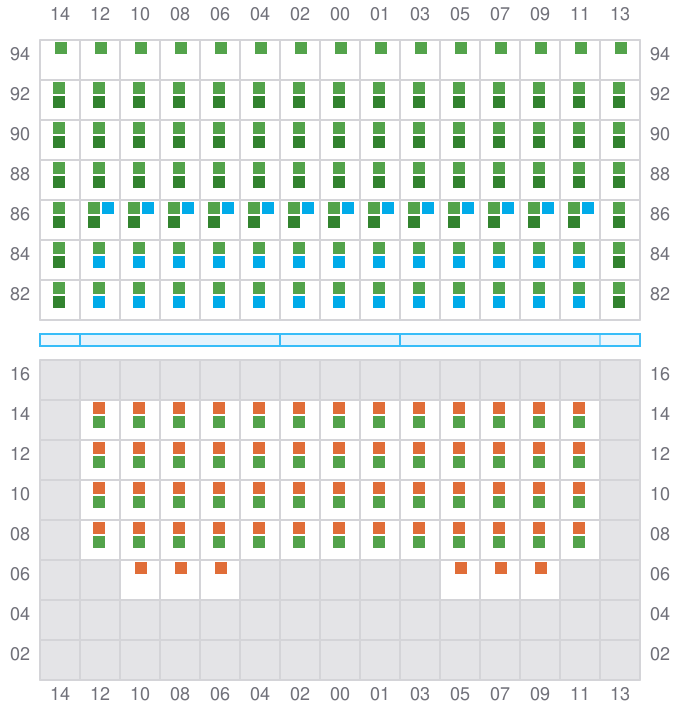

045 (046)
- →
- ← / ?

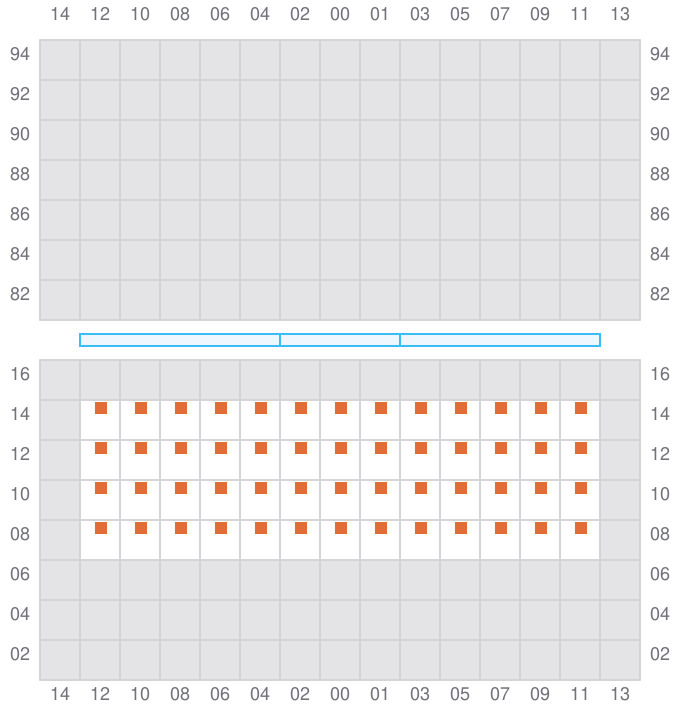

047
- ? / ←

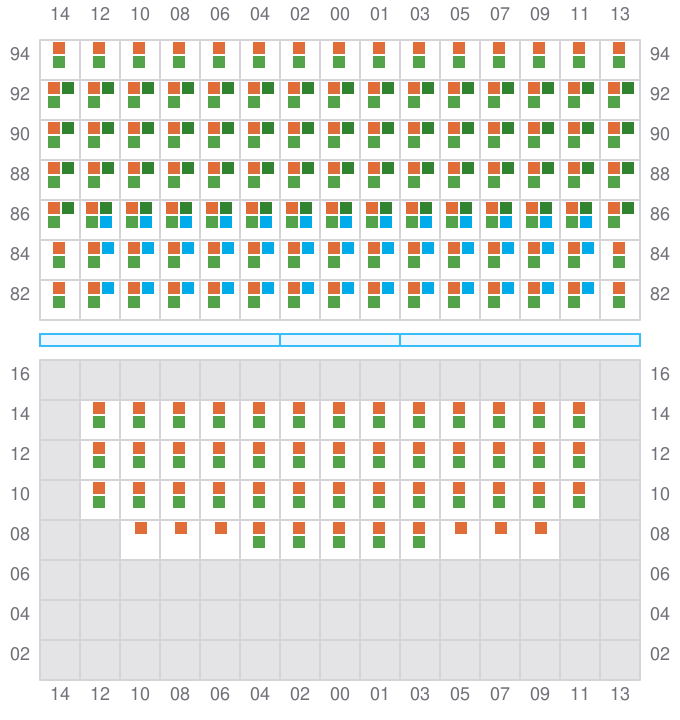

049 (050)
- →
- ← / ?
051
- ←
053 (054)
- →
- ← / ?
055
- ←

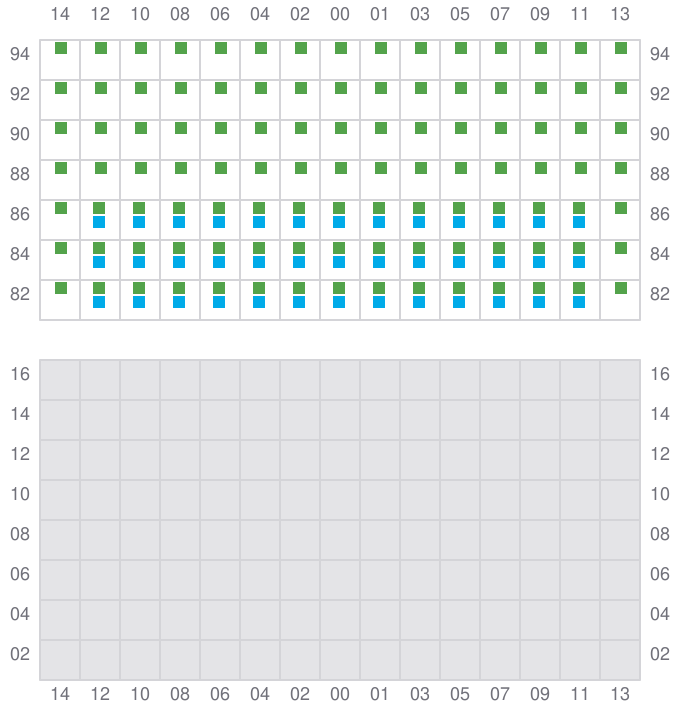

057 (058)
- → / ?
- ← / ?
