MAERSK KENSINGTON
9333010 | WMKN | 933301 by ********* Last update: Fri Mar 22 2024

General Info

Ship Name:MAERSK KENSINGTON
IMO Code:9333010
Call Sign:WMKN
Line Operator:933301
Class Name for Sister Ships:306
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,711

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of MAERSK KENSINGTON

Hatch-Covers View

Deck view of MAERSK KENSINGTON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
Bay 001 view and slots of MAERSK KENSINGTON

003

  • ←
Bay 003 view and slots of MAERSK KENSINGTON

005 (006)

  • →

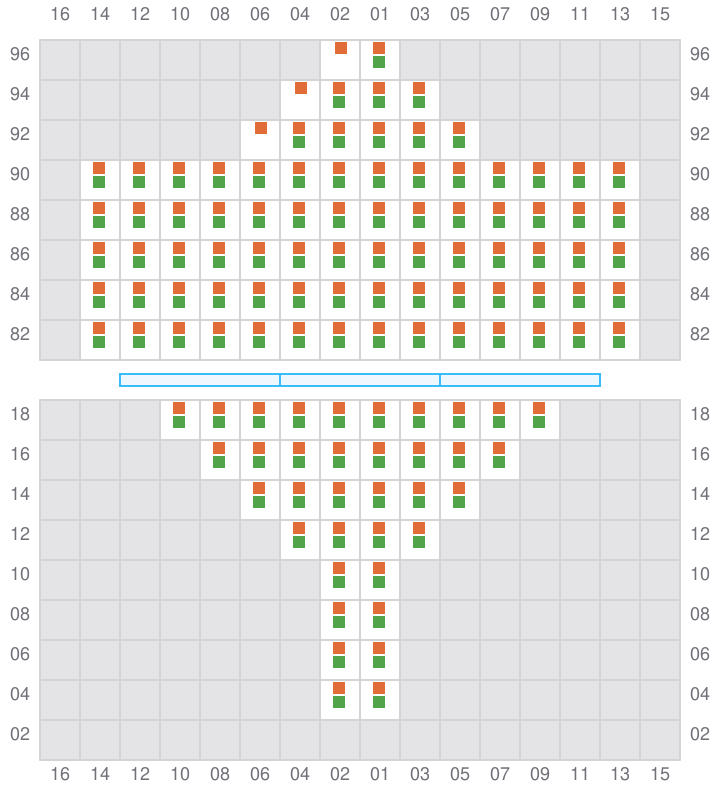

Bay 005 view and slots of MAERSK KENSINGTON

007

  • ←

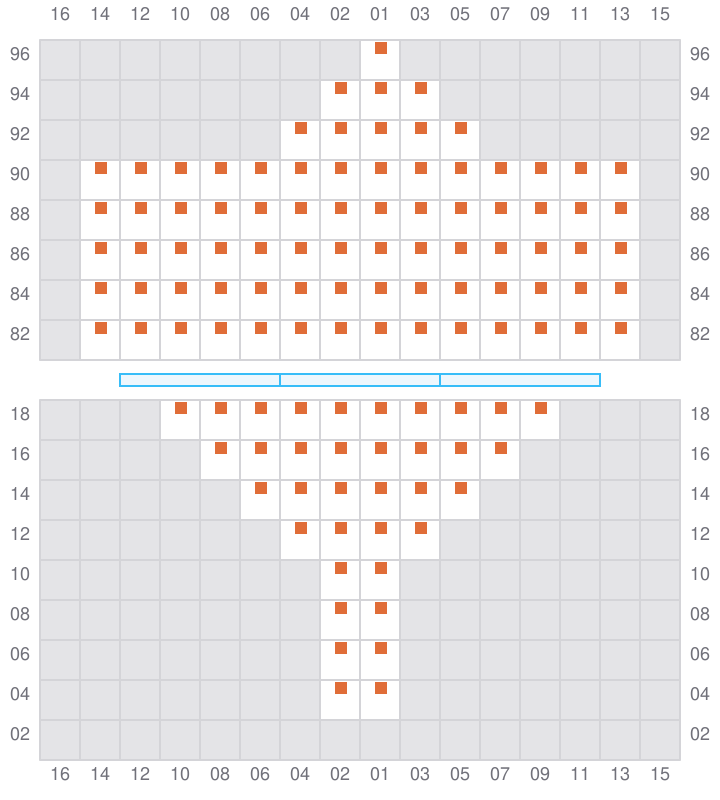

Bay 007 view and slots of MAERSK KENSINGTON

009 (010)

  • →

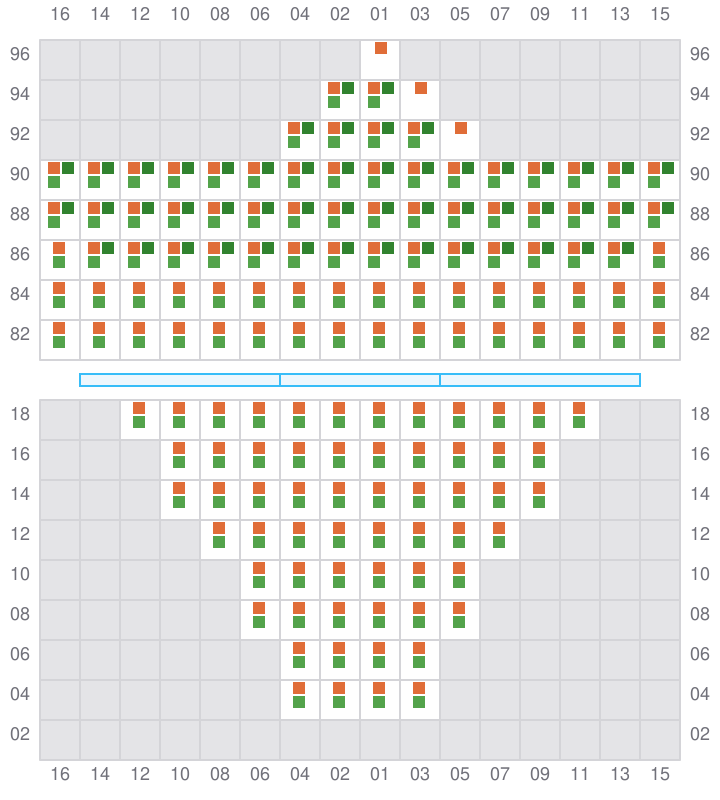

Bay 009 view and slots of MAERSK KENSINGTON

011

  • ←
Bay 011 view and slots of MAERSK KENSINGTON

013 (014)

  • →
Bay 013 view and slots of MAERSK KENSINGTON

015

  • ←

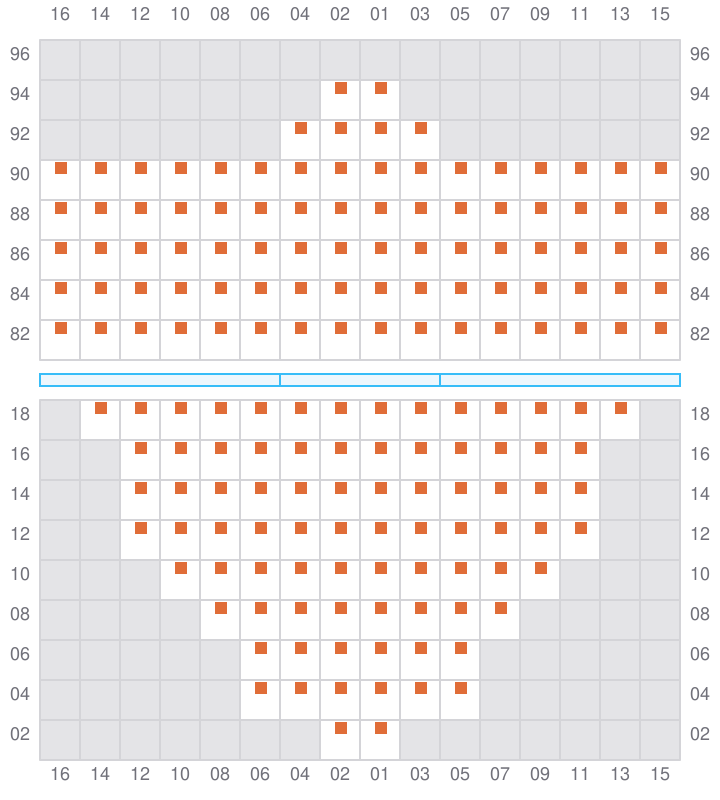

Bay 015 view and slots of MAERSK KENSINGTON

017 (018)

  • →

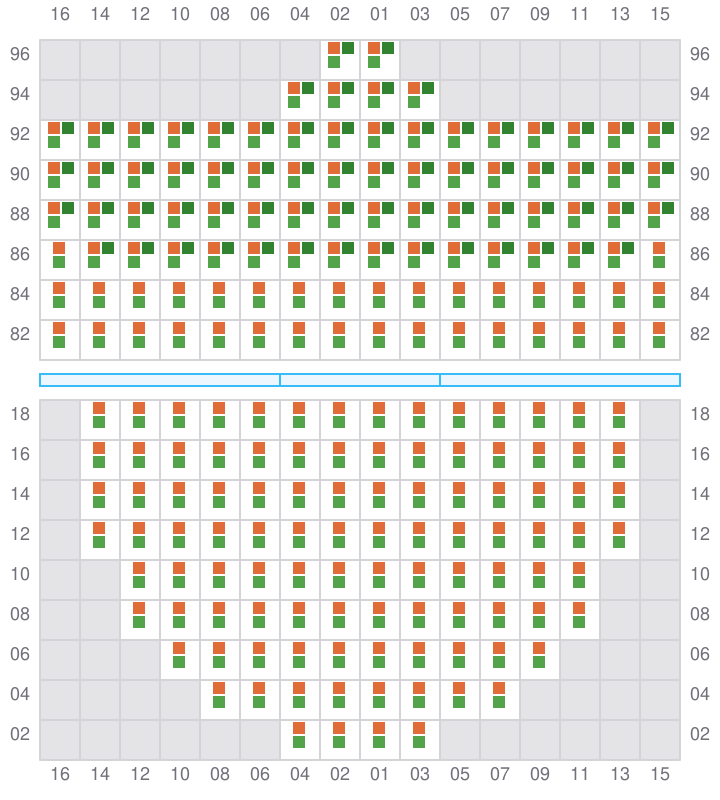

Bay 017 view and slots of MAERSK KENSINGTON

019

  • ←

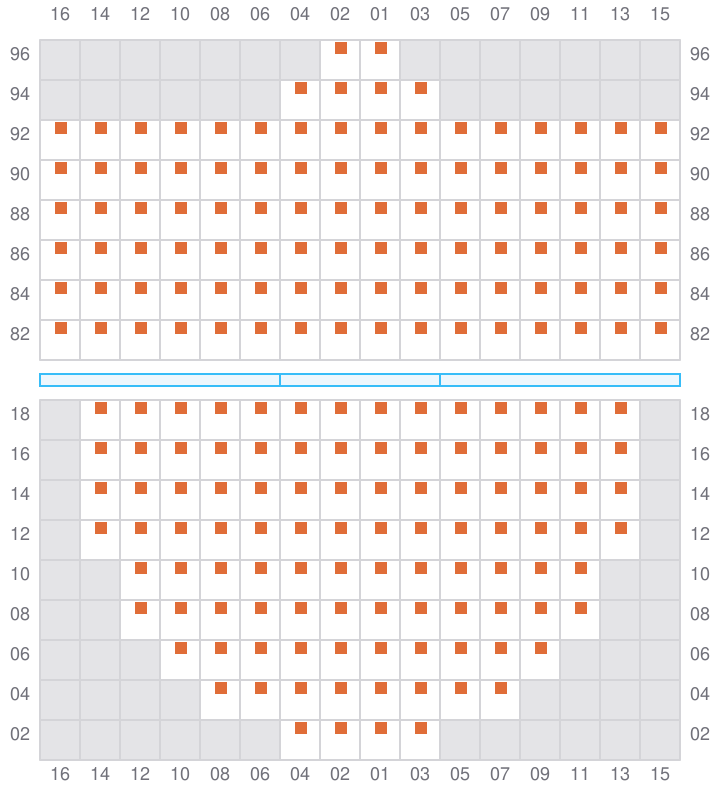

Bay 019 view and slots of MAERSK KENSINGTON

021 (022)

  • →

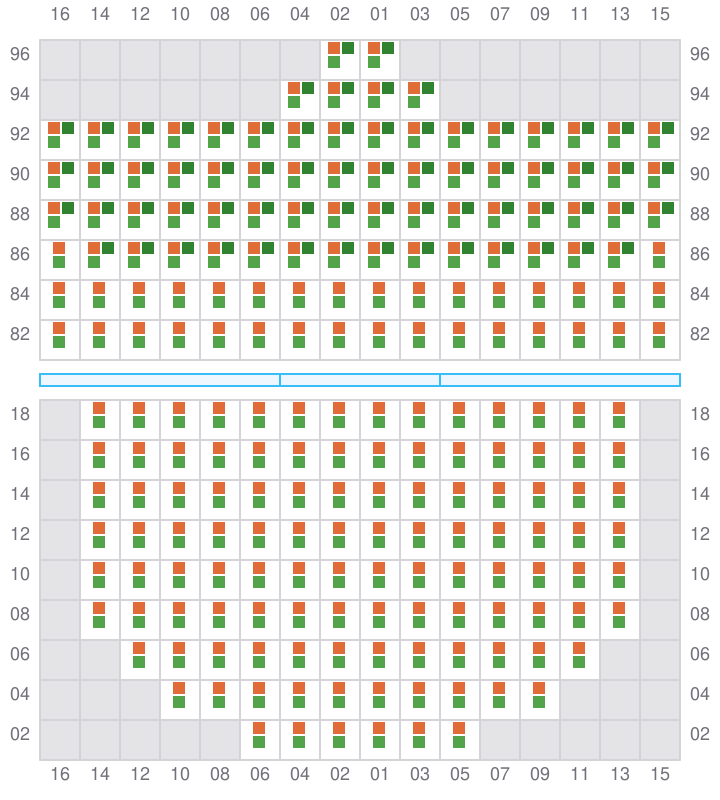

Bay 021 view and slots of MAERSK KENSINGTON

023

  • ←
  • → / ?
Bay 023 view and slots of MAERSK KENSINGTON

025 (026)

  • →
  • ? / ←
Bay 025 view and slots of MAERSK KENSINGTON

027

  • ←
  • → / ←
Bay 027 view and slots of MAERSK KENSINGTON

029 (030)

  • →

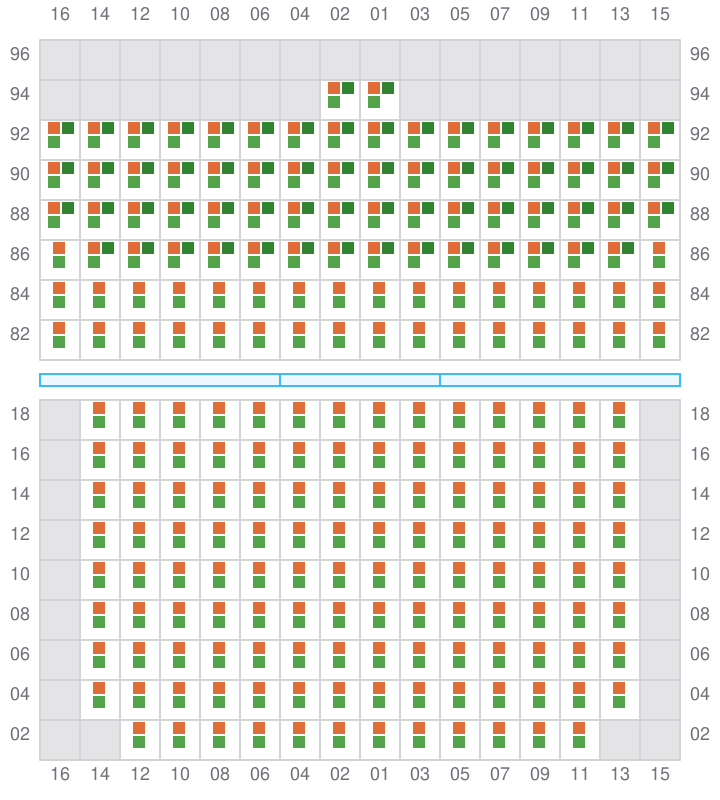

Bay 029 view and slots of MAERSK KENSINGTON

031

  • ←
  • → / ?

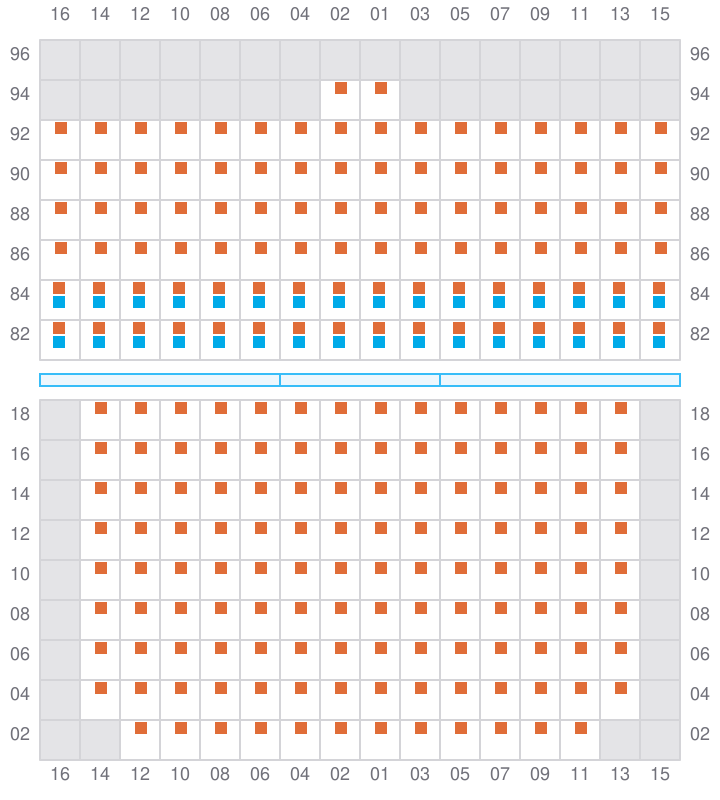

Bay 031 view and slots of MAERSK KENSINGTON

033 (034)

  • →
  • ? / ←

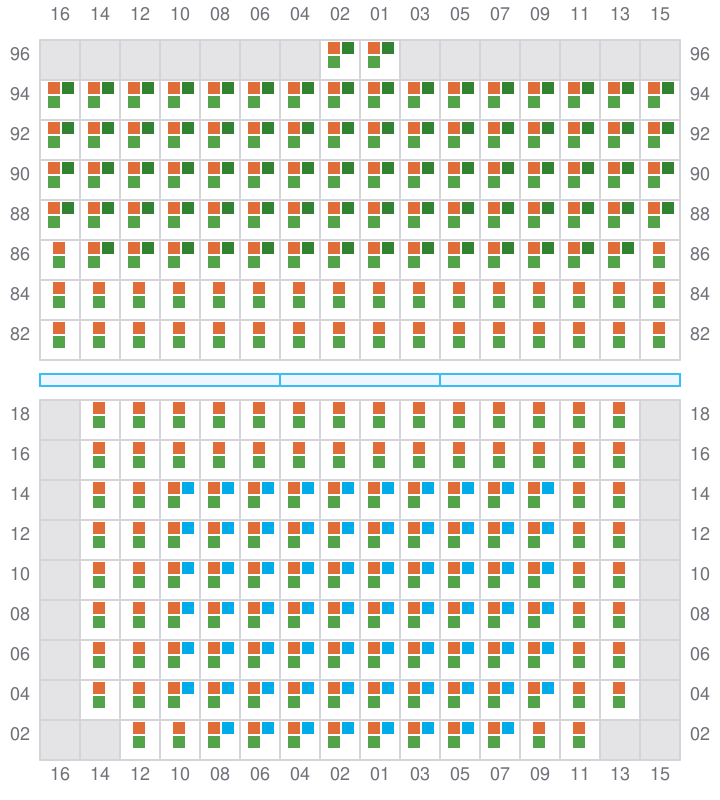

Bay 033 view and slots of MAERSK KENSINGTON

035

  • ←
  • → / ←

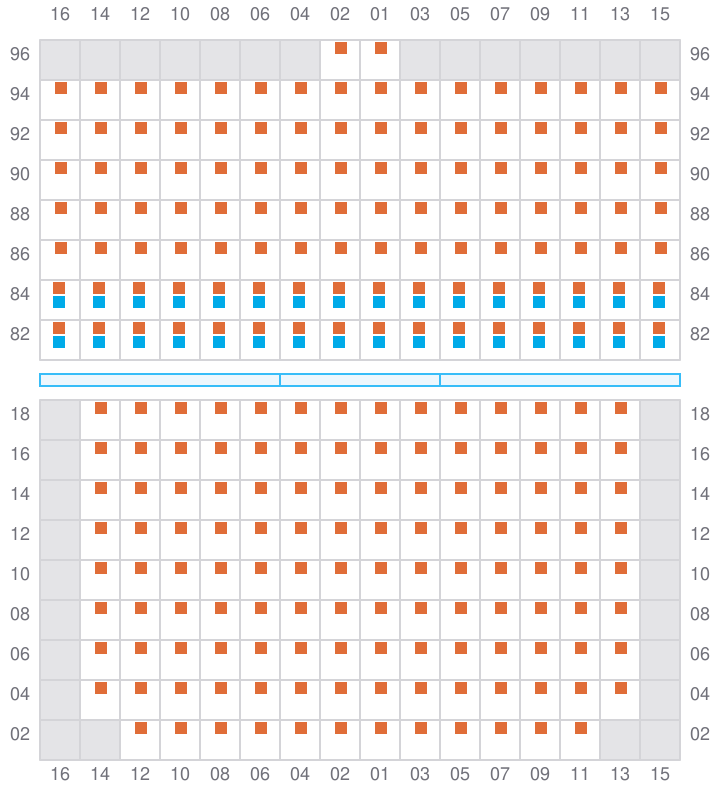

Bay 035 view and slots of MAERSK KENSINGTON

037 (038)

  • →
  • ? / ←

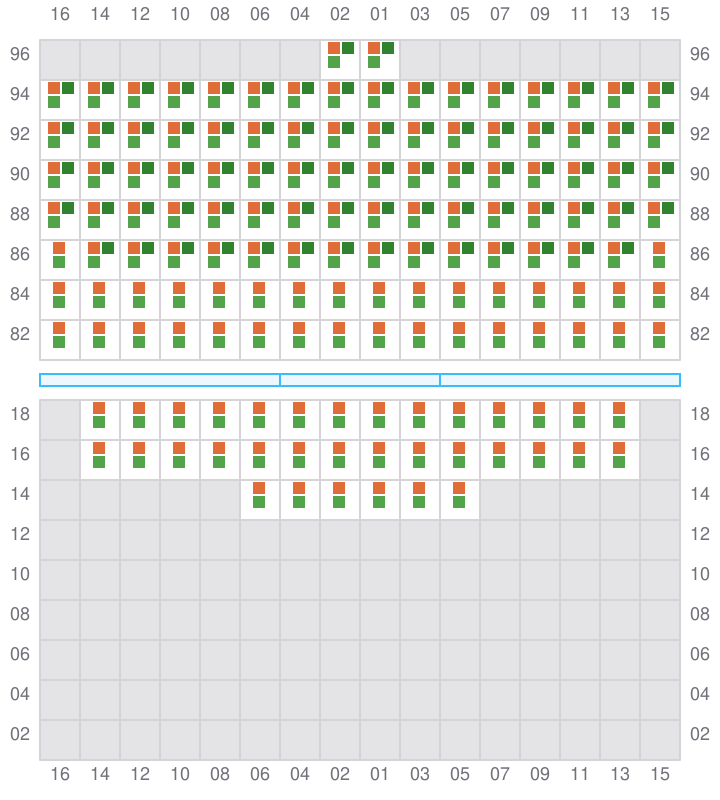

Bay 037 view and slots of MAERSK KENSINGTON

039

  • ←
  • → / ←

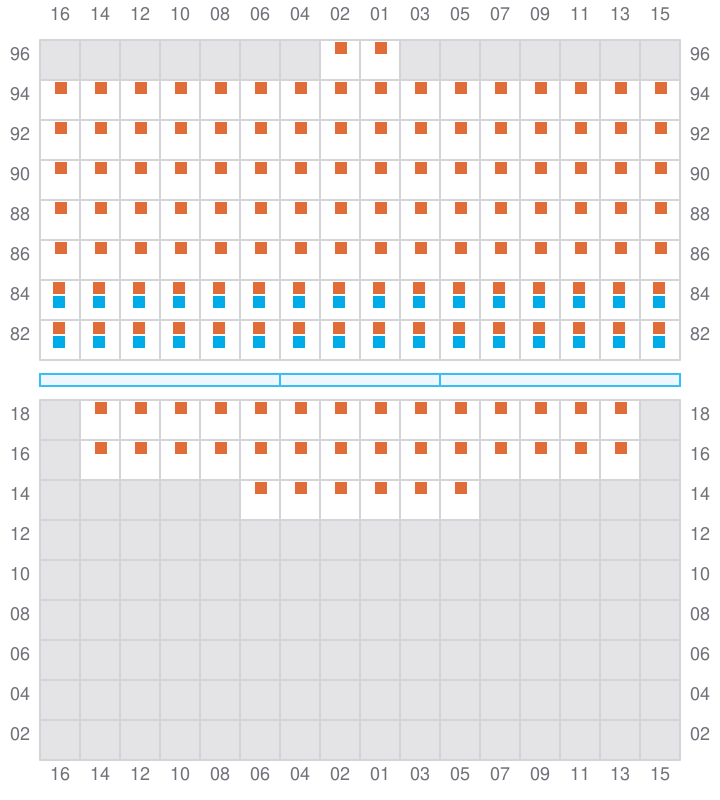

Bay 039 view and slots of MAERSK KENSINGTON

041 (042)

  • →
  • ? / ←
Bay 041 view and slots of MAERSK KENSINGTON

043

  • ←
  • → / ←

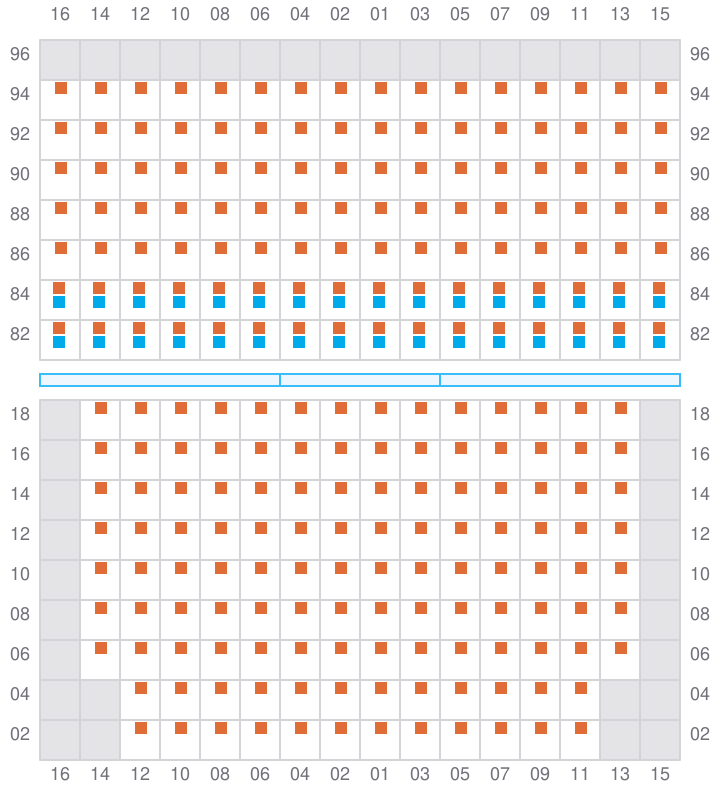

Bay 043 view and slots of MAERSK KENSINGTON

045 (046)

  • →
  • ? / ←
Bay 045 view and slots of MAERSK KENSINGTON

047

  • ←
  • → / ←

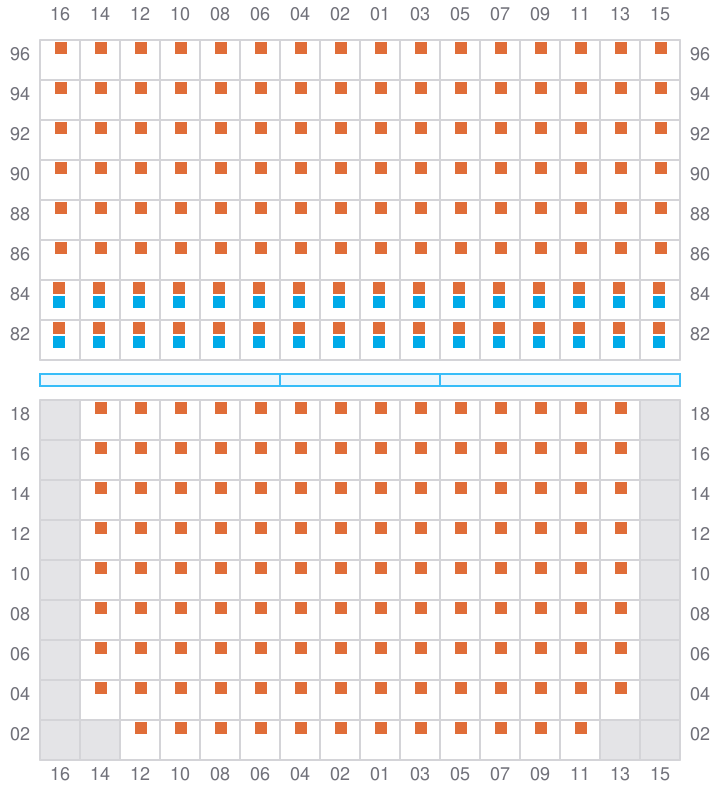

Bay 047 view and slots of MAERSK KENSINGTON

049 (050)

  • →
  • ? / ←

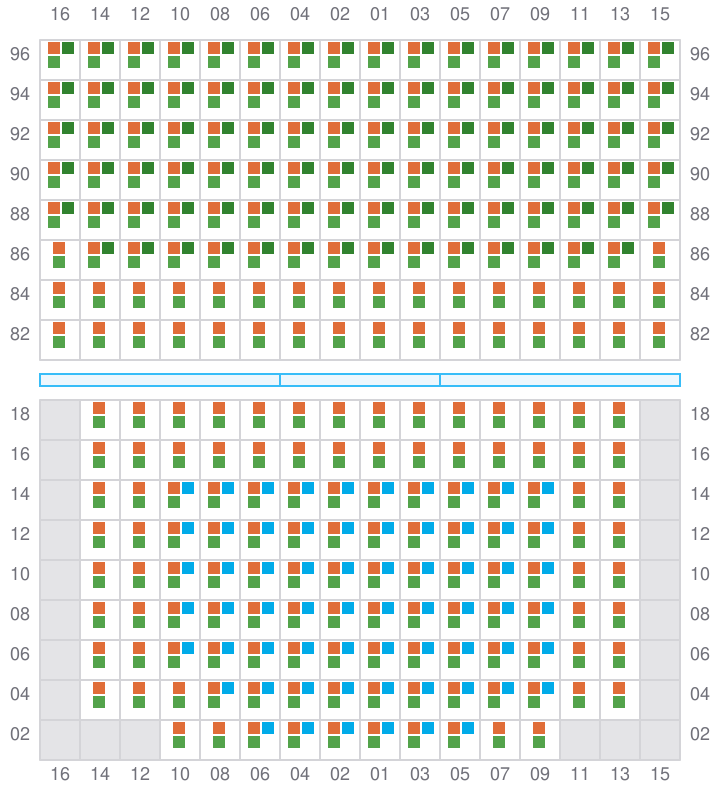

Bay 049 view and slots of MAERSK KENSINGTON

051

  • ←
  • → / ←
Bay 051 view and slots of MAERSK KENSINGTON

053 (054)

  • →
  • ? / ←

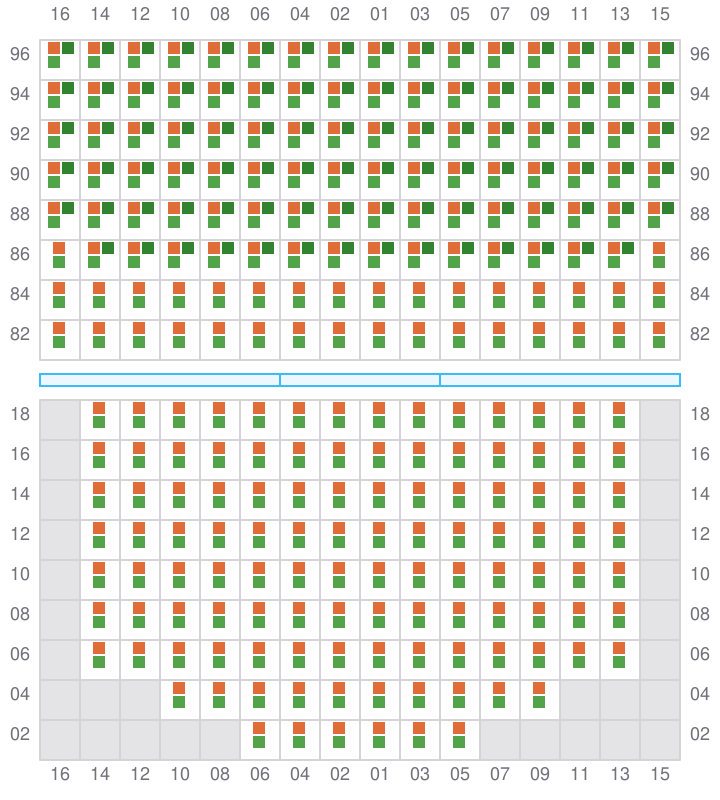

Bay 053 view and slots of MAERSK KENSINGTON

055

  • ←
  • ? / ←
Bay 055 view and slots of MAERSK KENSINGTON

057 (058)

  • → / ?

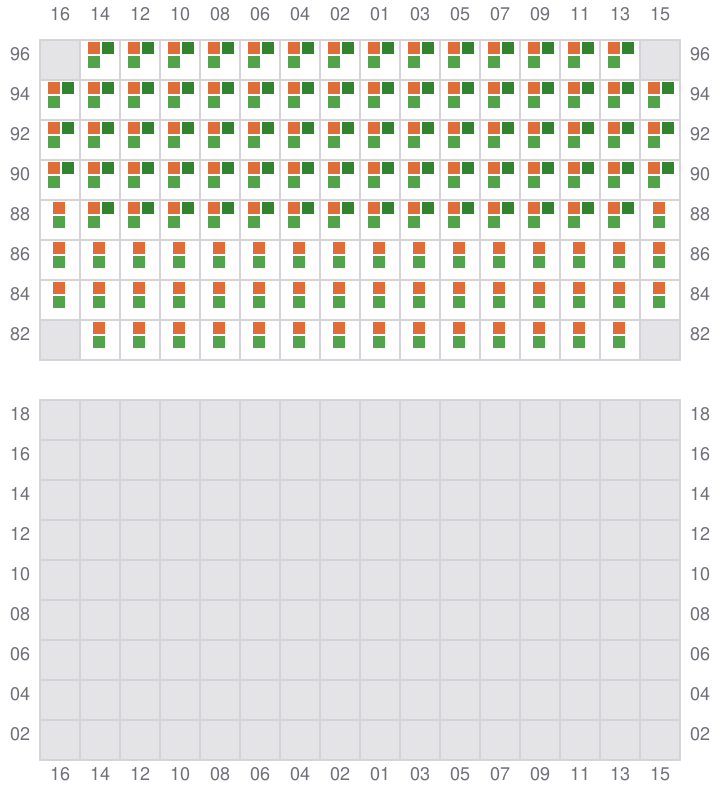

Bay 057 view and slots of MAERSK KENSINGTON

059

  • ← / ?

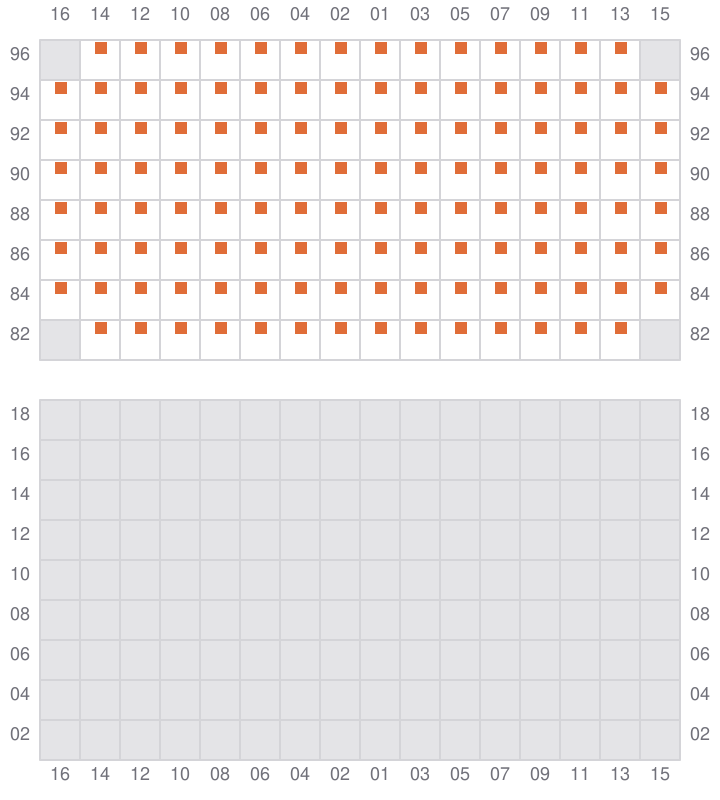

Bay 059 view and slots of MAERSK KENSINGTON

061 (062)

  • →
  • ? / ←

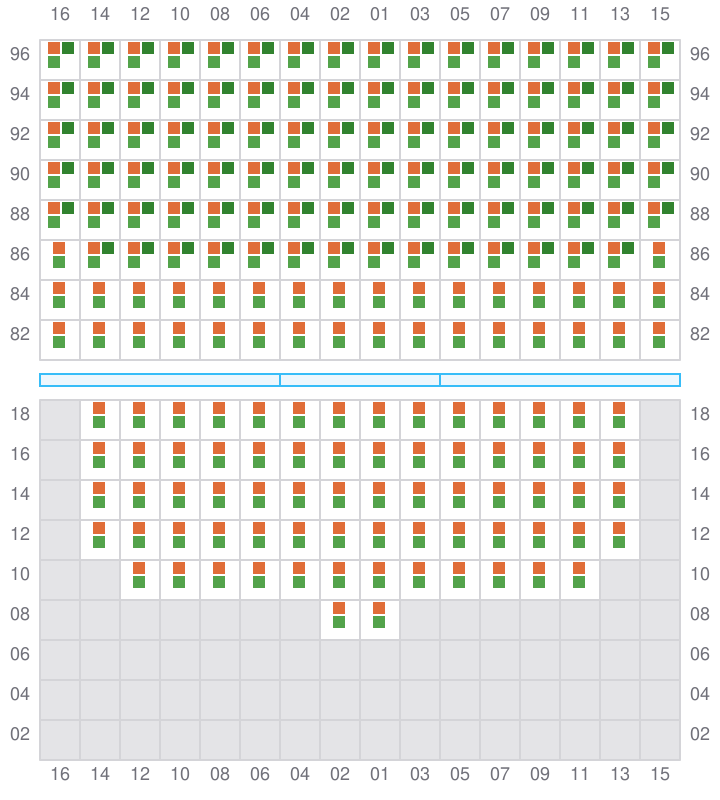

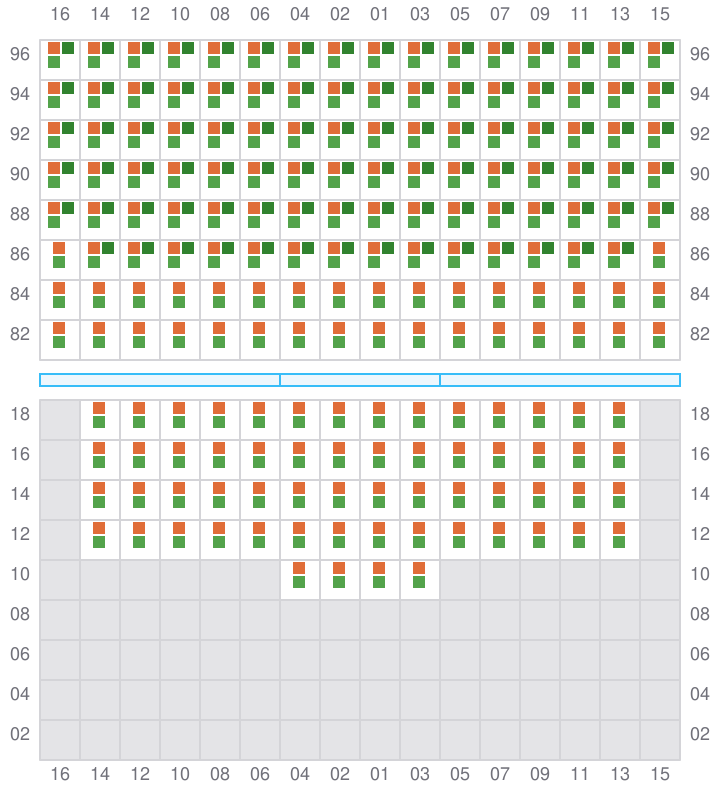

Bay 061 view and slots of MAERSK KENSINGTON

063

  • ←
  • ? / ←
Bay 063 view and slots of MAERSK KENSINGTON

065 (066)

  • →
  • ? / ←
Bay 065 view and slots of MAERSK KENSINGTON

067

  • ←
  • ? / ←

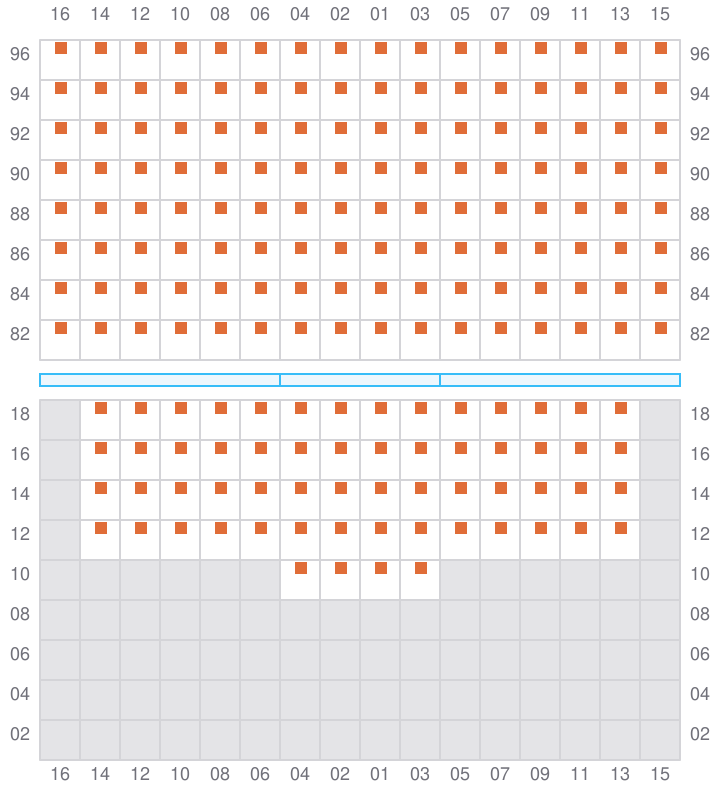

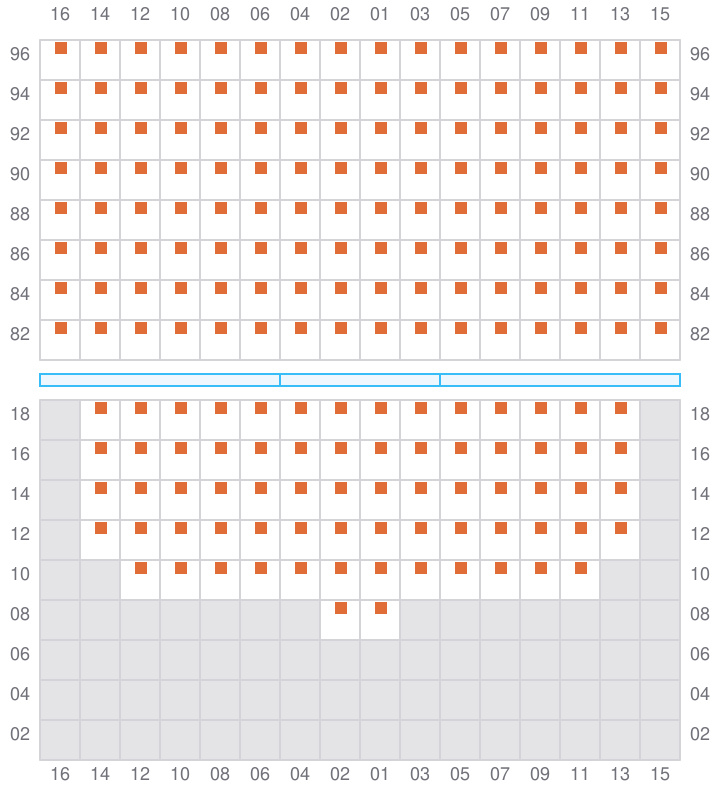

Bay 067 view and slots of MAERSK KENSINGTON

069 (070)

  • → / ?

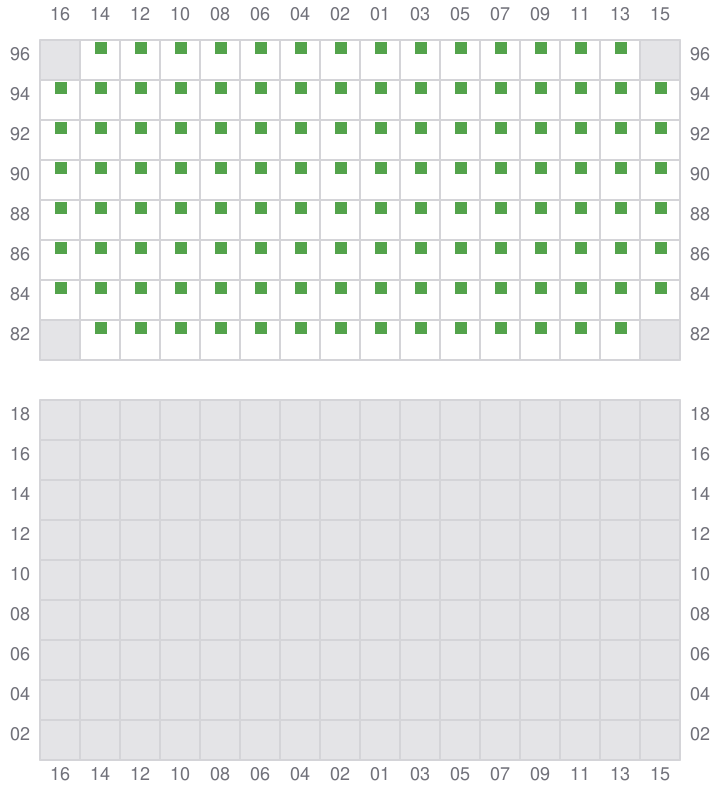

Bay 069 view and slots of MAERSK KENSINGTON
