MAERSK KINLOSS
9333022 | WMKA | 9333022 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:MAERSK KINLOSS
IMO Code:9333022
Call Sign:WMKA
Line Operator:9333022
Class Name for Sister Ships:L60
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,711
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

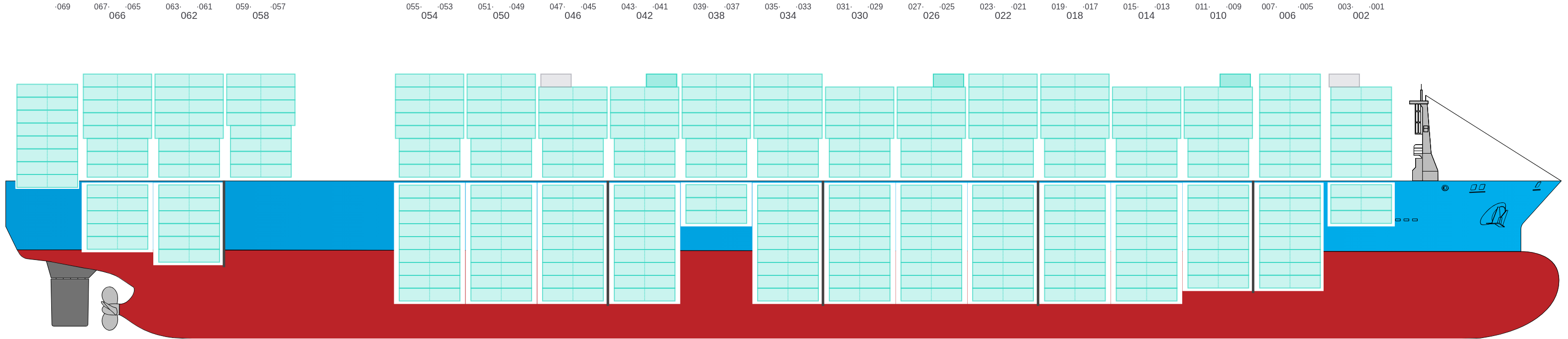

Side View
![Side view of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-sideView.png?v=1711130801203)
Hatch-Covers View
![Deck view of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-deckView.png?v=1711130801203)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

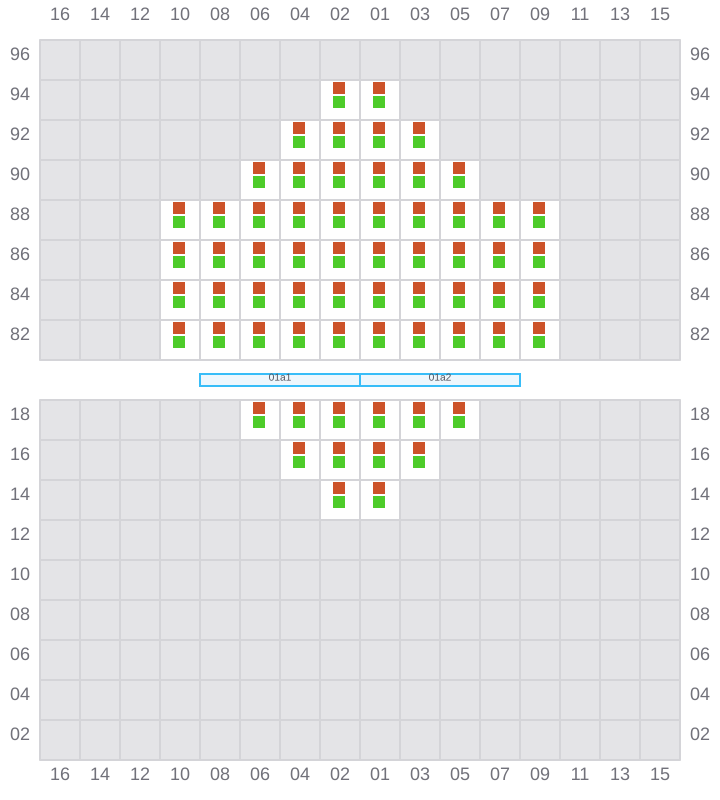

001 (002)
- →
![Bay 001 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b001.png?v=1711130801203)

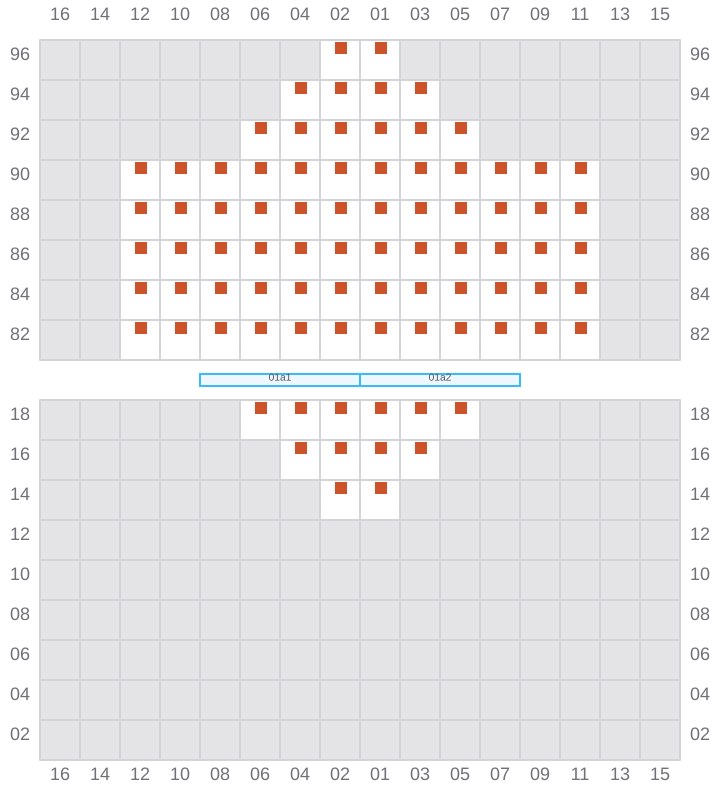

003
- ←
![Bay 003 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b003.png?v=1711130801203)

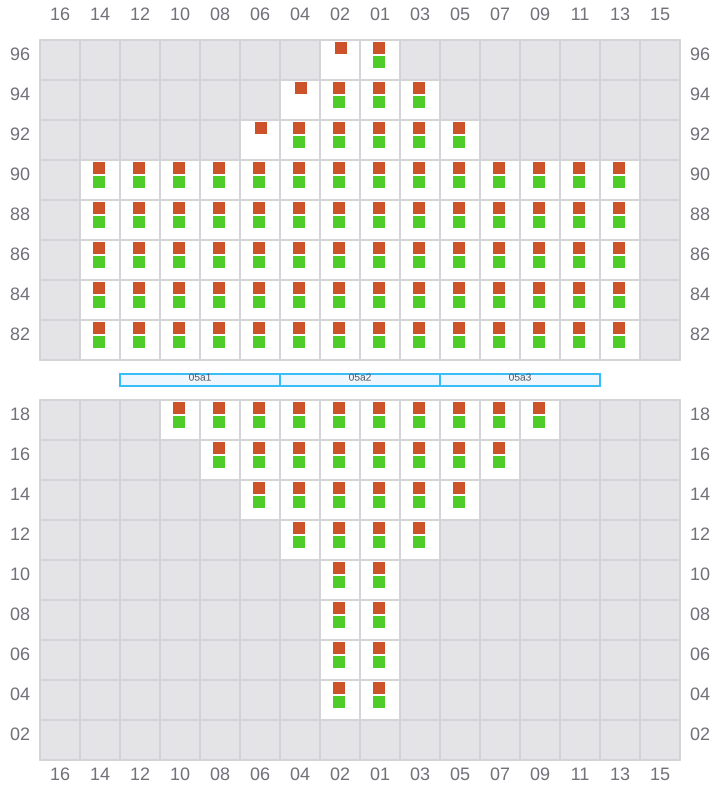

005 (006)
- →
![Bay 005 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b005.png?v=1711130801203)

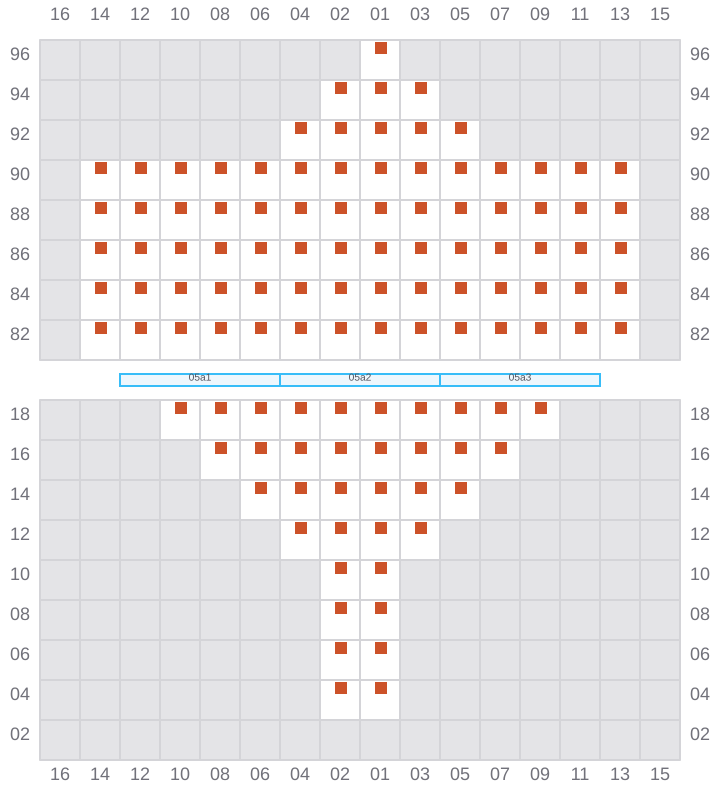

007
- ←
![Bay 007 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b007.png?v=1711130801203)

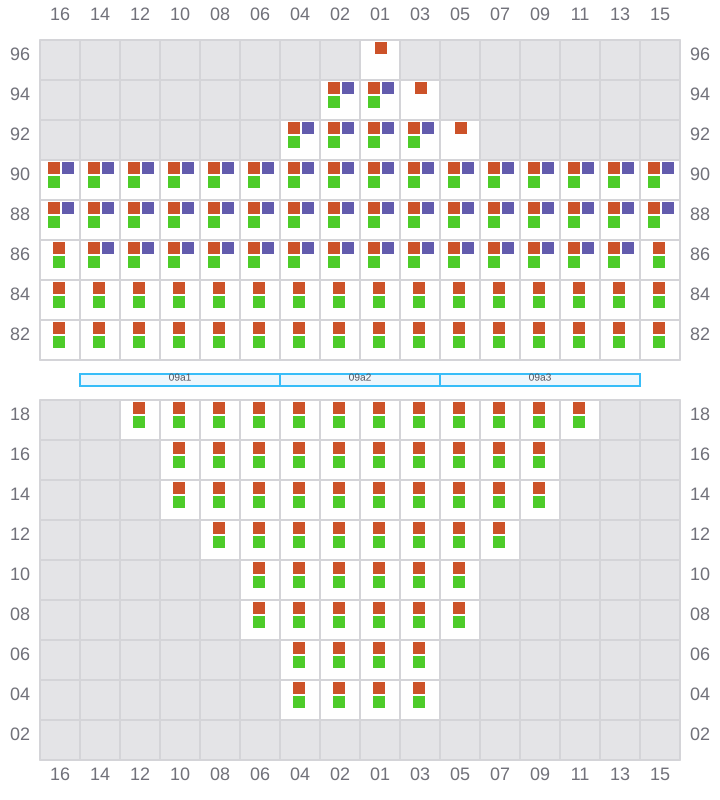

009 (010)
- →
![Bay 009 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b009.png?v=1711130801203)

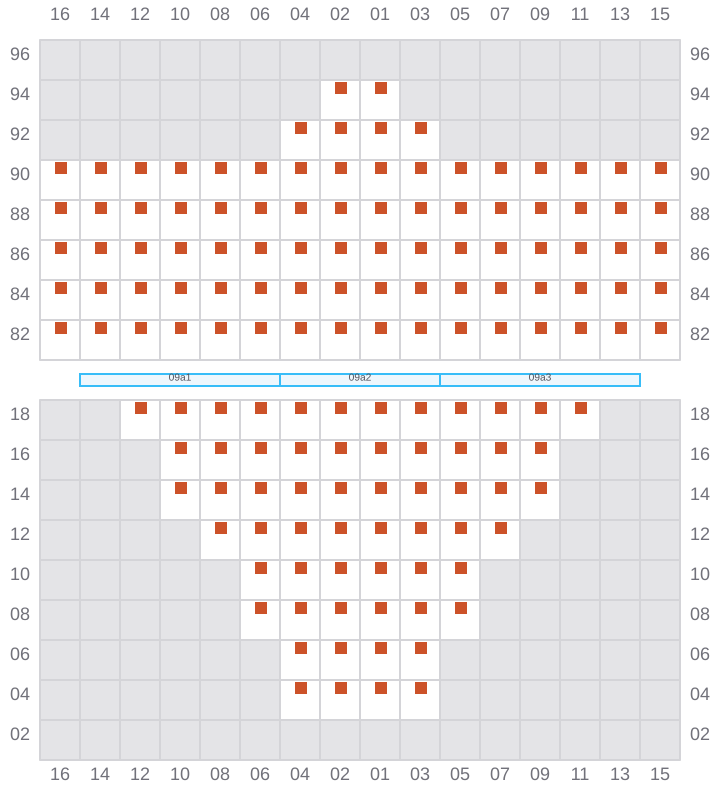

011
- ←
![Bay 011 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b011.png?v=1711130801203)

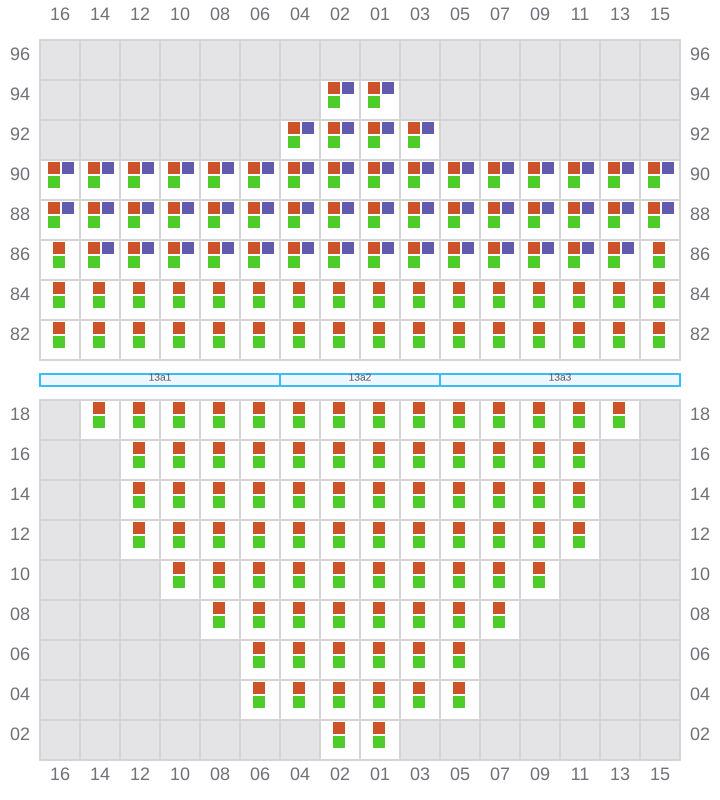

013 (014)
- →
![Bay 013 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b013.png?v=1711130801203)

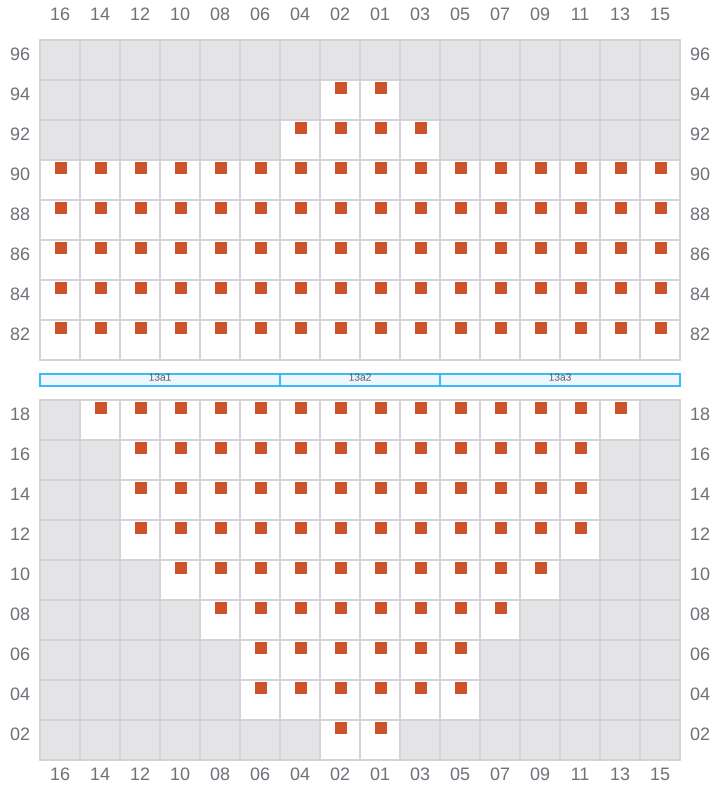

015
- ←
![Bay 015 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b015.png?v=1711130801203)

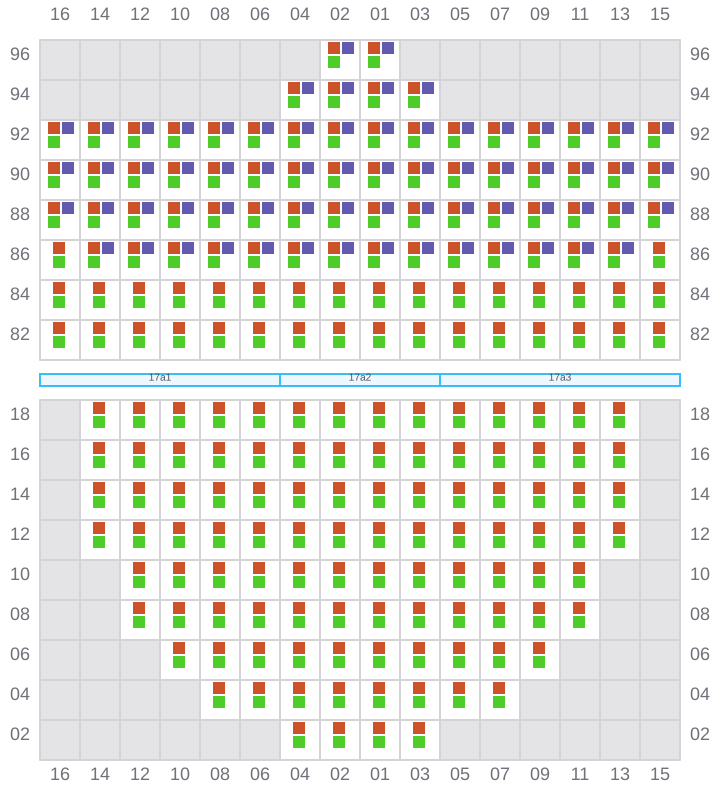

017 (018)
- →
![Bay 017 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b017.png?v=1711130801203)

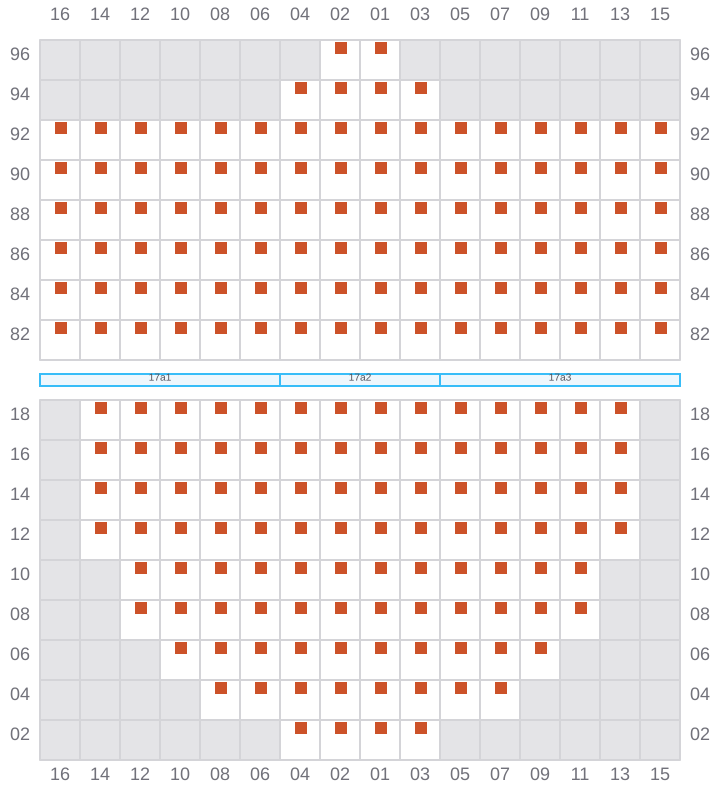

019
- ←
![Bay 019 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b019.png?v=1711130801203)

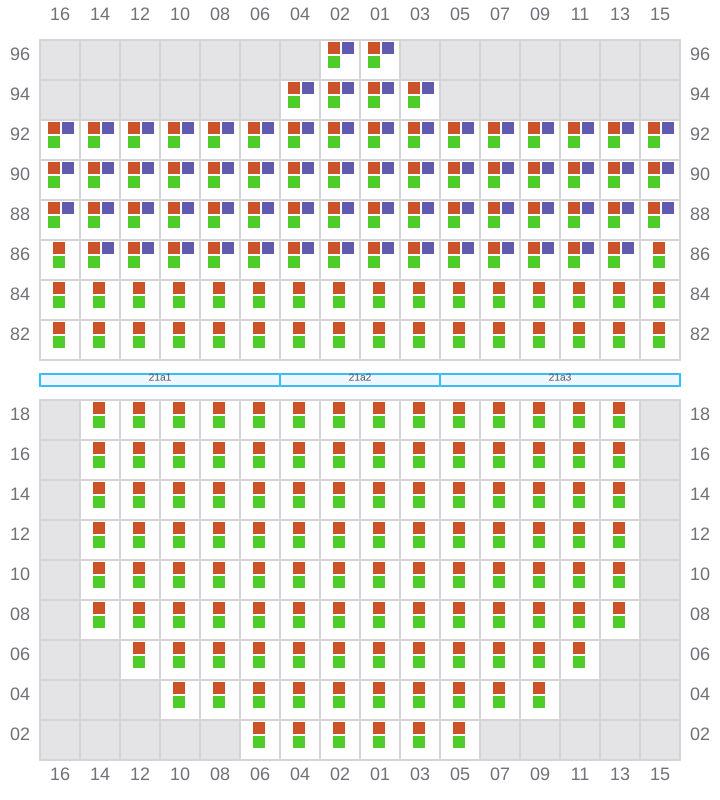

021 (022)
- →
![Bay 021 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b021.png?v=1711130801203)

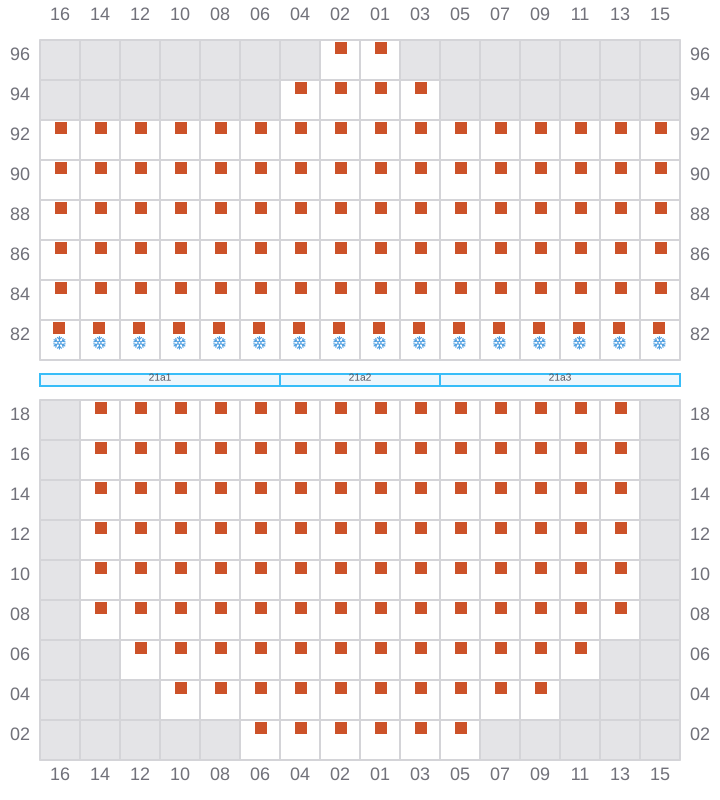

023
- ←
- → / ?
![Bay 023 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b023.png?v=1711130801203)

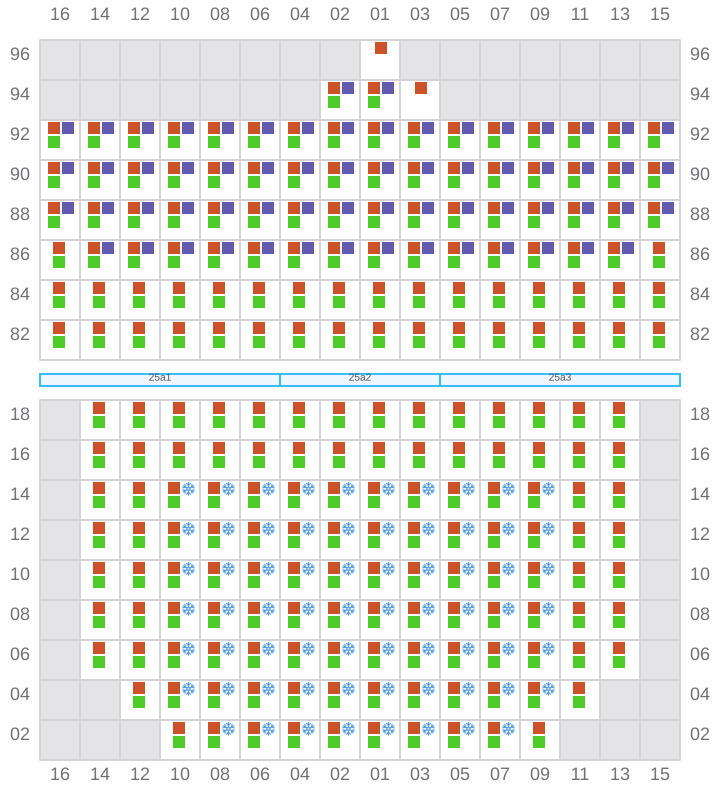

025 (026)
- →
- ? / ←
![Bay 025 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b025.png?v=1711130801203)

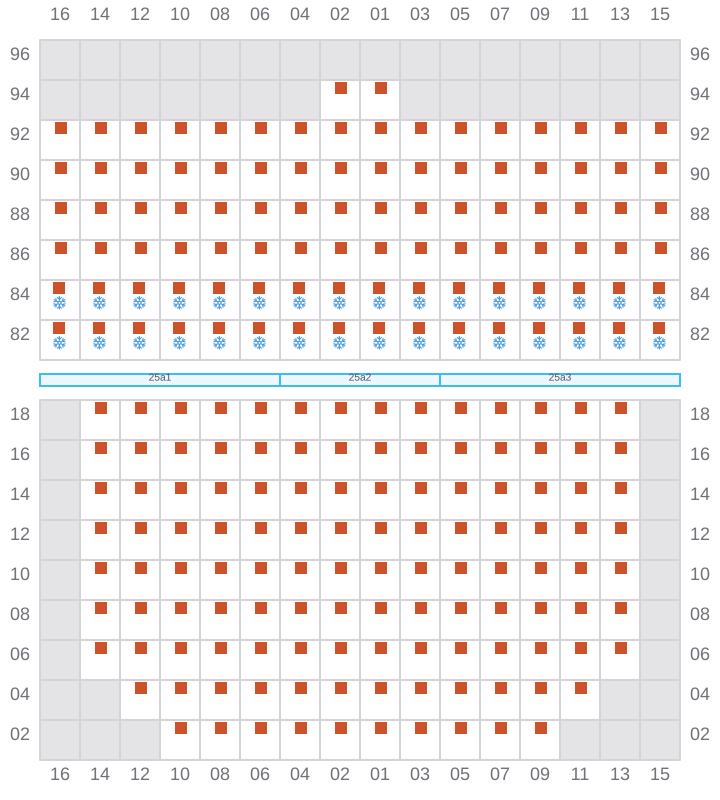

027
- ←
- → / ←
![Bay 027 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b027.png?v=1711130801203)

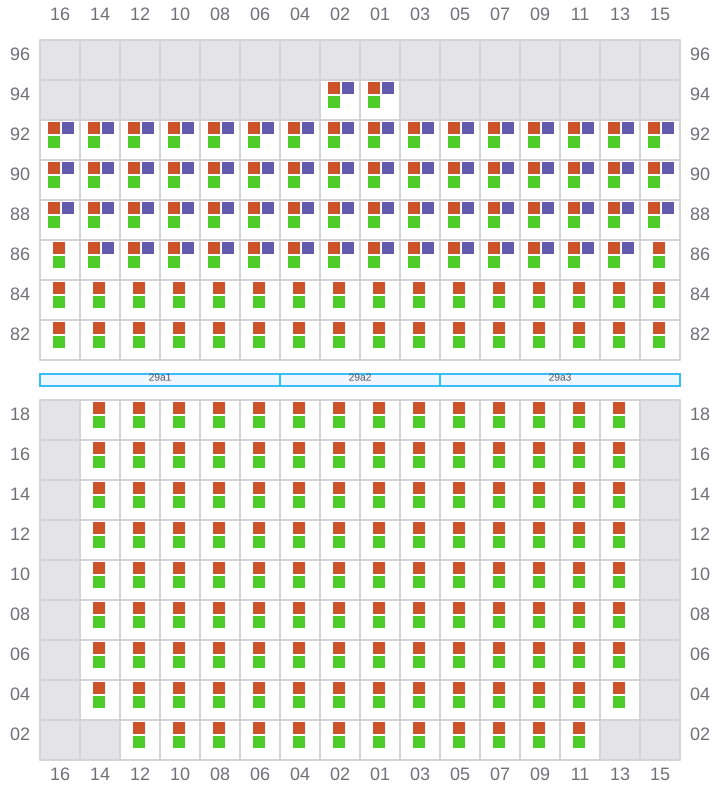

029 (030)
- →
![Bay 029 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b029.png?v=1711130801203)

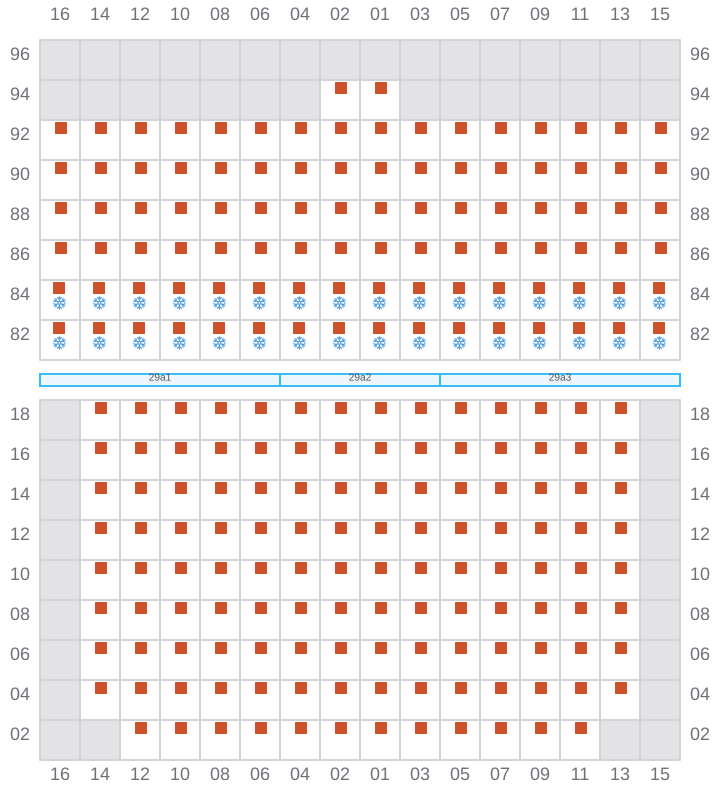

031
- ←
- → / ?
![Bay 031 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b031.png?v=1711130801203)

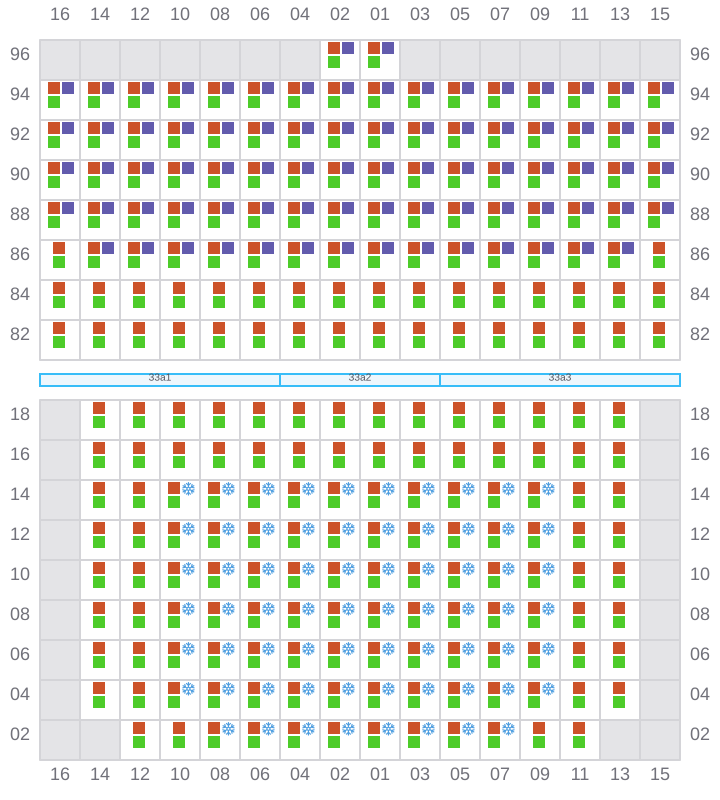

033 (034)
- →
- ? / ←
![Bay 033 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b033.png?v=1711130801203)

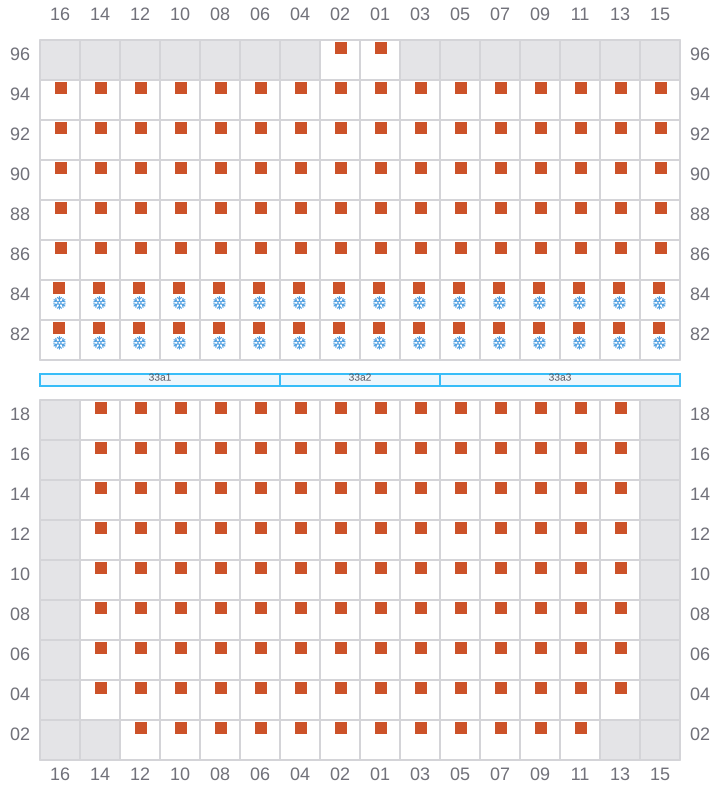

035
- ←
- → / ←
![Bay 035 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b035.png?v=1711130801203)

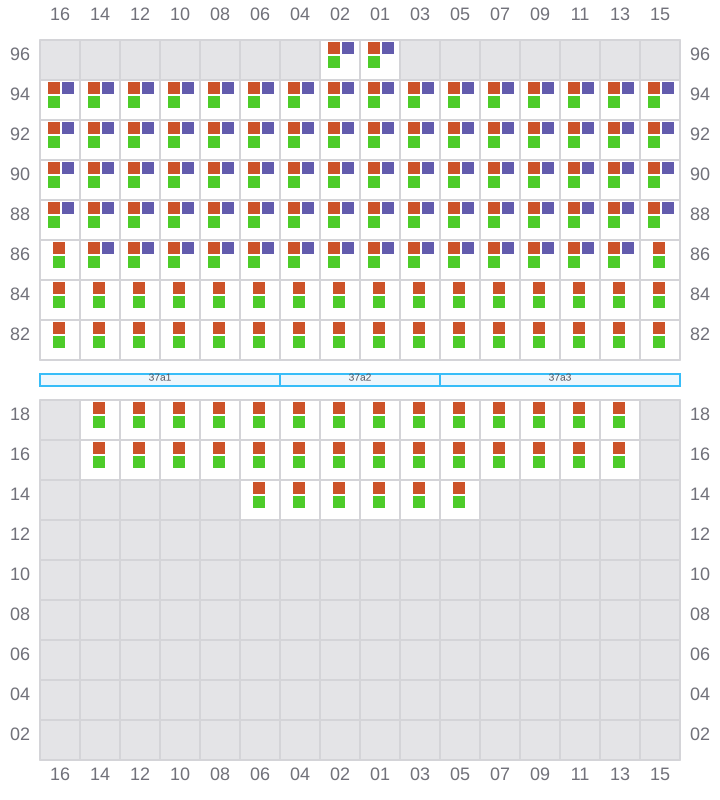

037 (038)
- →
- ? / ←
![Bay 037 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b037.png?v=1711130801203)

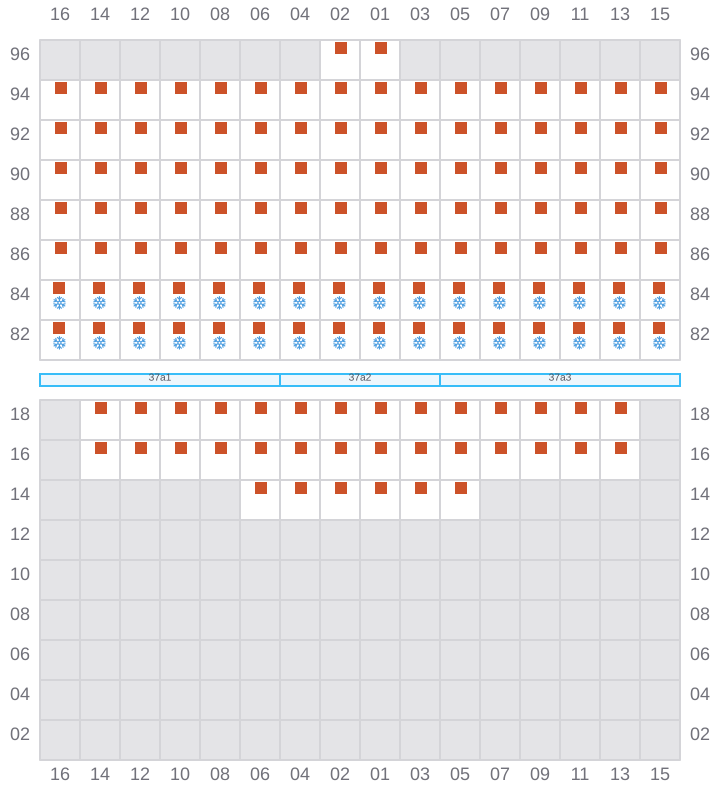

039
- ←
- → / ←
![Bay 039 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b039.png?v=1711130801203)

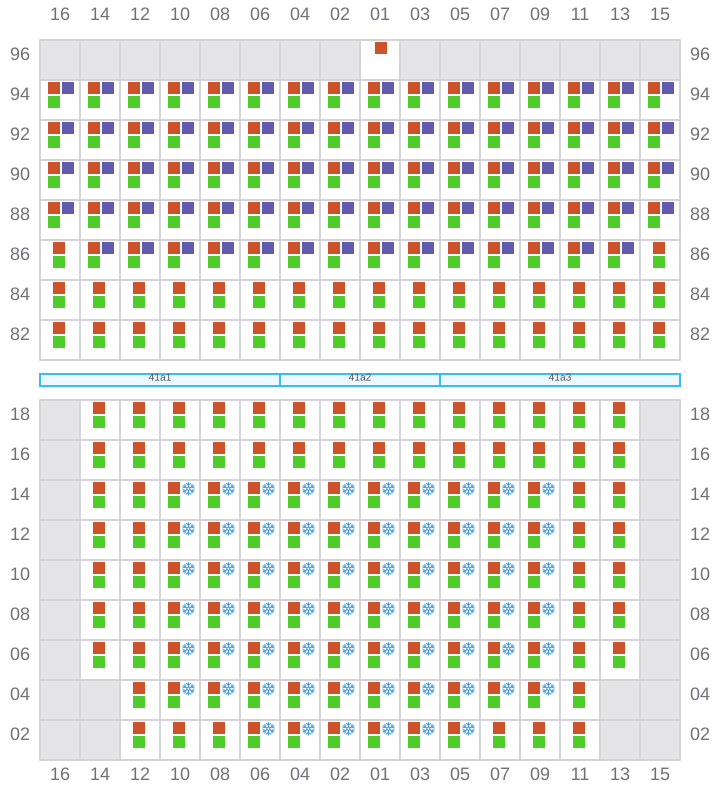

041 (042)
- →
- ? / ←
![Bay 041 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b041.png?v=1711130801203)

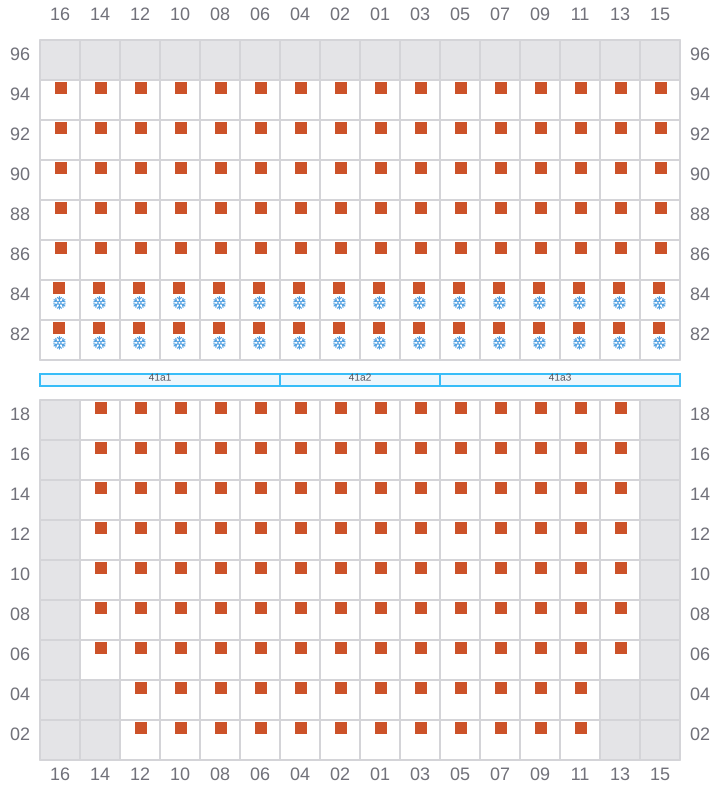

043
- ←
- → / ←
![Bay 043 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b043.png?v=1711130801203)

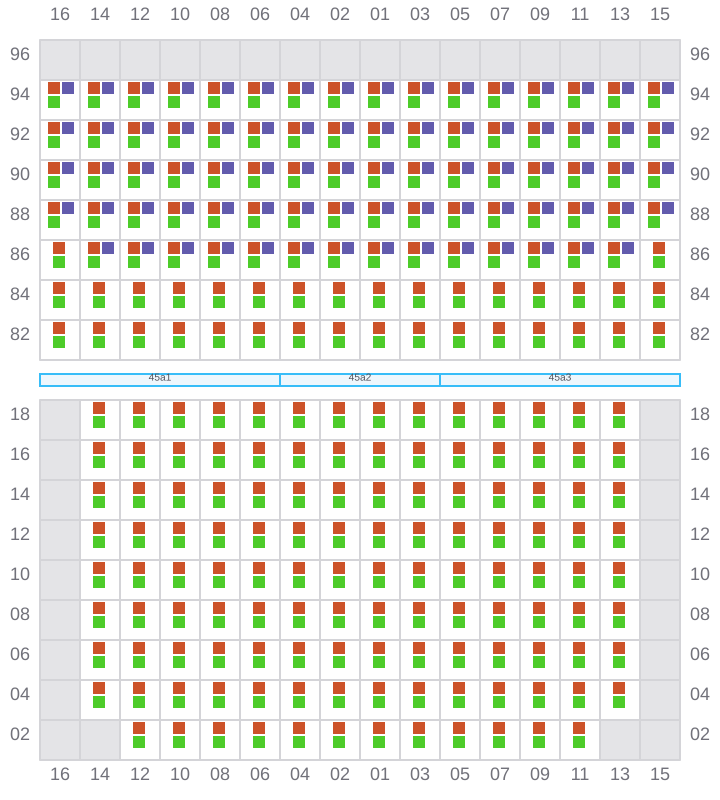

045 (046)
- →
- ? / ←
![Bay 045 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b045.png?v=1711130801203)

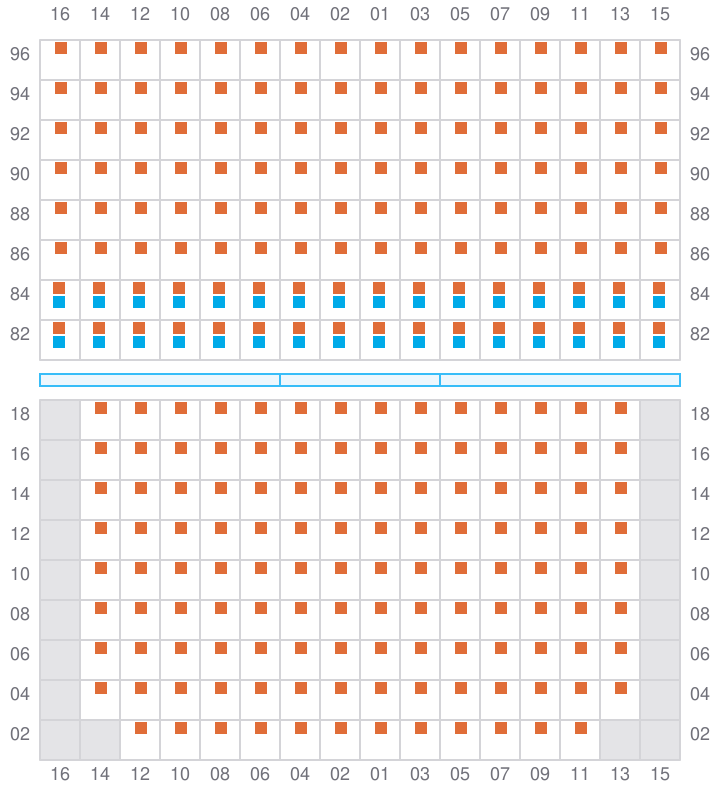

047
- ←
- → / ←
![Bay 047 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b047.png?v=1711130801203)

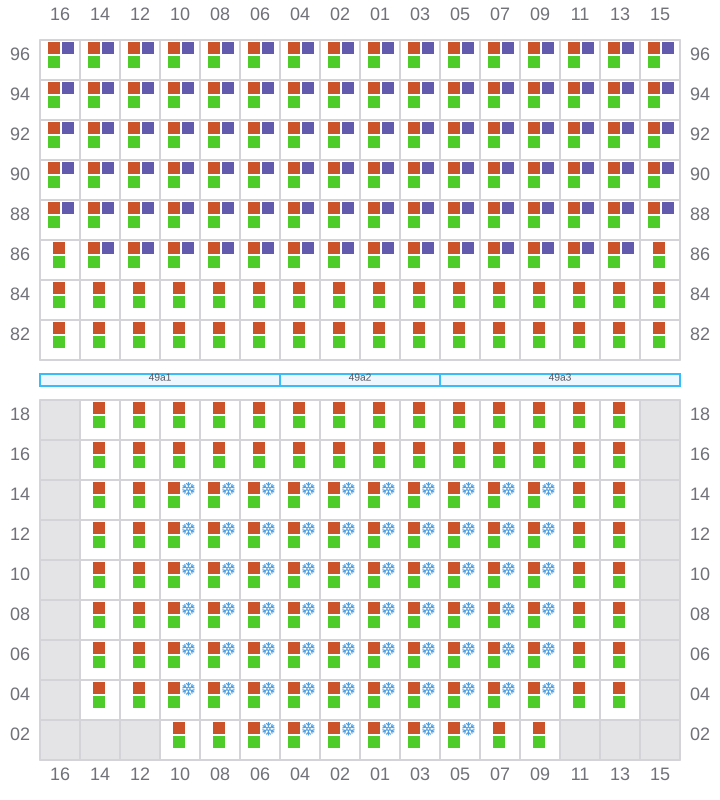

049 (050)
- →
- ? / ←
![Bay 049 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b049.png?v=1711130801203)

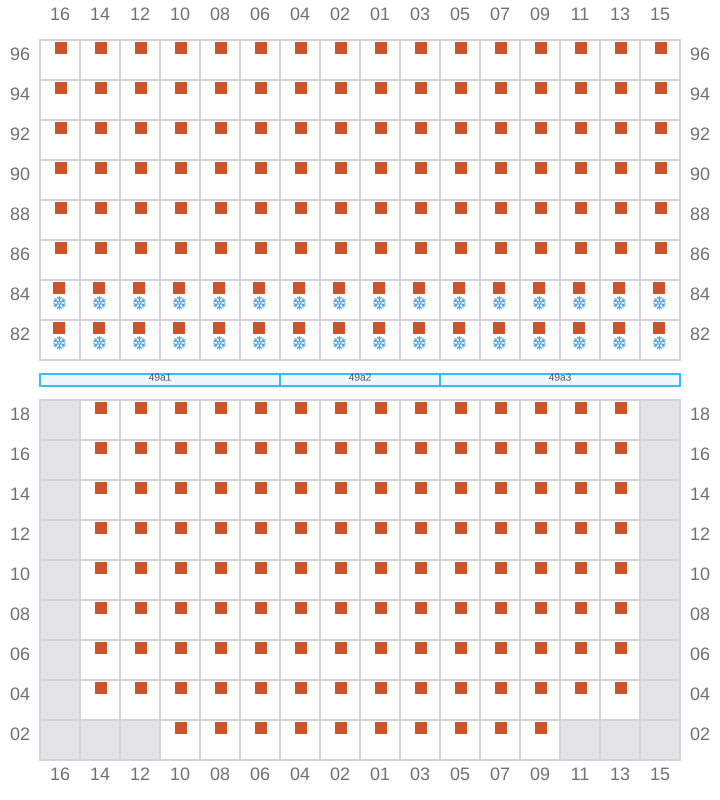

051
- ←
- → / ←
![Bay 051 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b051.png?v=1711130801203)

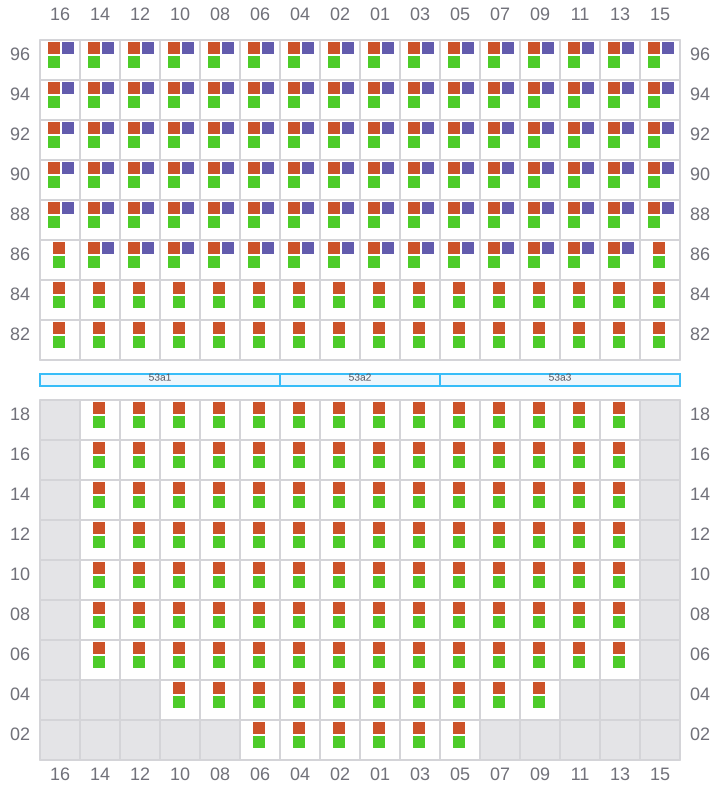

053 (054)
- →
- ←
![Bay 053 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b053.png?v=1711130801203)

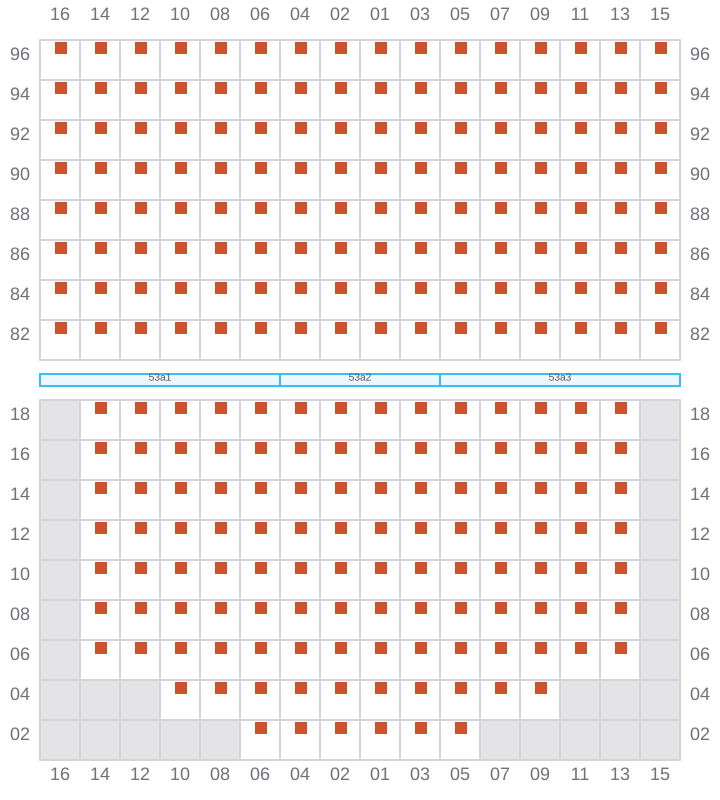

055
- ←
- ←
![Bay 055 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b055.png?v=1711130801203)

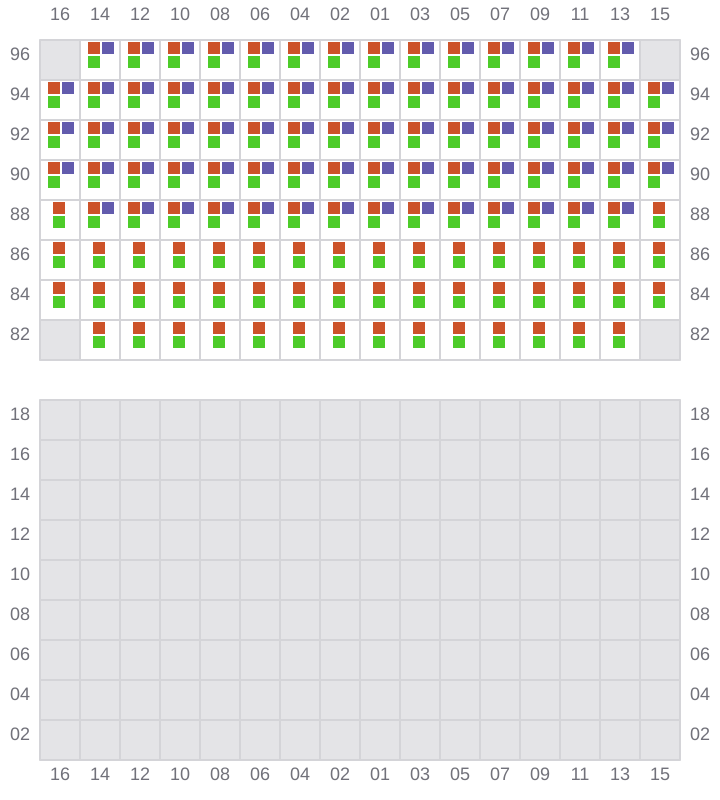

057 (058)
- → / ?
![Bay 057 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b057.png?v=1711130801203)

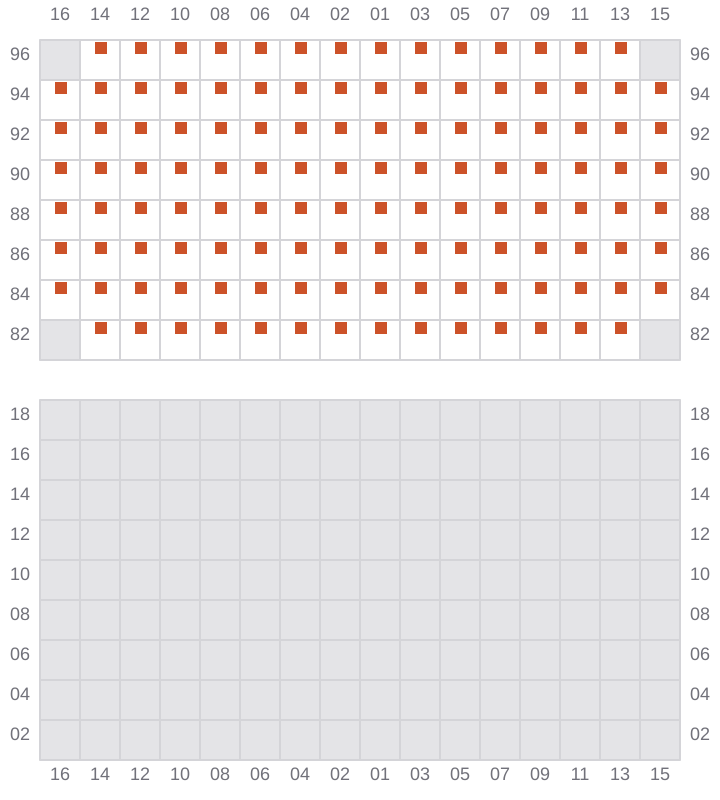

059
- ← / ?
![Bay 059 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b059.png?v=1711130801203)

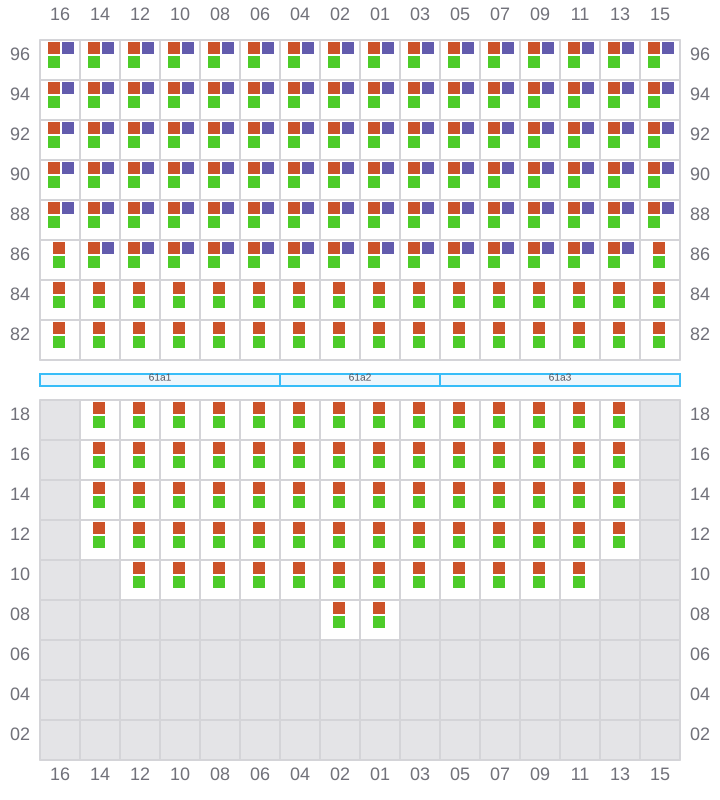

061 (062)
- →
- ? / ←
![Bay 061 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b061.png?v=1711130801203)

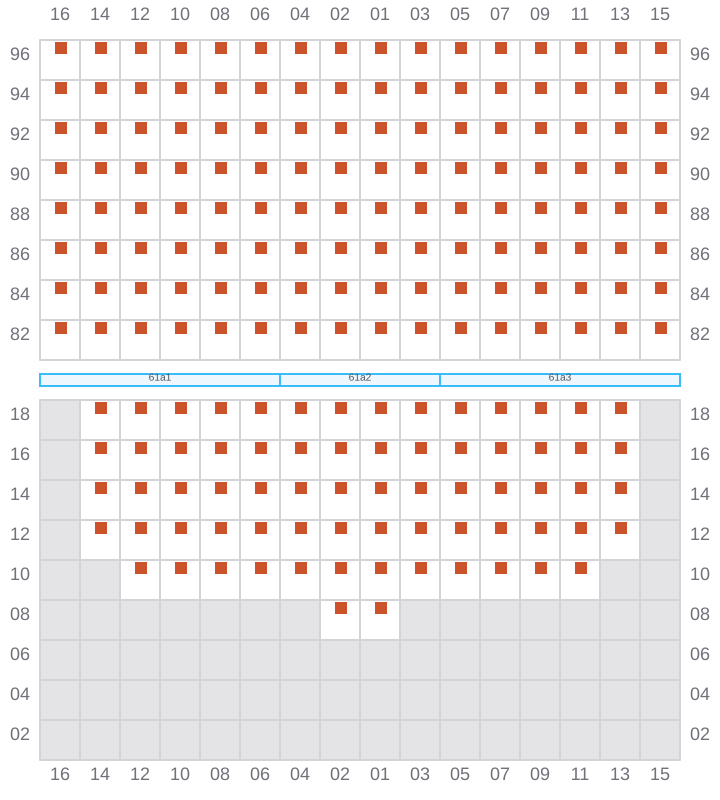

063
- ←
- ? / ←
![Bay 063 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b063.png?v=1711130801203)

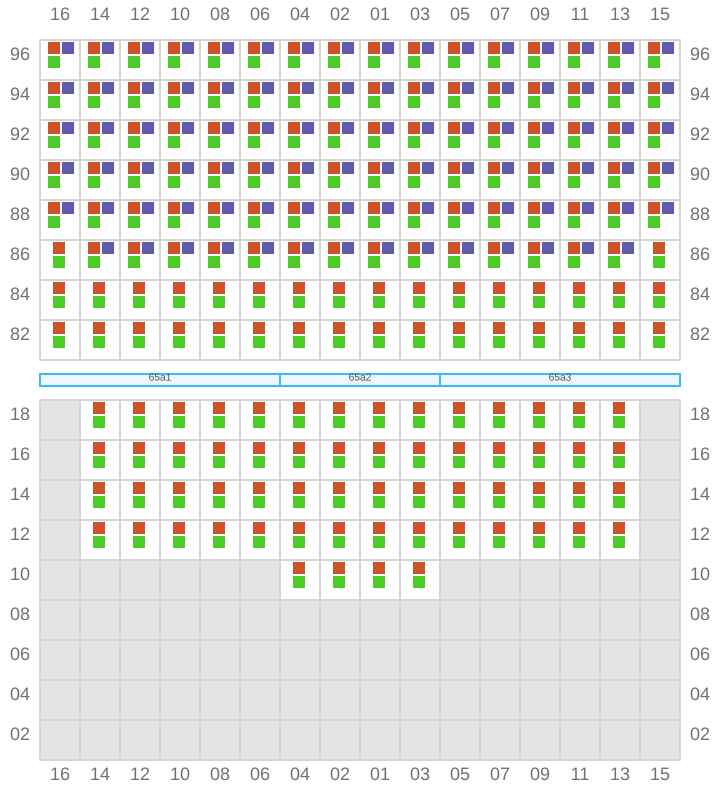

065 (066)
- →
- ? / ←
![Bay 065 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b065.png?v=1711130801203)

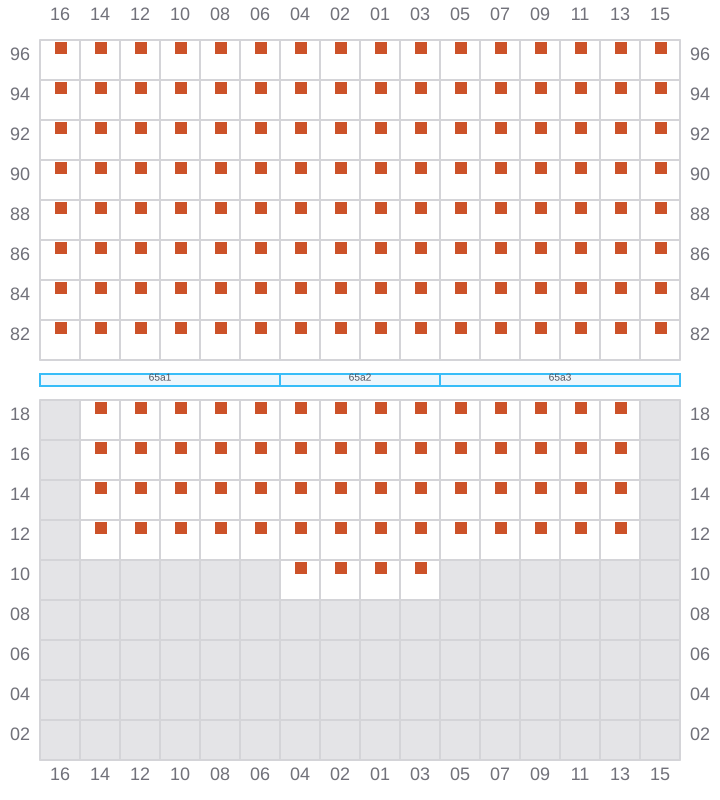

067
- ←
- ? / ←
![Bay 067 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b067.png?v=1711130801203)

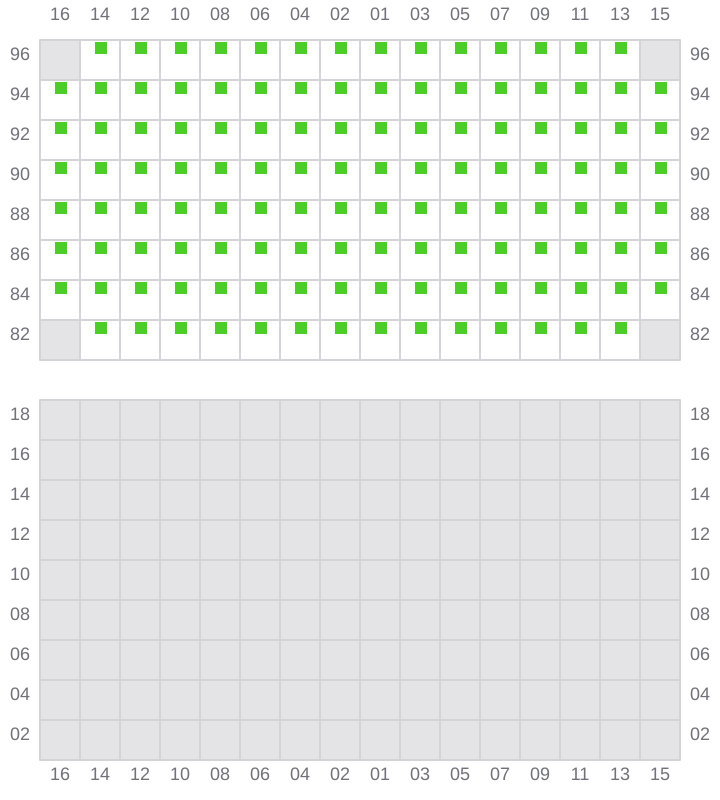

069 (070)
- → / ?
![Bay 069 view and slots of MAERSK KINLOSS](/vessel-images/49fd551f-1c37-46c7-9ee0-eee8b5a71e52-b069.png?v=1711130801203)
